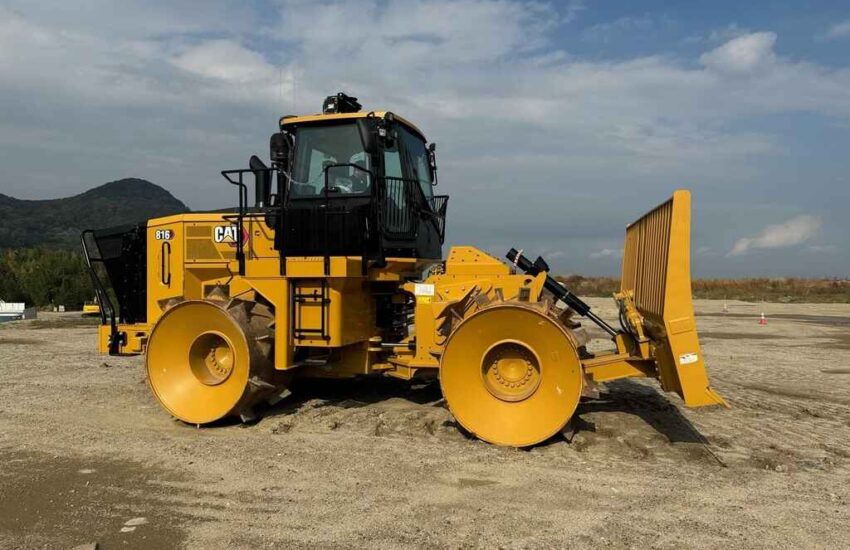

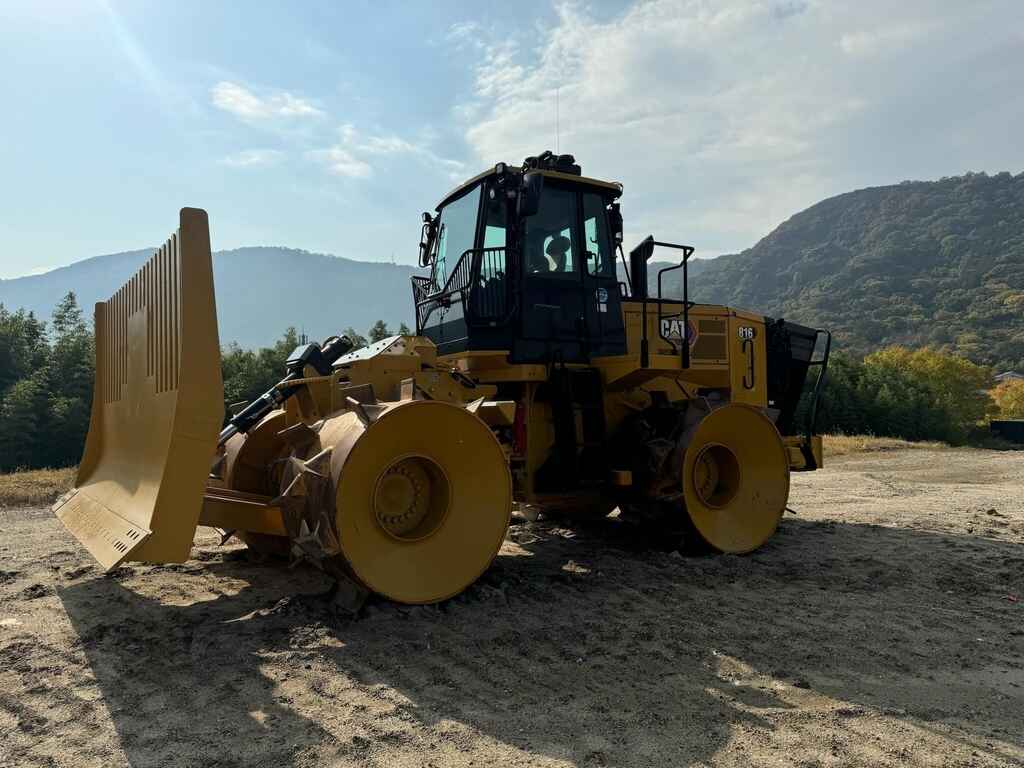

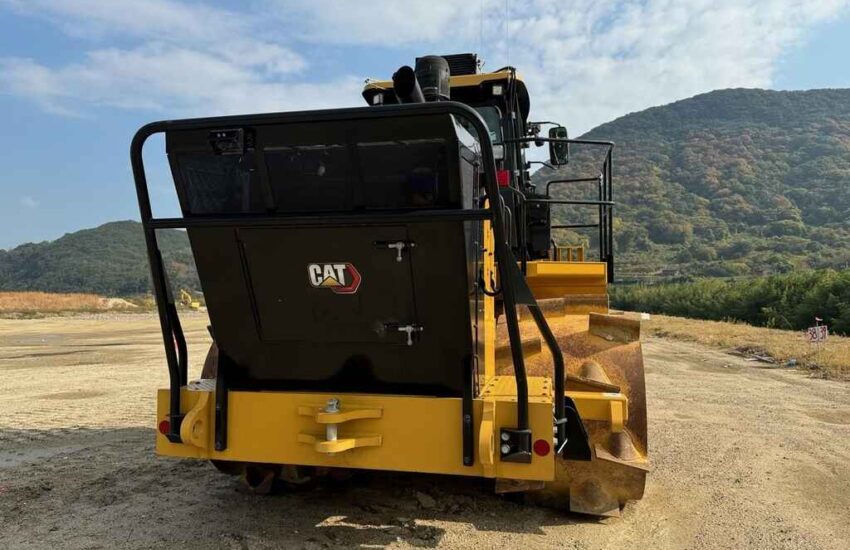

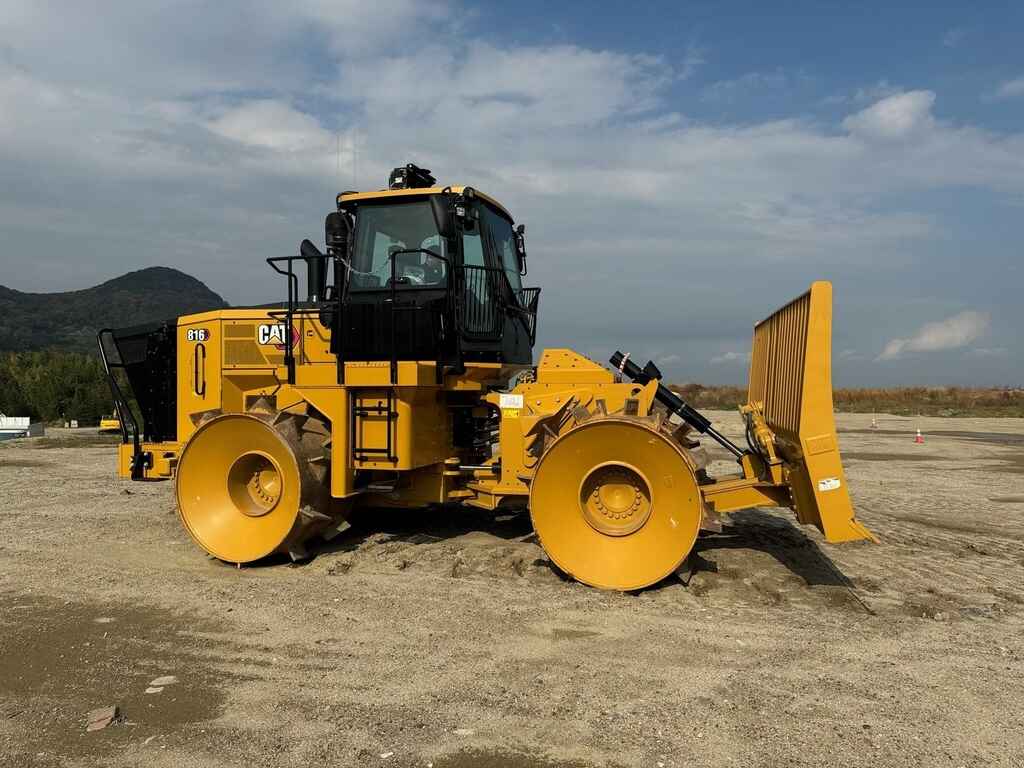

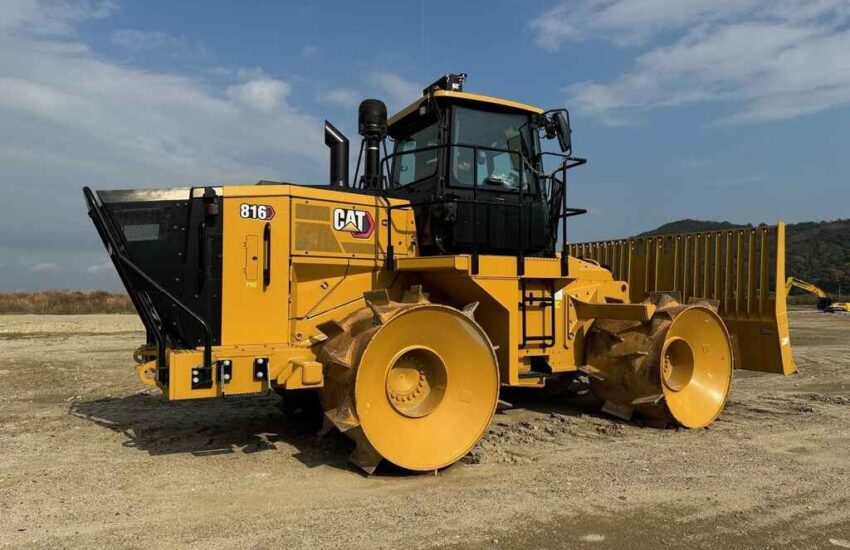

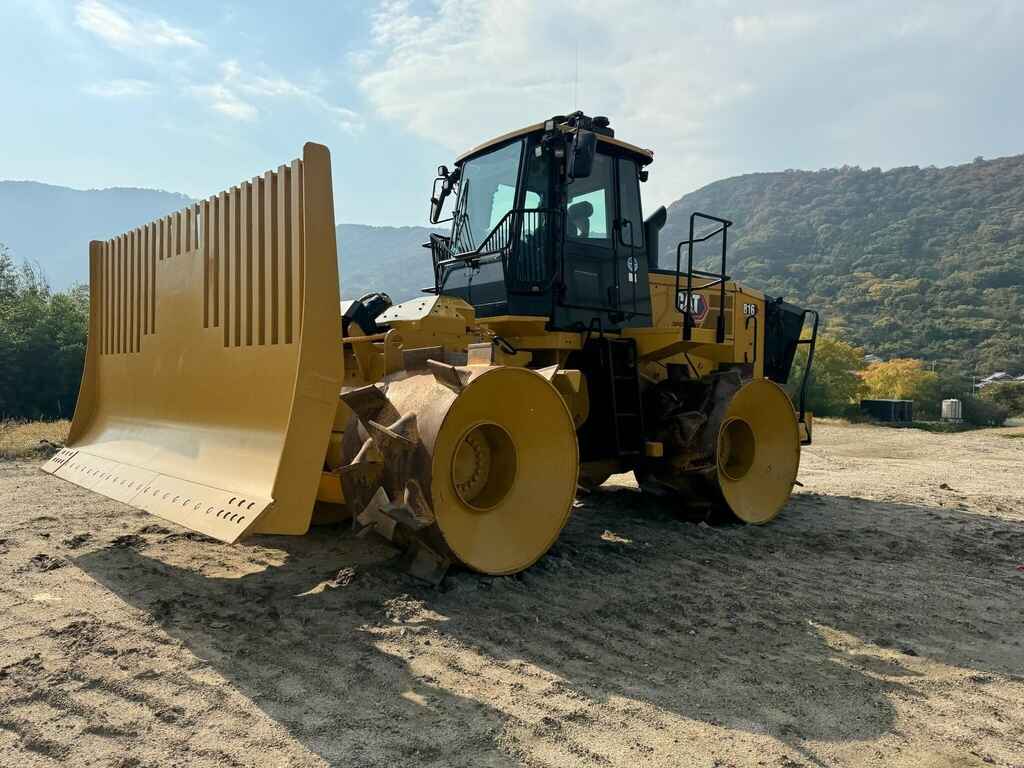

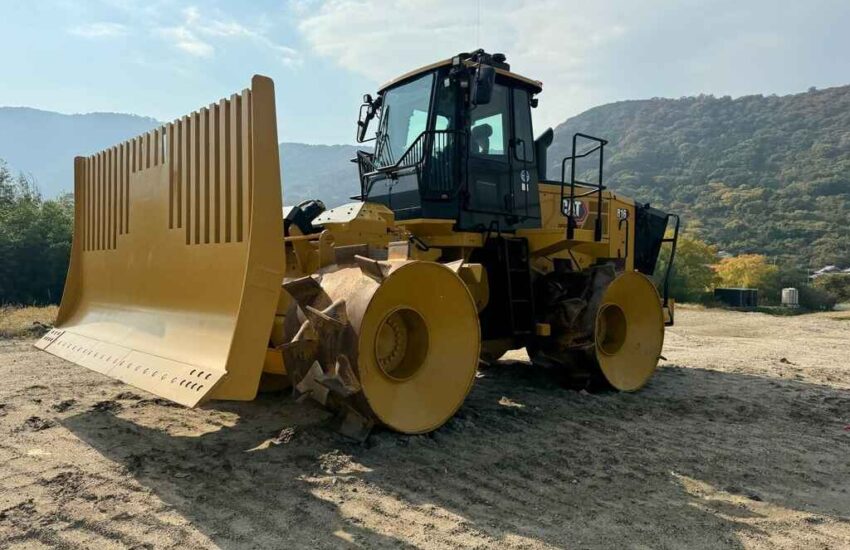

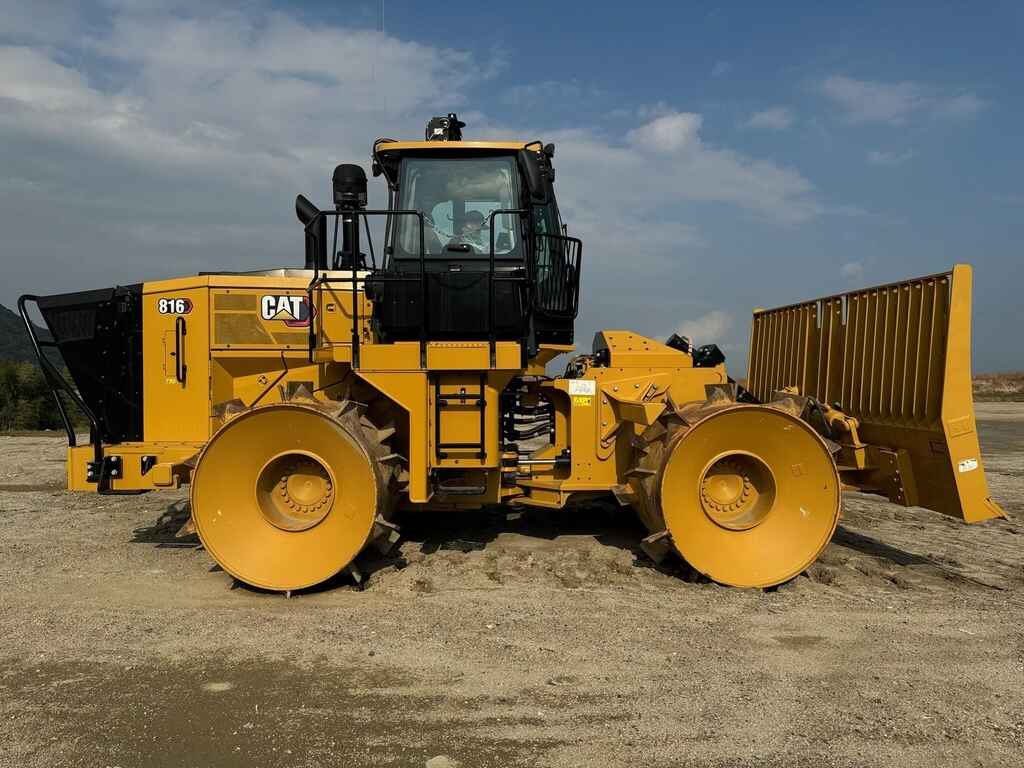

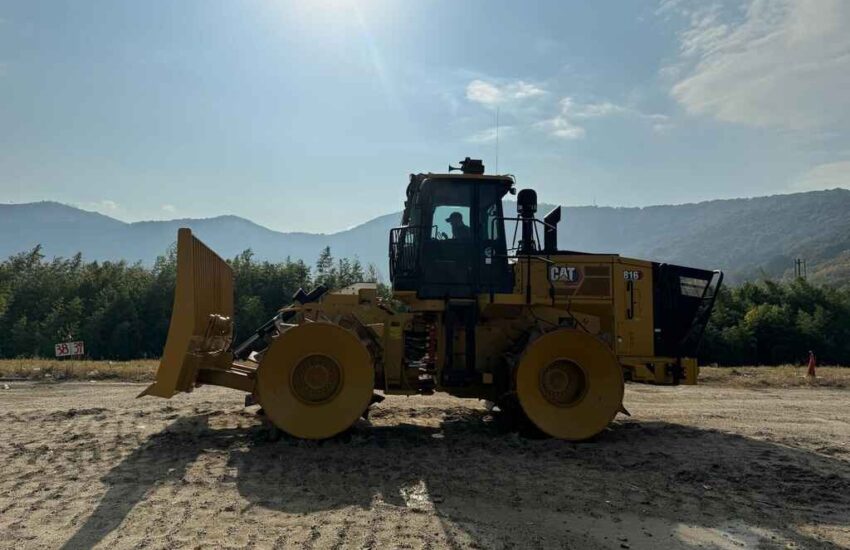

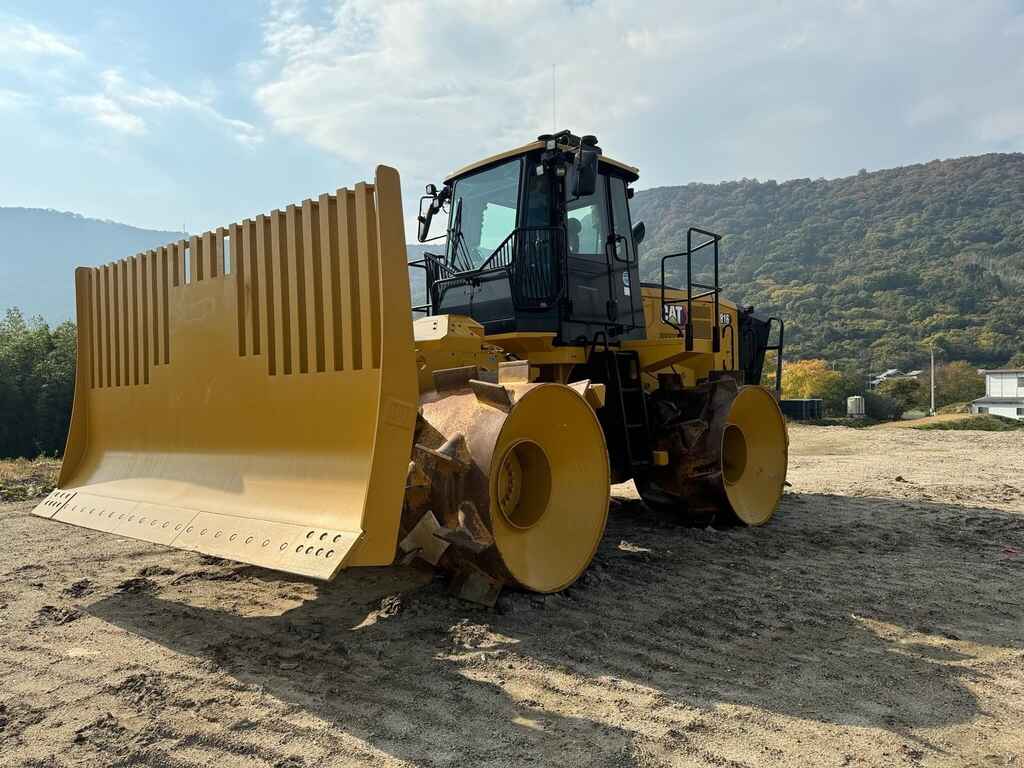

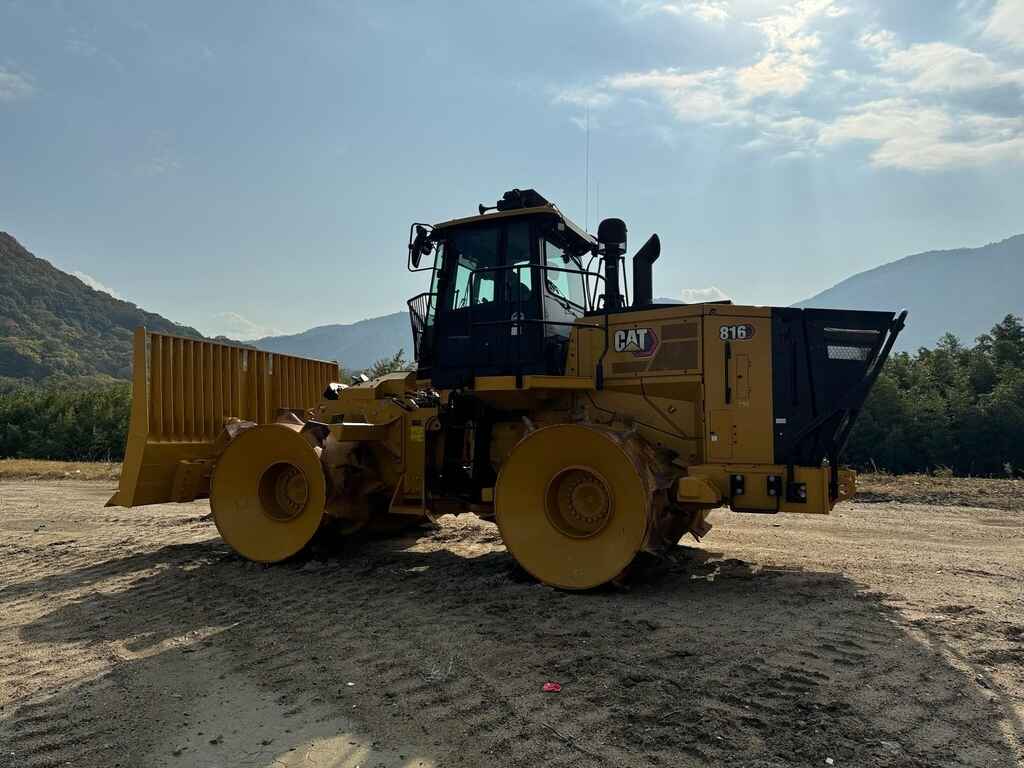

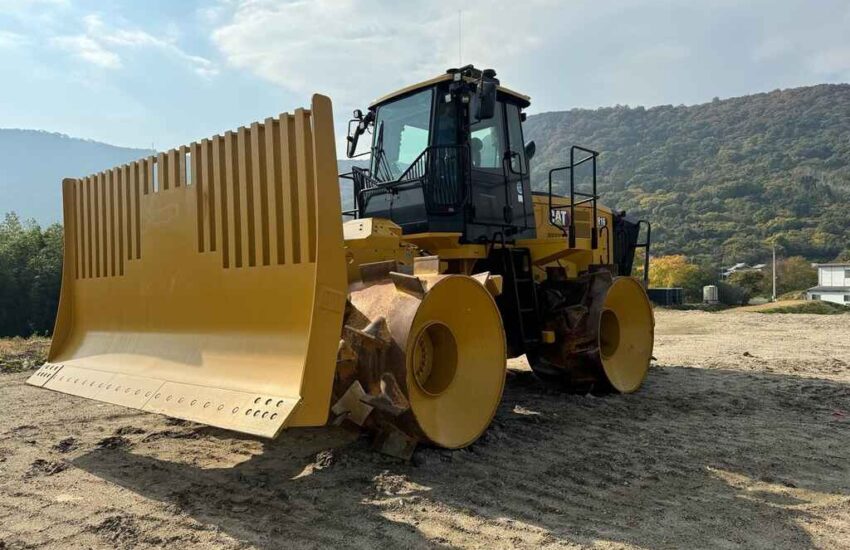

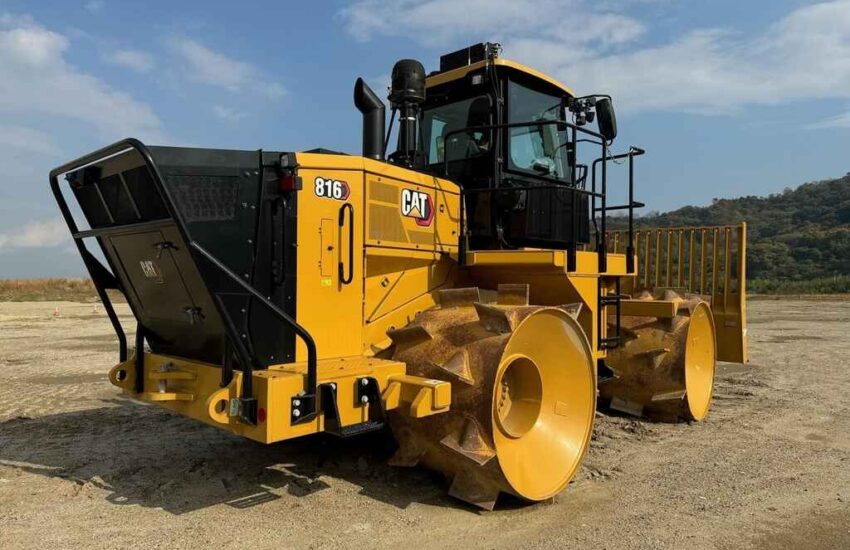

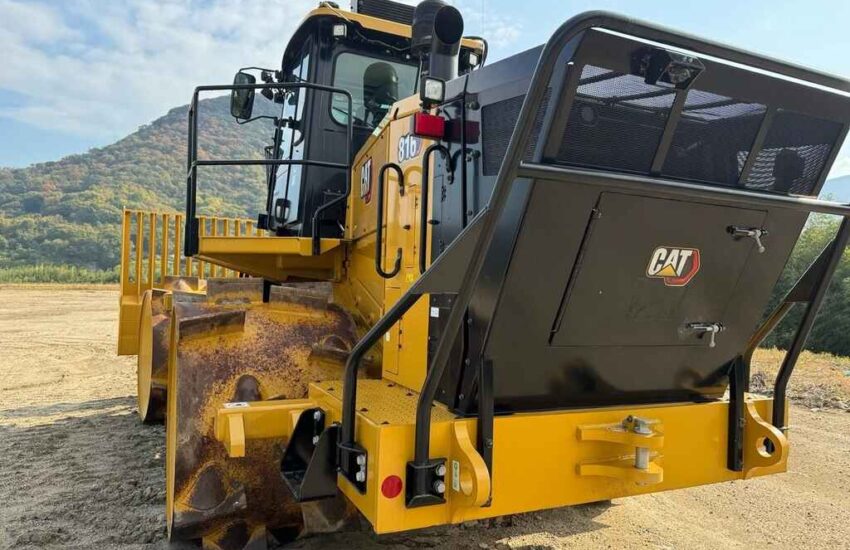

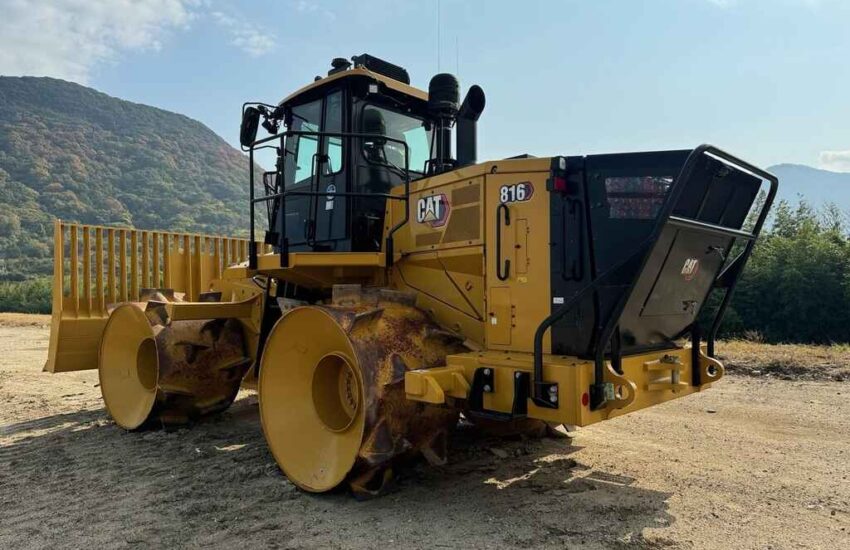

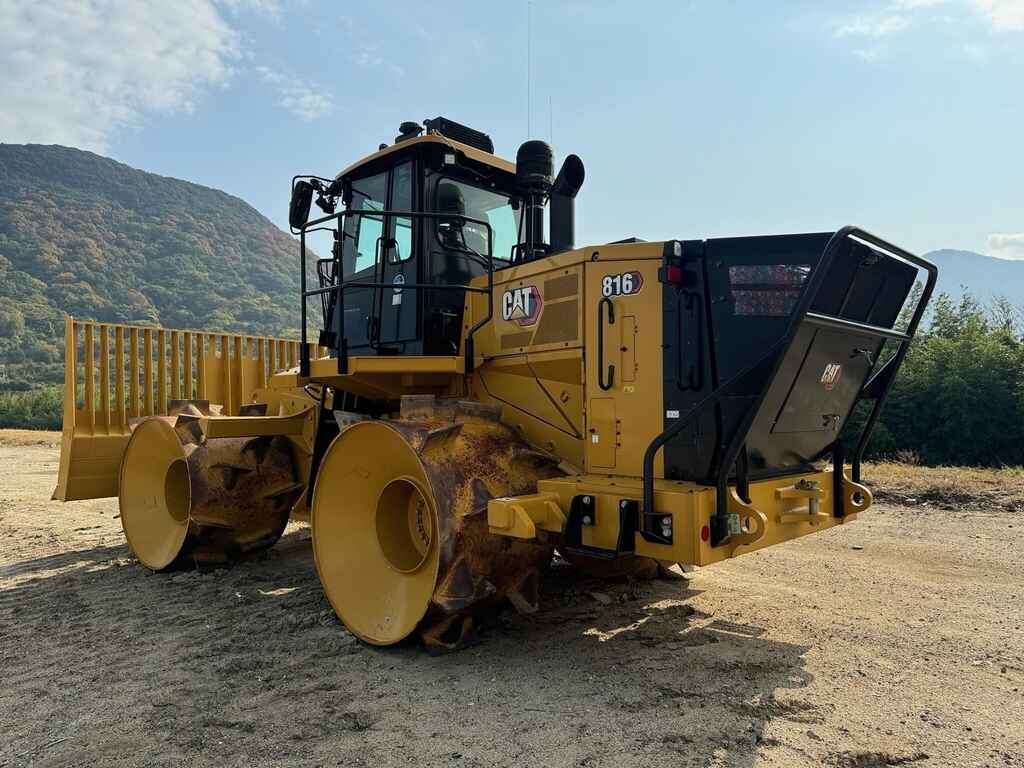

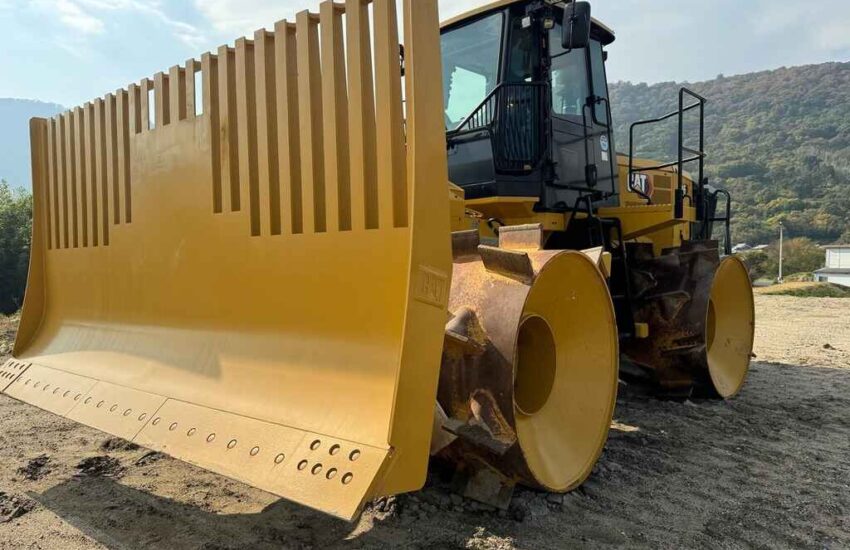

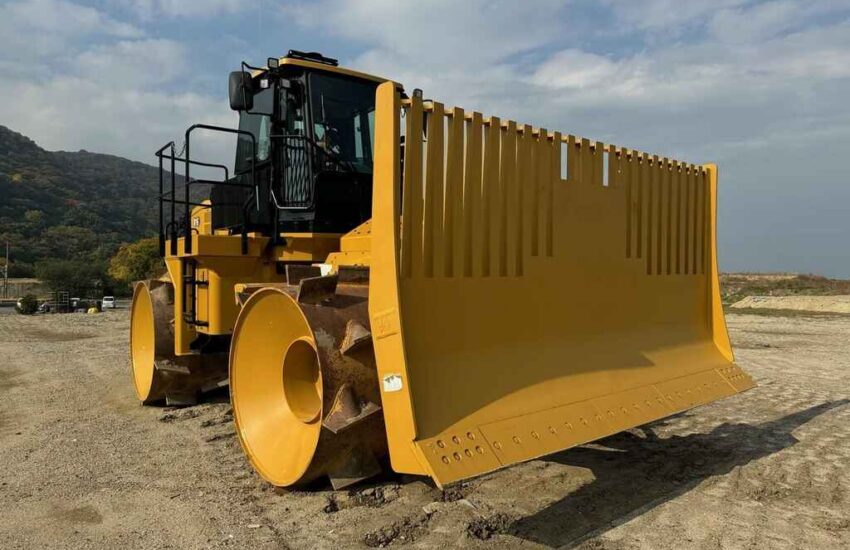

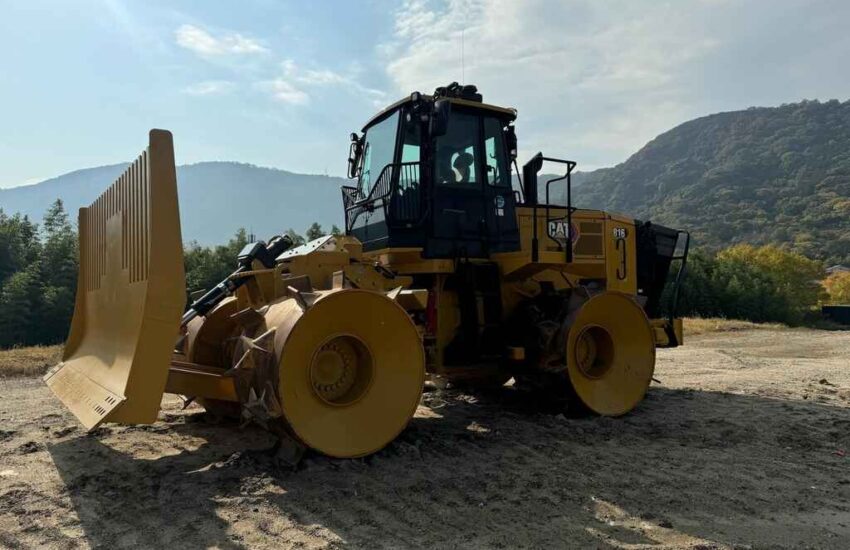

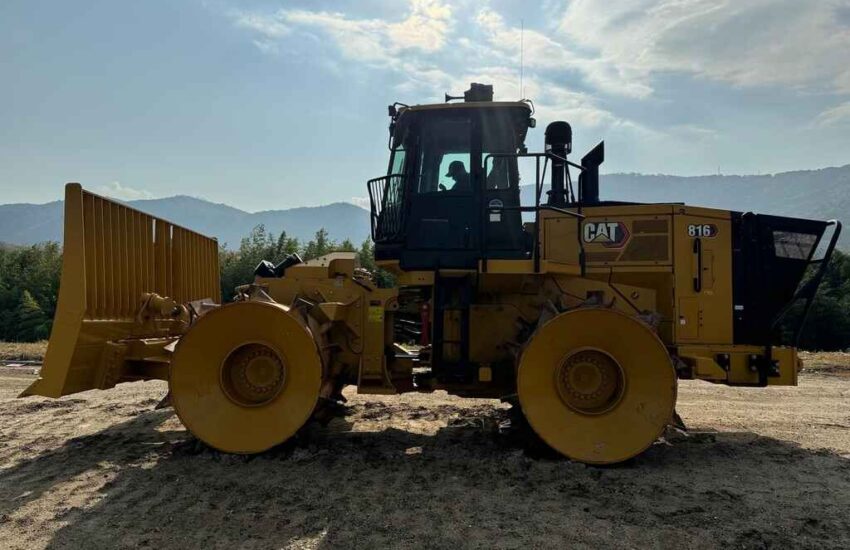

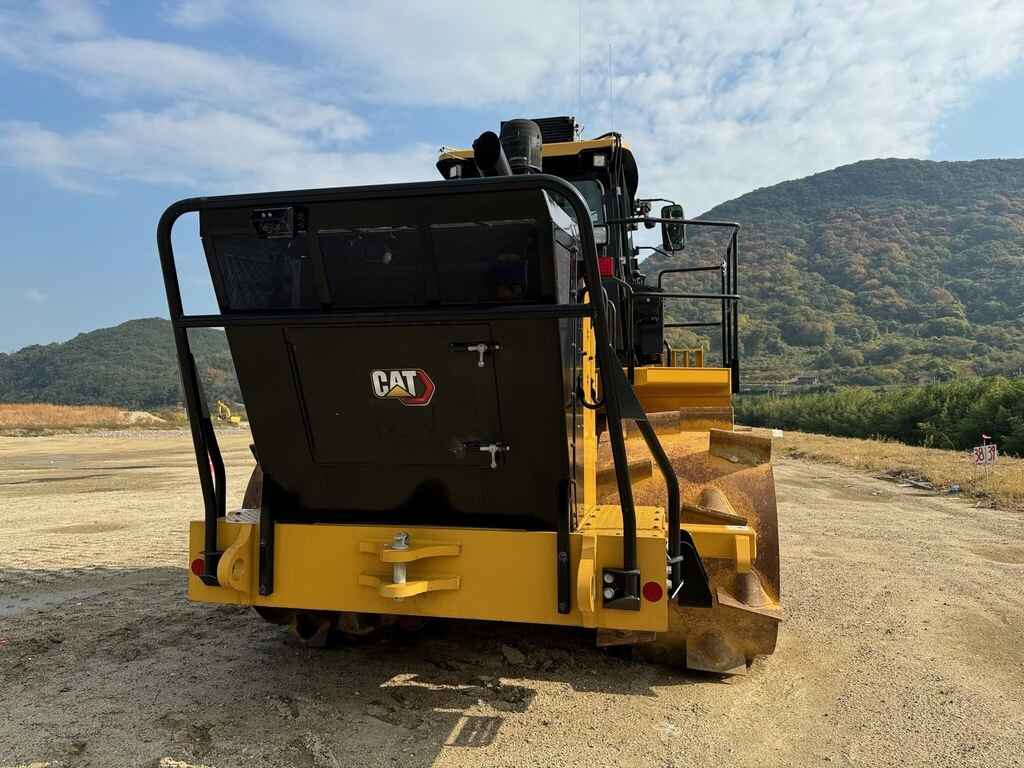

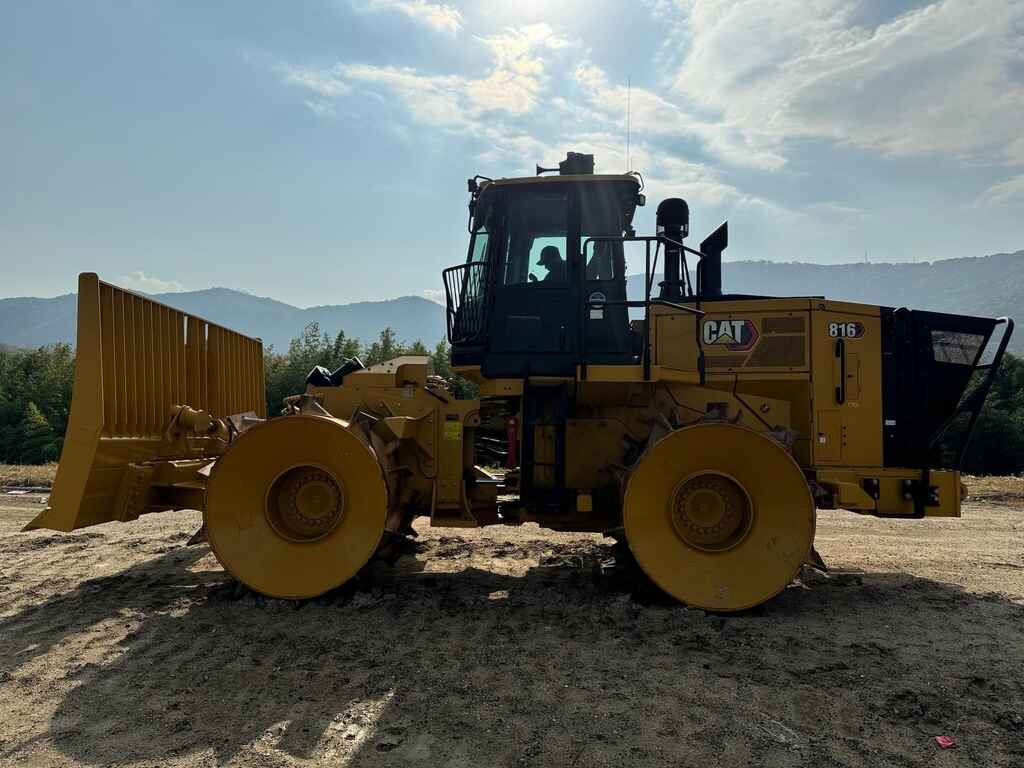

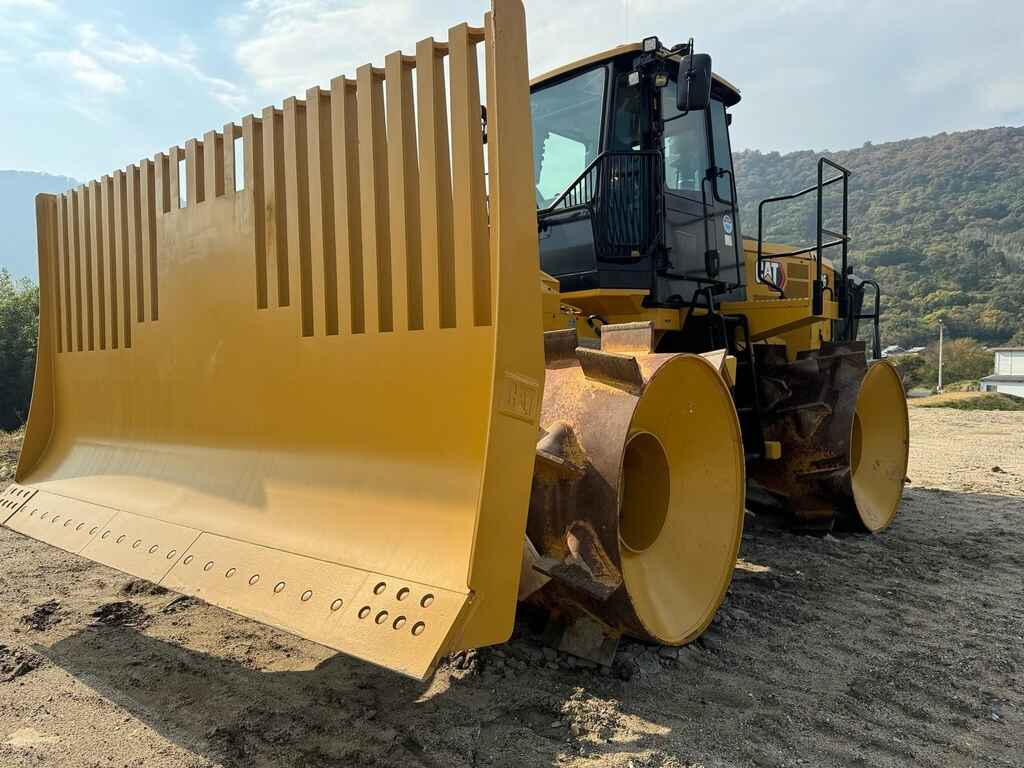

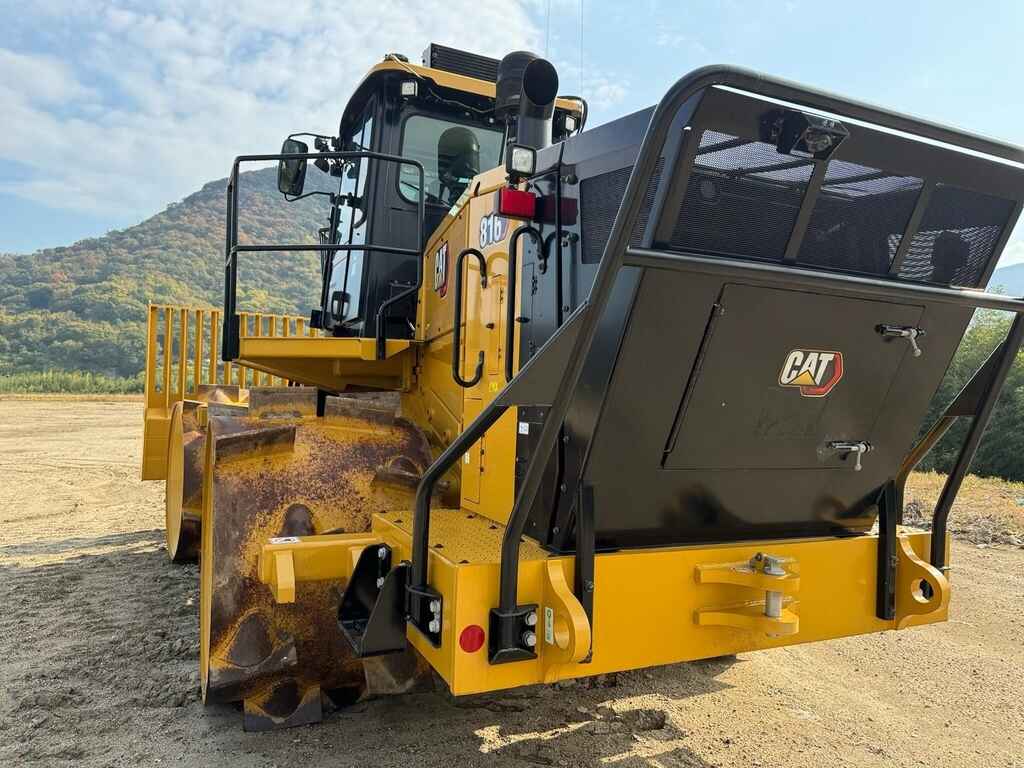

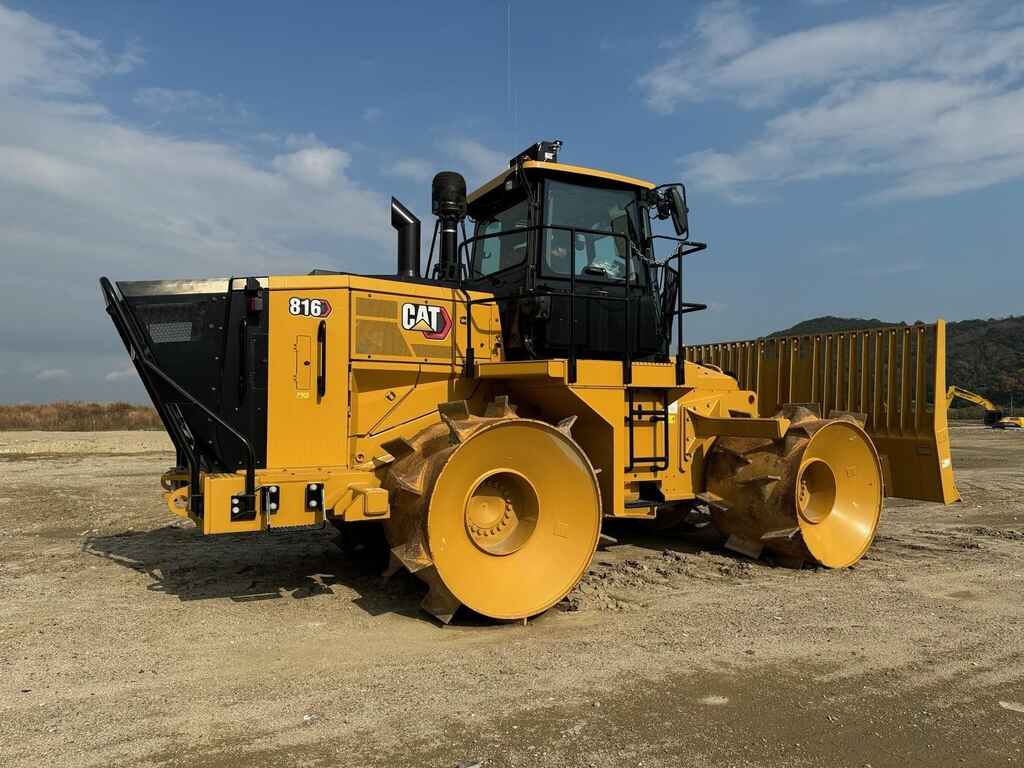

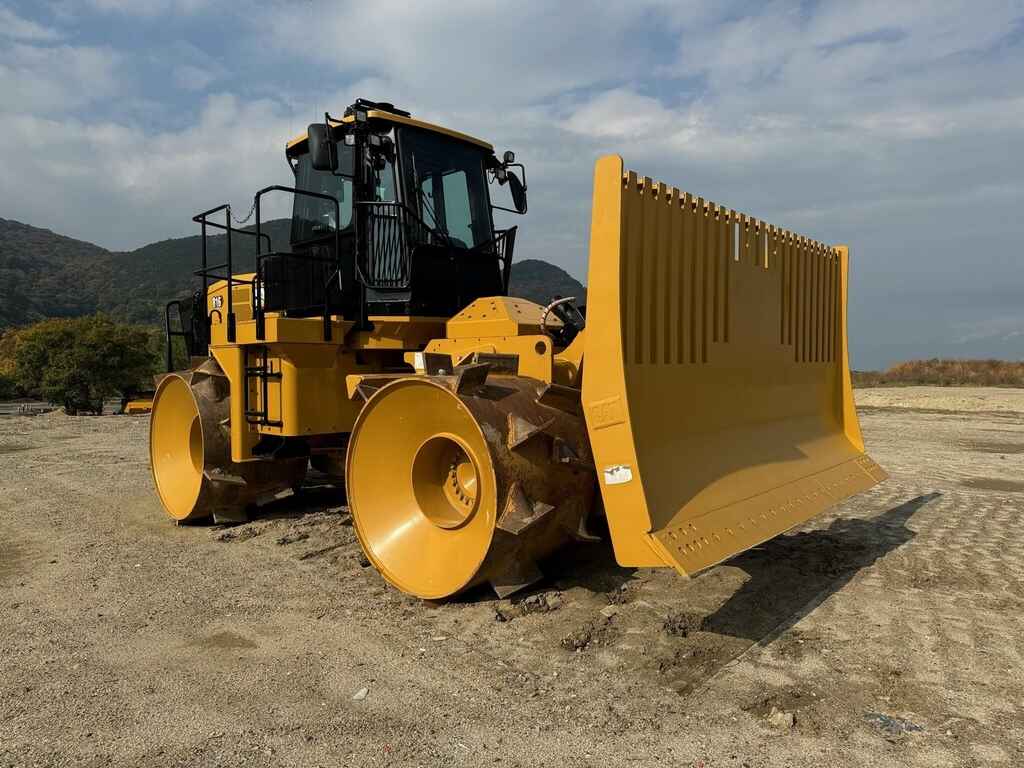

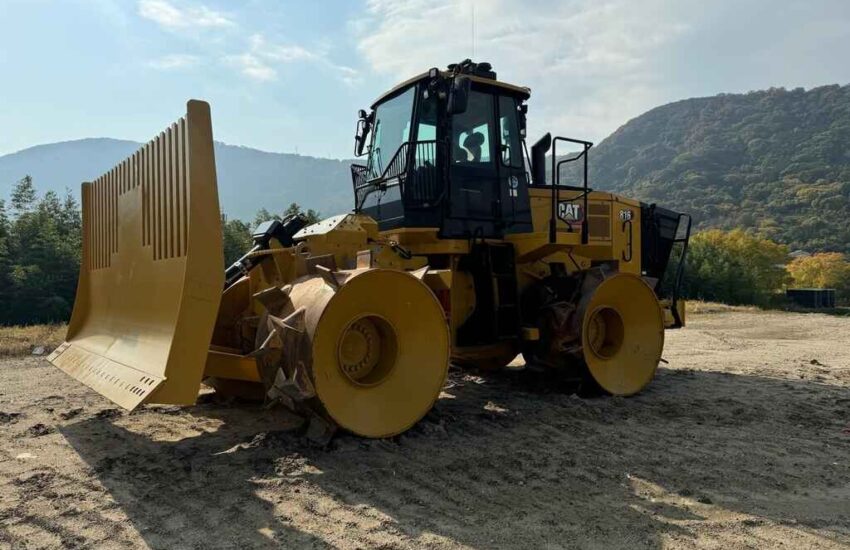

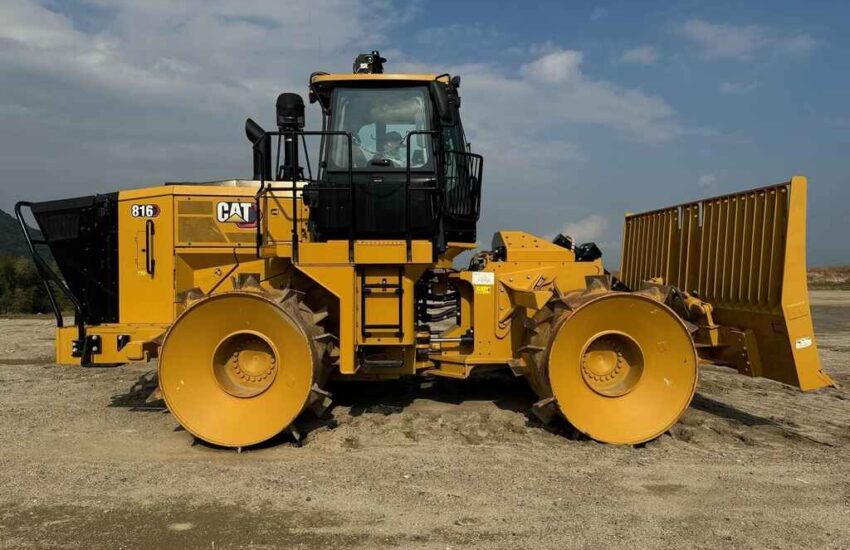

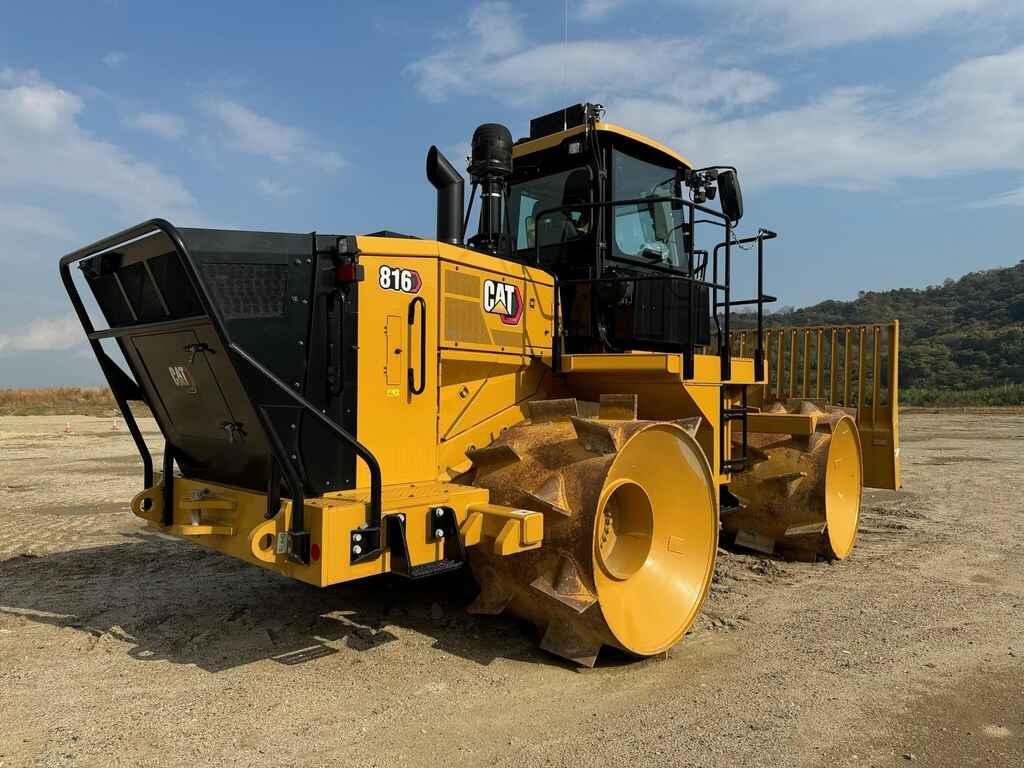

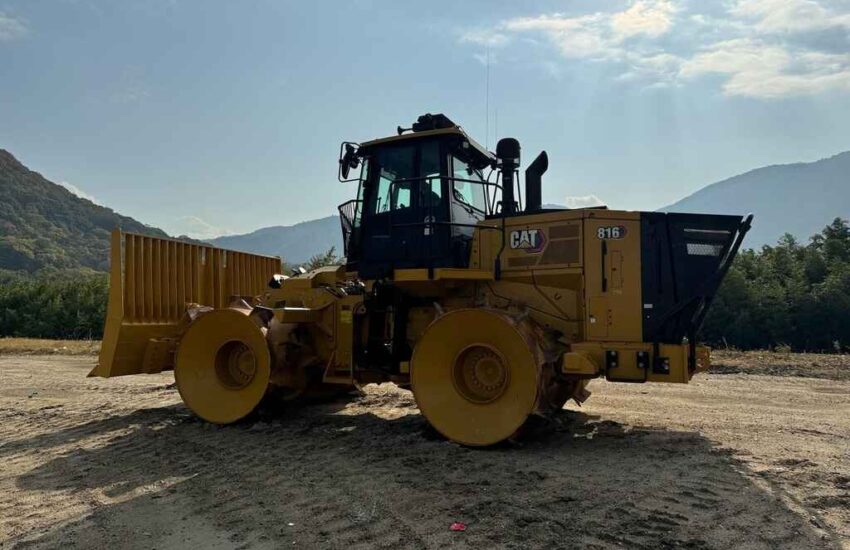

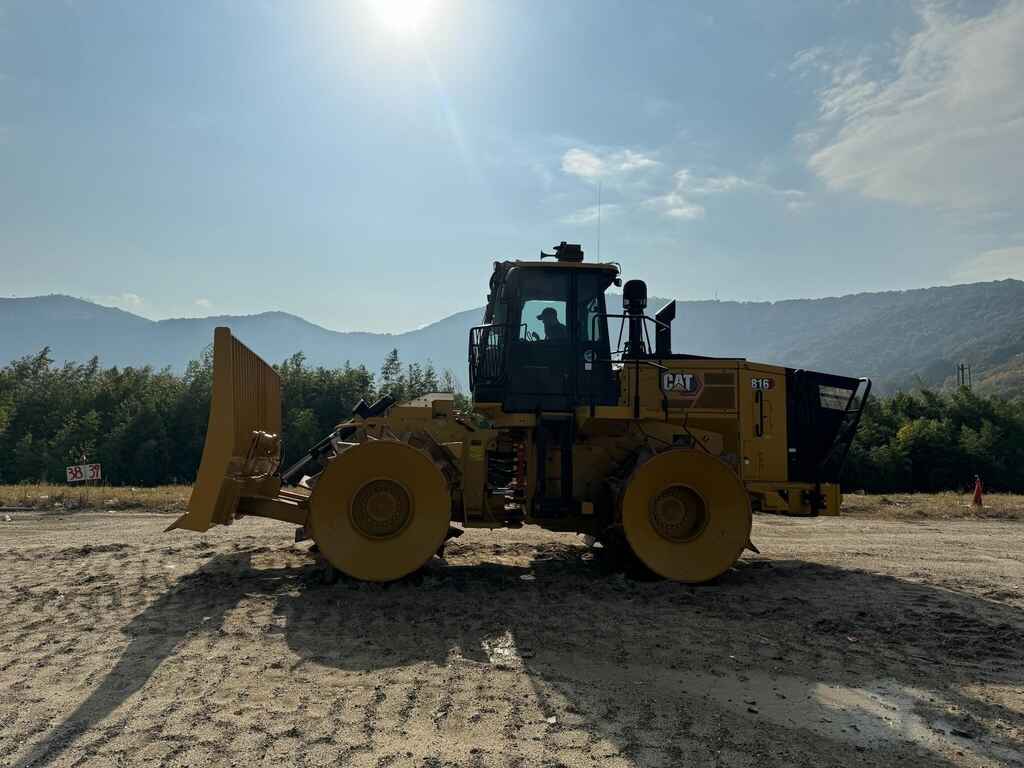

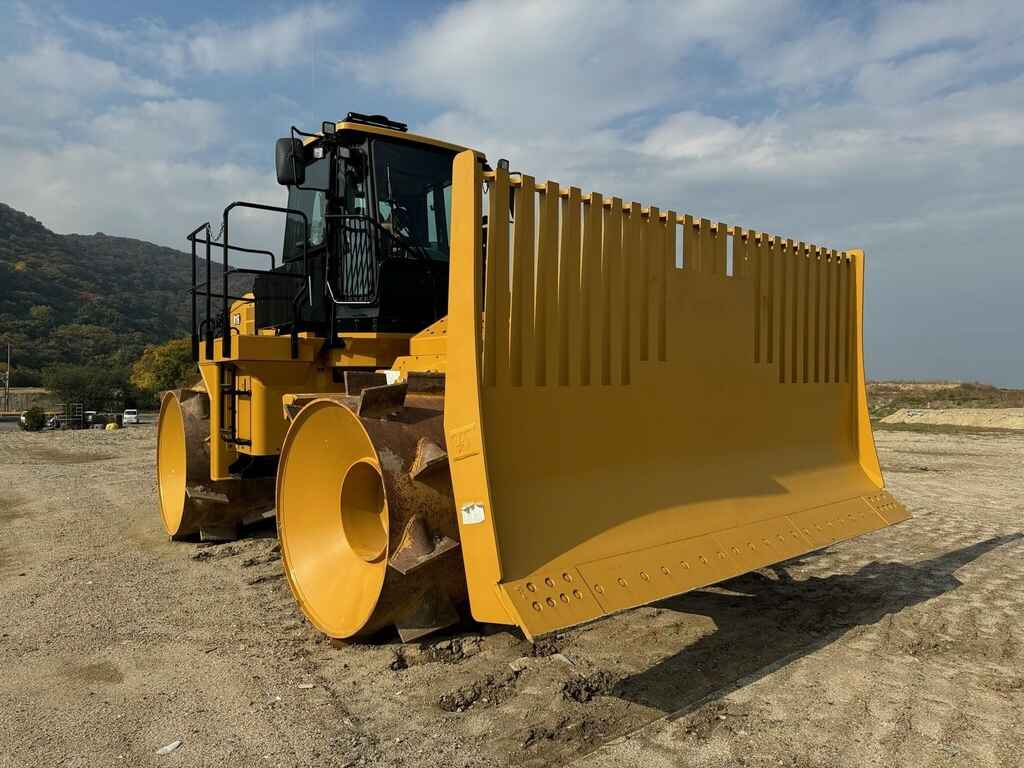

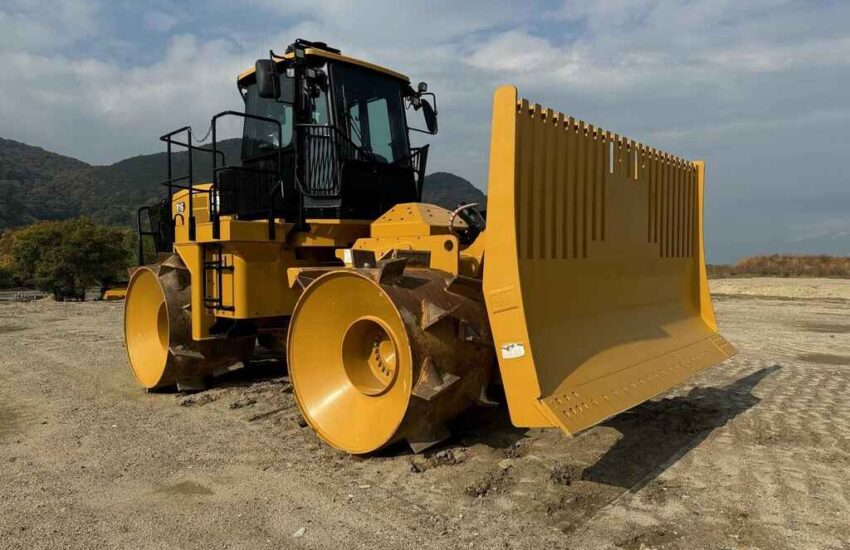

2023 Caterpillar 816

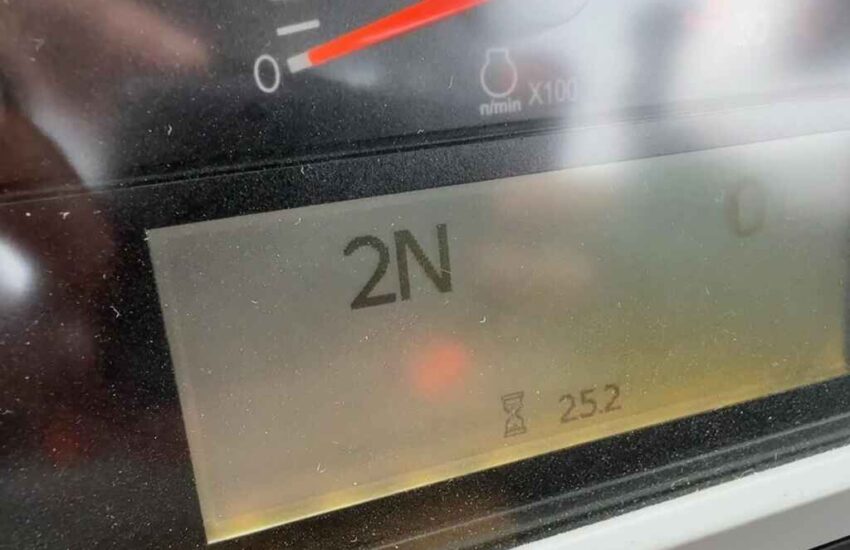

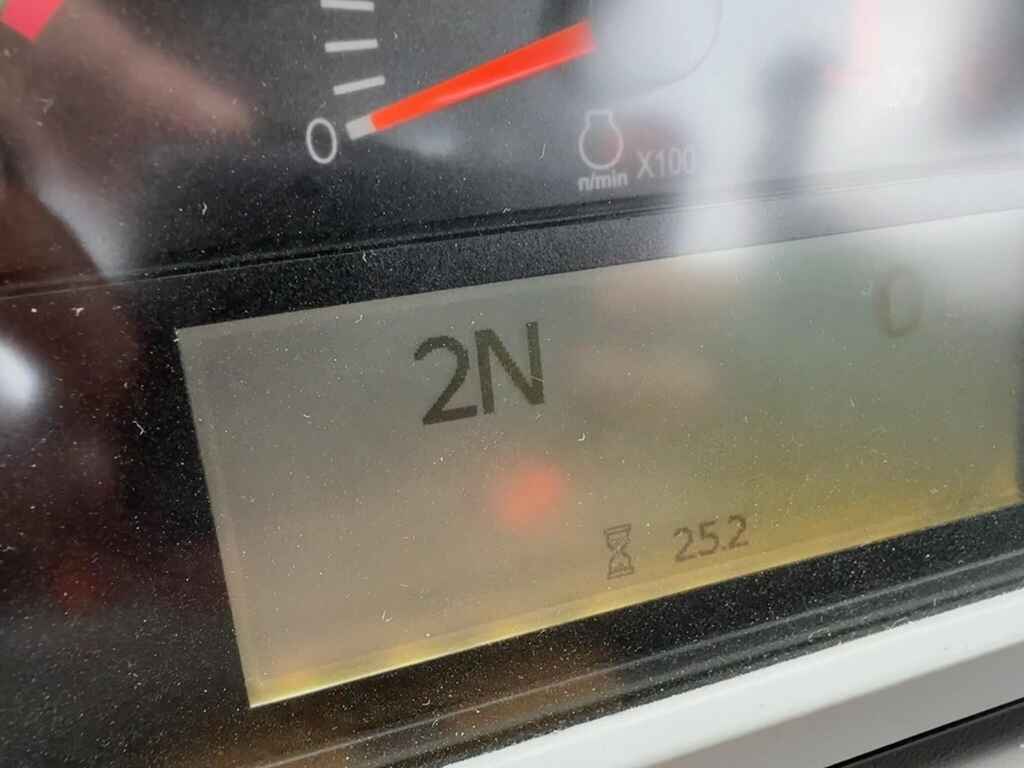

This 2023 Caterpillar 816 is a high-performance, used machine with only 25 hours of operation, offering like-new capabilities at a competitive price. Powered by the reliable Cat C7.1 engine, it meets U.S. EPA Tier 4 Final emissions standards, ensuring compliance with stringent environmental regulations.
Whether you’re looking to enhance your fleet or tackle tough projects, this 2023 Caterpillar 816 is a perfect choice. Contact us today for more details or to arrange a viewing!

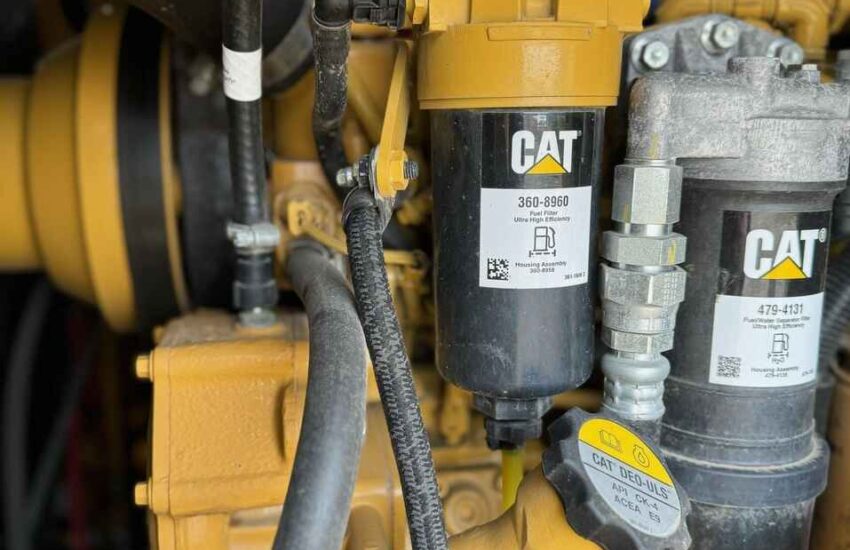

Engine Overview:

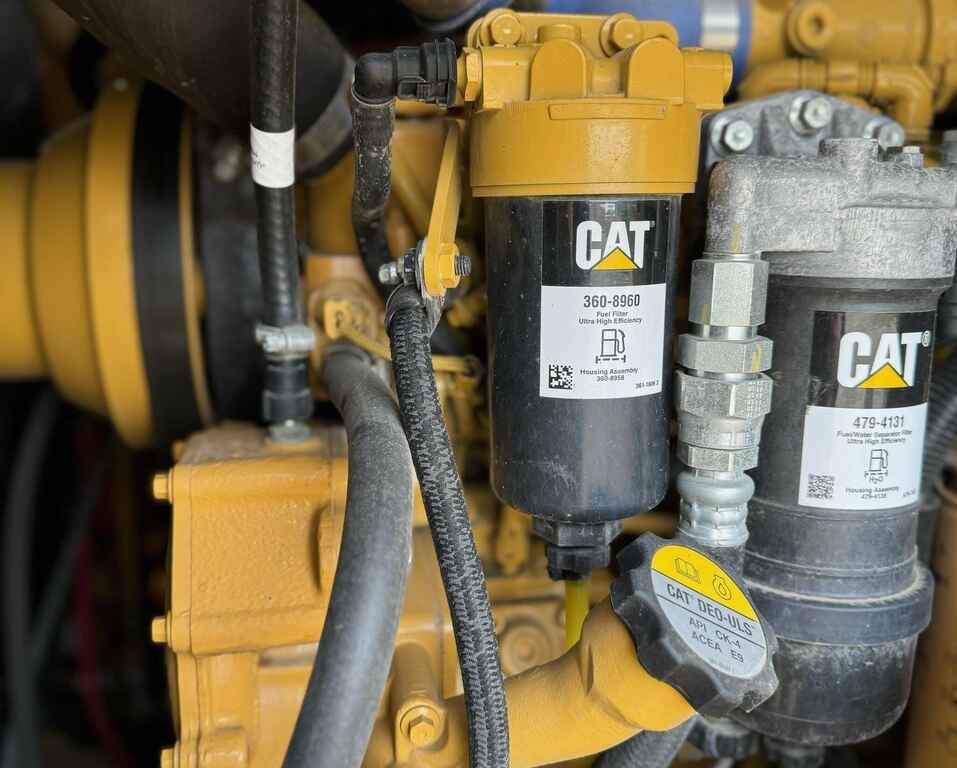

Engine Model: Cat C7.1
Gross Power (SAE J1995:2014): 284 hp
Net Power (SAE J1349:2011): 249 hp
Net Power (ISO 9249:2007): 249 hp
Engine Power (ISO 14396:2002): 275 hp
Rated Speed: 2200 rpm
Peak Torque (1,400 rpm): 902 ft-lb
Torque Rise: 52%
Bore: 4.1 in (104 mm)
Stroke: 5.3 in (135 mm)
Displacement: 427.8 in³ (7.0 L)
High Idle Speed: 2270 rpm
Low Idle Speed: 800 rpm
Maximum Altitude without Derating: 9,842.5 ft (3,000 m)
Emissions Compliance:
Meets U.S. EPA Tier 4 Final / EU Stage V / Japan 2014 / Korea Tier 4 Final
Compliant with U.S. EPA Tier 4 Final emissions standards.
Operating Specifications:
Operating Weight: 57,345 lb
Transmission:
Transmission Type: Cat Planetary Power Shift
Travel Speeds (Forward):
First: 4.1 mile/h
Second: 7.5 mile/h
Travel Speeds (Reverse):
First: 4.8 mile/h
Second: 8.5 mile/h

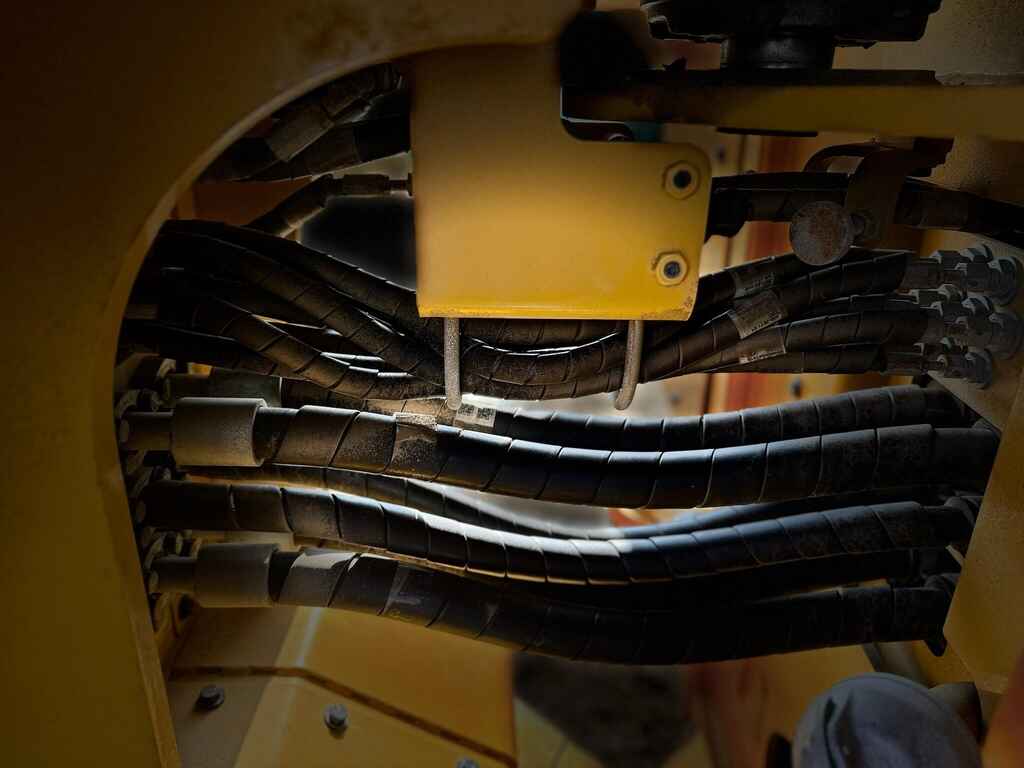

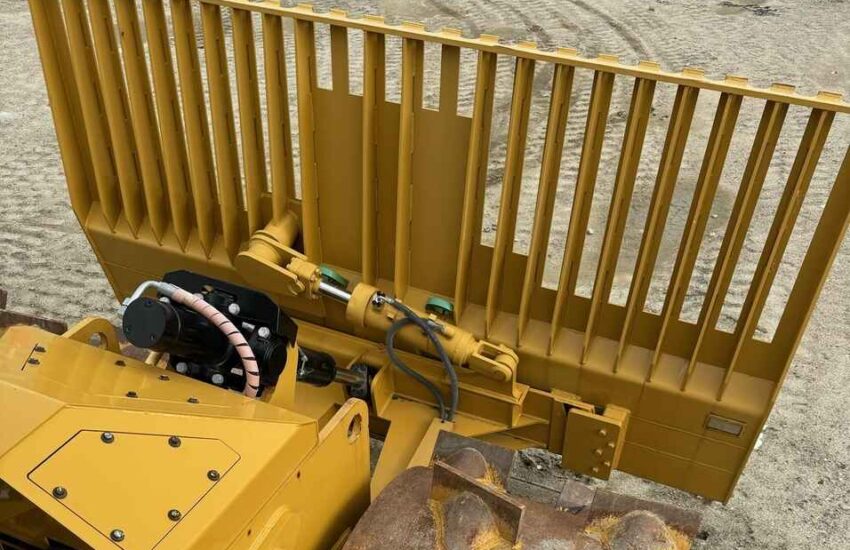

Hydraulic System – Lift/Tilt:
Lift/Tilt System – Circuit: Pilot-operated LS valve with EH
Lift/Tilt System: Variable displacement piston
Maximum Flow at 2,200 rpm: 23.5 gal/min
Relief Valve Setting – Lift/Tilt: 3,190 psi
Pilot System: Open center, fixed displacement gear
Pilot Relief Valve Setting: 3,046 psi
Hydraulic System – Steering:
Steering System – Circuit: Pilot, Load Sensing
Steering System – Pump: Piston – Variable Displacement
