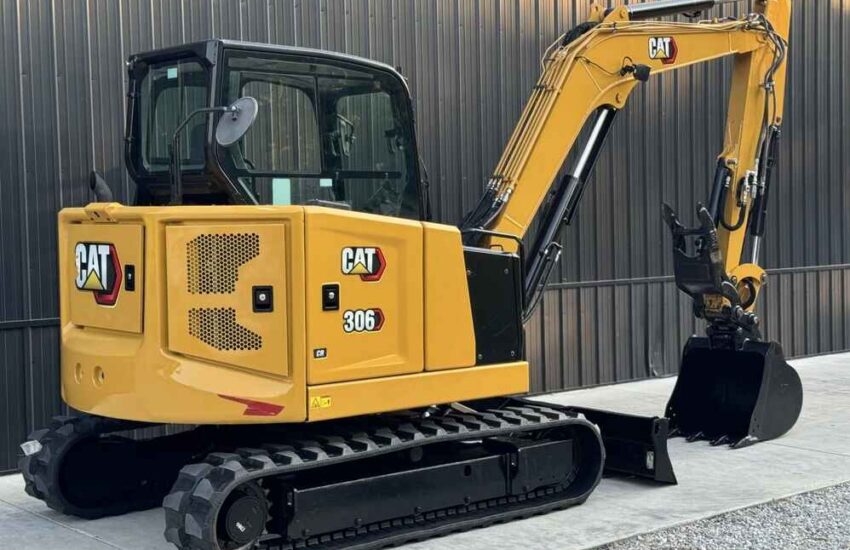

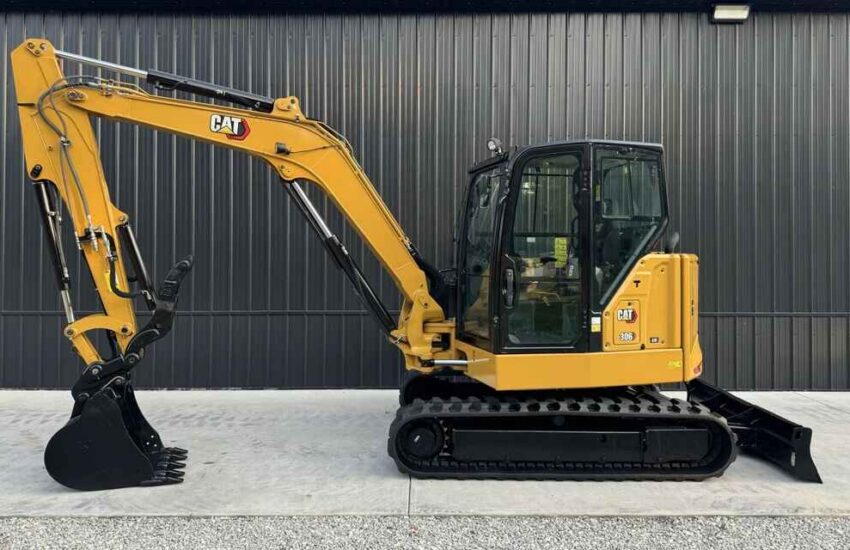

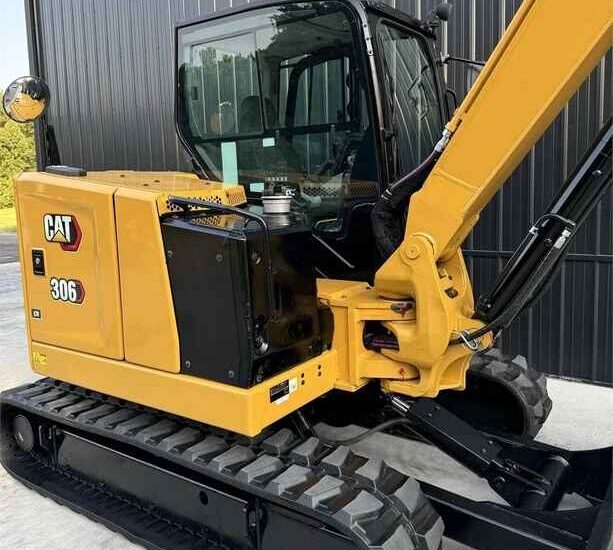

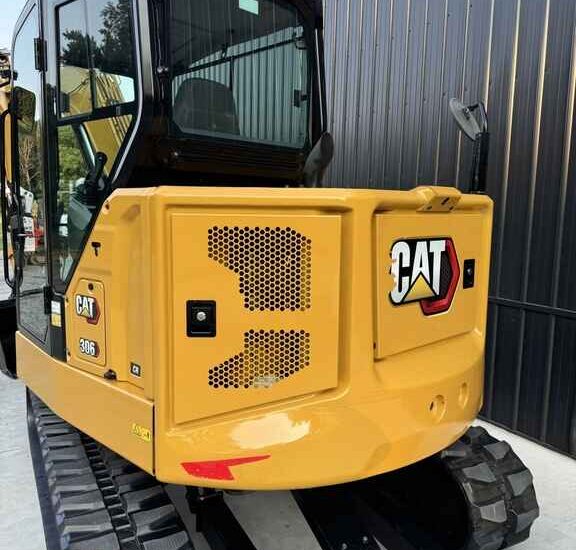

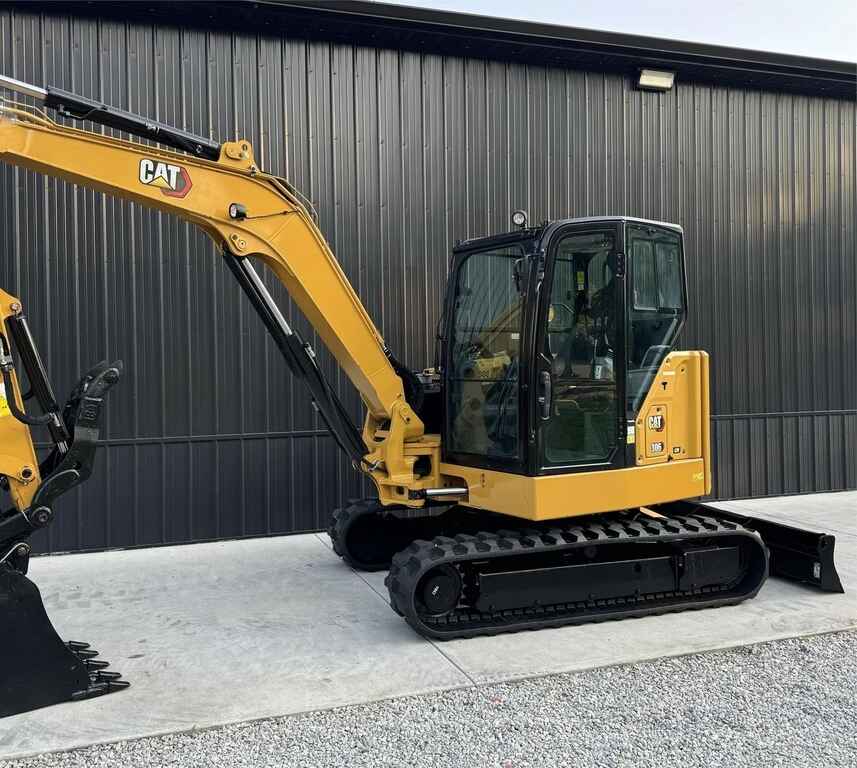

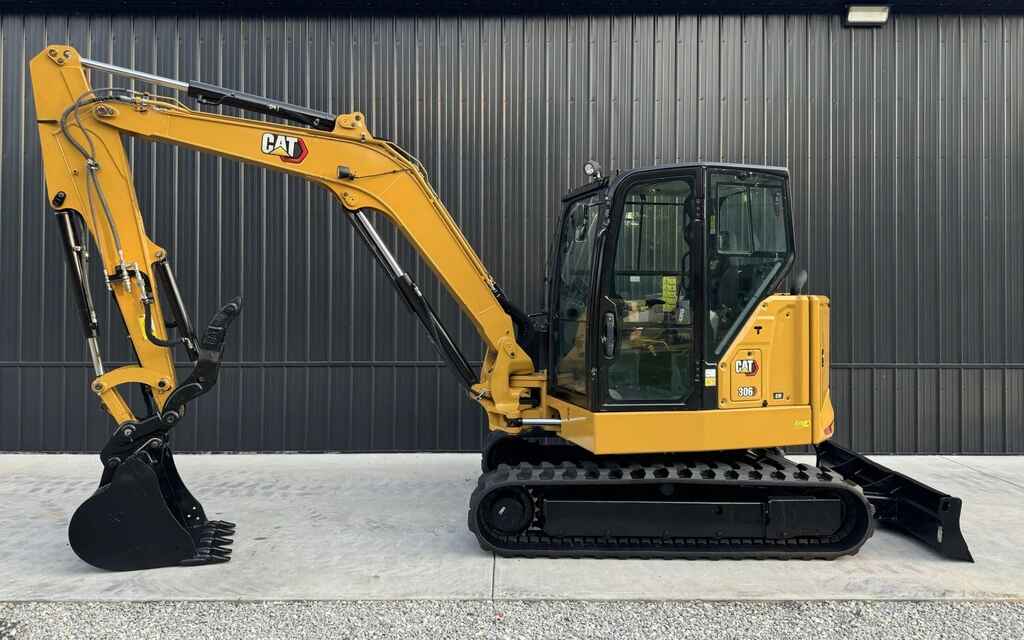

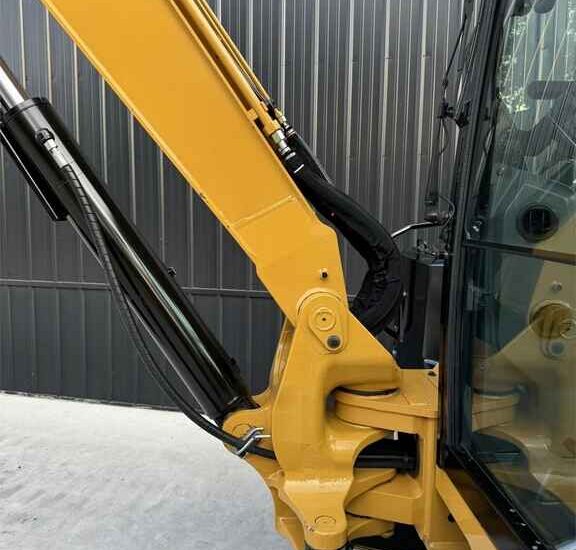

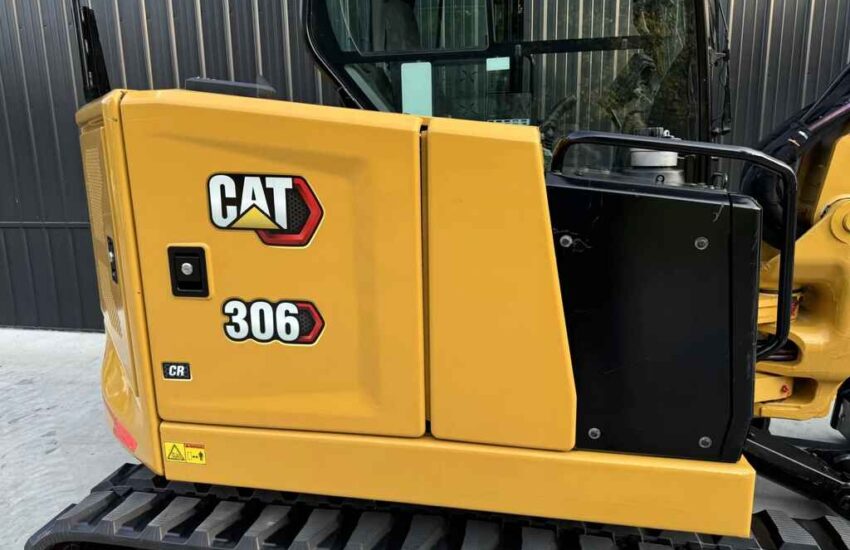

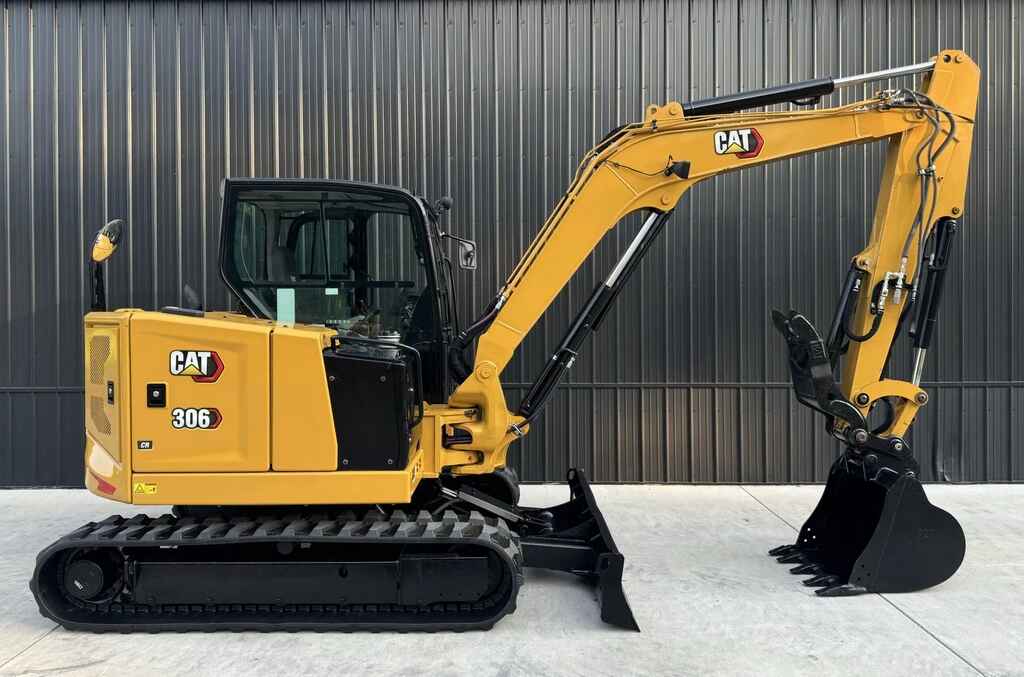

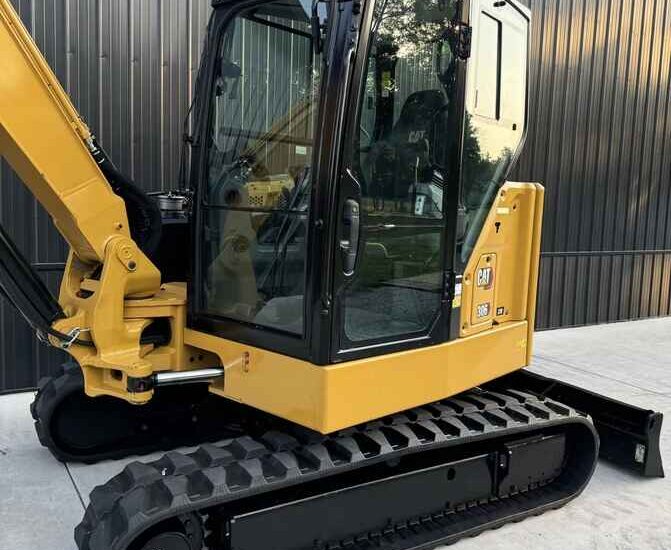

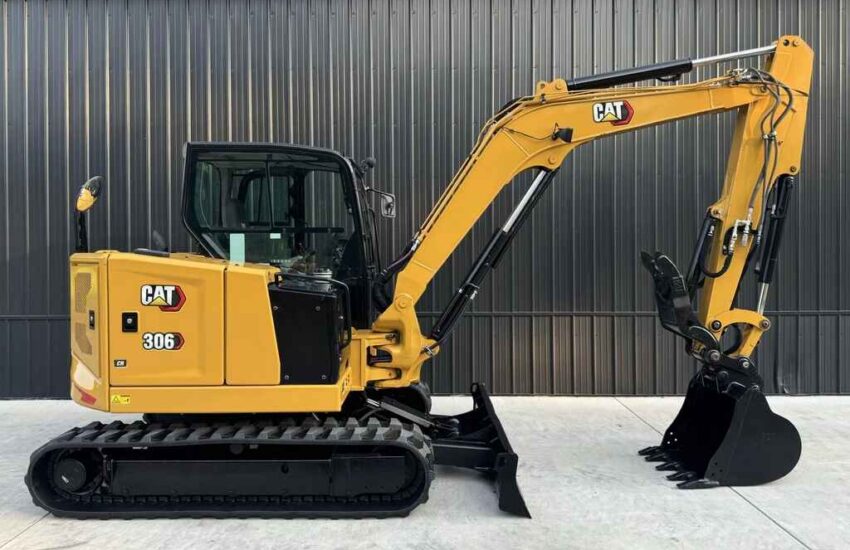

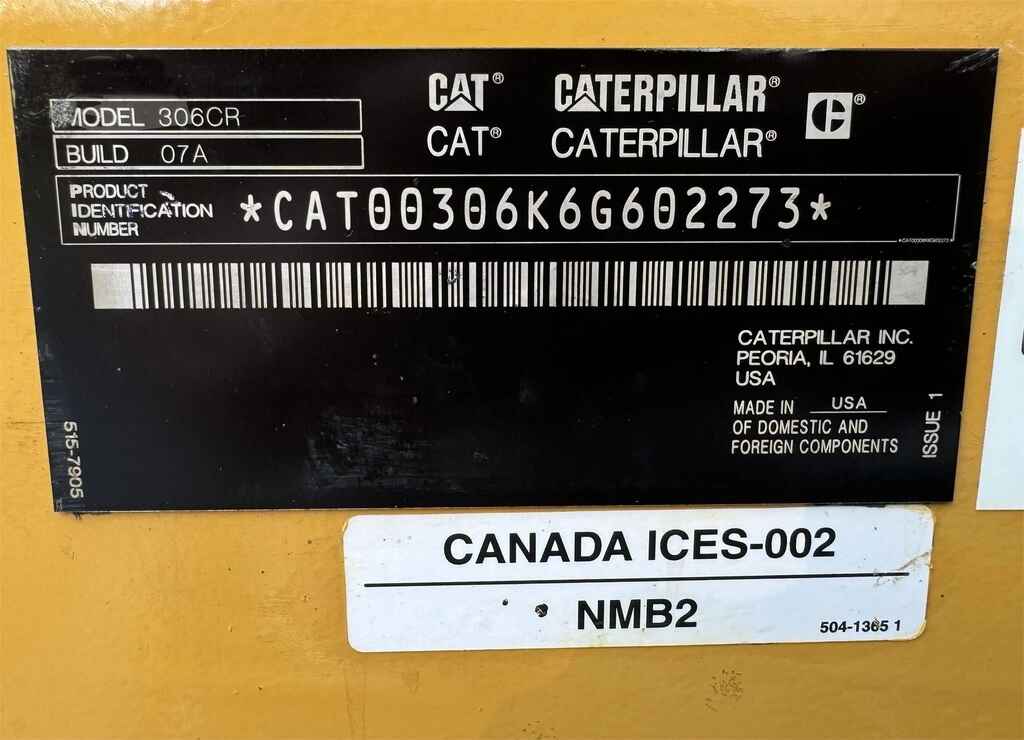

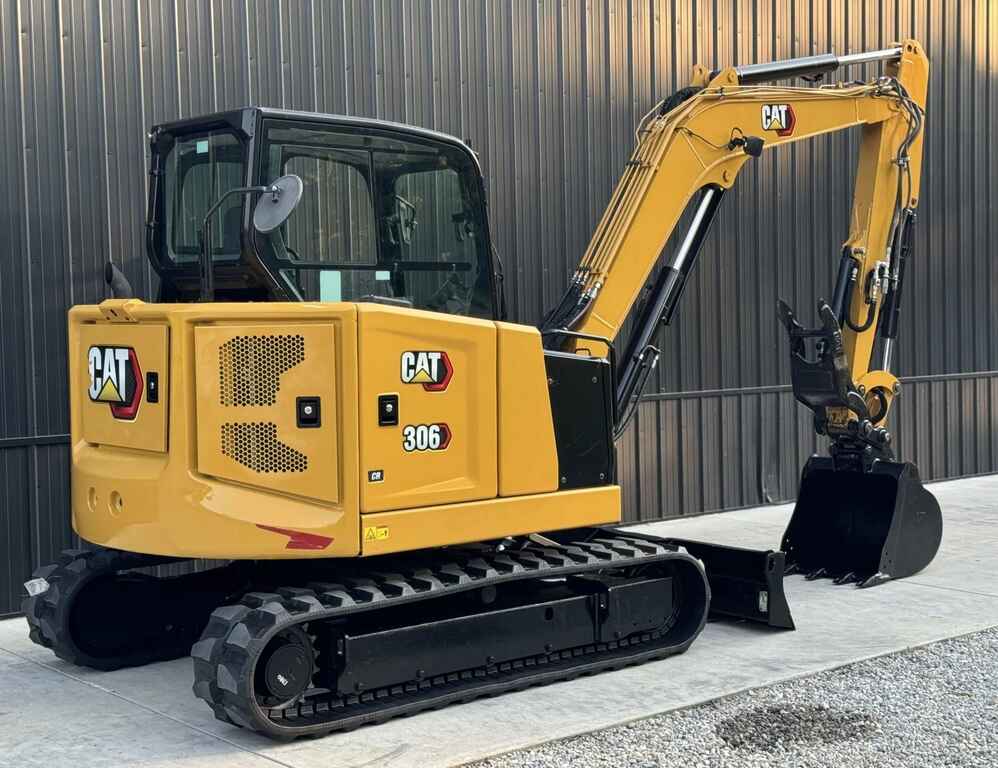

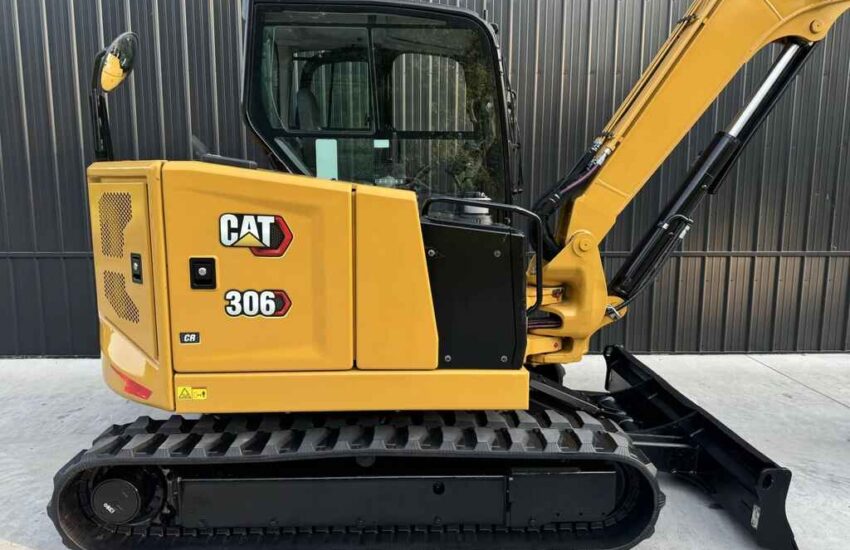

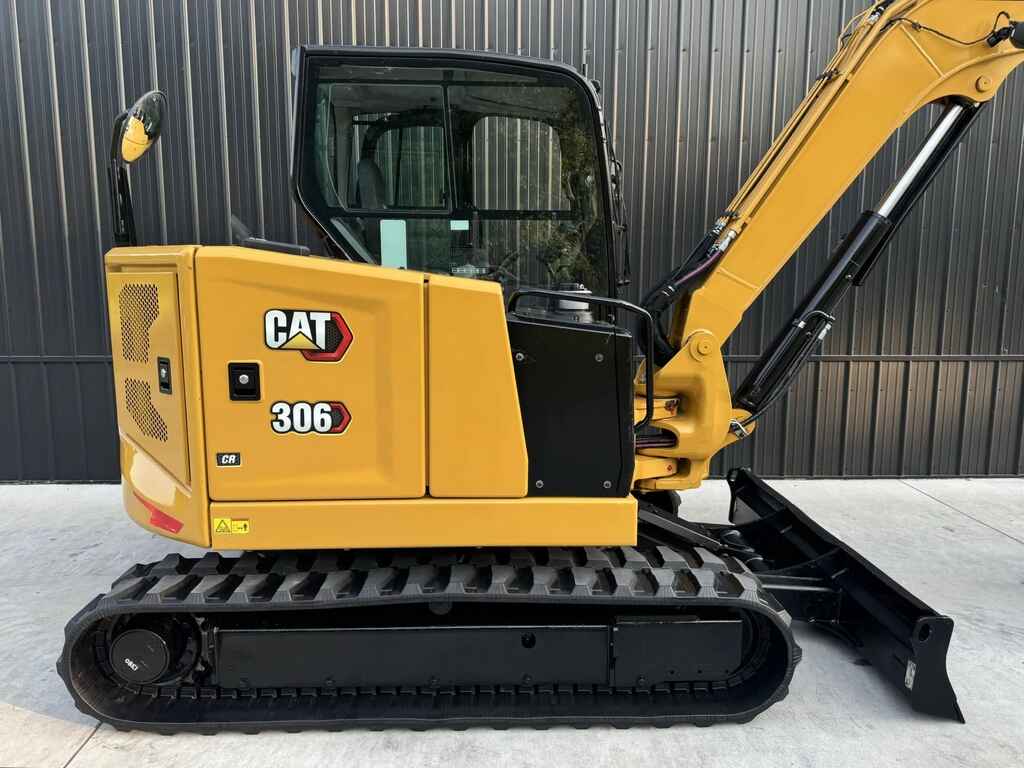

2021 Caterpillar 306 CR

PRICE FIRM NO TAX OR FEES

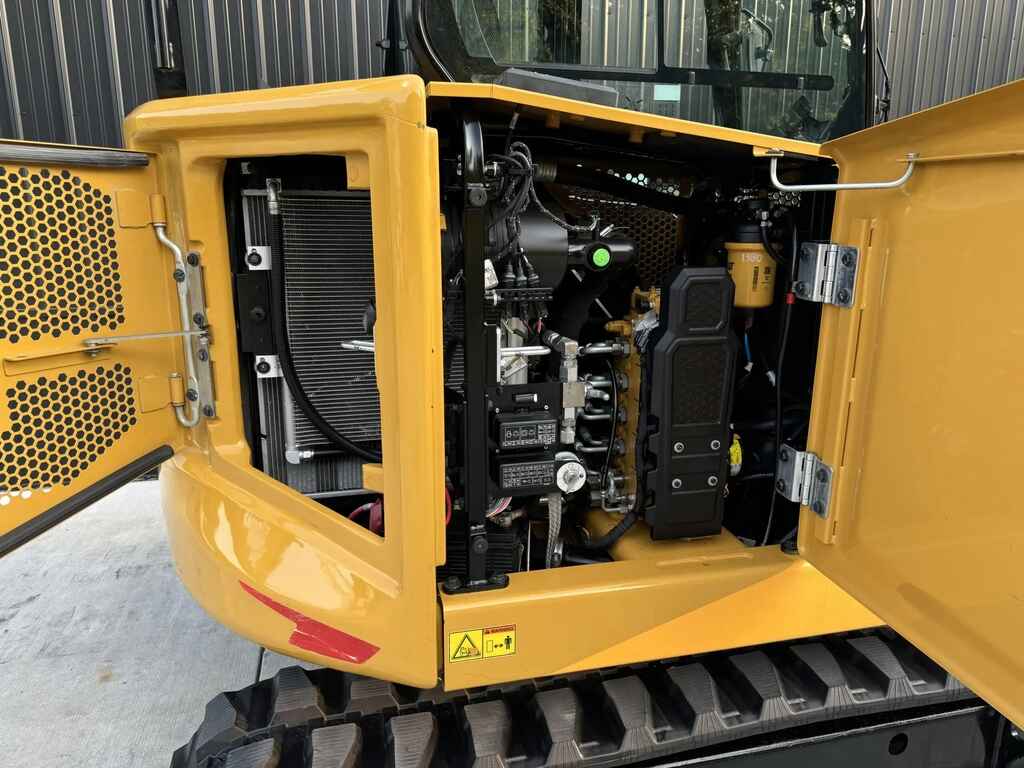

(This Machine new is 120k+!) Look at Comps! 6M/500Hr Full Warranty! Buy with confidence! Machine was just fully cleaned, greased, serviced and looked over. Photos just taken. Delivery available!

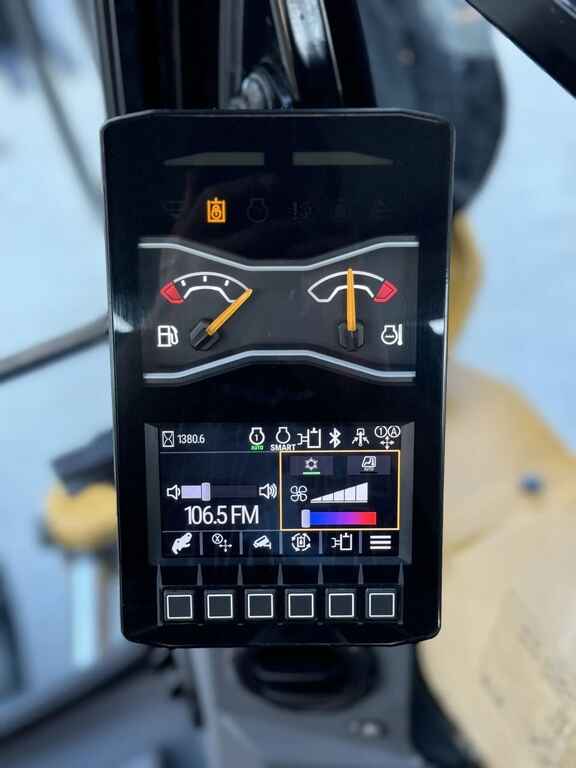

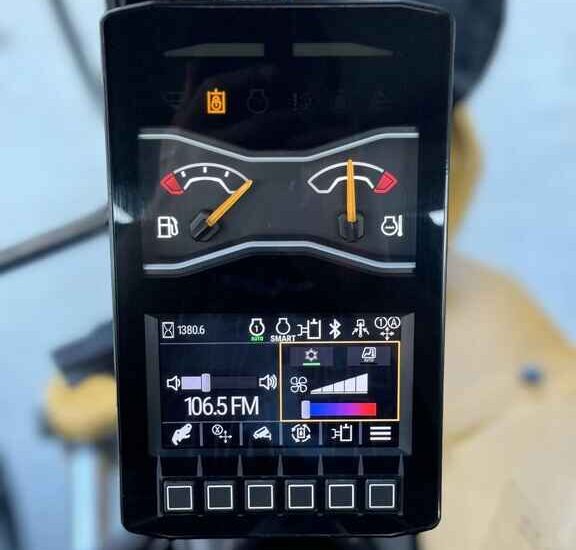

– Only 1,380 hours!

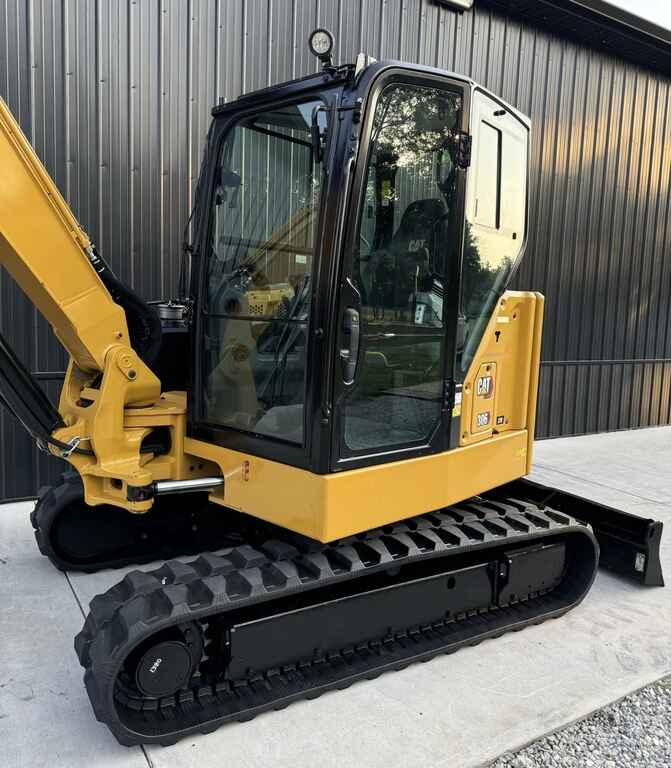

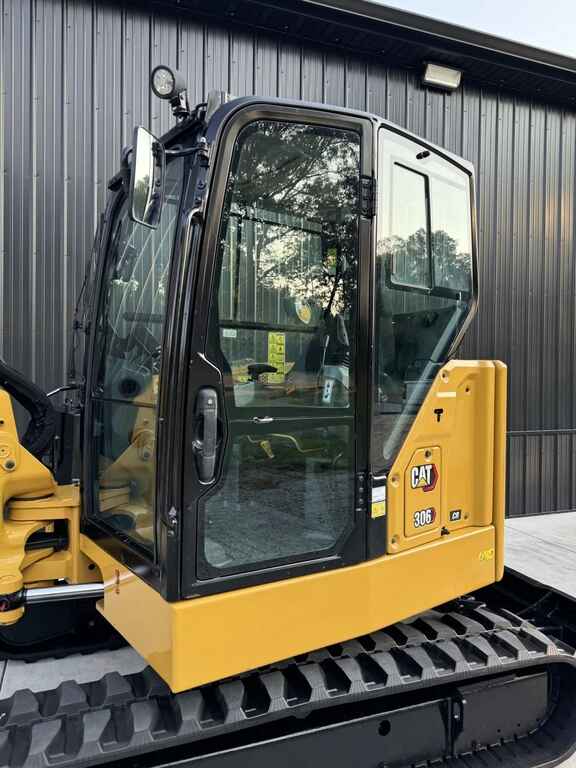

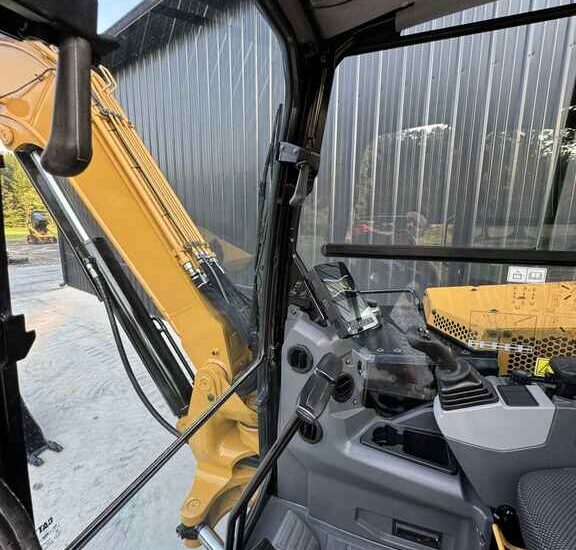

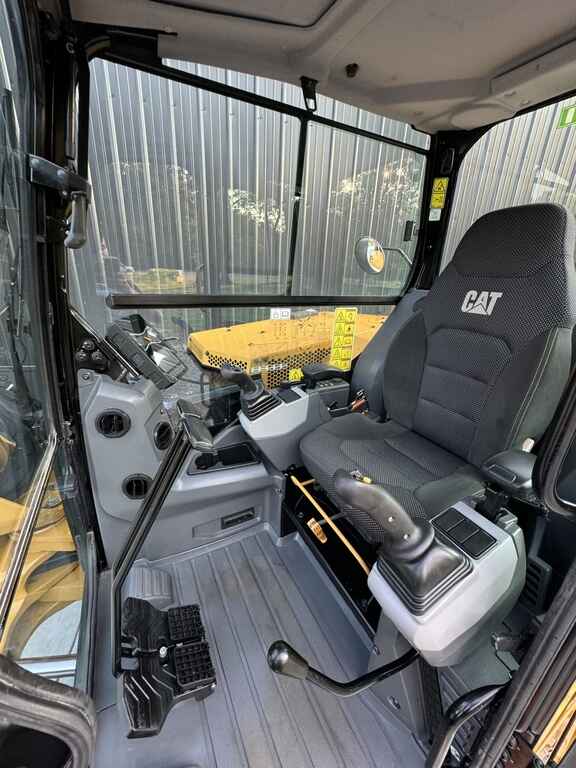

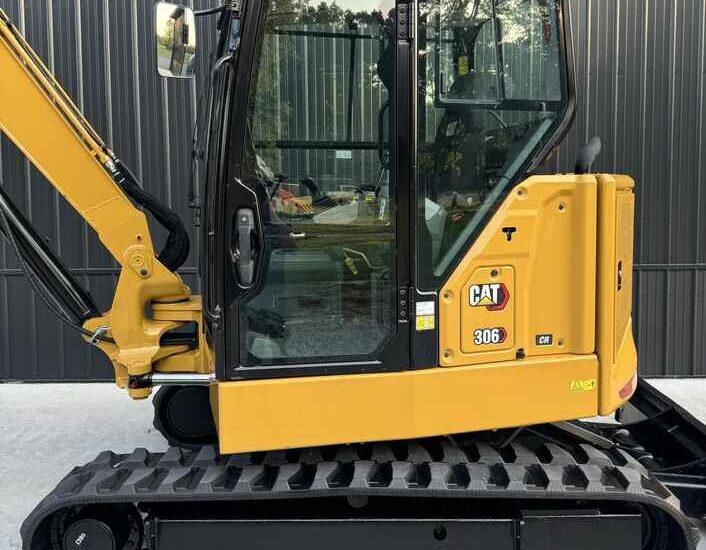

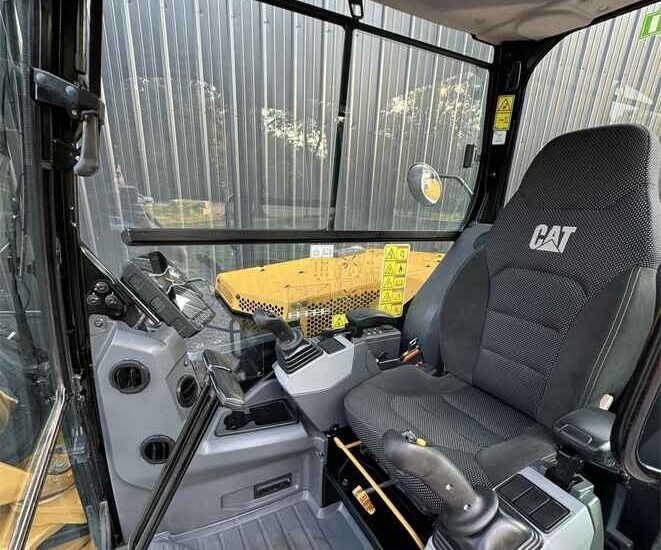

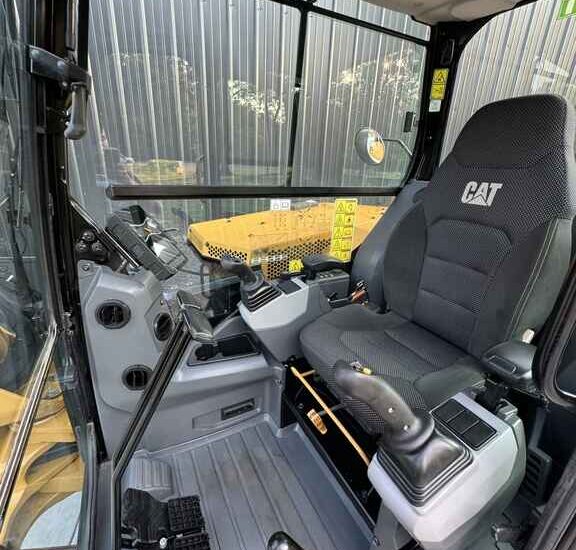

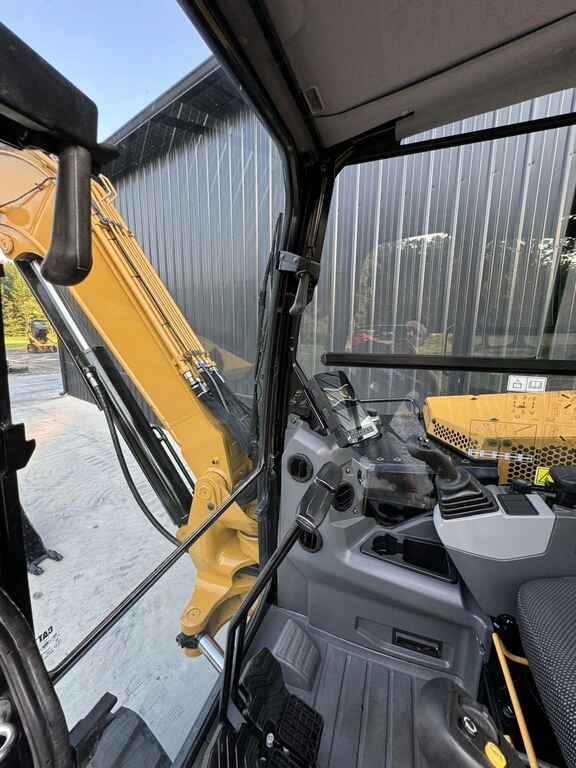

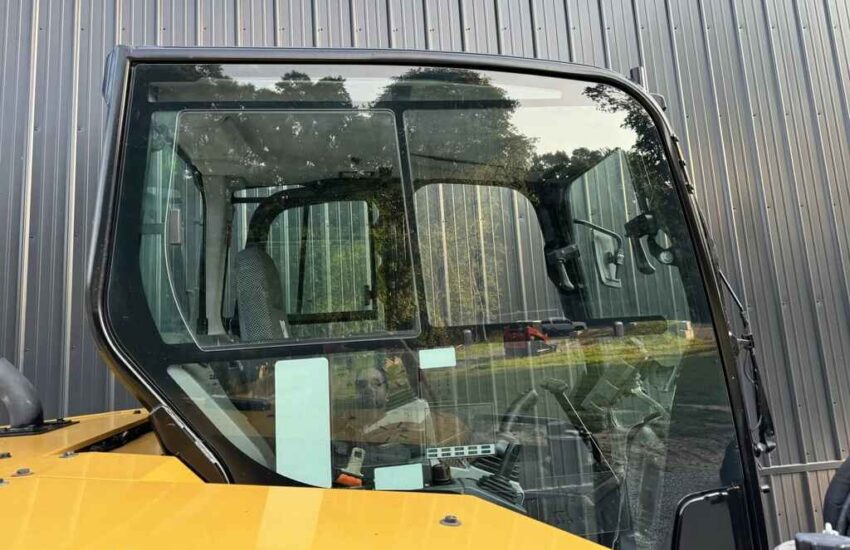

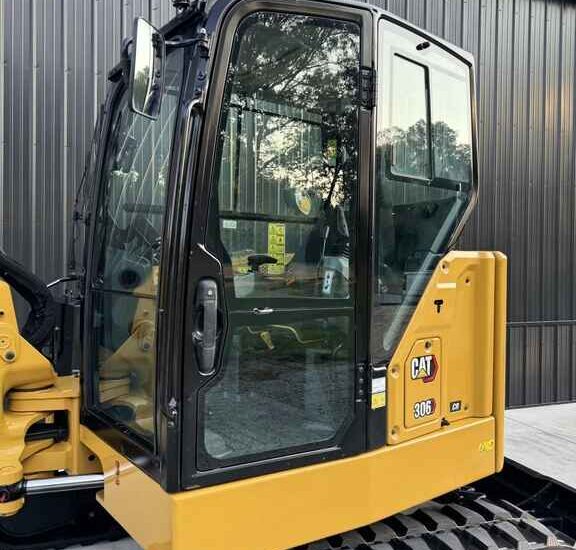

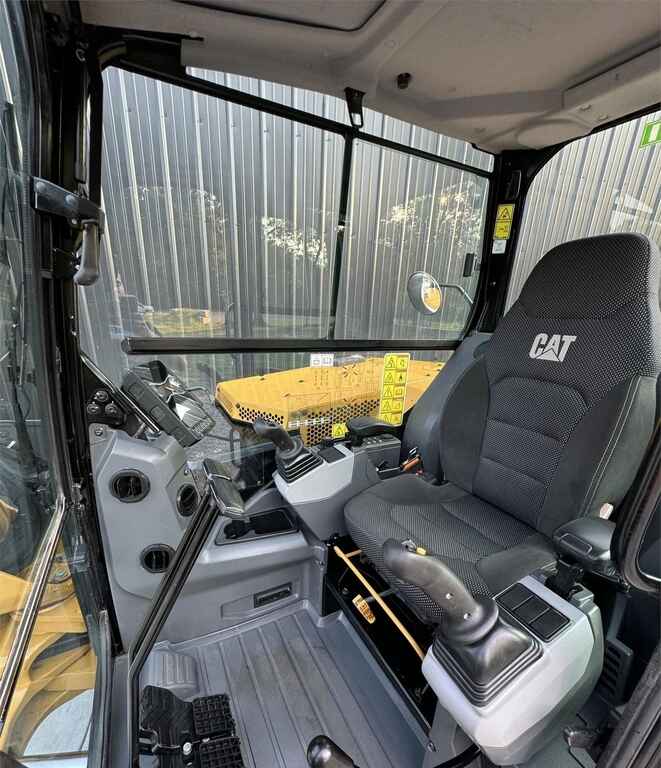

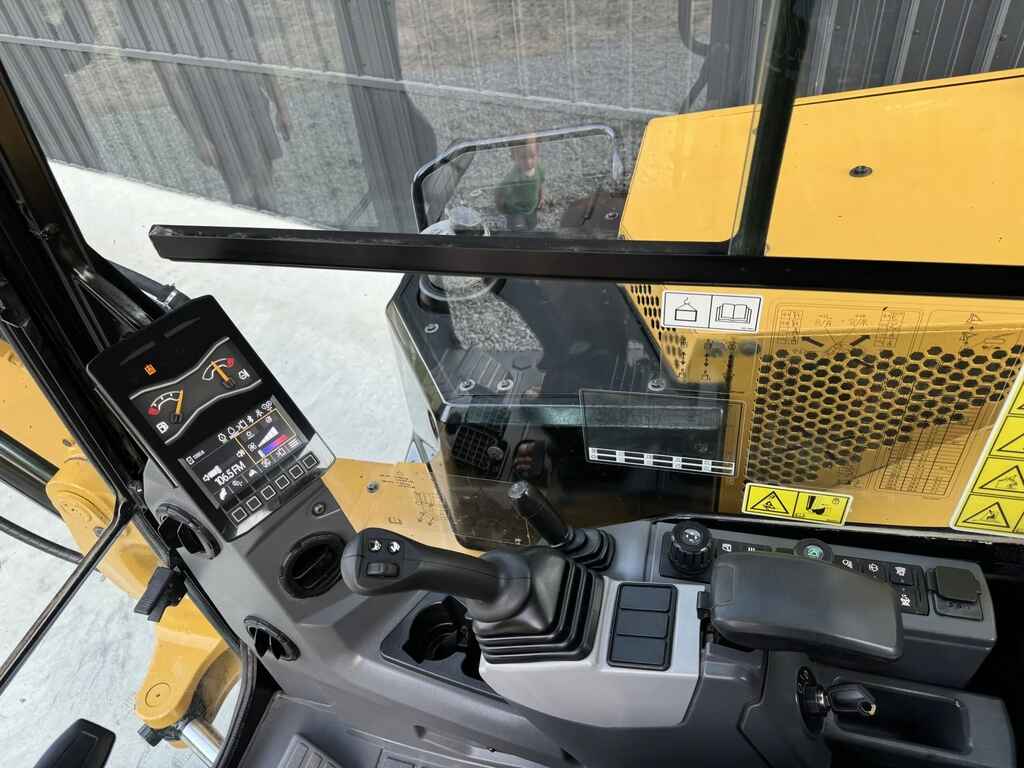

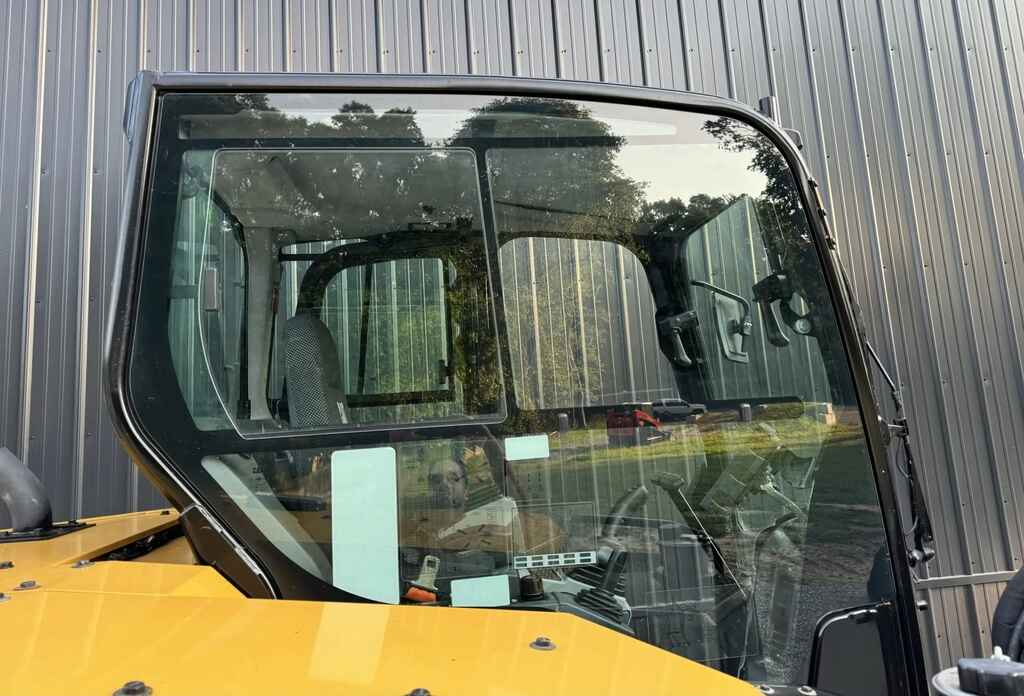

– Enclosed HEAT/AC/RADIO

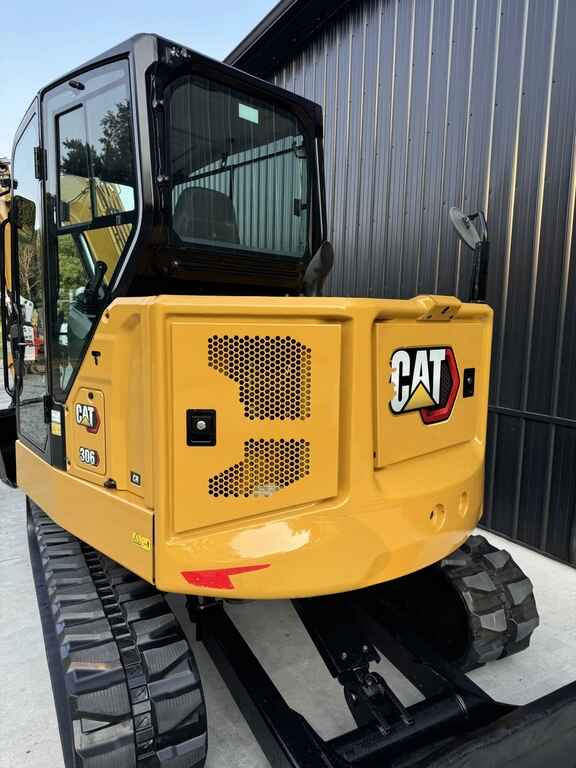

– Rear Camera

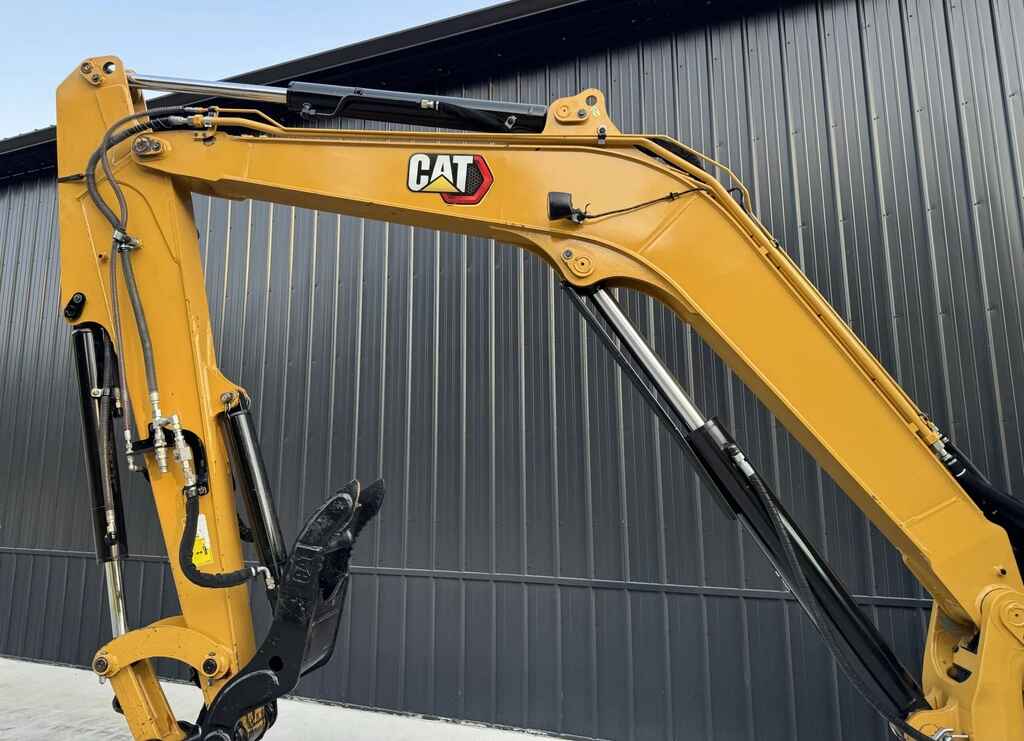

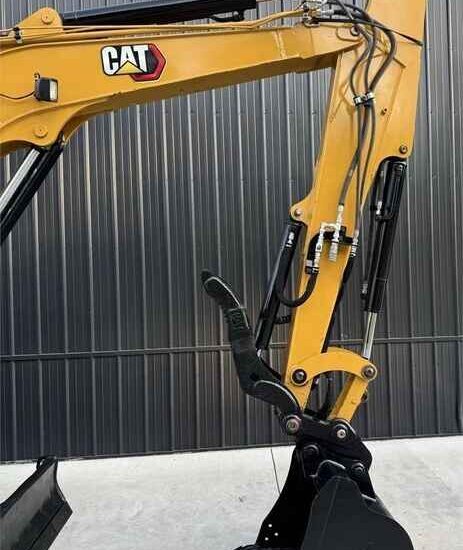

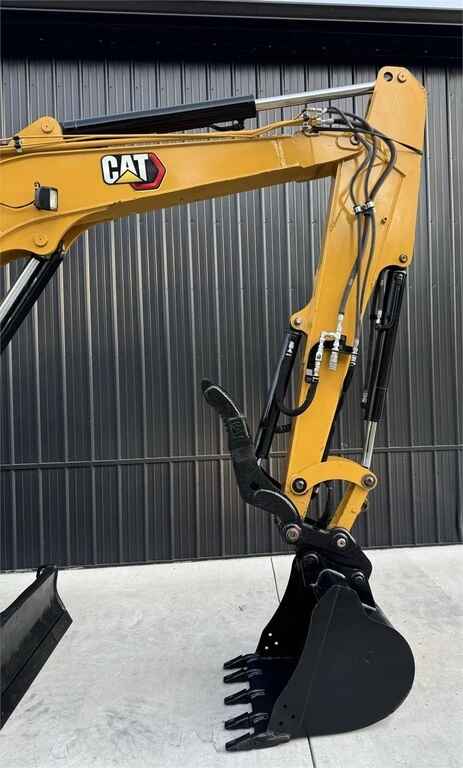

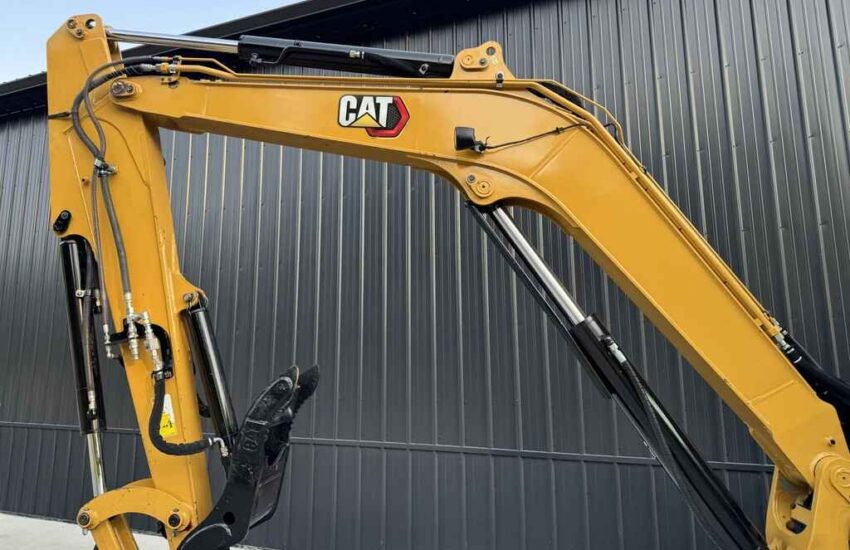

– Hydraulic Thumb
– Hydraulic Quick Coupler
– 2 speed
– 36” Tooth Bucket
– No leaks, No smoke, No issues
– 56Hp
– 16k Lbs
Machine is TIGHT & READY TO WORK

Key Specifications

Operating Weight (Cab): 15,766 lbs
Operating Weight (Canopy): 15,633 lbs
Dig Depth: 146 in
Maximum Reach: 248 in
Maximum Dump Clearance: 170 in

O/A Shipping Dimensions

Height: 100 in
Length: 235 in
Track Width: 78 in

Performance & Hydraulics

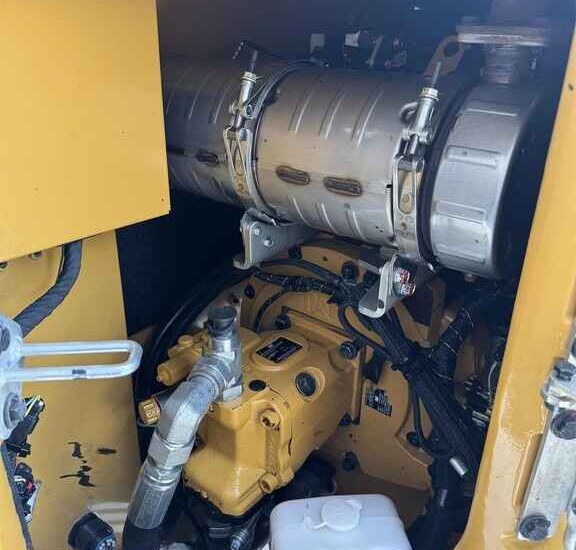

Hydraulic System Type: Load Sensing Hydraulics with Variable Displacement Piston Pump
Pump Flow: 40 GPM @ 2,400 RPM

Operating Pressures:
Swing: 3,263 PSI
Equipment and Travel: 3,553 PSI

Digging Forces:
Bucket: 11,578 lbf
Stick (Standard): 6,632 lbf
Stick (Long): 5,957 lbf

Auxiliary Circuits:
Primary Flow: 24 GPM @ 3,553 PSI
Secondary Flow: 9 GPM @ 3,553 PSI

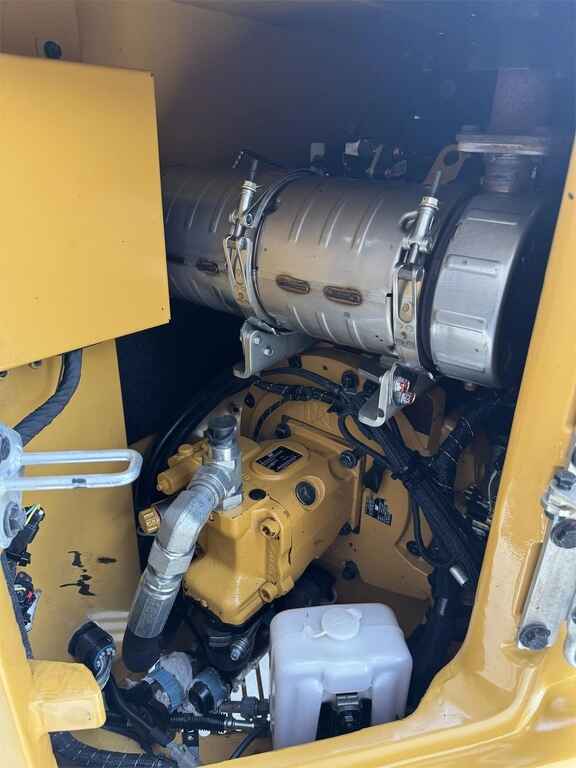

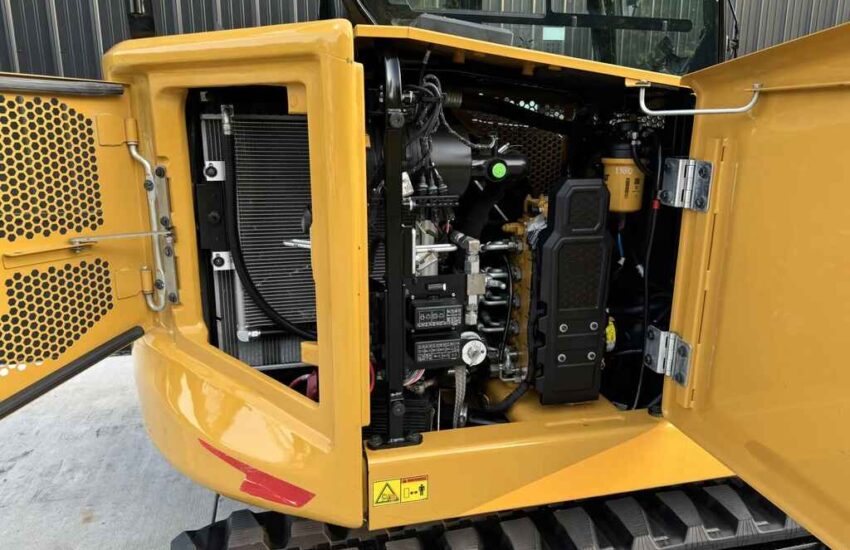

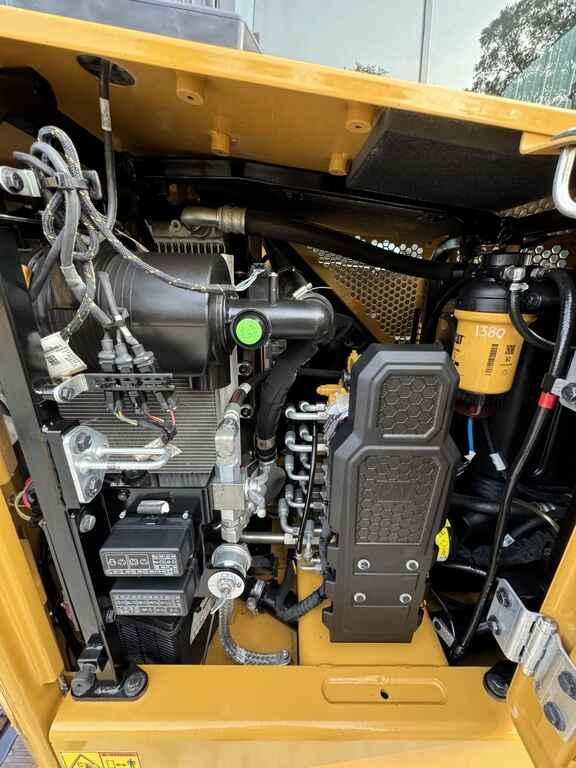

Engine & Powertrain

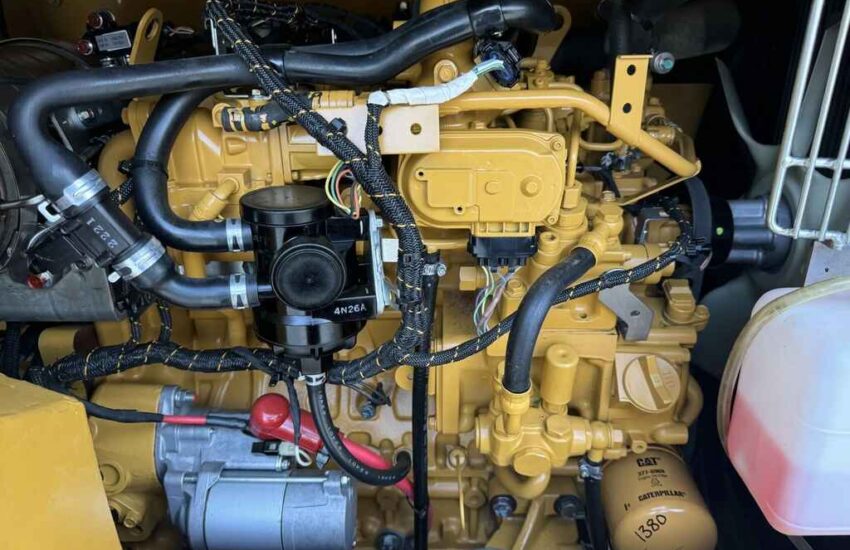

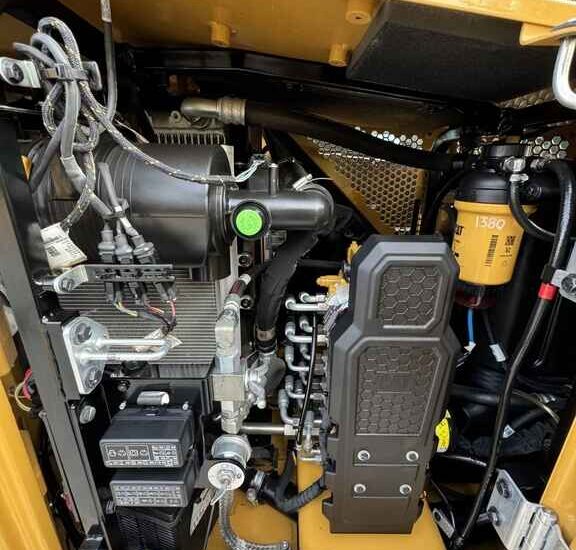

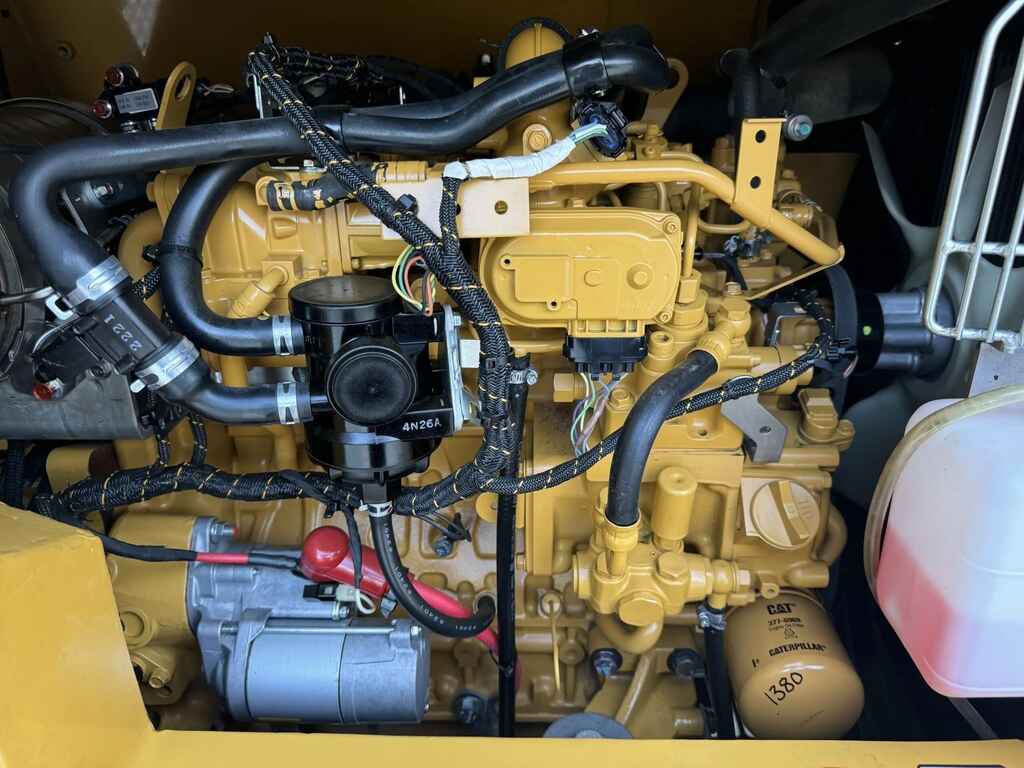

Engine Model: CAT C2.4 Turbo
Net Power: 55.9 HP @ 2,200 RPM
Displacement: 148 cu in
Fuel Tank Capacity: 34.3 gal

Travel Speed:
High: 3.1 mph
Low: 1.7 mph

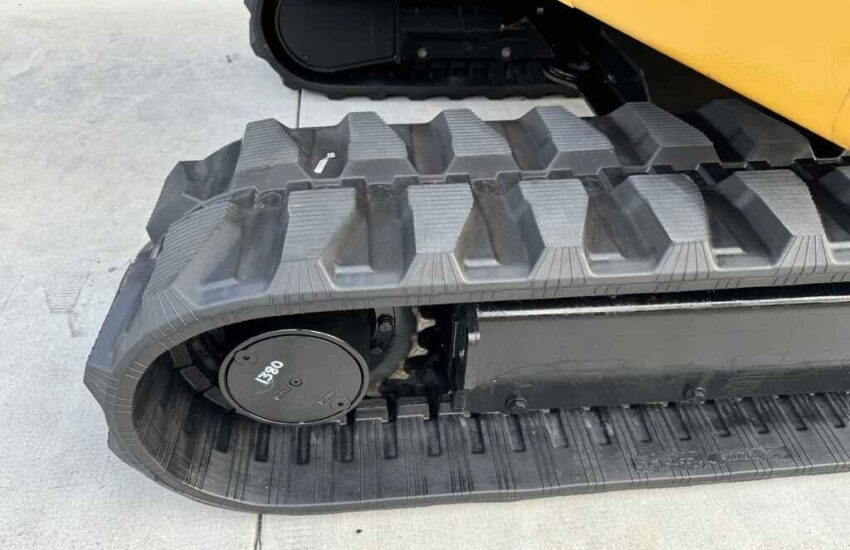

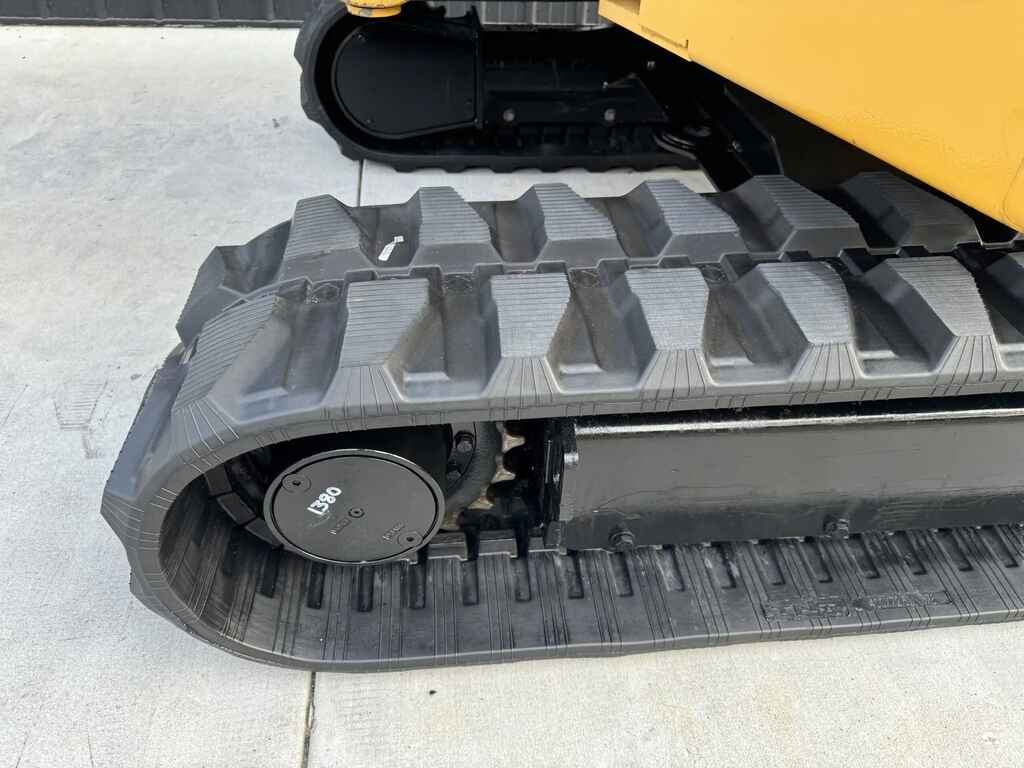

Undercarriage & Track System

Track Shoe Width: 16 in
Undercarriage Length: 102 in

Tail Swing:
With Counterweight: 58 in
Without Counterweight: 53 in

Ground Pressure:
Minimum Weight: 5.1 PSI
Maximum Weight: 5.7 PSI

Operator & Safety Features

ROPS Certified (ISO 12117-2:2008)
TOPS Certified (ISO 12117:1997)
Cab with Air Conditioning
Automatic Swing Brake
Hydraulic Release System
Recyclability: 96%

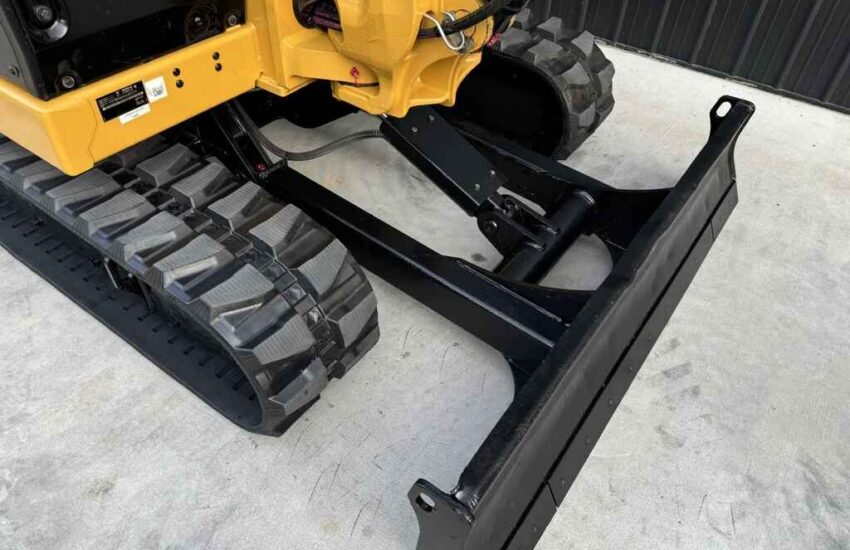

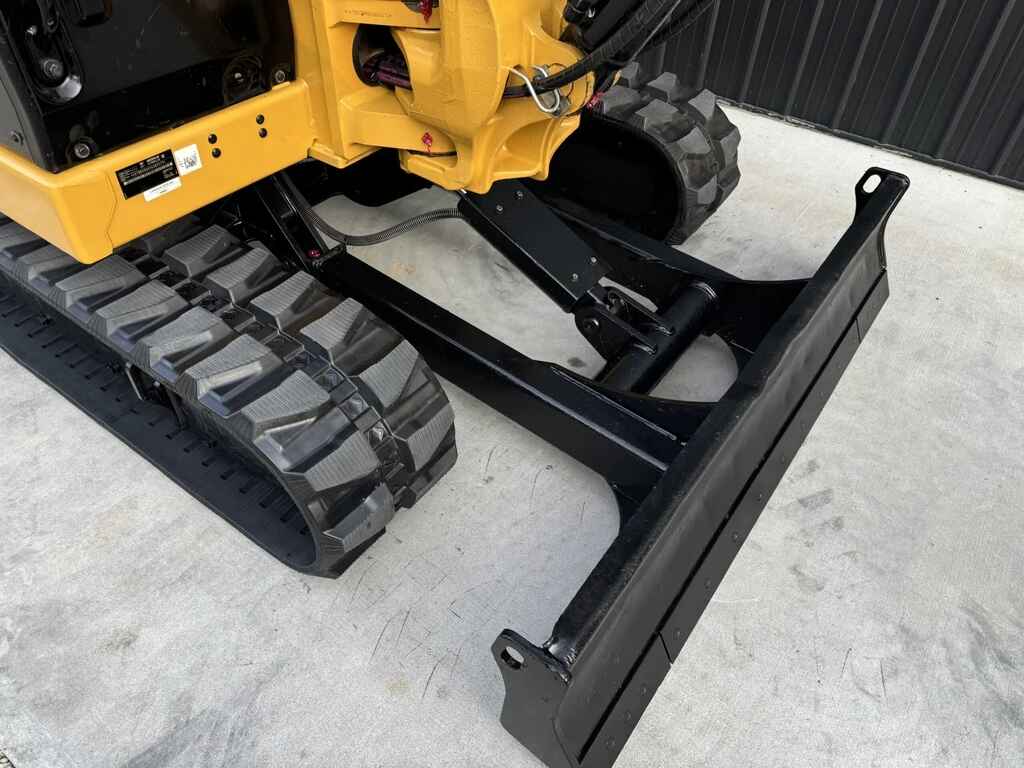

Blade Dimensions & Capabilities

Straight Blade – Width: 78 in, Height: 15.4 in
Angle Blade – Width: 78 in, Height: 15.7 in
Maximum Blade Lift Height: 16 in
Maximum Blade Dig Depth: 24 in

Lift Capacities (At Ground Level)

Weight Increases from Minimum Configuration:
Counterweight: +551 lbs
Long Stick: +97 lbs
Steel Tracks with Pads: +827 lbs
Angle Blade: +225 lbs
XTC Carriage (No Tool): +141 lbs
