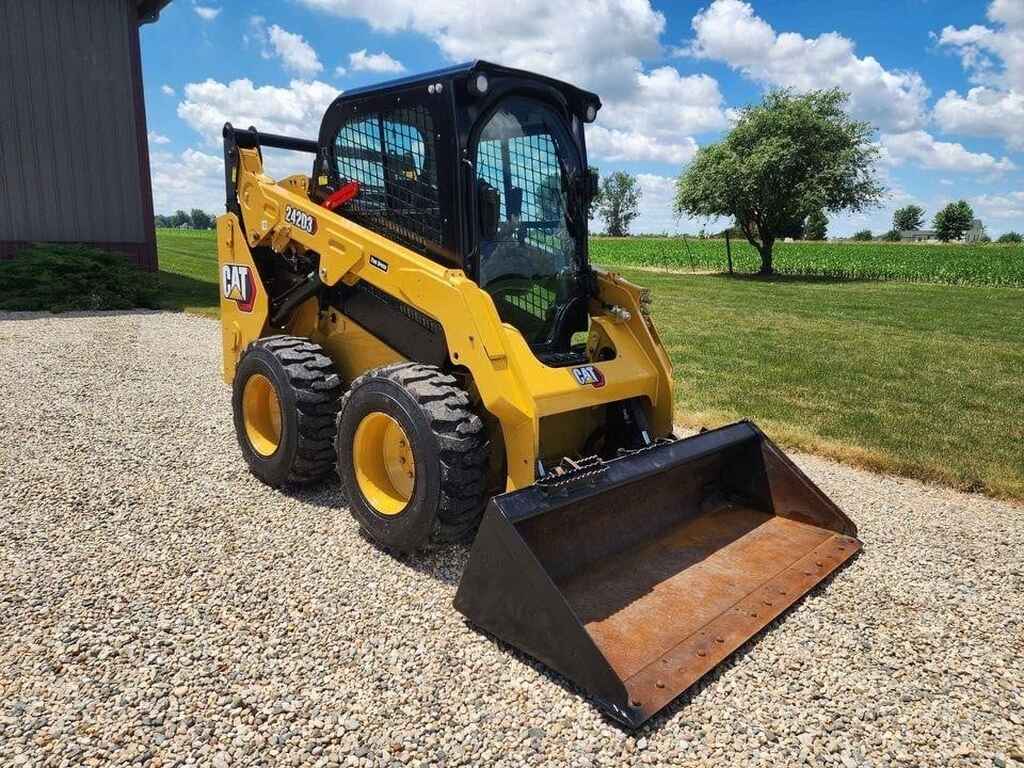

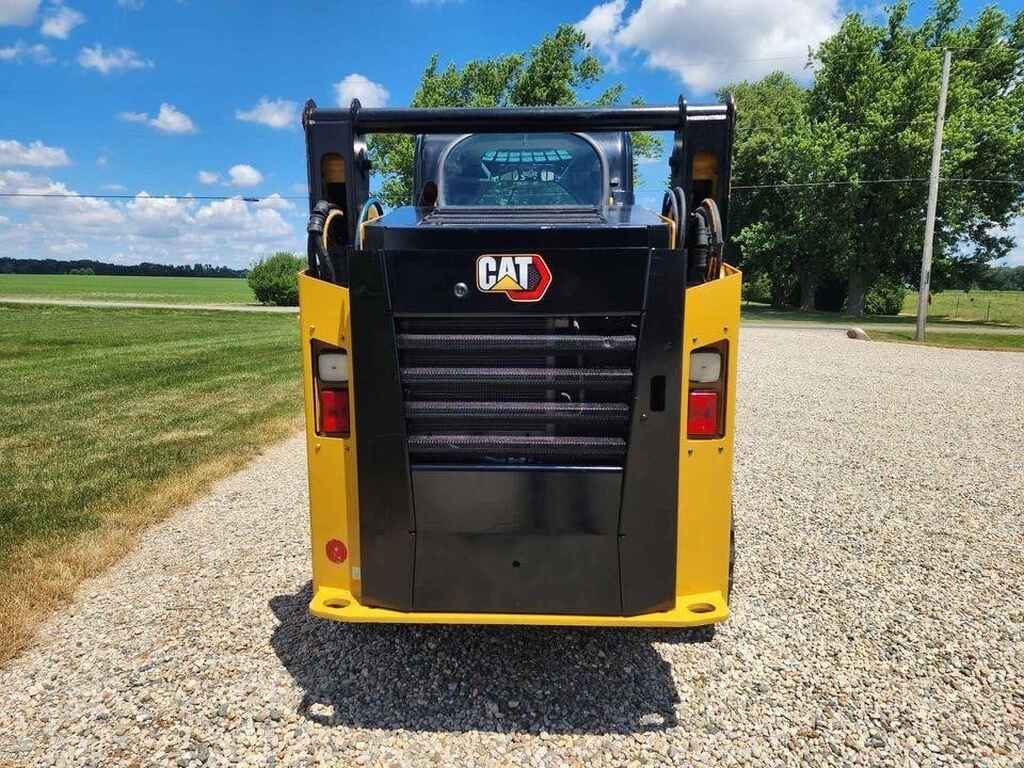

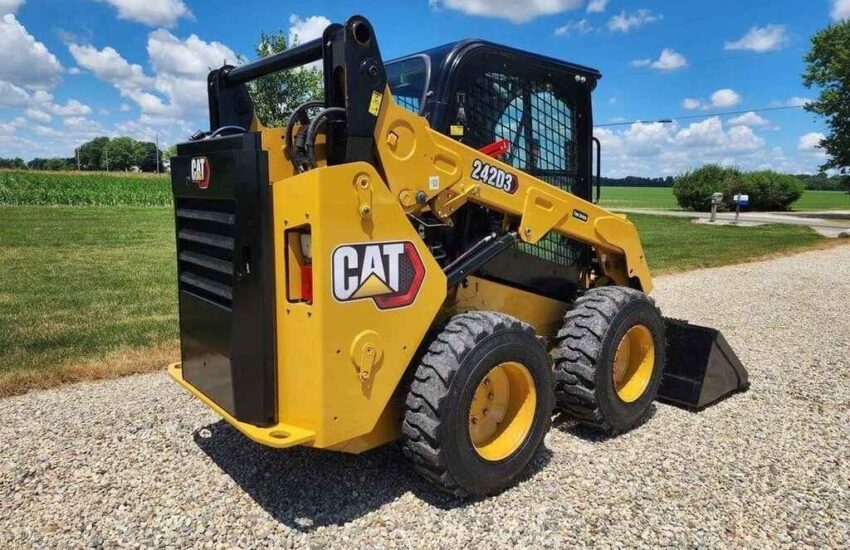

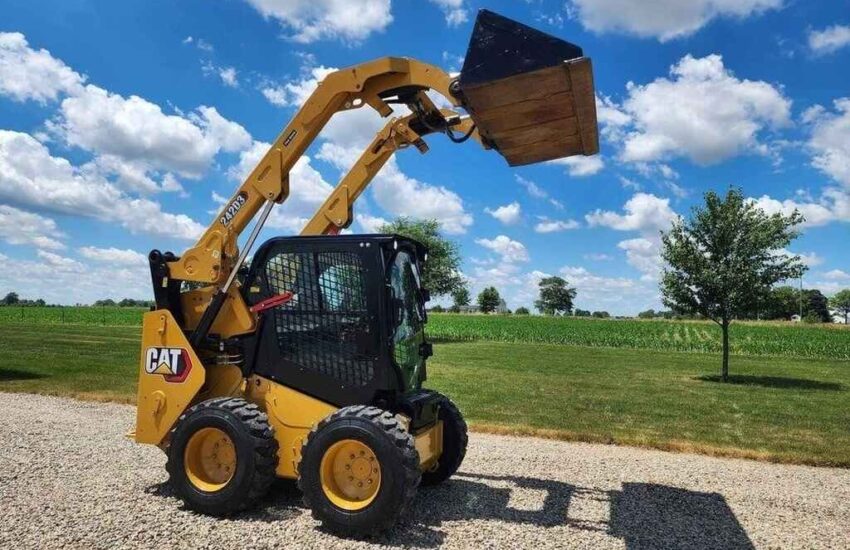

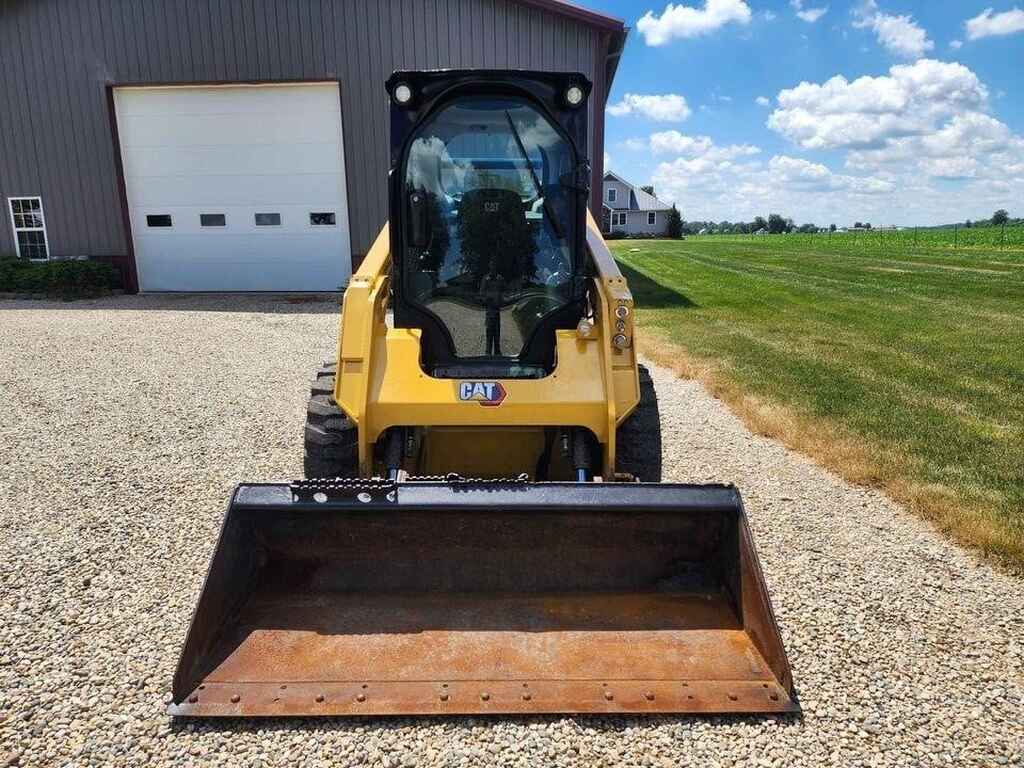

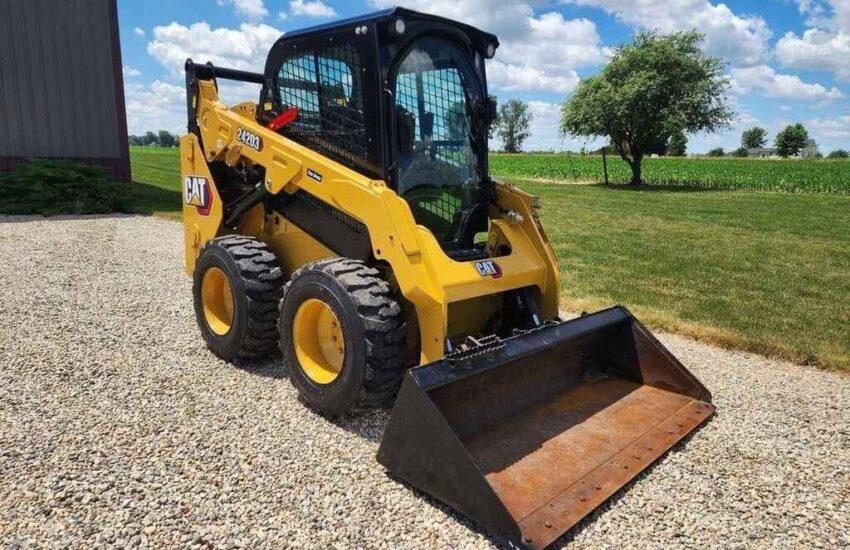

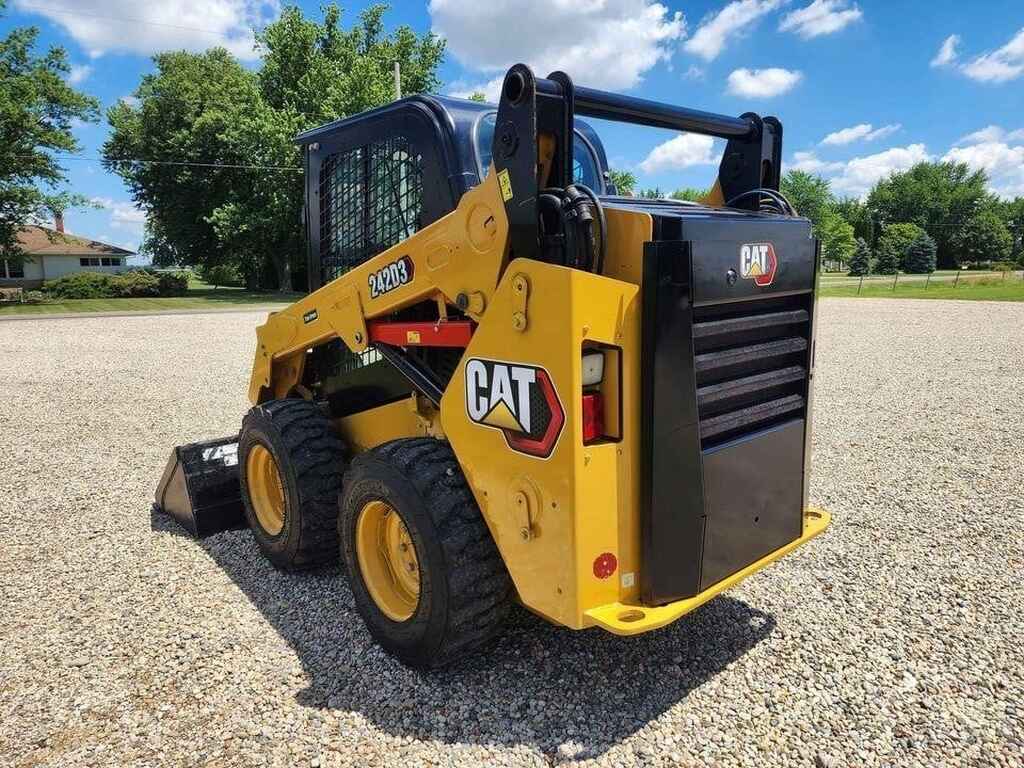

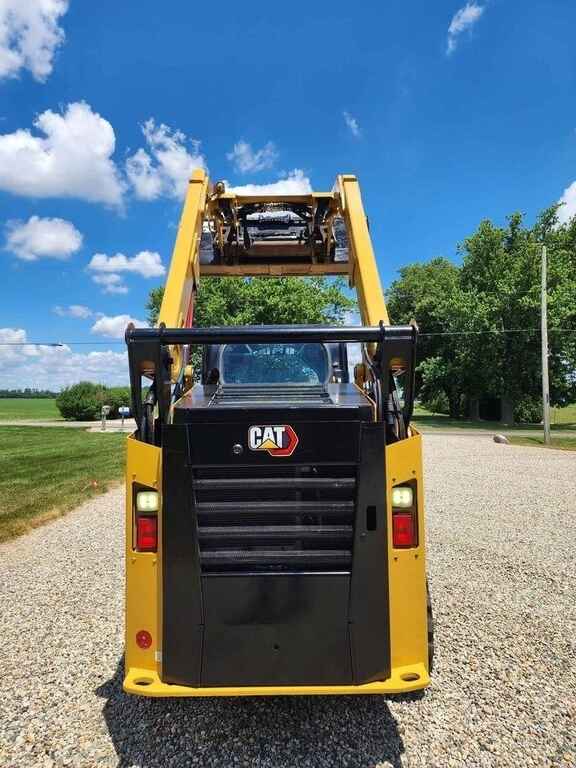

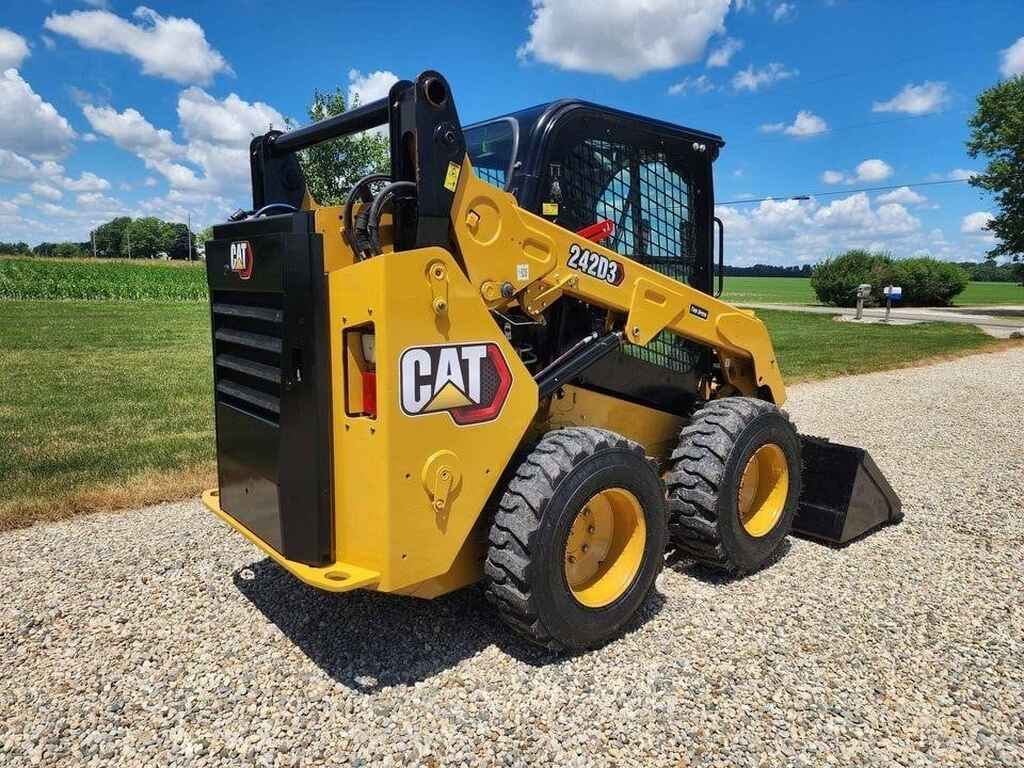

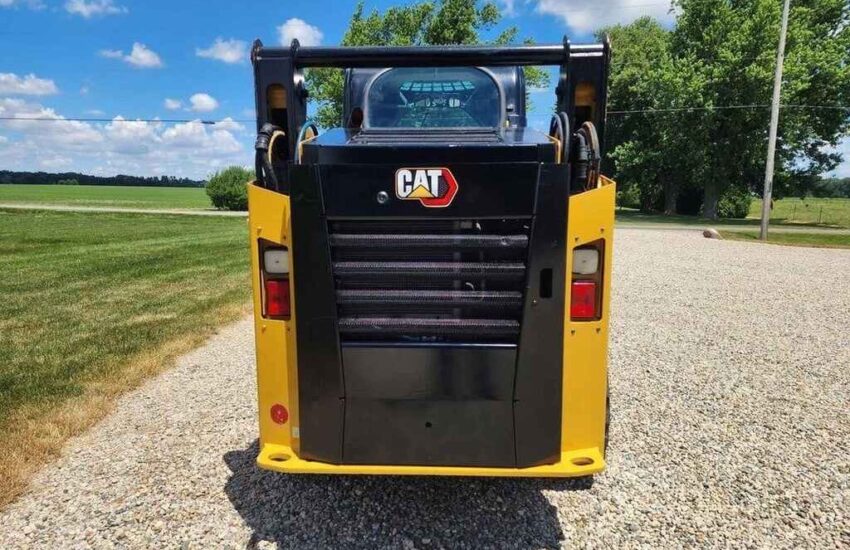

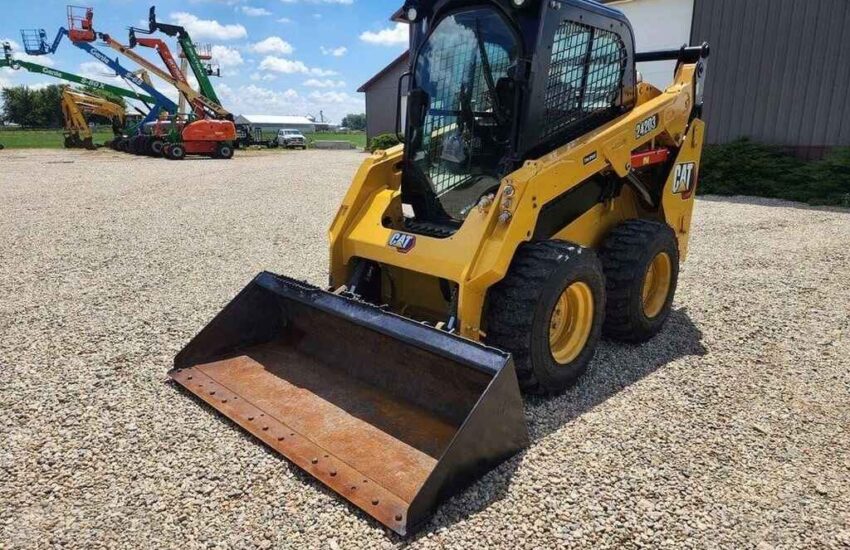

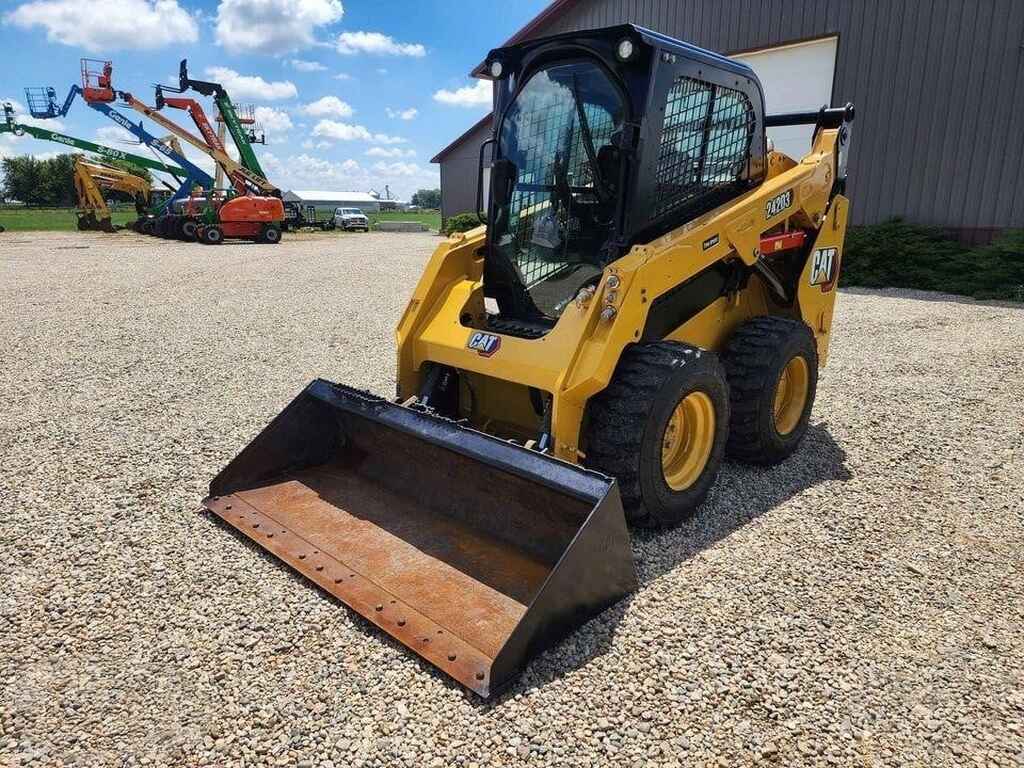

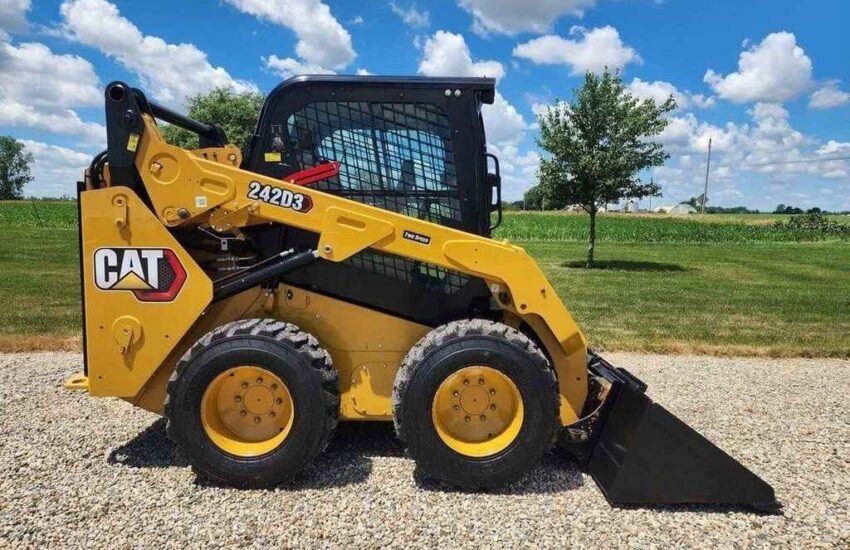

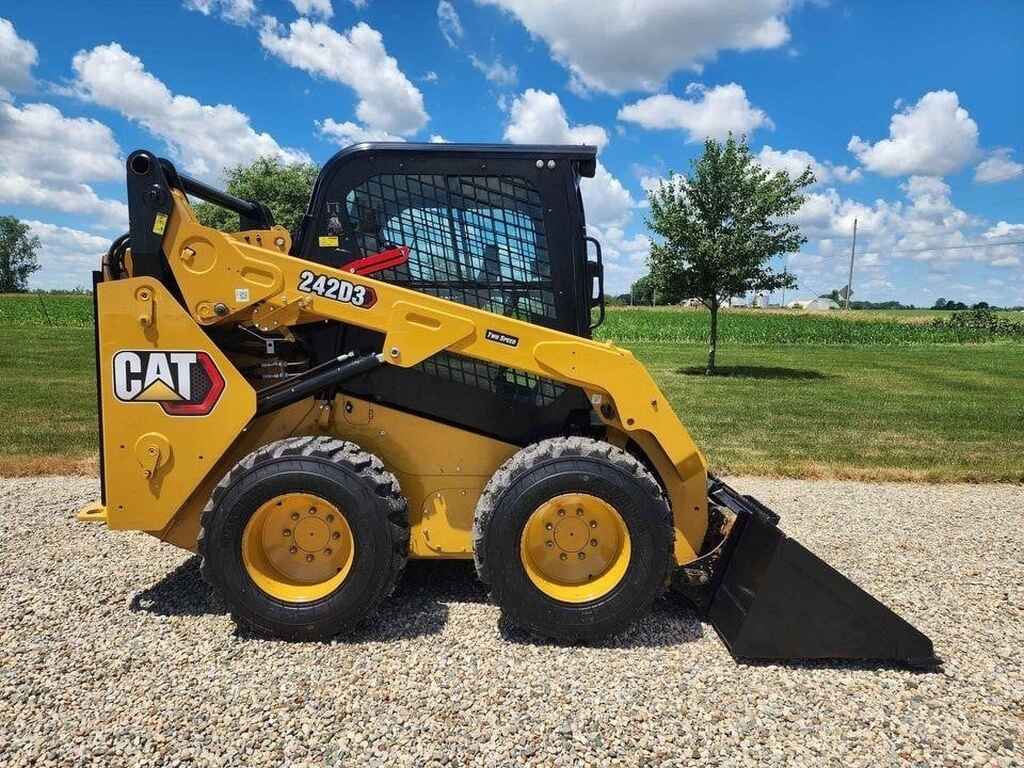

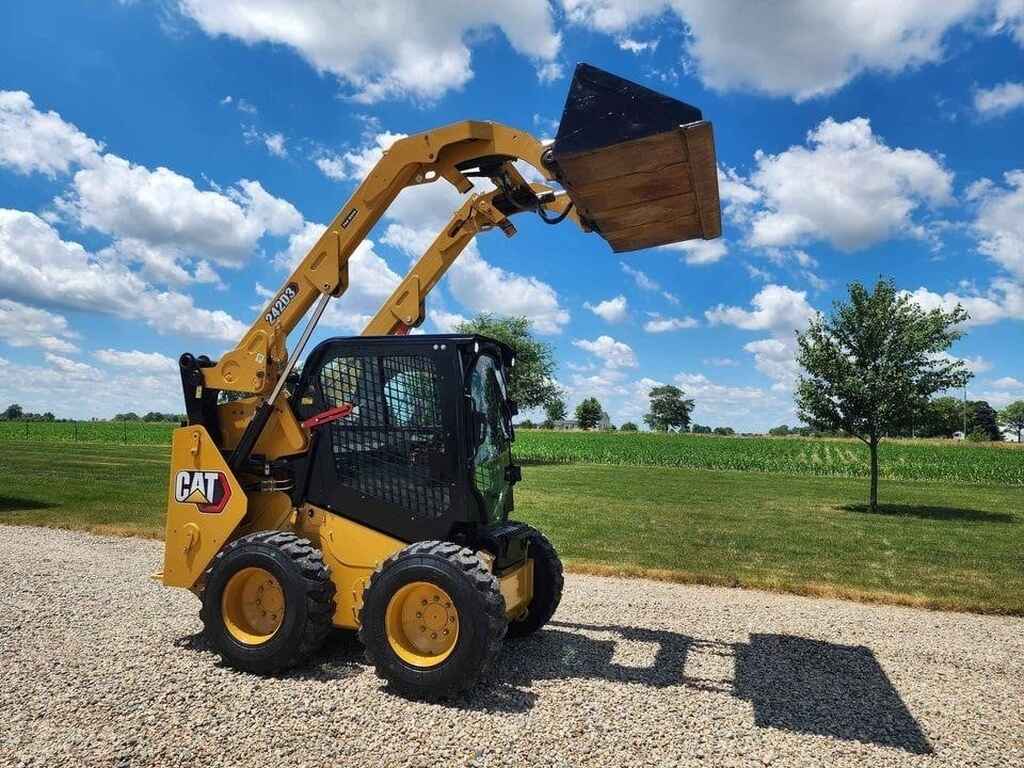

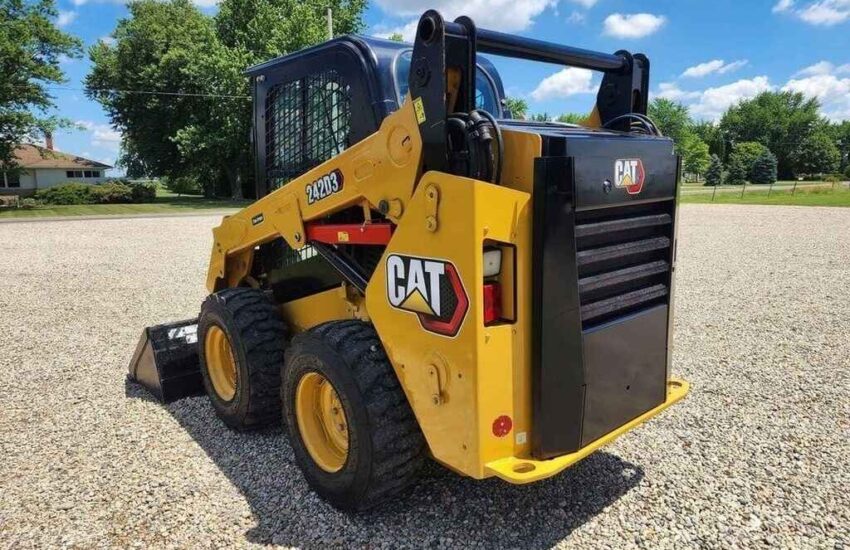

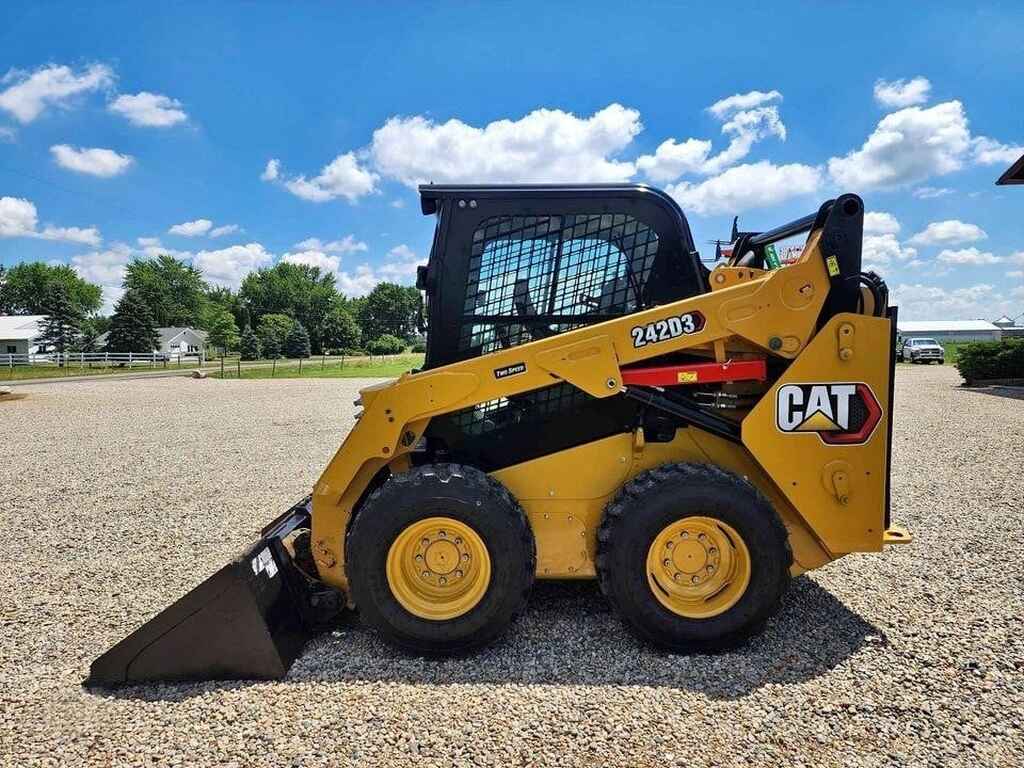

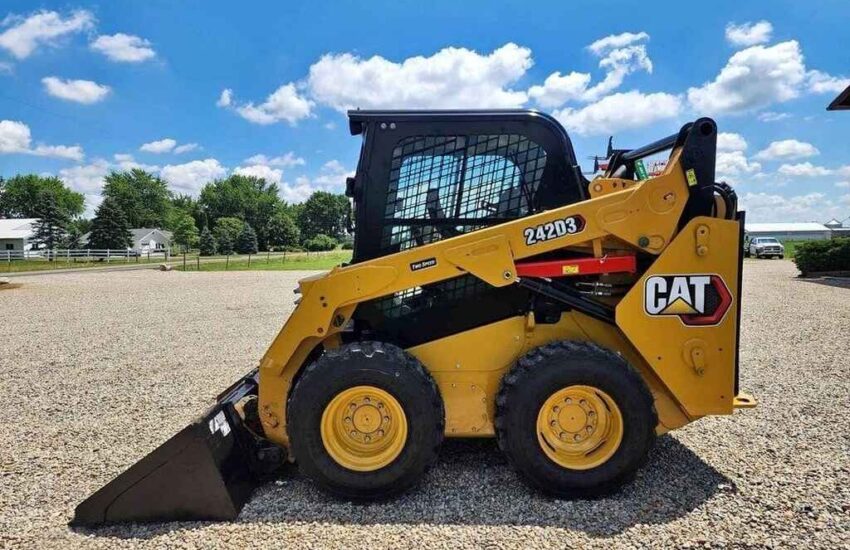

2021 Caterpillar 242D3

Nice 2021 Cat 242D3
Loaded with Options
Hydraulic Quick Coupler
920 Hours
2 Speed

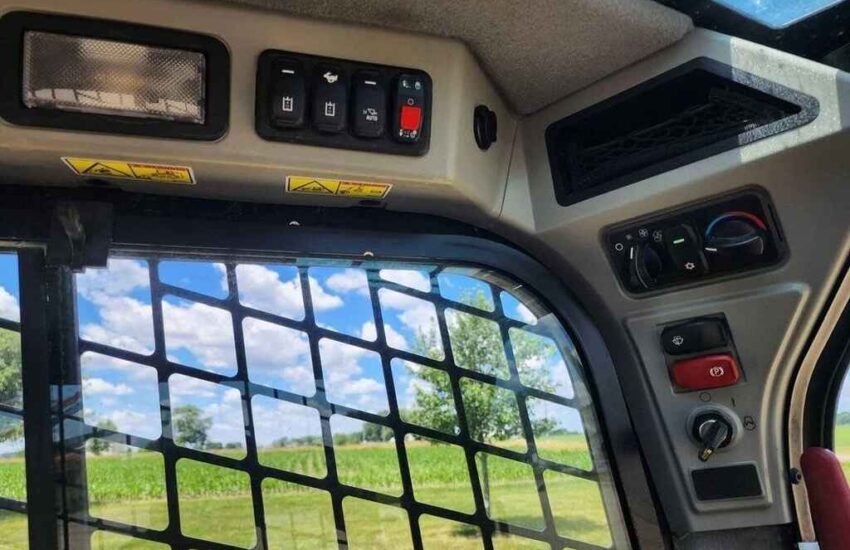

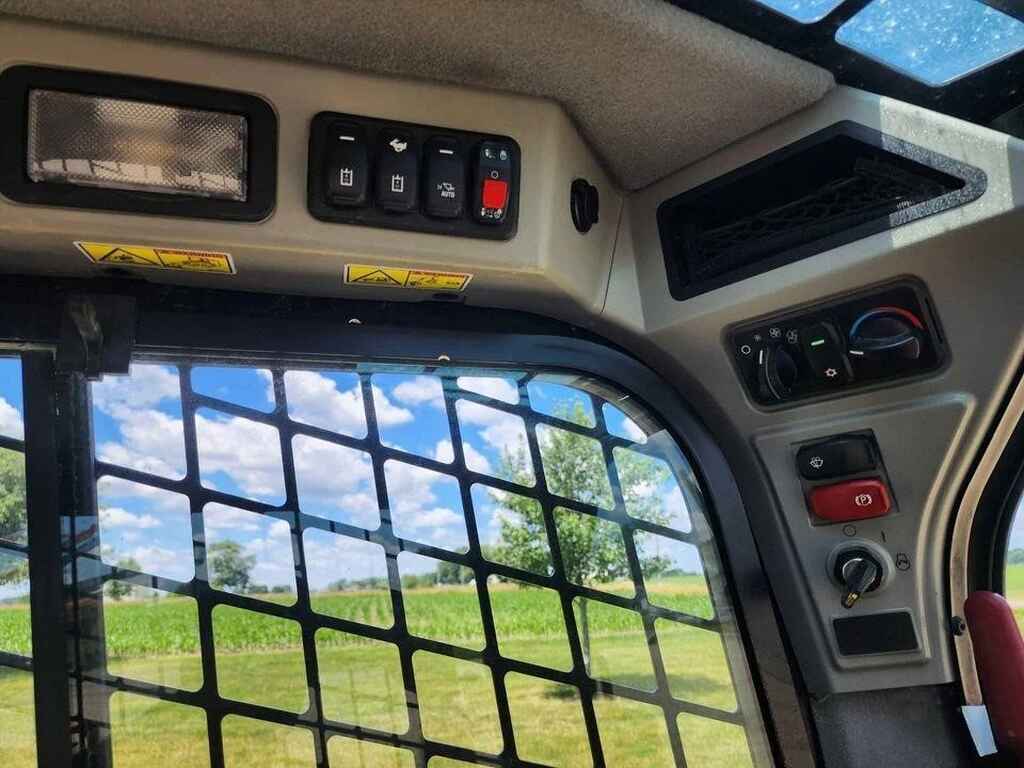

Heat/Ac

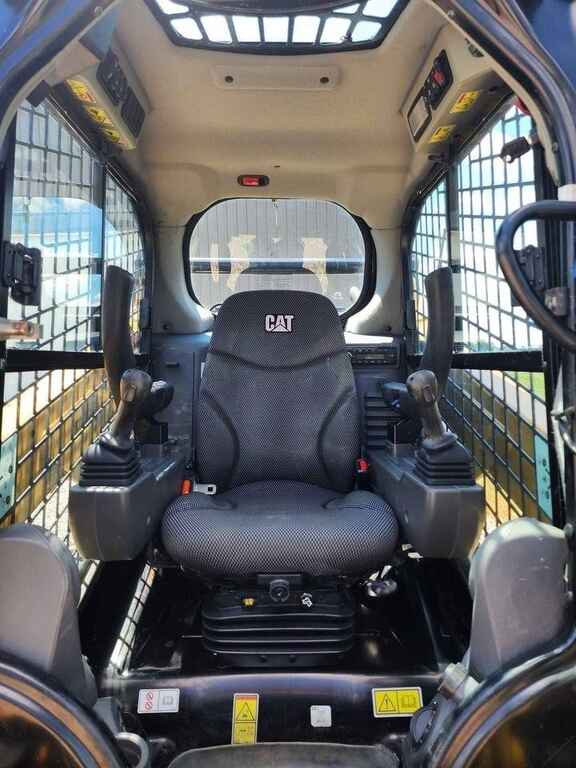

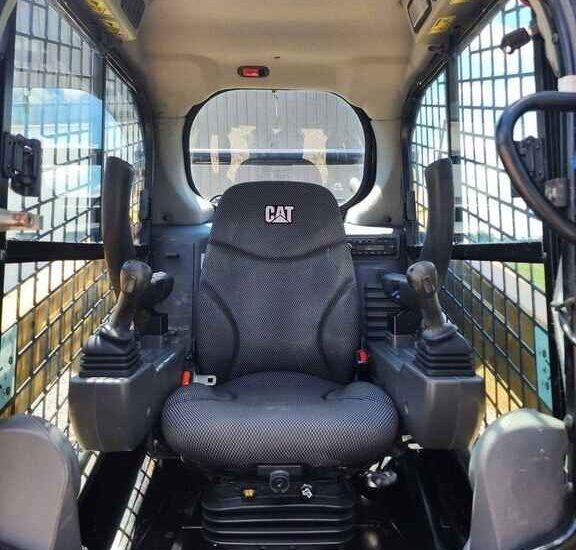

Heated Air Ride Seat

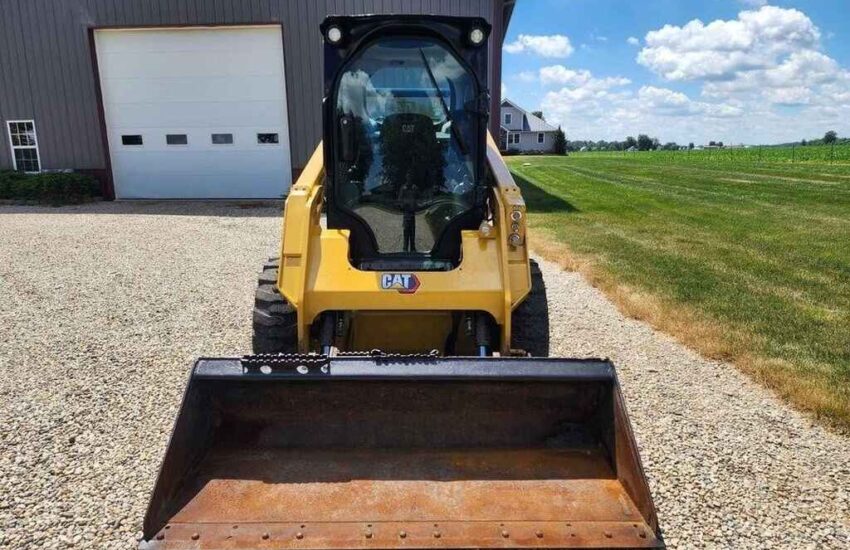

Self Leveling Bucket

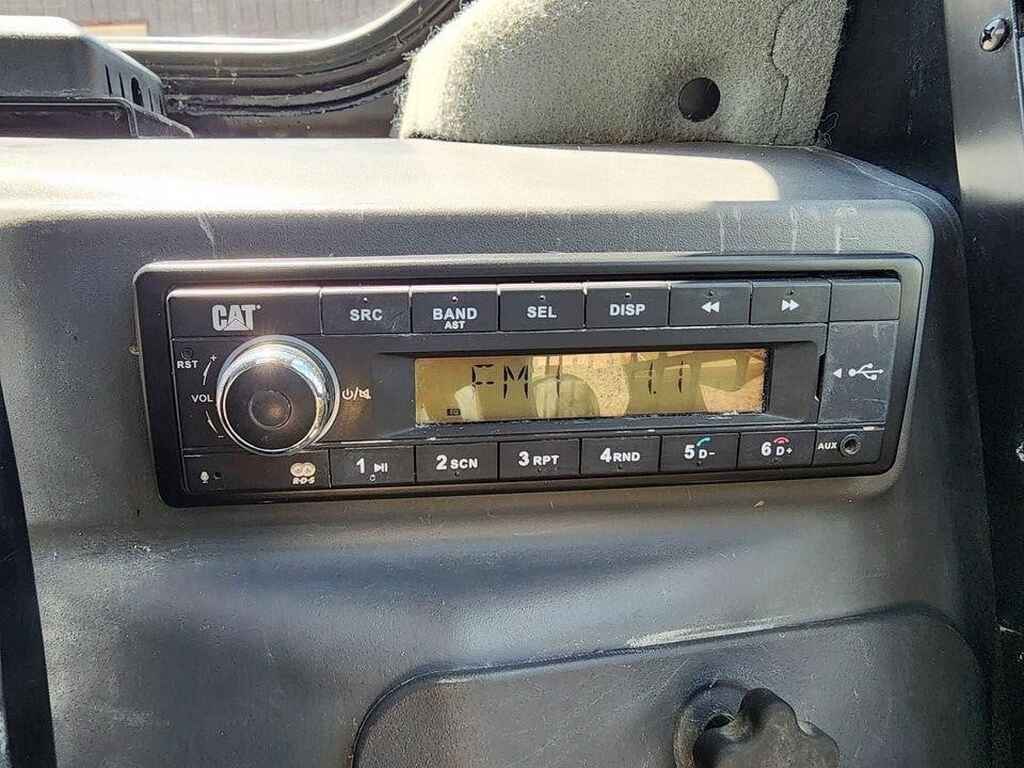

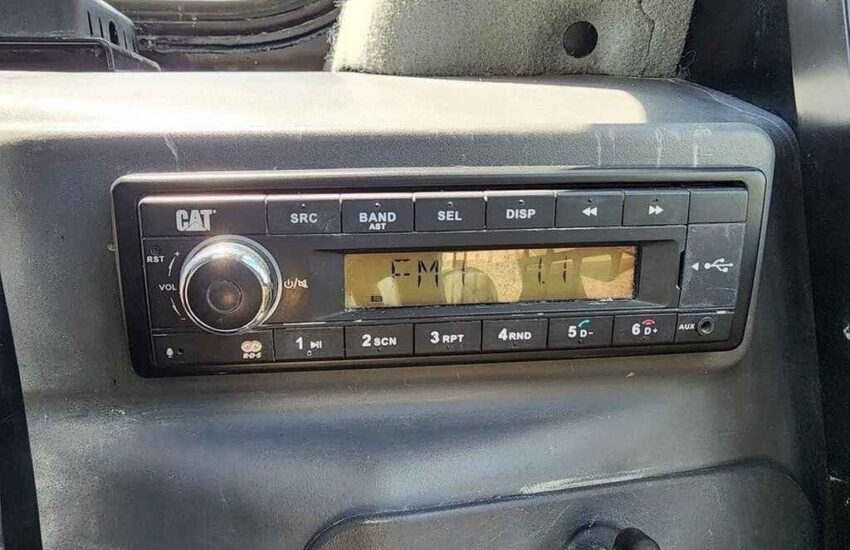

Am/Fm Radio

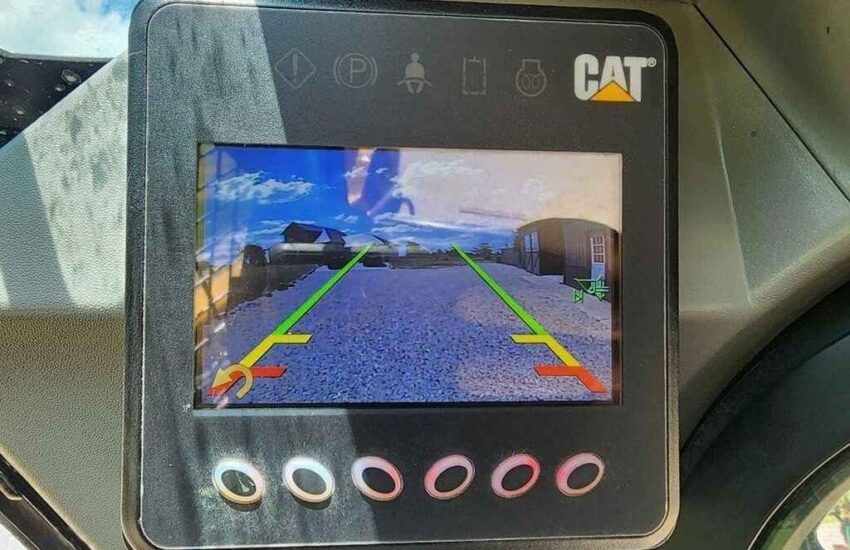

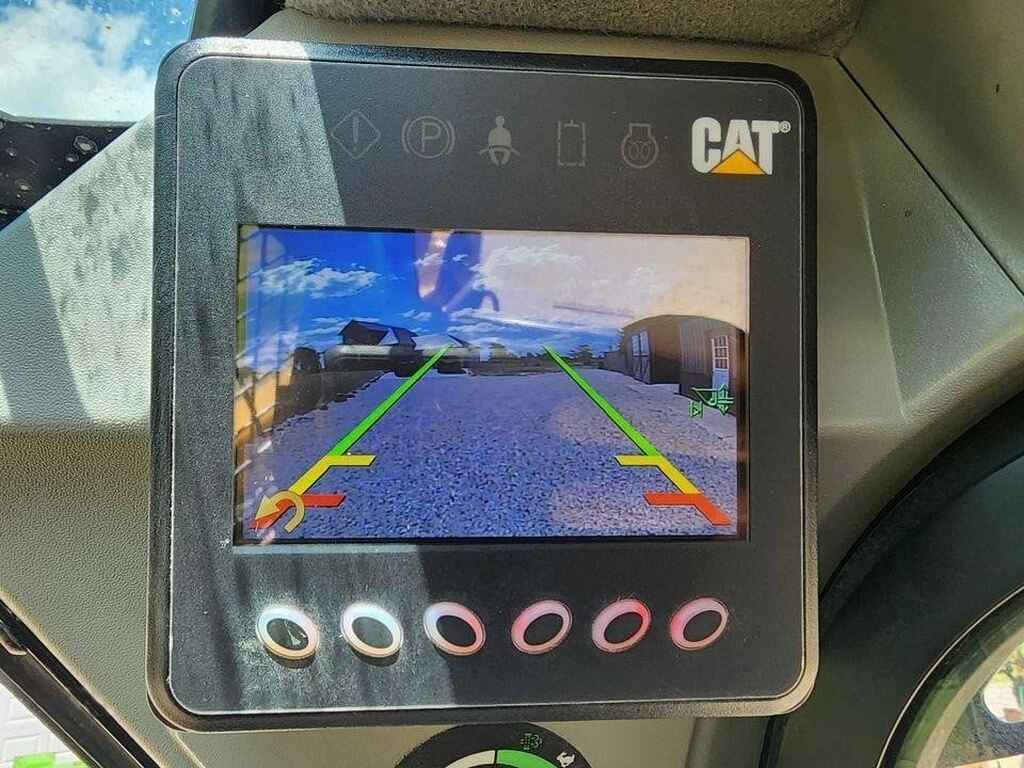

Backup Camera

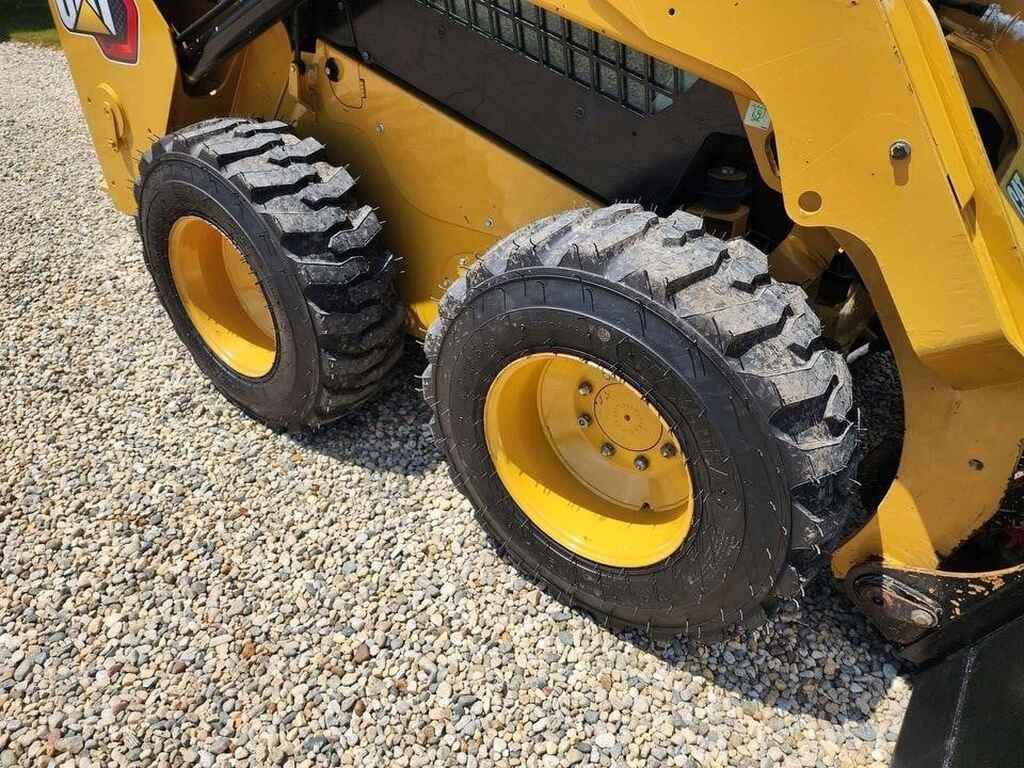

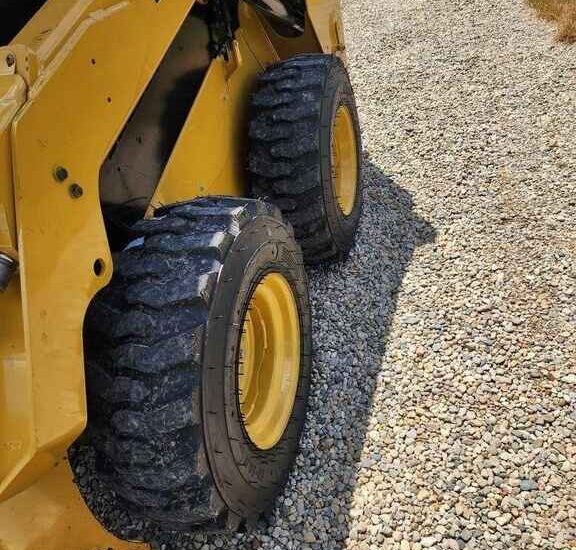

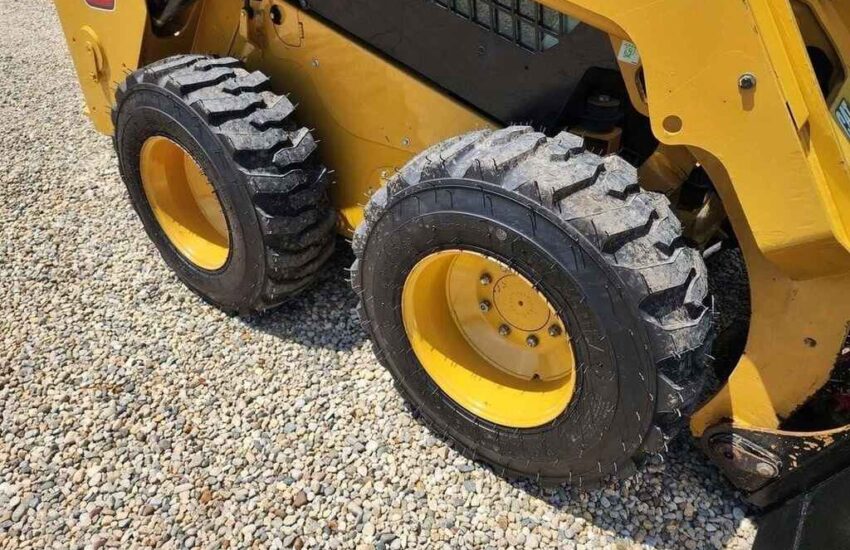

New Tires
Auxiliary Hydraulics/ 14 pin electric kit
74 Hp non def
Emissions warranty till 9-26
2200 Lb Lift Capacity 4400 tipping
Weighs 7300 Lb

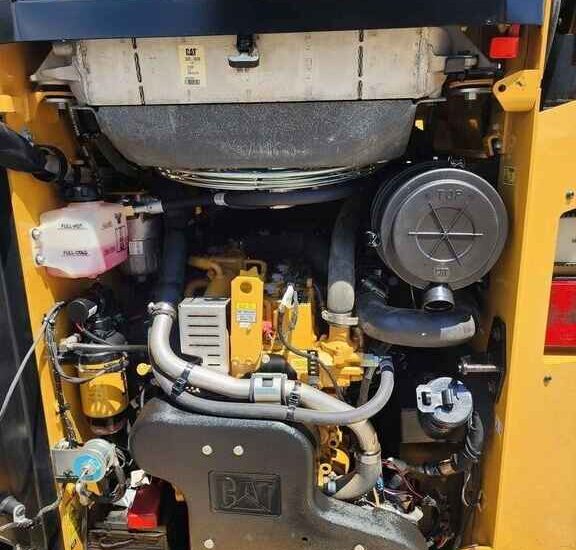

Power & Engine
Gross Power – SAE J1995: 74.3 hp (55.4 kW)
Net Power – SAE 1349: 73.2 hp (54.6 kW)
Net Flywheel Power: 73.2 hp (54.6 kW)
Net Power – ISO 9249: 73.9 hp (55.1 kW)

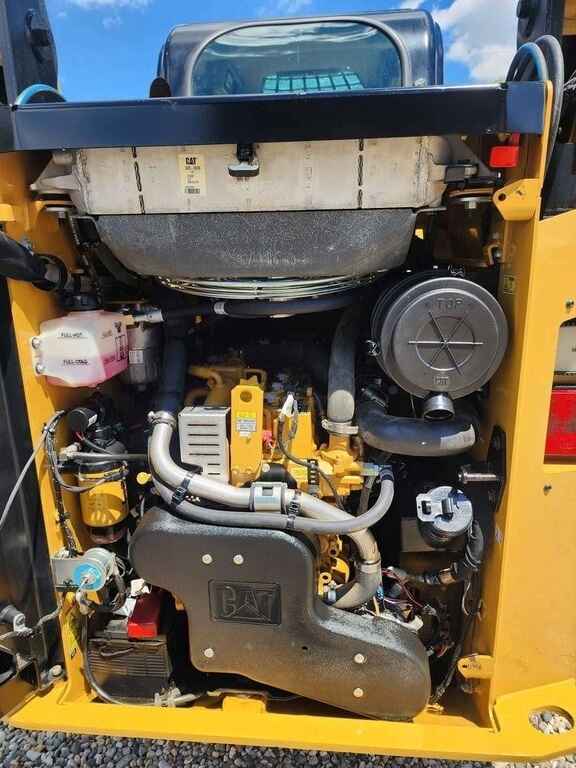

Engine Model: Cat C3.3B DIT (turbo)
Peak Torque – 1,500 rpm – SAE J1995: 195 ft·lbf (265 N·m)
Displacement: 203 in³ (3.3 l)
Stroke: 4.7 in (120 mm)
Bore: 3.7 in (94 mm)
Performance & Capacities
Rated Operating Capacity: 2200 lb (1000 kg)
Rated Operating Capacity with Optional Counterweight: 2410 lb (1095 kg)
Operating Weight: 7138 lb (3238 kg)
Tipping Load: 4400 lb (2000 kg)
Breakout Force – Tilt Cylinder: 4963 lb (2251 kg)
Hydraulic System
Hydraulic Flow – Standard – Loader Hydraulic Flow: 20 gal/min (76 l/min)
Hydraulic Flow – Standard – Loader Hydraulic Pressure: 3335 psi (23000 kPa)
Hydraulic Flow – Standard – Hydraulic Power (Calculated): 39 hp (29 kW)
Hydraulic Flow – High Flow – Maximum Loader Hydraulic Flow: 30 gal/min (112 l/min)
Hydraulic Flow – High Flow – Maximum Loader Hydraulic Pressure: 3335 psi (23000 kPa)
Hydraulic Flow – High Flow – Hydraulic Power (Calculated): 58 hp (43 kW)
Dimensions
Wheel Base: 43.5 in (1105 mm)
Height – Top of Cab: 83.1 in (2111 mm)
Vehicle Width over Tires: 66 in (1676 mm)
Ground Clearance: 8.7 in (222 mm)
Departure Angle: 27°
Maximum Dump Angle: 52°
Length – Without Bucket: 108.9 in (2767 mm)
Length – With Bucket on Ground: 137.3 in (3487 mm)
Bucket Pin Height – Maximum Lift: 121.1 in (3076 mm)
Maximum Overall Height: 154.2 in (3917 mm)
Bucket Pin Height – Carry Position: 7.9 in (200 mm)
Bucket Pin Reach – Maximum Lift: 7.2 in (182 mm)
Reach – Maximum Lift/Dump: 21.7 in (552 mm)
Maximum Reach – With Arms Parallel to Ground: 49.2 in (1249 mm)
Clearance at Maximum Lift and Dump: 90 in (2285 mm)
Turning Radius from Center – Bucket: 83 in (2107 mm)
Turning Radius from Center – Coupler: 51.8 in (1314 mm)
Turning Radius from Center – Machine Rear: 64.5 in (1639 mm)
Bumper Overhang – Behind Rear Axle: 40.2 in (1021 mm)
Travel Speed
Travel Speed – Forward or Reverse – One Speed: 7.5 mile/h (12.1 km/h)
Travel Speed – Forward or Reverse – Two Speed Option: 11.5 mile/h (18.5 km/h)
Fluids & Tank Capacities
Chain Box – Each Side: 2.3 gal (US) (8.8 l)
Cooling System: 3.7 gal (US) (14 l)
Engine Crankcase: 3 gal (US) (11 l)
Fuel Tank: 24.8 gal (US) (94 l)
Hydraulic System: 13.2 gal (US) (50 l)
Hydraulic Tank: 10.3 gal (US) (39 l)
Noise Levels
Outside Cab: 101 dB(A)
Inside Cab: 83 dB(A)
ROPS & FOPS
ROPS: ISO 3471:2008
FOPS: ISO 3449:2005 Level I
Air Conditioning System
Refrigerant Type: R134a
Global Warming Potential: 1430
Refrigerant Amount: 0.81 kg
CO2 Equivalent: 1.158 metric tonnes
