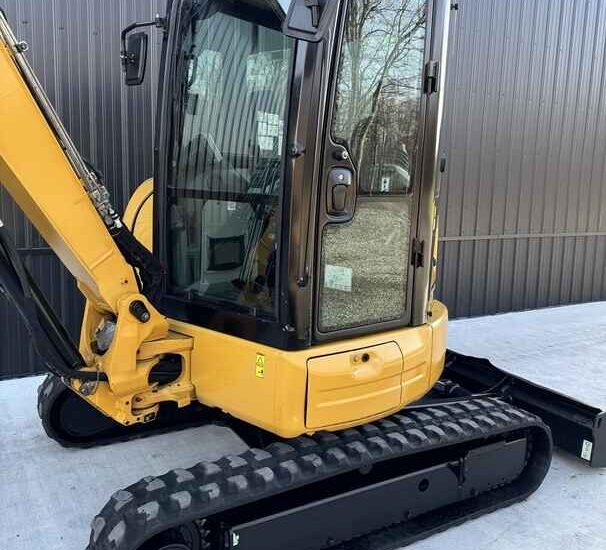

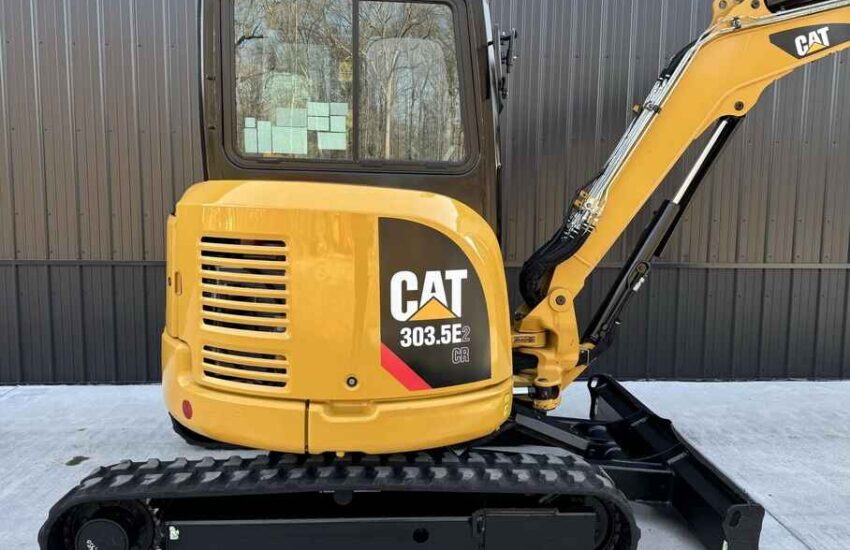

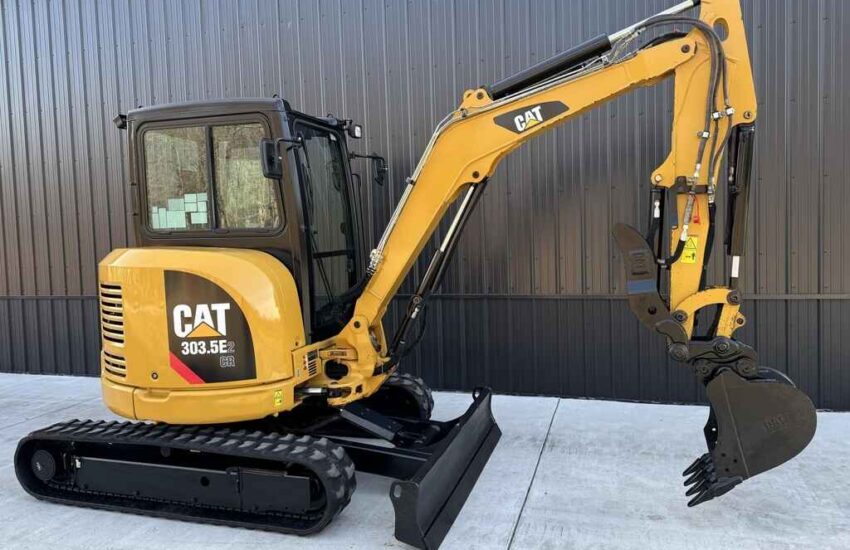

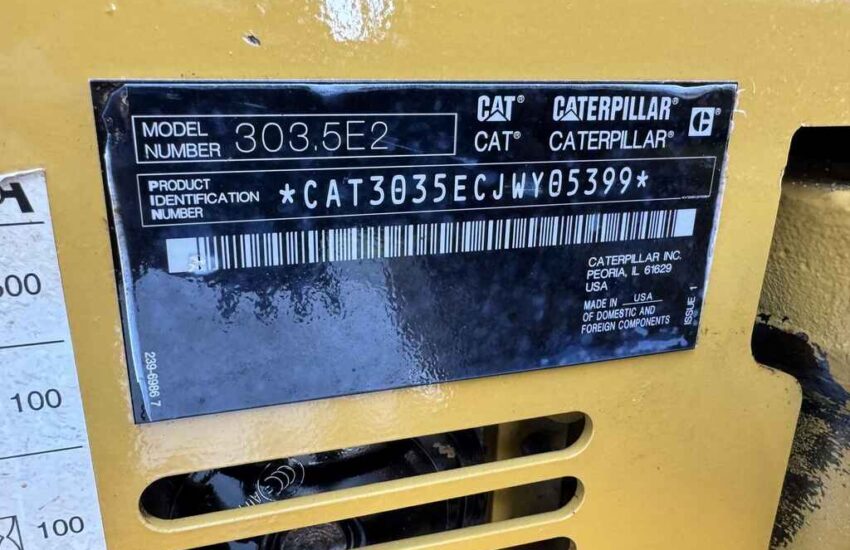

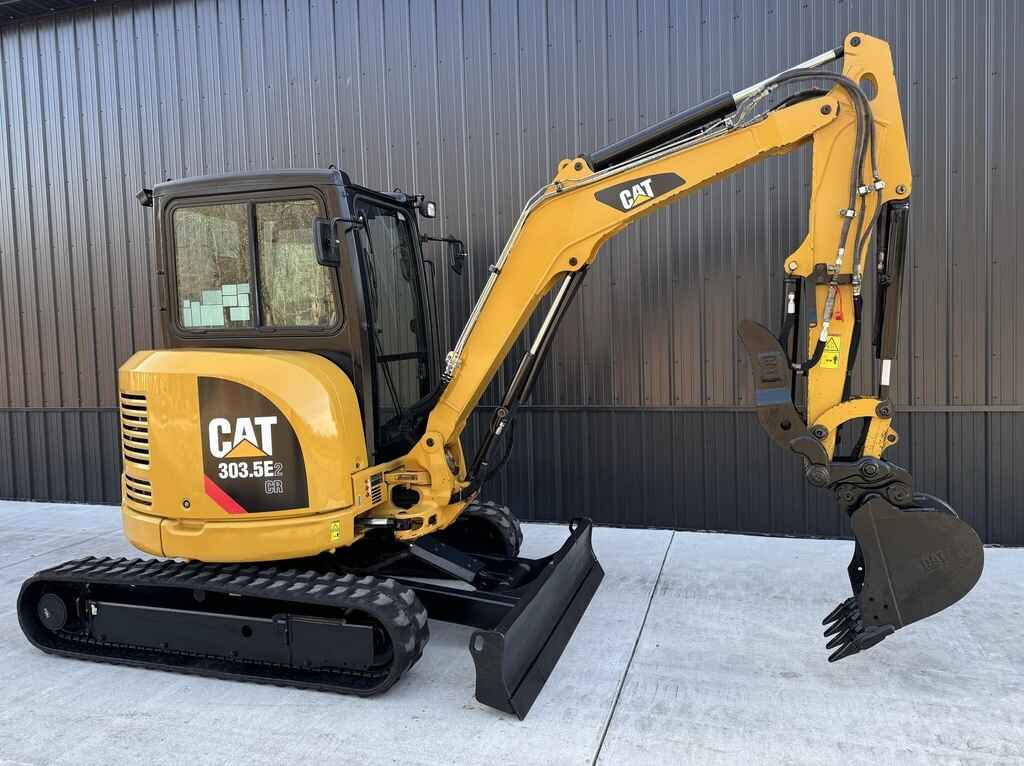

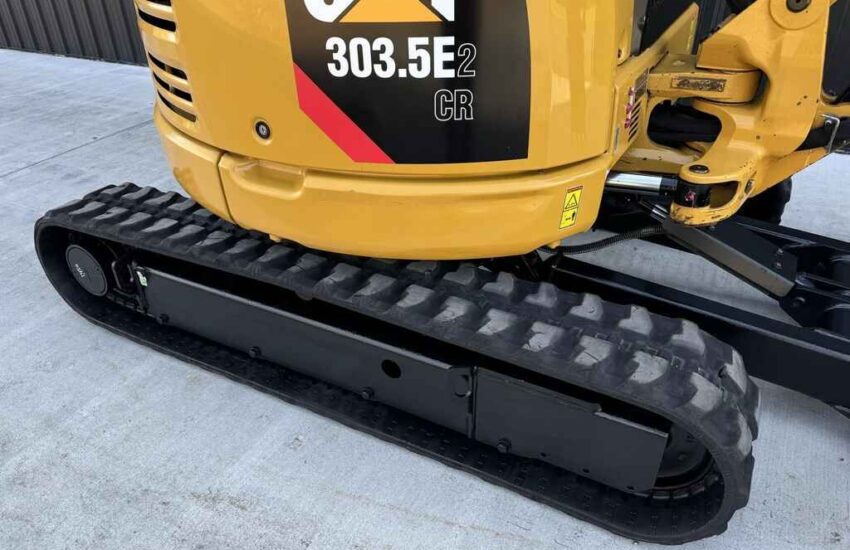

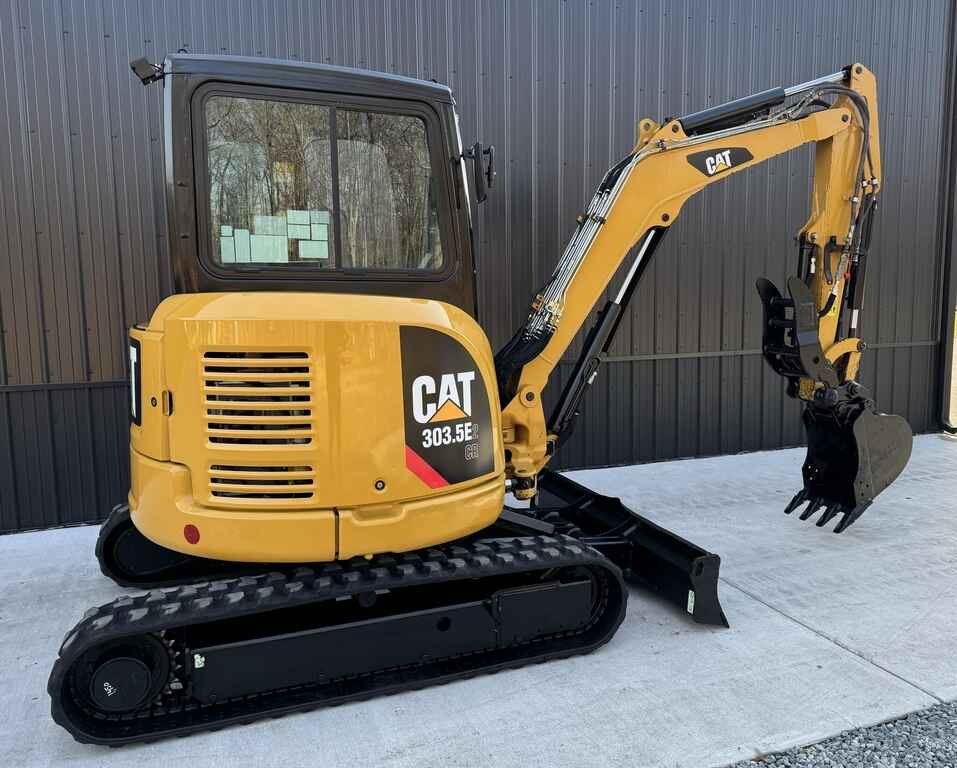

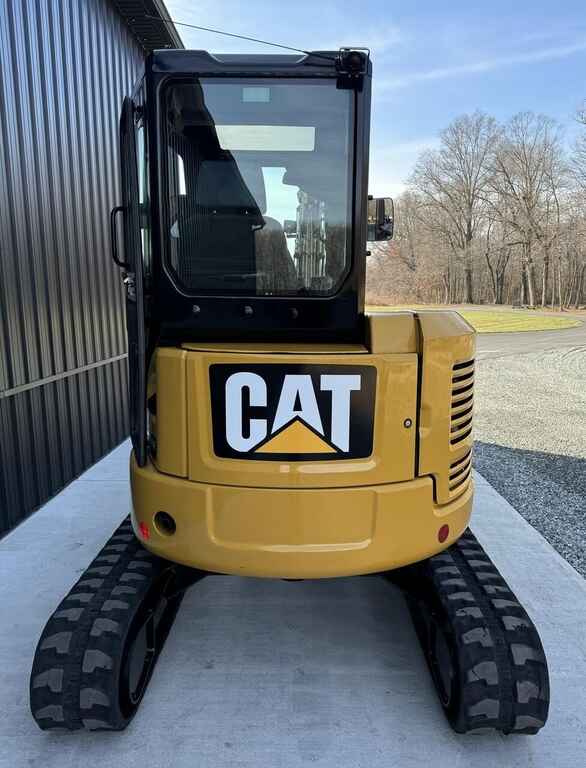

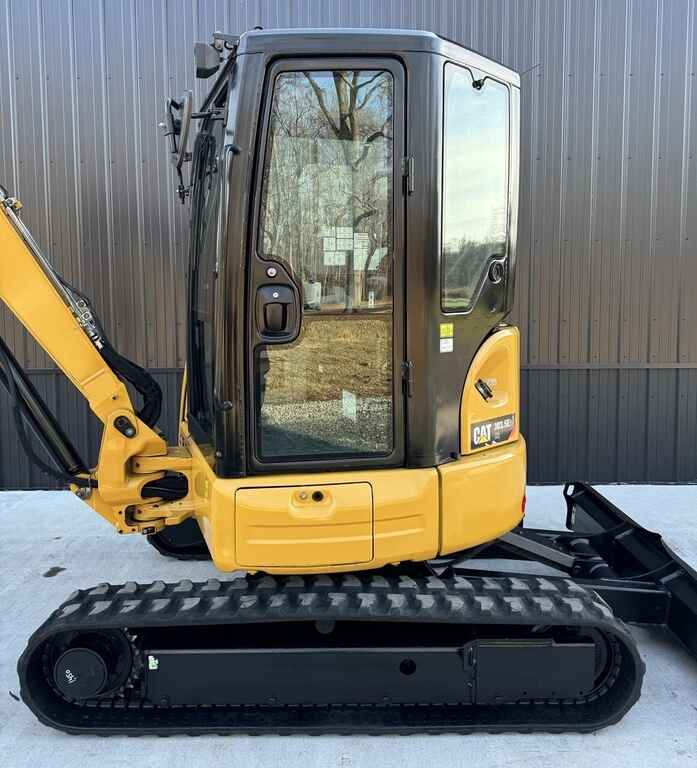

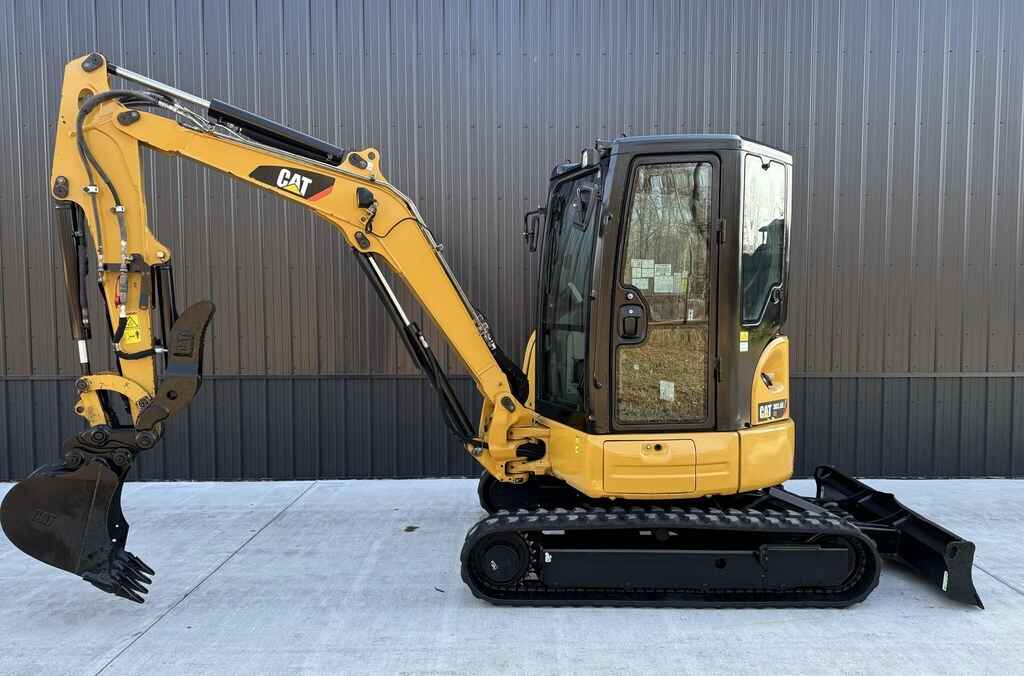

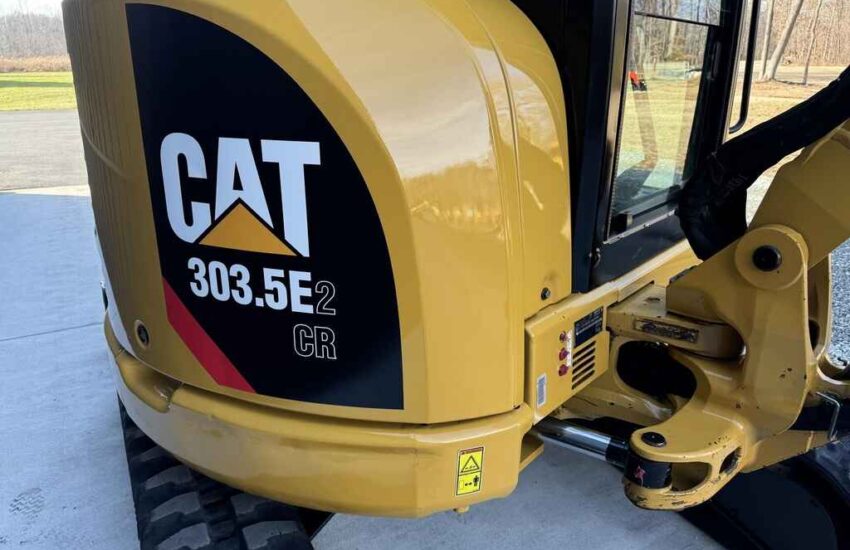

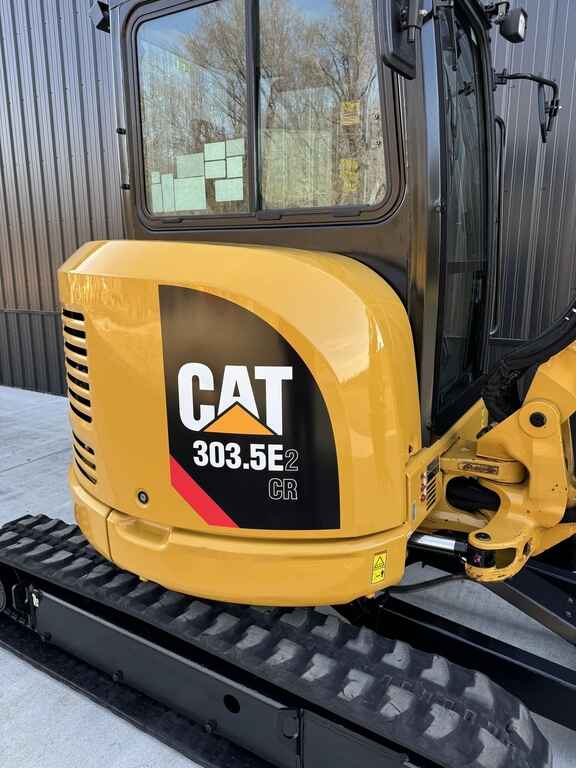

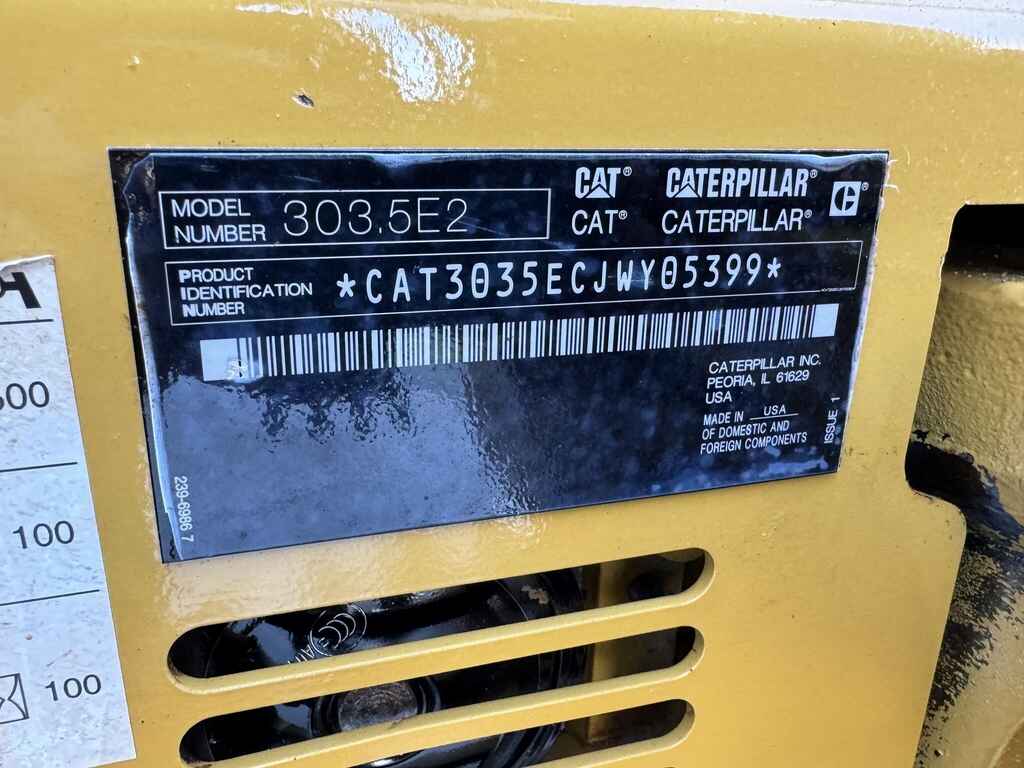

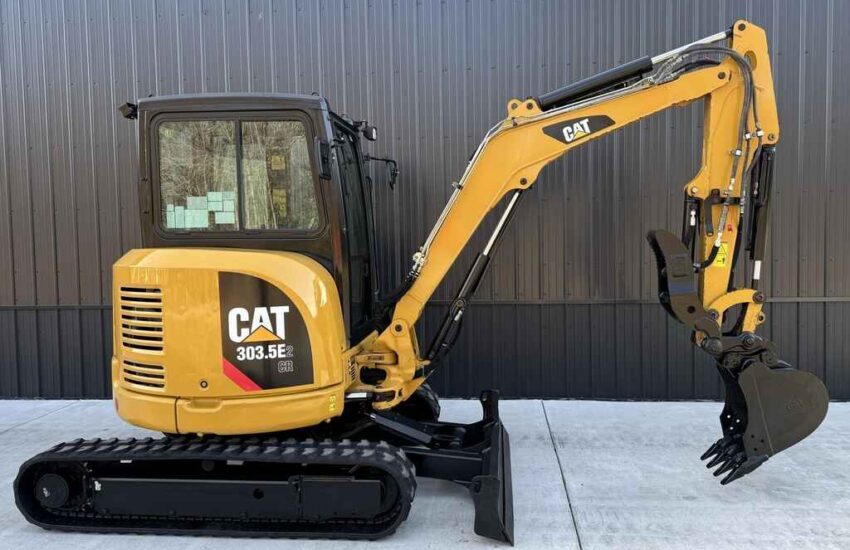

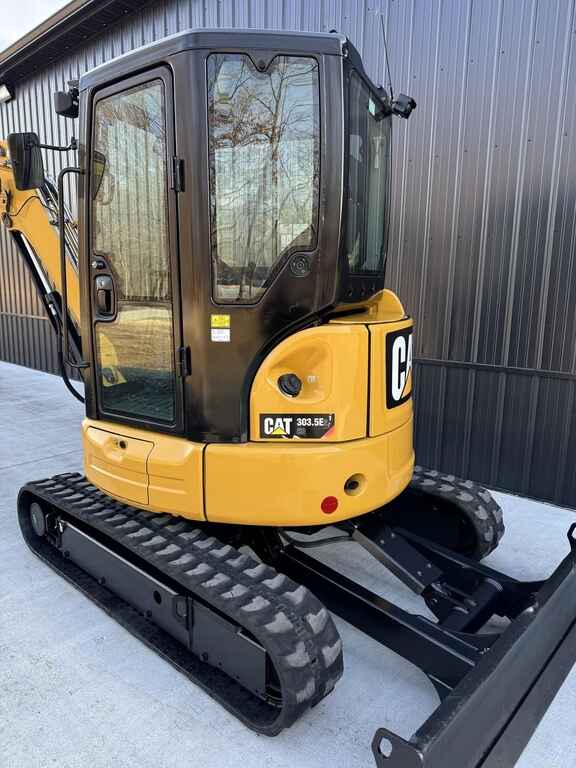

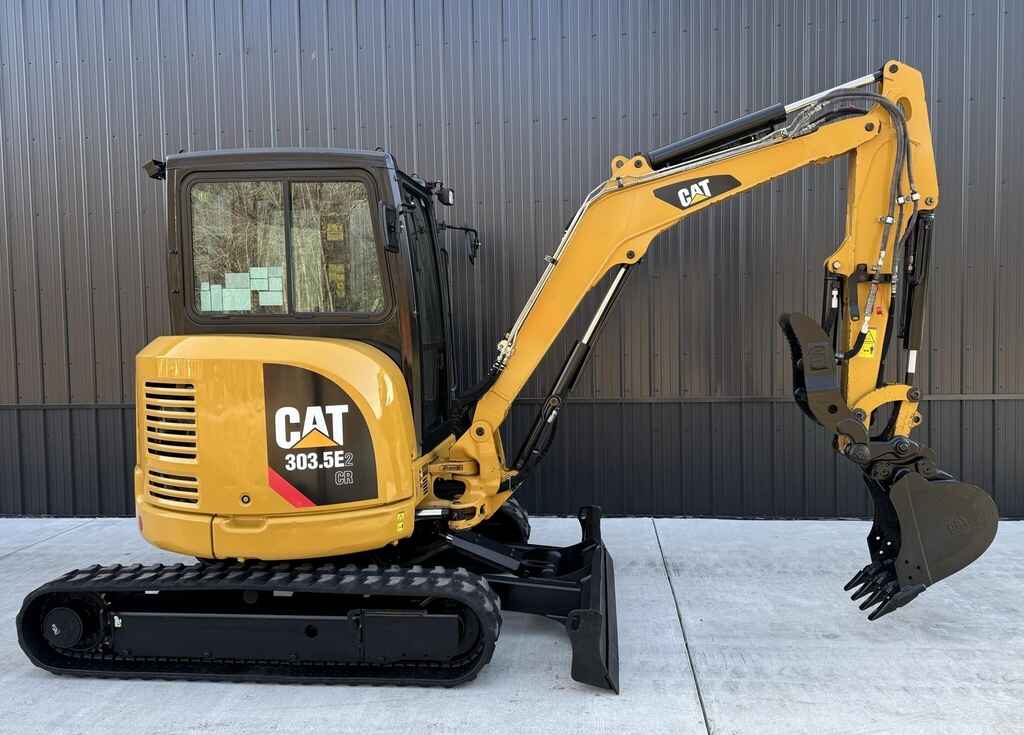

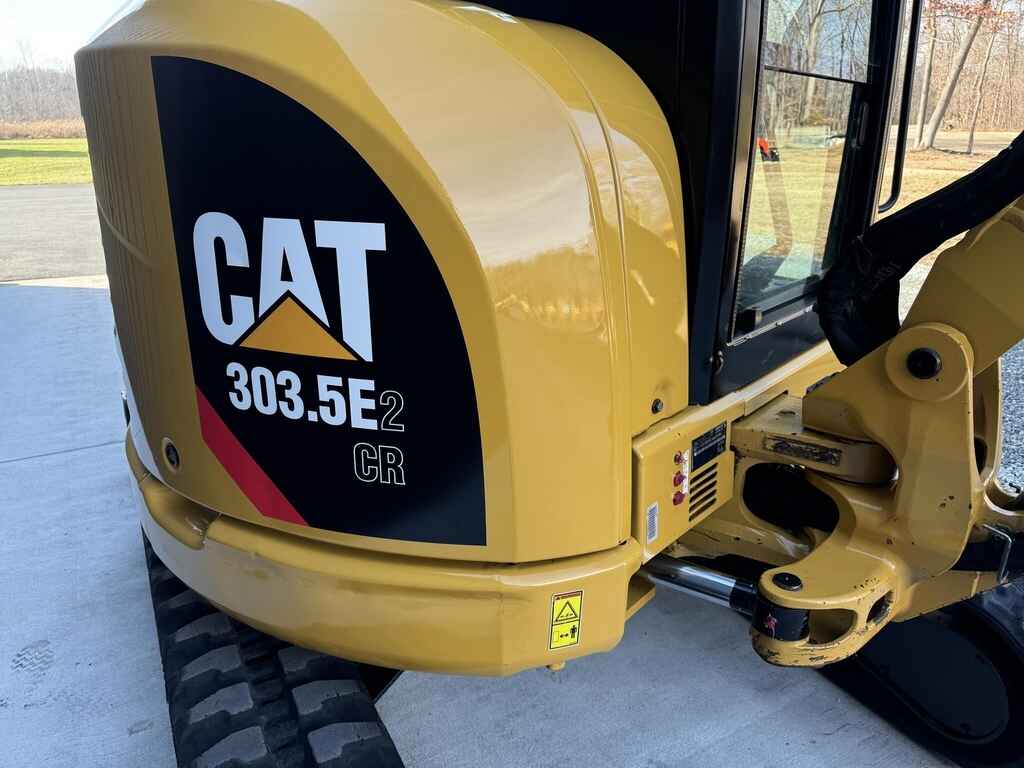

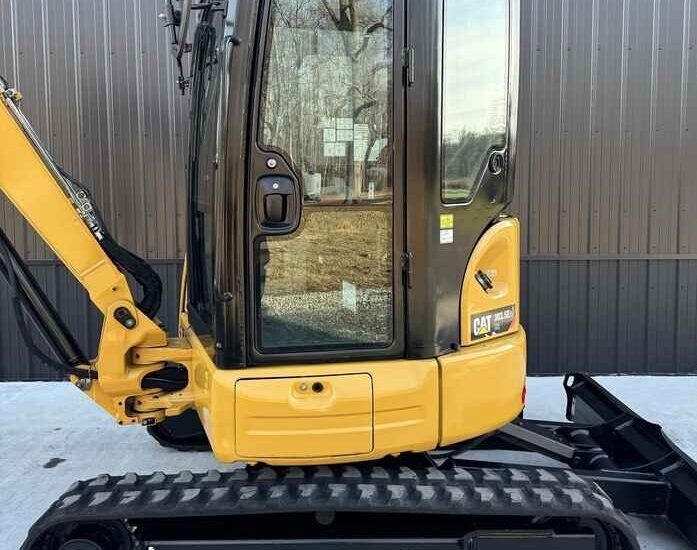

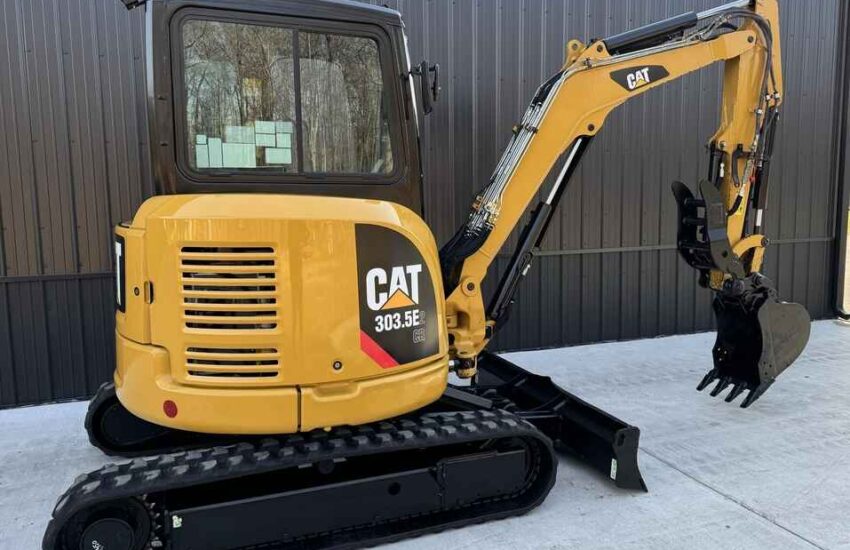

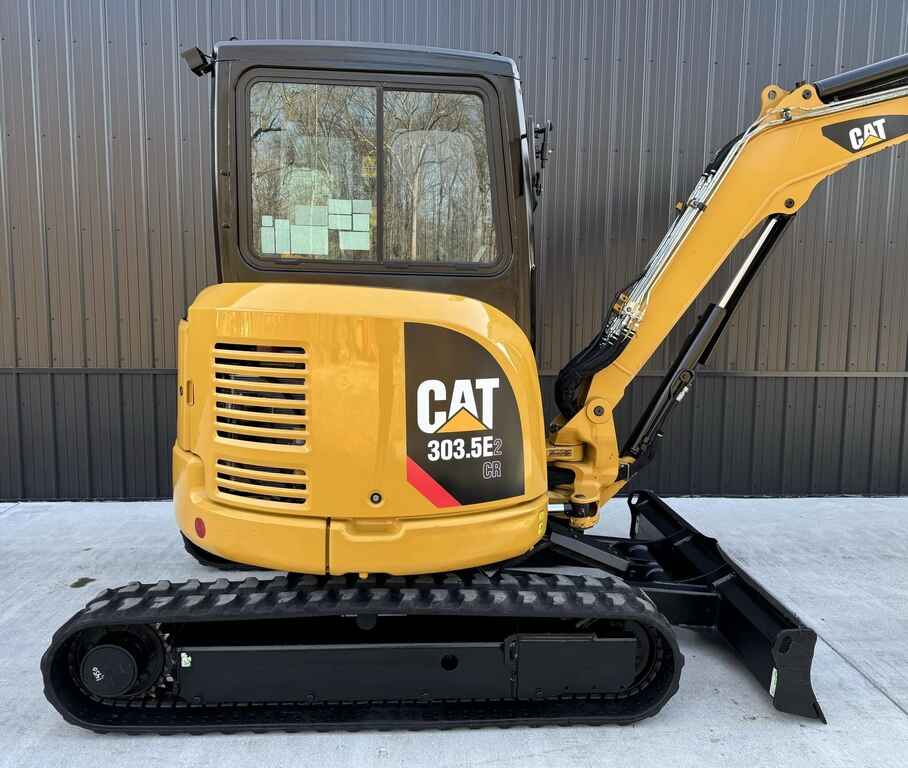

2020 Caterpillar 303.5E2 CR

PRICE FIRM NO TAX OR FEES

6M/1500Hr FULL Warranty!
Excellent condition and LIGHTLY used. Just completely cleaned, greased, & looked over. Photos just taken. Delivery Available!
– 1,451 LIGHTLY Used Hours

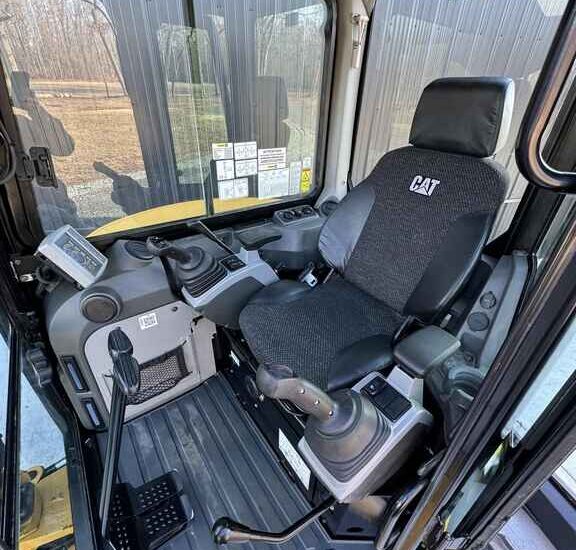

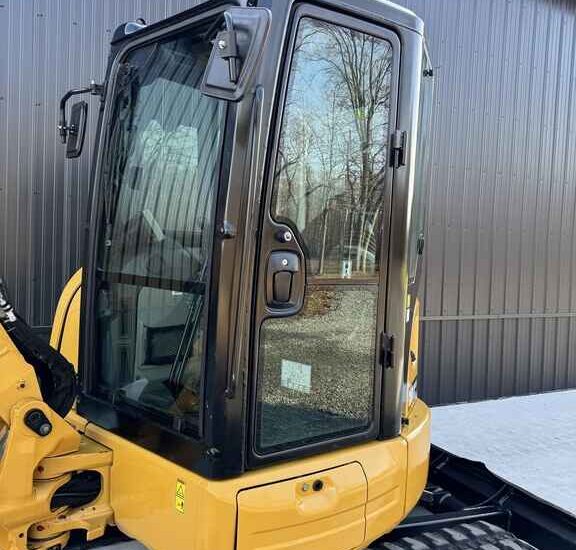

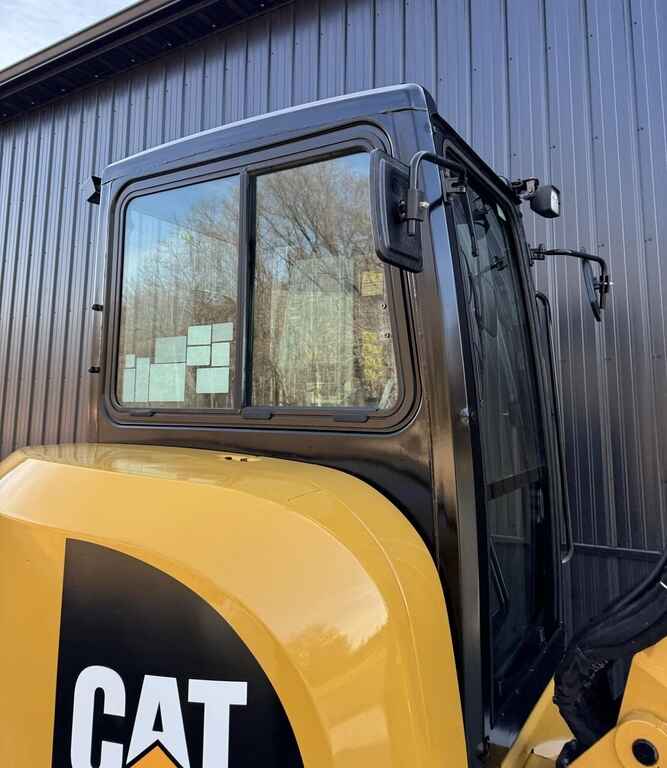

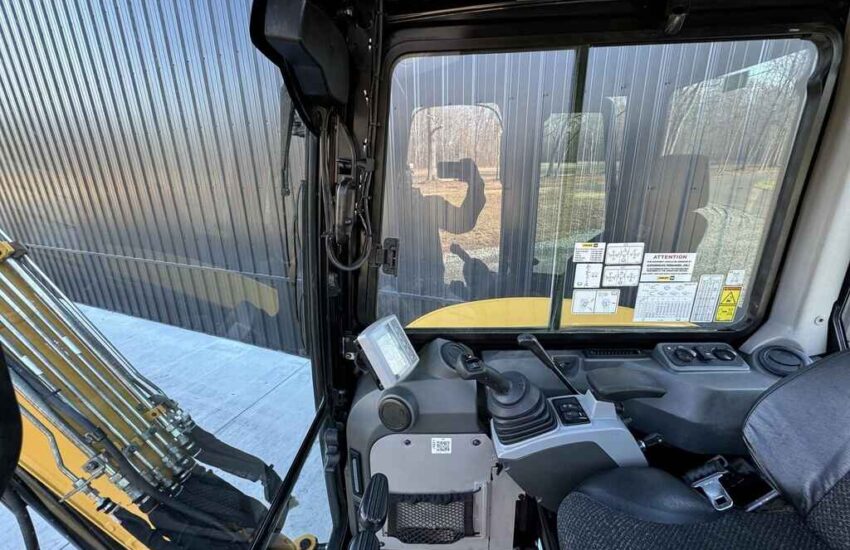

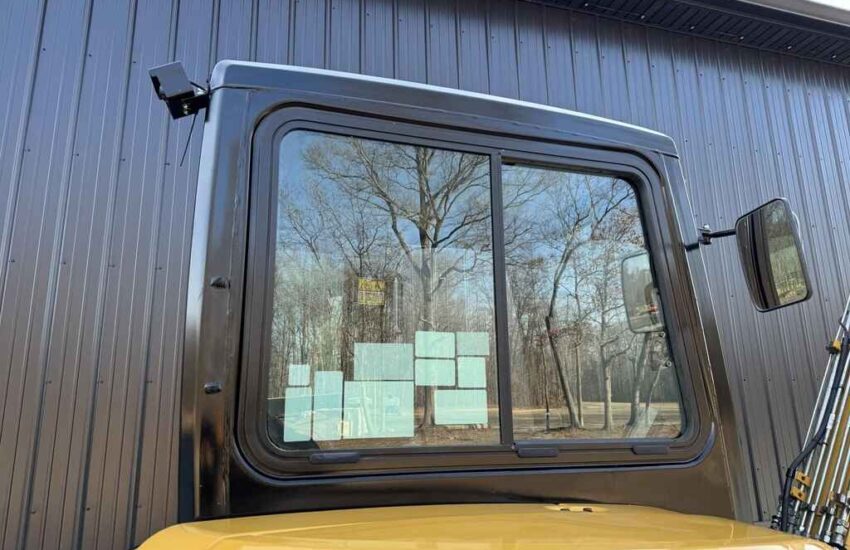

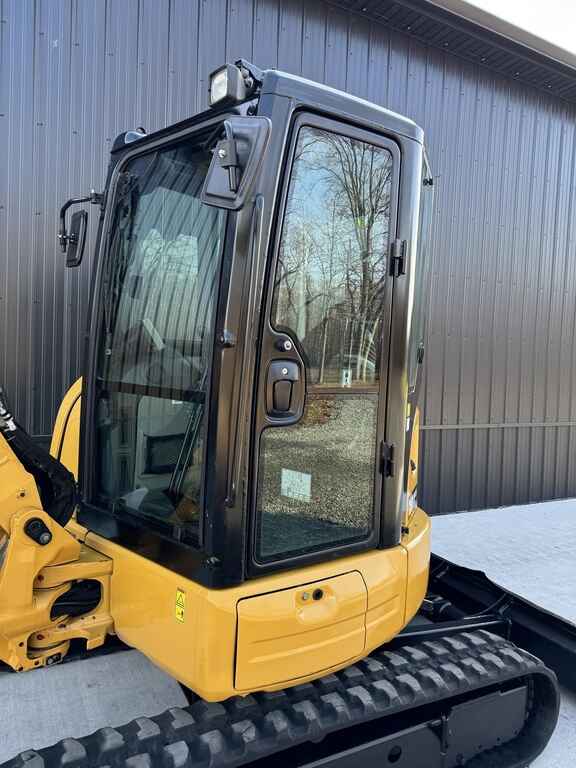

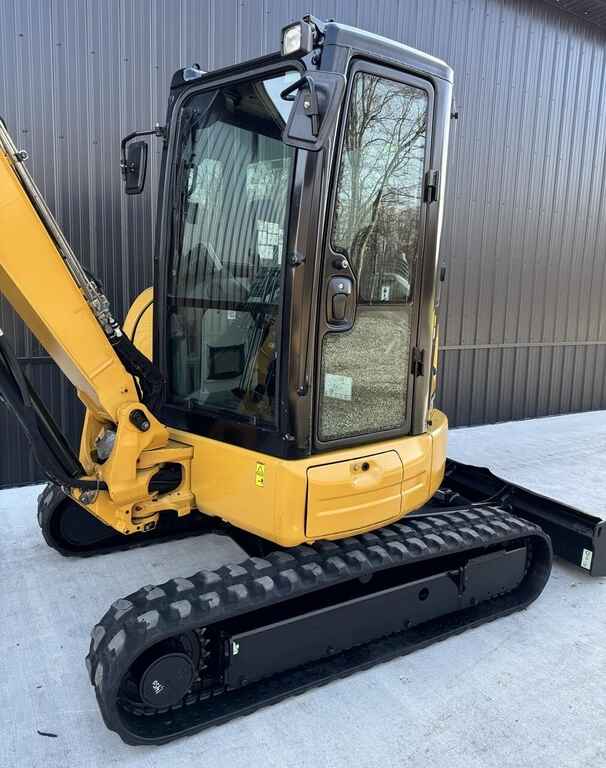

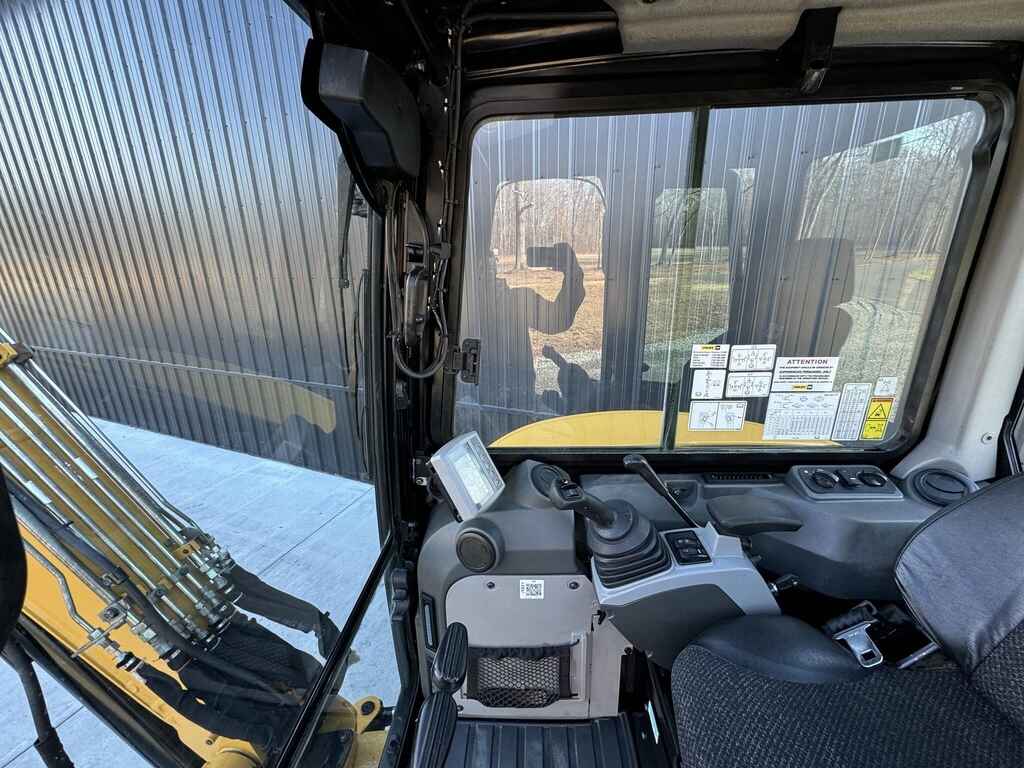

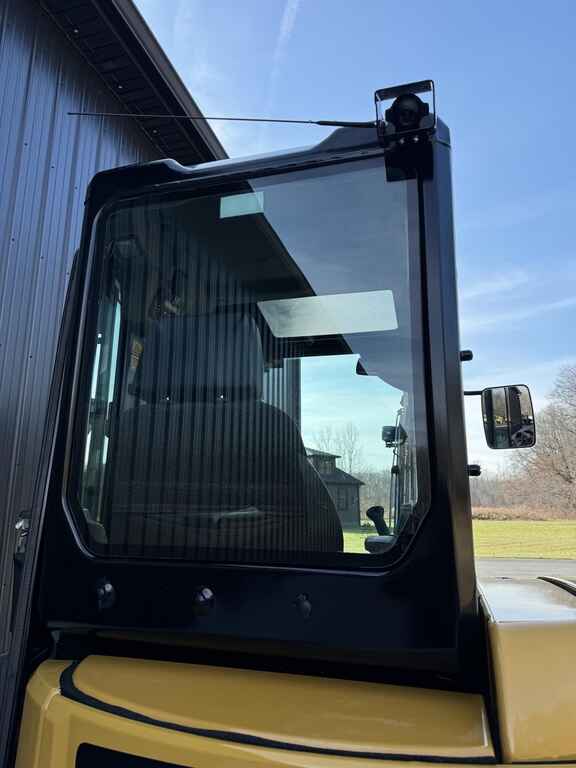

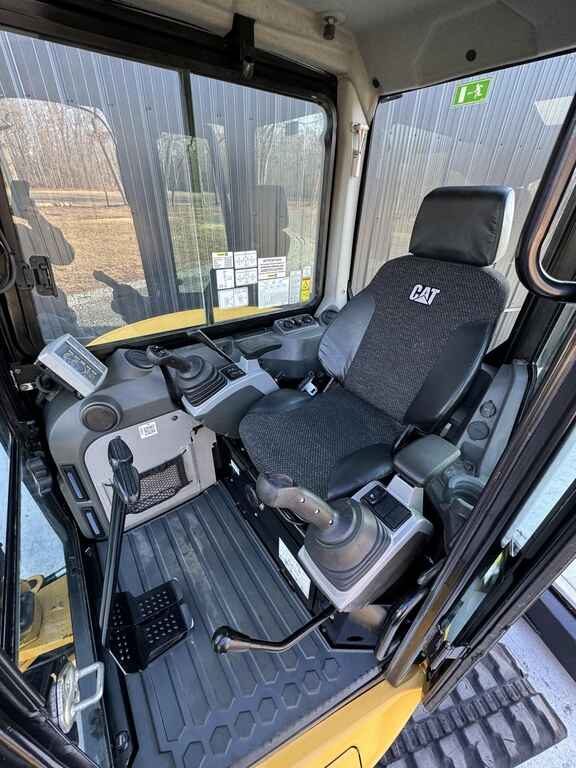

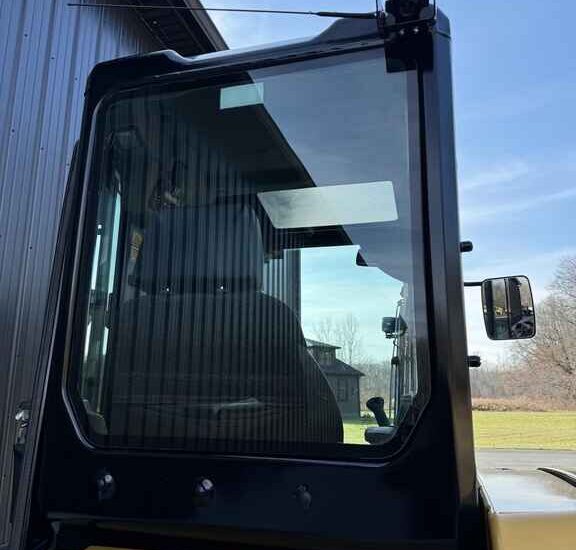

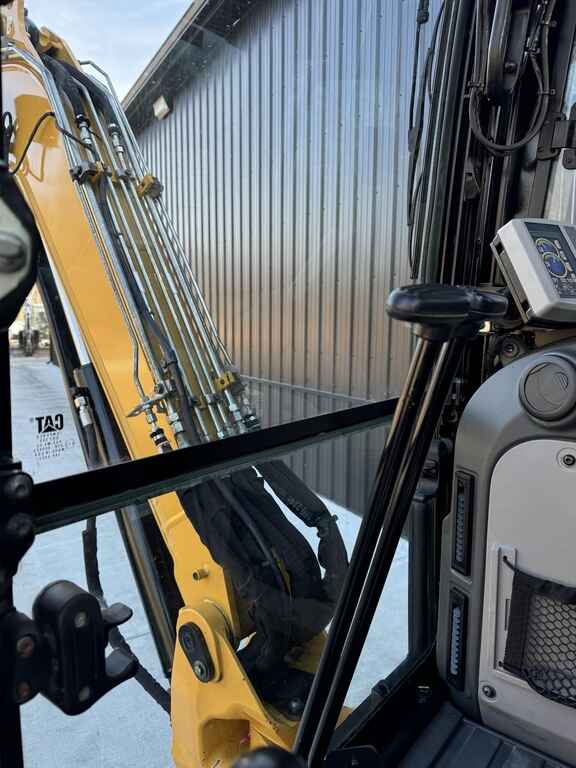

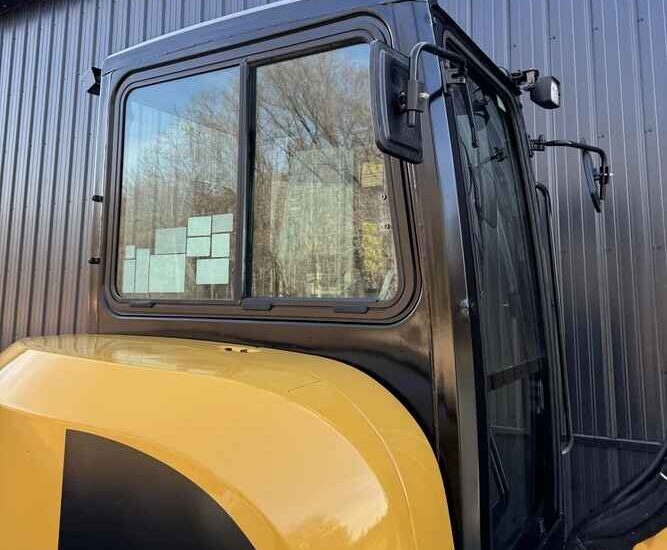

– Enclosed HEAT/AC/RADIO

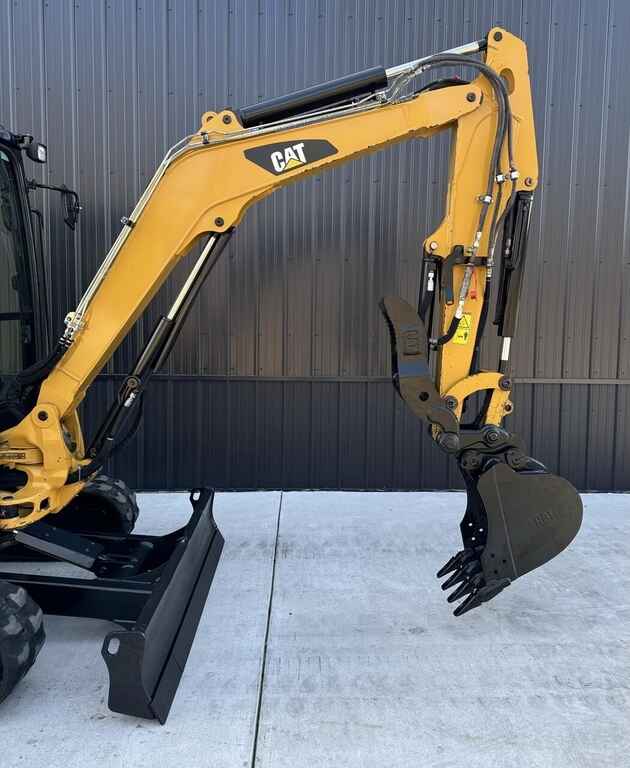

– Hydraulic Coupler

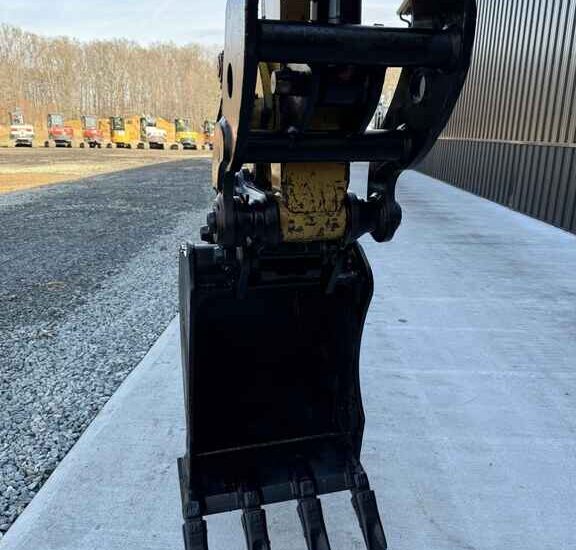

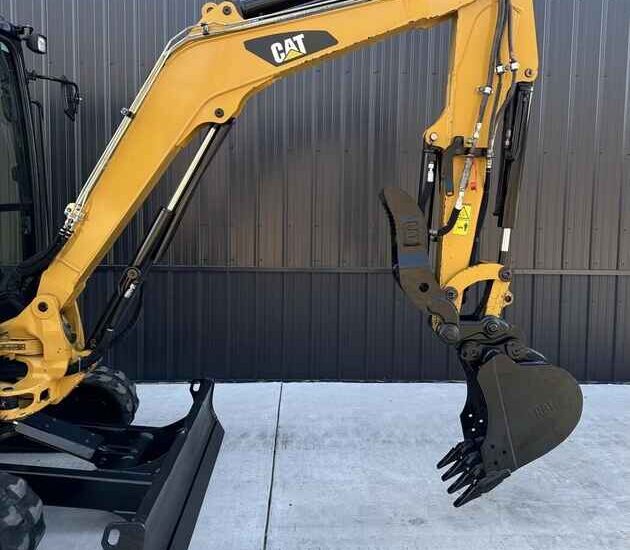

– 24” Tooth Bucket

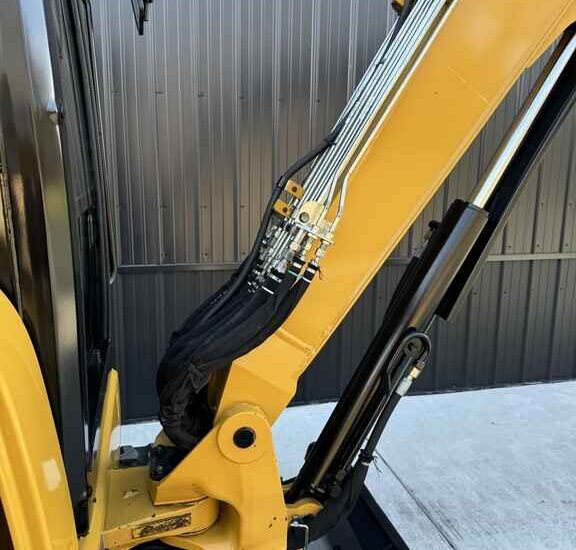

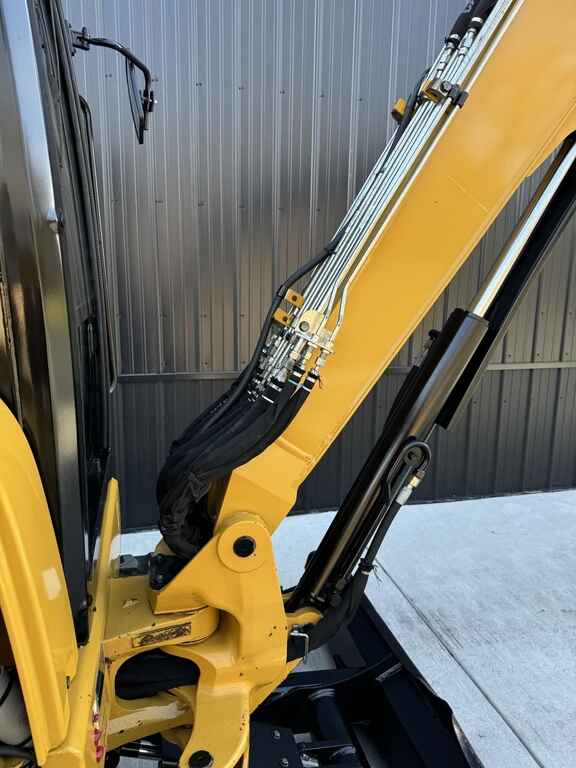

– Hydraulic Thumb

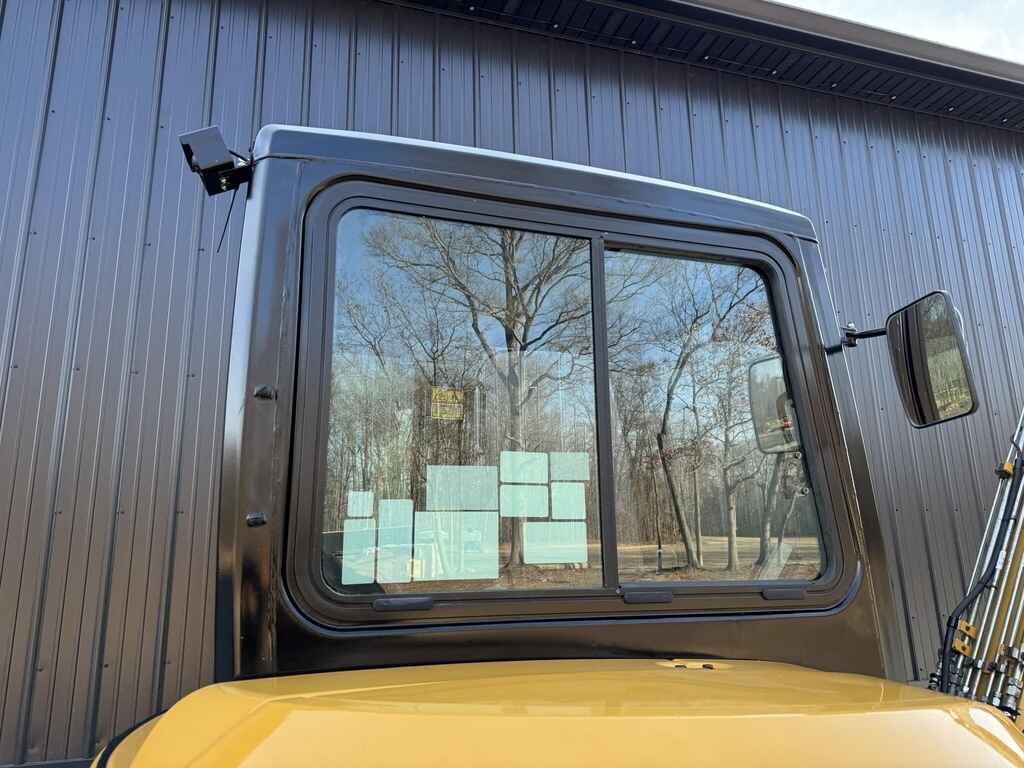

– Rear Camera
– 8,200 Lbs
– 25 HP
– NO LEAKS
– NO ISSUES
MACHINE IS TIGHT & READY TO WORK

Swing System

Machine Swing Speed: 10 rpm
Swing – Right: 50 degrees

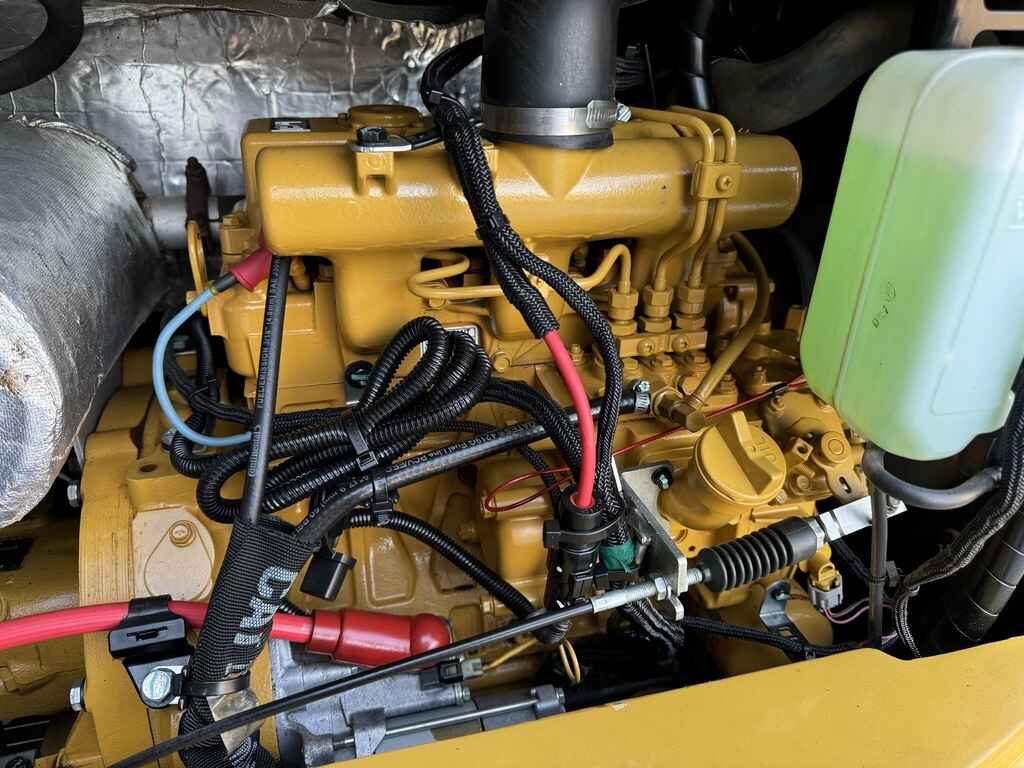

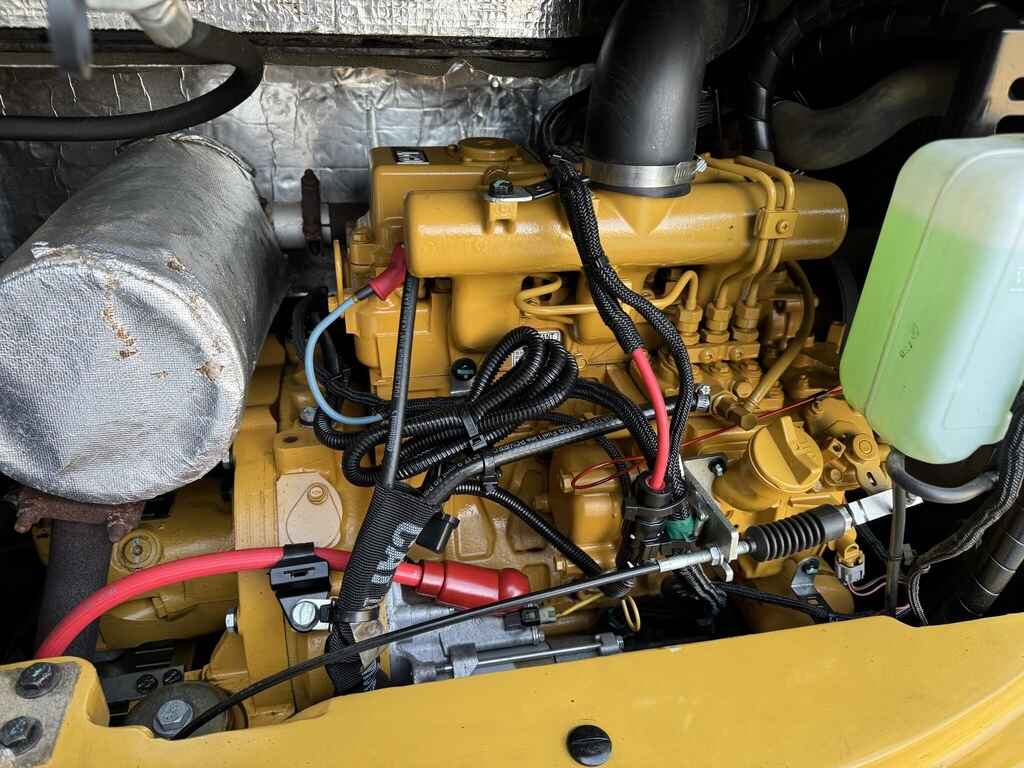

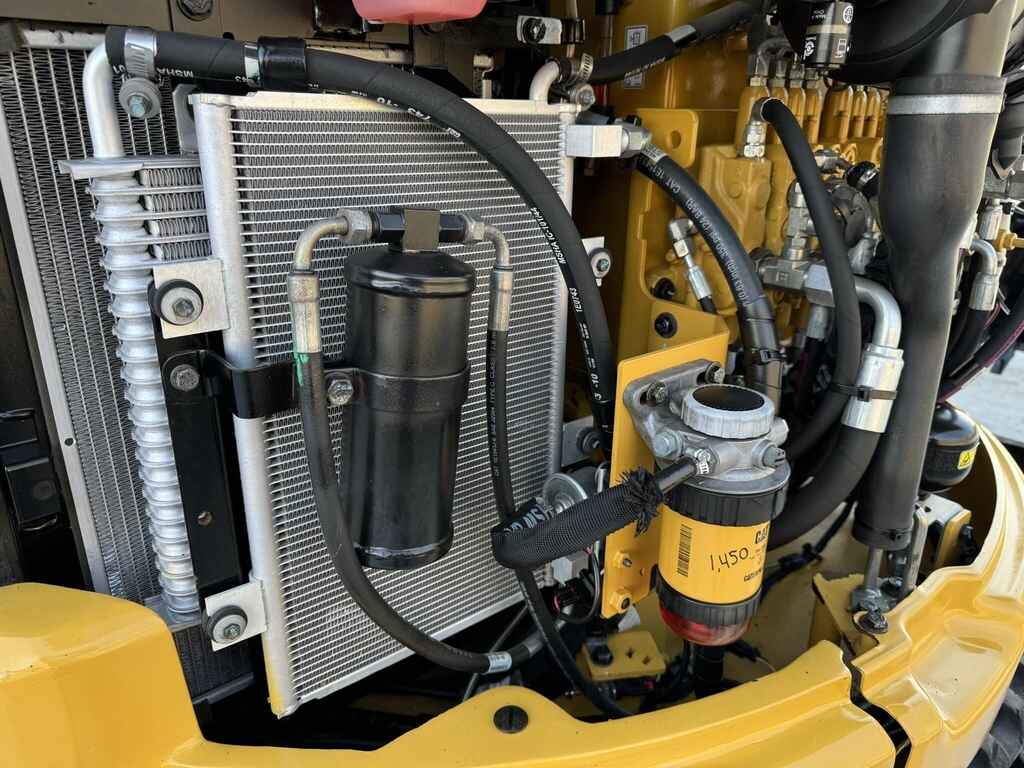

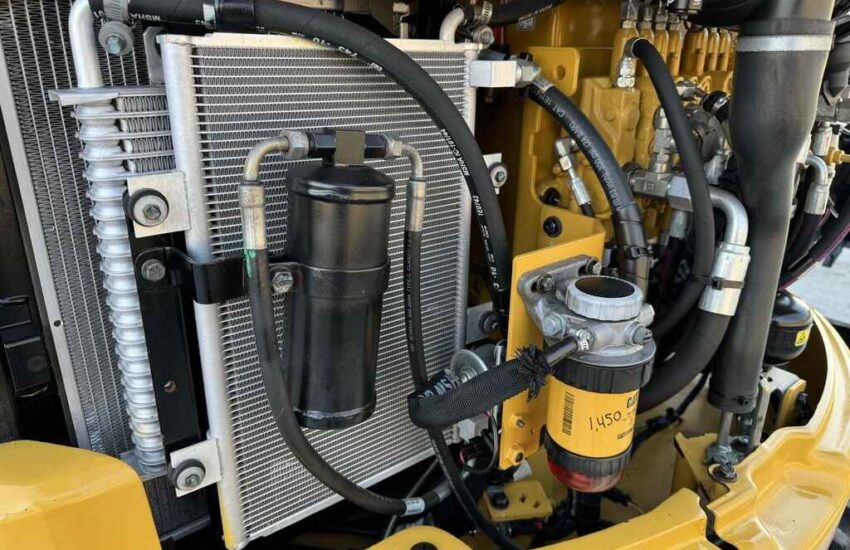

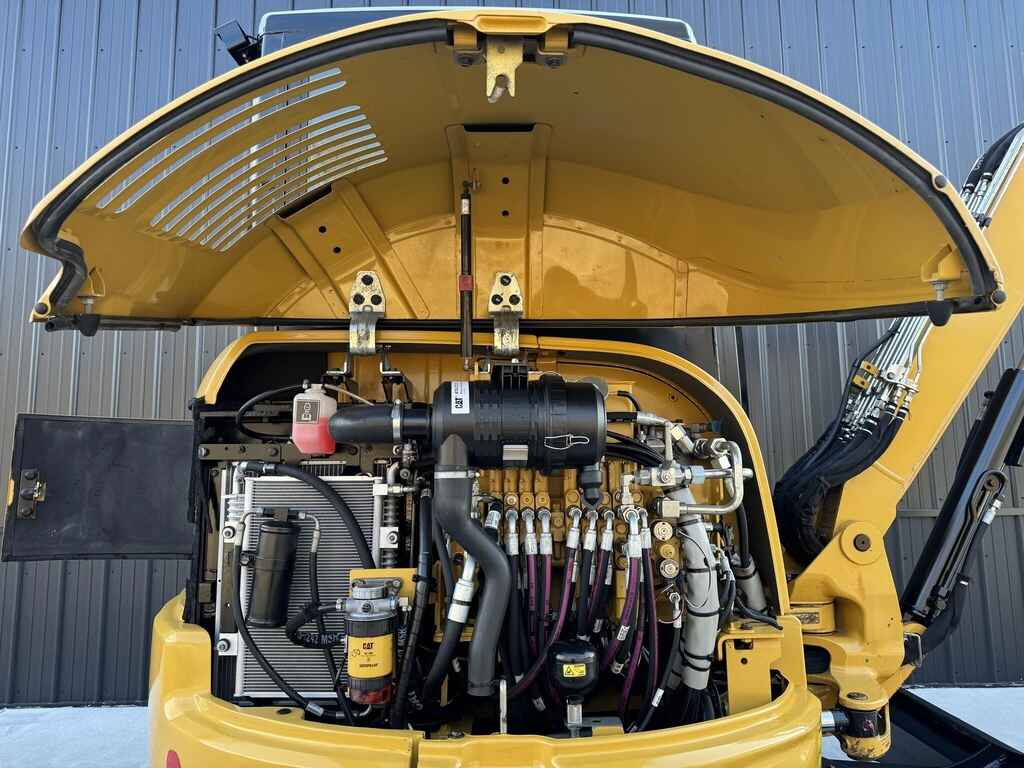

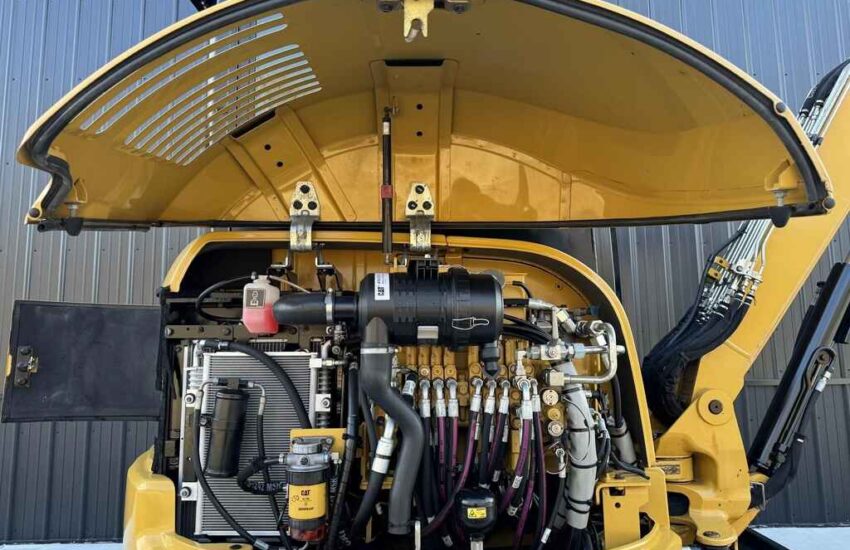

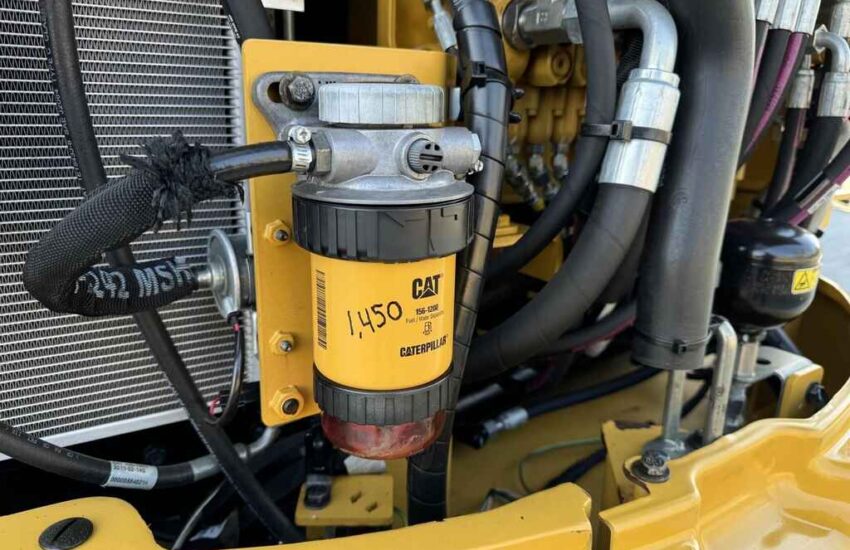

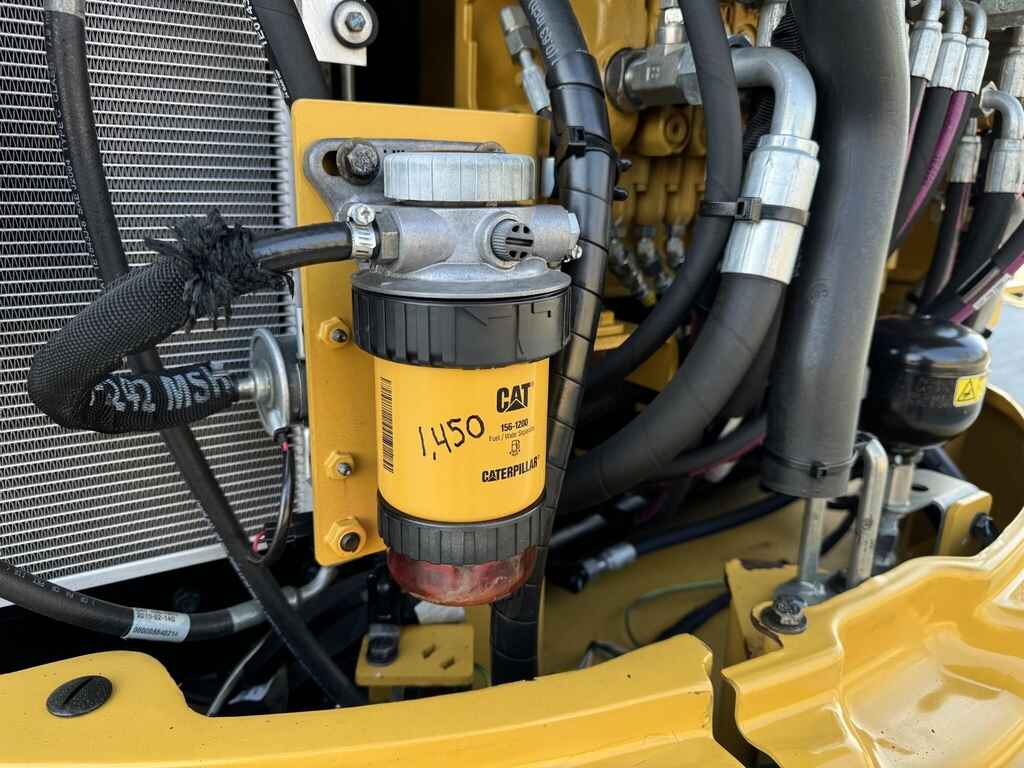

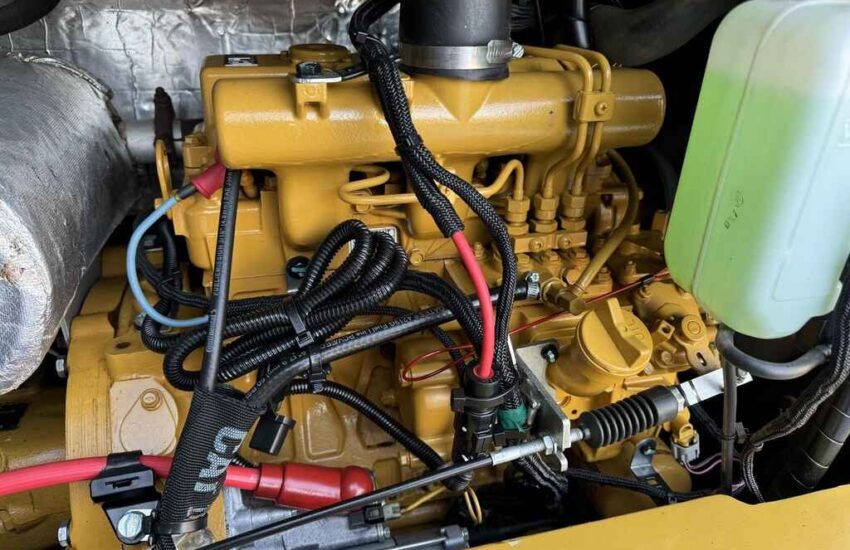

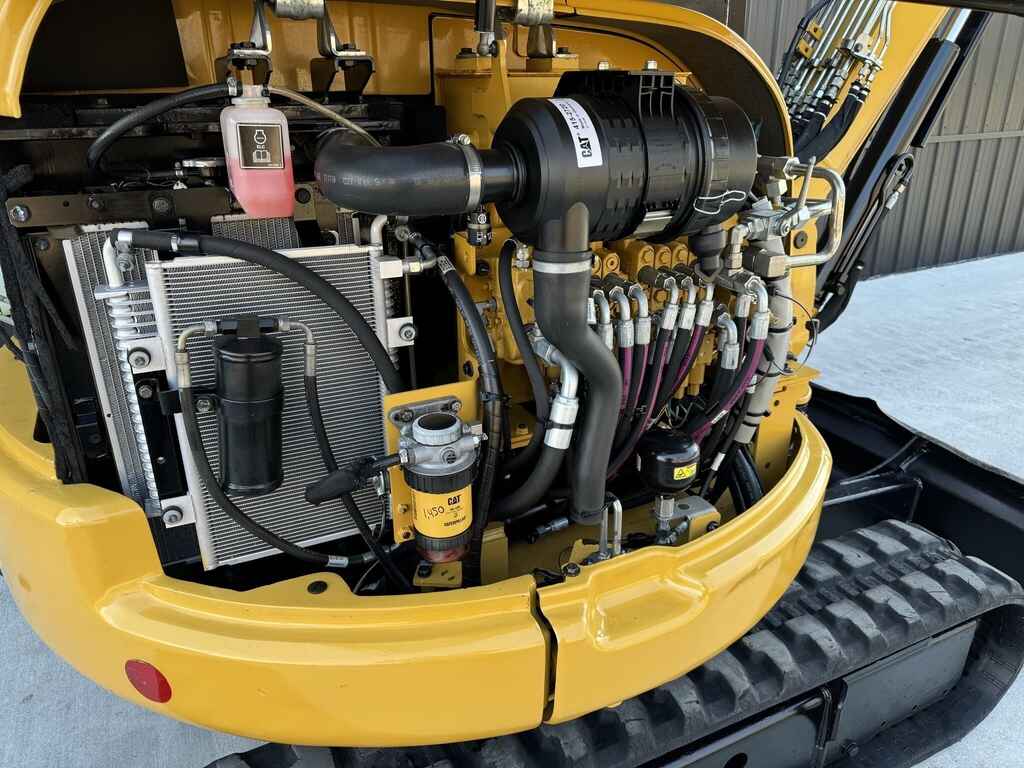

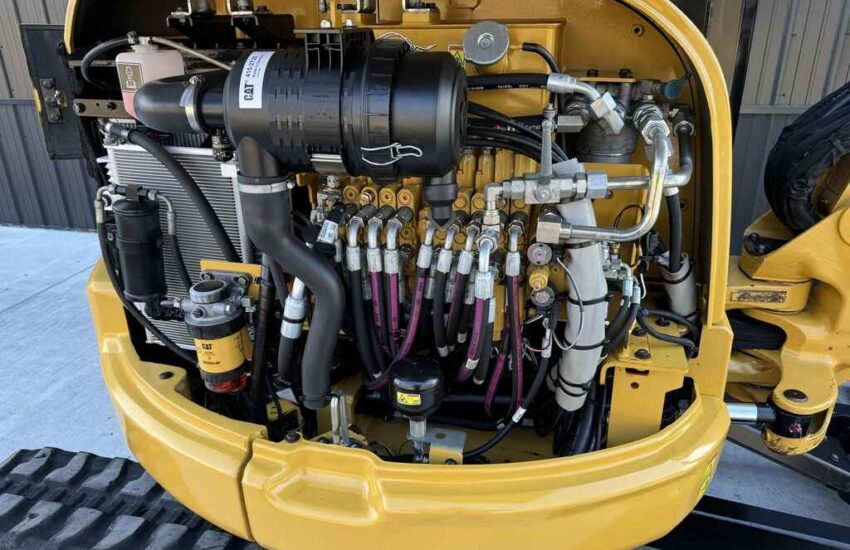

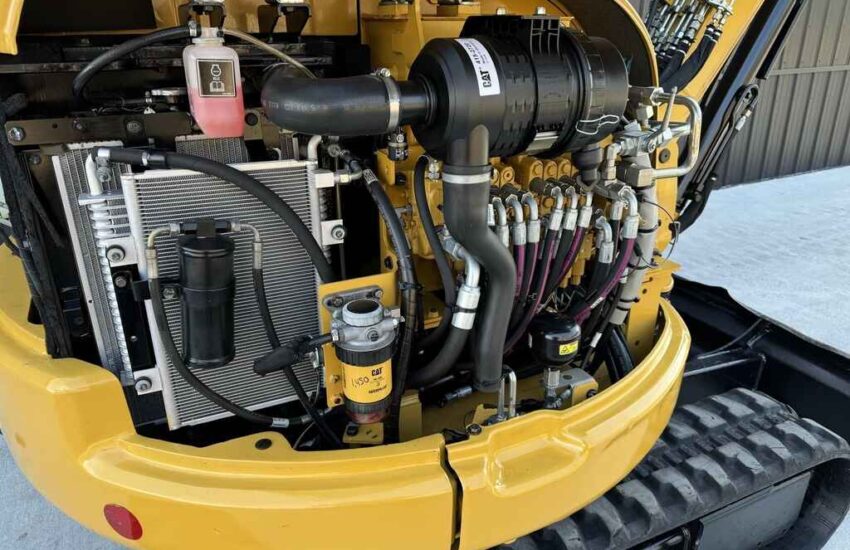

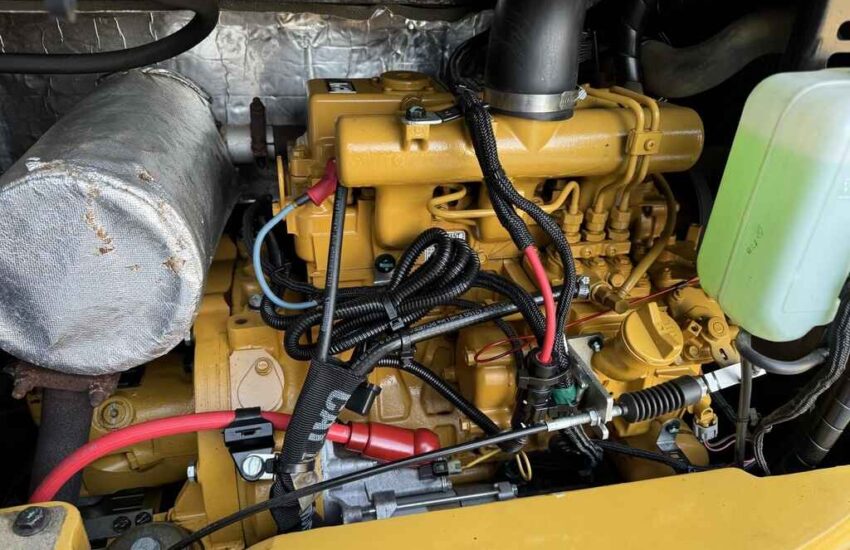

Engine

Gross Power: 24.8 hp
Net Power: 23.5 hp
Displacement: 104 cu in
Bore: 3.4 in
Stroke: 3.6 in
Net Power – ISO 9249: 23.5 hp
Engine Model: Cat C1.7
Rated Net Power – ISO 9249: 23.5 hp
Note: Cat C1.7 engine meets U.S. EPA Tier 4 Final / EU Stage IIIB emission standards

Operational

Operating Weight: 8,209 lb
Note: Weight includes rubber tracks, bucket, operator, full fuel, and auxiliary lines
Operating Weight with Cab: 8,209 lb
Operating Weight with Canopy: 7,803 lb

Blade

Height: 13 in
Width: 5.9 ft
Lift Height: 16 in

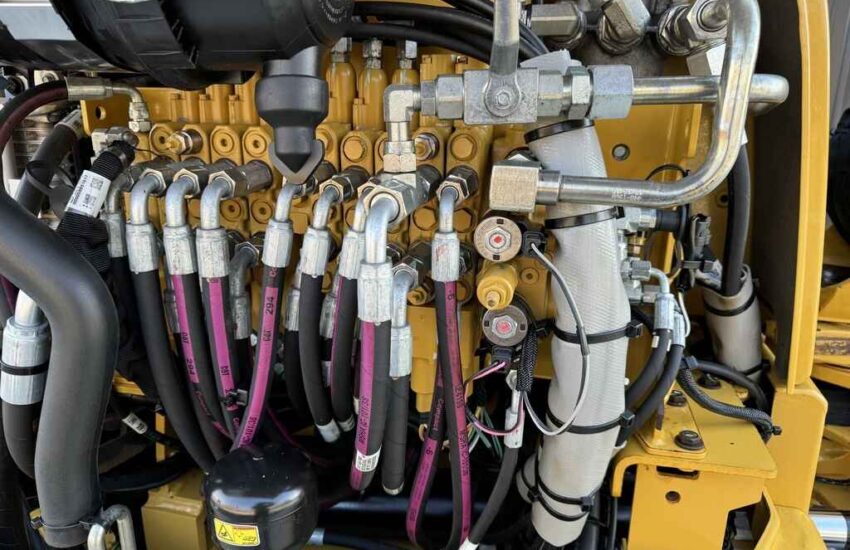

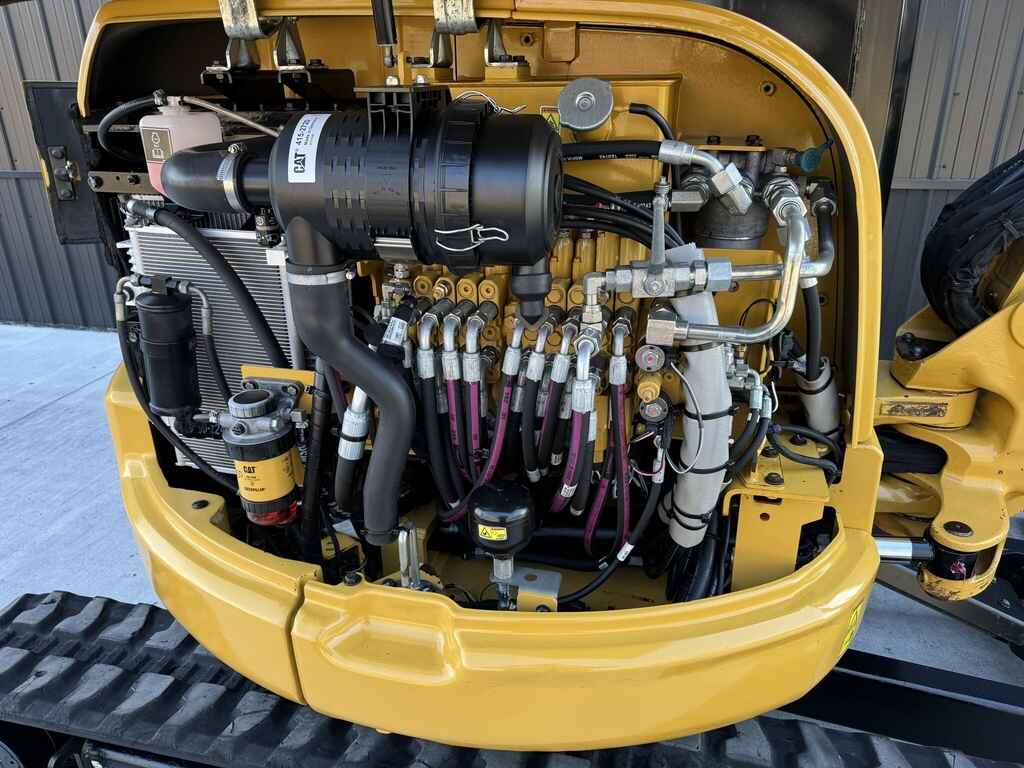

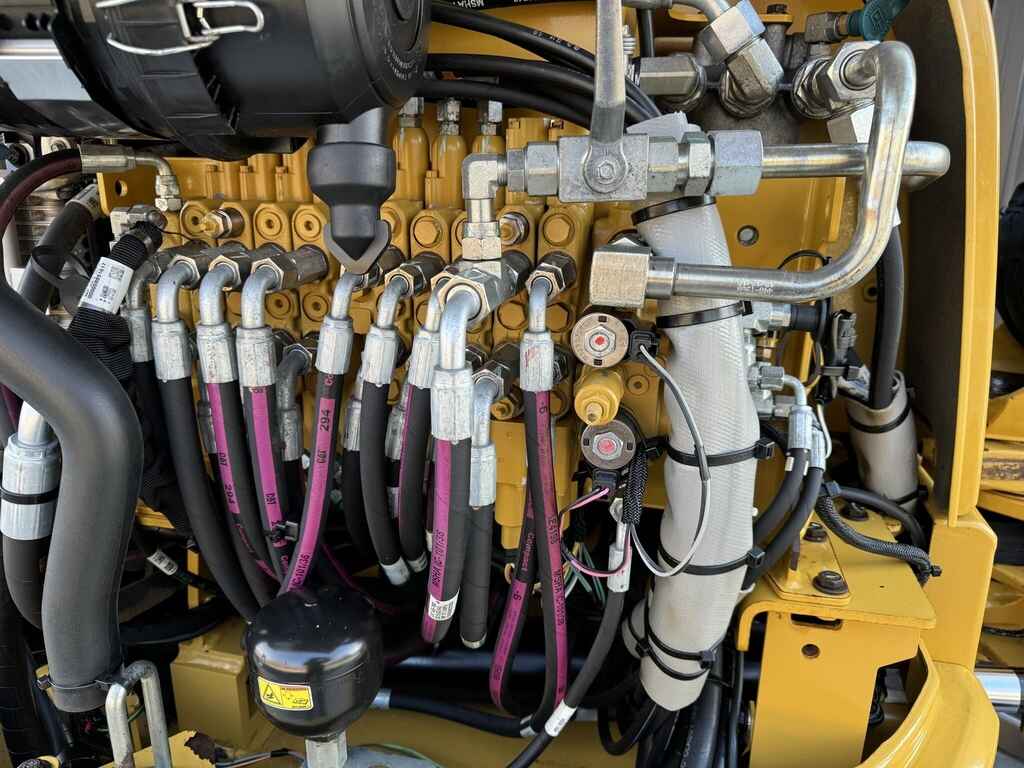

Hydraulic System

Pump Flow: 26.4 gal/min
Note: Load sensing hydraulics with variable displacement piston pump
Operating Pressure – Swing: 3,132 psi
Operating Pressure – Equipment: 3,553 psi
Operating Pressure – Travel: 3,553 psi
Auxiliary Circuit – Primary: 18.5 gal/min
Auxiliary Circuit – Secondary: 6.6 gal/min

Digging Force

Stick – Standard: 4,249 lb
Stick – Long: 3,799 lb
Bucket: 7,419 lb

Operating Specifications

Maximum Dig Depth: 125 in

Service Refill Capacities

Cooling System: 1.5 gal
Fuel Tank: 12.2 gal
Hydraulic Tank: 11.2 gal
Hydraulic System: 17.2 gal
Engine Oil: 1.8 gal

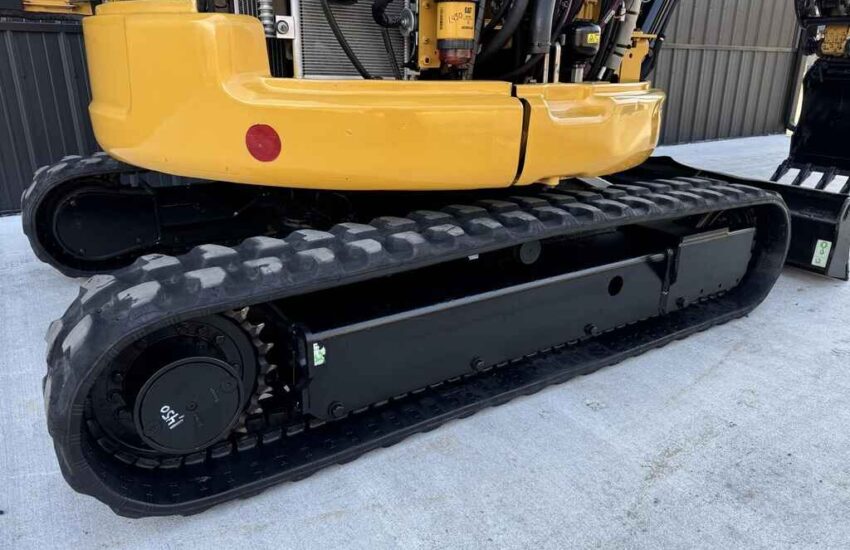

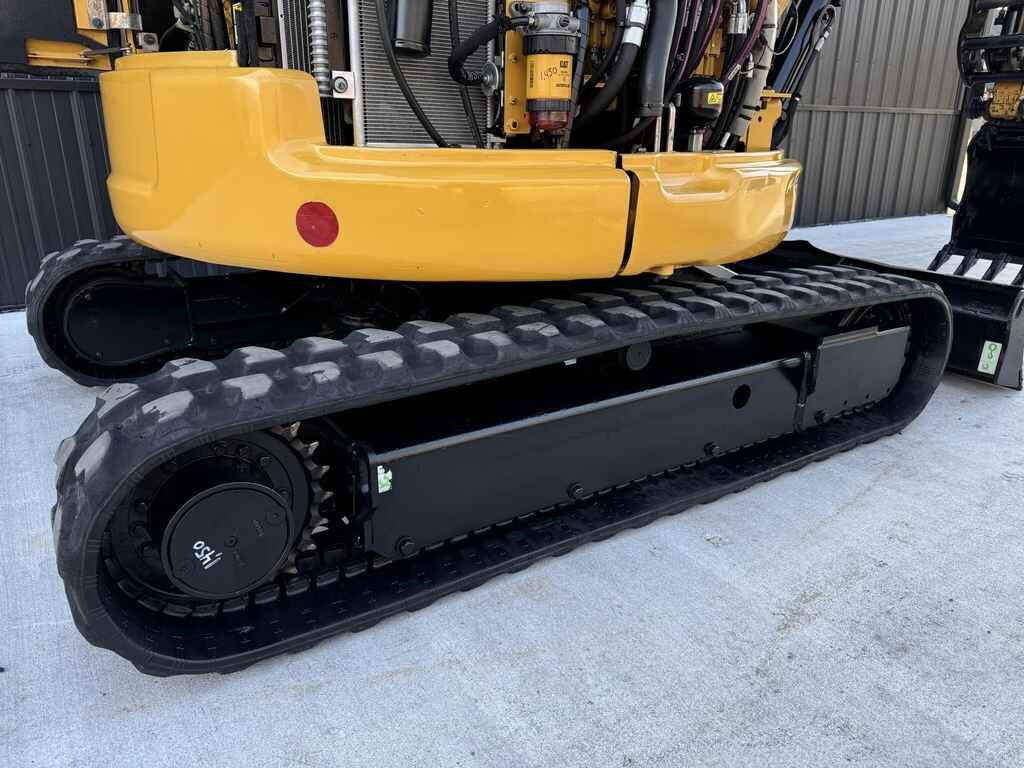

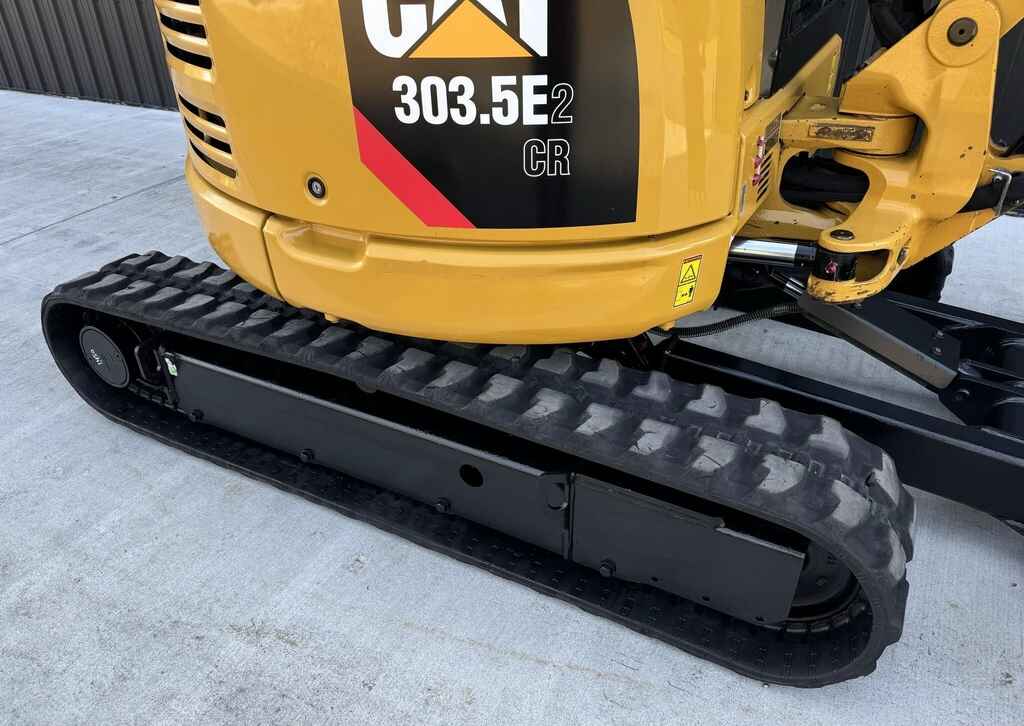

Travel System

Maximum Traction Force – High Speed: 3,822 lb
Maximum Traction Force – Low Speed: 6,992 lb
Travel Speed – High: 2.9 mph
Travel Speed – Low: 2 mph
Ground Pressure: 4.6 psi
