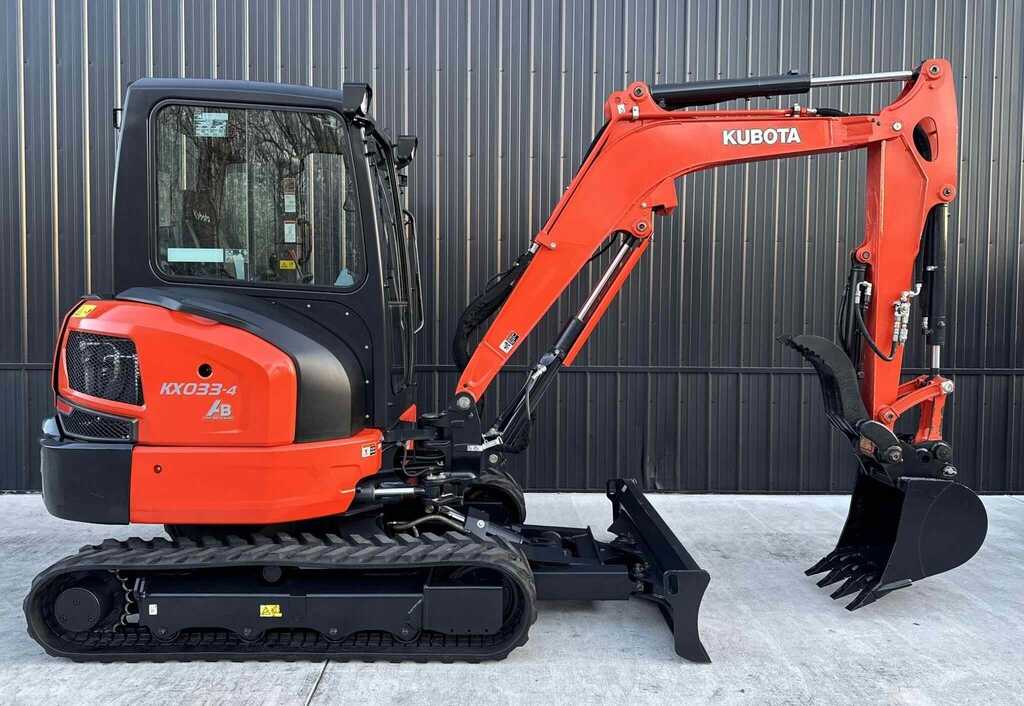

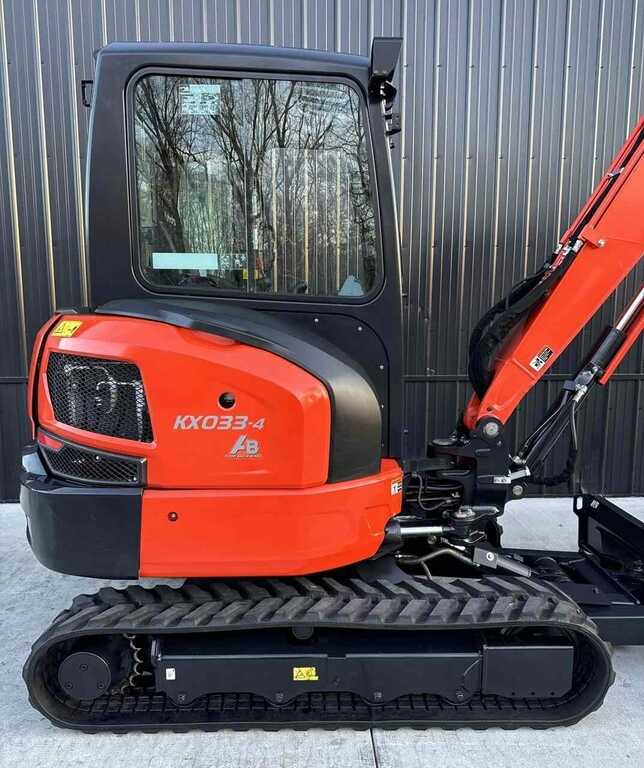

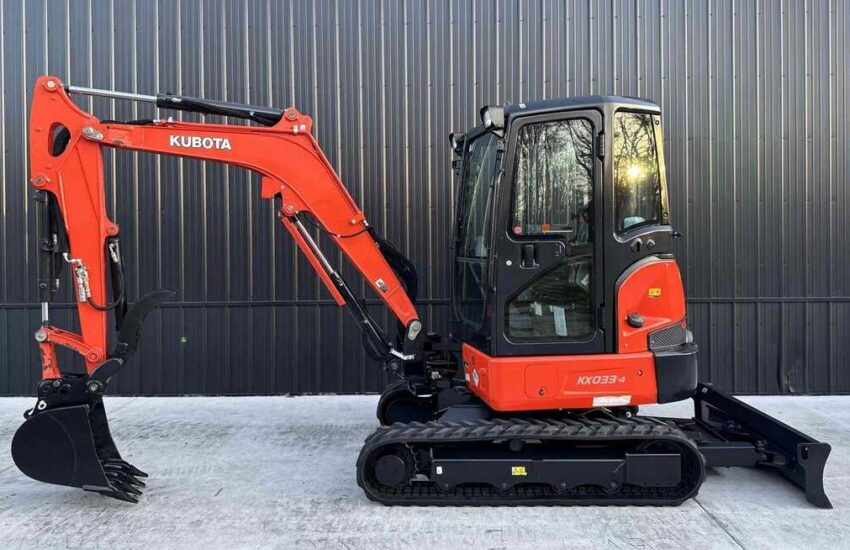

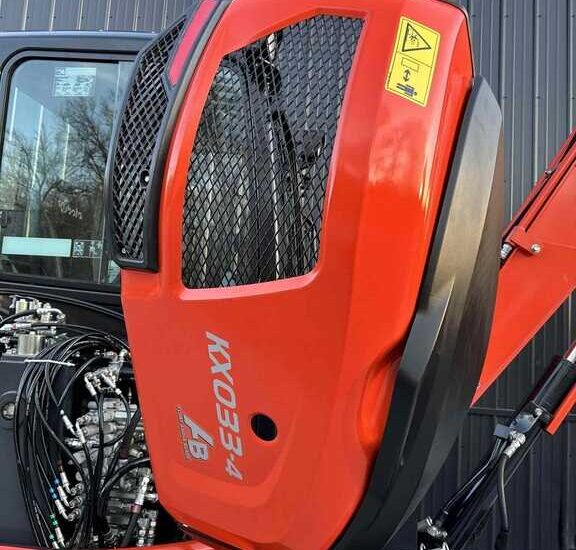

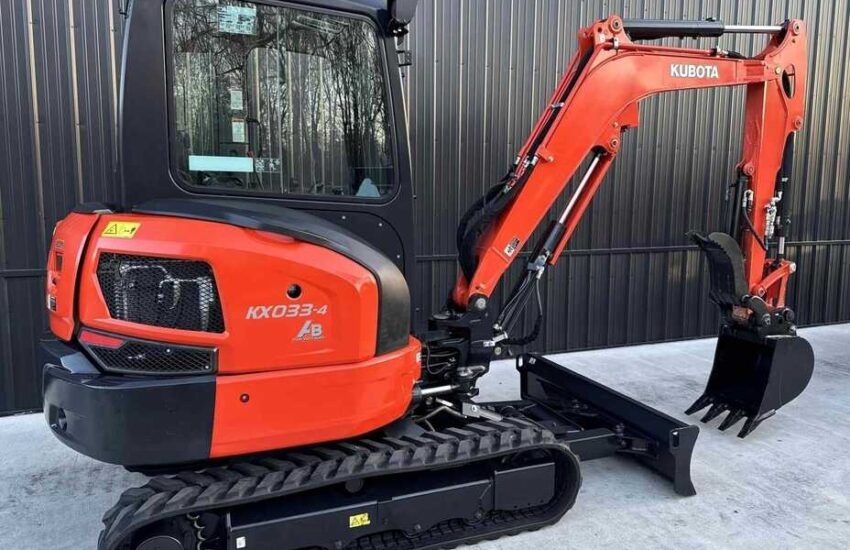

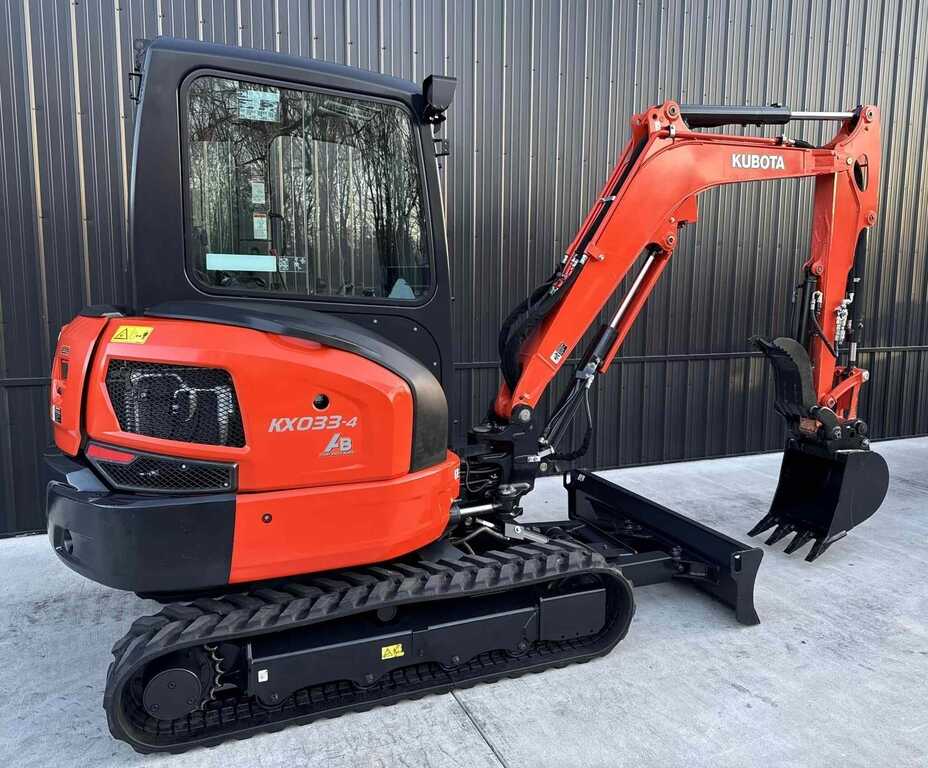

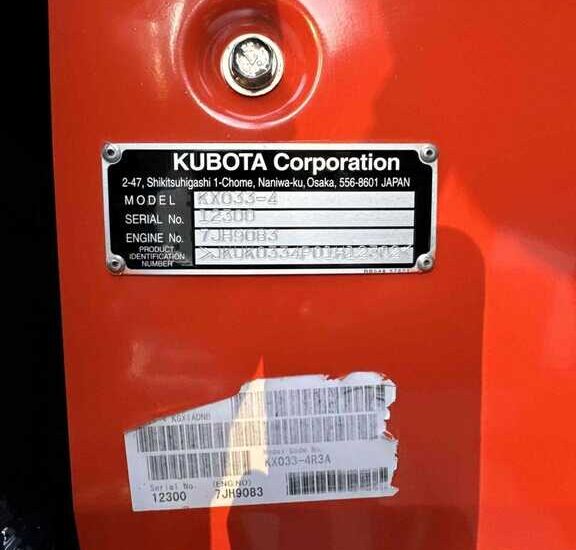

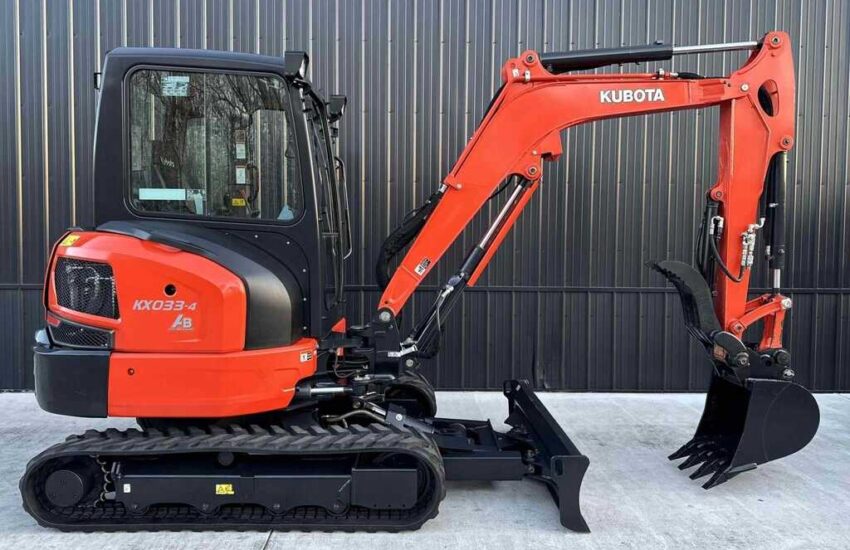

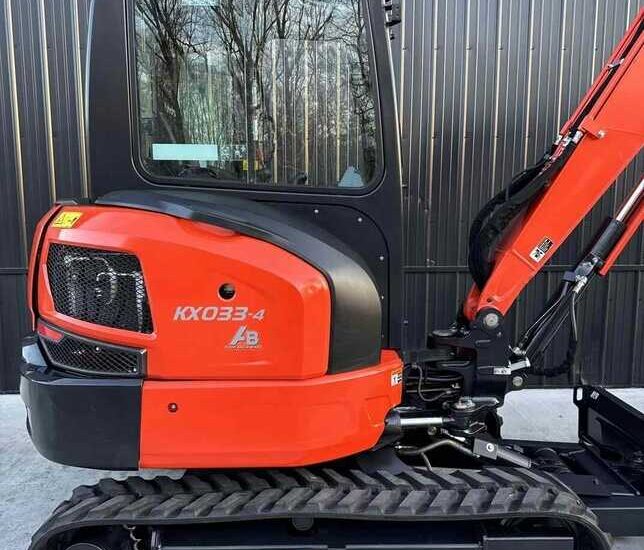

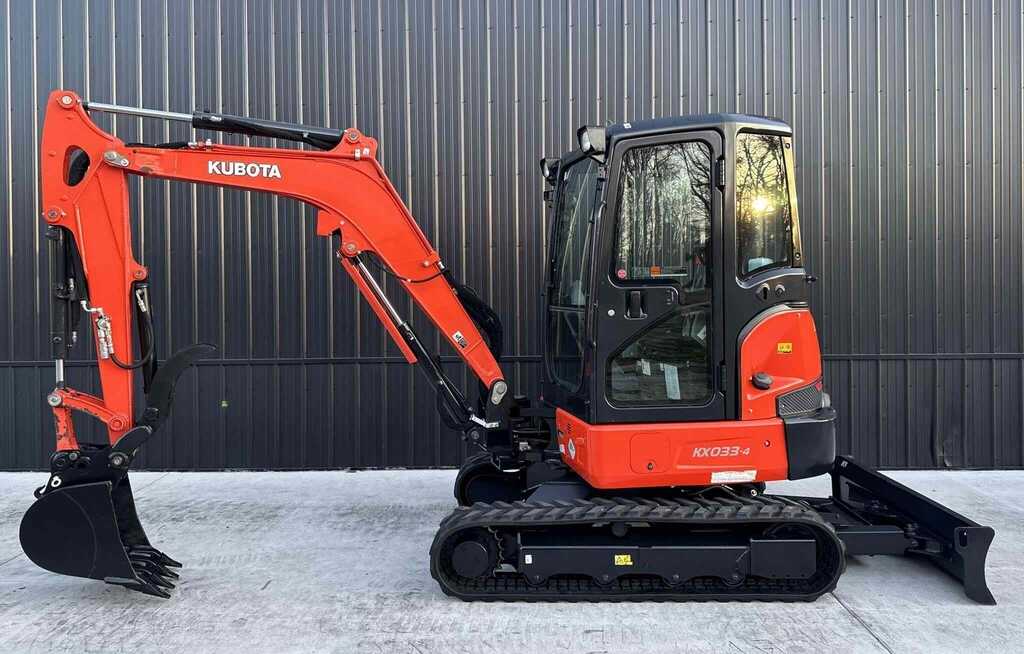

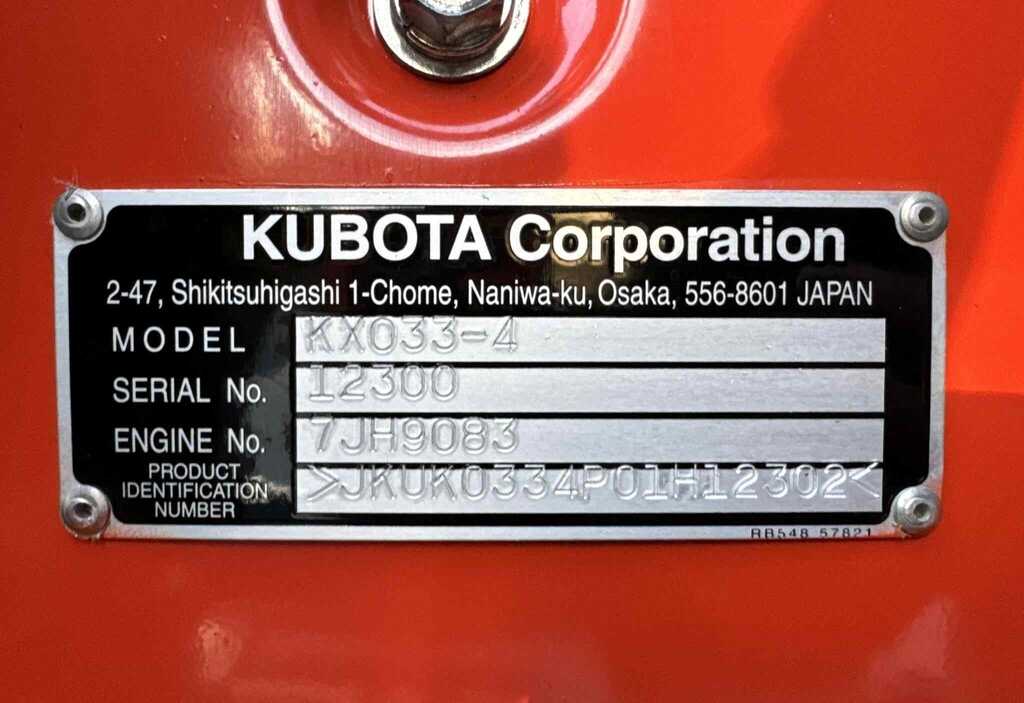

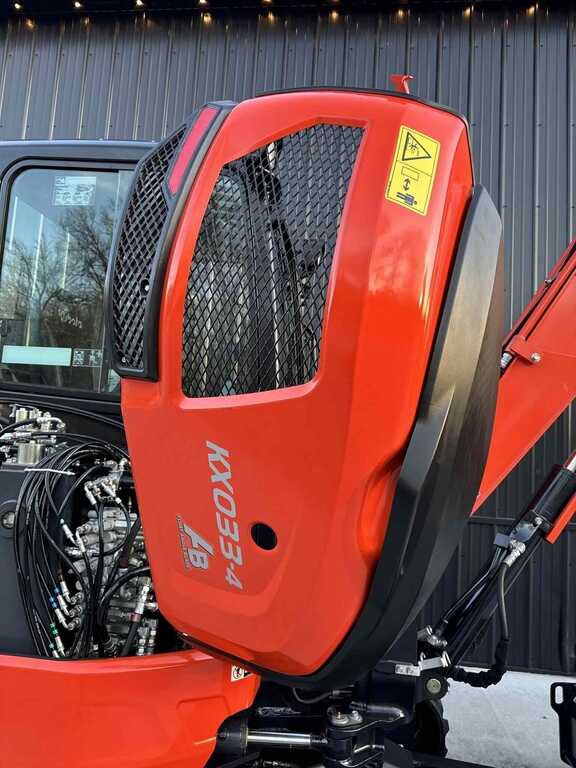

2019 Kubota KX033-4

6MONTH/1500HR FULL WARRANTY!

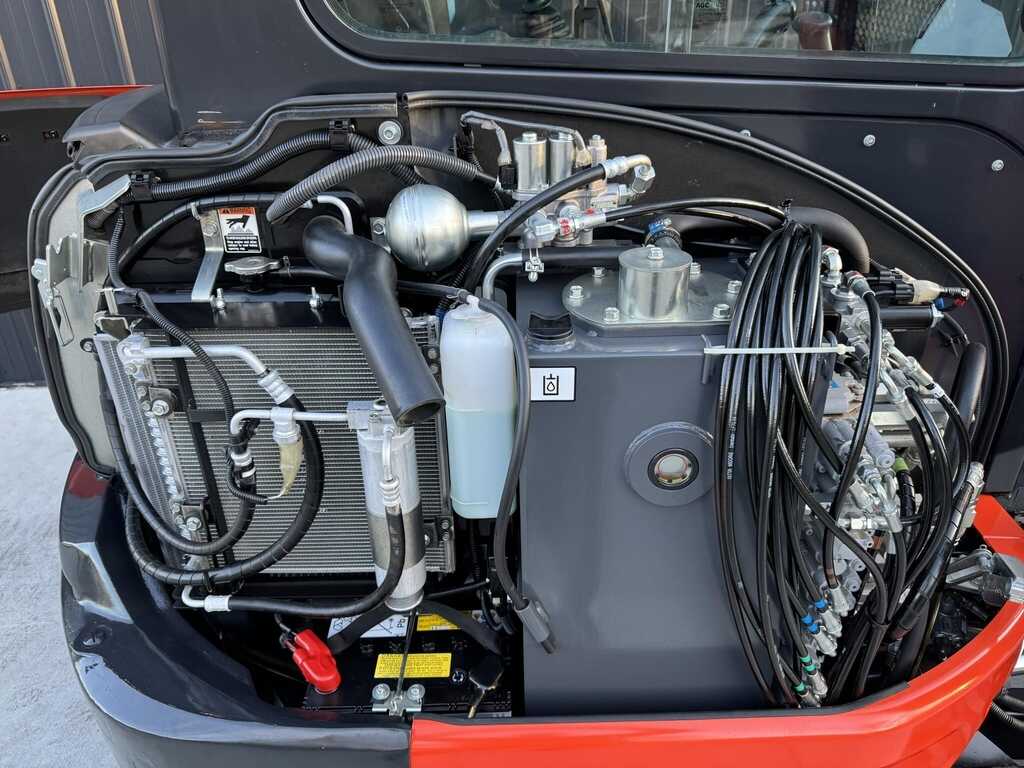

Just Fully cleaned, serviced, greased & looked over! Photos just taken! Delivery Available!

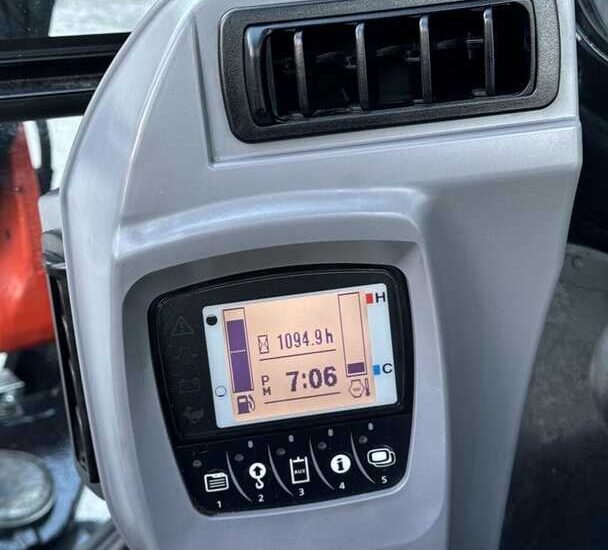

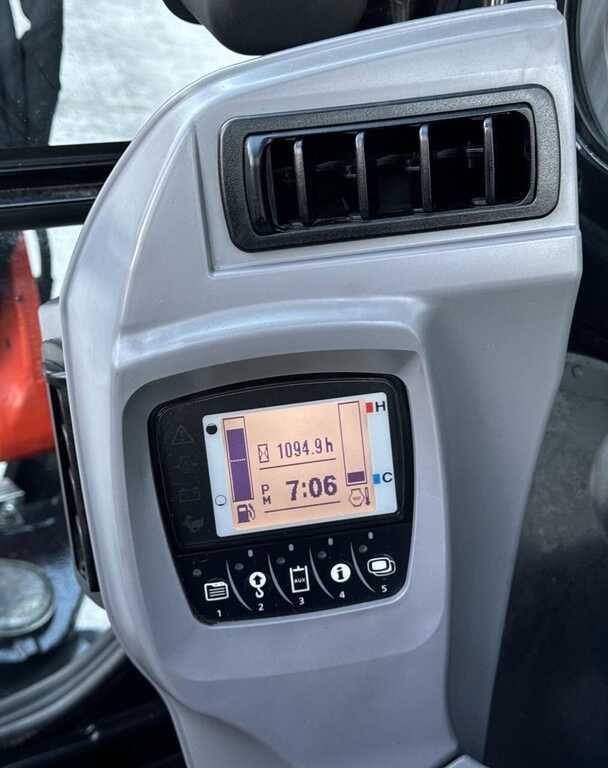

– 1,094 WELL KEPT Hours

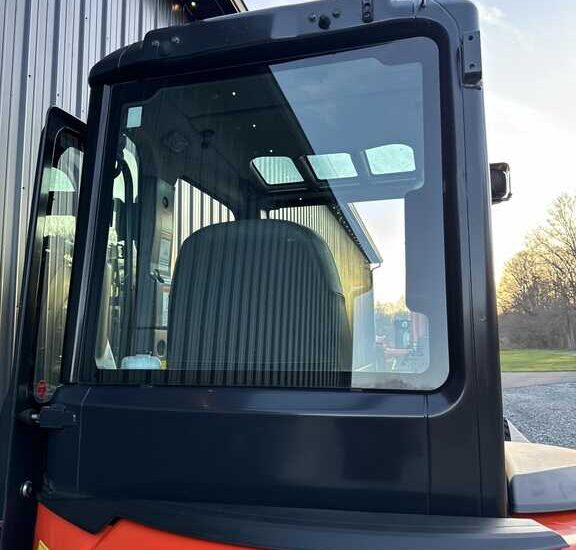

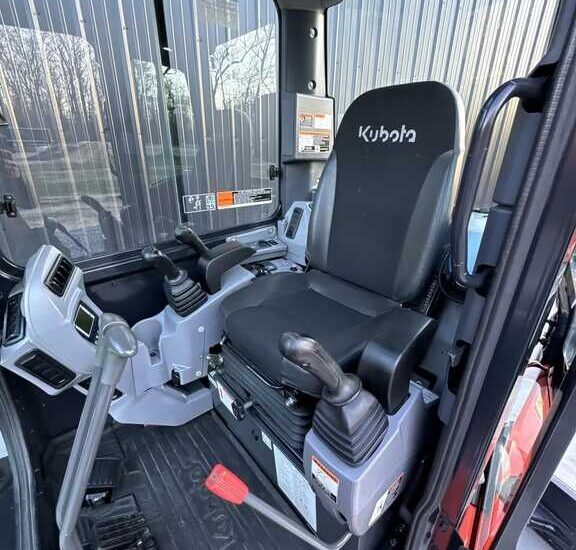

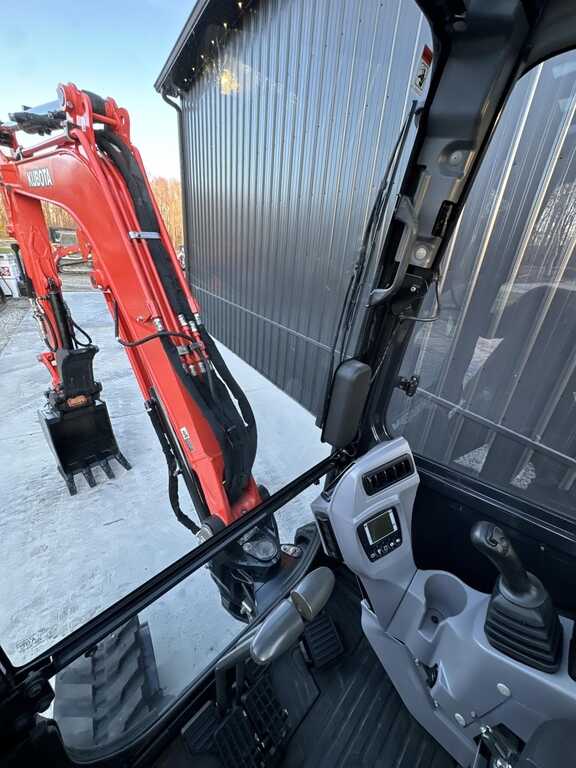

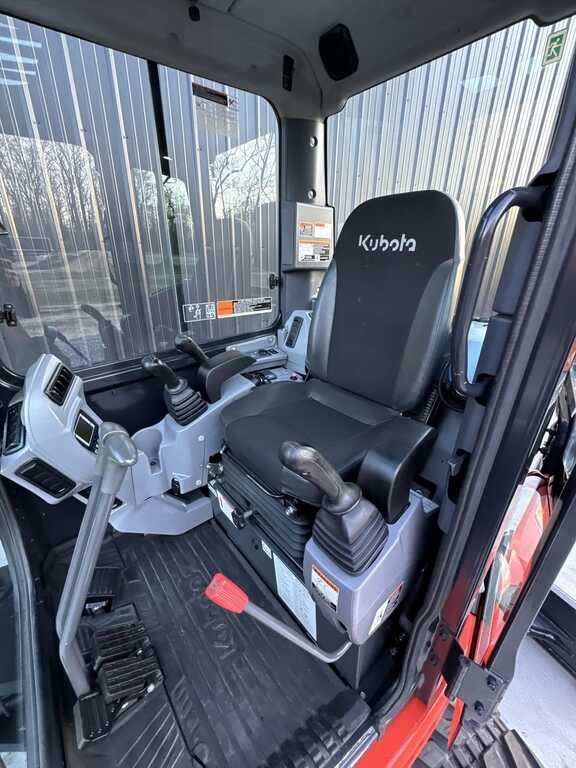

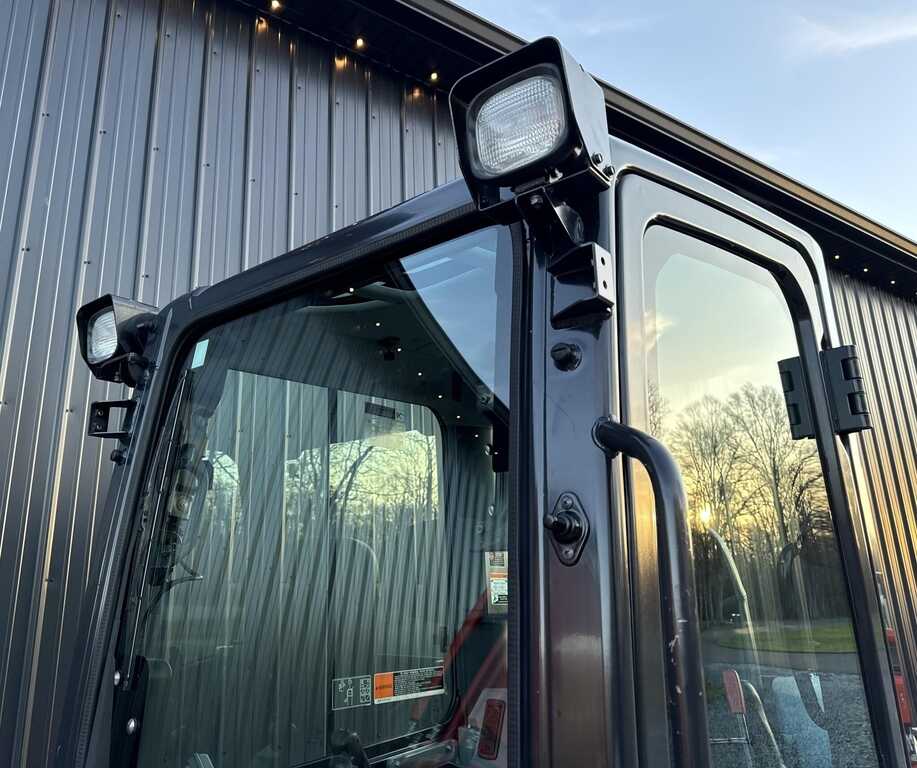

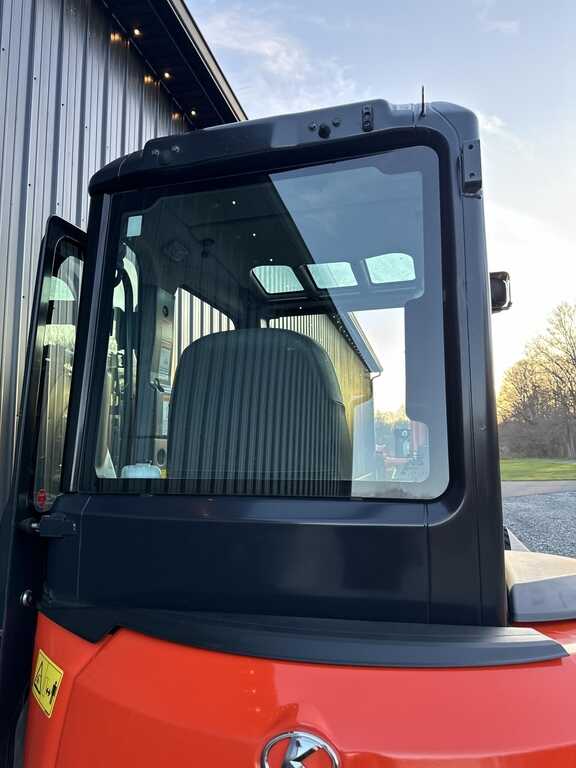

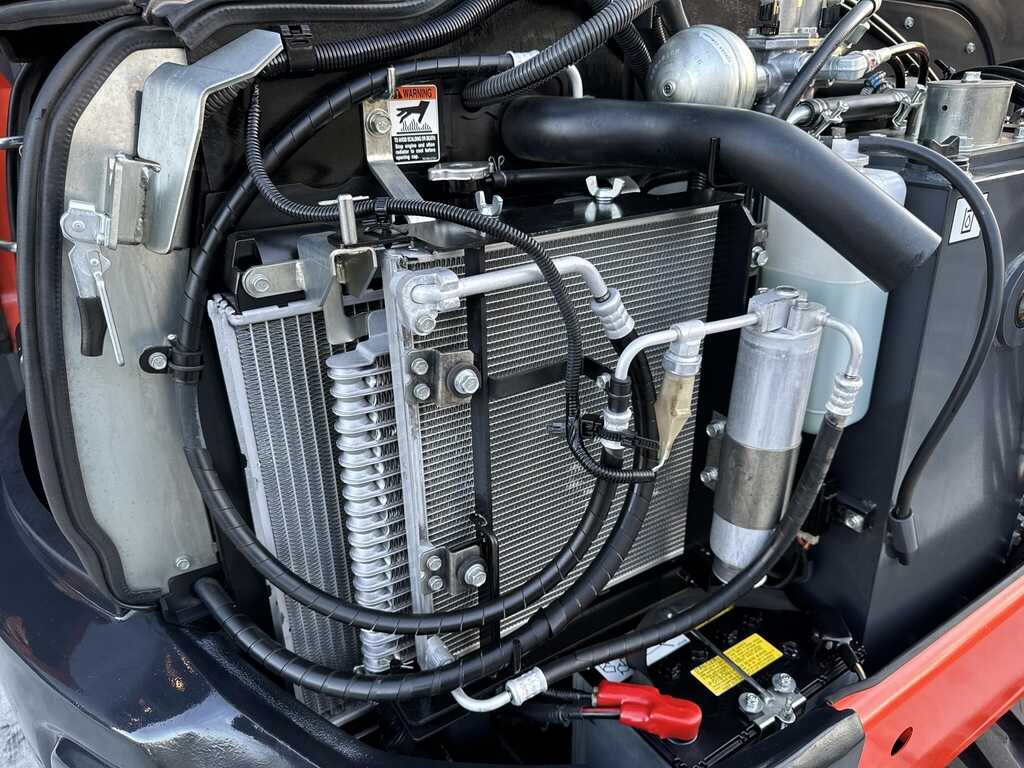

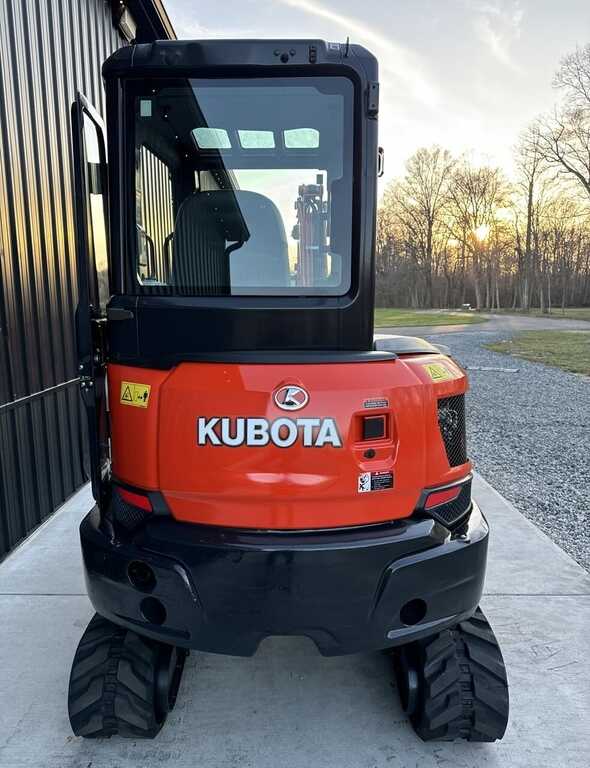

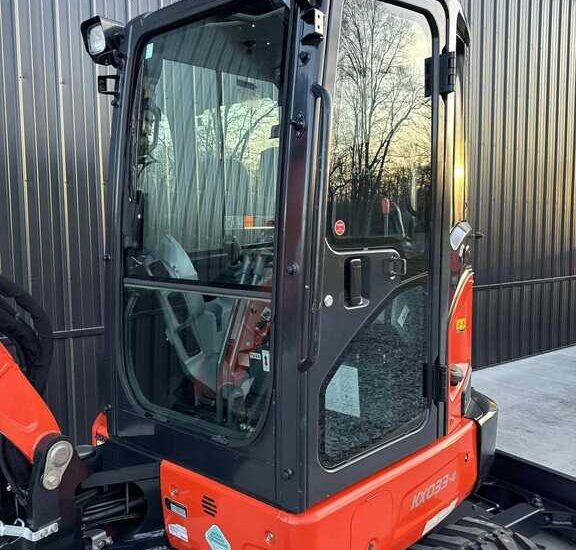

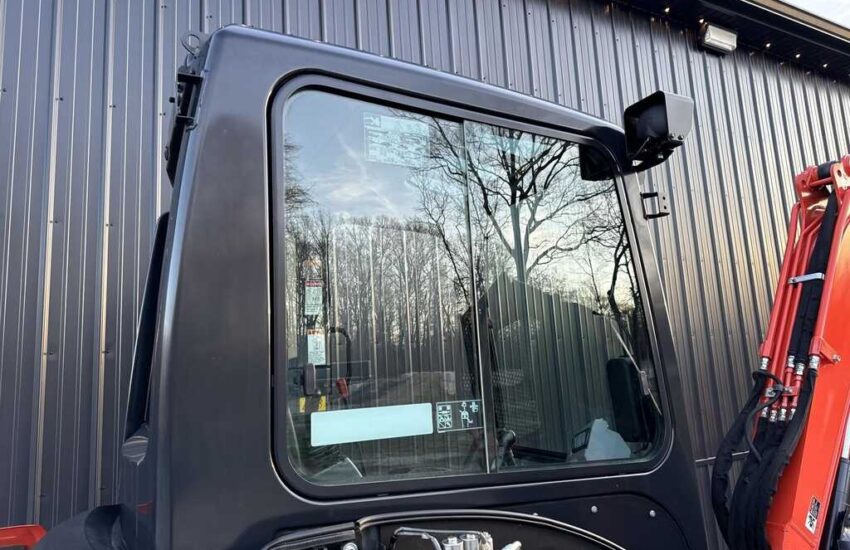

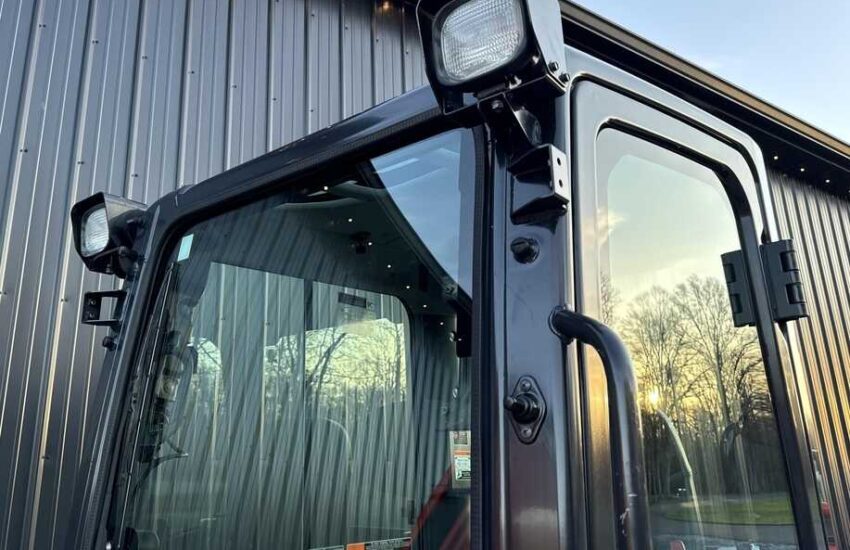

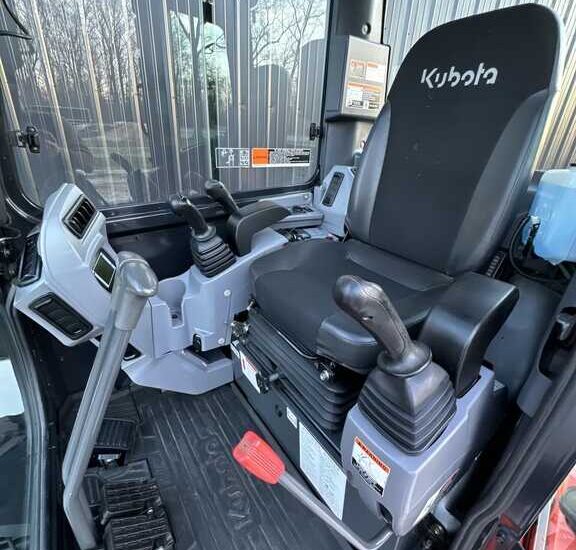

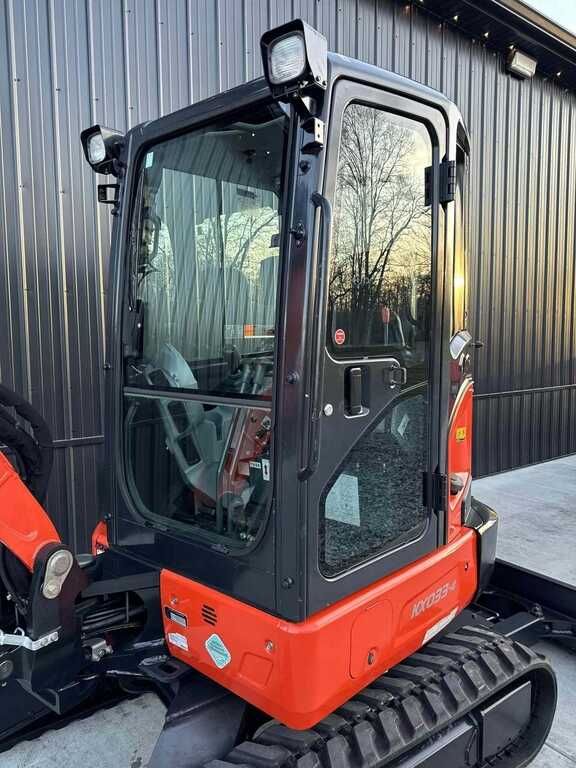

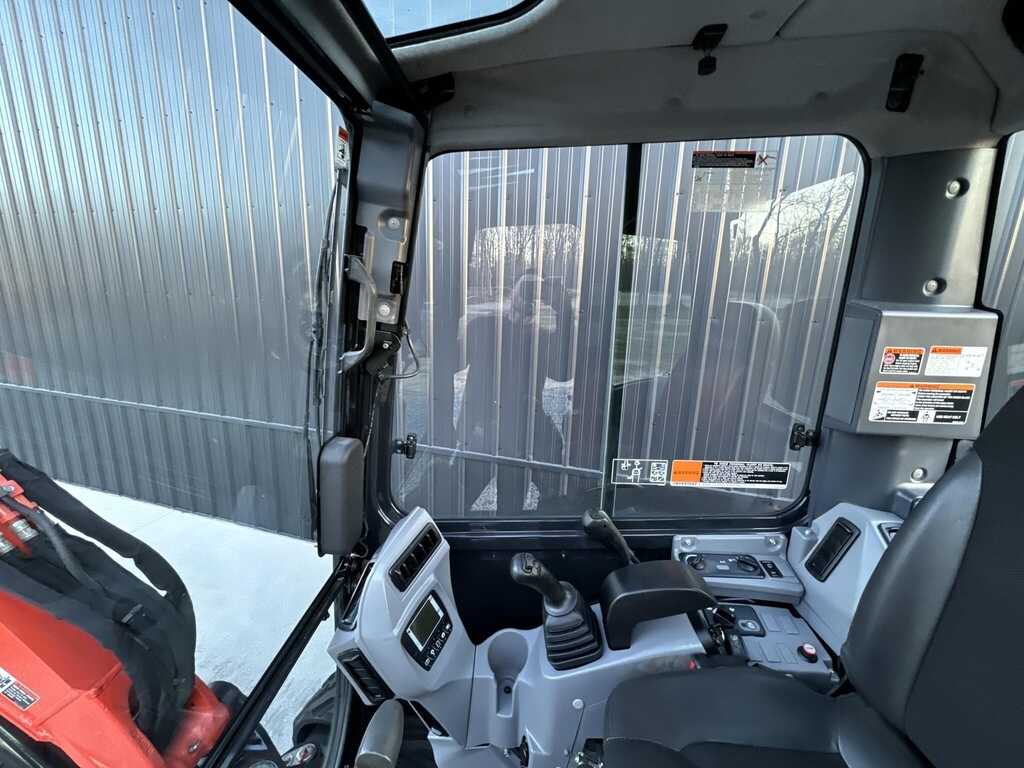

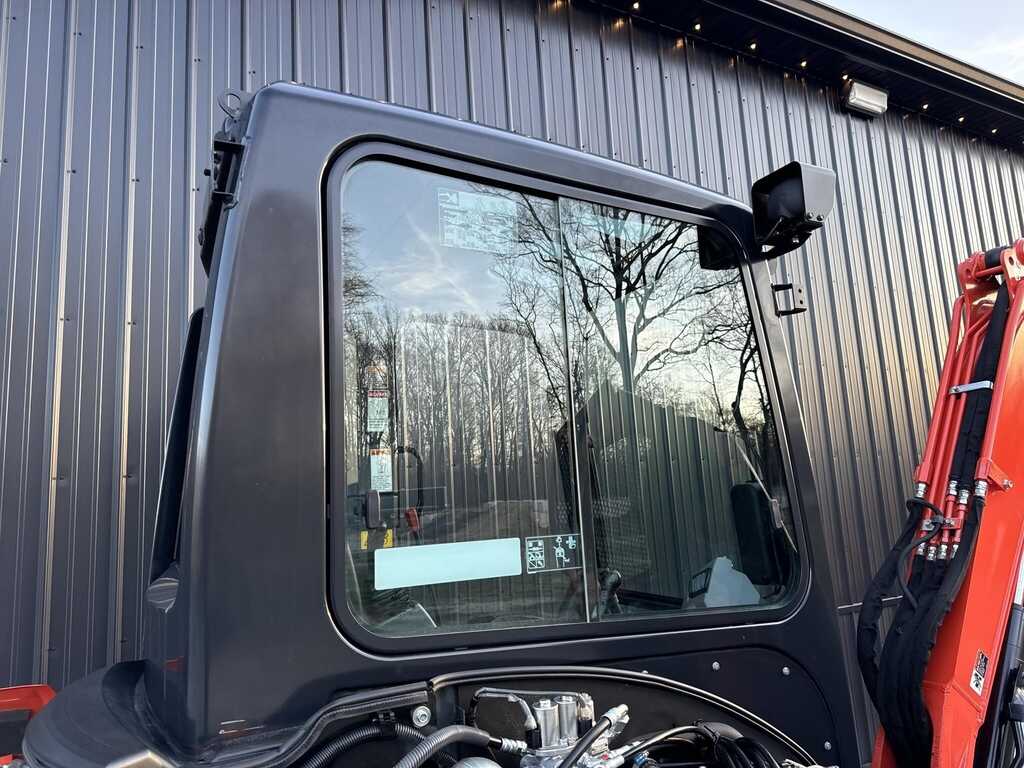

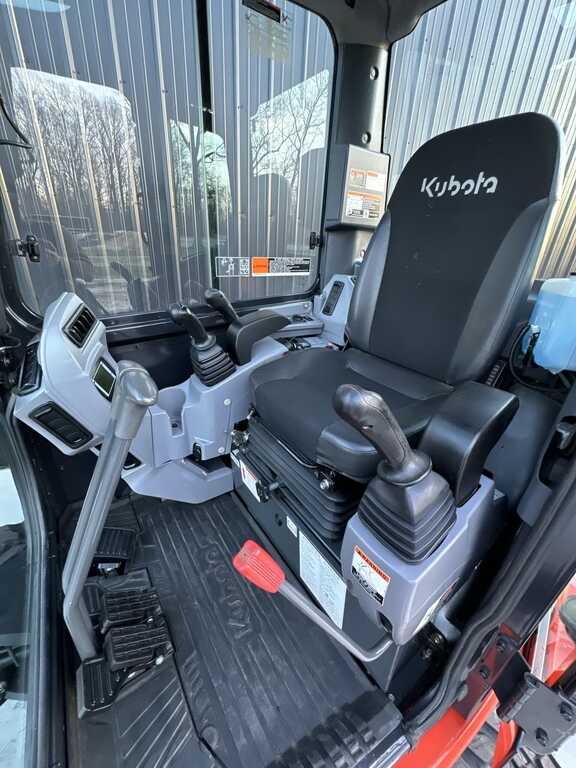

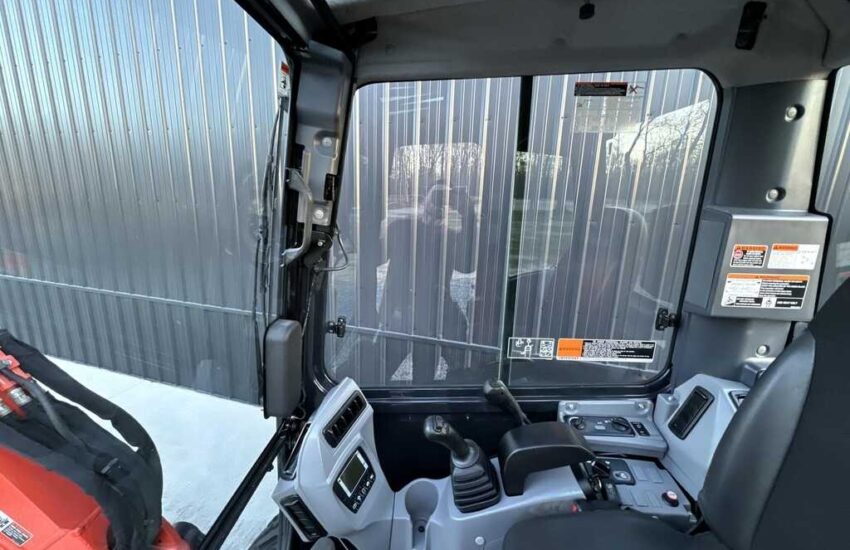

– Enclosed HEAT/AC

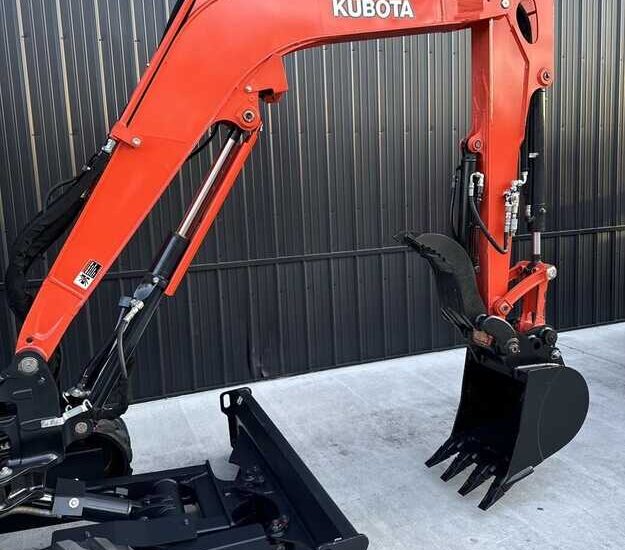

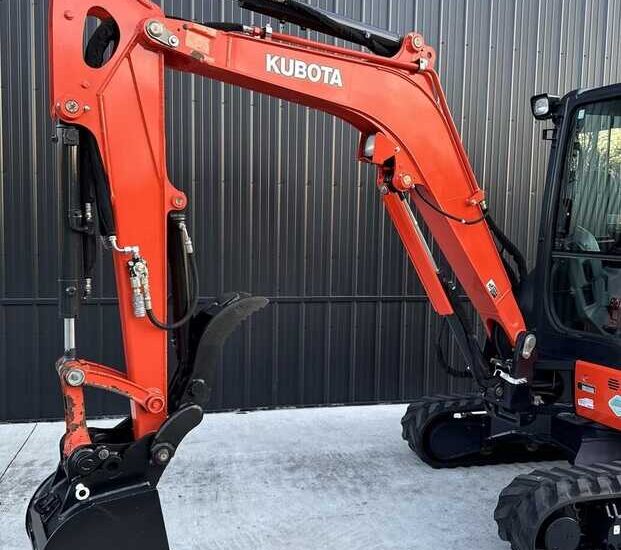

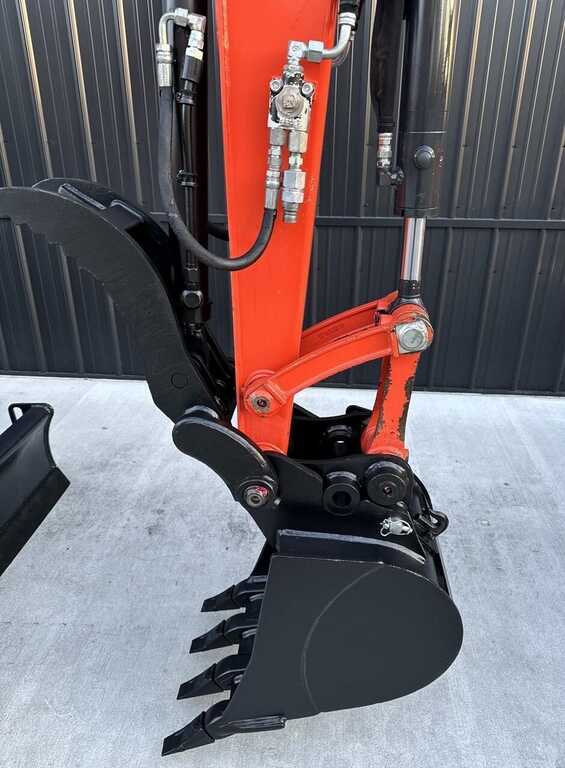

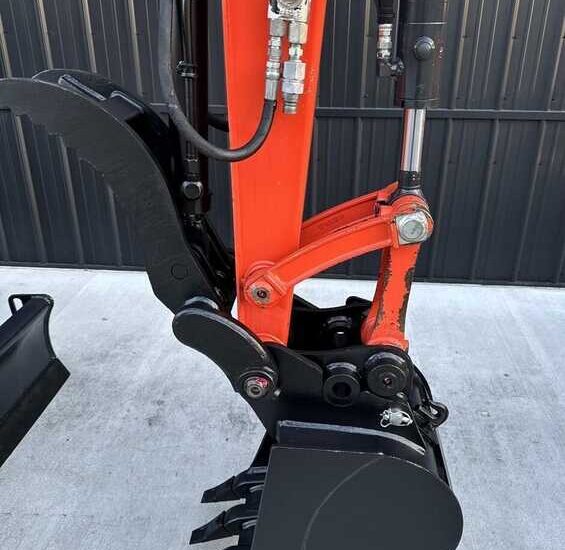

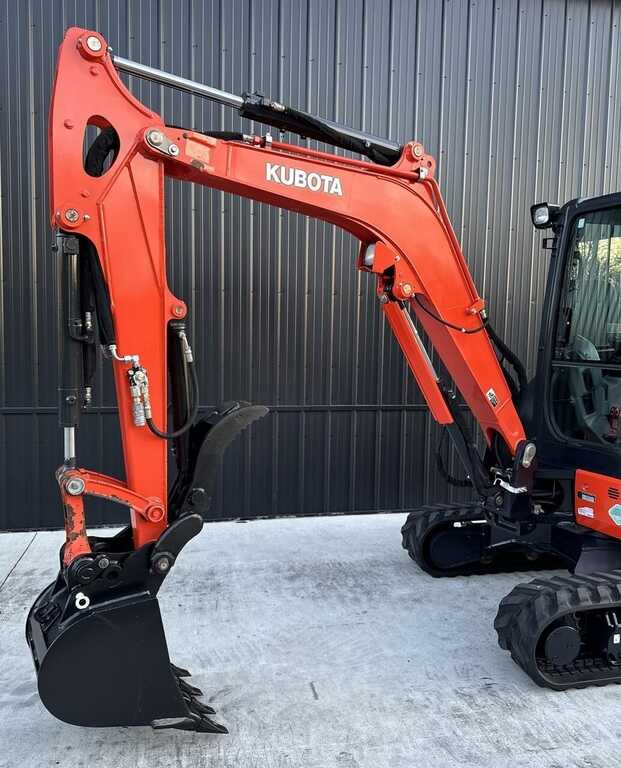

– Hydraulic Thumb
– Quick coupler

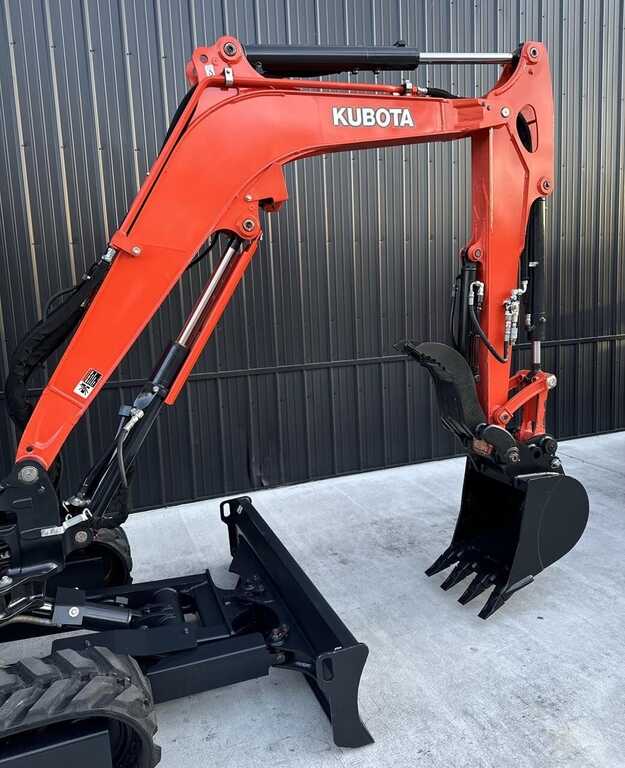

– 18”, 30″ and 36″ Tooth Buckets

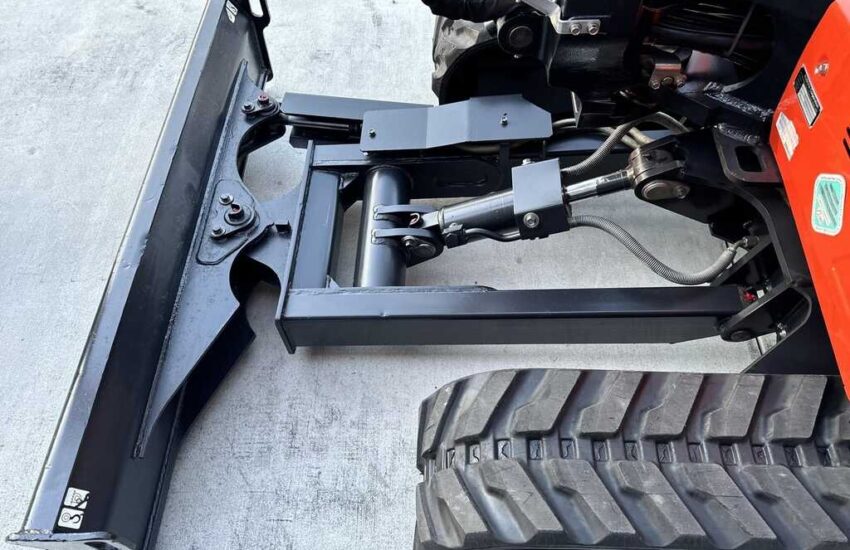

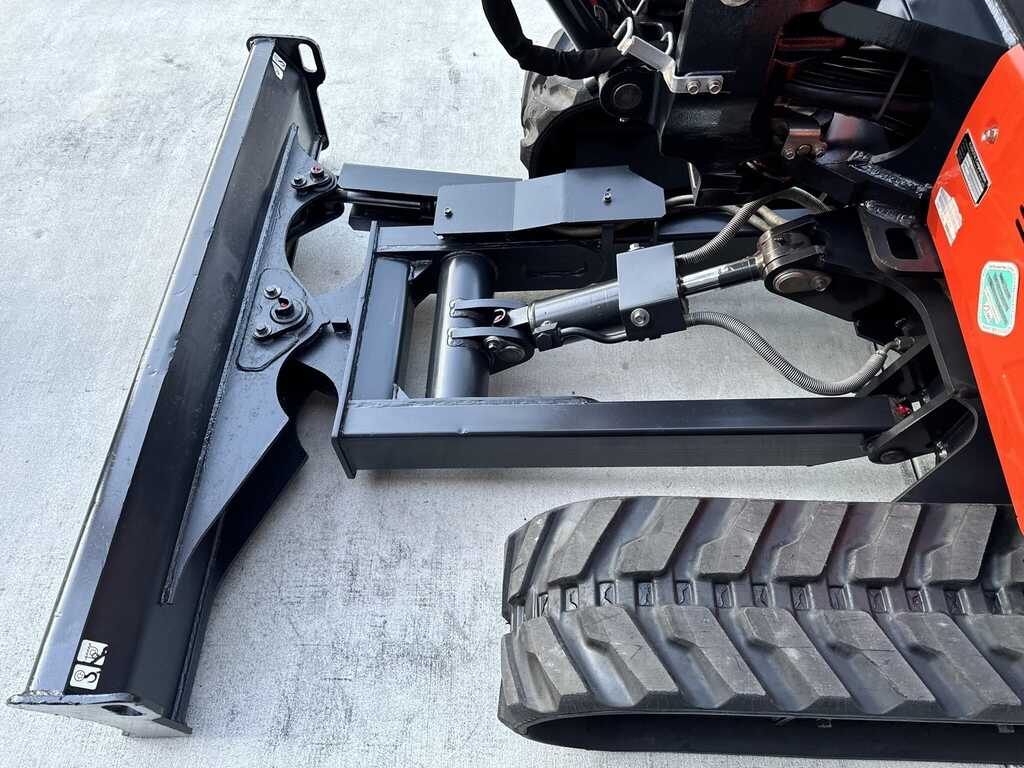

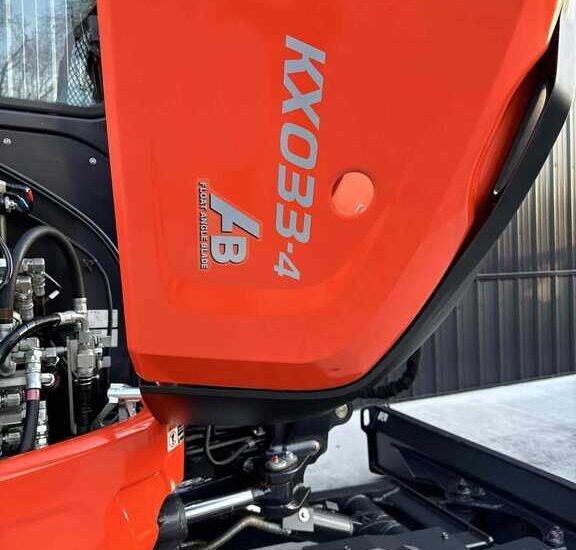

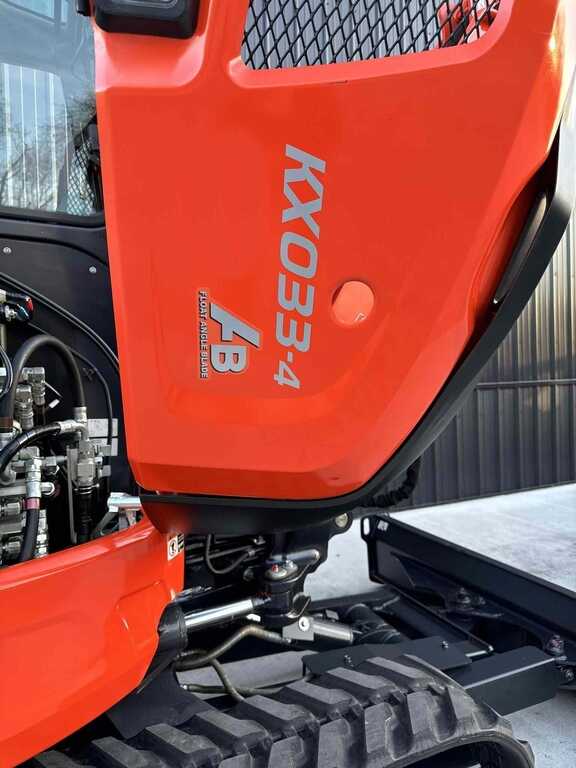

– Hydraulic Angle blade
– 2 Speed
– 28Hp
– 8k Lbs

MACHINE IS TIGHT & READY TO WORK

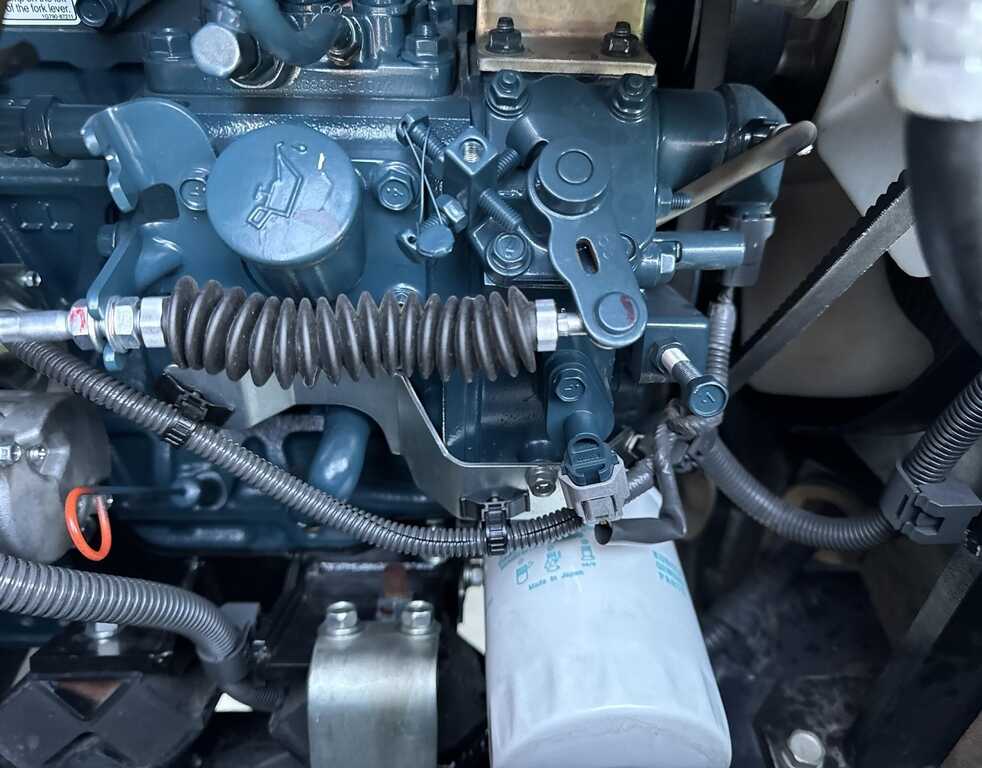

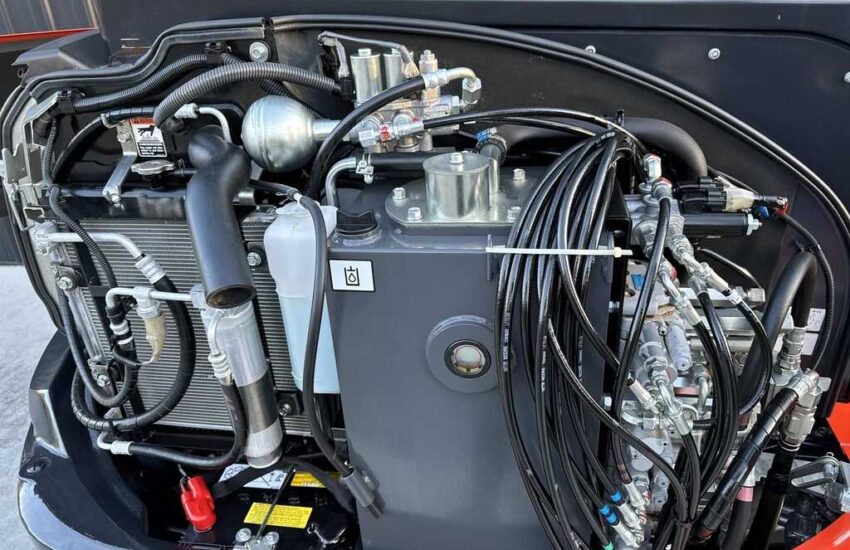

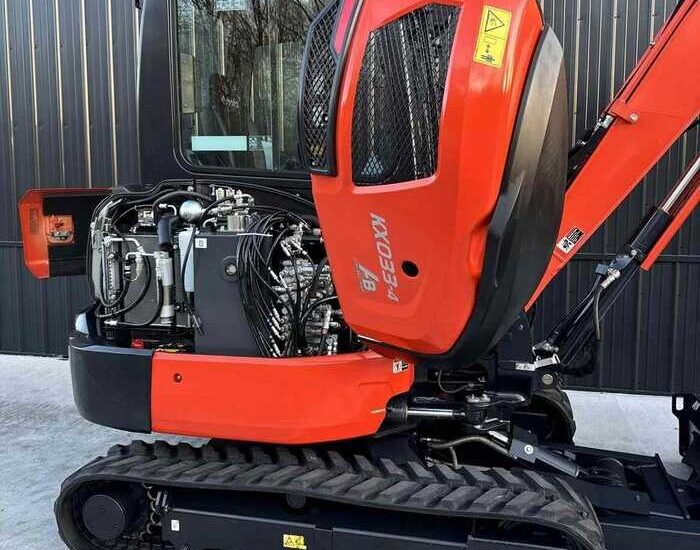

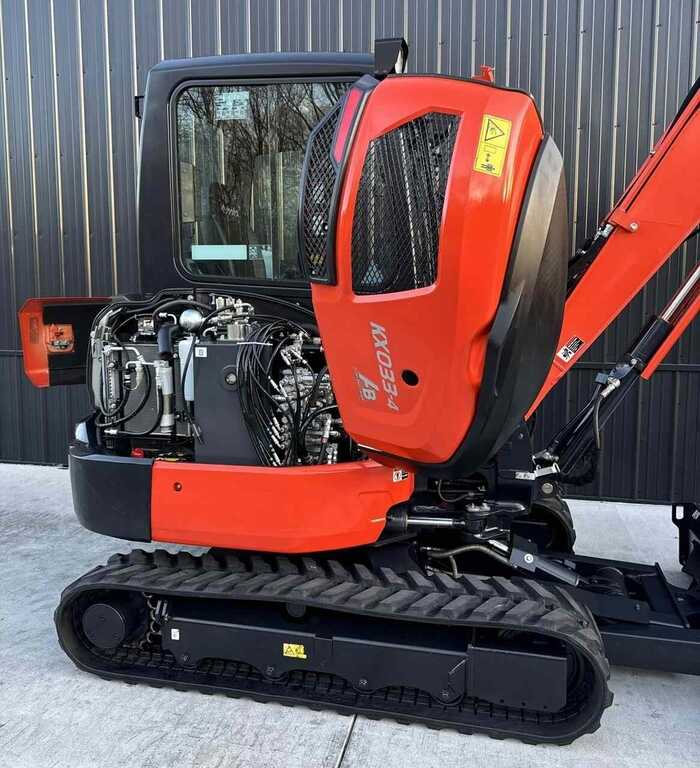

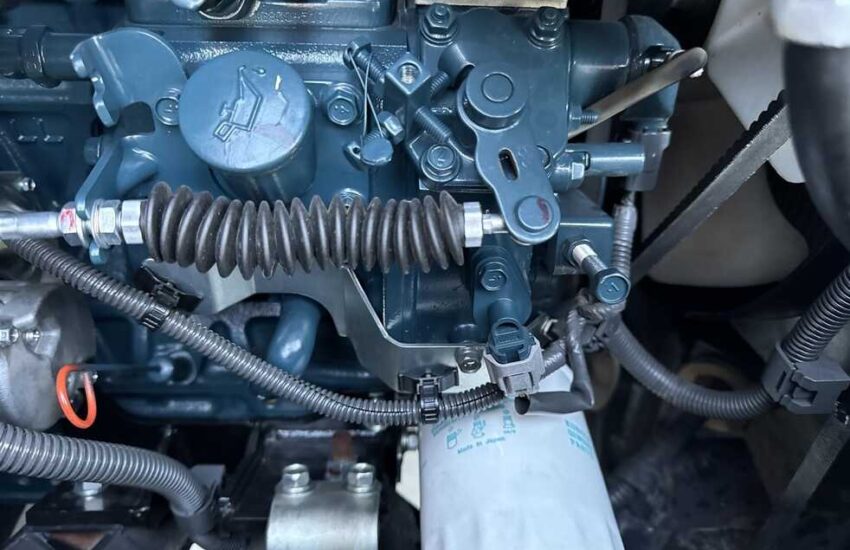

ENGINE
Model: Kubota D1703-M-DI-E4
Type: 4-stroke, liquid-cooled, diesel
Displacement: 100.5 cu in (1.647 L)
Gross Power: 24.8 hp (18.5 kW)
Net Power: 23.1 hp (17.2 kW)
Rated Speed: 2,400 RPM
Cylinders: 3
Emissions Compliance: Tier 4 Final

DIMENSIONS
Overall Length: 192.9 in (4,900 mm)
Overall Width: 59.8 in (1,520 mm)
Overall Height: 96.5 in (2,450 mm)
Ground Clearance: 12.2 in (310 mm)

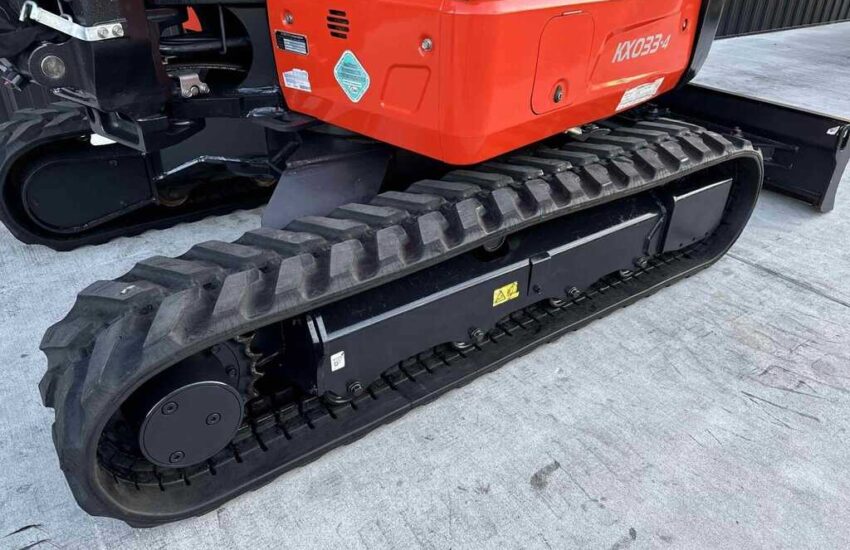

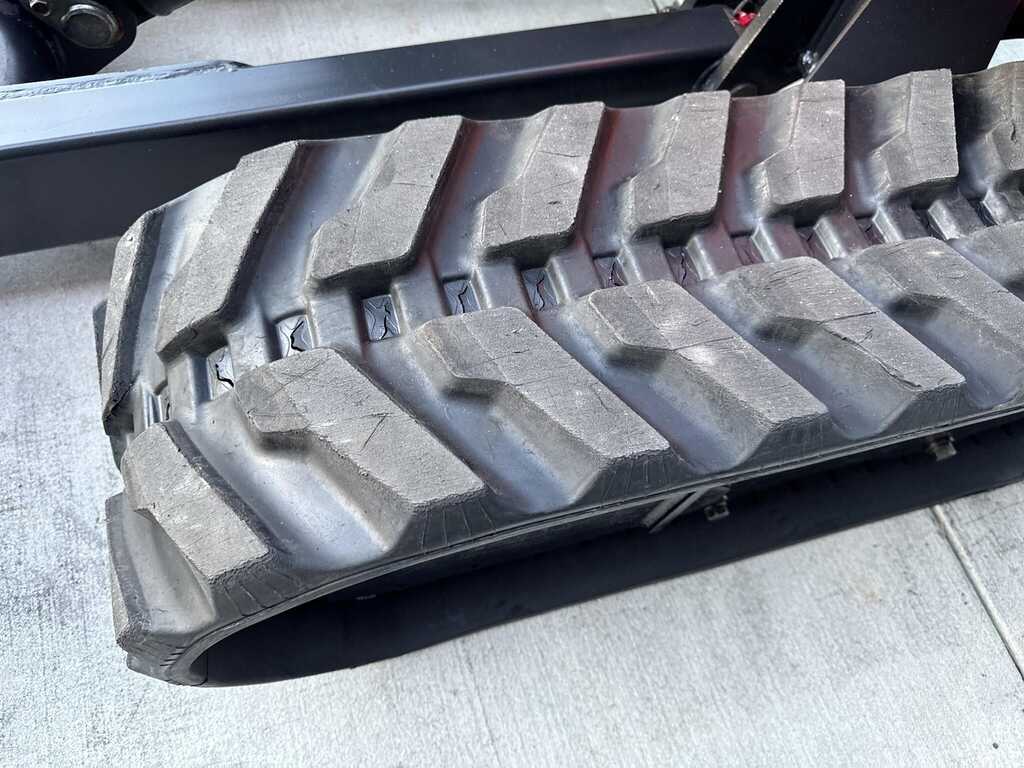

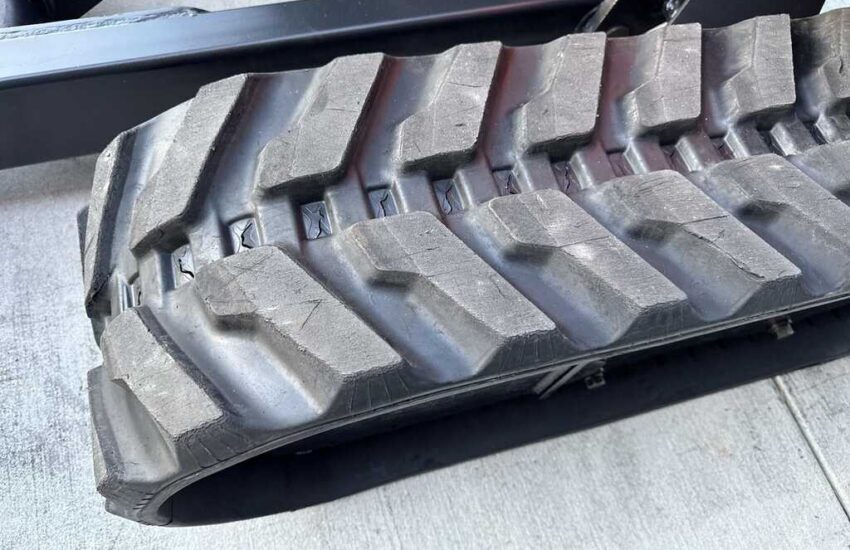

Track Width: 12 in (300 mm)
Tail Swing Radius: 3 ft 11 in (1,185 mm)
Undercarriage Length: 7 ft 6 in (2,280 mm)

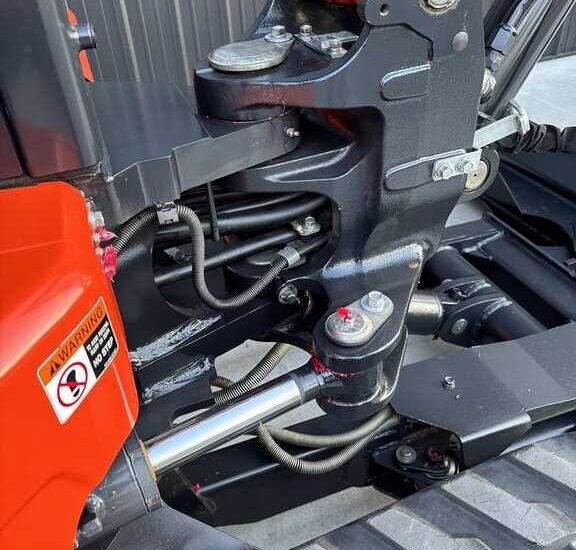

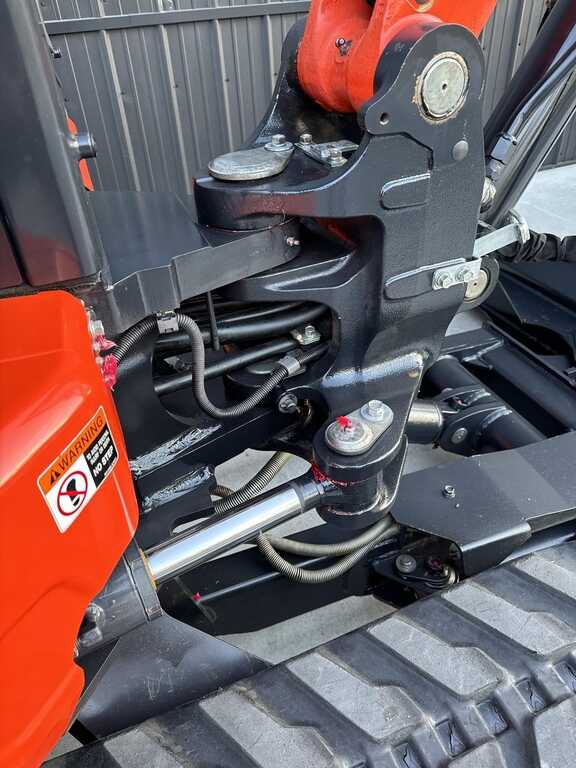

Boom Swing Angle (L/R): 70° / 55°

CAPACITIES
Fuel Tank: 13.4 gal (51 L)
Hydraulic Fluid: 9.2 gal (35 L)
Engine Oil: 1.9 gal (7.1 L)
Coolant: 1.2 gal (4.5 L)

PERFORMANCE
Operating Weight: 7,742 lbs (3,266 kg)
Max Dig Depth: 10 ft 6 in (3,205 mm)
Max Reach at Ground Level: 17 ft 11 in (5,465 mm)
Max Dump Height: 11 ft 8 in (3,555 mm)
Bucket Breakout Force: 8,138 lbs (36.2 kN)
Arm Breakout Force: 3,867 lbs (17.2 kN)
Max Traction Force: 7,970 lbs (35.5 kN)

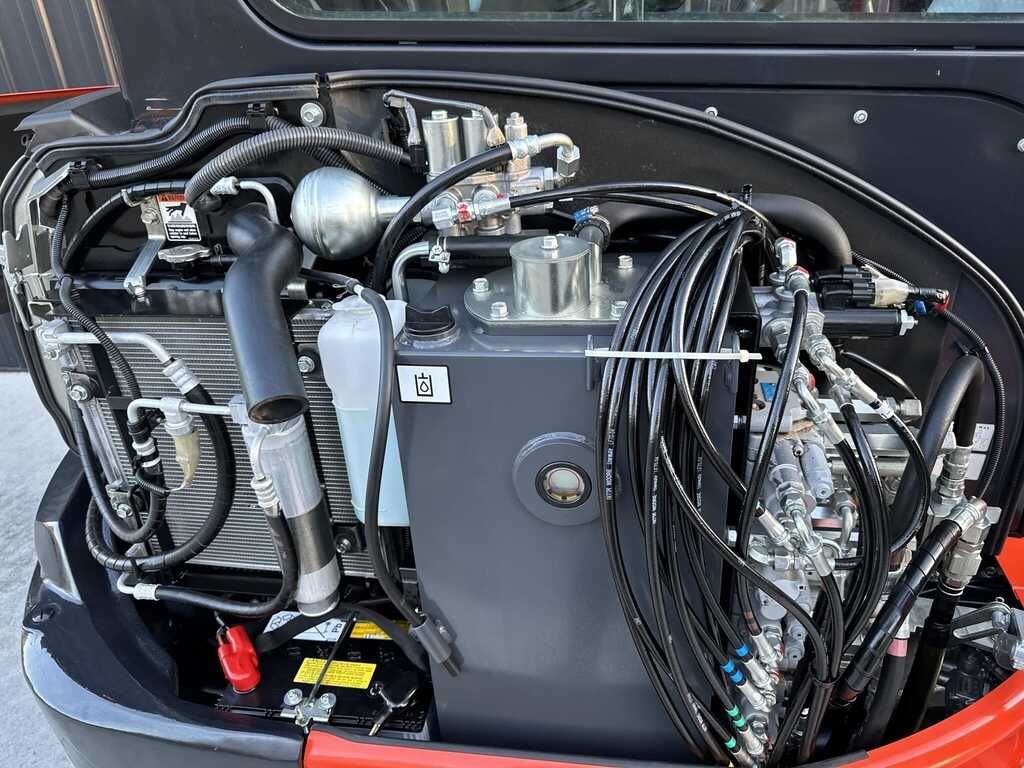

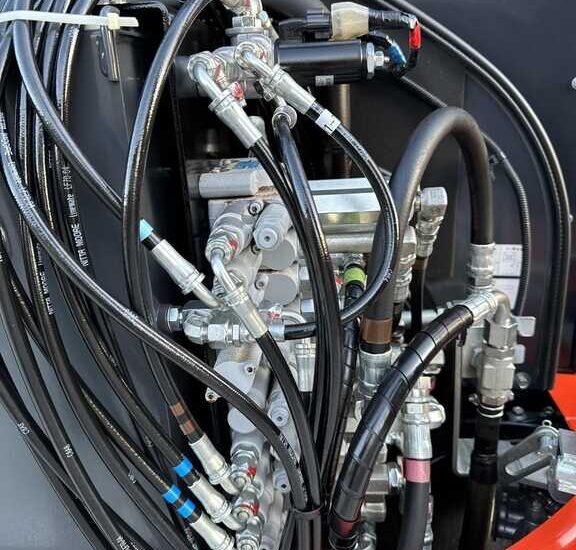

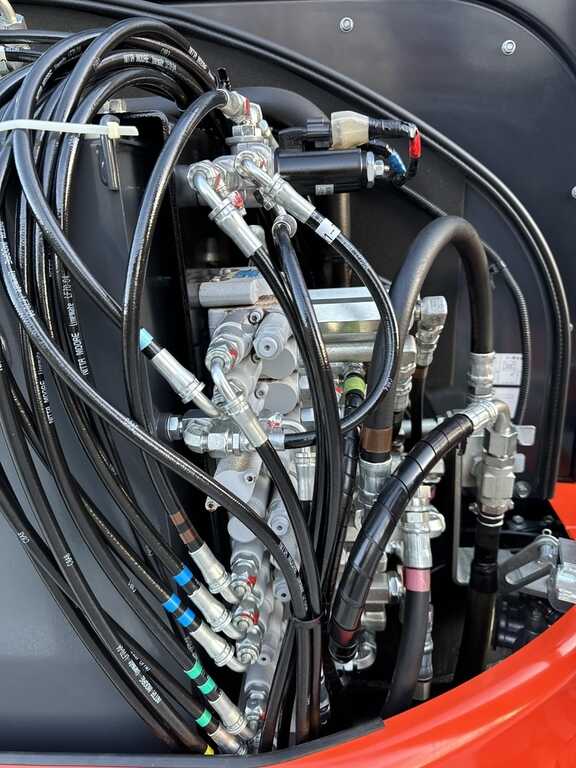

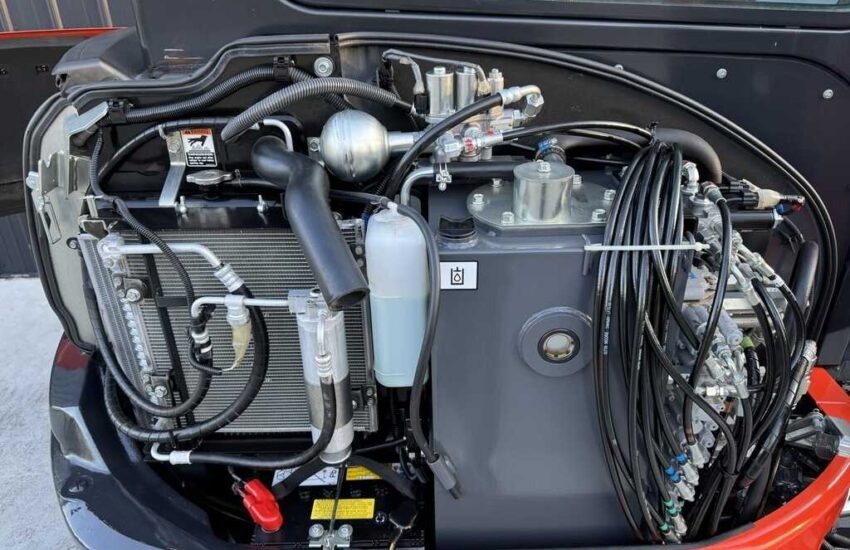

HYDRAULIC SYSTEM
Pump Flow Capacity: 27.3 GPM (103.2 L/min)
Auxiliary Hydraulic Flow: 15.8 GPM (60 L/min)
System Pressure: 3,134 psi (21.6 MPa)
