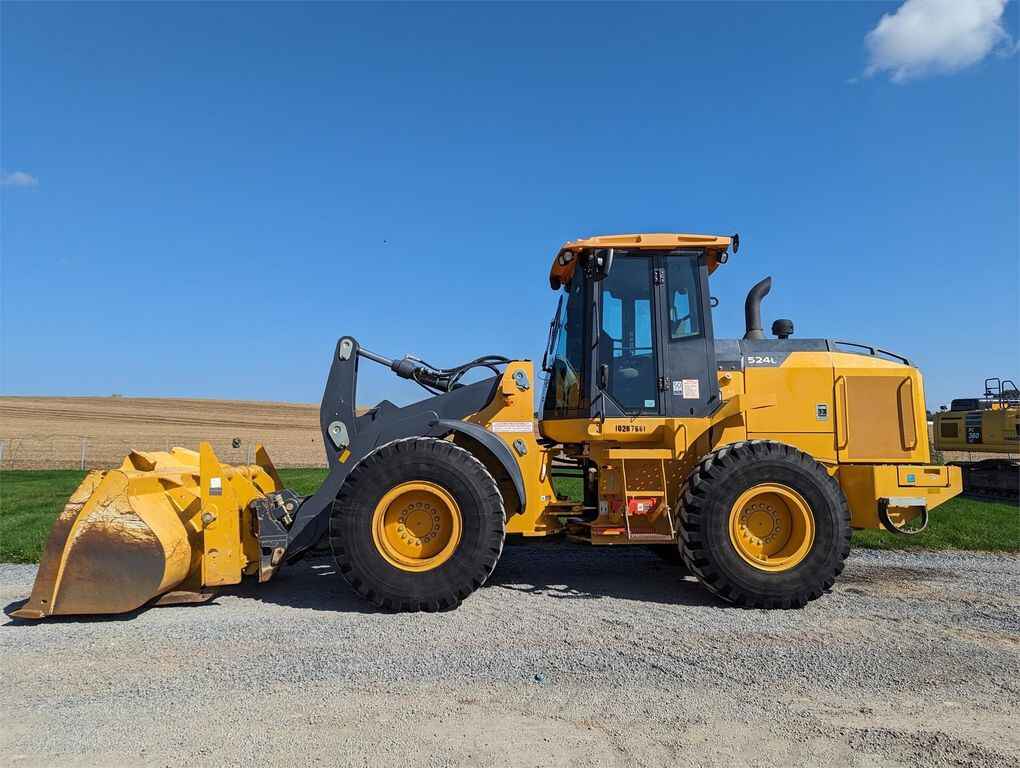

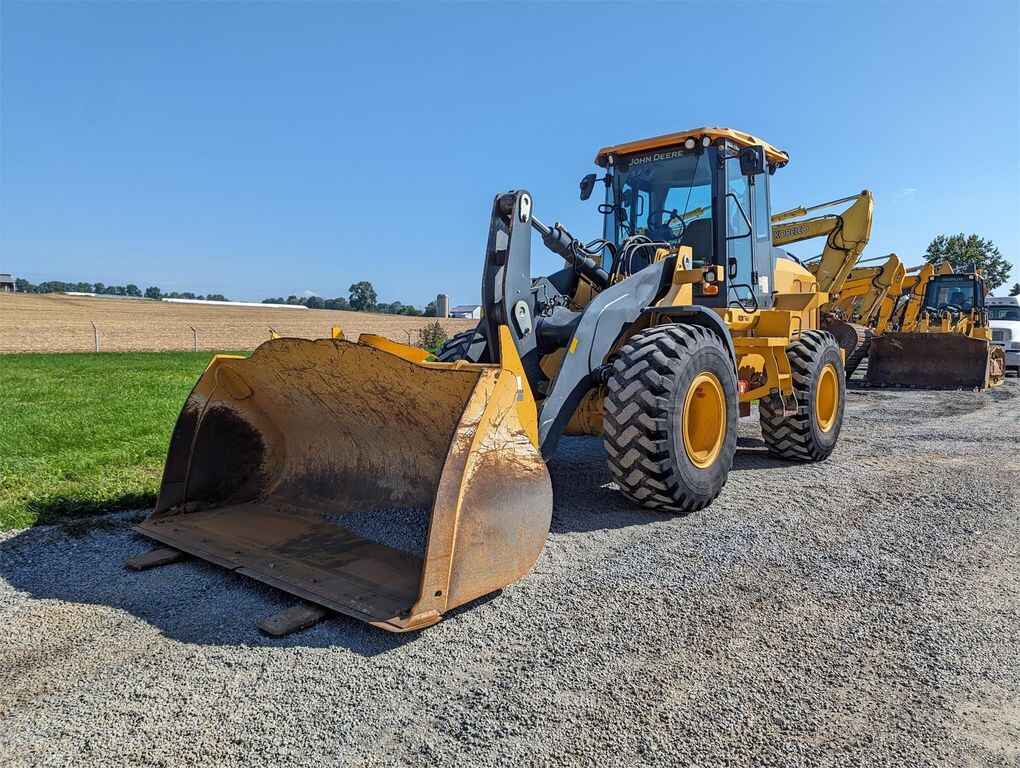

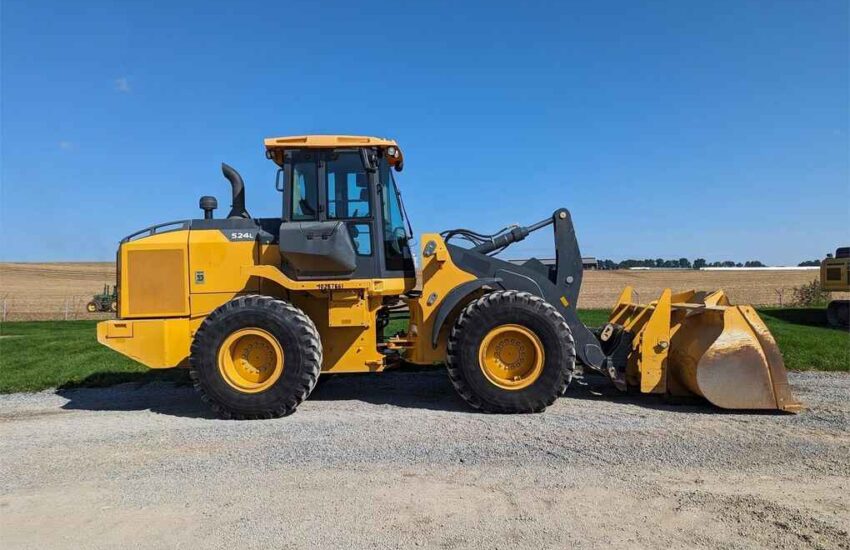

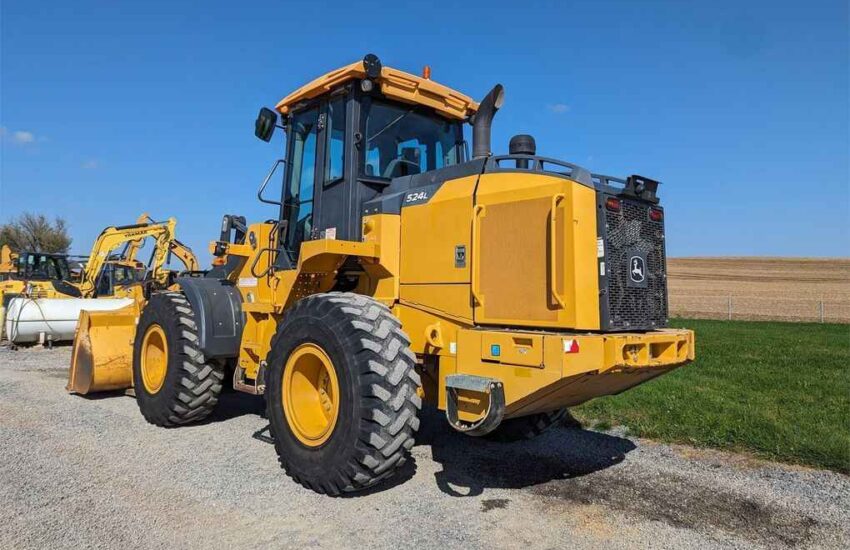

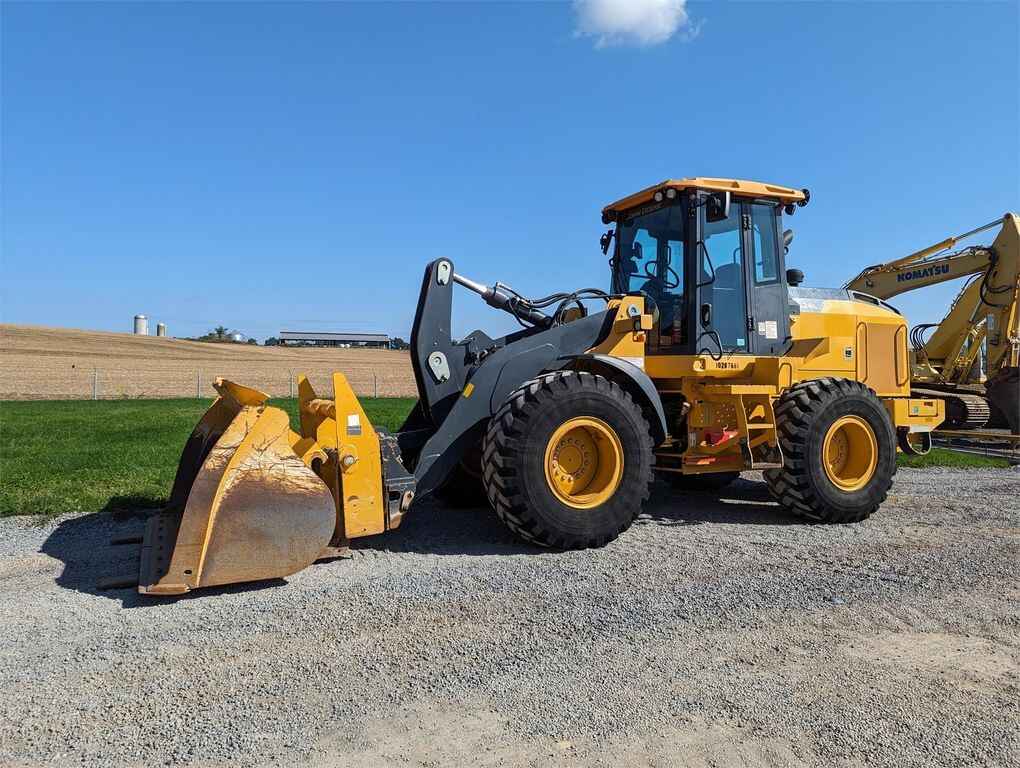

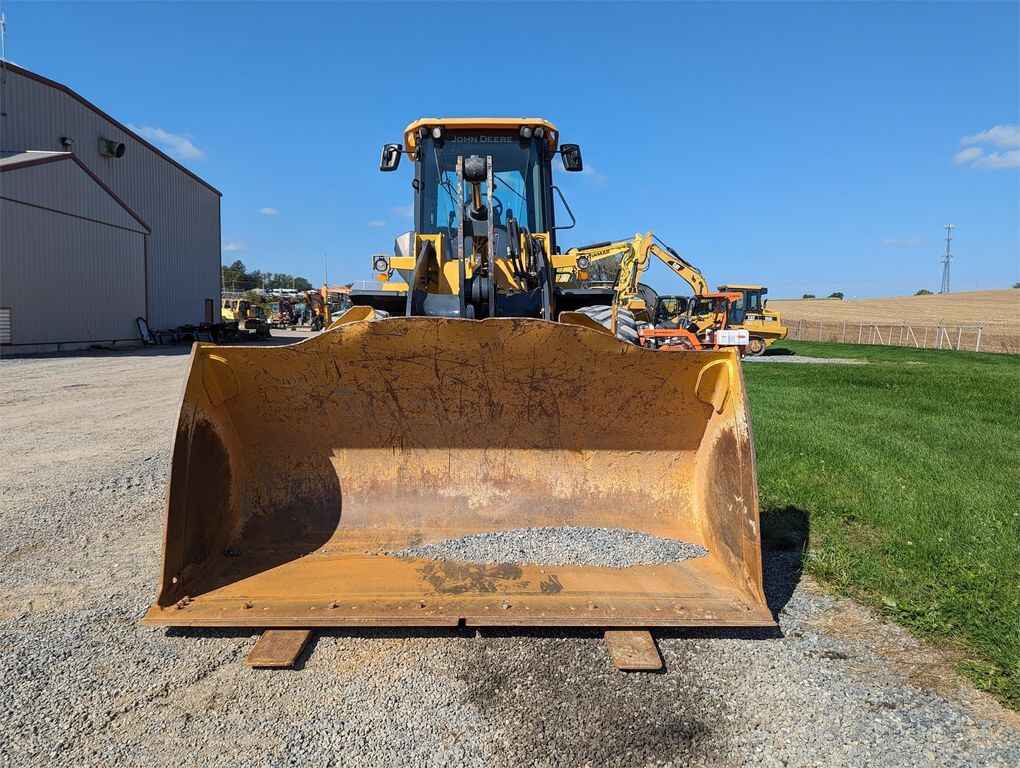

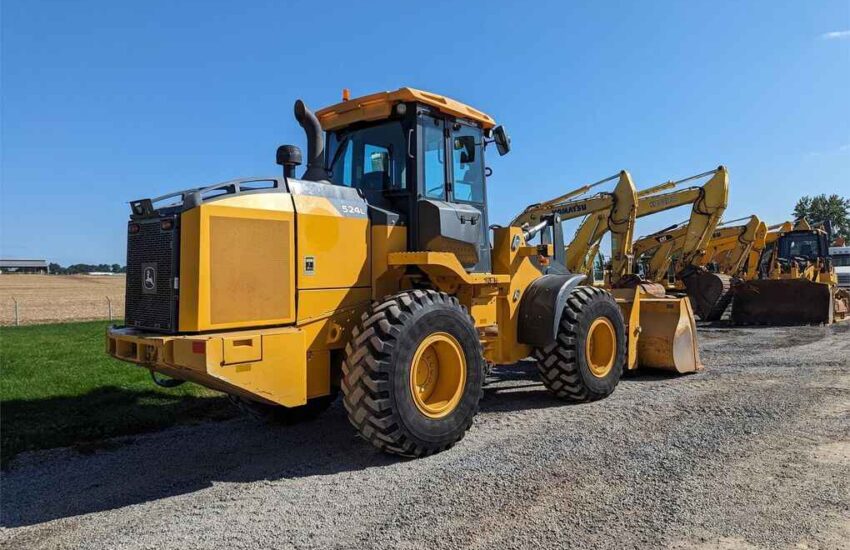

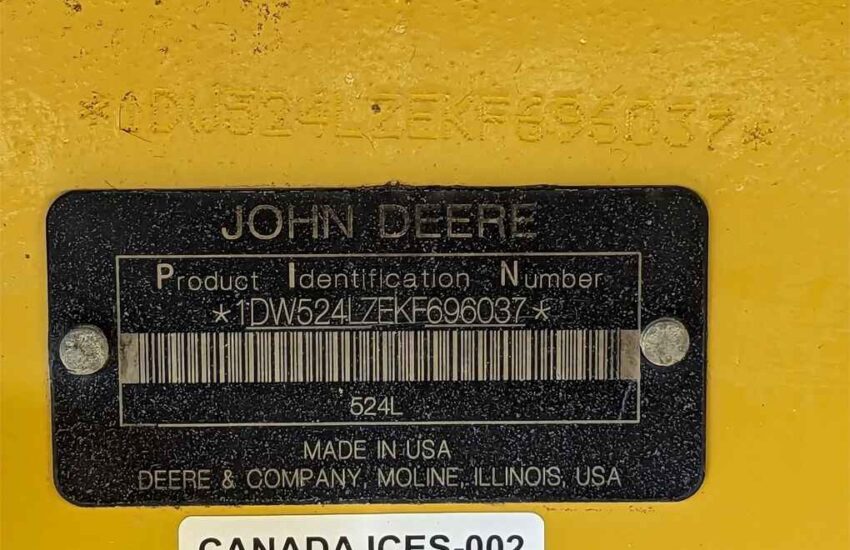

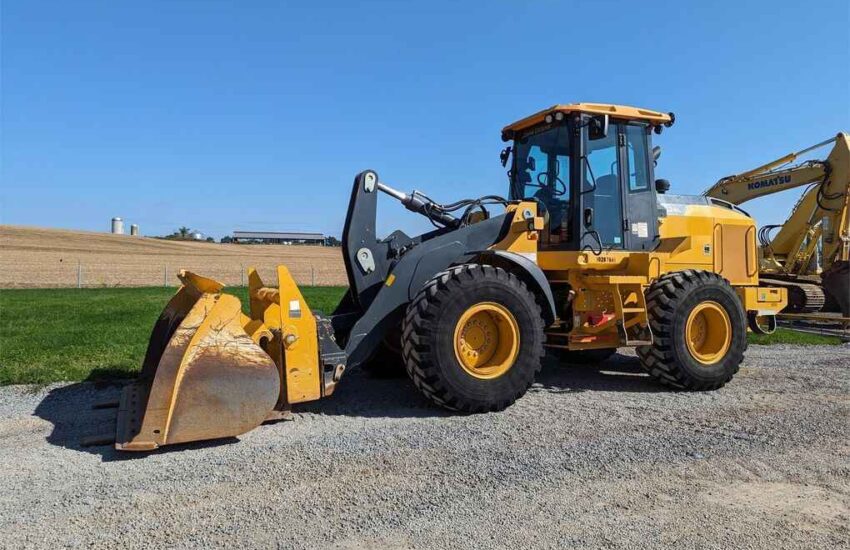

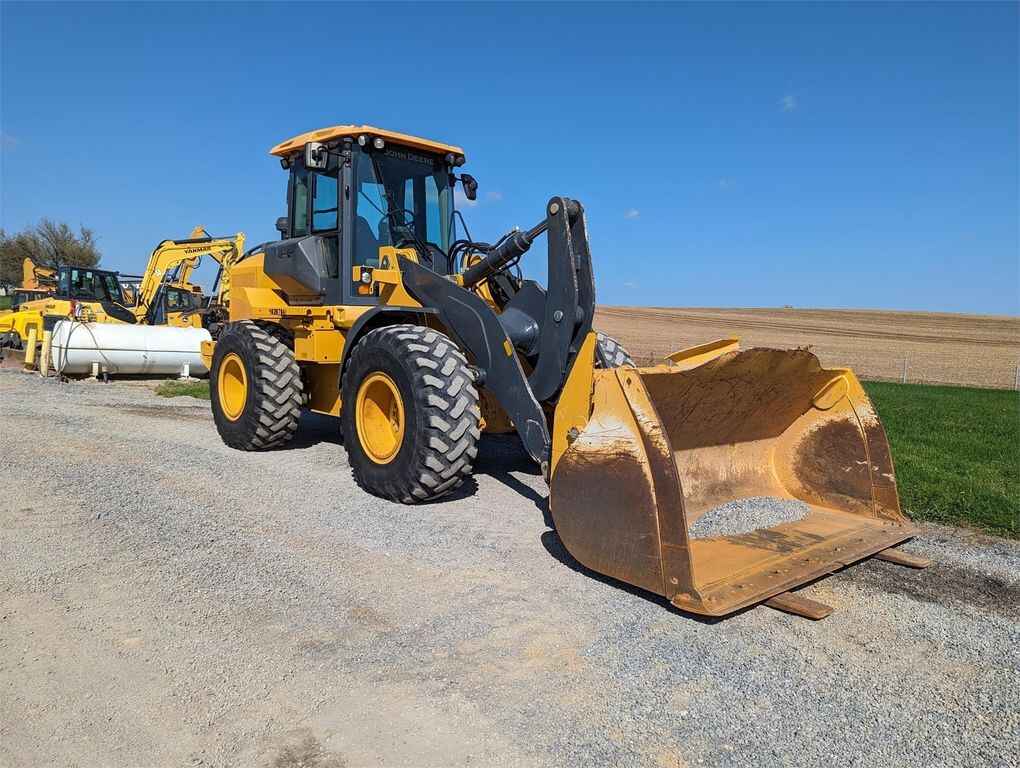

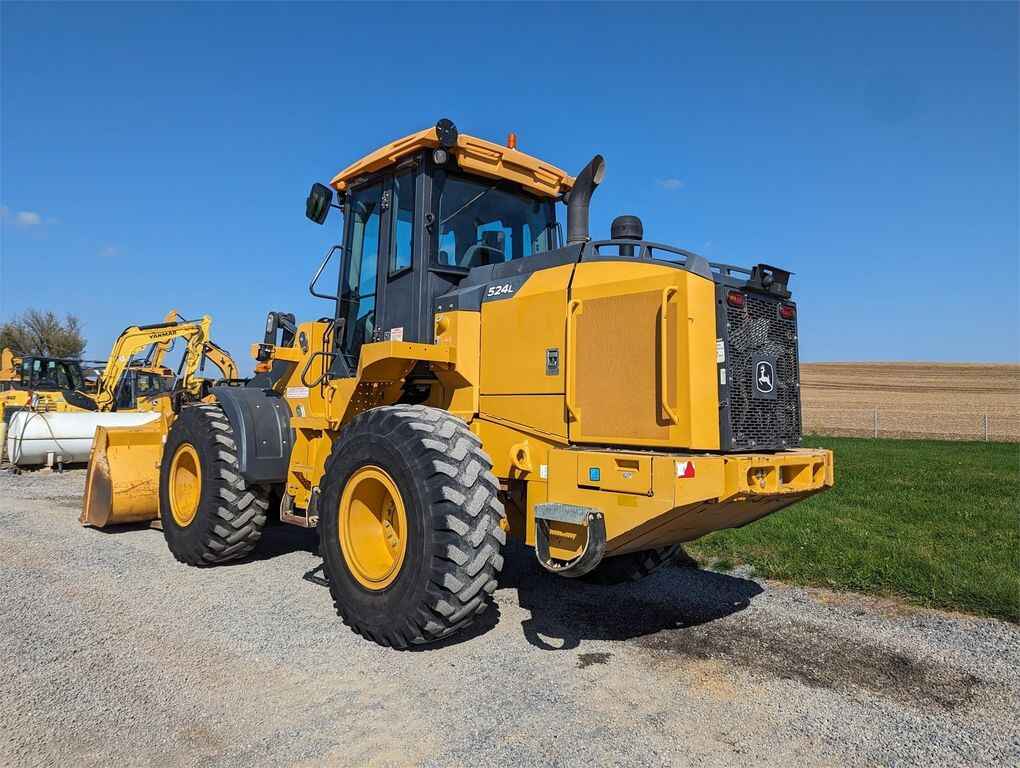

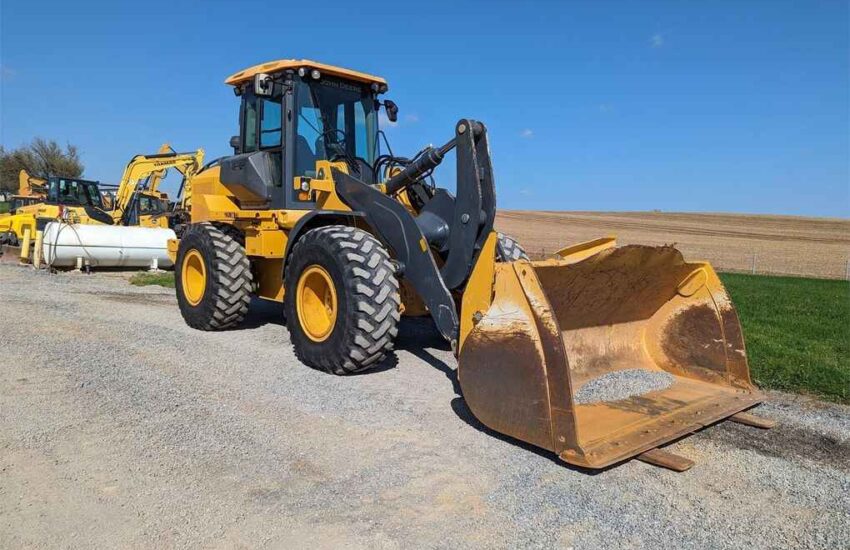

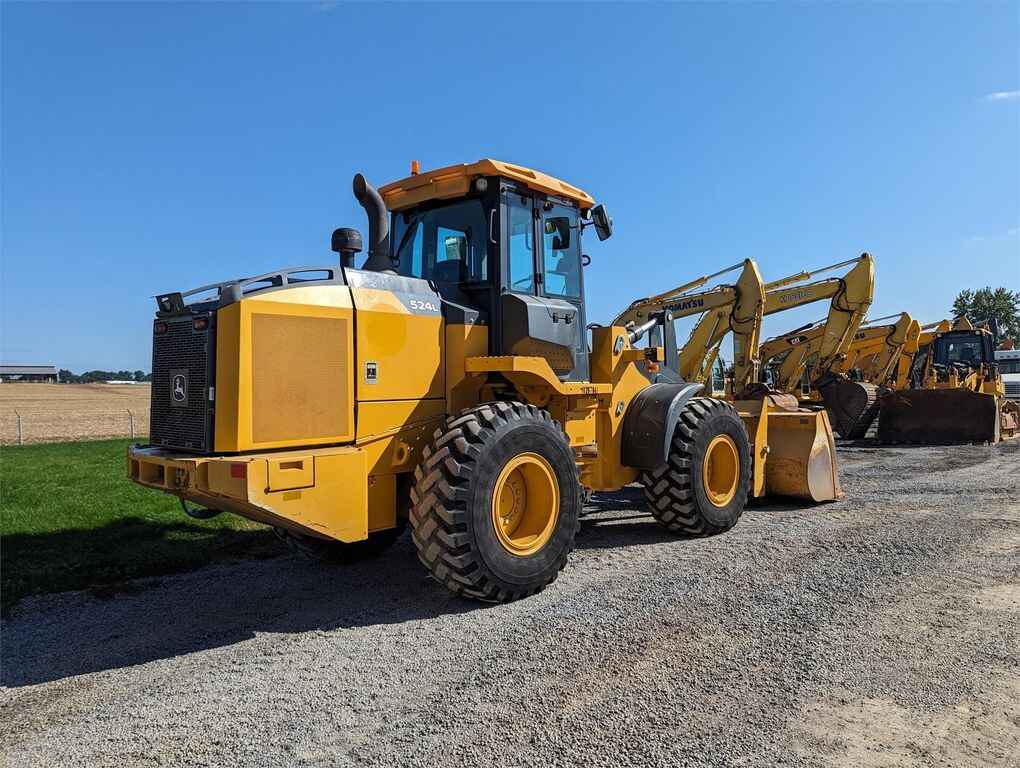

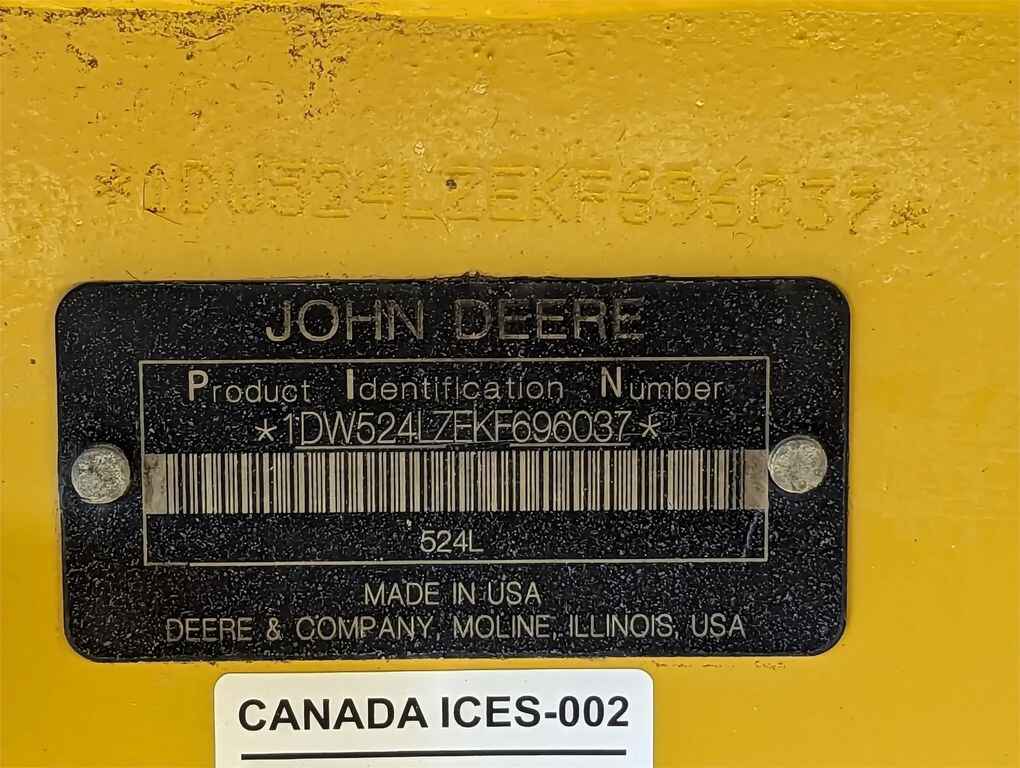

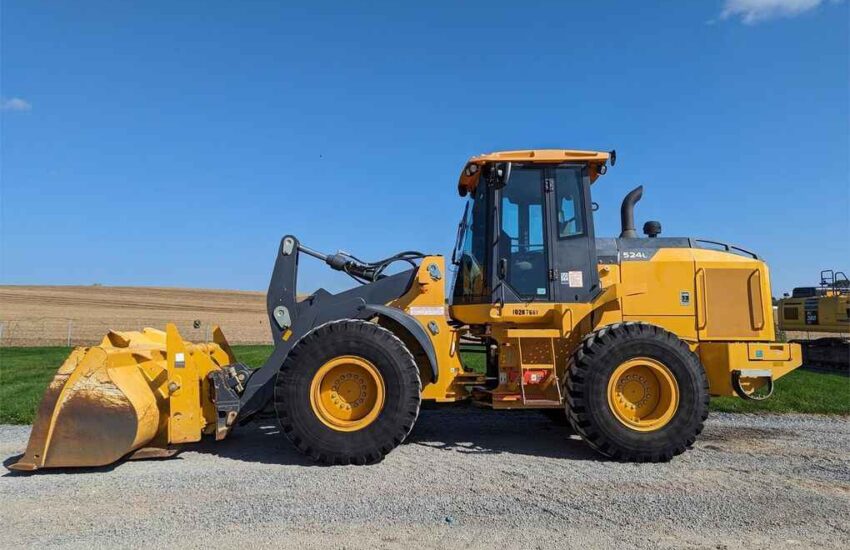

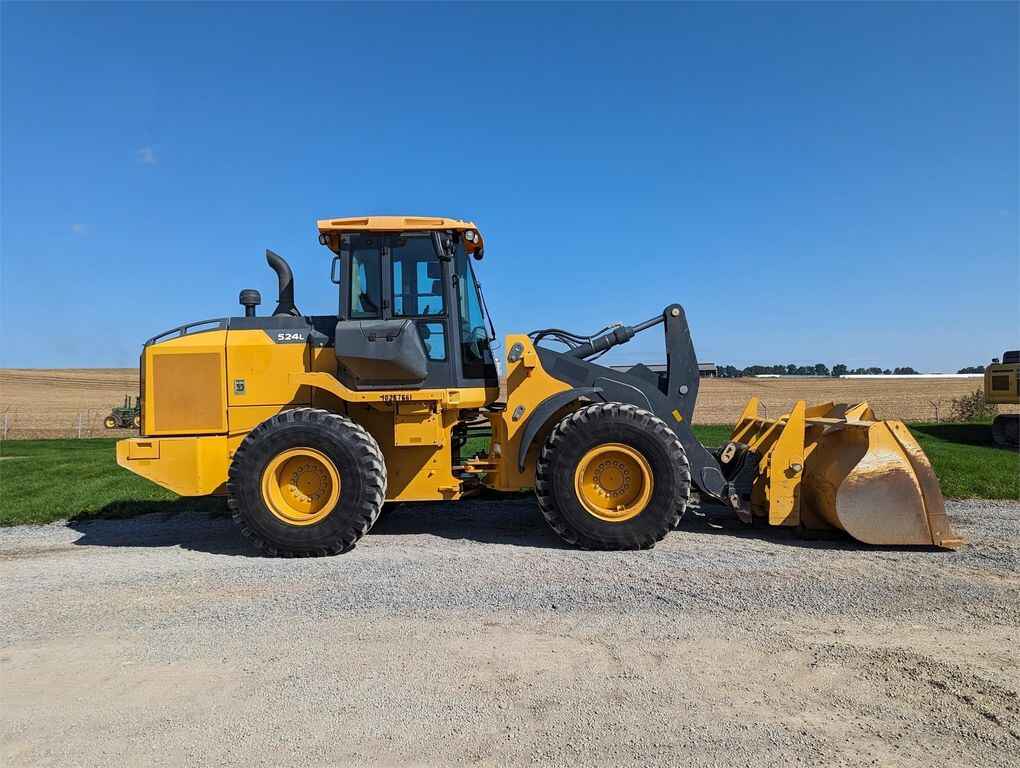

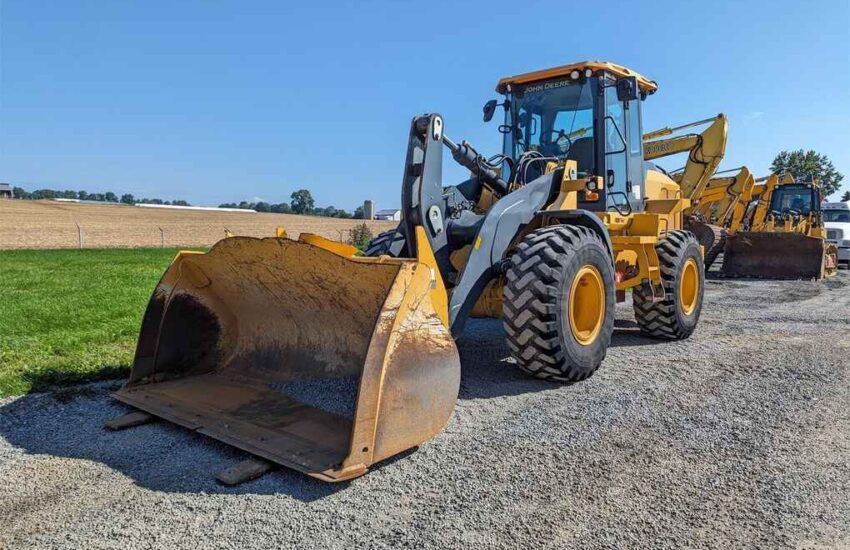

2019 John Deere 524L

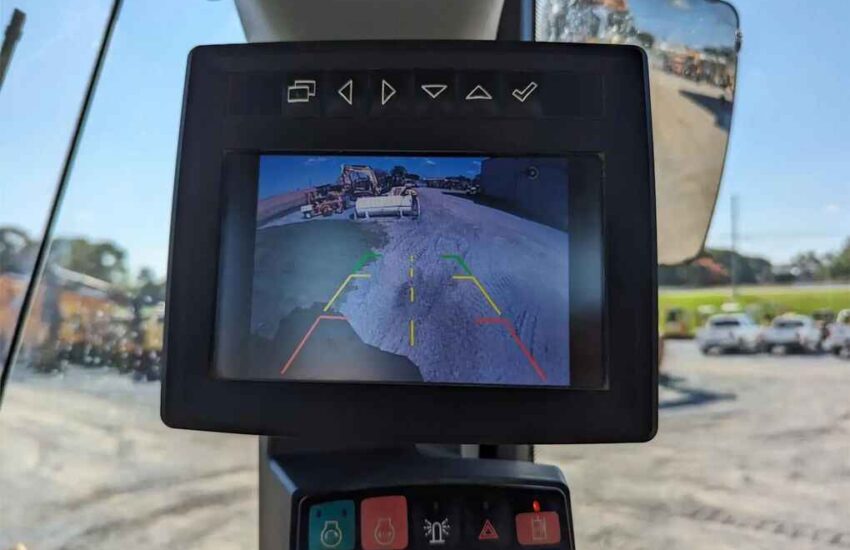

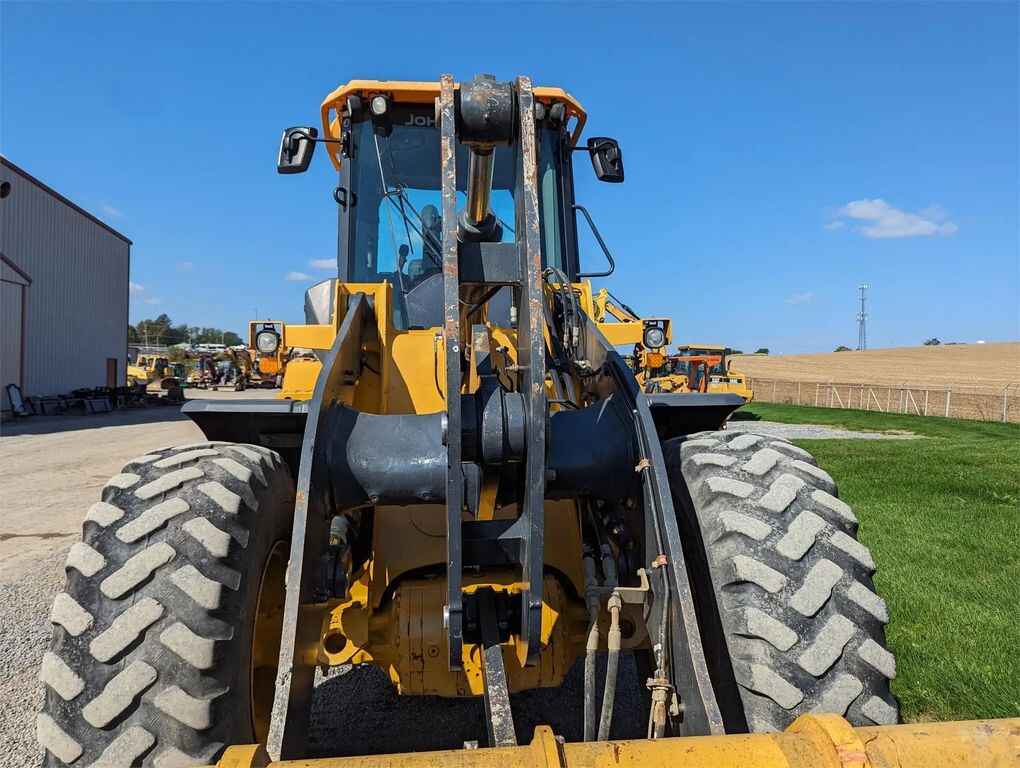

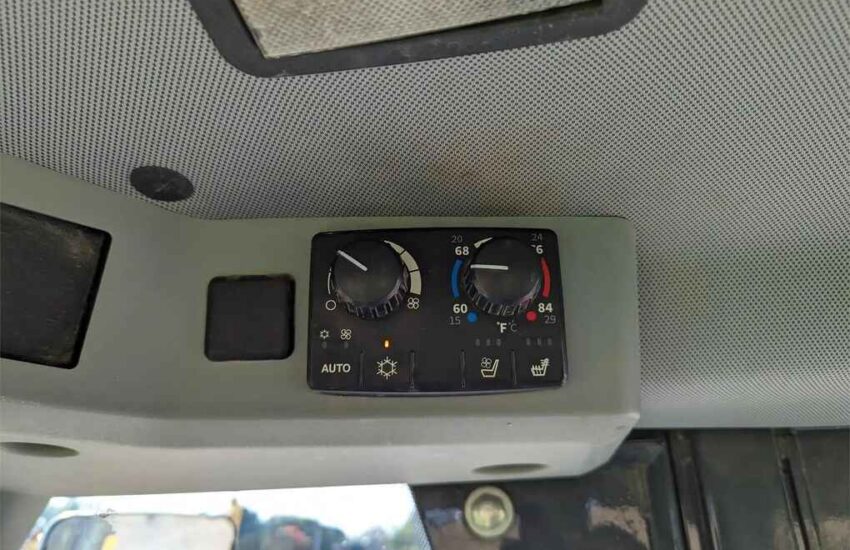

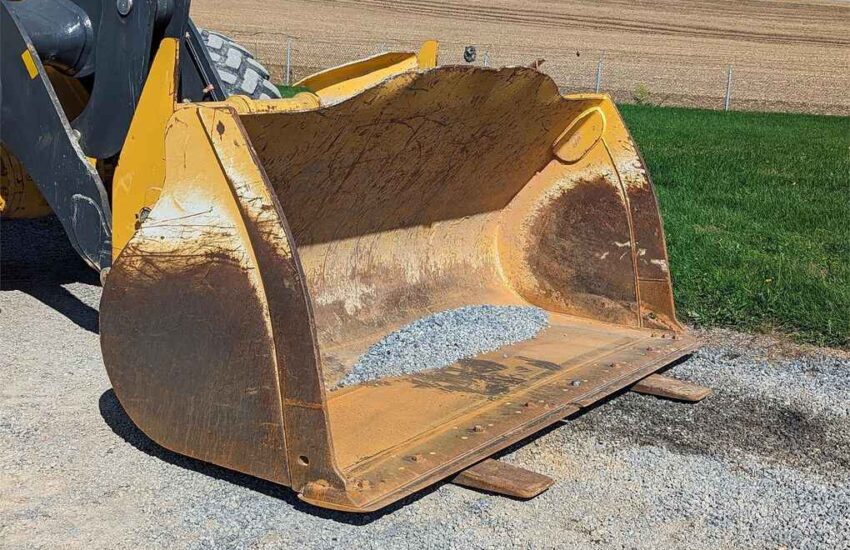

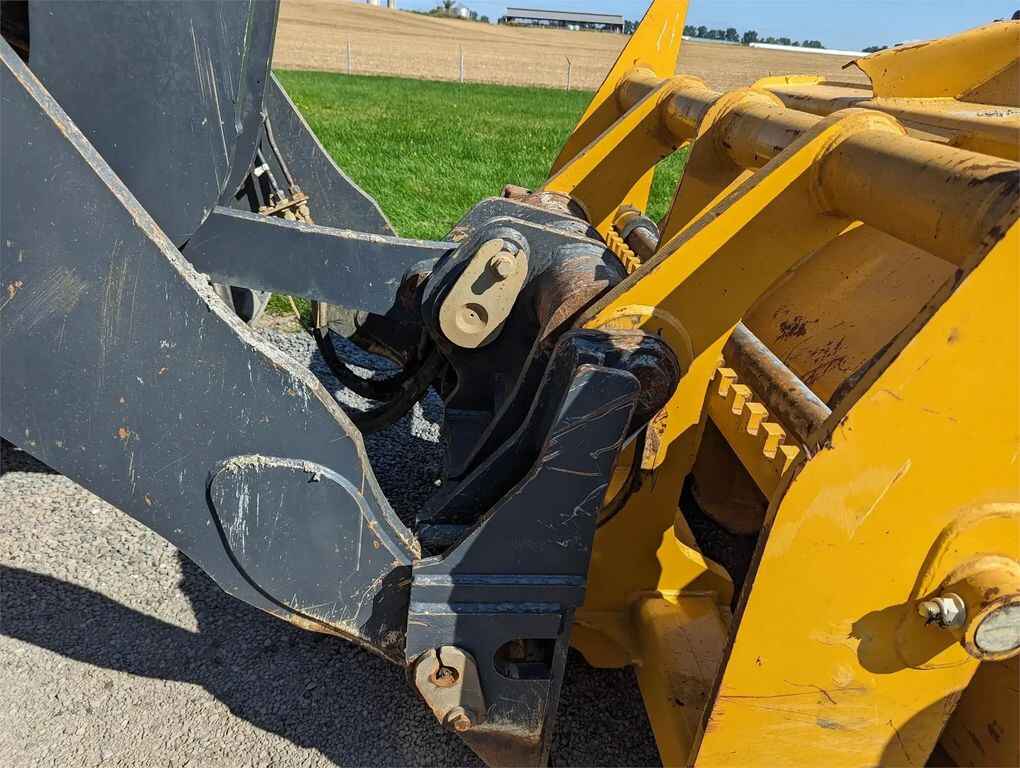

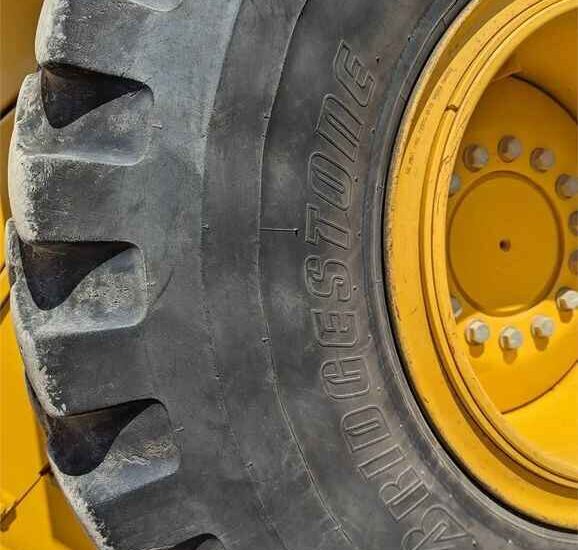

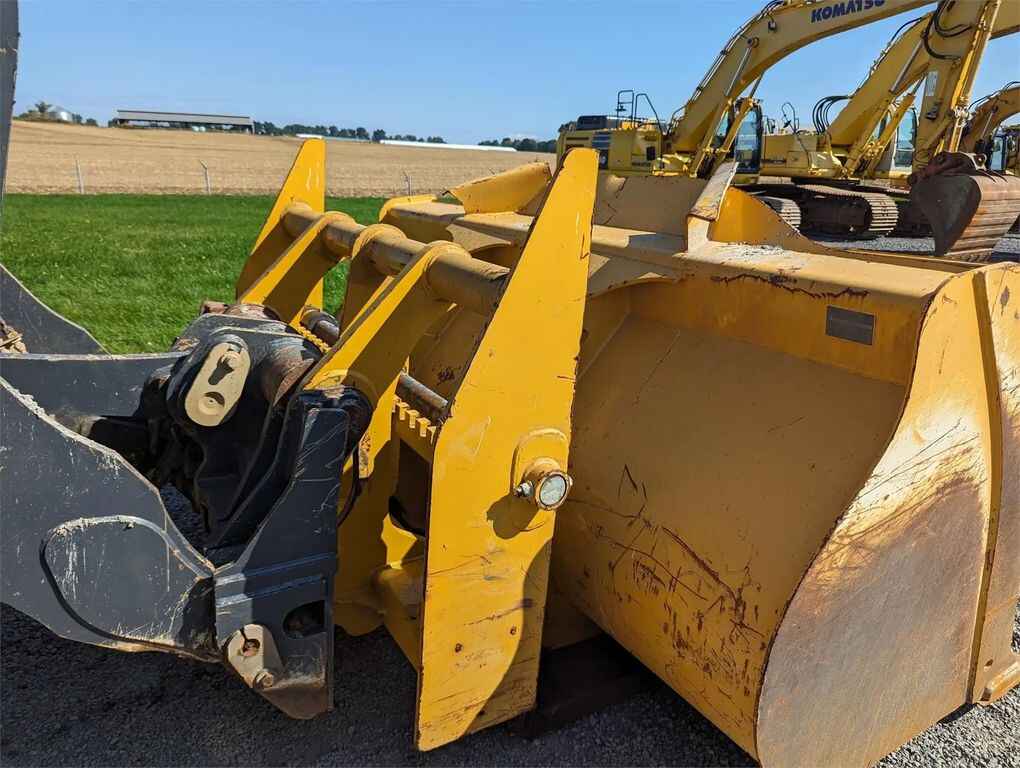

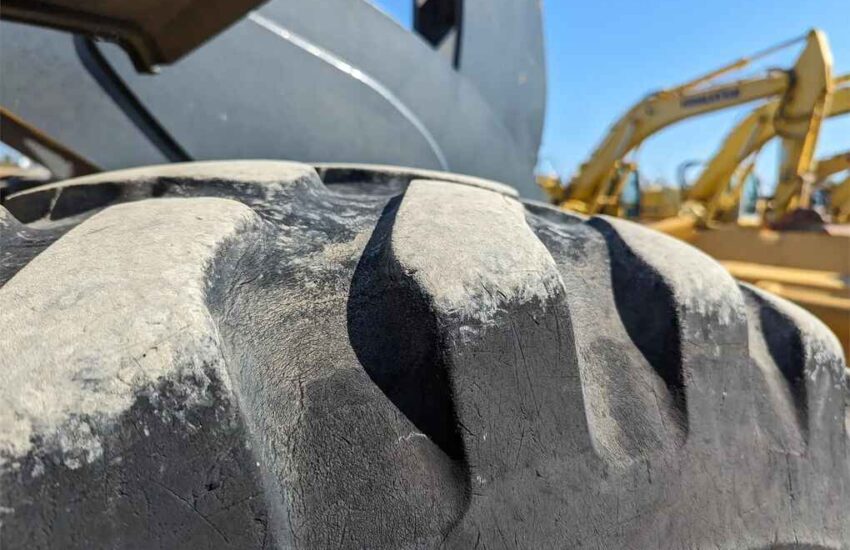

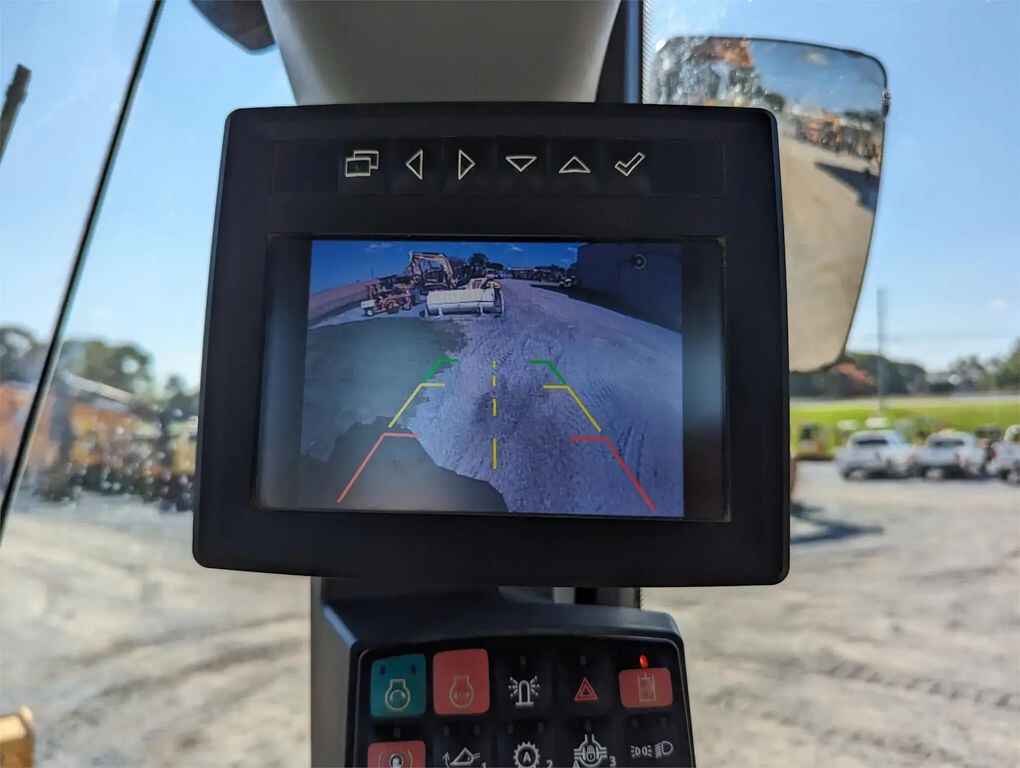

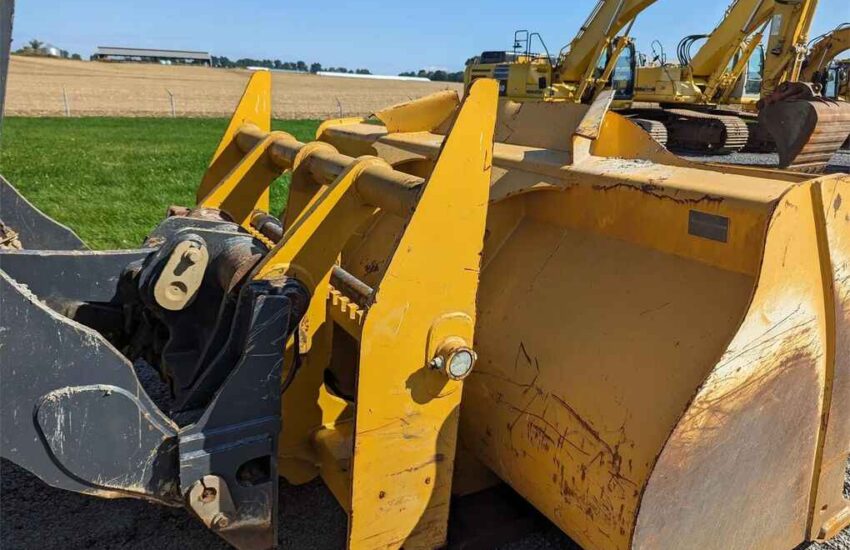

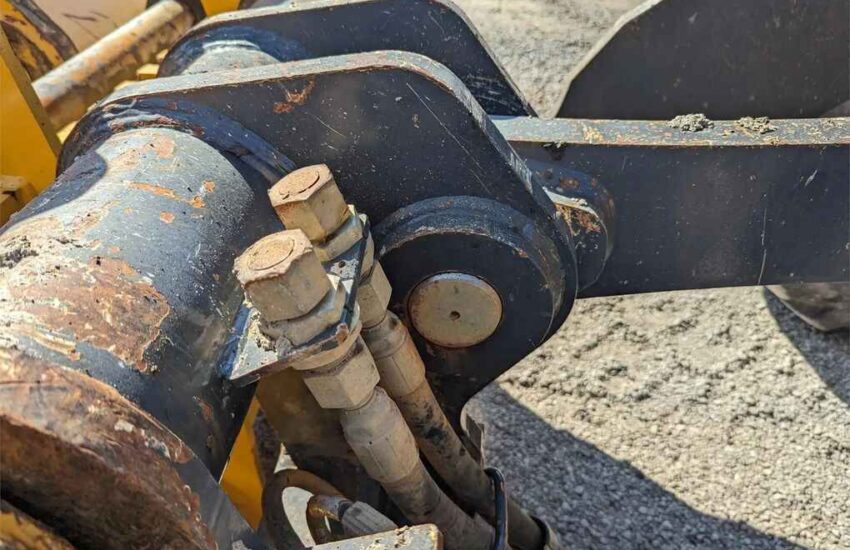

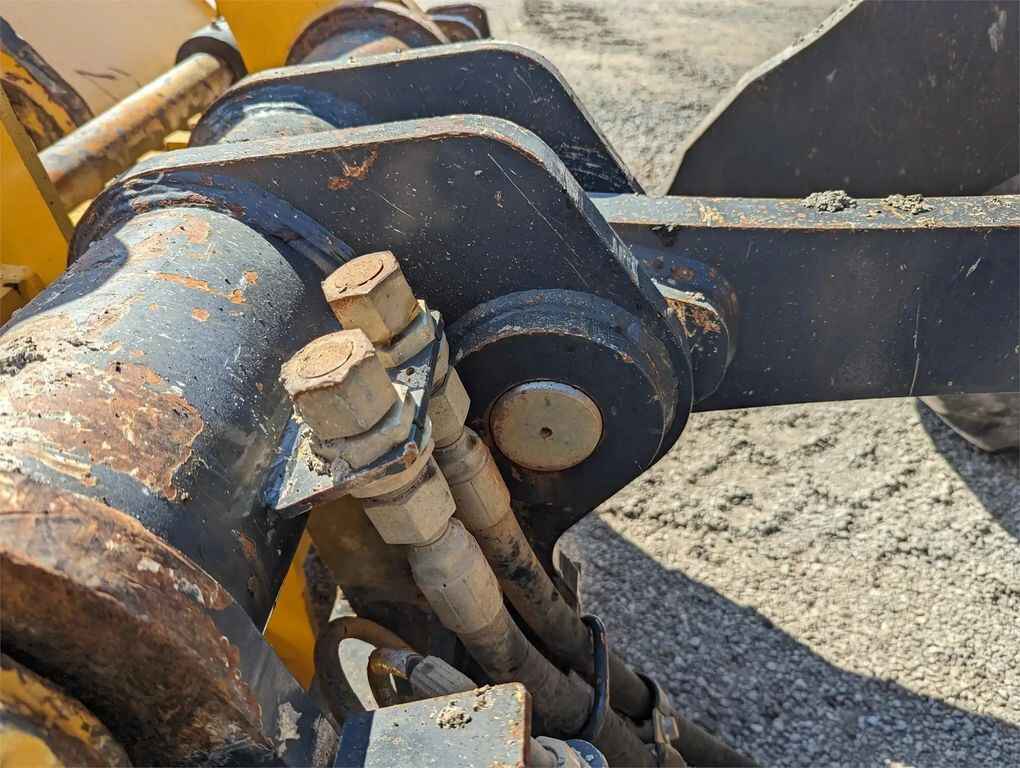

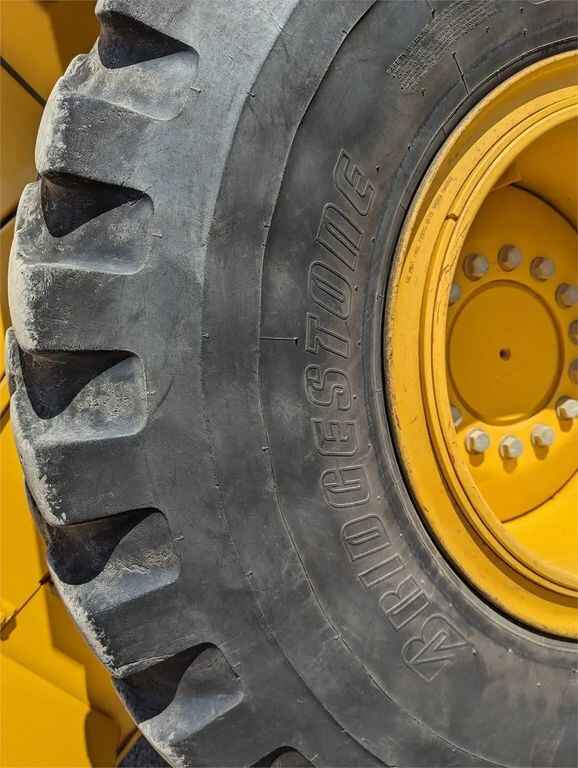

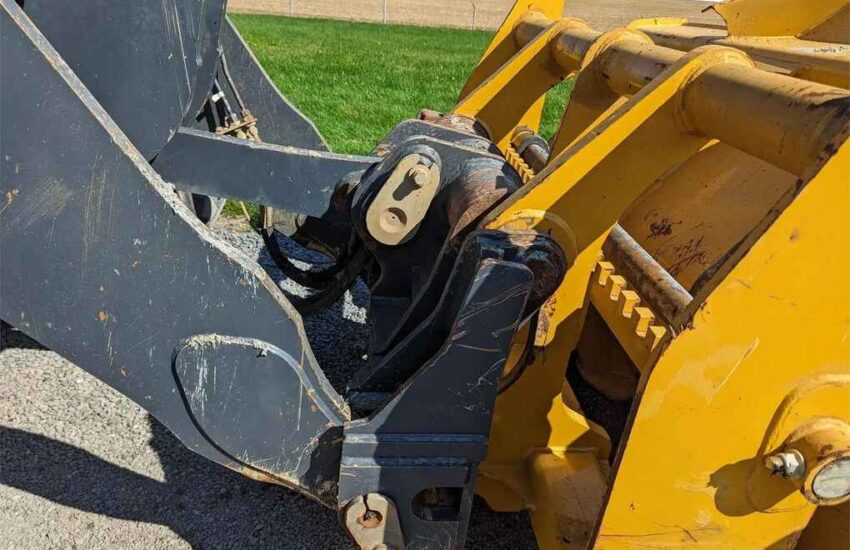

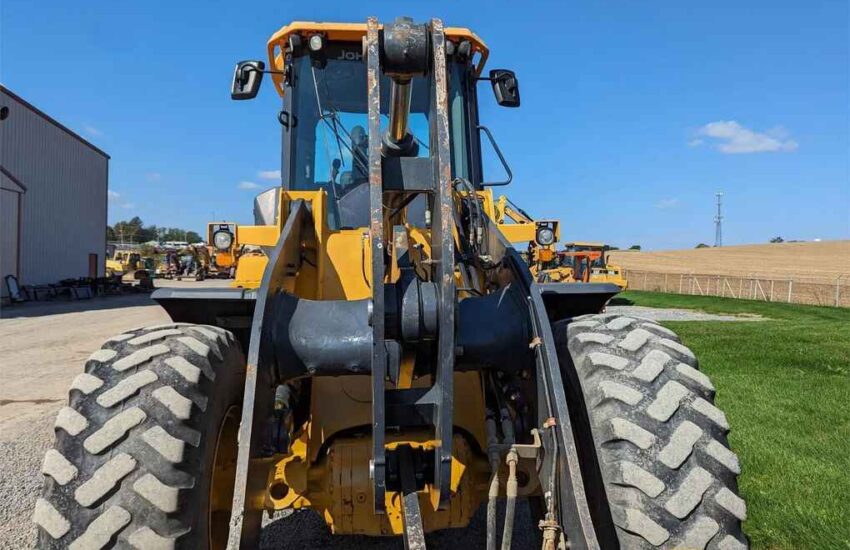

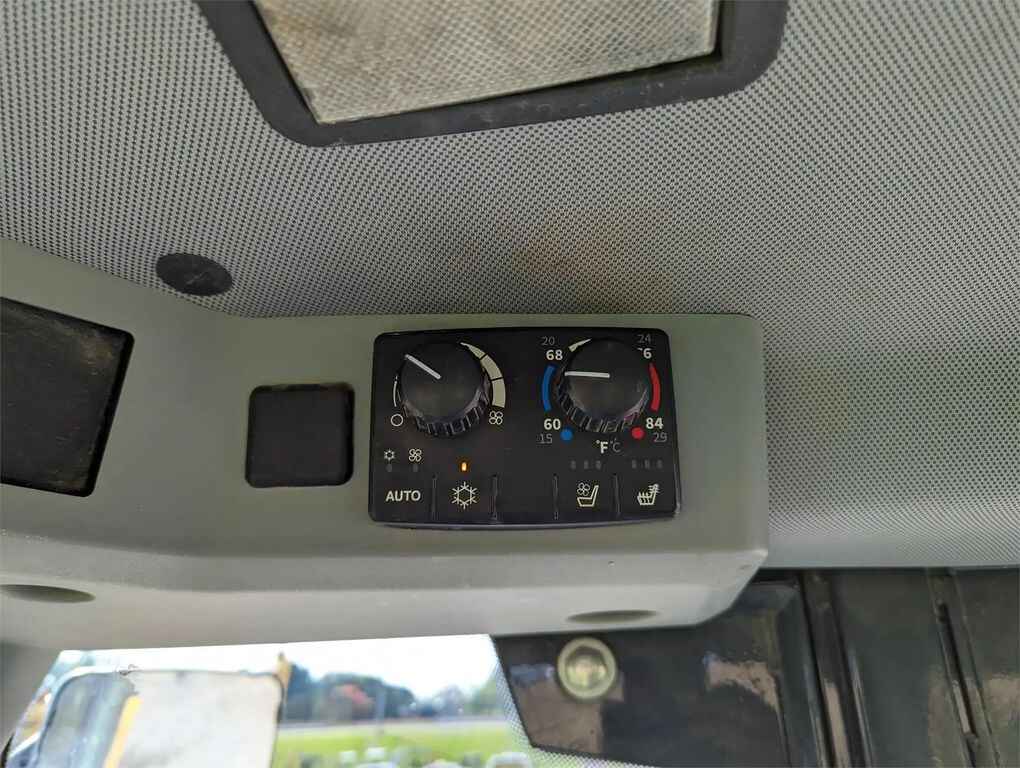

Heat, A/C, Backup Camera, Coupler, Third Valve, 20.5R25 Bridgestone Tires, Forks, 2.75 Yd. Bucket

SPECIFICATIONS

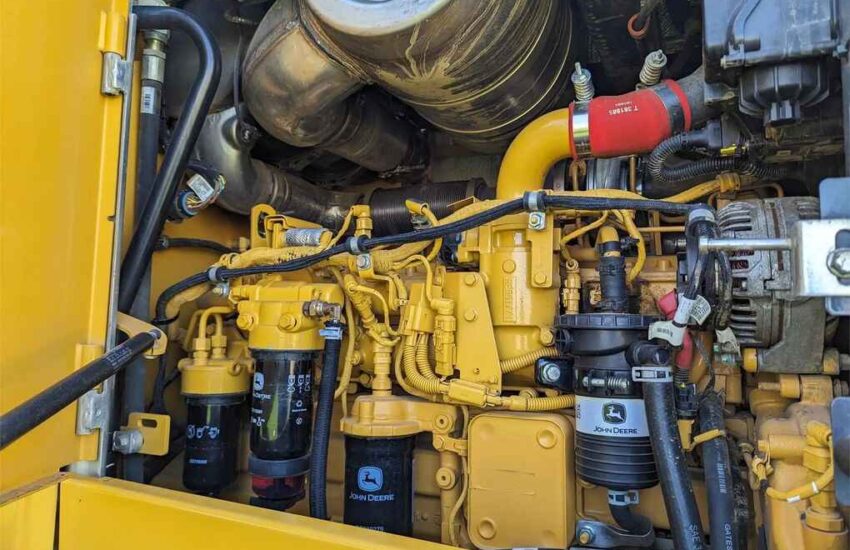

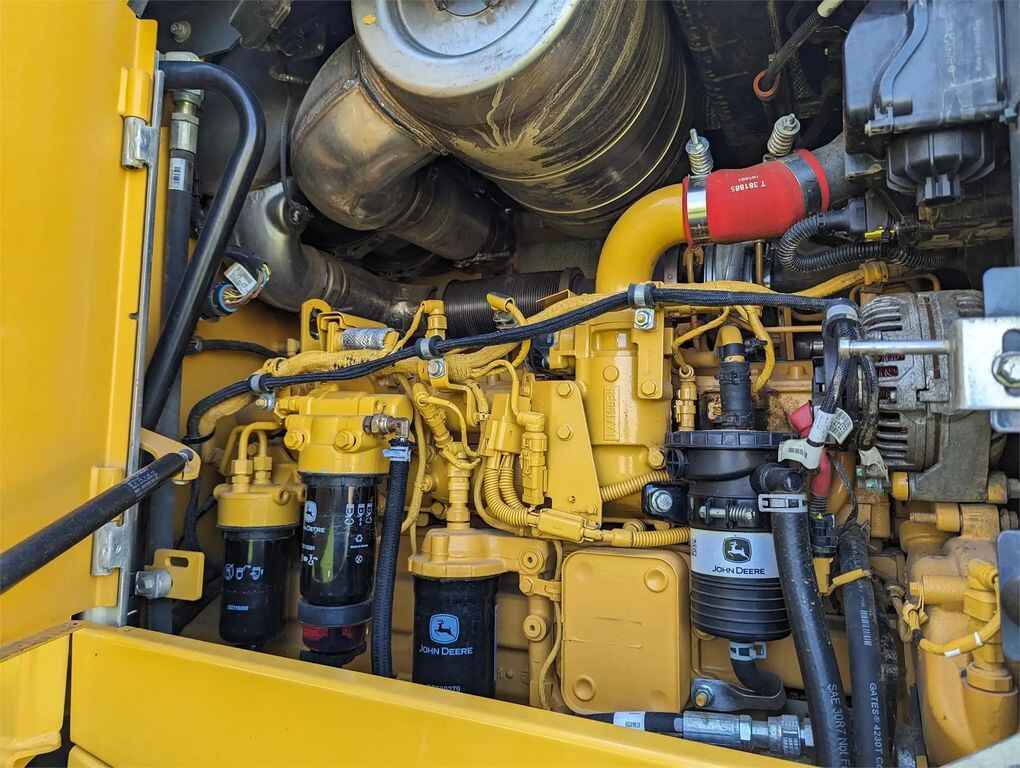

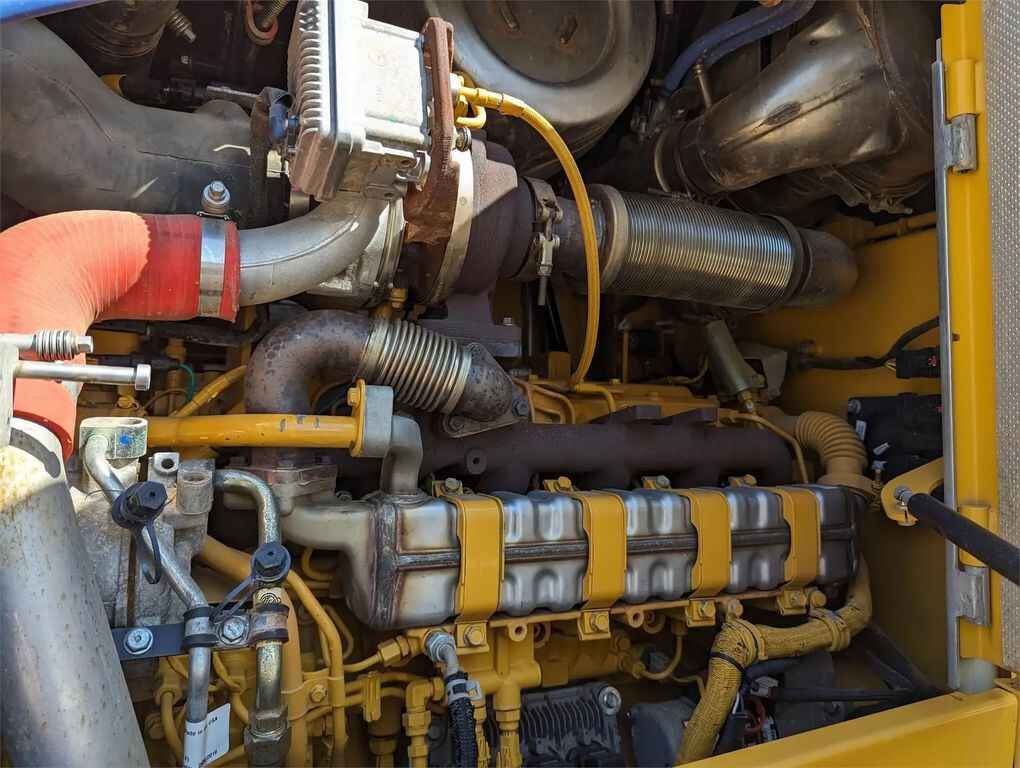

Engine
• Manufacturer: John Deere
• Model: PowerTech PVS 6068
• Emission Rating: Tier 4
• Displacement: 6.8 L (414 in³)
• Rated Speed: 1,800 rpm
• Net Peak Power: 113 kW (152 hp)
• Gross Peak Torque: 713 Nm (526 lbf·ft) @ 1,400 rpm

Transmission
• Type: Countershaft-type PowerShift™
• Shift Control: Electronically modulated, adaptive, load and speed dependent

Axles
• Front Differential: Locking
• Rear Differential: Open

Brakes
• Service Brake Type: Wet Disc, Hydraulic Actuation
• Parking Brake Type: Wet Multi Disc – Driveline

Tires

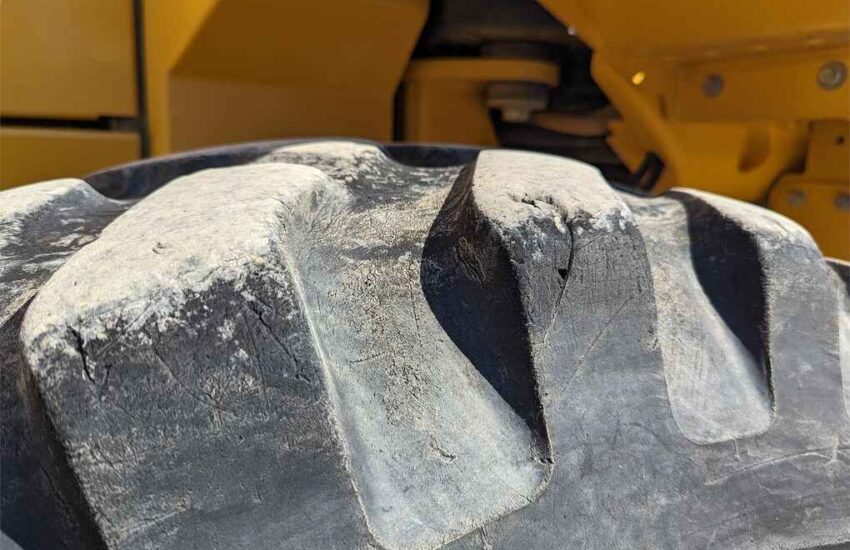

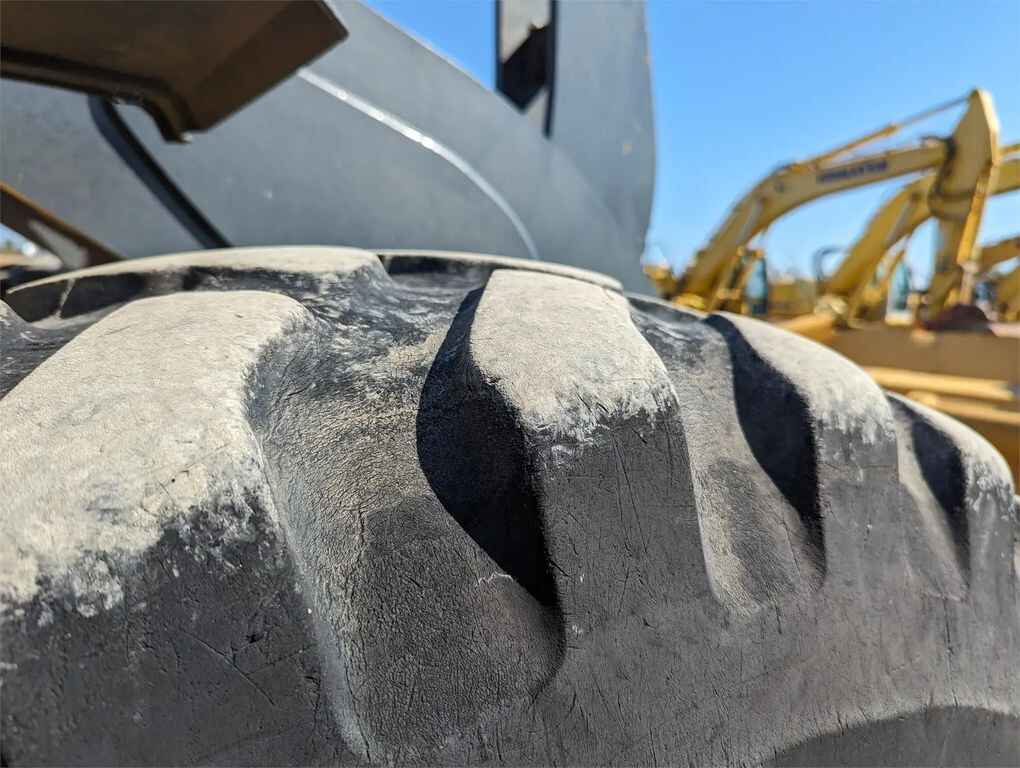

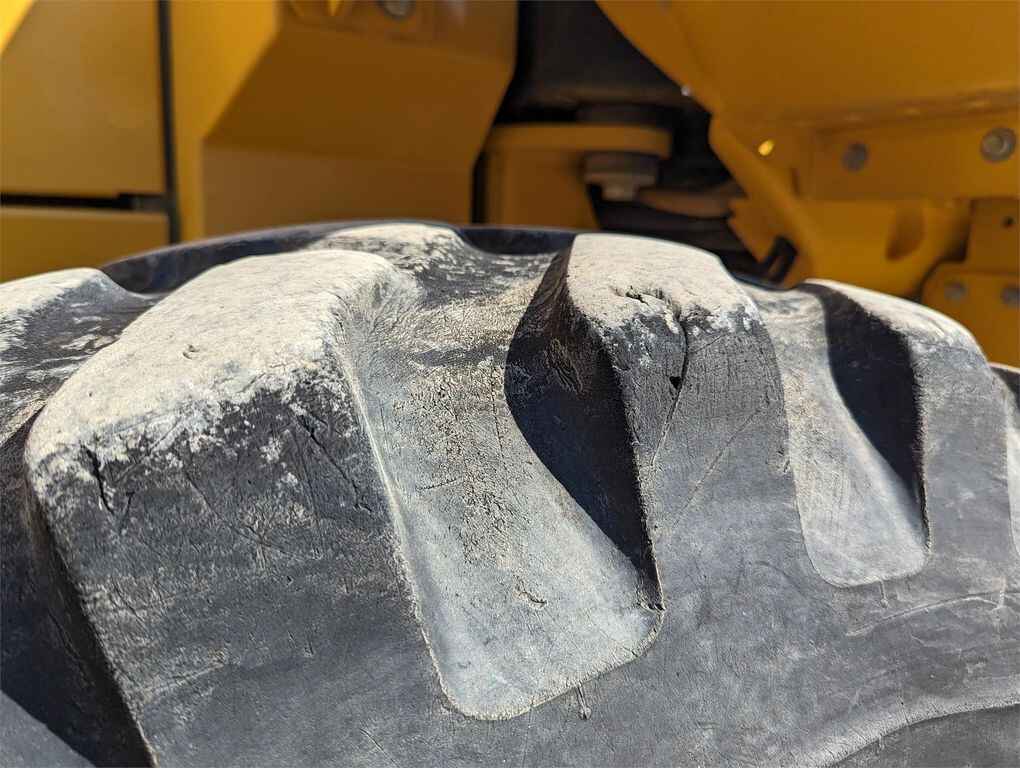

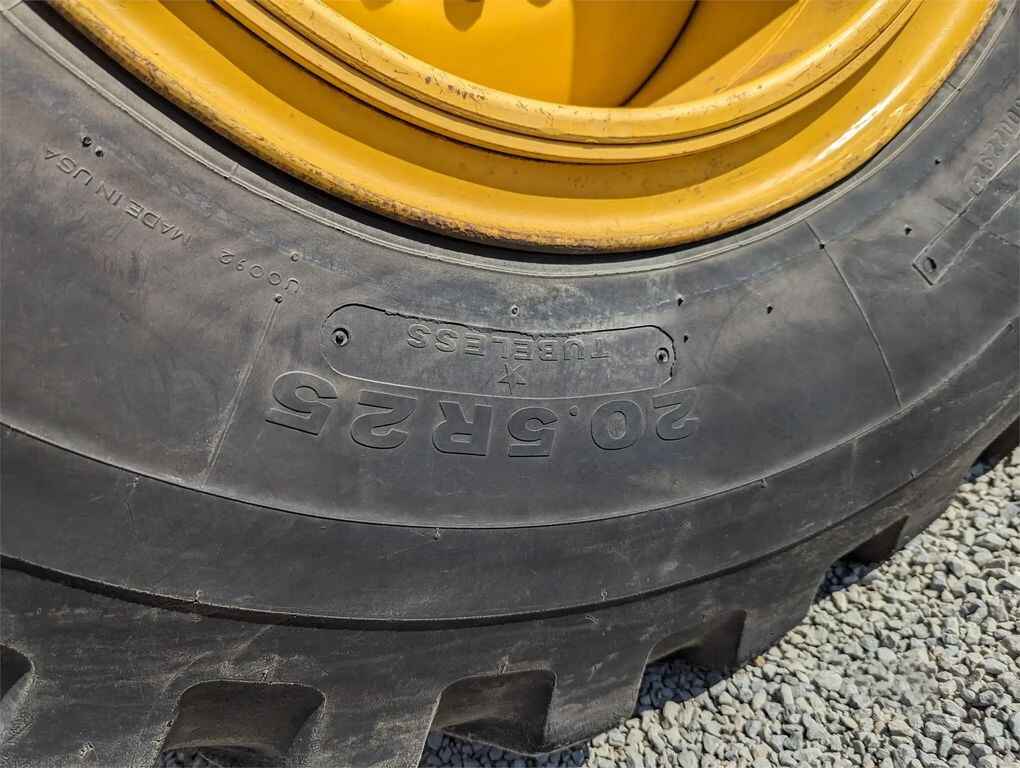

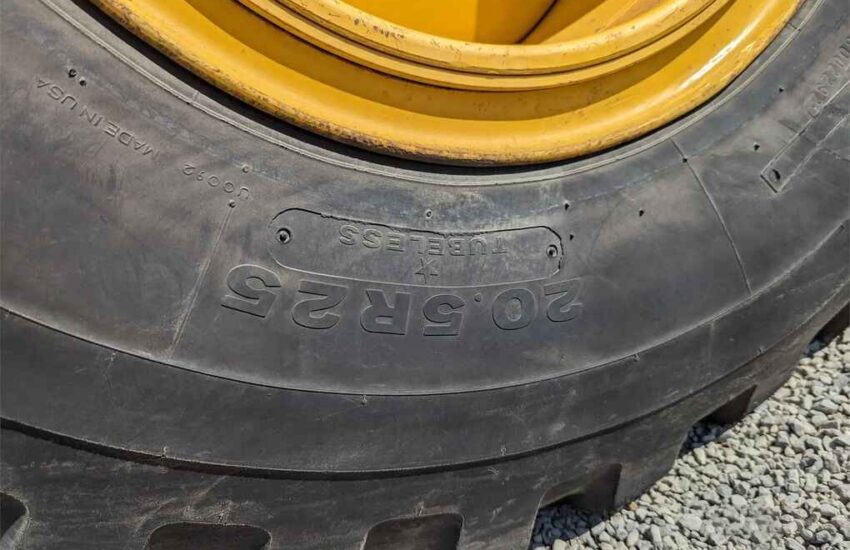

• Standard Size: 20.5 R25

Dimensions
• Height Over Cab: 3,330 mm (10 ft 11 in)
• Wheelbase: 2,930 mm (9 ft 7 in)
• Overall Length with Bucket: 7,370 mm (24 ft 2 in)
• Ground Clearance: 400 mm (15.7 in)
• Width Over Tires: 2,546 mm (8 ft 4 in)
• Height to Pivot Pin: 3,810 mm (12 ft 6 in)
• Reach at 45° Dump: 1,440 mm (4 ft 9 in)
• Turning Circle (Max): 11,800 mm (38 ft 9 in)

Capacities
• Fuel Tank: 220 L (58 gal)
• Hydraulic Tank: 82.1 L (21.7 gal)
• Front Axle: 16.6 L (4.375 gal)
• Rear Axle: 18 L (4.75 gal)
• Transmission: 21 L (5.55 gal)

Performance

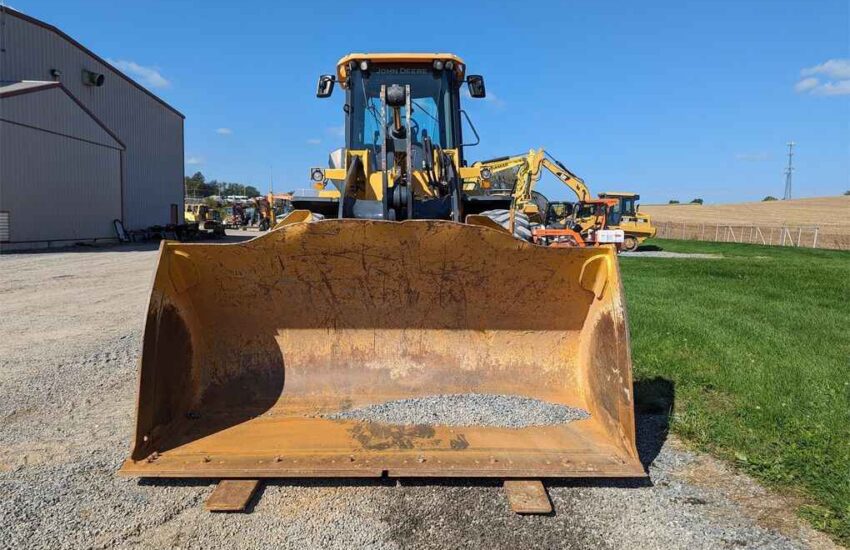

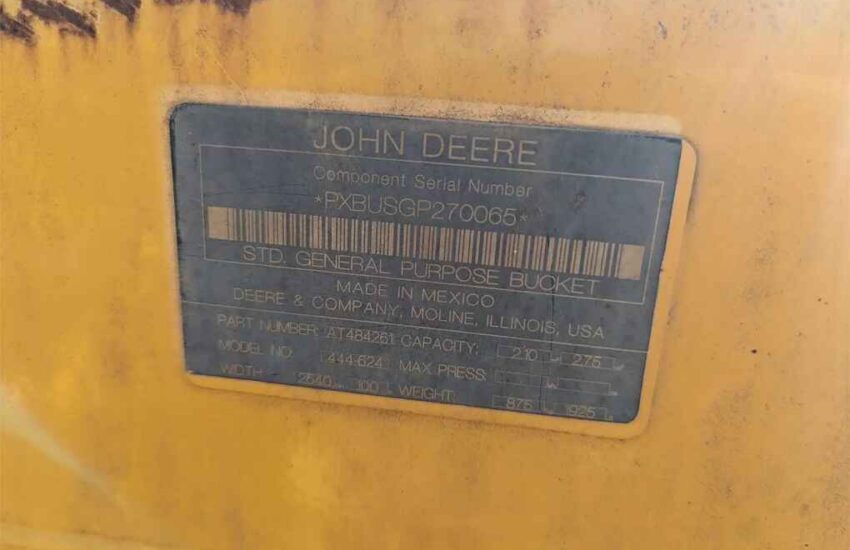

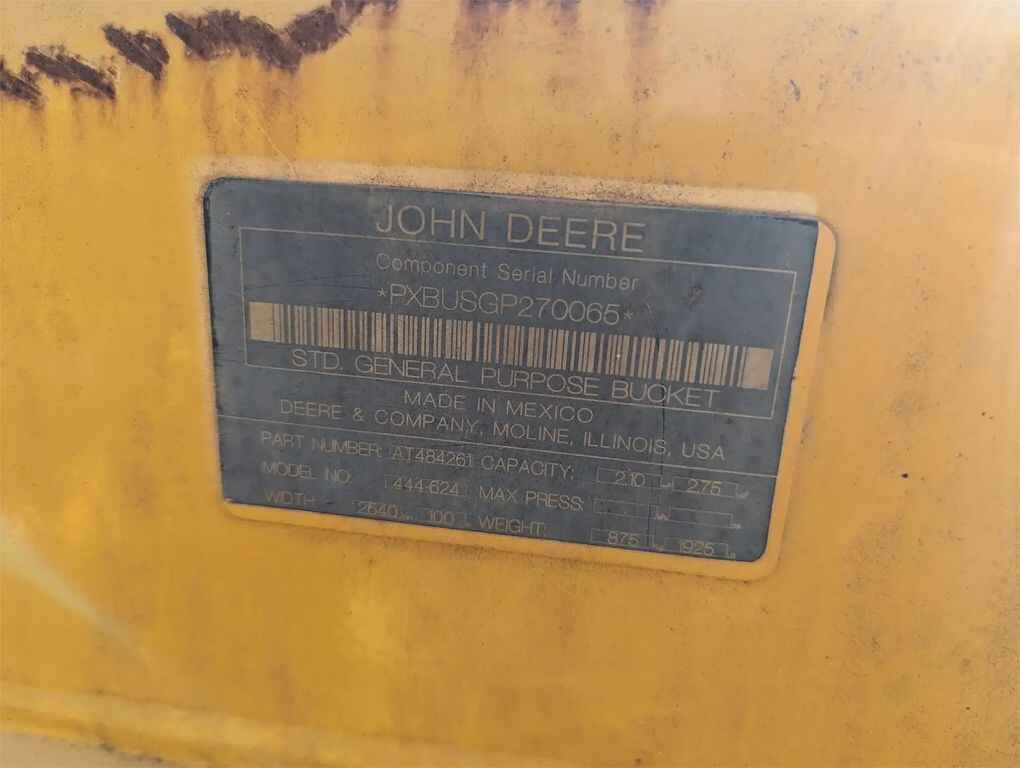

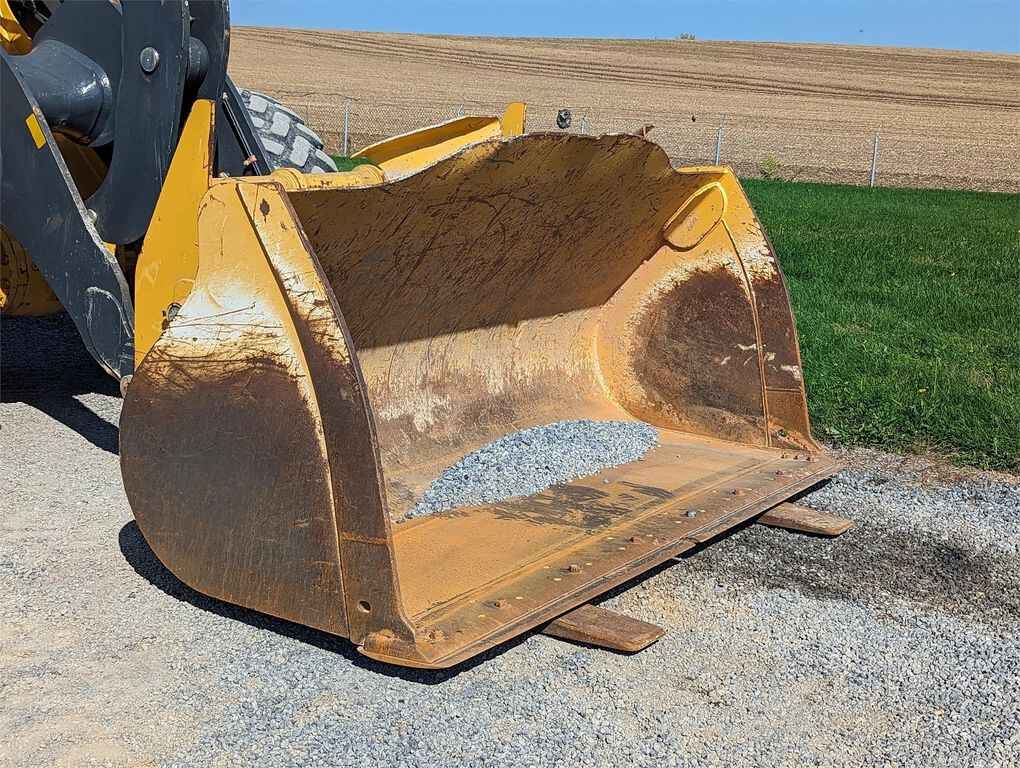

• Bucket Capacity (Heaped): 2.1 m³ (2.75 yd³)
• Smallest Bucket: 2.1 m³ (2.75 yd³)
• Largest Bucket: 3.1 m³ (4 yd³)
• Bucket Breakout Force: 11,070 kgf (24,406 lbf)

Hydraulic System
• System Voltage: 24 V
• Alternator Output: 100 Amp
• Pump Type: Piston
• Pump Flow: 178 L/min (47 gal/min)
• System Pressure: 250 bar (3,625 psi)

Weights
• Operating Weight: 13,123 kg (28,931 lbs)
