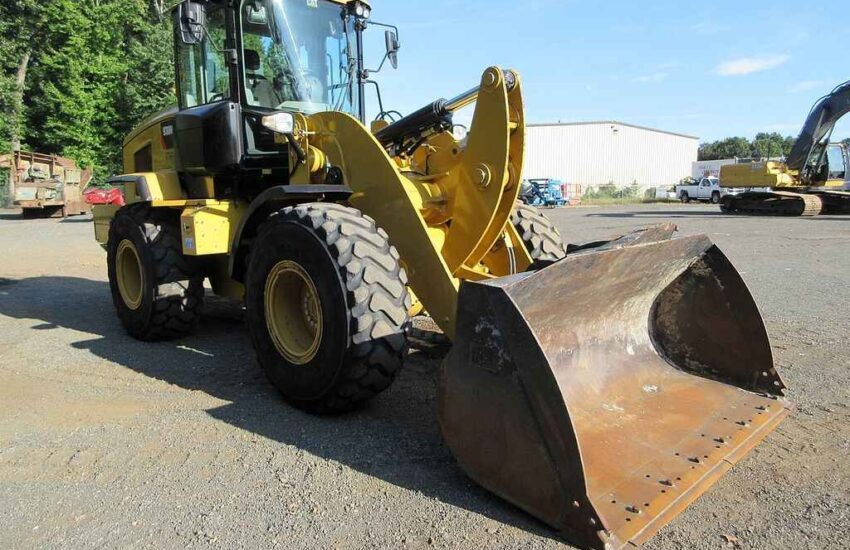

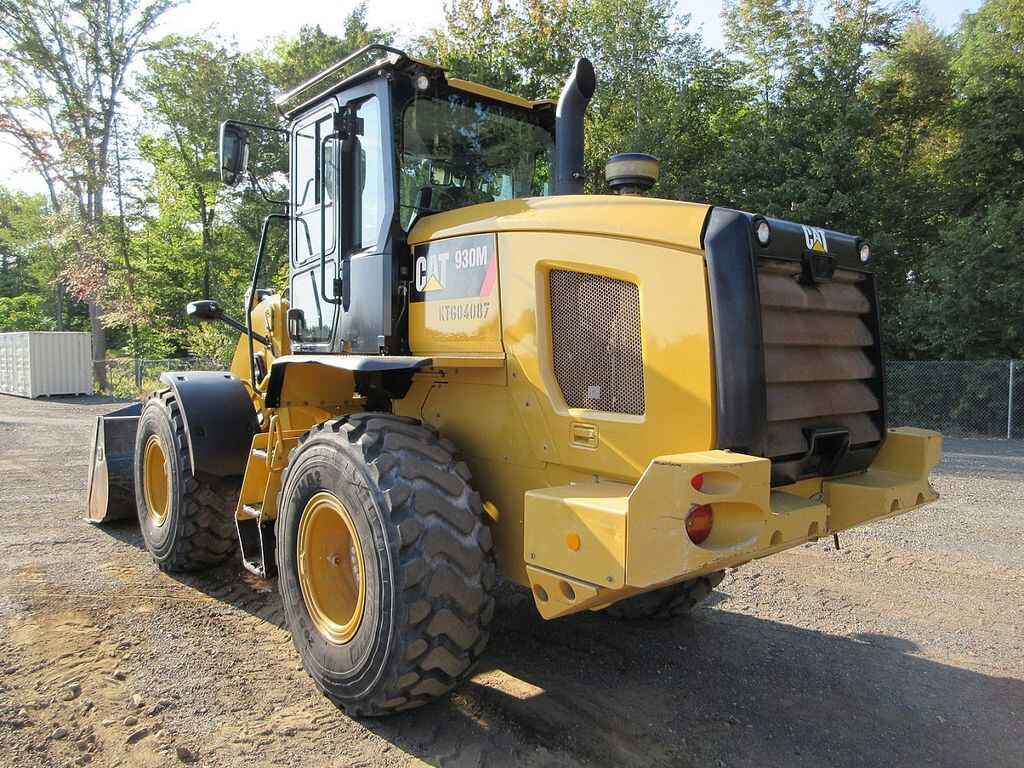

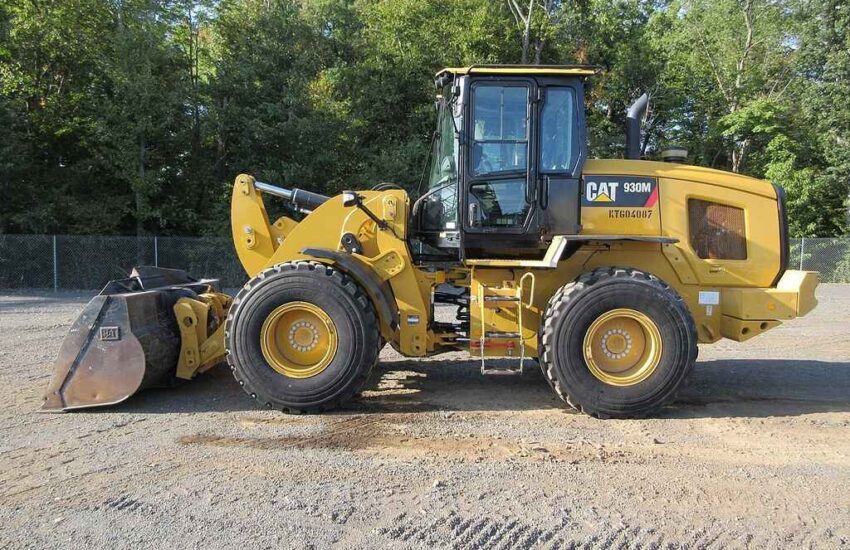

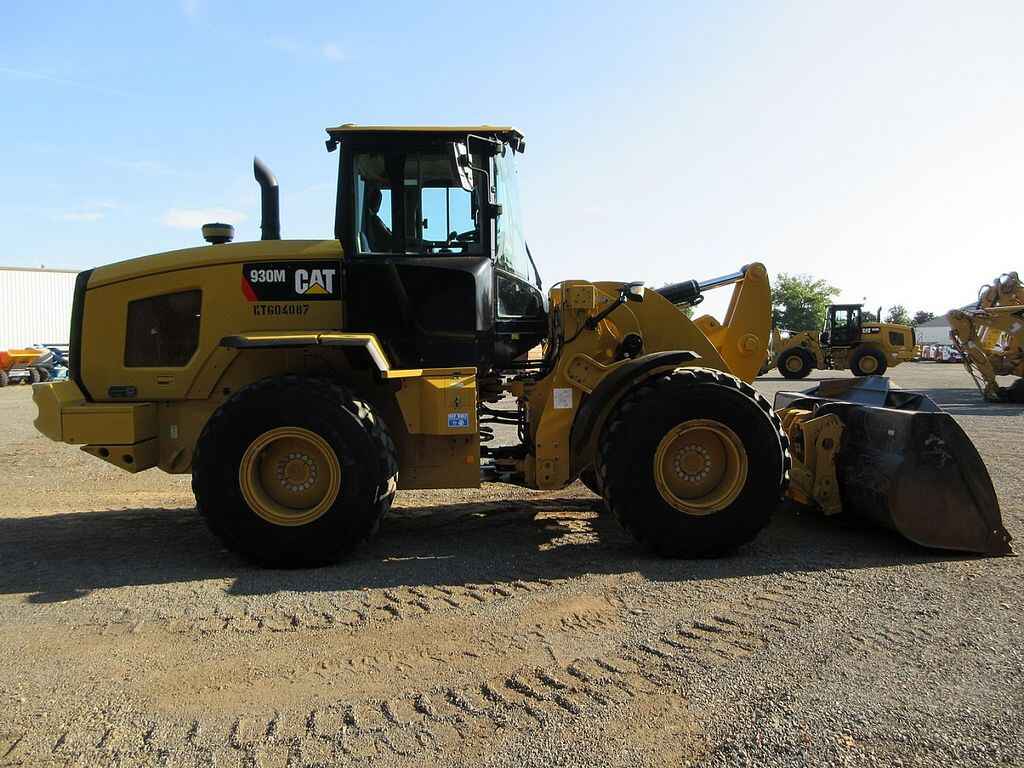

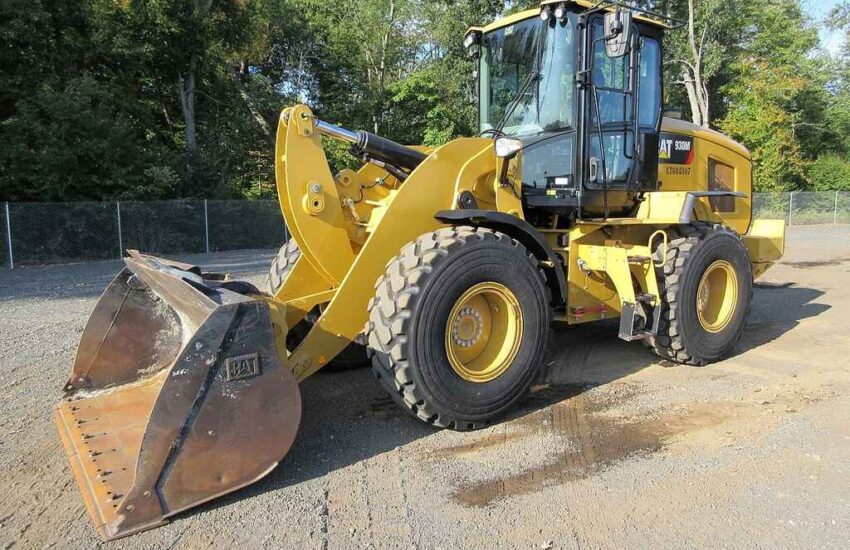

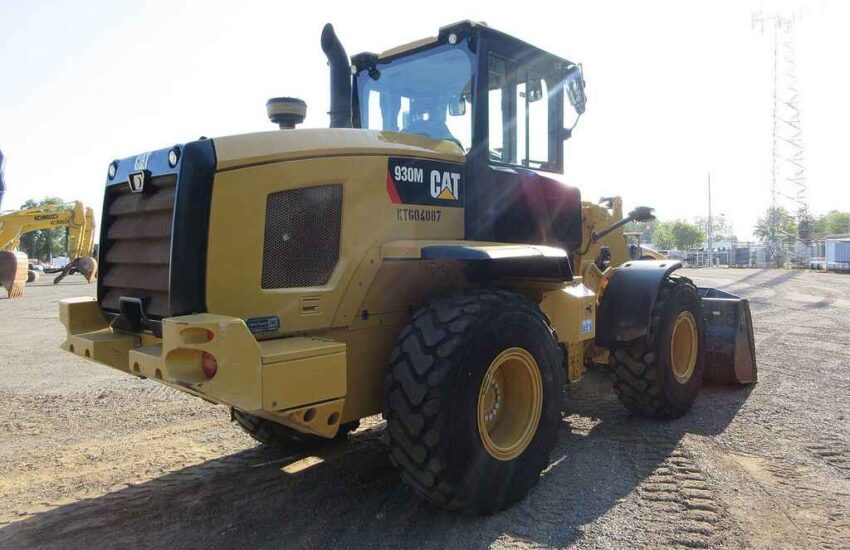

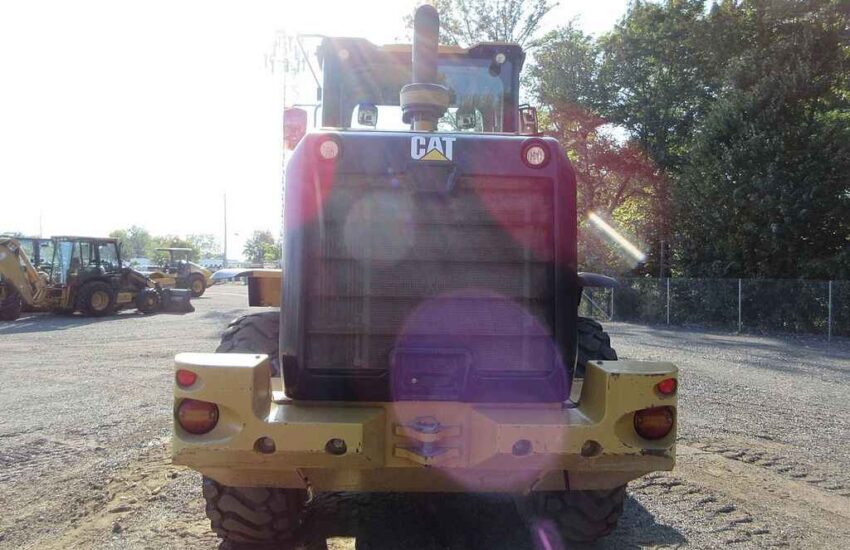

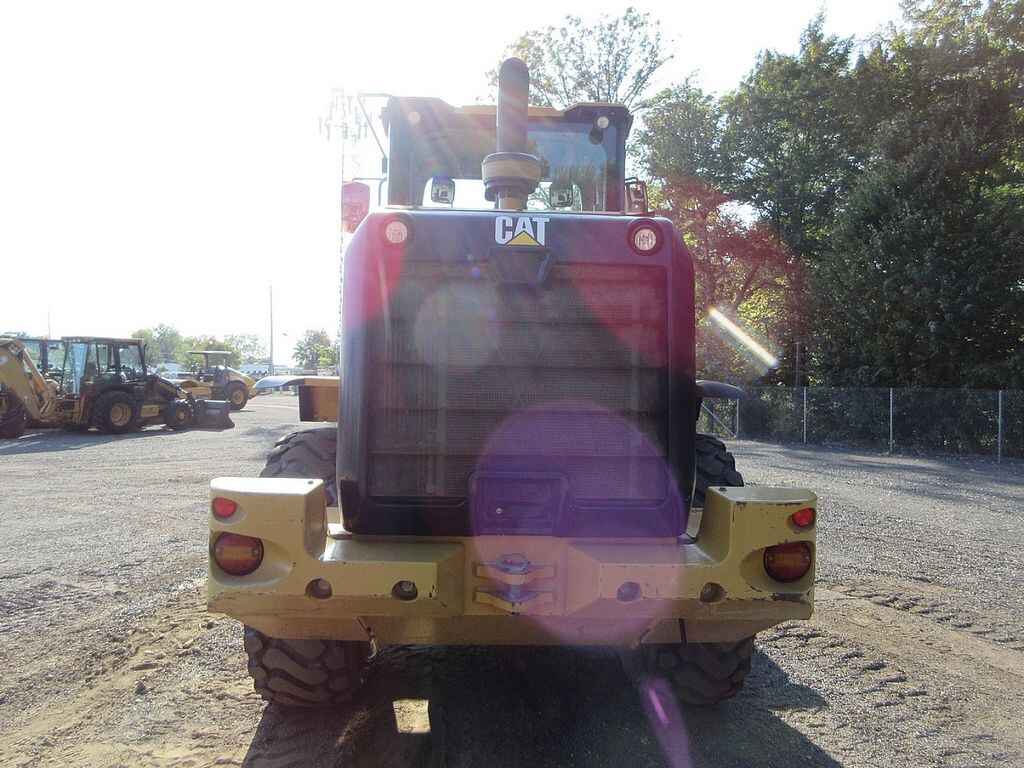

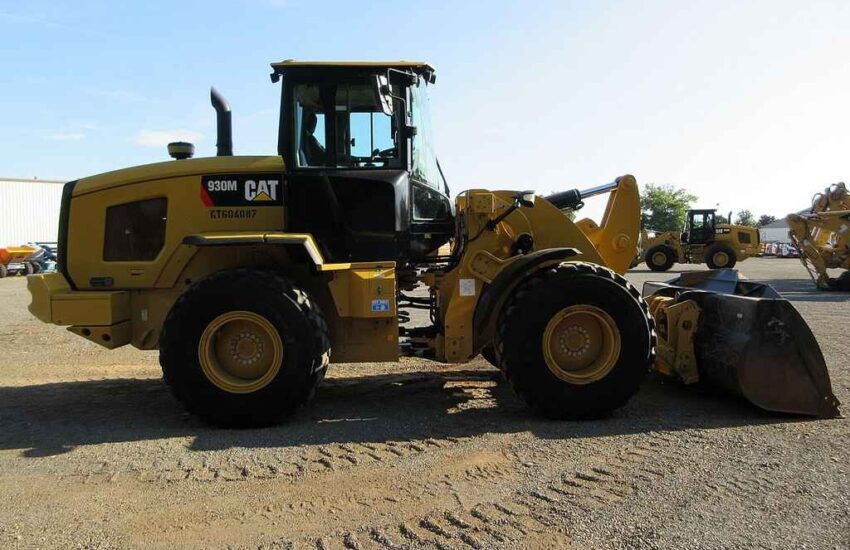

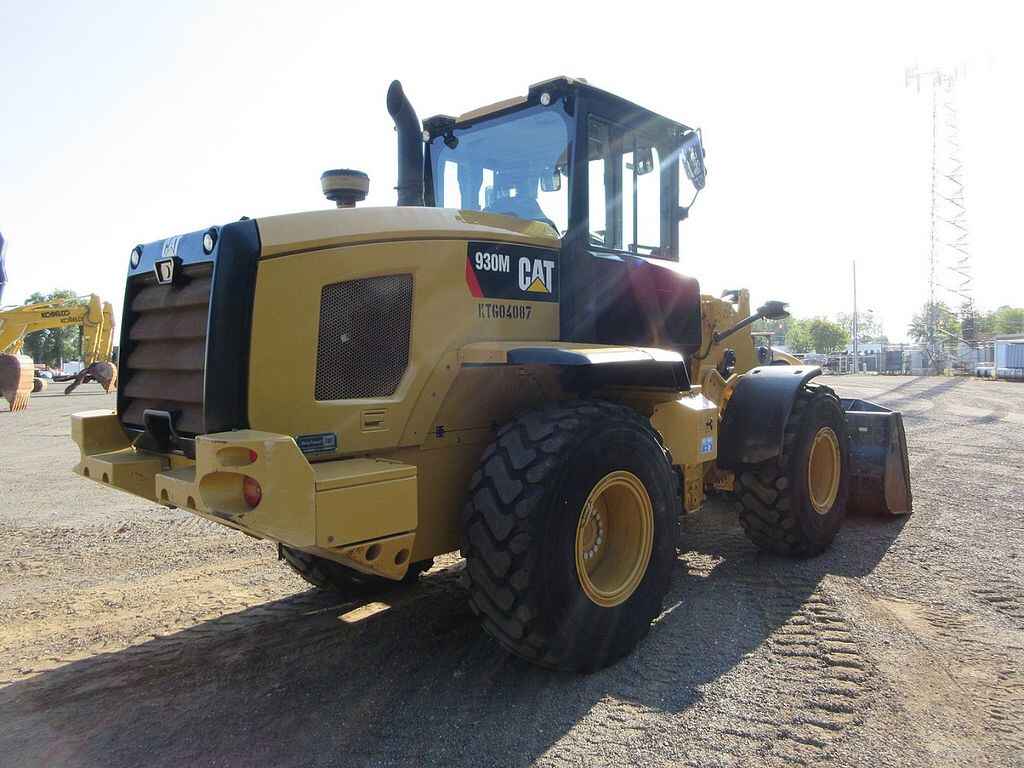

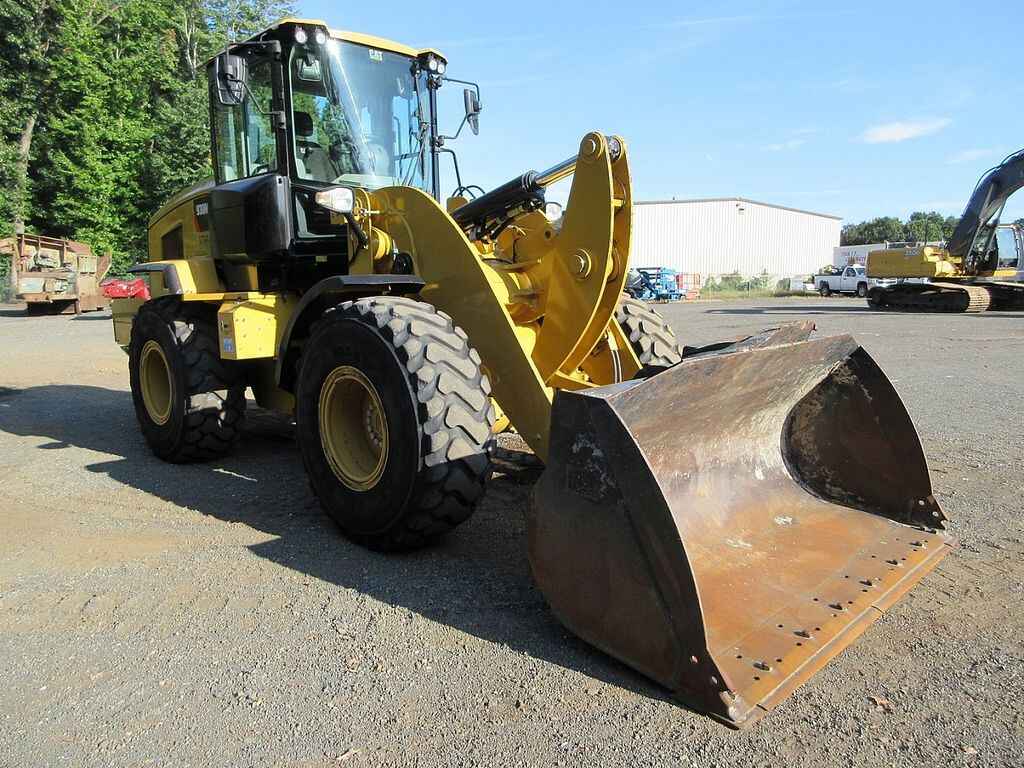

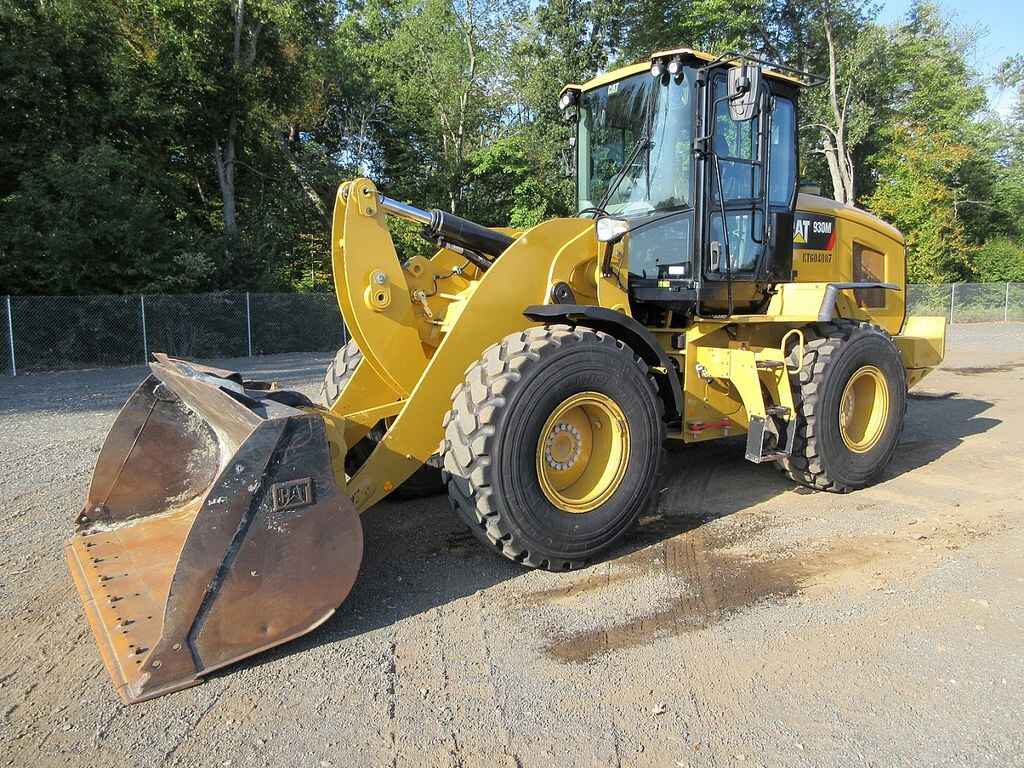

2019 Caterpillar 930M

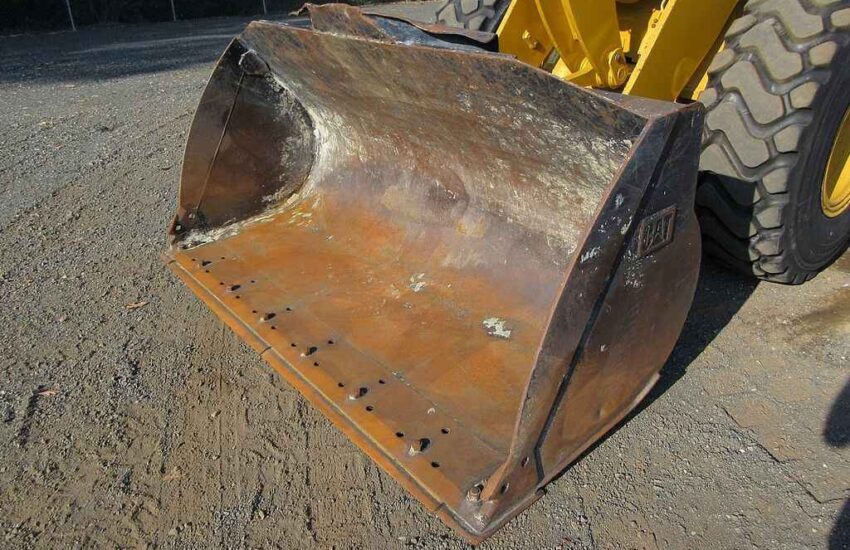

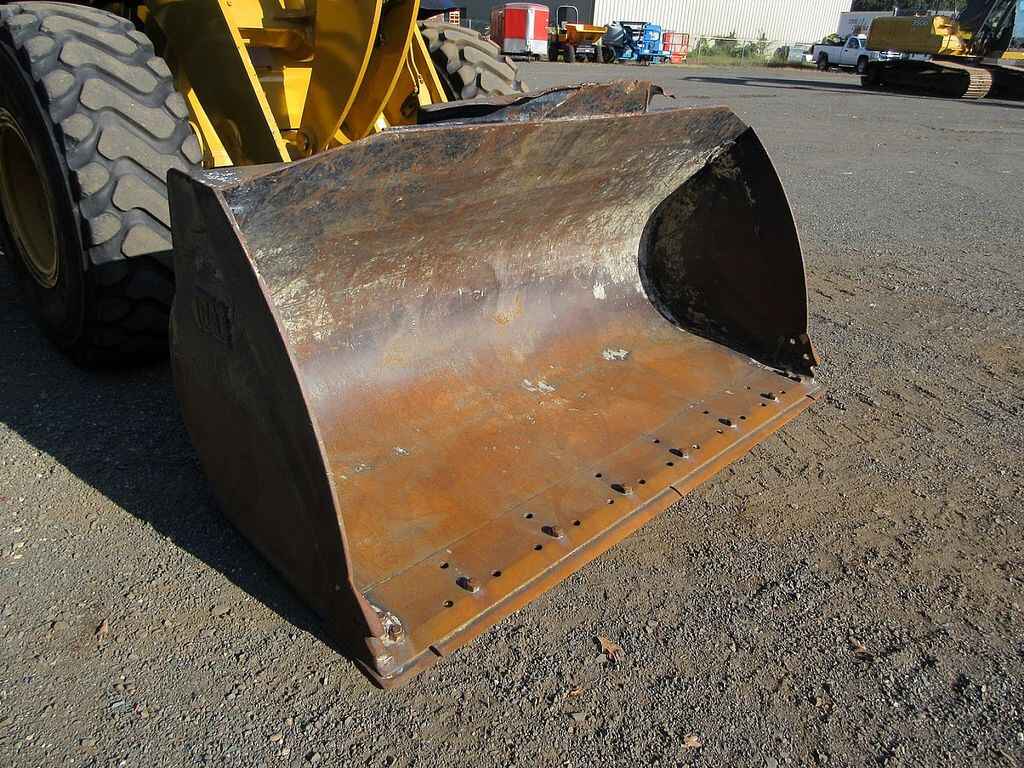

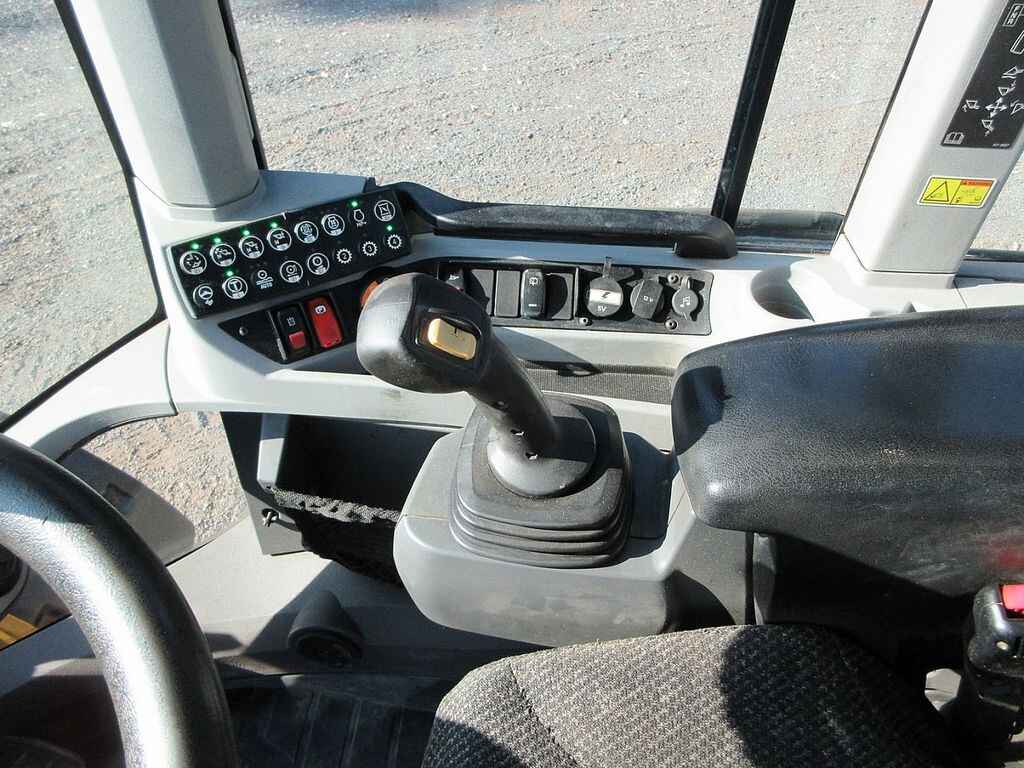

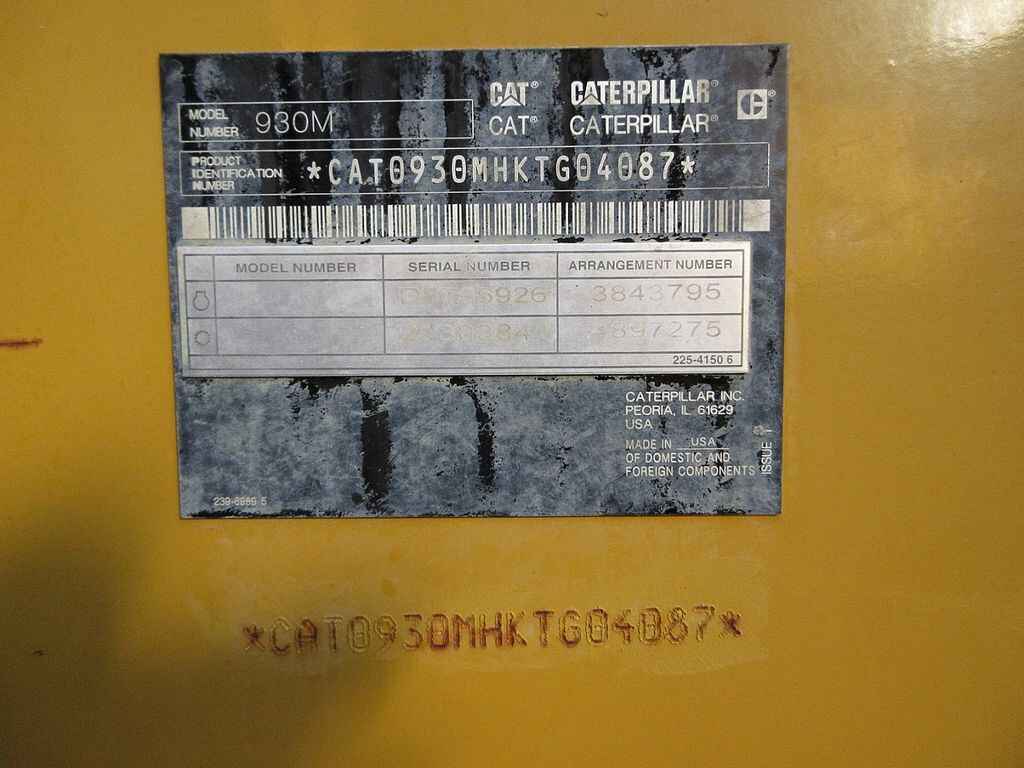

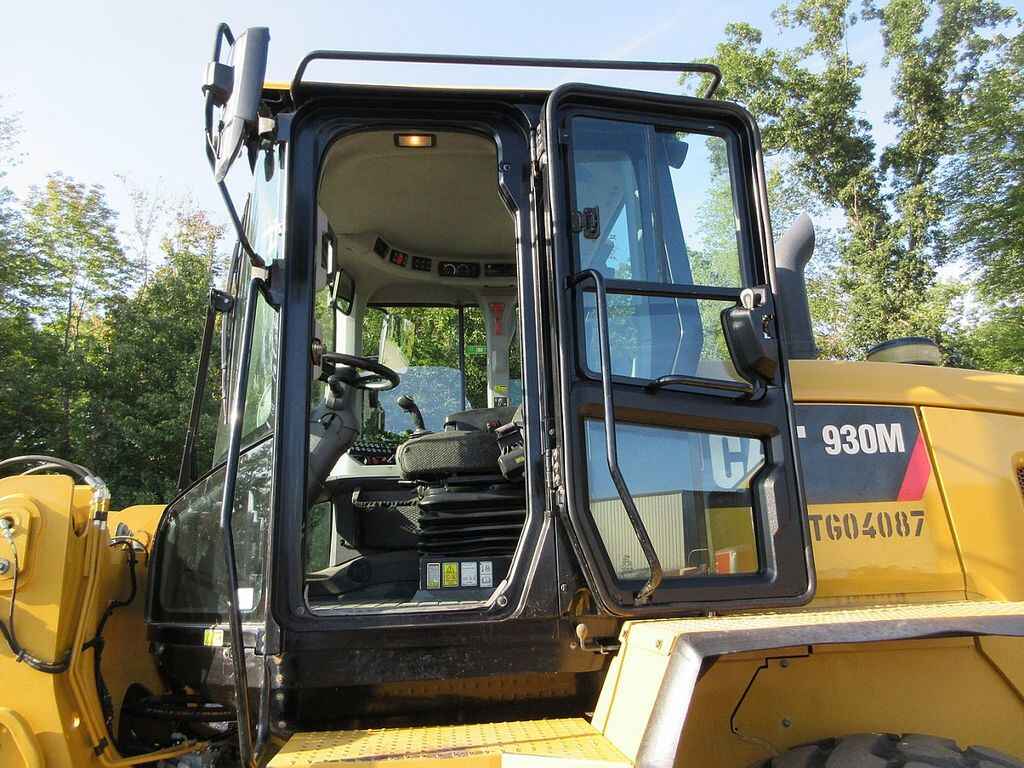

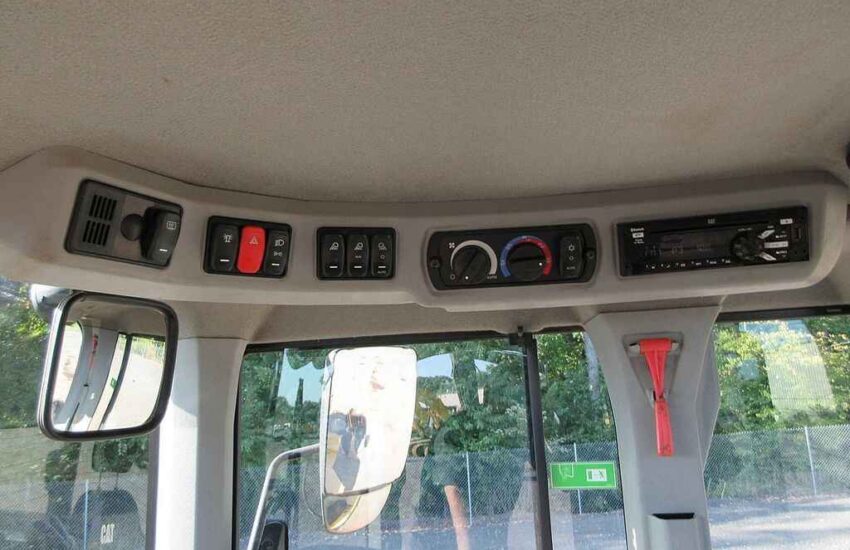

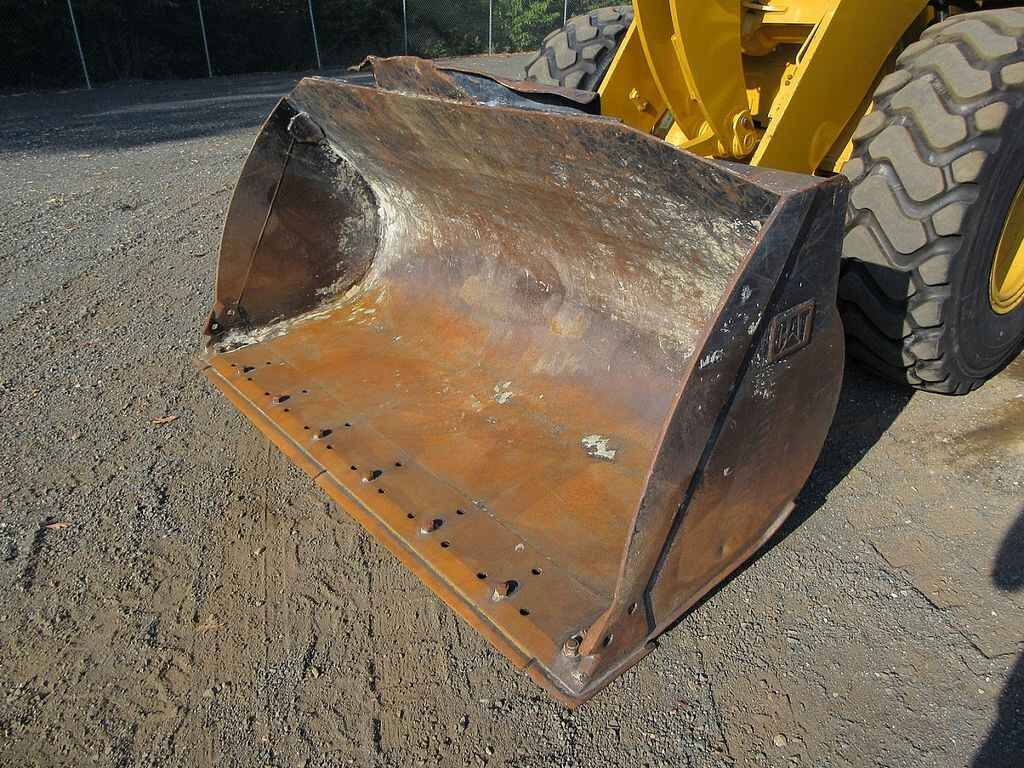

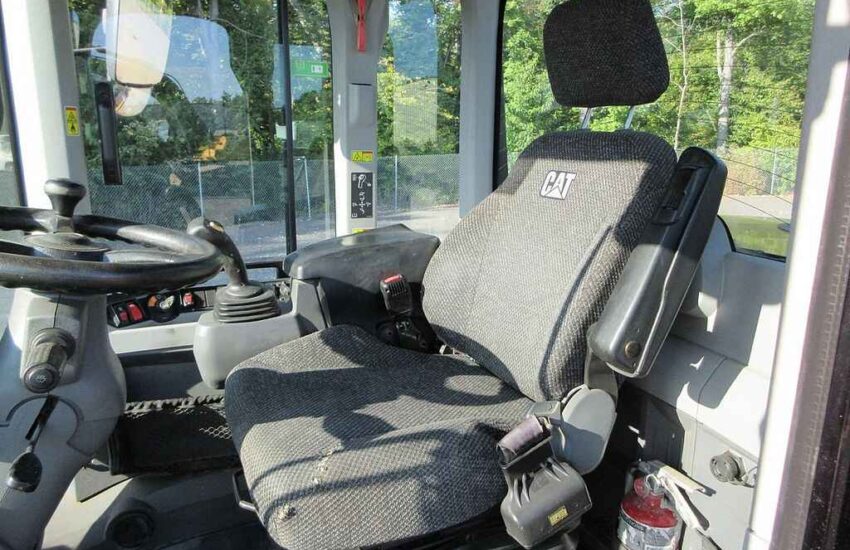

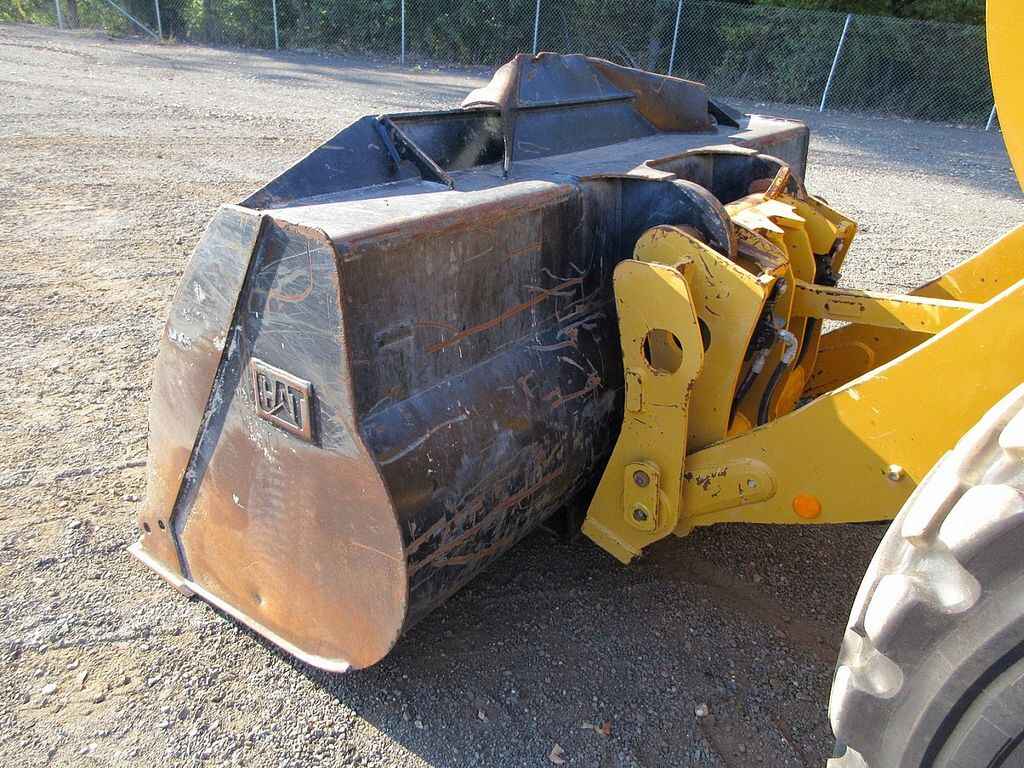

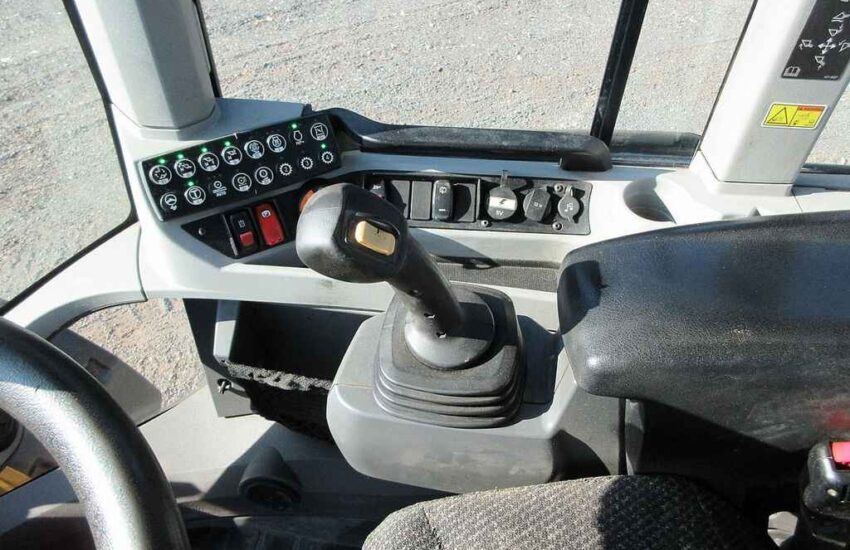

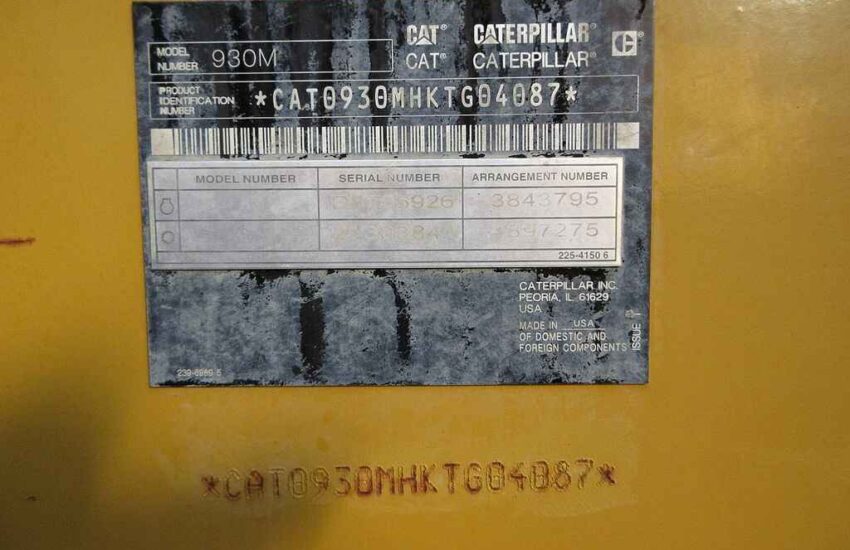

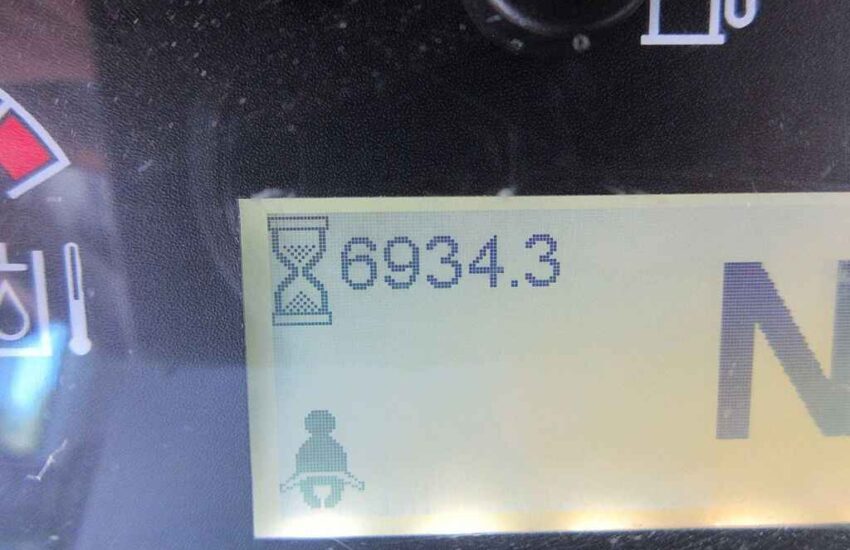

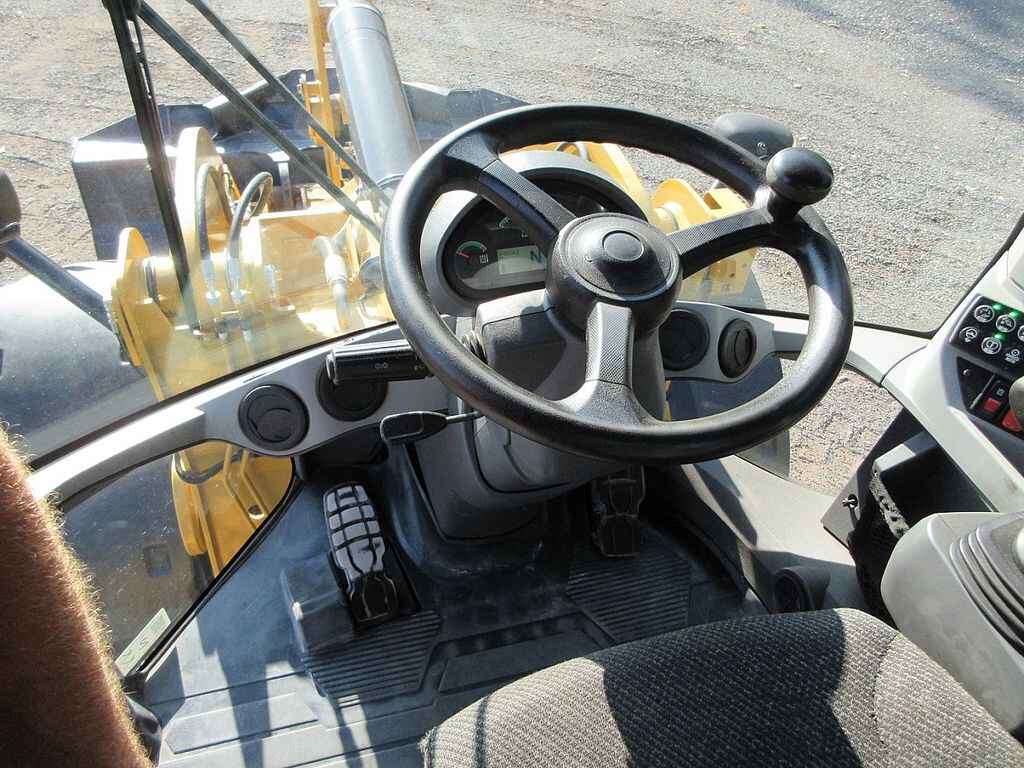

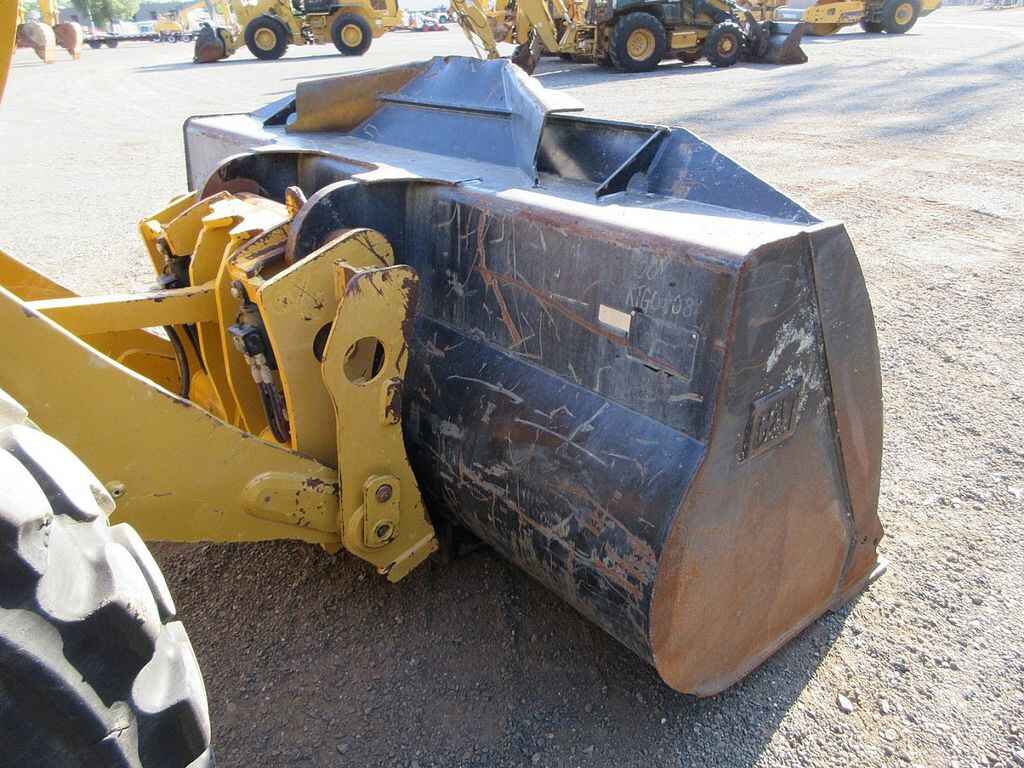

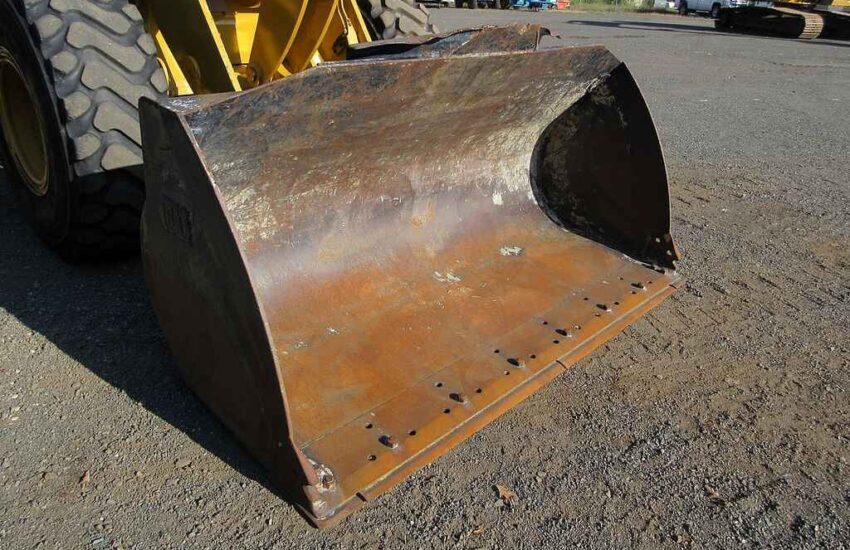

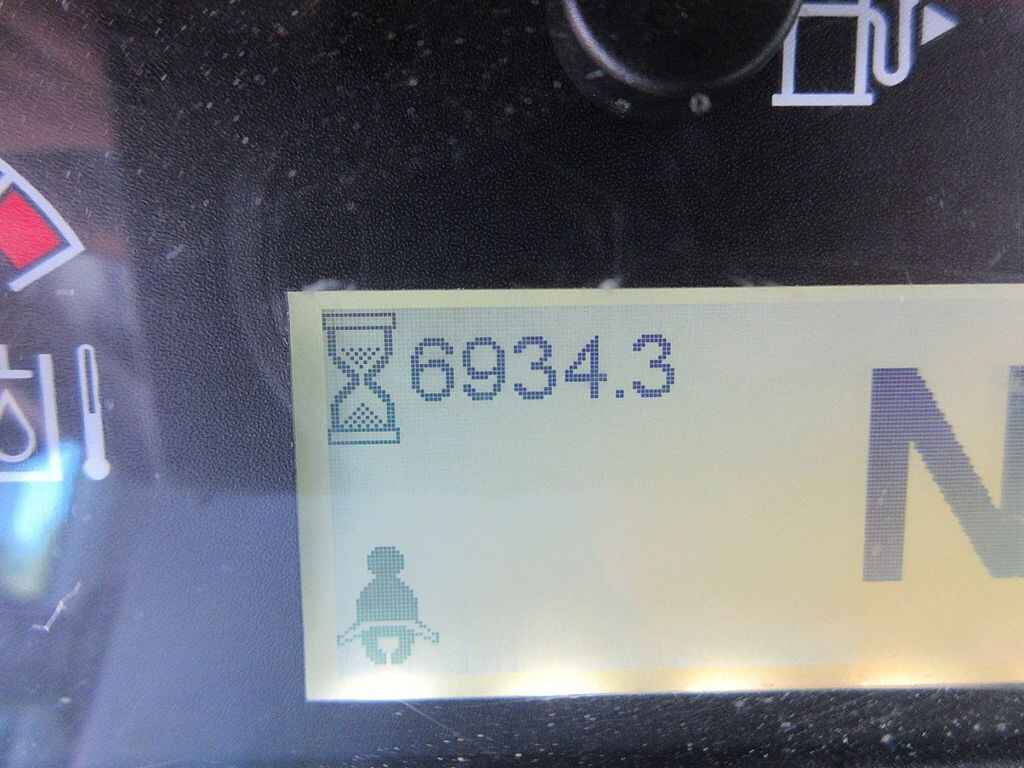

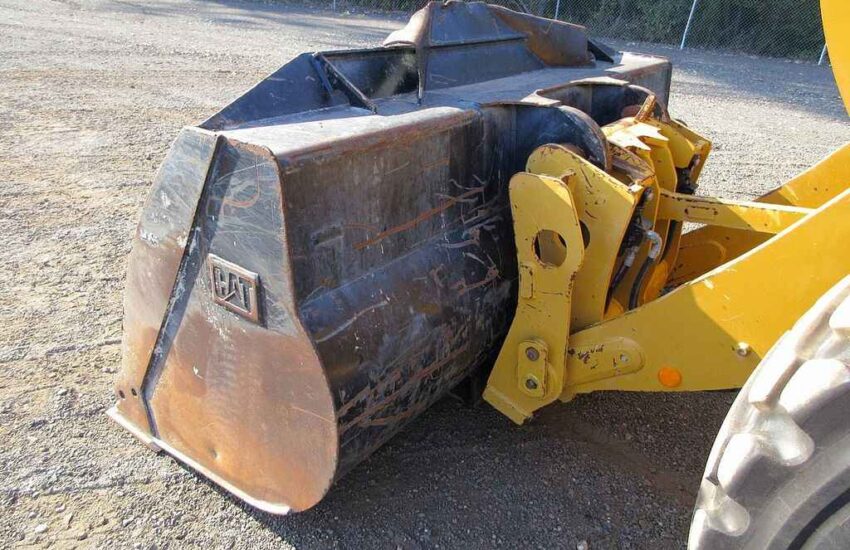

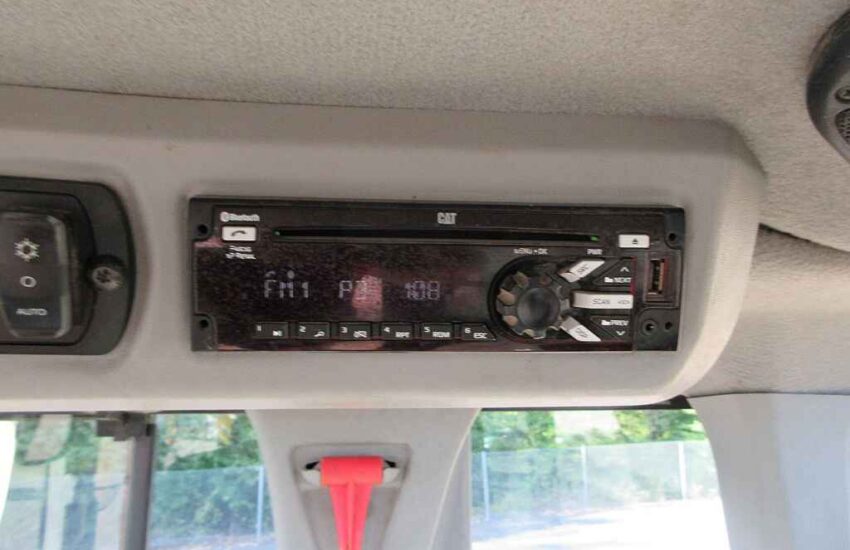

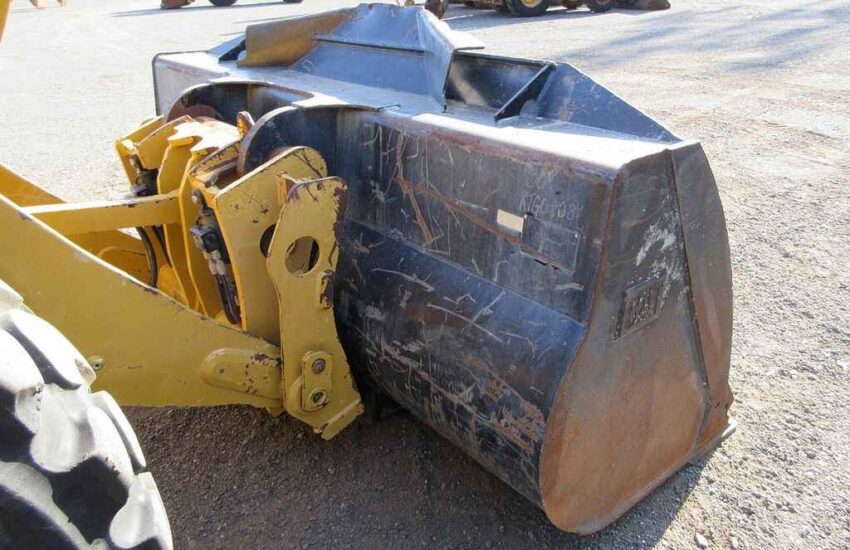

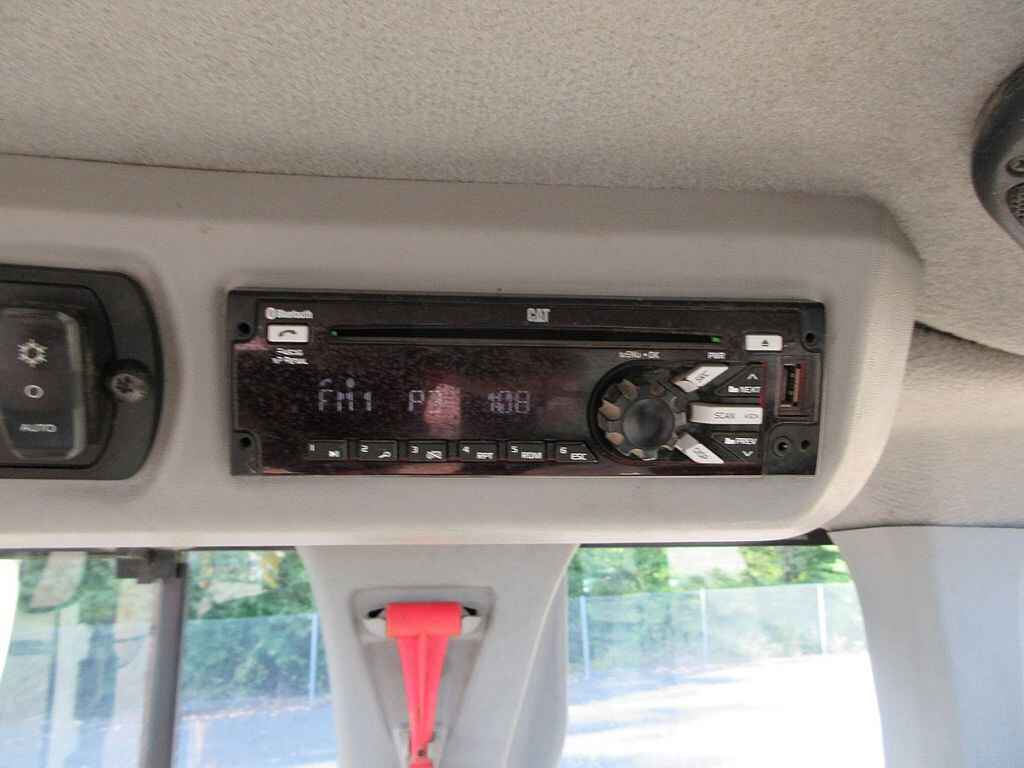

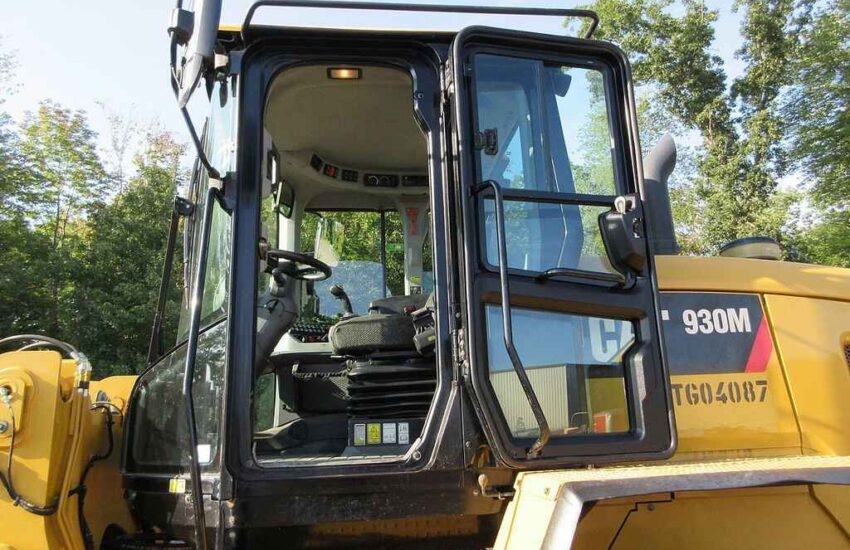

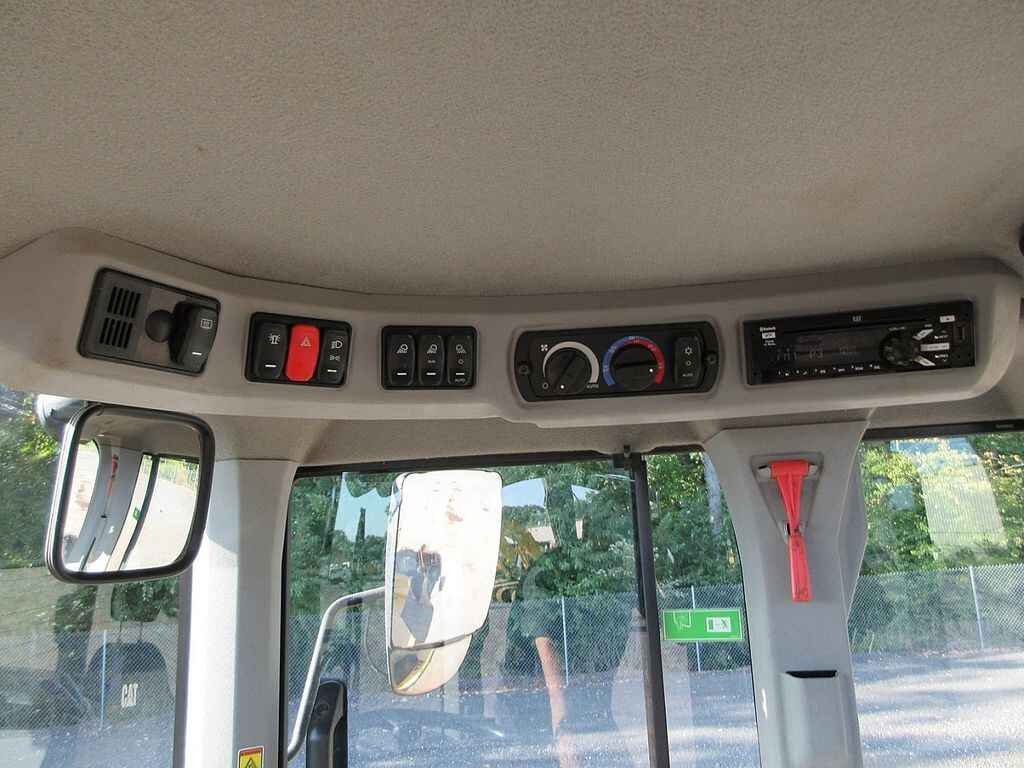

CATERPILLAR C7.1 ACERT 6 CYL TURBO DIESEL, CAB WITH HEAT, A/C, STEREO, AUTOSHIFT, RIDE CONTROL, 20.5R25 MICHELIN RADIAL RUBBER, FUSION HYD COUPLER, GP BUCKET WITH BOCE, METER READS 6934 HOURS, S/N CAT0930MHKTG04087

SPECIFICATIONS

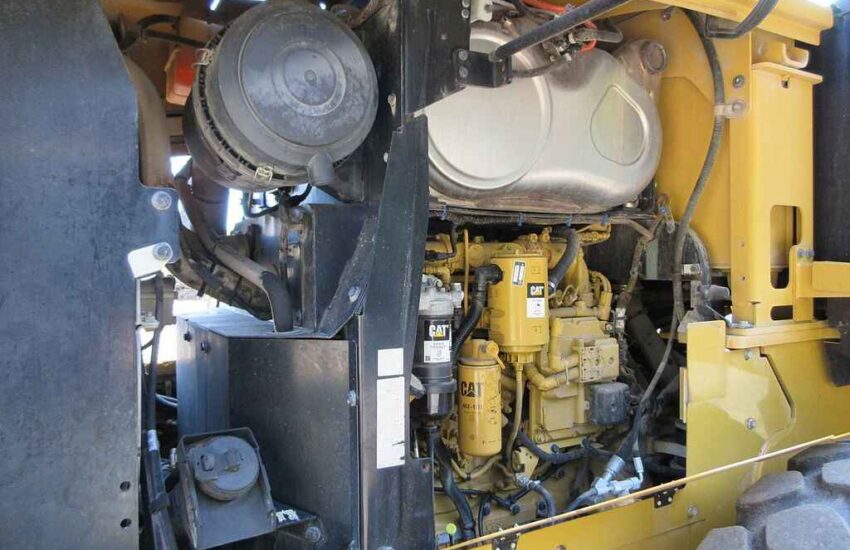

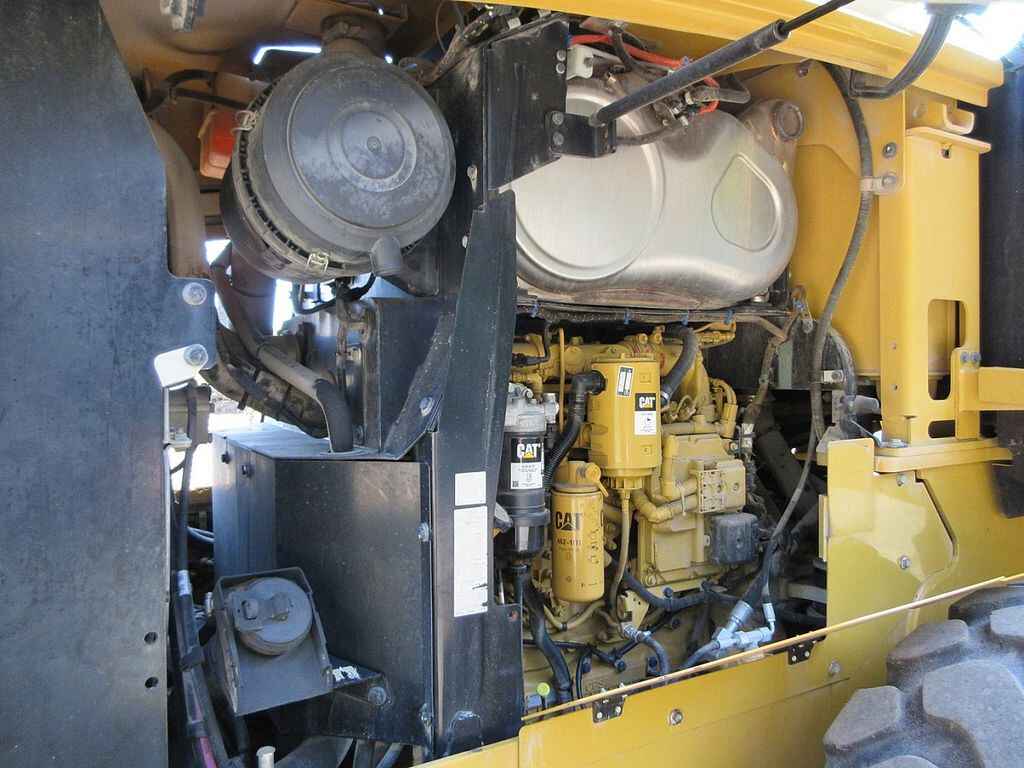

Engine

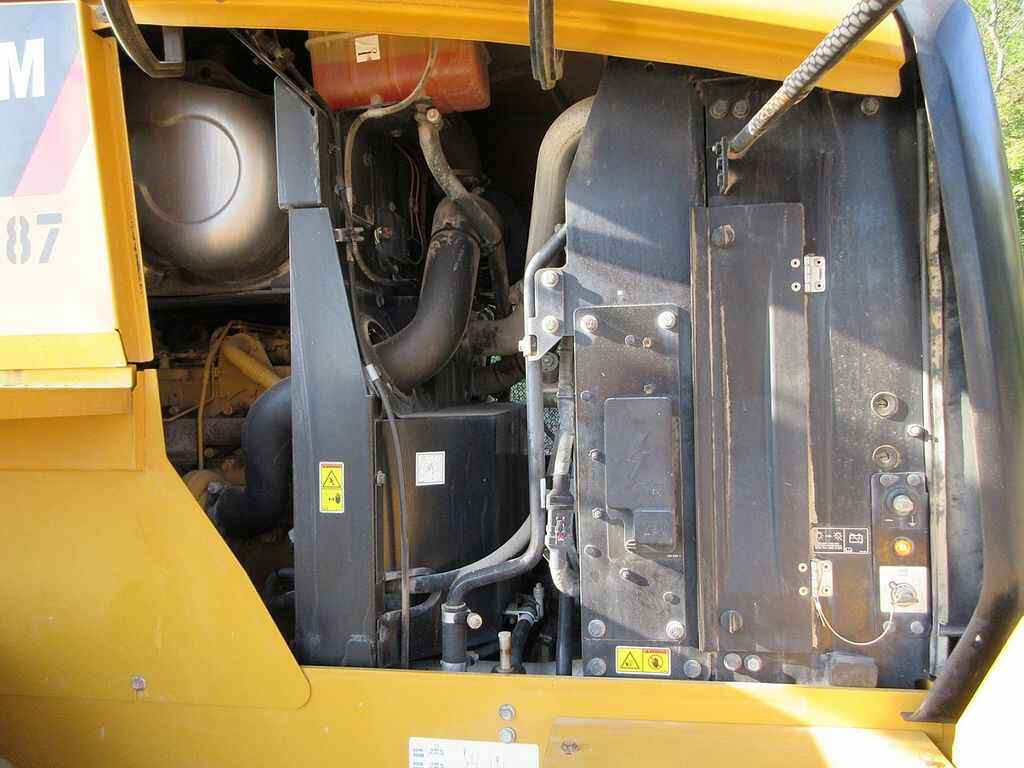

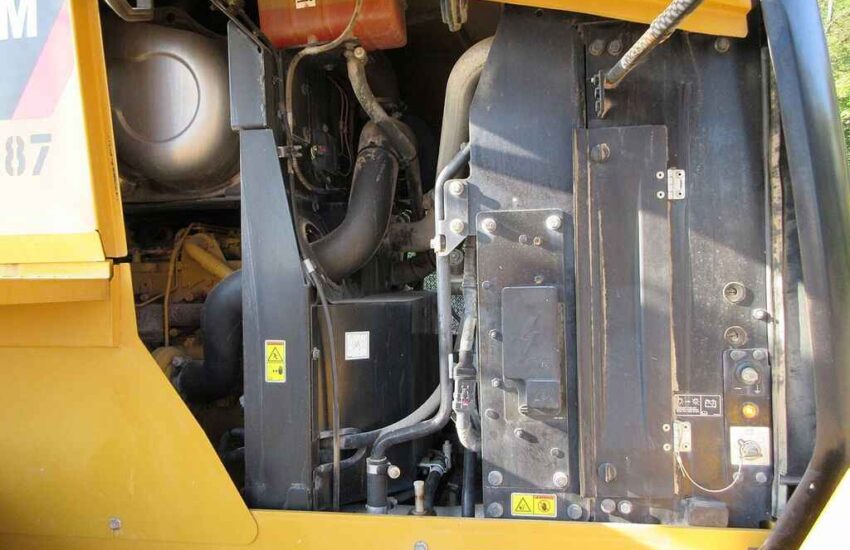

• Model: Cat C7.1 ACERT
• Net Power: 154 hp (115 kW)
• Gross Power: 160 hp (119 kW)
• Displacement: 427 in³ (7.01 L)
• Emissions: U.S. EPA Tier 4 Final / EU Stage IV compliant

Weights
• Operating Weight: 30,553 lbs (13,859 kg)

Performance
• Bucket Capacities: 2.1–2.7 m³ (2.7–3.5 yd³)
• Breakout Force: 26,286 lbf (117 kN)
• Full-Turn Tipping Load: 19,247 lbs (8,730 kg)

Hydraulic Cycle Times
• Raise: 5.7 seconds
• Dump: 1.7 seconds
• Lower: 2.7 seconds
• Total Cycle Time: 10.1 seconds

Dimensions
• Length (with bucket on ground): 24 ft 8 in (7.53 m)
• Width (over tires): 8 ft 4 in (2.54 m)
• Height (to top of cab): 10 ft 11 in (3.34 m)
• Wheelbase: 9 ft 10 in (3.0 m)
• Ground Clearance: 1 ft 3 in (0.397 m)

Transmission
• Type: Hydrostatic
• Travel Speeds:
 – Range 1: 0–8 mph (0–13 km/h)
 – Range 2: 8 mph (13 km/h)
 – Range 3: 17 mph (27 km/h)
 – Range 4: 25 mph (40 km/h)

Hydraulic System
• Implement Pump Type: Variable Displacement Piston
• Max Flow: 50 gal/min (190 L/min)
• Relief Pressure: 3,626 psi (25,000 kPa)

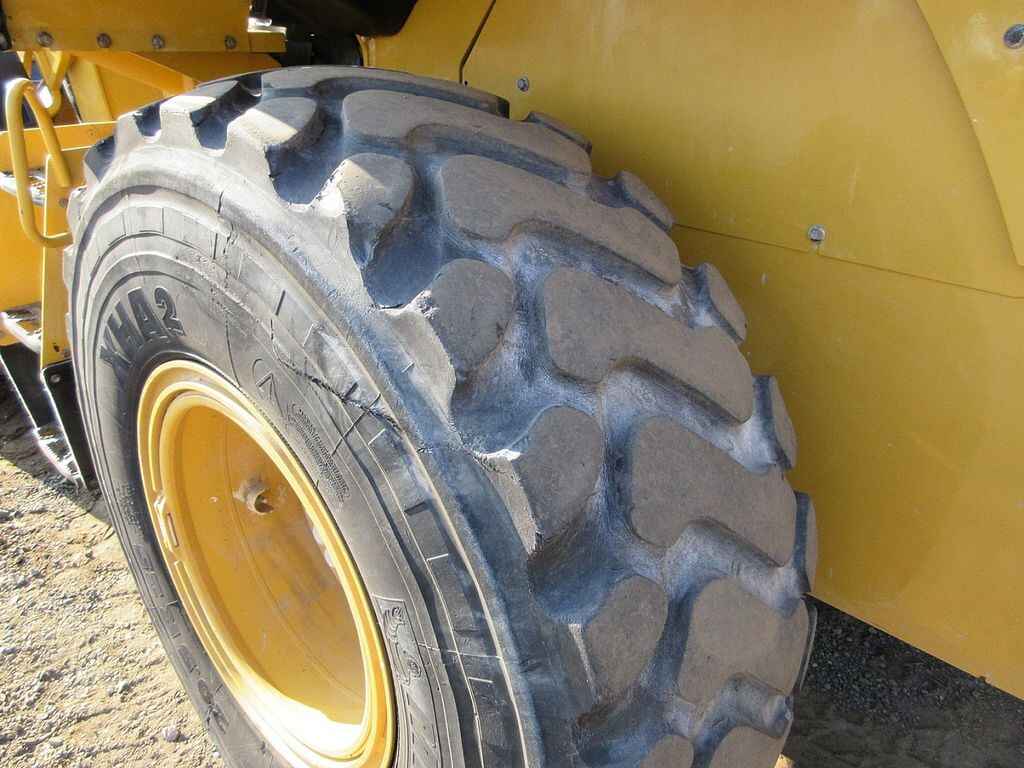

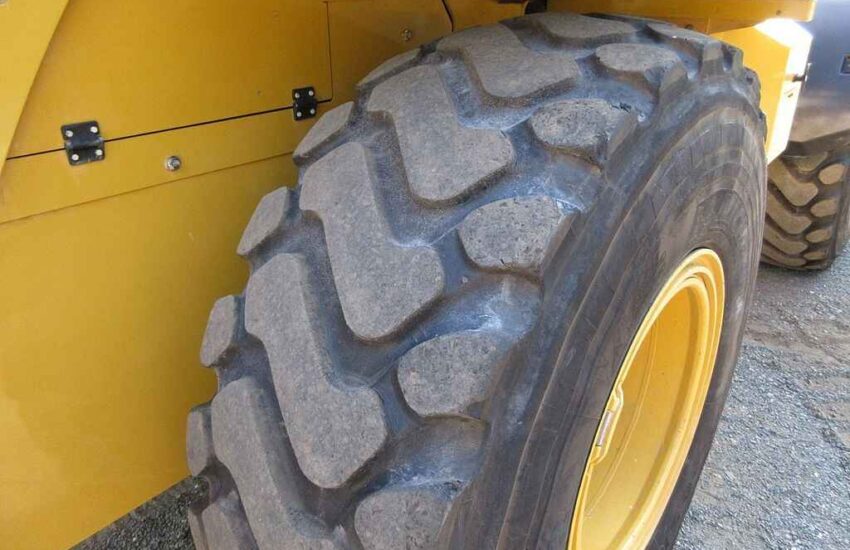

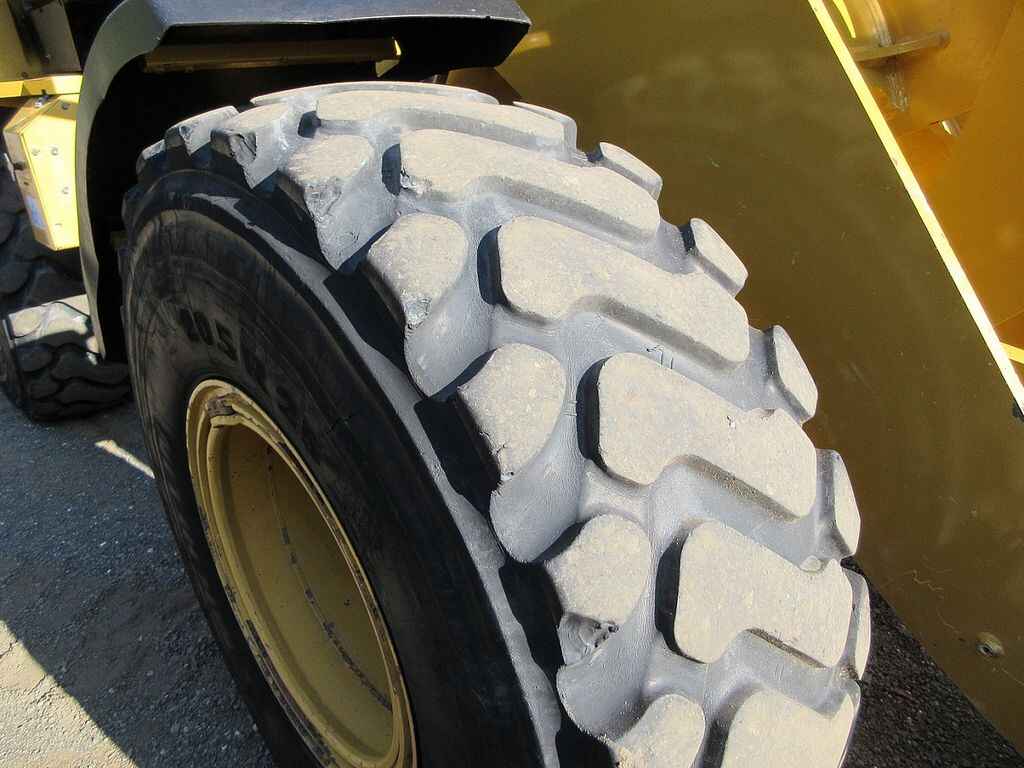

Tires

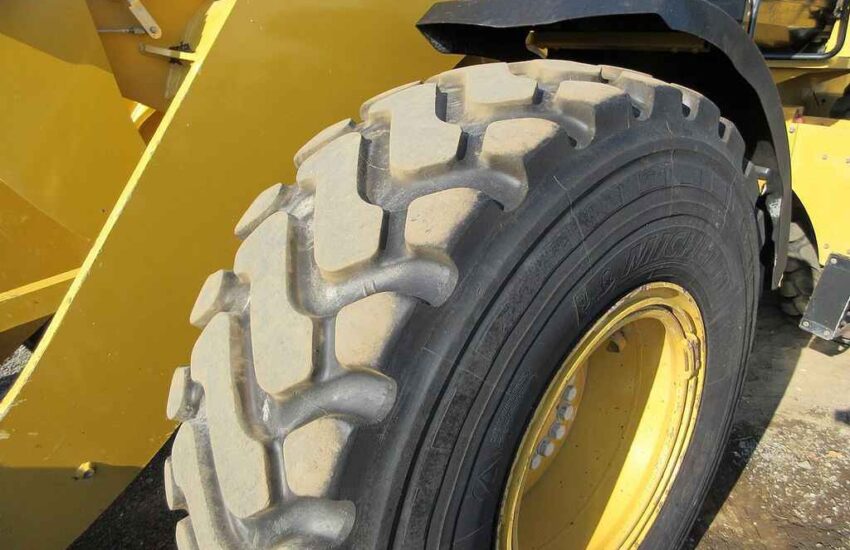

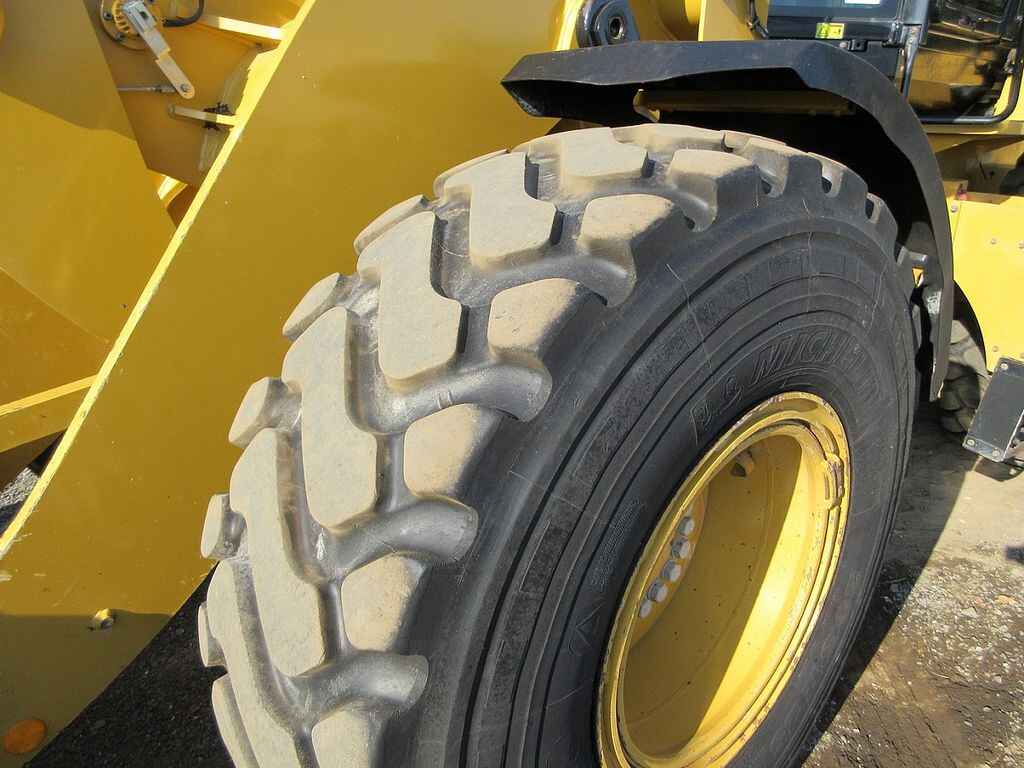

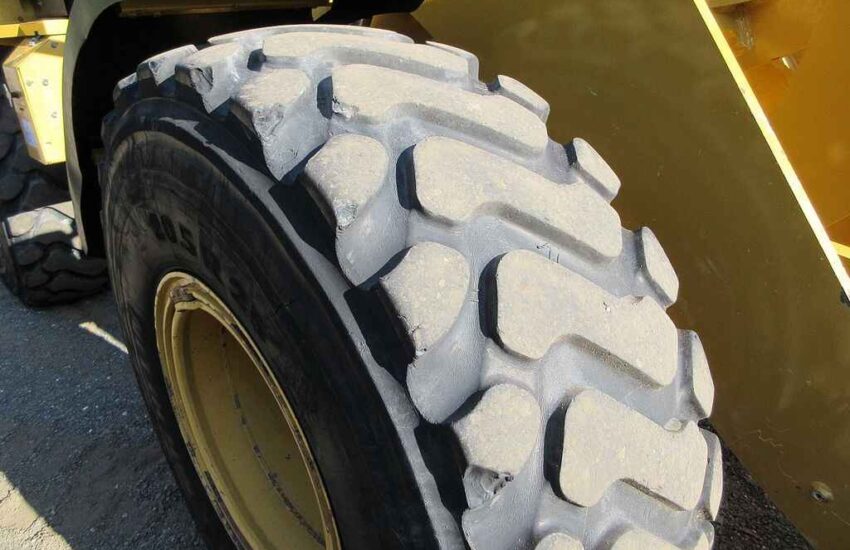

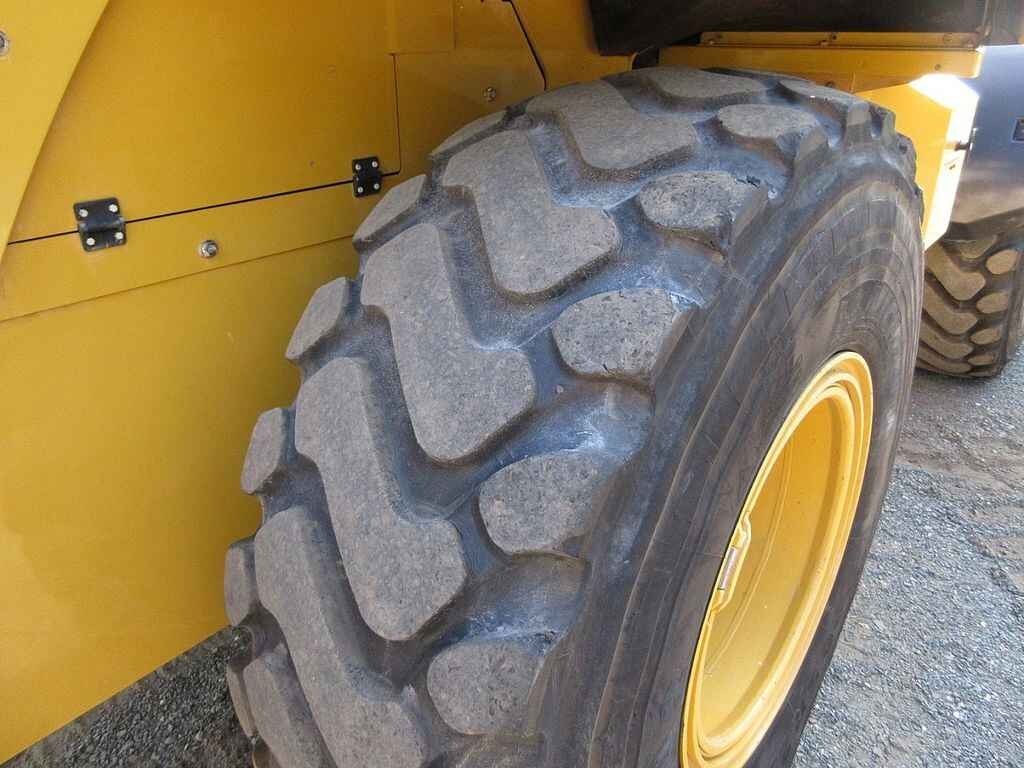

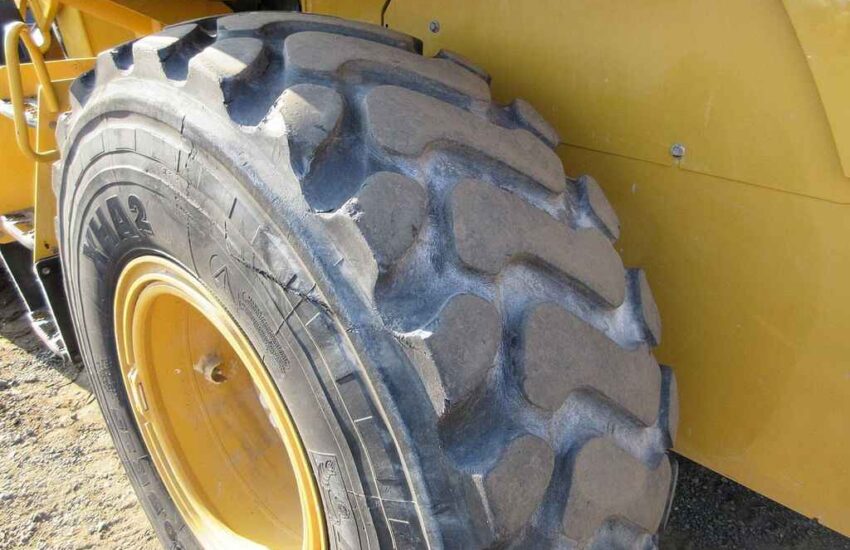

• Standard Size: 20.5 R25, radial (L-3)
