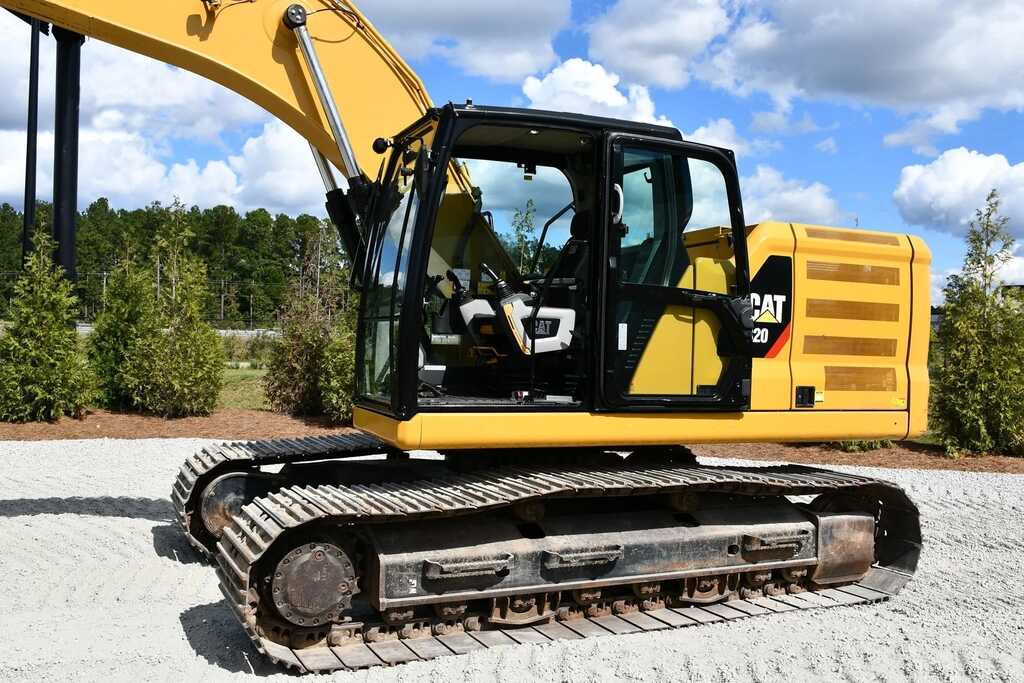

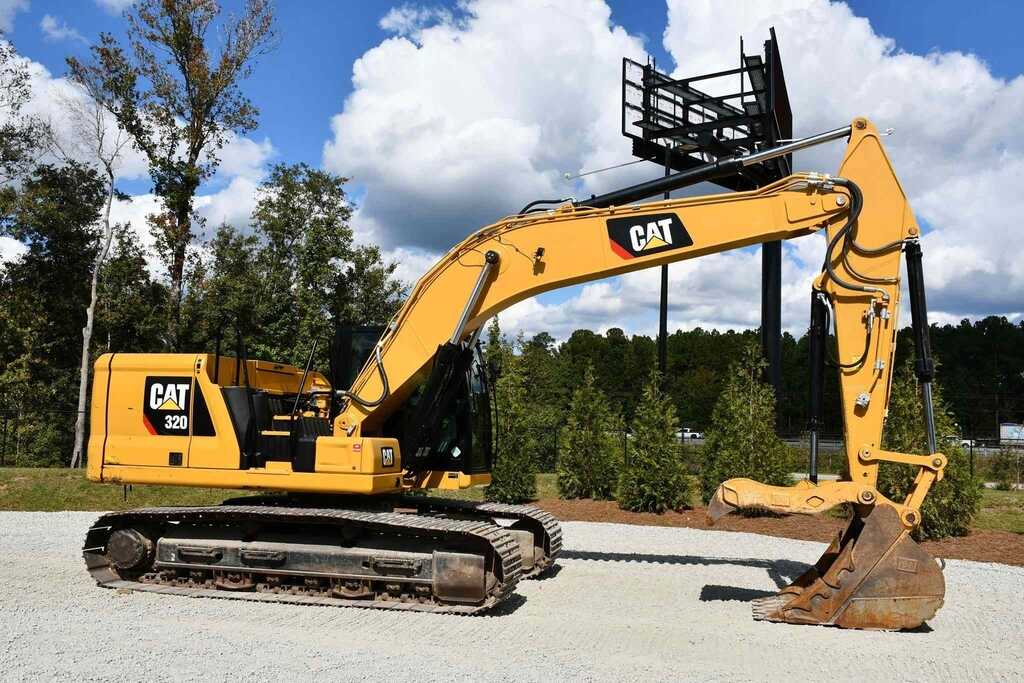

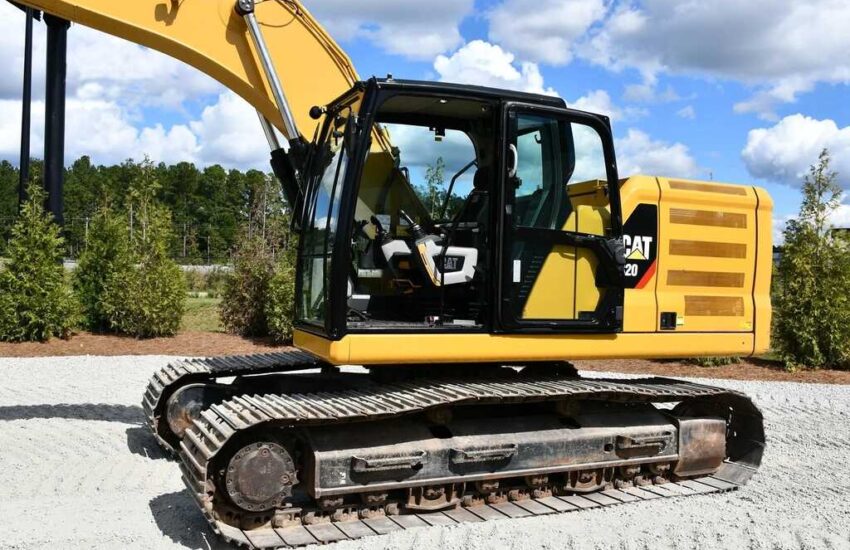

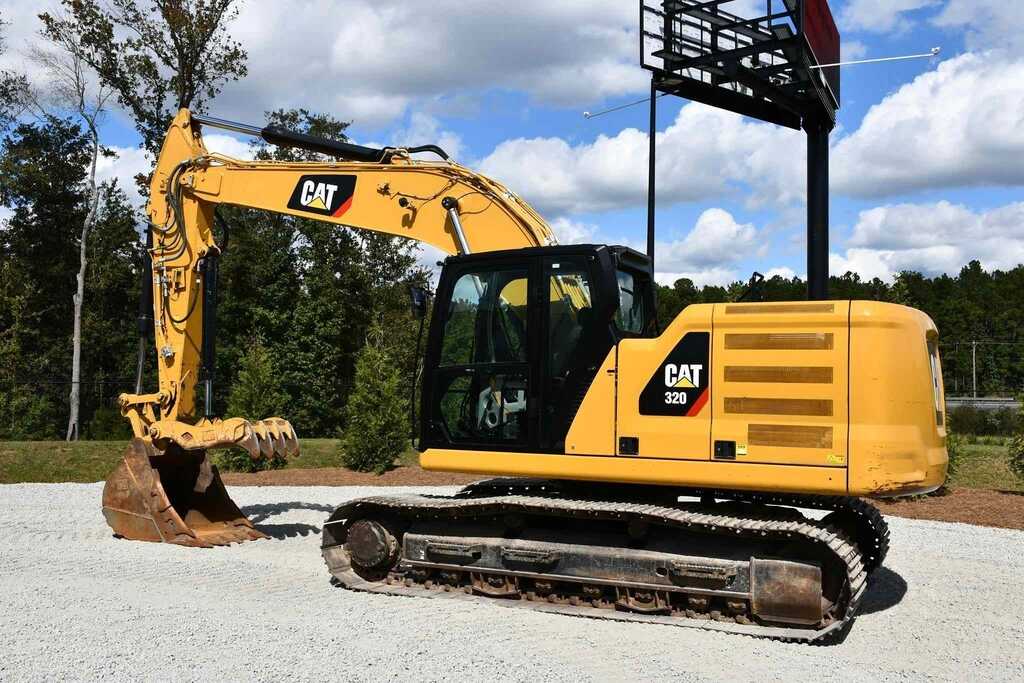

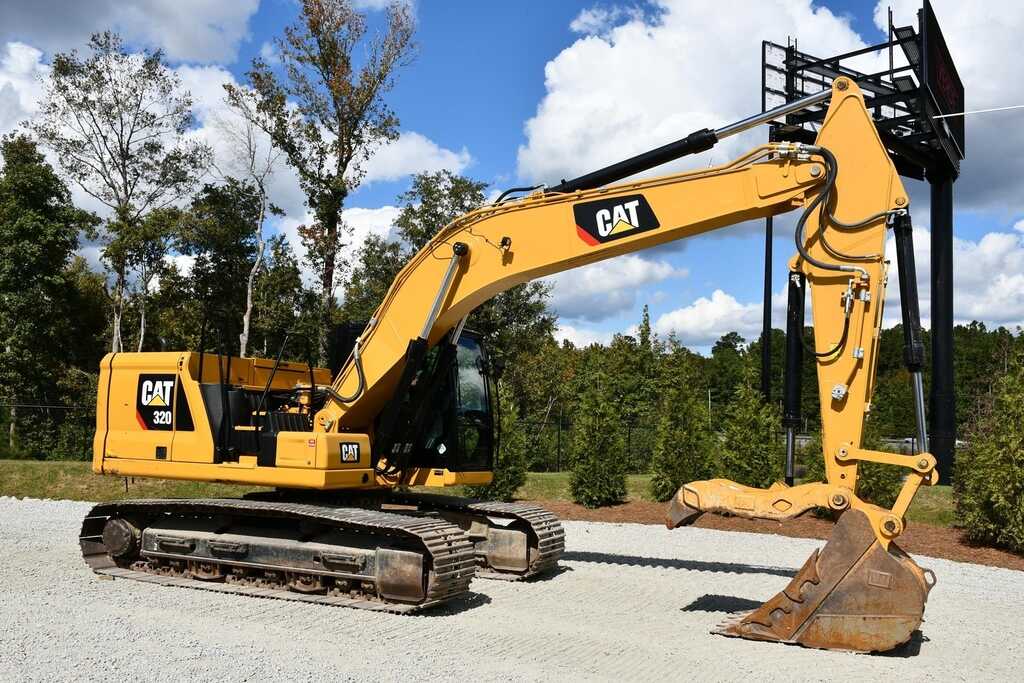

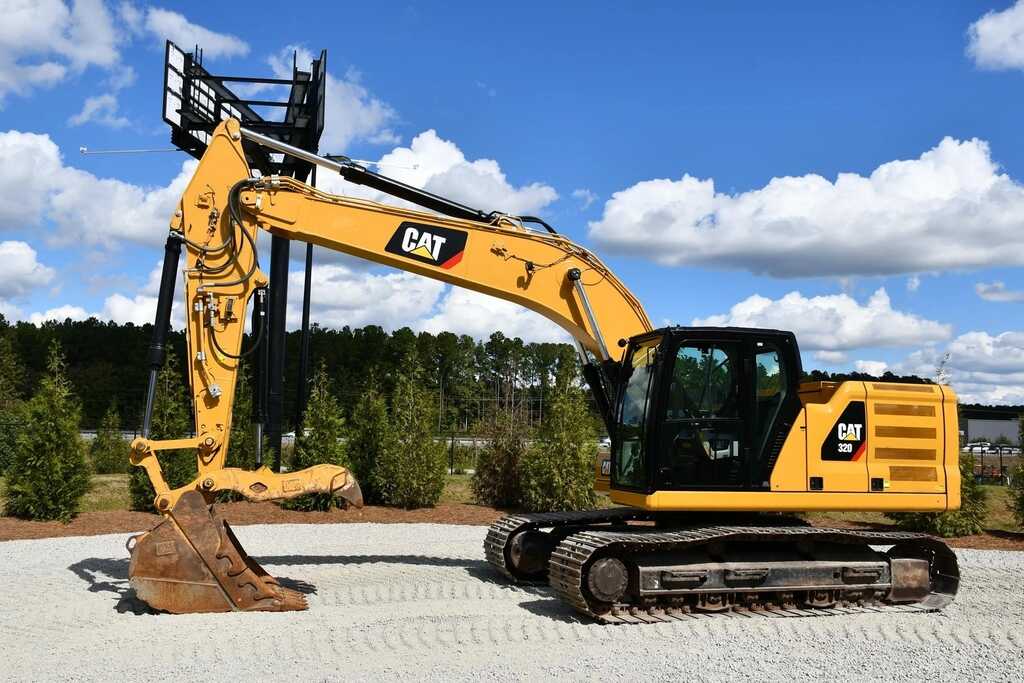

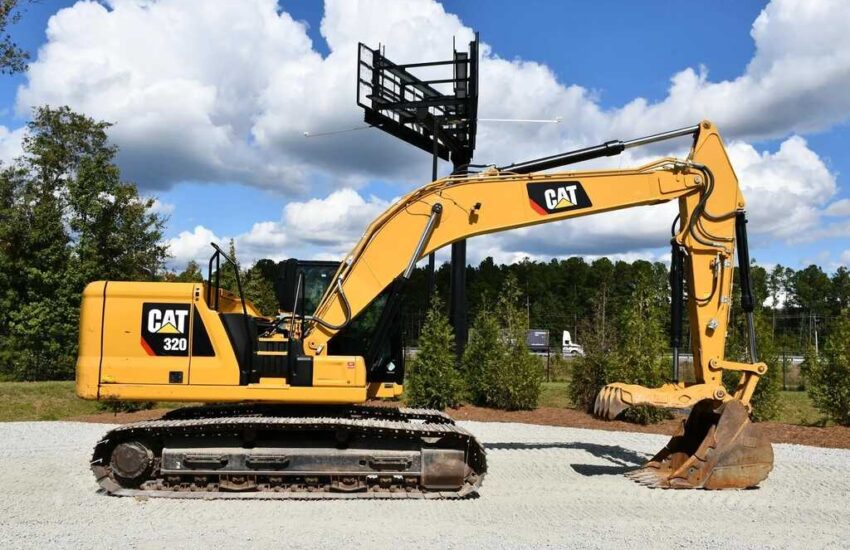

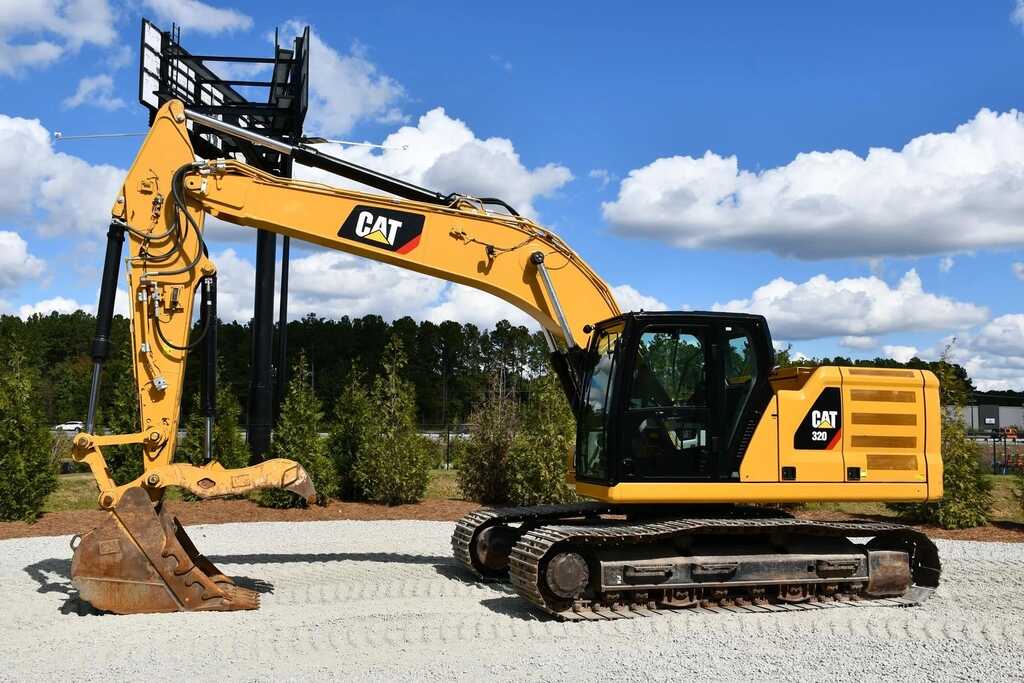

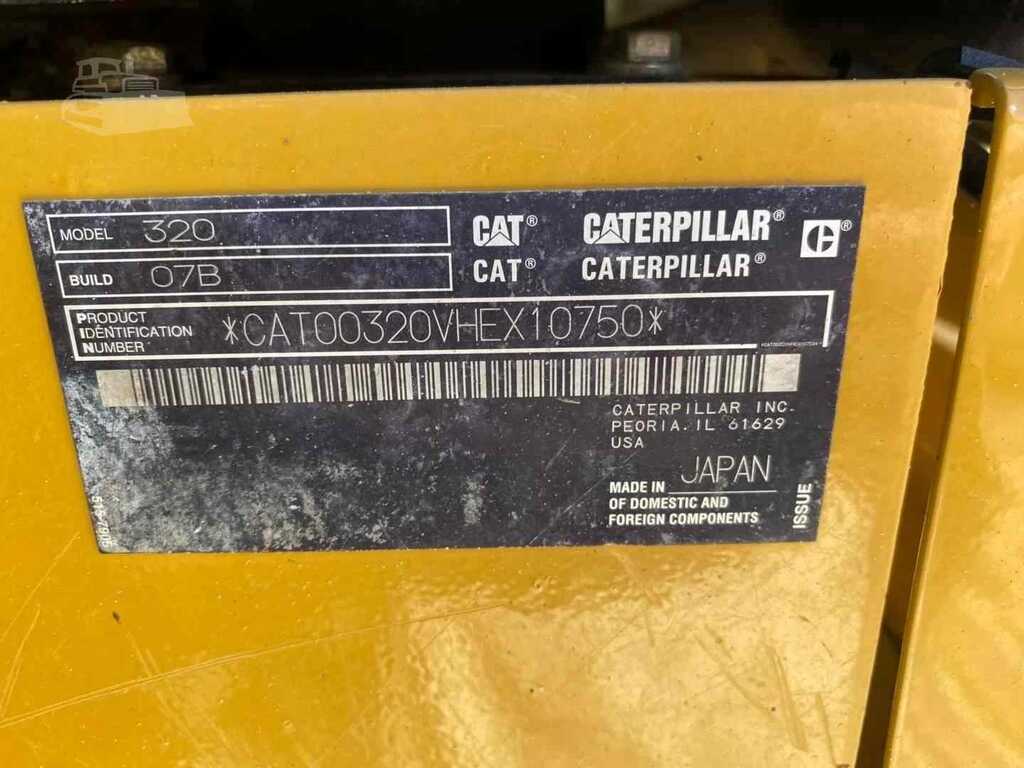

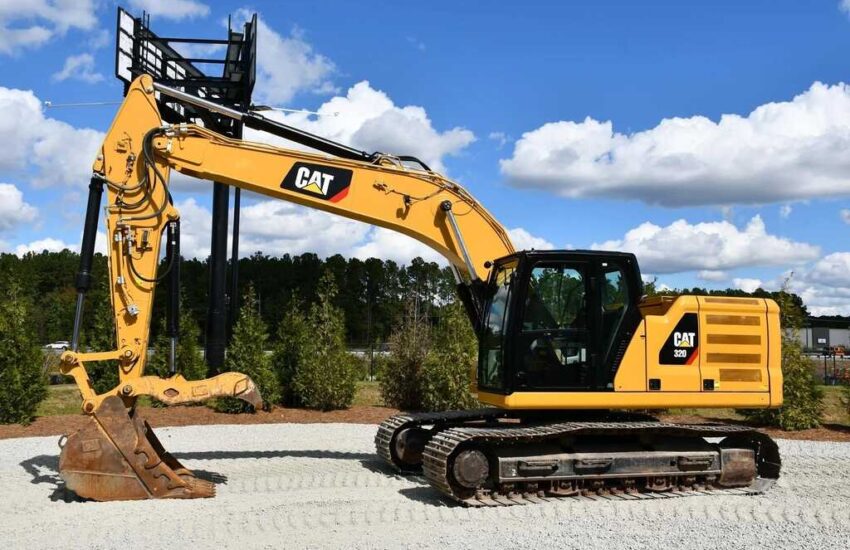

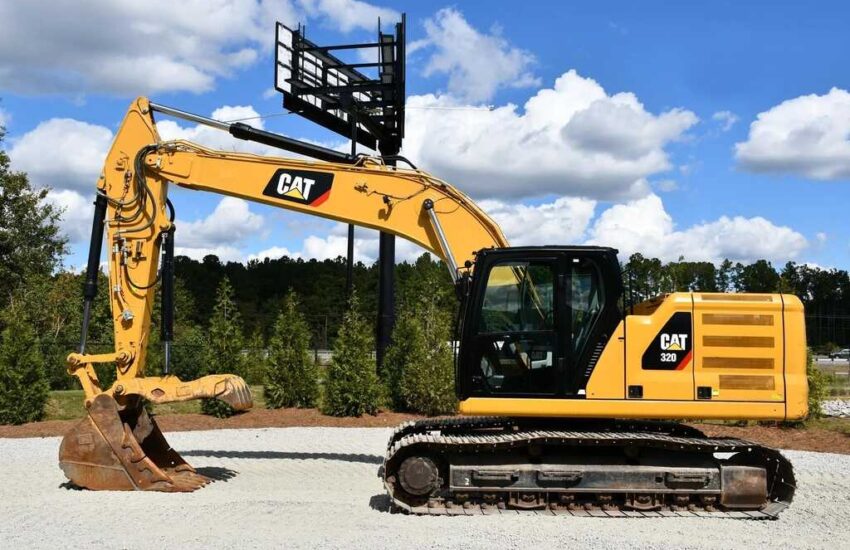

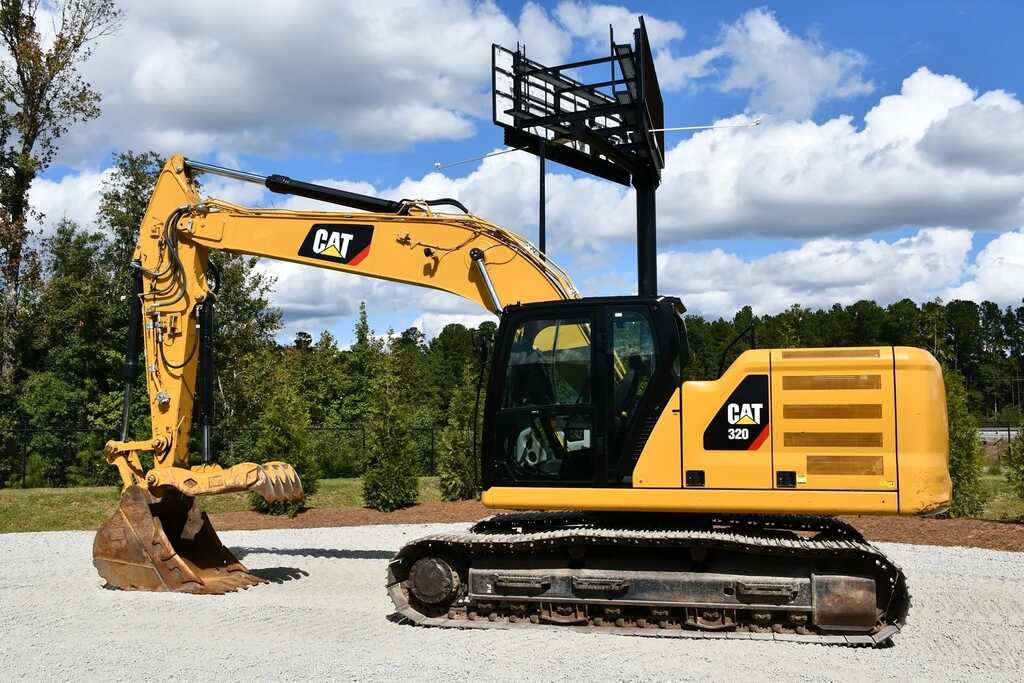

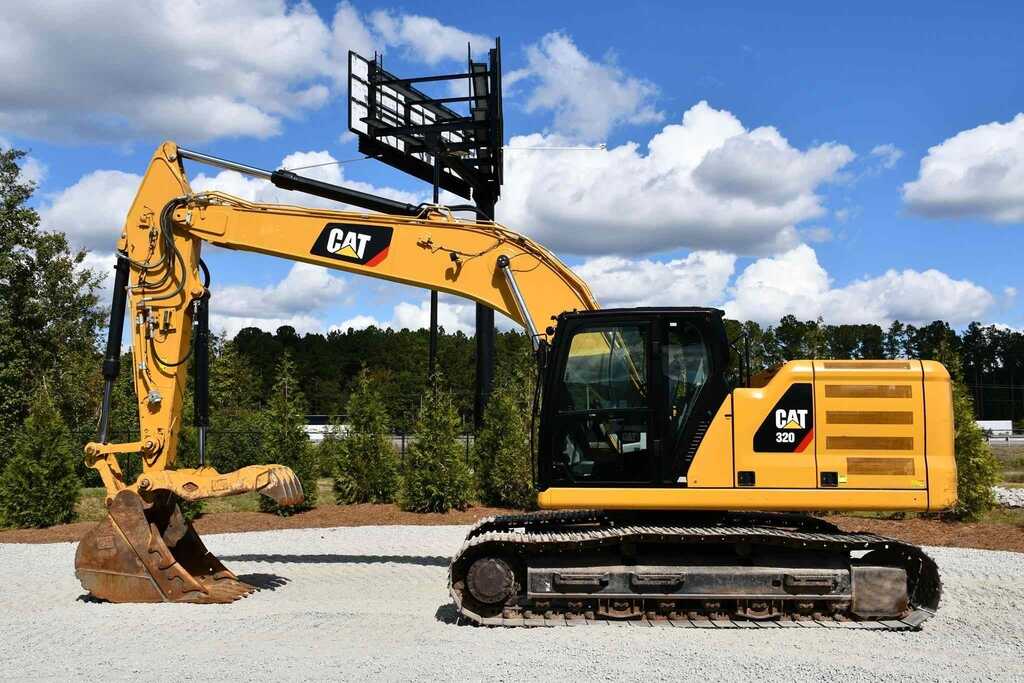

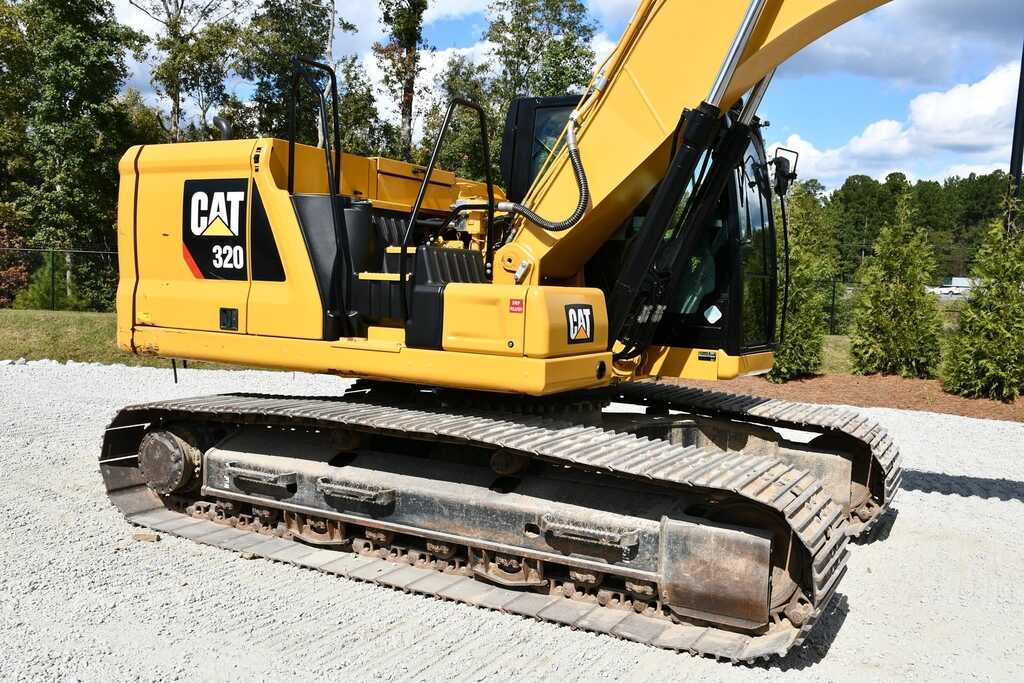

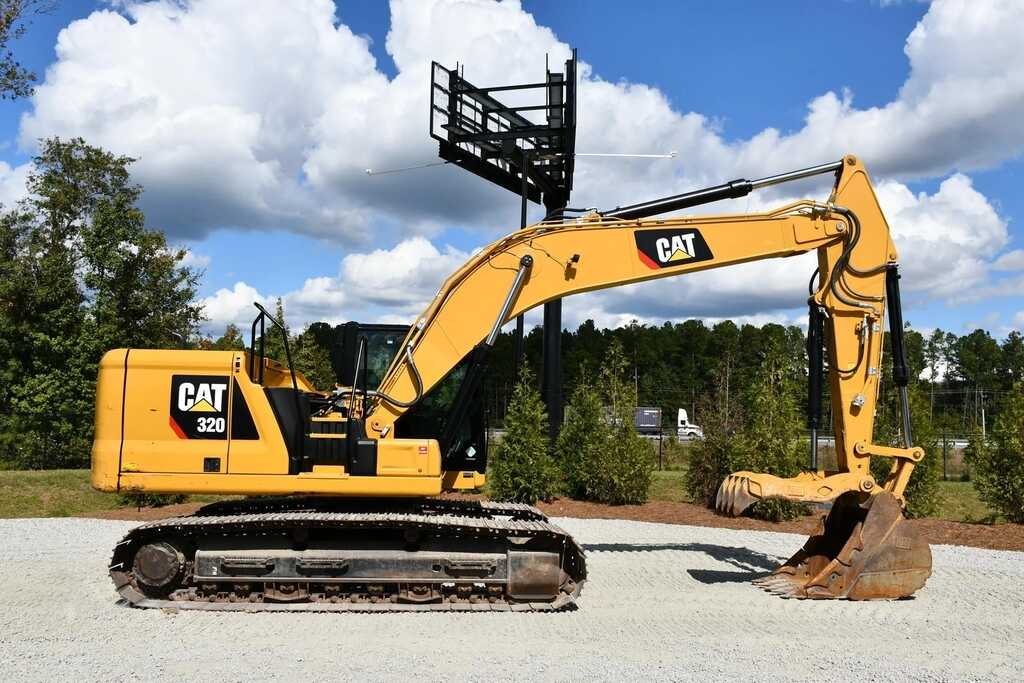

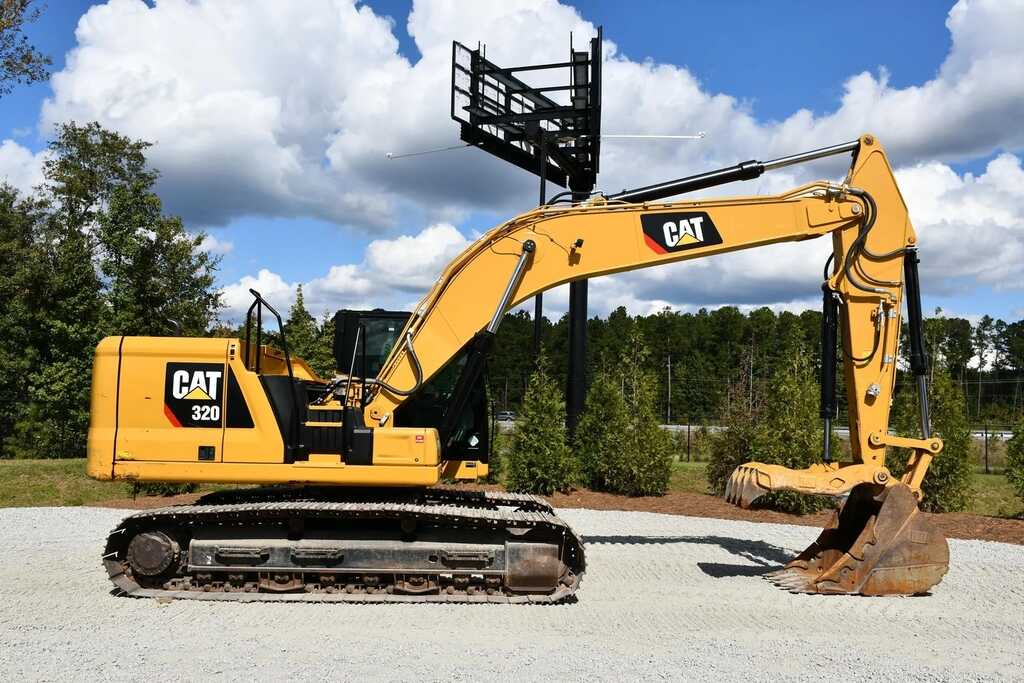

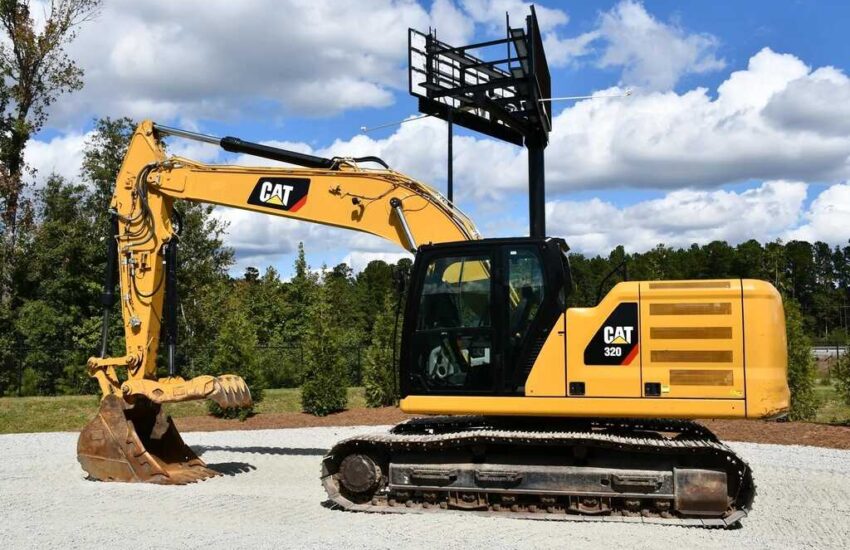

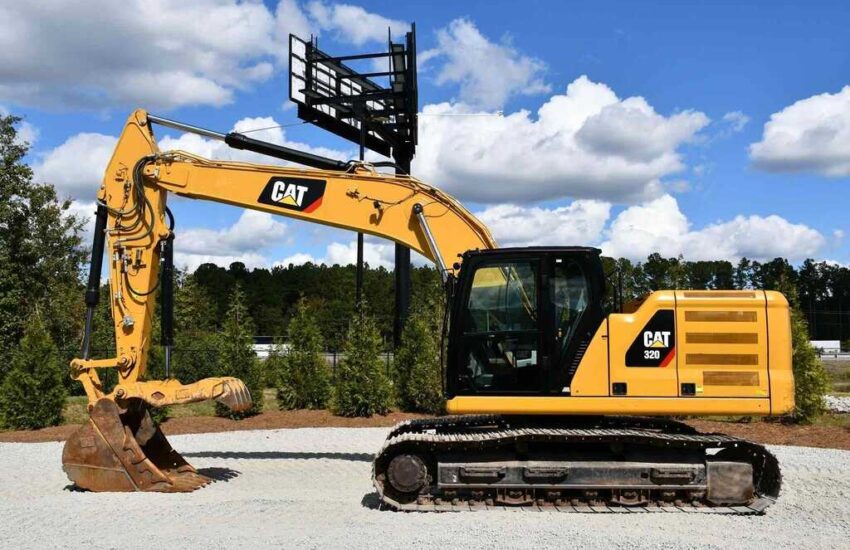

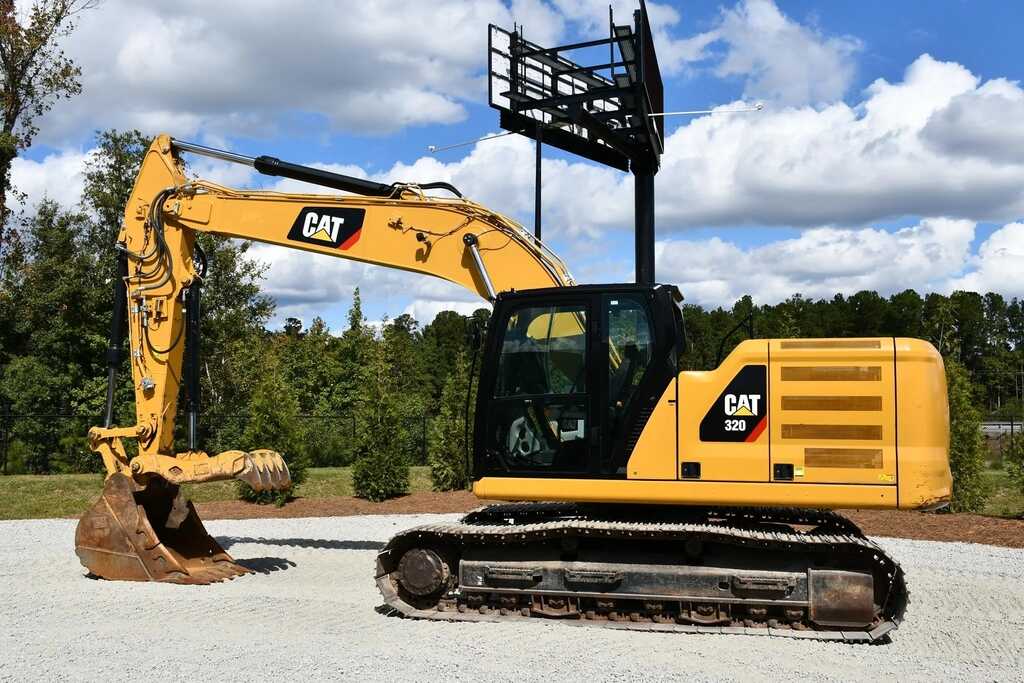

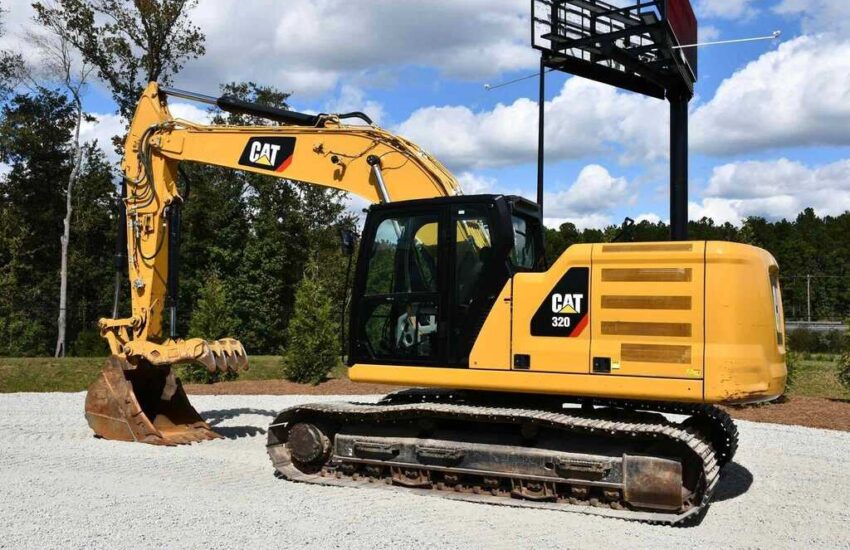

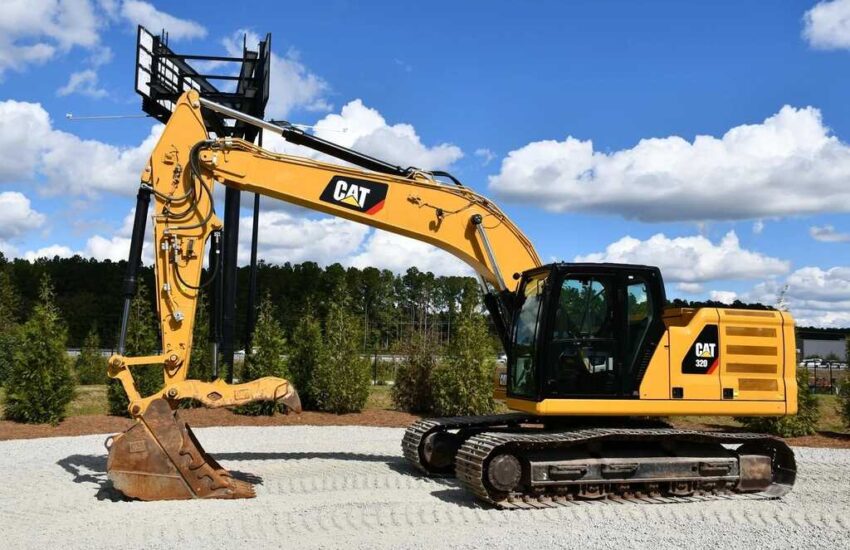

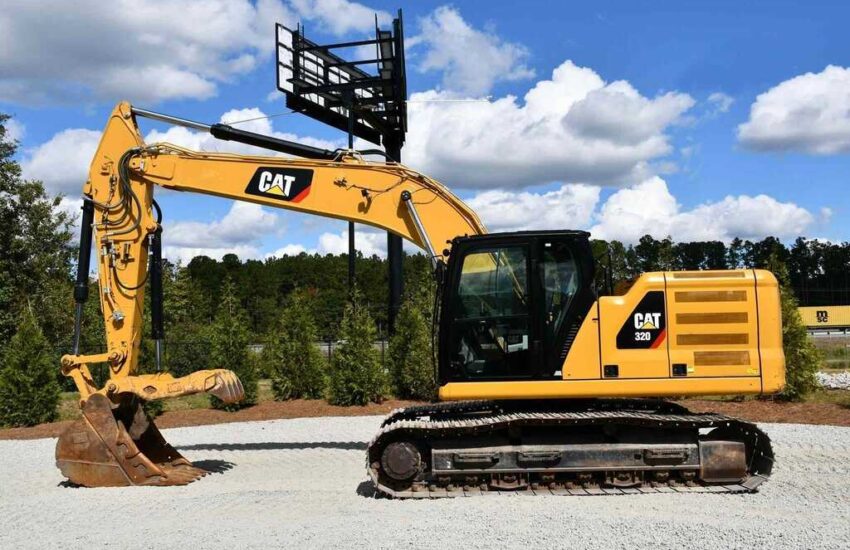

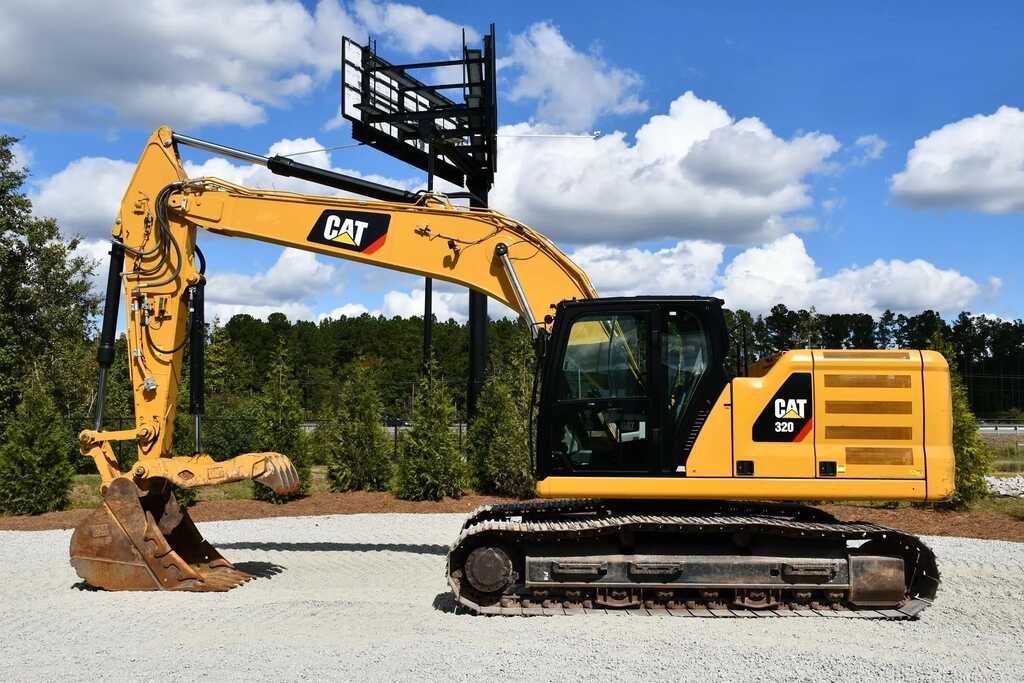

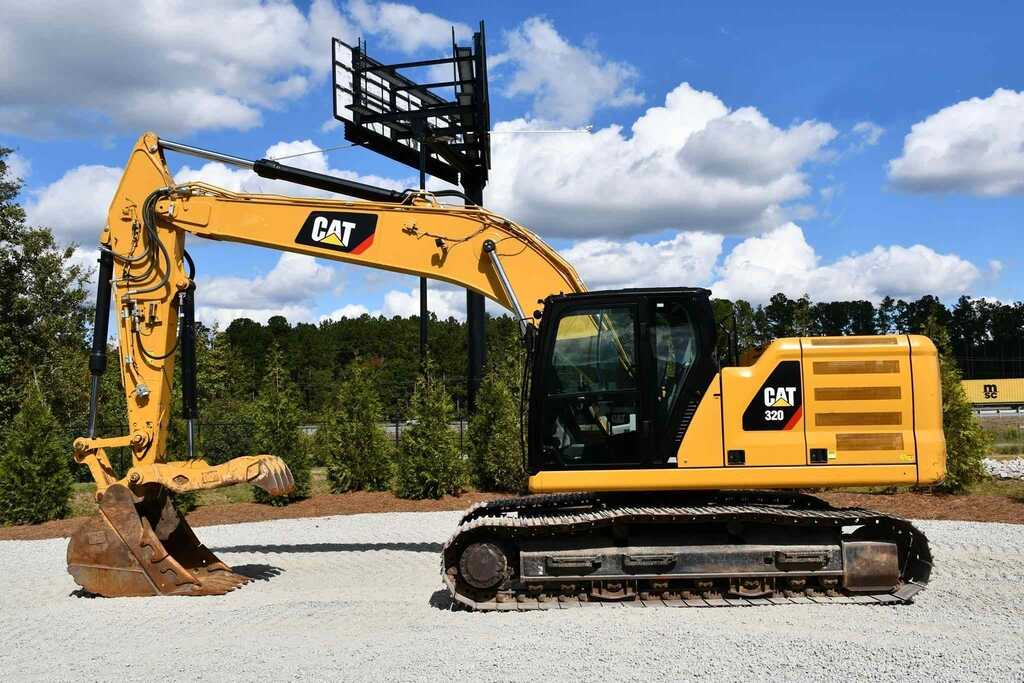

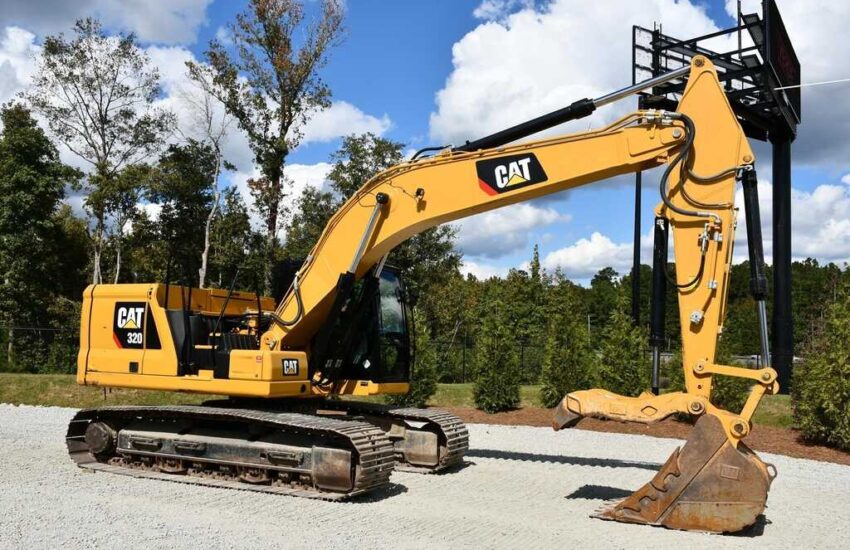

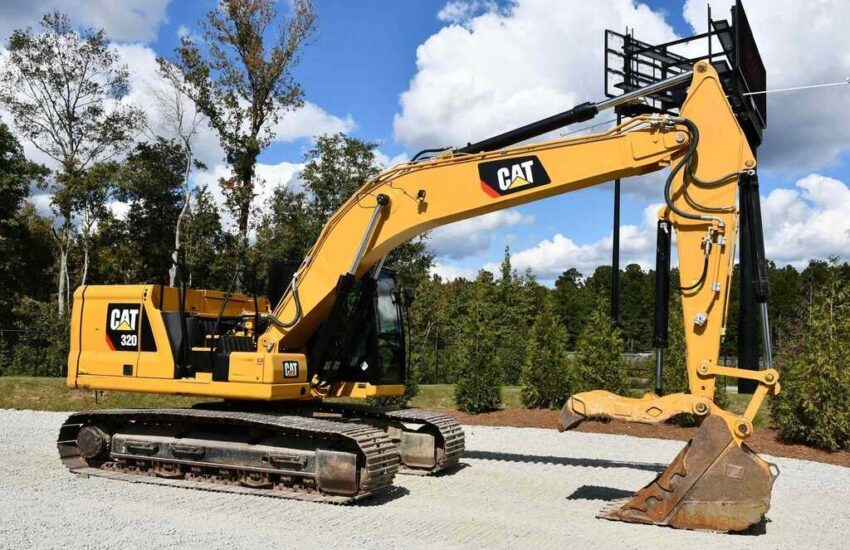

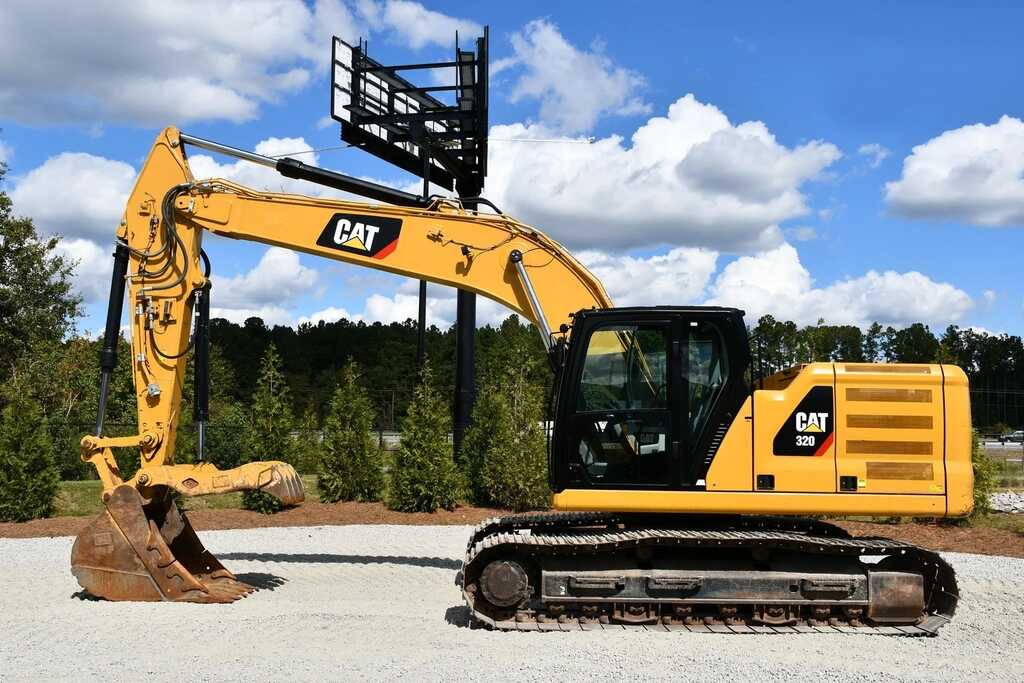

2019 Caterpillar 320

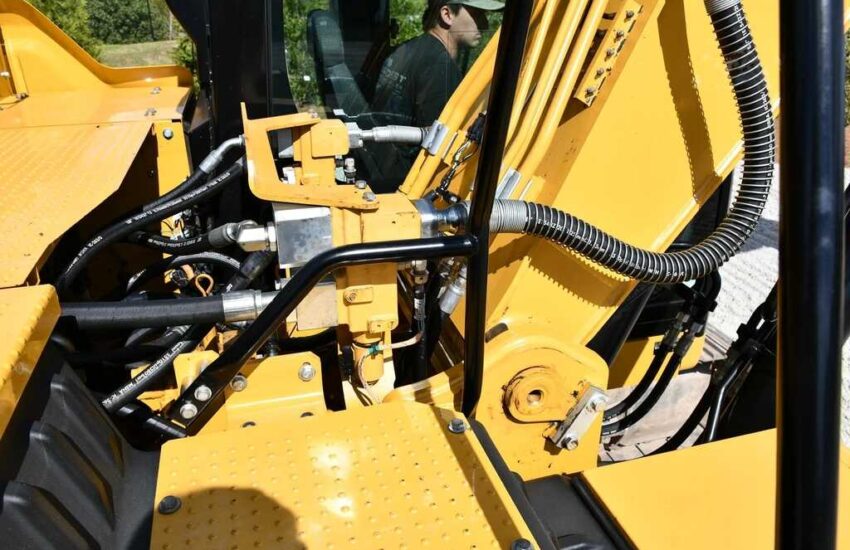

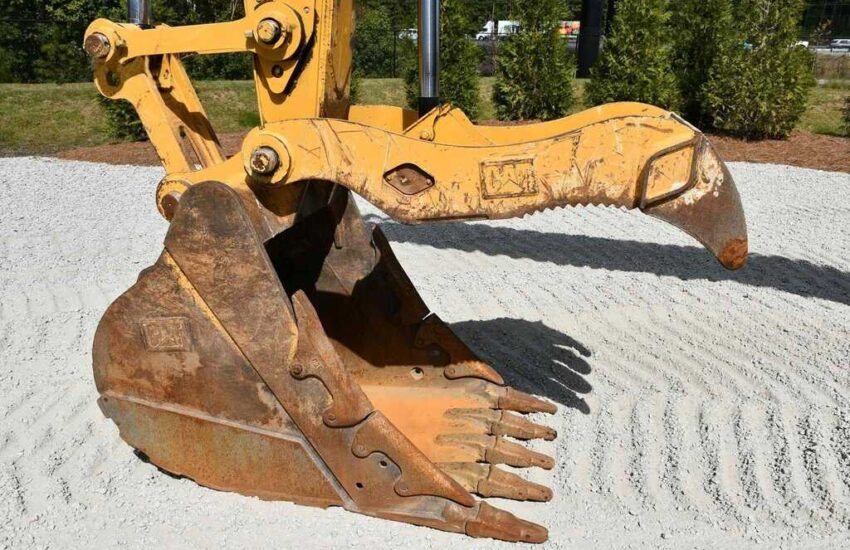

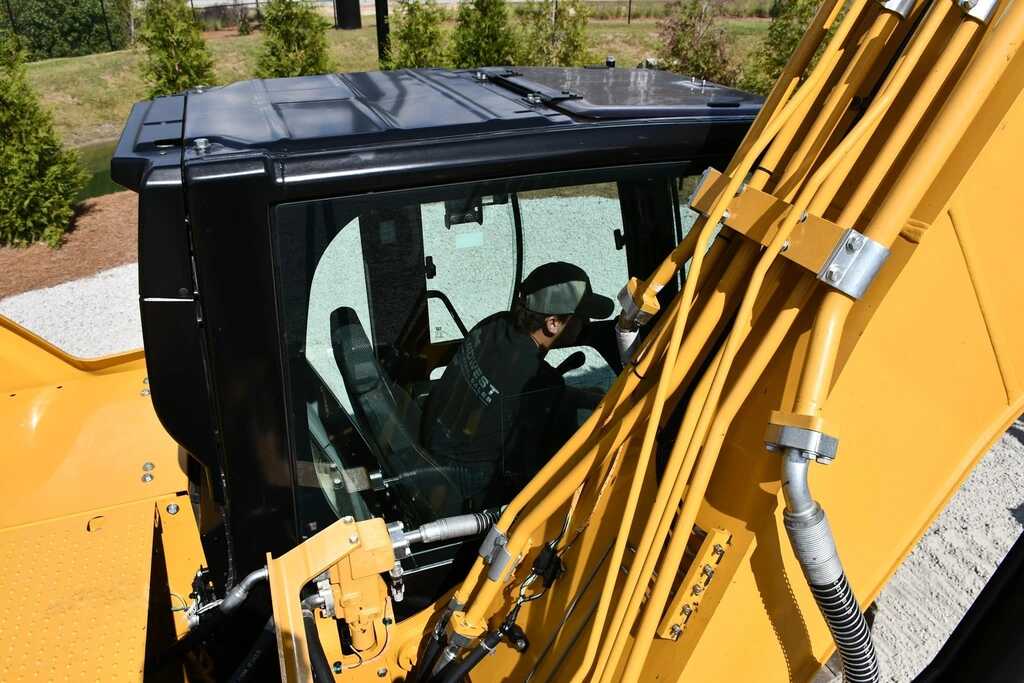

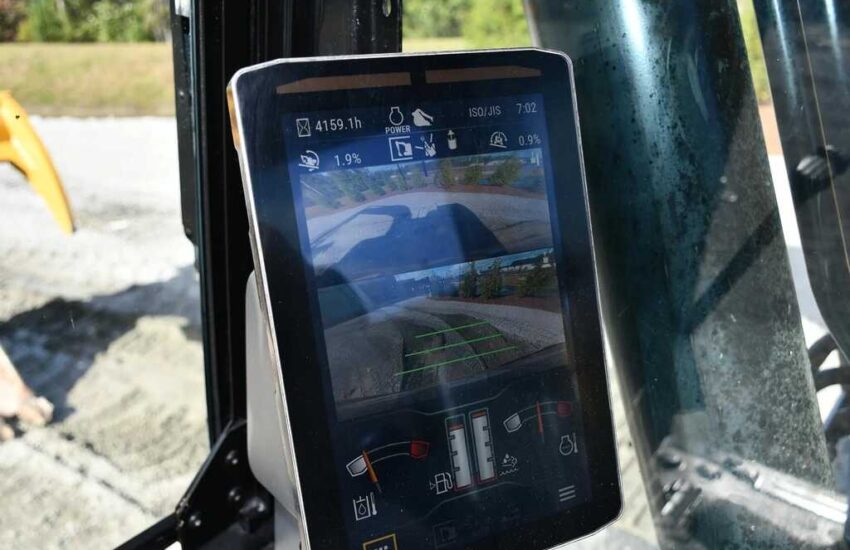

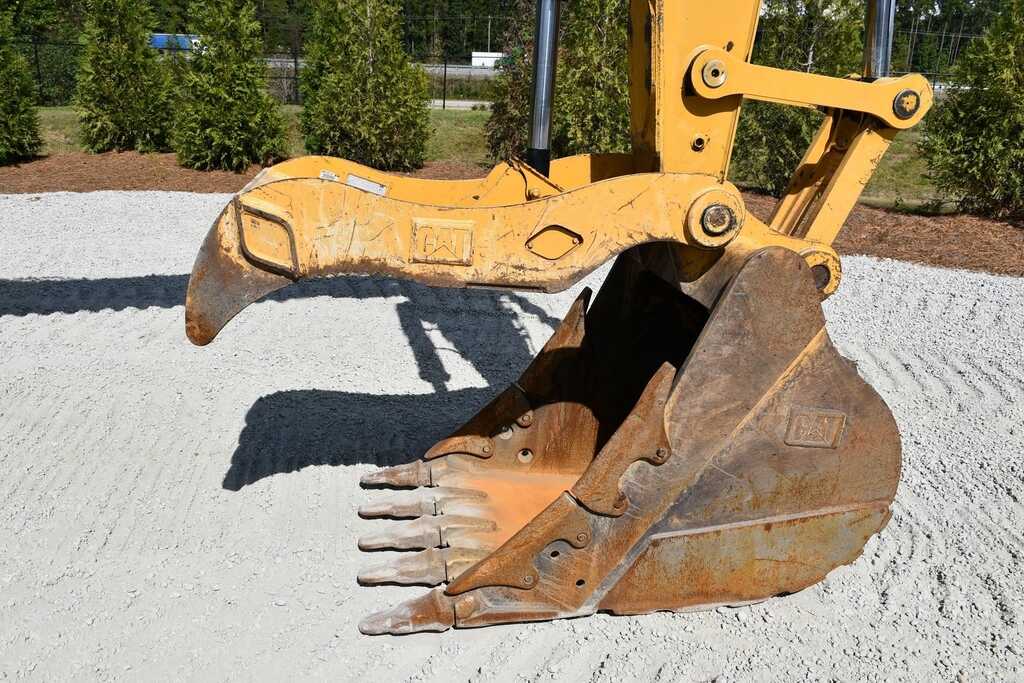

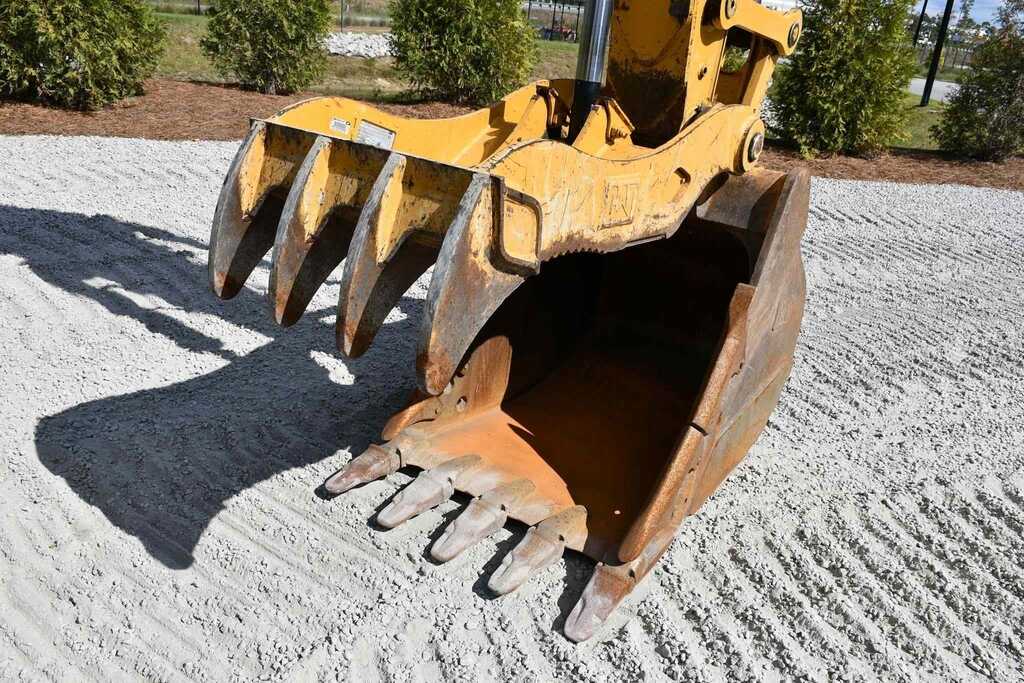

Cab,A/C, meter reads 4159 hours, CAT GP Bucket, CAT Hydraulic thumb, Auxiliary hydraulics, back up camera

Engine

Model: Cat® C4.4
Net Power (ISO 9249): 172 hp (175 hp DIN)
Engine Power (ISO 14396): 174 hp (176 hp DIN)
Displacement: 269 in³
Bore x Stroke: 4 in x 5 in
Emissions: Meets U.S. EPA Tier 4 Final
Biodiesel Capability: Up to B20

Operating Weight

Total Operating Weight: 49,800 lb

Working Ranges & Forces

Maximum Digging Depth: 22 ft
Maximum Reach at Ground Level: 32.3 ft
Maximum Cutting Height: 30.7 ft
Maximum Loading Height: 21.3 ft
Vertical Wall Dig Depth: 17 ft
Bucket Force (ISO): 38,811 lbf
Stick Force (ISO): 23,911 lbf

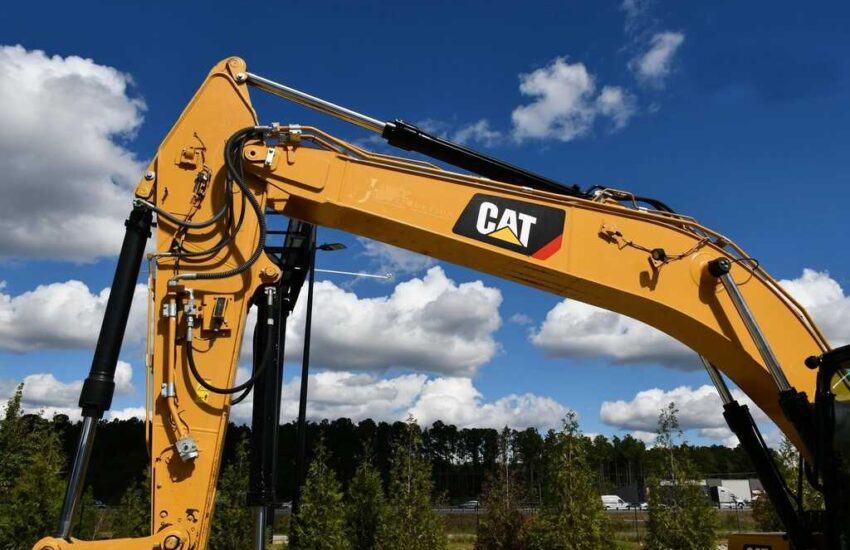

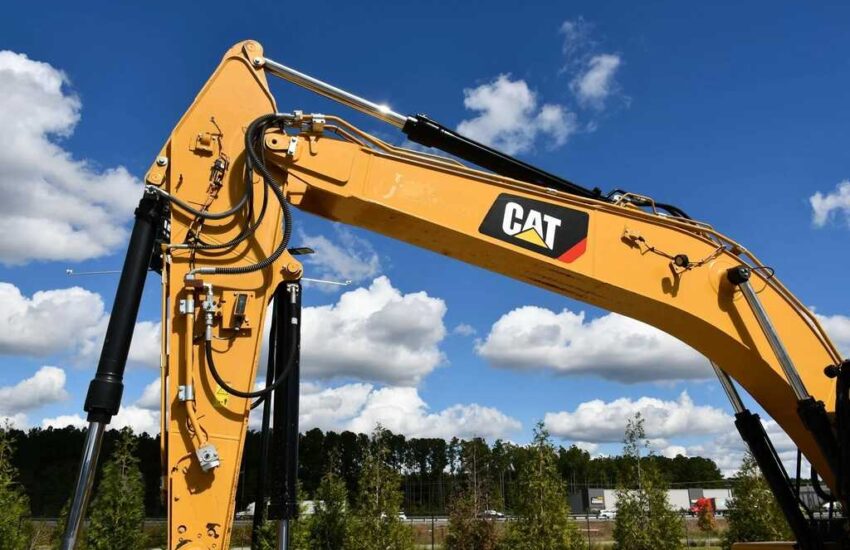

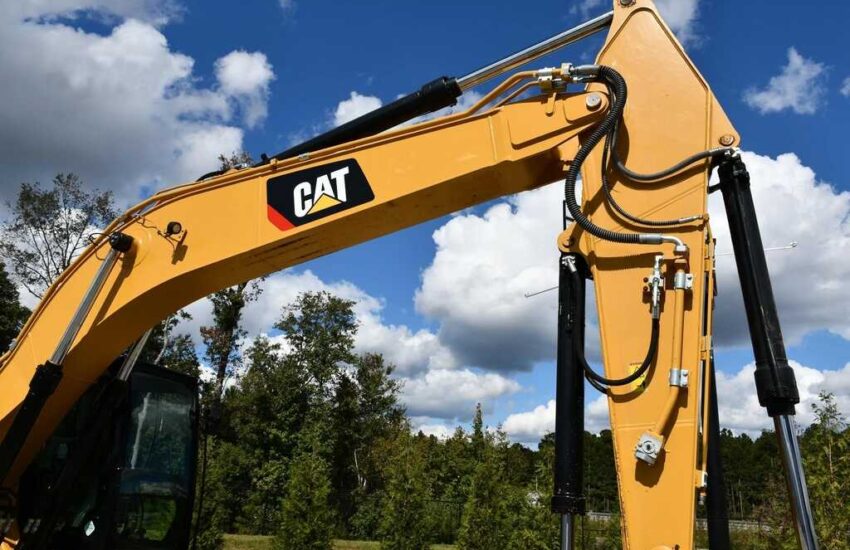

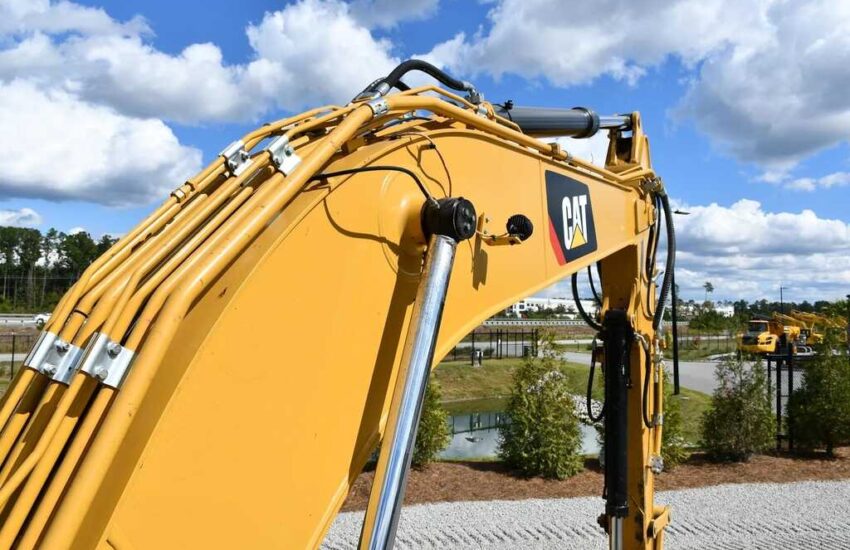

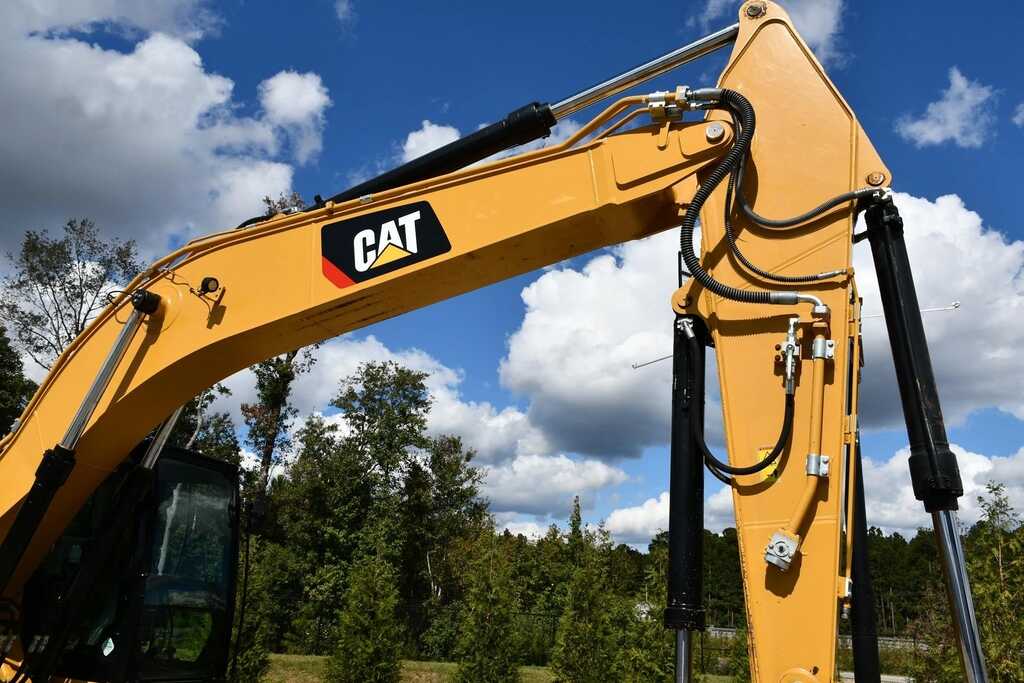

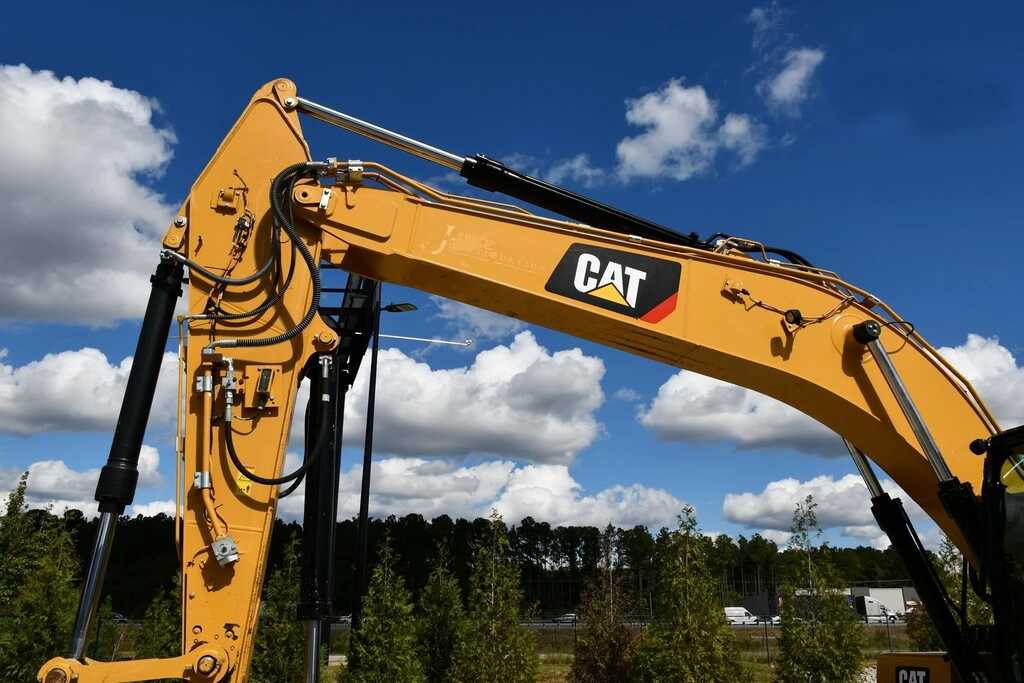

Boom: 5.7 m (18 ft 8 in)
Stick: 2.9 m (9 ft 6 in)

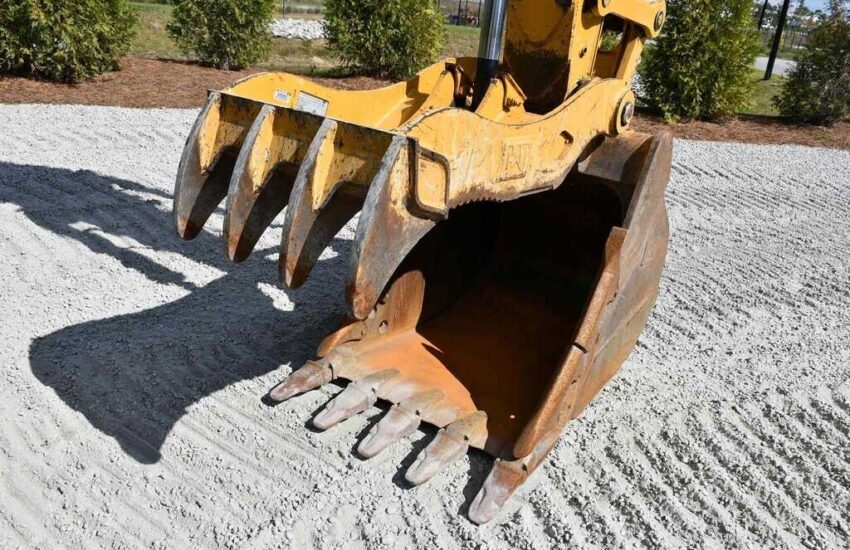

Bucket: 1.19 m³ (1.56 yd³)

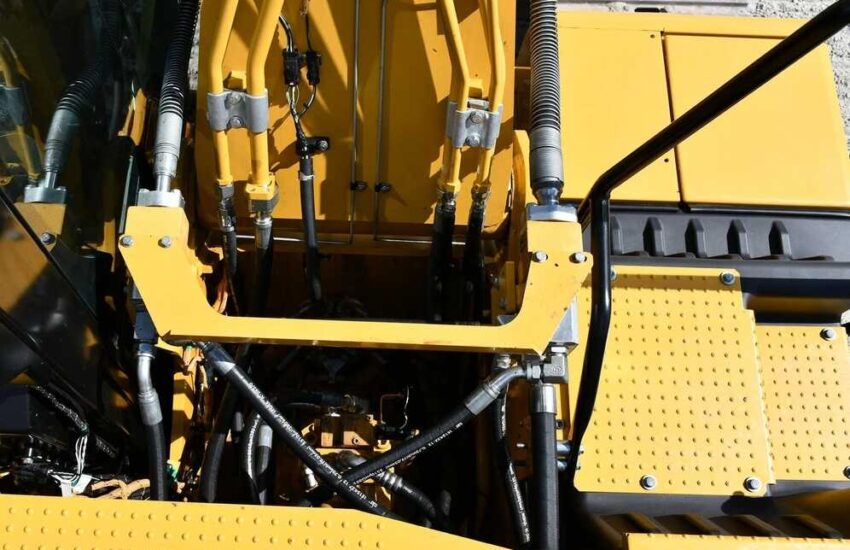

Hydraulic System

Maximum Flow: 429 l/min (113 gal/min)
Pressure – Equipment: 5075 psi
Pressure – Lift Mode: 5510 psi
Pressure – Travel: 4974 psi
Pressure – Swing: 3988 psi

Swing Mechanism

Swing Speed: 11.25 rpm
Maximum Swing Torque: 60,300 lbf·ft

Fluid Capacities

Fuel Tank: 86.6 gal
Cooling System: 6.6 gal
Engine Oil: 4 gal
Swing Drive: 1.6 gal
Final Drive (each): 1.1 gal
Hydraulic System (total): 61.8 gal
Hydraulic Tank: 30.4 gal
DEF Tank: 10.3 gal

Dimensions

Shipping Height (Top of Cab): 9.7 ft
Shipping Length: 31.3 ft
Transport Width: 9.8 ft
Tail Swing Radius: 9.3 ft
Ground Clearance: 1.5 ft
Track Length: 14.6 ft
Track Gauge: 7.8 ft
Counterweight Clearance: 3.4 ft

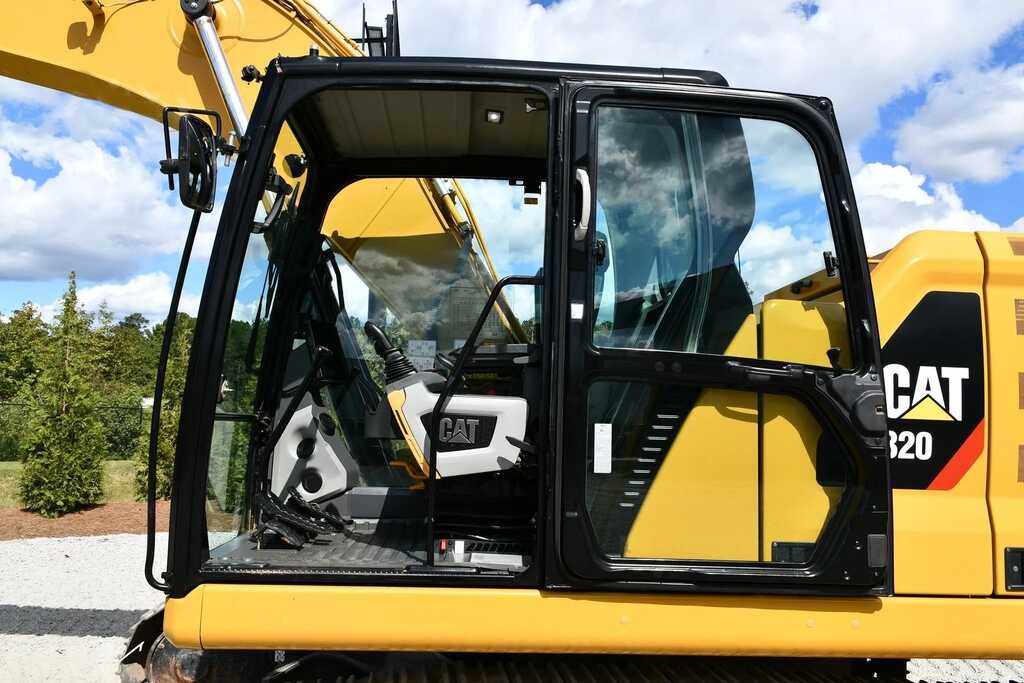

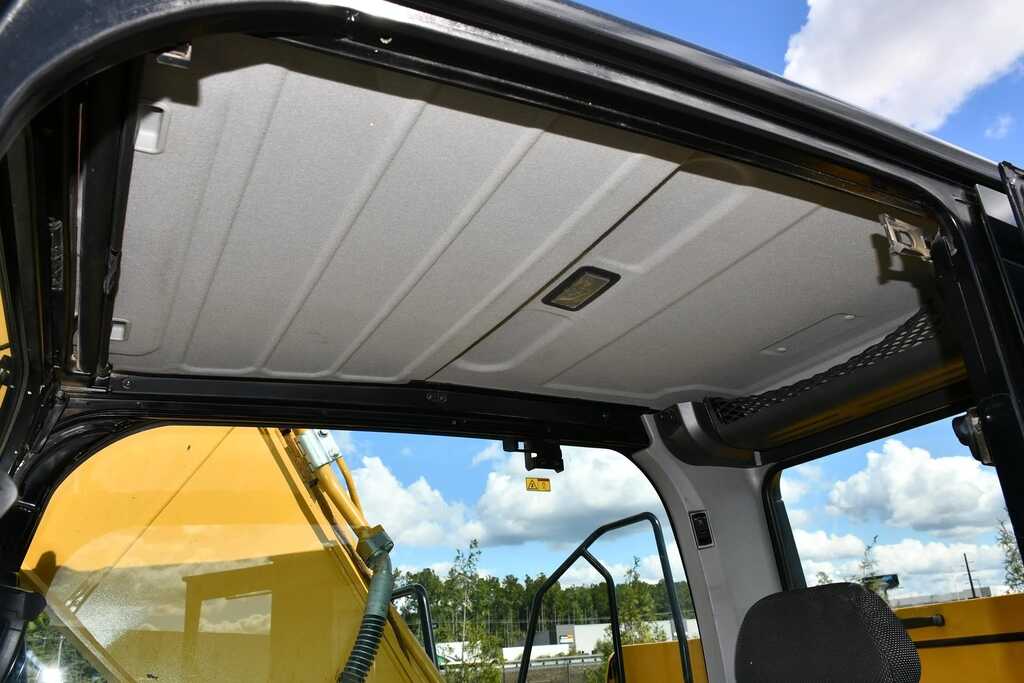

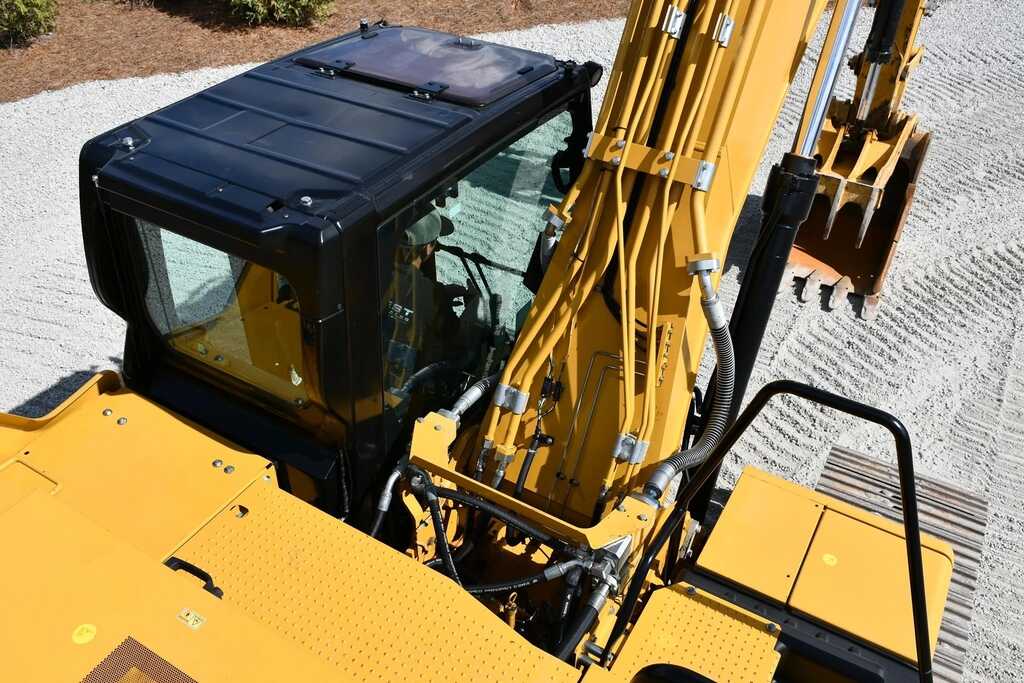

Cab & Air Conditioning

Equipped with air conditioning using R134a refrigerant (GWP = 1430)
Refrigerant Capacity: 0.85 kg (1.9 lb)
CO₂ Equivalent: 1.216 metric tons

Sustainability

Recyclability: 97%

General Condition

Machine Starts and Operates: Yes

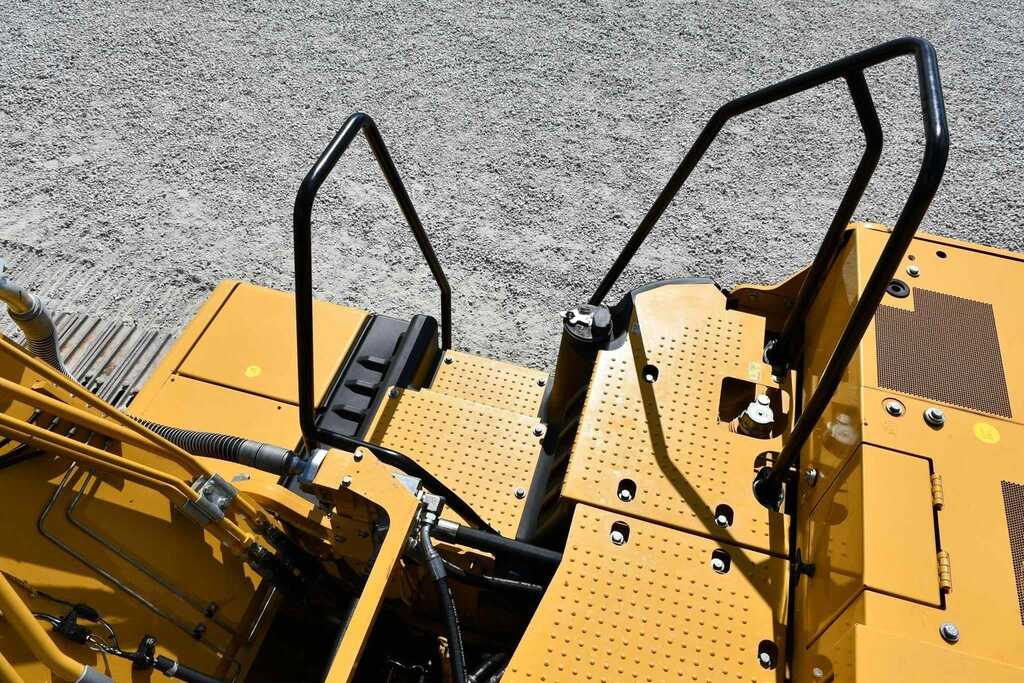

Body, Frame, Paint, Steps, and Grab Irons: Good
Cleaning Required: No

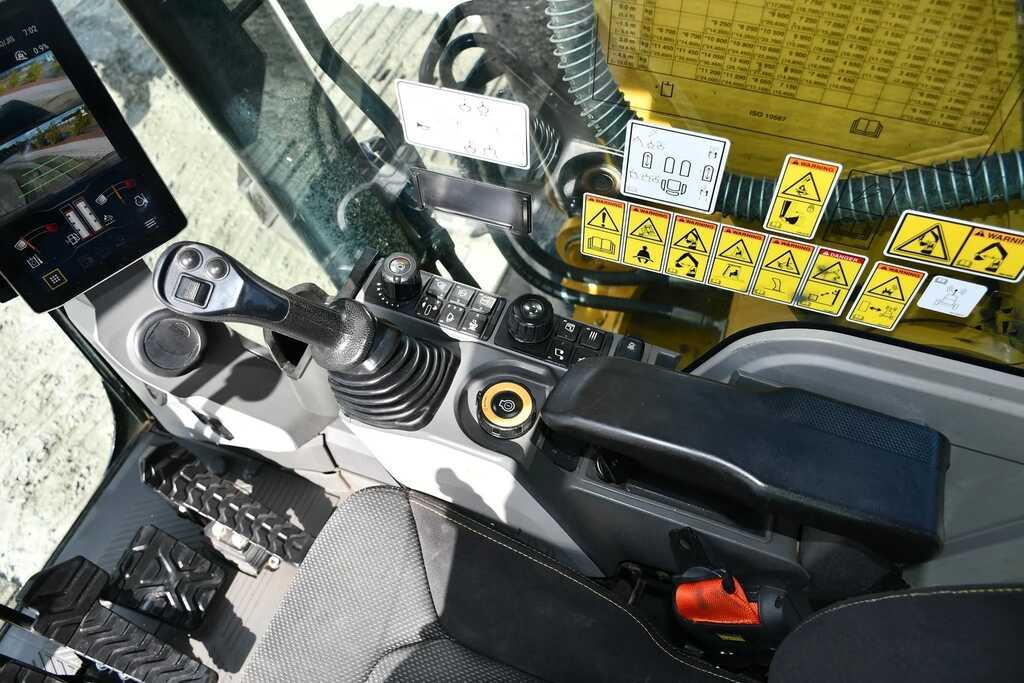

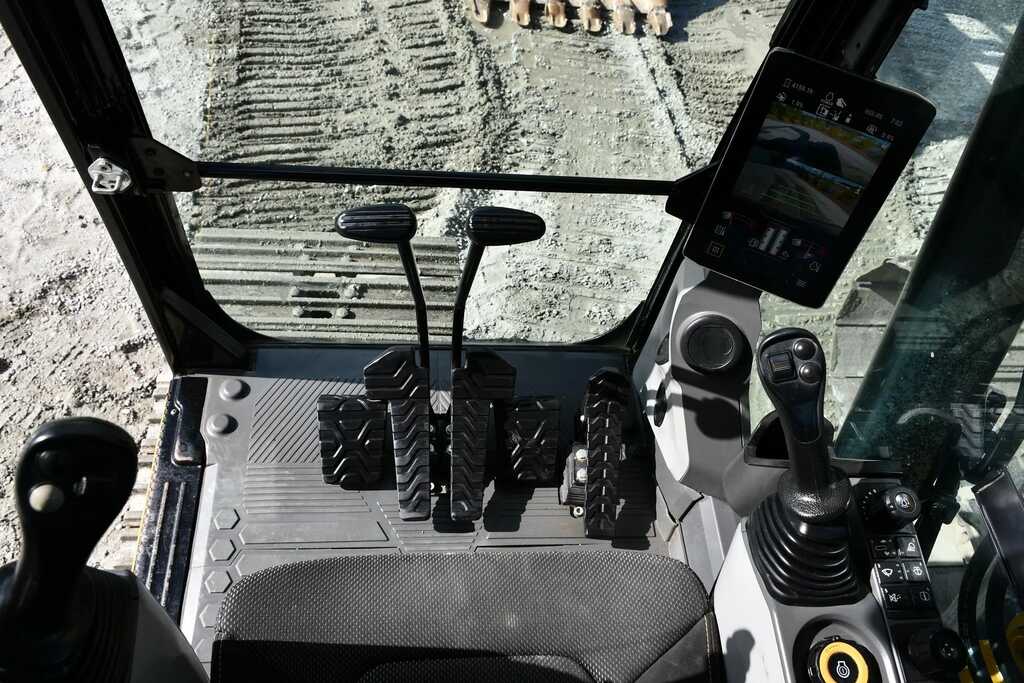

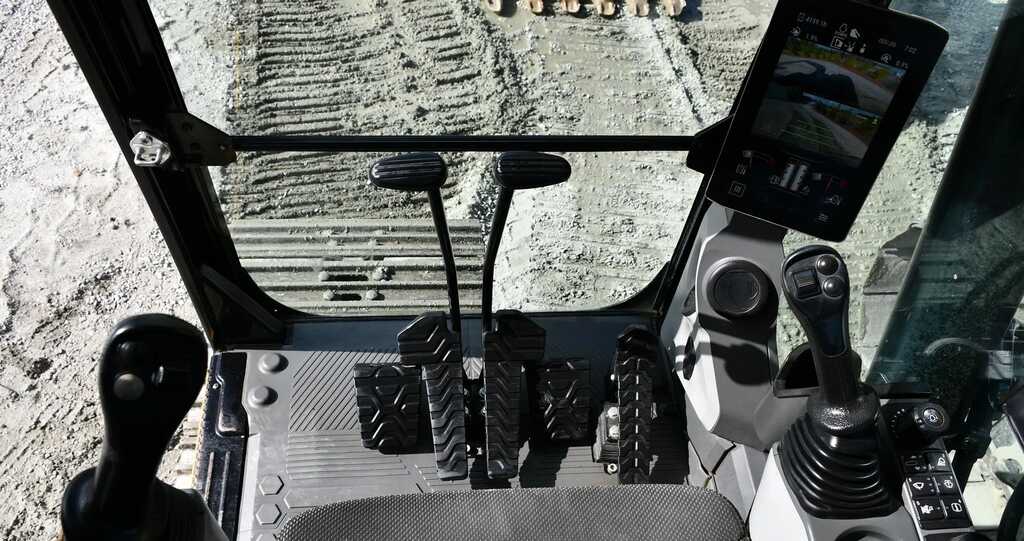

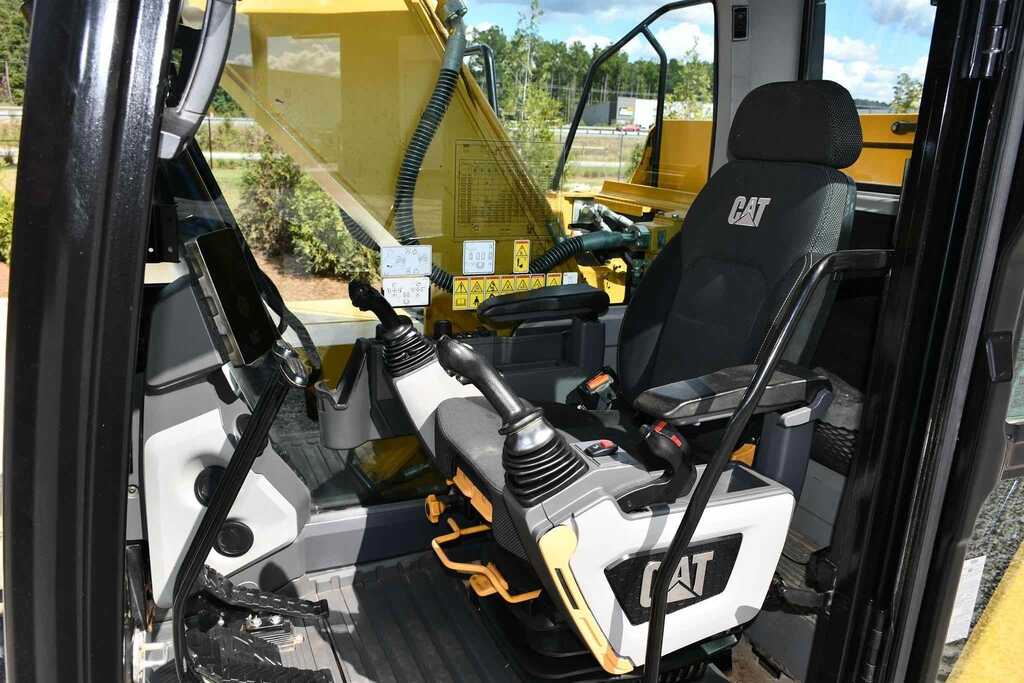

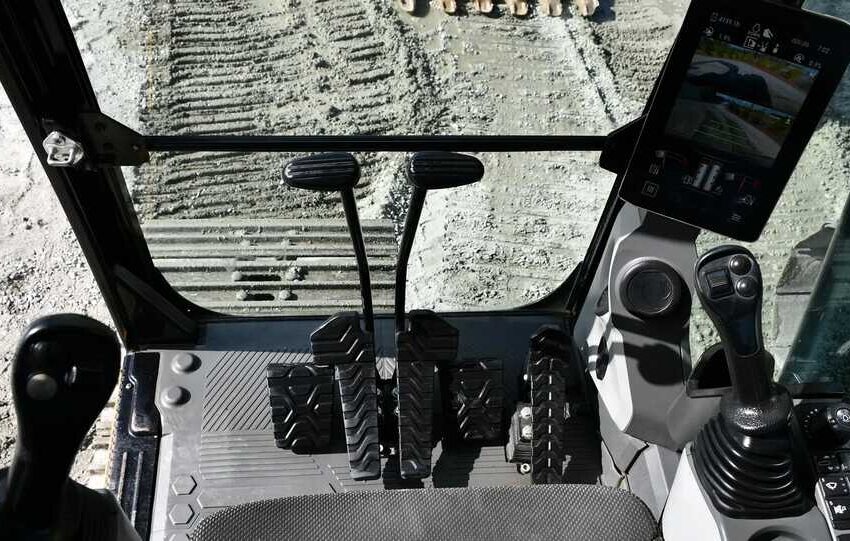

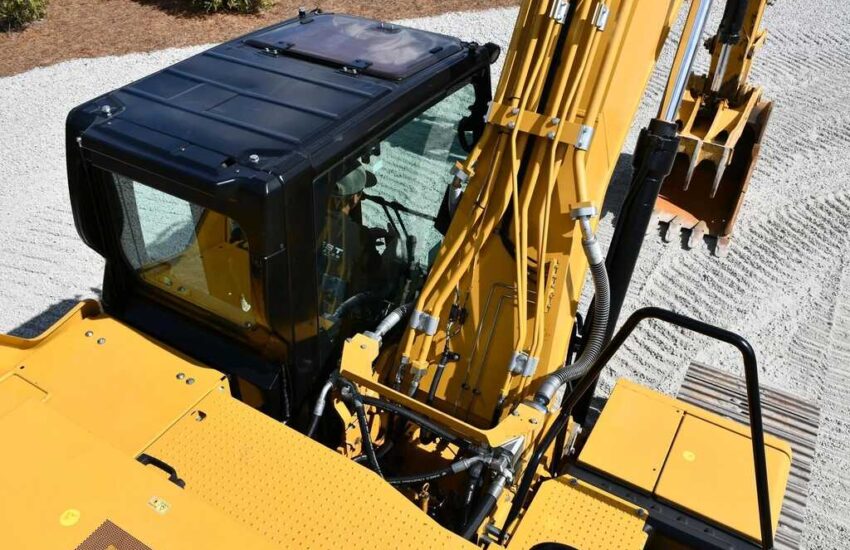

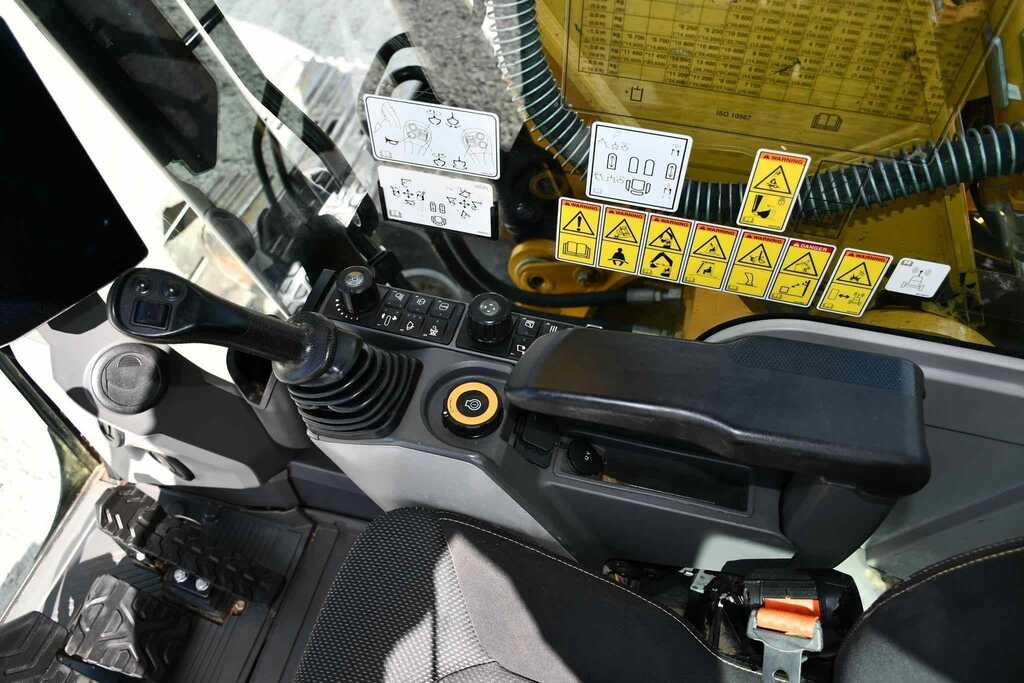

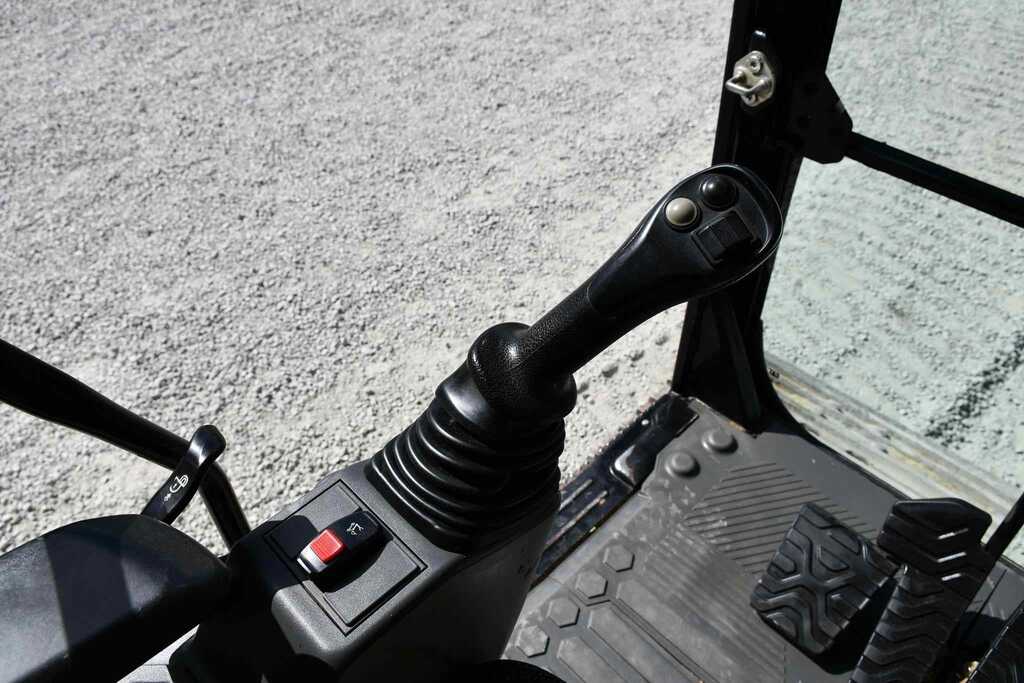

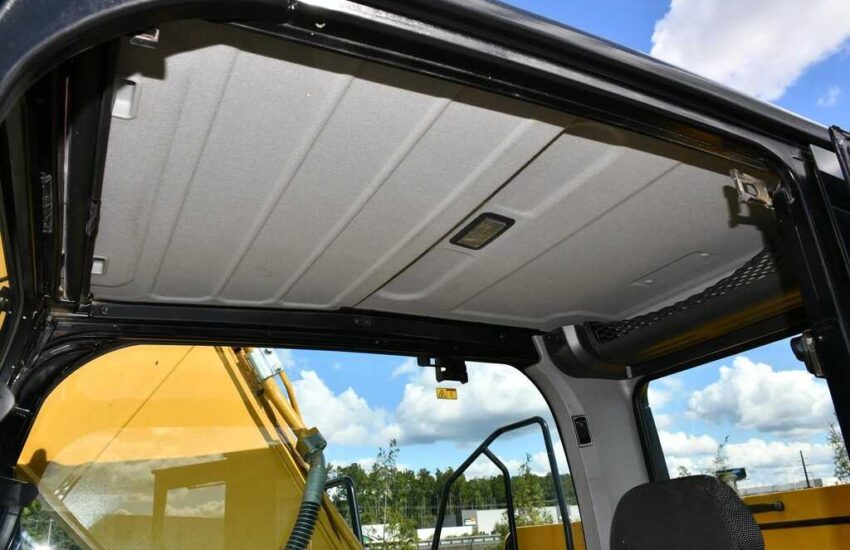

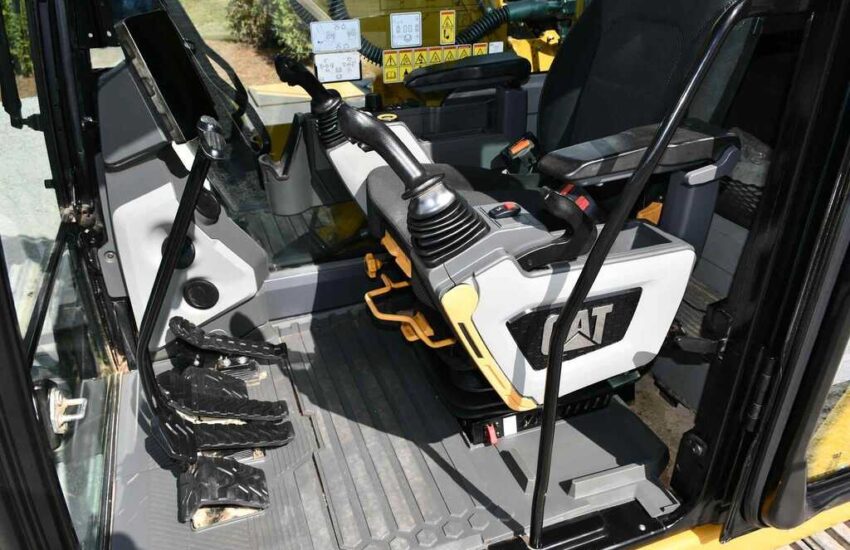

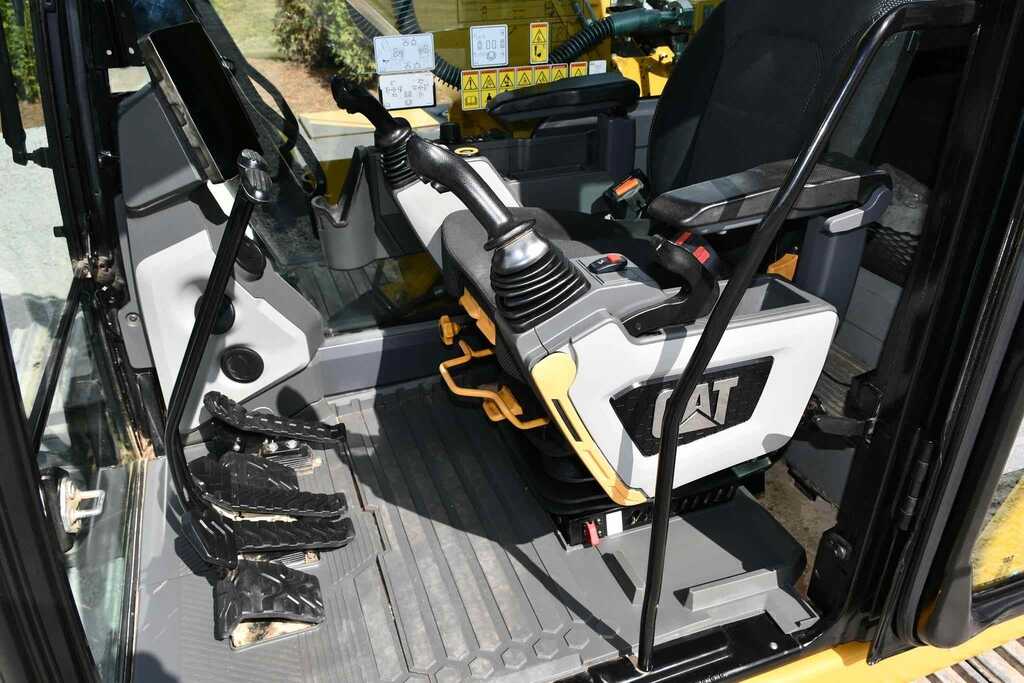

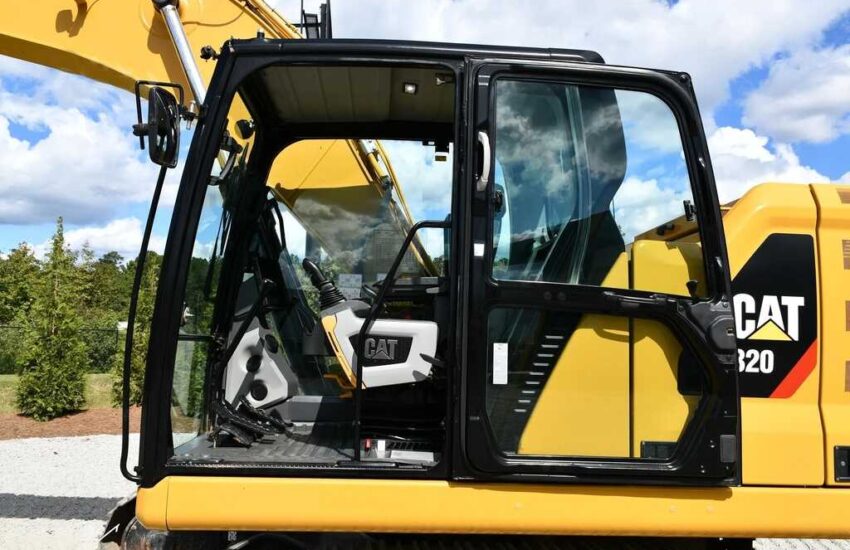

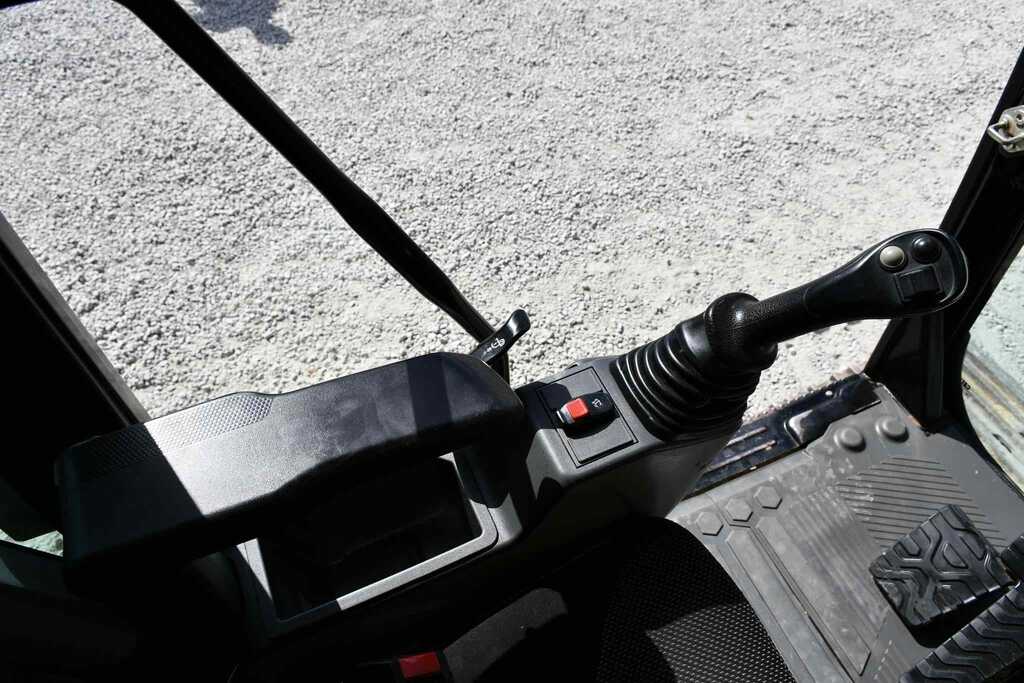

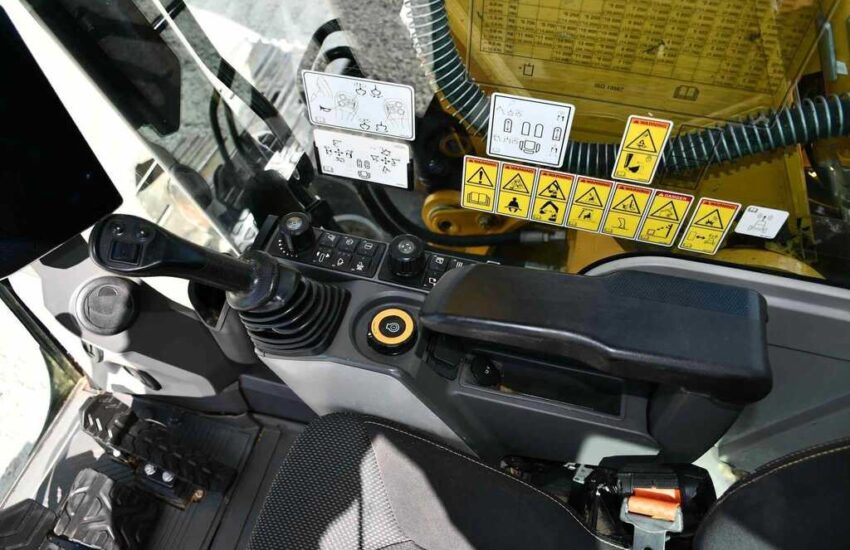

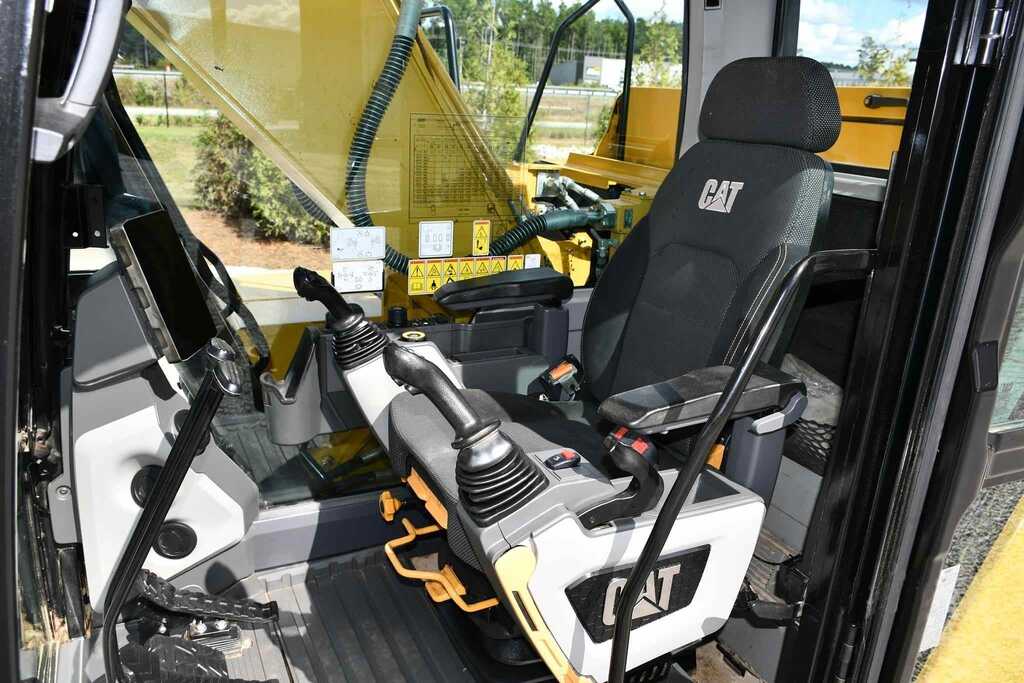

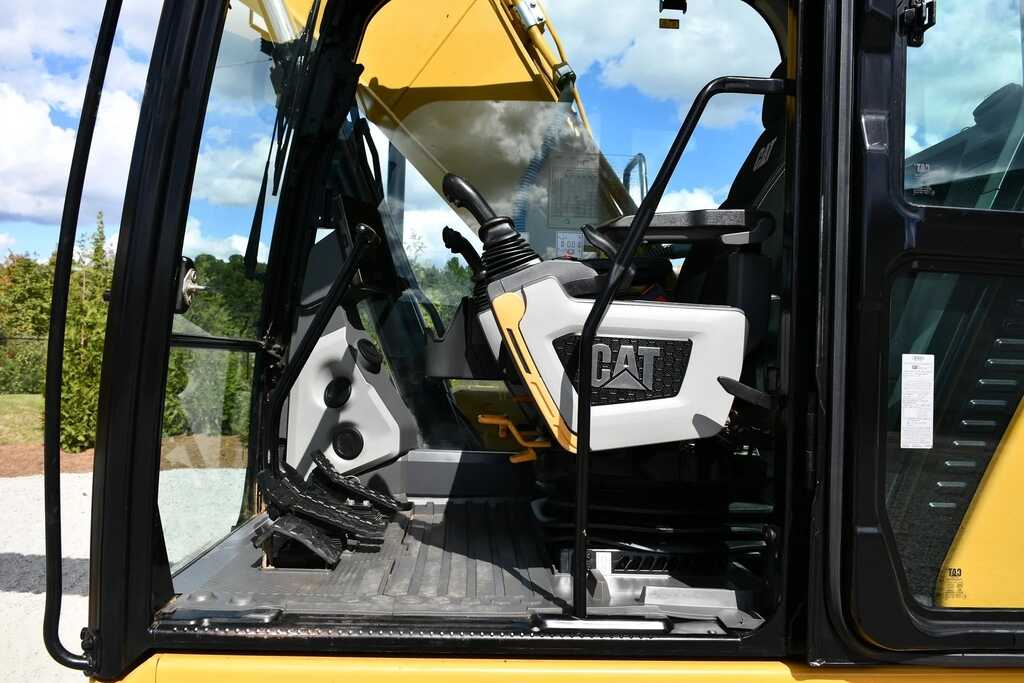

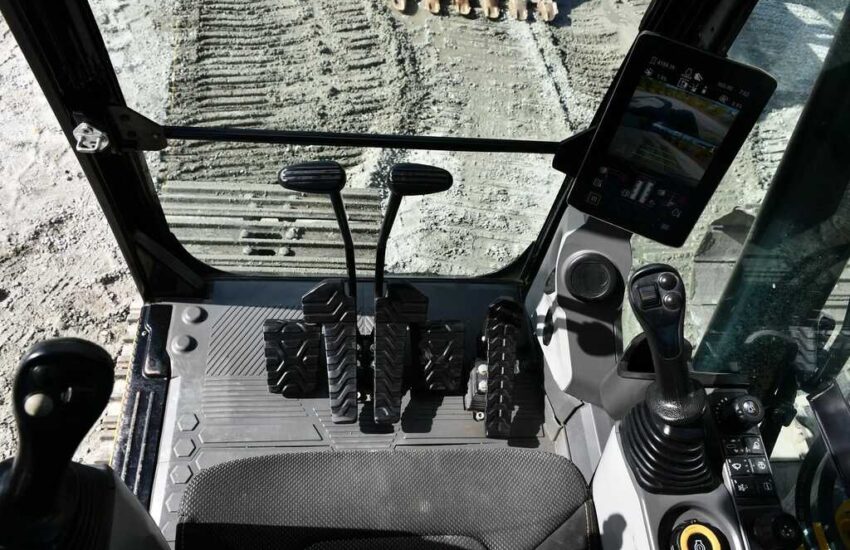

Operator Station

Air Conditioner, Heater, and Defroster: Good
Door Latches, Hinges, and Seals: Good

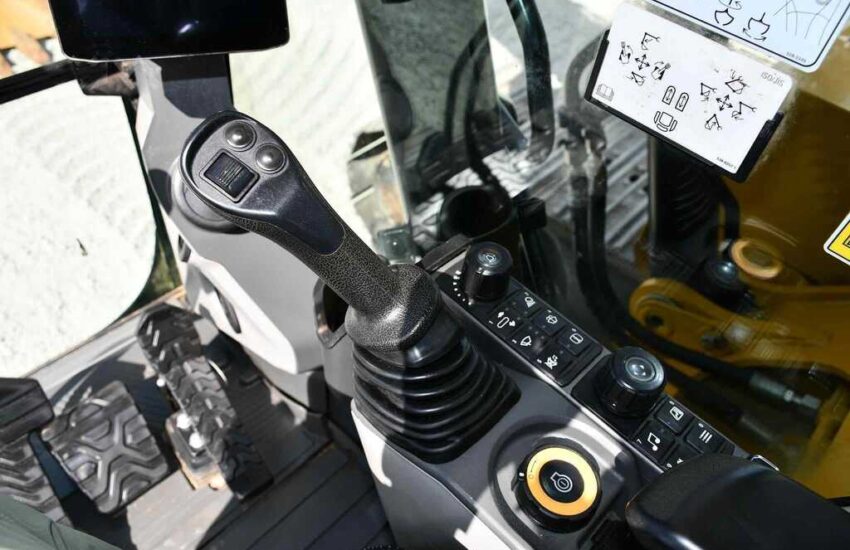

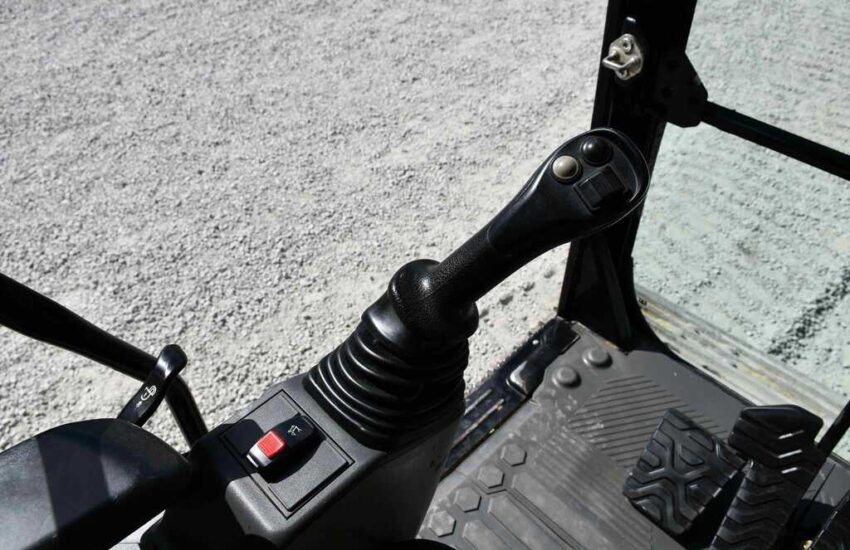

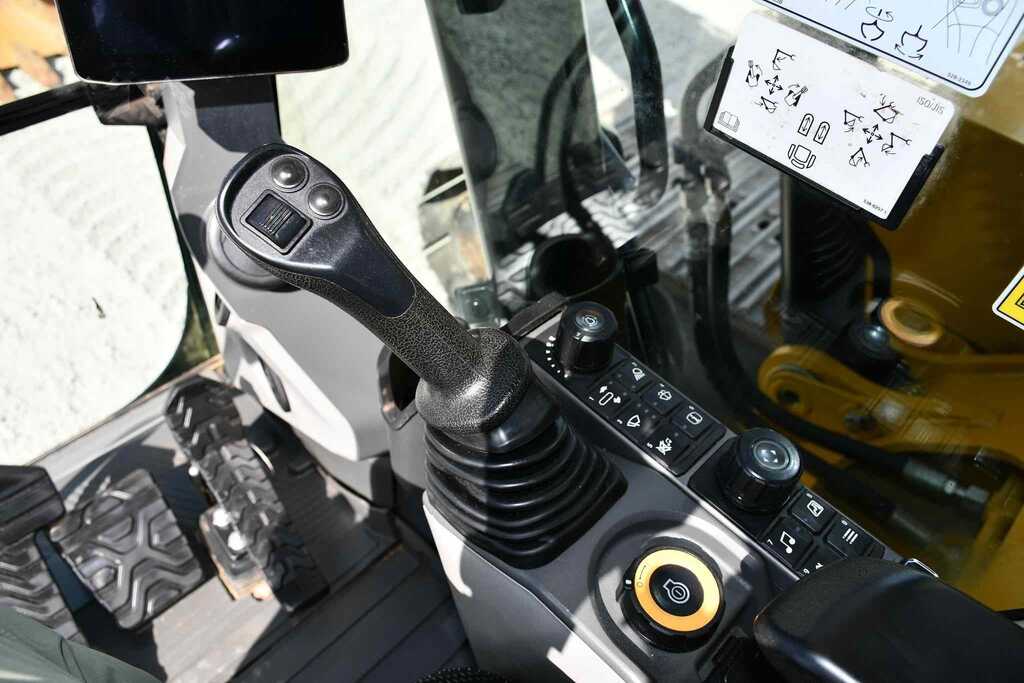

Gauges, Mirrors, Floor Mats, Hydraulic Controls, and Seat Condition: Good

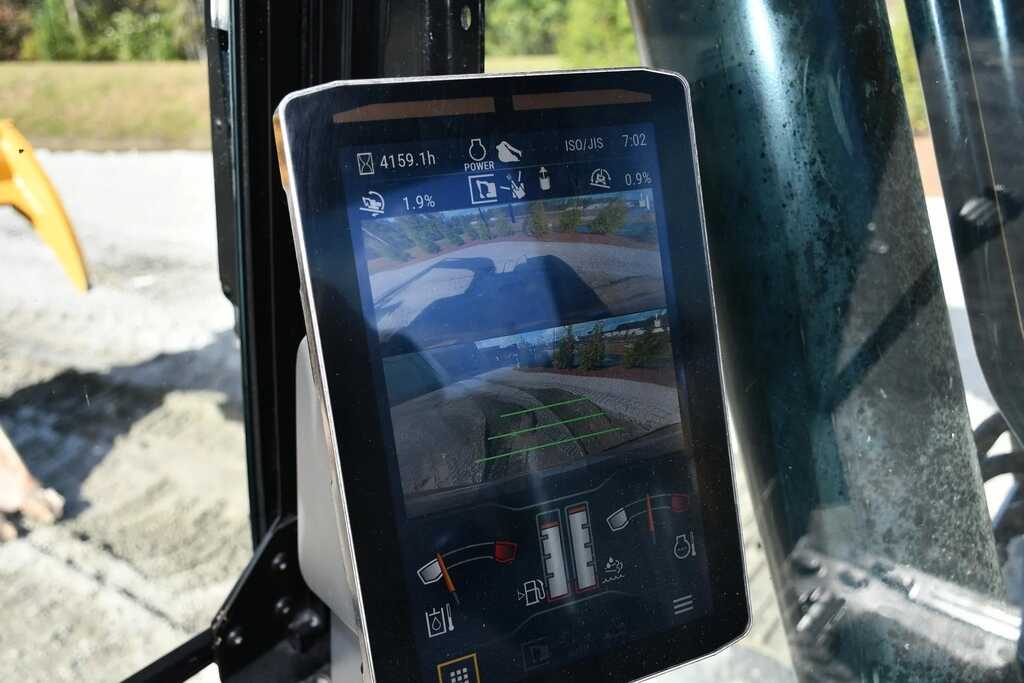

Hour Meter: Good

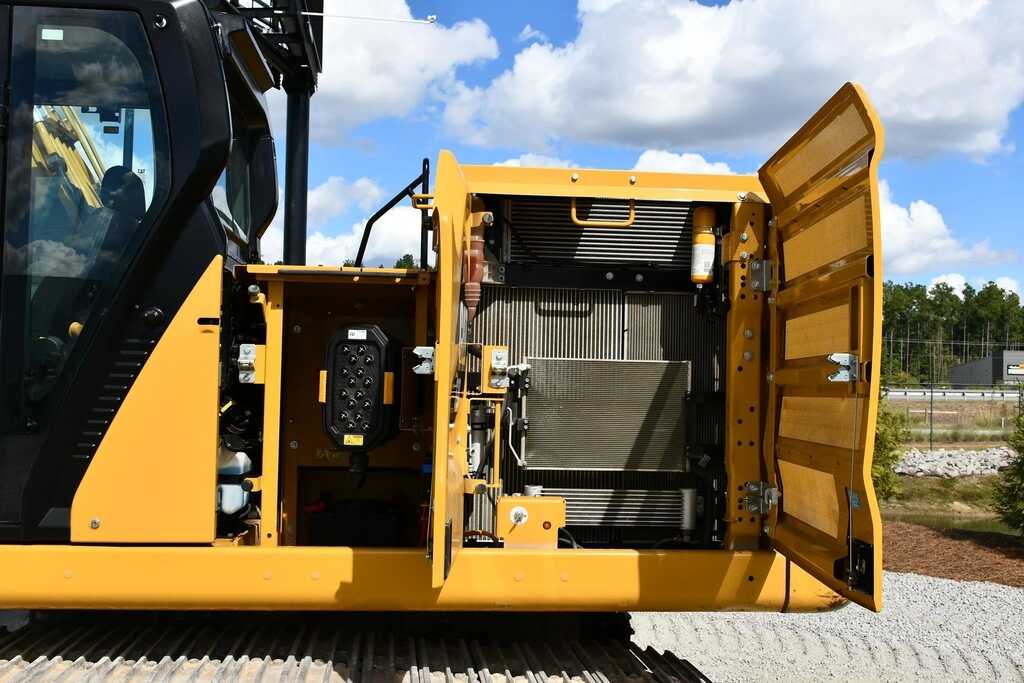

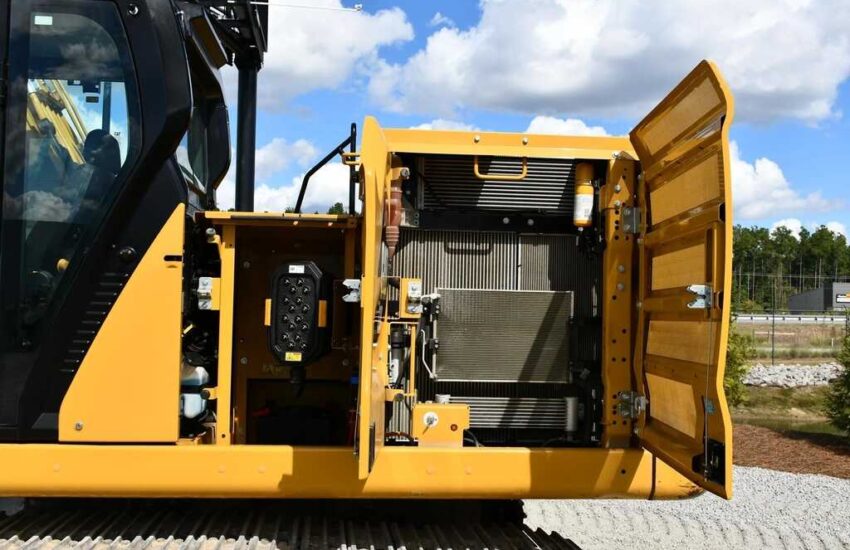

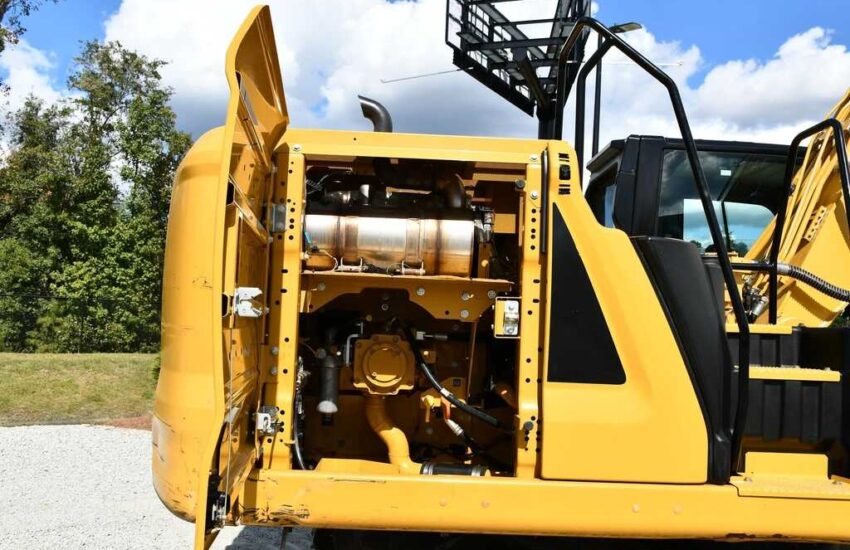

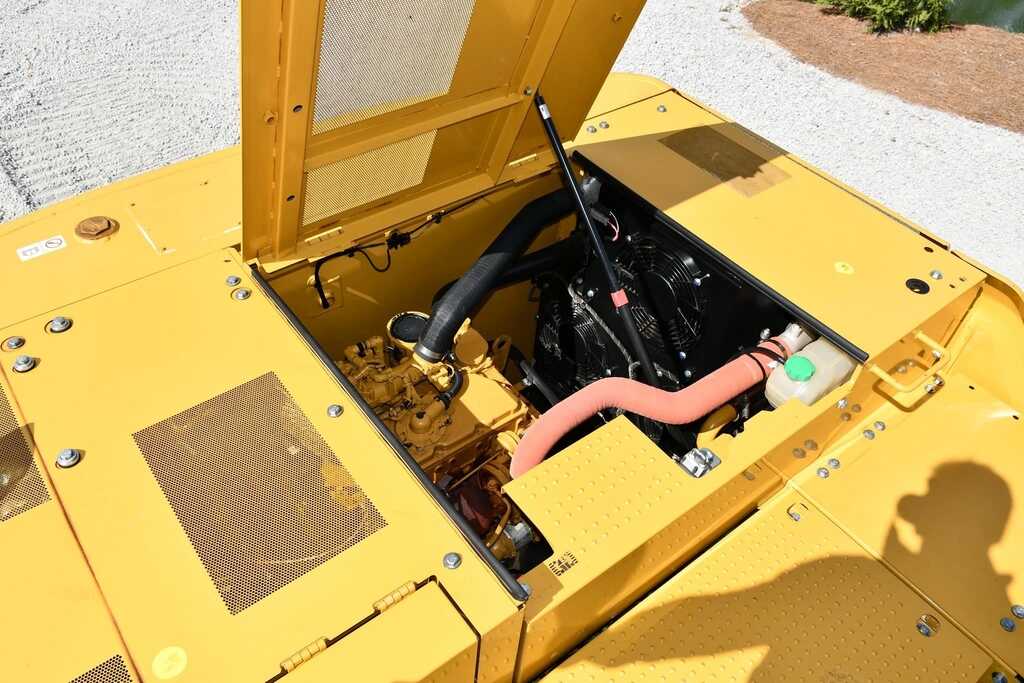

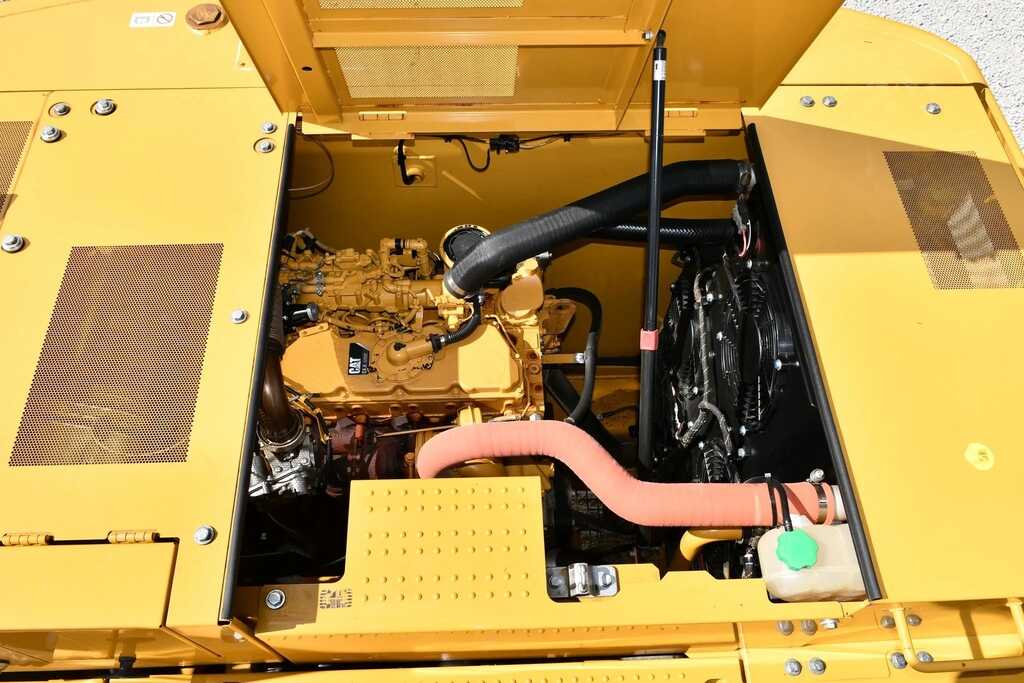

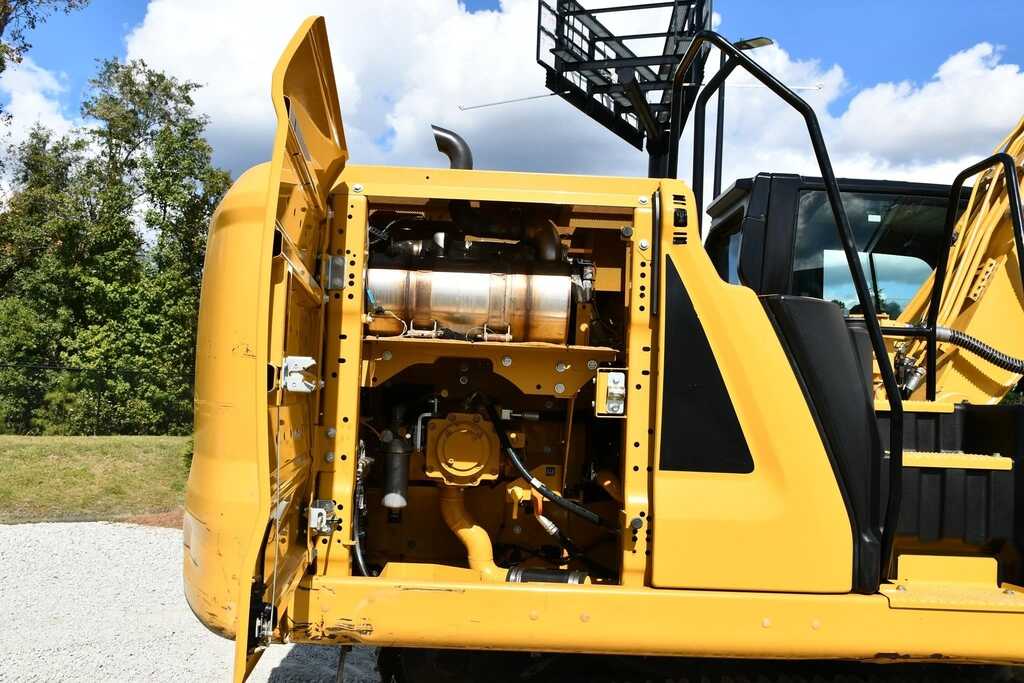

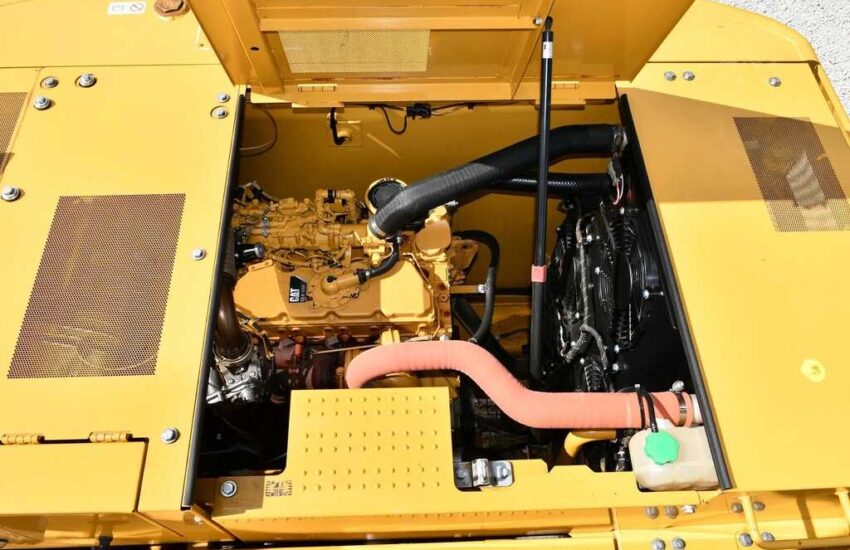

Engine & Cooling System

Engine Oil Level and Operating Condition: Good
Fan and Water Pump: Good

Electrical, Starting, and Charging System

Alternator, Battery, Master Disconnect, and Starter: Good

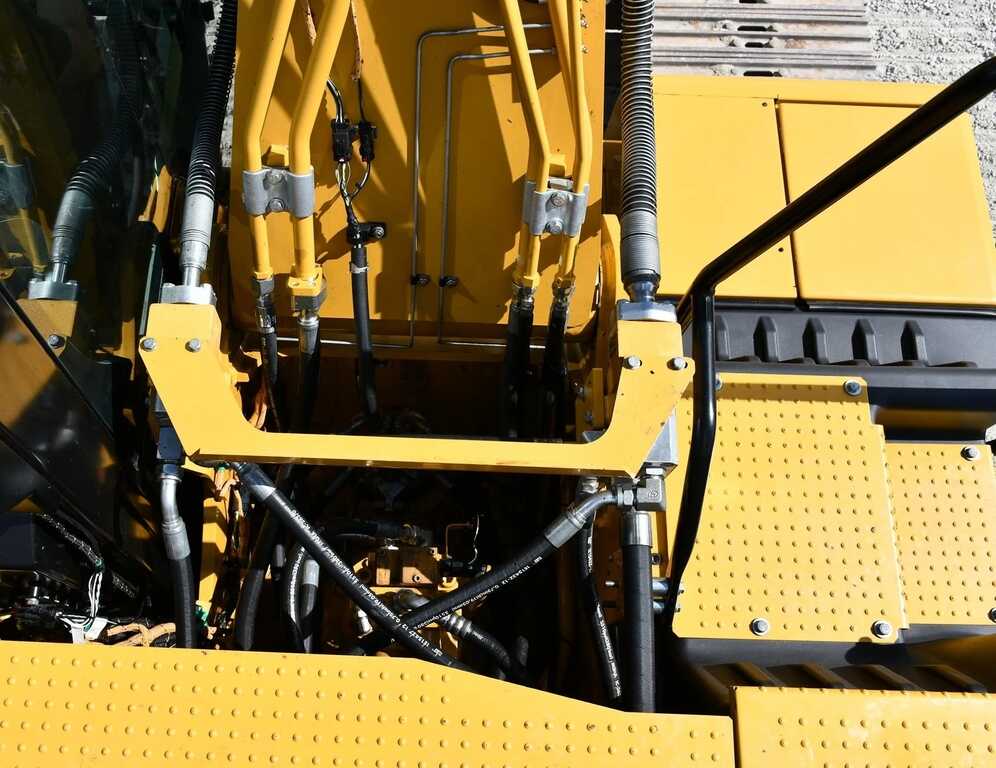

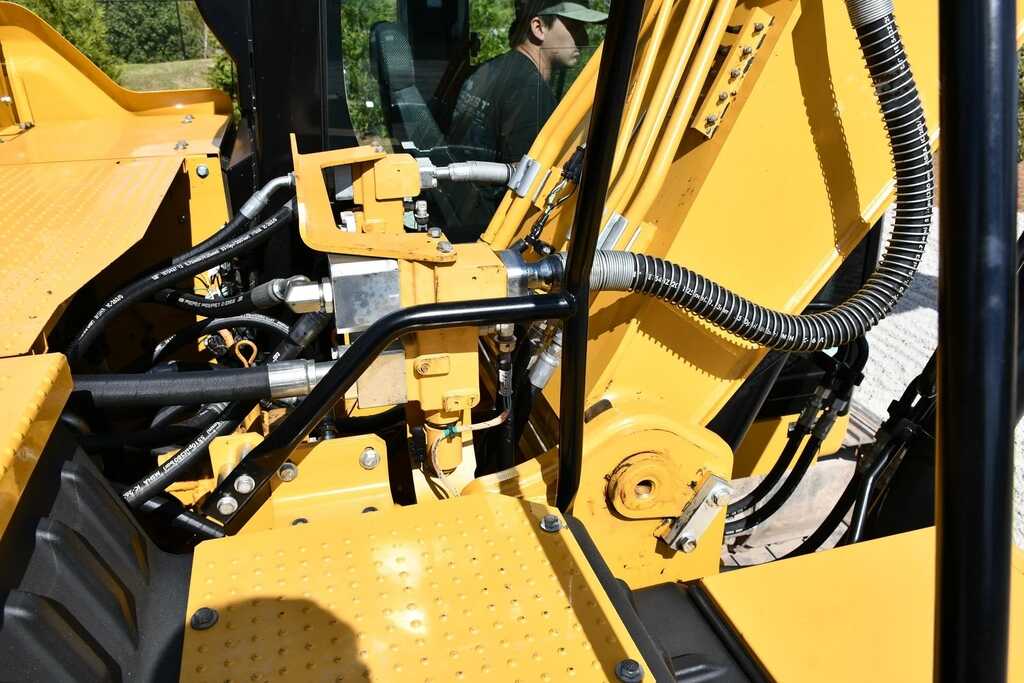

Hydraulic System

Hydraulic Function: Good

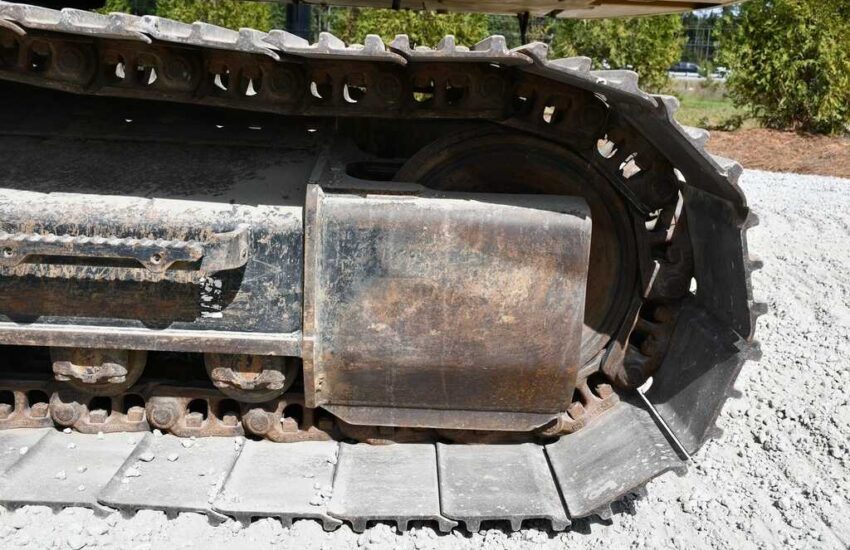

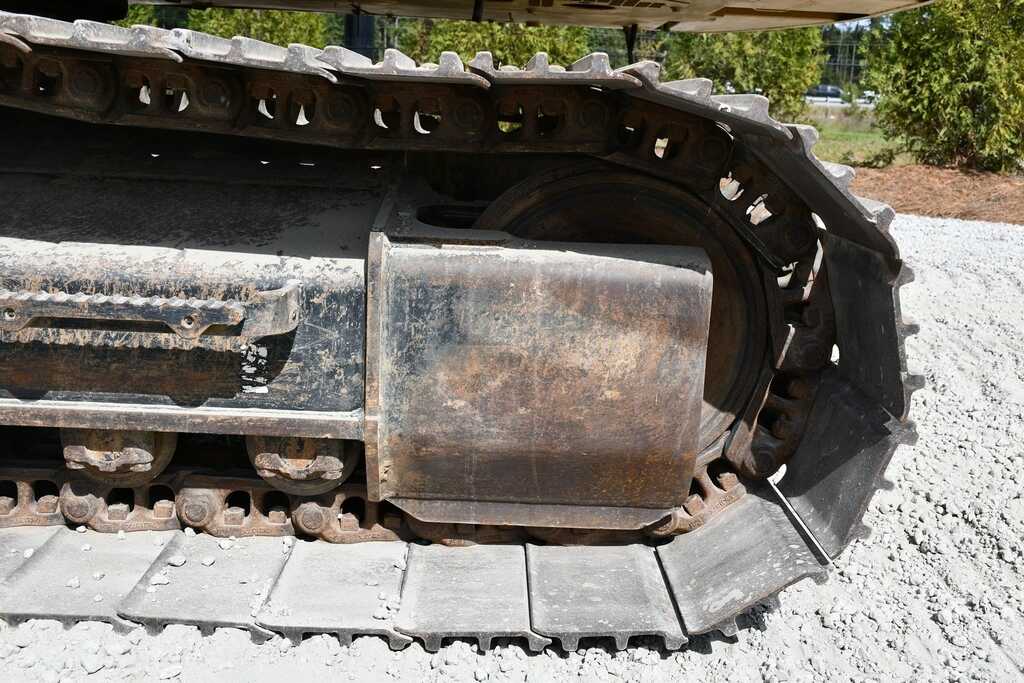

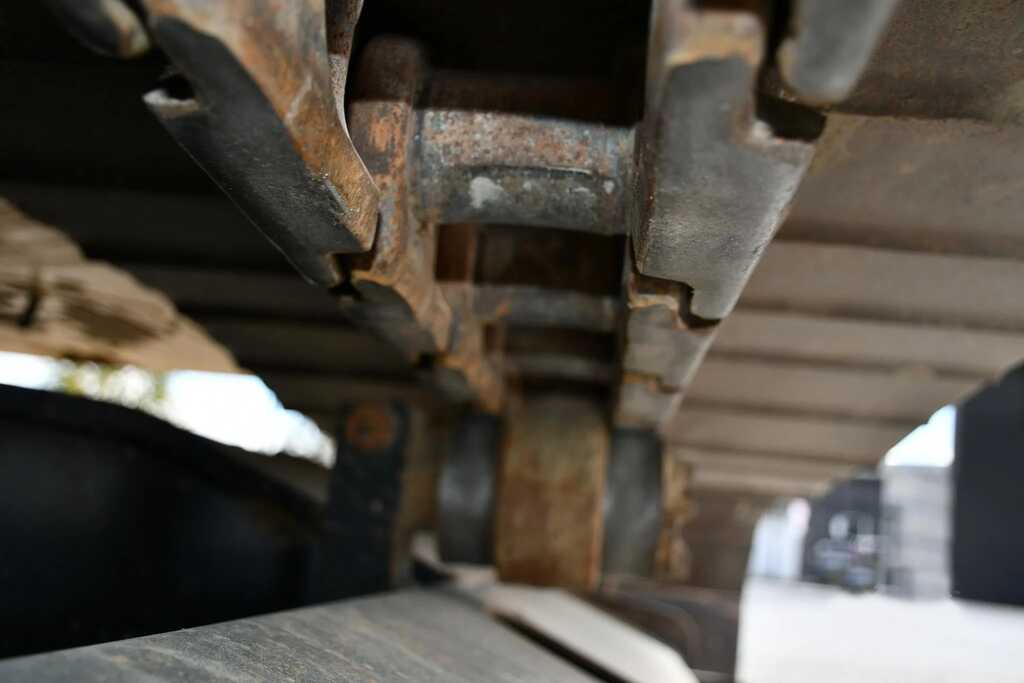

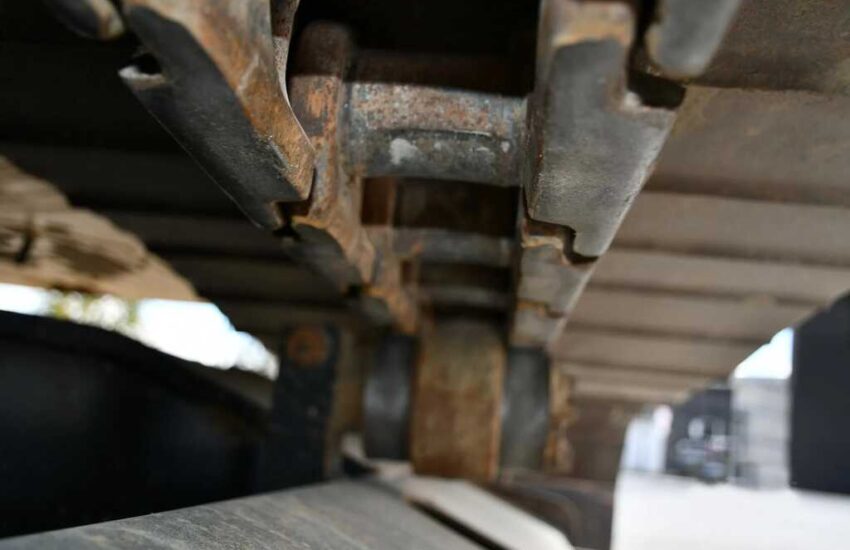

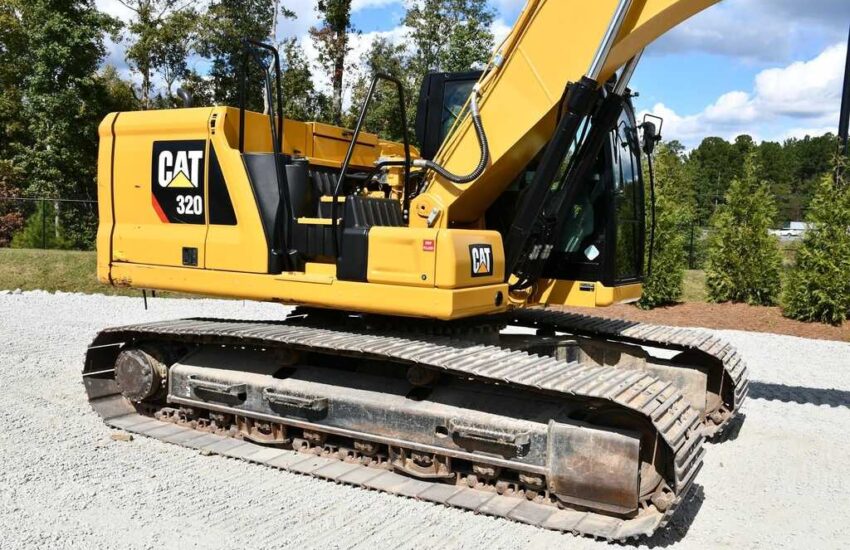

Undercarriage Condition

Pins and Bushings Turned: No
Track Shoes: 10% worn on both sides
Track Sag: Left 1.00″, Right 0.75″
Links: 9% worn
External Bushings: Left 40%, Right 56%
Internal Bushings: 10% worn on both sides
Carrier Rollers 1 and 2: 12–18% worn
Track Roller 1: 14% worn (Left)
Track Roller 2: 7–11% worn
Track Roller 4: 7–11% worn
Track Roller 5: 4–7% worn
Track Rollers 7 and 8: 14–18% worn
Front Idlers: 21% worn
Shoe Width: 31.10″ on both sides
