Details
-
Industry:
-
Make:
-
Model:
-
Color:
-
Transmission:
-
Condition:
-
Year:2019
-
Fuel Type:
-
Engine:Cat C3.3B
-

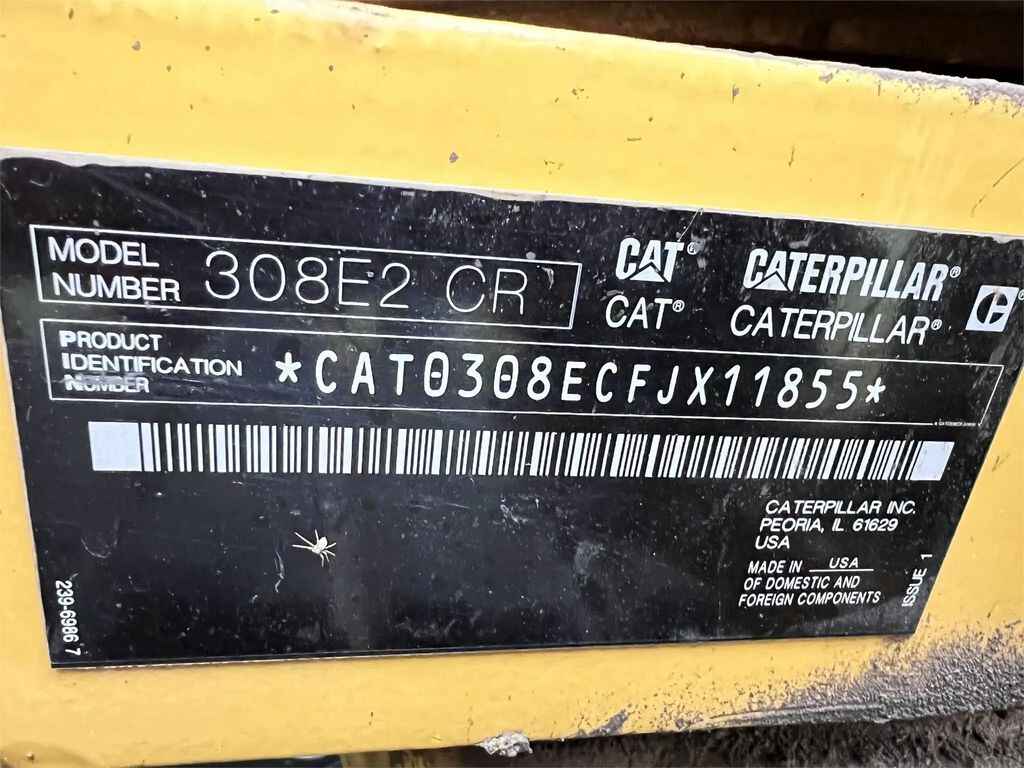

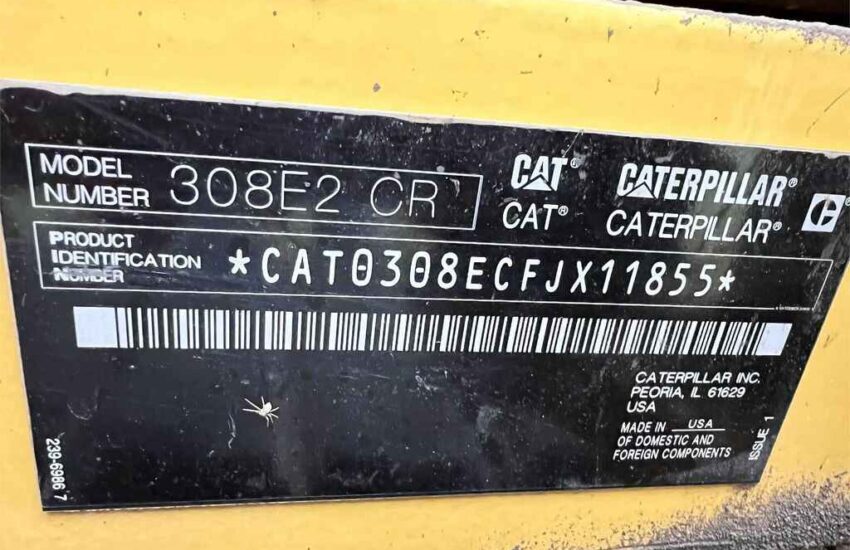

Serial:CFJX11855
-

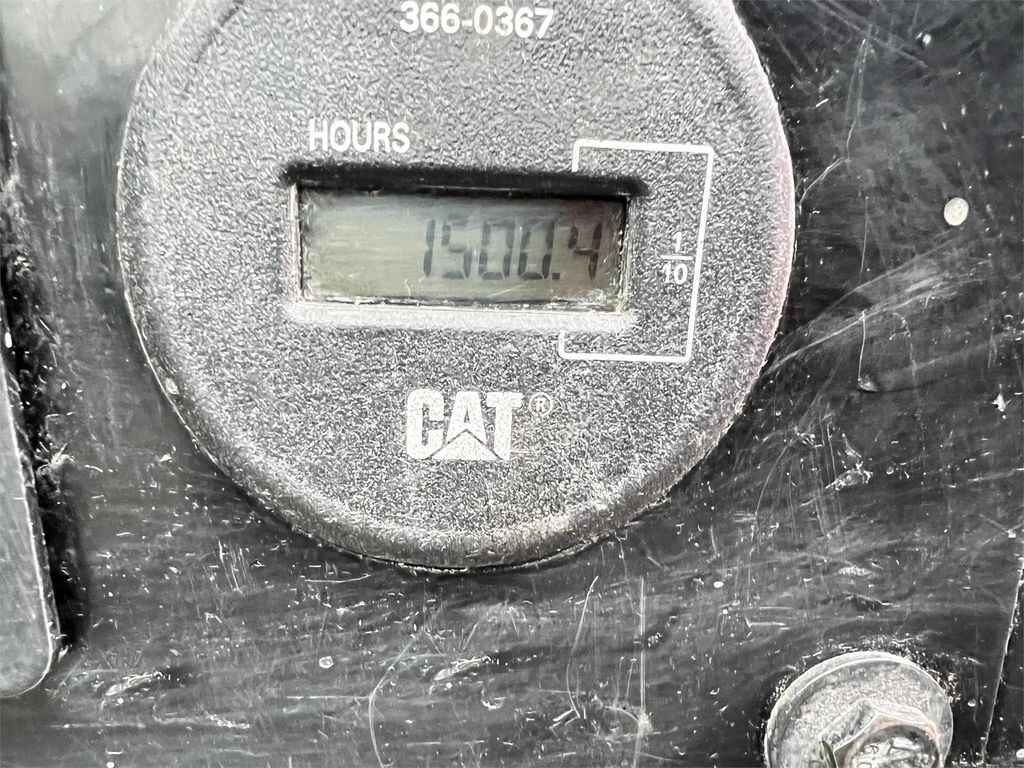

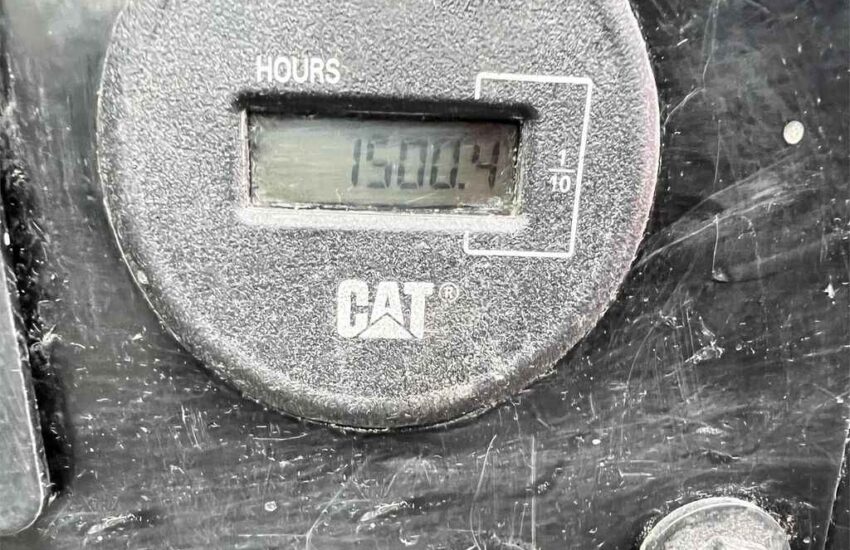

Hours:1500
-
Stock#:JX11855
Overview

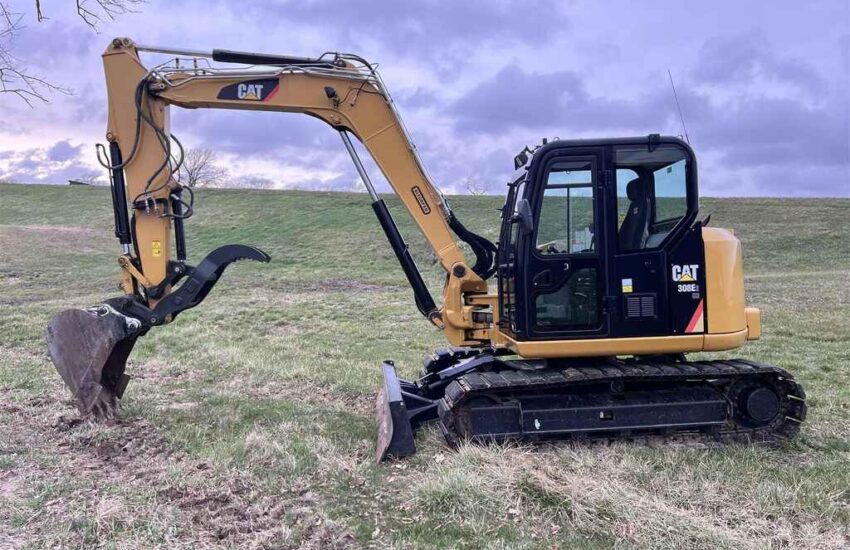

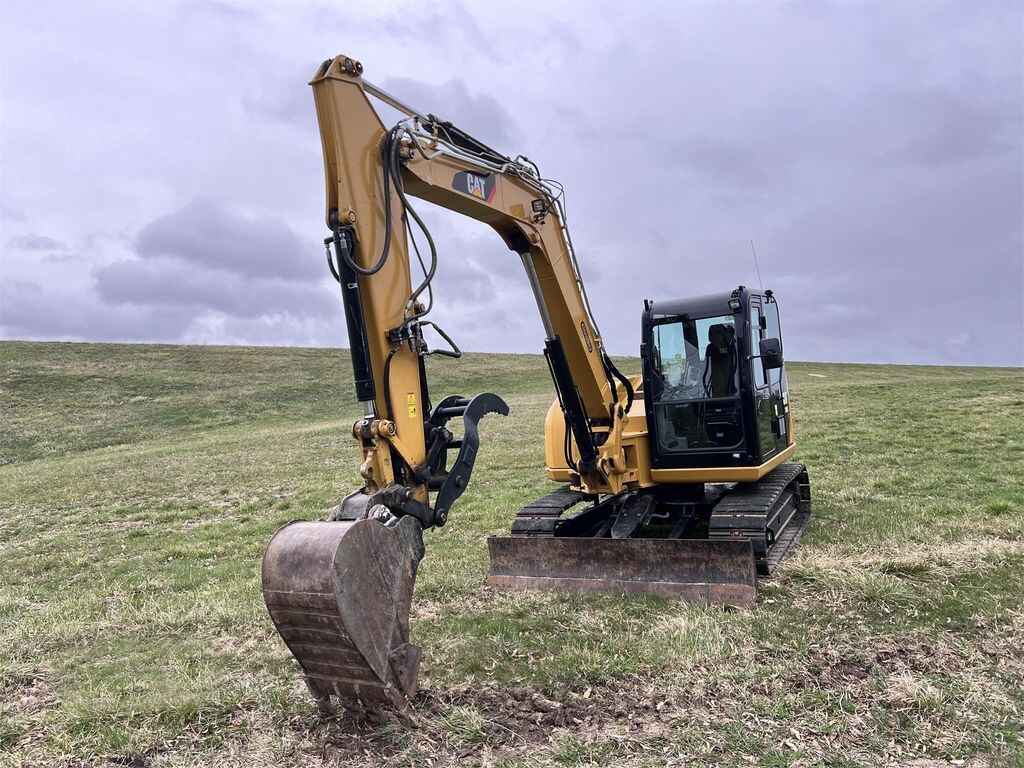

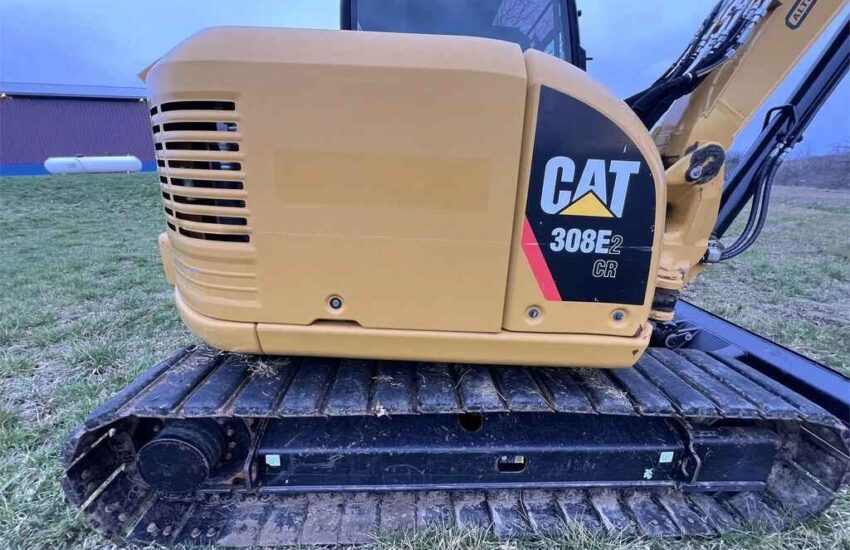

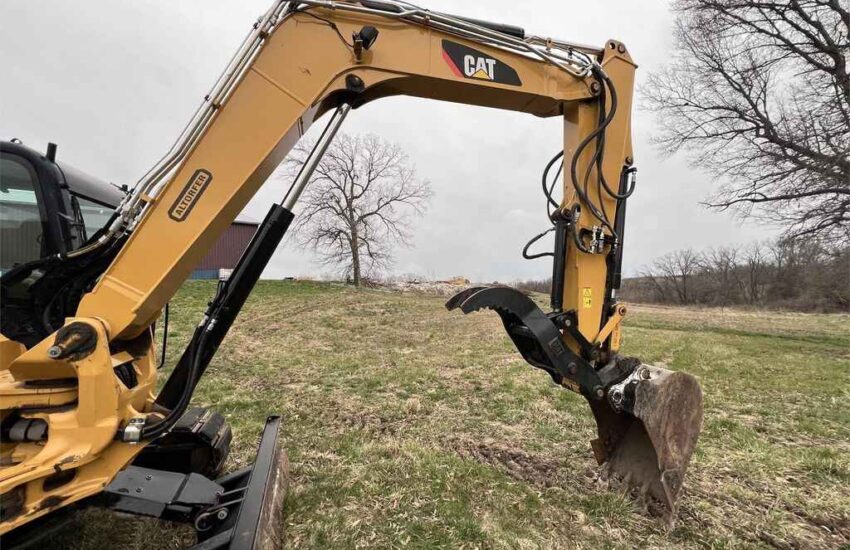

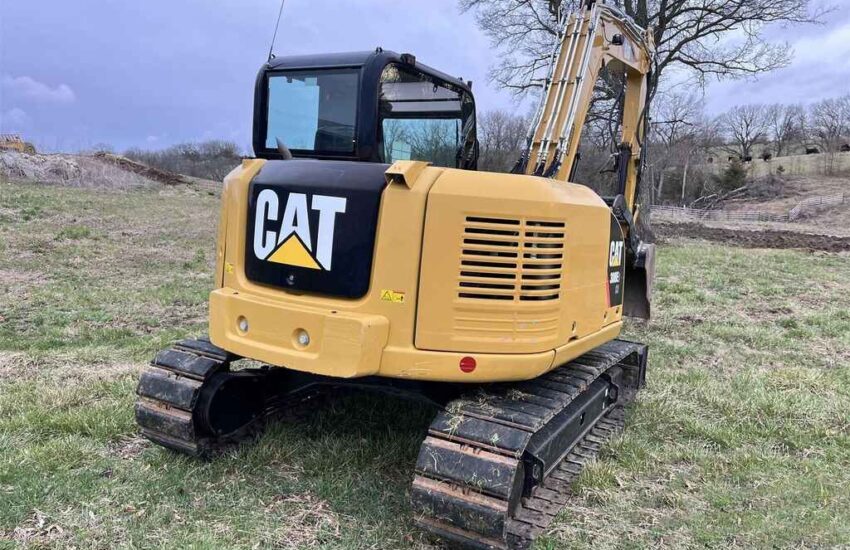

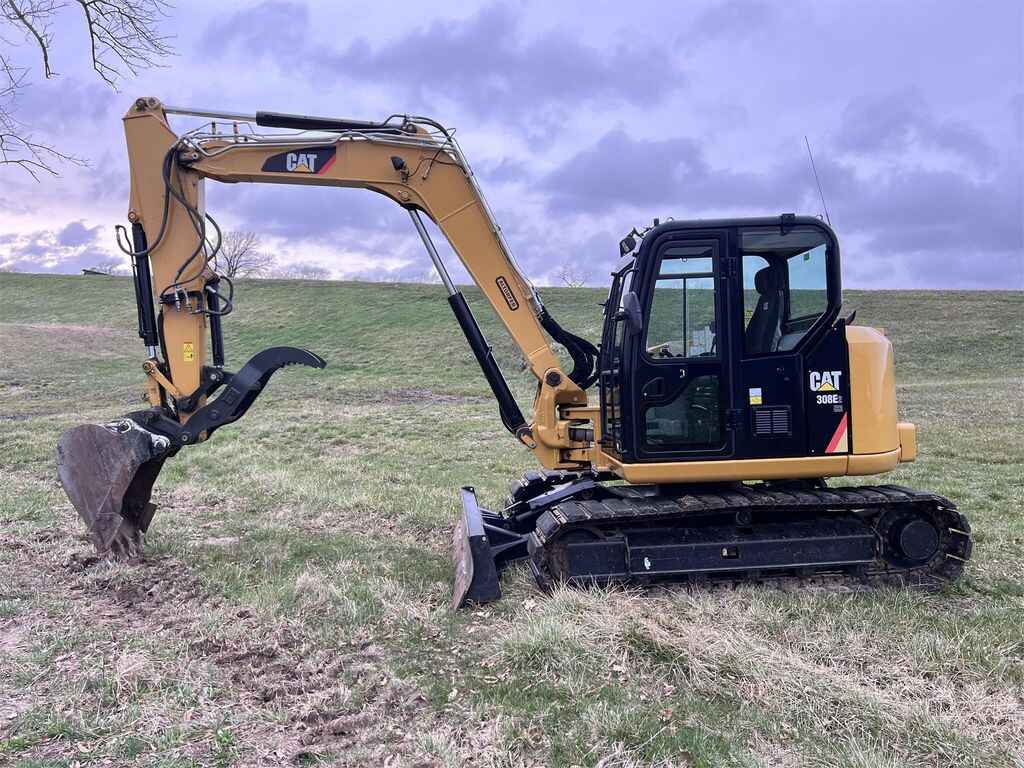

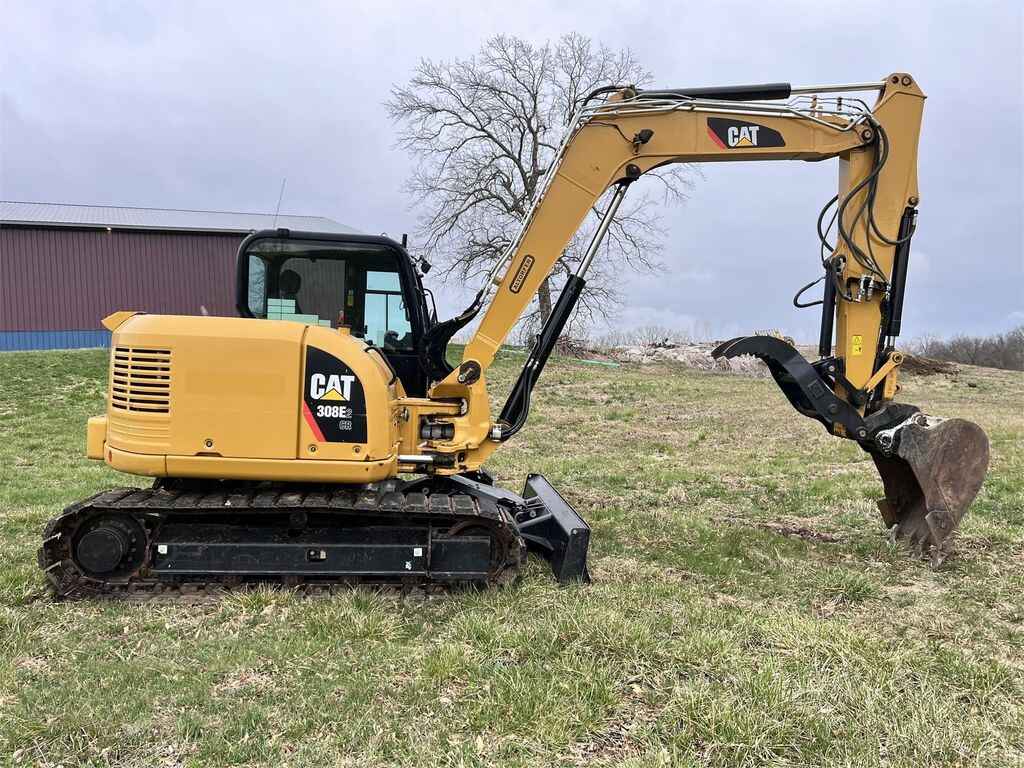

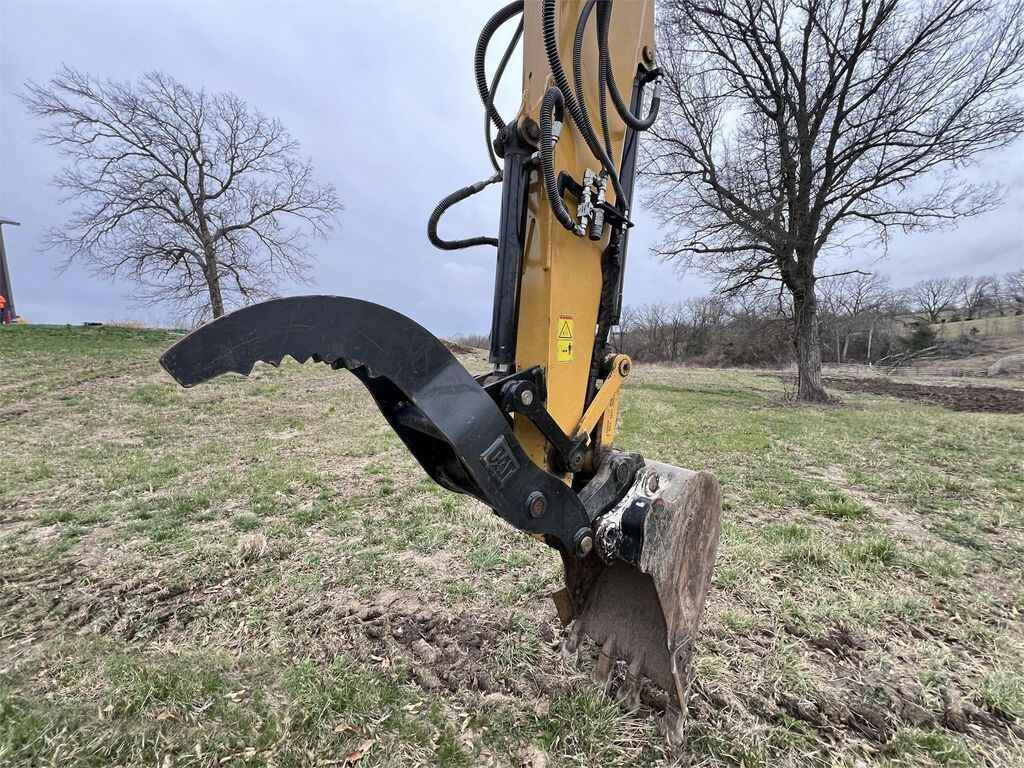

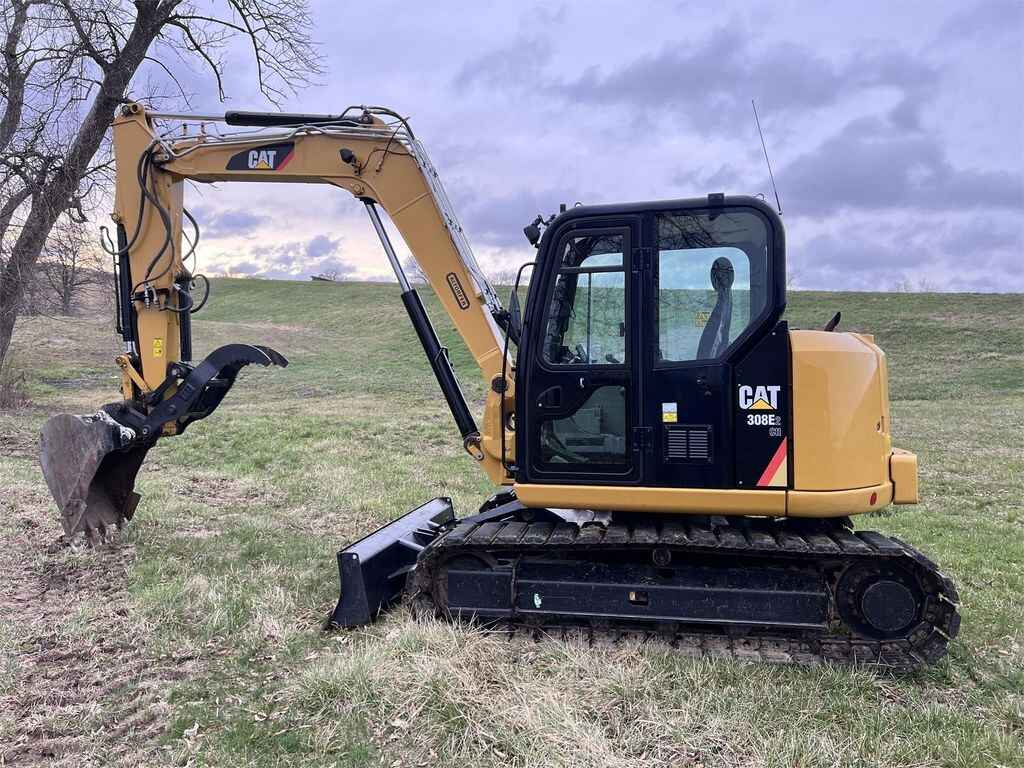

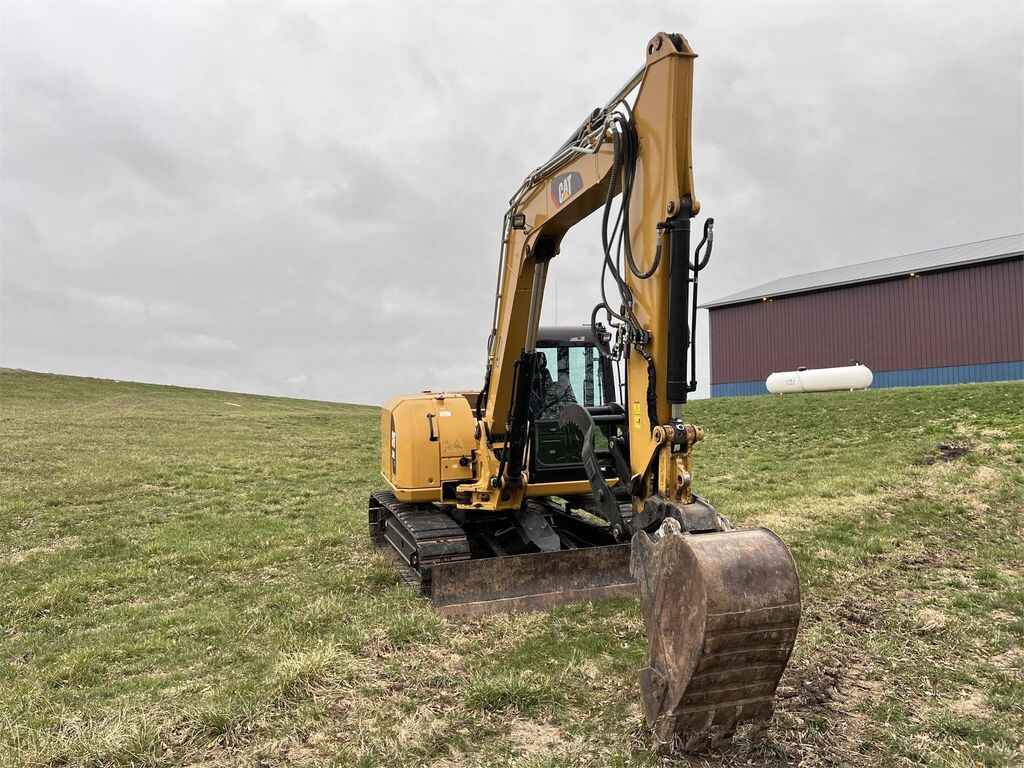

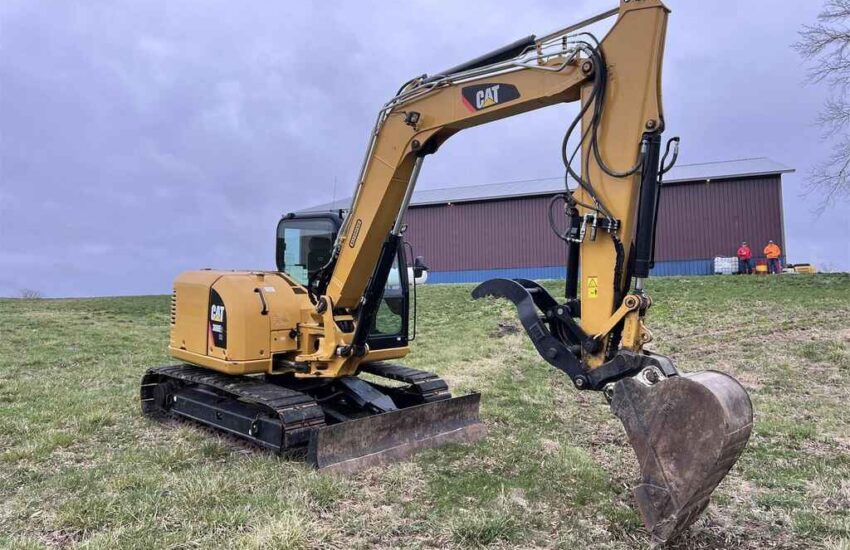

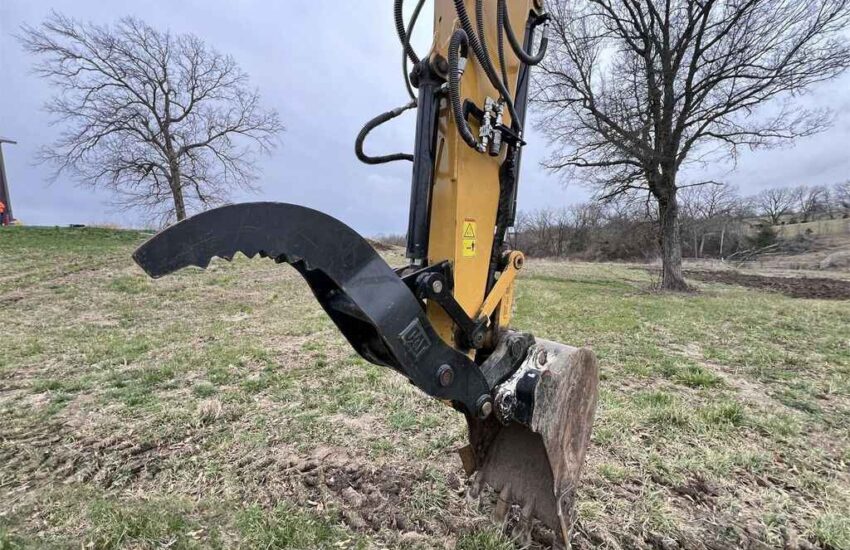

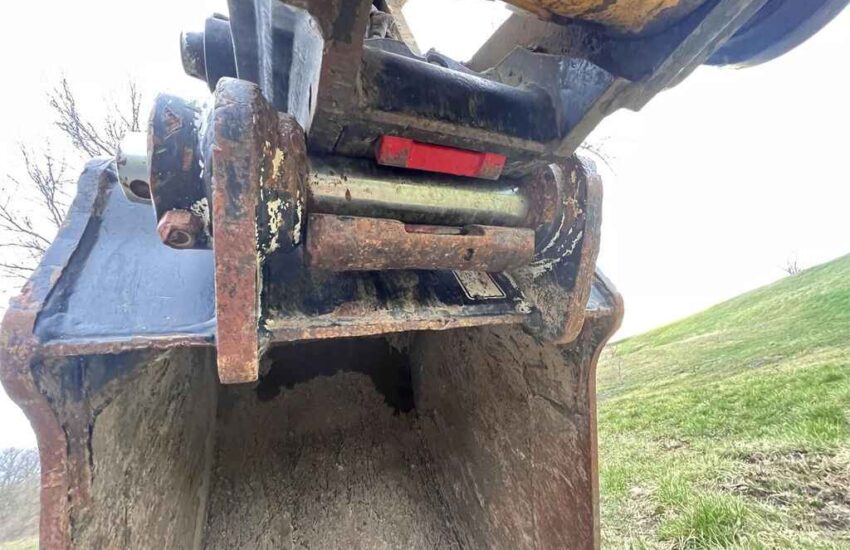

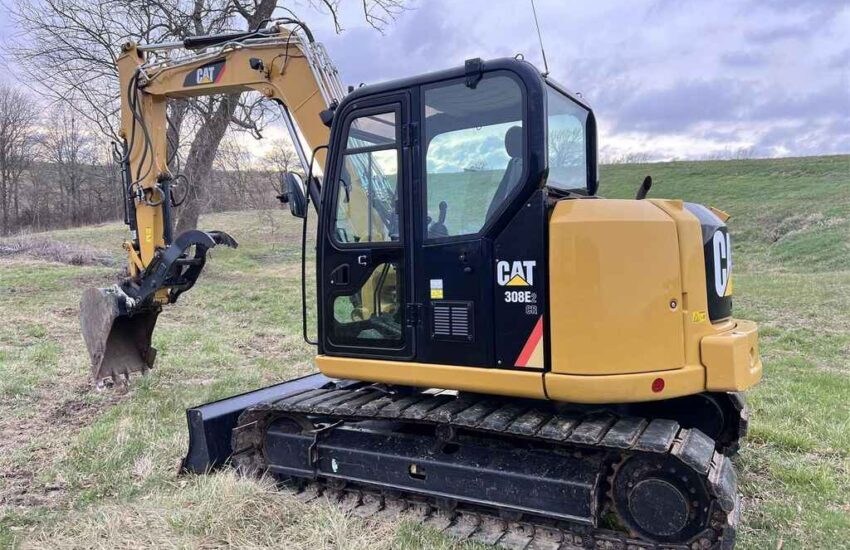

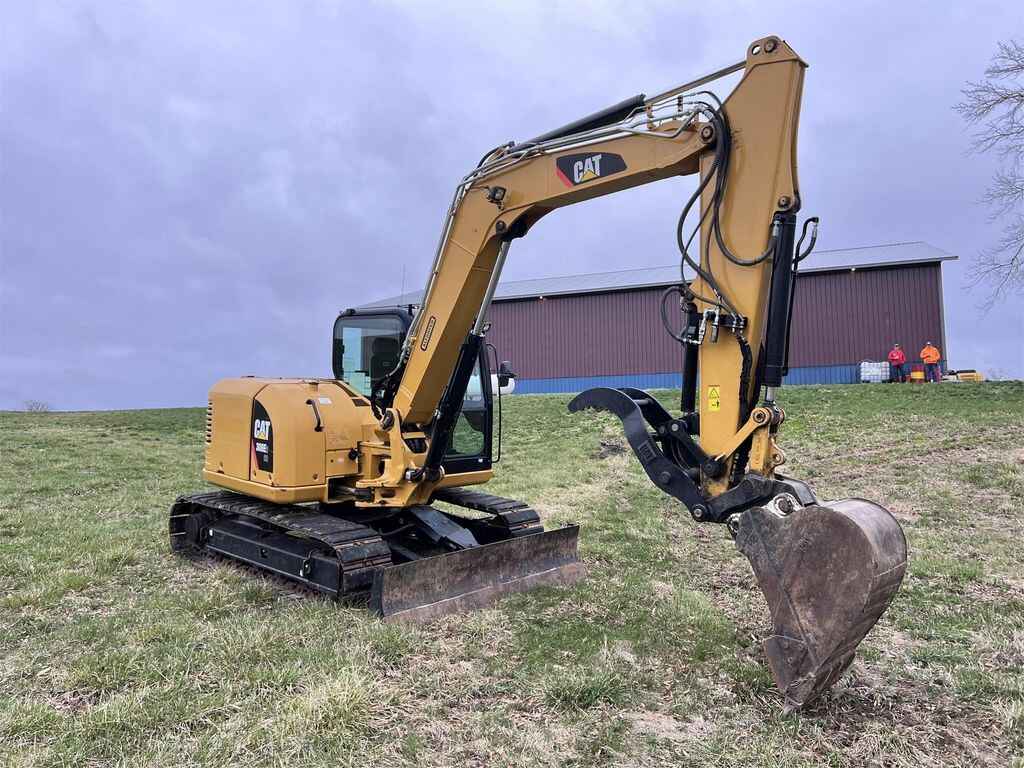

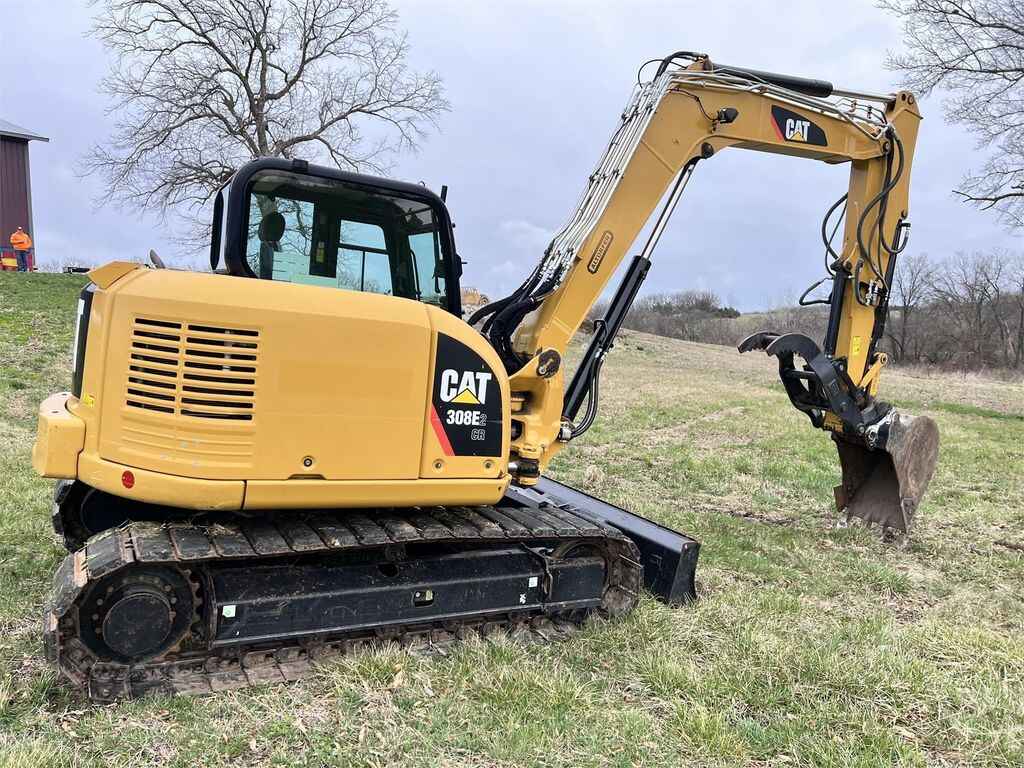

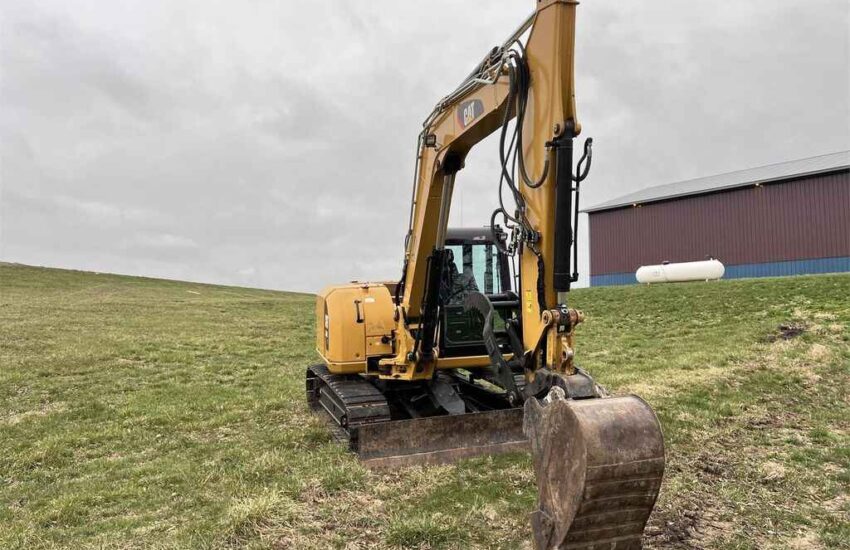

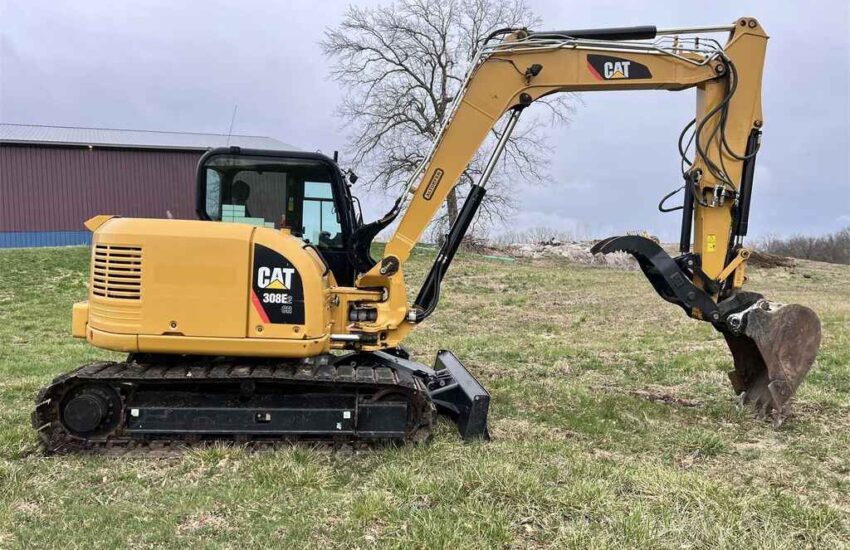

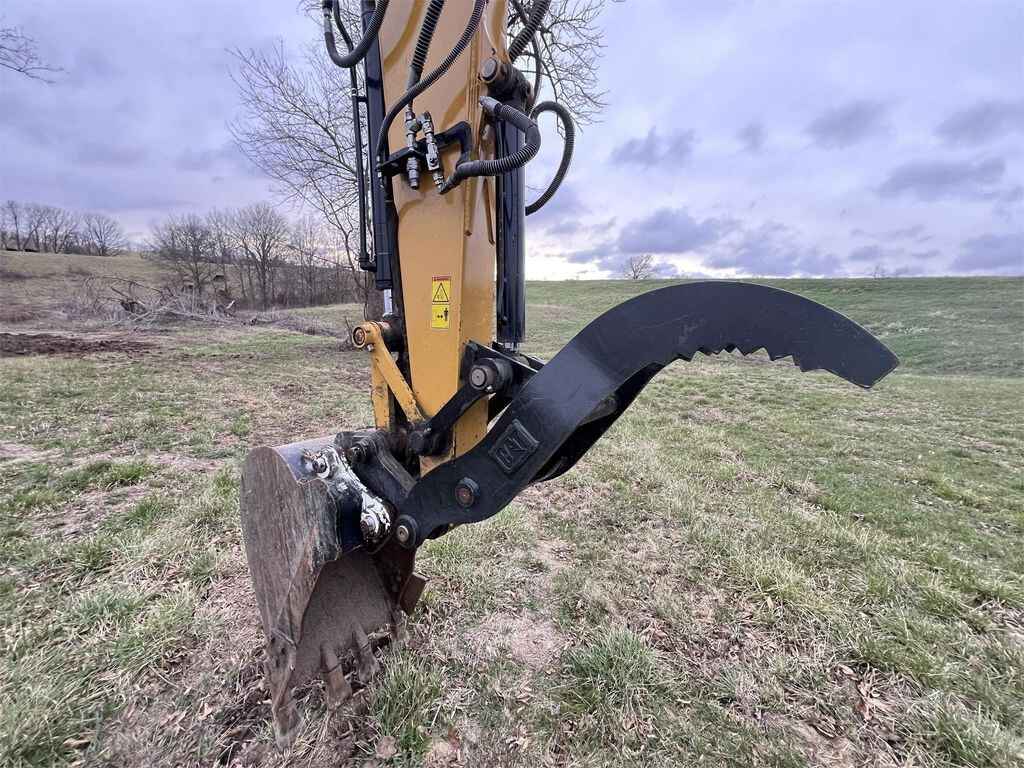

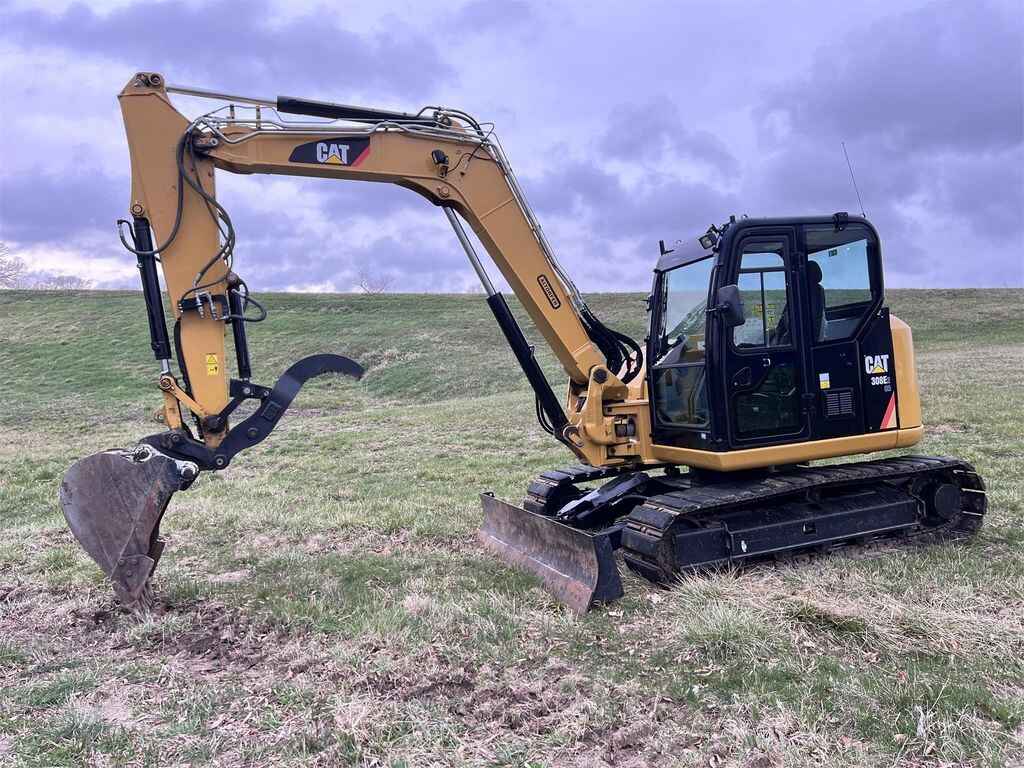

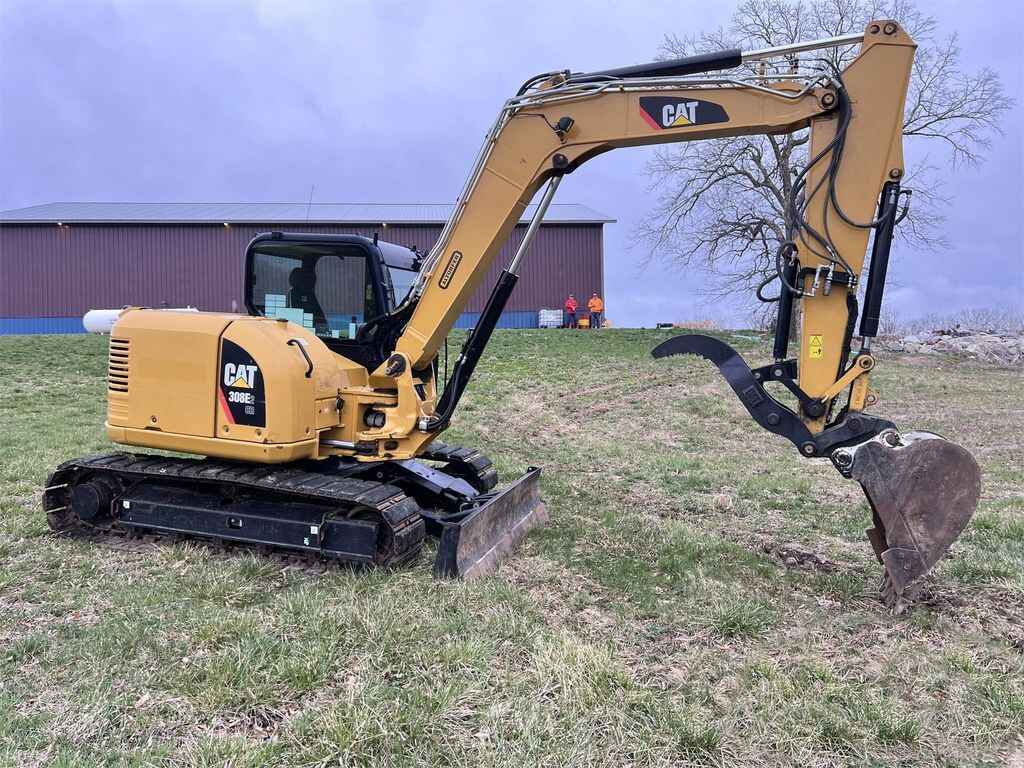

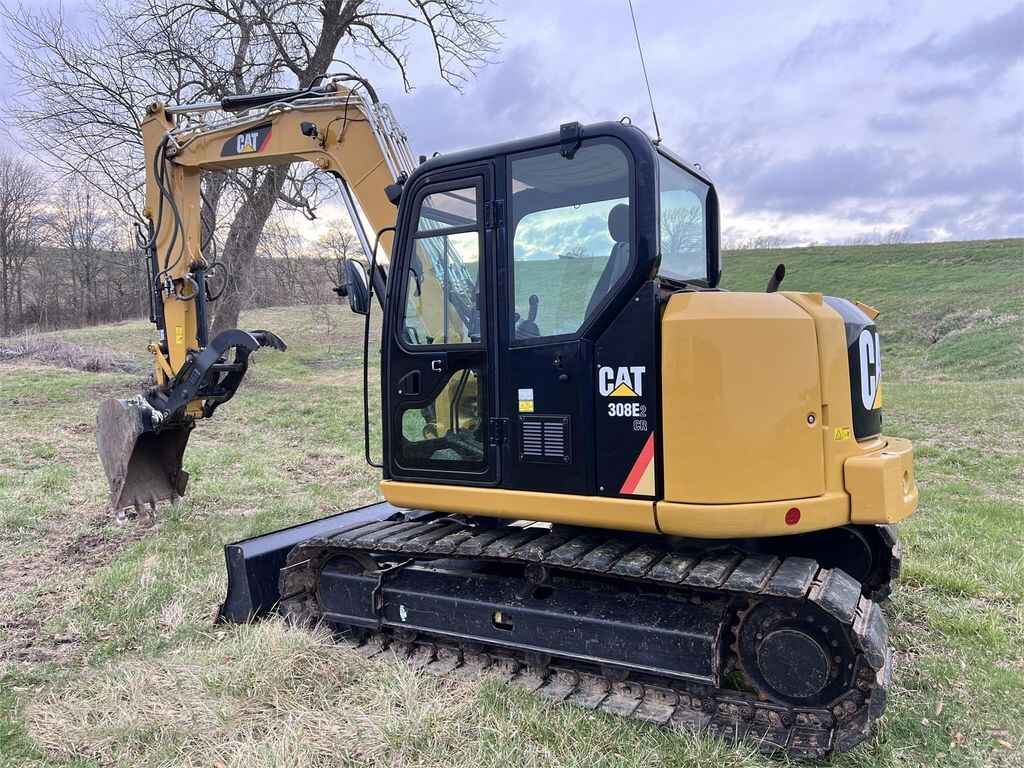

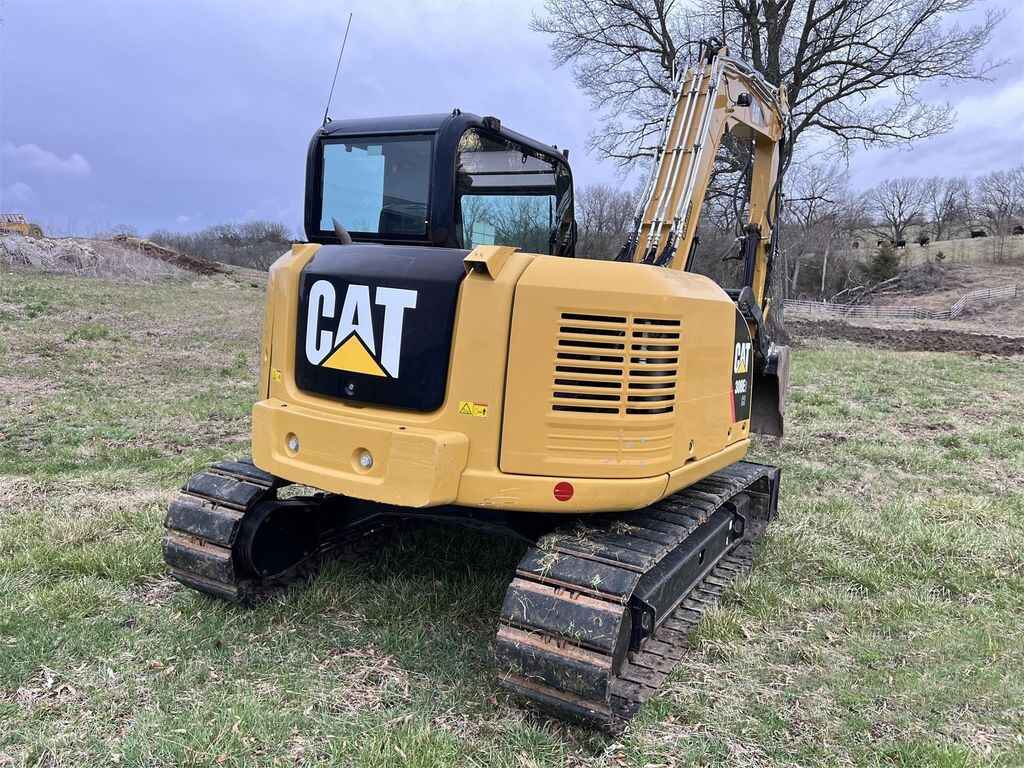

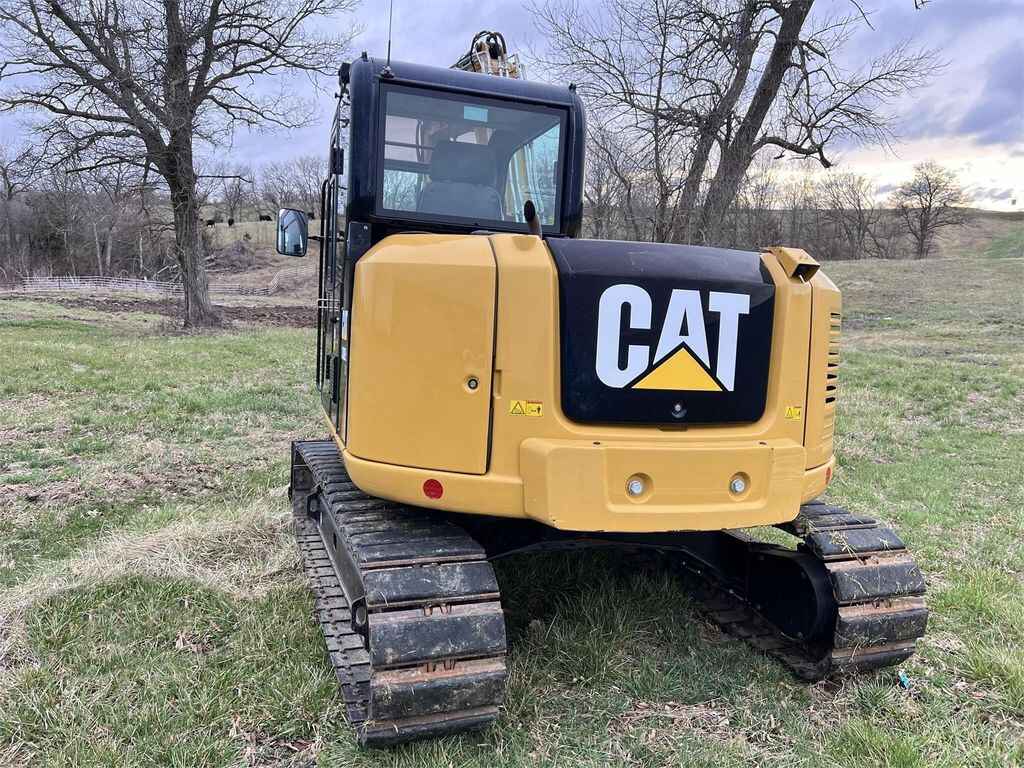

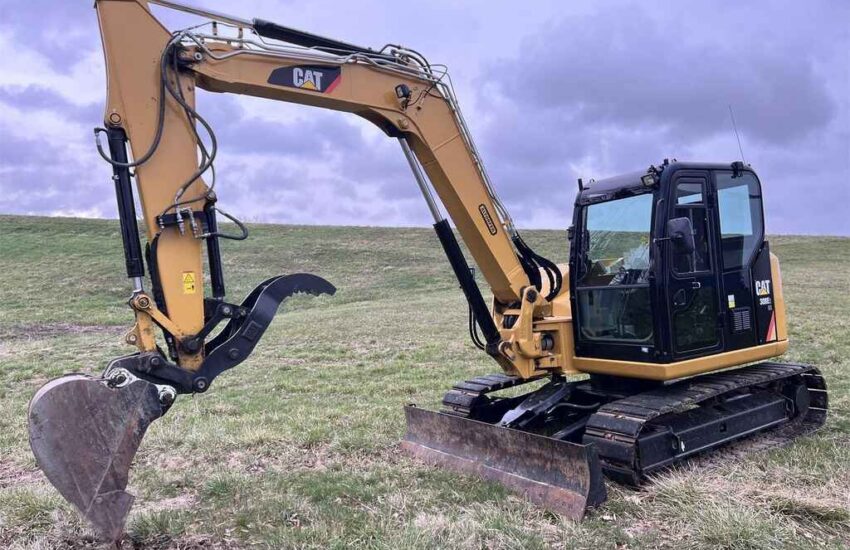

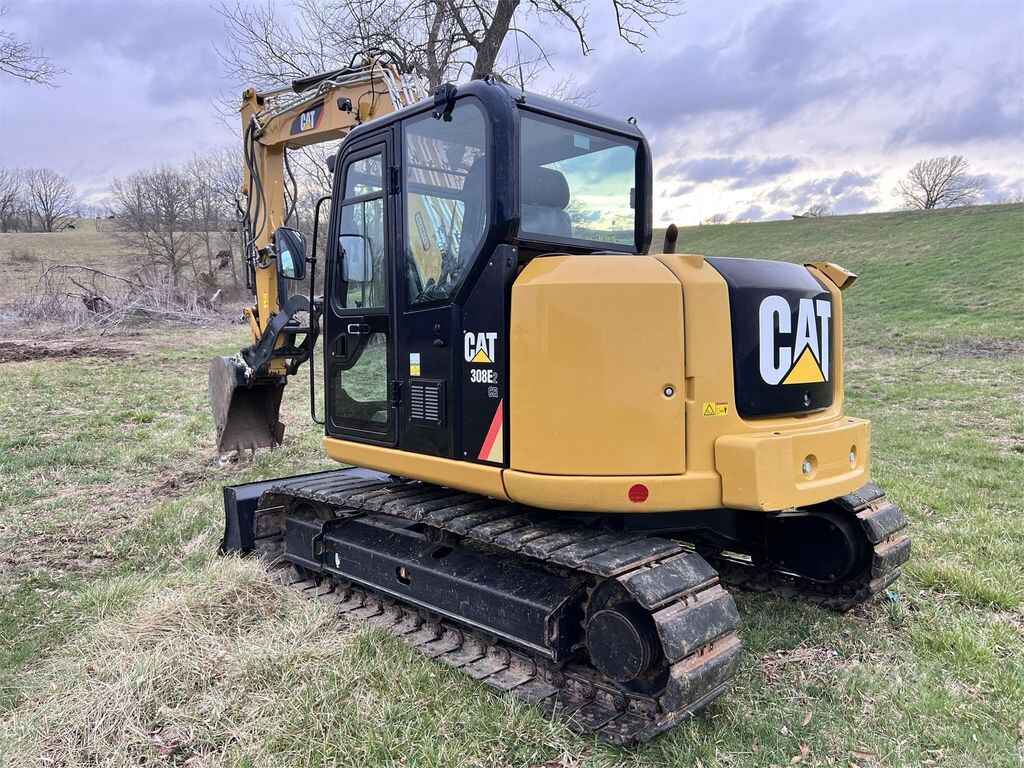

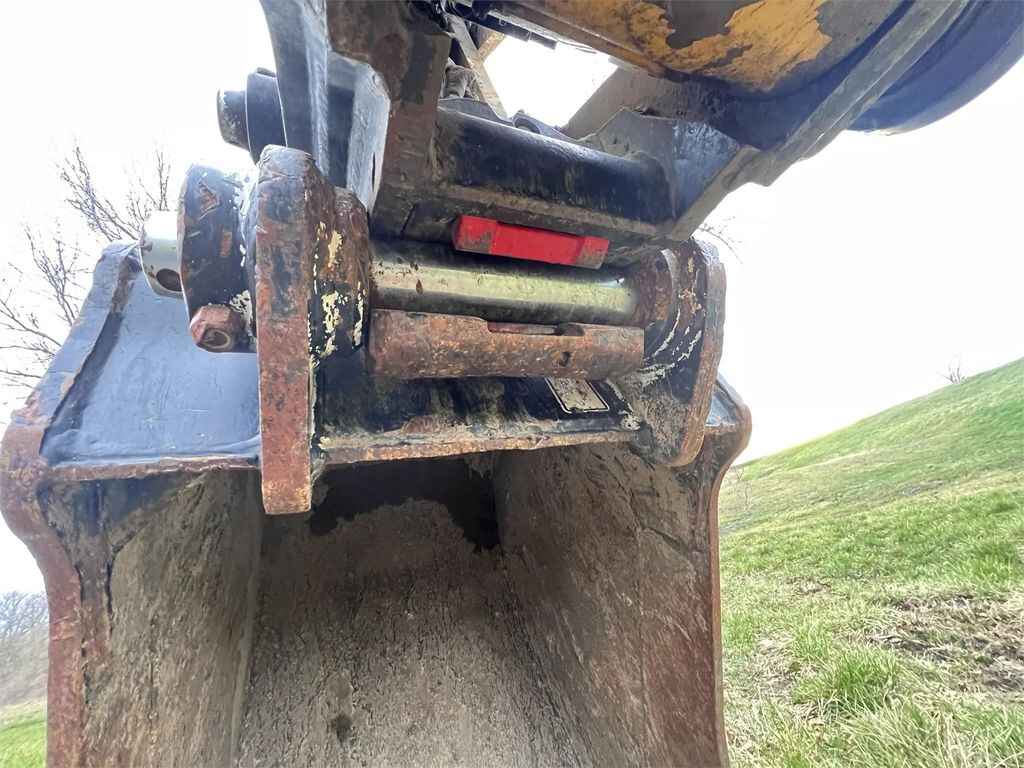

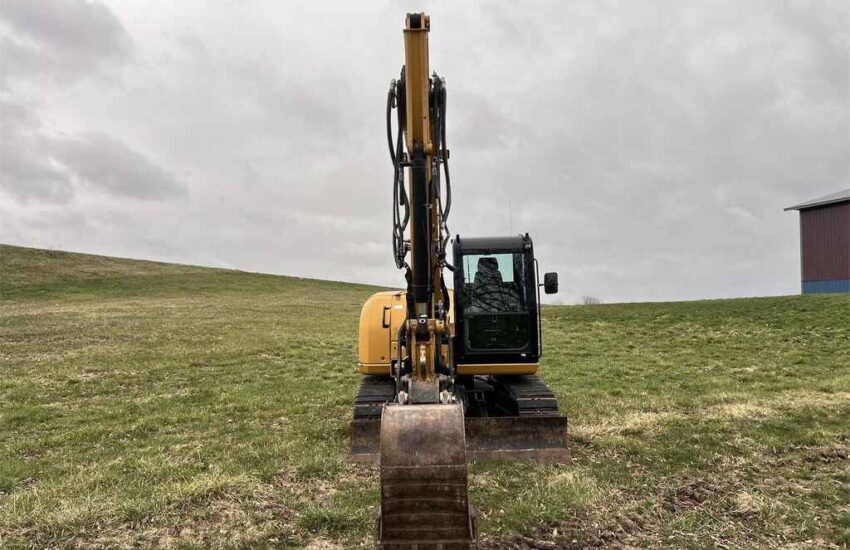

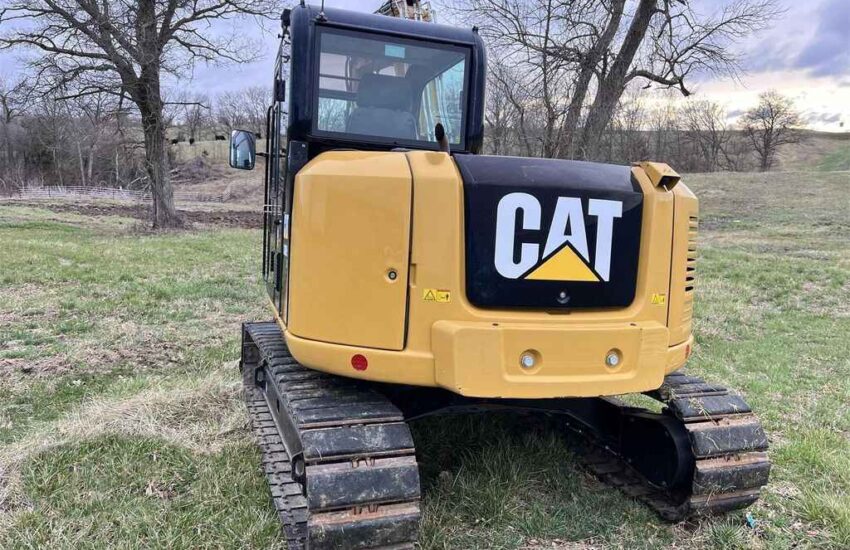

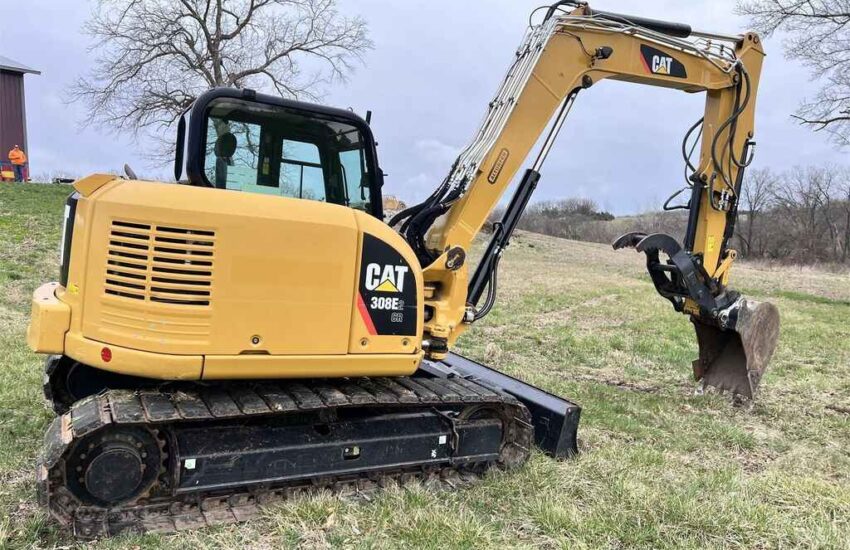

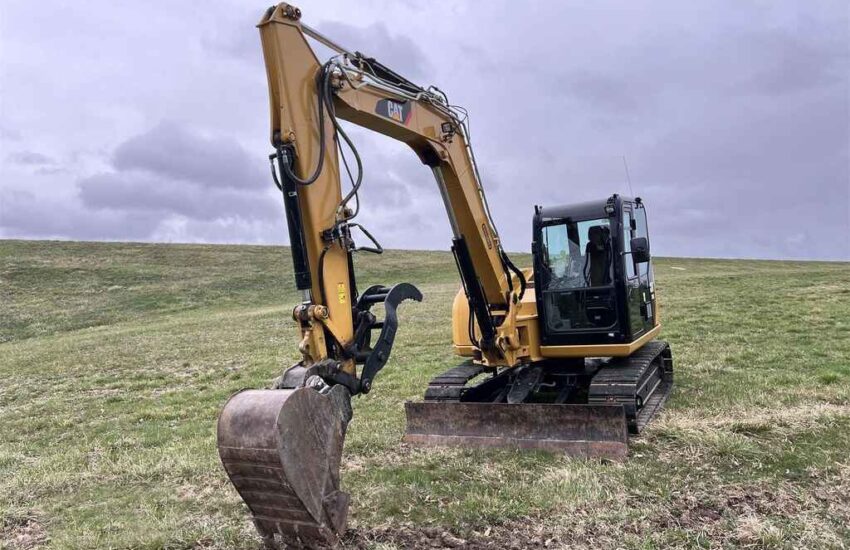

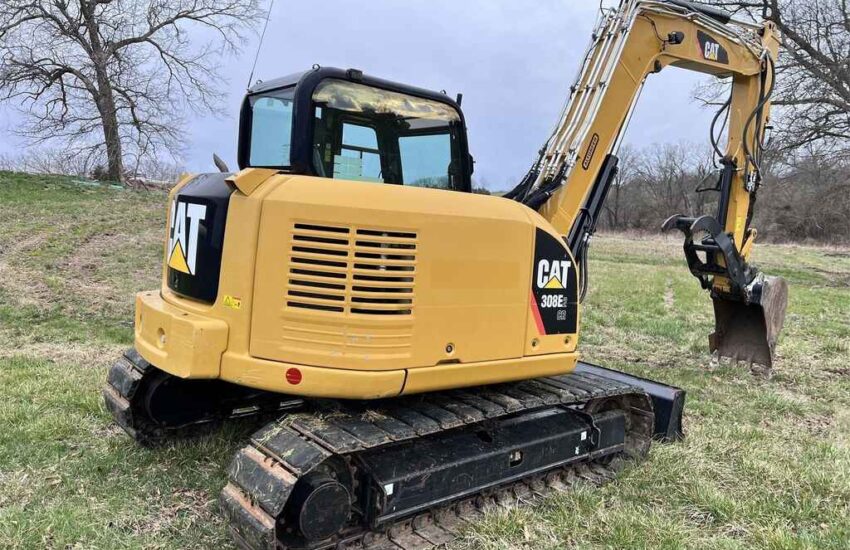

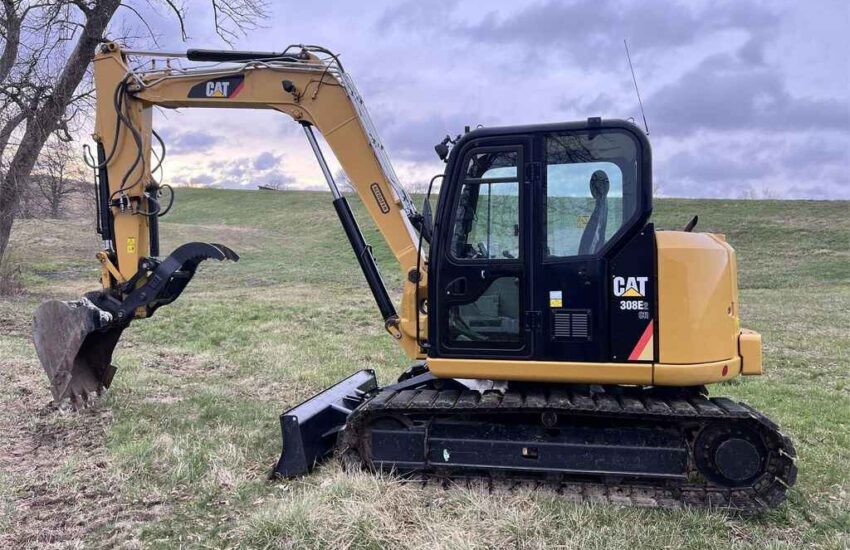

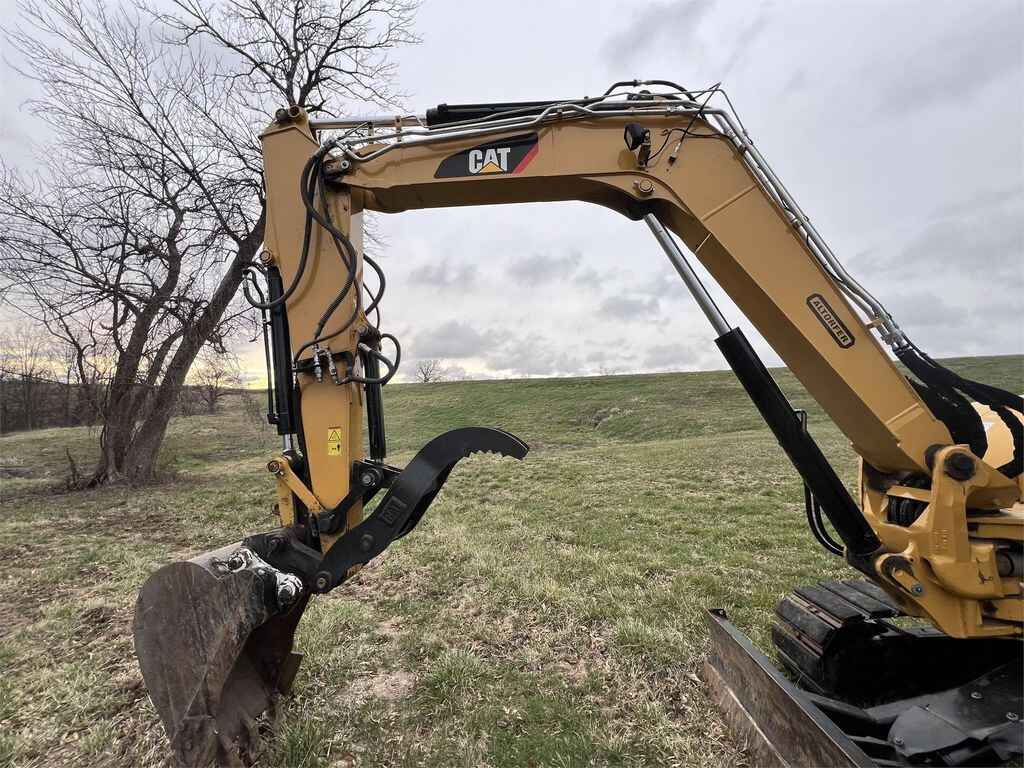

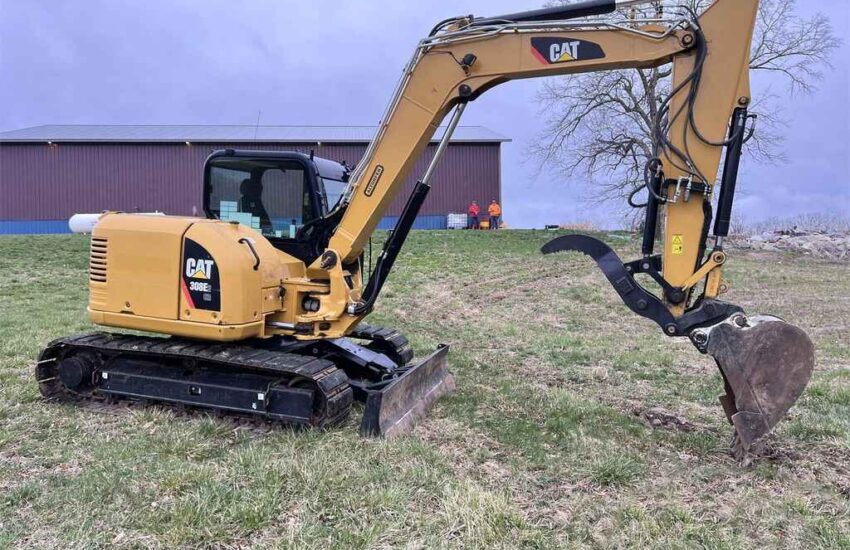

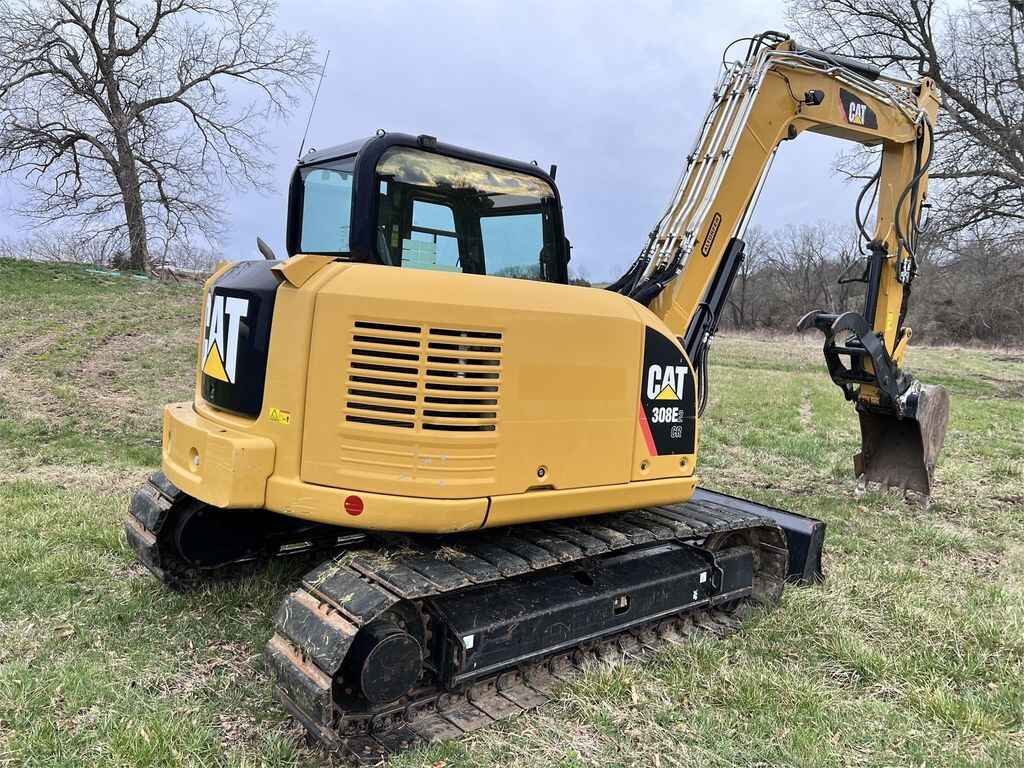

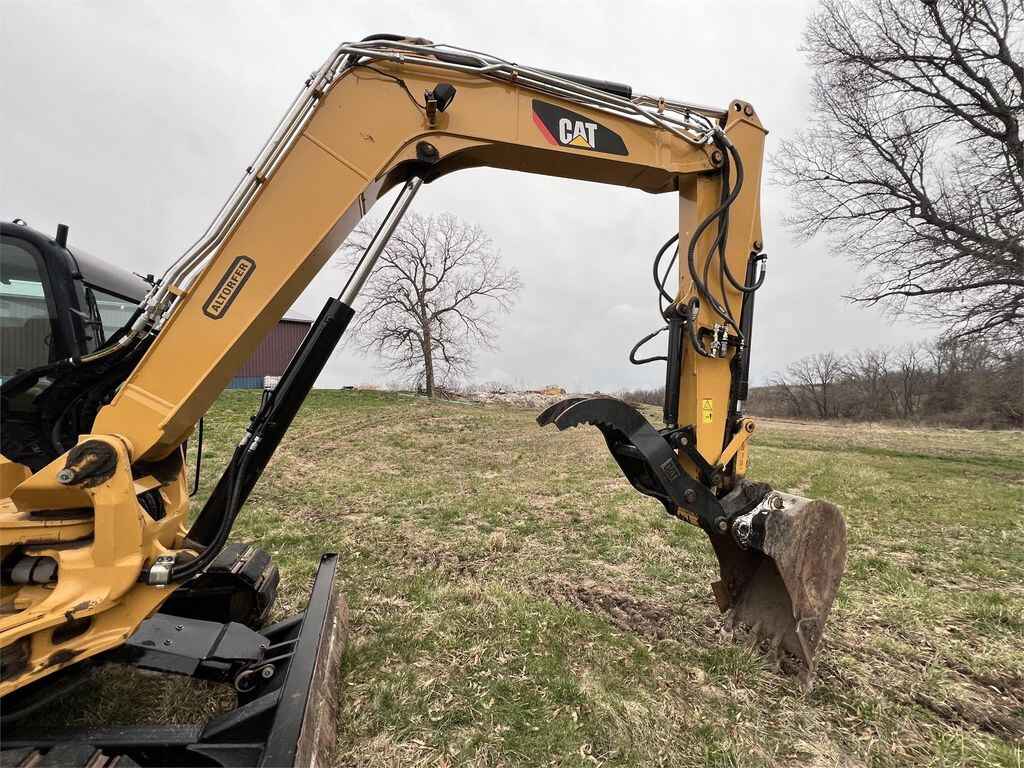

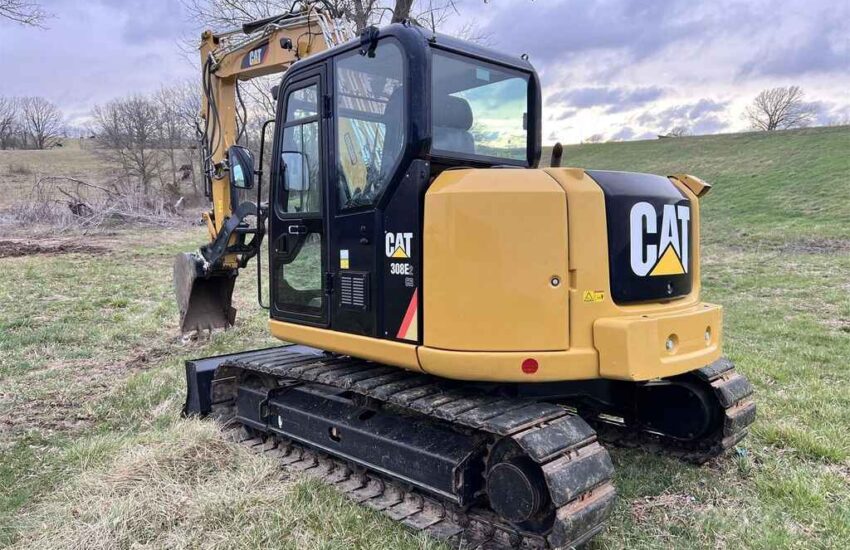

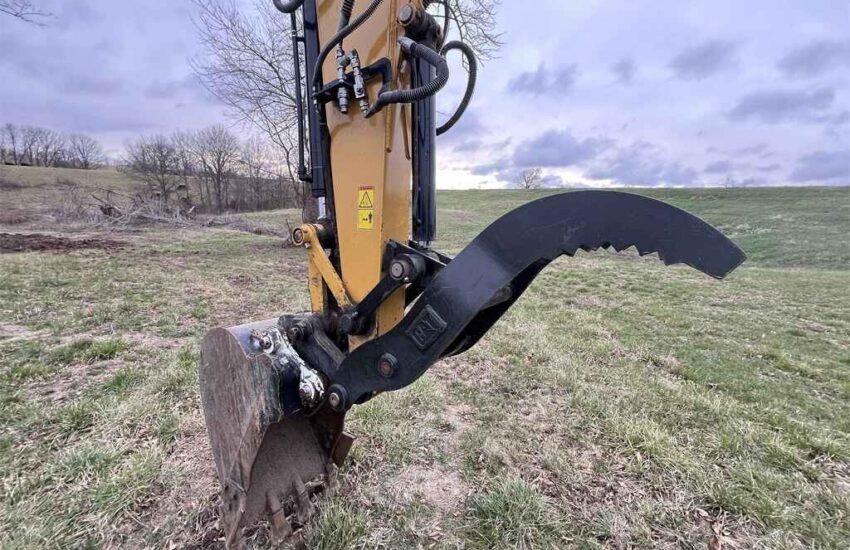

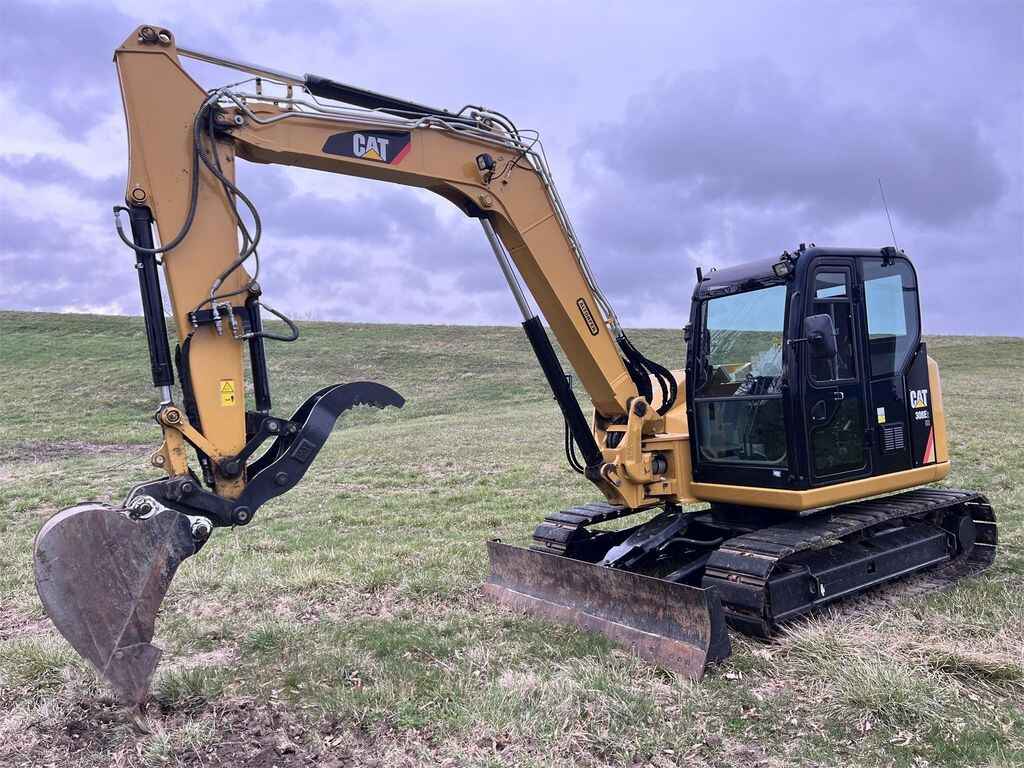

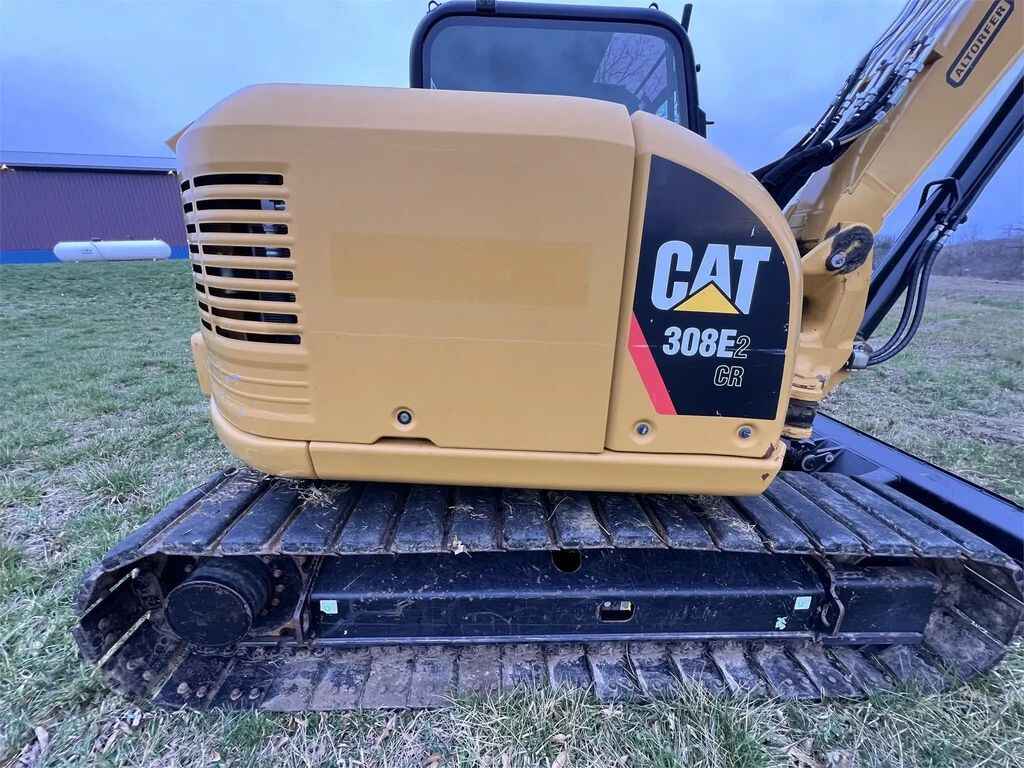

Incredibly clean 308cr E2. Almost showroom condition. Very clean and ready to work. Comes with two buckets. The one shown and a 12 inch bucket as well.
Specifications

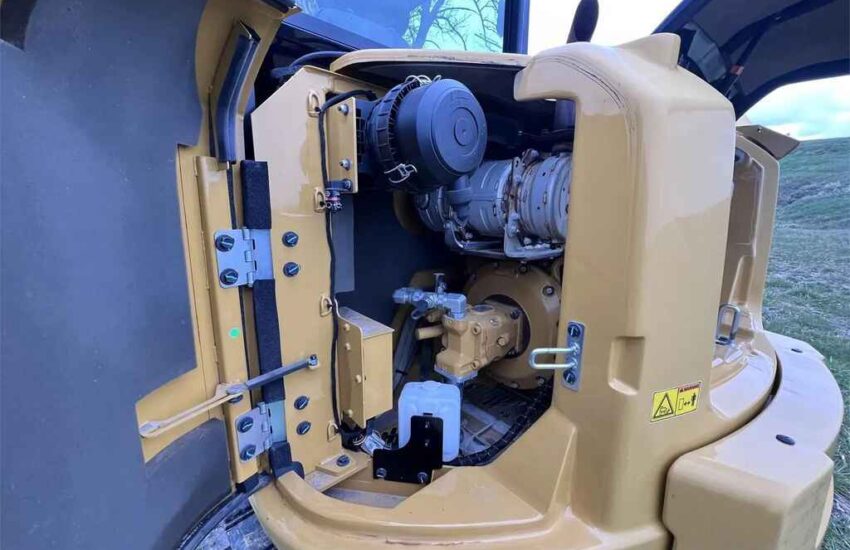

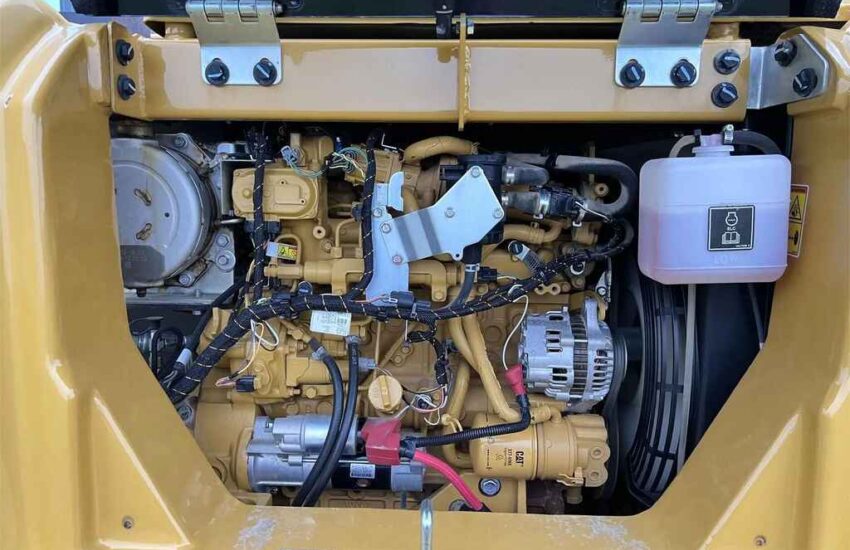

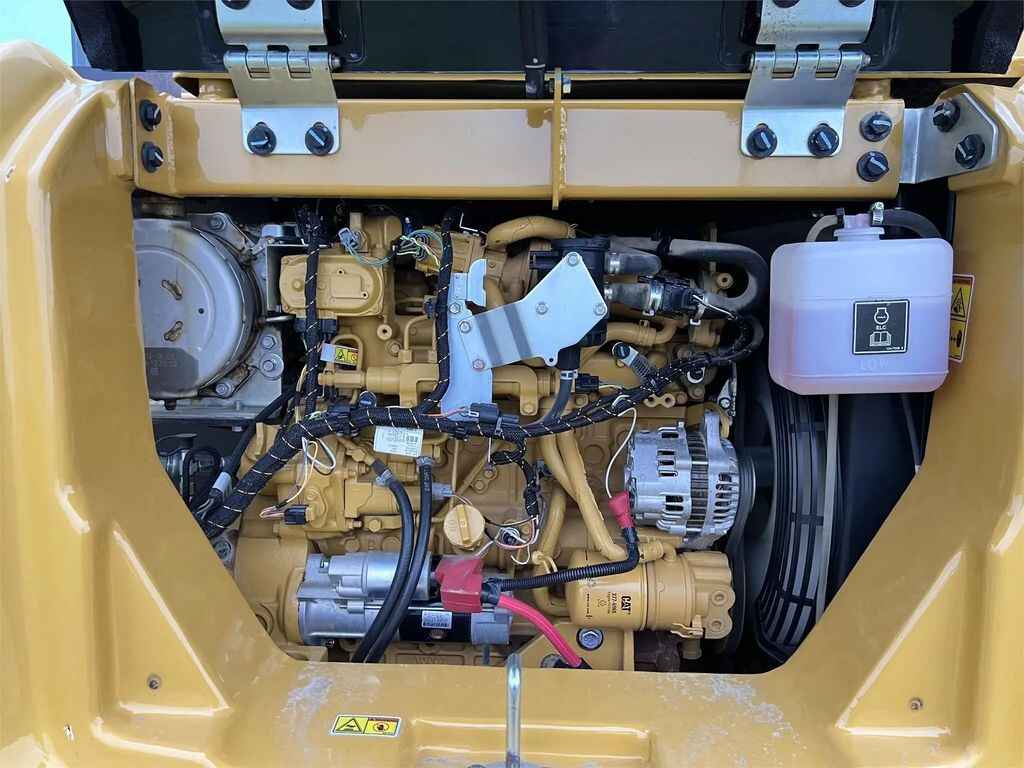

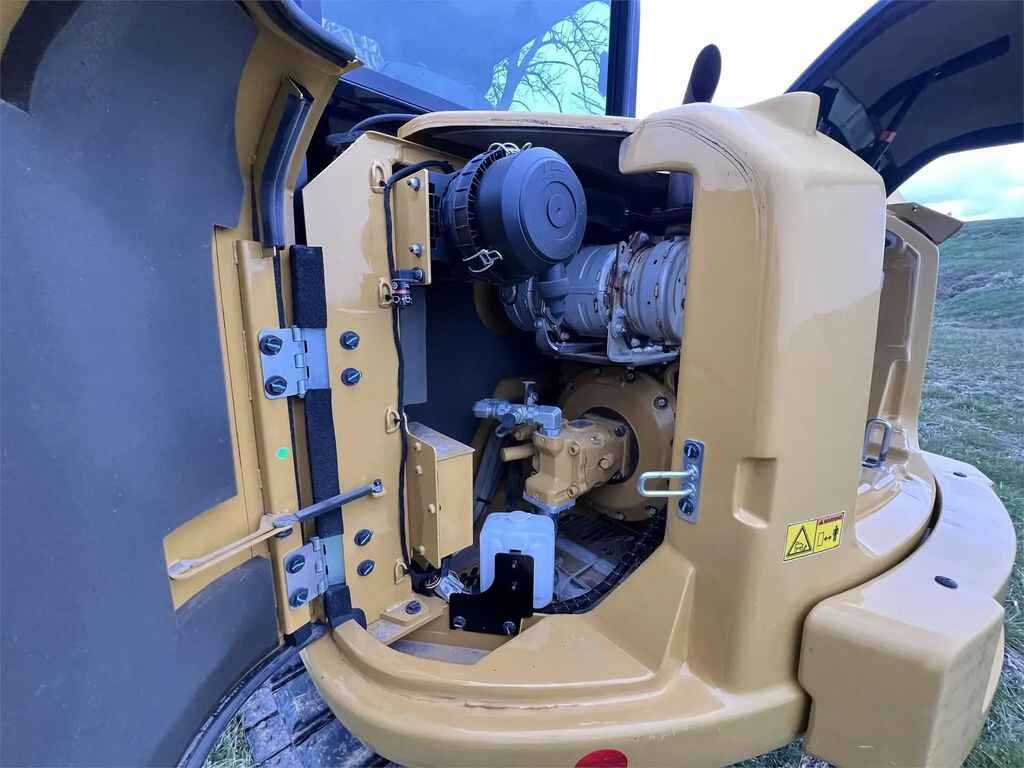

Engine
Model: Cat C3.3B
Gross Power: 66.6 hp (49.7 kW)
Net Power: 65 hp (48.5 kW)
Displacement: 203.2 in³ (3.33 L)
Emissions: Meets U.S. EPA Tier 4 Final and EU Stage IIIB emission standards
Weights
Operating Weight: 18,519 lbs (8,400 kg)
Performance
Maximum Digging Depth: 13 ft 7.5 in (4,150 mm)
Maximum Reach at Ground Level: 25 ft 6.5 in (7,780 mm)
Bucket Digging Force: 13,534 lbf (60.2 kN)
Stick Digging Force (Standard): 9,015 lbf (40.1 kN)
Stick Digging Force (Long): 7,891 lbf (35.1 kN)
Travel Speed (High): 3.2 mph (5.1 km/h)
Travel Speed (Low): 1.8 mph (2.8 km/h)

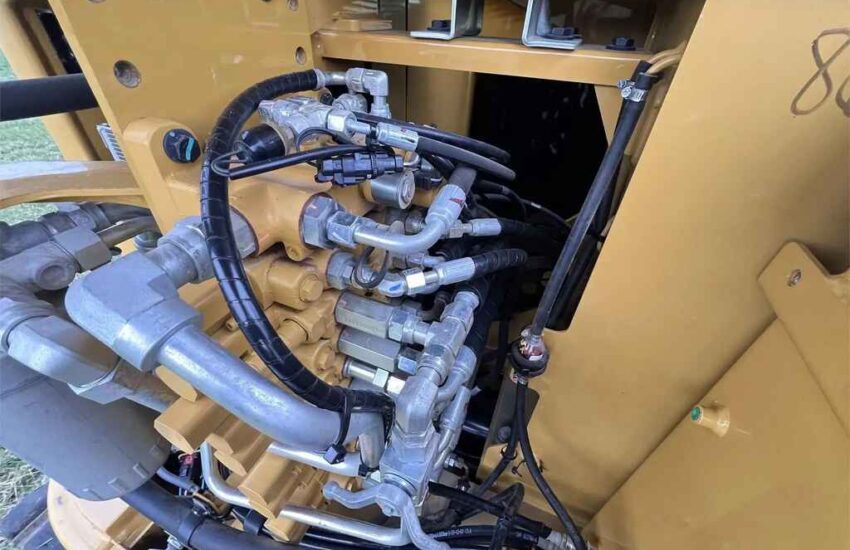

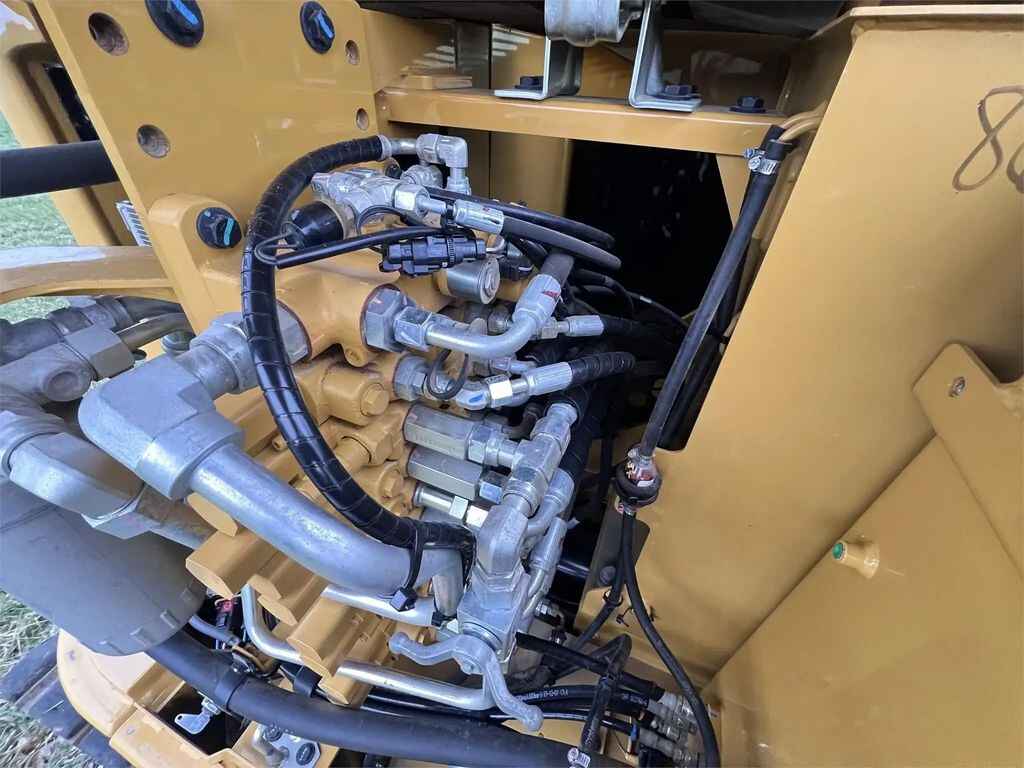

Hydraulics
Main System – Maximum Flow: 39.6 gal/min (150 L/min)
Auxiliary Circuit – Primary (186 bar/2,734 psi): 33.8 gal/min (128 L/min)
Auxiliary Circuit – Secondary (174 bar/2,524 psi): 16.9 gal/min (64 L/min)
Operating Pressure – Equipment: 4,061 psi (28,000 kPa)
Operating Pressure – Travel: 4,061 psi (28,000 kPa)
Operating Pressure – Swing: 3,481 psi (24,000 kPa)
Dimensions
Overall Length: 21 ft 6 in (6,550 mm)
Overall Width: 7 ft 7 in (2,320 mm)
Overall Height: 8 ft 4 in (2,540 mm)
Tail Swing Radius: 5 ft 3 in (1,600 mm)
Ground Clearance: 1 ft 1 in (335 mm)
Features
Compact Radius Design: Allows operation in confined spaces

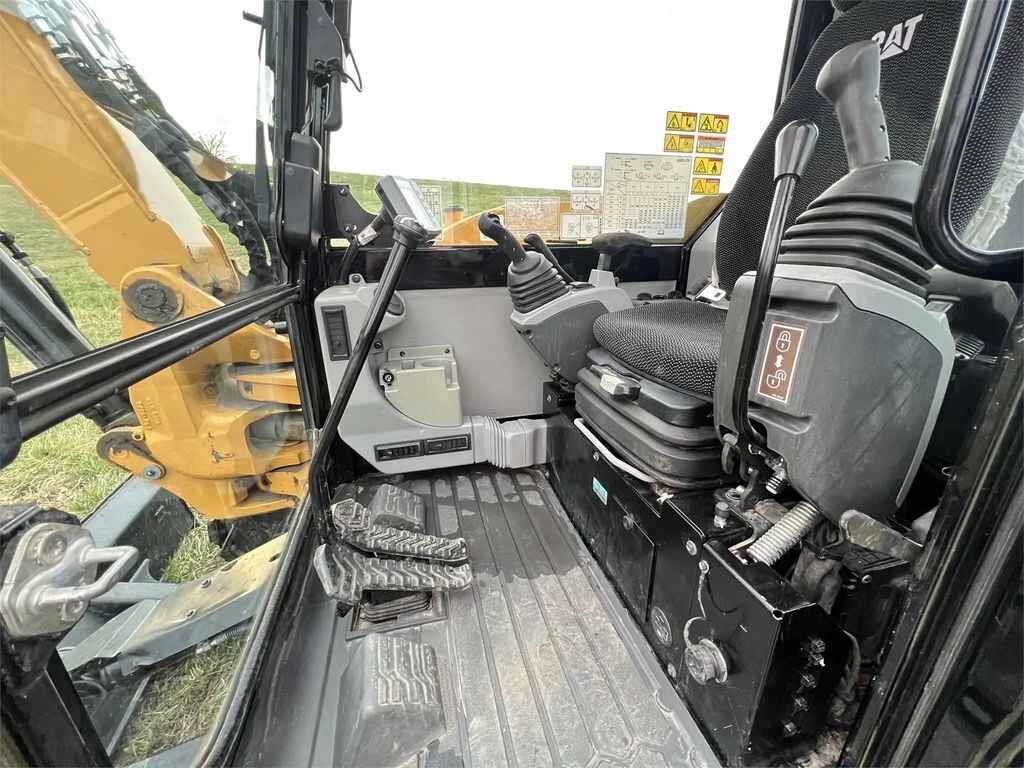

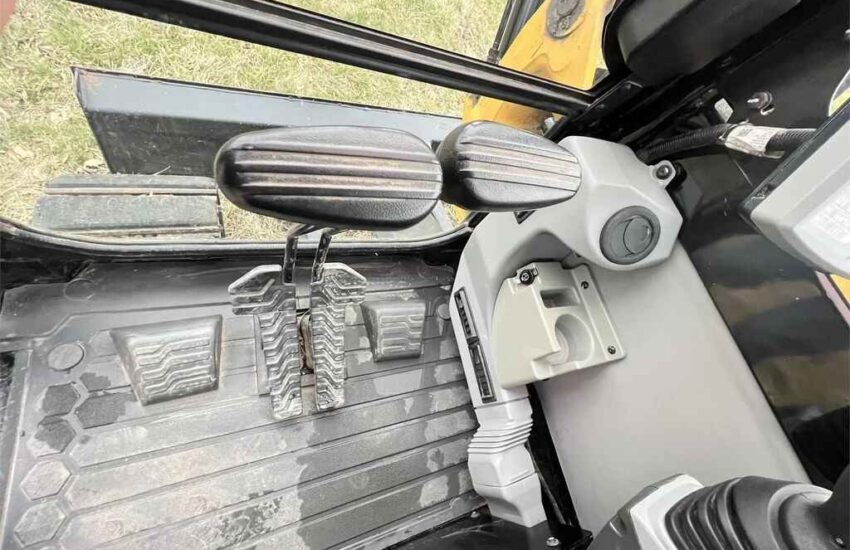

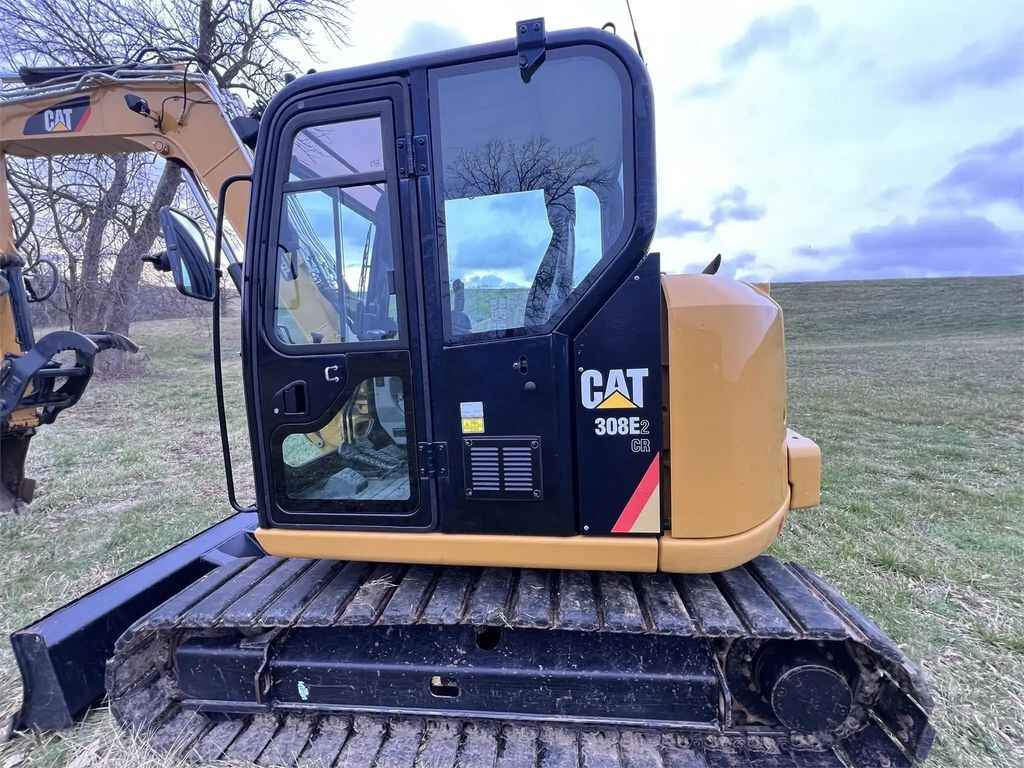

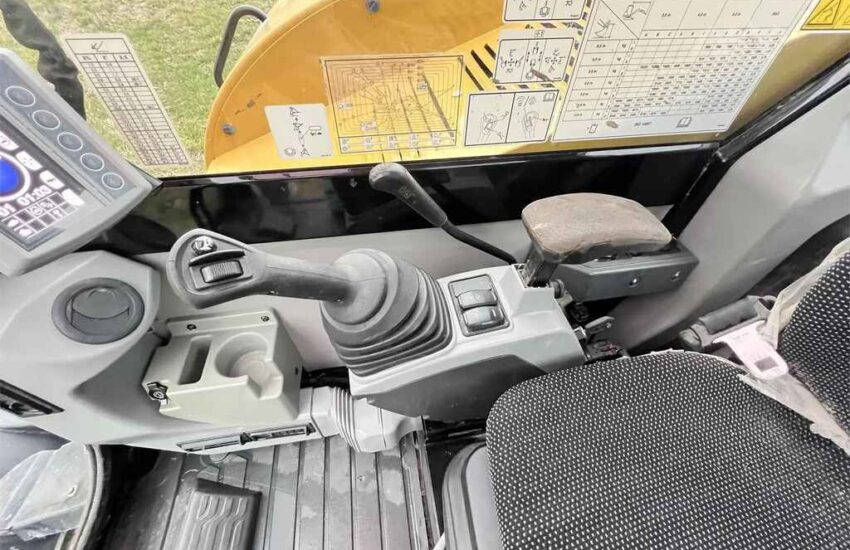

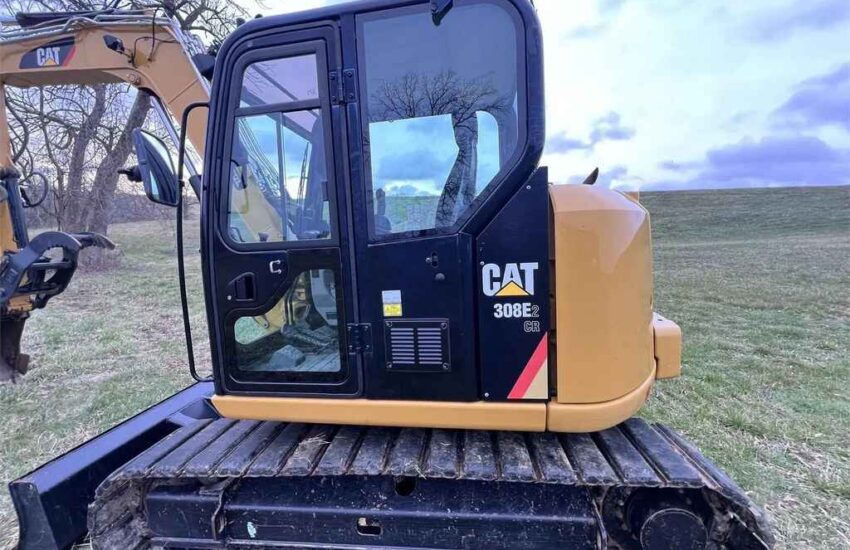

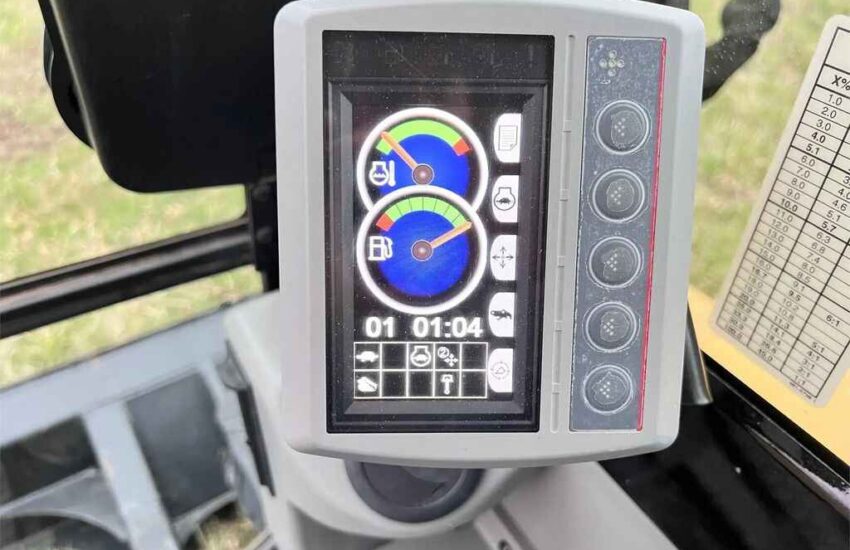

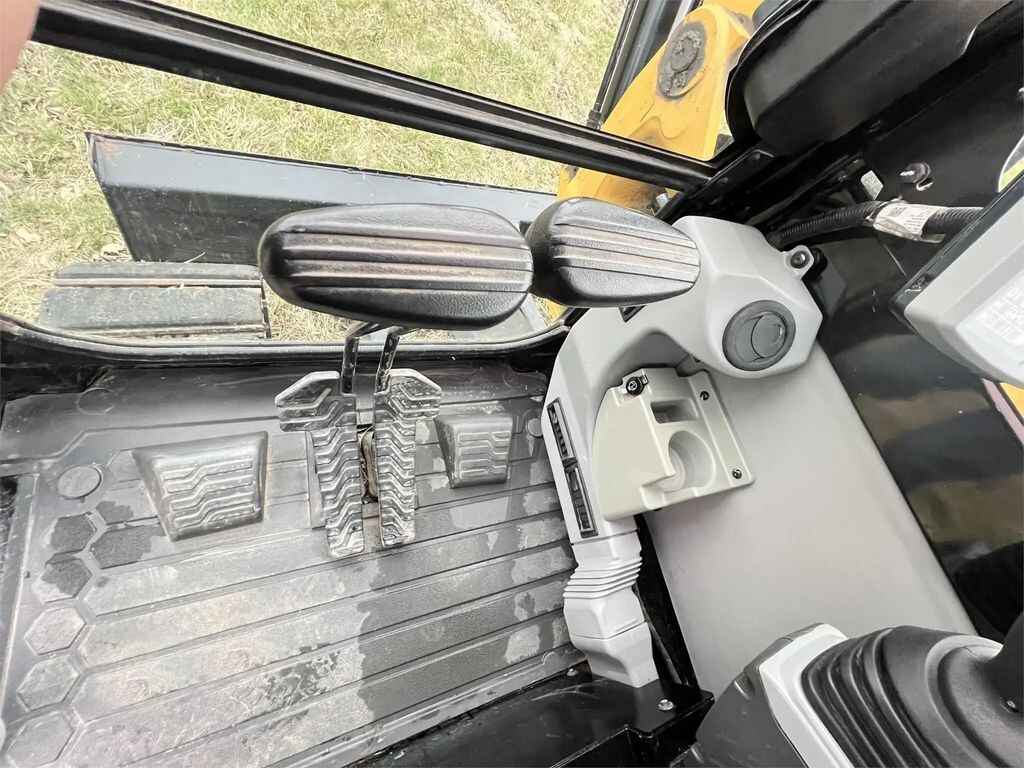

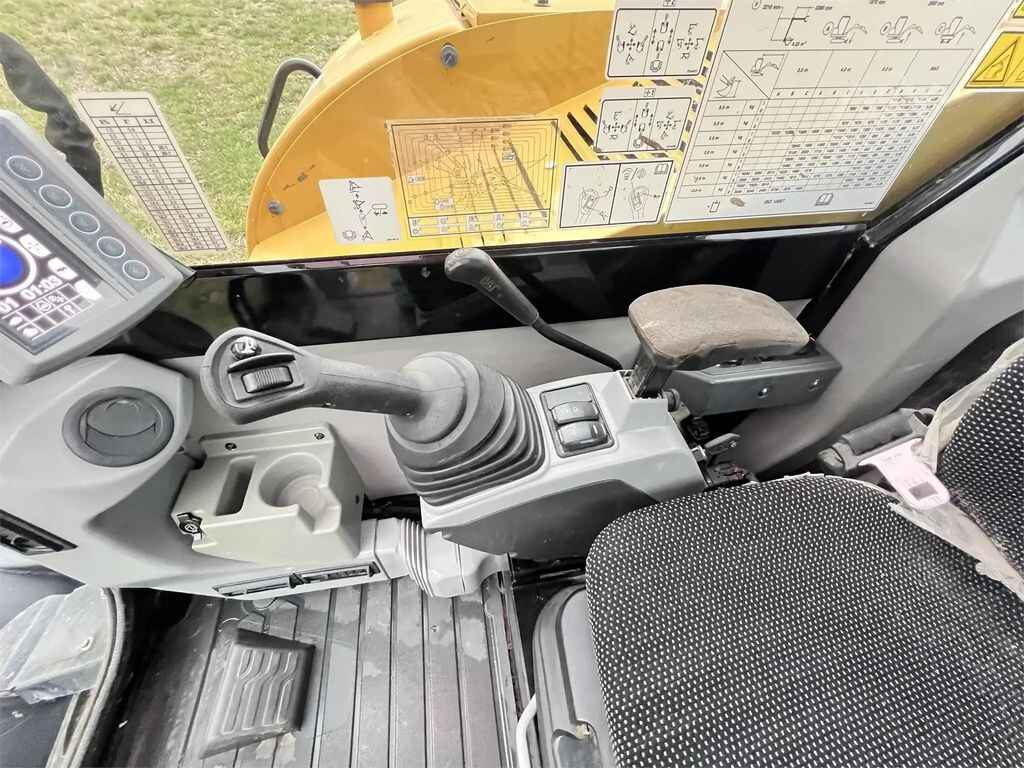

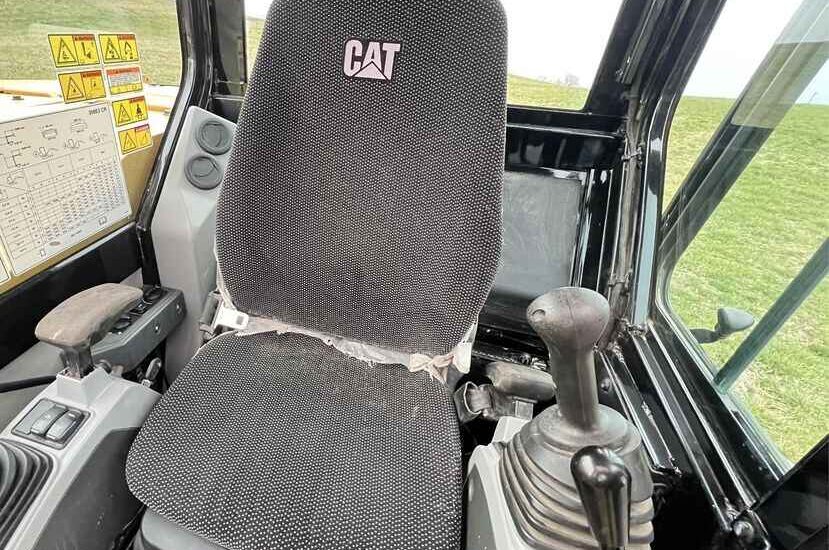

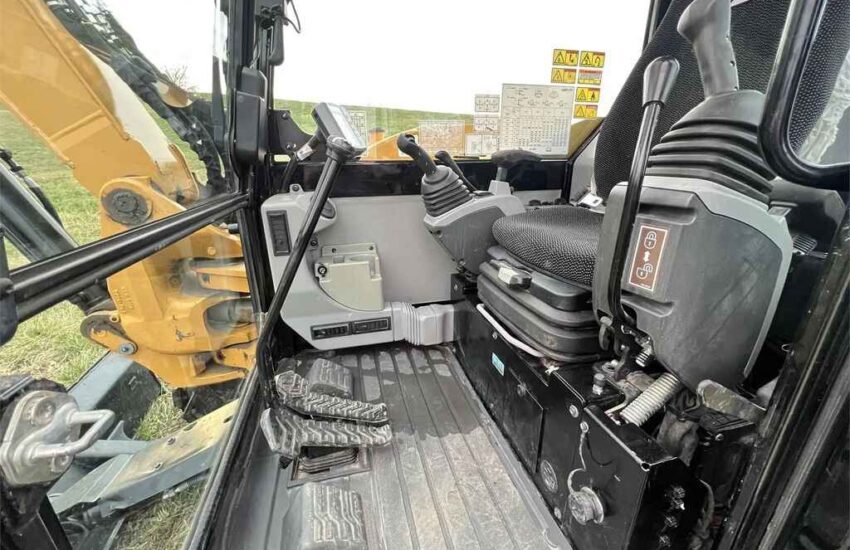

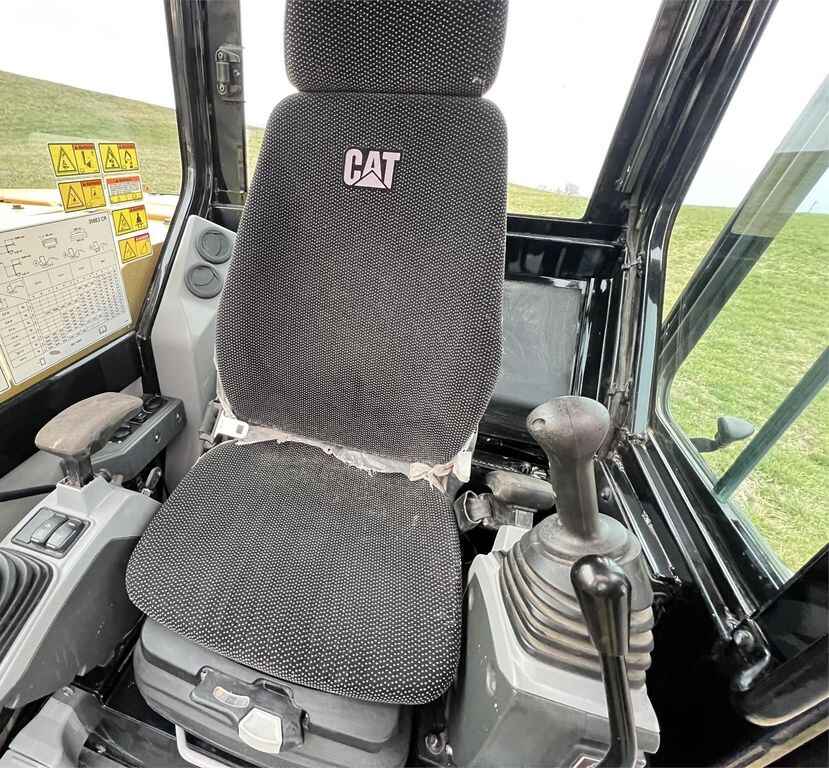

Operator Environment: Spacious cab with ergonomic controls

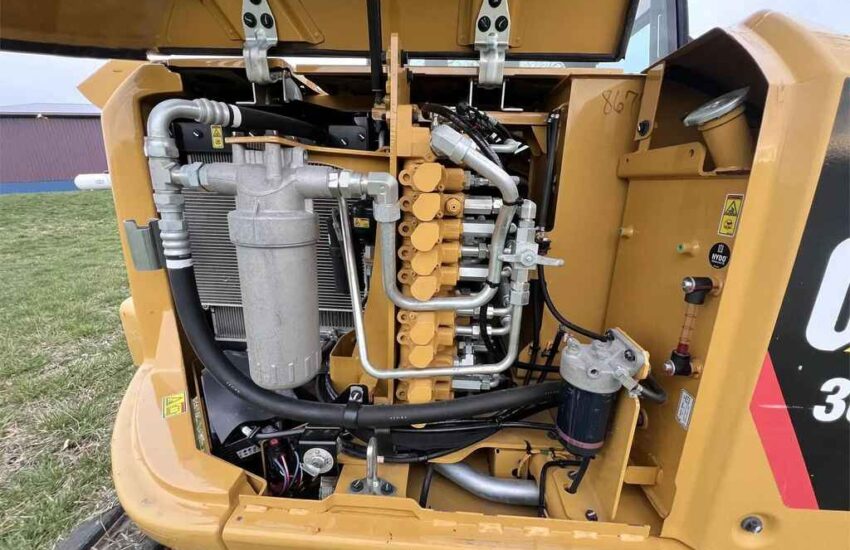

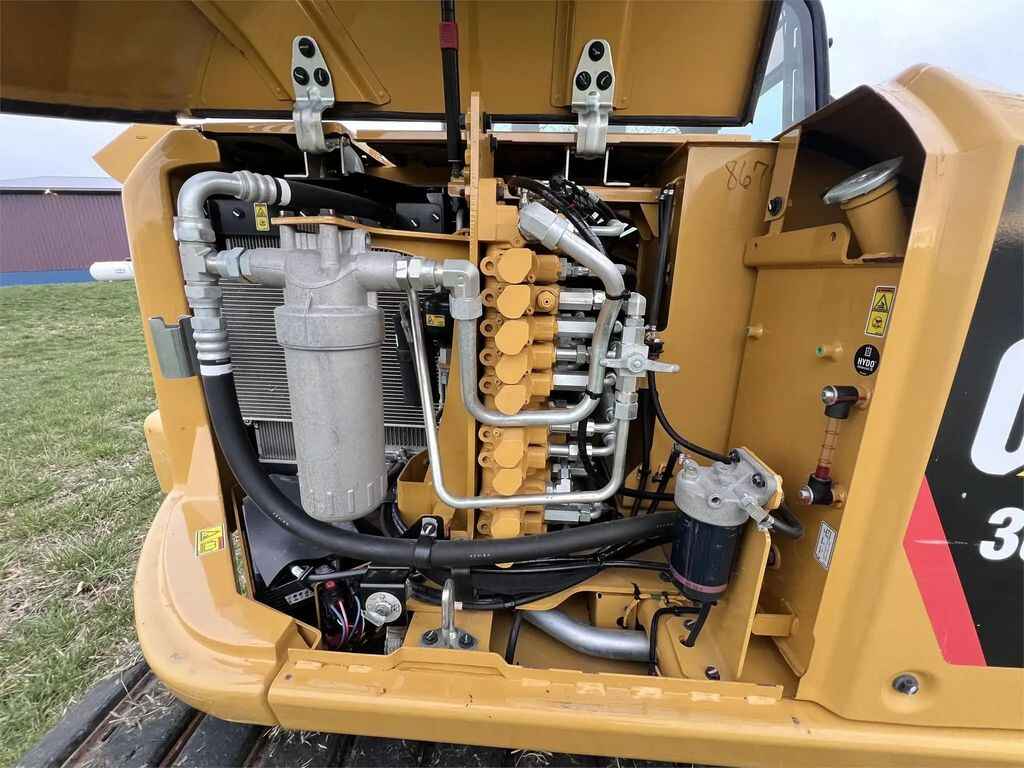

Hydraulic System: Load sensing hydraulics with variable displacement piston pump

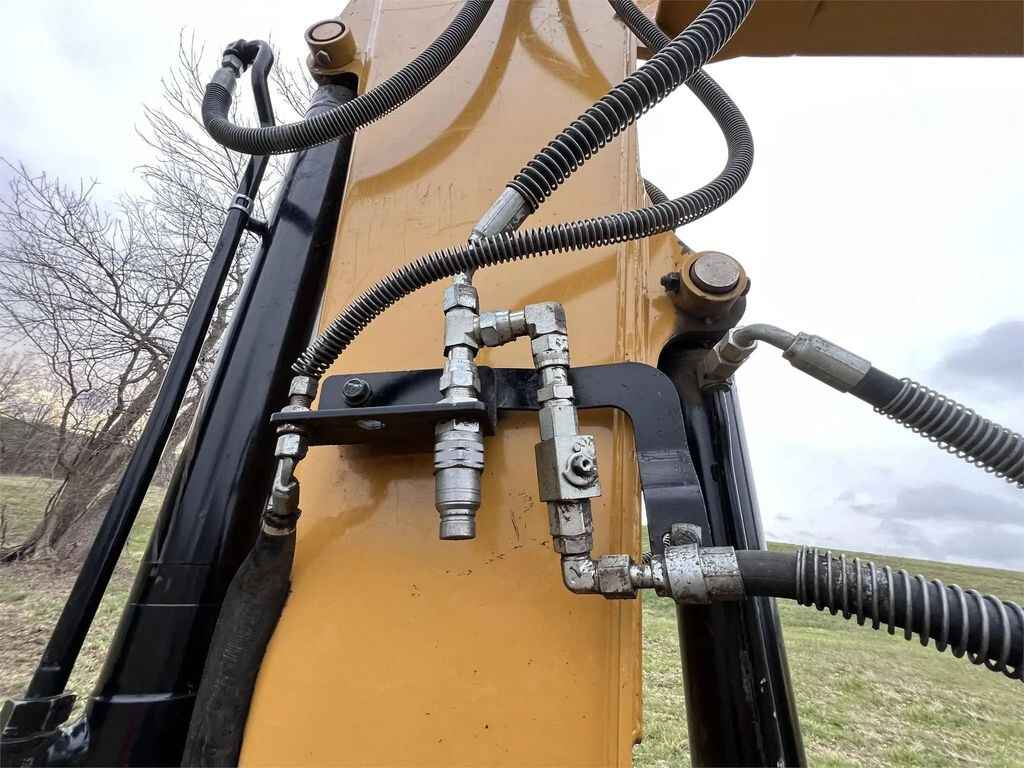

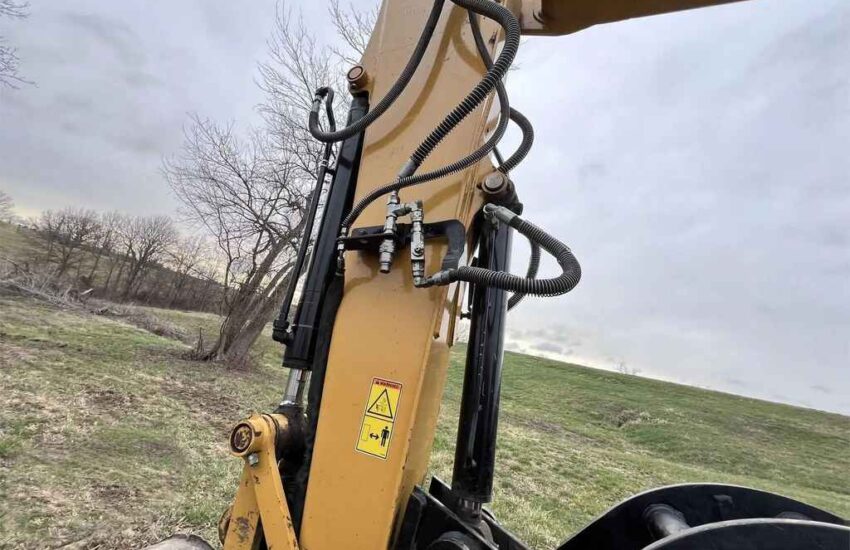

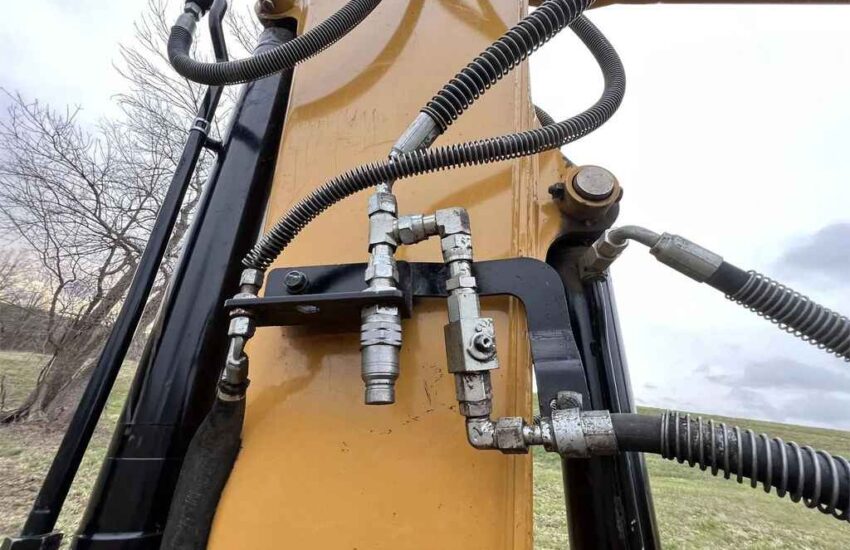

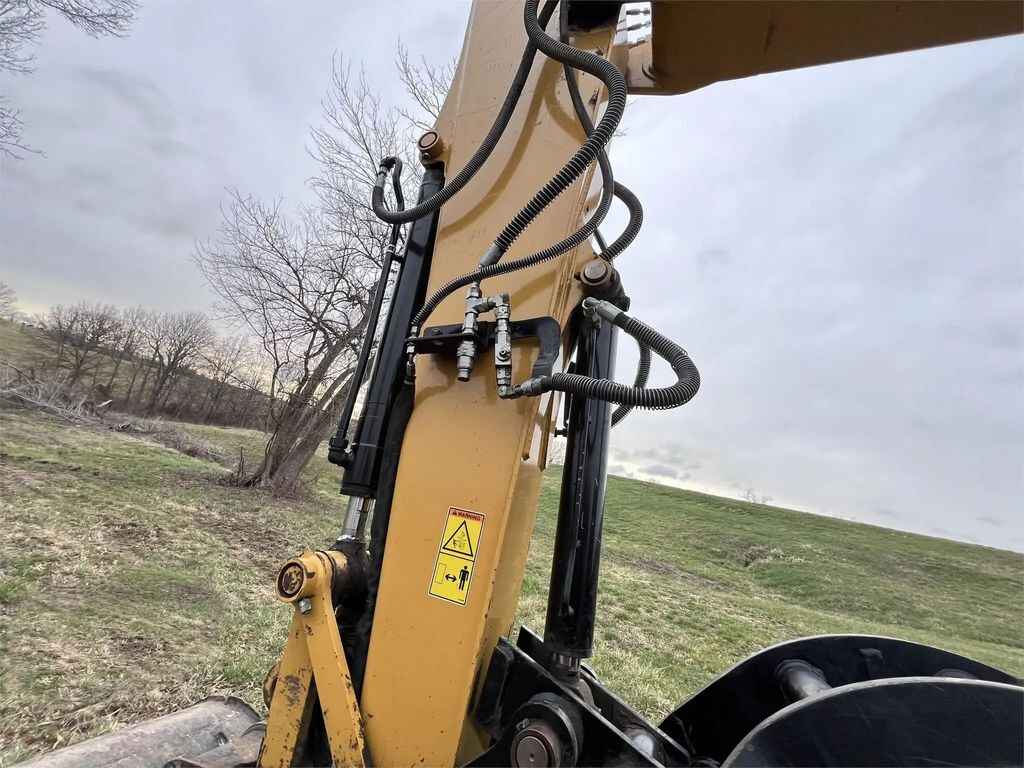

Auxiliary Hydraulics: Standard with quick connectors
Blade: Width of 7 ft 7 in (2,320 mm) and height of 17.8 in (452 mm)
Features

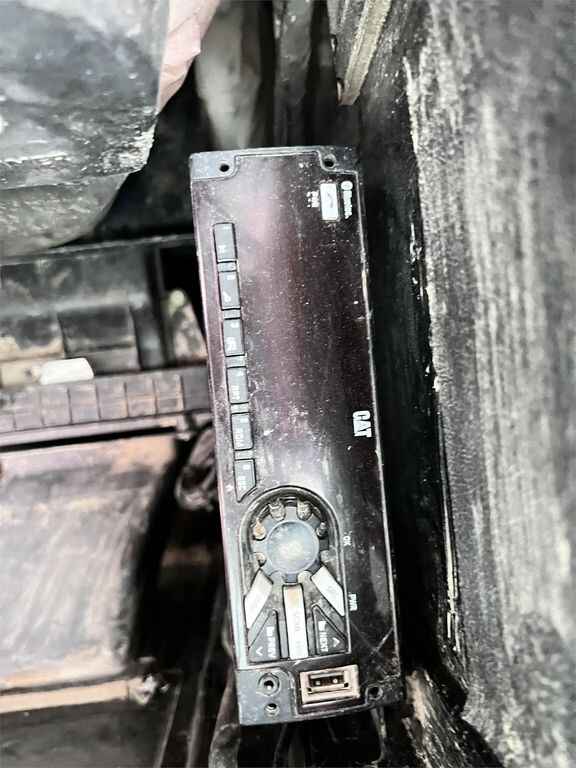

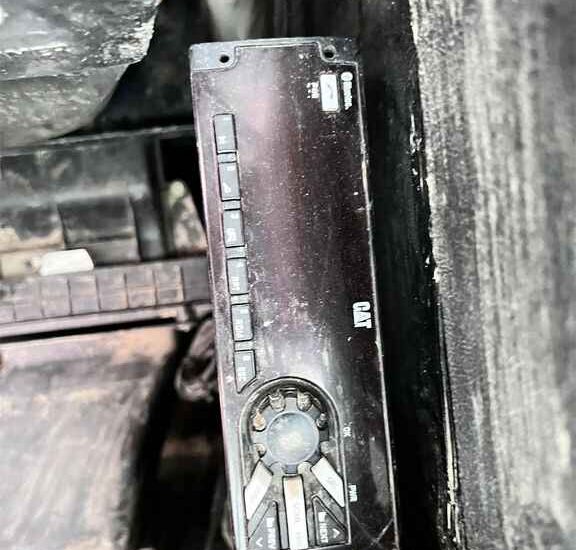

- Radio
- Air Conditioner
- Bluetooth
- Heater
