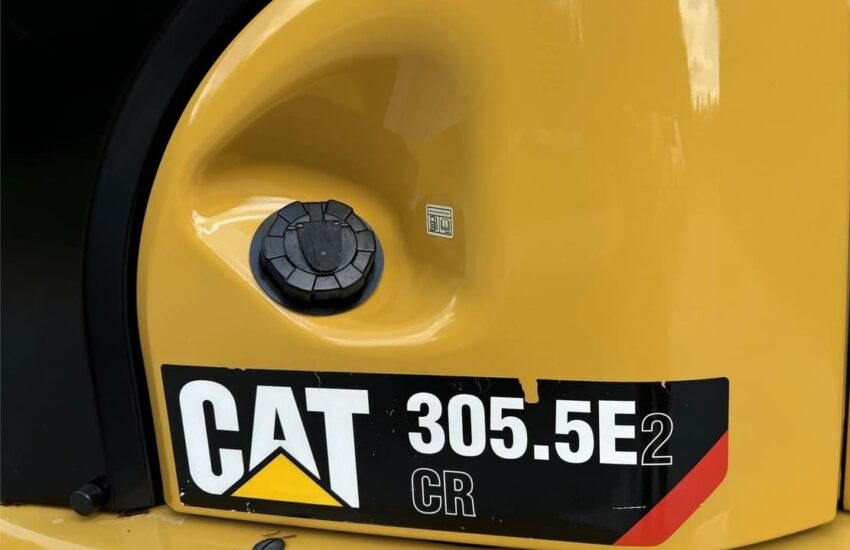

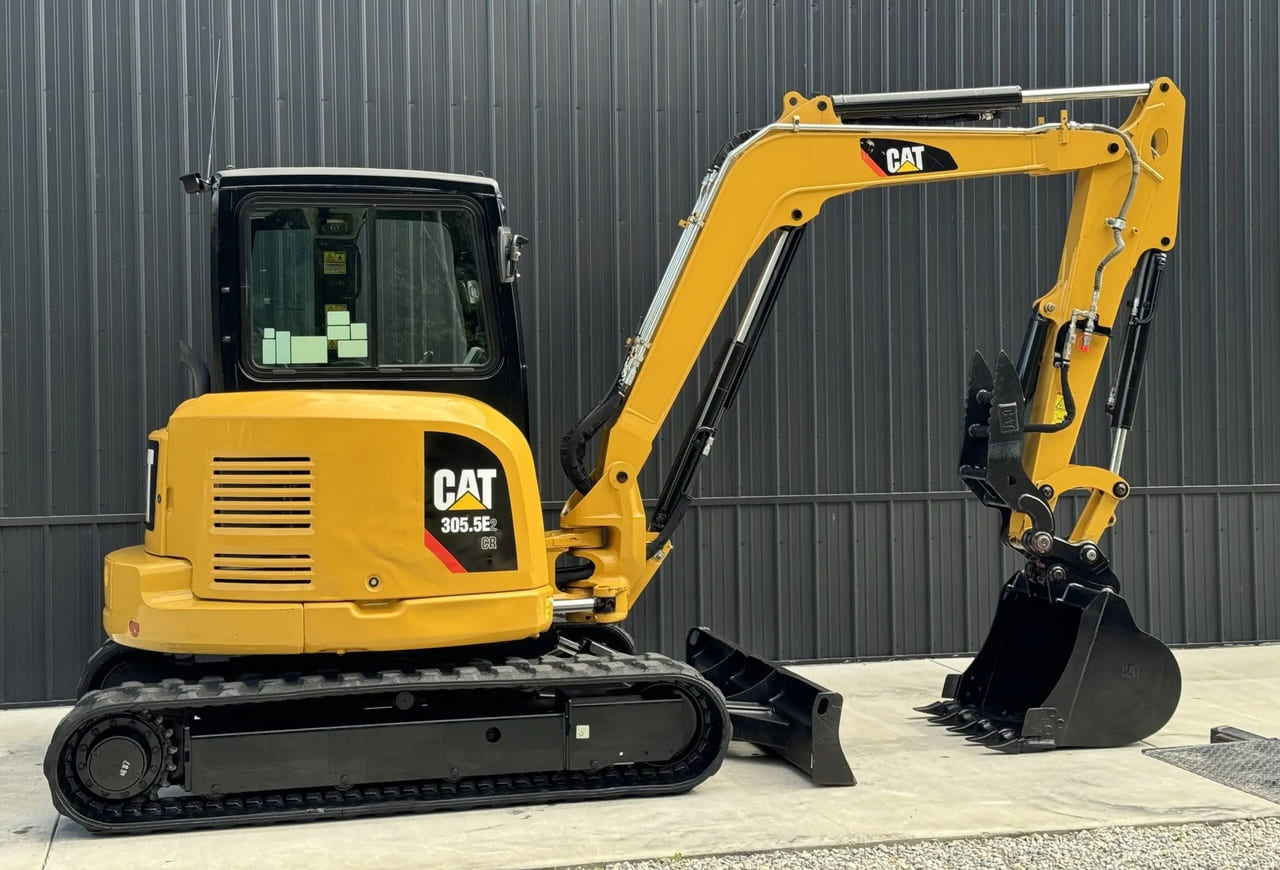

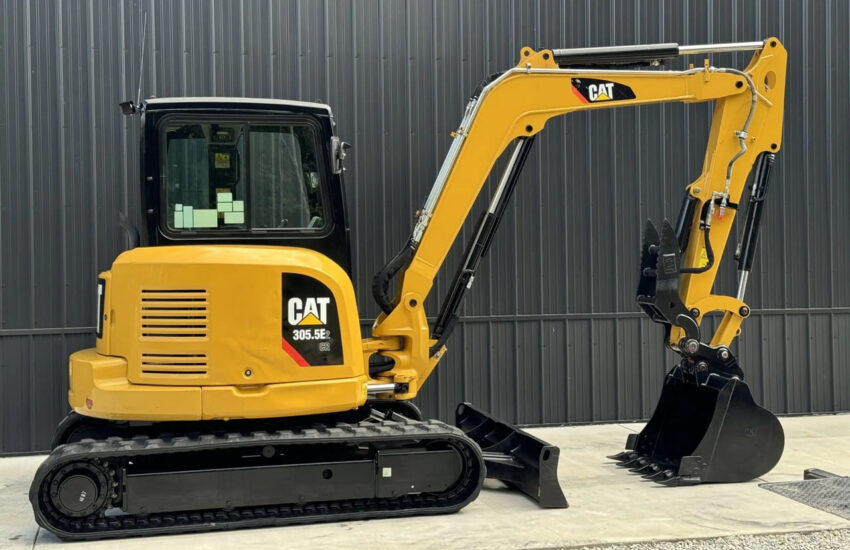

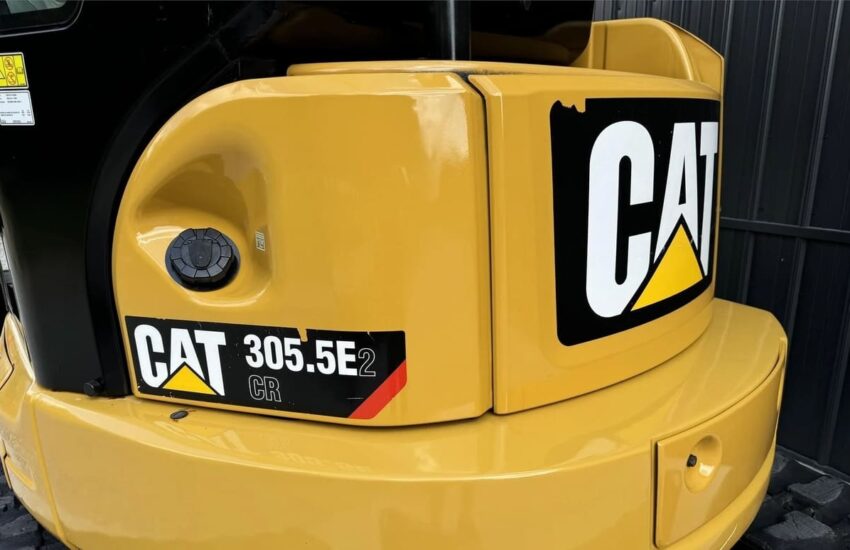

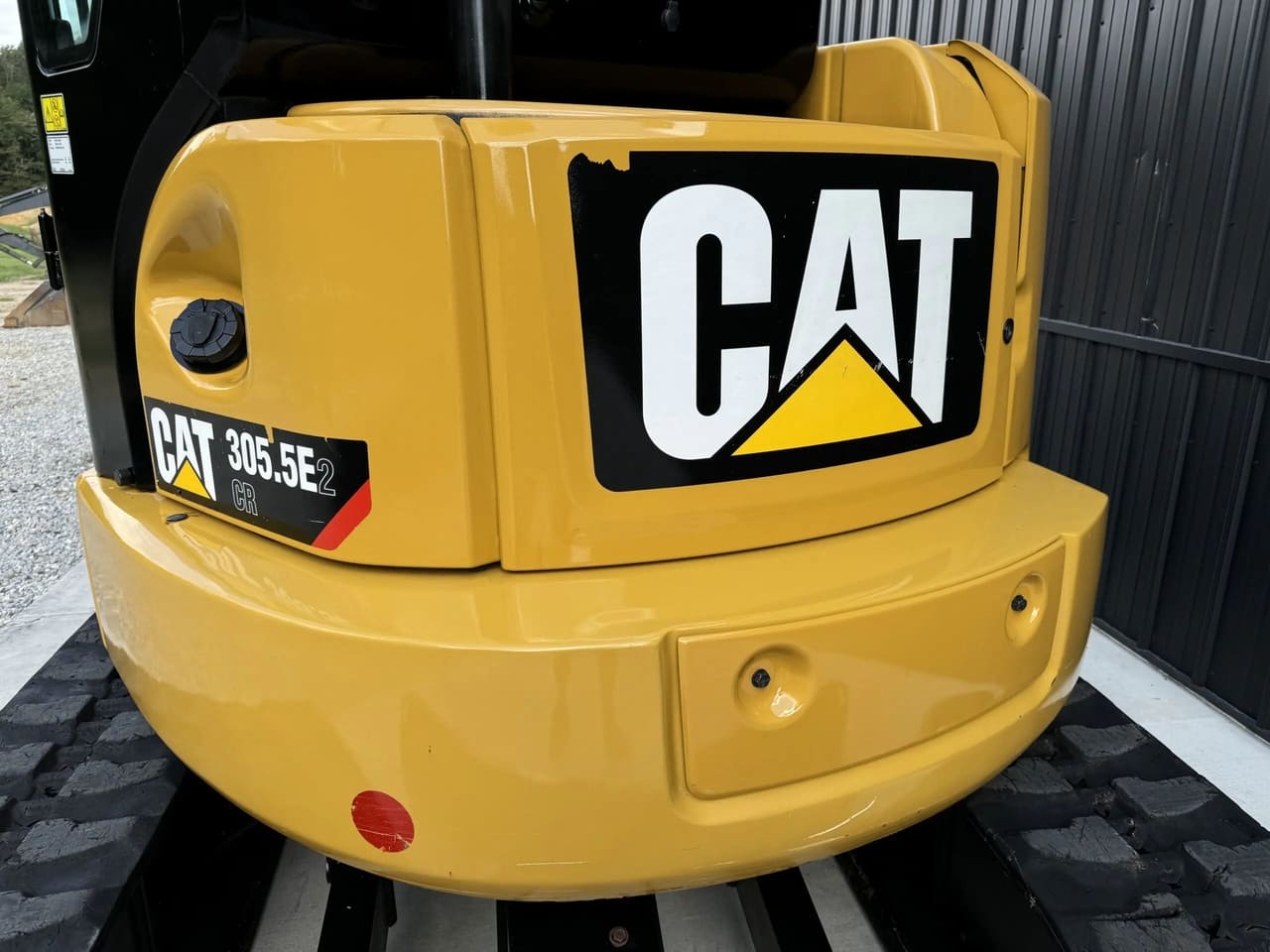

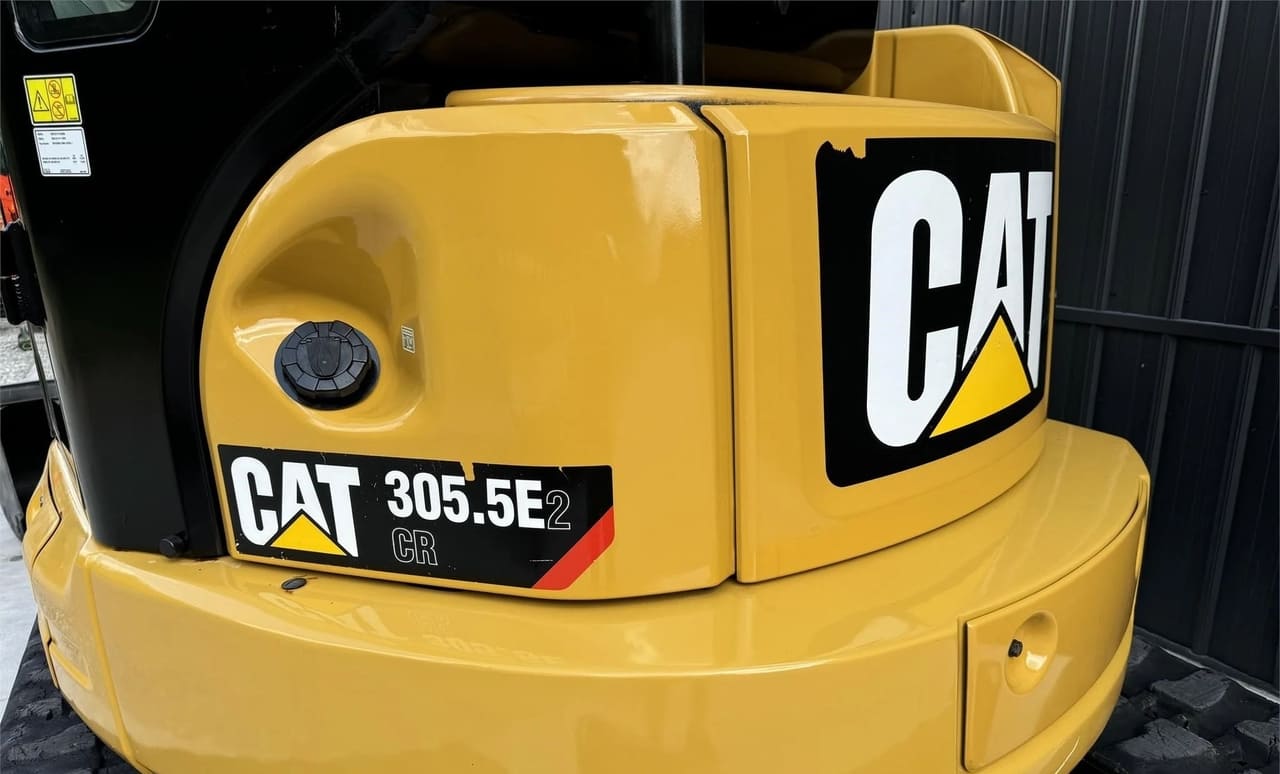

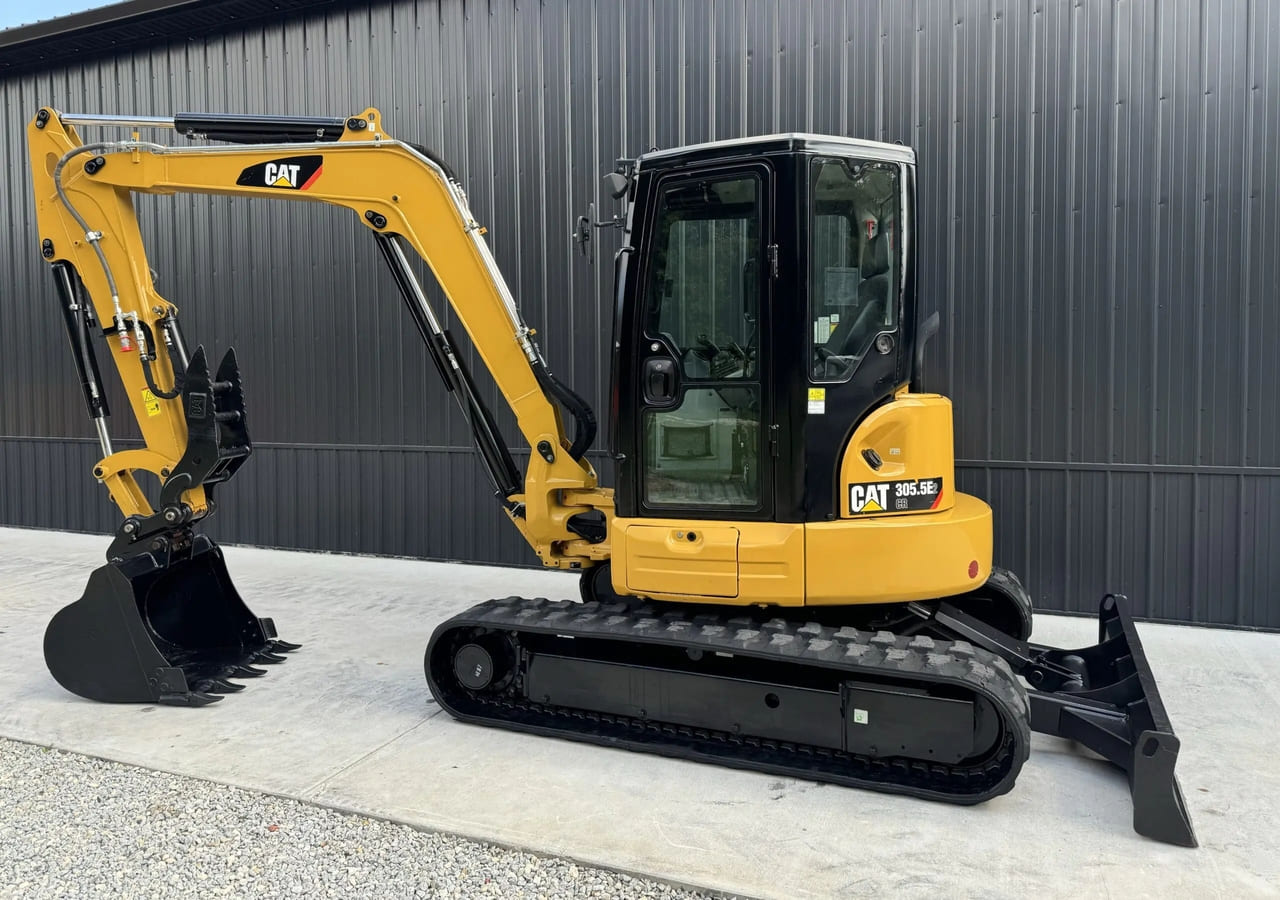

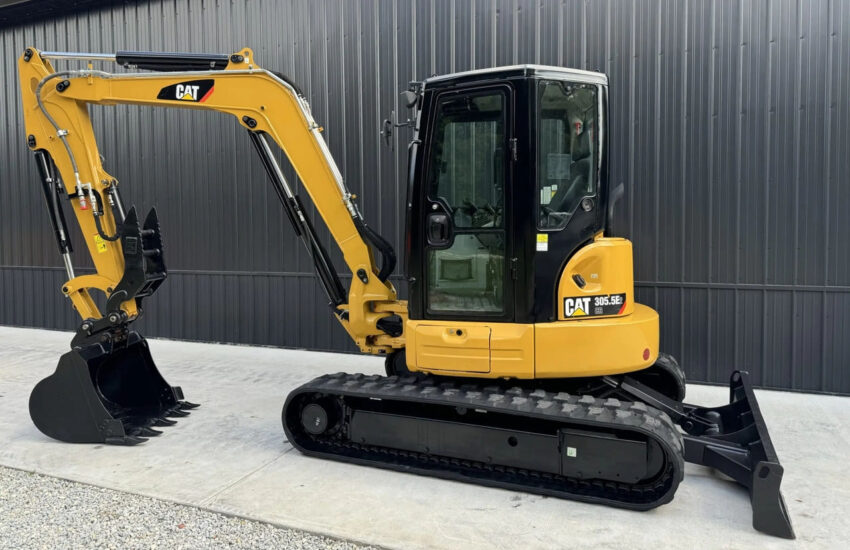

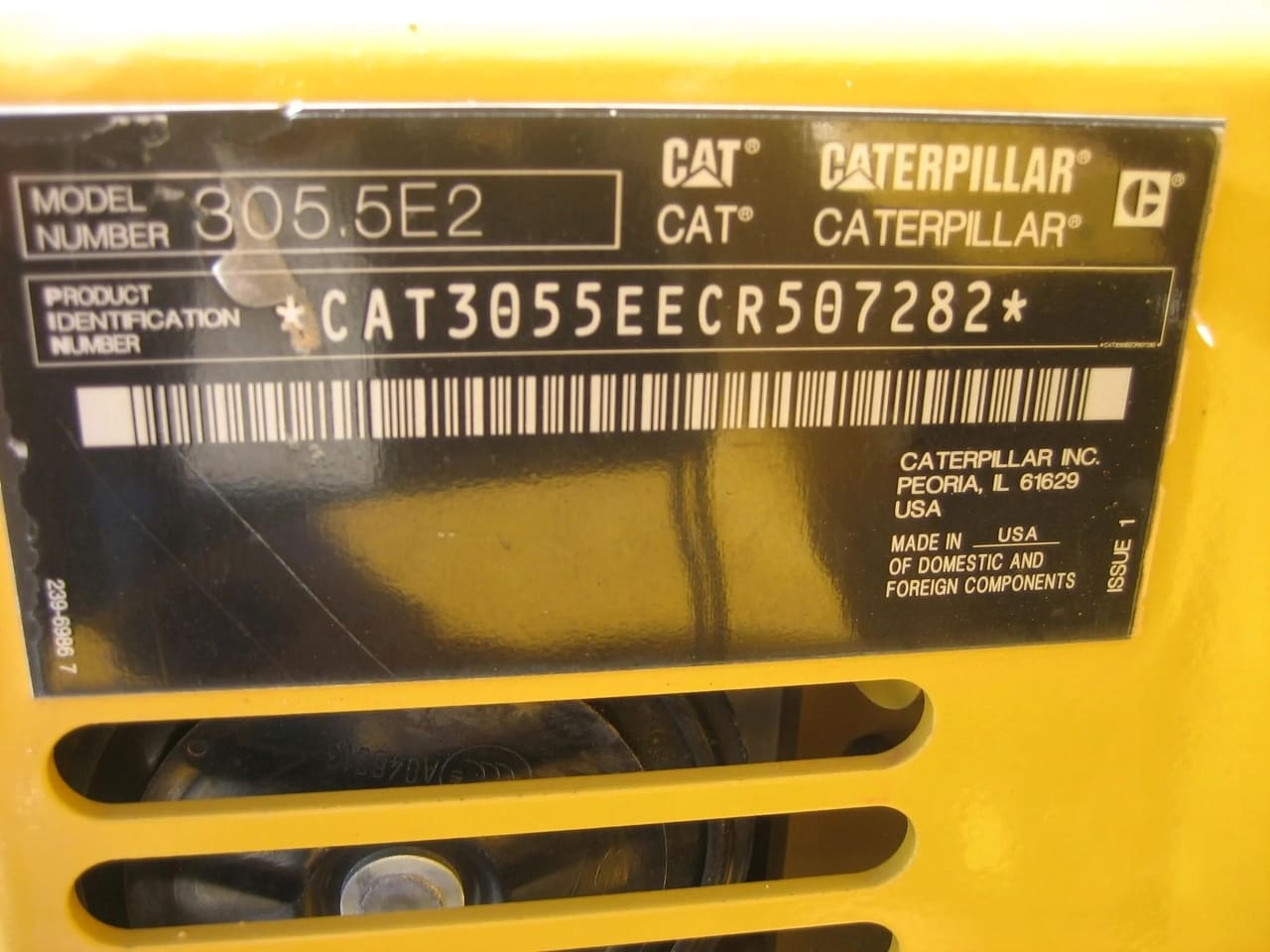

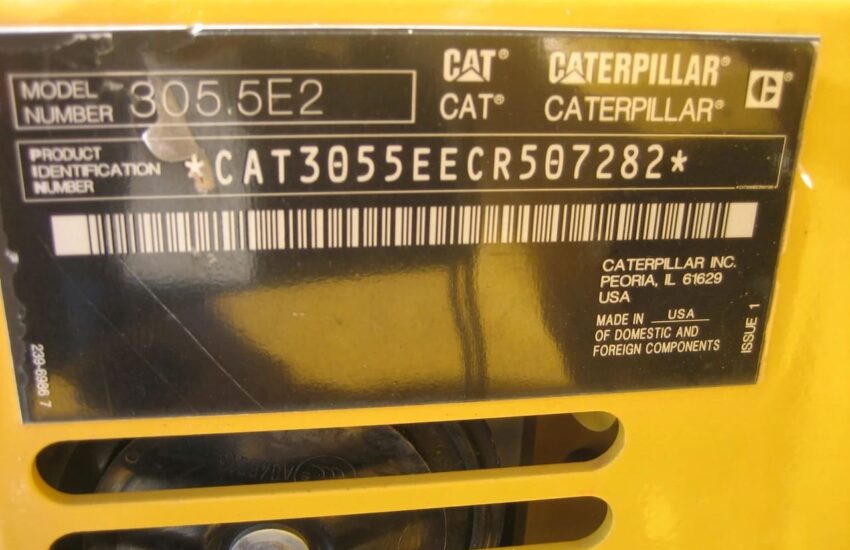

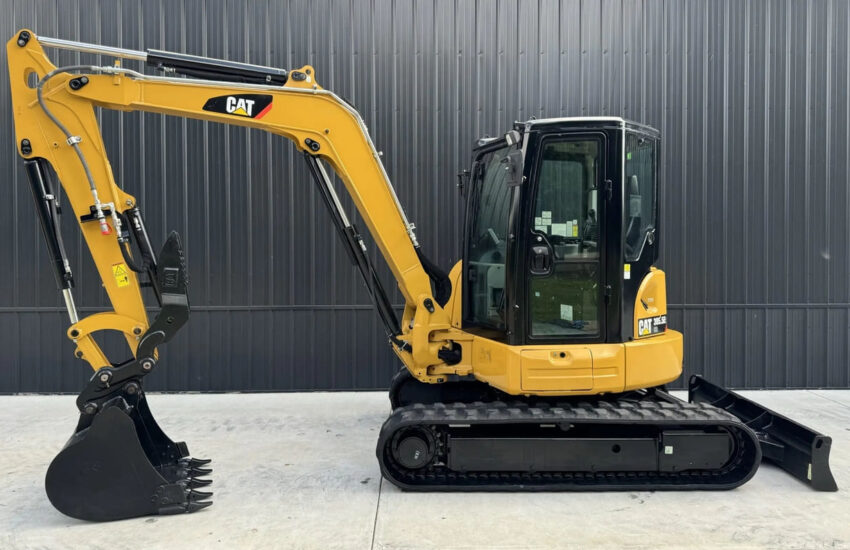

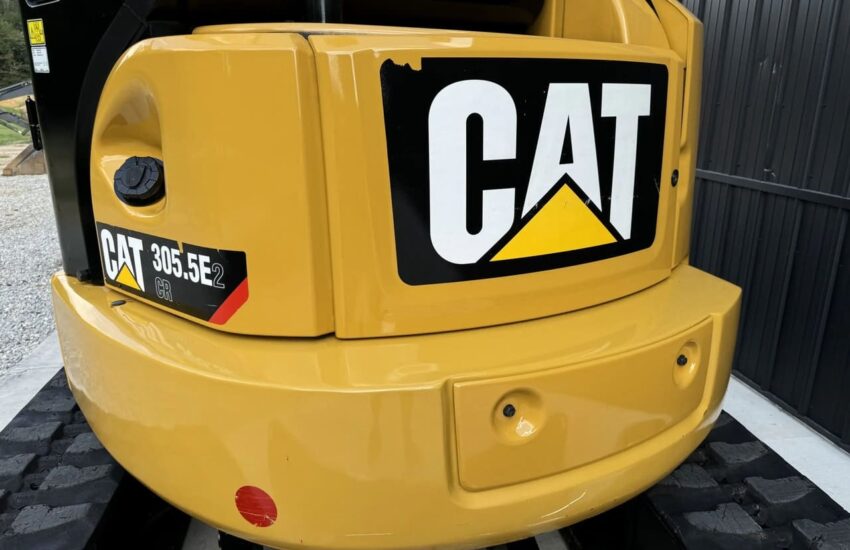

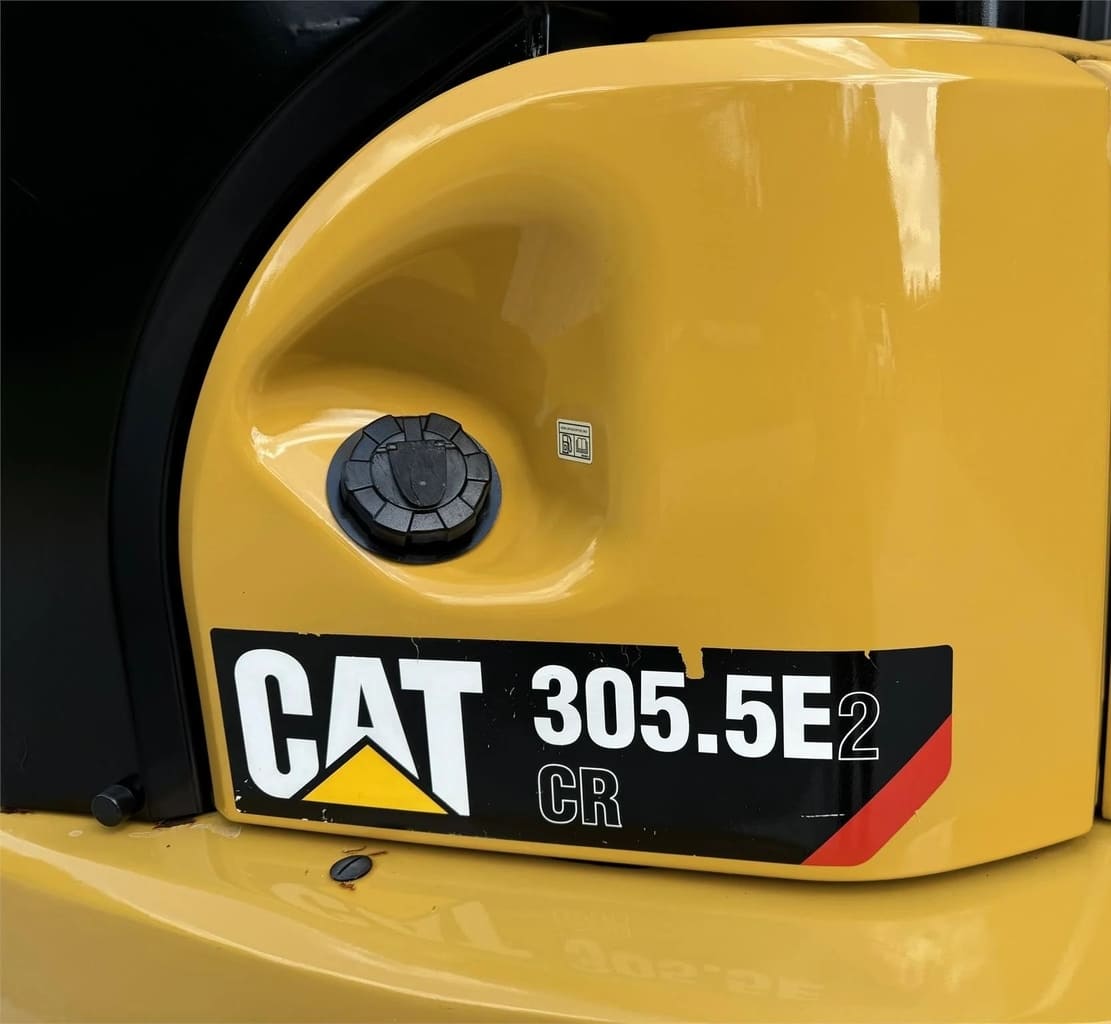

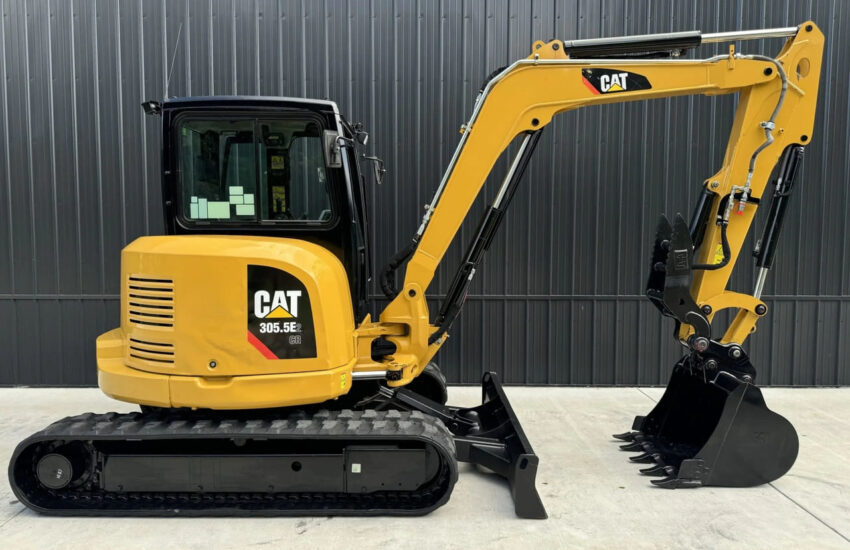

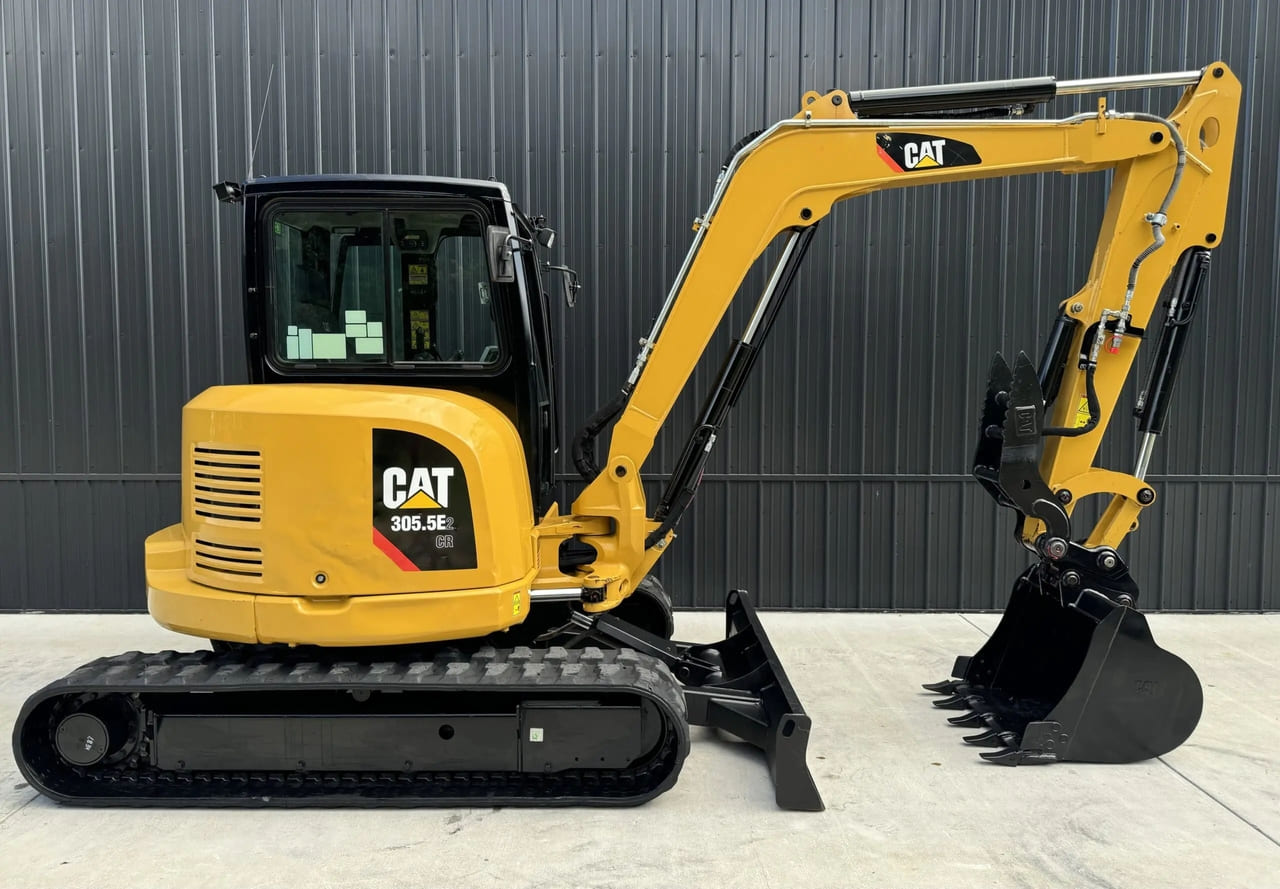

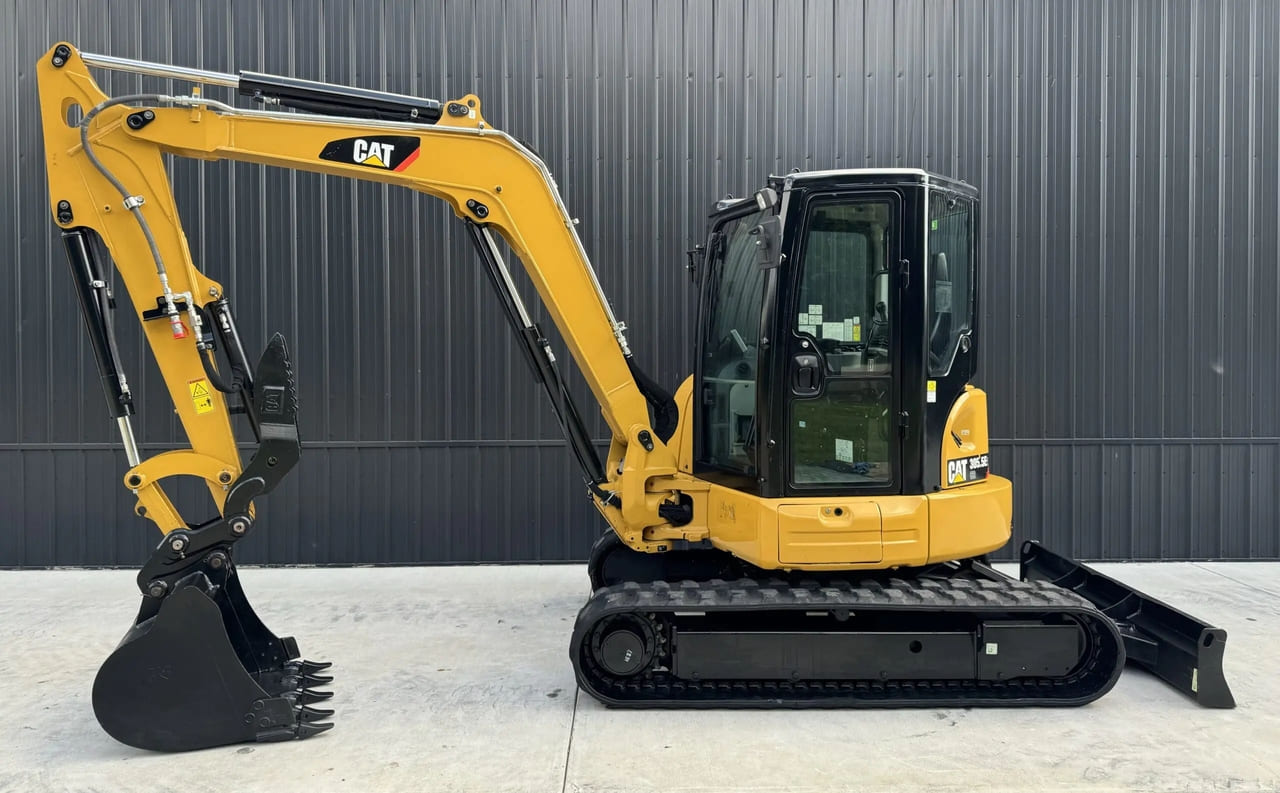

2019 Caterpillar 305.5E2 CR

PRICE FIRM NO TAX OR FEES

6M/1500Hr FULL Warranty!

Machine was just fully cleaned, greased, serviced and looked over. Photos just taken. Shipping Available!

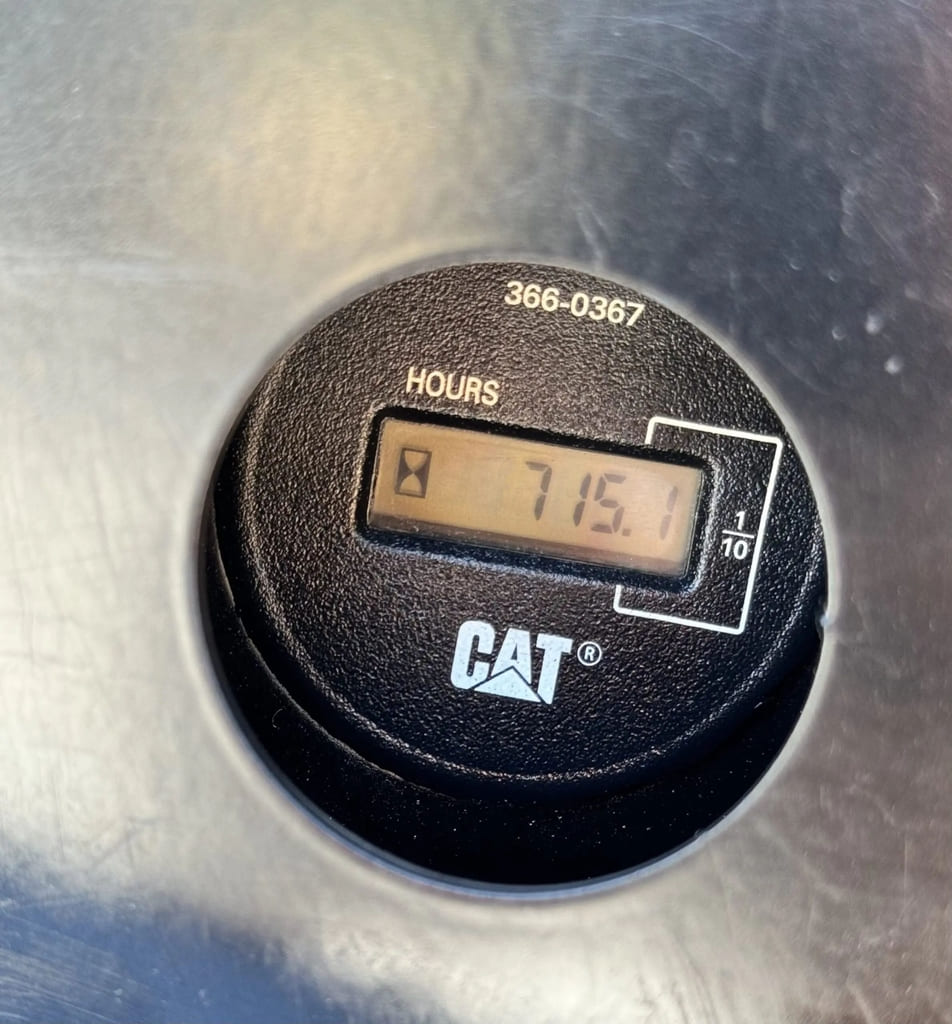

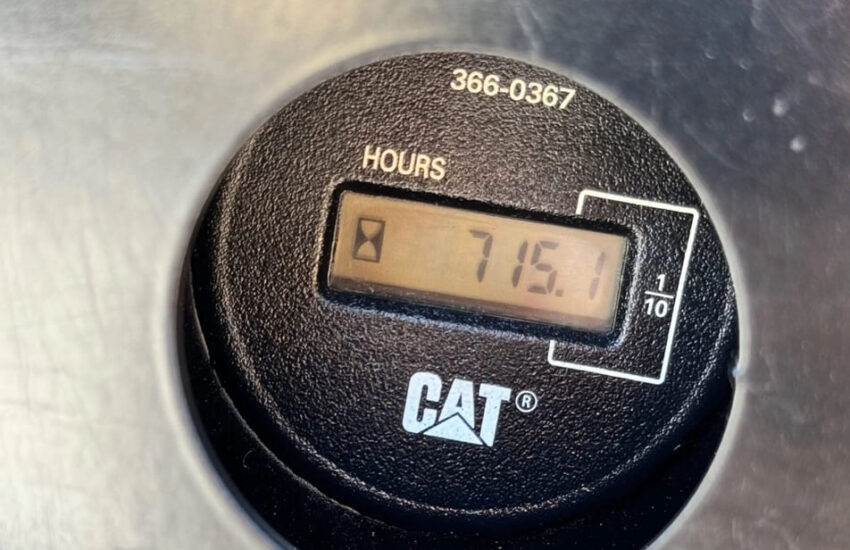

– 715 Well Kept hours

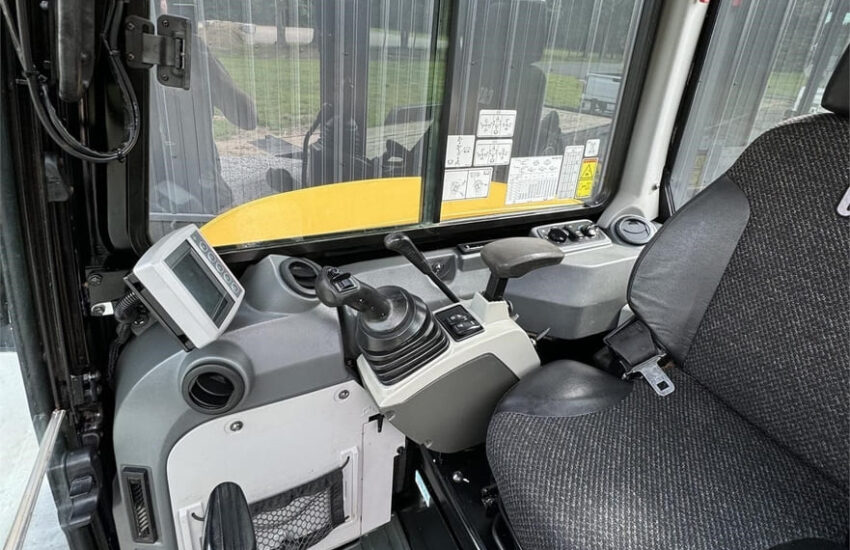

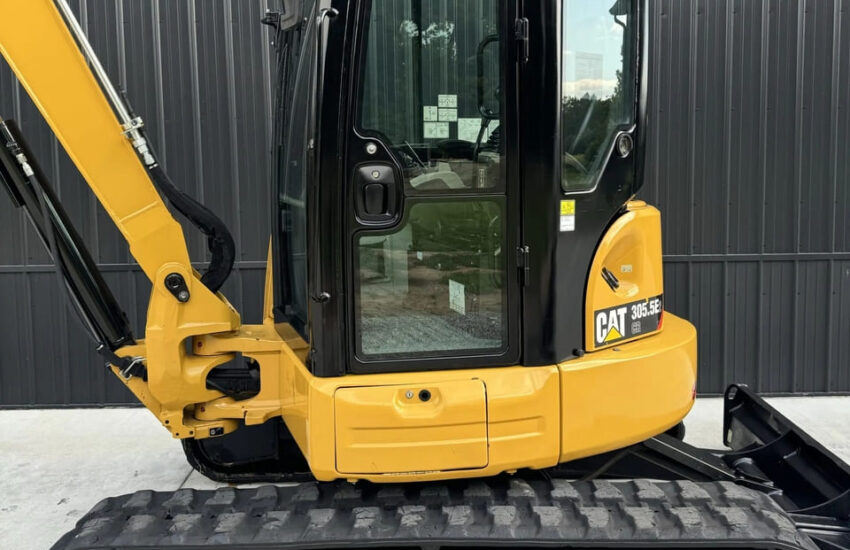

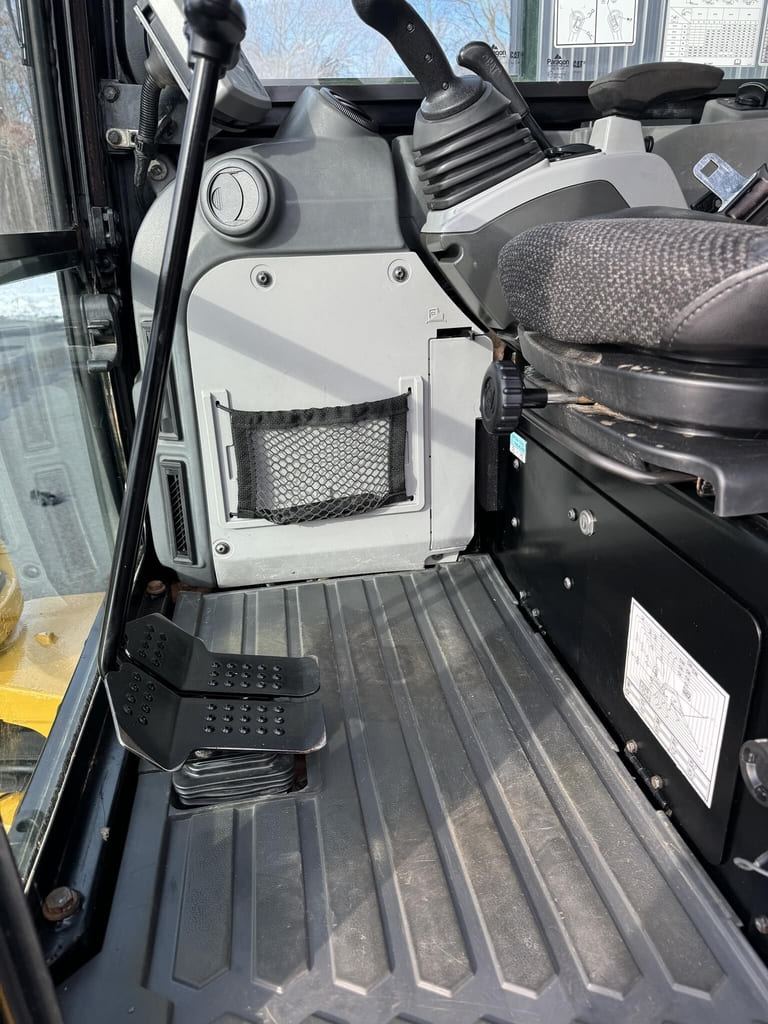

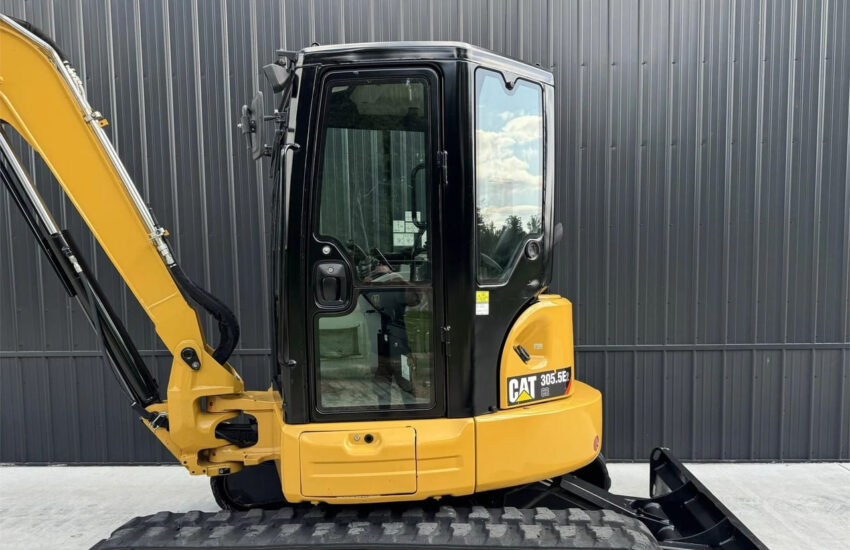

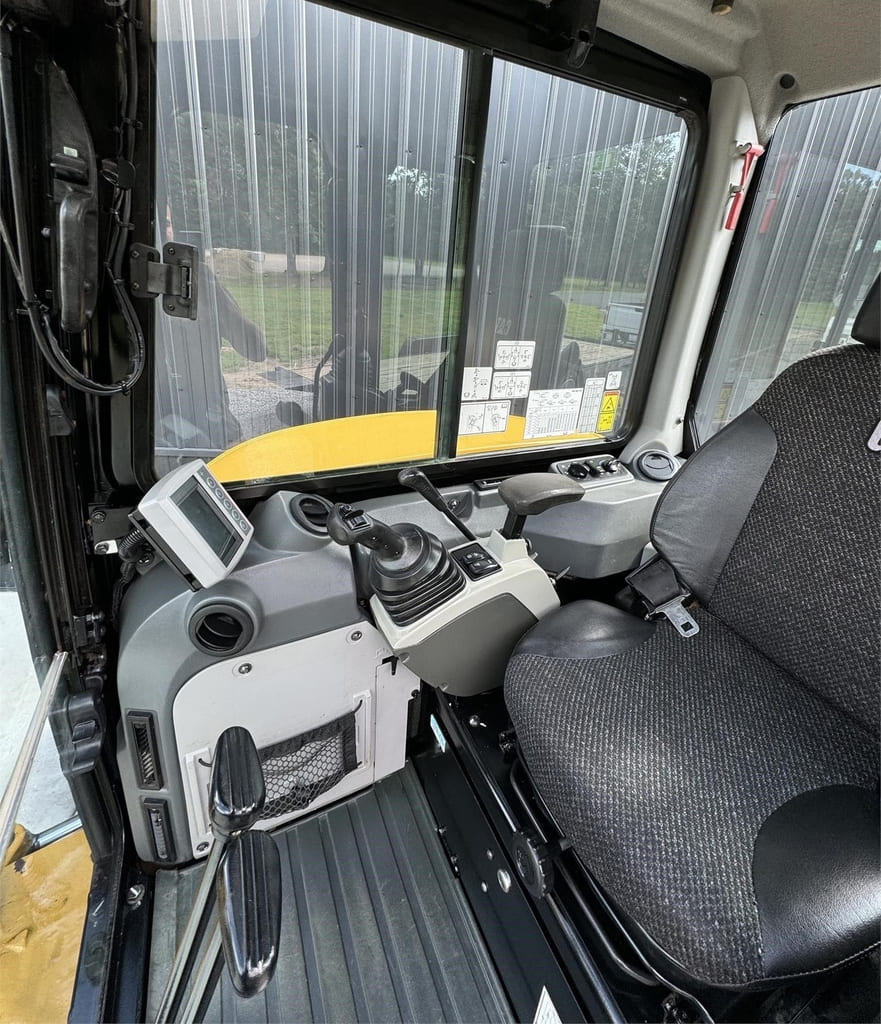

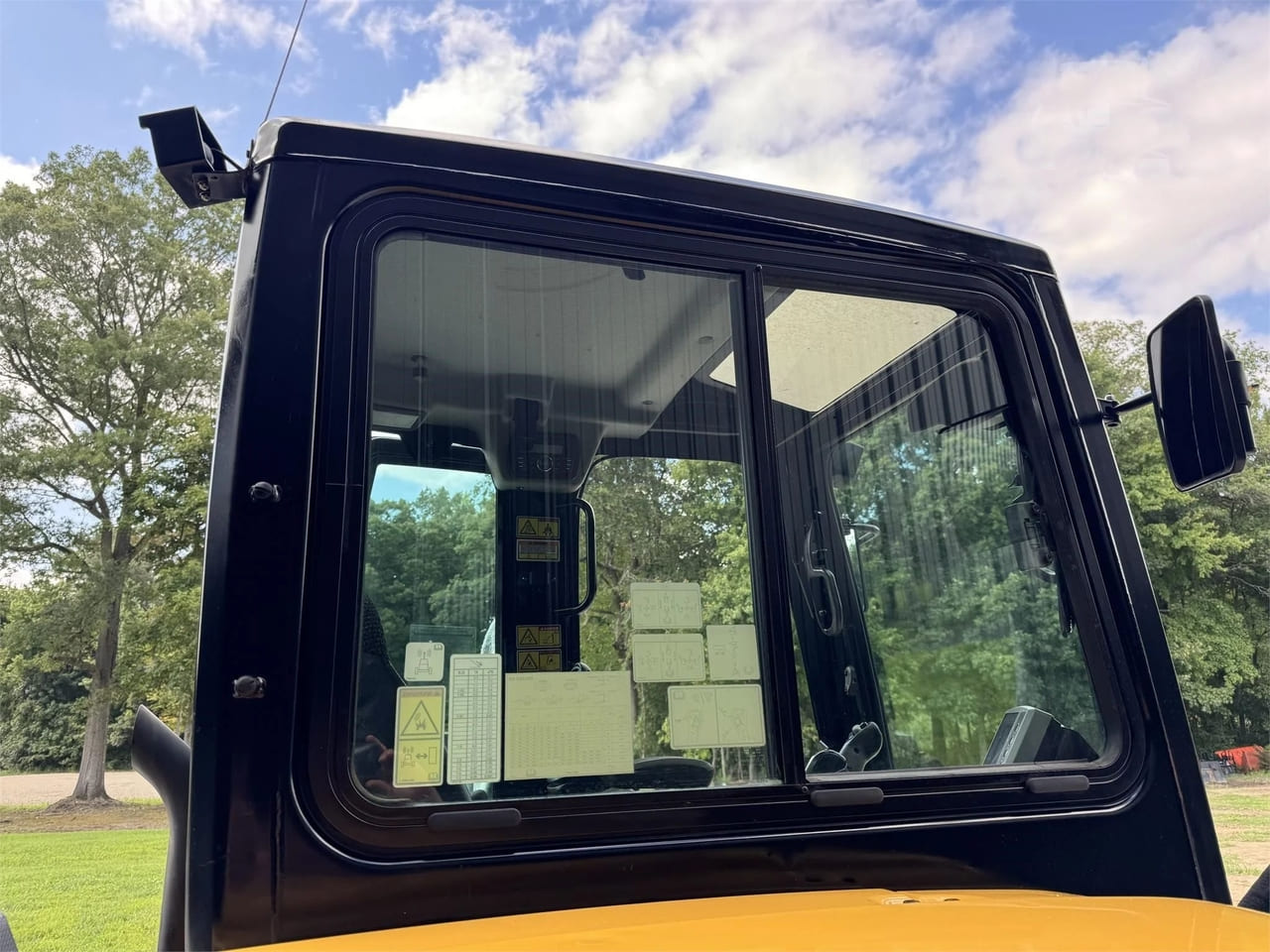

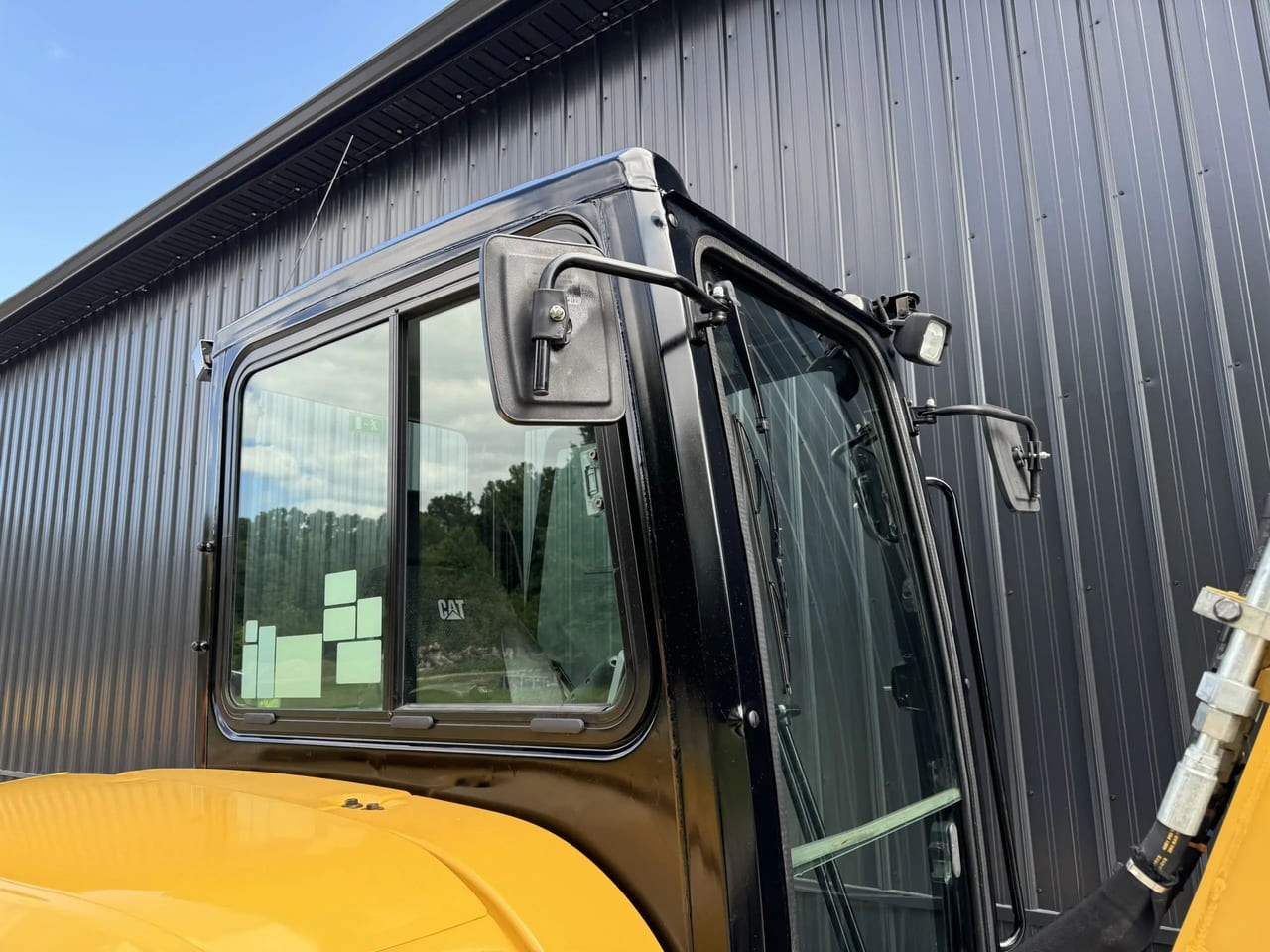

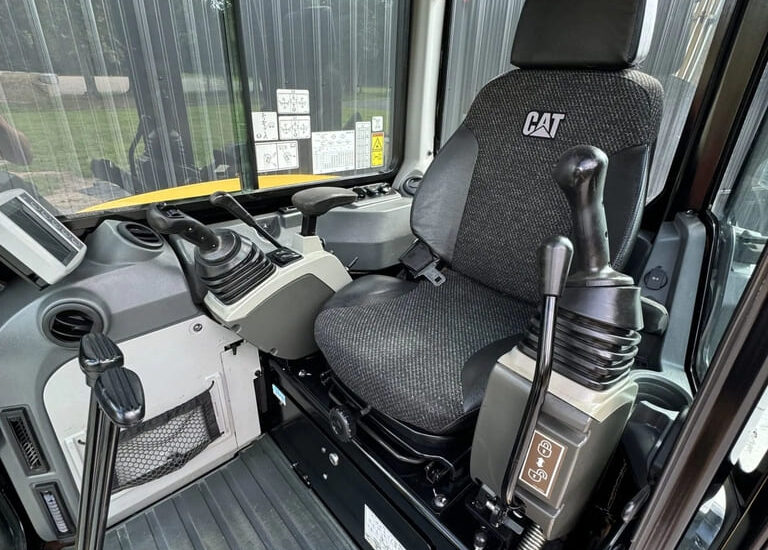

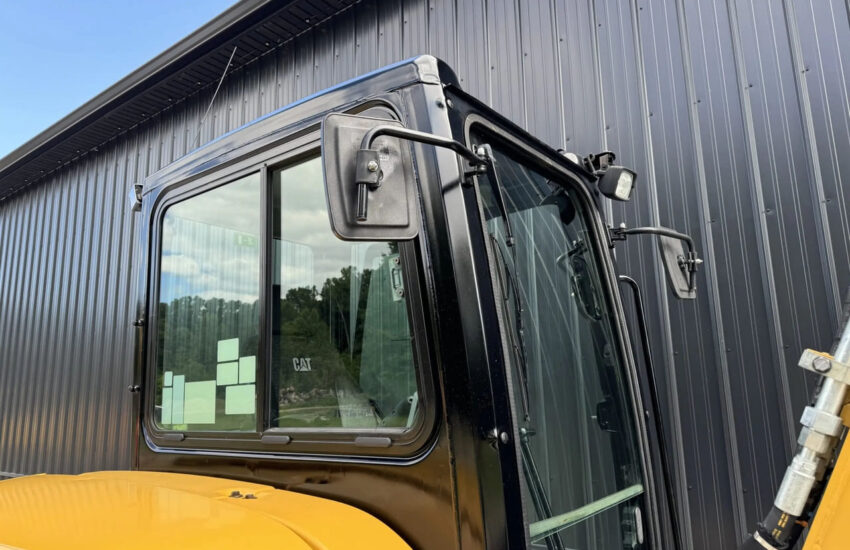

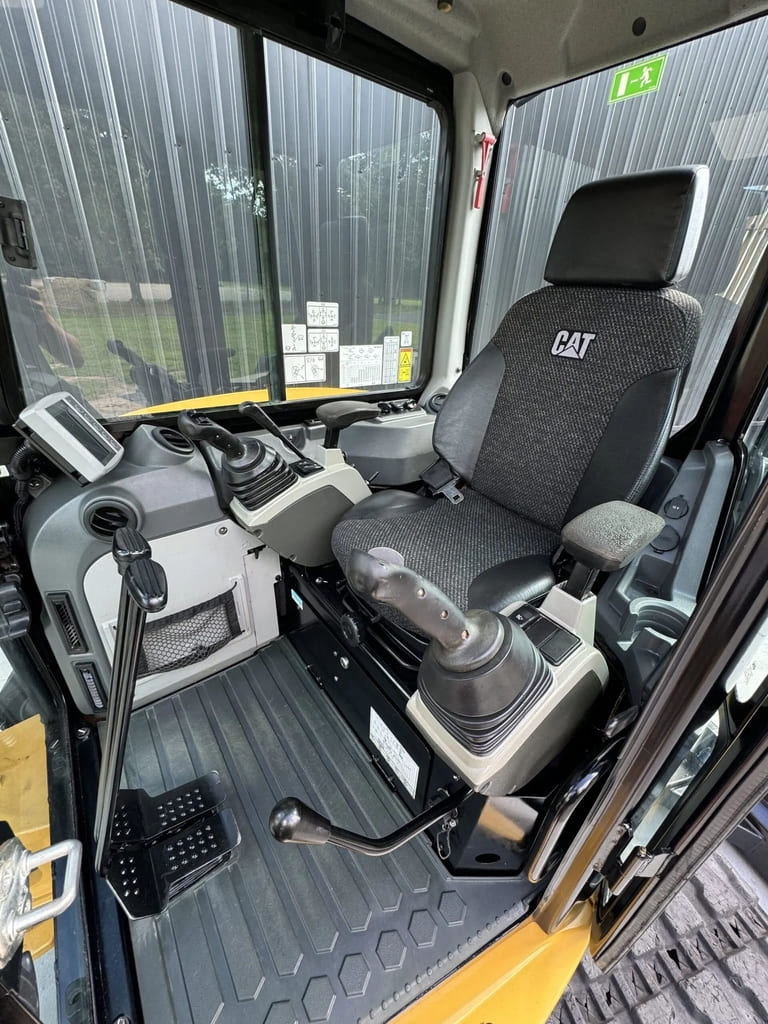

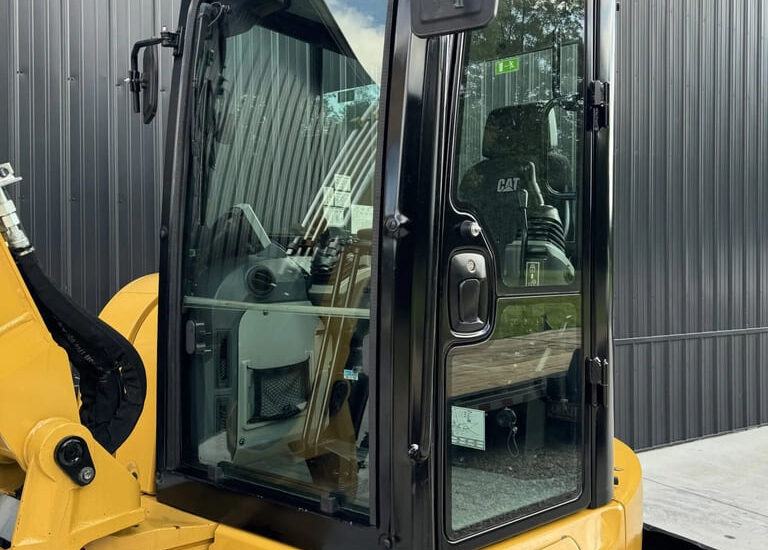

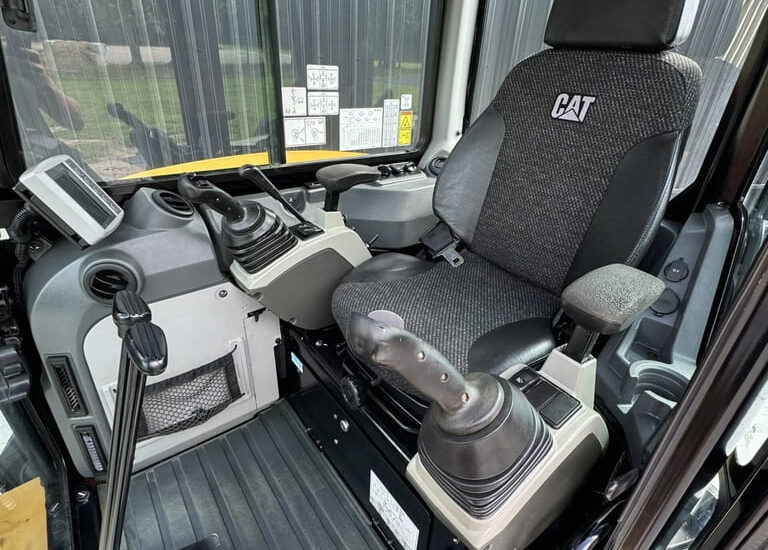

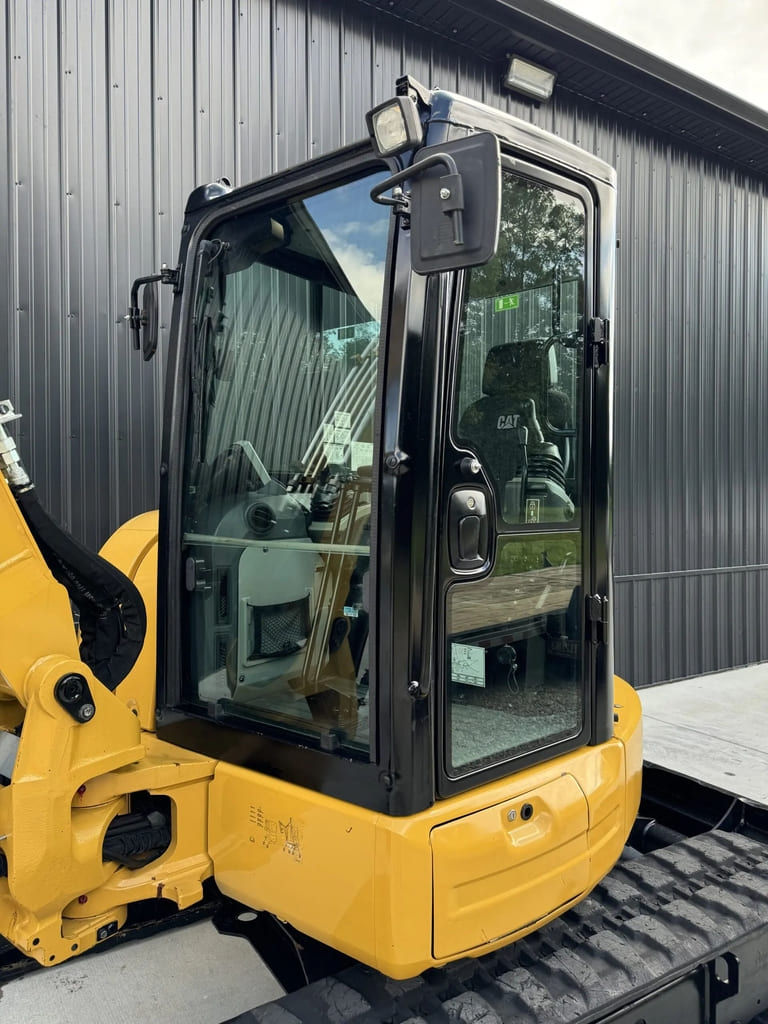

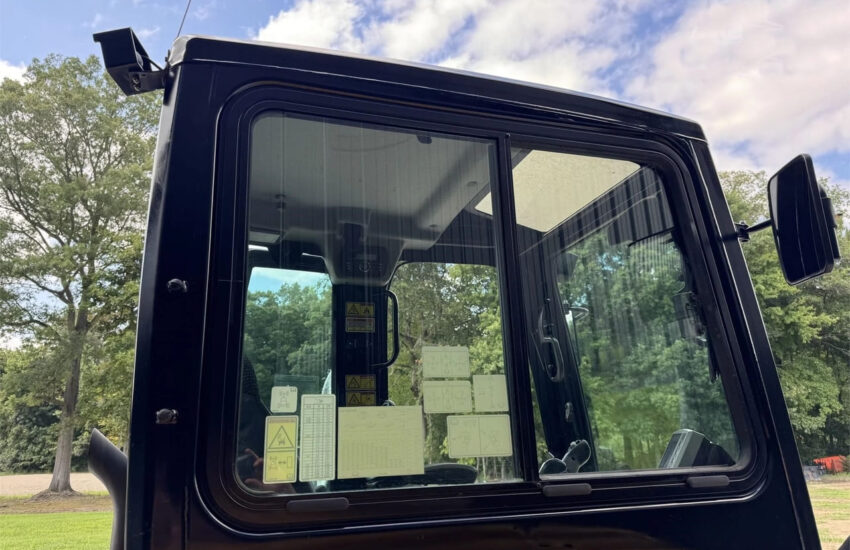

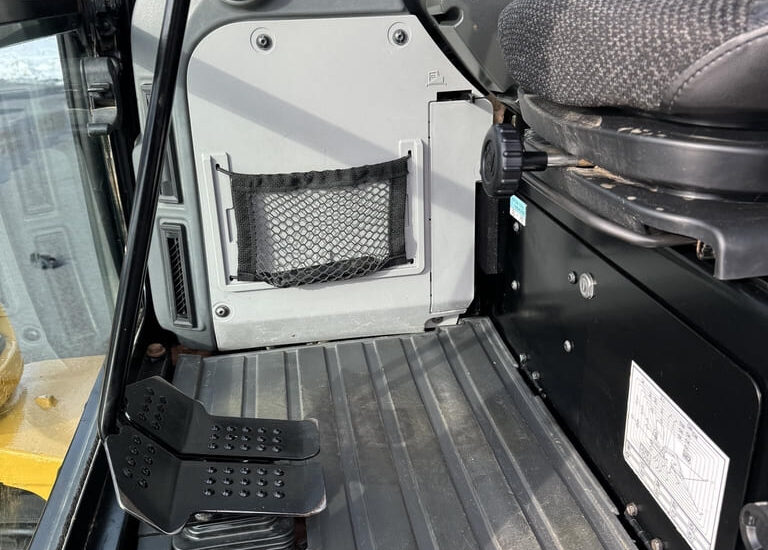

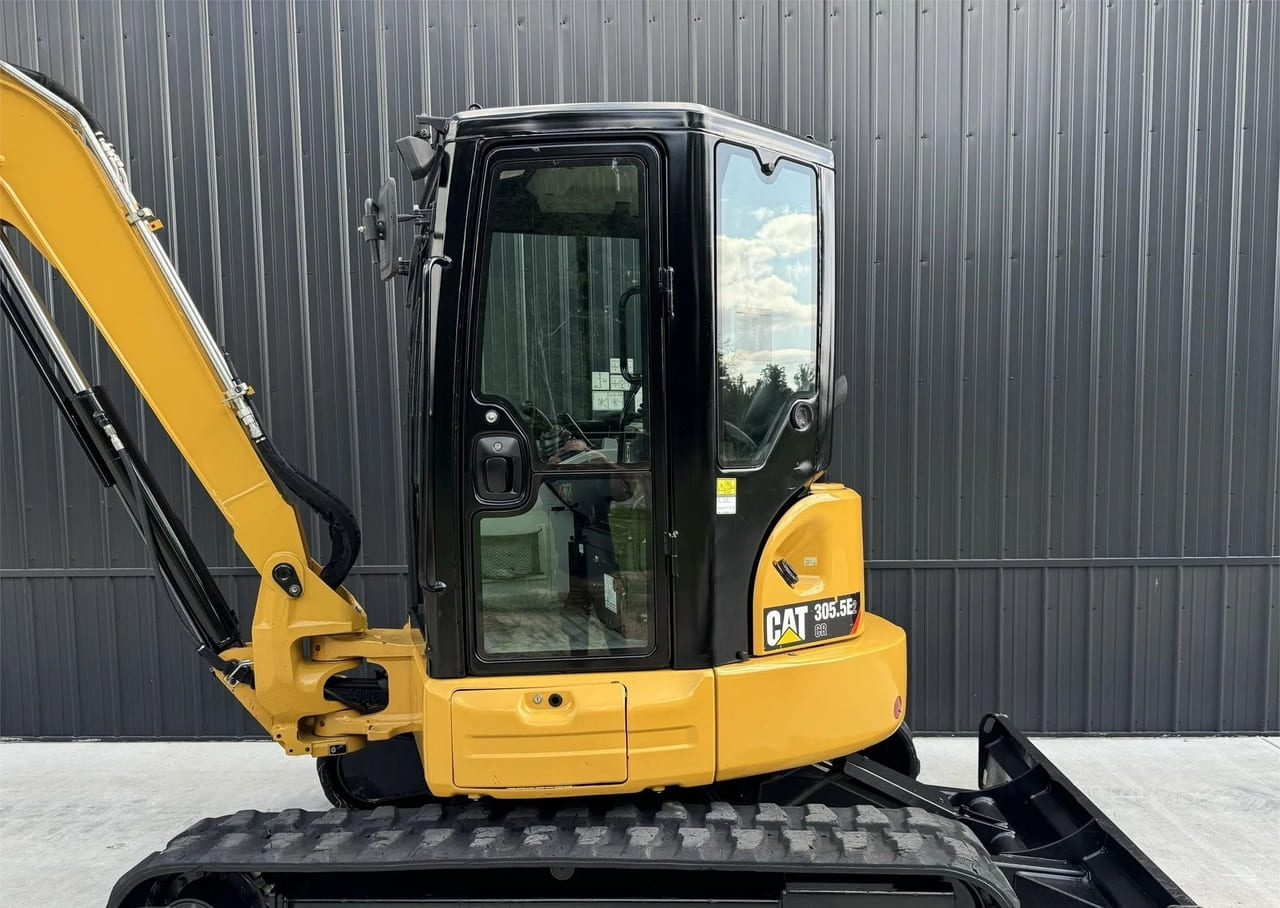

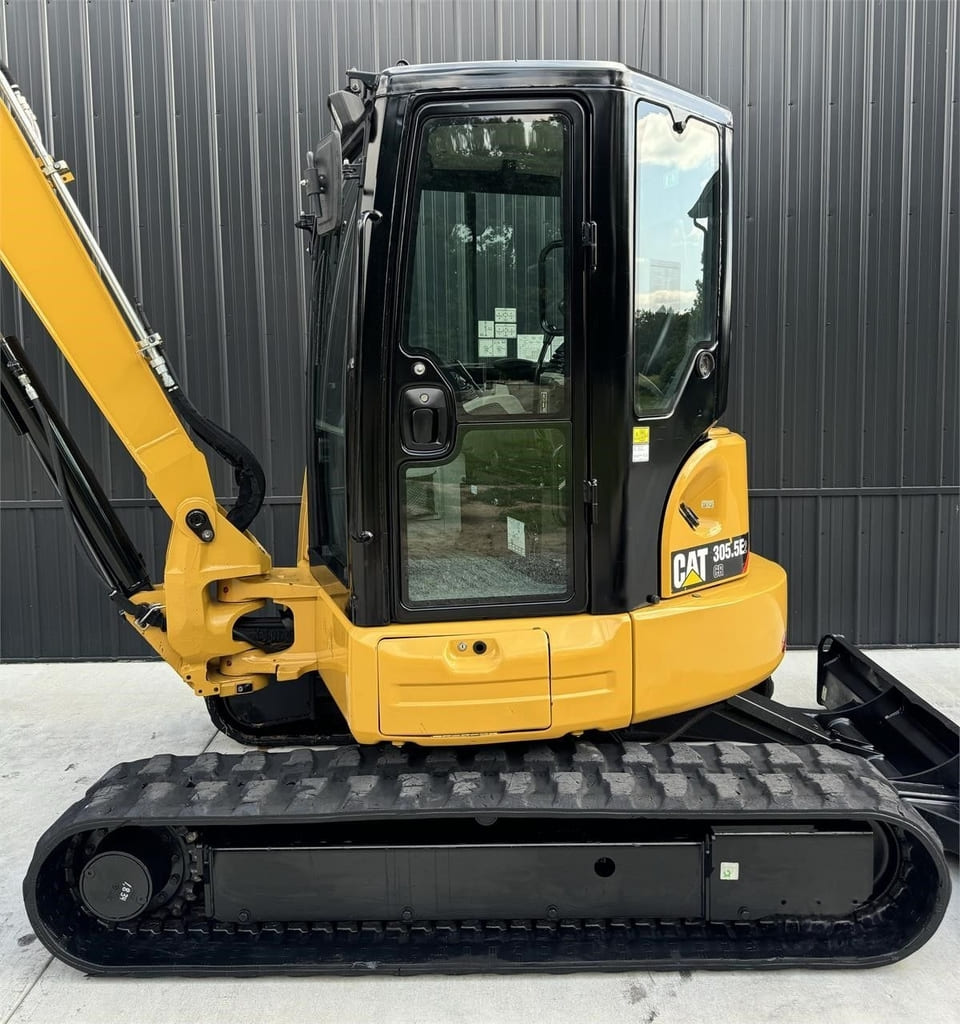

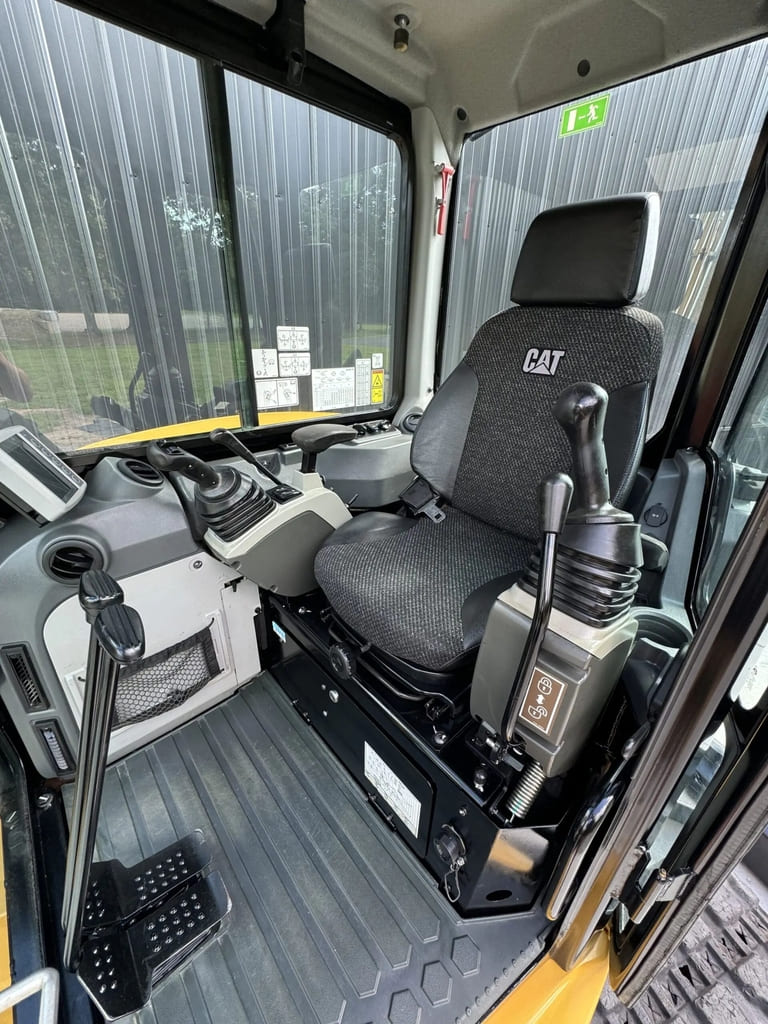

– Enclosed HEAT/AC/RADIO

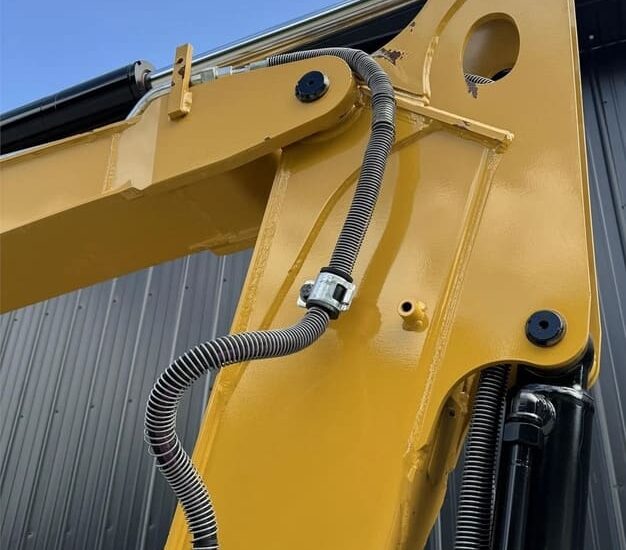

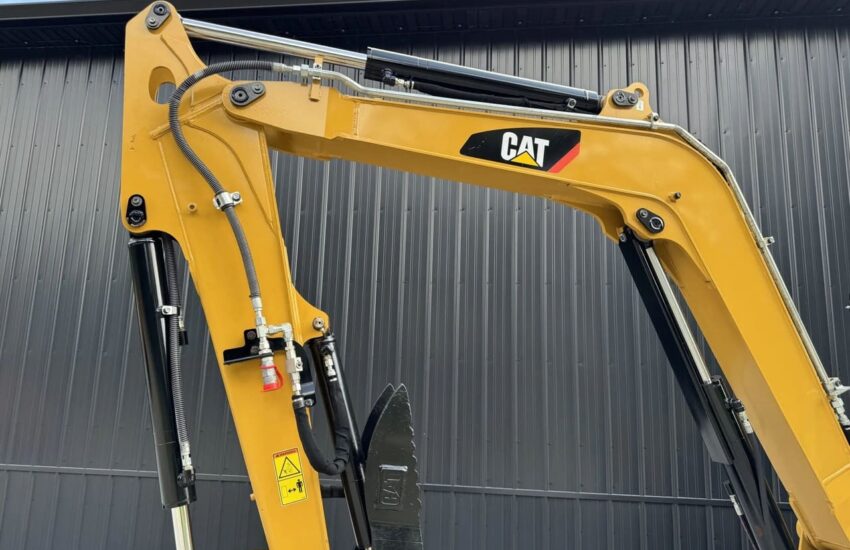

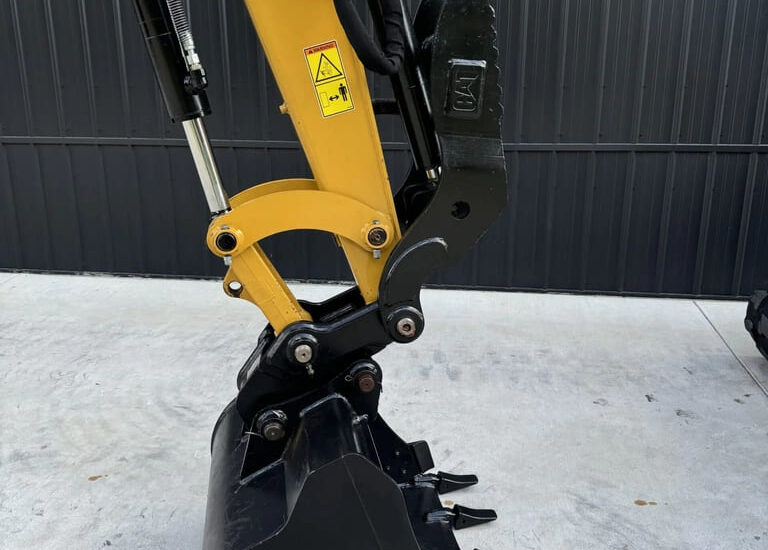

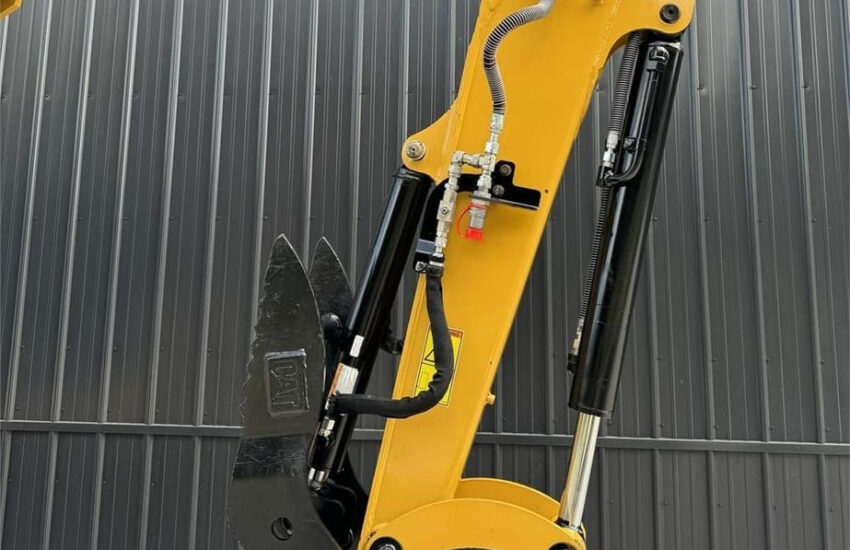

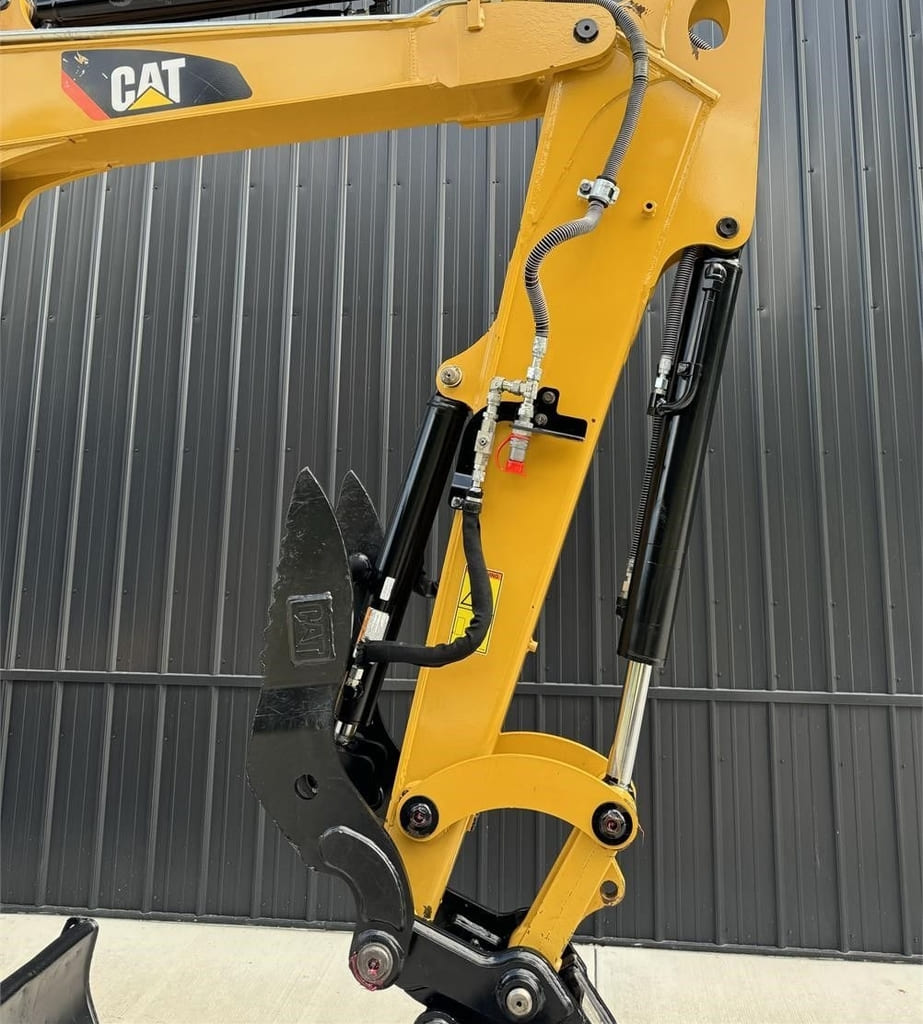

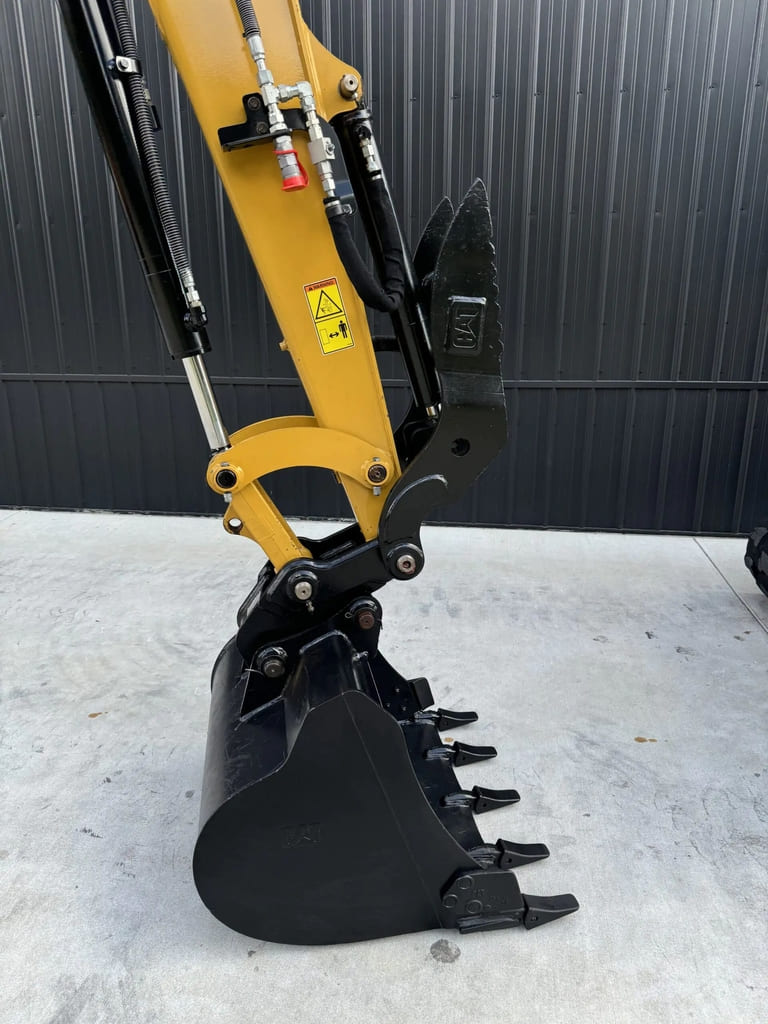

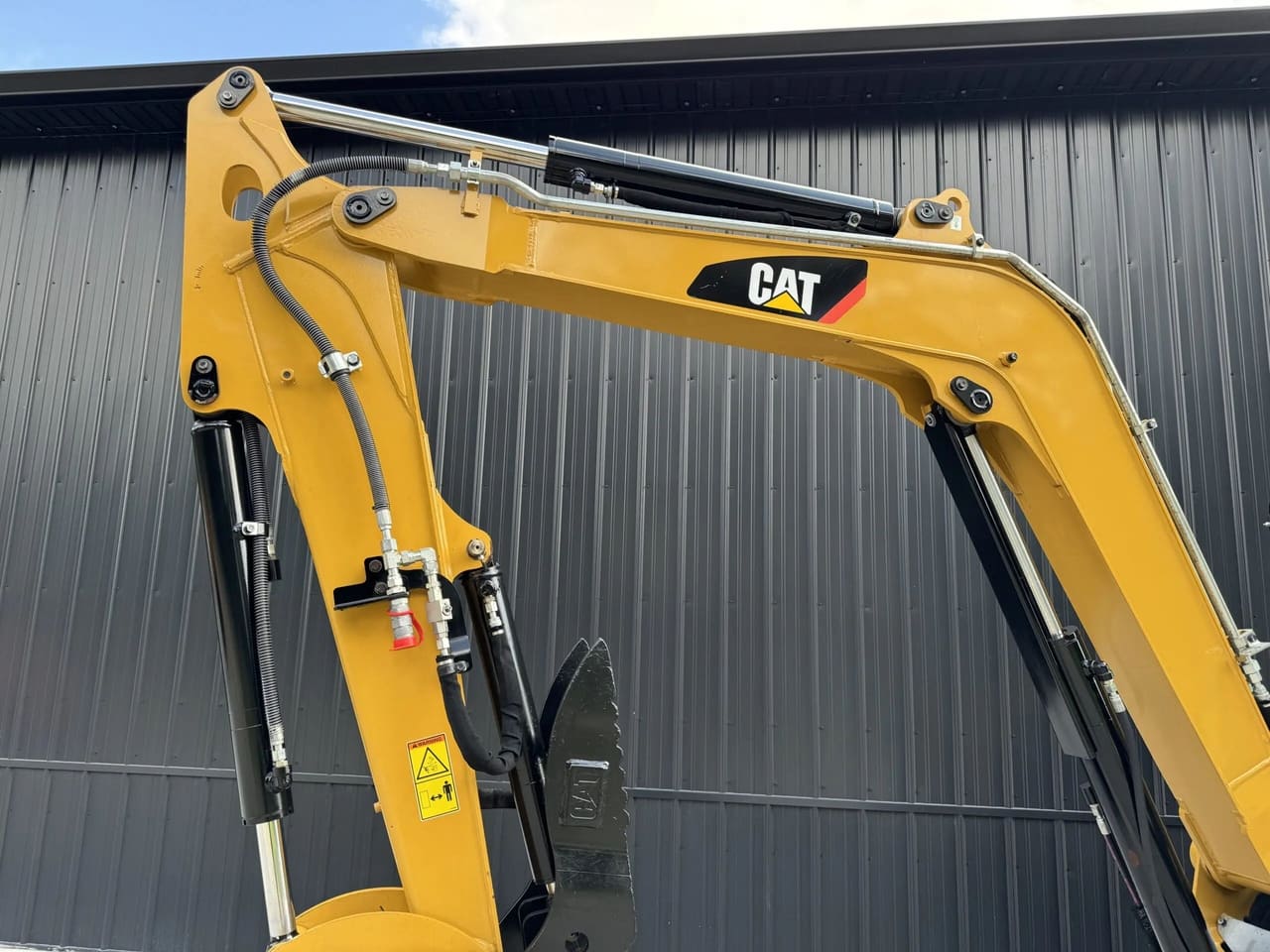

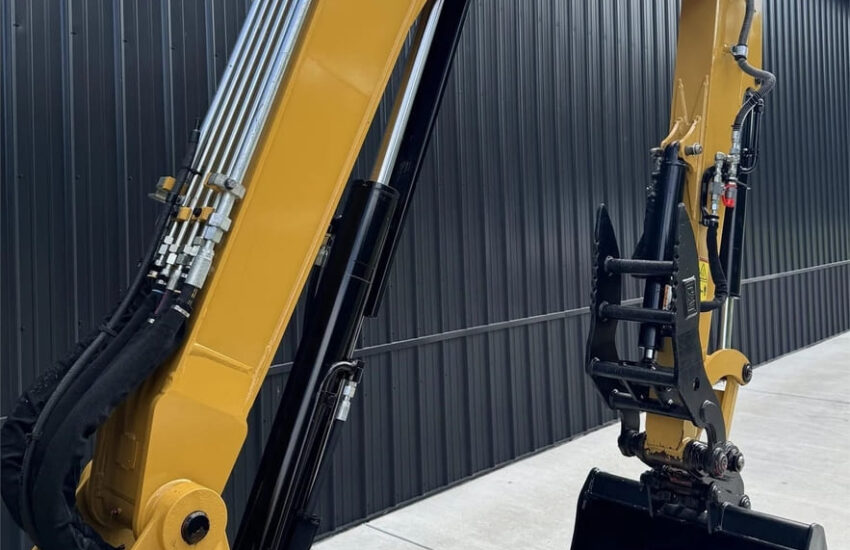

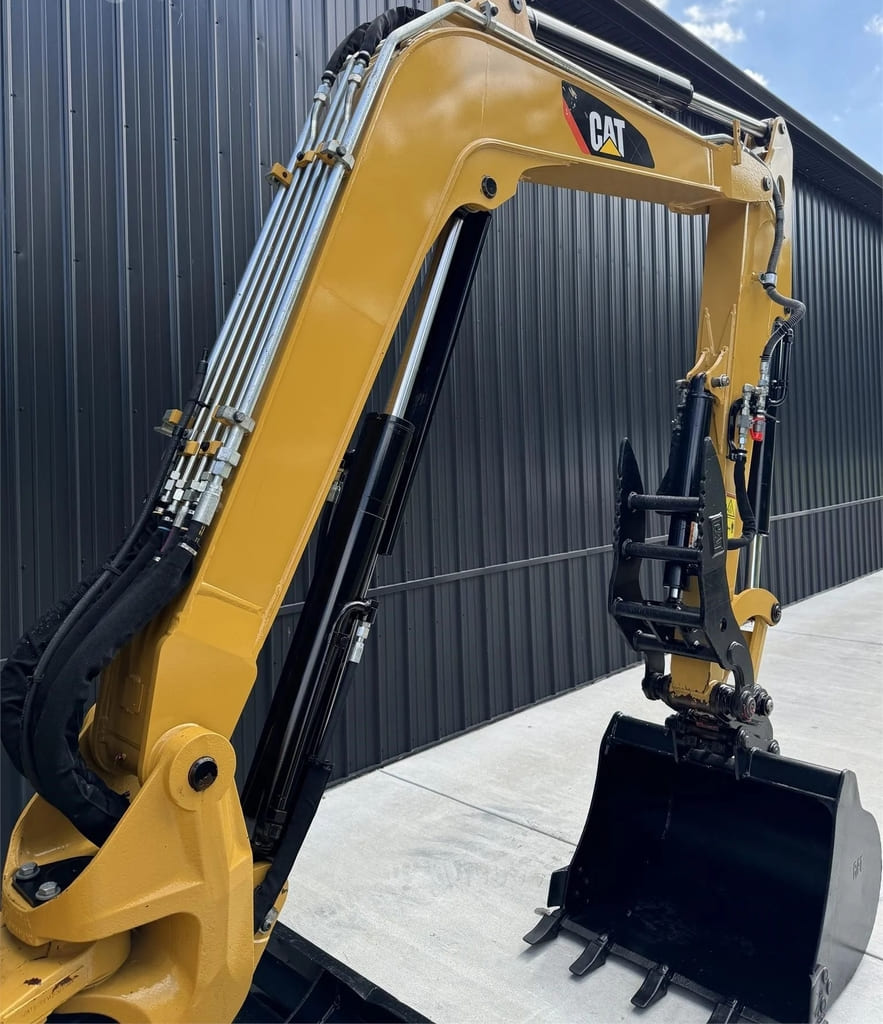

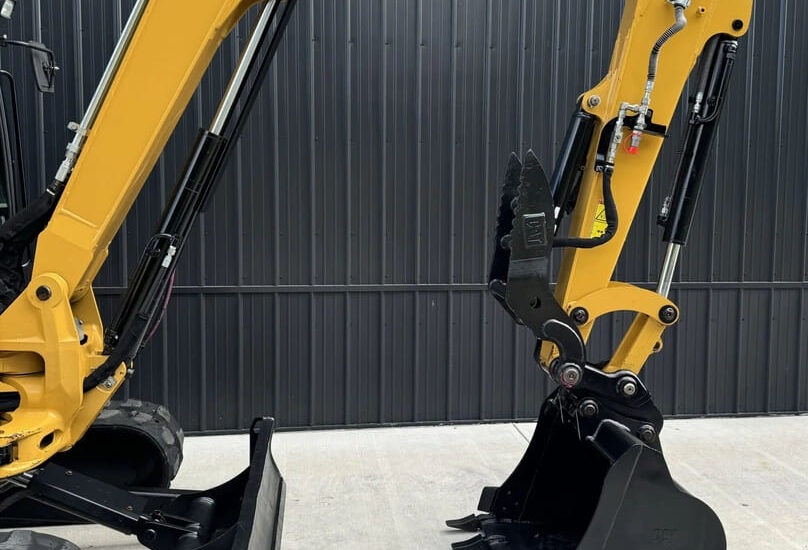

– Hydraulic Thumb

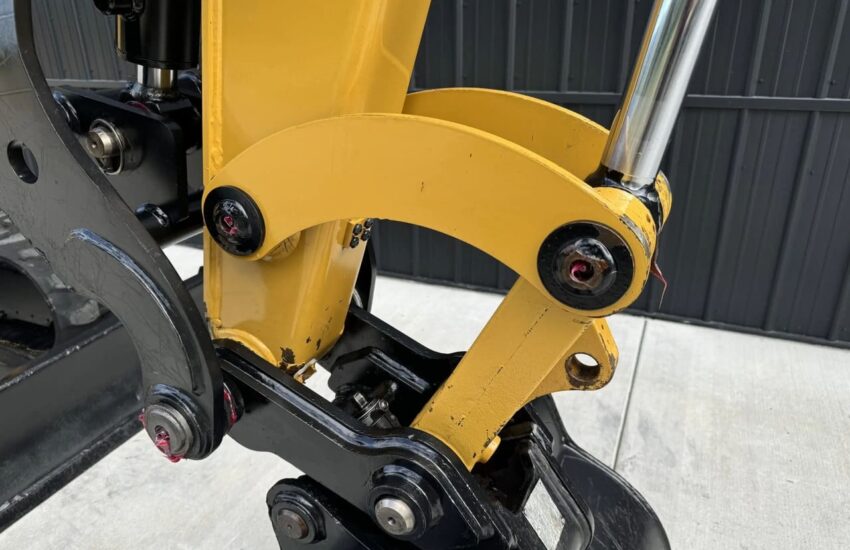

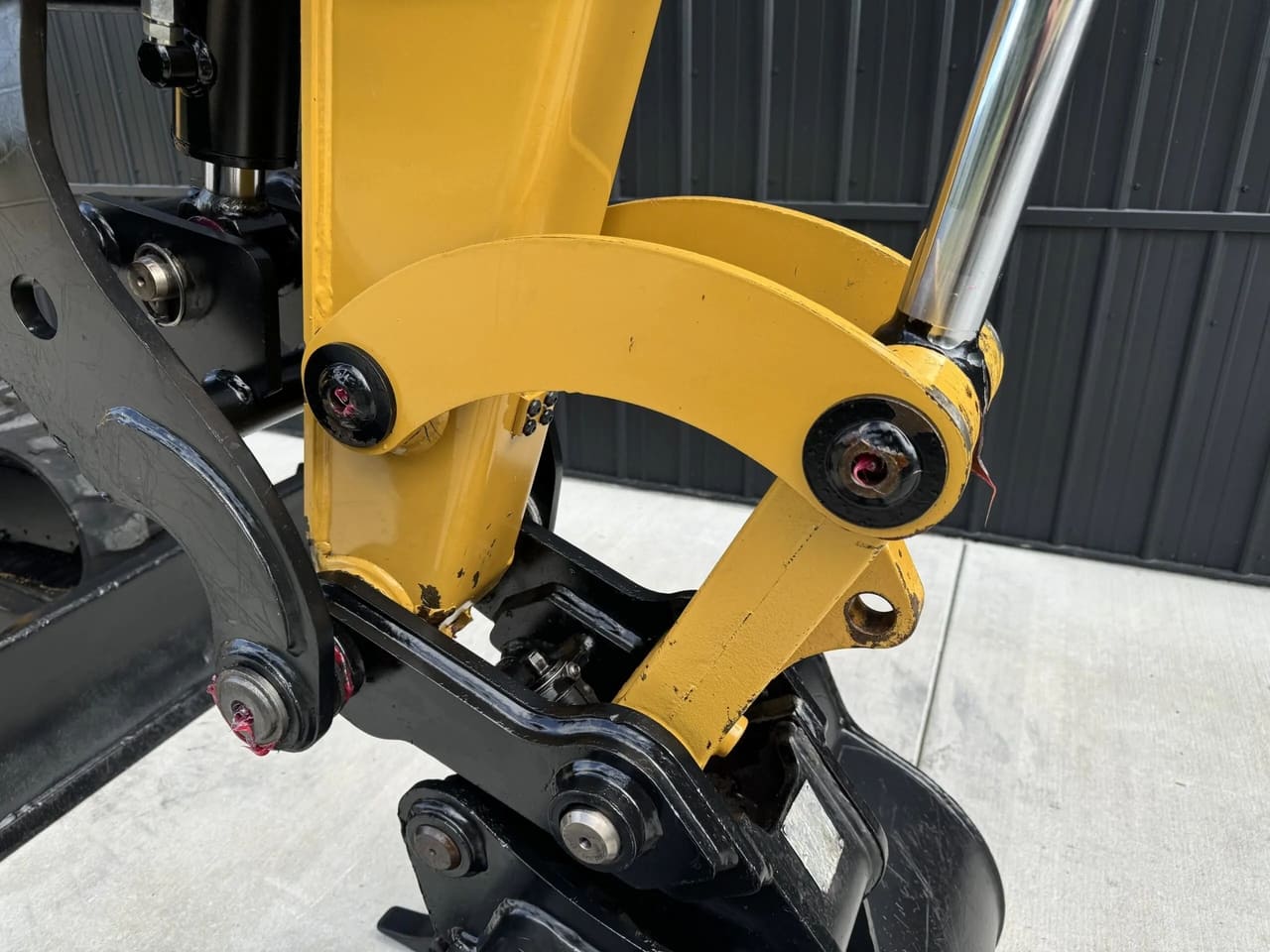

– Manual Quick Coupler
– Rear Camera
– 2 speed

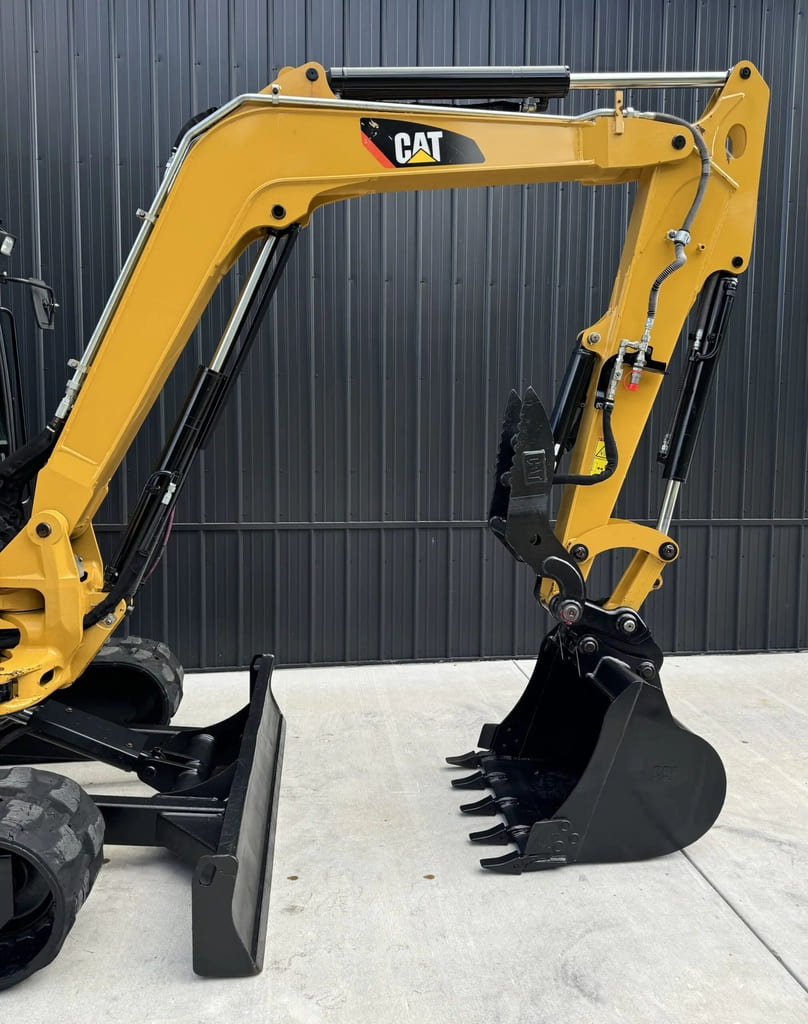

– 12″, 24″ and 36” Tooth bucket
– 46 Hp
– 12k Lbs

Machine is READY TO WORK

SPECIFICATIONS

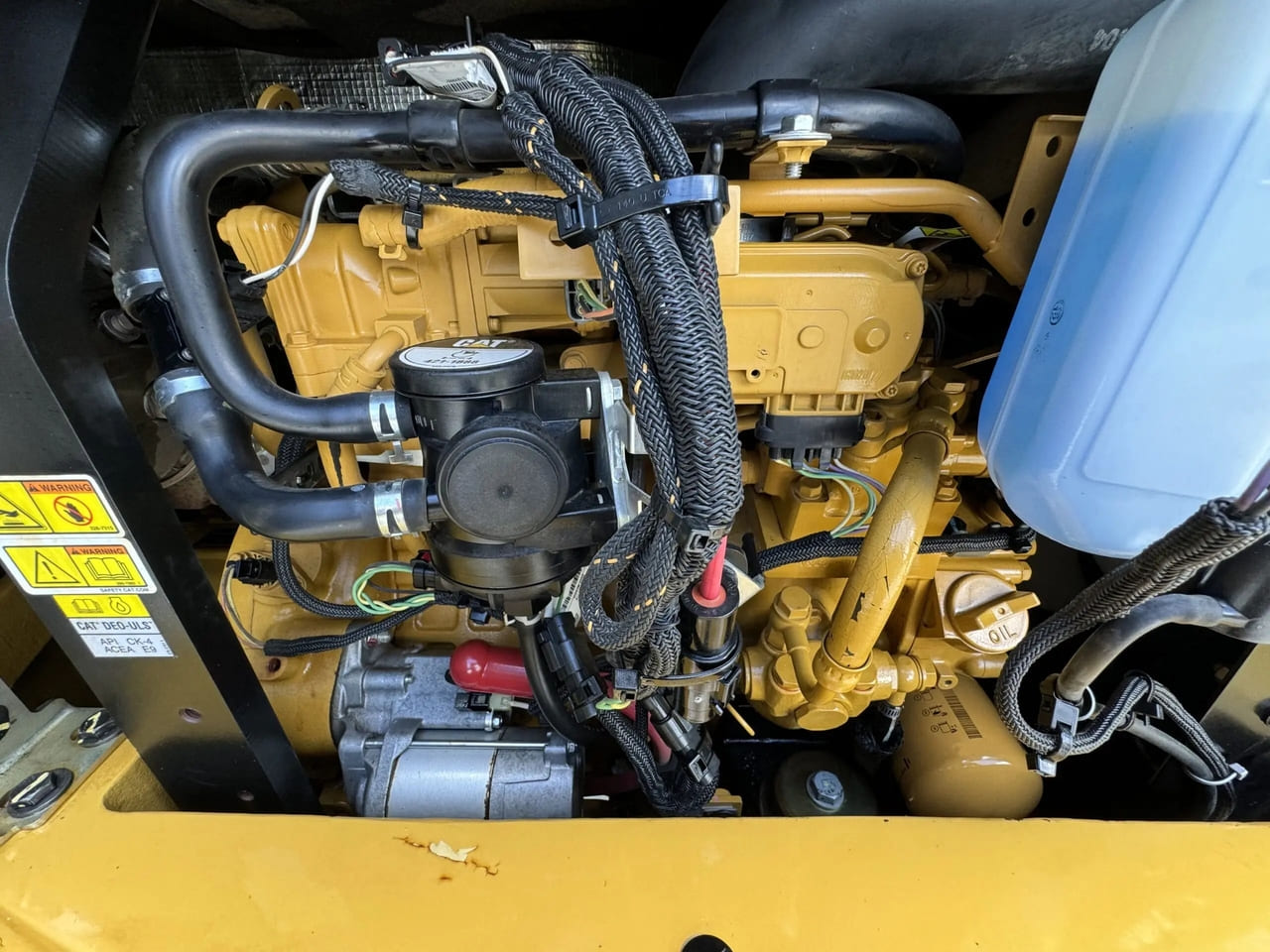

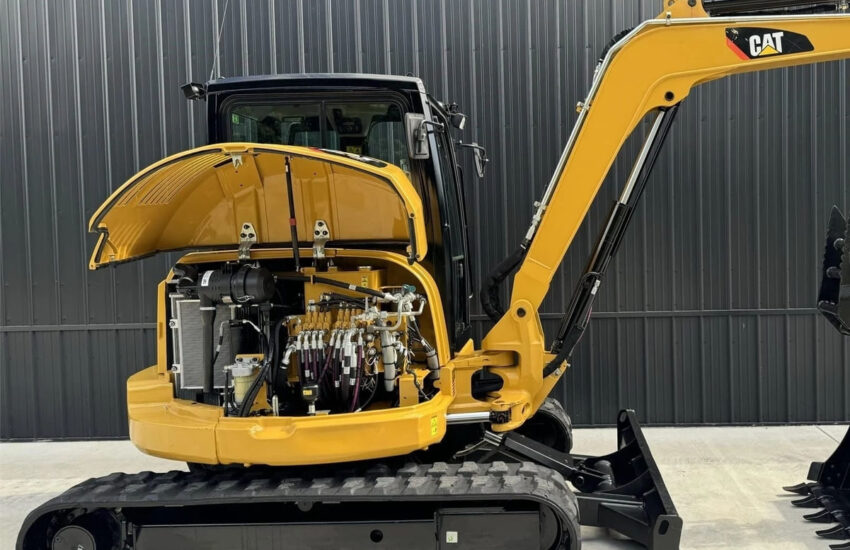

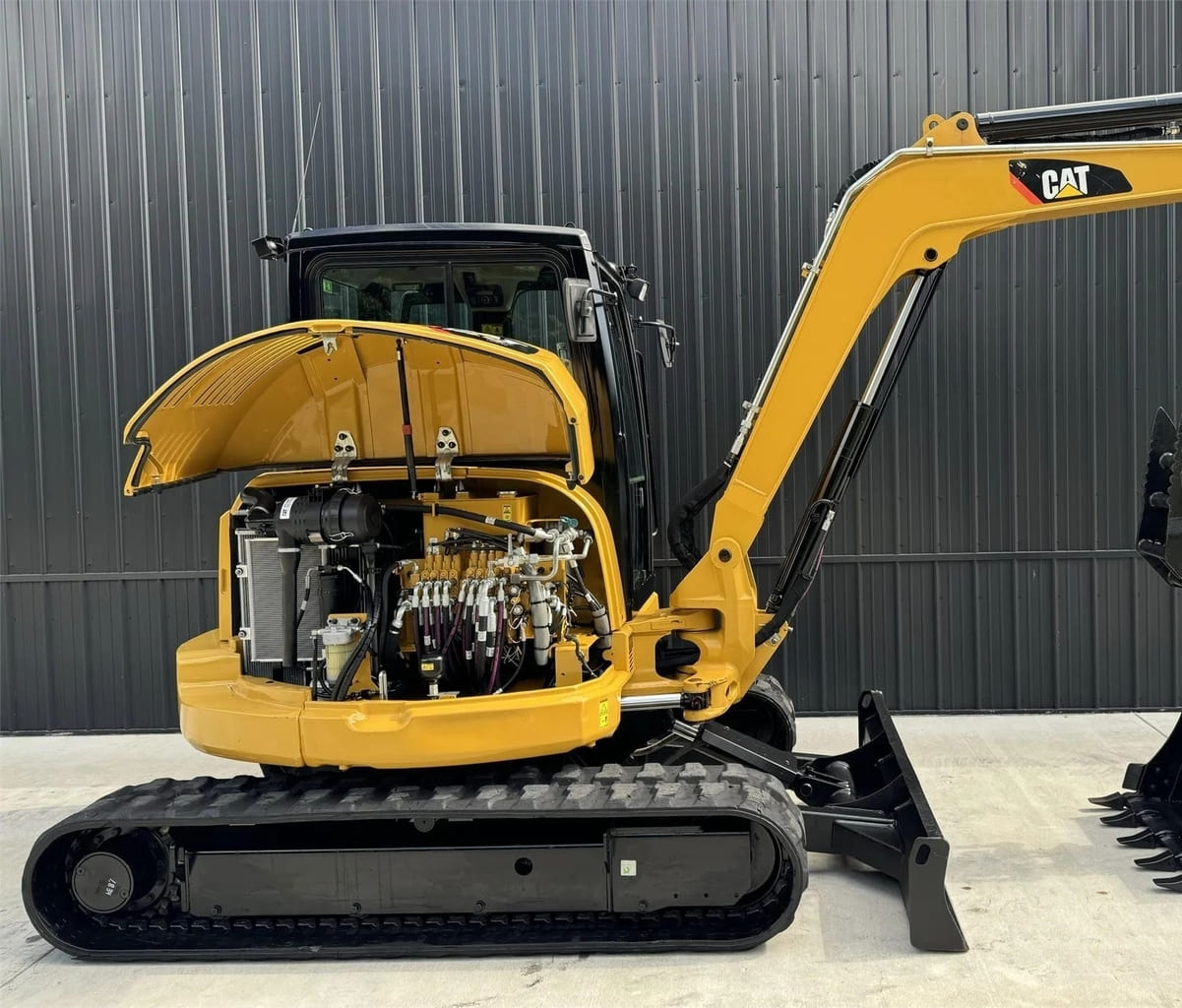

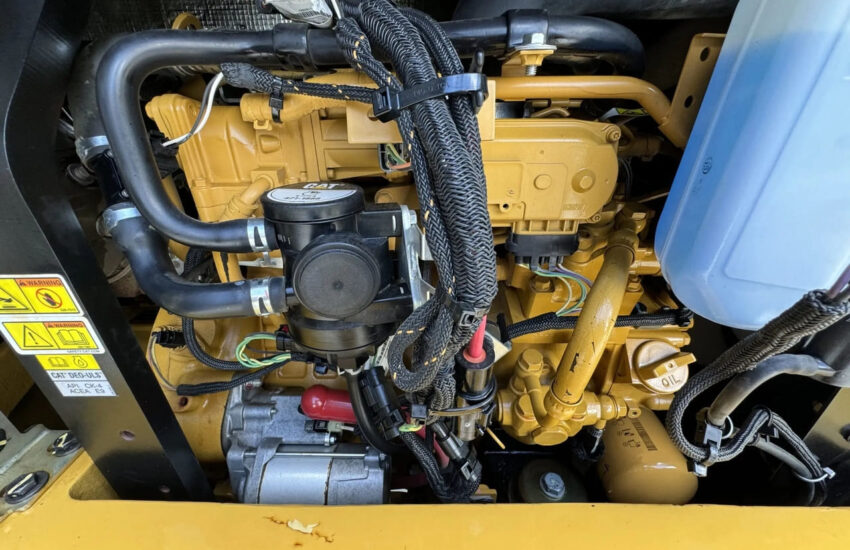

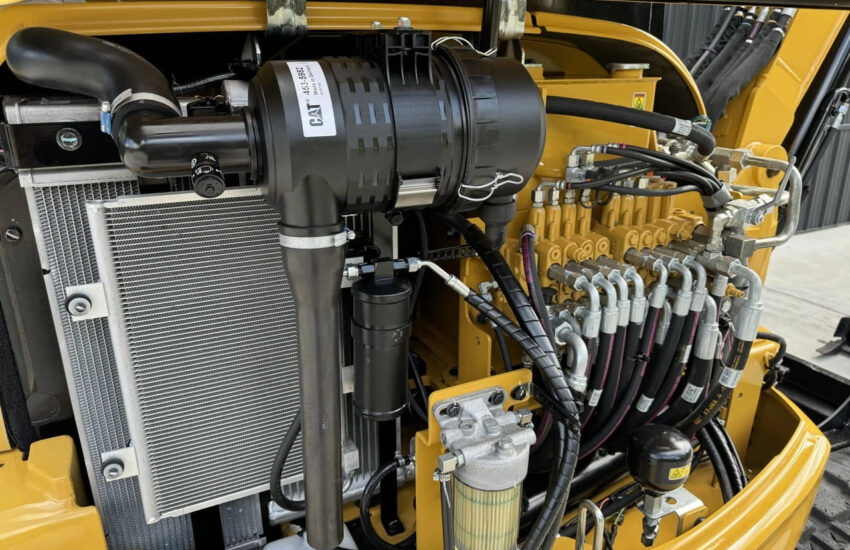

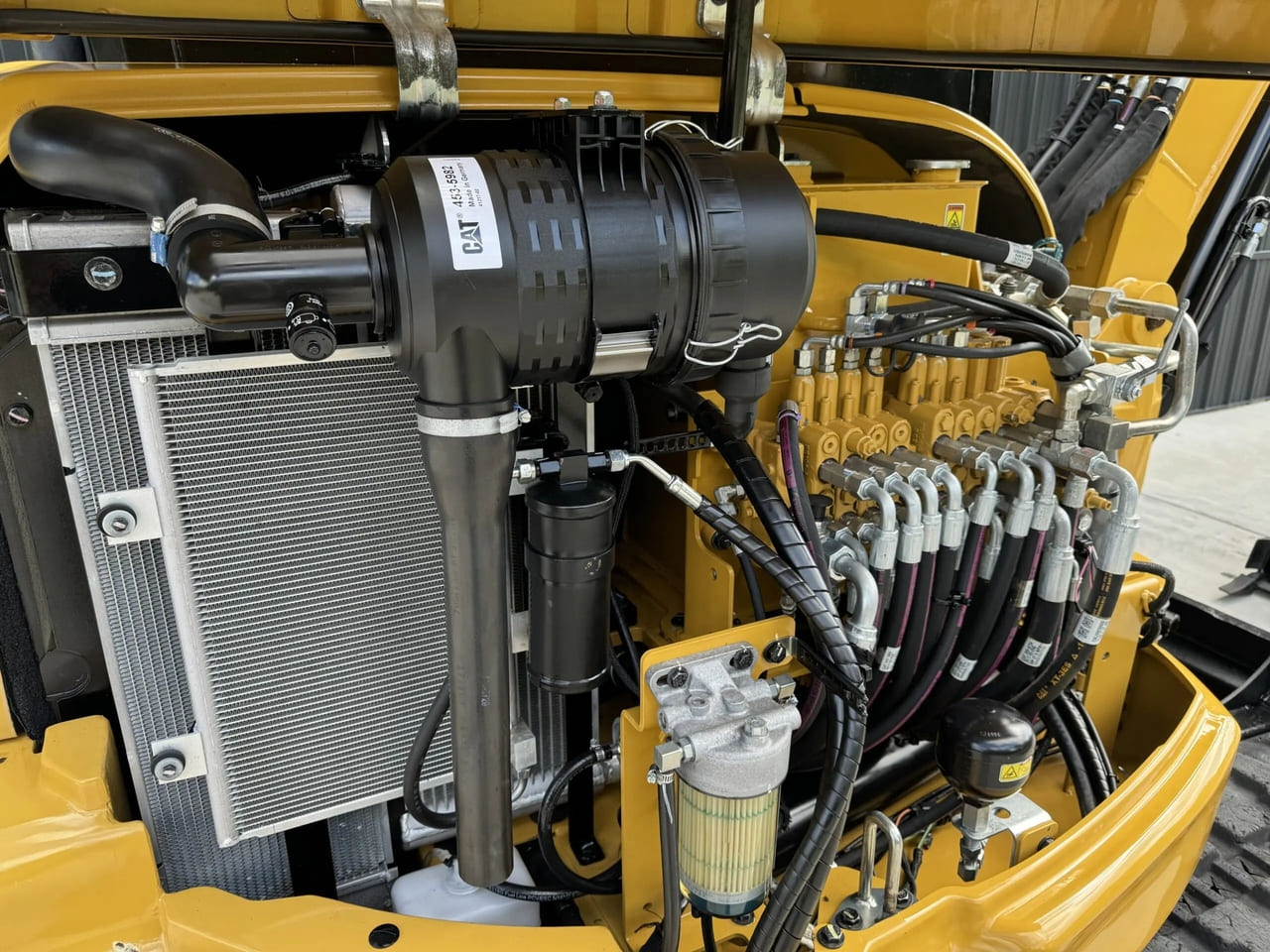

Engine
• Model: Cat C2.4
• Net Power: 44.1 hp (32.9 kW)
• Gross Power: 45.7 hp (34.1 kW)
• Displacement: 146 in³ (2.4 L)
• Emissions: U.S. EPA Tier 4 Final / EU Stage IIIA compliant

Weights
• Operating Weight (Cab, Standard Stick): 11,863 lbs (5,380 kg)
• Operating Weight (Cab, Long Stick): 11,958 lbs (5,423 kg)

Performance
• Max Dig Depth (Standard Stick): 11 ft 5 in (3,470 mm)
• Max Dig Depth (Long Stick): 12 ft 8 in (3,870 mm)
• Max Reach at Ground Level (Standard Stick): 18 ft 6 in (5,630 mm)
• Max Reach at Ground Level (Long Stick): 19 ft 9 in (6,020 mm)
• Max Dump Clearance (Standard Stick): 12 ft 6 in (3,820 mm)
• Max Dump Clearance (Long Stick): 13 ft 5 in (4,080 mm)
• Bucket Digging Force: 11,445 lbf (50.9 kN)
• Stick Digging Force (Standard Stick): 6,500 lbf (28.9 kN)
• Stick Digging Force (Long Stick): 5,575 lbf (24.8 kN)

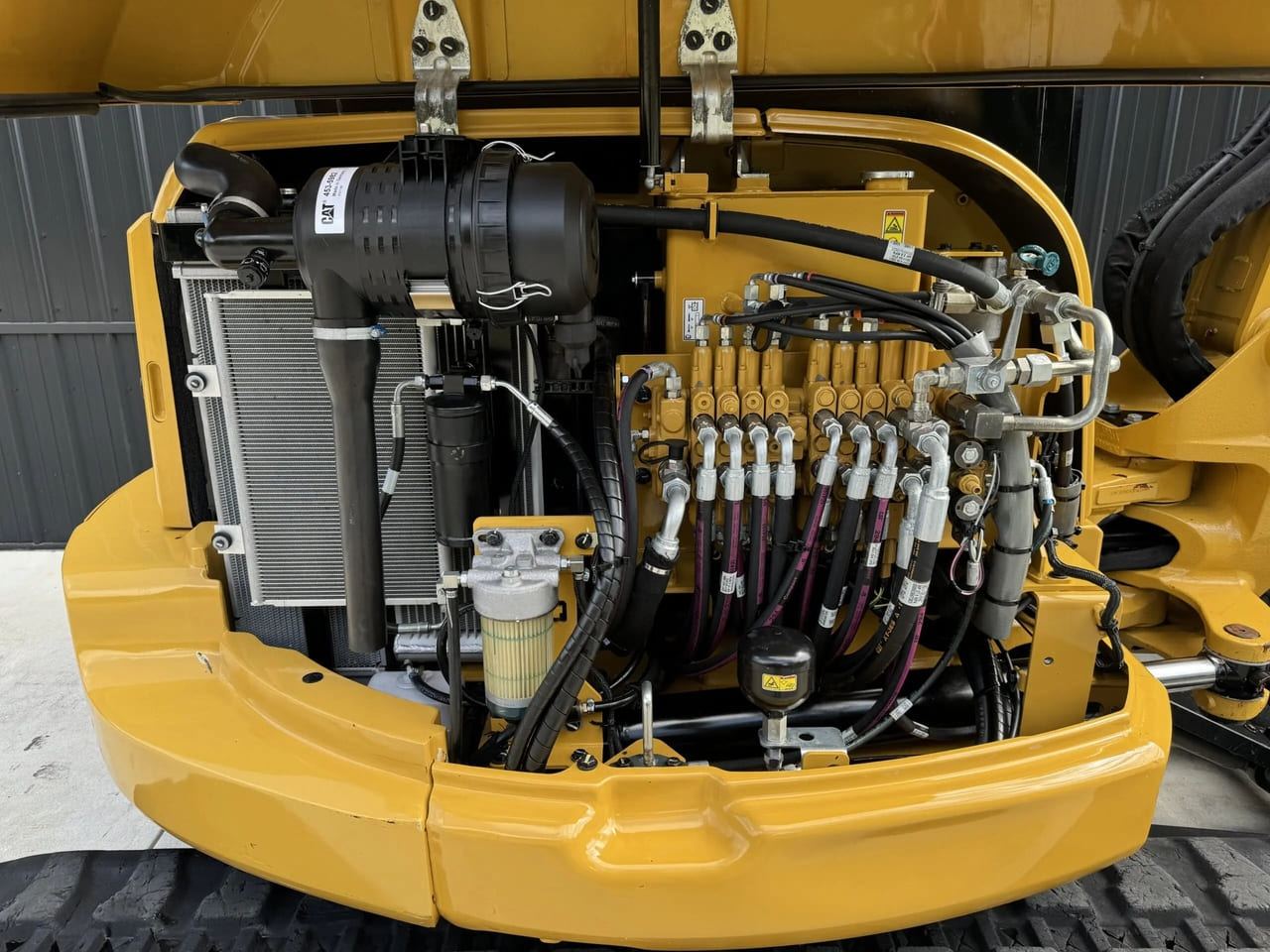

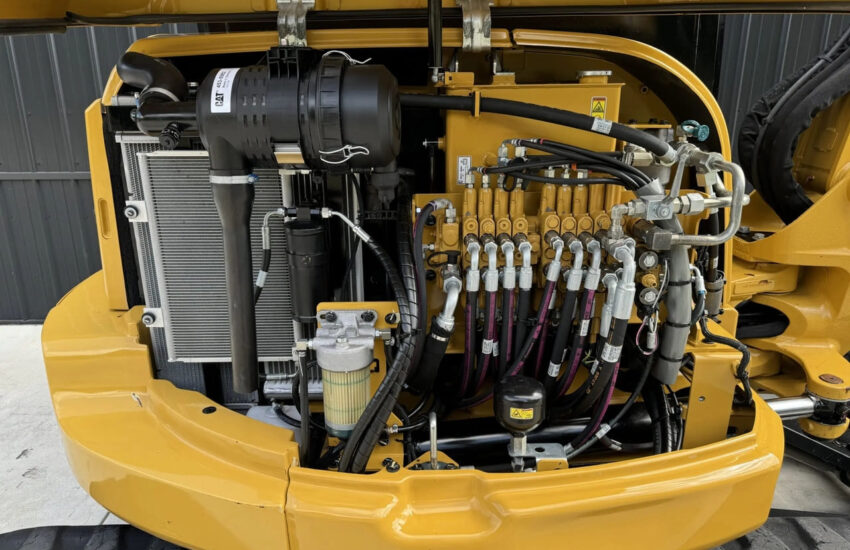

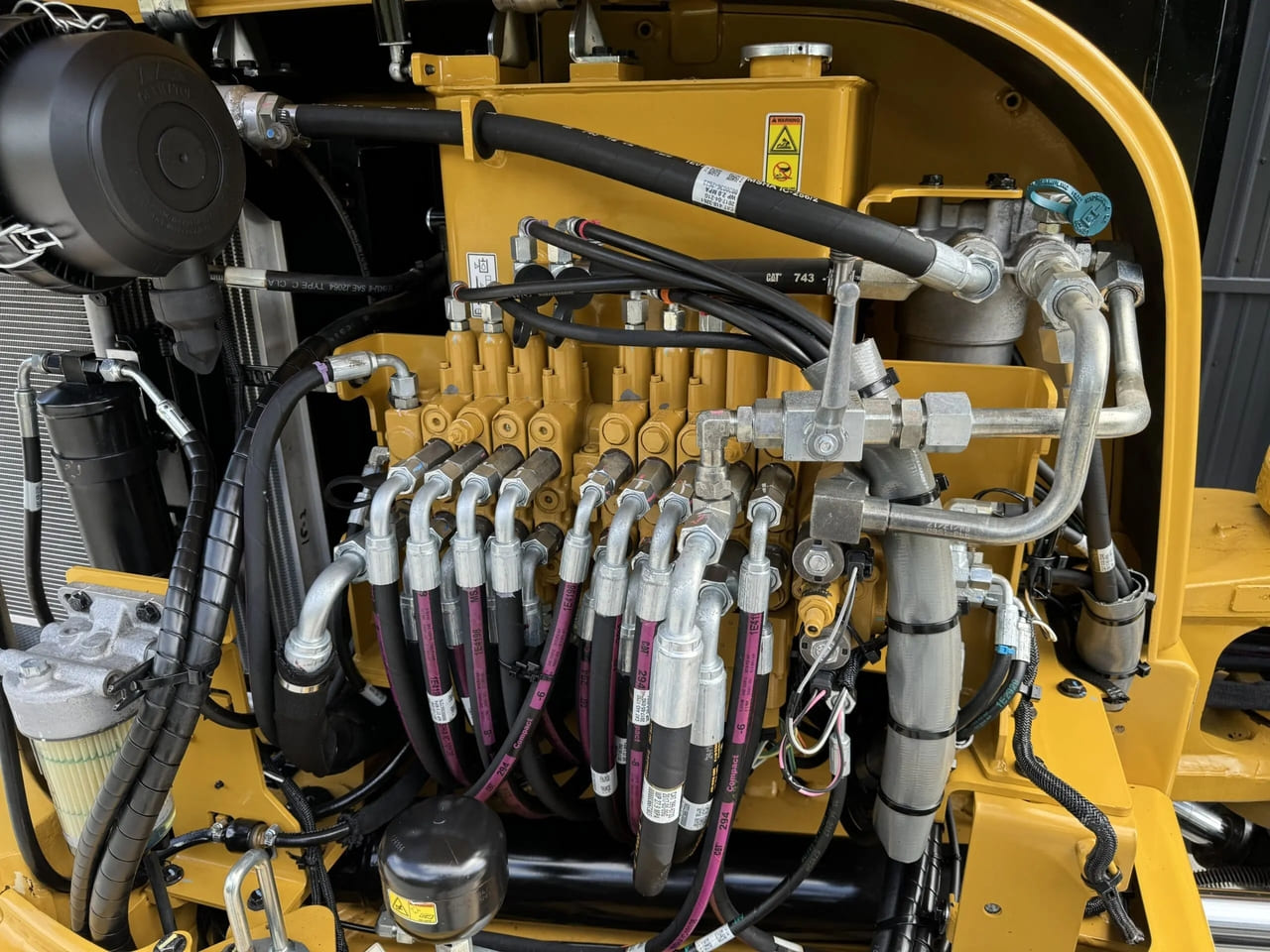

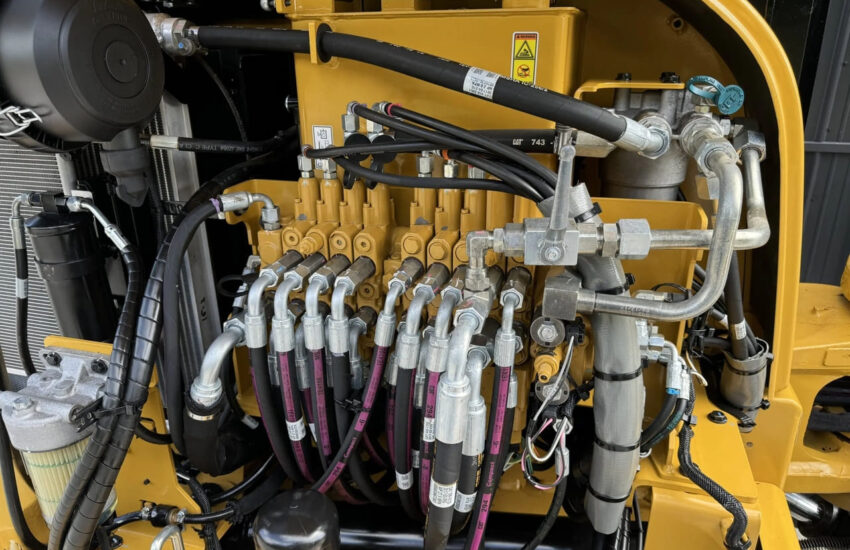

Hydraulics
• Main Pump Flow: 39.6 gal/min (150 L/min)
• Auxiliary Circuit – Primary: 21.1 gal/min (80 L/min) @ 2,734 psi (186 bar)
• Auxiliary Circuit – Secondary: 6.6 gal/min (25 L/min) @ 2,524 psi (174 bar)
• Operating Pressure – Equipment: 3,553 psi (245 bar)
• Operating Pressure – Travel: 3,553 psi (245 bar)
• Operating Pressure – Swing: 3,132 psi (216 bar)

Dimensions
• Overall Length (Standard Stick): 17 ft 6 in (5,330 mm)
• Overall Length (Long Stick): 17 ft 11 in (5,460 mm)
• Overall Width: 6 ft 6 in (1,980 mm)
• Overall Height: 8 ft 4 in (2,550 mm)
• Tail Swing Radius: 3 ft 8 in (1,130 mm)
• Ground Clearance: 1 ft 4 in (405 mm)

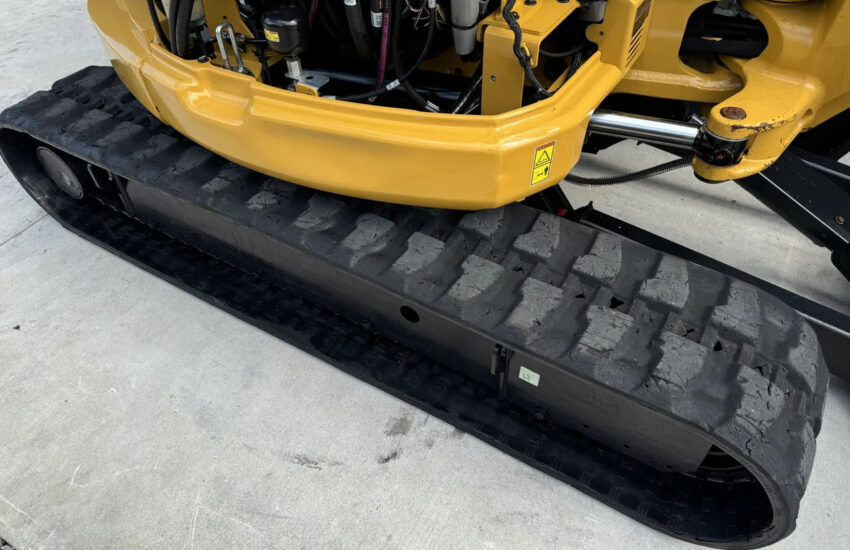

Travel System
• Travel Speed – High: 2.8 mph (4.5 km/h)
• Travel Speed – Low: 1.7 mph (2.8 km/h)
• Max Traction Force – High Speed: 6,025 lbf (26.8 kN)
• Max Traction Force – Low Speed: 10,746 lbf (47.8 kN)
• Gradeability (Max): 30°

Service Refill Capacities

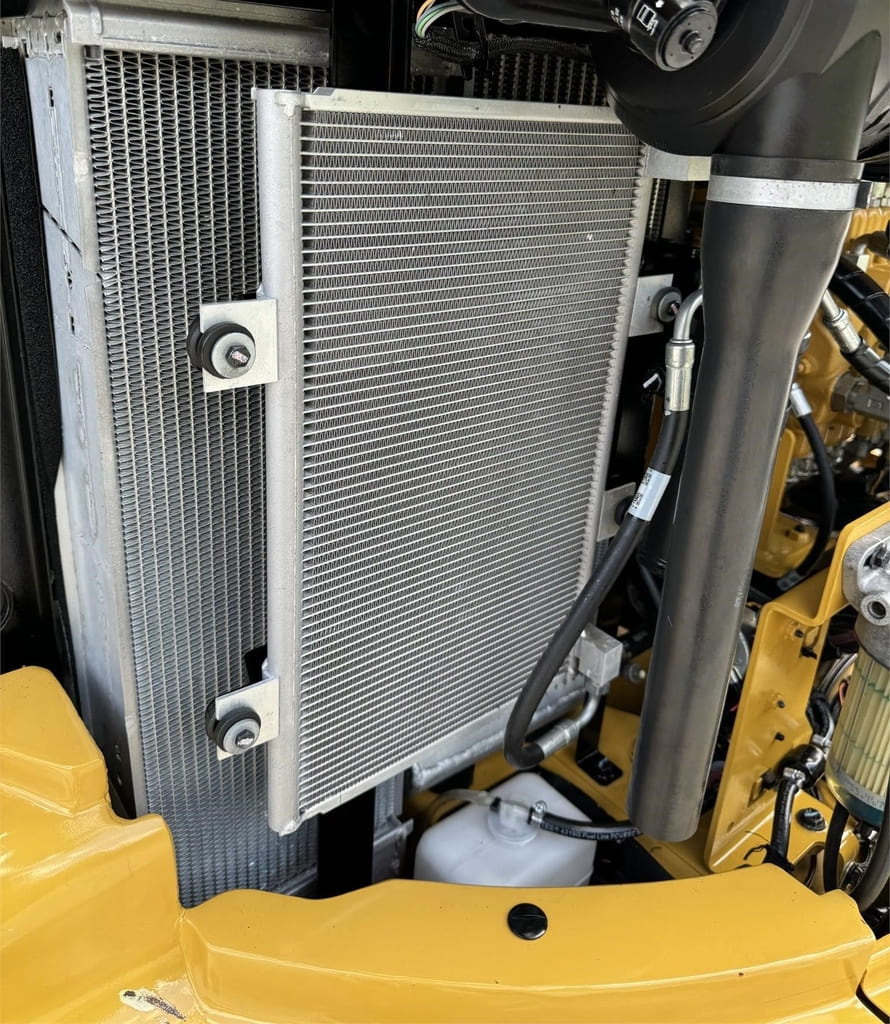

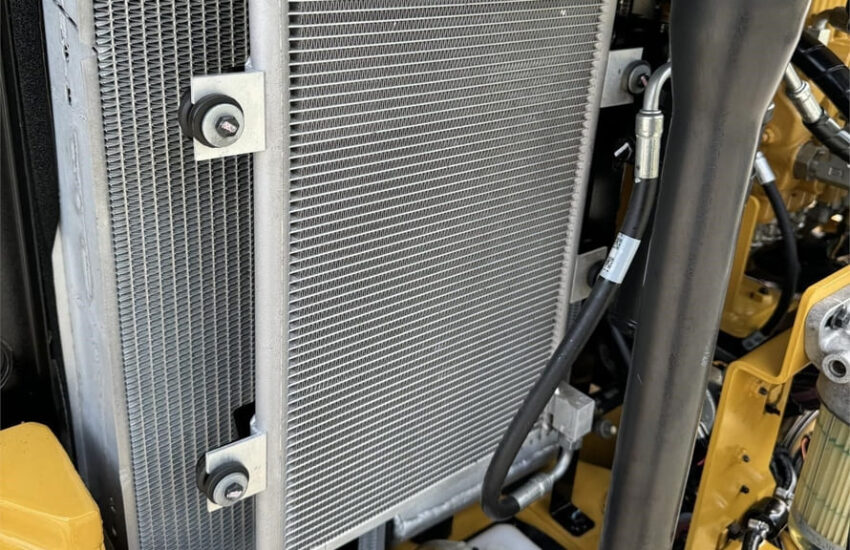

• Cooling System: 2.8 gal (10.5 L)
• Engine Oil: 2.5 gal (9.5 L)
• Fuel Tank: 16.6 gal (63 L)
• Hydraulic Tank: 18 gal (68.3 L)
• Hydraulic System (Total): 20.6 gal (78 L)
