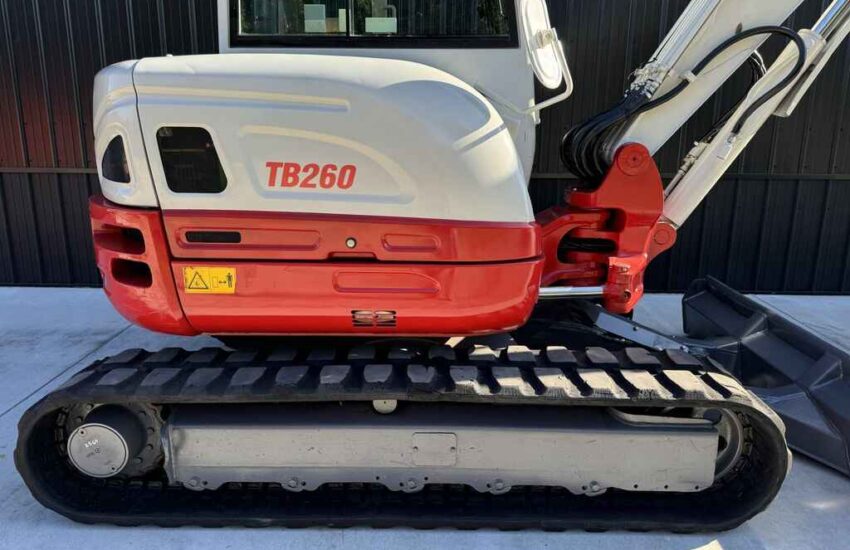

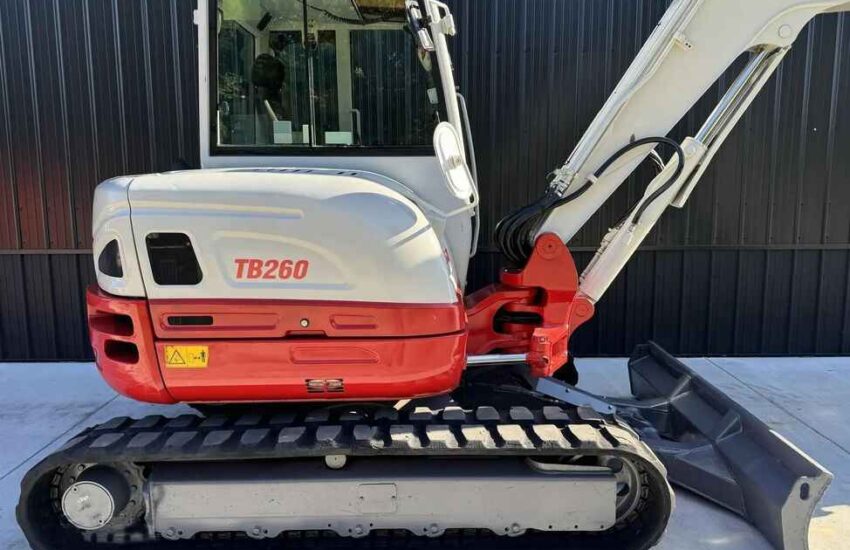

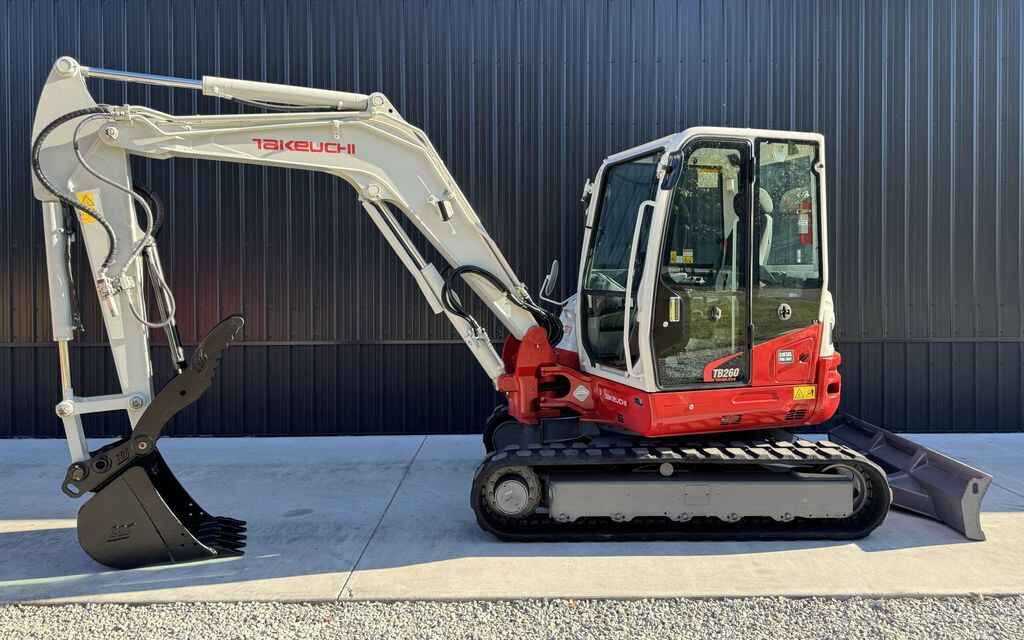

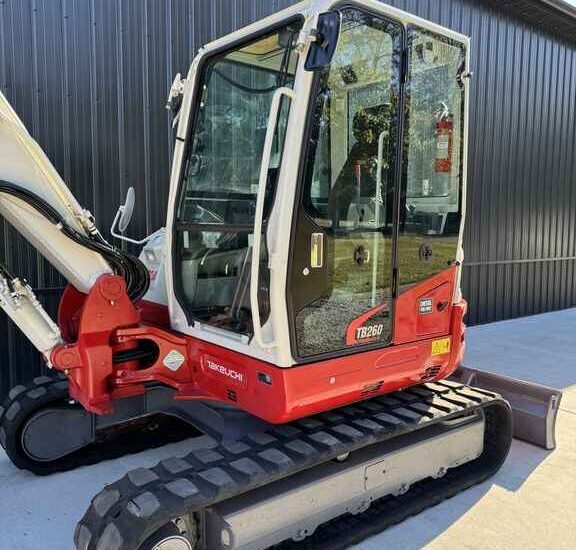

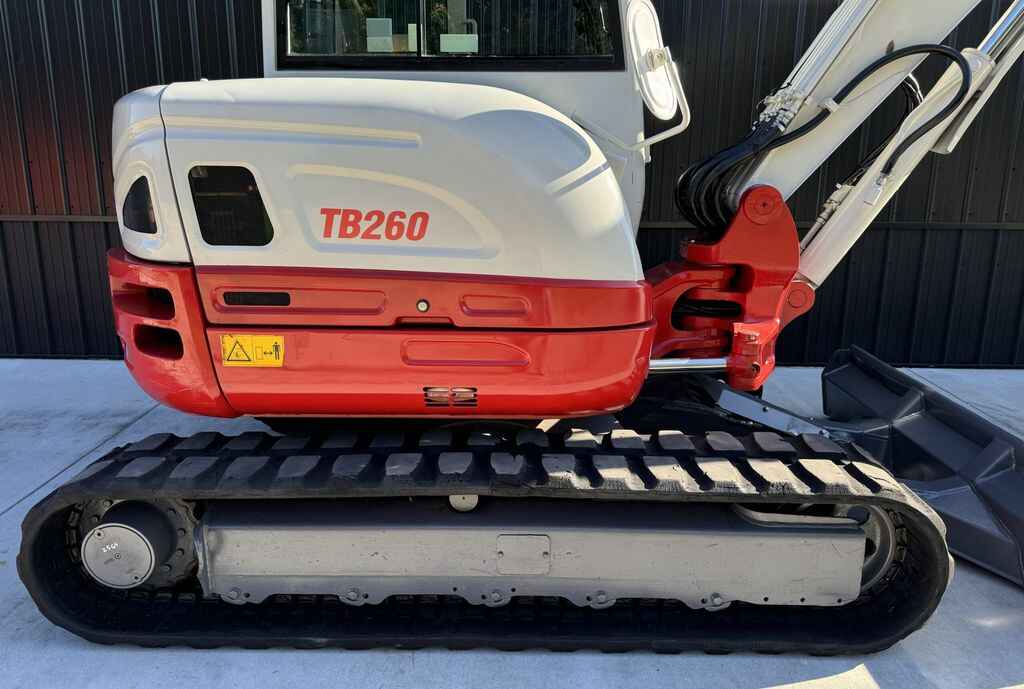

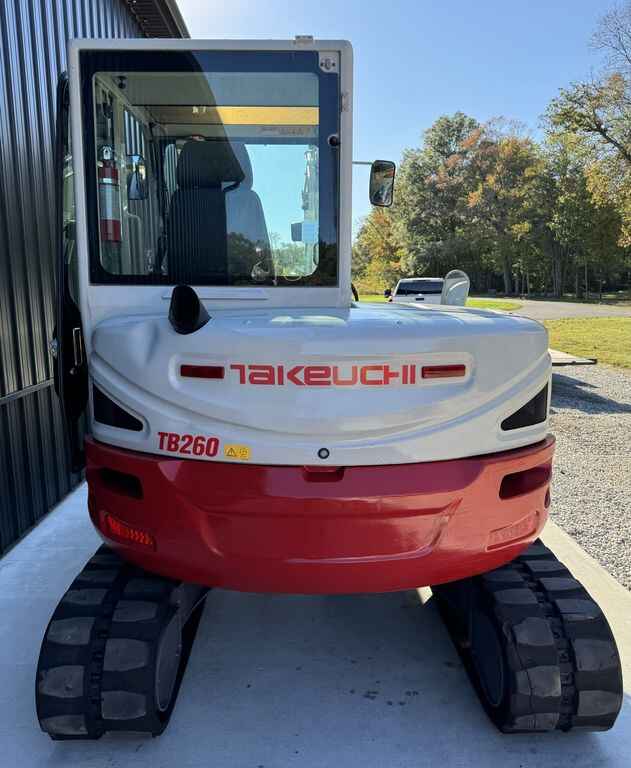

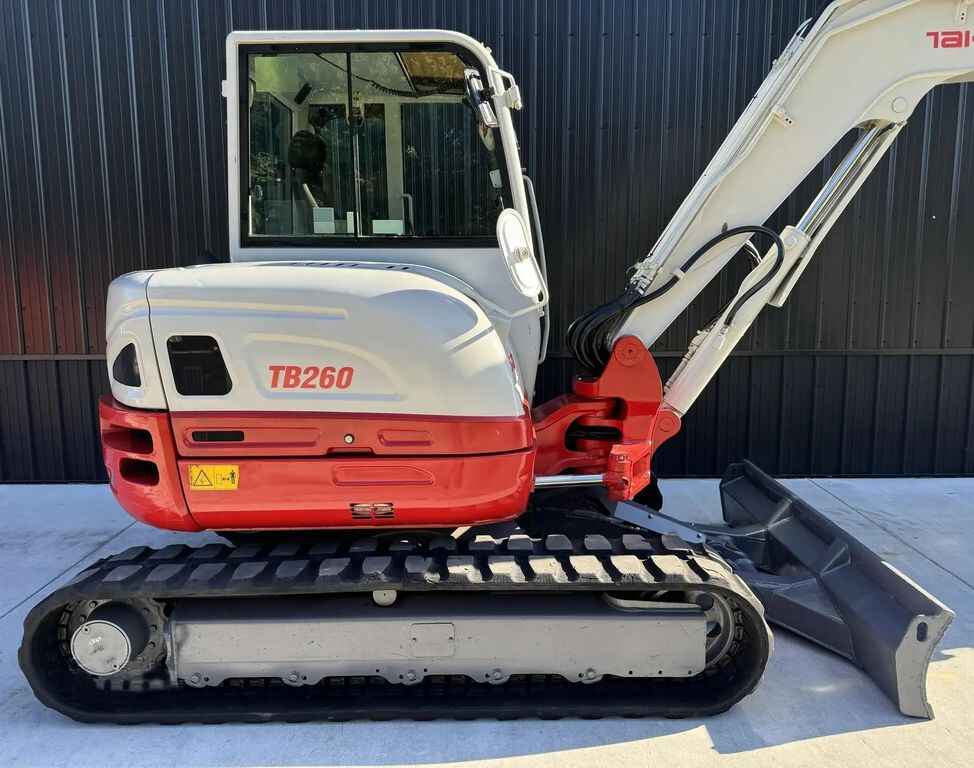

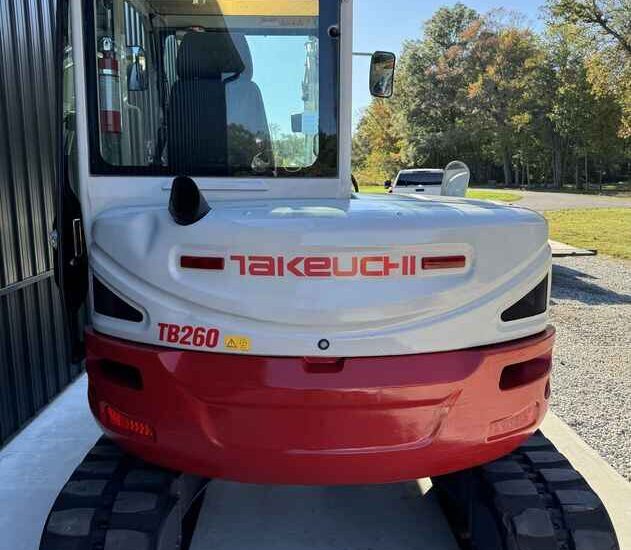

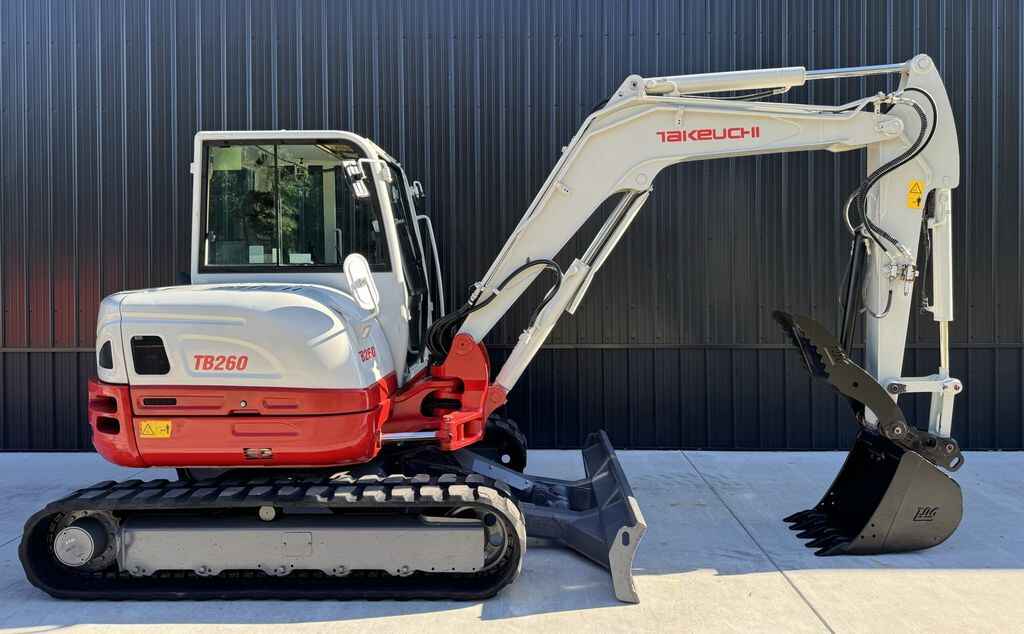

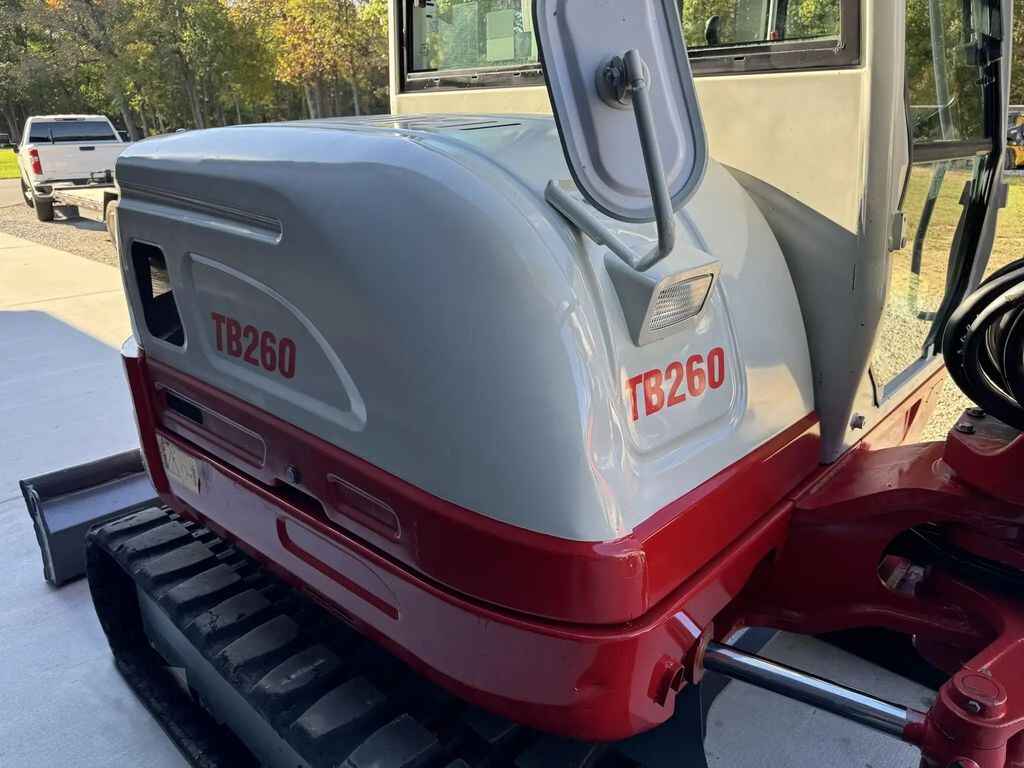

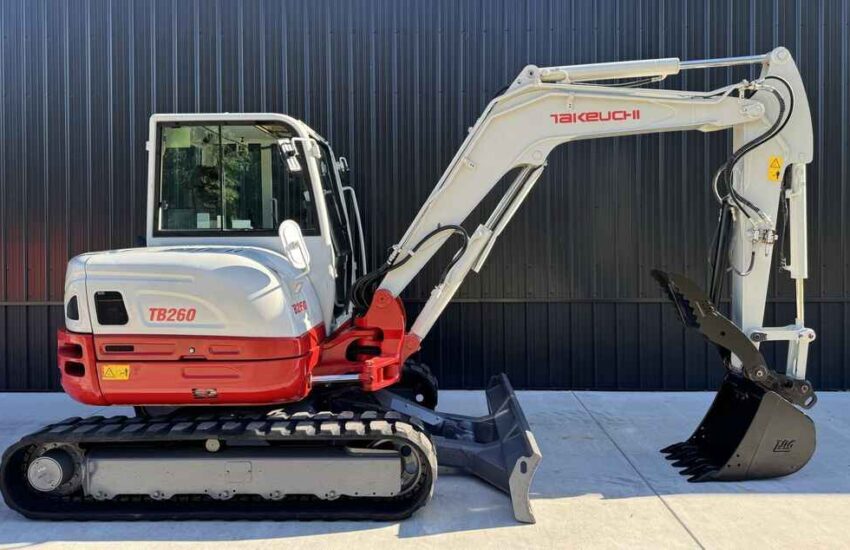

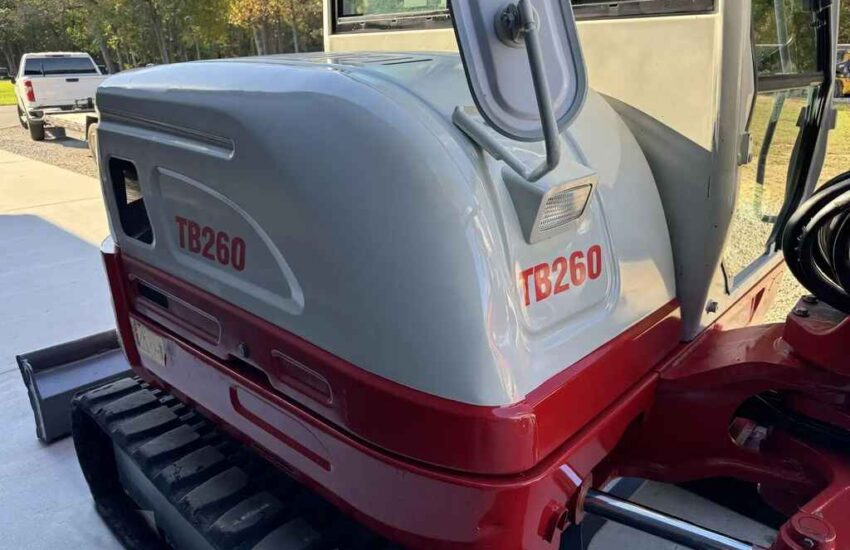

2018 Takeuchi TB260

PRICE FIRM NO TAX OR FEES

6MONTH/1500Hr FULL Warranty!

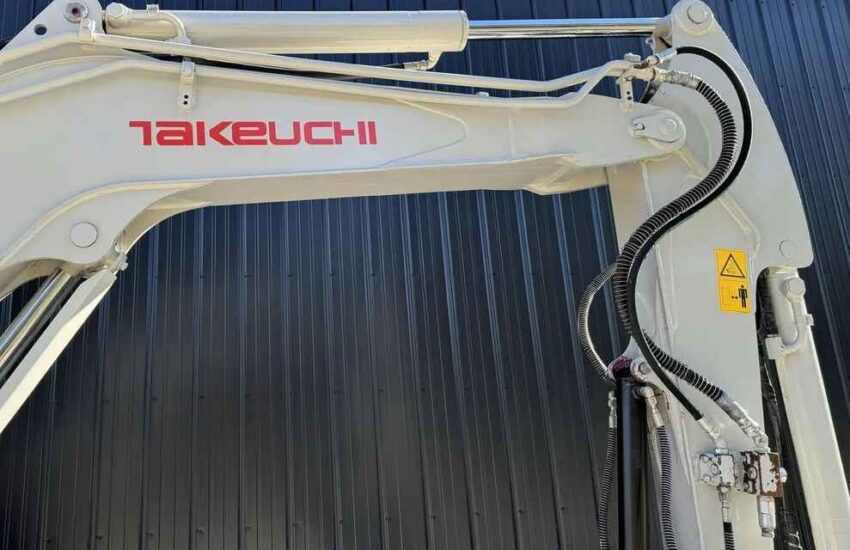

Just completely cleaned, Serviced, greased & looked over. Photos just Taken!

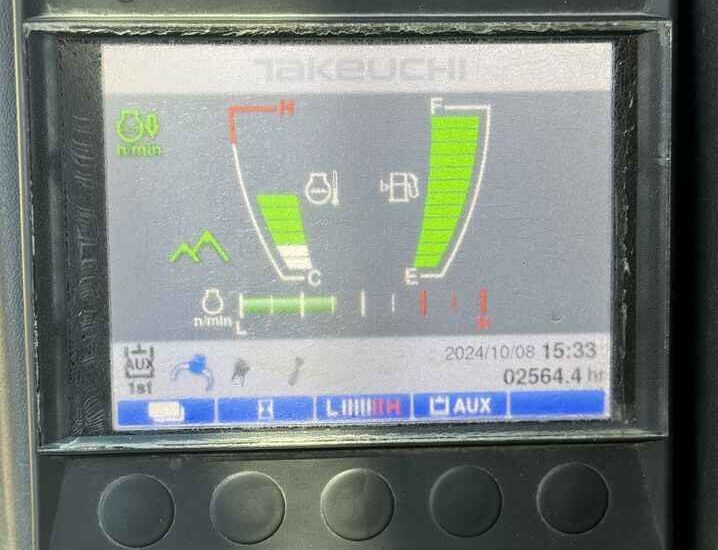

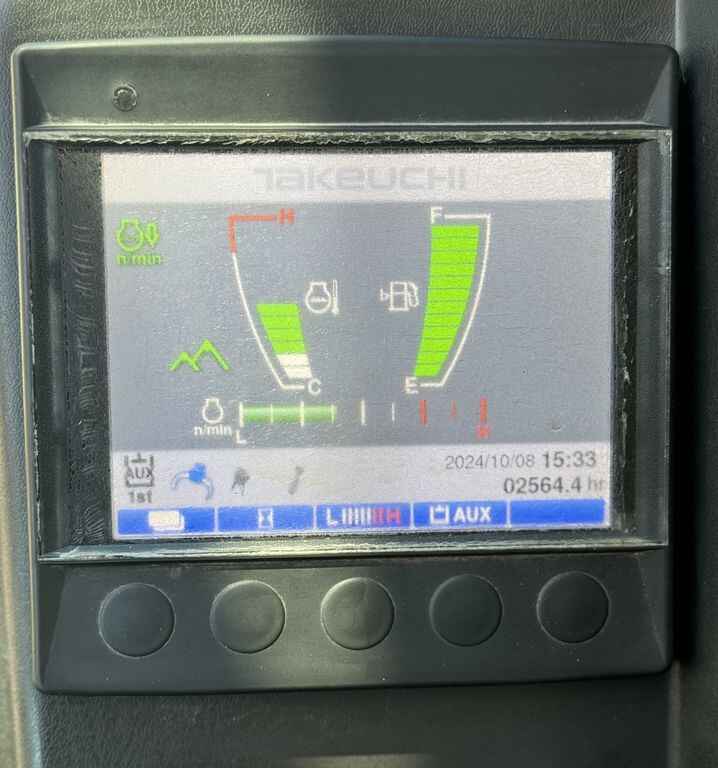

– 2,564 well kept Hours

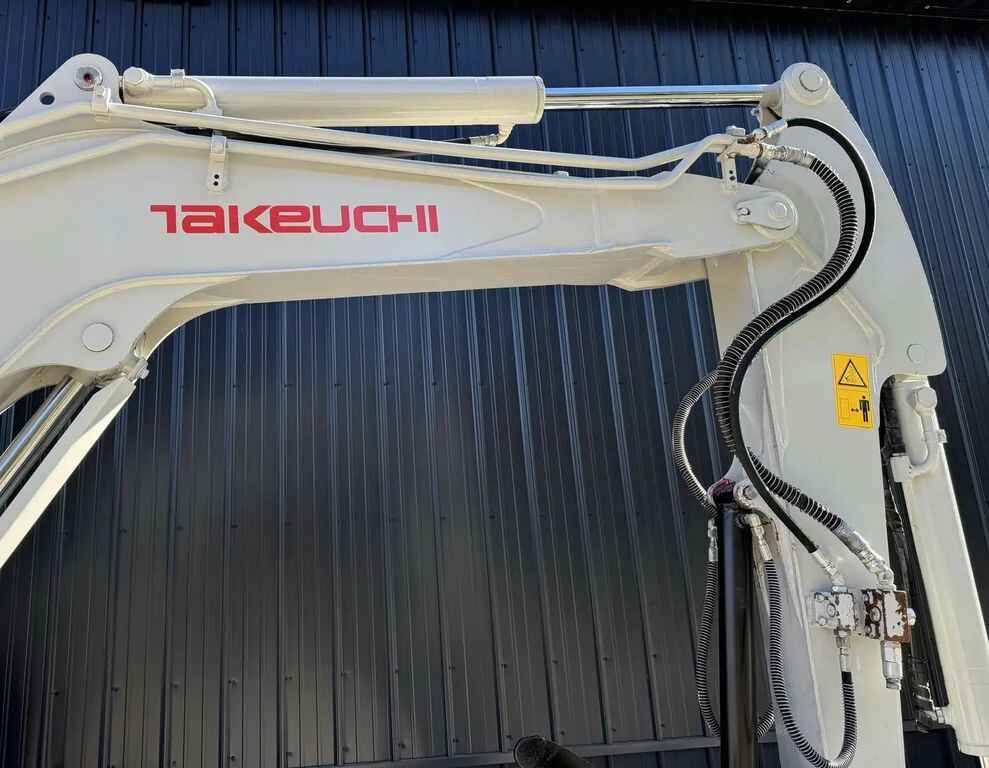

– Dual Auxiliaries

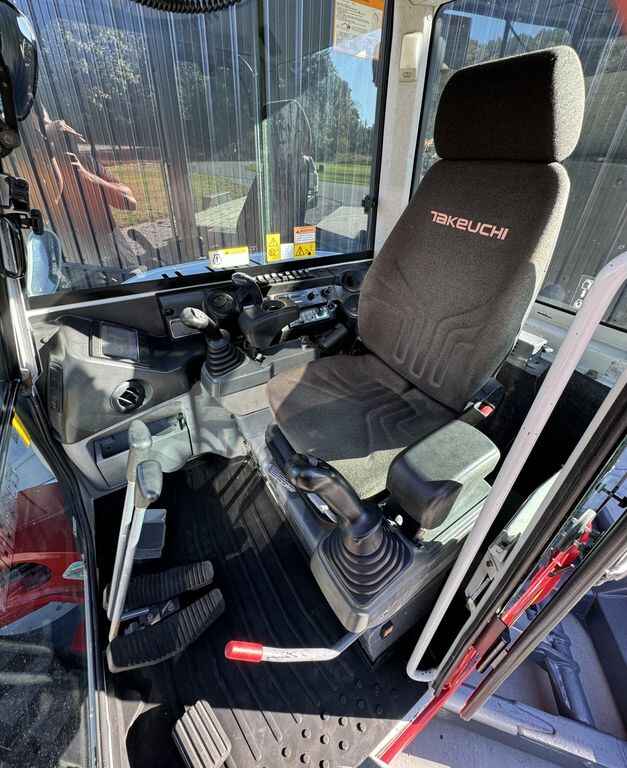

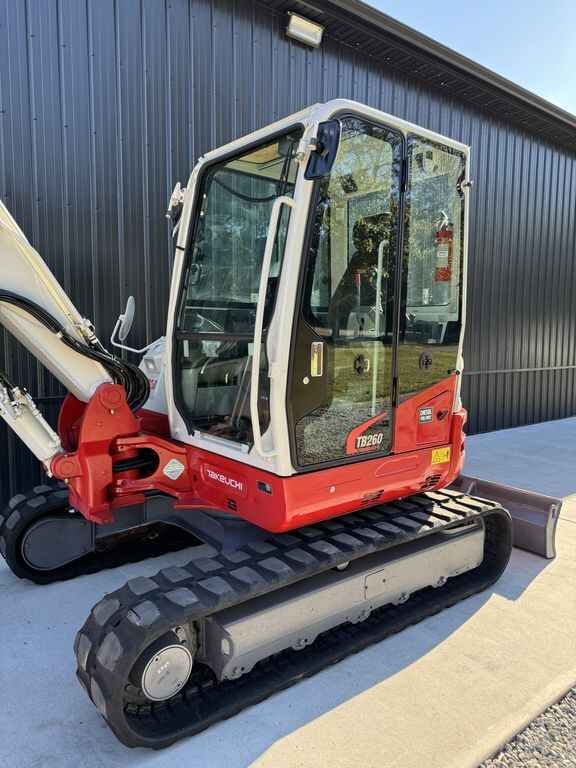

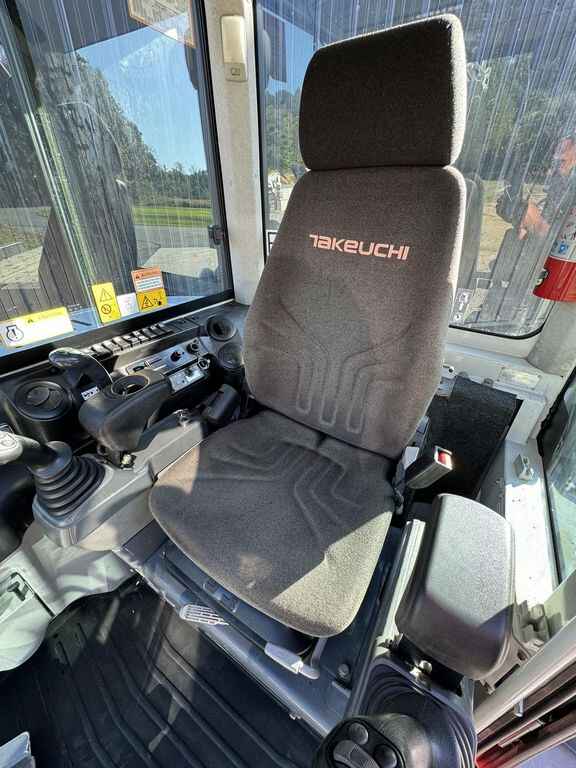

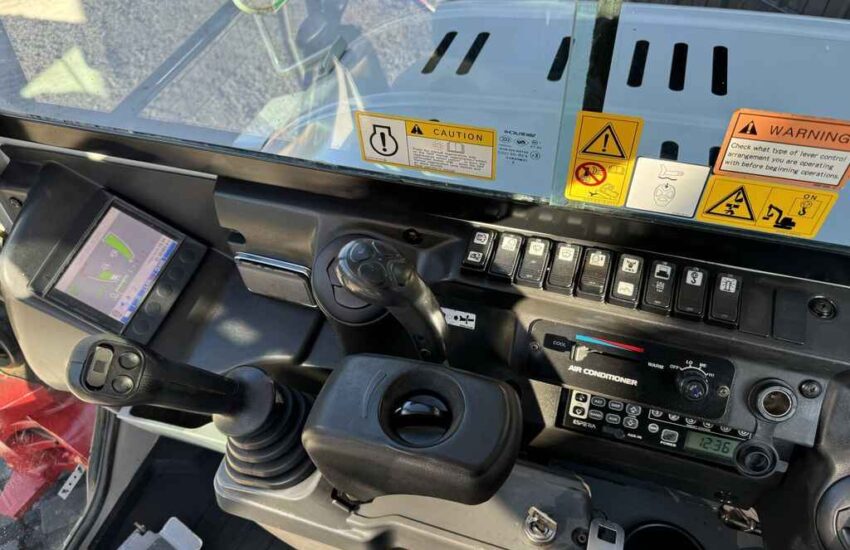

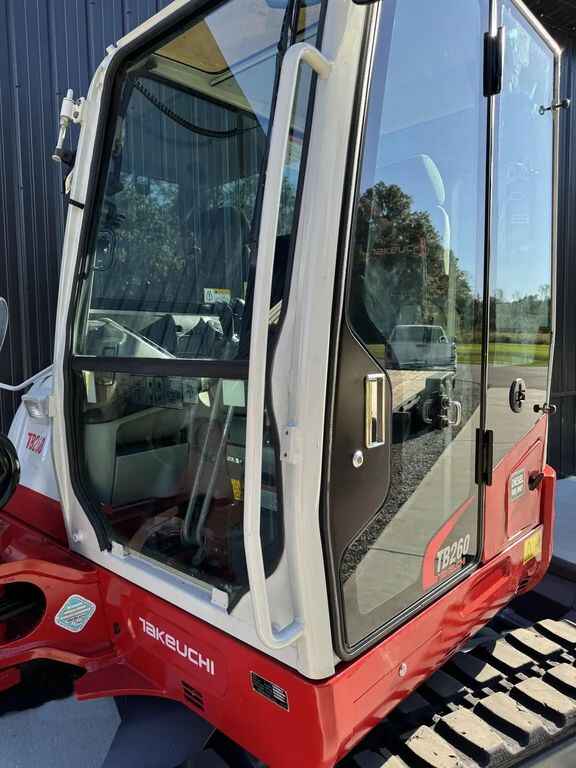

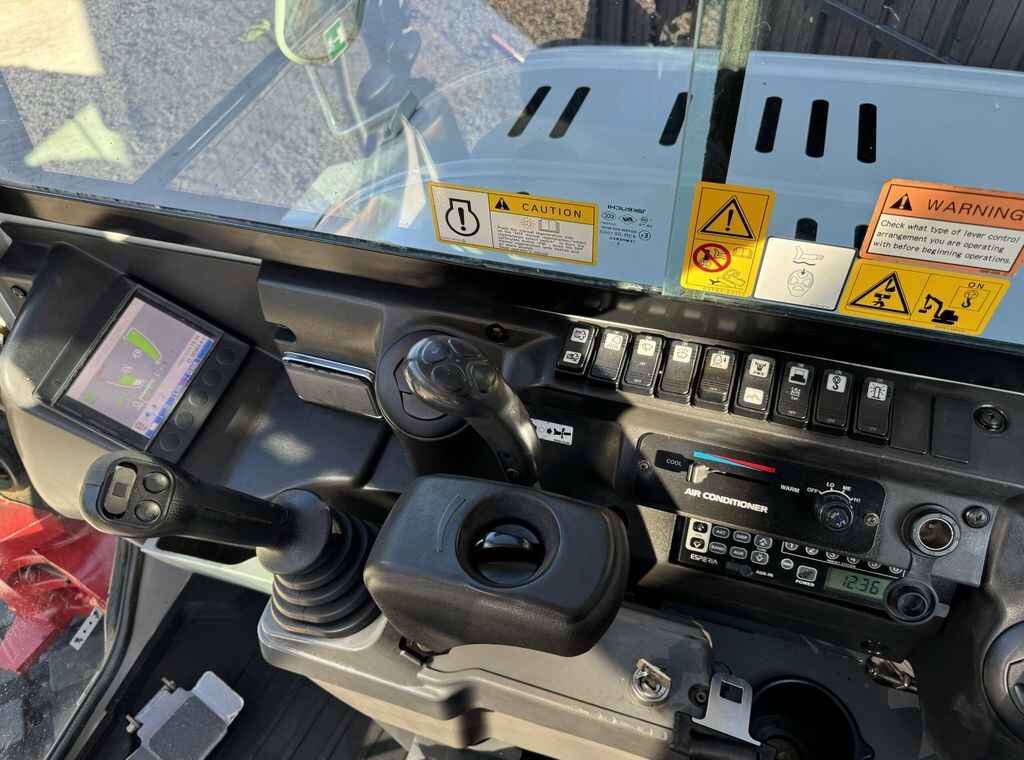

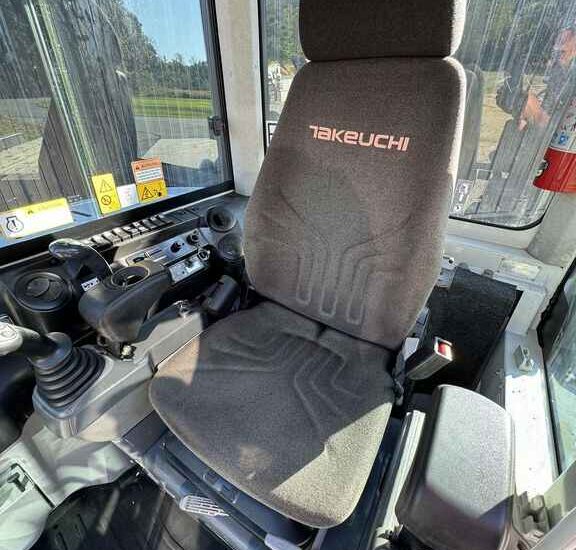

– Enclosed HEAT/AC
– Manual Coupler

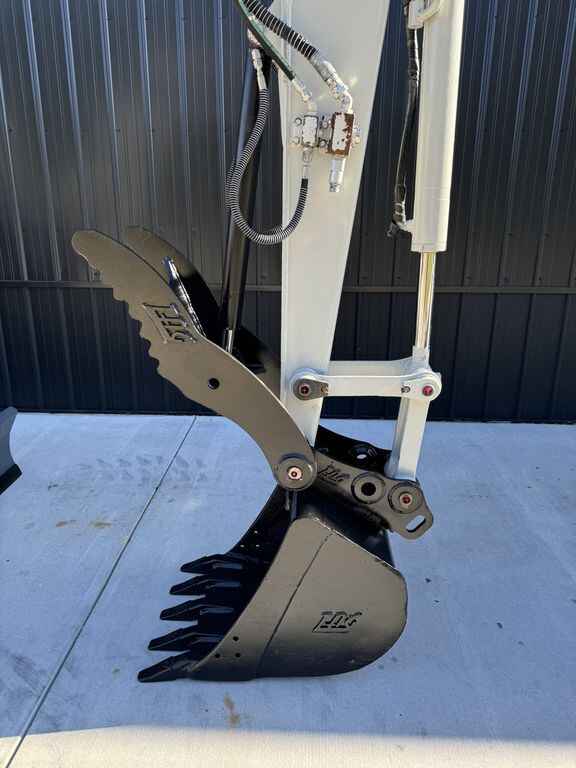

– 24” Tooth Bucket

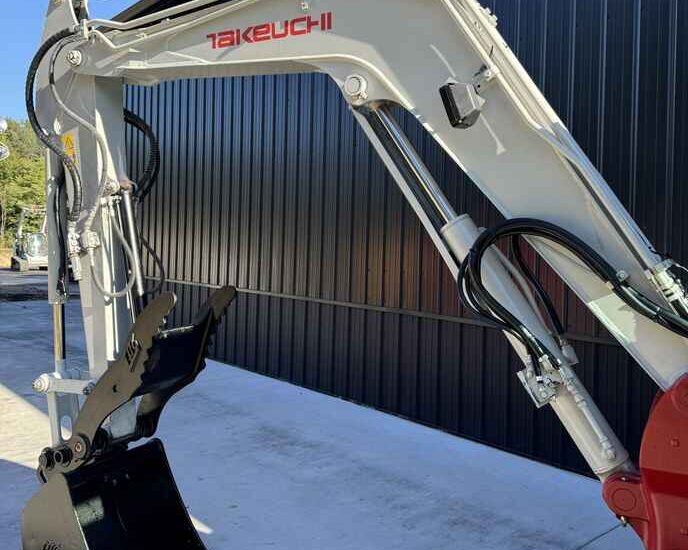

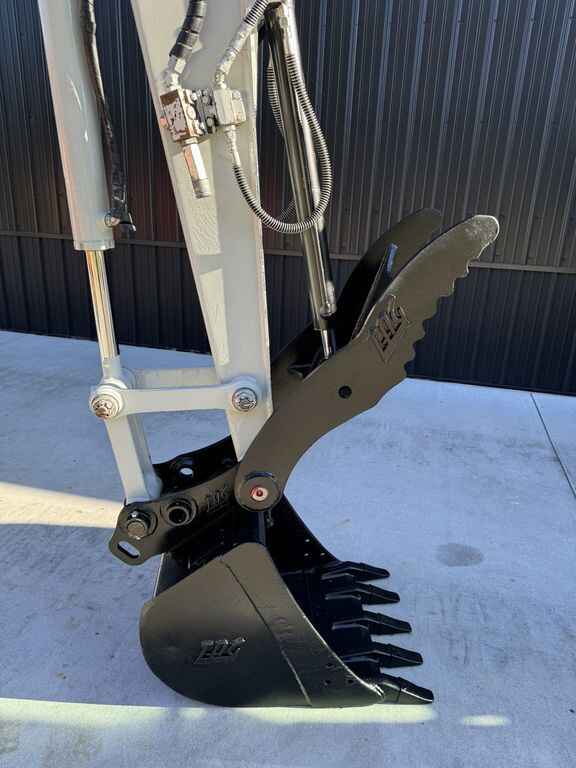

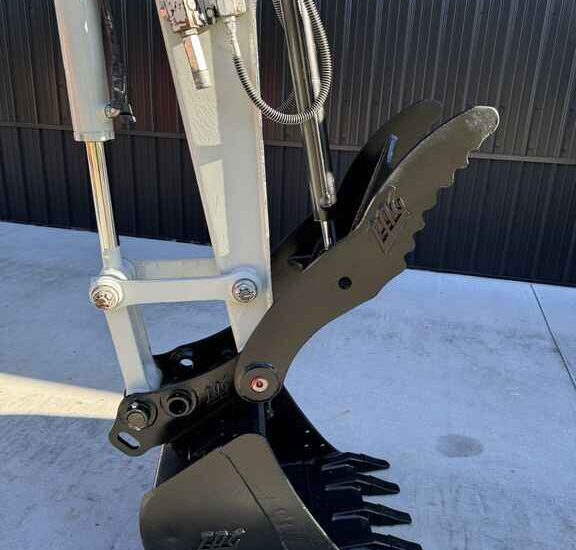

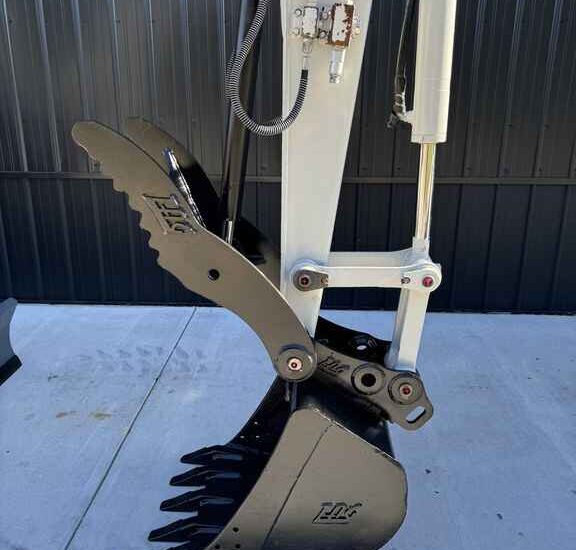

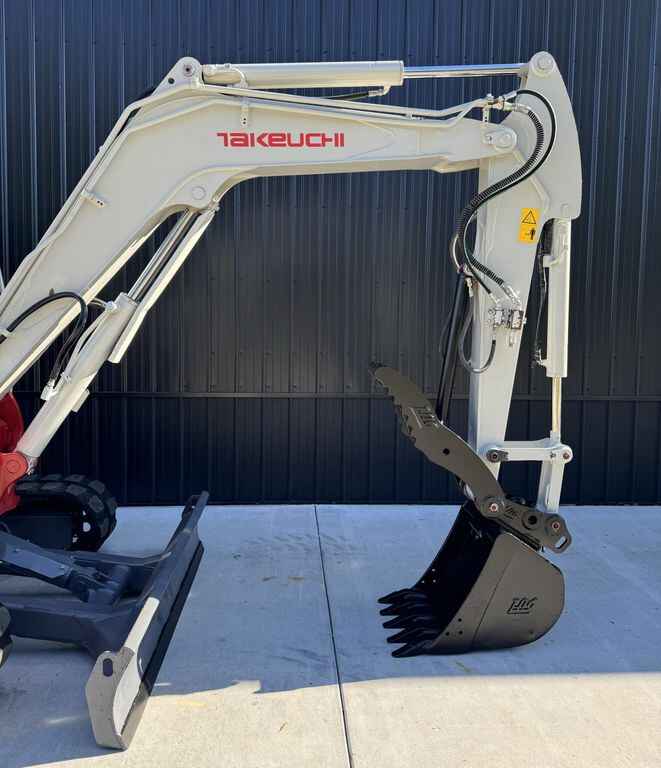

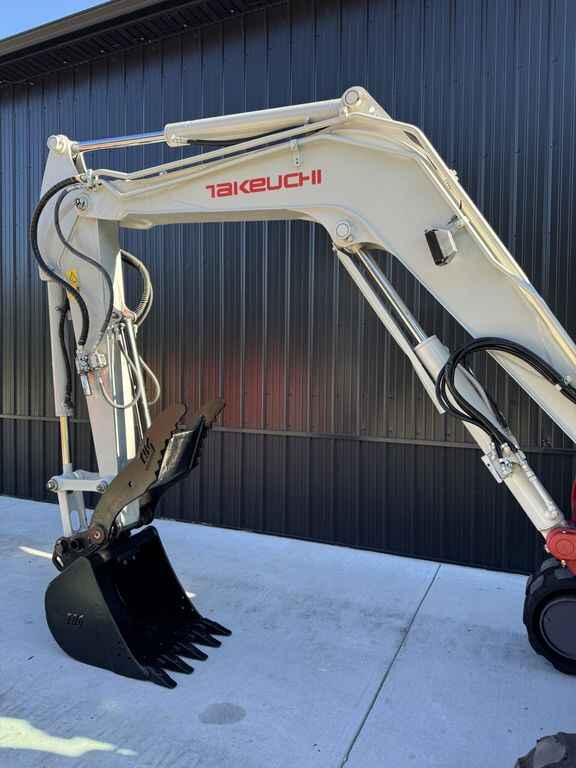

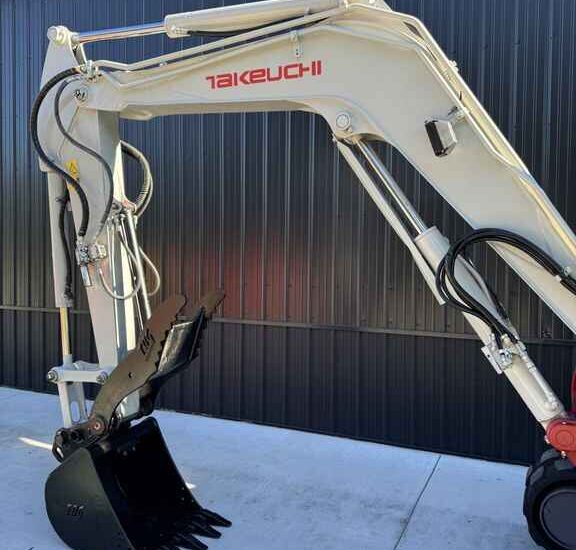

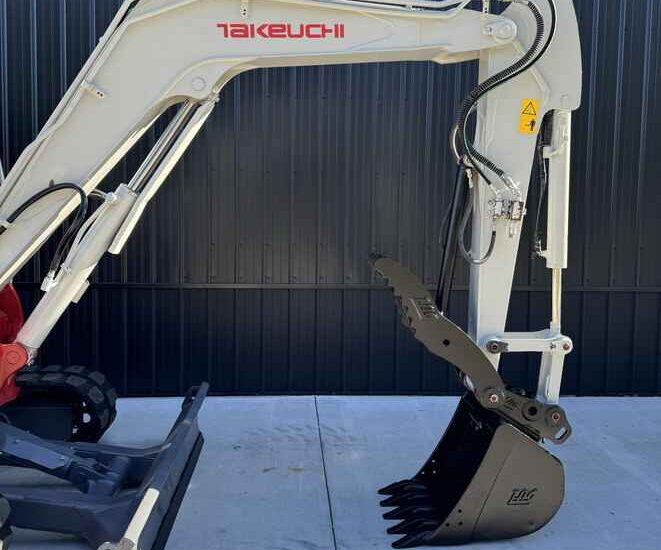

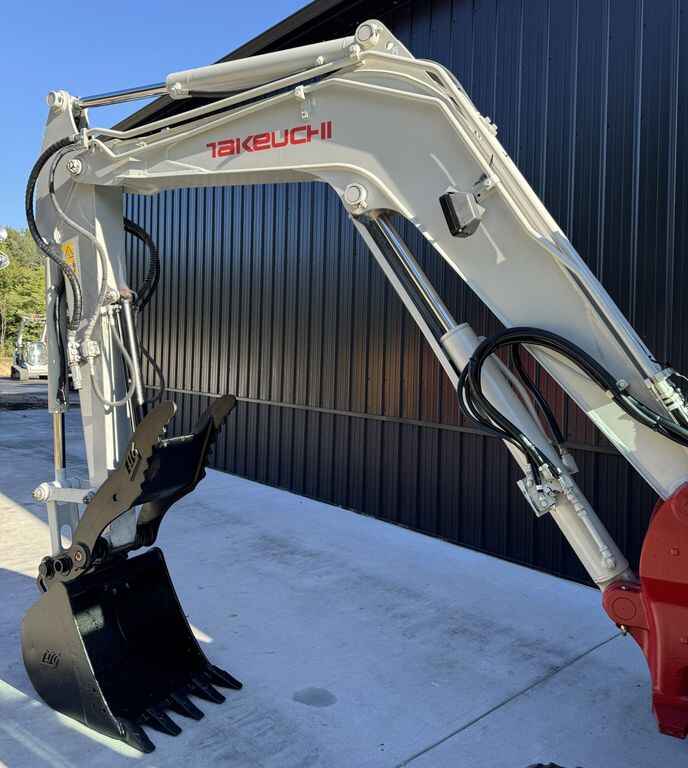

– Hydraulic Thumb
– 2 Speed

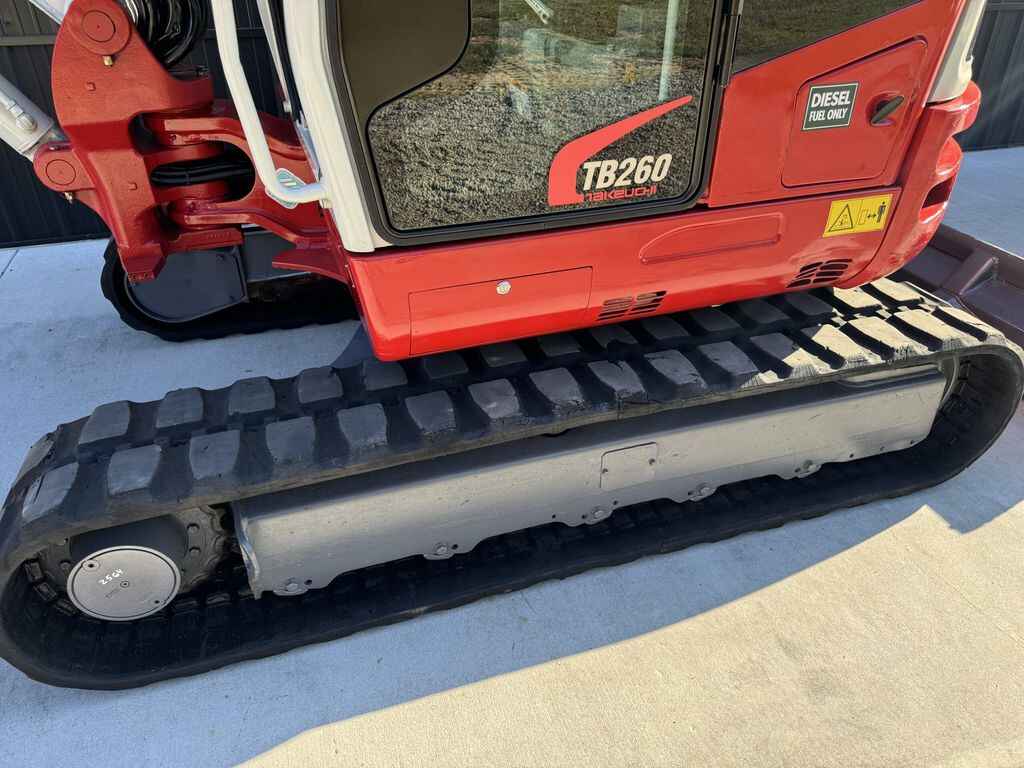

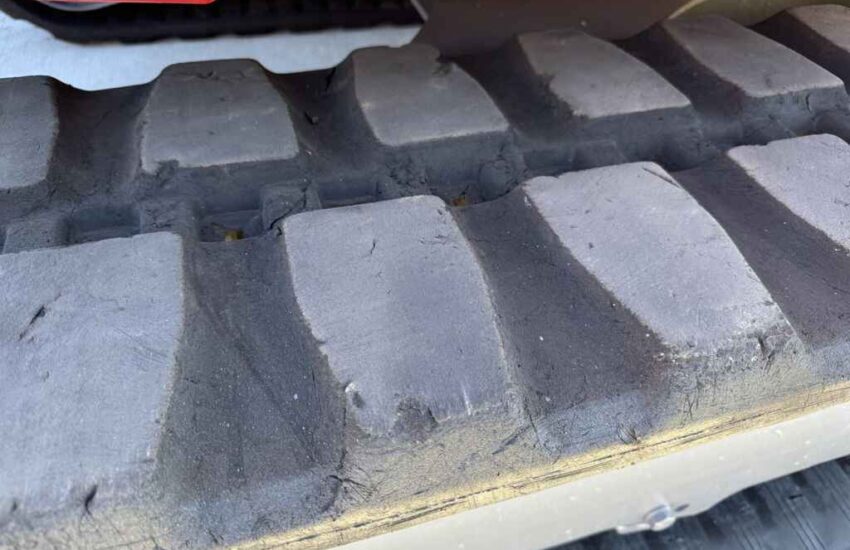

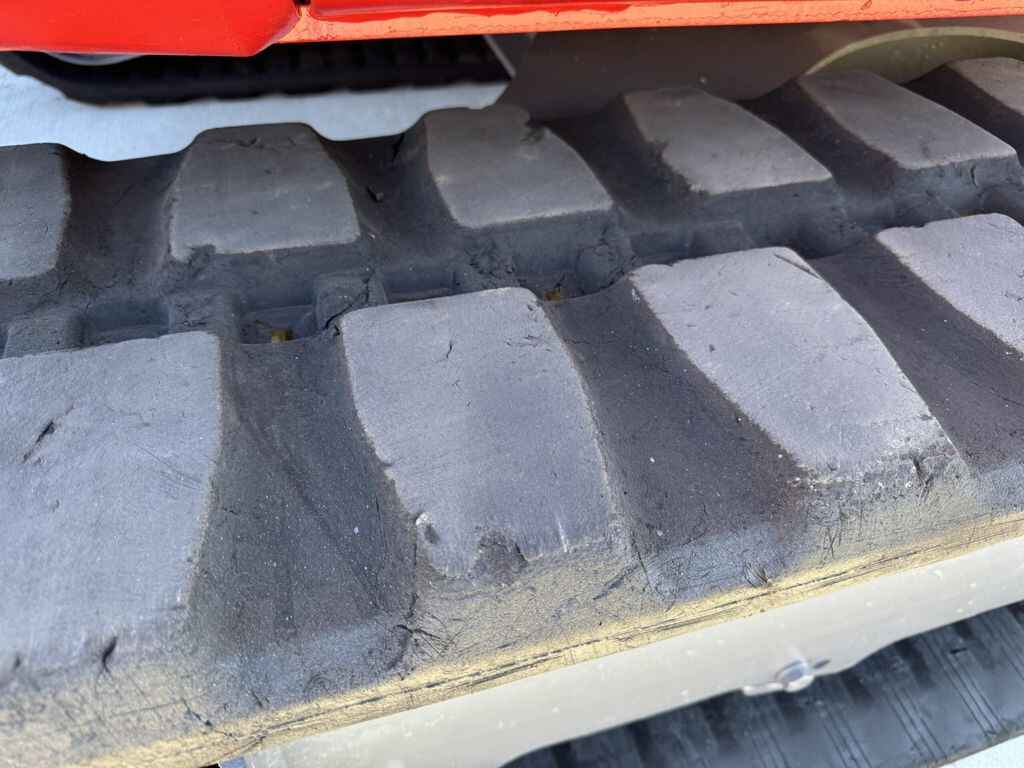

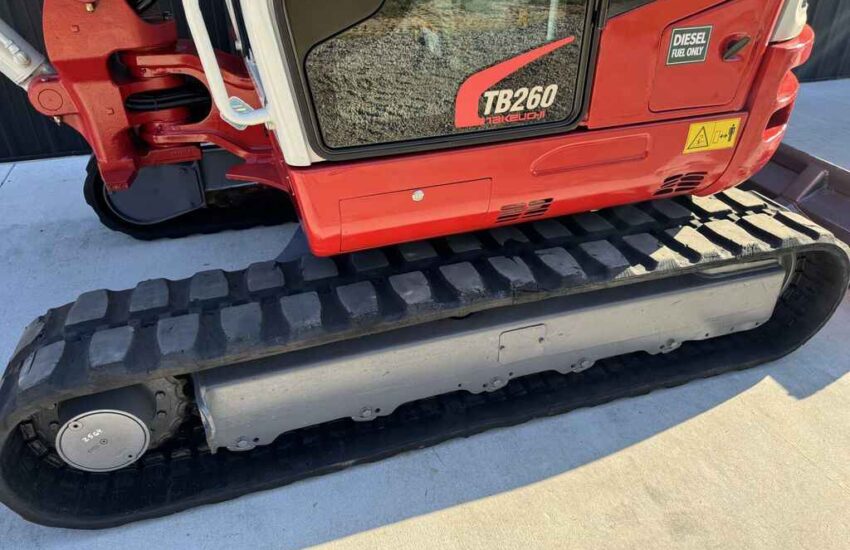

– Undercarriage in great shape
– 48 Hp
– 12,700 Lbs

Absolutely NO ISSUES & READY TO WORK

SPECIFICATIONS

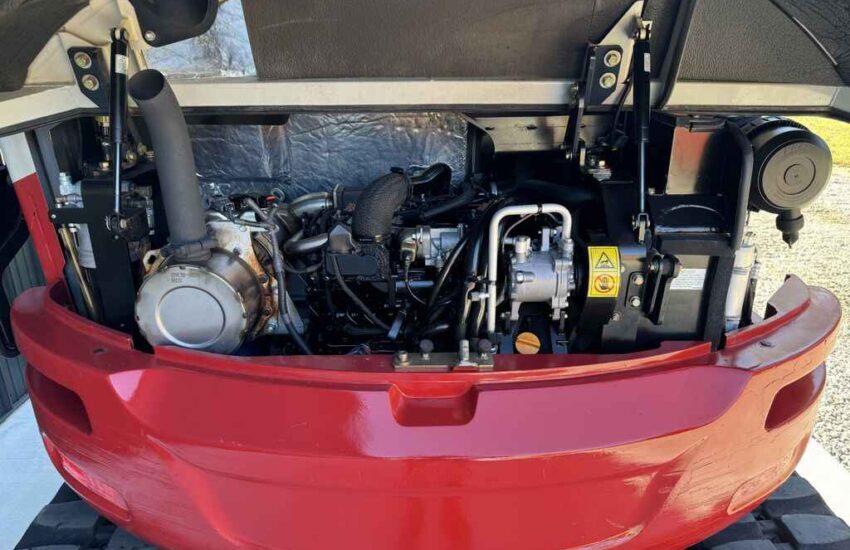

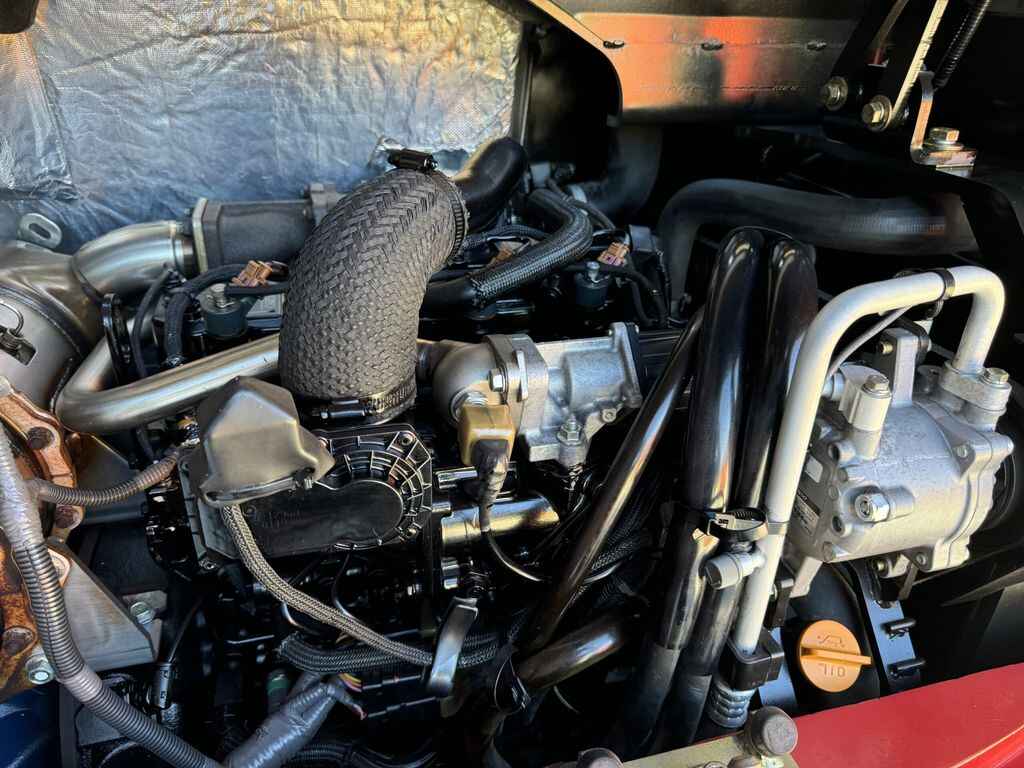

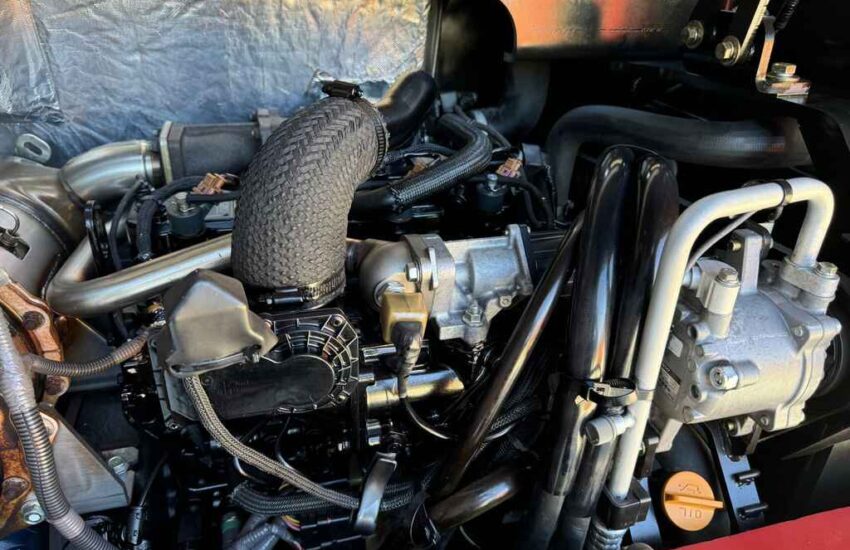

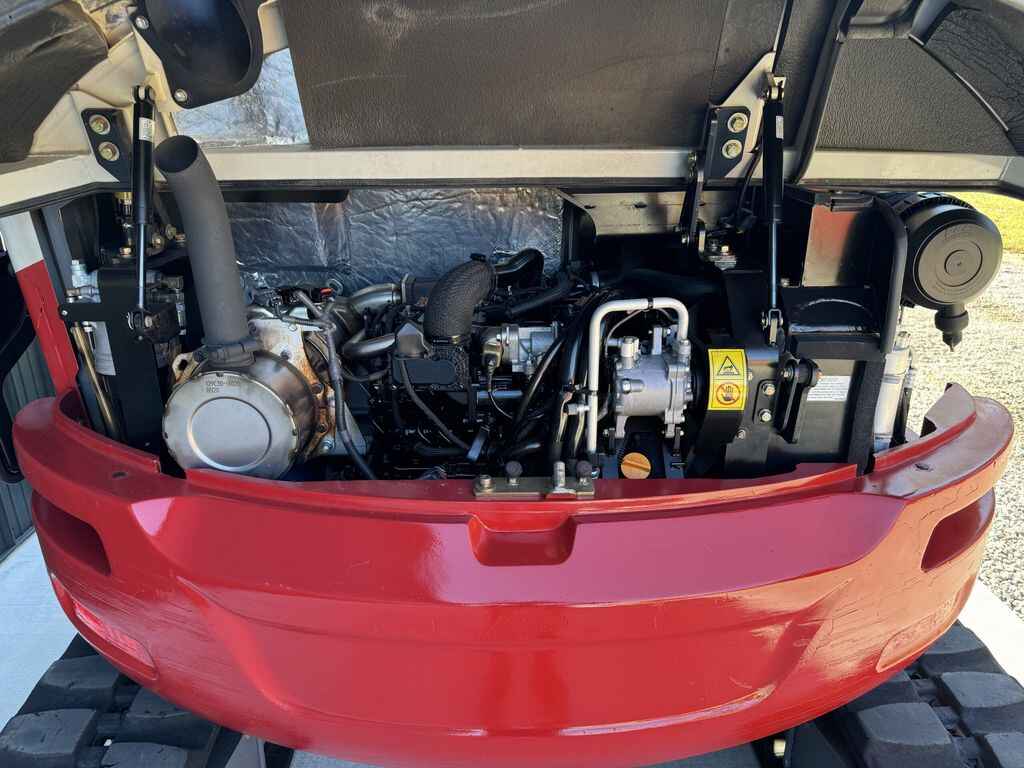

Engine
• Model: Yanmar 4TNV86CT
• Displacement: 127.6 cu in (2.1 L)
• Horsepower: 47.6 hp (35.5 kW) @ 2,400 rpm
• Max Torque: 130.5 ft-lb (177.0 Nm) @ 1,560 rpm

Operating Performance
• Operating Weight (Canopy): 12,125 lb (5,500 kg)
• Operating Weight (Cab): 12,645 lb (5,735 kg)
• Max Bucket Breakout Force: 12,756 lb (5,786 kg)
• Max Arm Digging Force: 5,755 lb (2,610 kg)
• Slew Speed: 9.4 rpm
• Traction Force: 15,040 lb (6,822 kg)
• Ground Pressure (Rubber Tracks): 4.4 psi (30.2 kPa)
• Ground Pressure (Steel Tracks): 4.6 psi (31.5 kPa)
• Travel Speed – Low: 1.7 mph (2.8 km/h)
• Travel Speed – High: 3.0 mph (4.9 km/h)

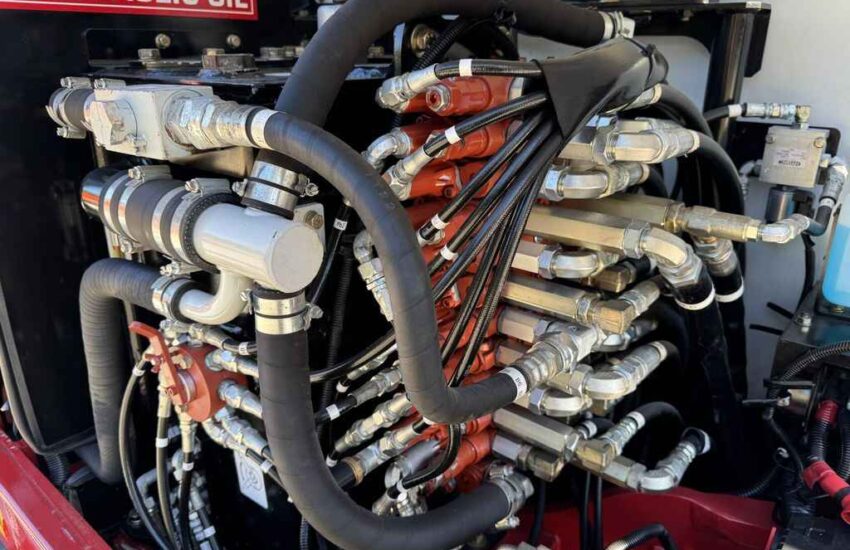

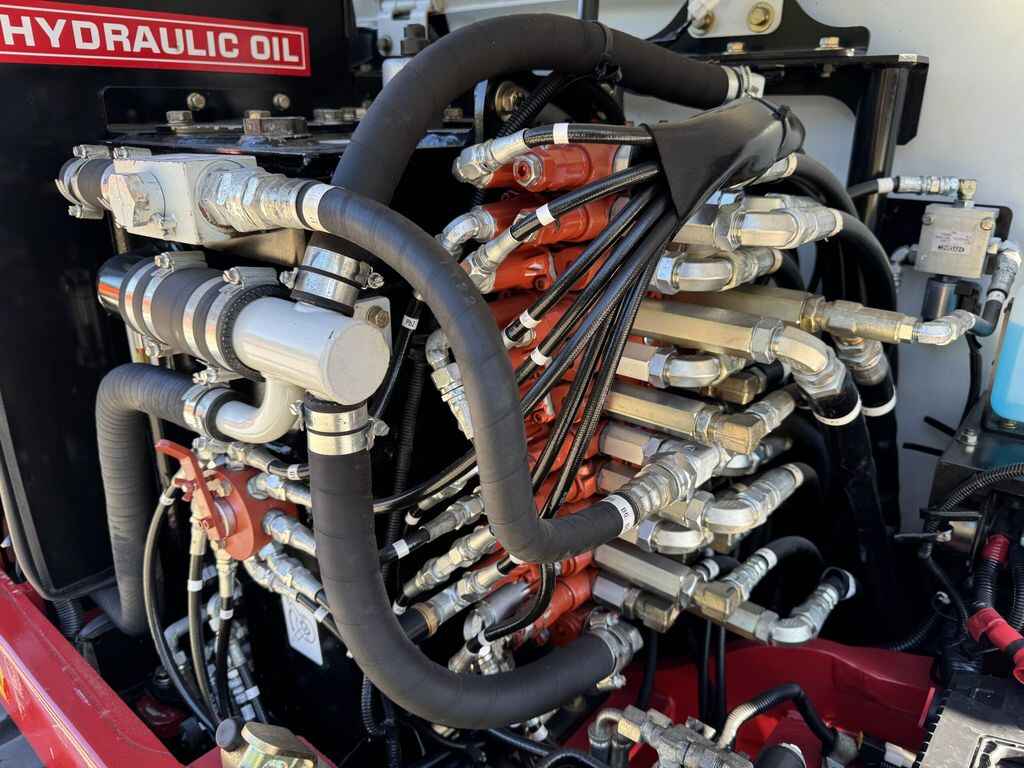

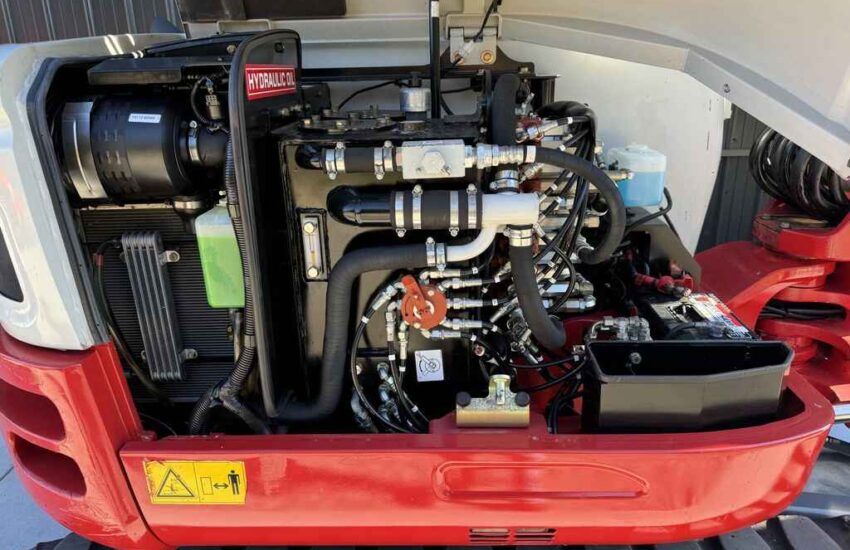

Hydraulic System
• Total Hydraulic Flow: 45.3 gpm (171.5 L/min)
• Auxiliary Flow – Primary Circuit: 27.0 gpm (102.2 L/min)
• Auxiliary Flow – Secondary Circuit: 11.6 gpm (43.9 L/min)
• System Pressure: 3,480 psi (24.0 MPa)

Fluid Capacities
• Engine Lubrication: 7.8 qt (7.4 L)
• Cooling System: 11.6 qt (11.0 L)
• Fuel Tank: 21.3 gal (81.0 L)
• Fuel Consumption (65% Load): 1.6 gal/hr (6.3 L/hr)
• Hydraulic Reservoir: 12.9 gal (49.0 L)
• Hydraulic System Total: 23.8 gal (90.0 L)

Dimensions
• Max Reach: 20 ft 6.9 in (6,270 mm)
• Max Reach at Ground Level: 20 ft 1.4 in (6,130 mm)
• Max Digging Depth: 12 ft 9.4 in (3,895 mm)
• Max Vertical Digging Depth: 9 ft 9.3 in (2,980 mm)
• Max Dig Height: 19 ft 5.9 in (5,940 mm)
• Max Dump Height: 13 ft 10.1 in (4,220 mm)
• Front Swing Radius: 7 ft 11.3 in (2,420 mm)
• Front Swing Radius w/ Boom Offset: 6 ft 5.8 in (1,975 mm)
• Tail Swing Radius: 4 ft 3.1 in (1,300 mm)
• Transport Length: 18 ft 2.5 in (5,550 mm)
• Transport Height: 8 ft 5.4 in (2,575 mm)
• Ground Clearance: 13.1 in (330 mm)
• Undercarriage Length: 8 ft 5.3 in (2,575 mm)
• Track Width (Rubber): 15.7 in (400 mm)
• Undercarriage Width: 6 ft 6.7 in (2,000 mm)
