Details
-
Industry:
-
Make:
-
Model:
-
Color:
-
Drive Type:
-
Transmission:
-
Condition:
-
Year:2018
-
Fuel Type:
-
Engine:Kubota V2607-CR-TE4
-

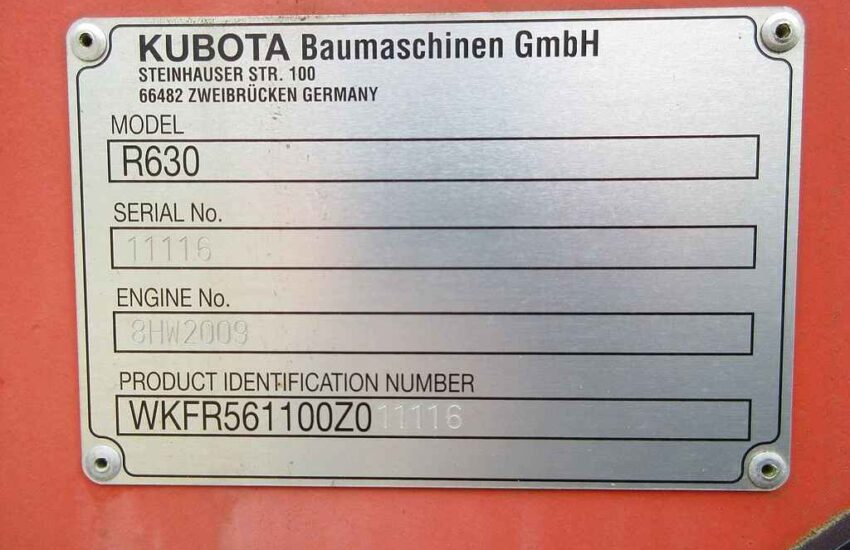

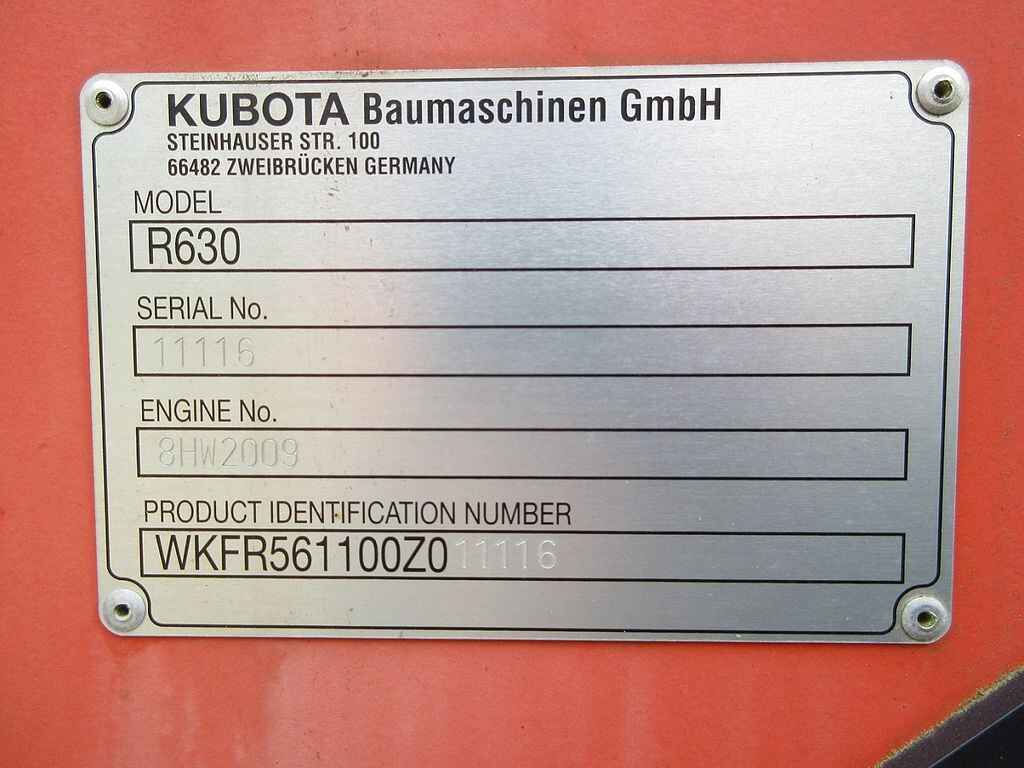

Serial:11116
-

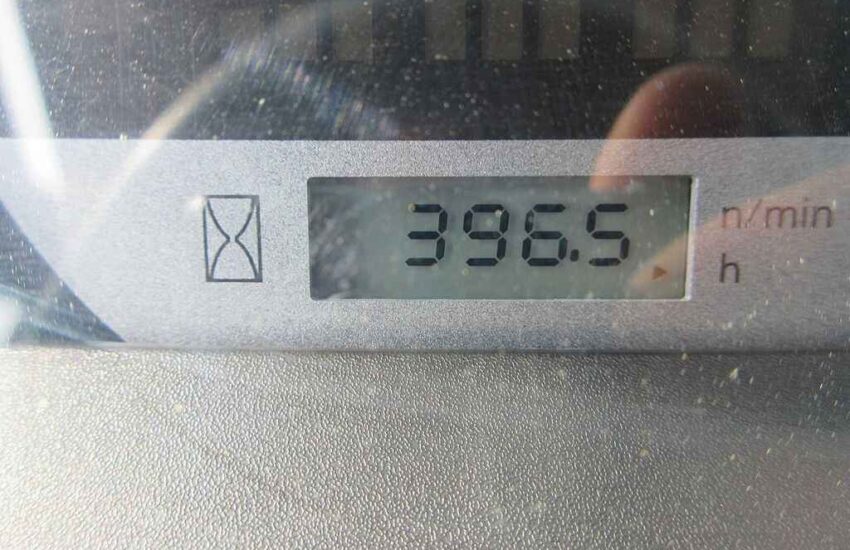

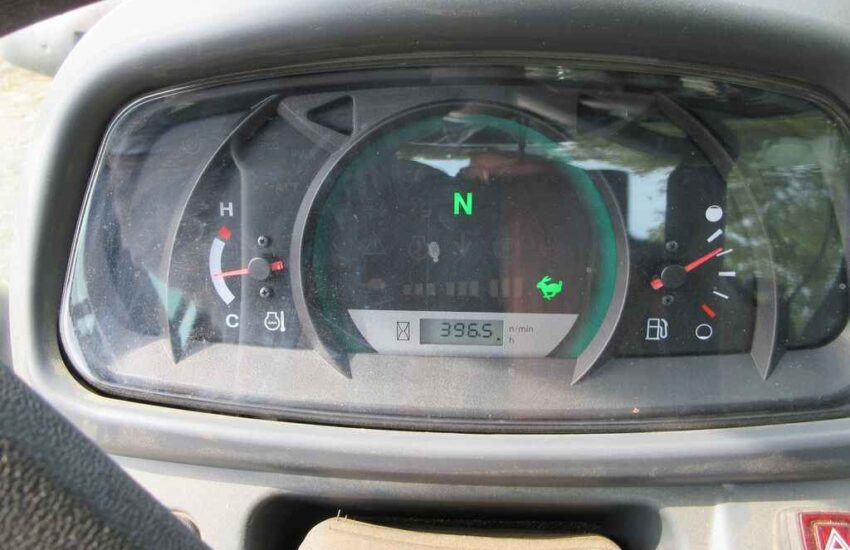

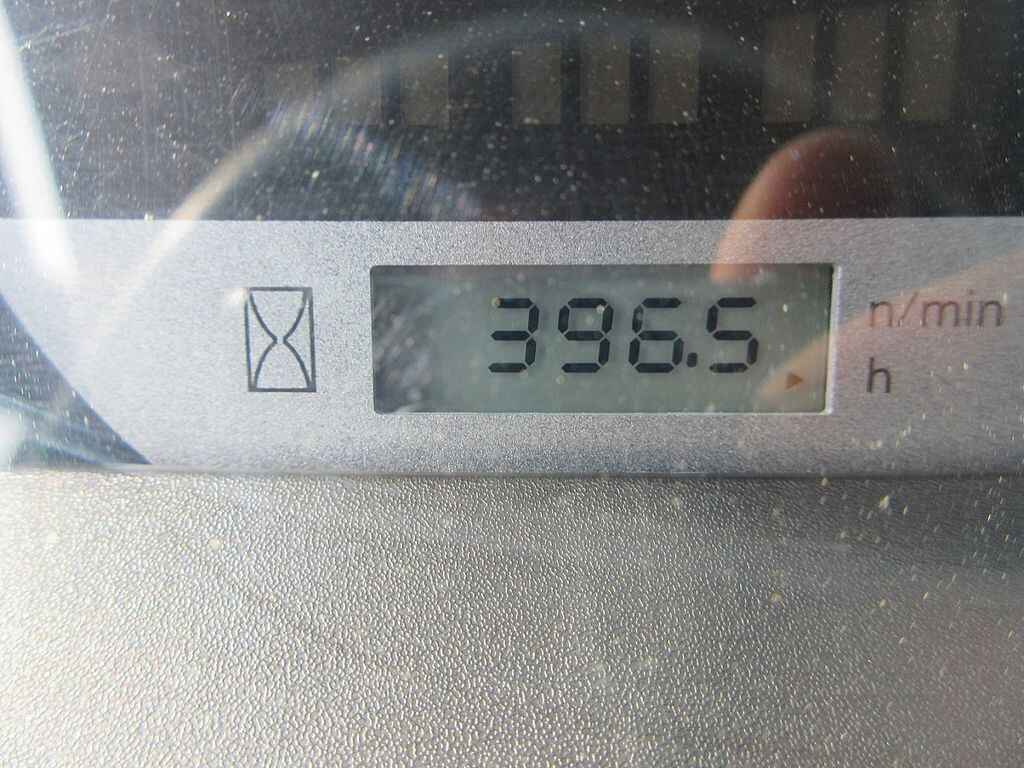

Hours:396
-
Stock#:300750
Overview

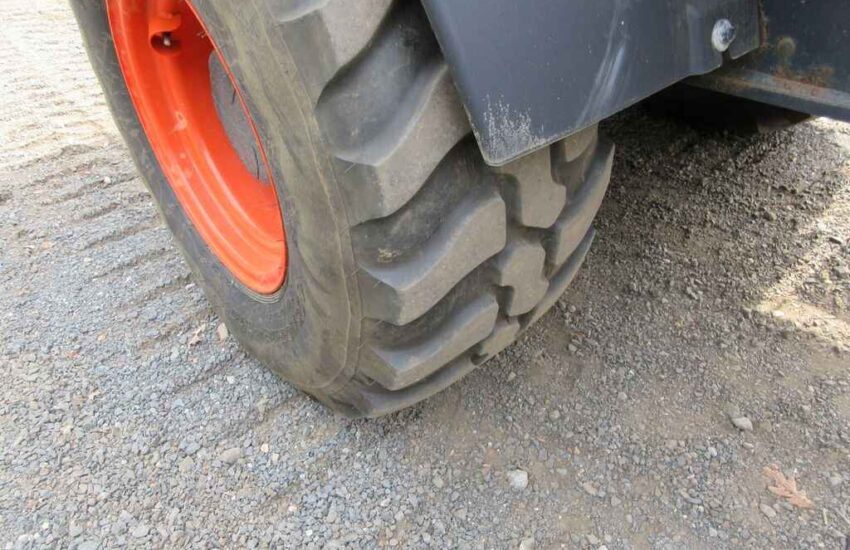

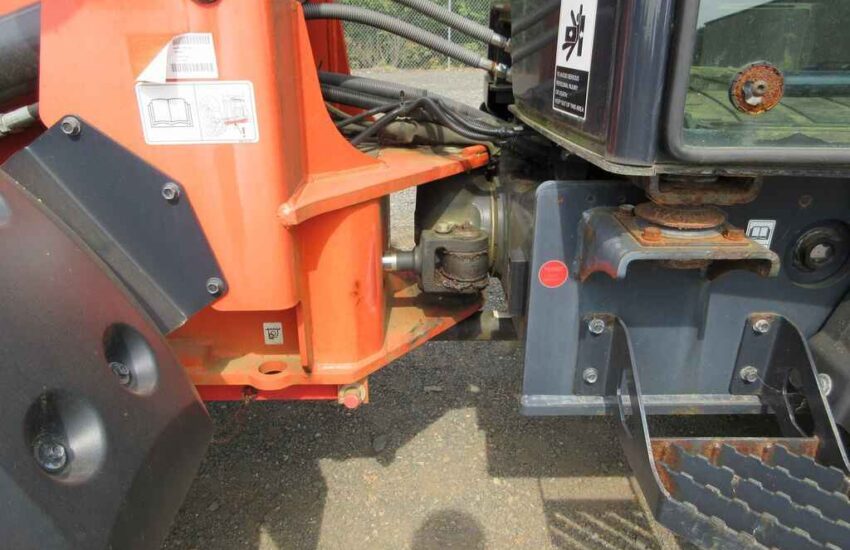

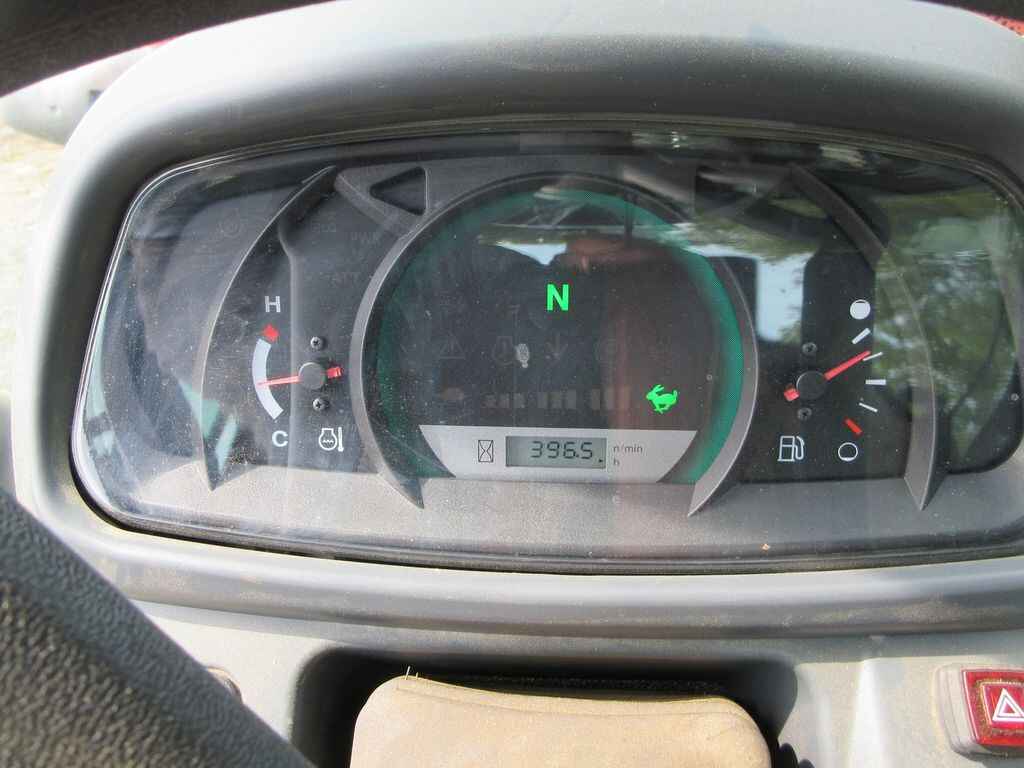

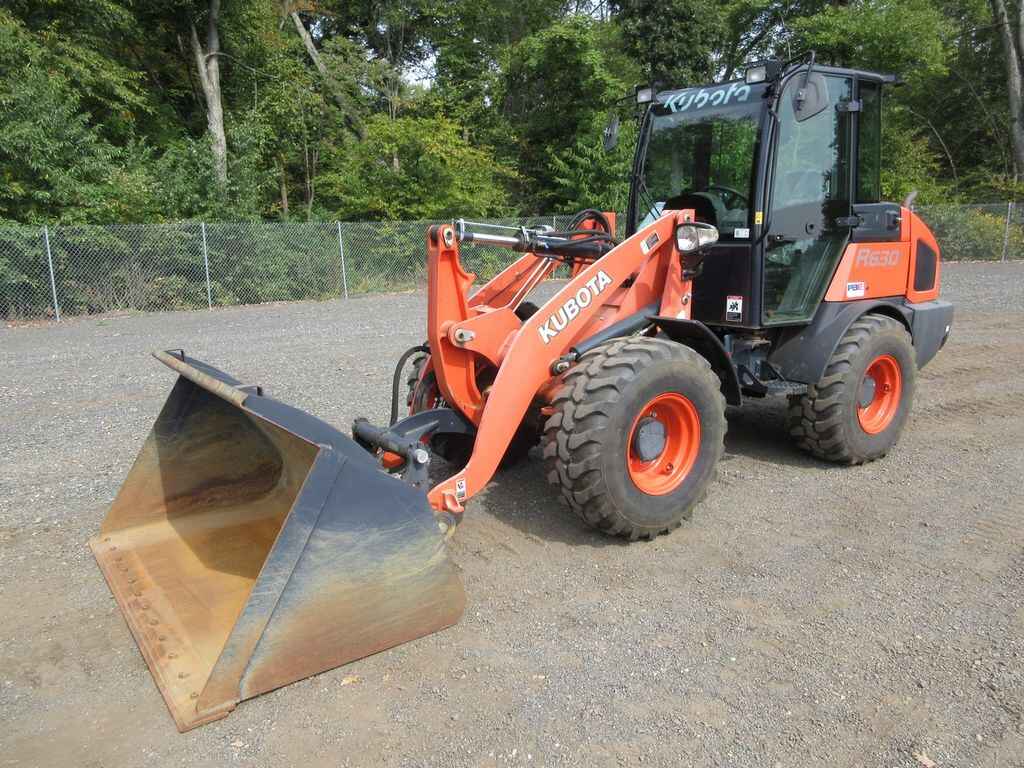

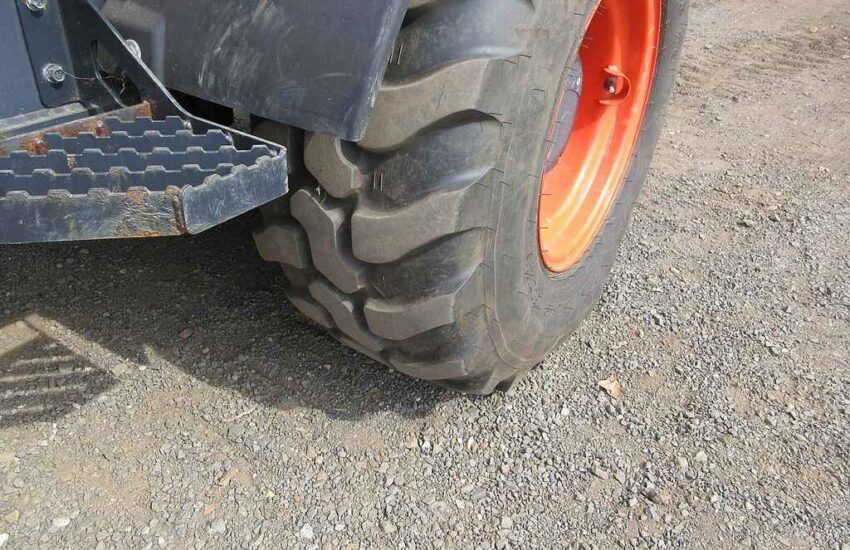

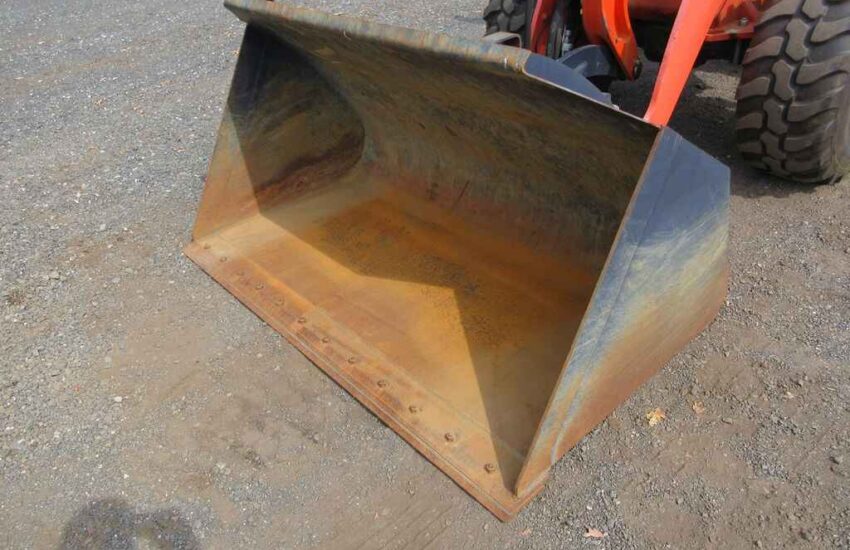

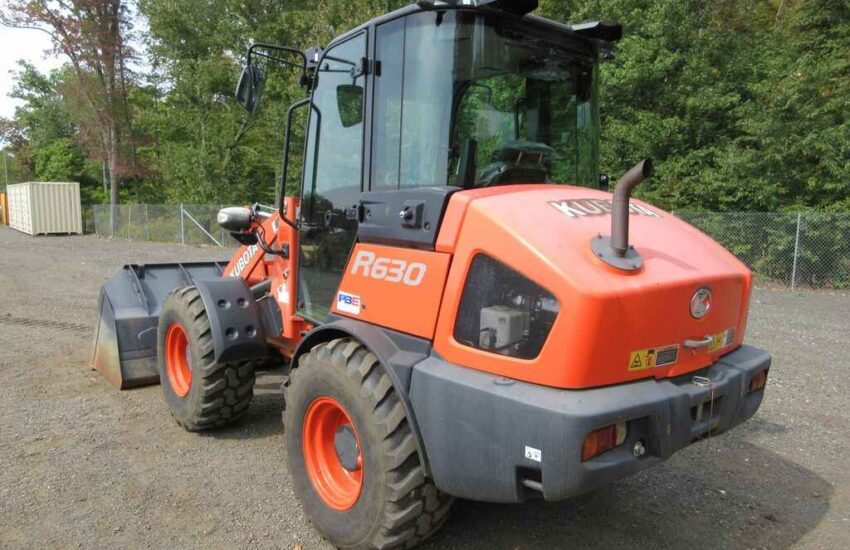

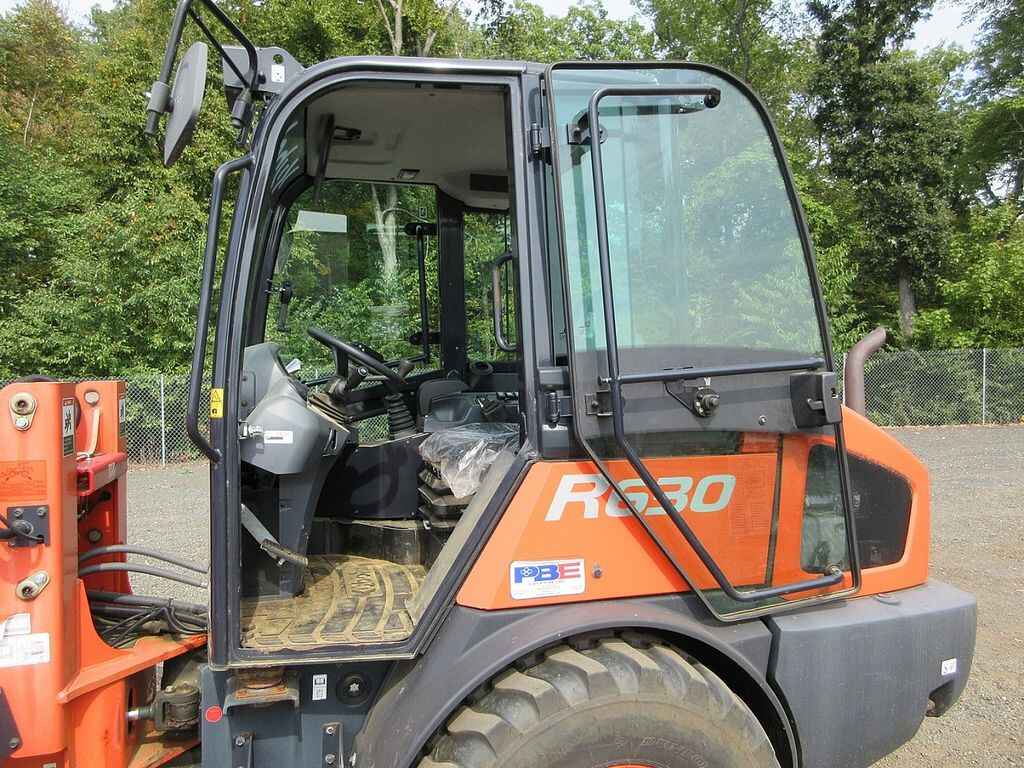

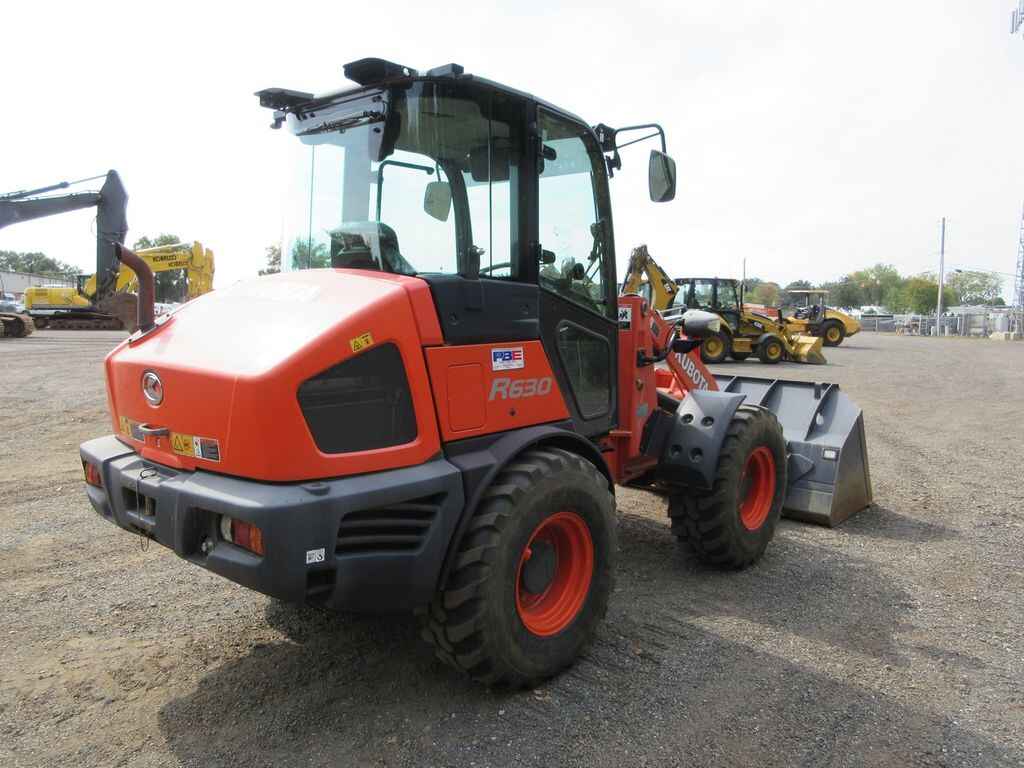

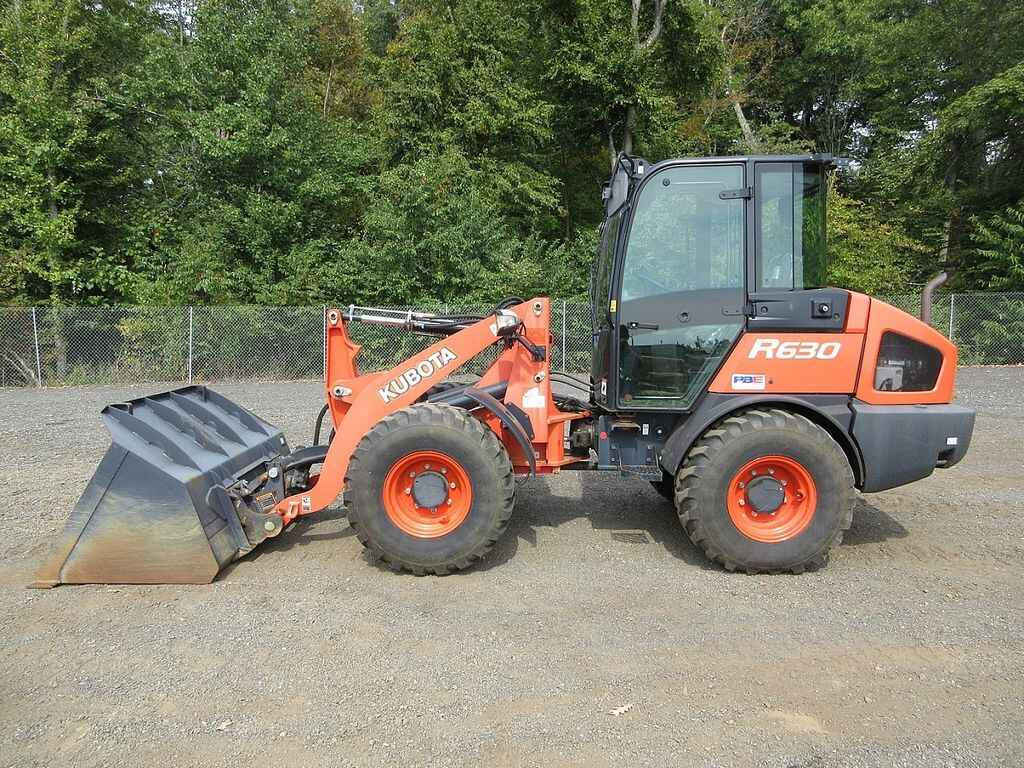

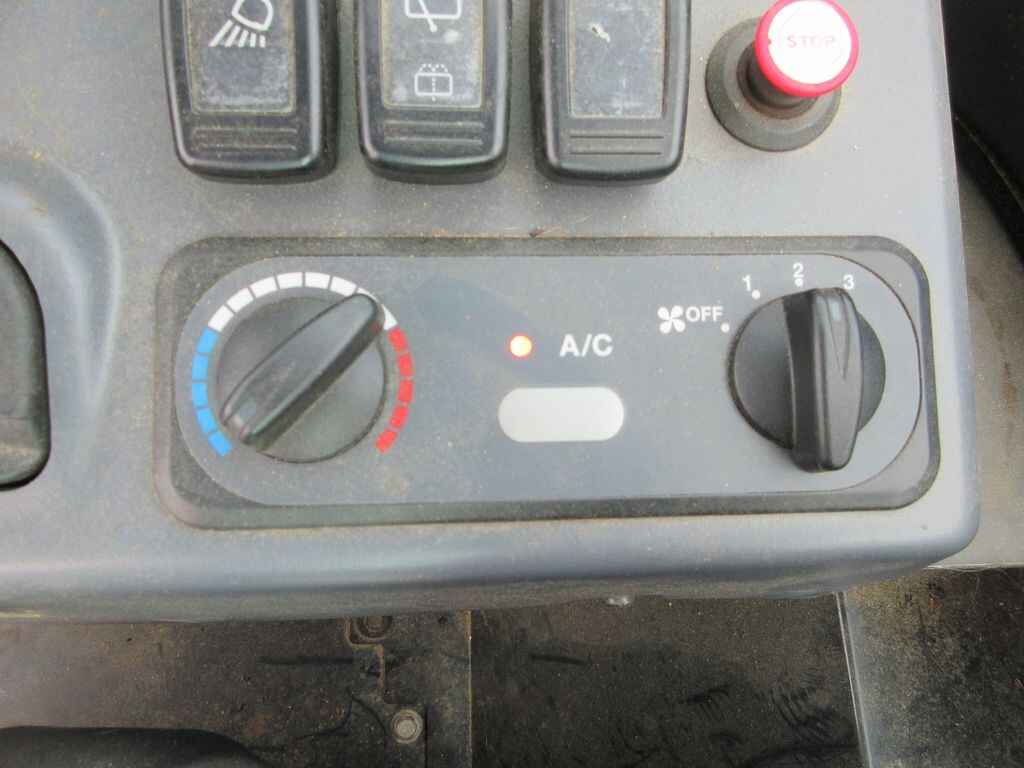

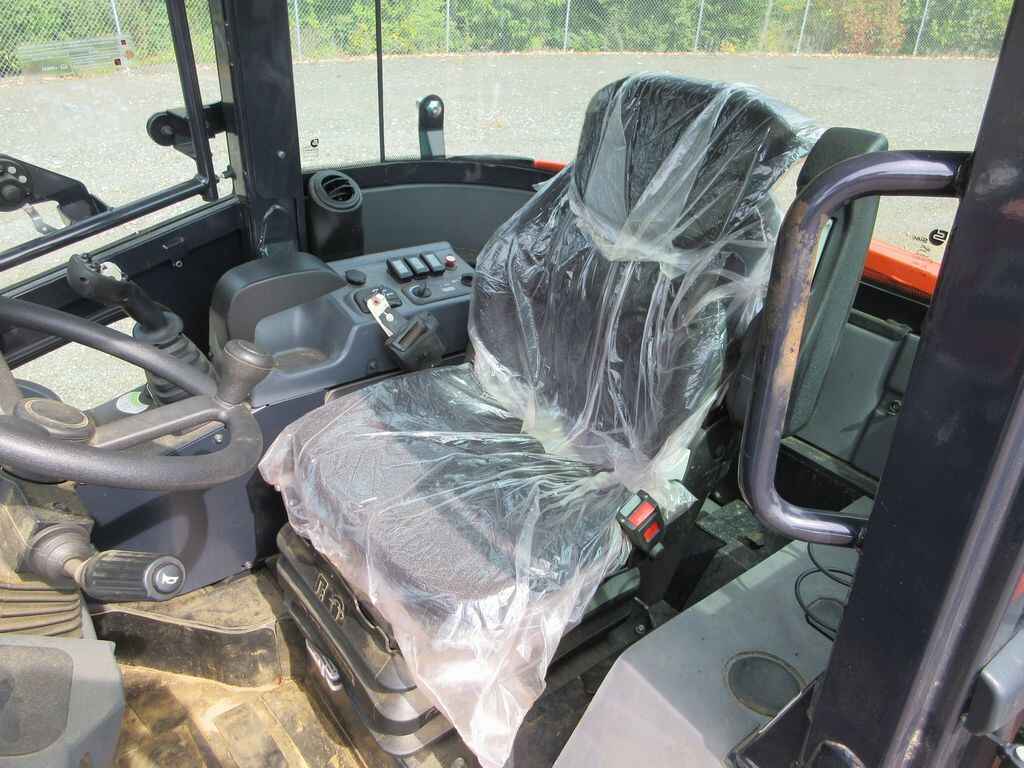

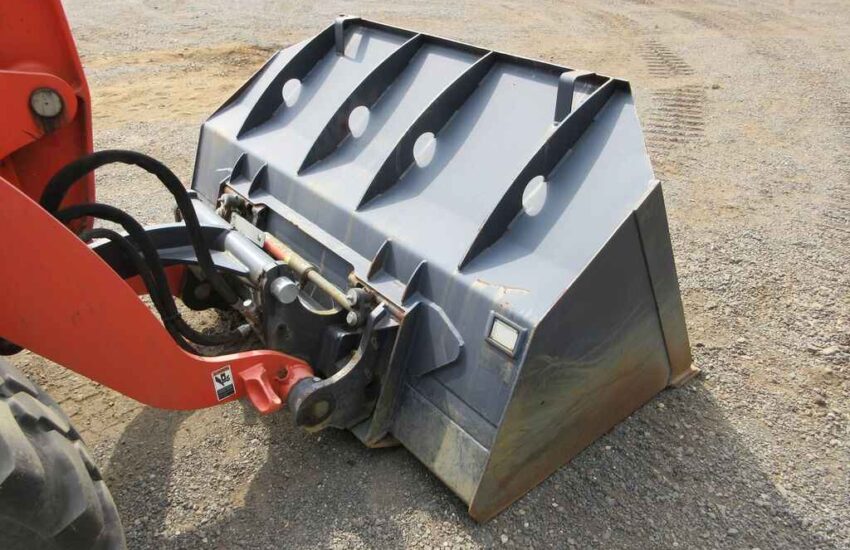

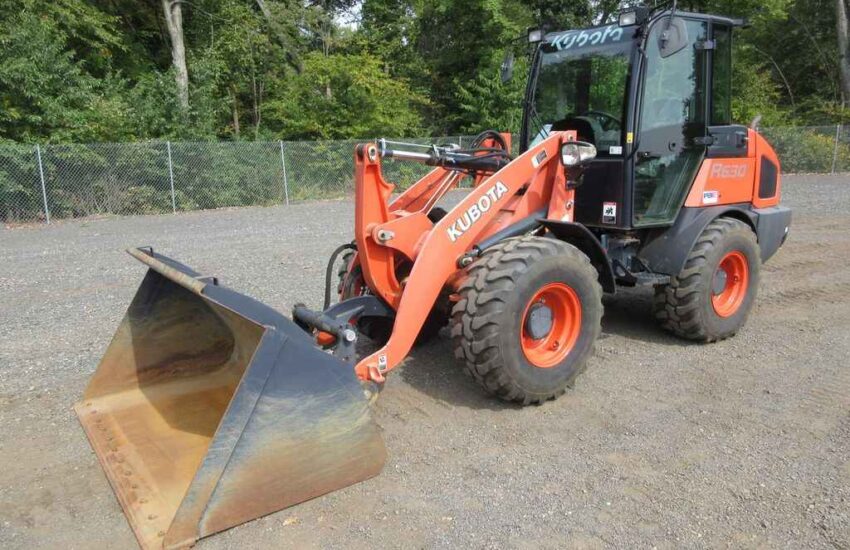

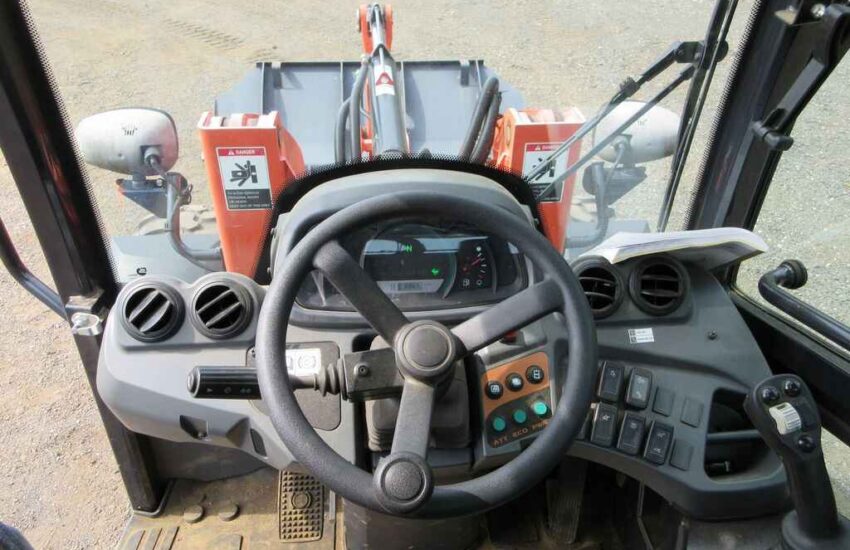

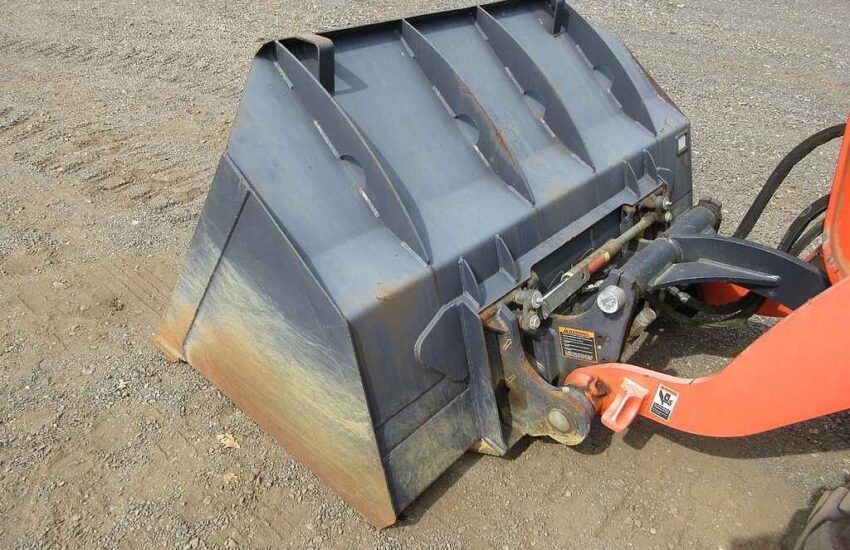

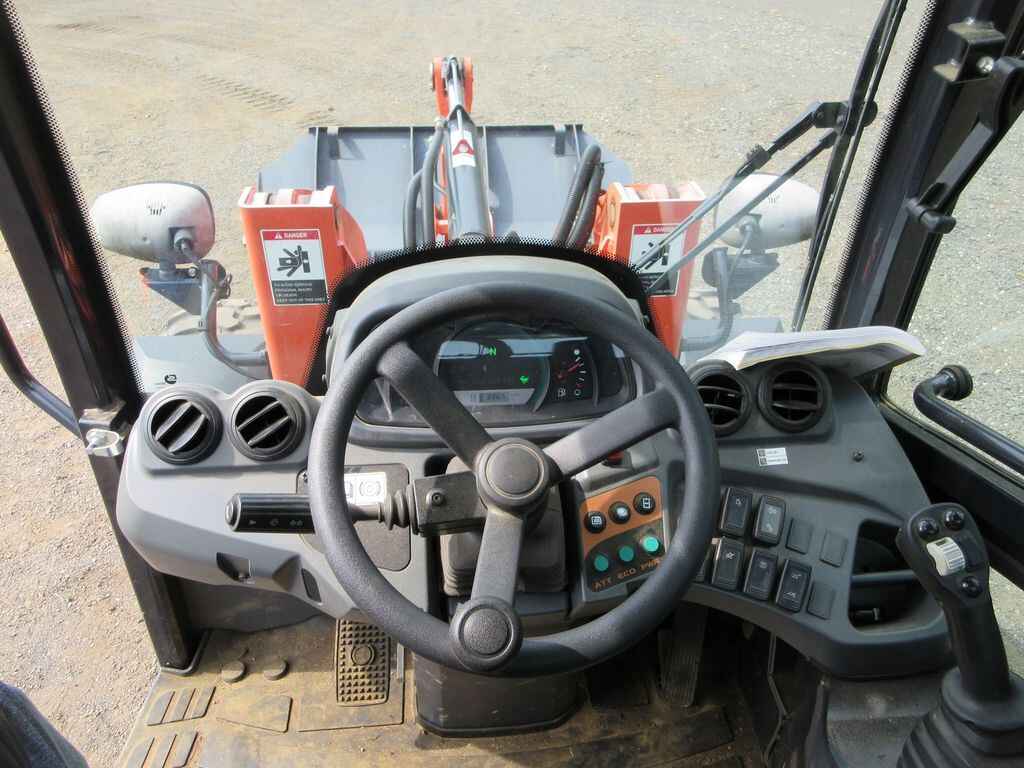

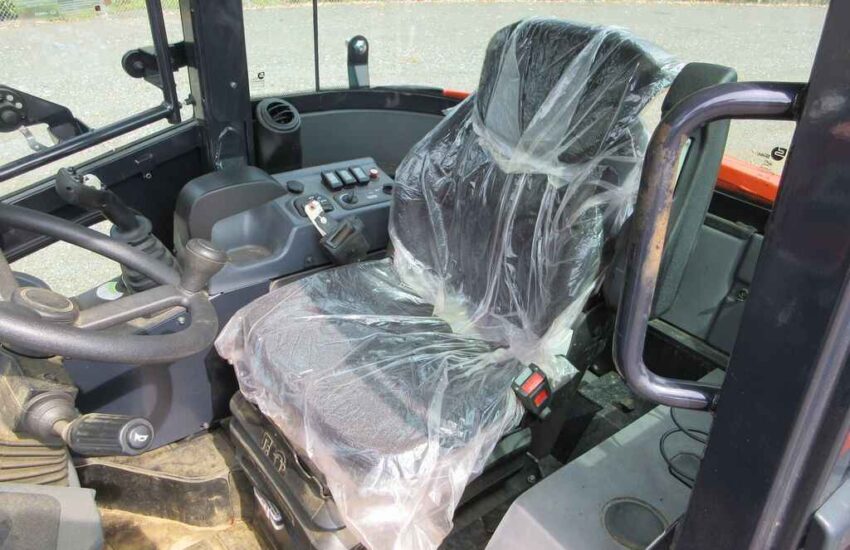

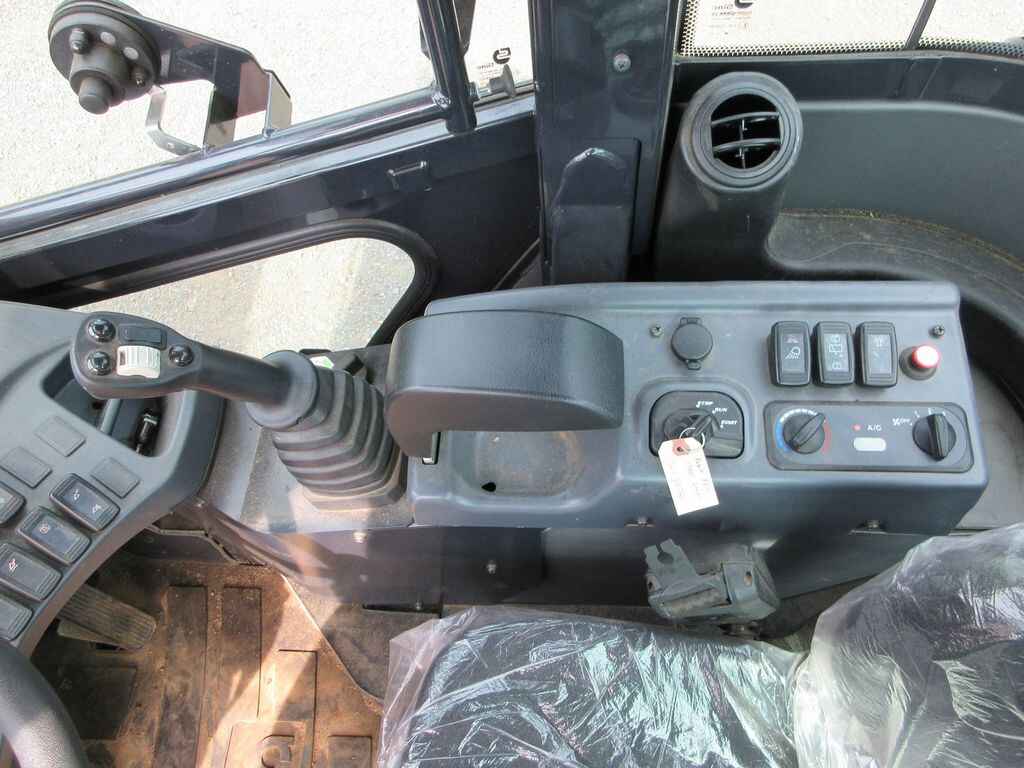

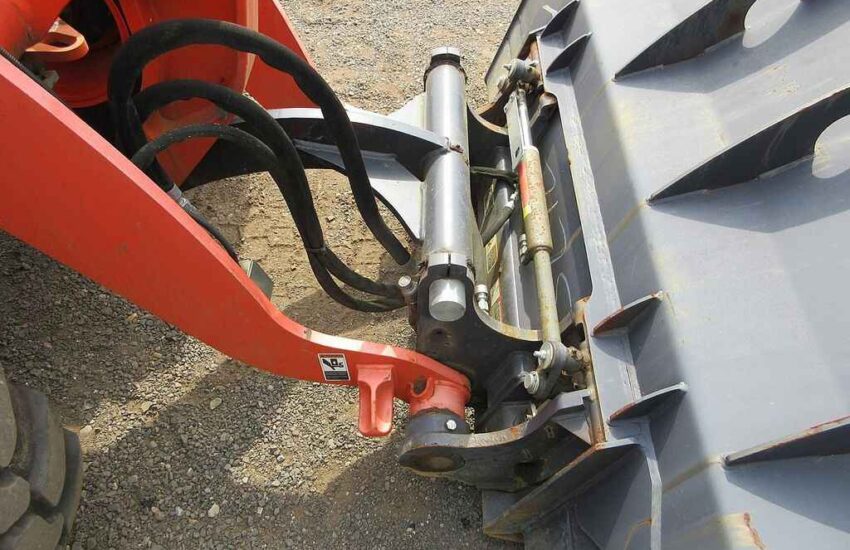

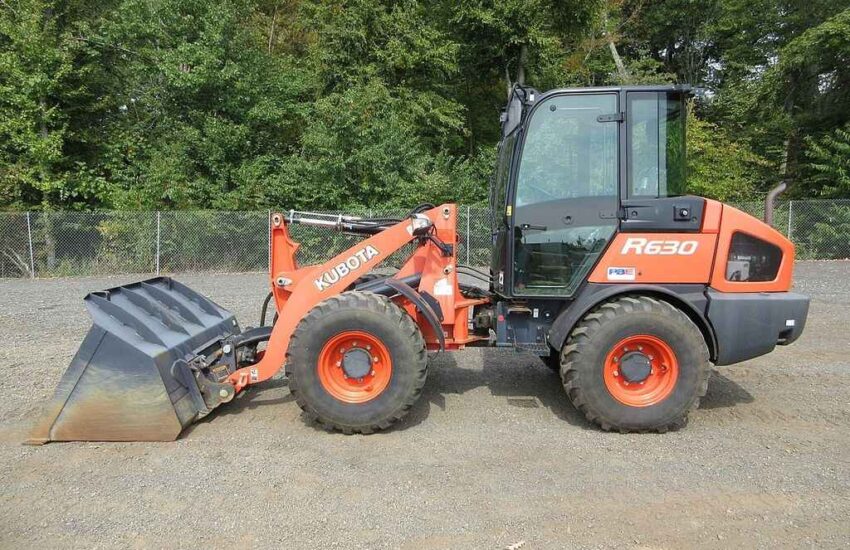

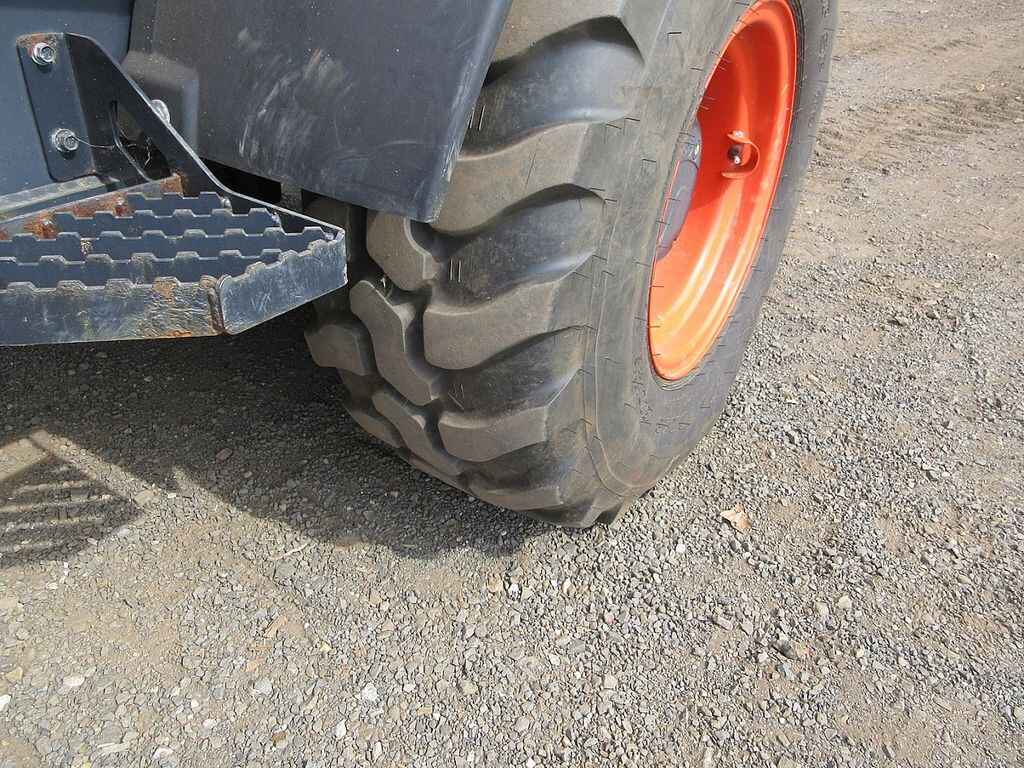

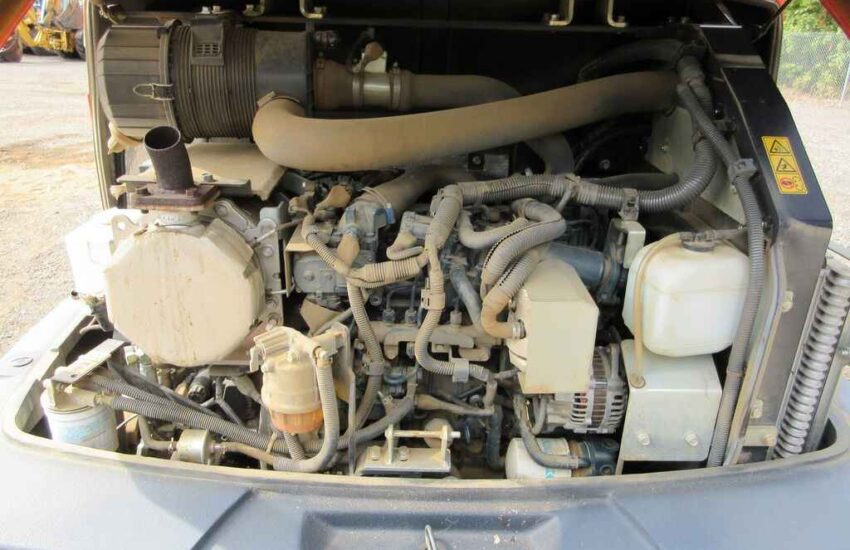

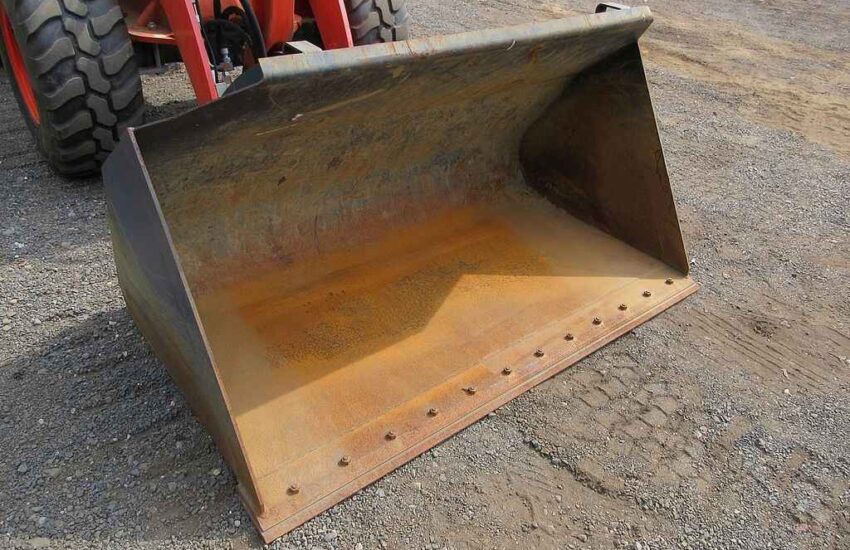

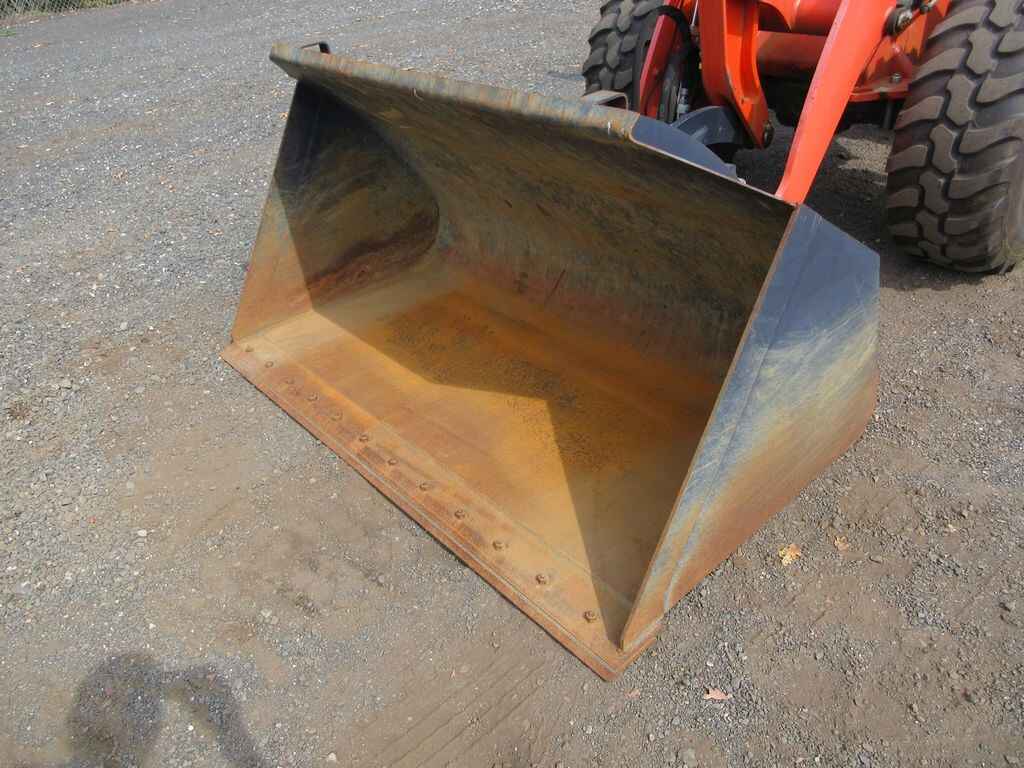

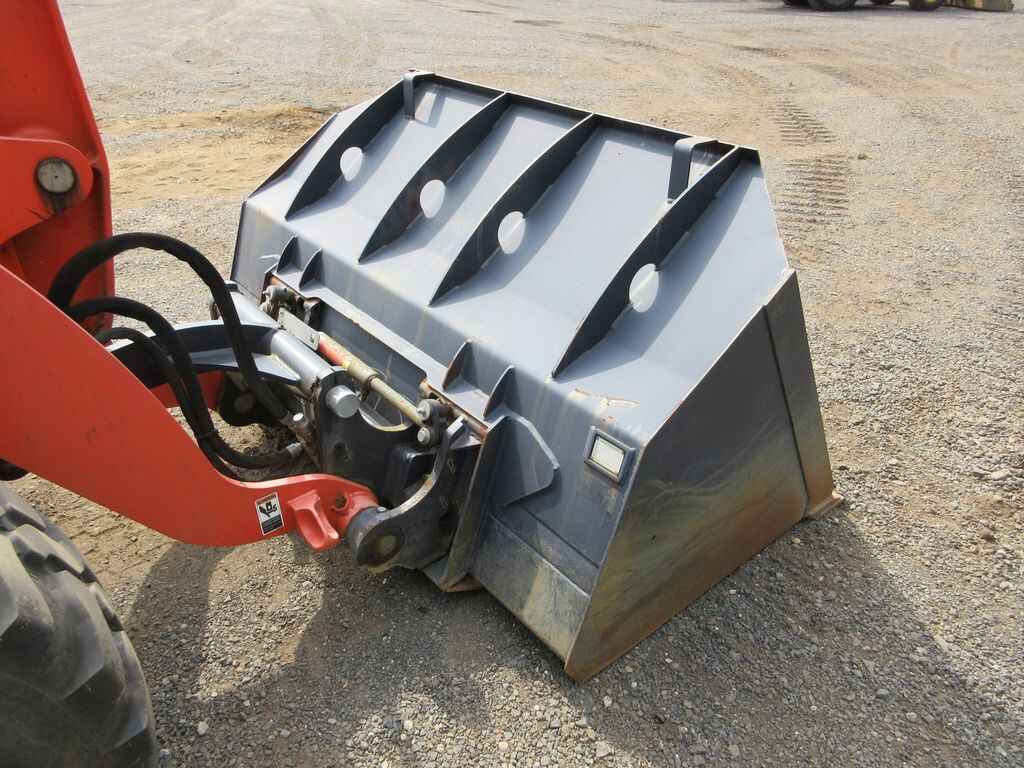

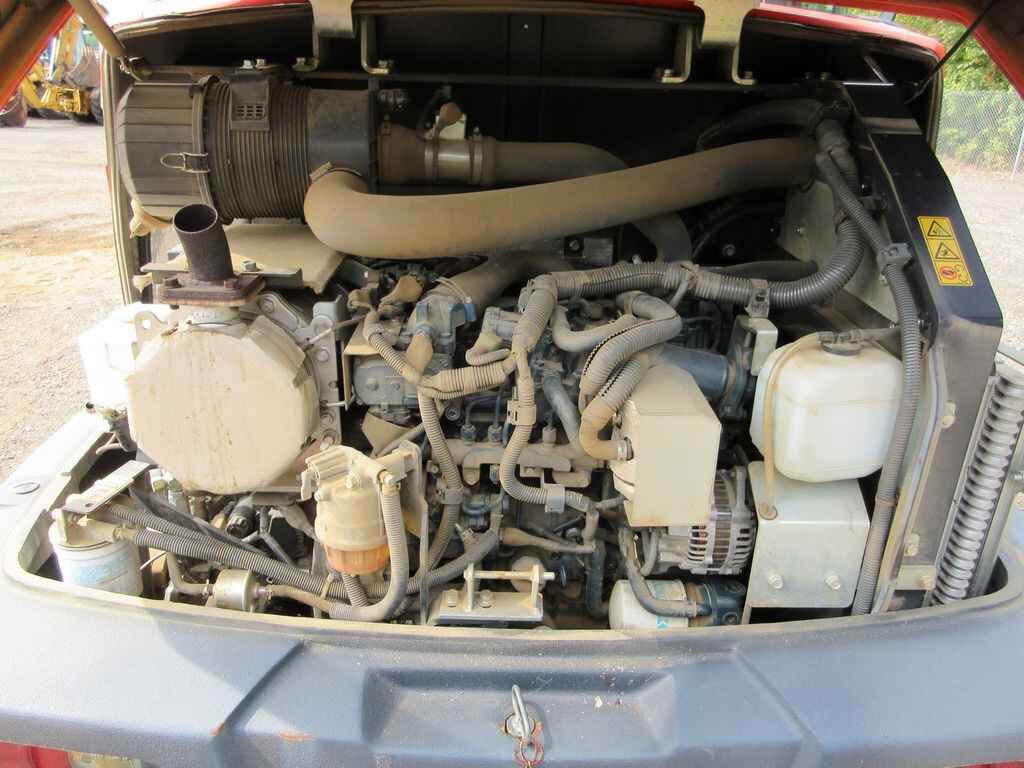

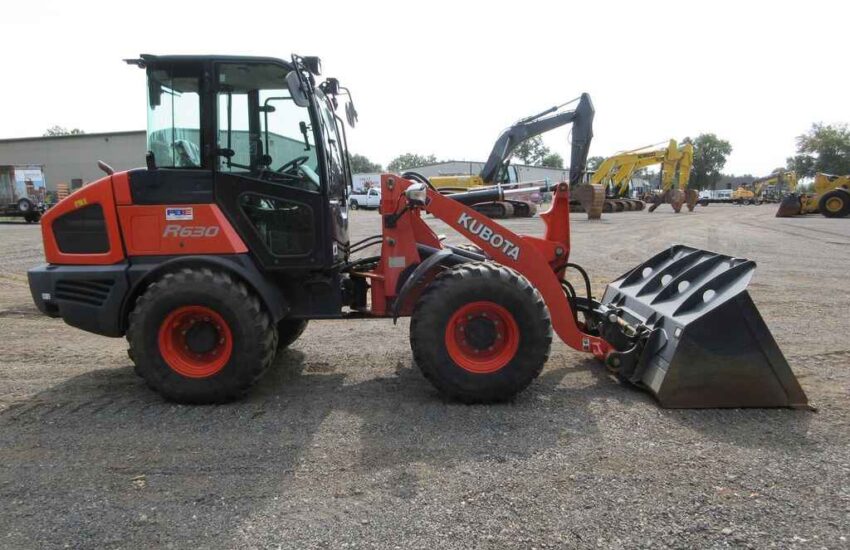

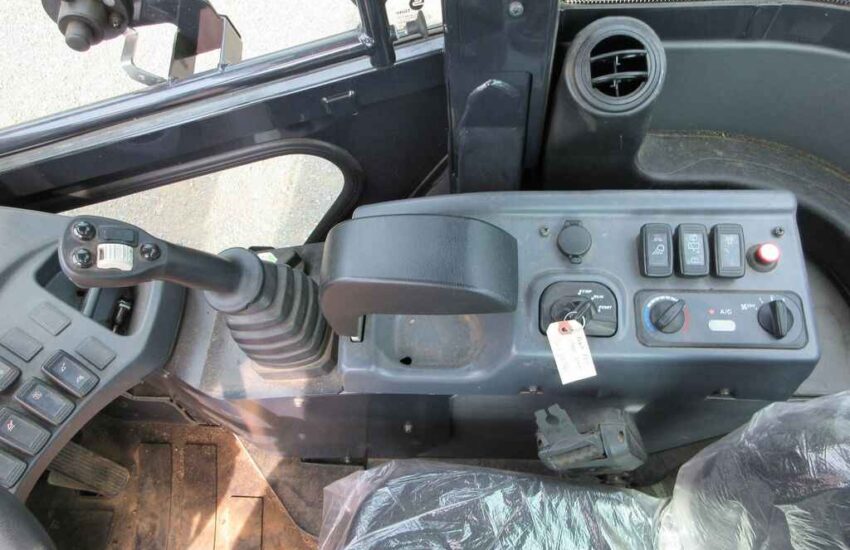

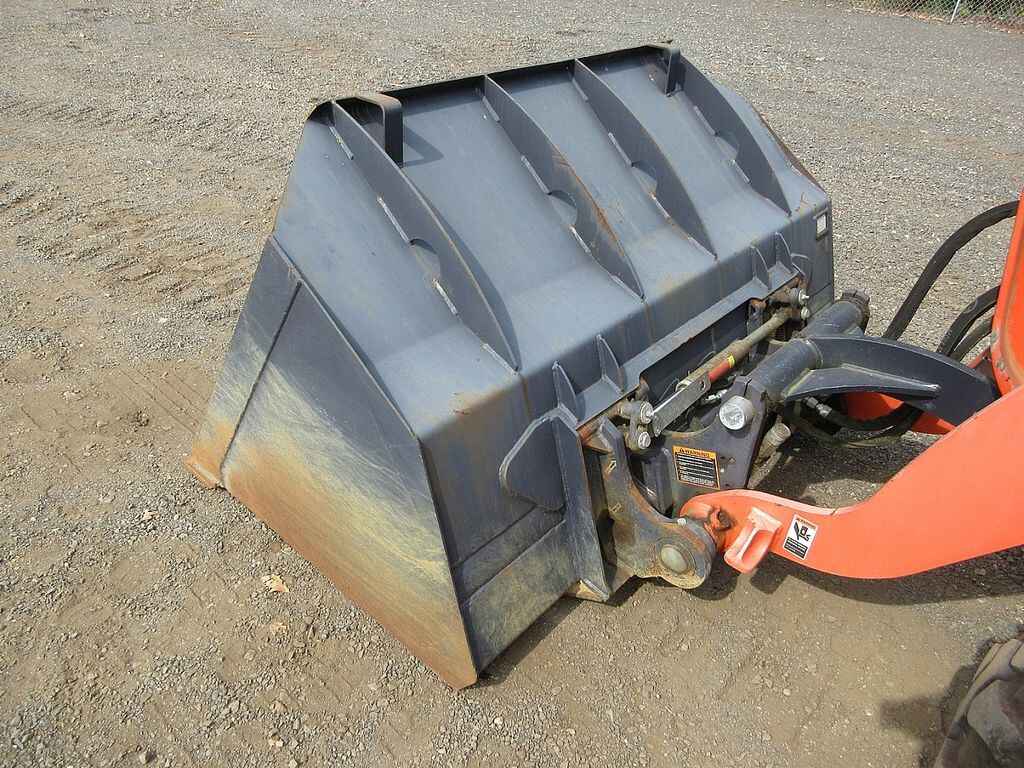

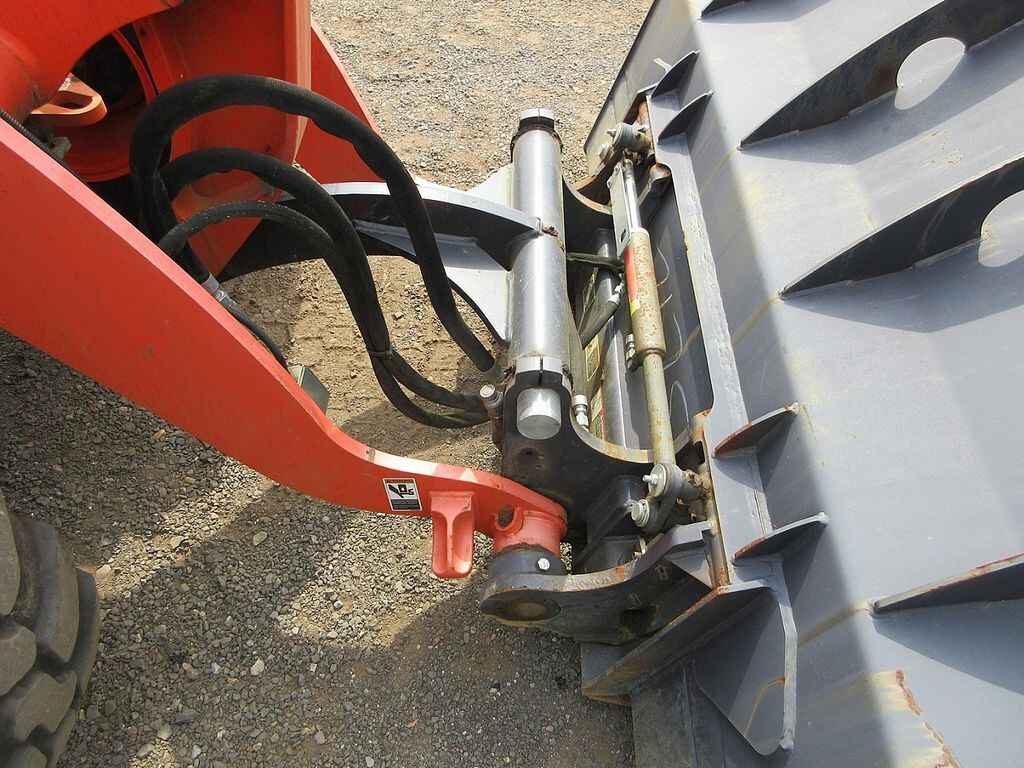

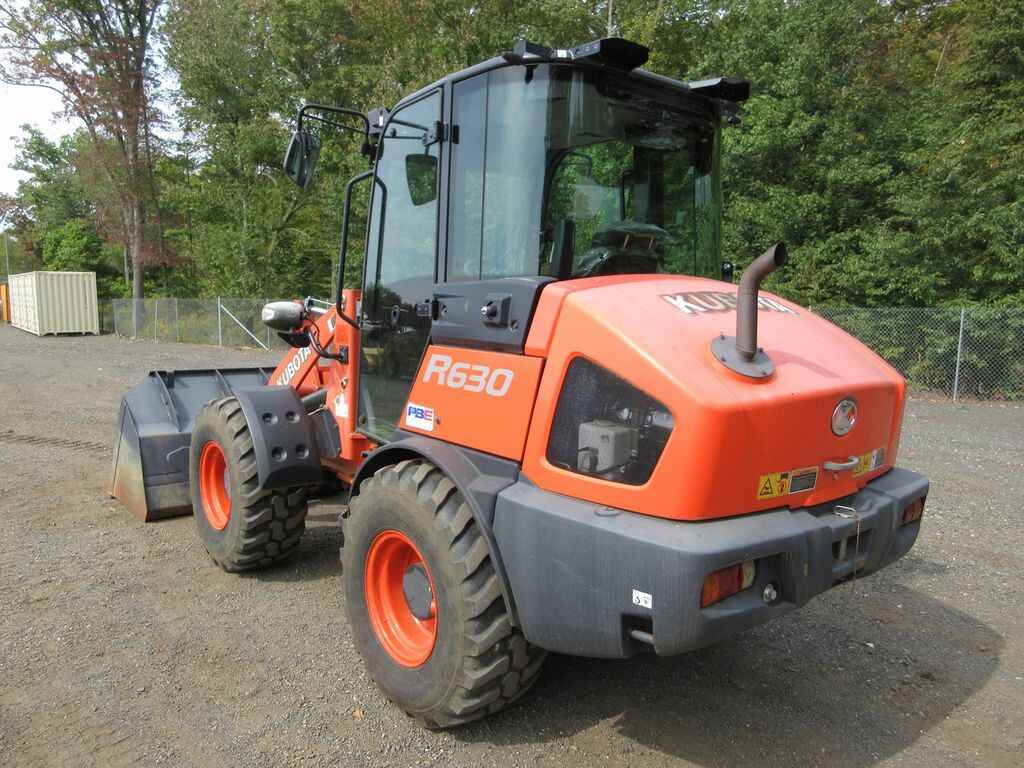

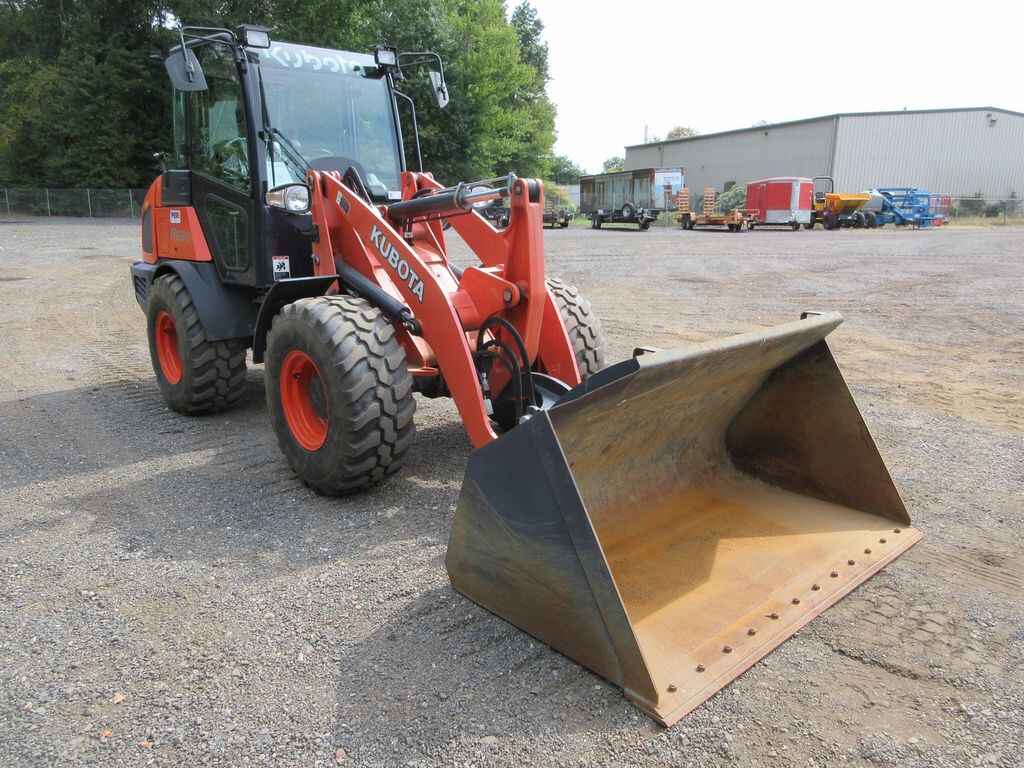

4 CYL KUBOTA TURBO DIESEL, CAB WITH HEAT, A/C, 2 SPEED TRAVEL, 405/70R18 RADIAL RUBBER, AUX HYD, SKID STEER STYLE HYD COUPLER, BUCKET WITH BOCE, METER READS 396 HOURS, S/N 11116, EXCELLENT CONDITION
SPECIFICATIONS
Engine
• Model: Kubota V2607-CR-TE4
• Gross Power: 64.4 hp (48.0 kW)
• Net Power: 61.2 hp (45.6 kW)
• Displacement: 159.6 in³ (2.615 L)
• Emissions Certification: Tier 4 Final
Dimensions
• Length with Bucket on Ground: 204 in (5,185 mm)
• Width over Tires: 71 in (1,805 mm)
• Height to Top of Cab: 98.4 in (2,500 mm)
• Wheelbase: 78.7 in (2,000 mm)
• Ground Clearance: 13.8 in (350 mm)
Operational
• Operating Weight: 10,229 lbs (4,640 kg)

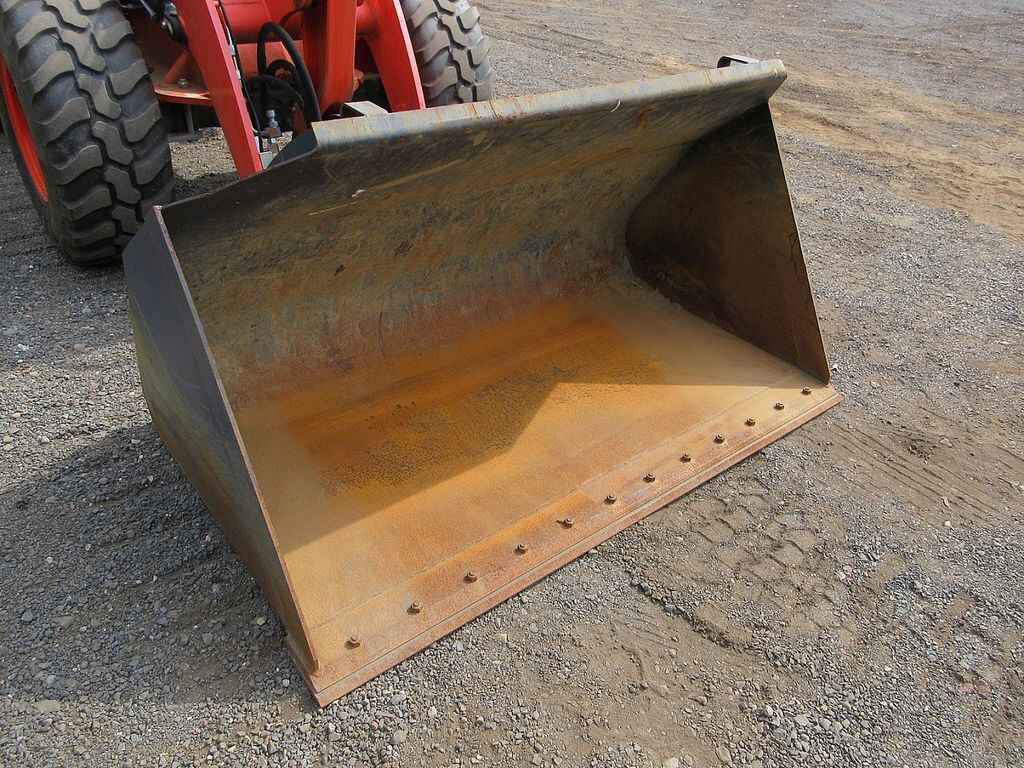

• Bucket Capacity (Heaped): 1.31 yd³ (1.0 m³)
• Breakout Force: 10,415 lbs (4,724 kg)
• Static Tipping Weight: 7,606 lbs (3,450 kg)
Performance
• Max Speed – Forward: 12.5 mph (20 km/h)
• Max Speed – Reverse: 12.5 mph (20 km/h)

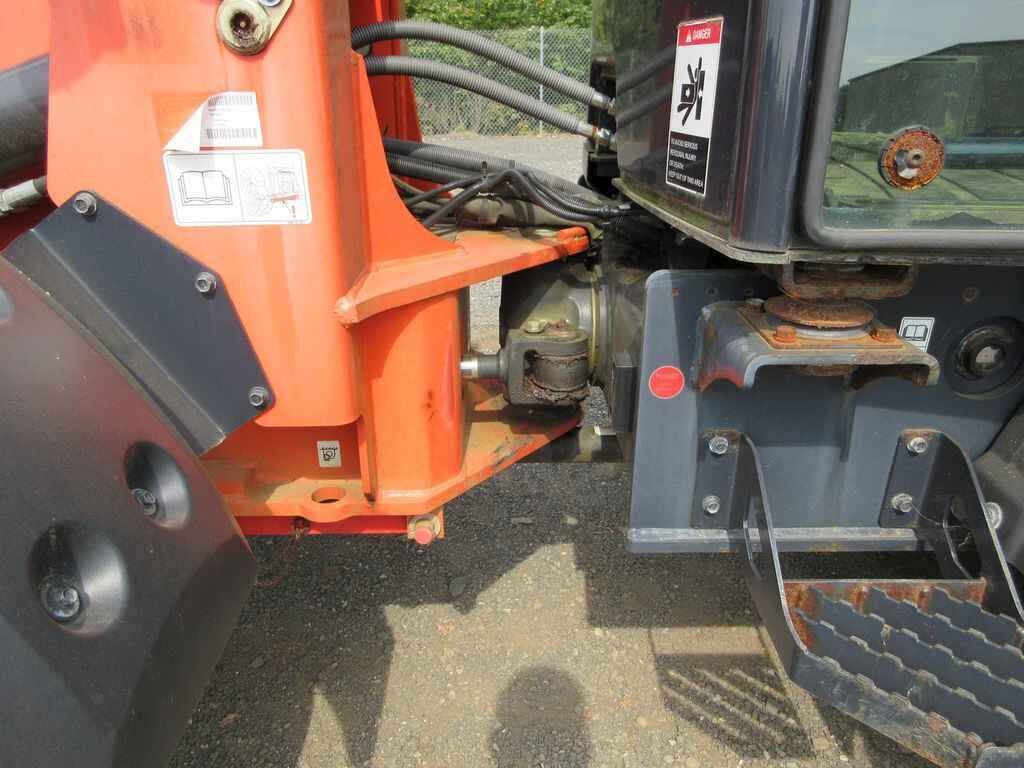

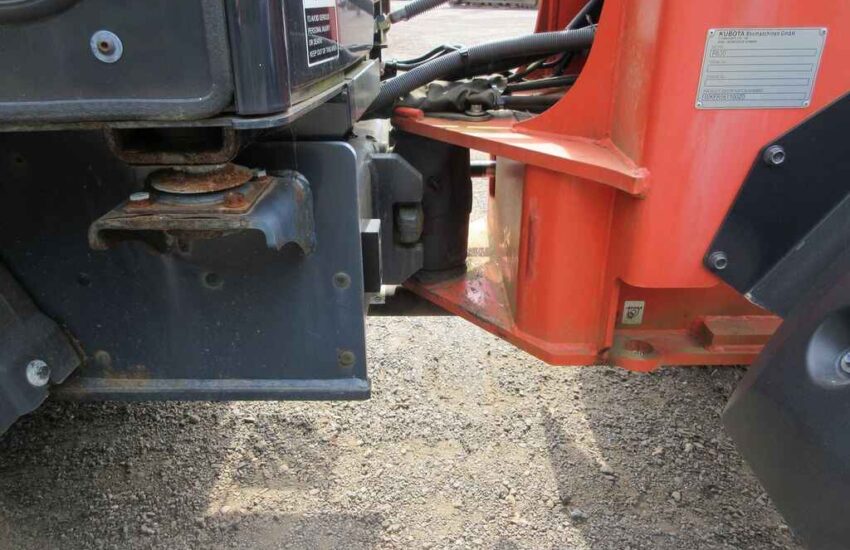

• Articulation Angle: 40°
• Rear Axle Oscillation: 8°
Hydraulic System
• Max Operating Pressure: 3,000 psi (20.7 MPa)
• Pump Flow Capacity: 17.8 gal/min (67.2 L/min)
• Hydraulic Oil Tank: 10.4 gal (39.0 L)
• Hydraulic System Capacity: 15.1 gal (57.0 L)
Capacities
• Fuel Tank: 18.5 gal (70.0 L)
Transmission
• Type: Hydrostatic Transmission (HST)
Tires

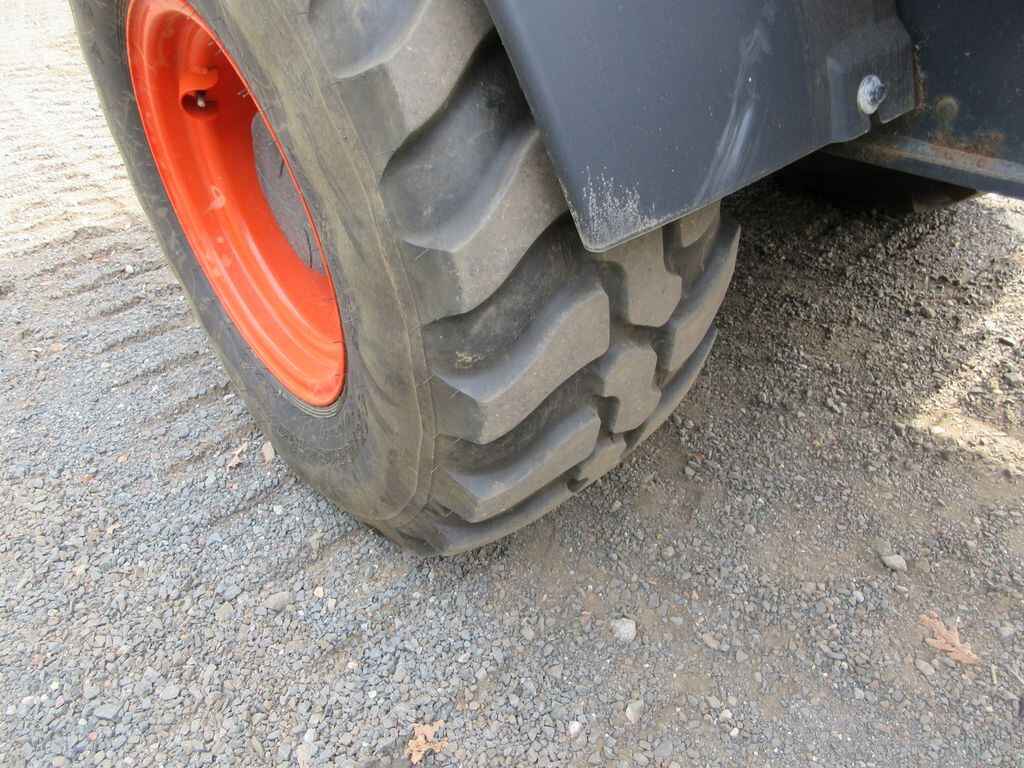

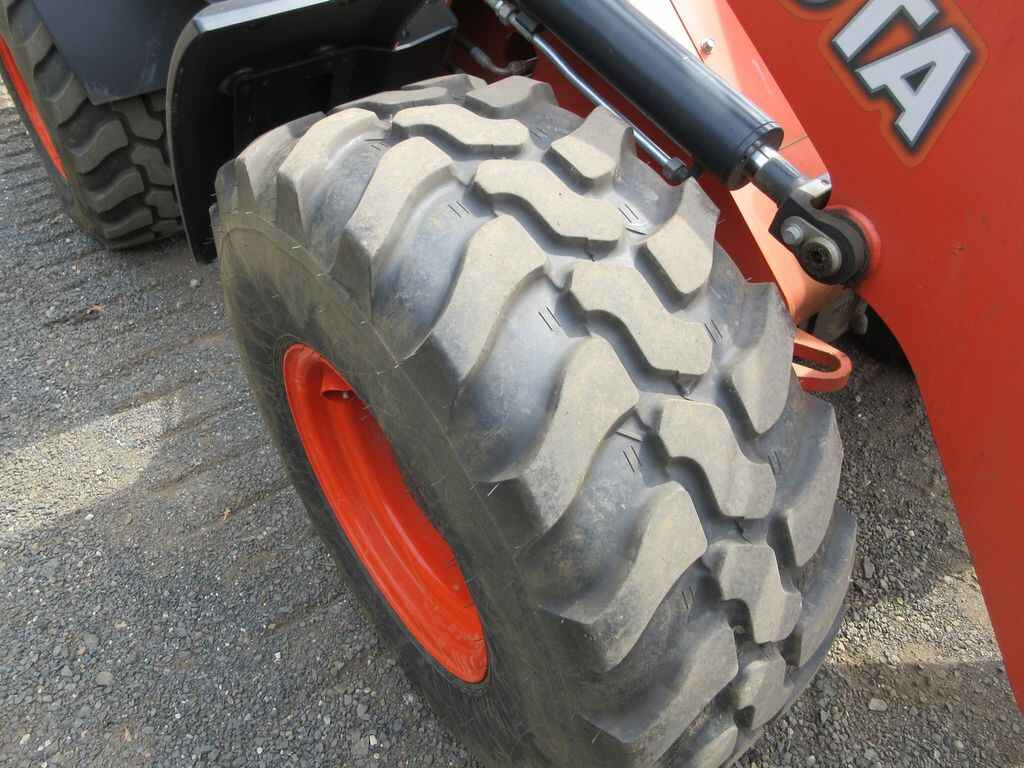

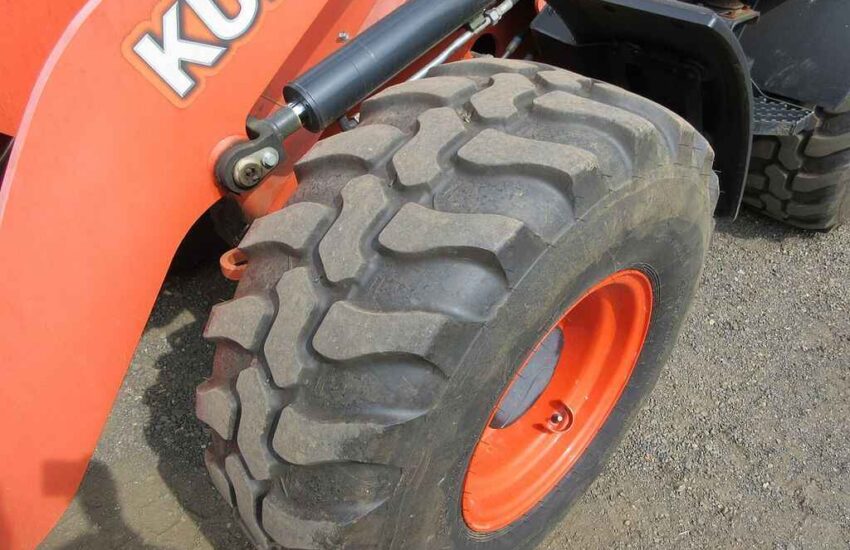

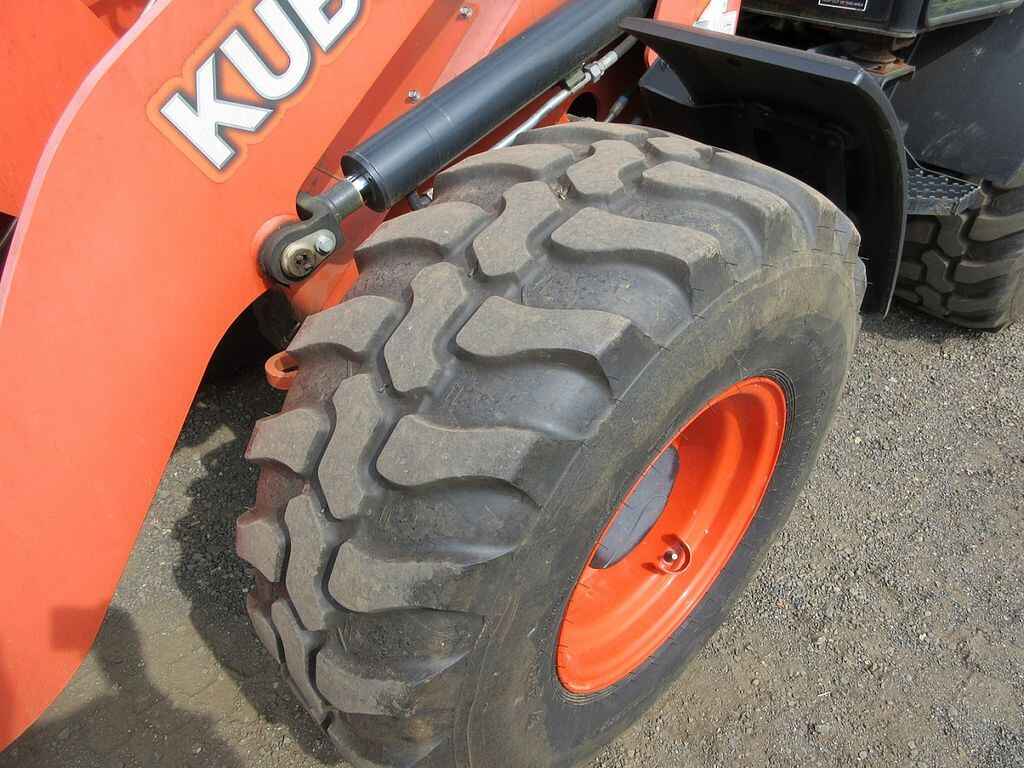

• Size: 405/70 R18
Features
- Radio

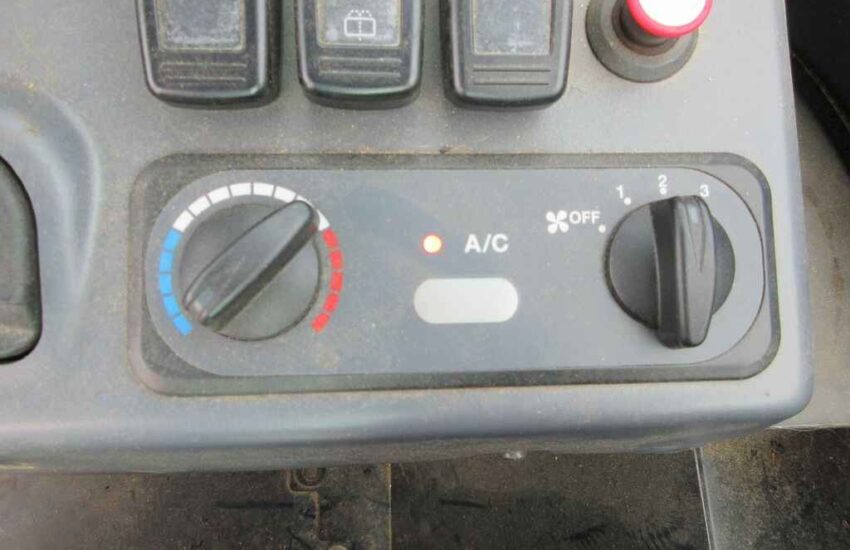

- Air Conditioner
