Details
-
Industry:
-
Make:
-
Model:
-
Color:
-
Transmission:
-
Condition:
-
Year:2018
-
Fuel Type:
-
Engine:Kubota V3307-CR-TE4
-
Cylinder:
-

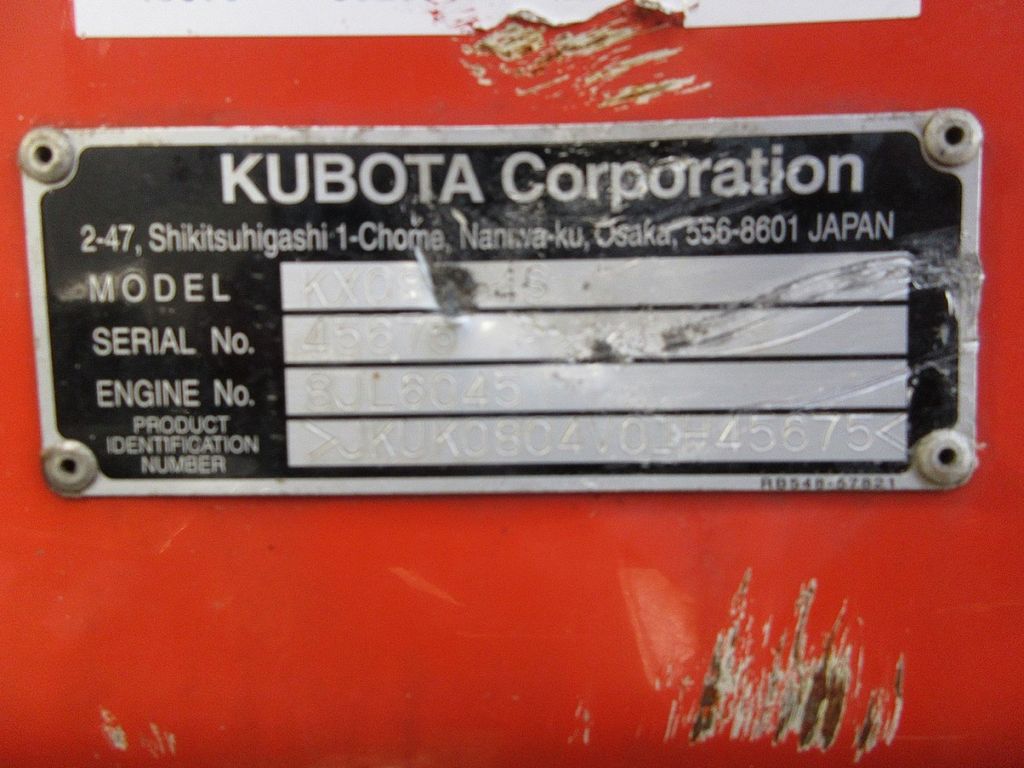

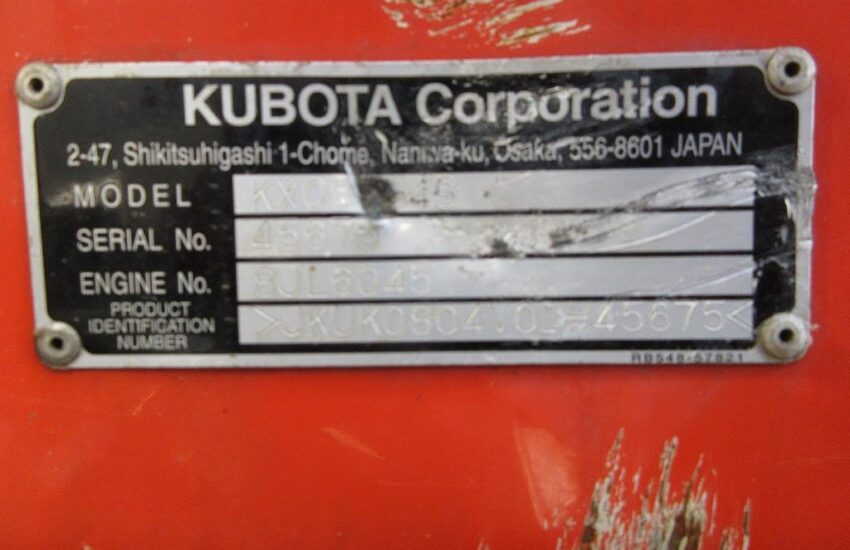

Serial:45675
-
Hours:2417
-
Stock#:211507
Overview

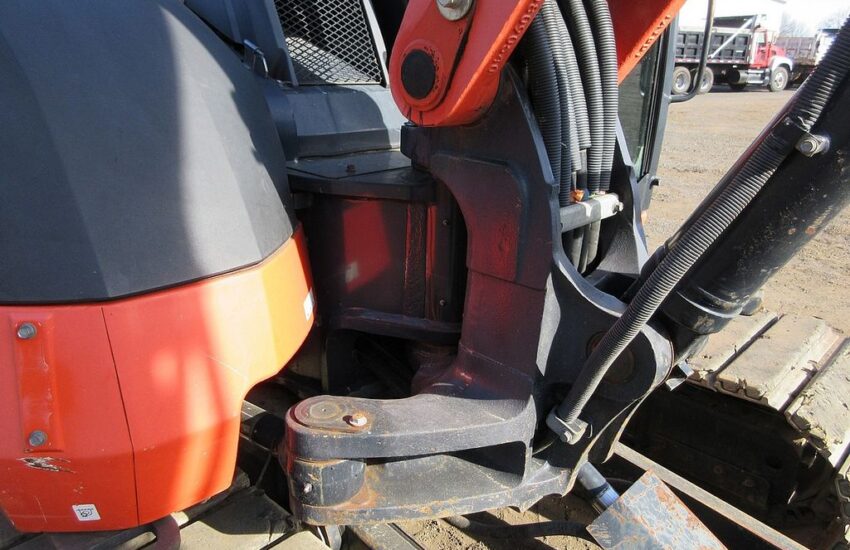

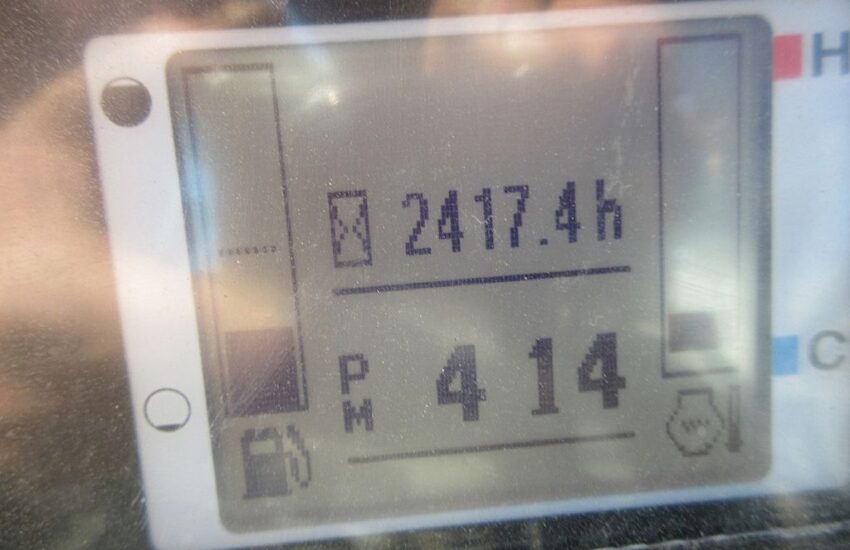

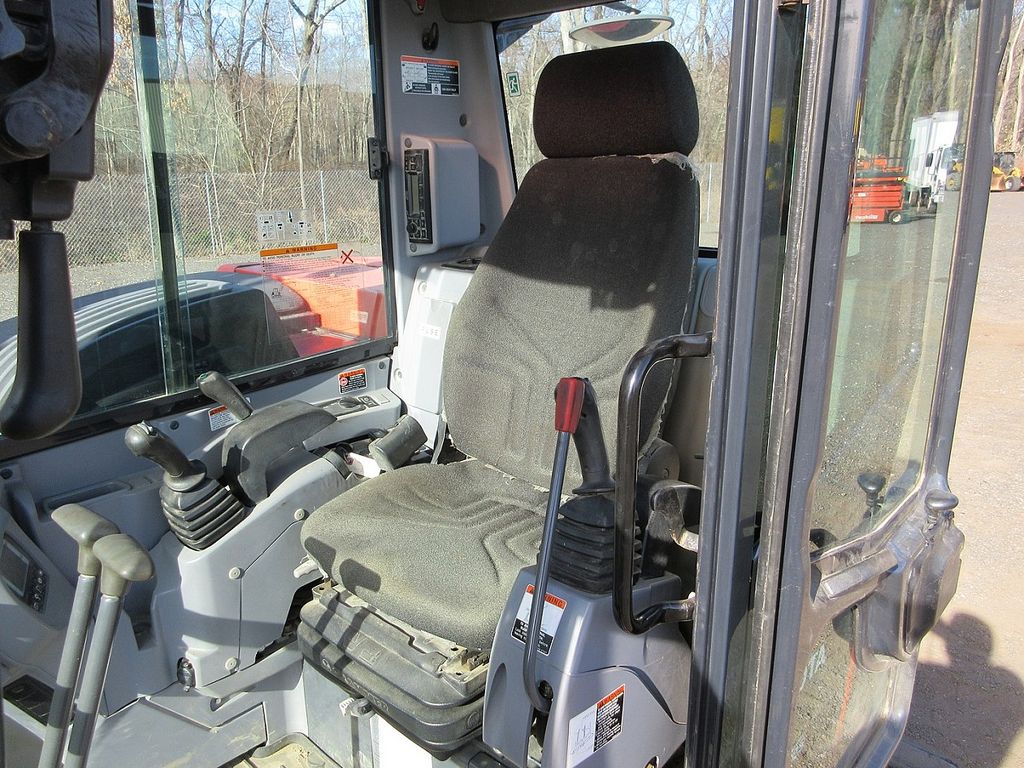

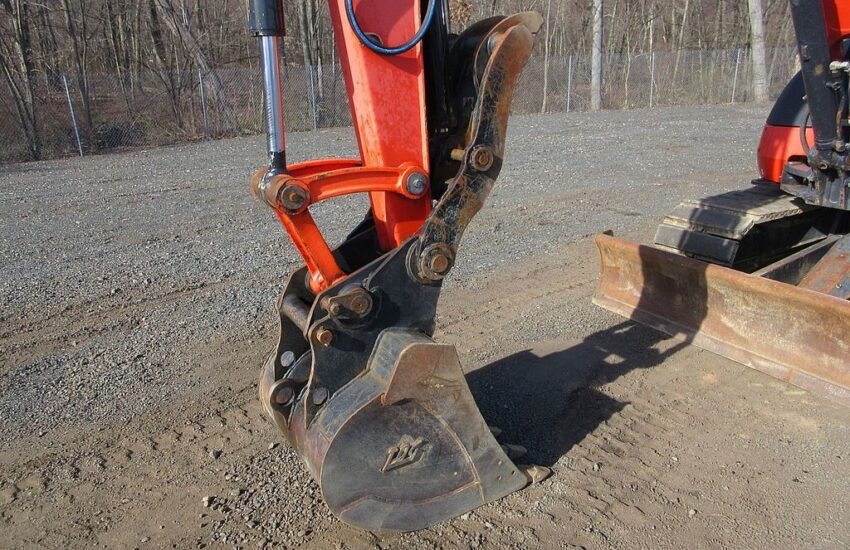

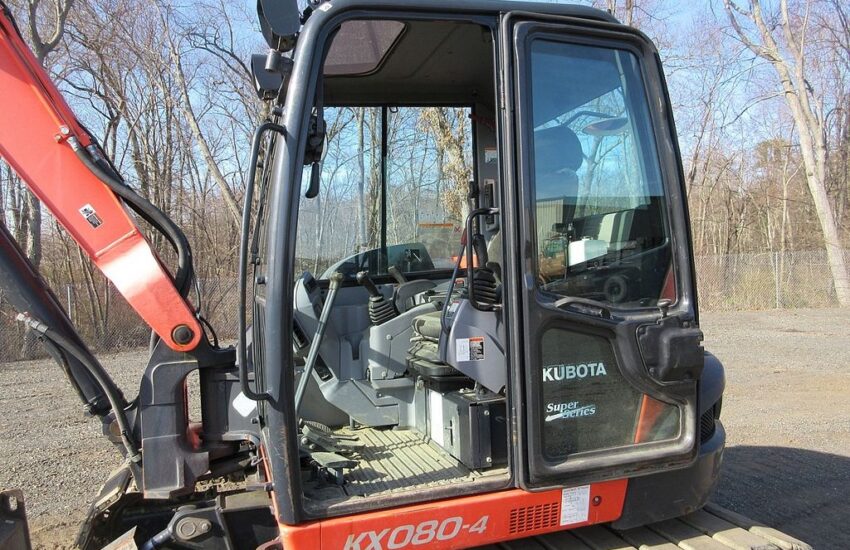

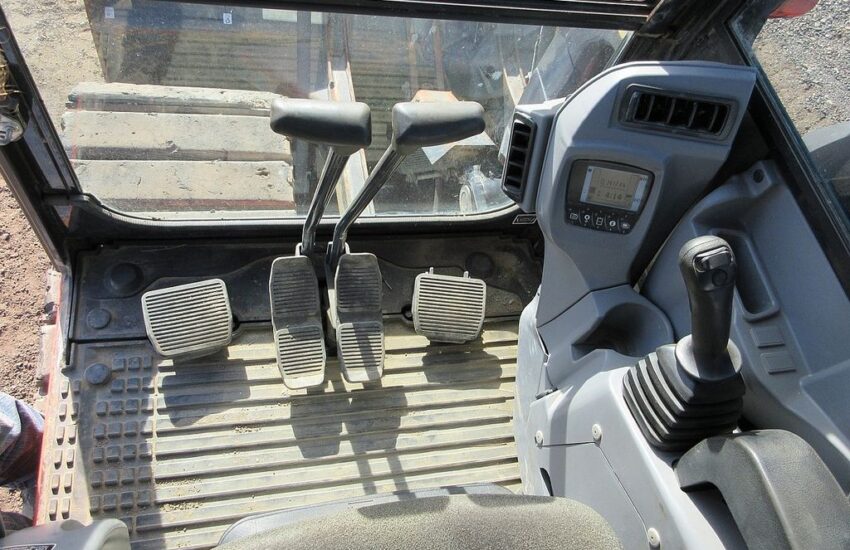

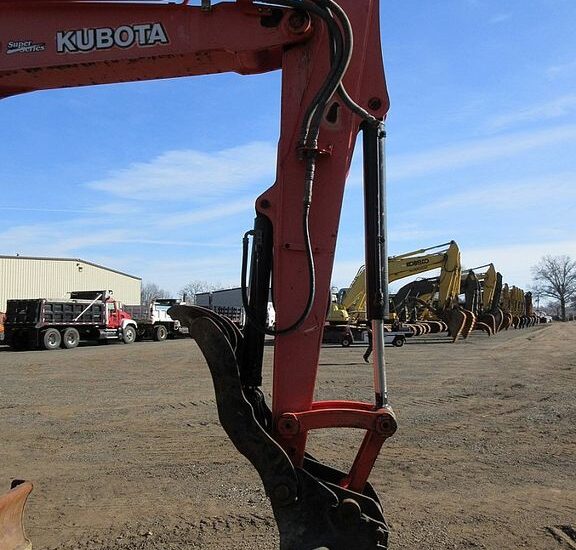

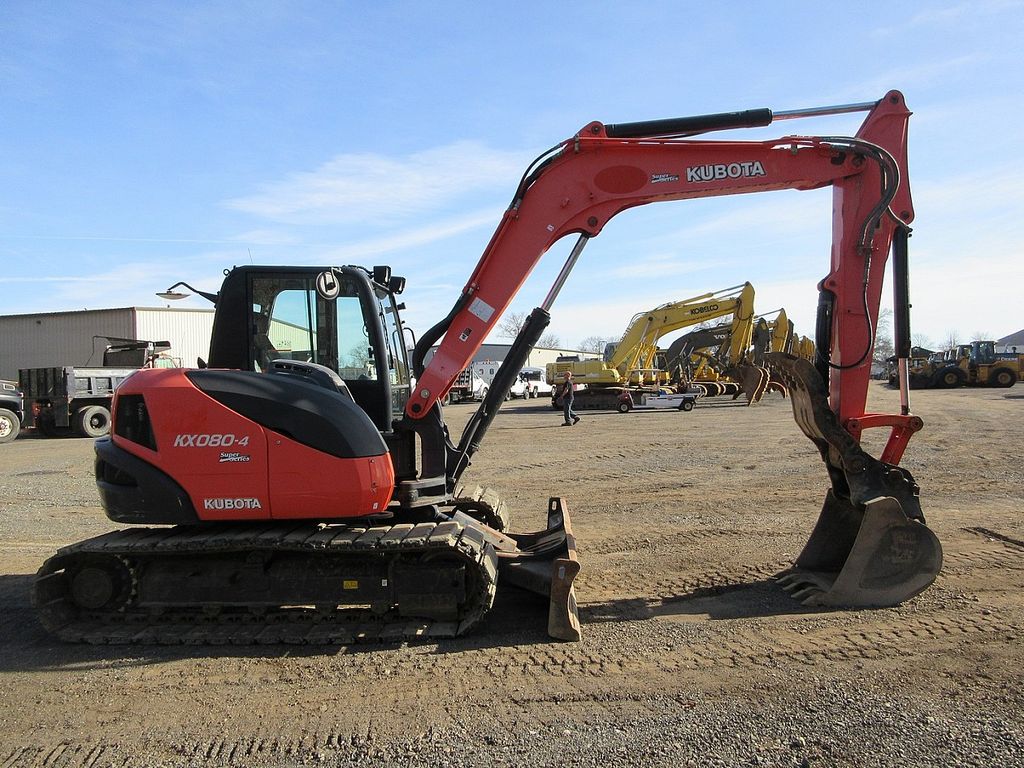

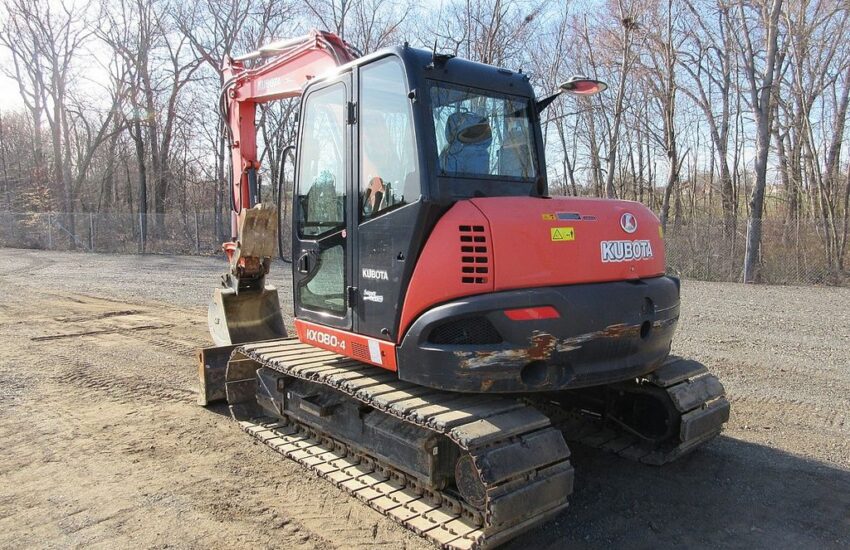

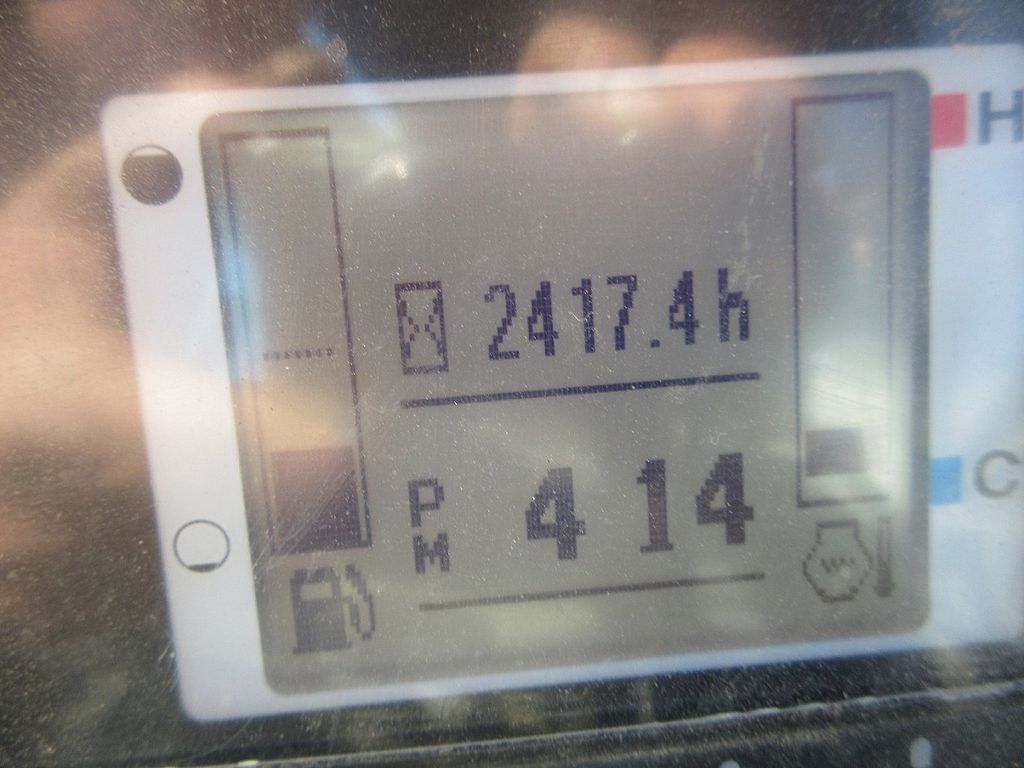

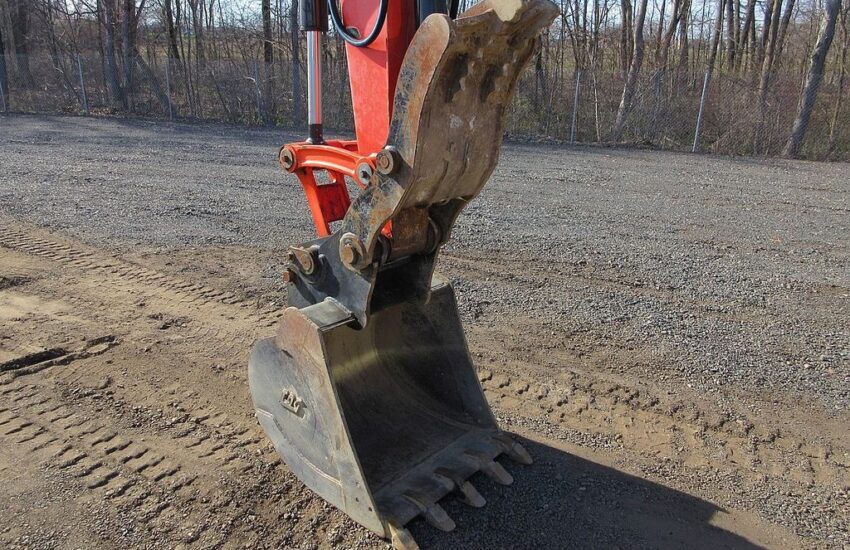

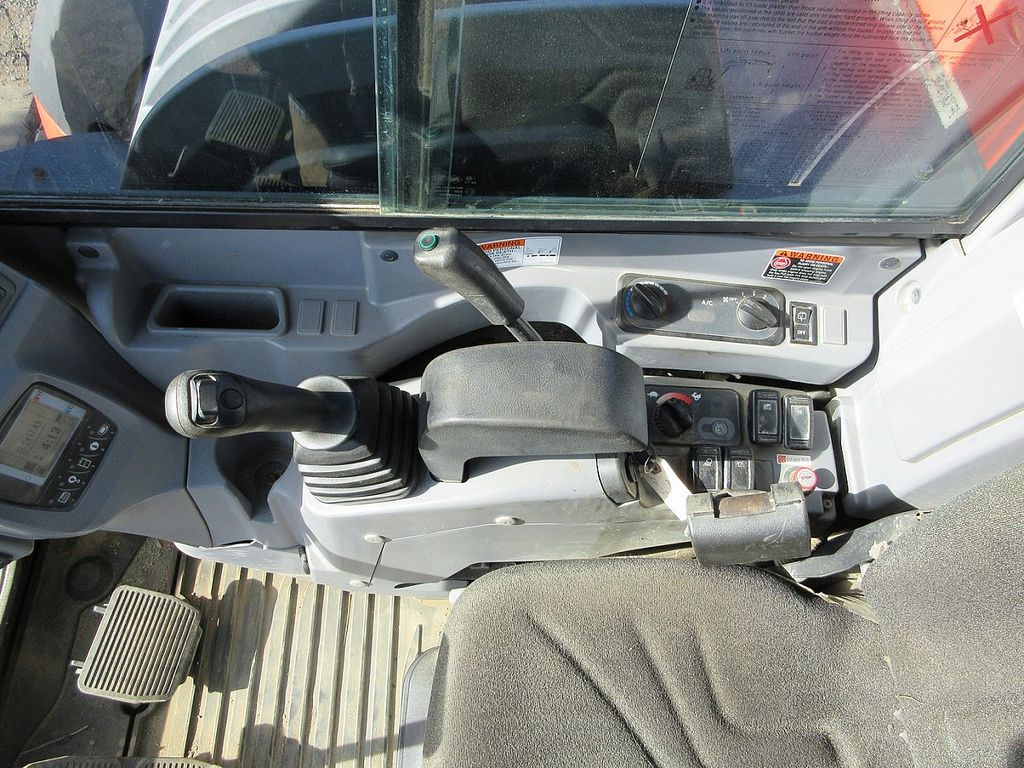

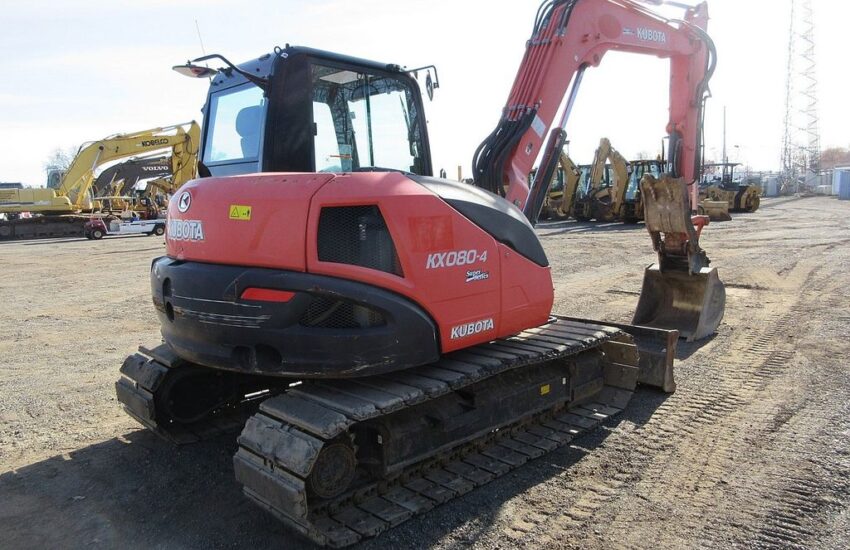

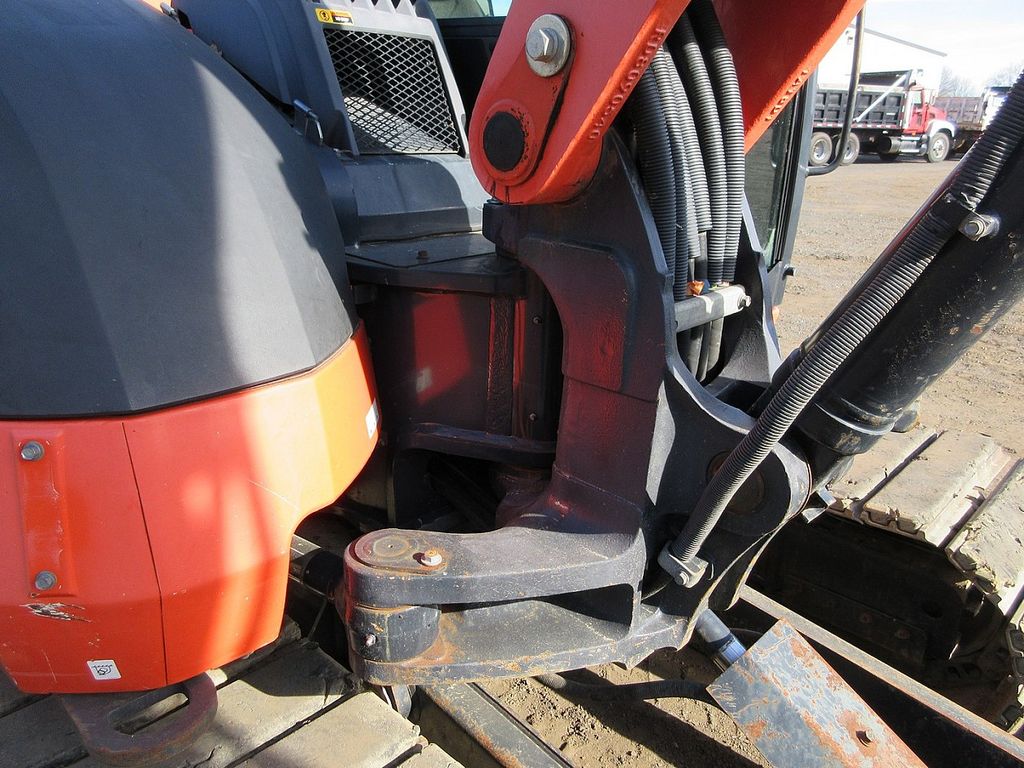

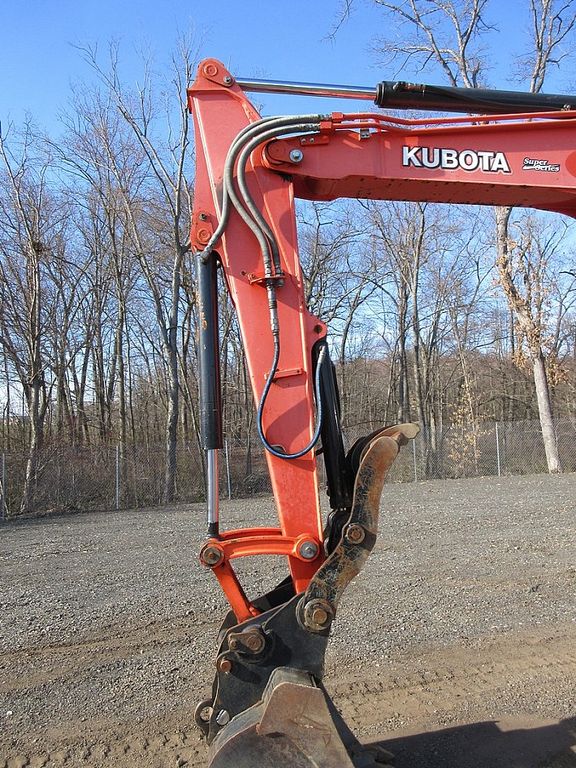

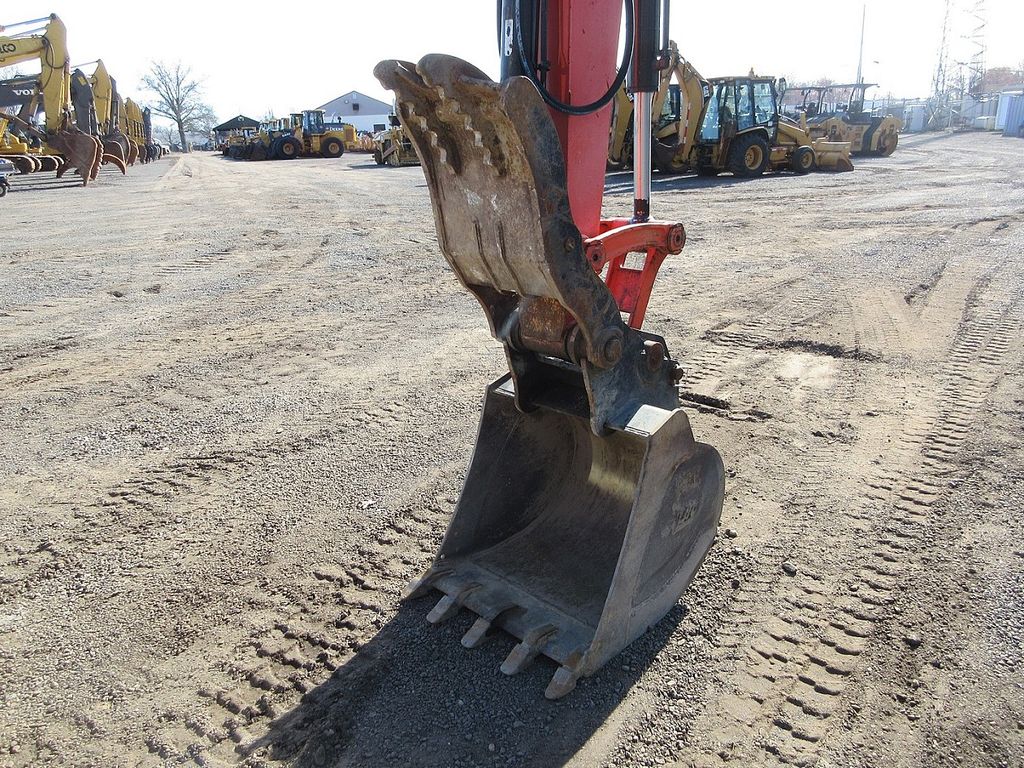

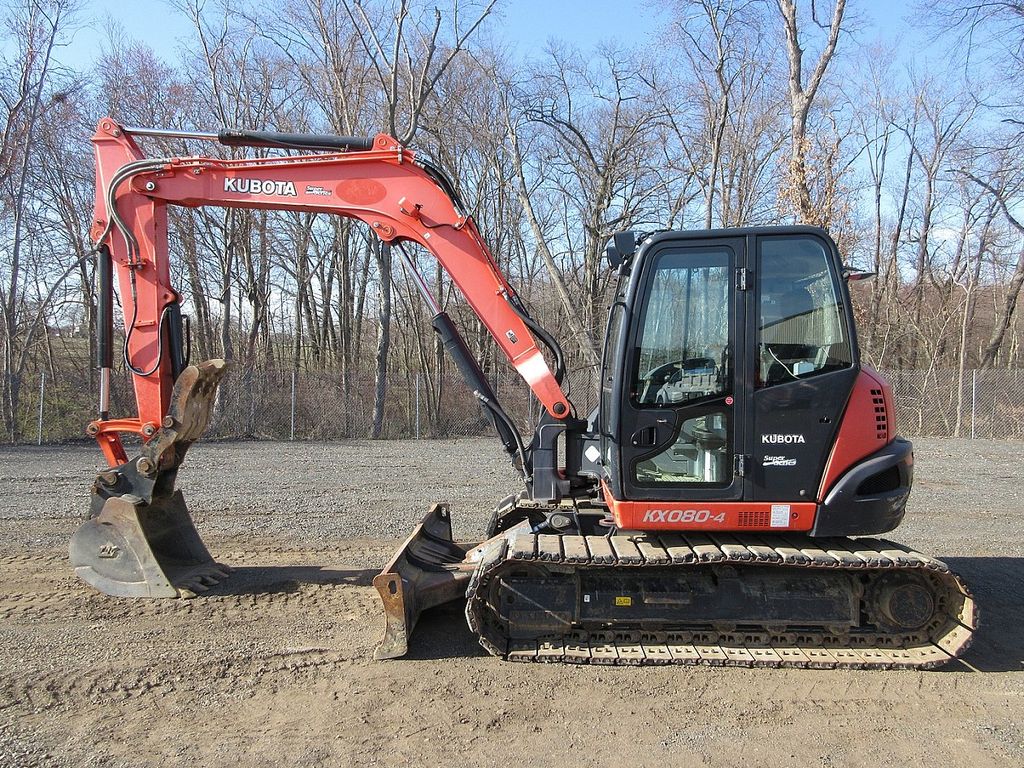

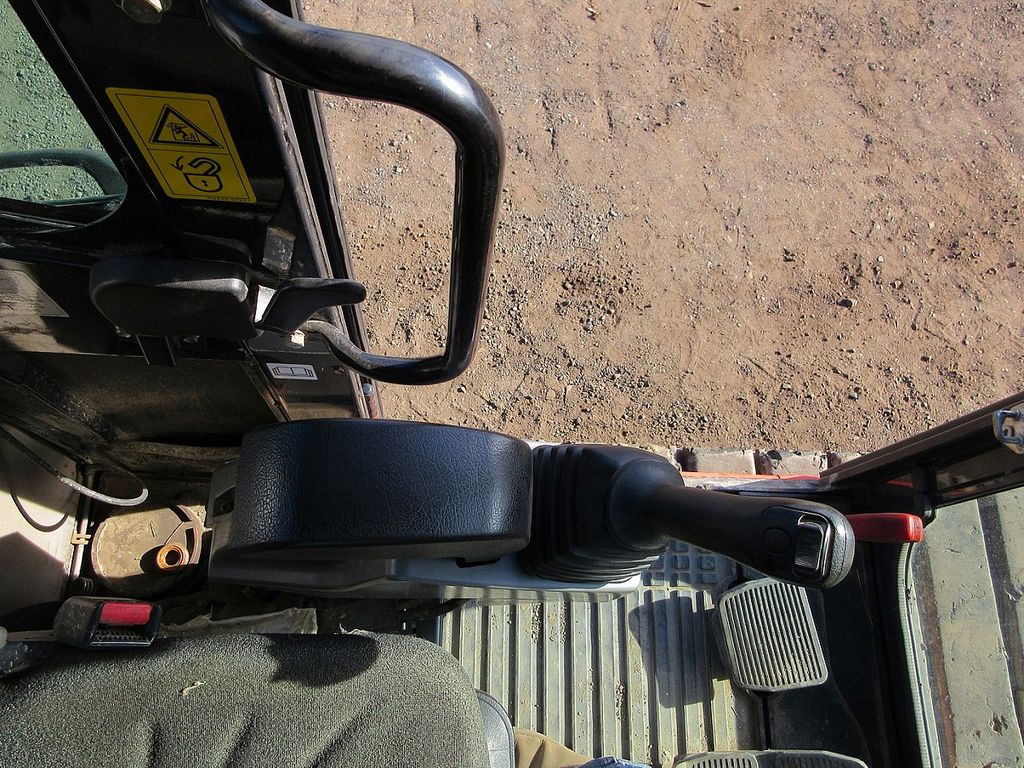

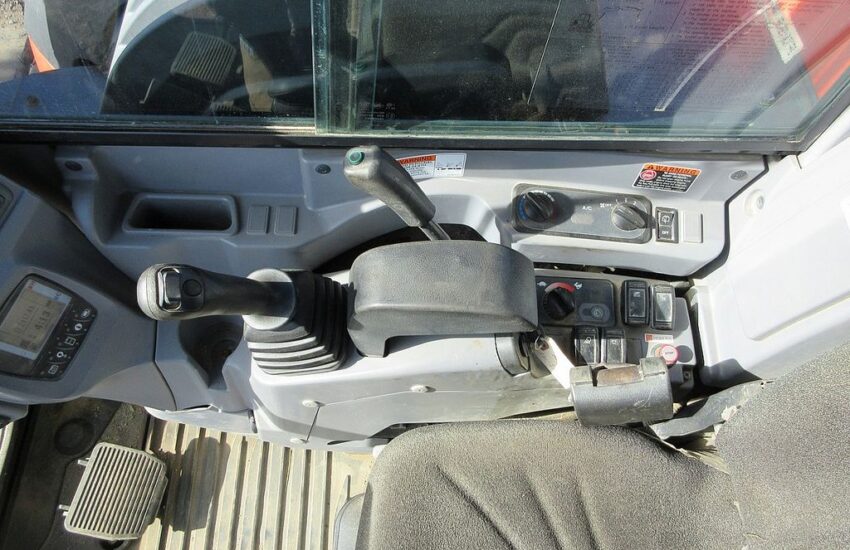

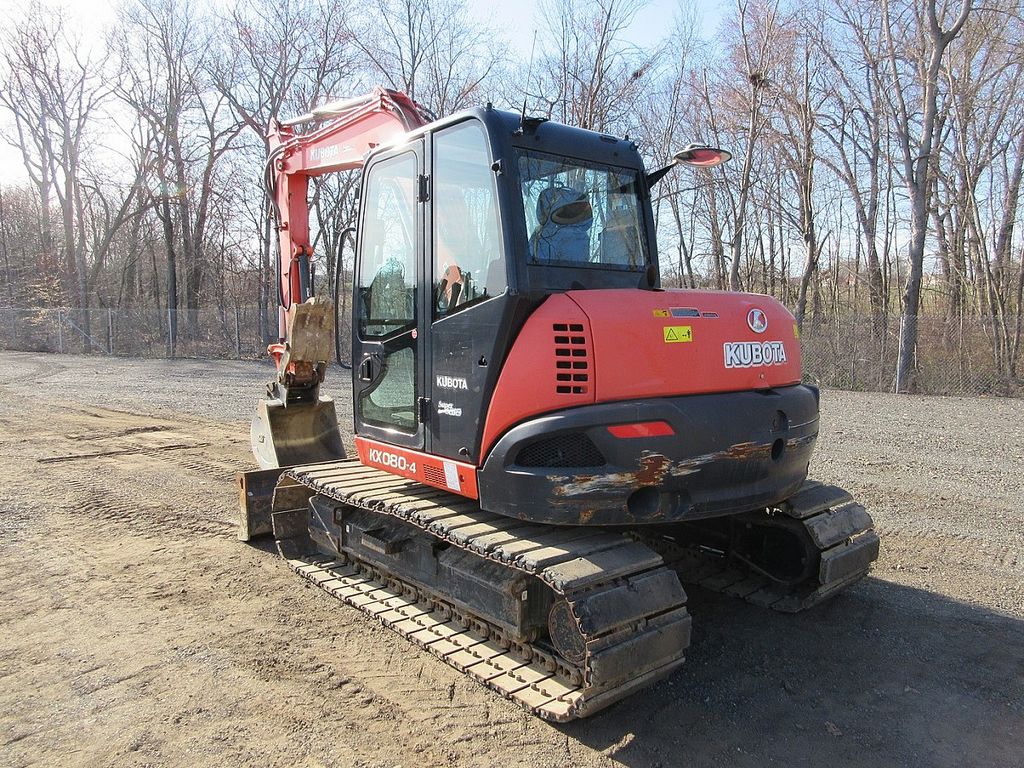

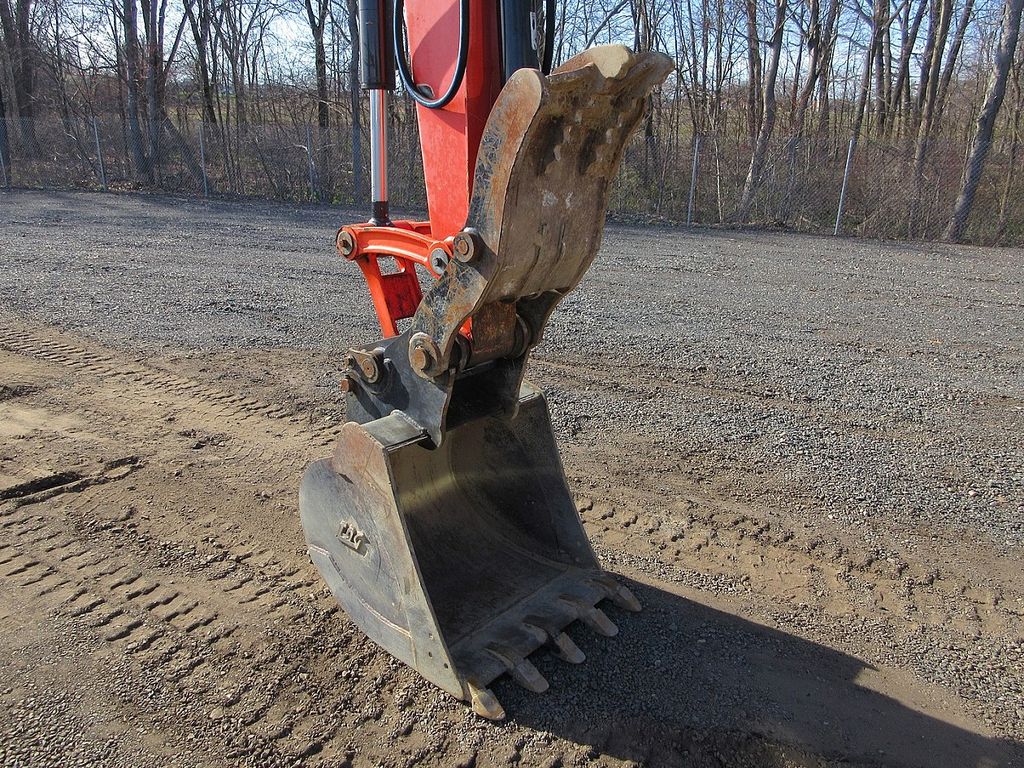

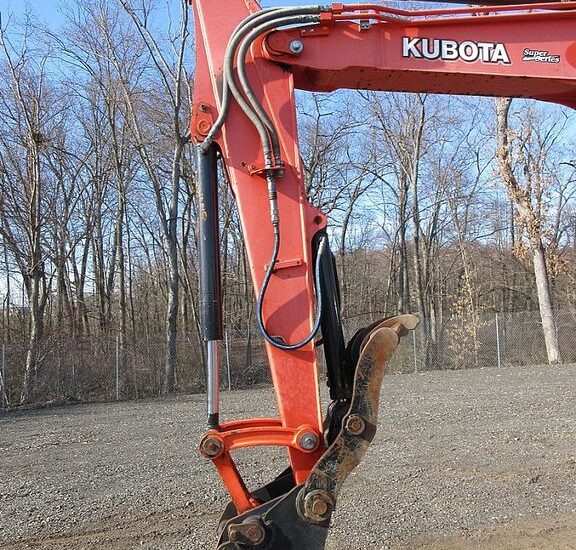

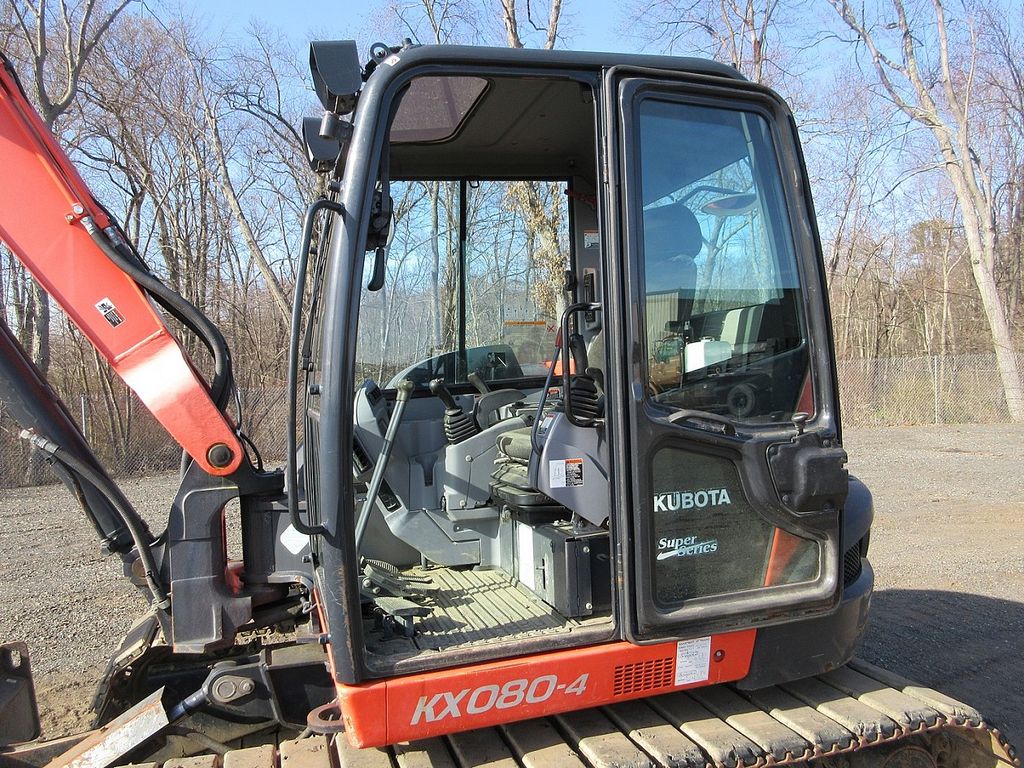

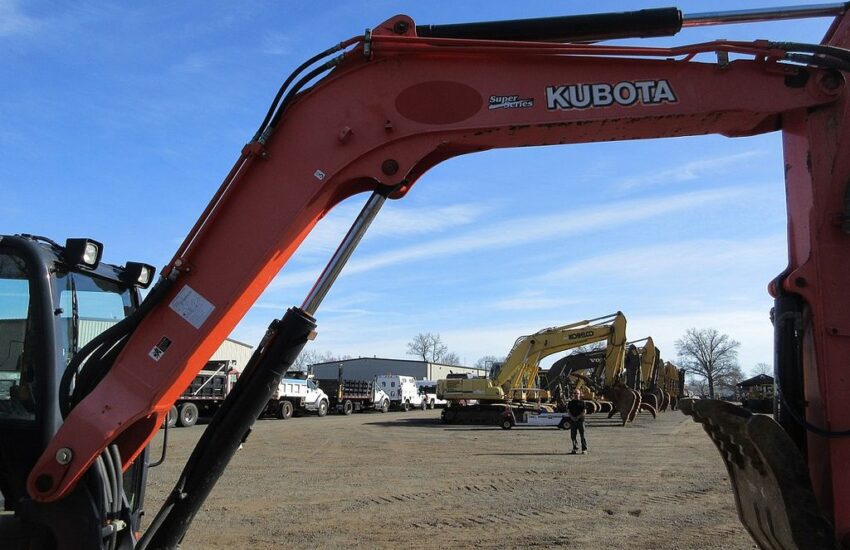

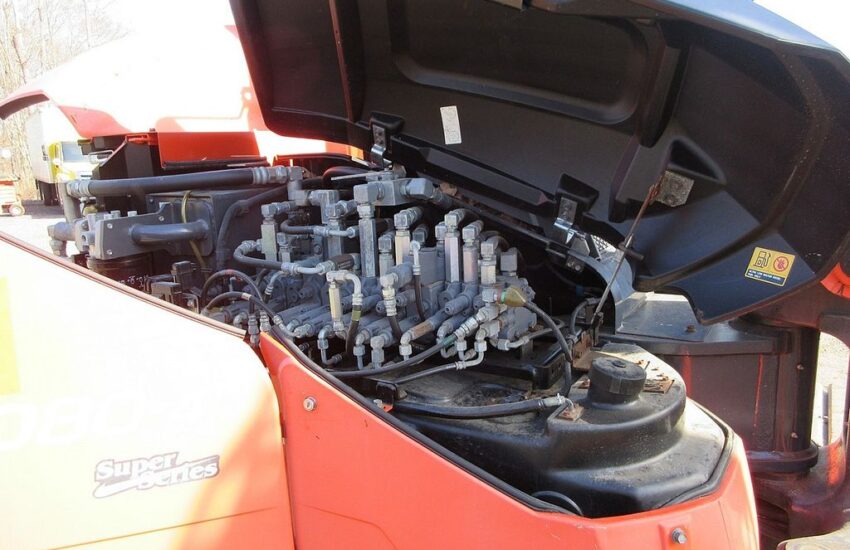

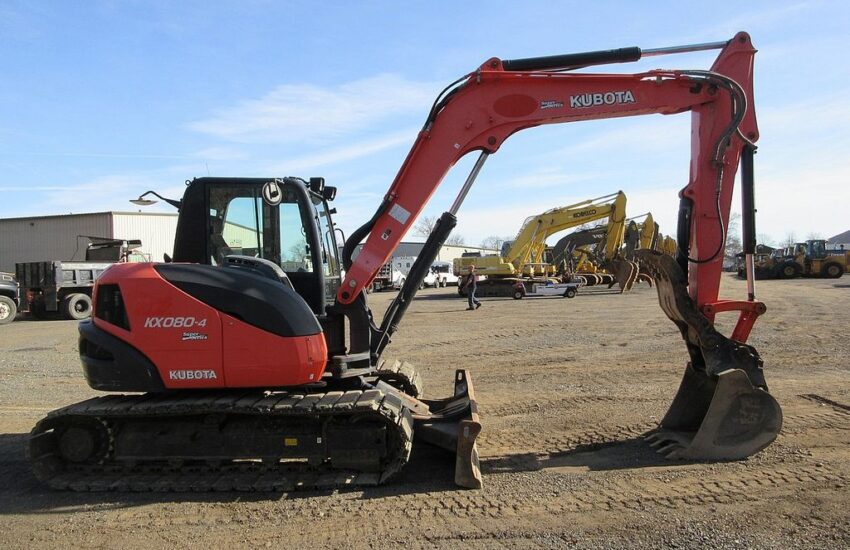

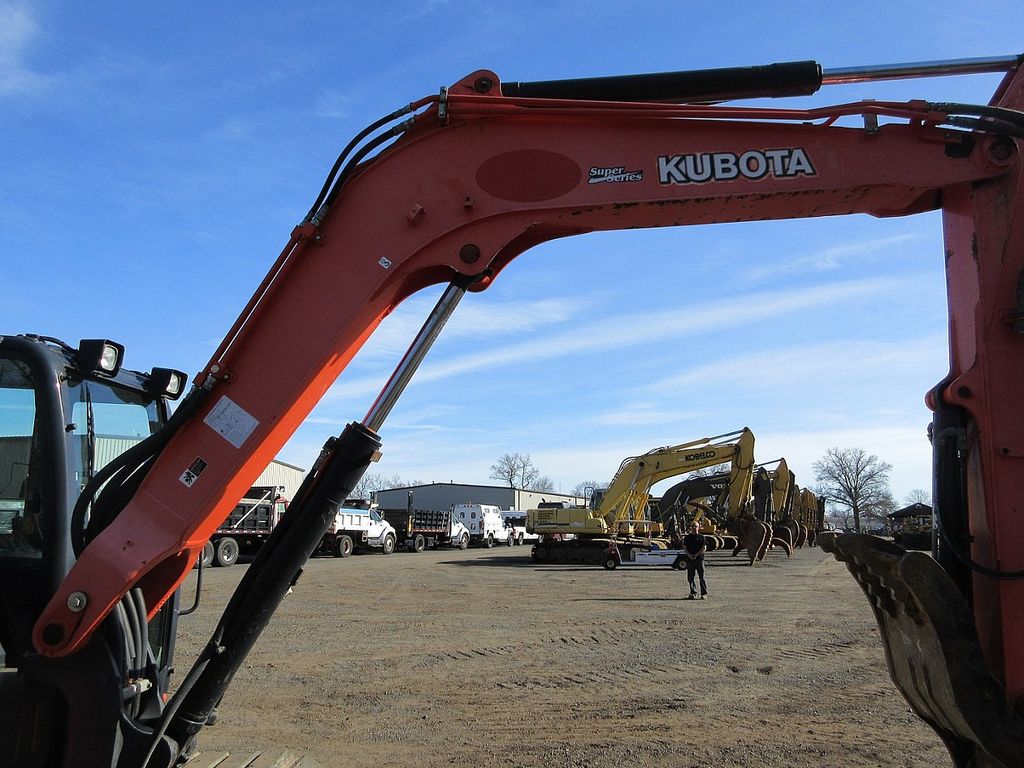

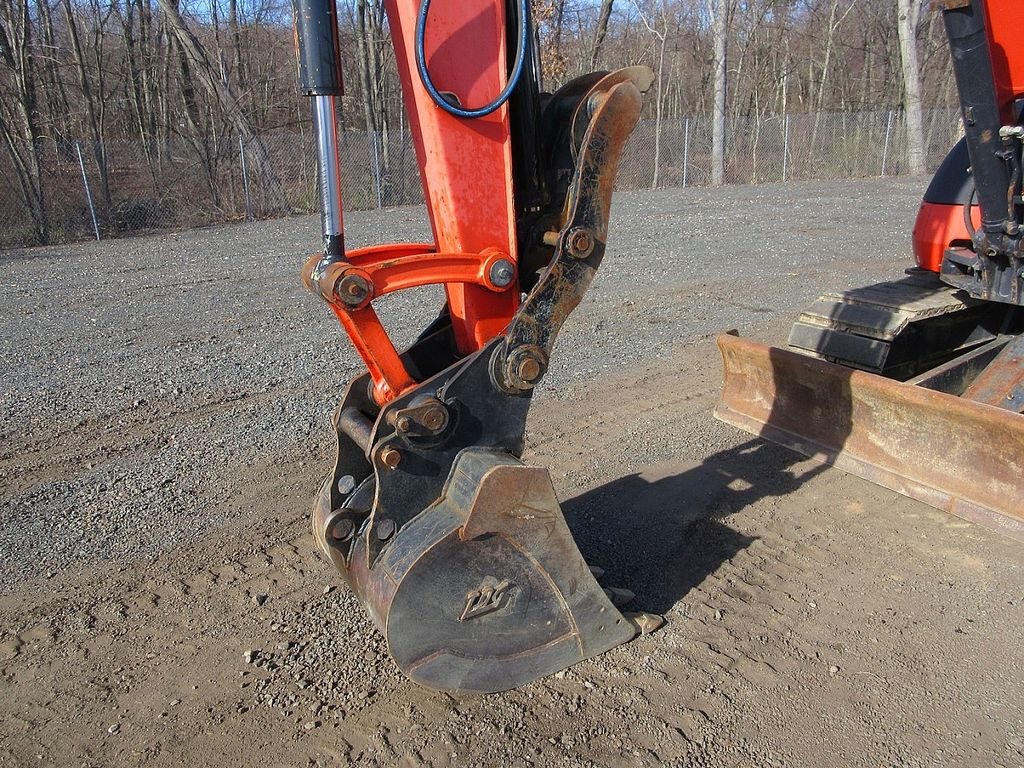

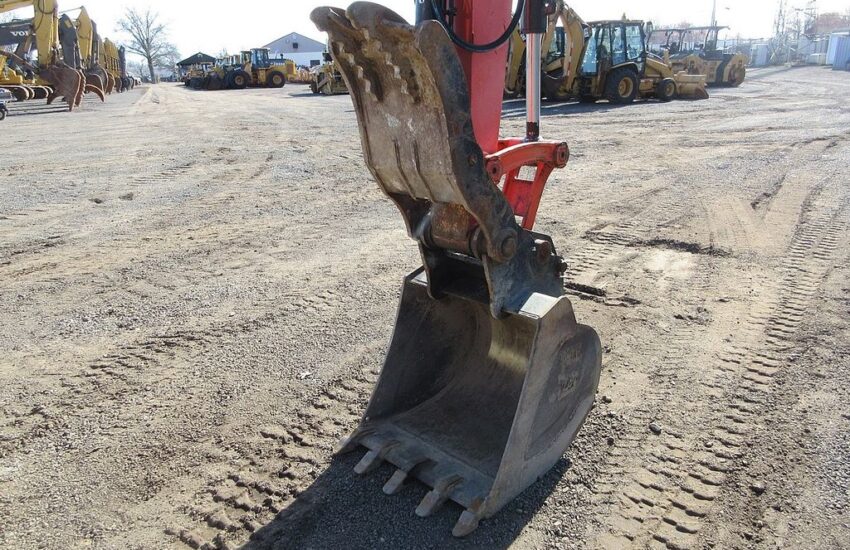

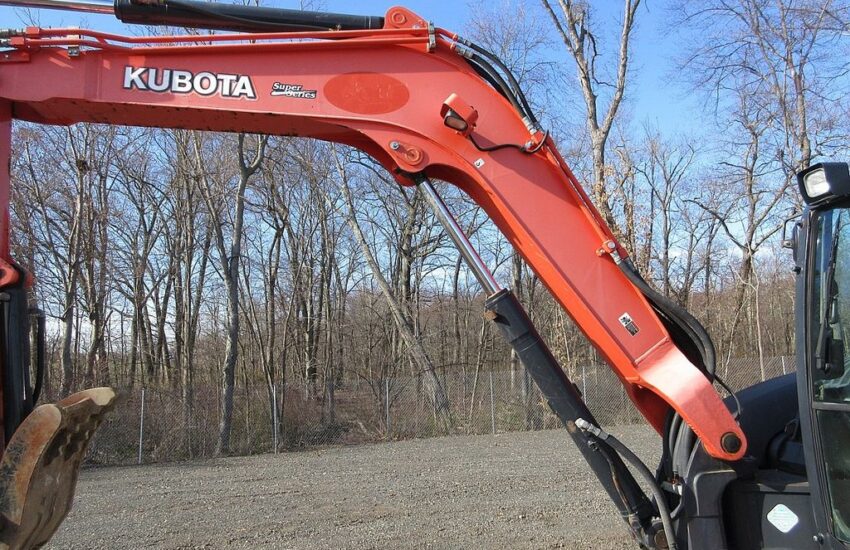

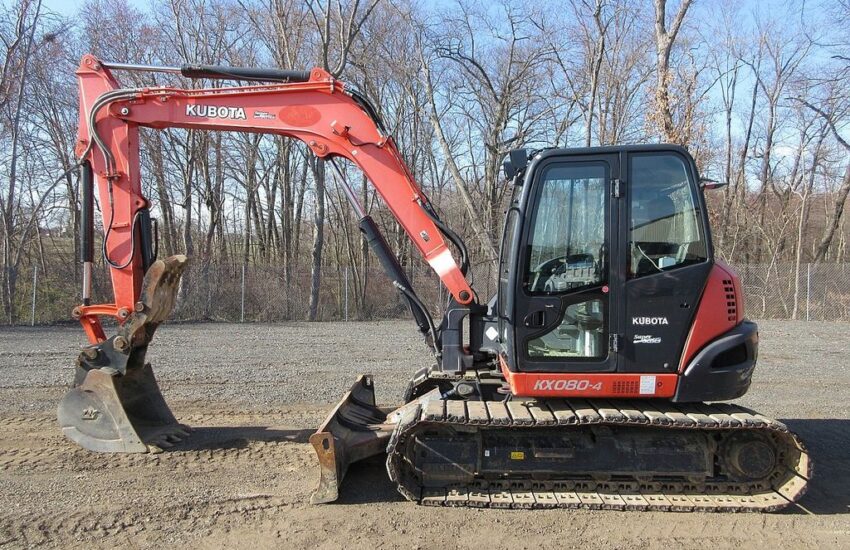

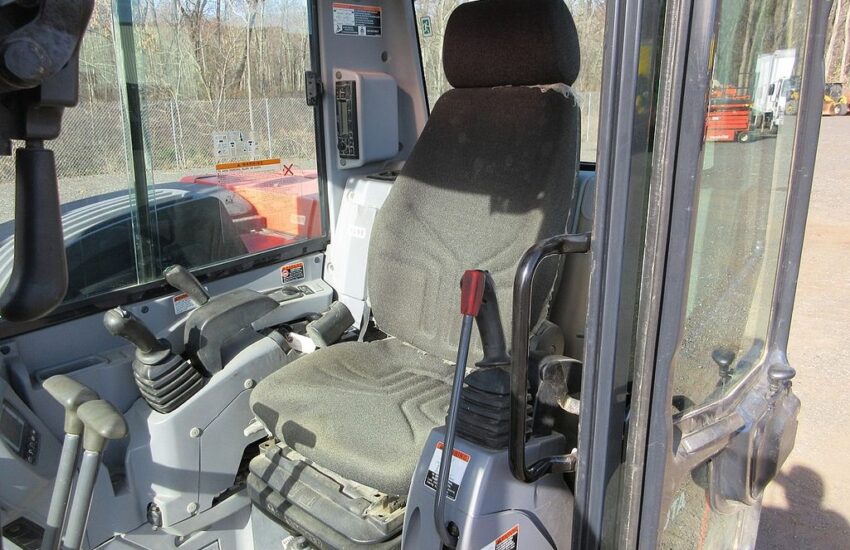

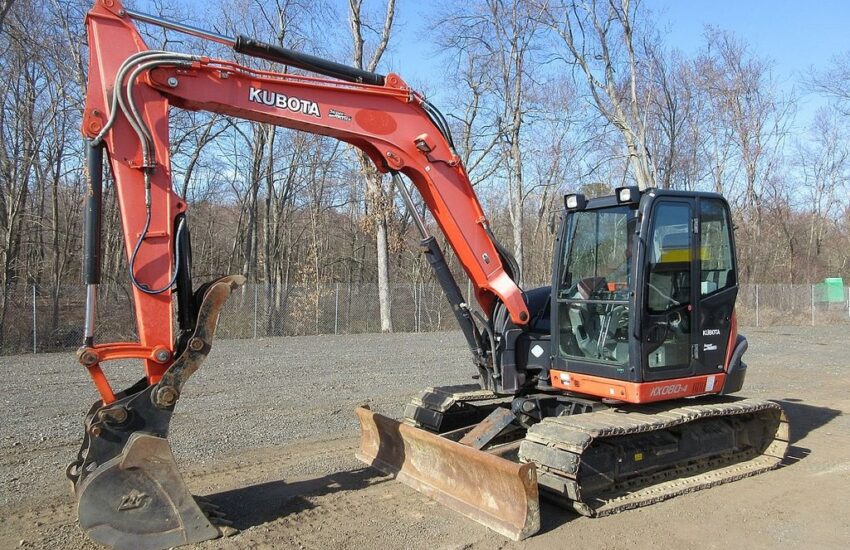

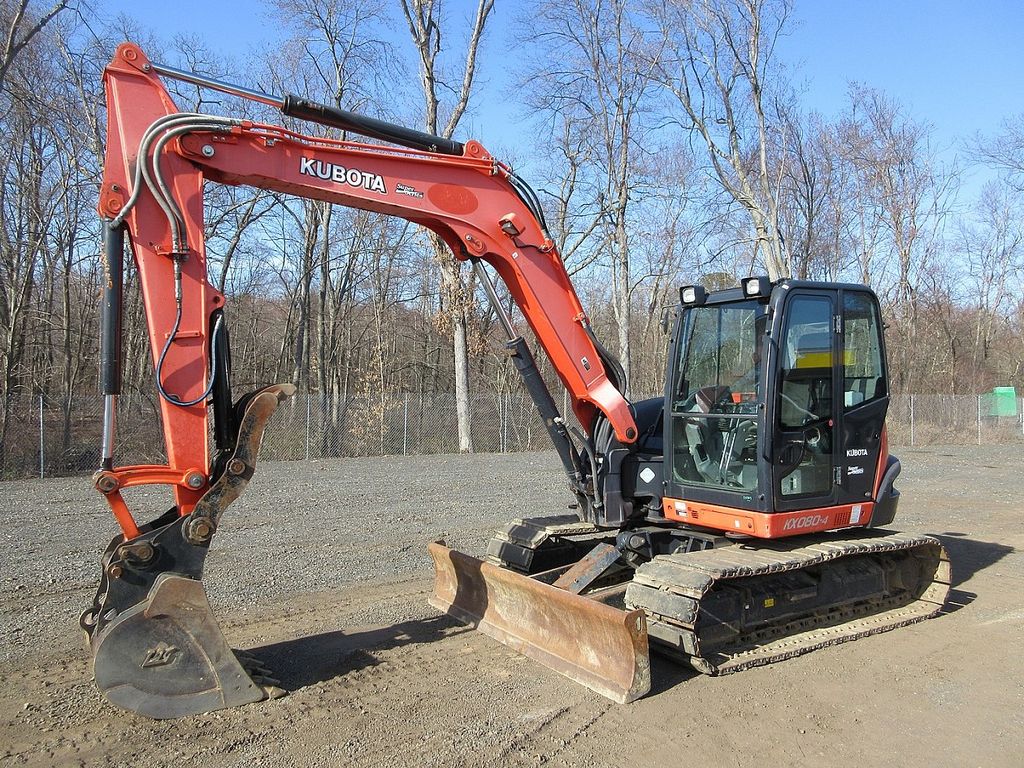

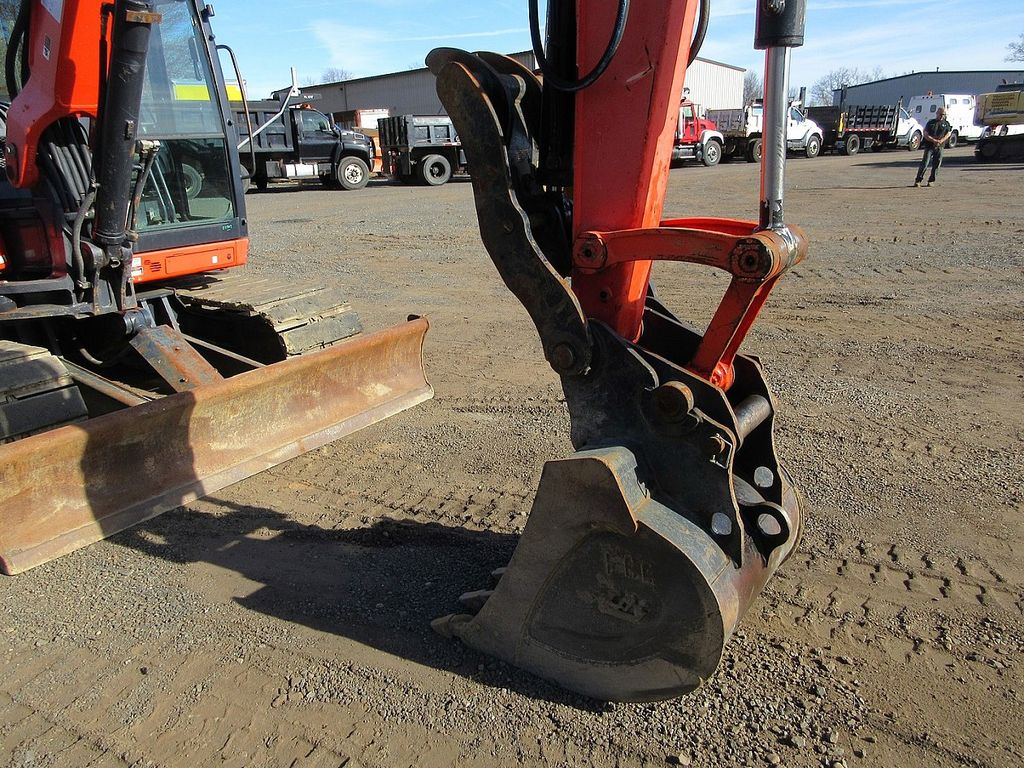

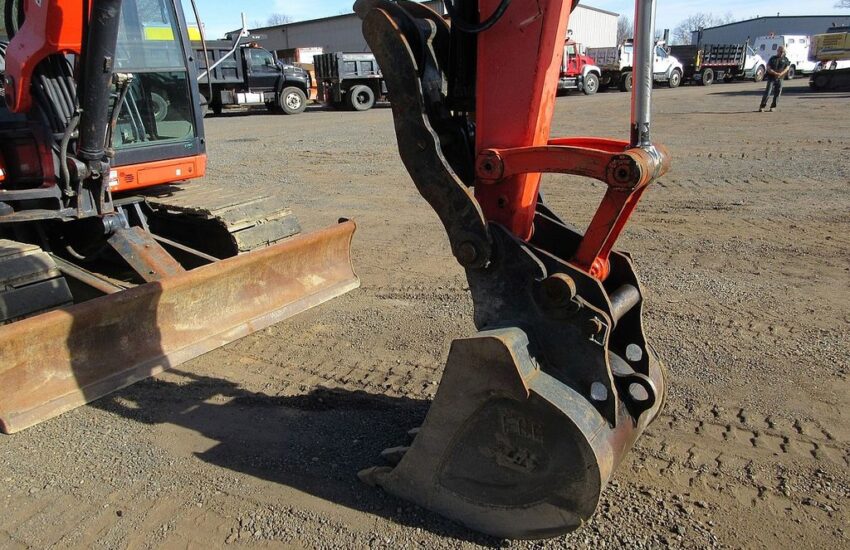

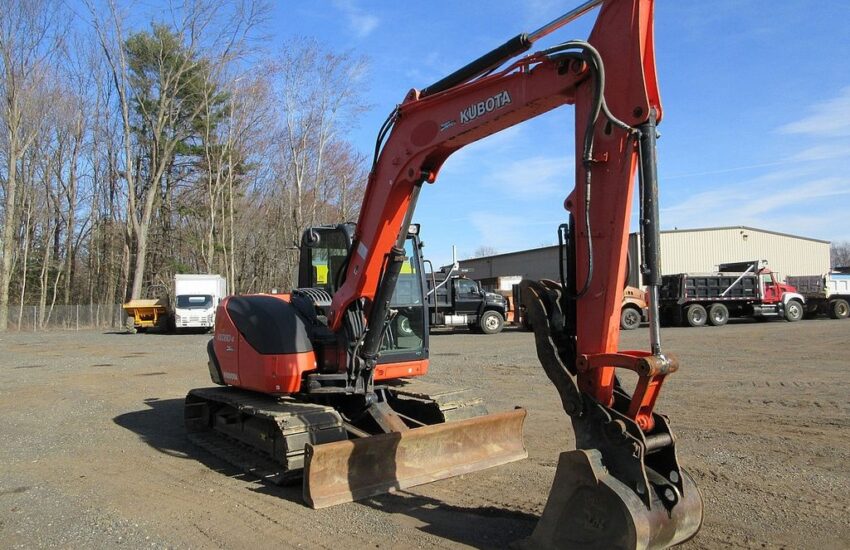

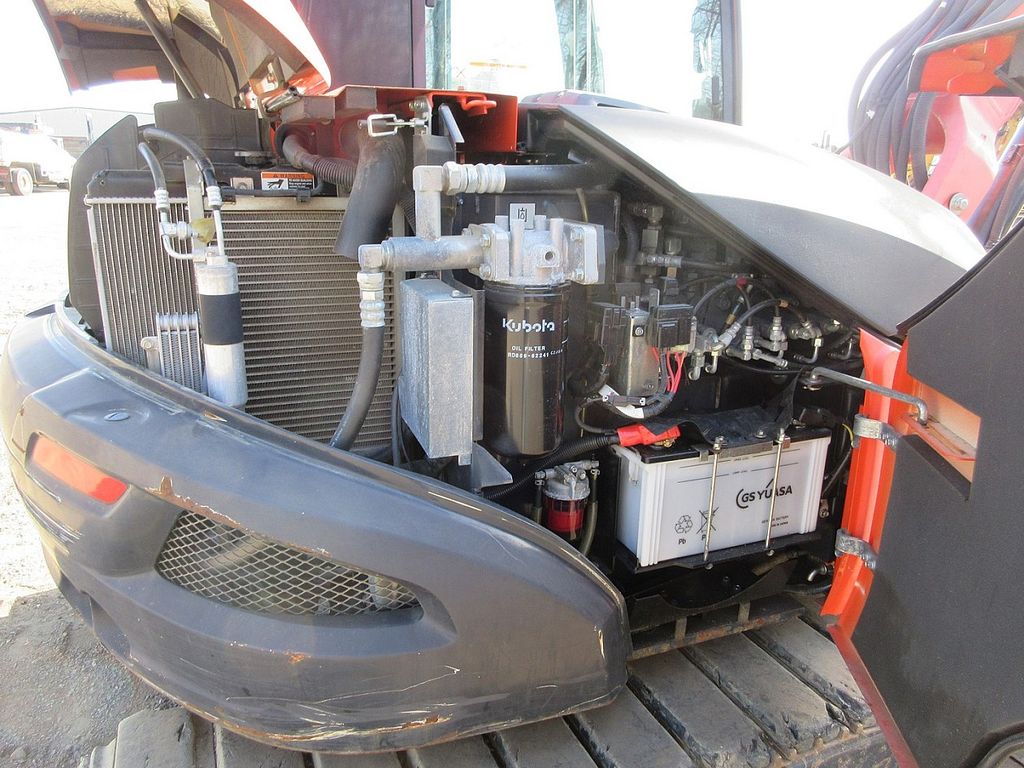

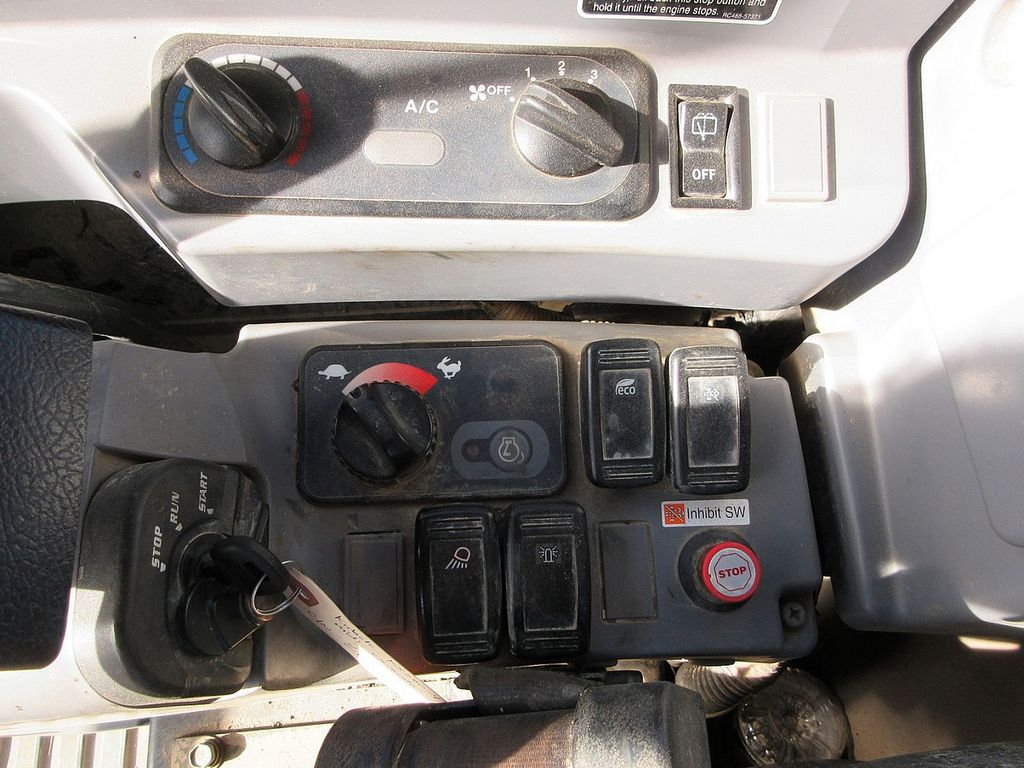

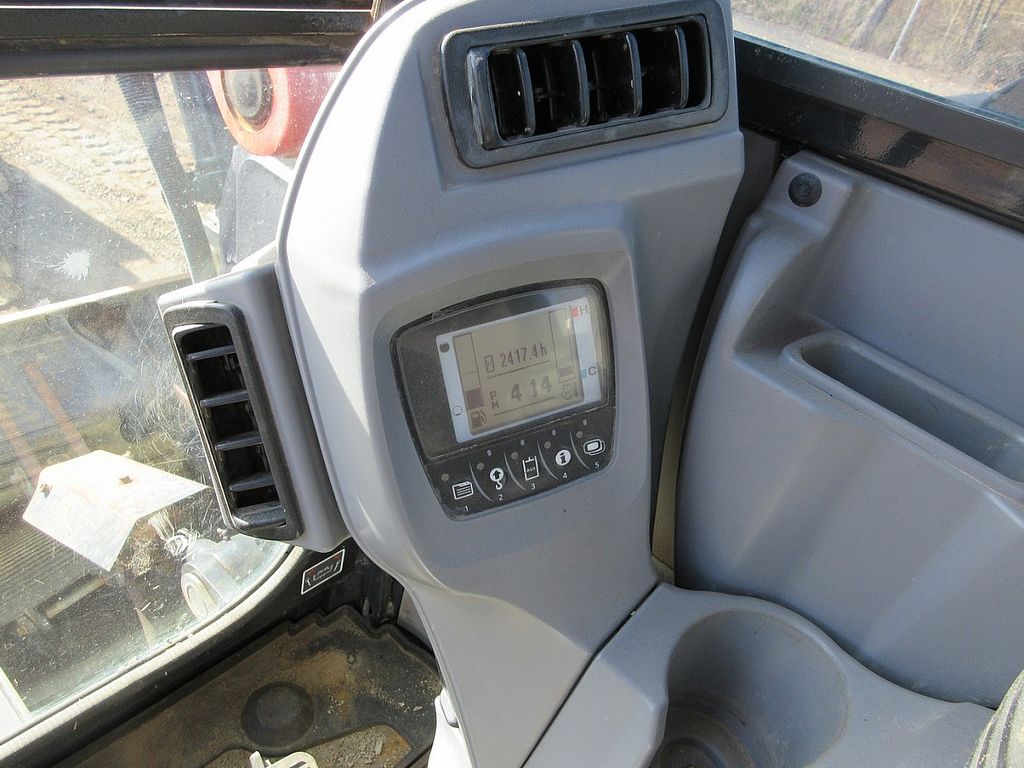

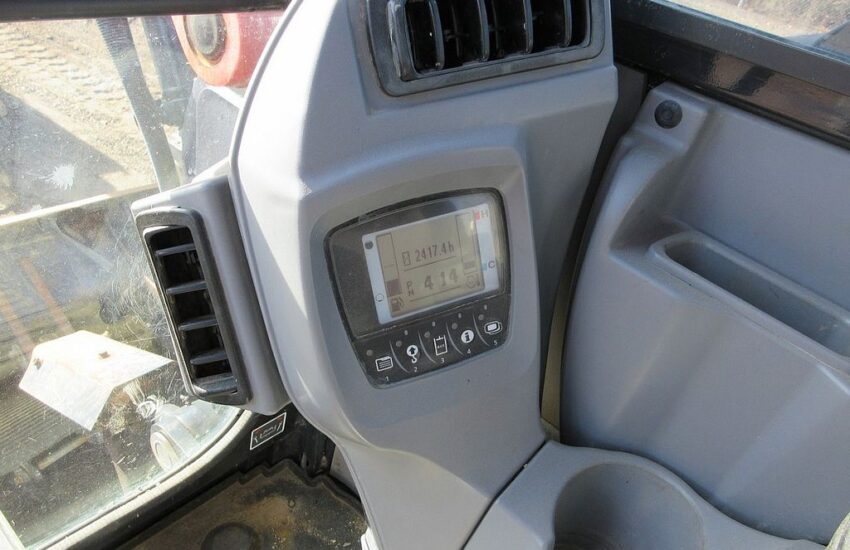

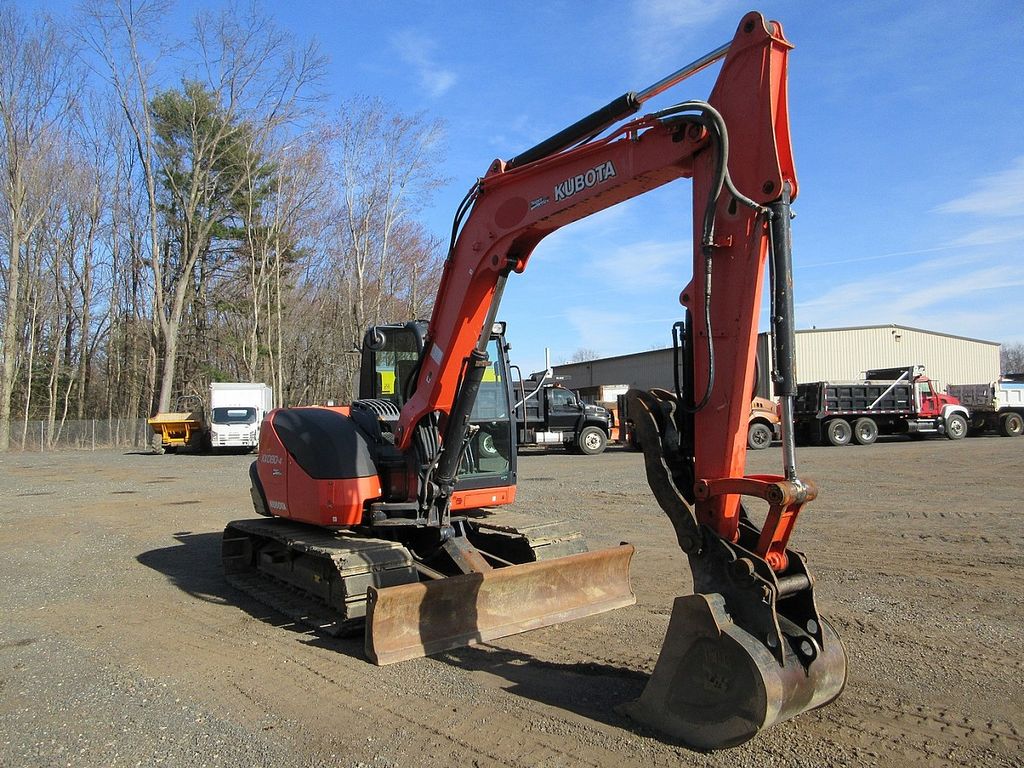

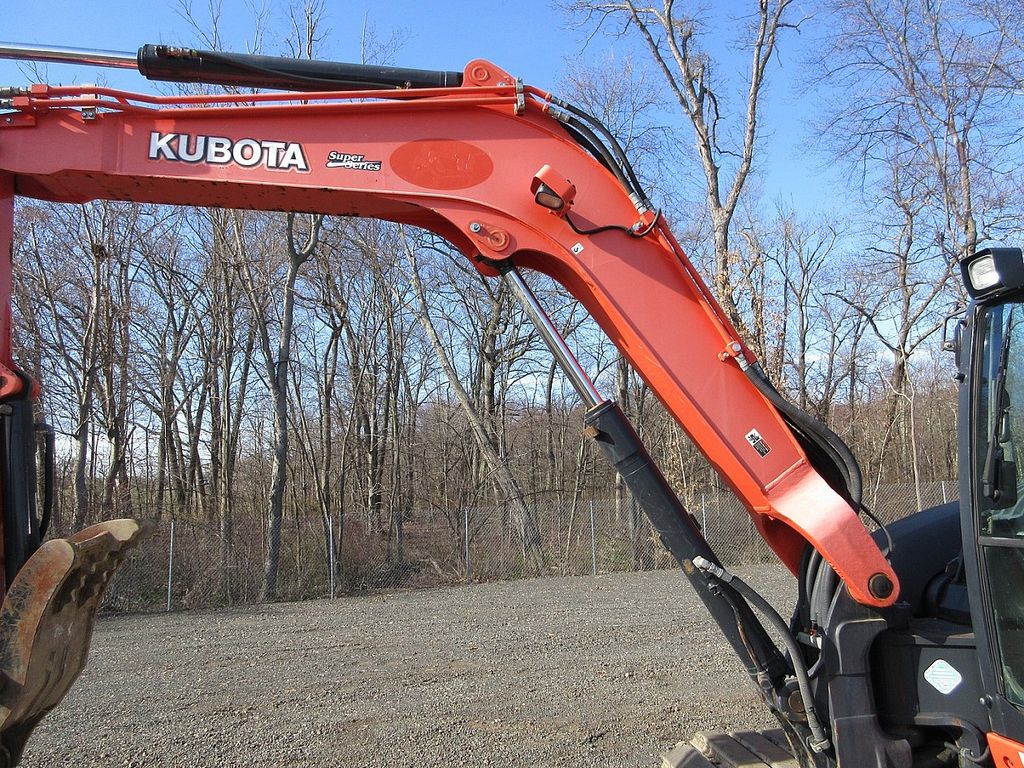

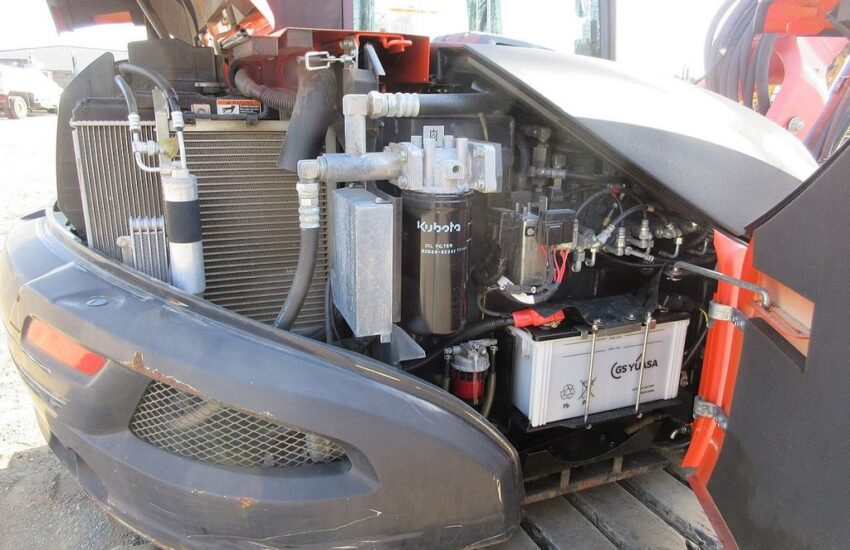

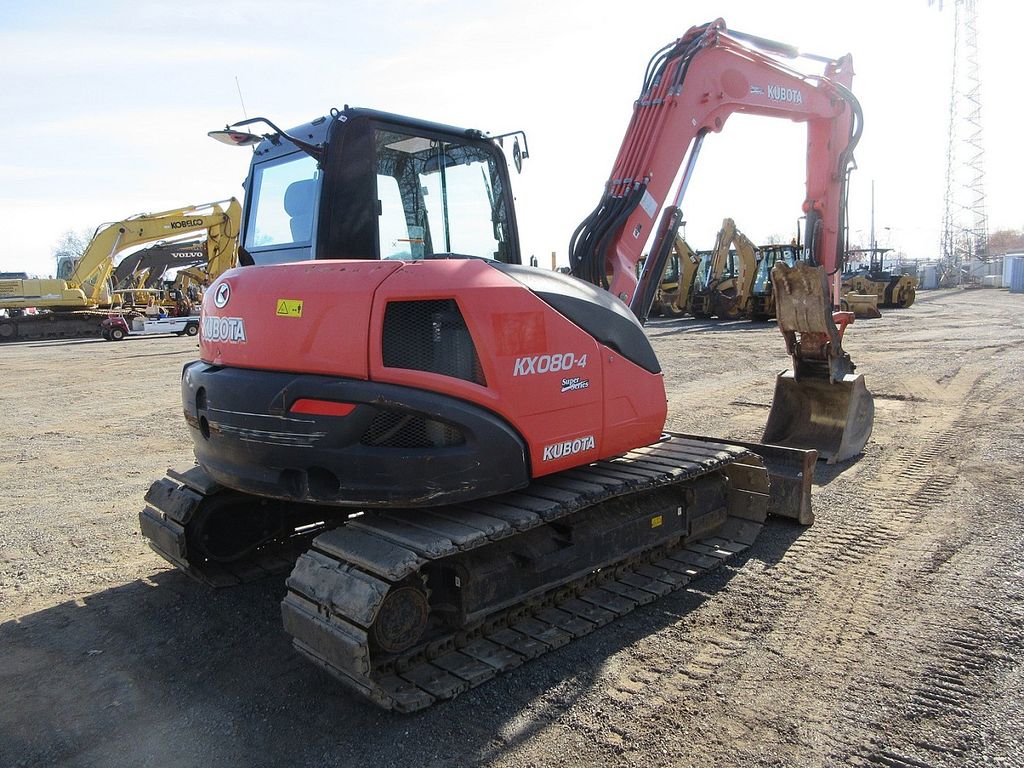

4 cyl Kubota turbo diesel, cab with heat, A/C, stereo, auto idle, 2 speed travel, backfill blade, swing boom, aux hyd, hyd thumb, 7′ stick, coupler, bucket with teeth, meter reads 2417 hours, S/N 45675
Specifications

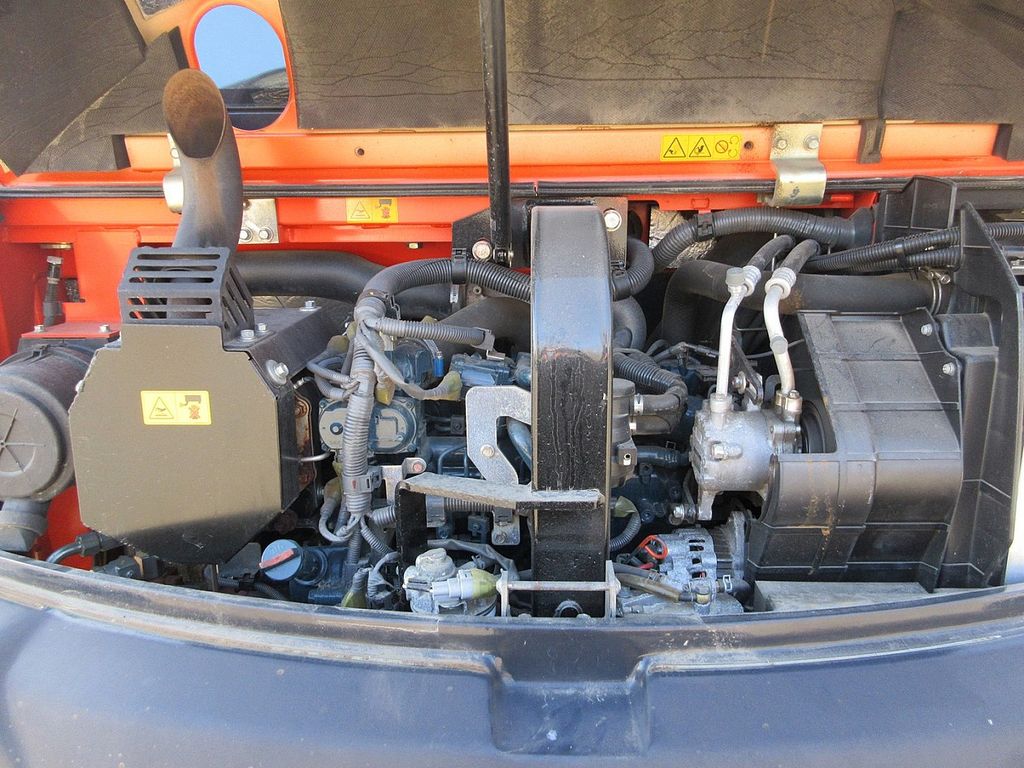

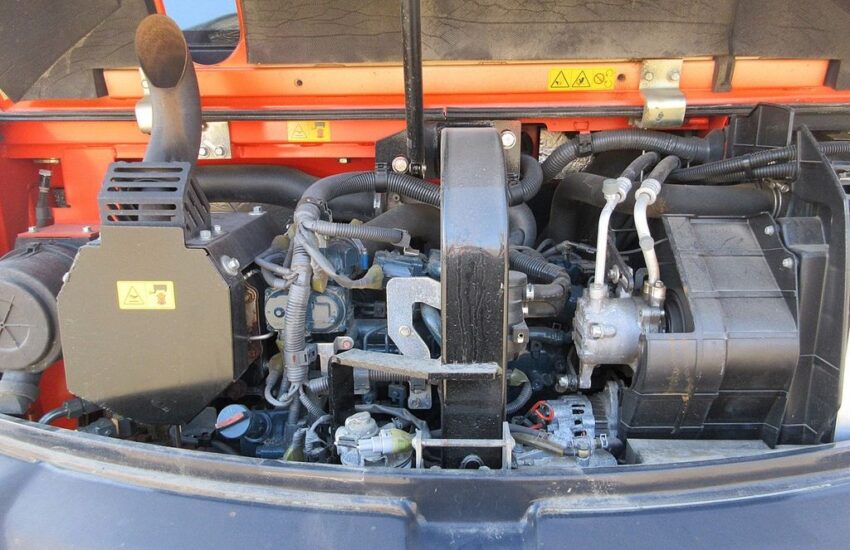

Engine
Model: Kubota V3307-CR-TE4
Gross Power: 66.6 hp (49.7 kW)
Net Power: 62.3 hp (46.5 kW)
Displacement: 203.3 in³ (3.331 L)
Rated Engine Speed: 2,000 rpm
Dimensions
Overall Length: 21 ft 1.9 in (6,450 mm)
Overall Width: 7 ft 2.6 in (2,200 mm)
Overall Height: 8 ft 4 in (2,540 mm)
Ground Clearance: 1 ft 2 in (355 mm)
Tail Swing Radius: 4 ft 9.5 in (1,460 mm)
Operating Specifications
Operating Weight: 18,596 lbs (8,435 kg)
Fuel Capacity: 30.4 gal (115 L)
Hydraulic System Fluid Capacity: 38.6 gal (146 L)
Auxiliary Hydraulic Flow: 26.4 gal/min (100 L/min)
Travel Speed (Low/High): 1.7 mph (2.7 km/h) / 3.0 mph (4.8 km/h)
Performance
Maximum Digging Depth: 15 ft 1 in (4,600 mm)
Maximum Digging Height: 23 ft 11.5 in (7,300 mm)
Maximum Dumping Height: 17 ft 2.8 in (5,250 mm)
Maximum Vertical Wall Digging Depth: 12 ft 7.7 in (3,850 mm)
Bucket Digging Force: 14,660 lbf (6,650 kgf)
Arm Digging Force: 8,554 lbf (3,885 kgf)
Hydraulics
Pump Capacity: 22.3 gal/min (84.6 L/min)
System Pressure: 4,554 psi (31.4 MPa)

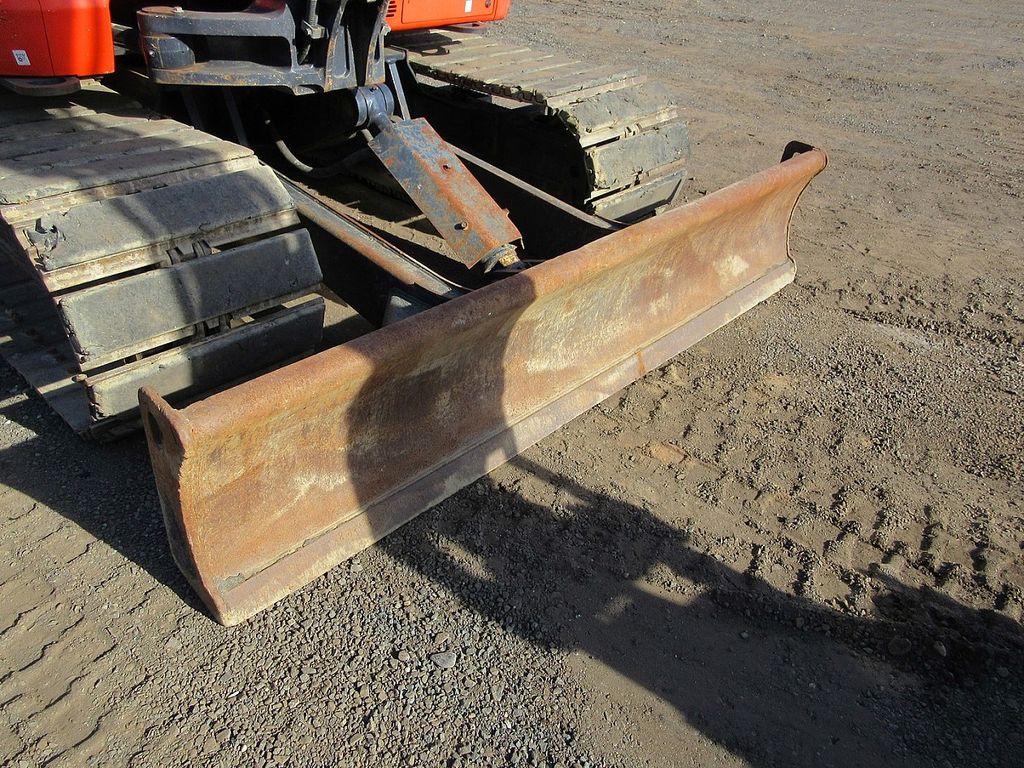

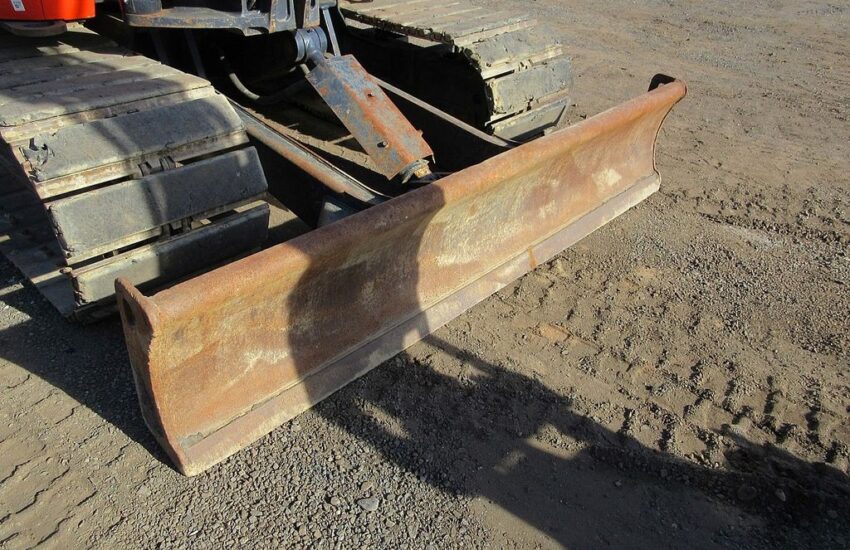

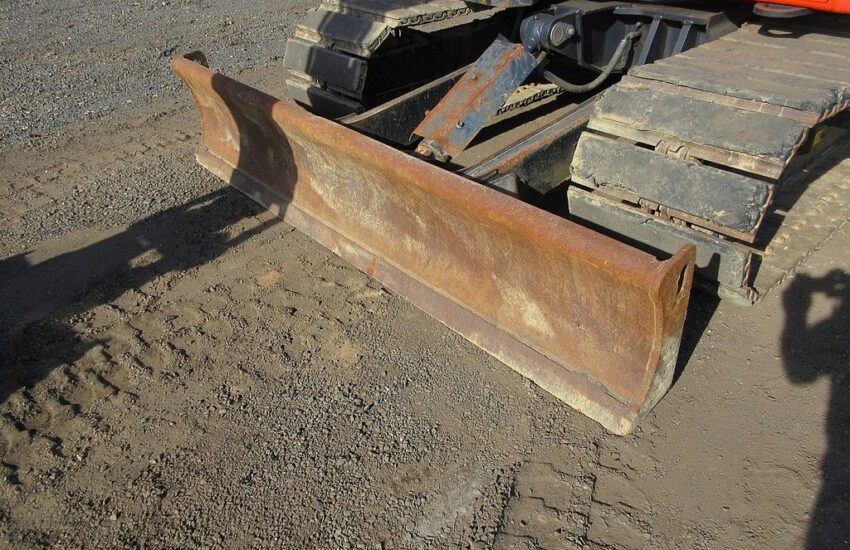

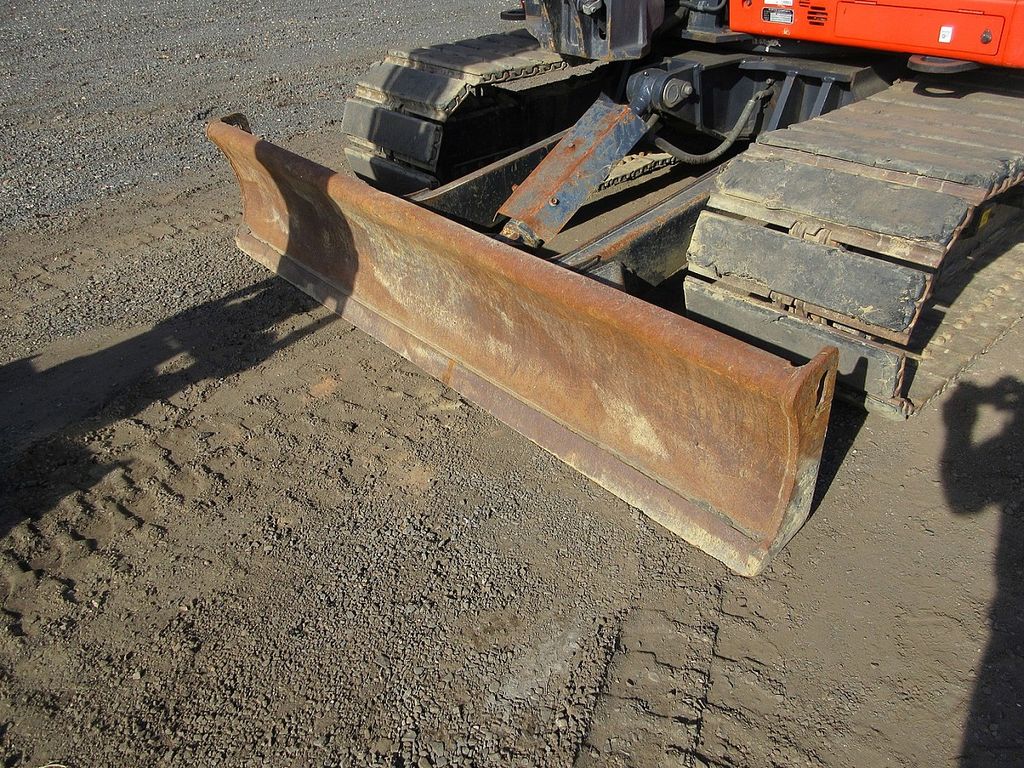

Blade
Width: 7 ft 2.6 in (2,200 mm)
Height: 1 ft 7.7 in (500 mm)
Maximum Lift Above Ground: 1 ft 7.7 in (500 mm)
Maximum Drop Below Ground: 1 ft 7.7 in (500 mm)
Features
ROPS/FOPS: Yes
Air Conditioning: Optional
Angle Blade: Optional

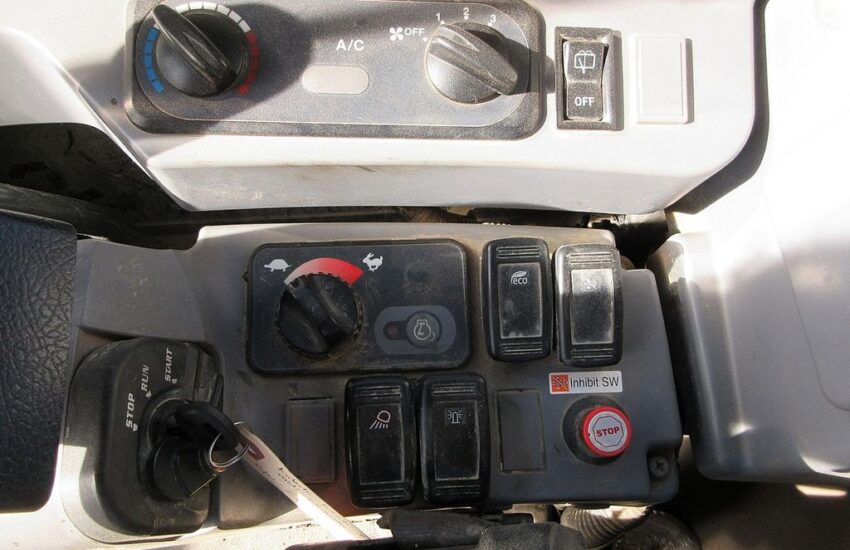

Auto Idle: Yes
Auto Shift: Yes
Features

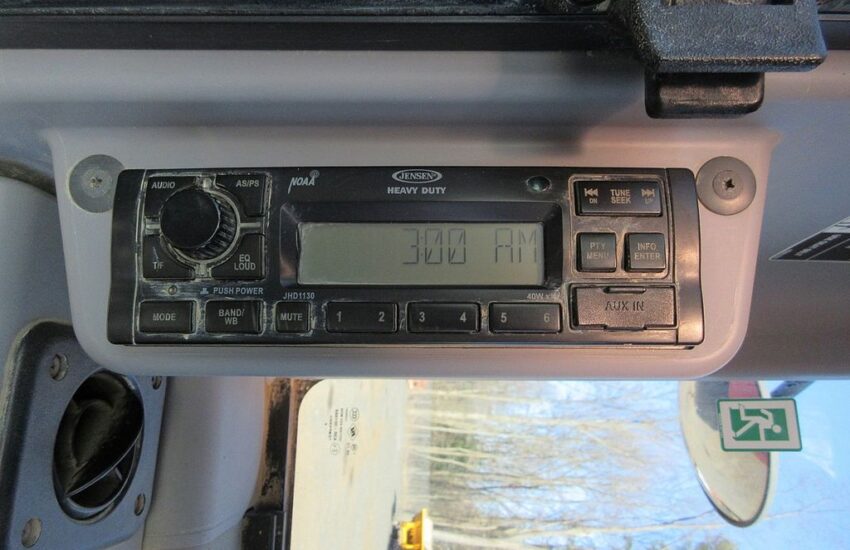

- Radio
- Air Conditioner
- Heater
