Details
-
Industry:
-
Make:
-
Model:
-
Color:
-
Transmission:
-
Condition:
-
Year:2018
-
Fuel Type:
-
Engine:Cat C4.4 ACERT
-

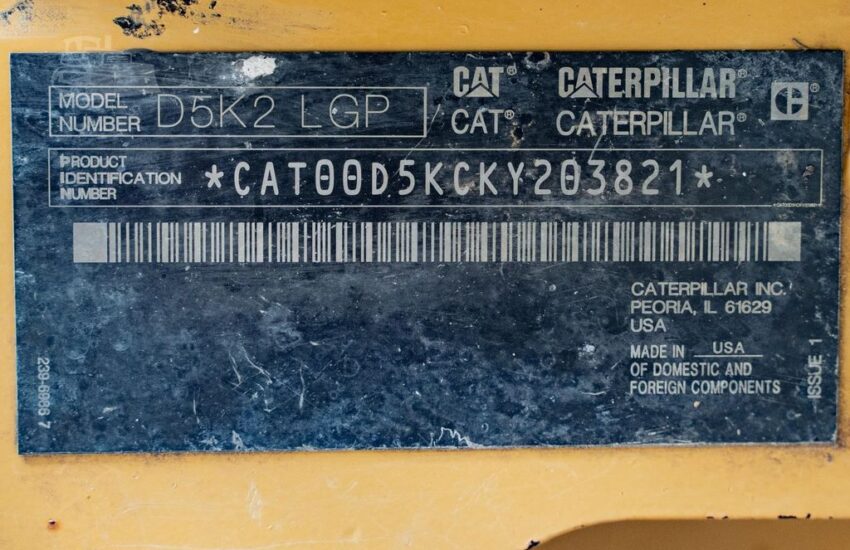

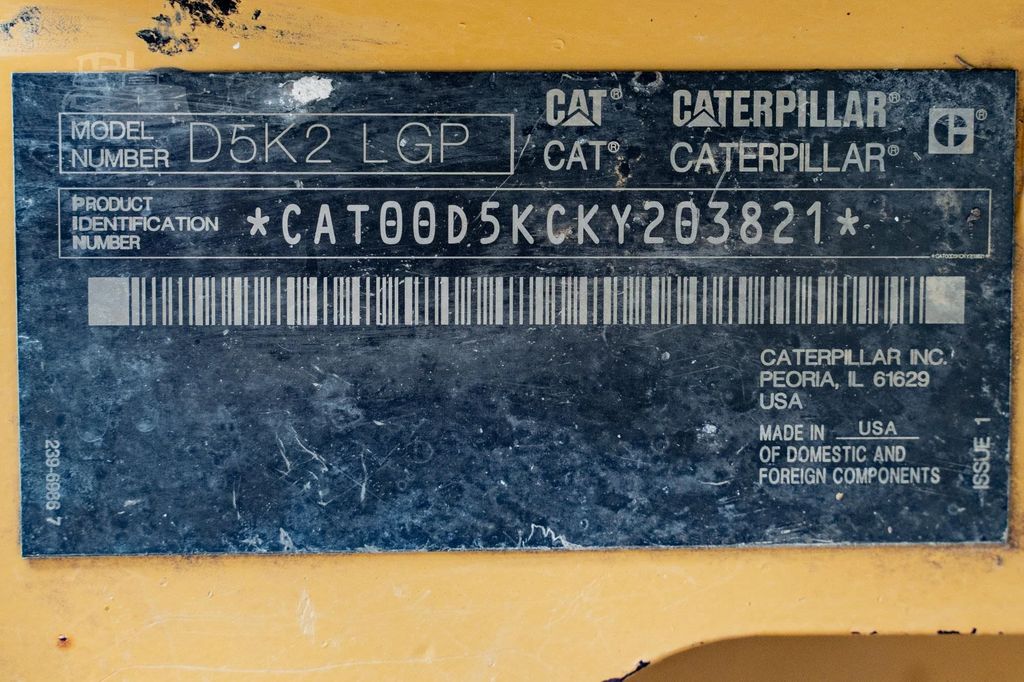

Serial:KY203821
-
Hours:2852
-
Stock#:626BT
Overview

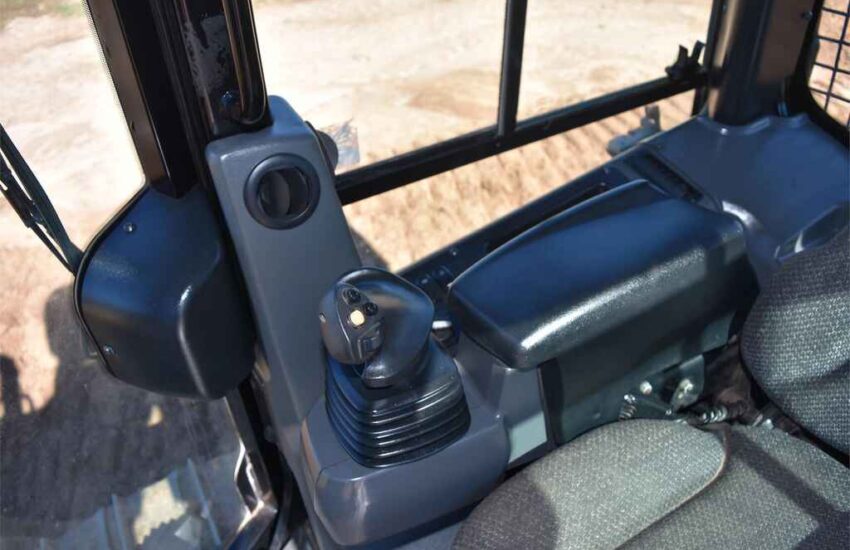

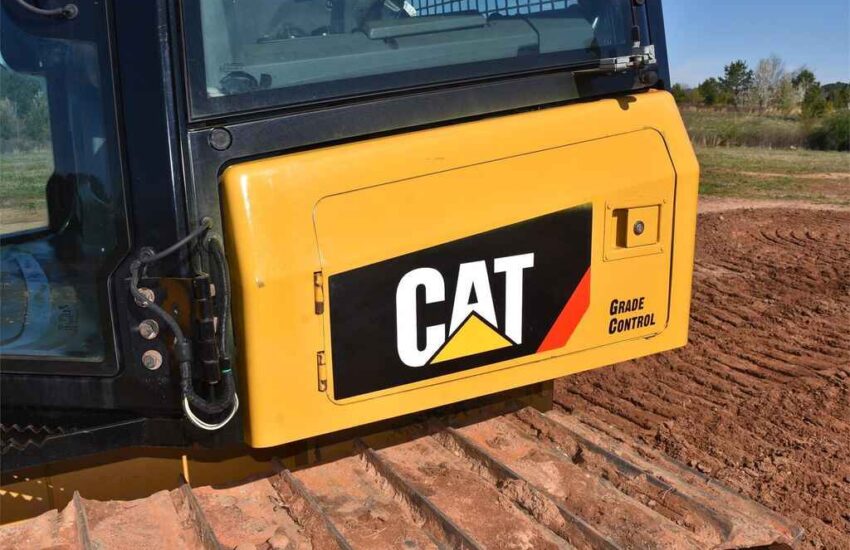

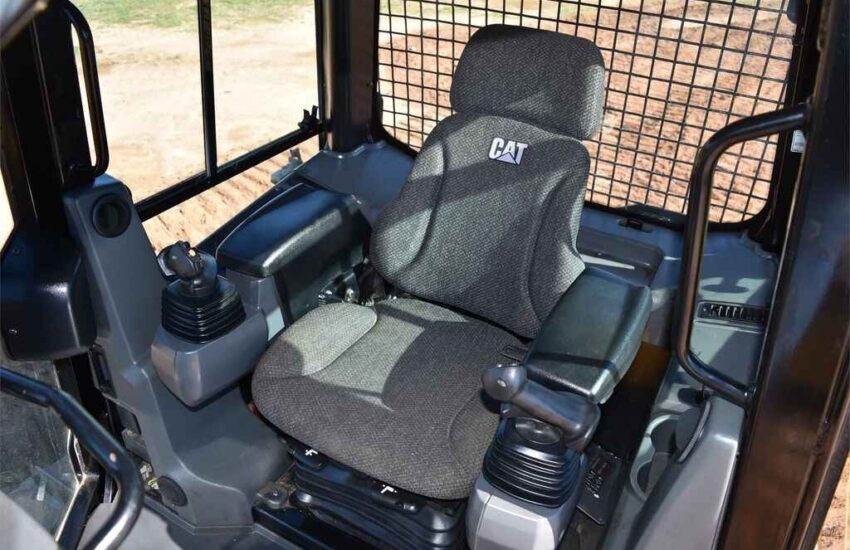

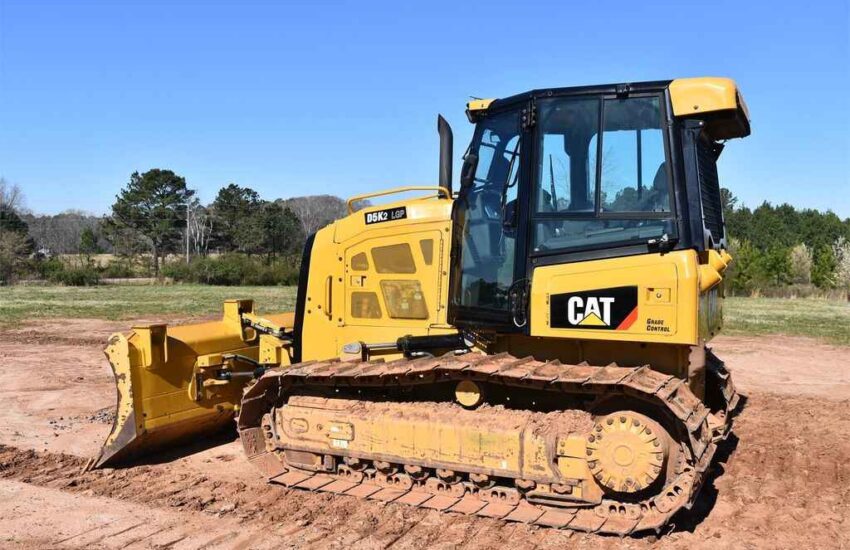

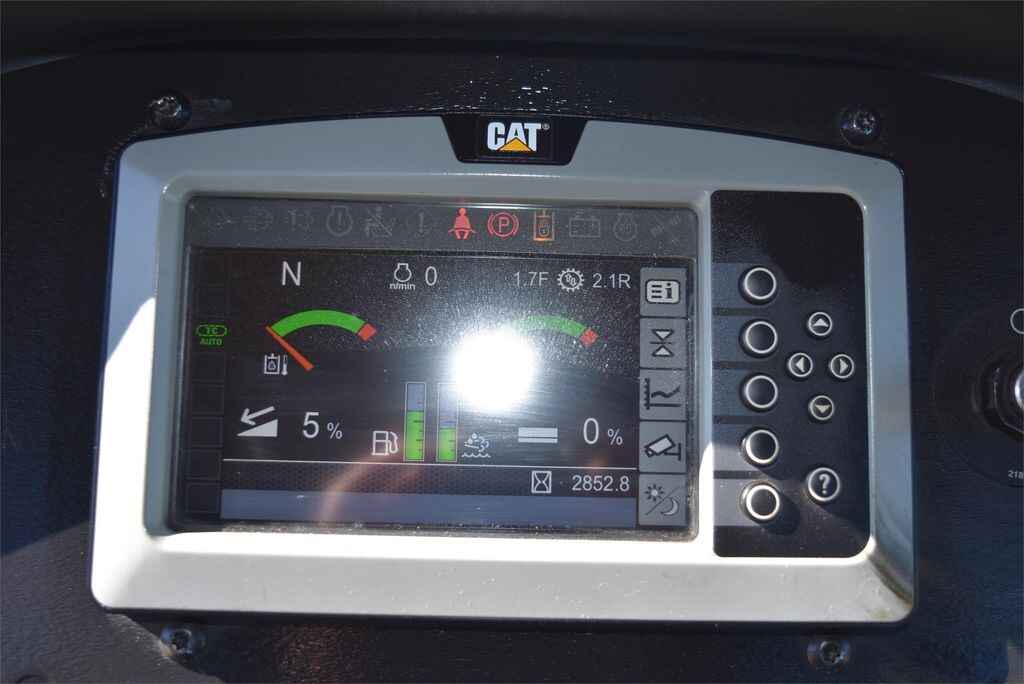

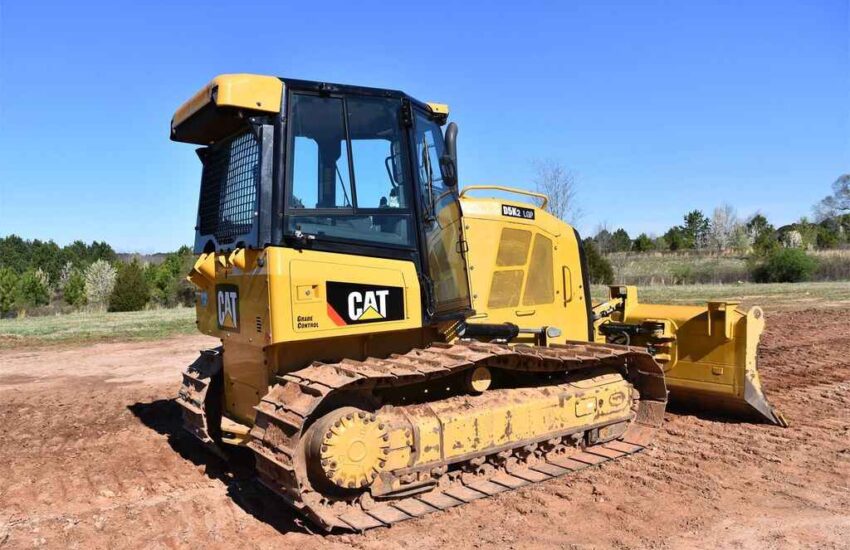

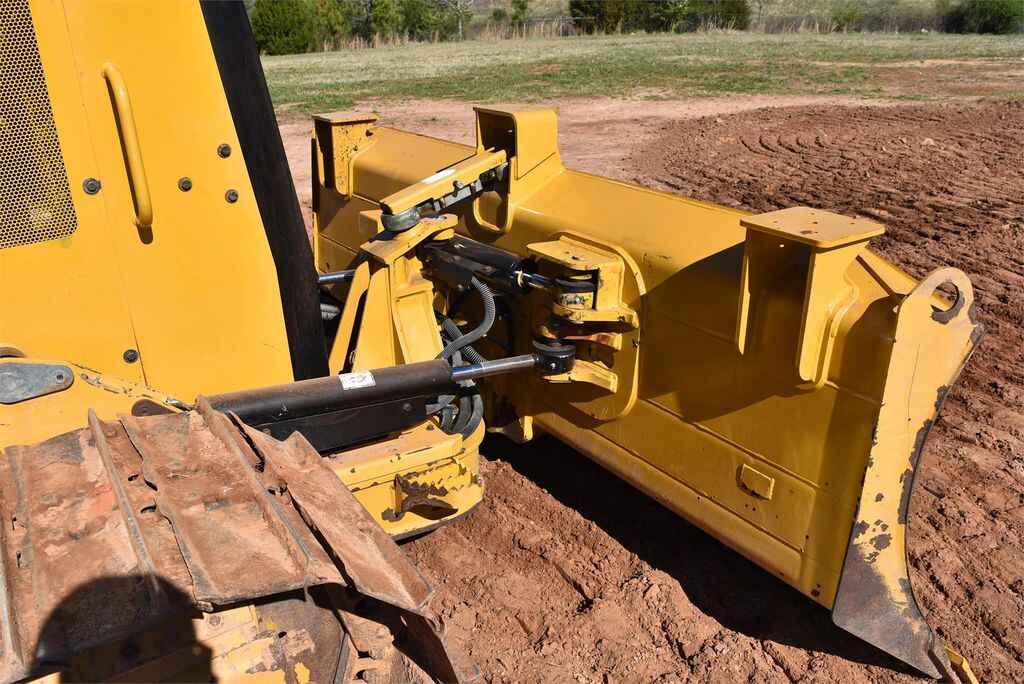

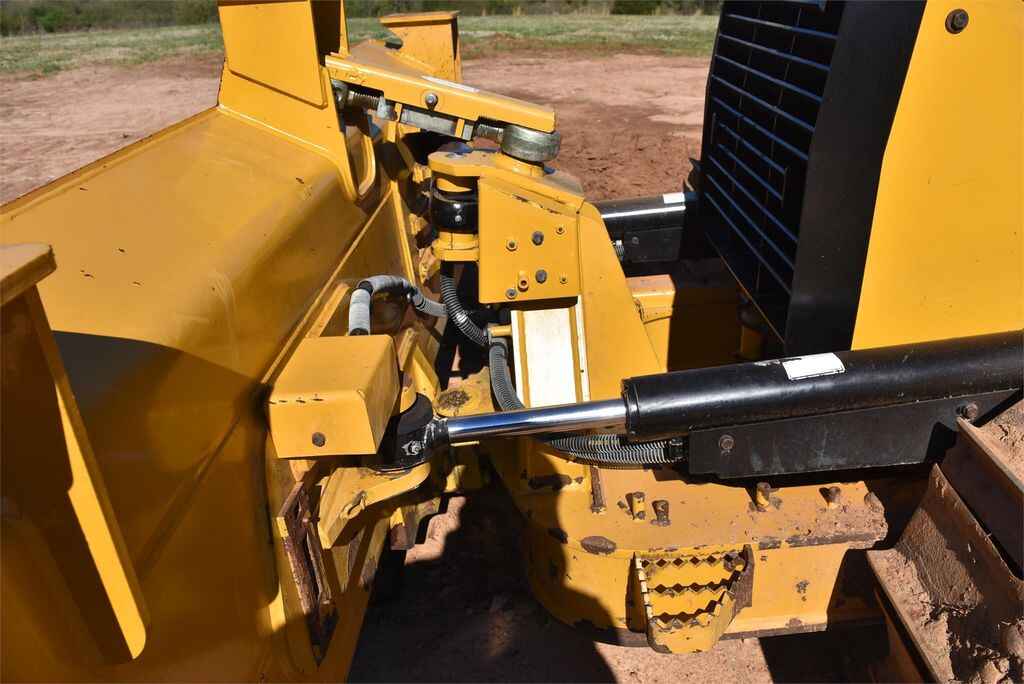

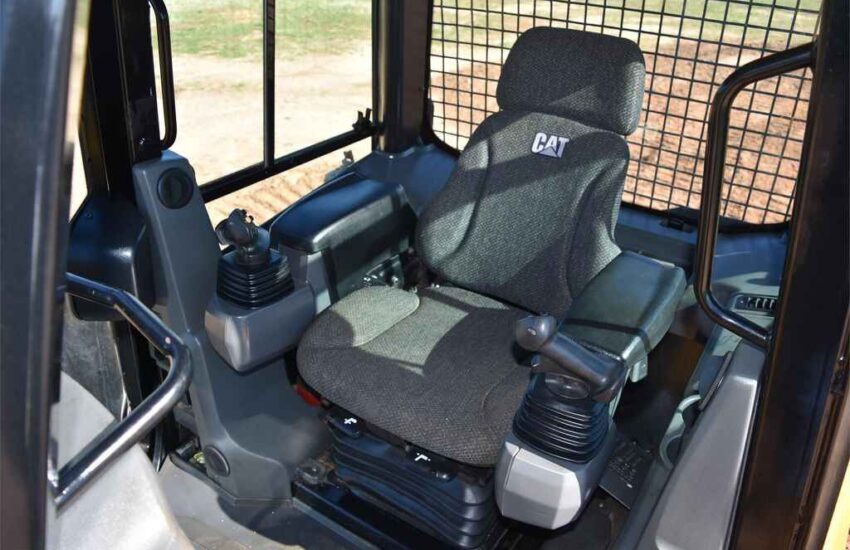

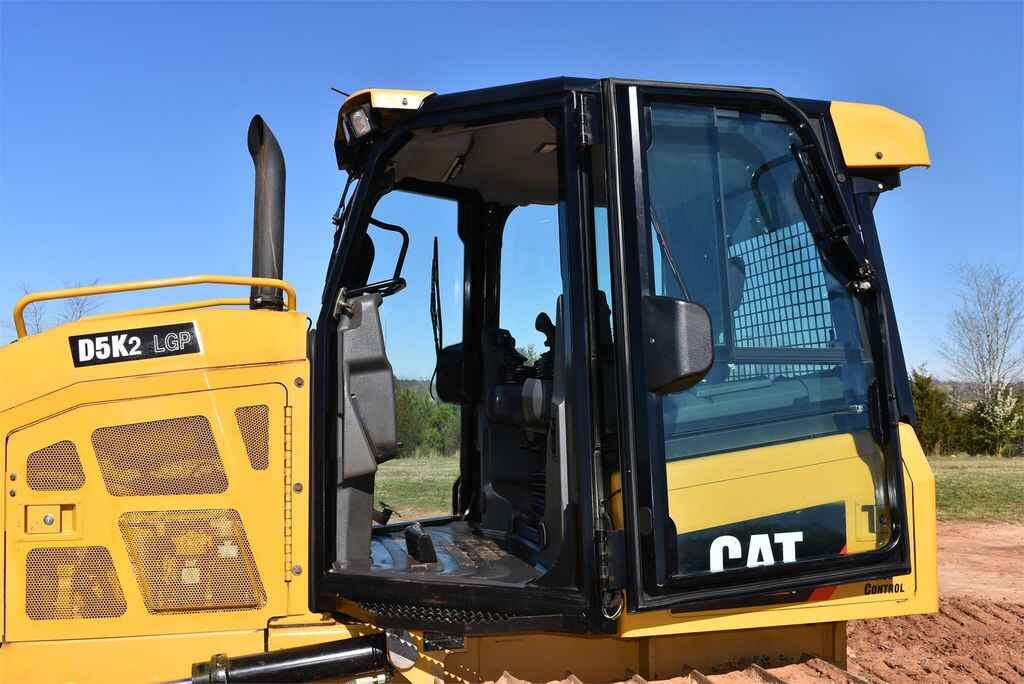

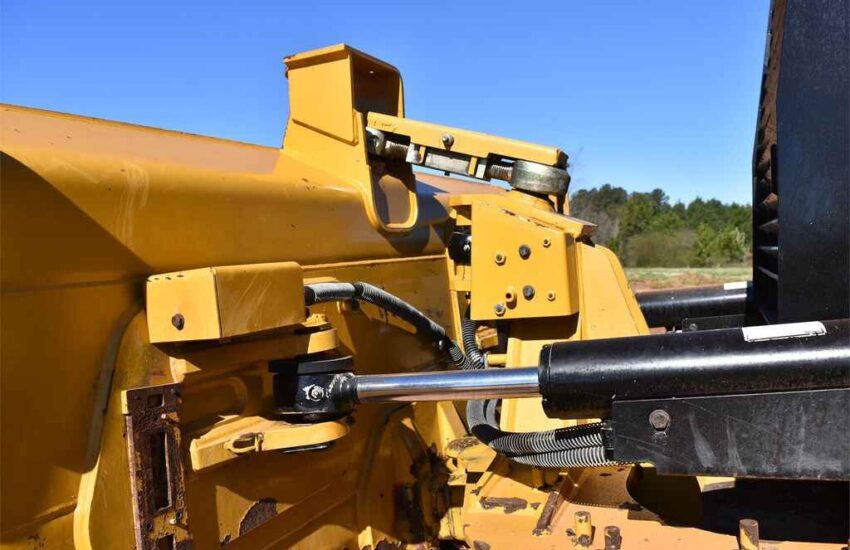

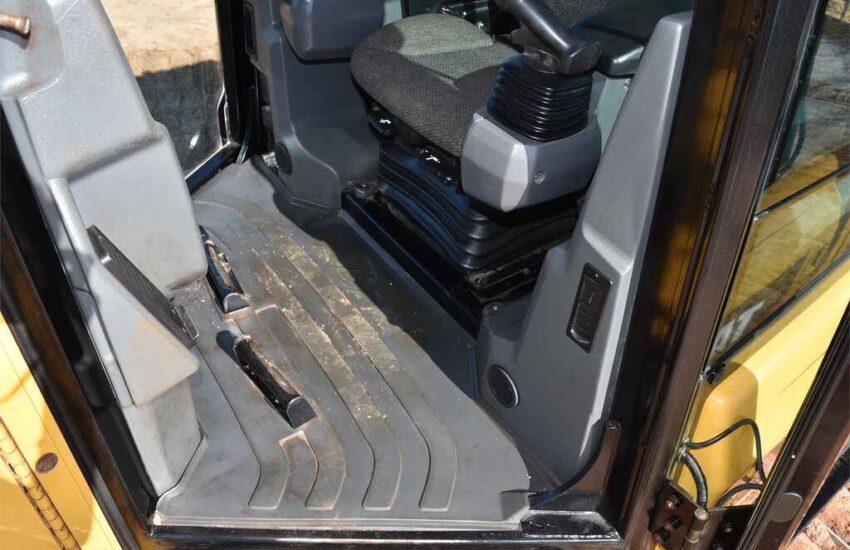

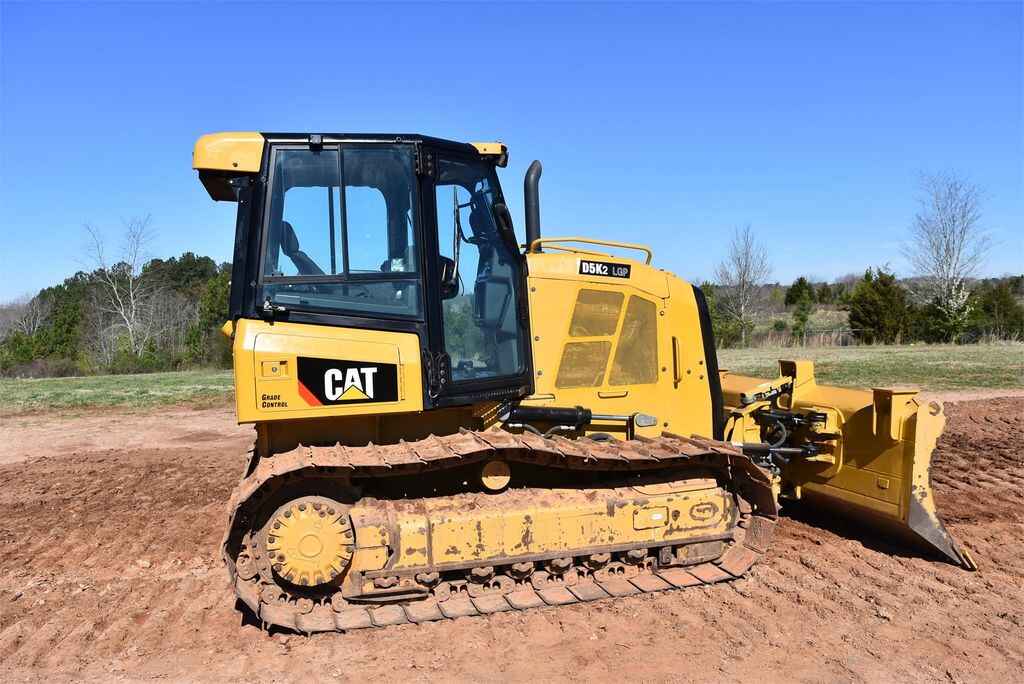

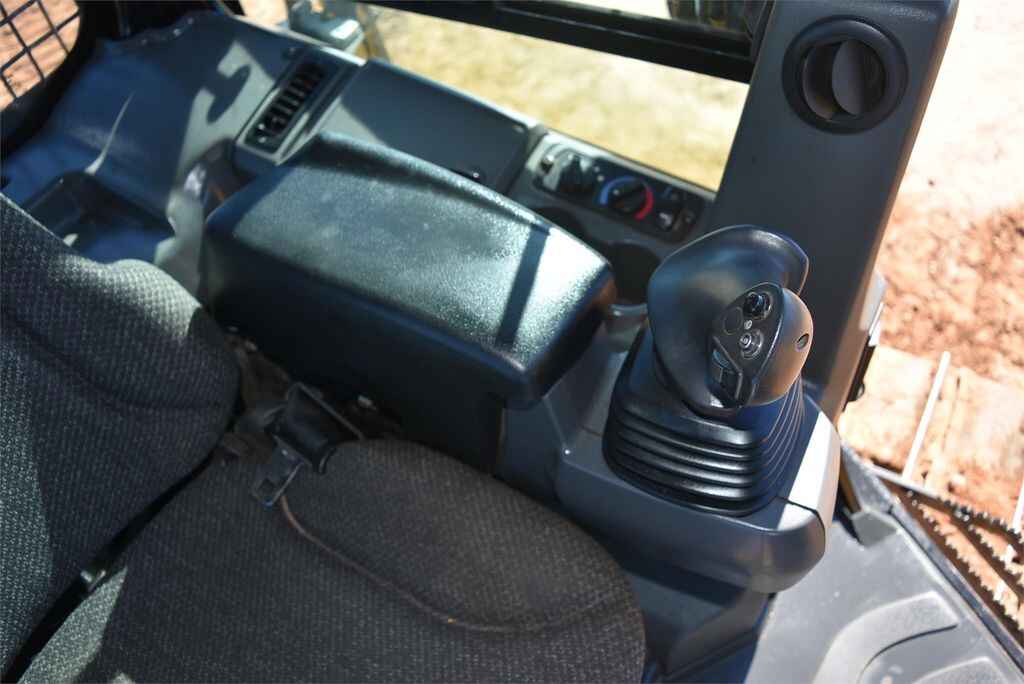

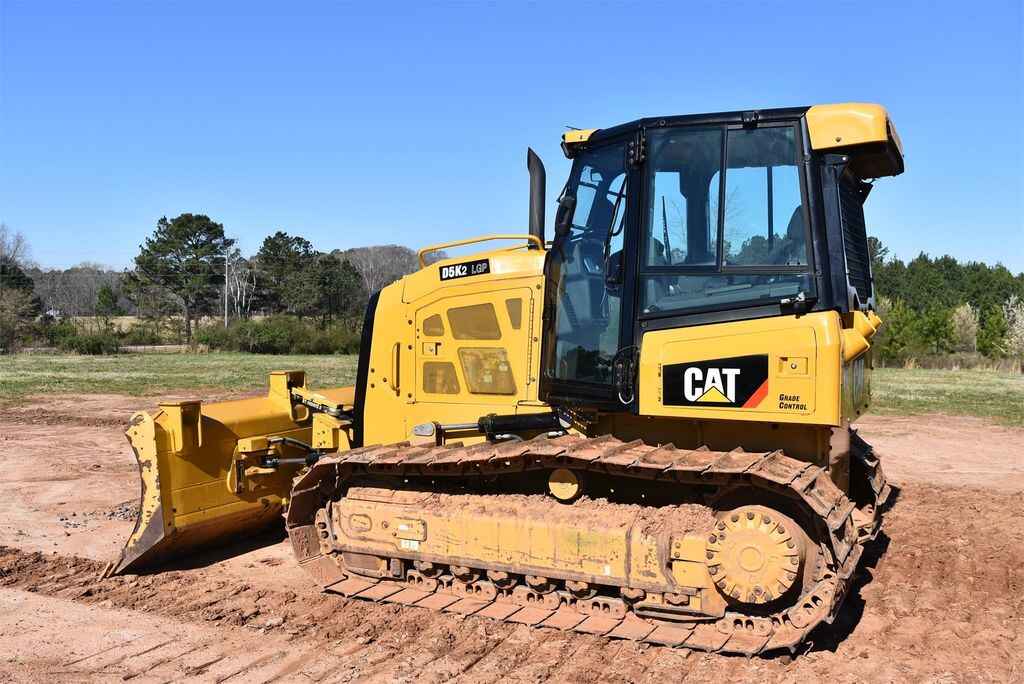

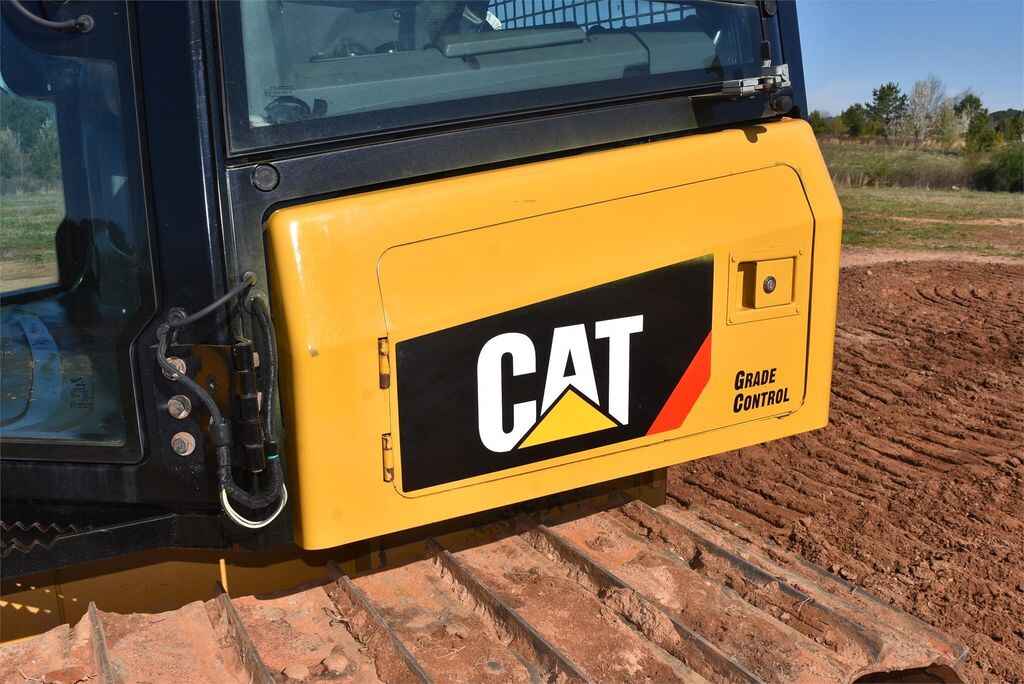

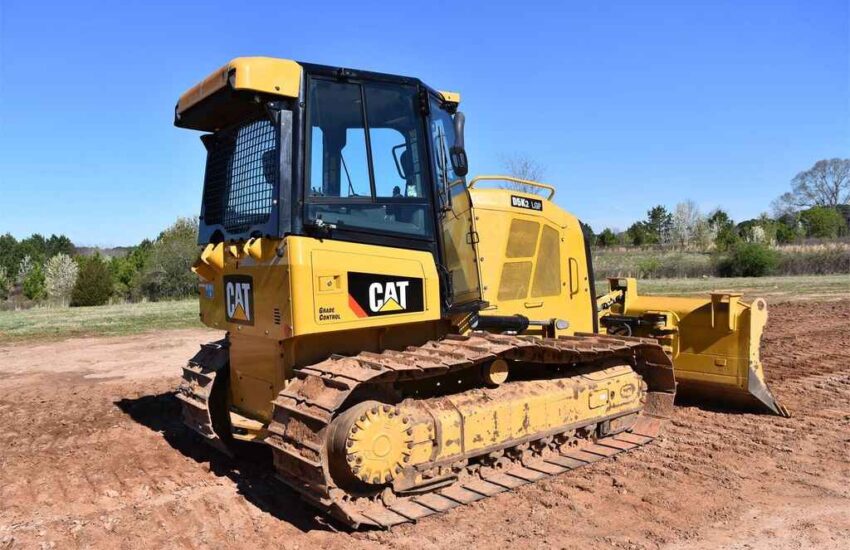

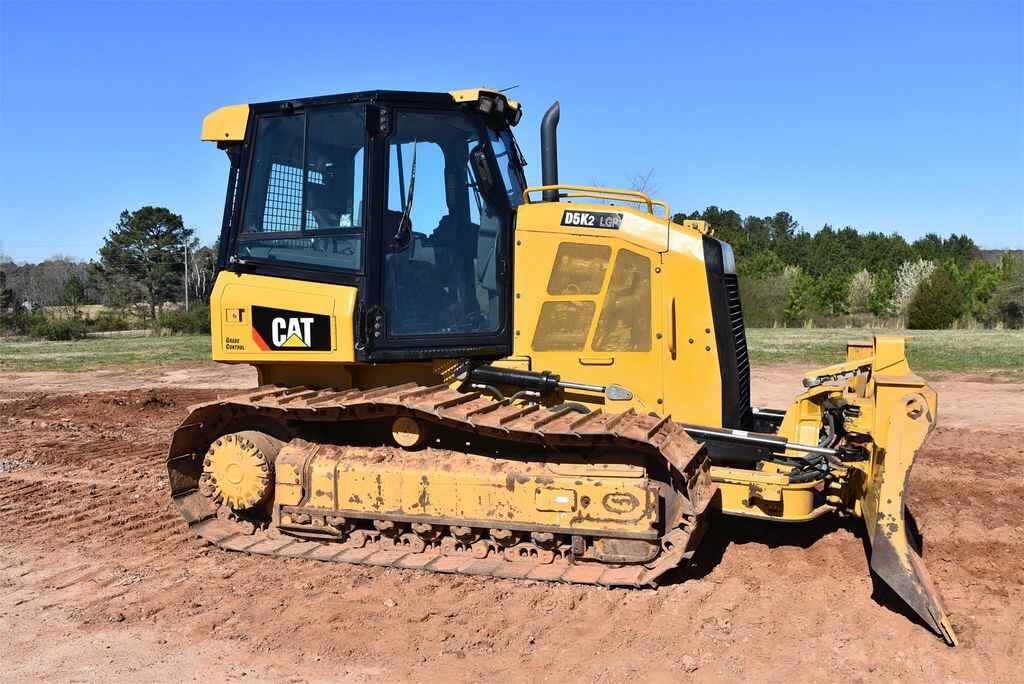

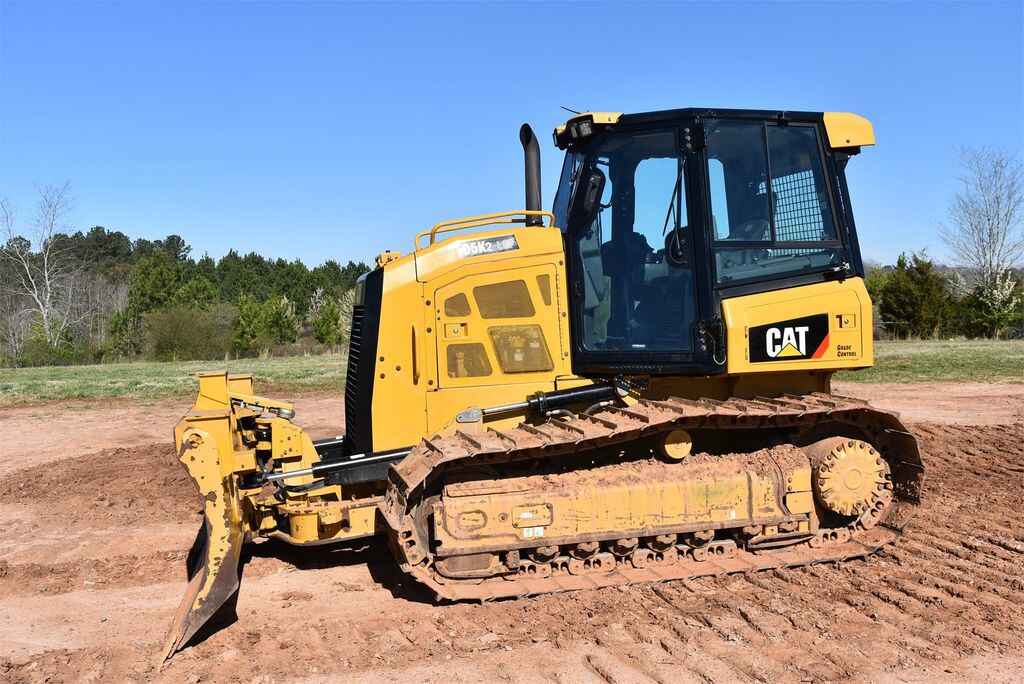

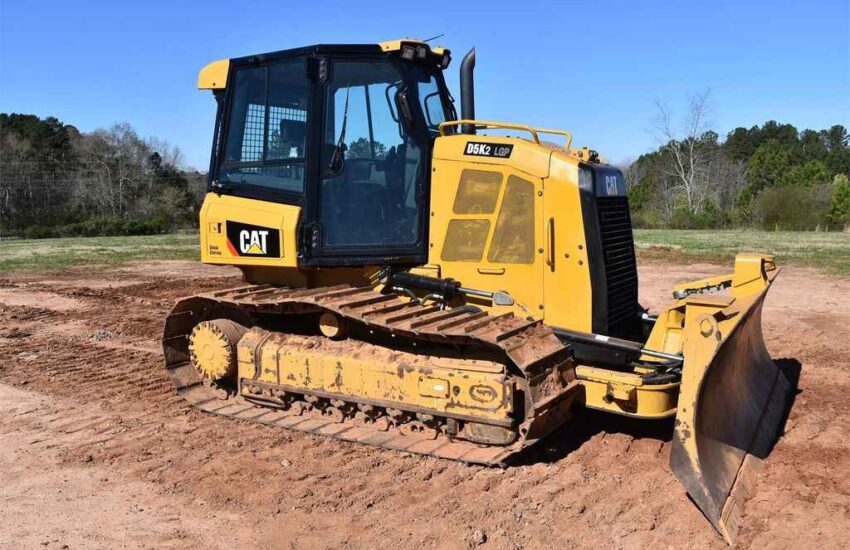

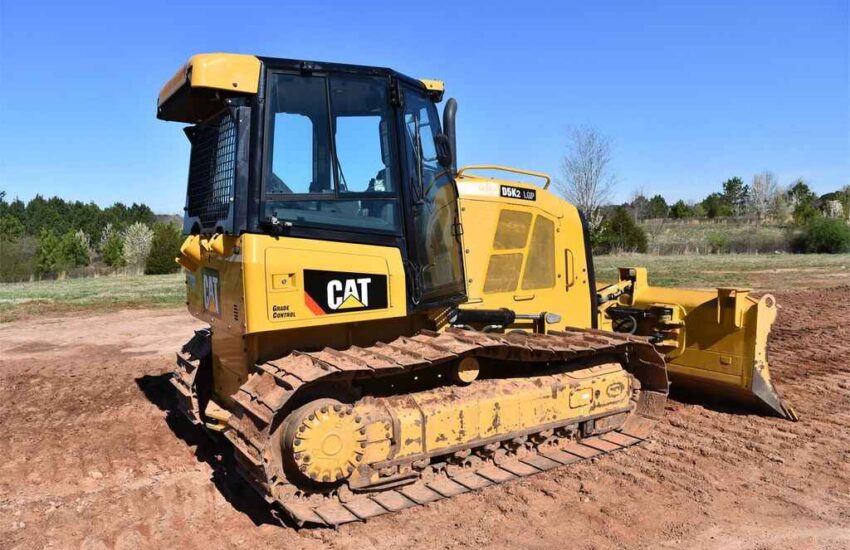

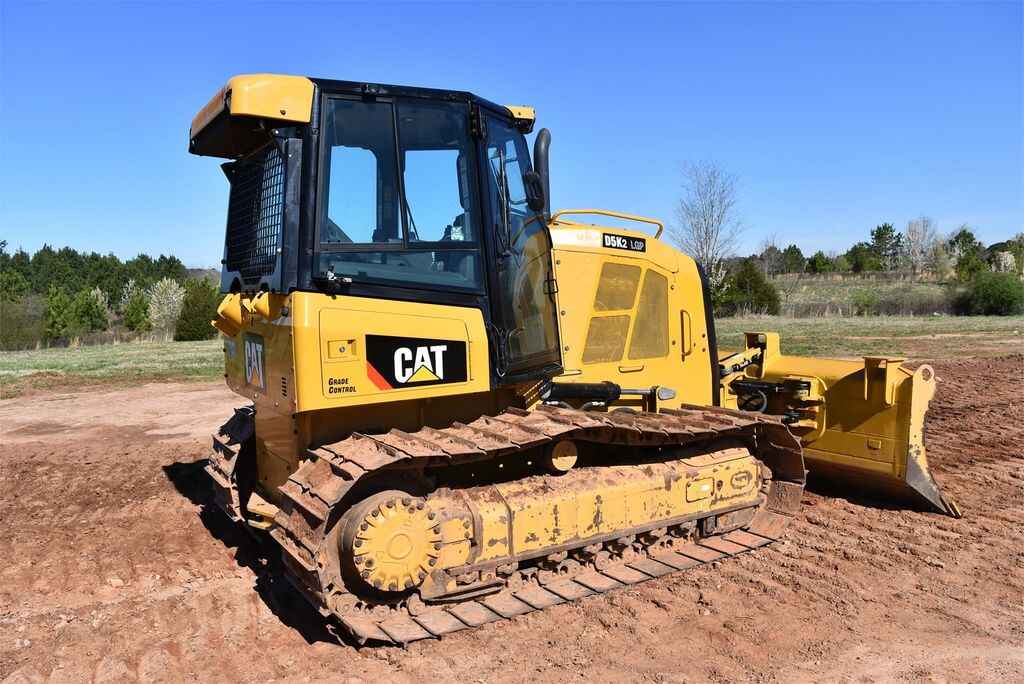

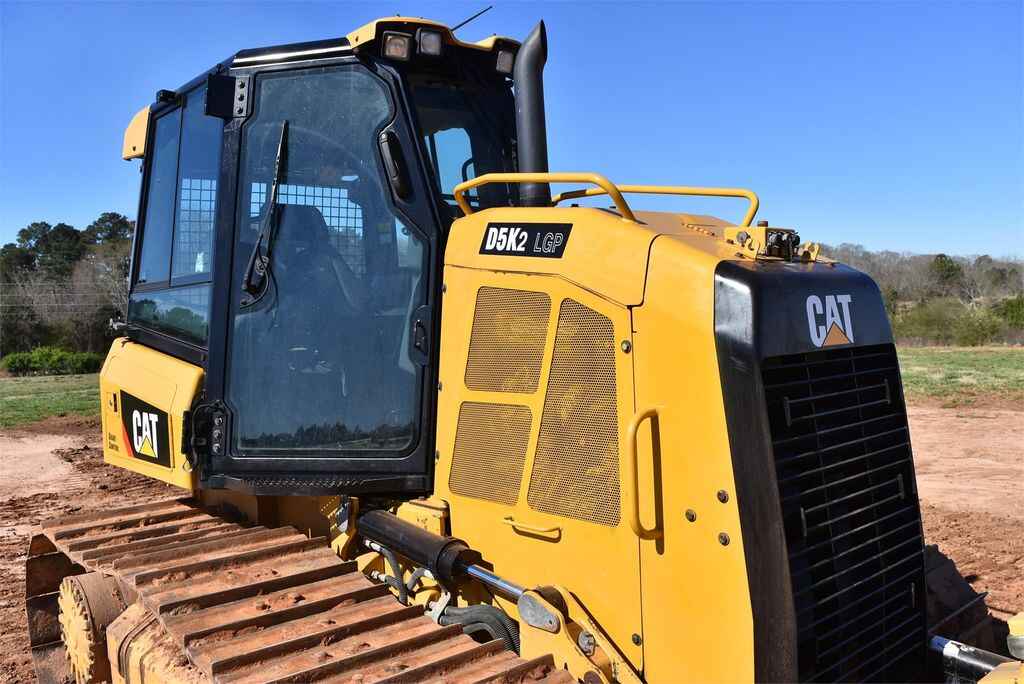

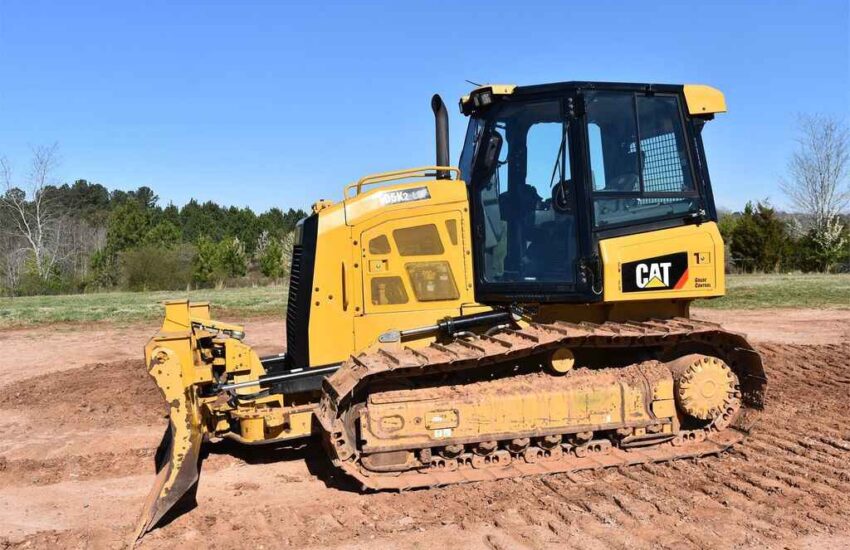

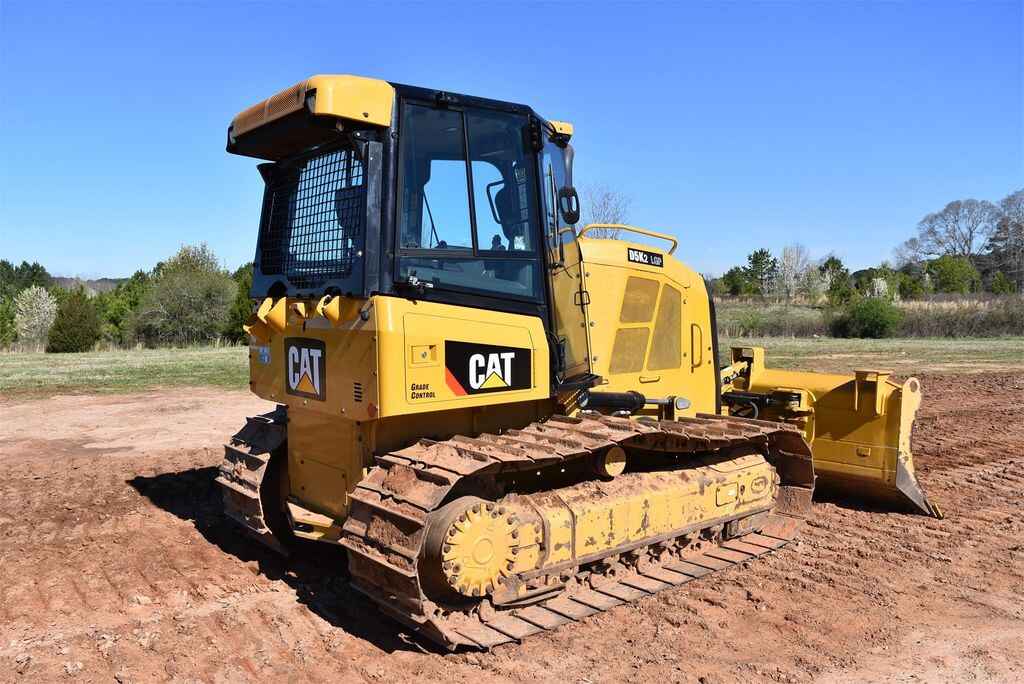

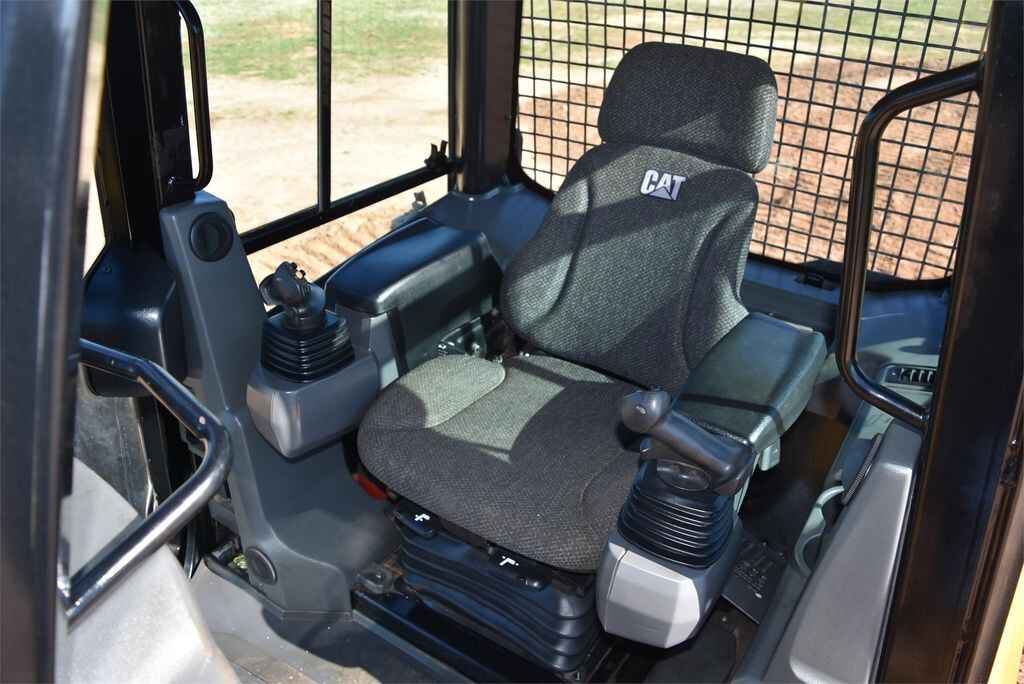

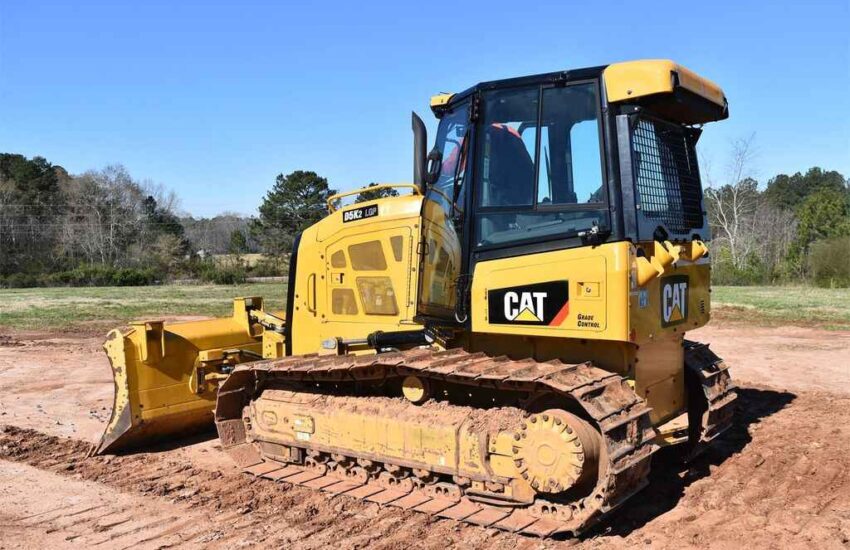

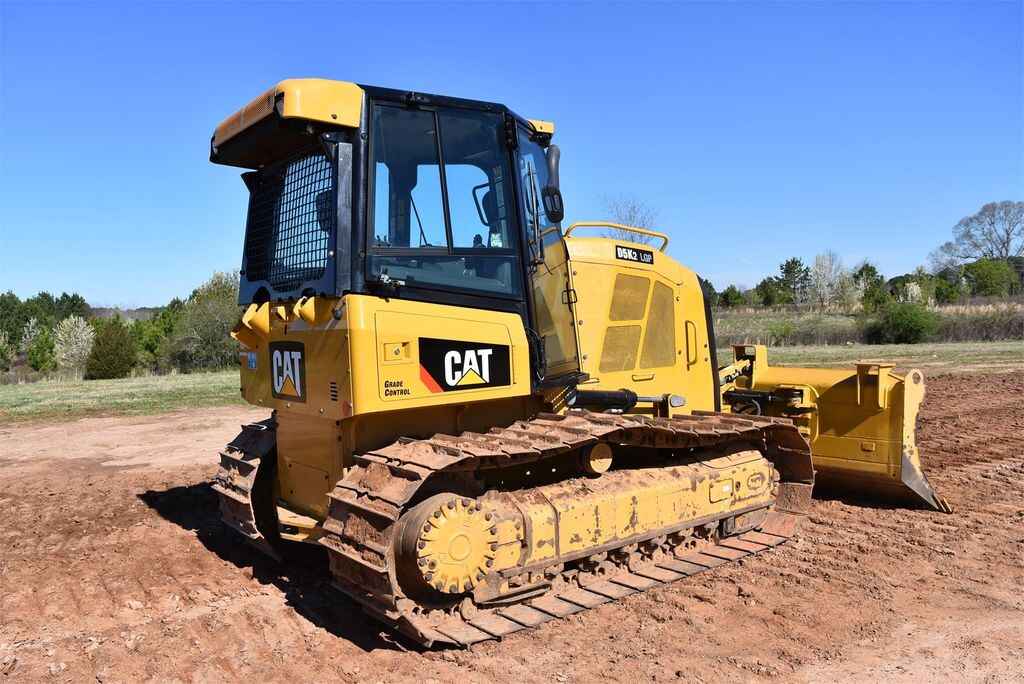

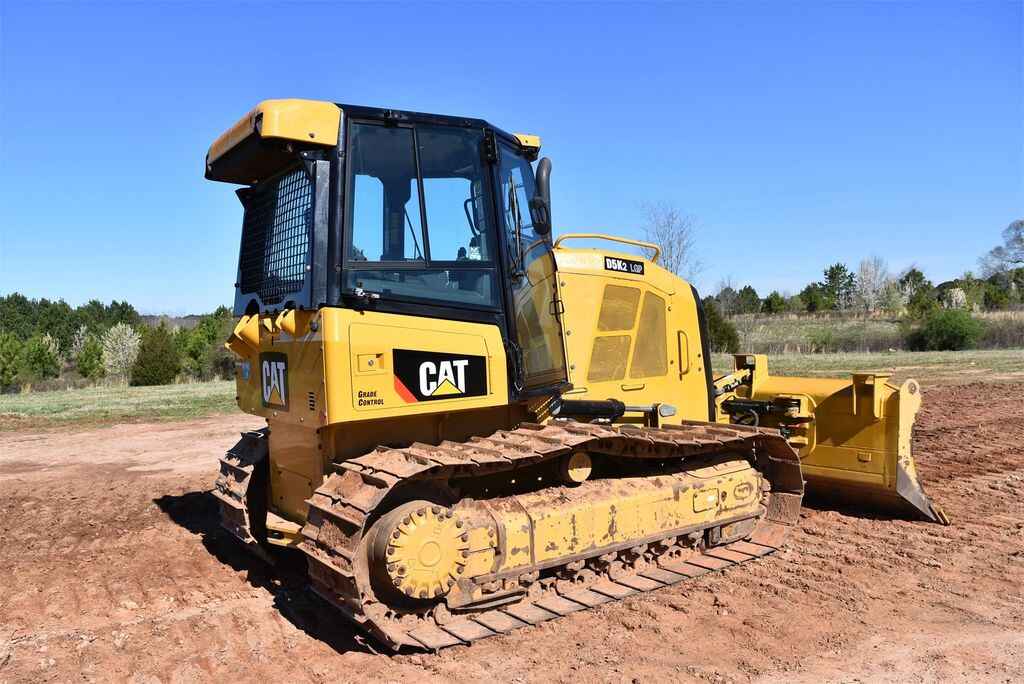

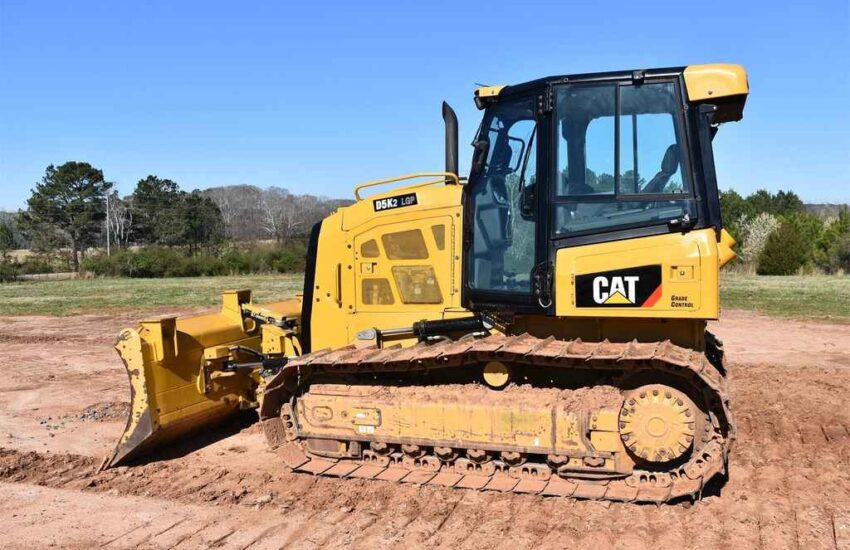

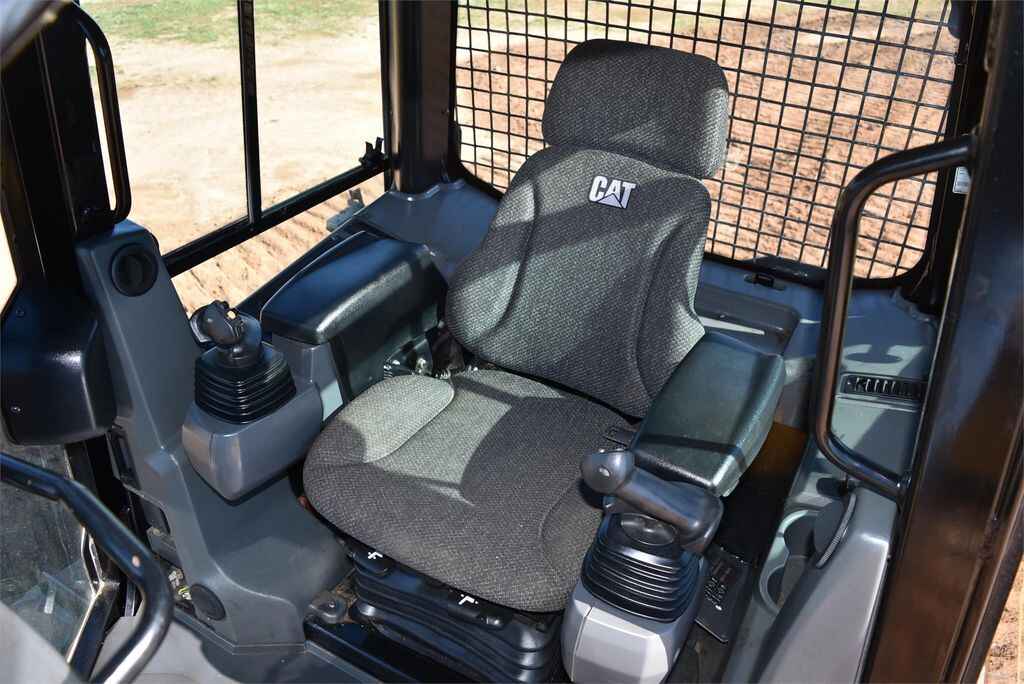

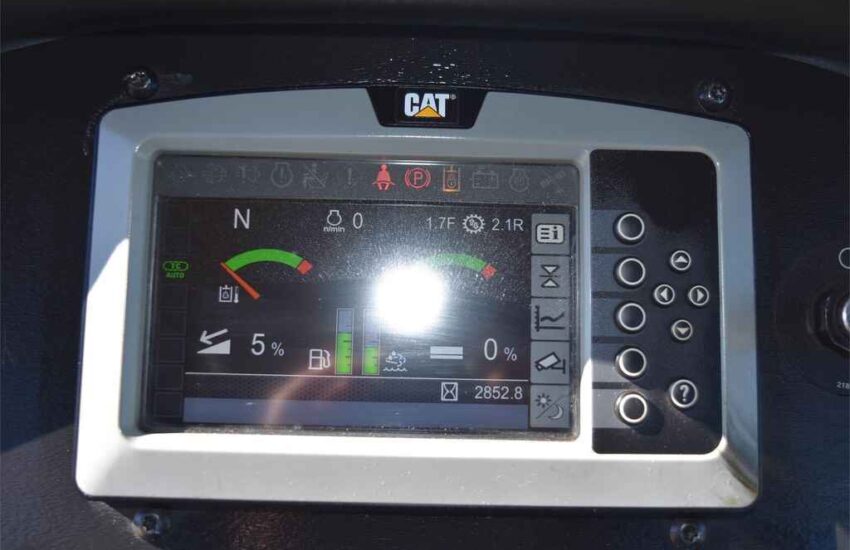

Cab,A/C, meter reads 2852 hours, 6-way blade, grade control.

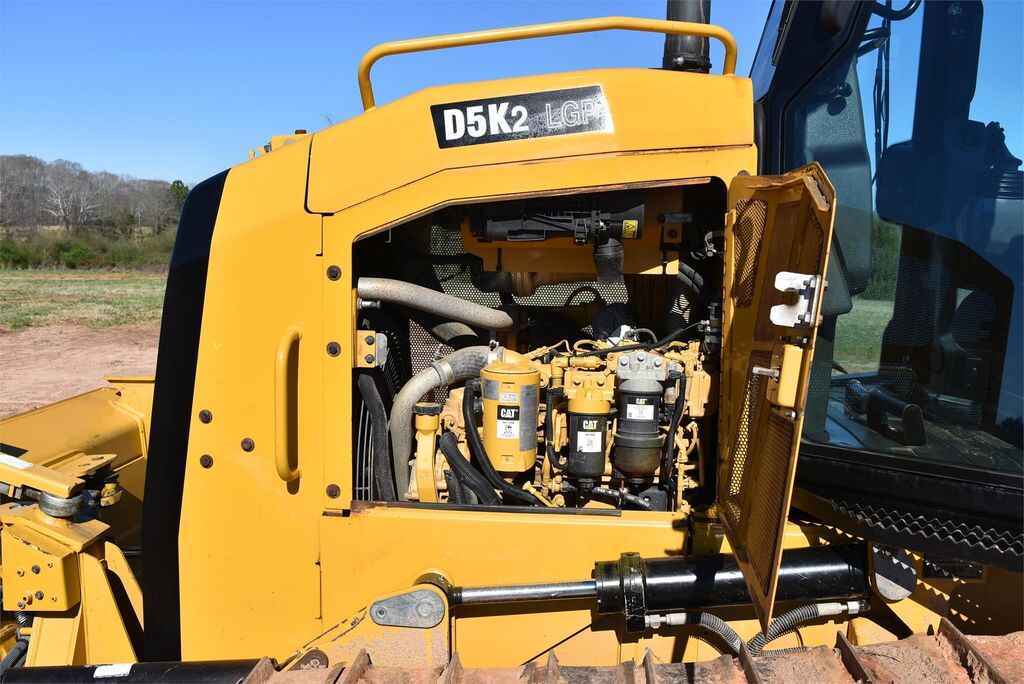

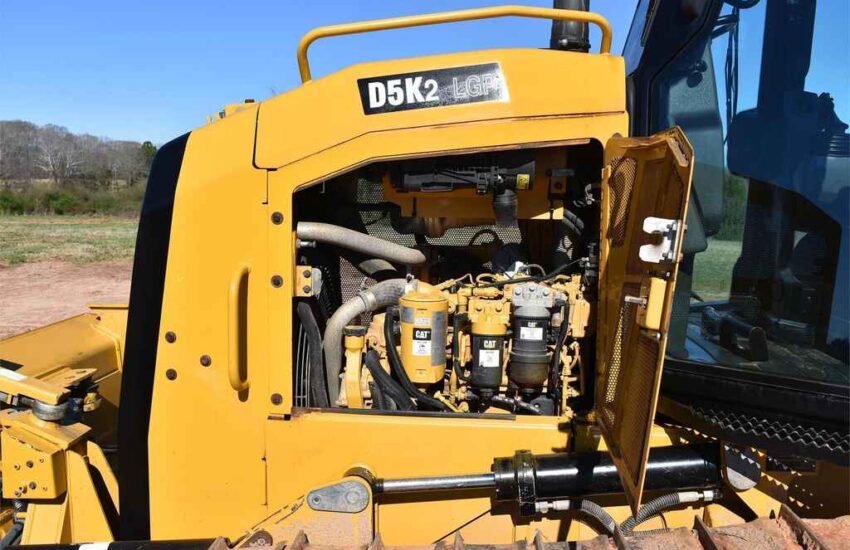

Engine
Model: Cat C4.4 ACERT
Gross Power: 104 hp (78 kW)
Net Power: 104 hp (78 kW)
Displacement: 269 in³ (4.4 L)
Number of Cylinders: 4
Weights
Operating Weight: 20,992 lbs (9,522 kg)
Performance
Maximum Speed – Forward: 5.6 mph (9 km/h)
Maximum Speed – Reverse: 6.2 mph (10 km/h)

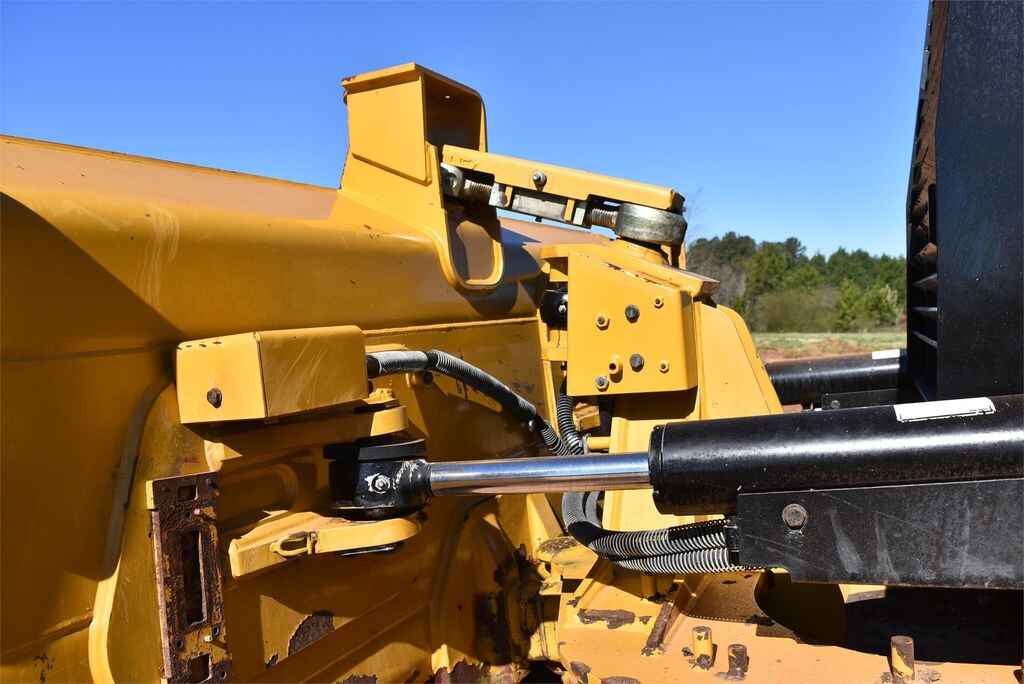

Hydraulics
Pump Flow Capacity: 17.7 gal/min (67 L/min)
Relief Valve Pressure: 2,988 psi (20,600 kPa)
Dimensions
Length with Blade: 169.1 in (4,297 mm)
Width Over Tracks: 94.9 in (2,411 mm)
Height to Top of Cab: 109 in (2,769 mm)
Length without Blade: 128.5 in (3,264 mm)

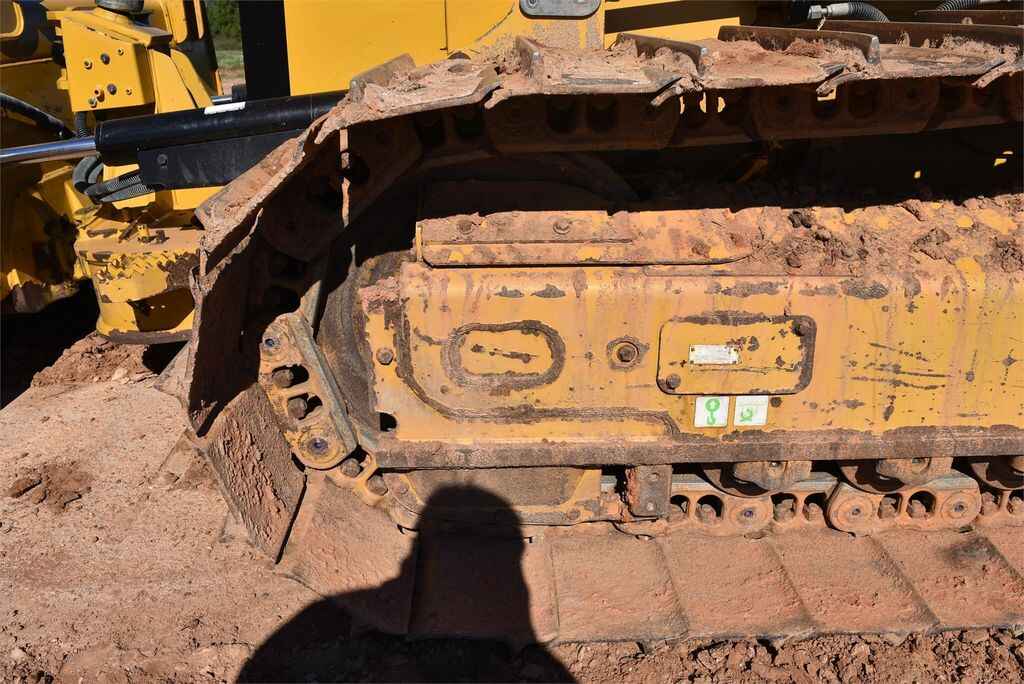

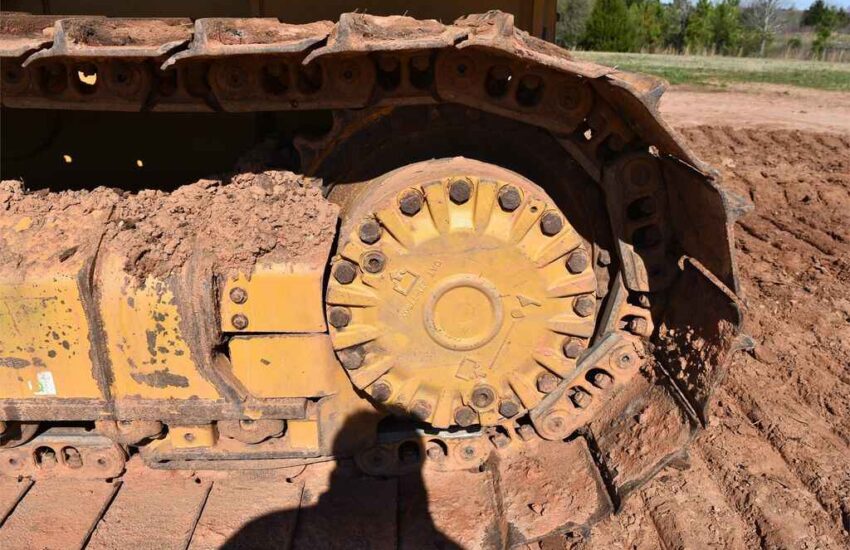

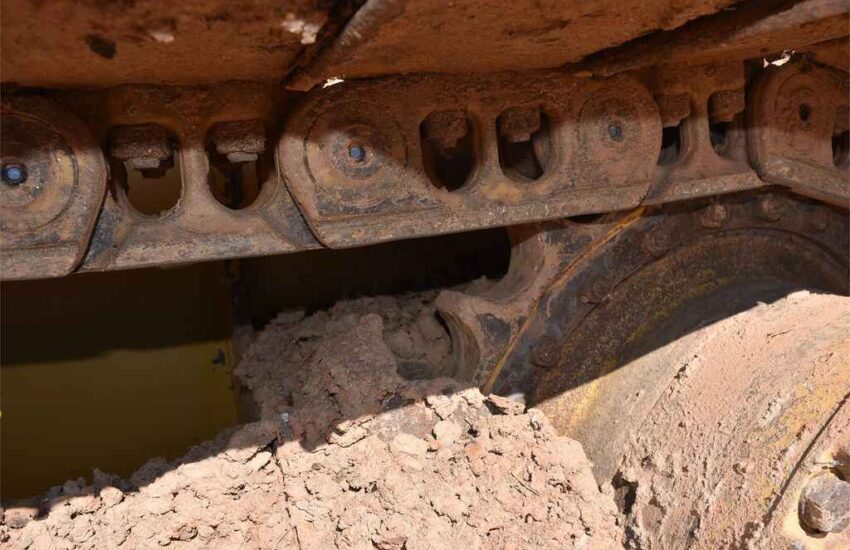

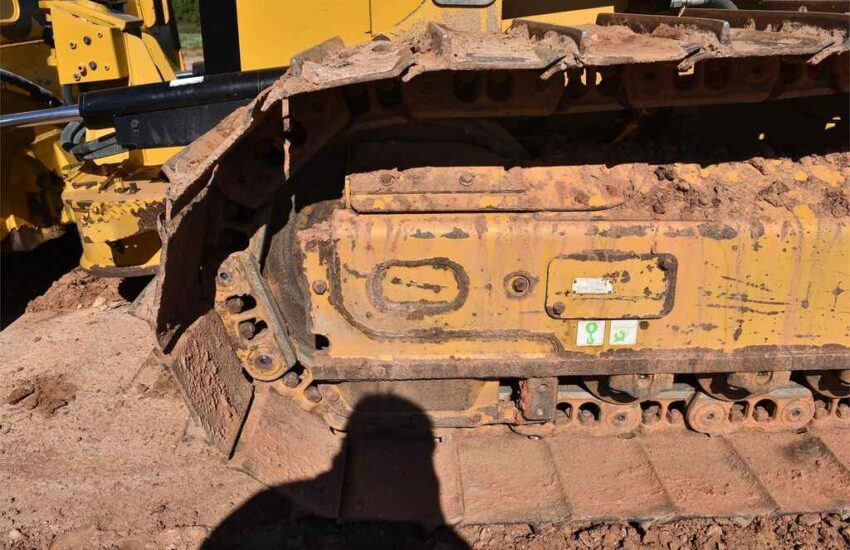

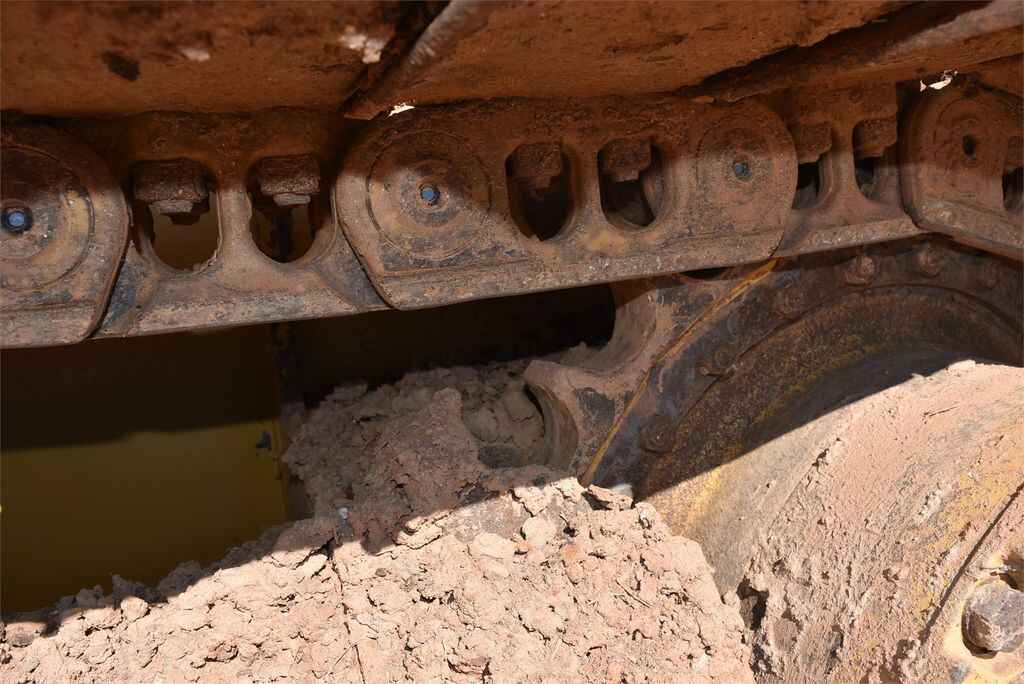

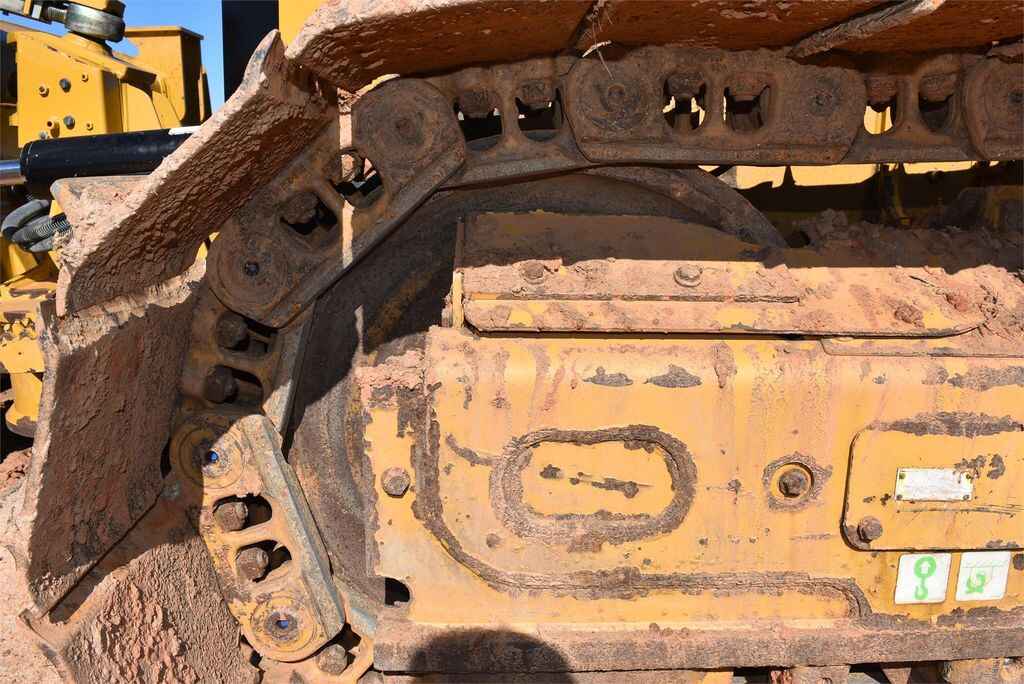

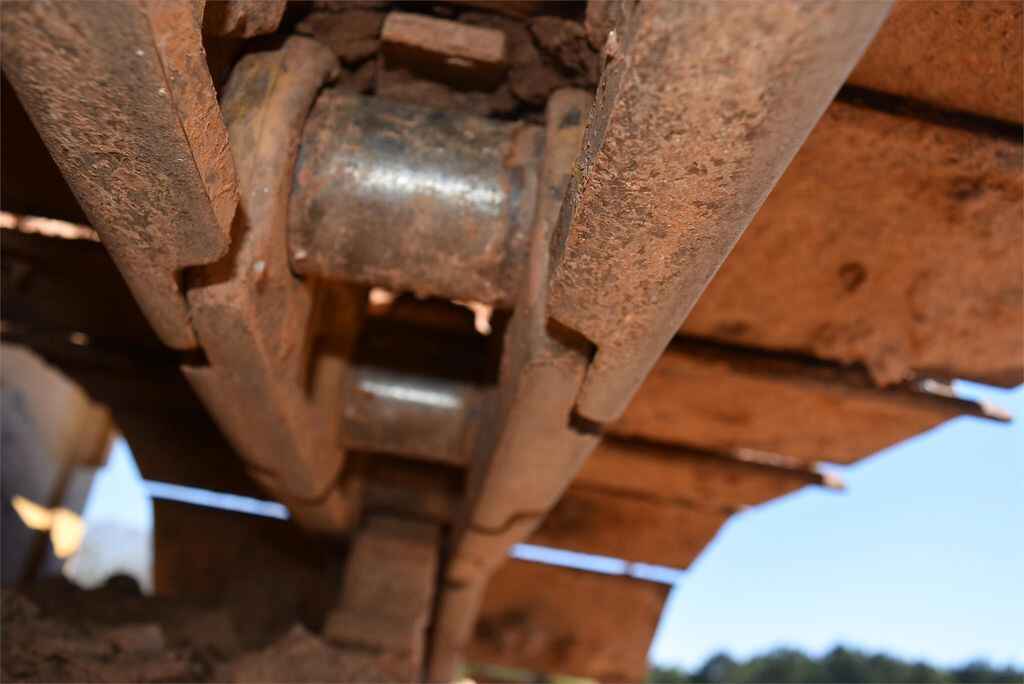

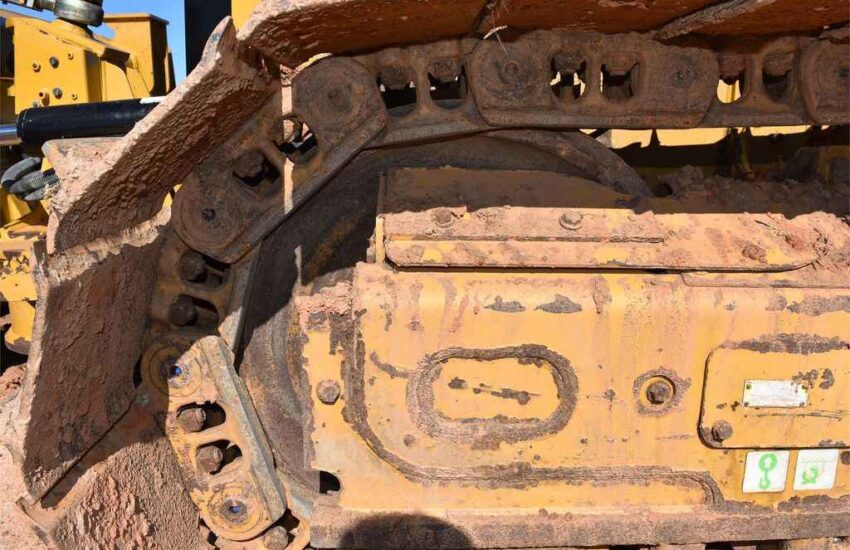

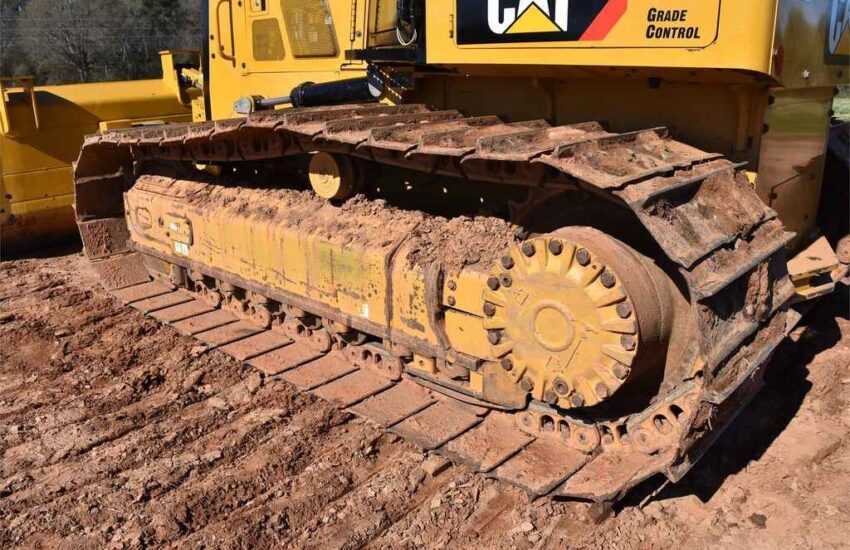

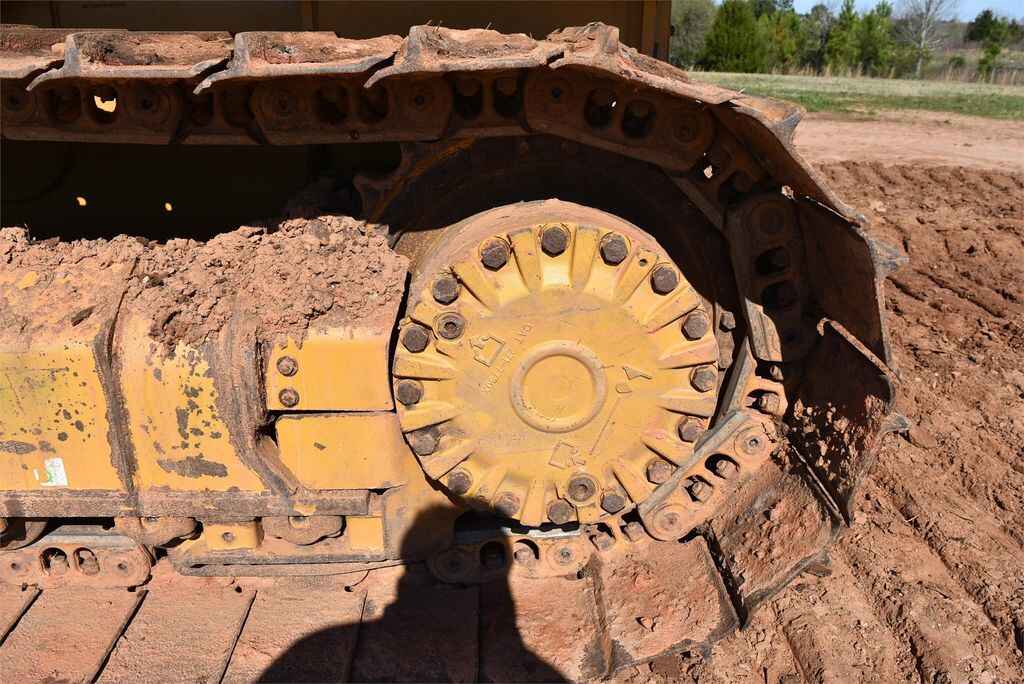

Undercarriage
Standard Shoe Size: 26 in (660 mm)
Number of Shoes per Side: 40
Number of Track Rollers per Side: 7
Ground Contact Area: 4,726 in² (3.05 m²)
Ground Pressure: 4.5 psi (31.1 kPa)

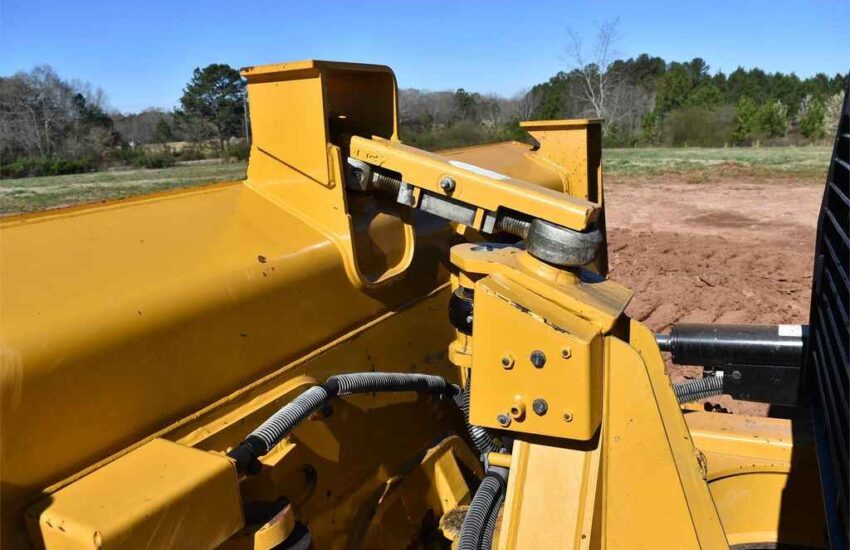

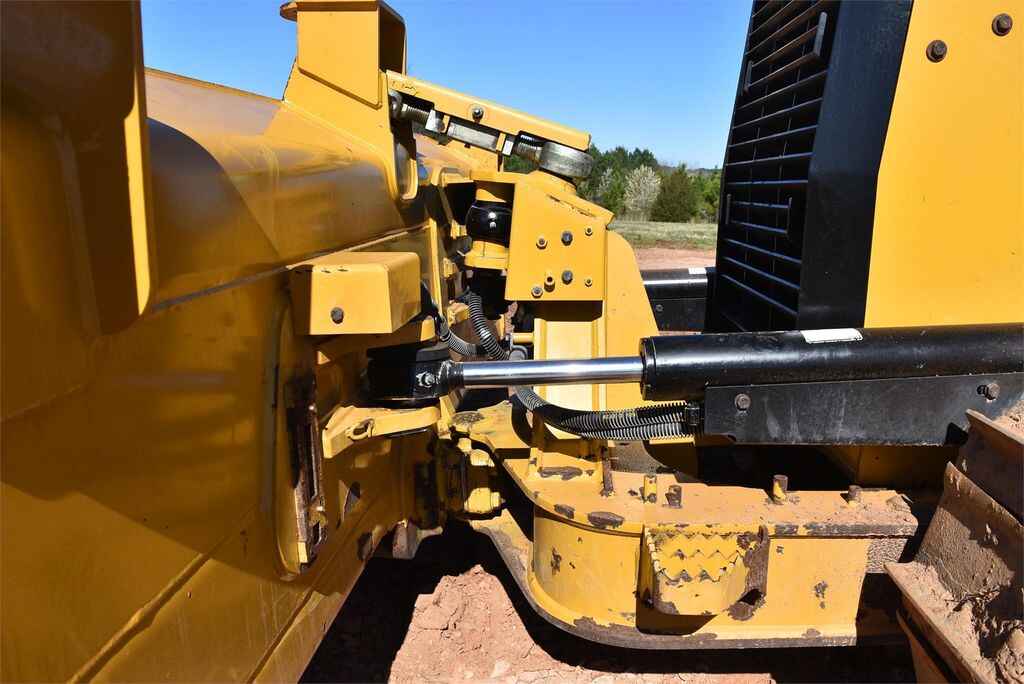

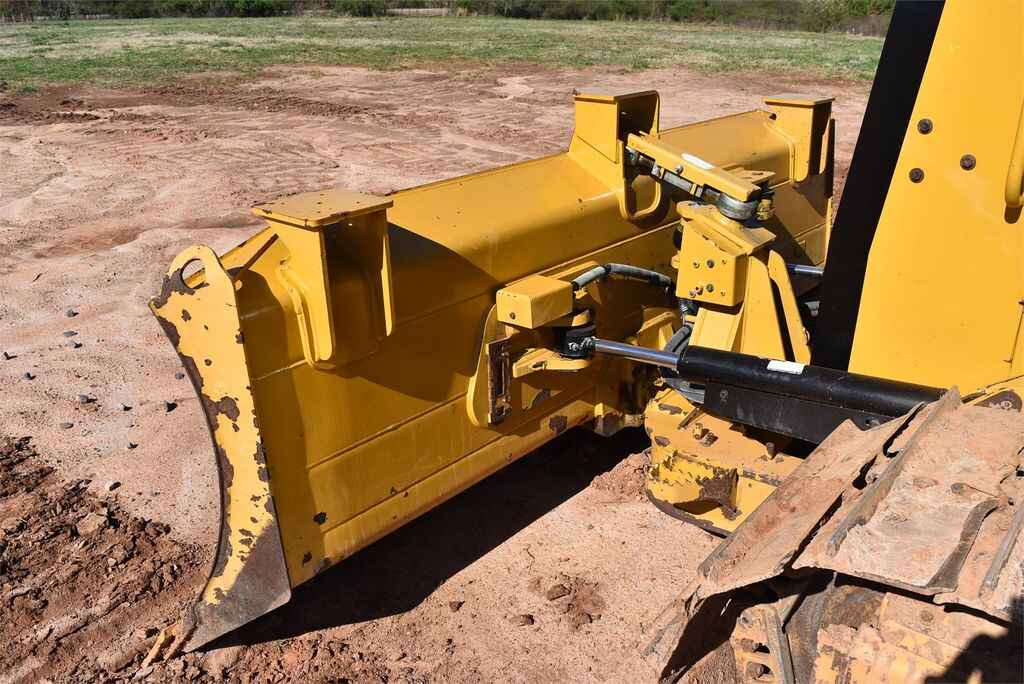

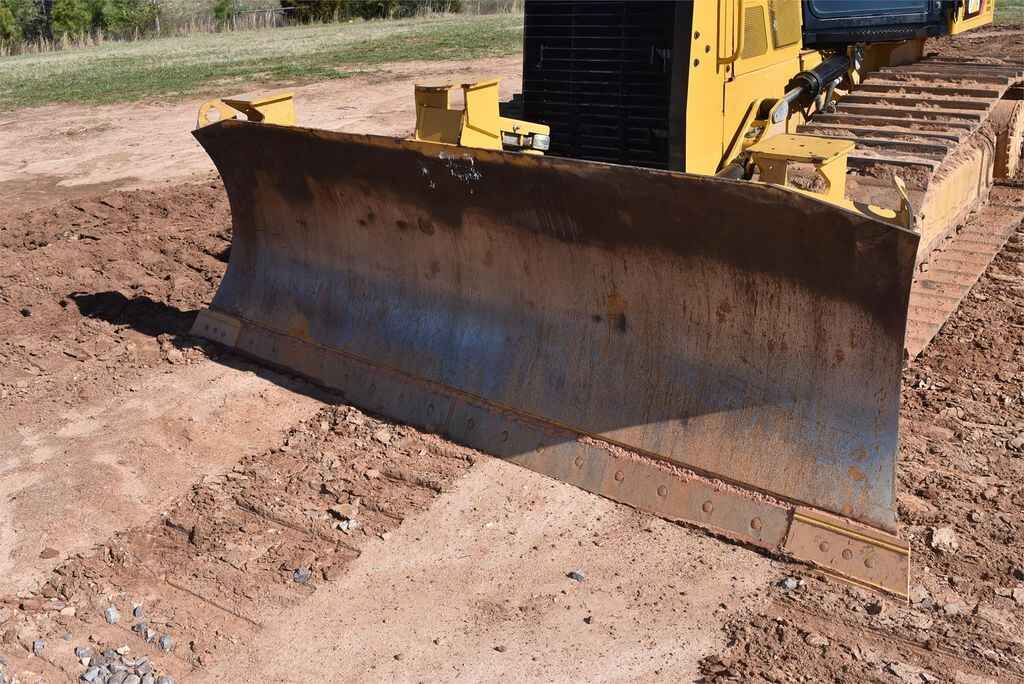

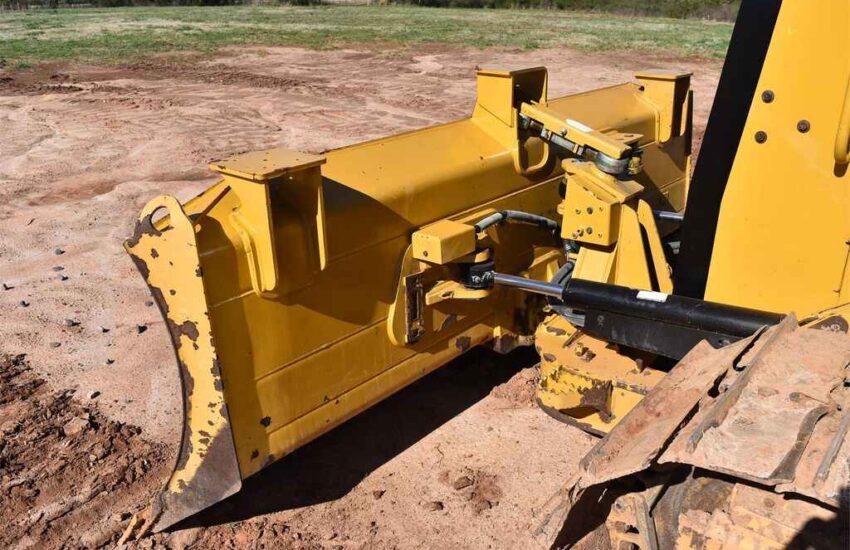

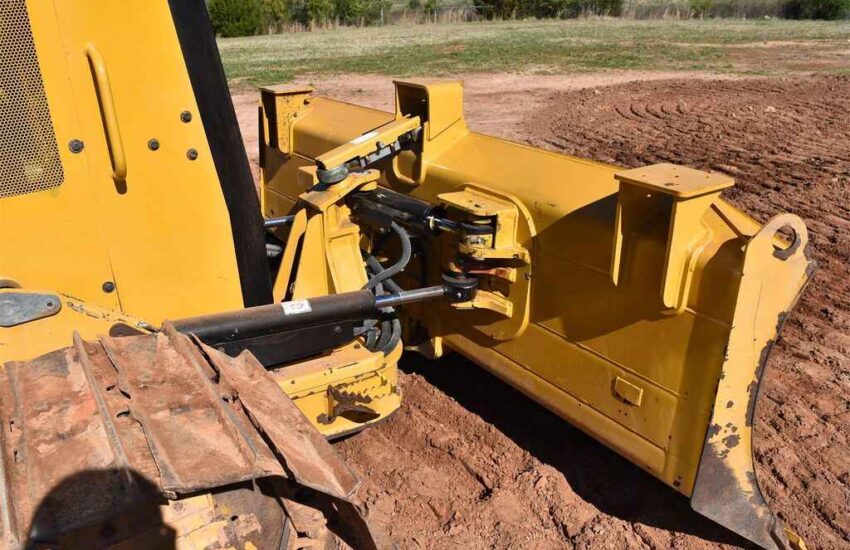

Blade
Width: 126.7 in (3,219 mm)
Height: 39.8 in (1,011 mm)
Capacity: 3.1 yd³ (2.37 m³)
Blade Angle (Both Directions): 58 degrees
Service Refill Capacities
Fuel Tank: 51.5 gal (195 L)
Cooling System: 3 gal (11 L)
Engine Oil: 2.6 gal (10 L)
Hydraulic Fluid: 2.6 gal (10 L)
Powertrain Fluid: 6 gal (23 L)
Final Drives (each): 15.7 gal (59 L)
Video
Features

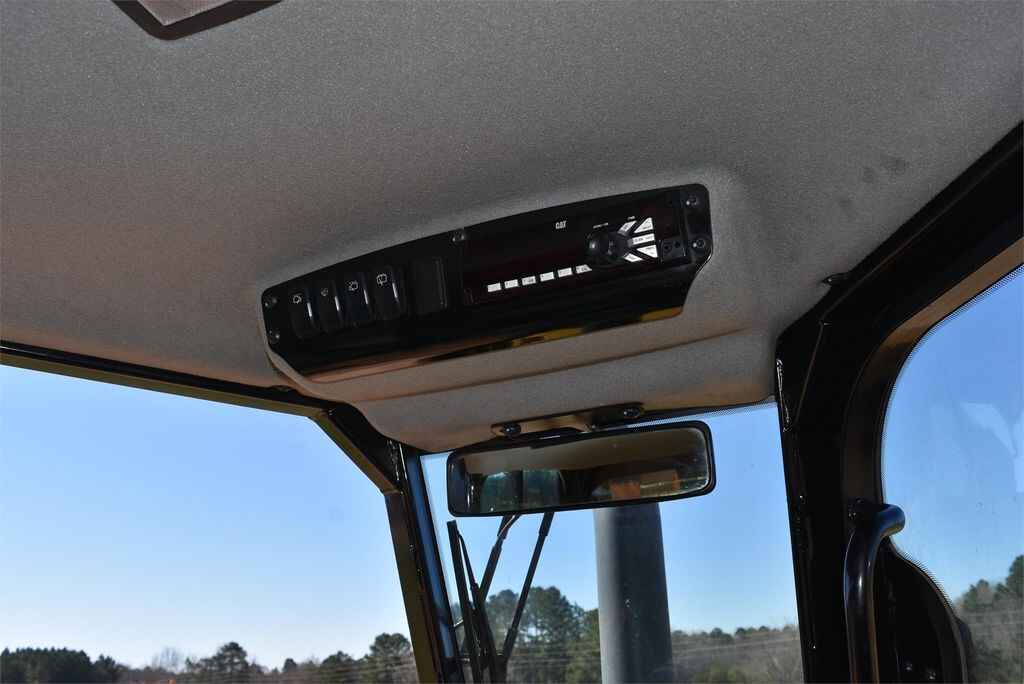

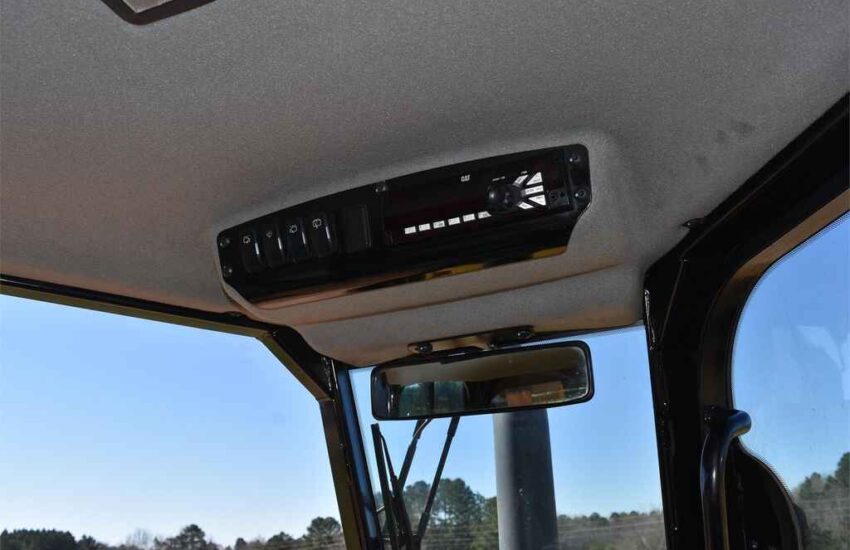

- Radio
- Rear Camera
- Air Conditioner
- Bluetooth
- Heater
