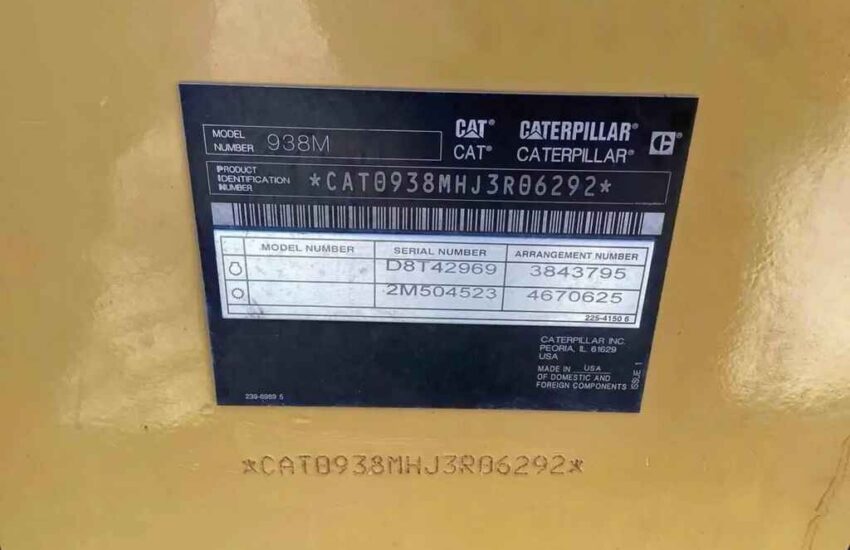

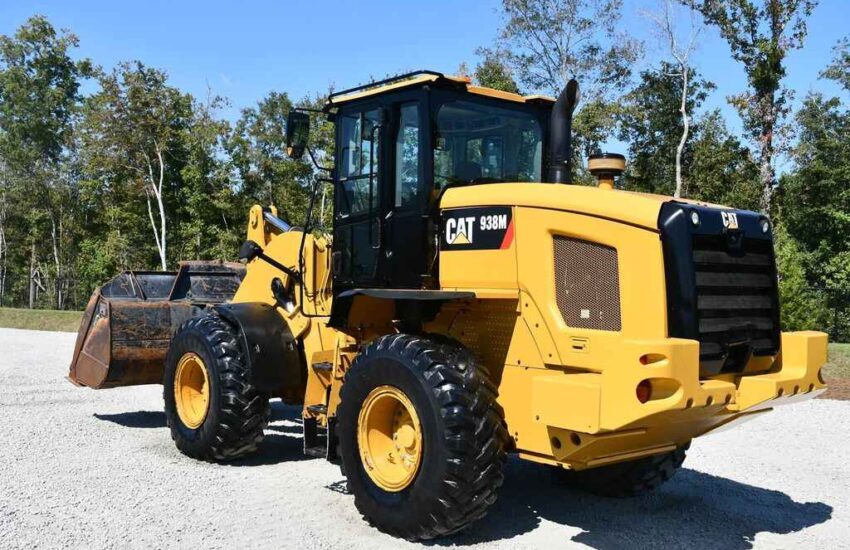

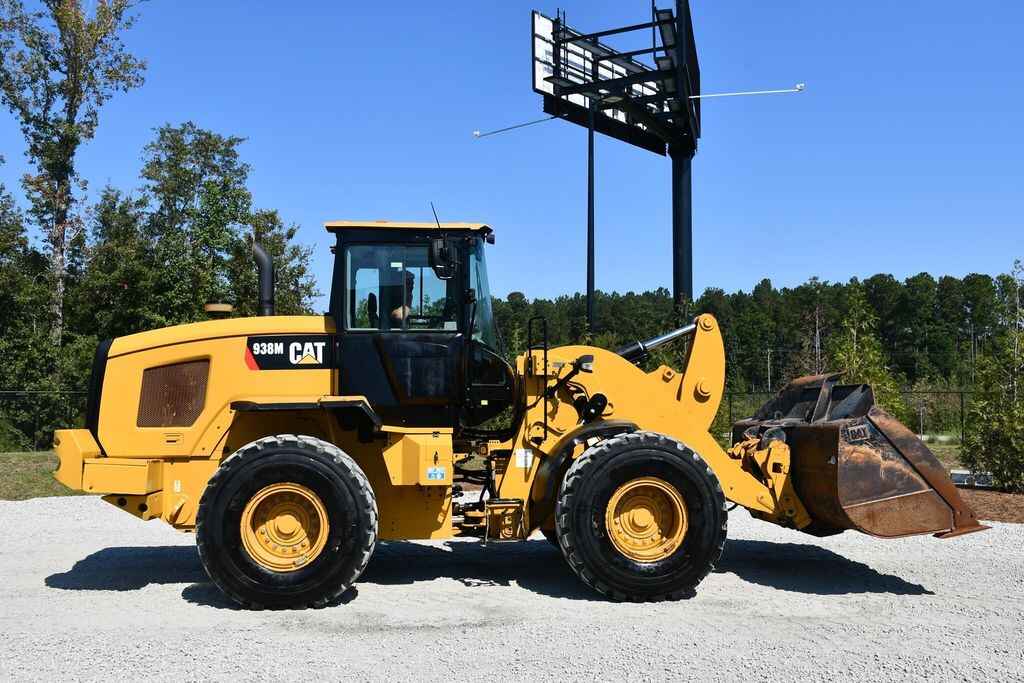

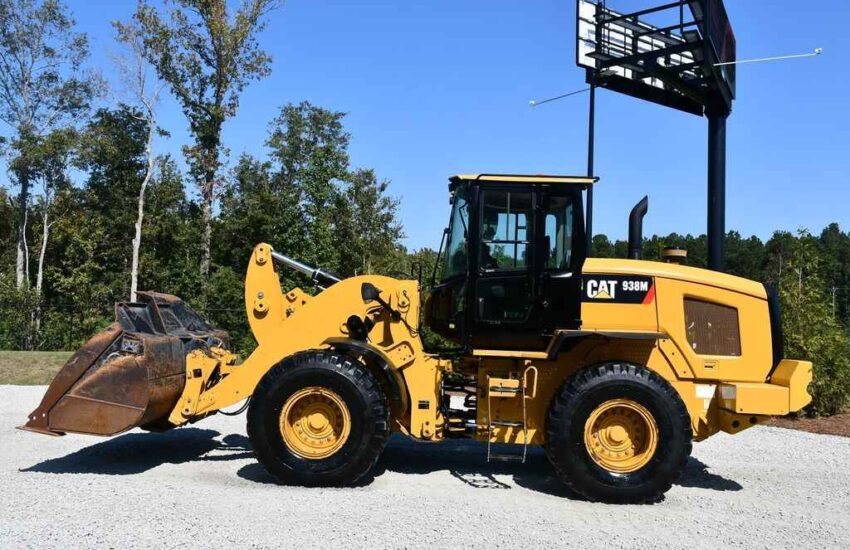

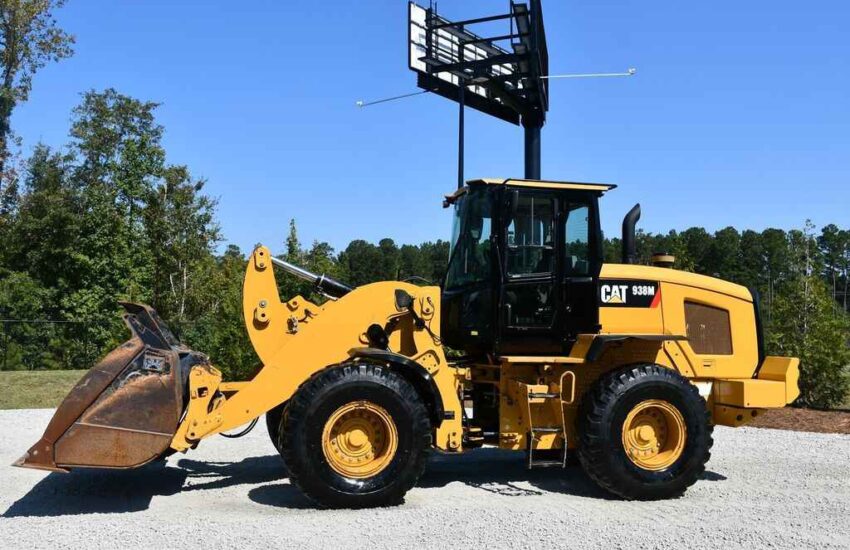

2018 Caterpillar 938M

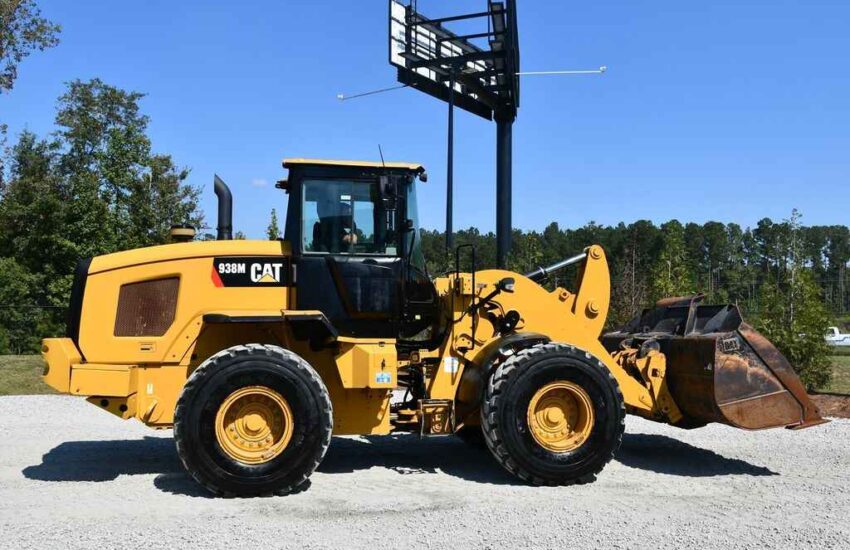

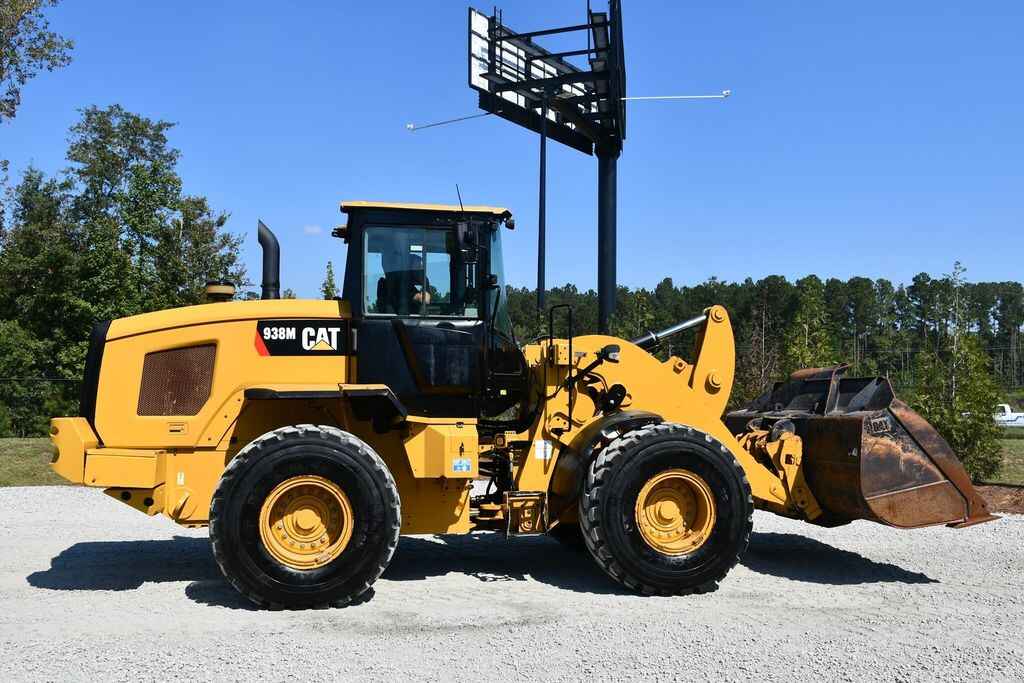

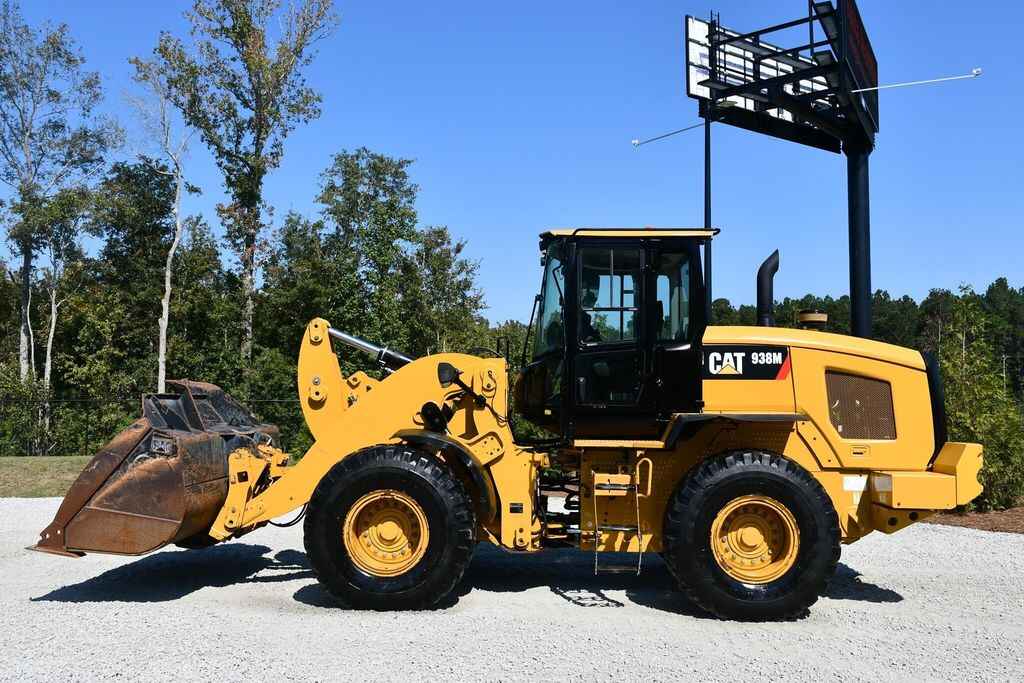

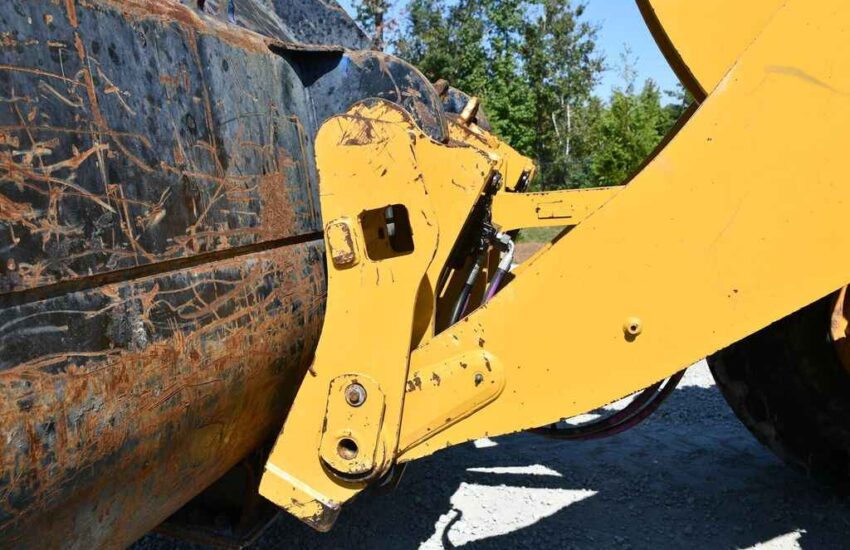

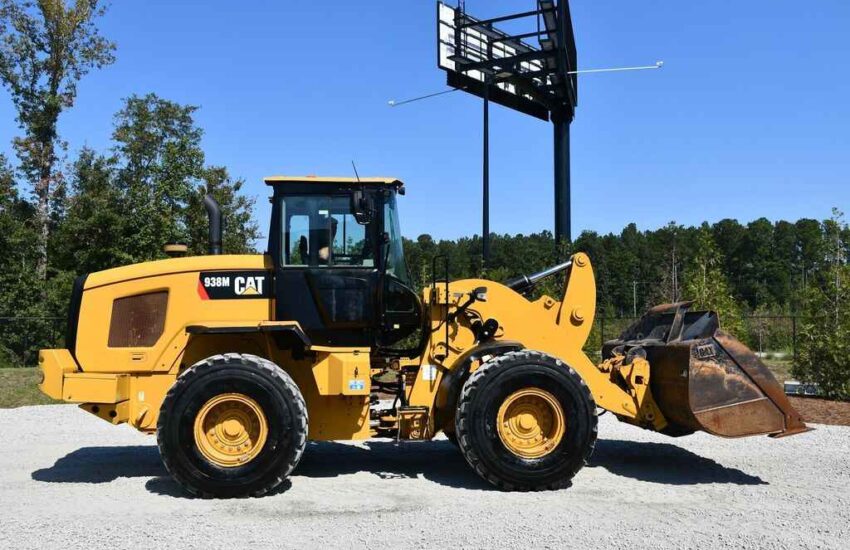

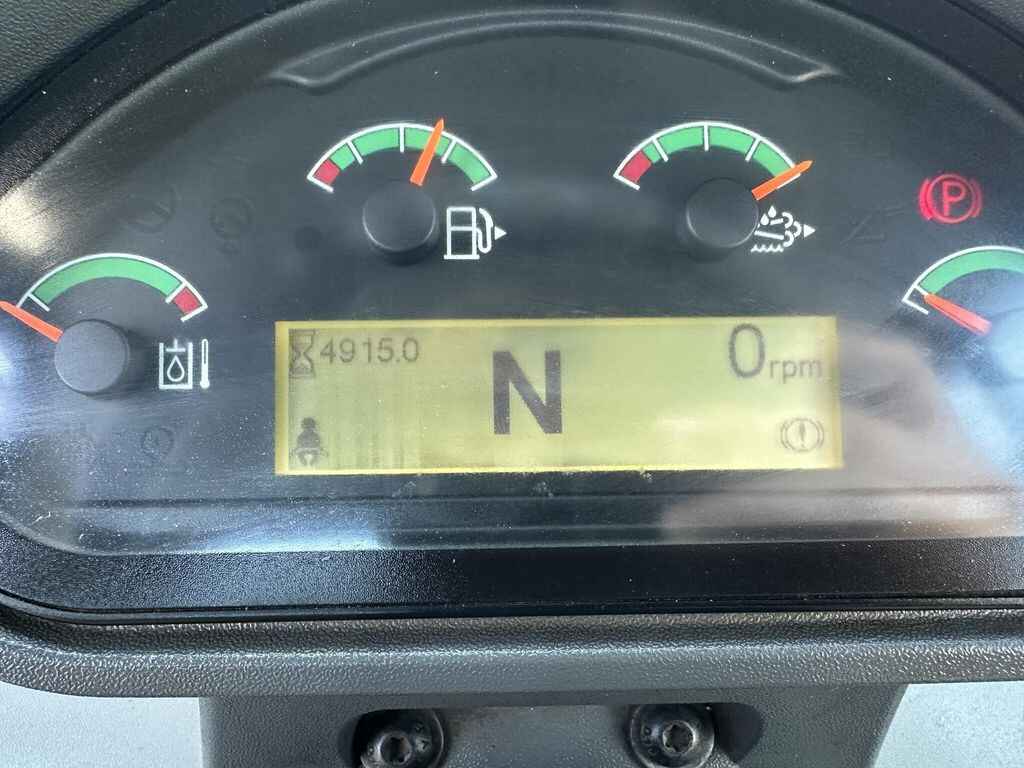

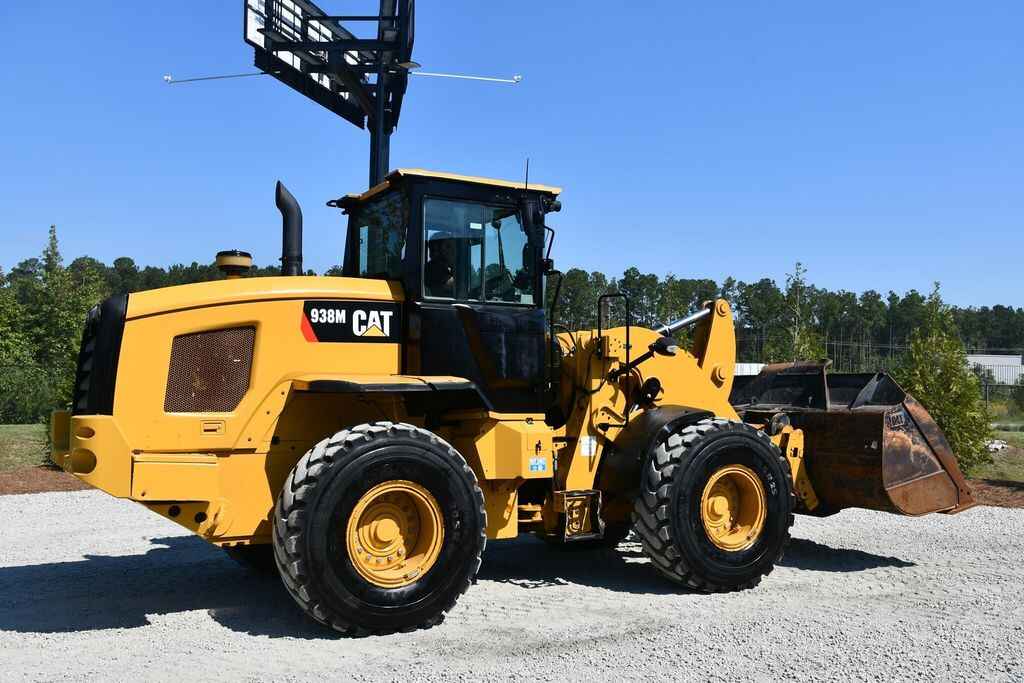

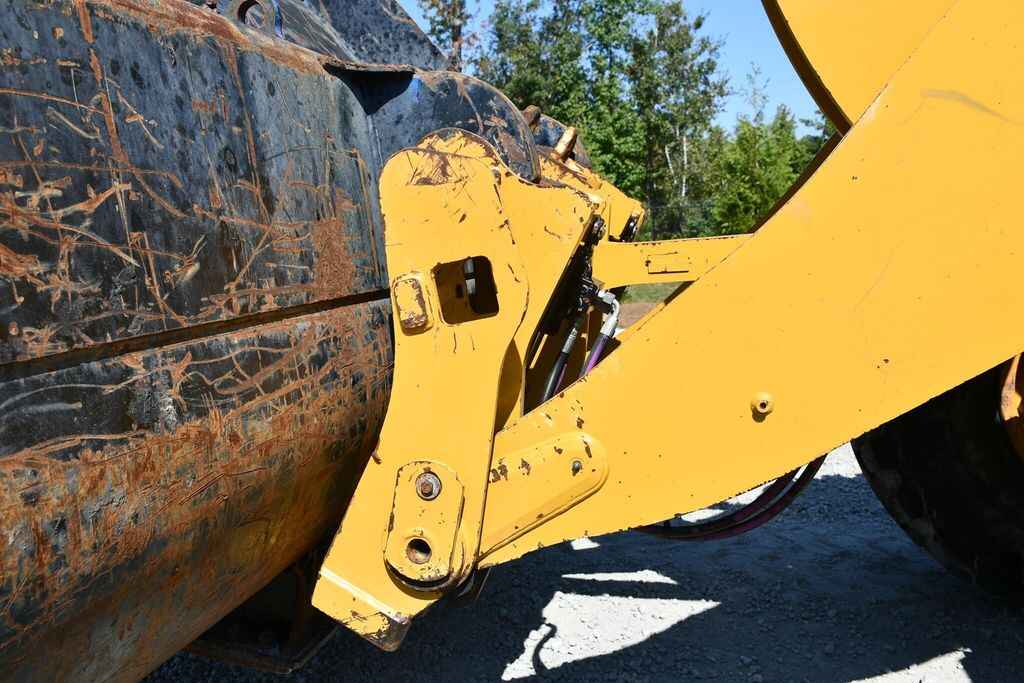

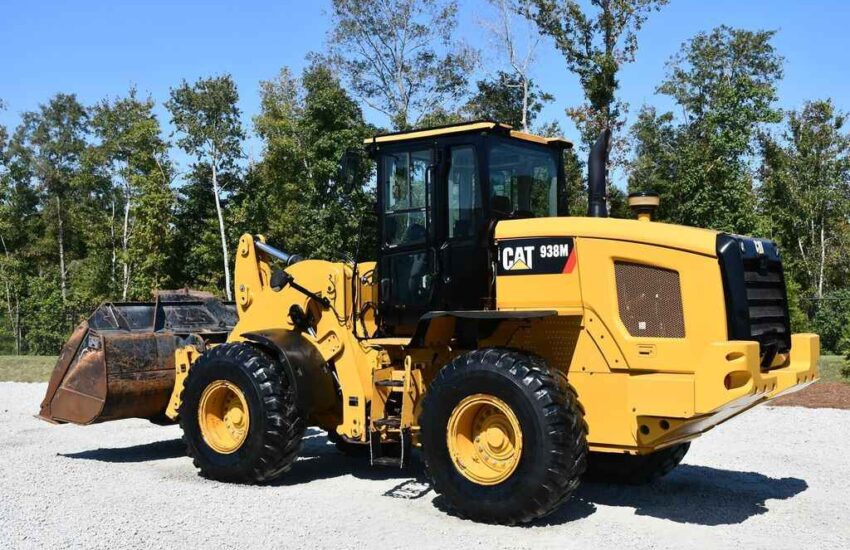

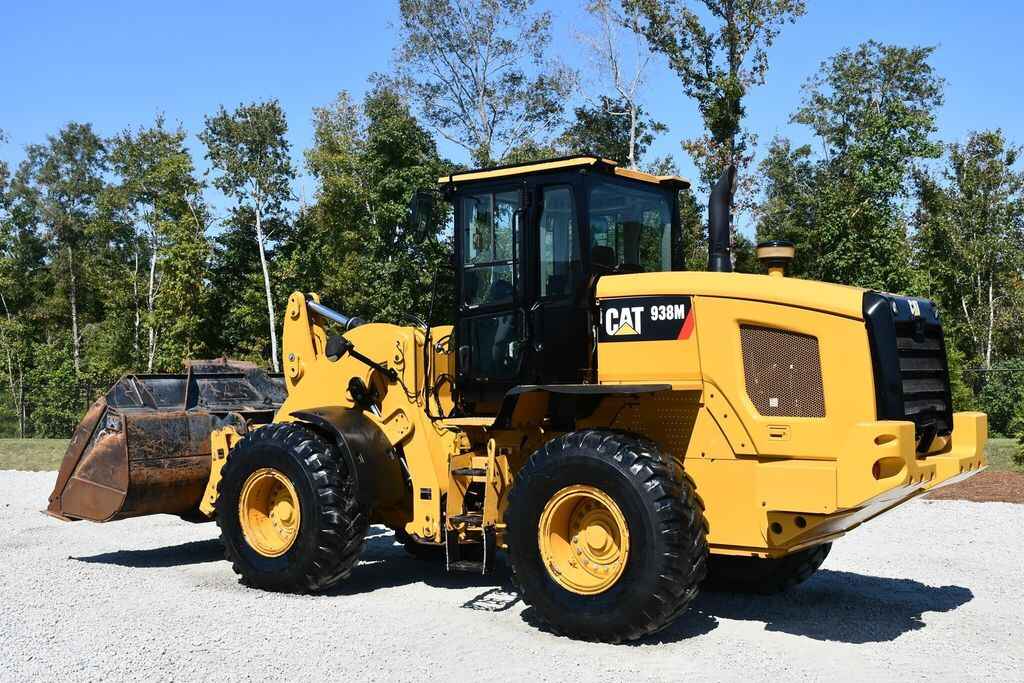

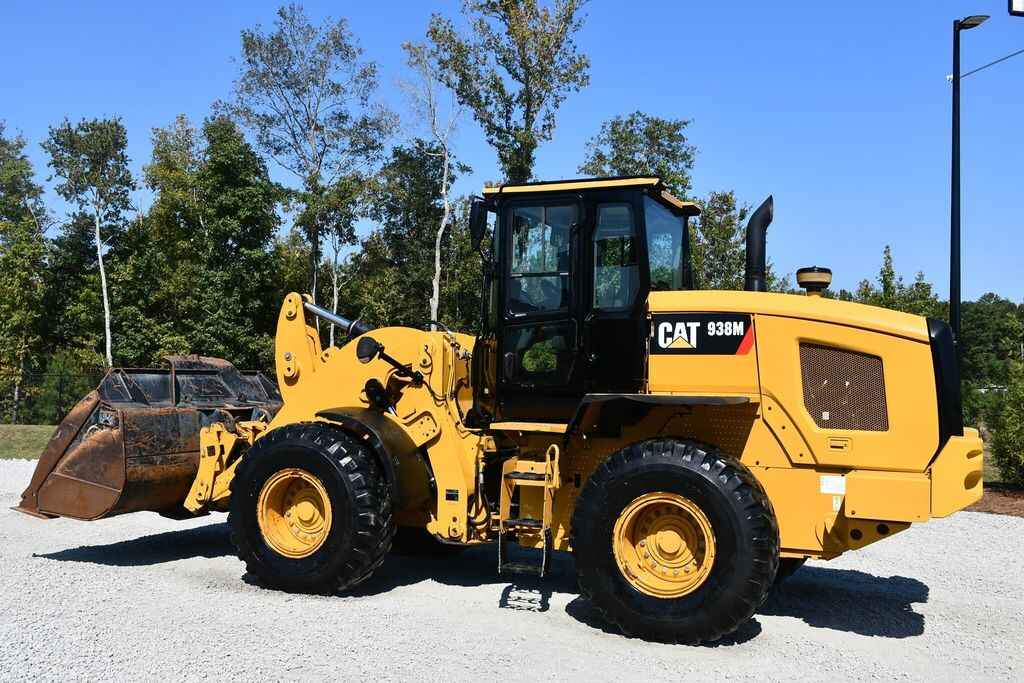

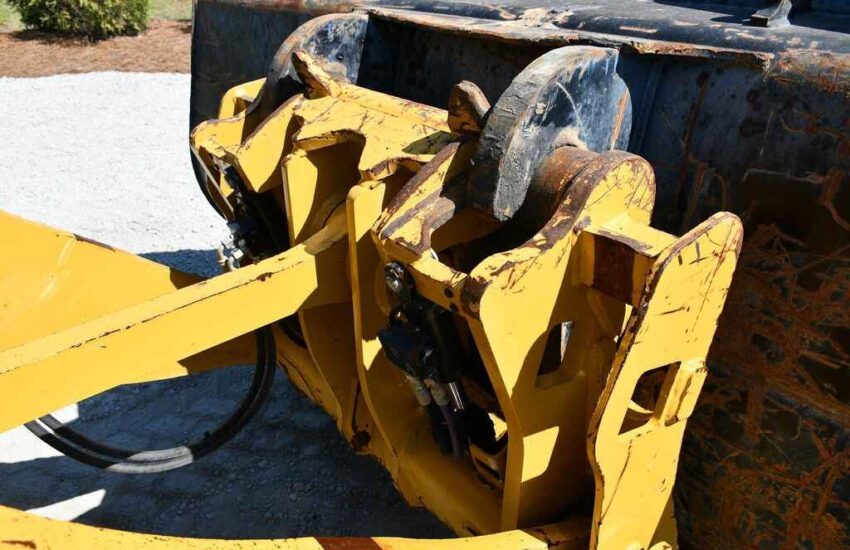

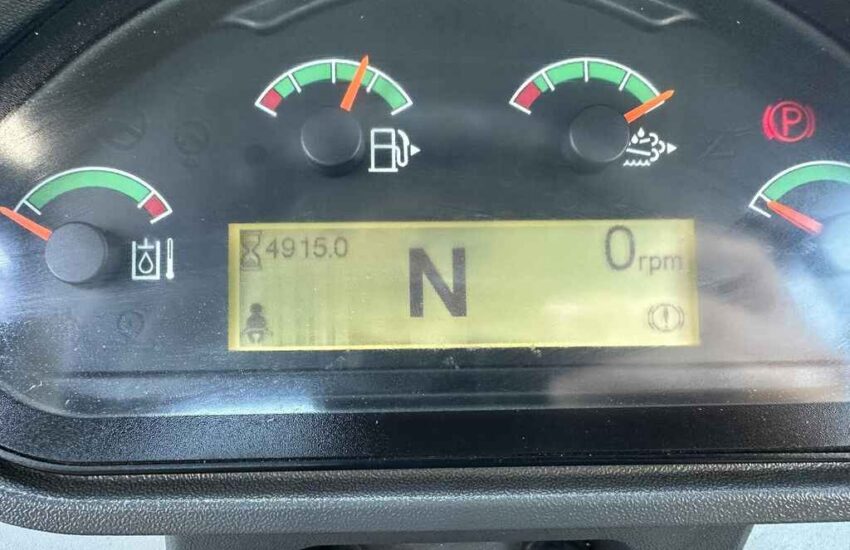

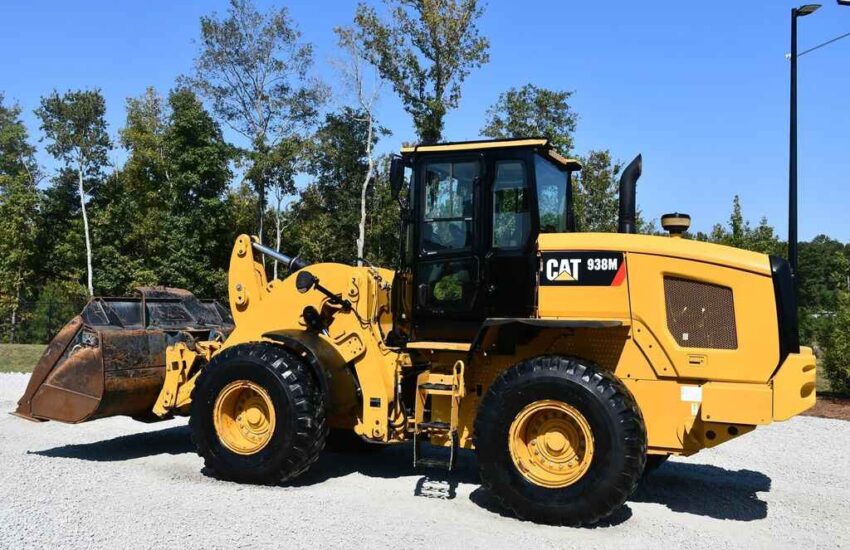

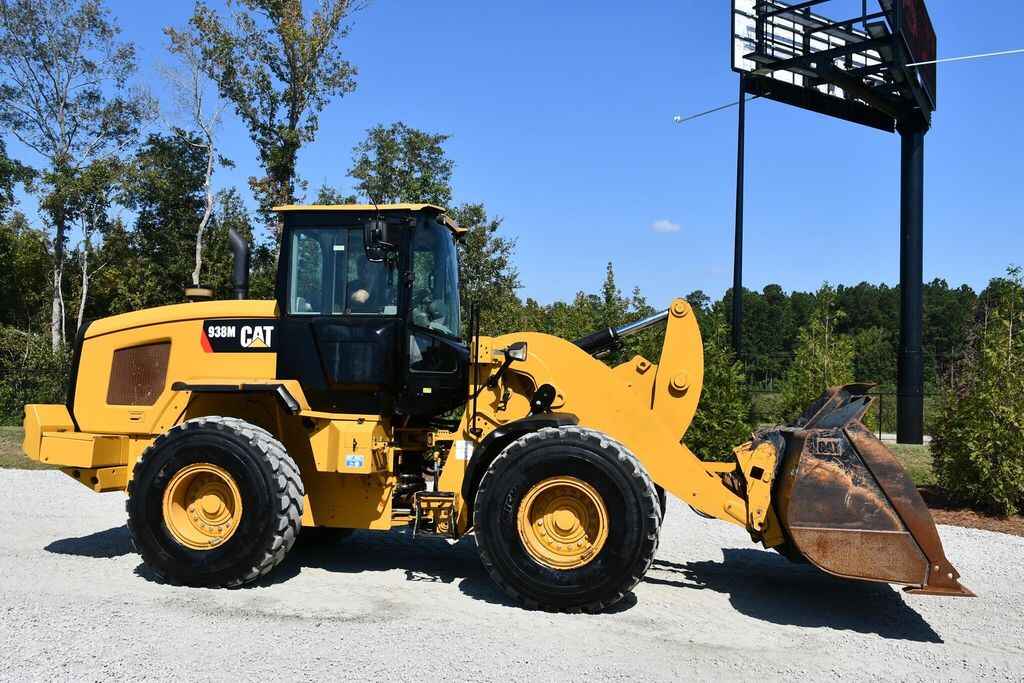

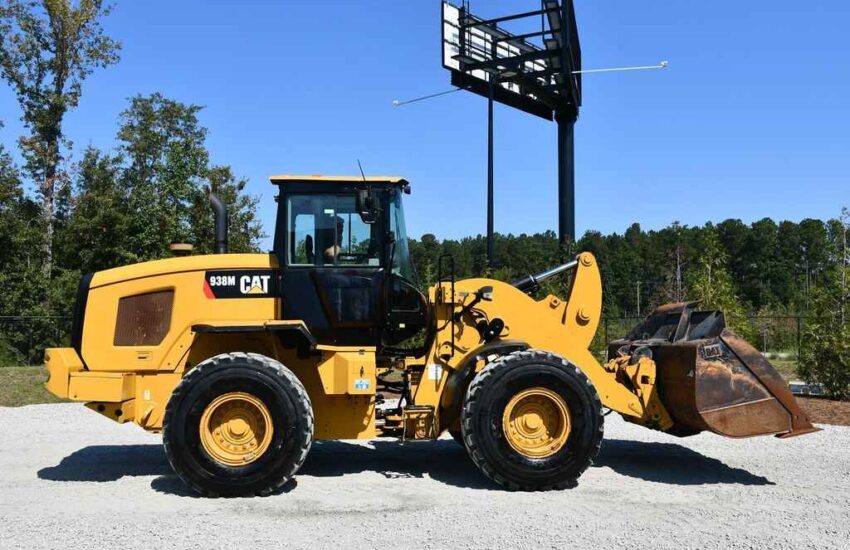

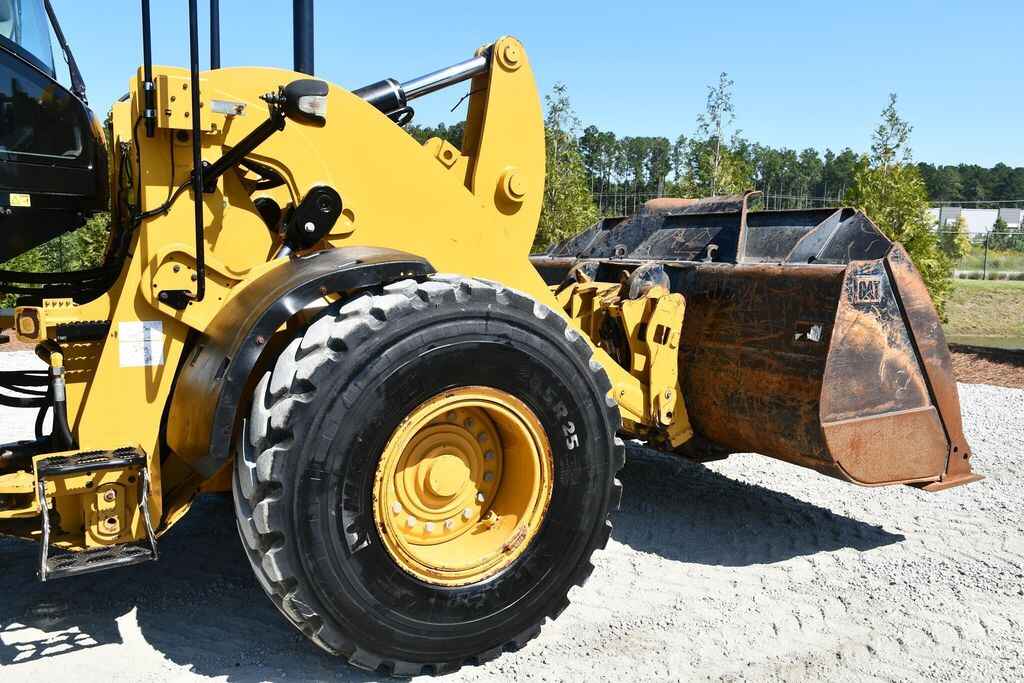

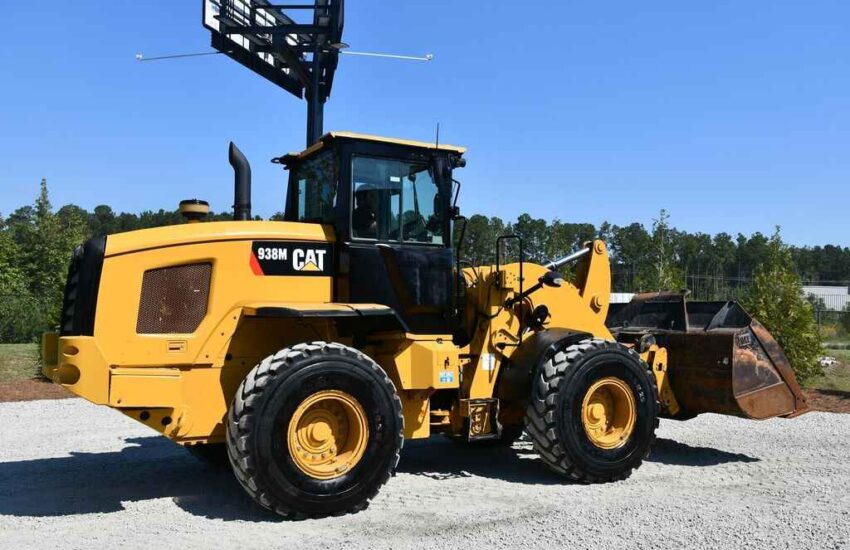

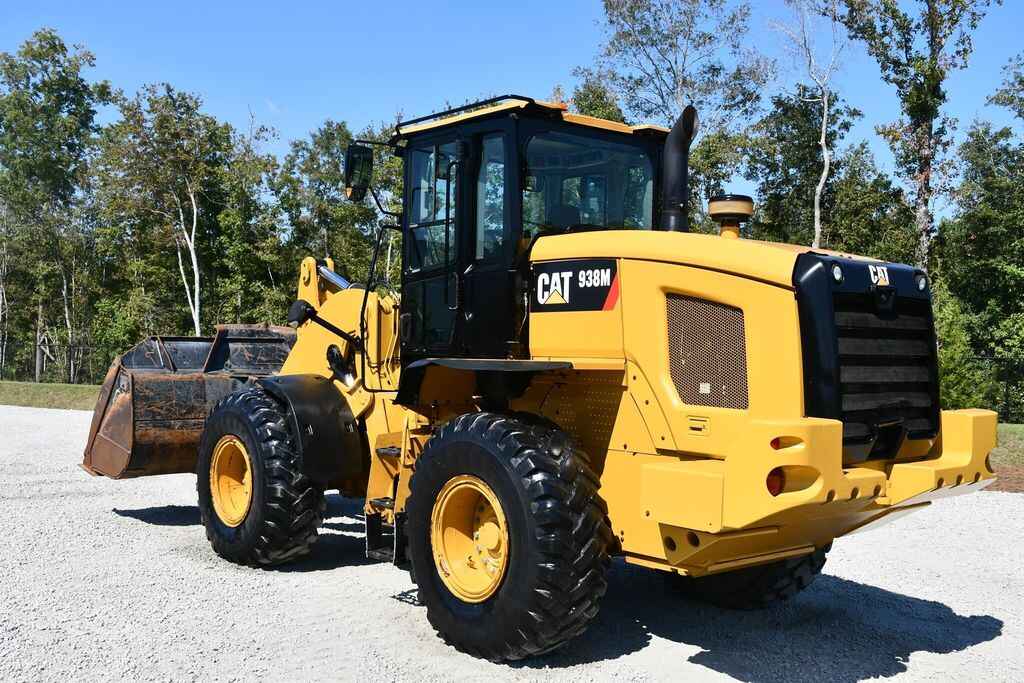

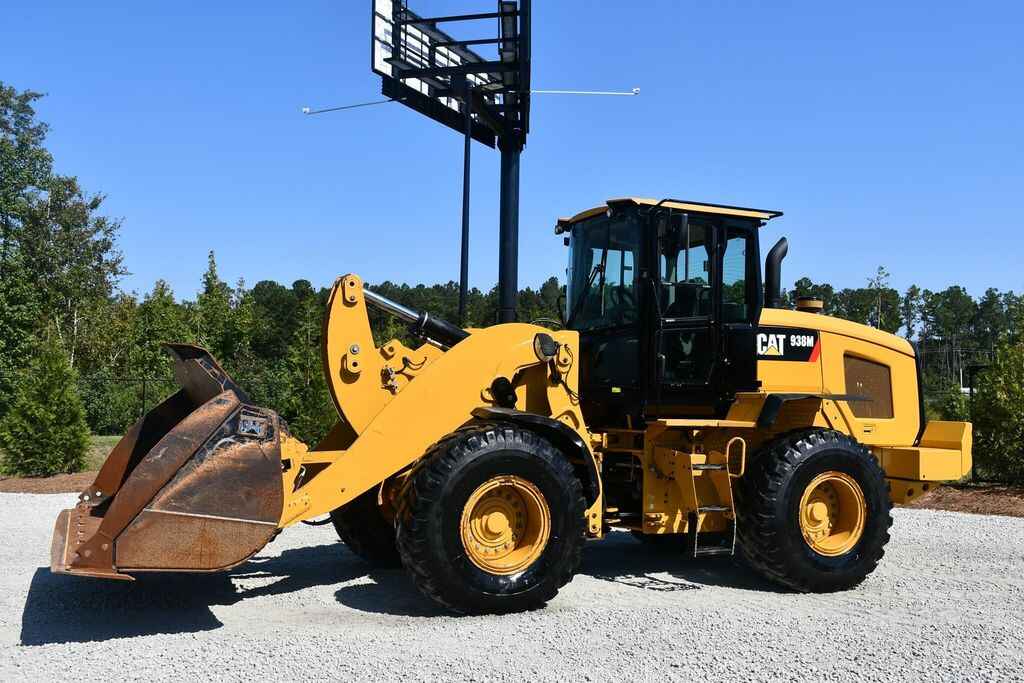

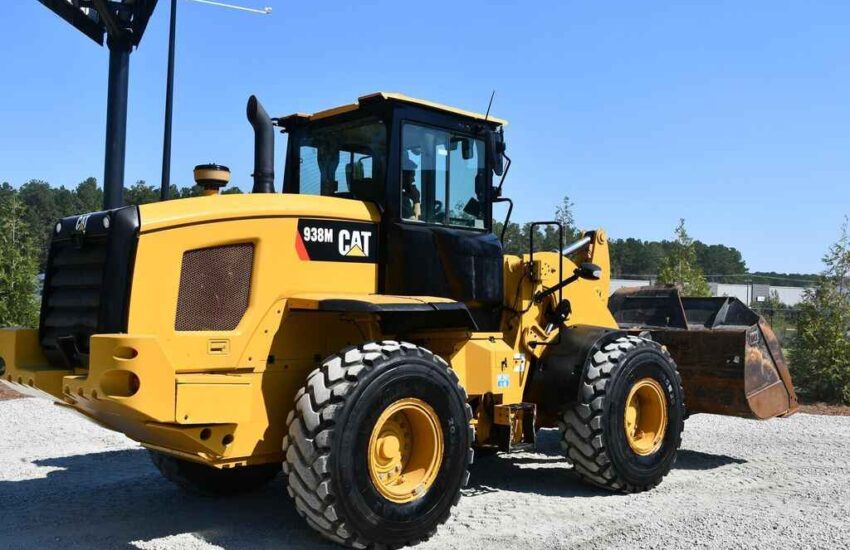

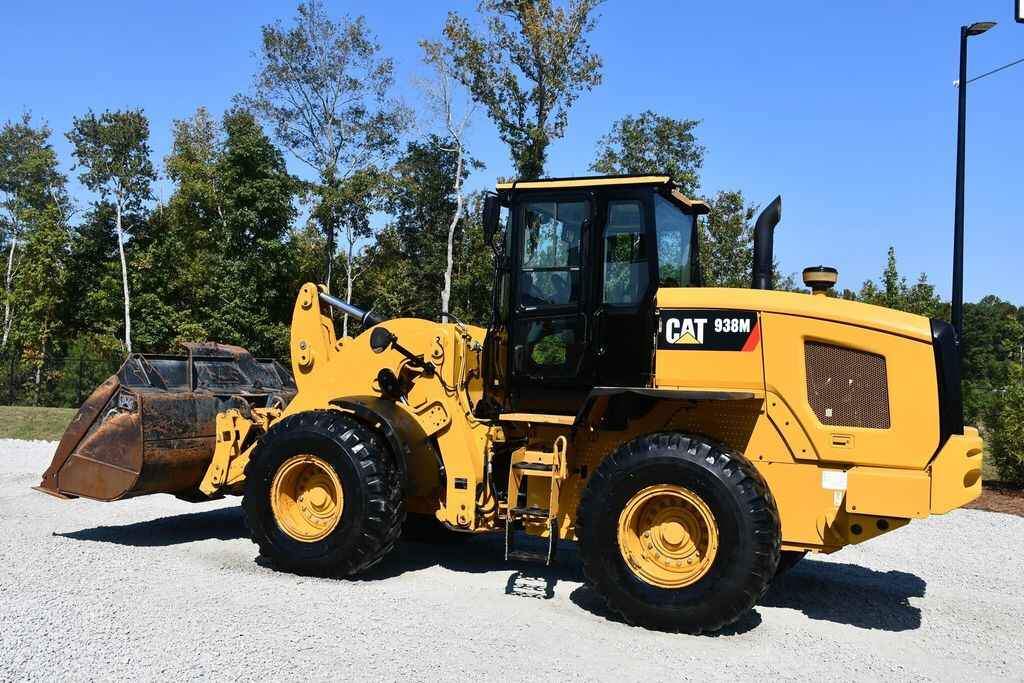

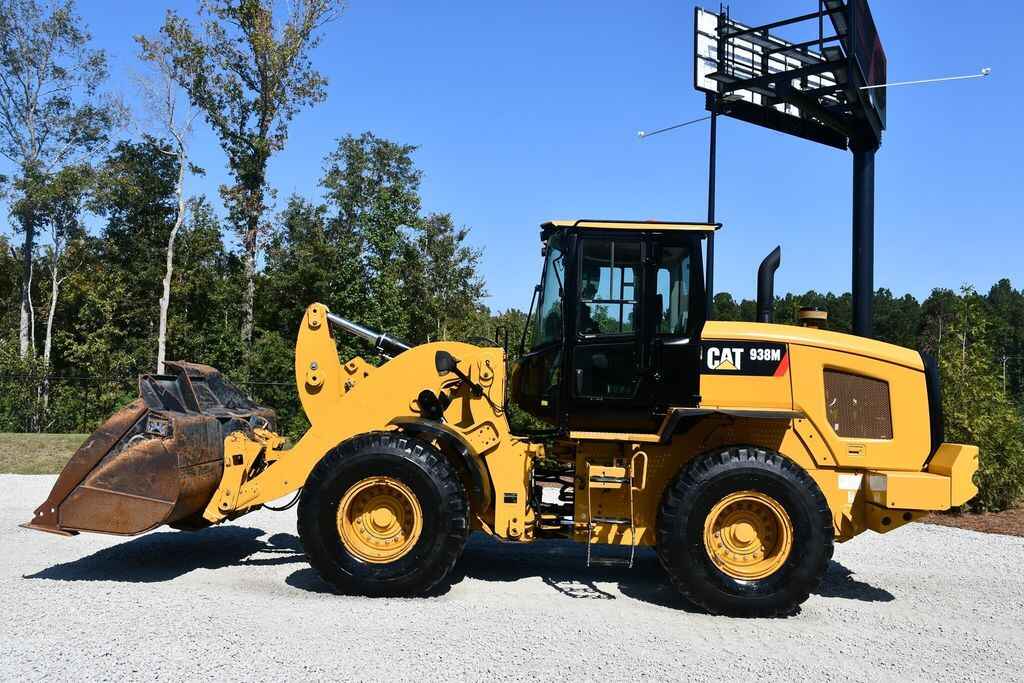

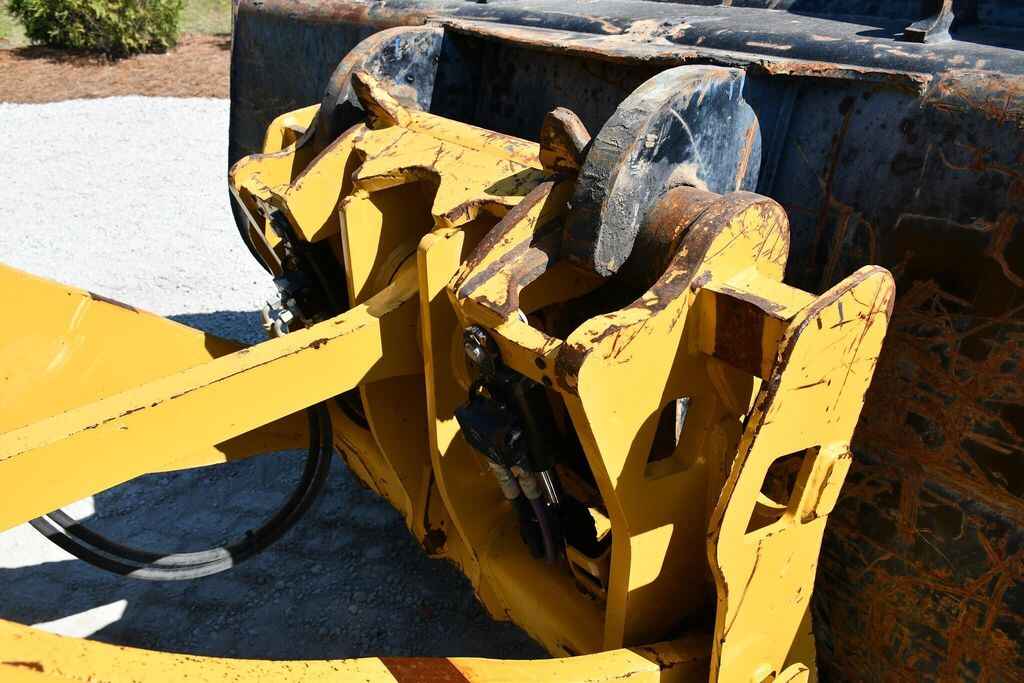

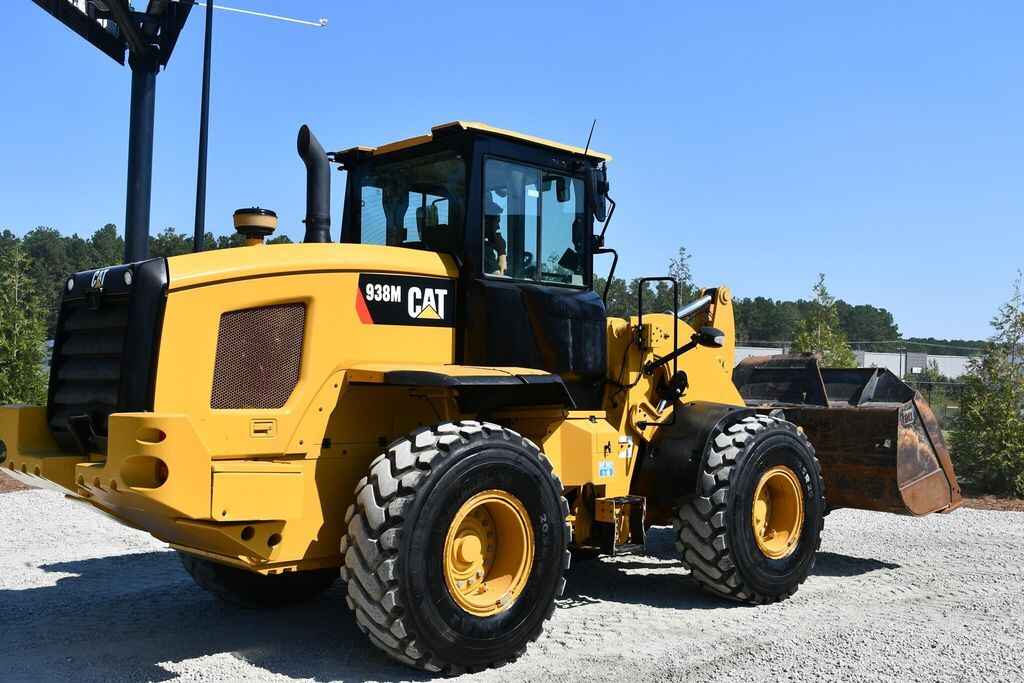

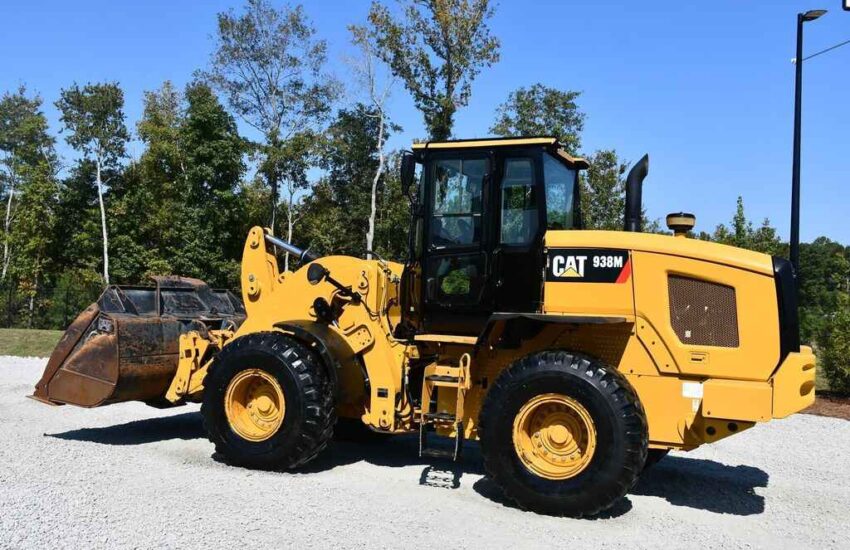

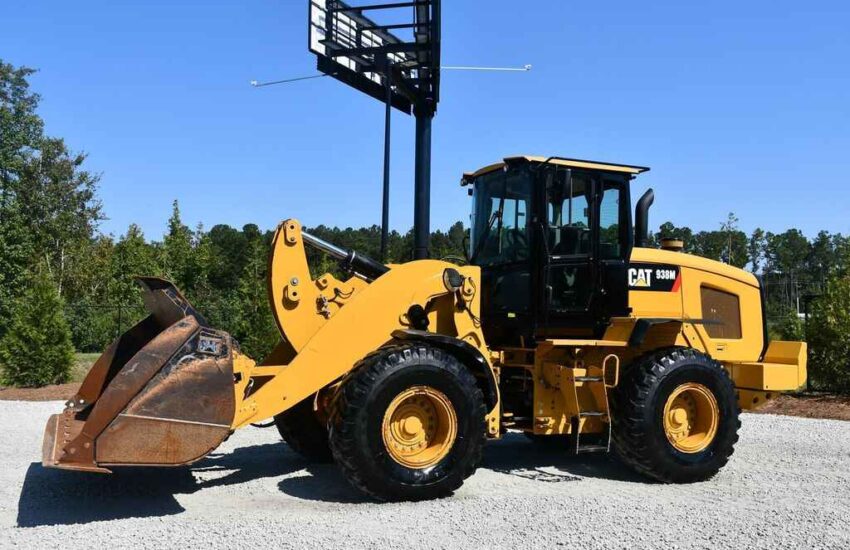

2018 CATERPILLAR, 938M Wheel Loaders, Cab,A/C, meter reads 4913 hours, CAT infusion Quick coupler, GP Bucket.

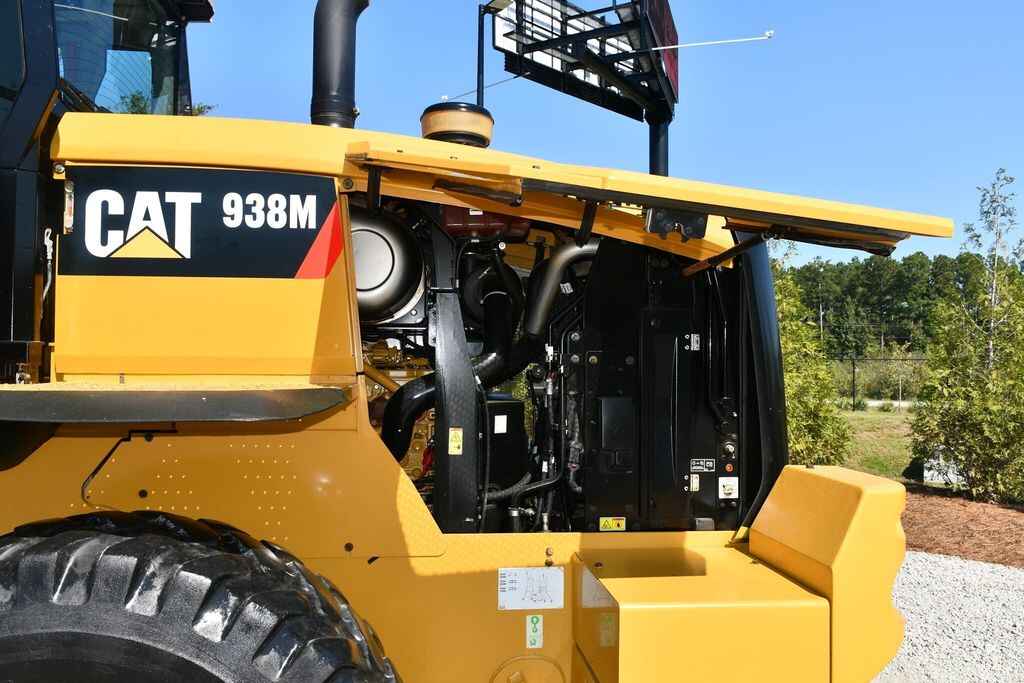

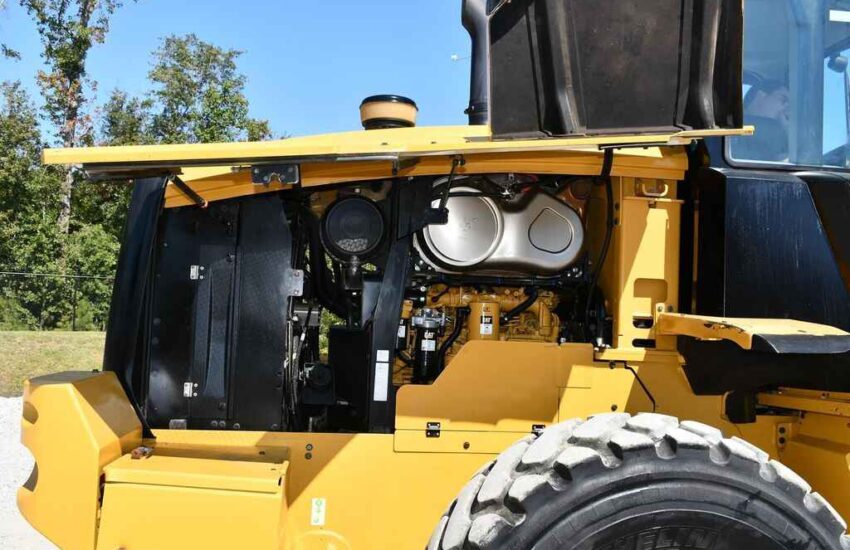

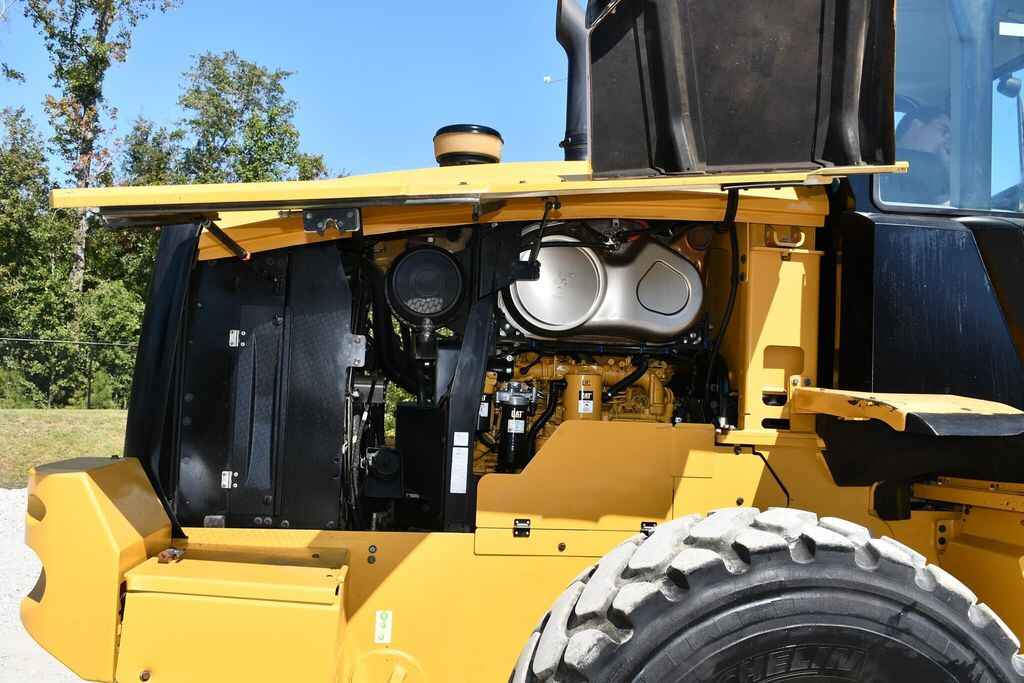

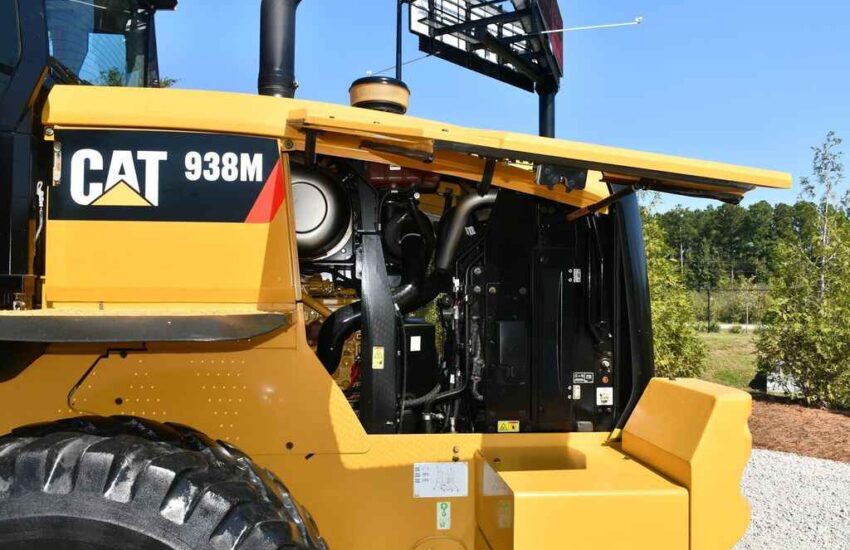

Engine
Displacement: 427 cu in
Bore: 4 in
Stroke: 5 in
Emissions: Engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards
Engine Model: Cat C7.1 ACERT
Maximum Gross Power: 188 hp
Rated Net Power: 182 hp
Maximum Rated Gross Power – Iso 14396 (Din): 190 hp
Rated Net Power – 1,800 Rpm – Iso 9249 (Din): 186 hp
Maximum Gross Torque – Iso 14396 (Performance Power Mode): 648 lb ft
Maximum Net Torque – Sae J1349 (Performance Power Mode): 621 lb ft
Operational
Operating Weight: 36,216 lb
Power Train
Front Axle: Fixed
Rear Axle: Oscillating
Front Axle – Traction Aid: Locking differential
Rear Axle – Oscillation Angle By Tire Size (23.5 R25): 7 degrees
Rear Axle – Traction Aid (Optional): Limited slip differential
Brakes – Parking: Spring applied hydraulically released
Brakes – Service: Outboard wet disc
Transmission

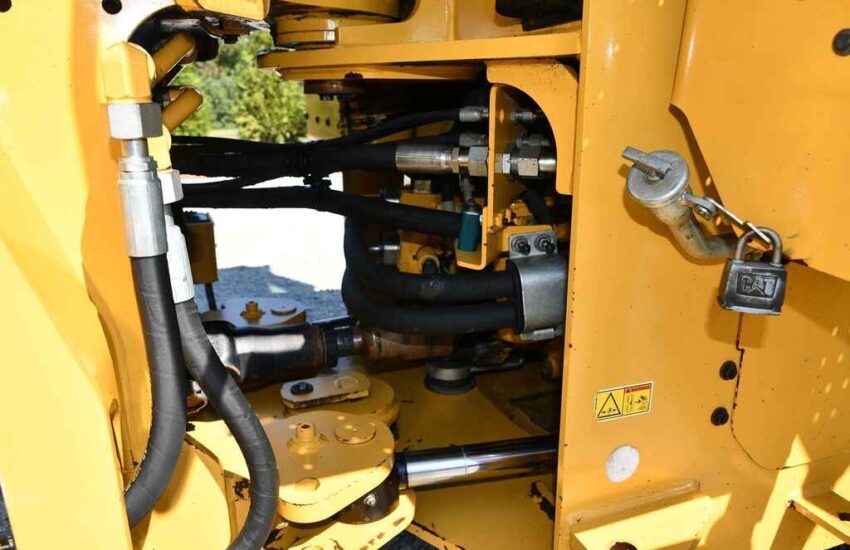

Steering Cylinder, Double Acting – Bore Diameter: 3.1 in
Steering Cylinder, Double Acting – Rod Diameter: 2 in
Maximum Steering Torque – 0 Degrees: 42,506 lb ft
Maximum Steering Torque – 40 Degrees (Full Turn): 31,398 lb ft
Maximum Flow – Steering Pump: 34 gal/min

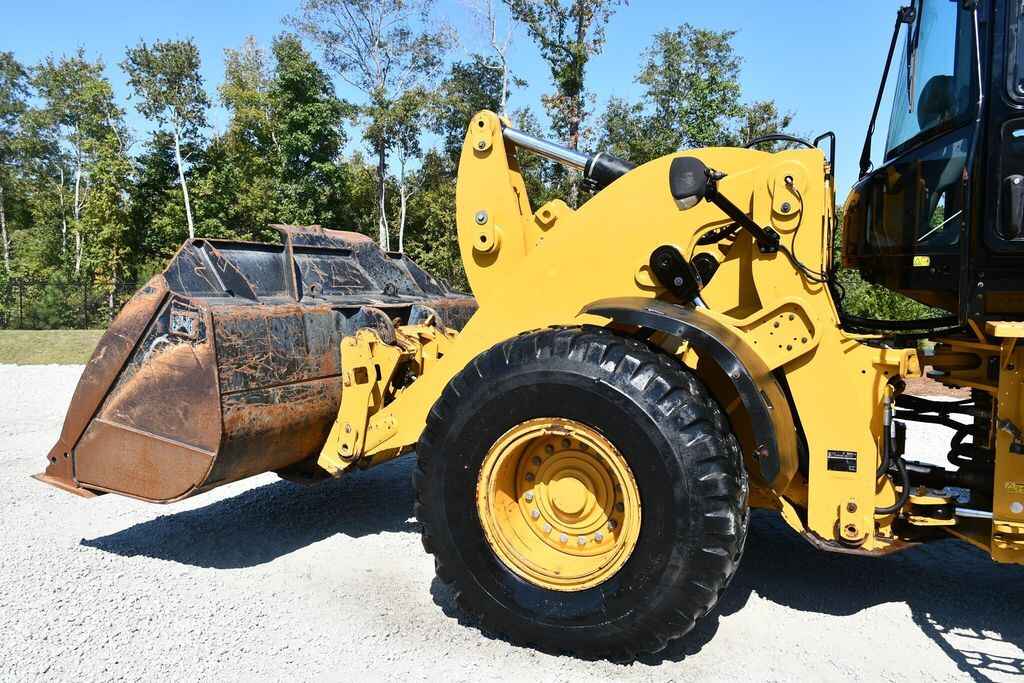

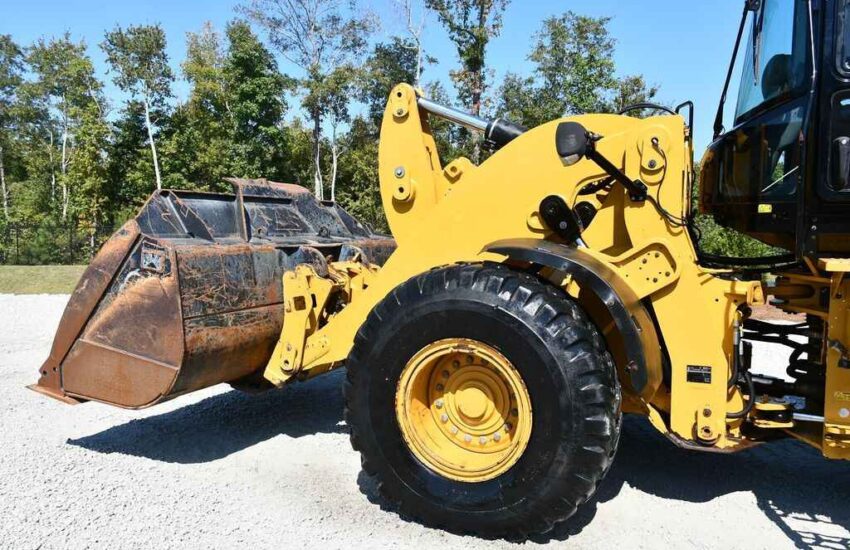

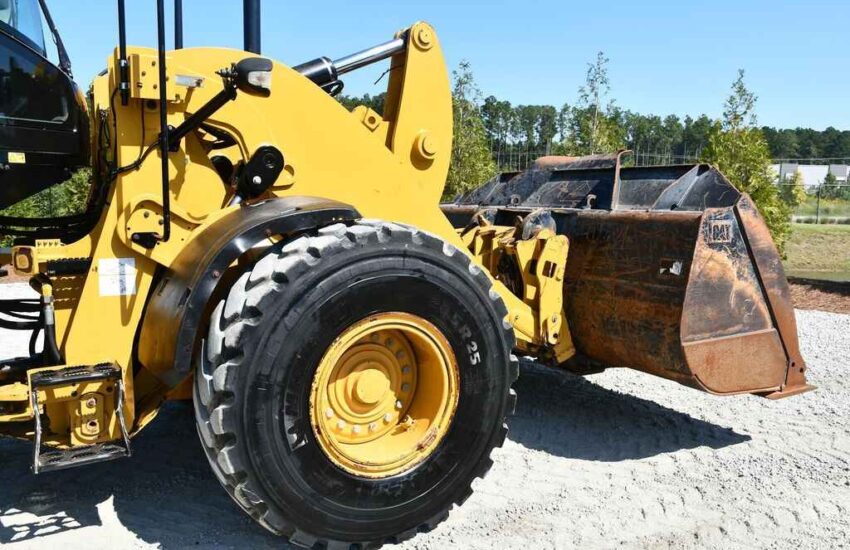

Buckets
Bucket Capacities: 2.5 – 5.0 m³ (3.3 – 6.5 yd³)
Operating Specifications
Full Turn Tip Load: 22,107 lb
Service Refill Capacities
Cooling System: 8.5 gal
Fuel Tank: 51.5 gal
Hydraulic Tank: 23.8 gal
Hydraulic System – Including Tank: 44.9 gal
Engine Crankcase: 5.3 gal
Transmission – Gear Box: 2.9 gal
Diesel Exhaust Fluid (DEF) Tank: 5 gal

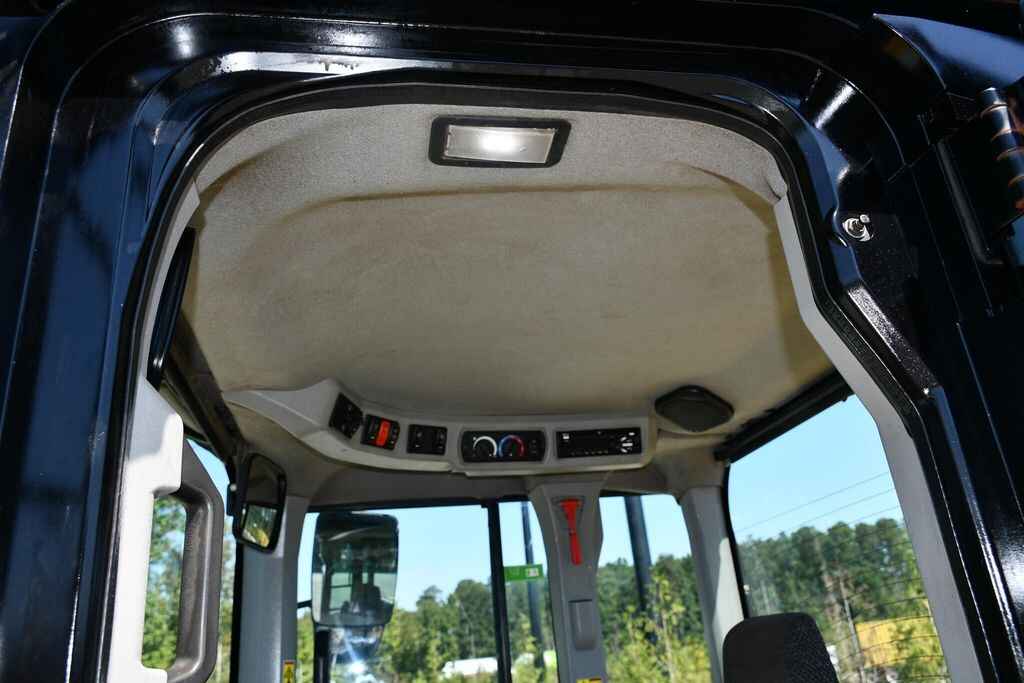

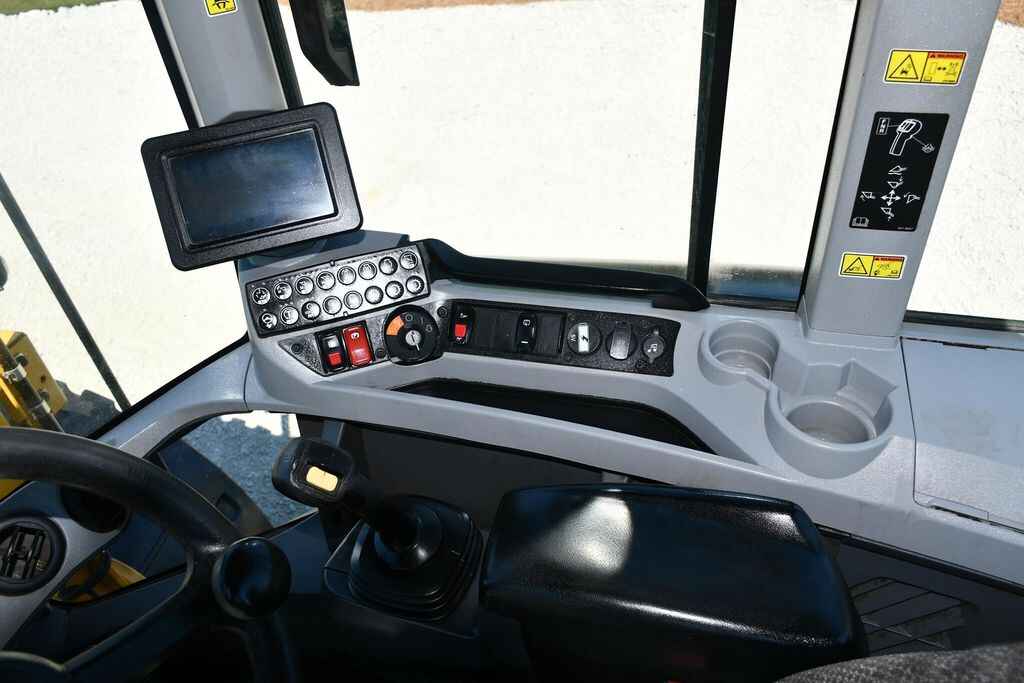

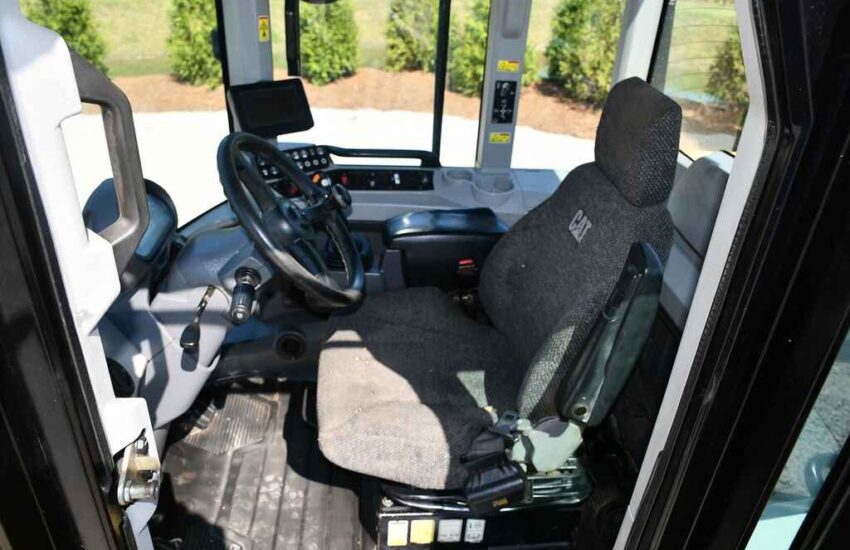

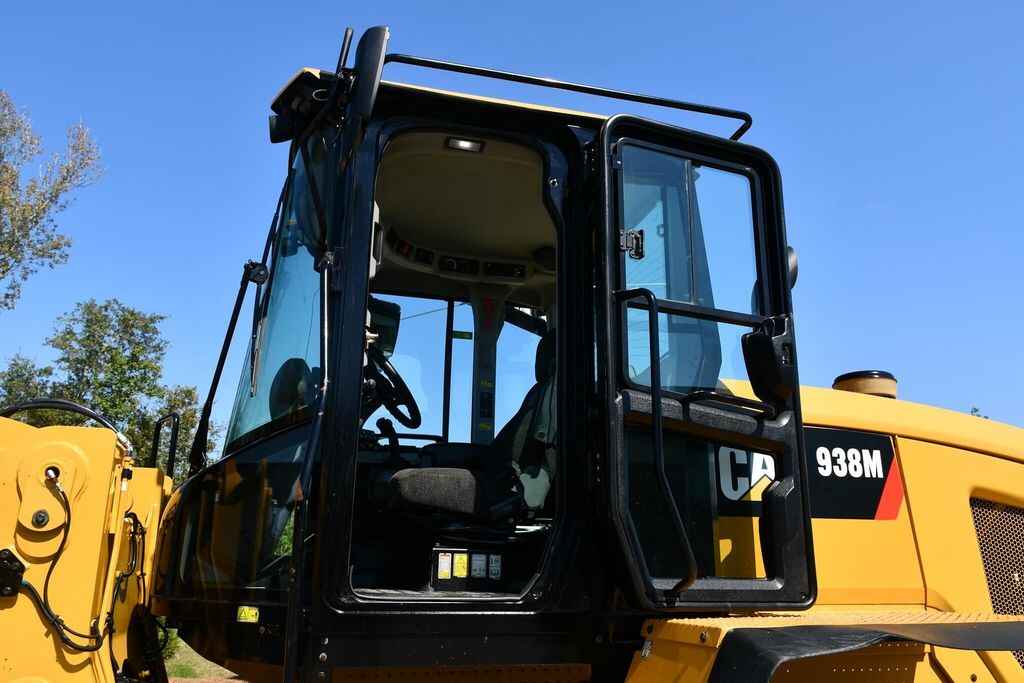

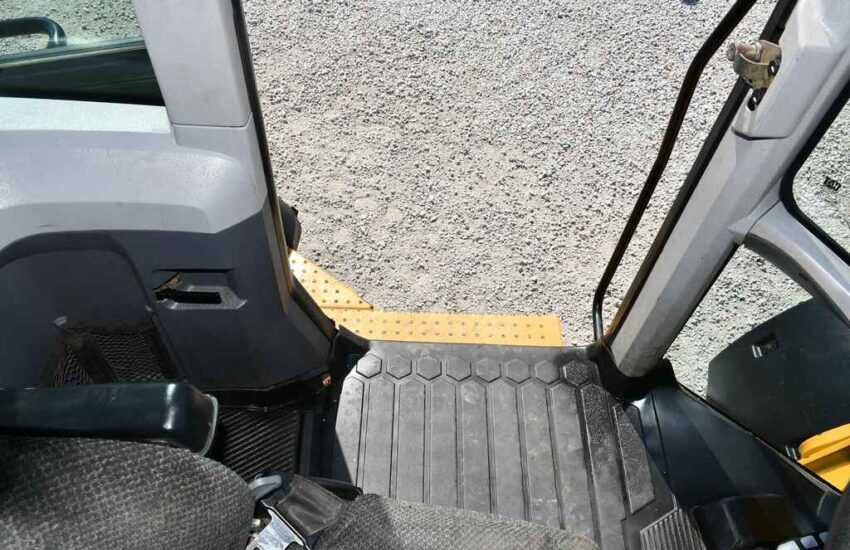

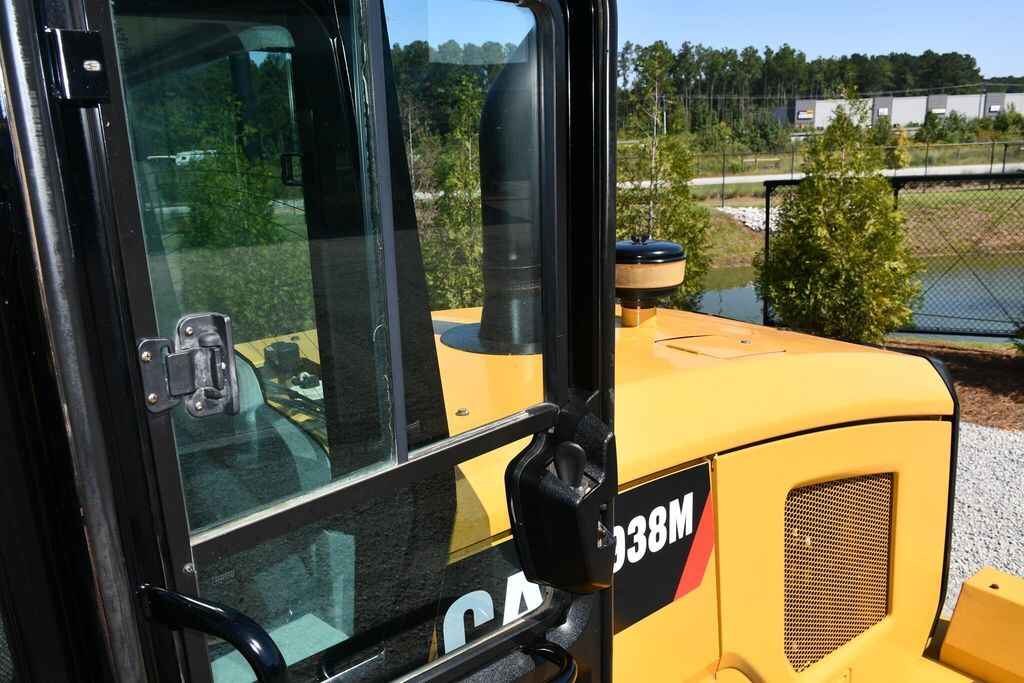

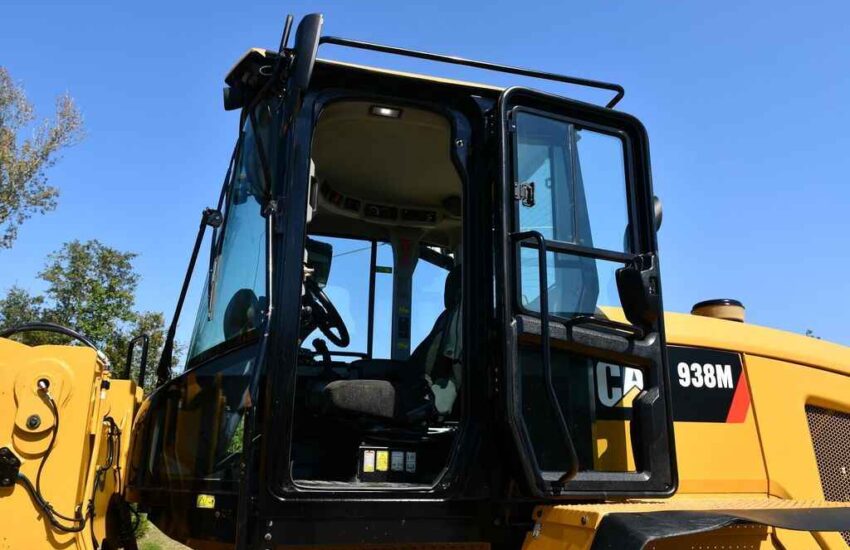

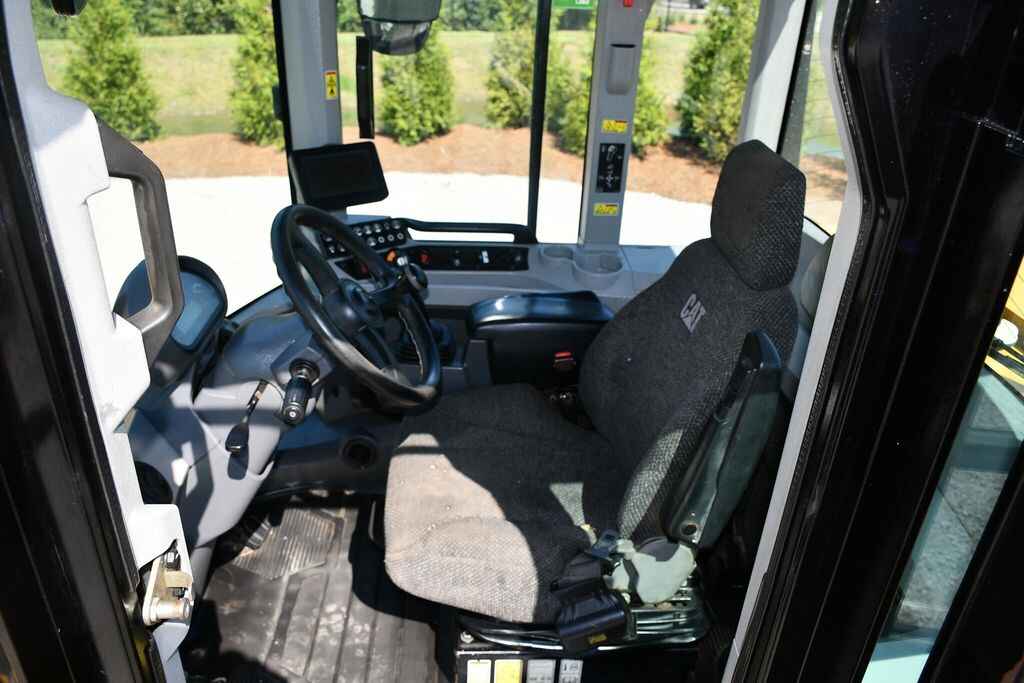

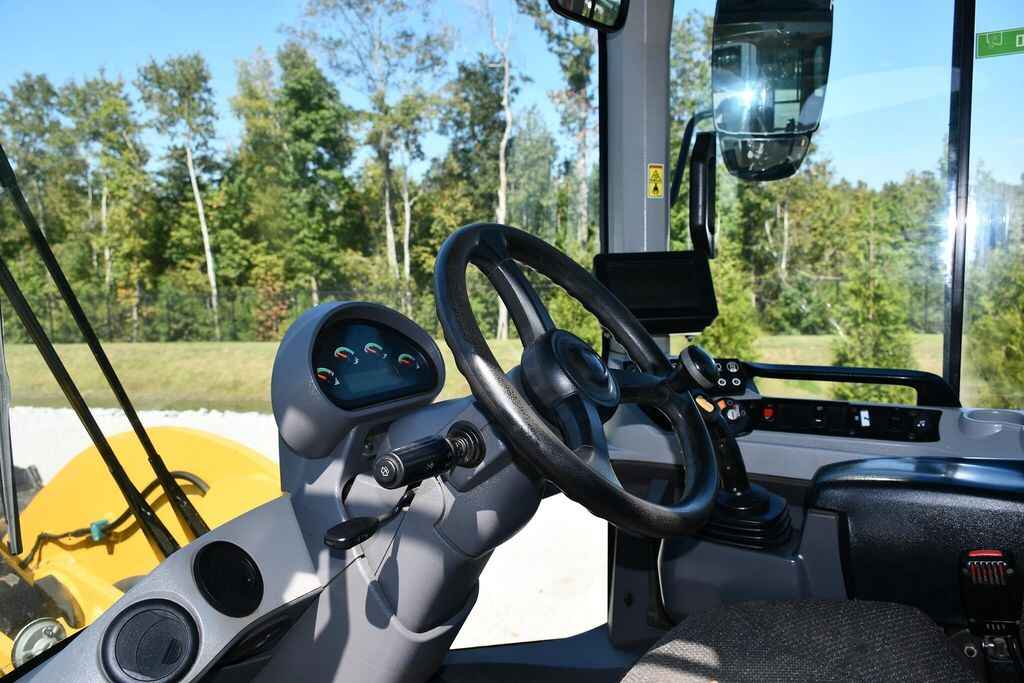

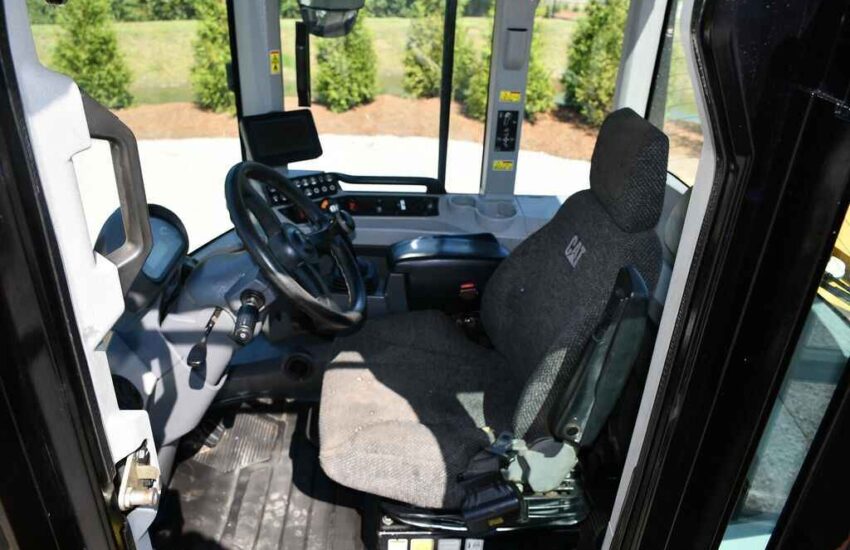

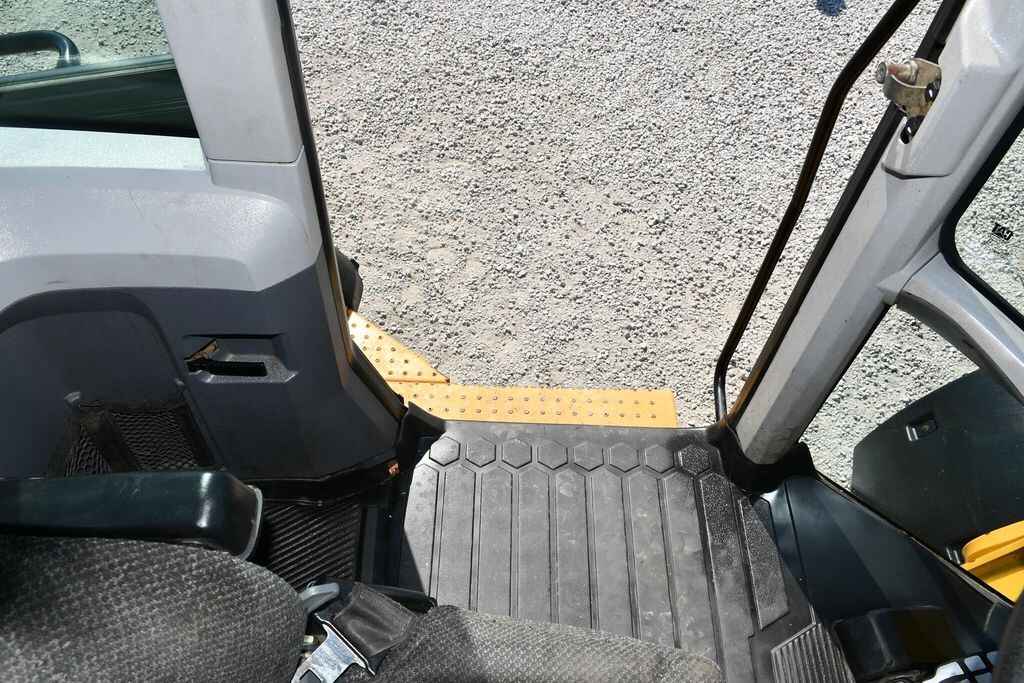

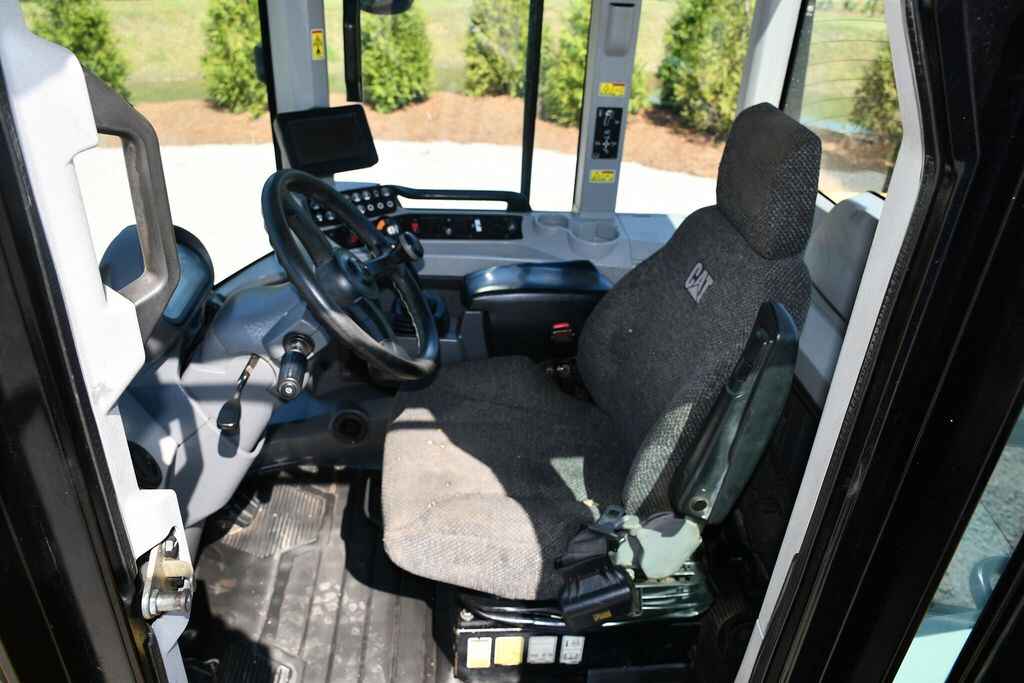

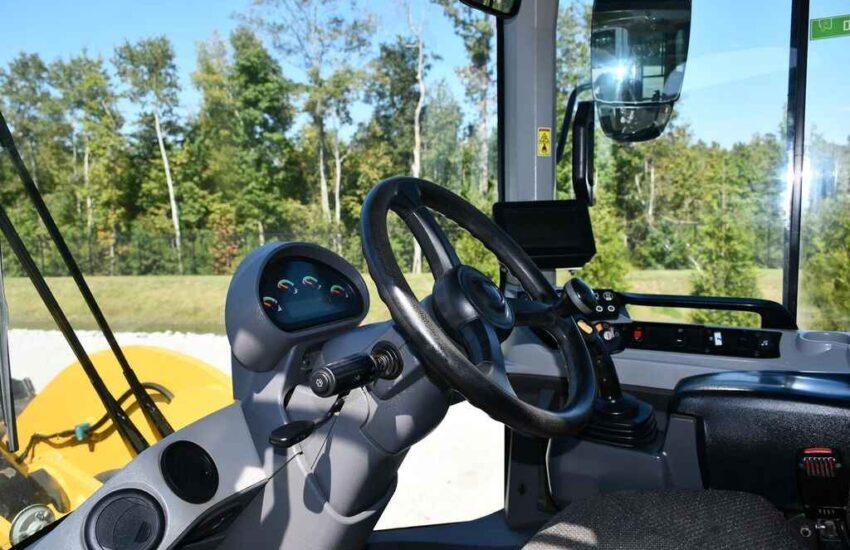

Cab
ROPS: ISO 3471:2008
FOPS: ISO 3449:2005 Level II
Sound Levels: Standard cab: 68 dB(A)

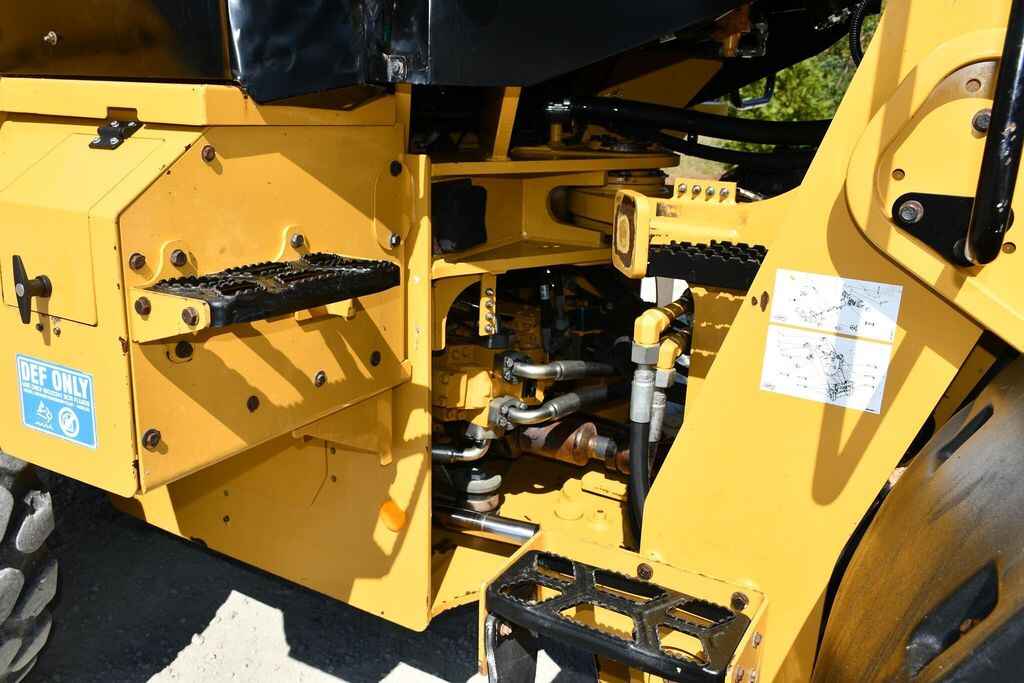

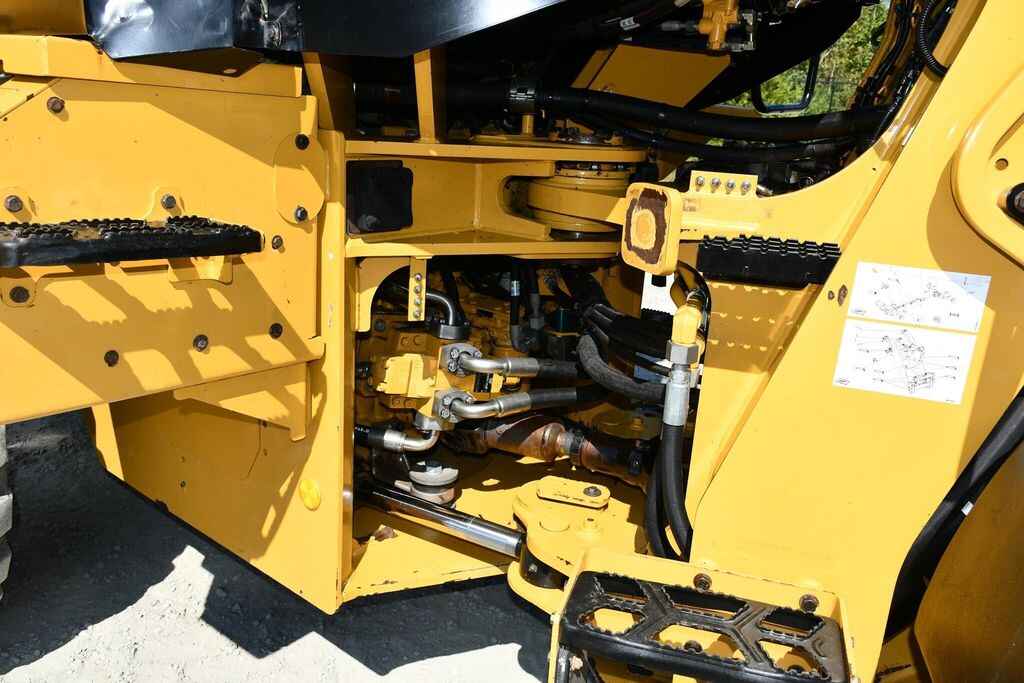

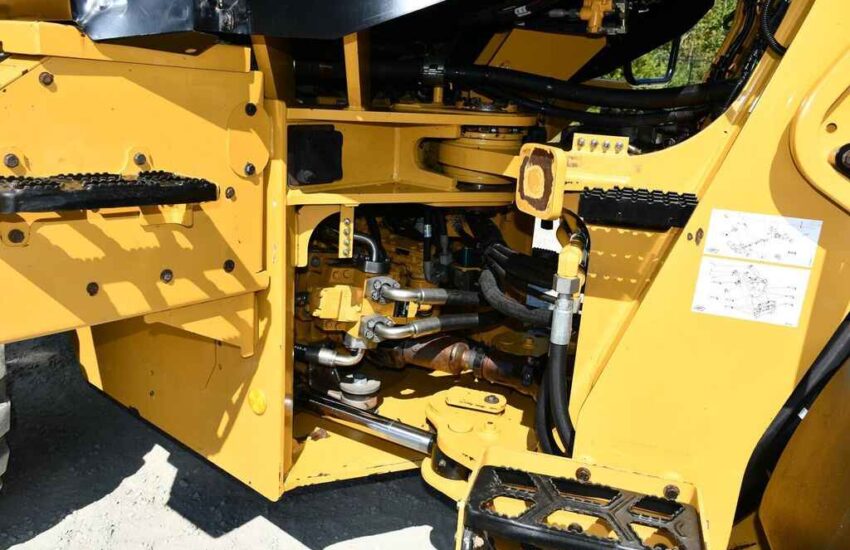

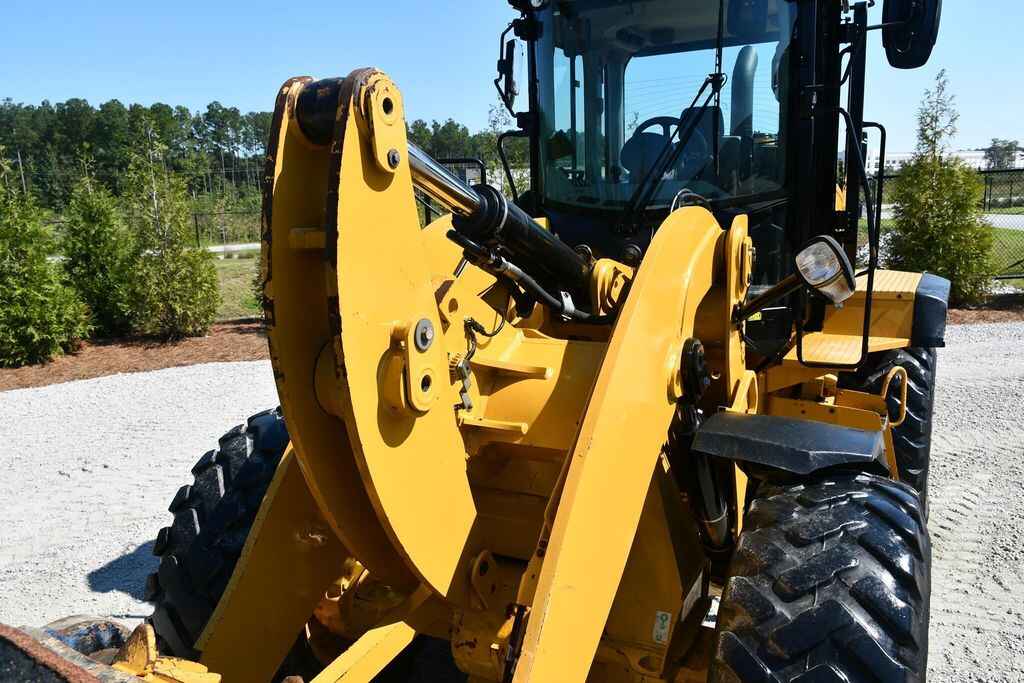

Loader Hydraulic System
Lift Cylinder, Double Acting – Stroke: 31.1 in
Tilt Cylinder, Double Acting – Stroke: 21.9 in
Maximum Flow – Implement Pump: 50 gal/min
Maximum Working Pressure – Implement Pump: 4,061 psi
Lift Cylinder, Double Acting – Bore Diameter: 4.7 in
Tilt Cylinder, Double Acting – Bore Diameter: 5.9 in
Air Conditioning System
Air Conditioning: The air conditioning system contains R134a refrigerant (Global Warming Potential 1430). The system contains 1.9 kg of refrigerant with a CO2 equivalent of 2.717 metric tonnes.
