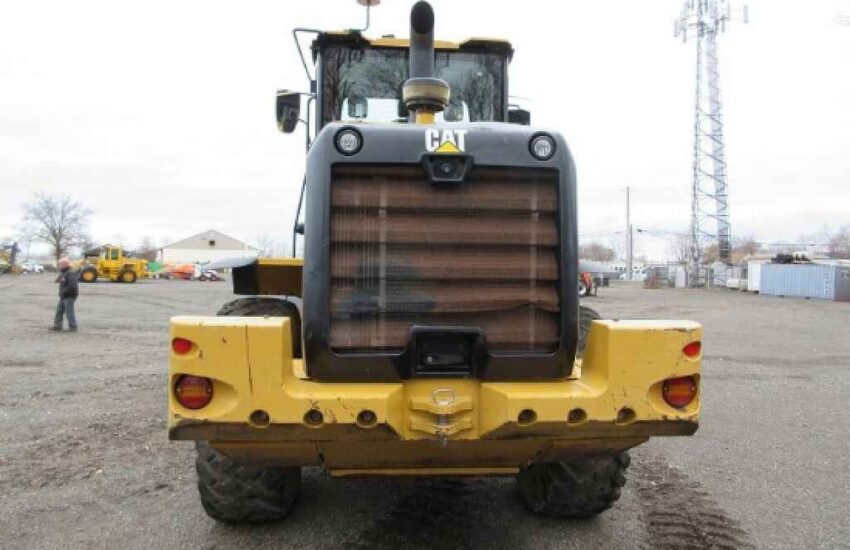

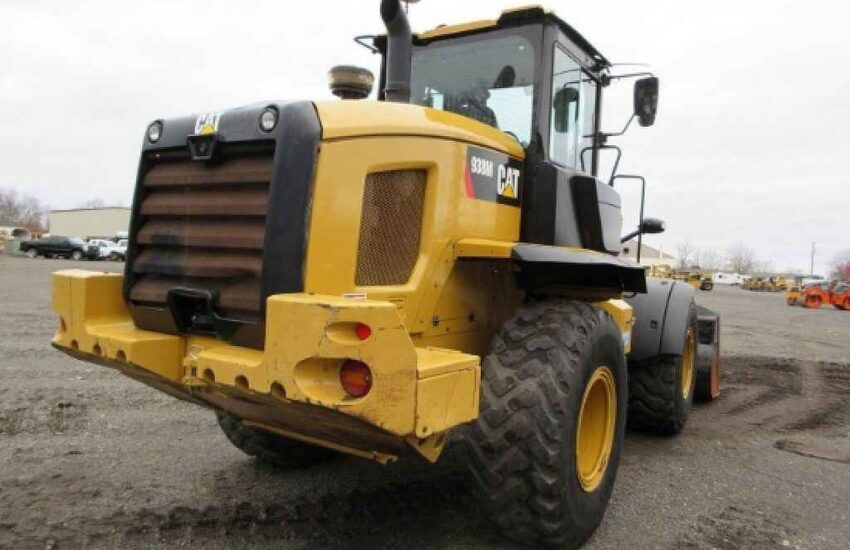

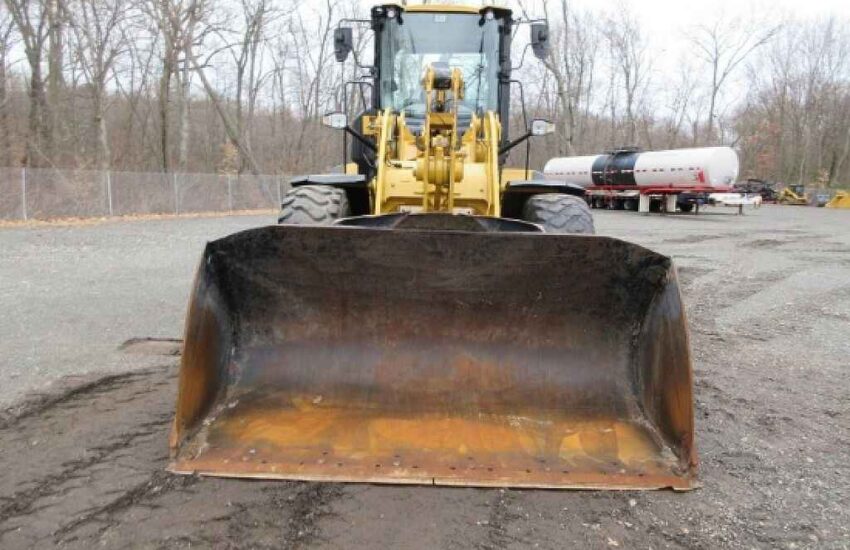

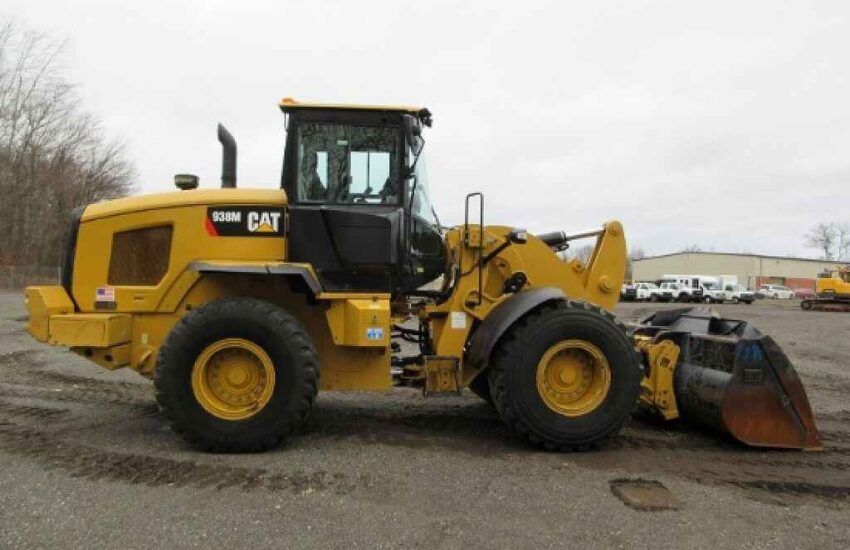

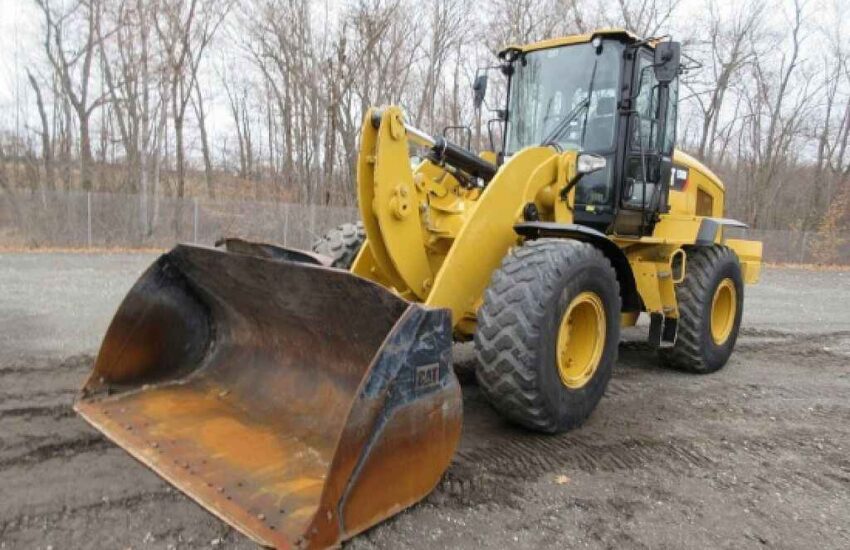

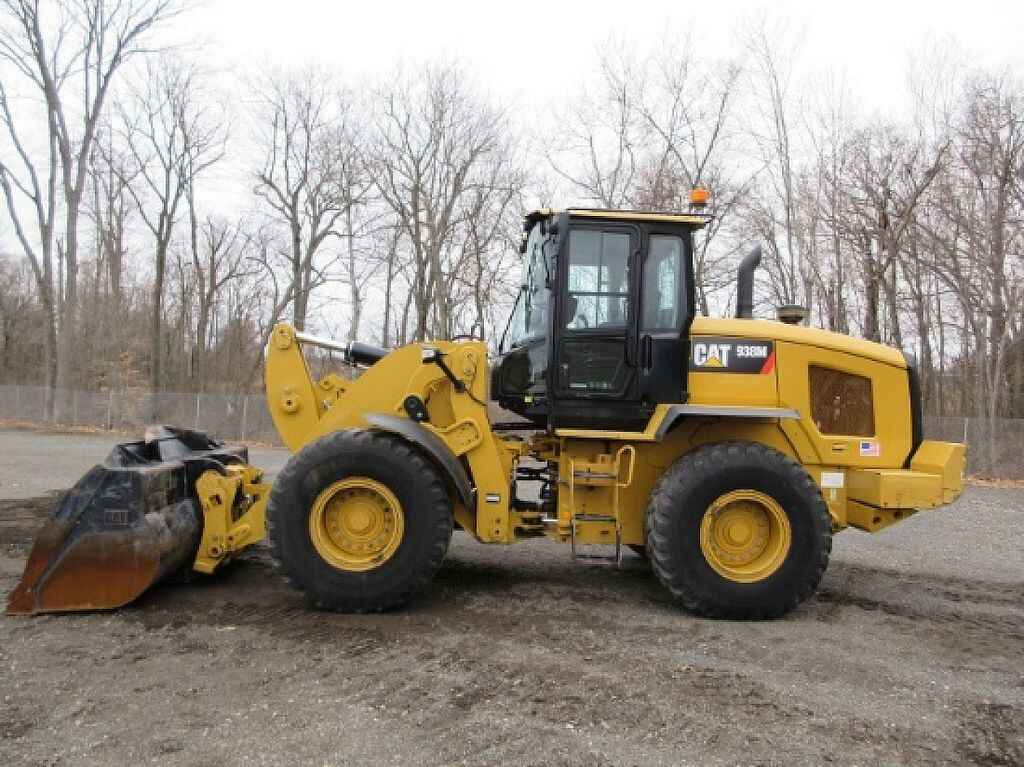

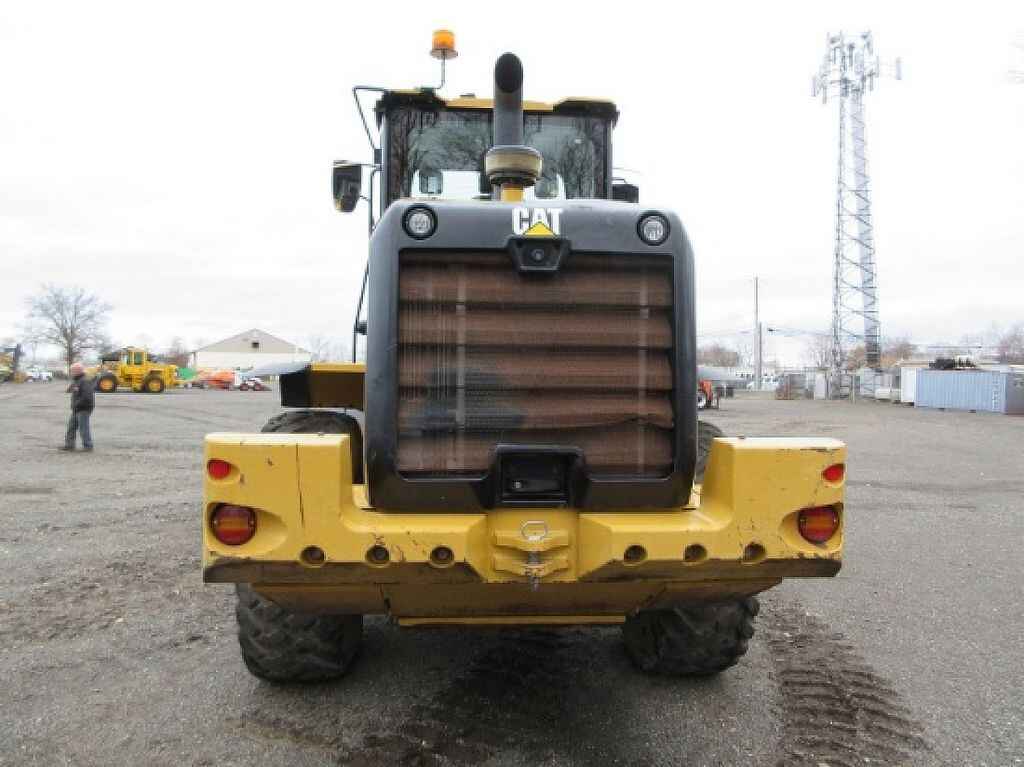

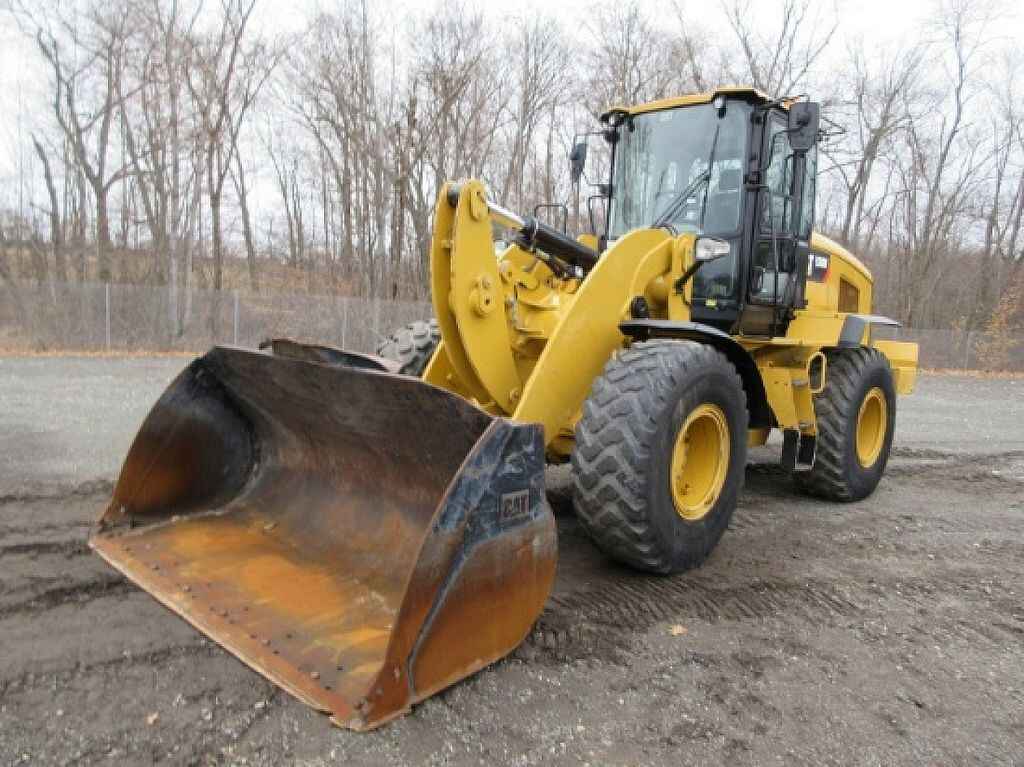

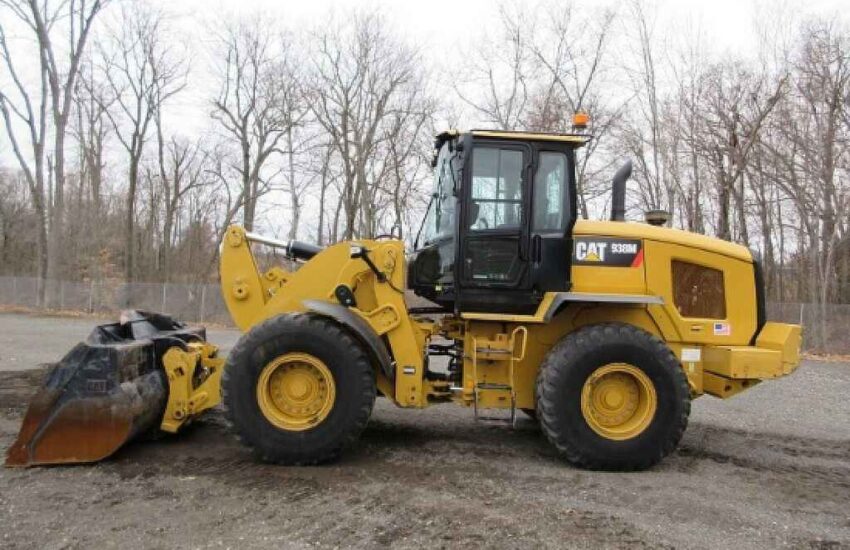

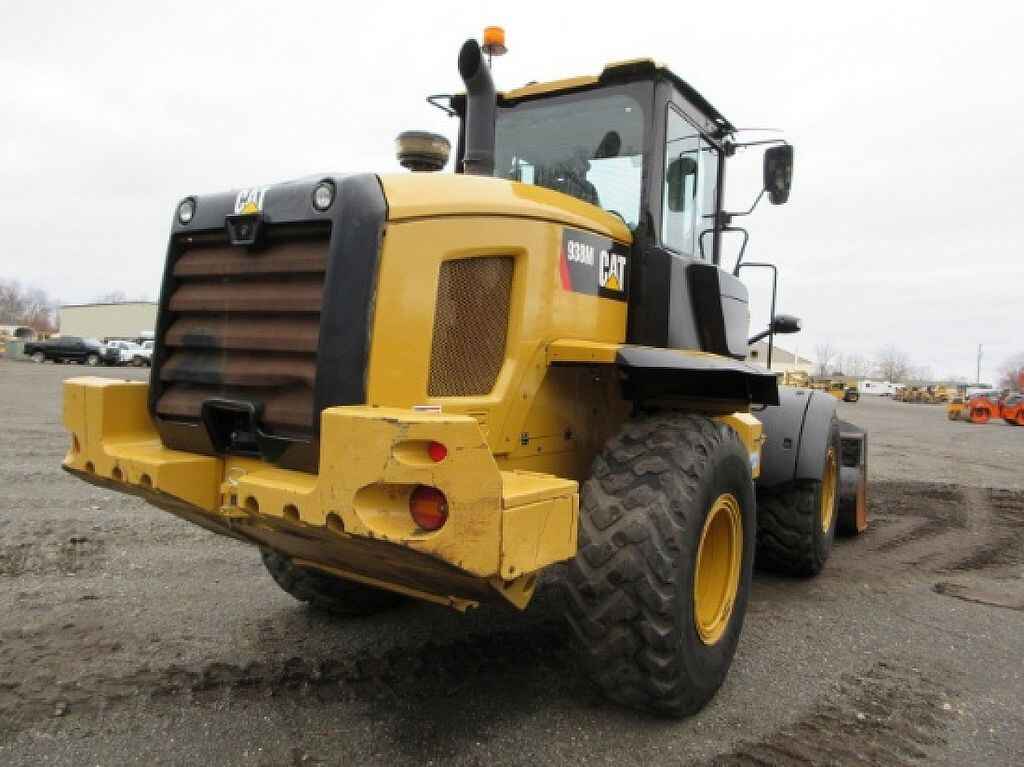

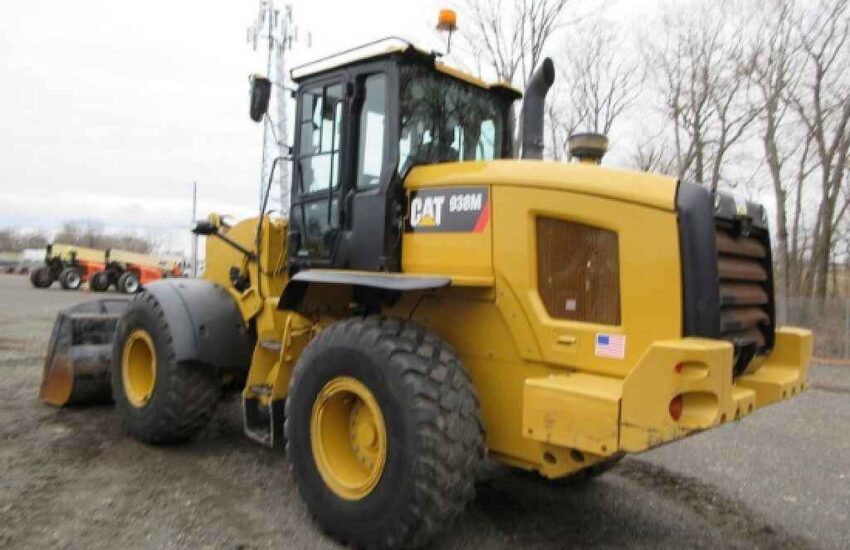

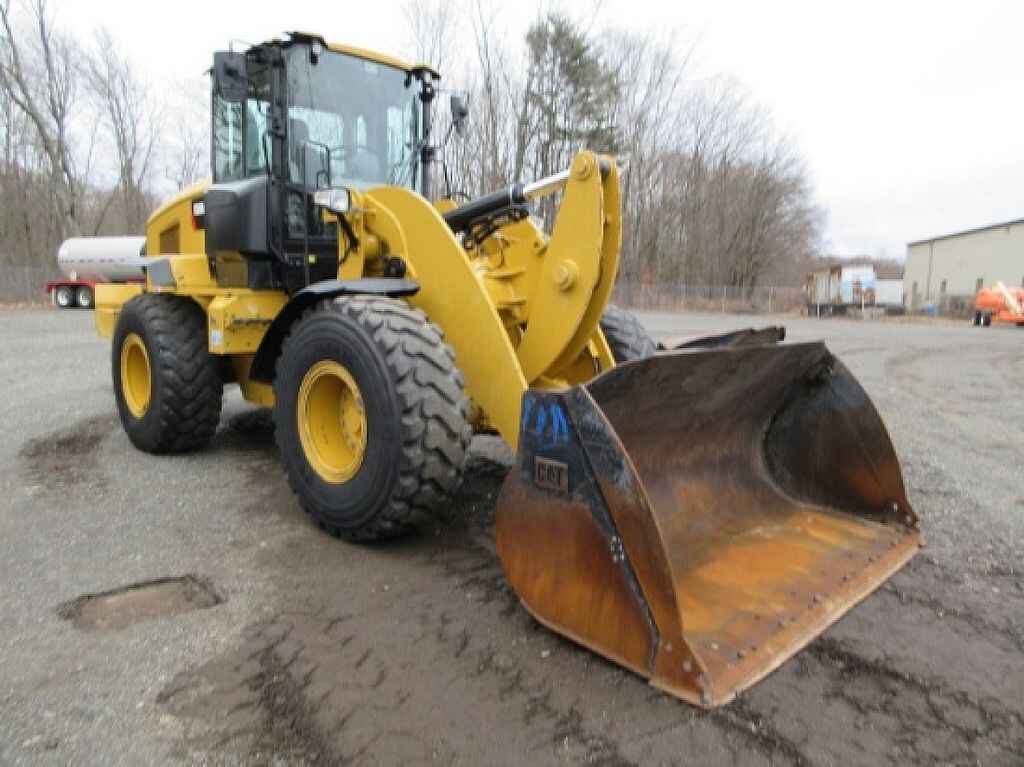

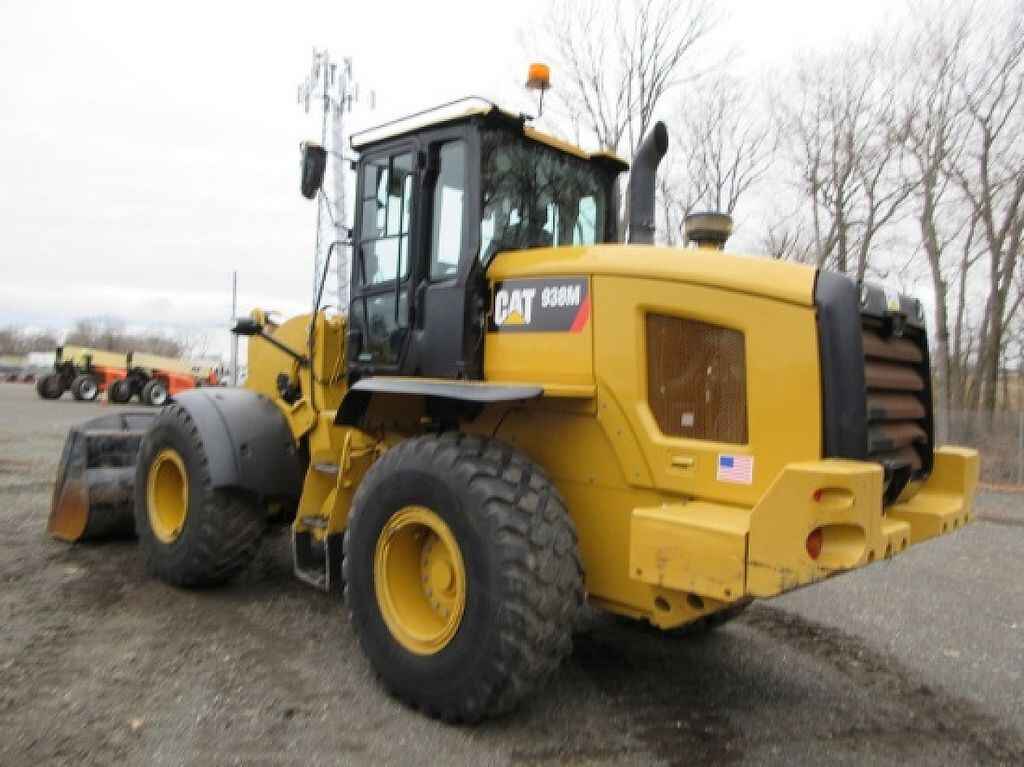

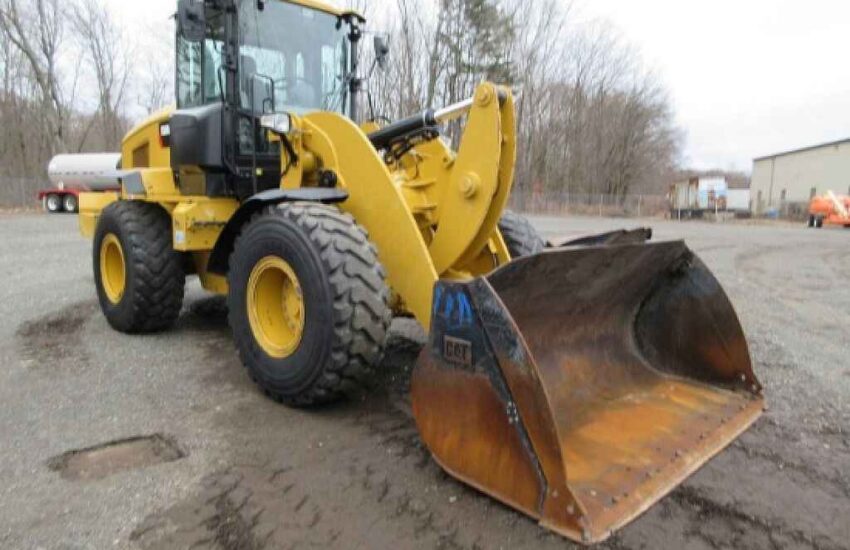

2018 Caterpillar 938M

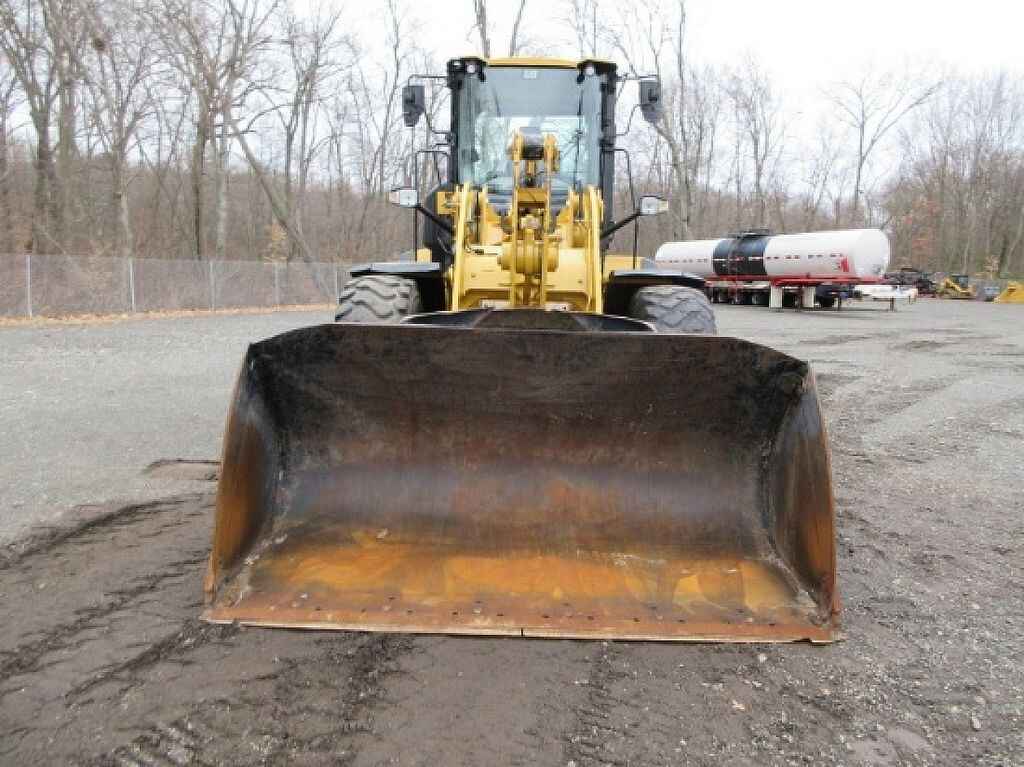

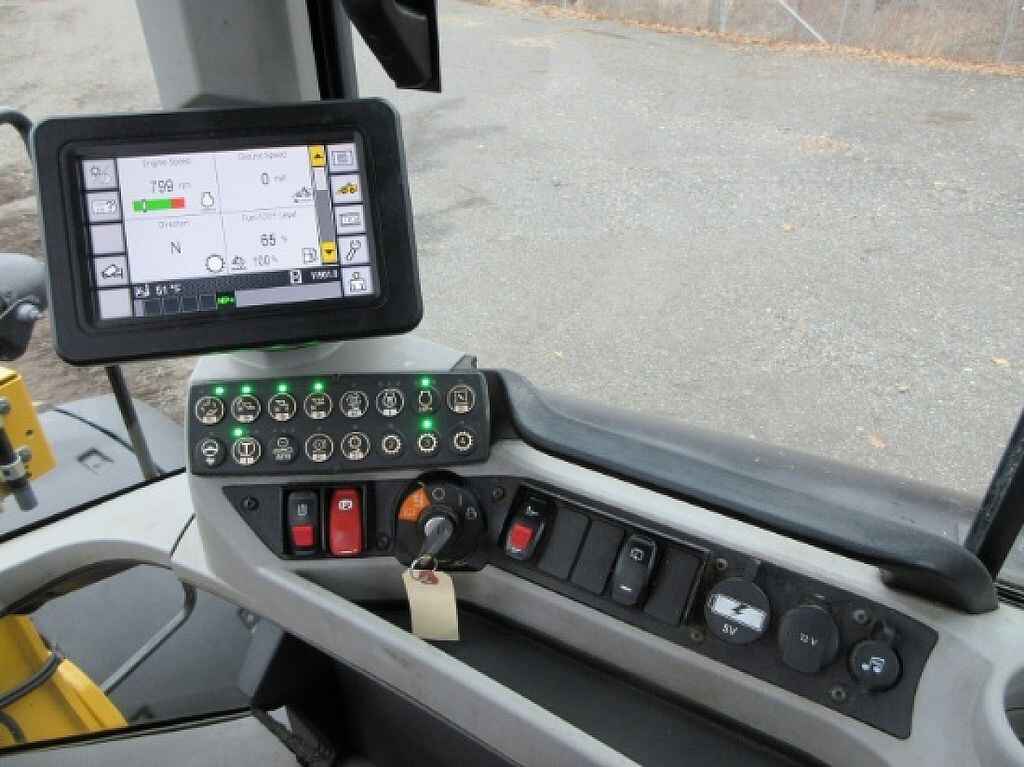

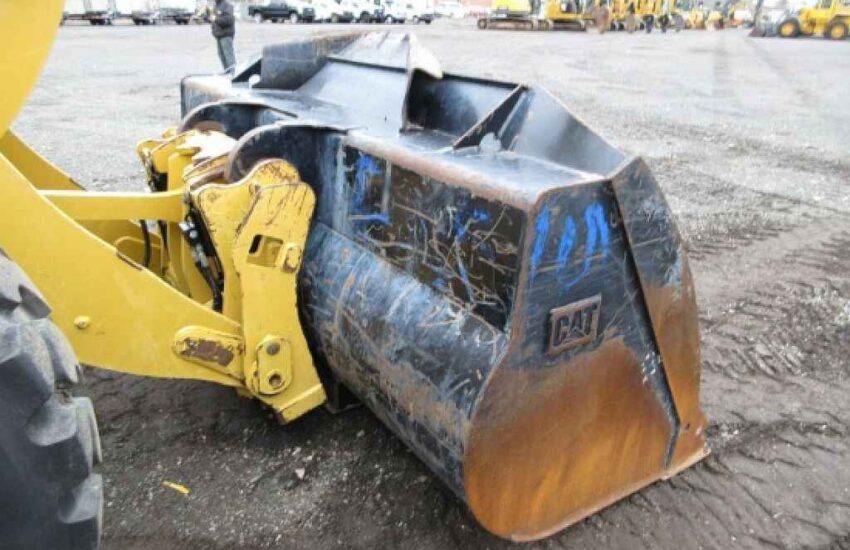

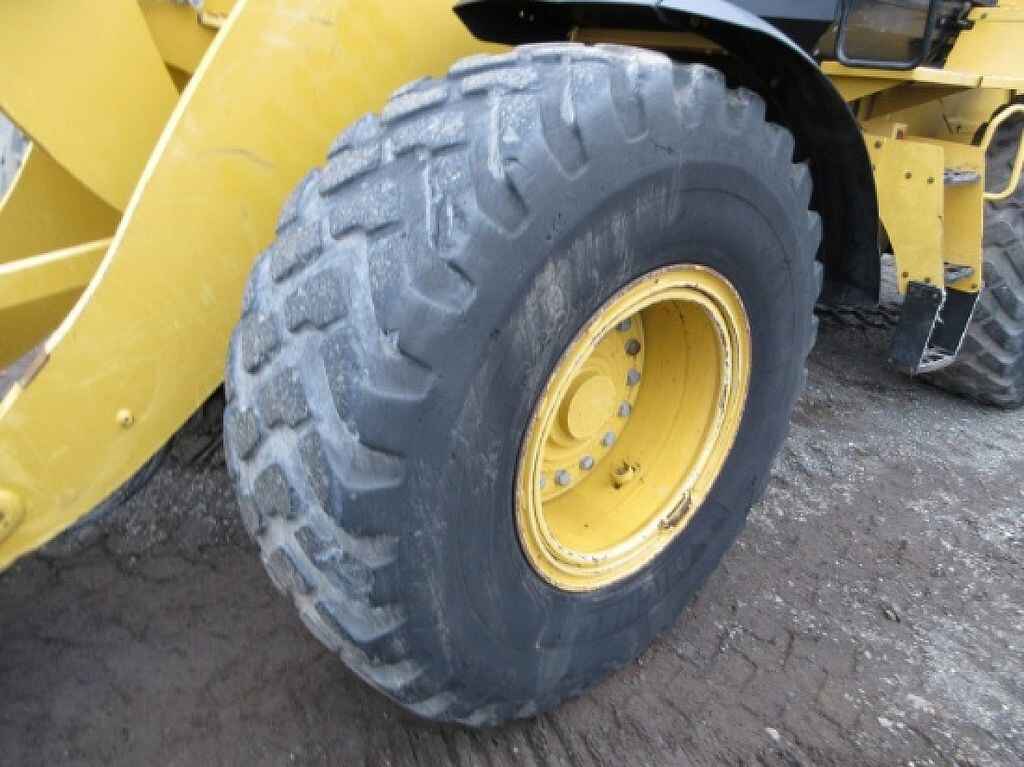

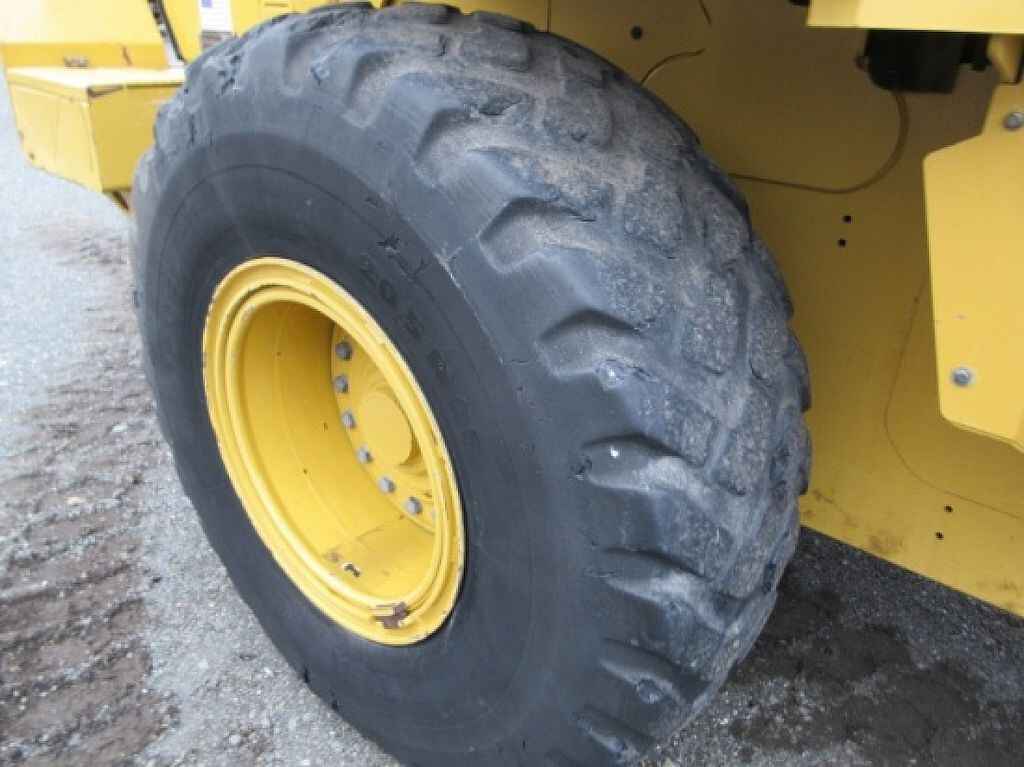

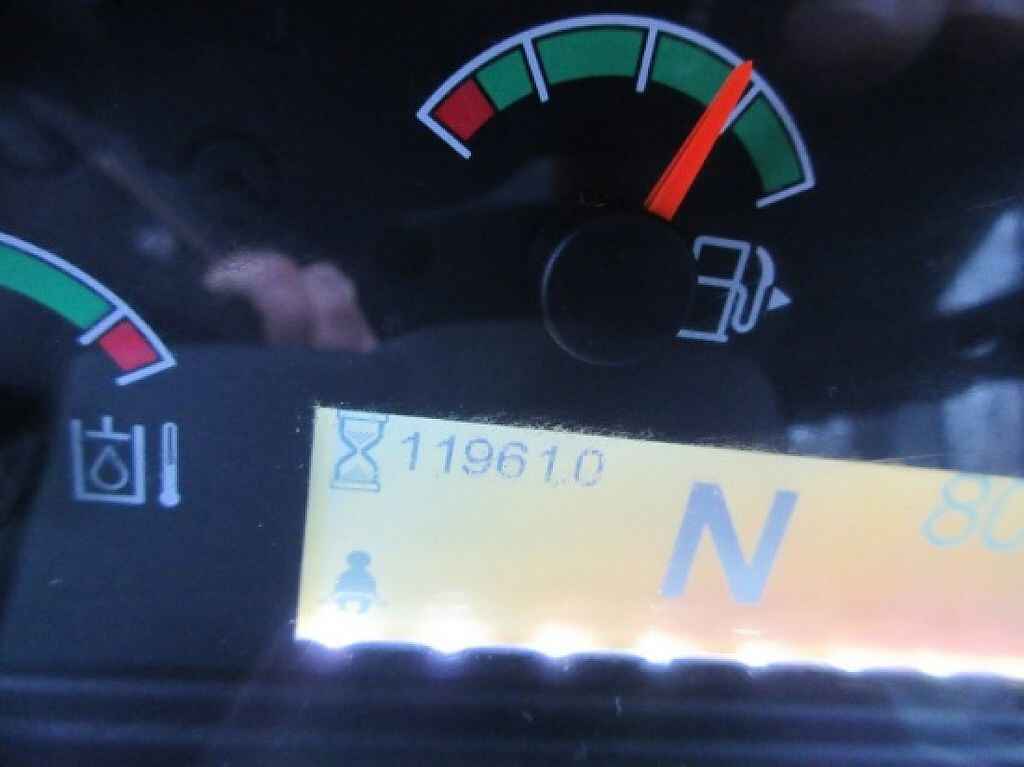

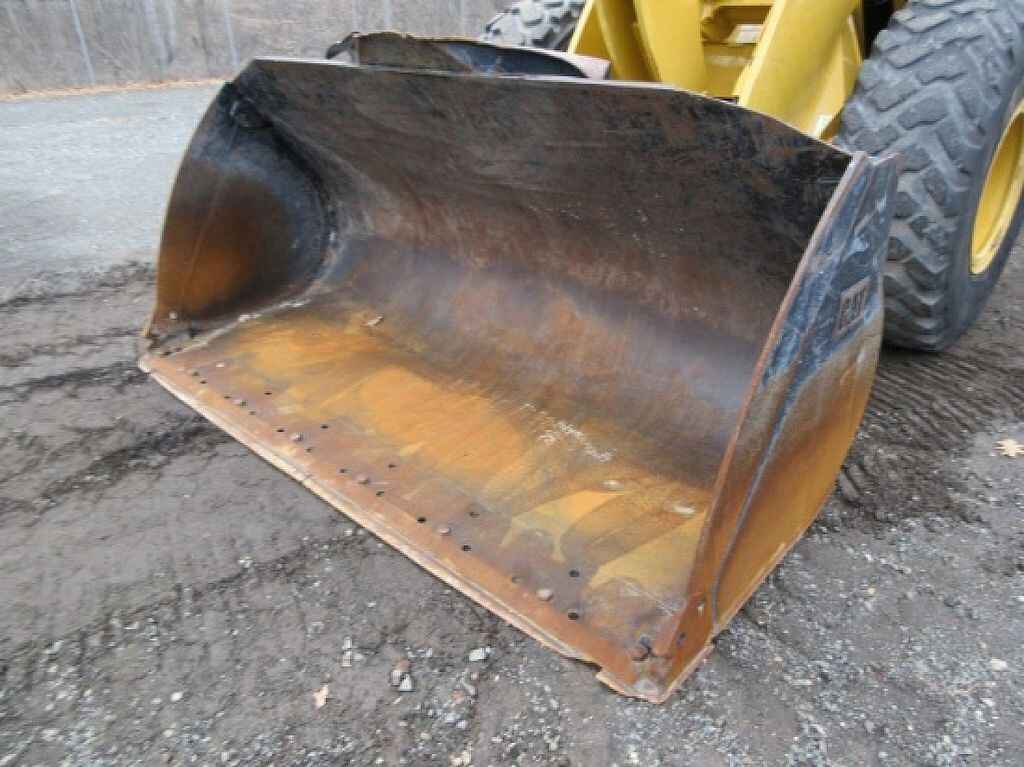

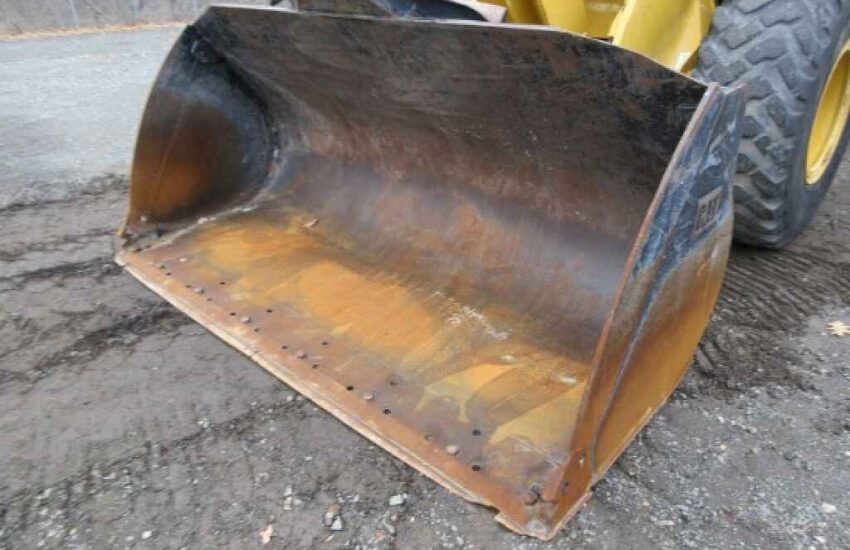

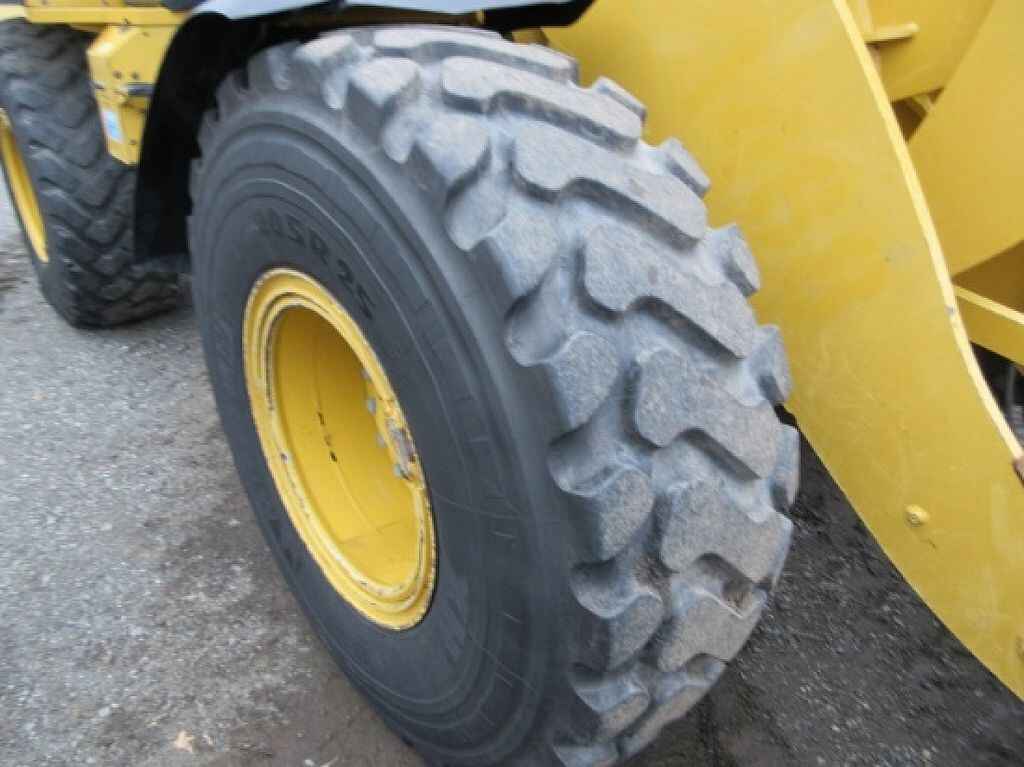

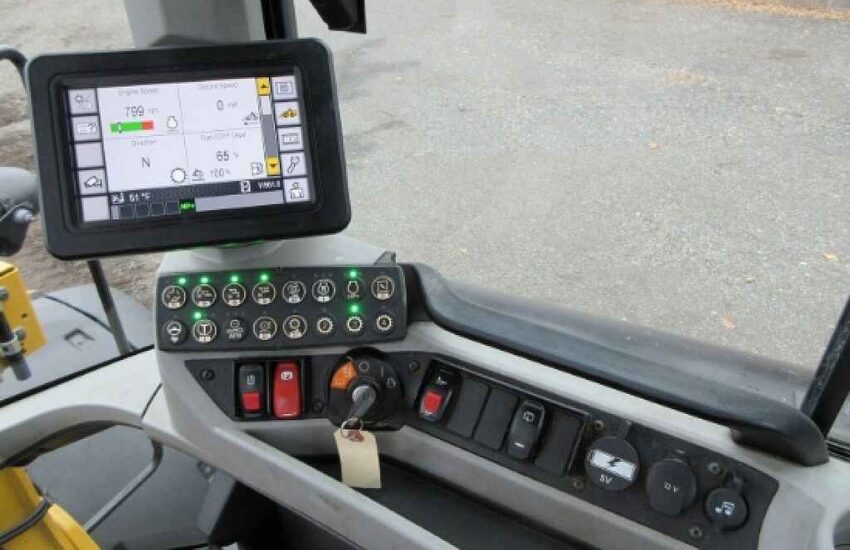

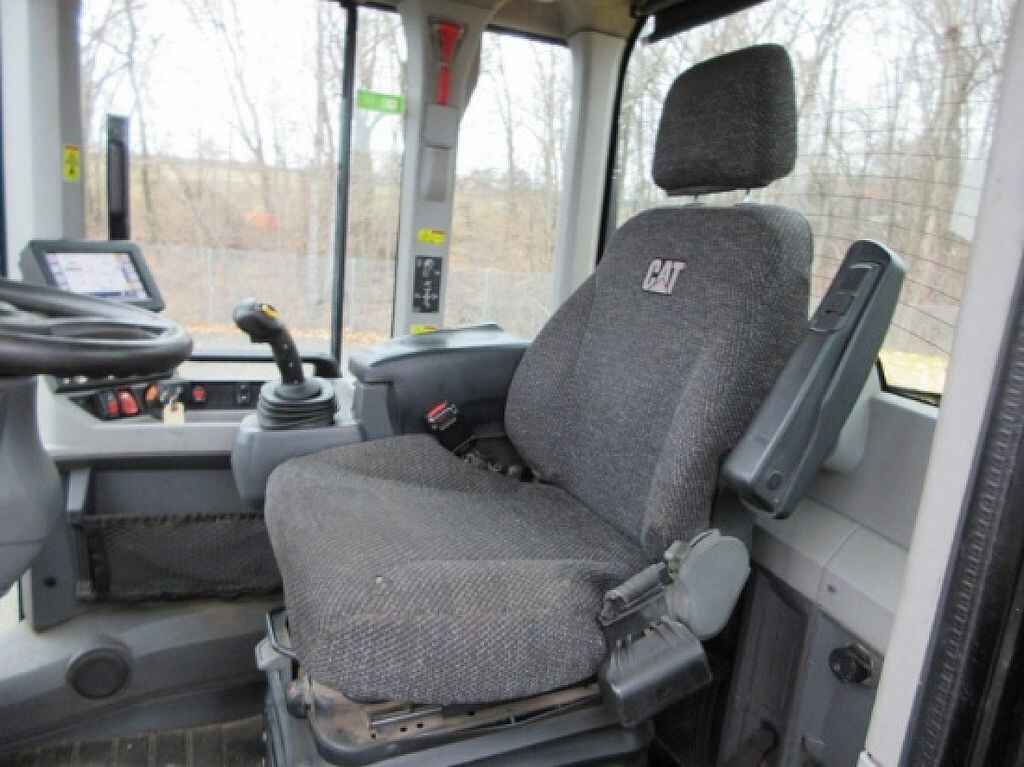

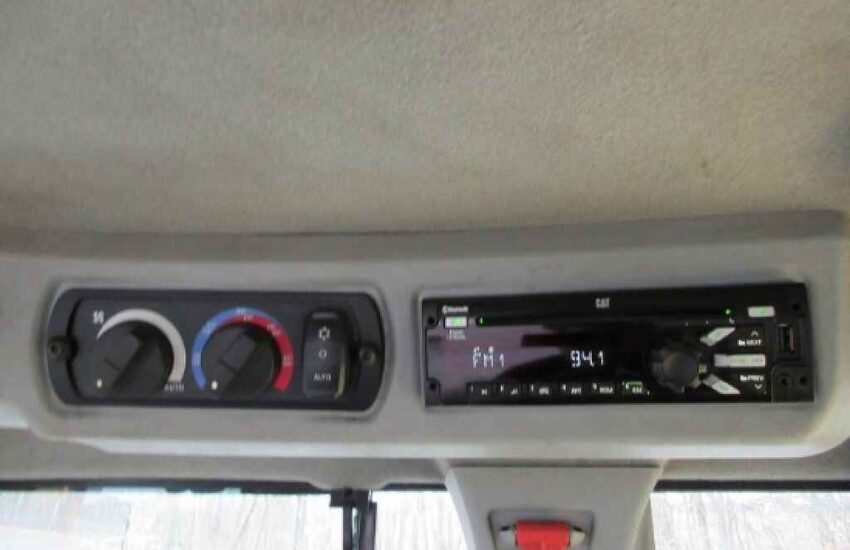

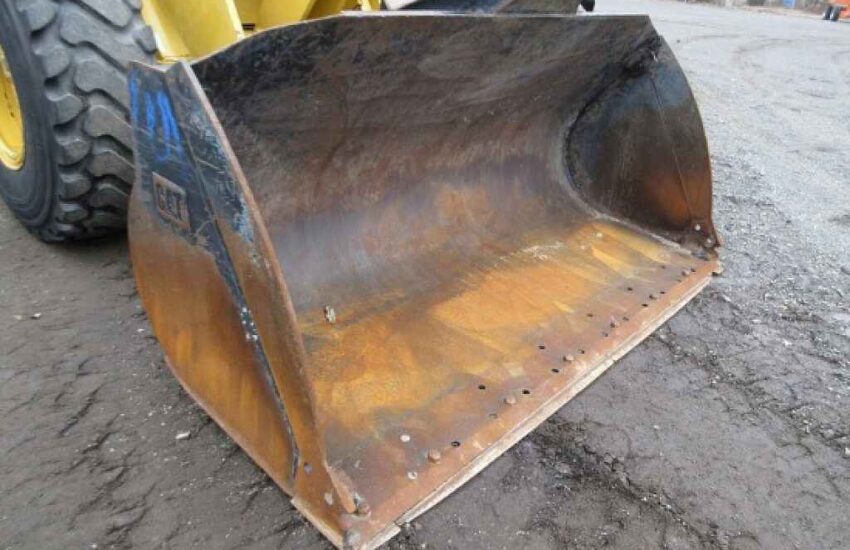

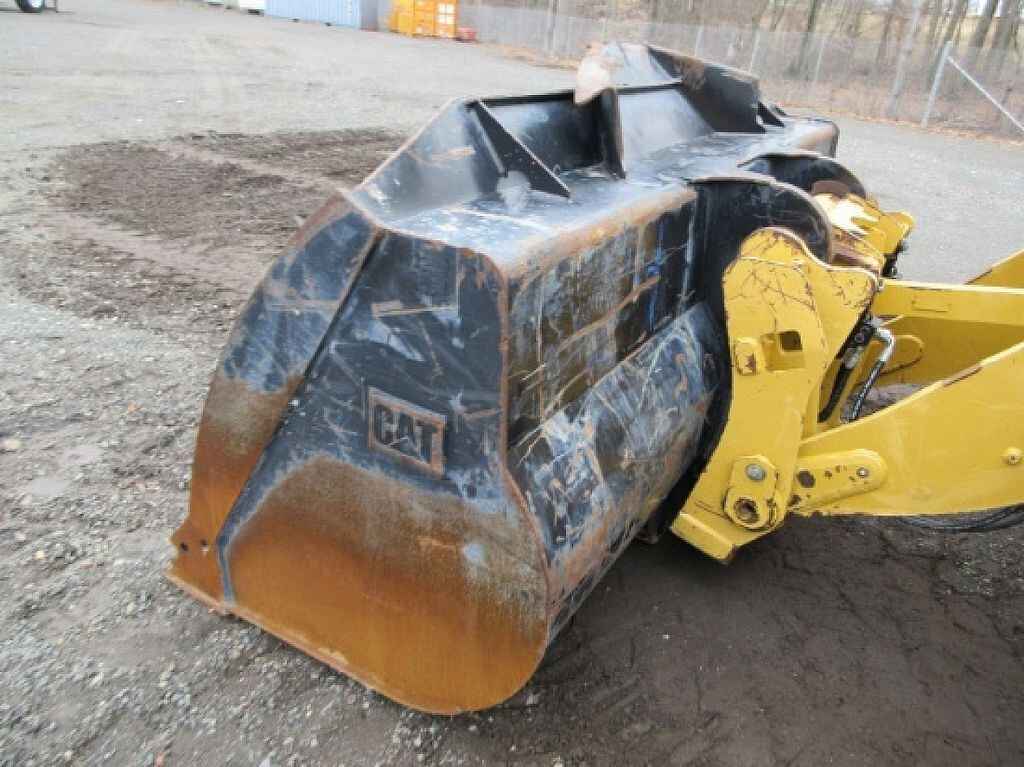

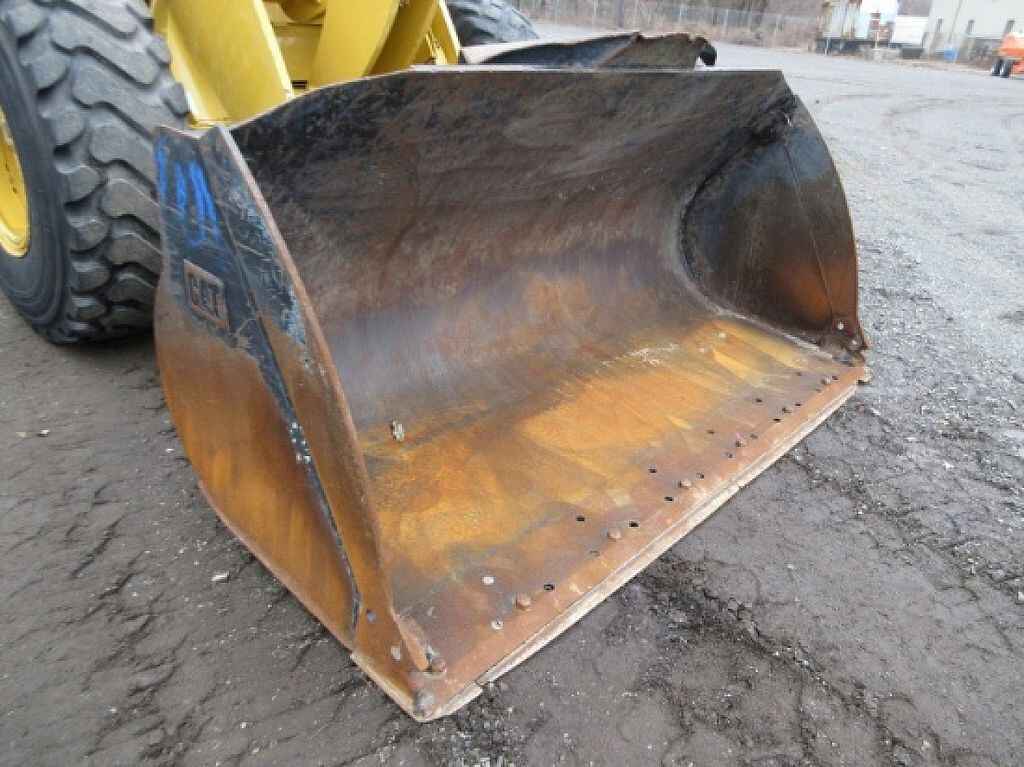

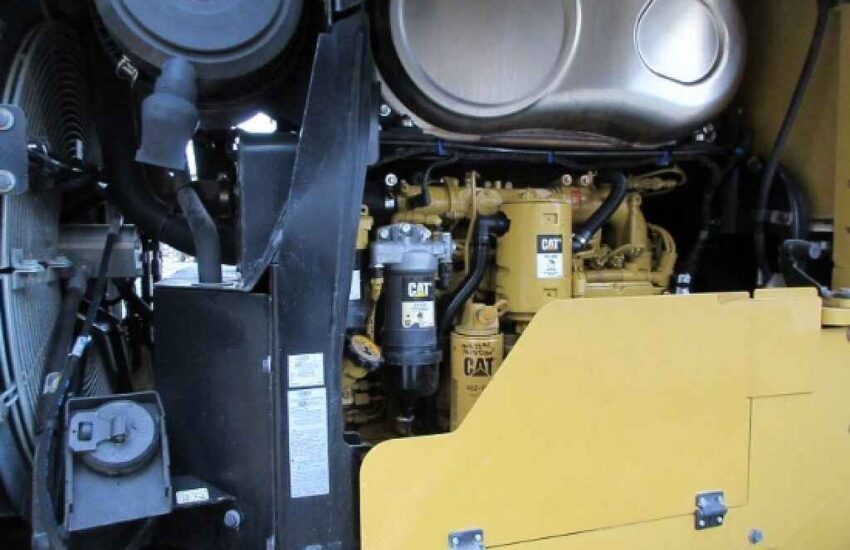

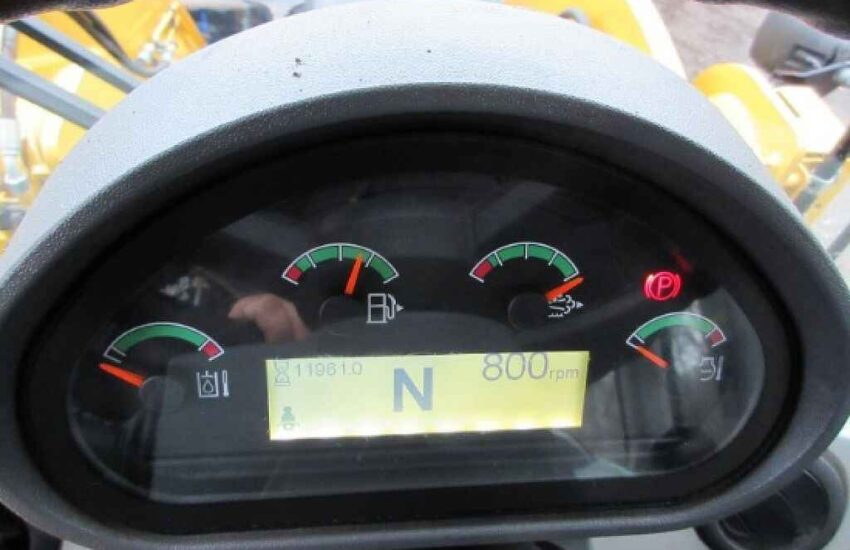

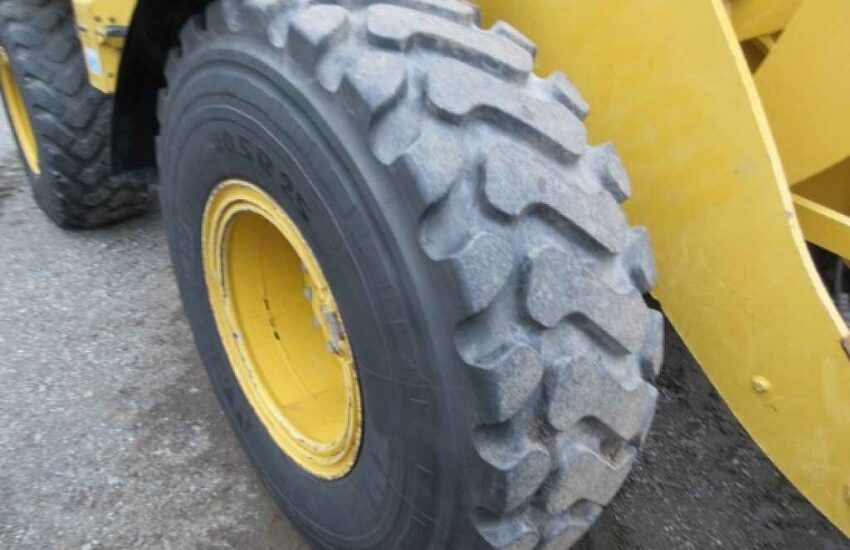

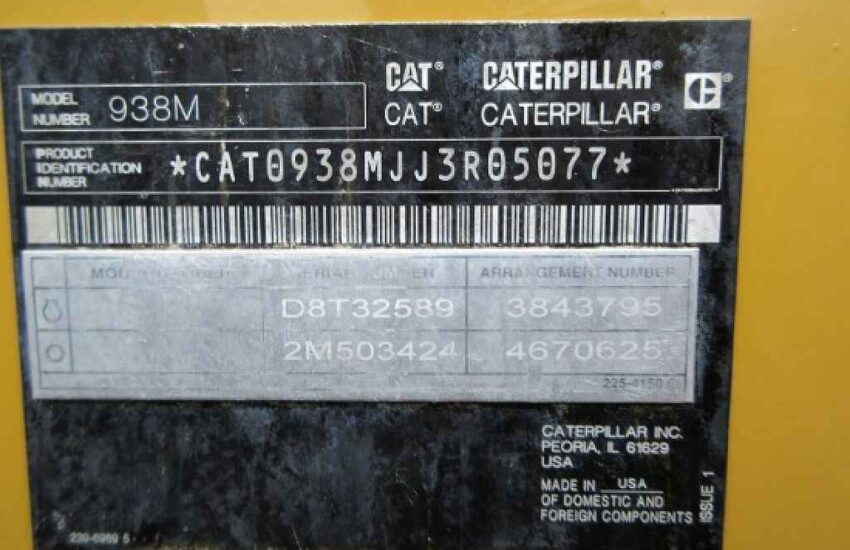

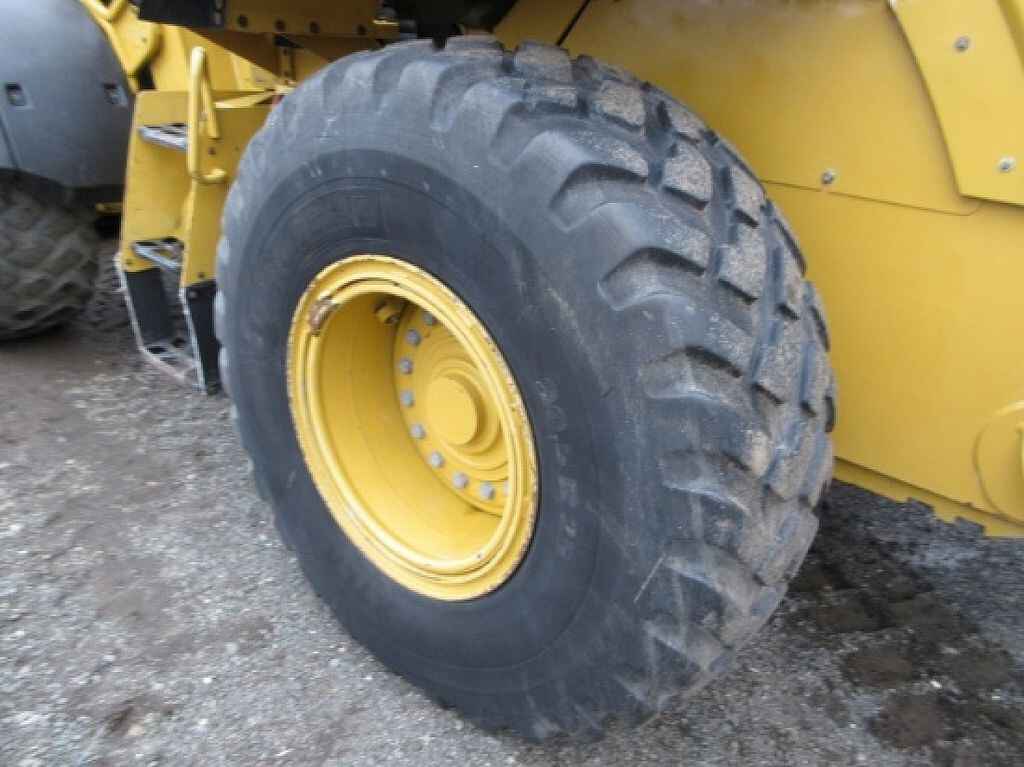

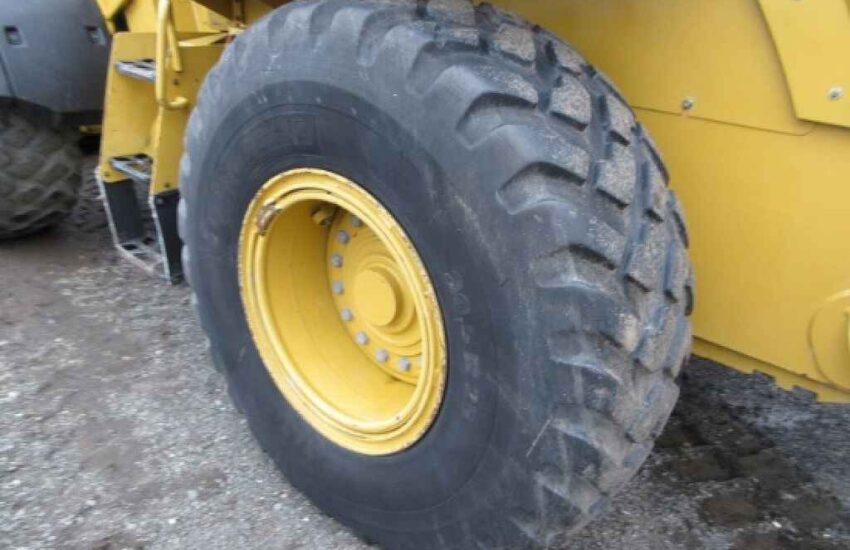

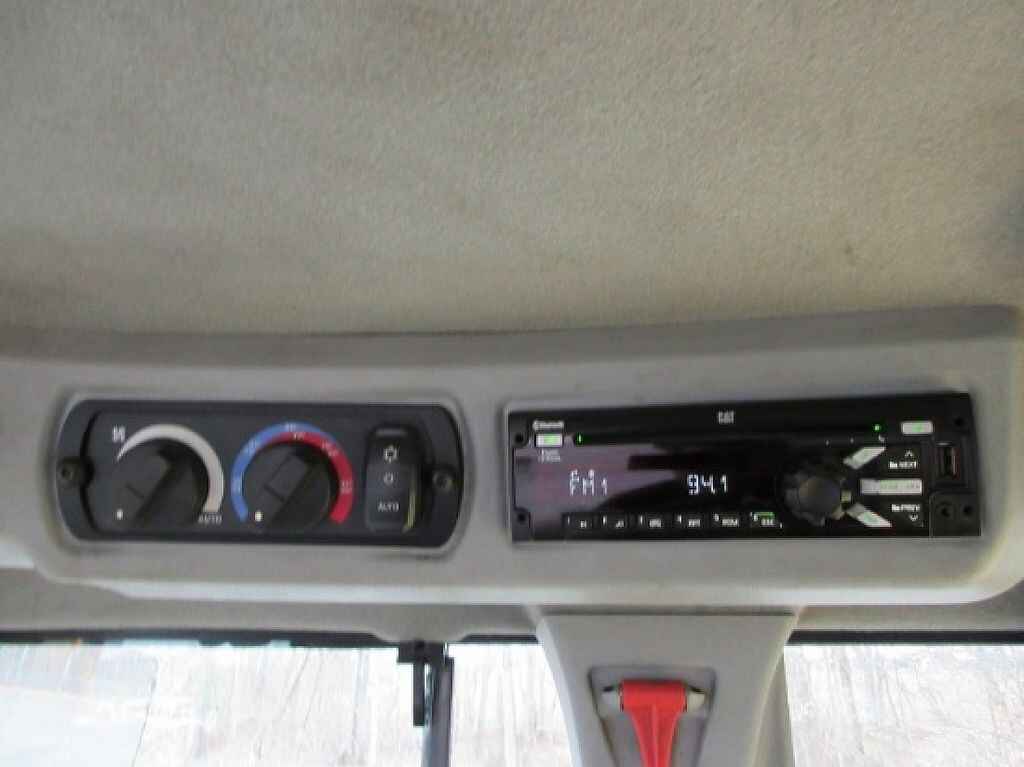

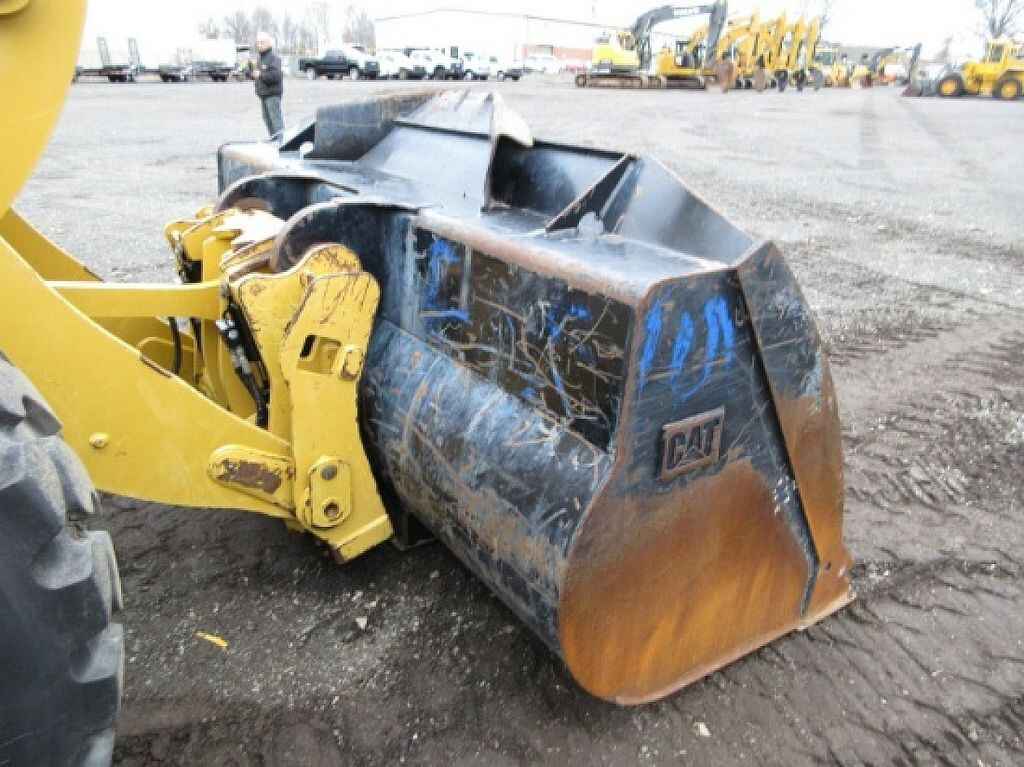

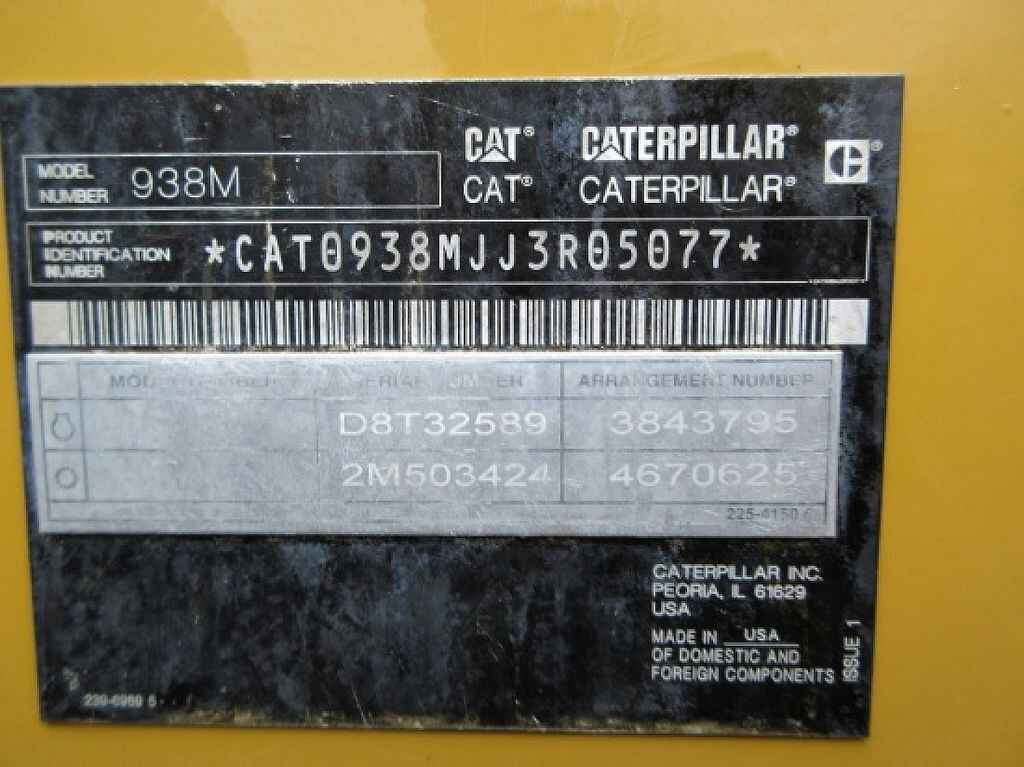

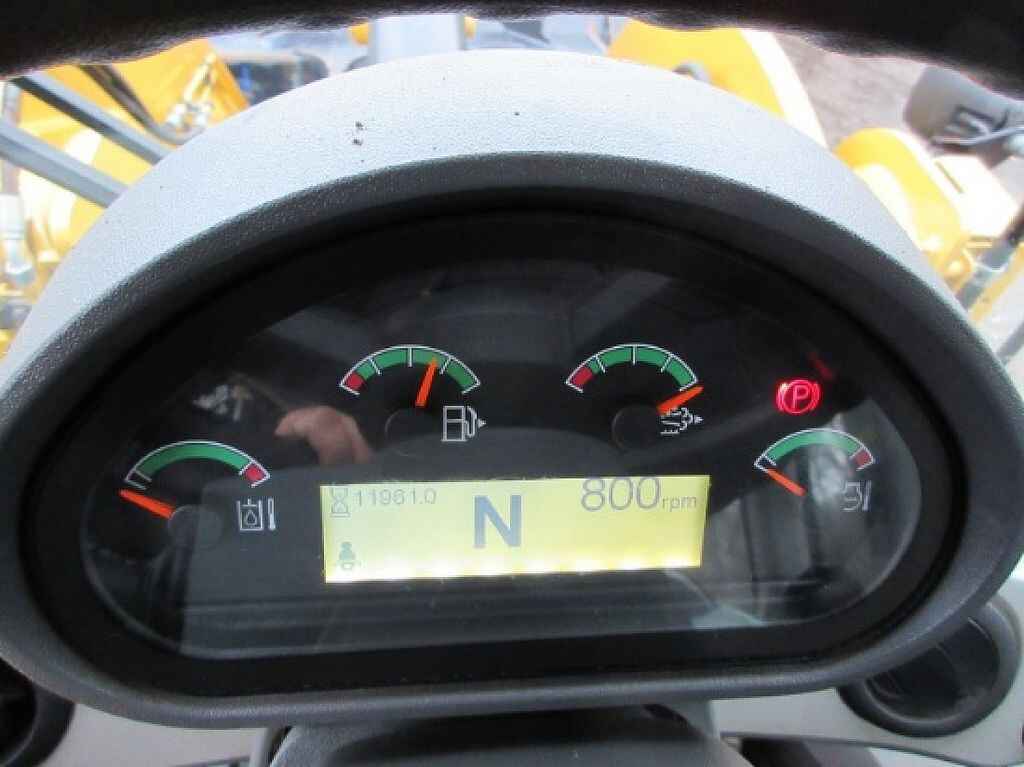

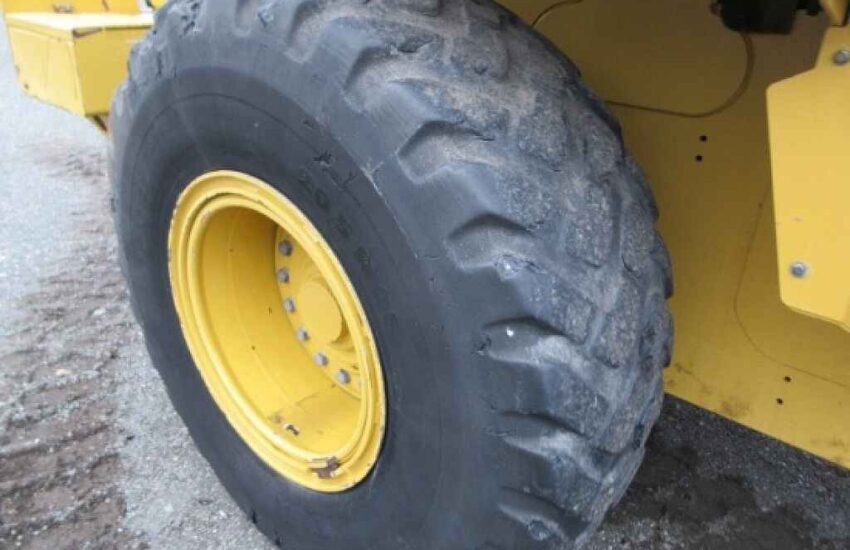

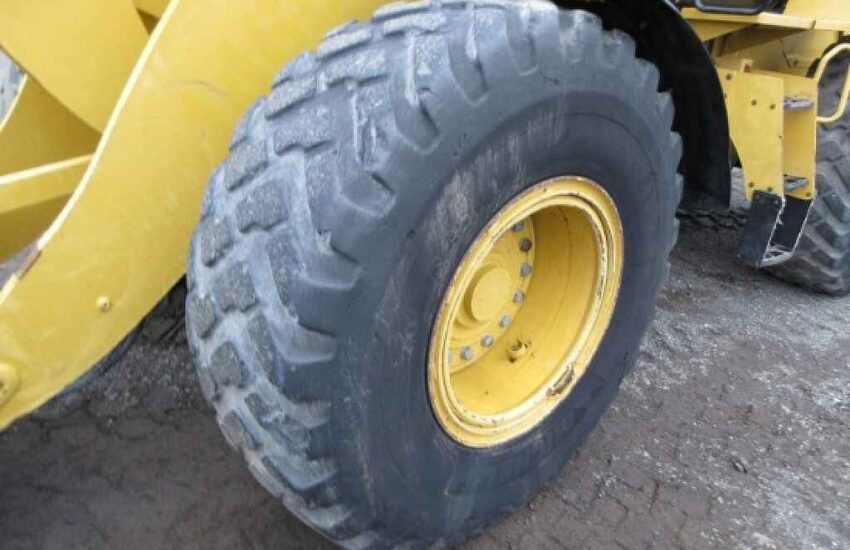

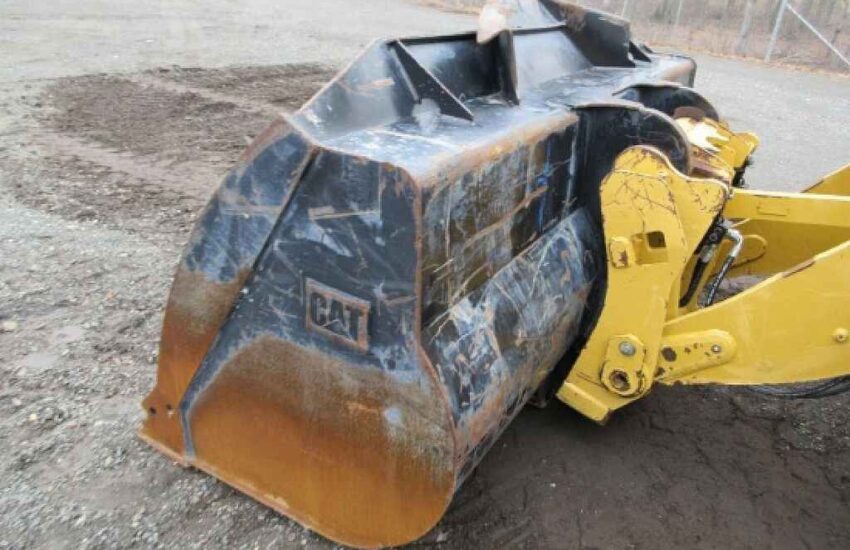

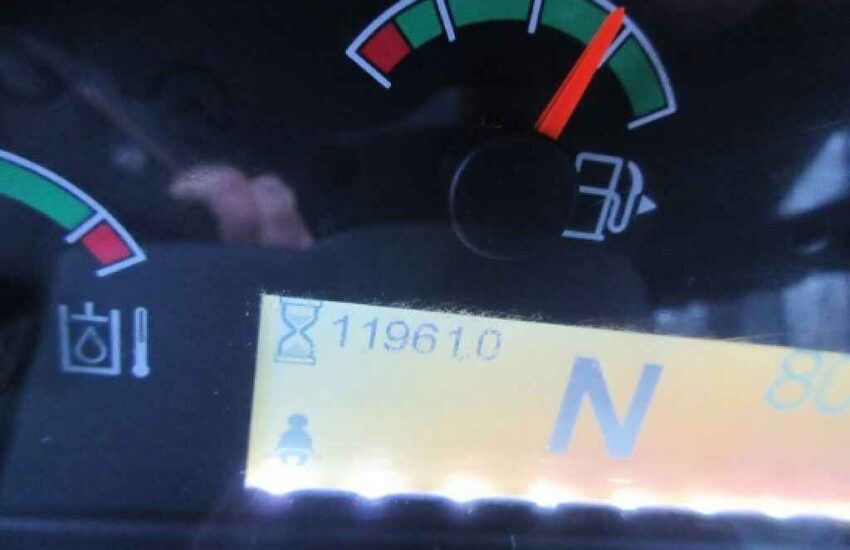

Caterpillar C7.1 Acert 6 cyl turbo diesel, cab with heat, A/C, stereo, ride control, rearview camera, 20.5R25 Michelin radial rubber, Fusion hyd coupler, GP bucket with BOCE, meter reads 11960 hours, S/N CAT0938MJJ3R05077

SPECIFICATIONS

Engine

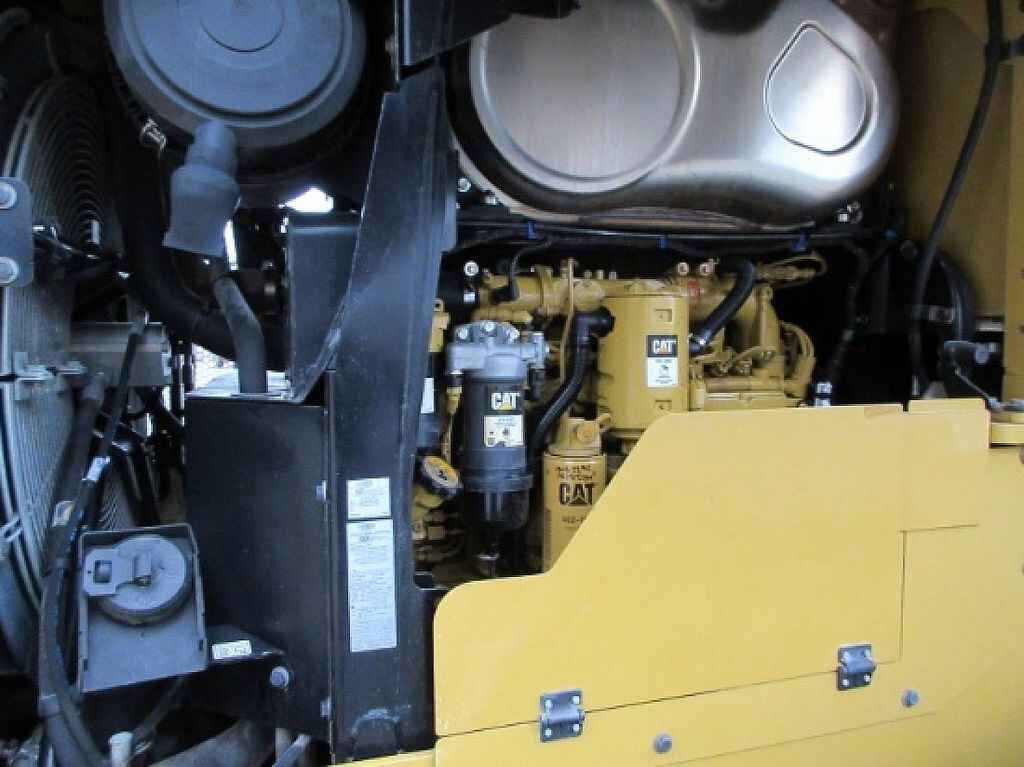

• Model: Cat C7.1 ACERT
• Gross Power: 188 hp (140 kW)
• Net Power: 182 hp (136 kW)
• Displacement: 427 in³ (7.01 L)
• Maximum Torque: 648 lbf·ft (879 N·m)

Weights
• Operating Weight: 35,778 lbs (16,229 kg)

Performance
• Bucket Capacities: 3.3–6.5 yd³ (2.5–5.0 m³)
• Full Turn Tip Load: 22,107 lbs (10,028 kg)
• Breakout Force: 28,682 lbf (127.6 kN)
• Hydraulic Cycle Times:
– Raise: 5.4 sec
– Dump: 1.8 sec
– Lower: 3.1 sec

Transmission
• Type: Hydrostatic with electronic control
• Speed Ranges (Forward/Reverse):
– Range 1: 0–8 mph (0–13 km/h)
– Range 2: 0–8 mph (0–13 km/h)
– Range 3: 0–17 mph (0–28 km/h)
– Range 4: 0–25 mph (0–40 km/h)

Hydraulics
• Implement Pump Type: Variable displacement piston
• Max Flow – Implement Pump: 50 gal/min (190 L/min)
• Max Working Pressure – Implement Pump: 4,061 psi (28,000 kPa)

Dimensions
• Height to Top of Cab: 10 ft 10 in (3,310 mm)
• Width over Tires: 8 ft 4 in (2,540 mm)
• Wheelbase: 9 ft 10 in (3,000 mm)
• Ground Clearance: 1 ft 5 in (440 mm)
• Overall Length (with Bucket on Ground): 25 ft 3 in (7,700 mm)

Features

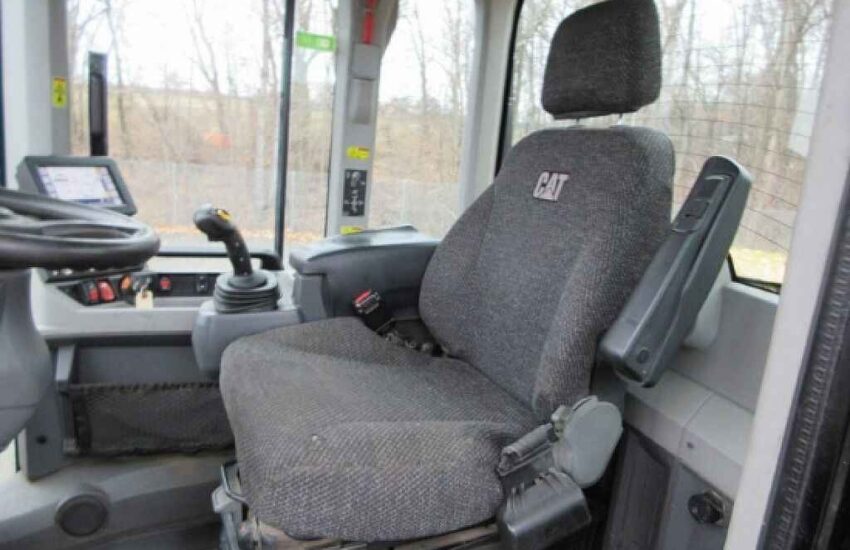

• Operator Station: ROPS/FOPS certified cab with air conditioning
• Steering: Load-sensing, hydraulic articulated
• Brakes: Hydraulic wet disc brakes
• Differential: Front locking differential, rear limited slip (optional)
• Emissions: Meets Tier 4 Final / Stage IV standards
