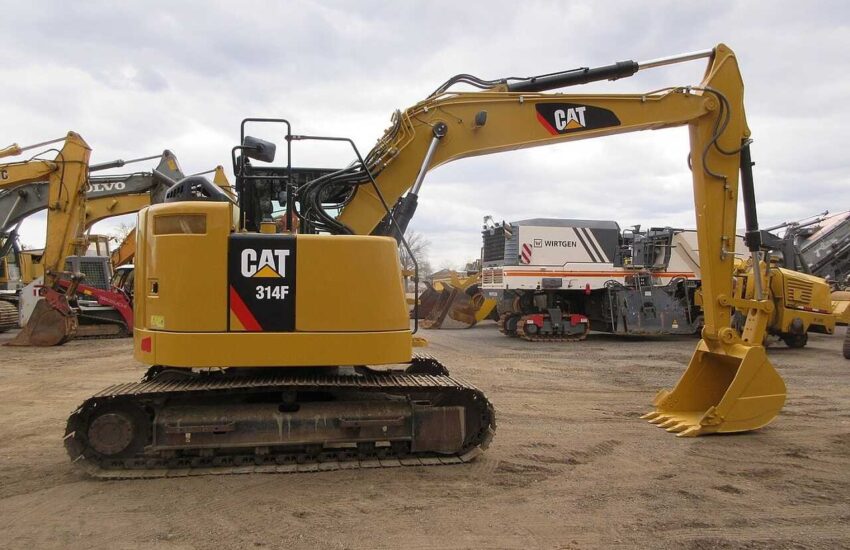

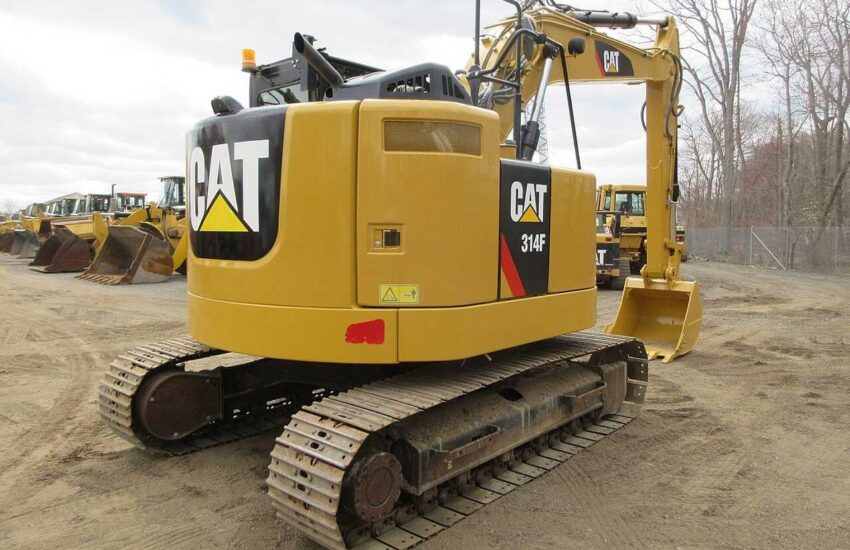

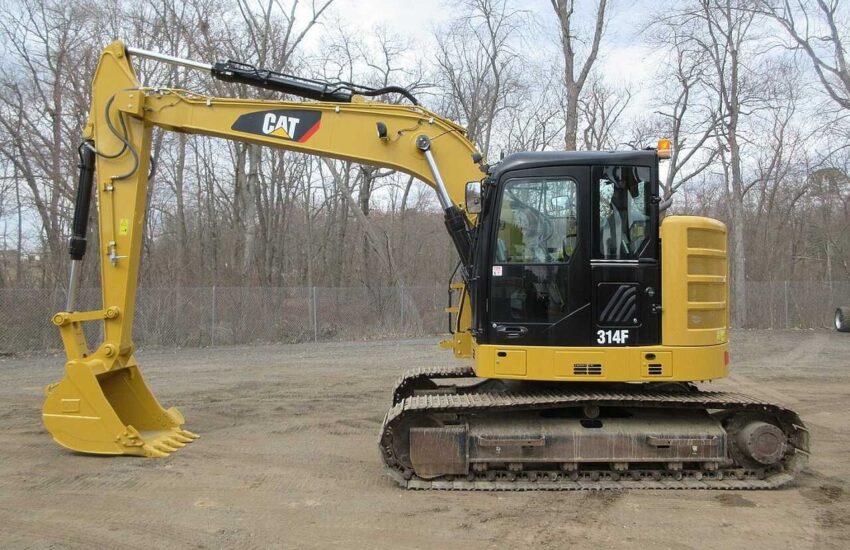

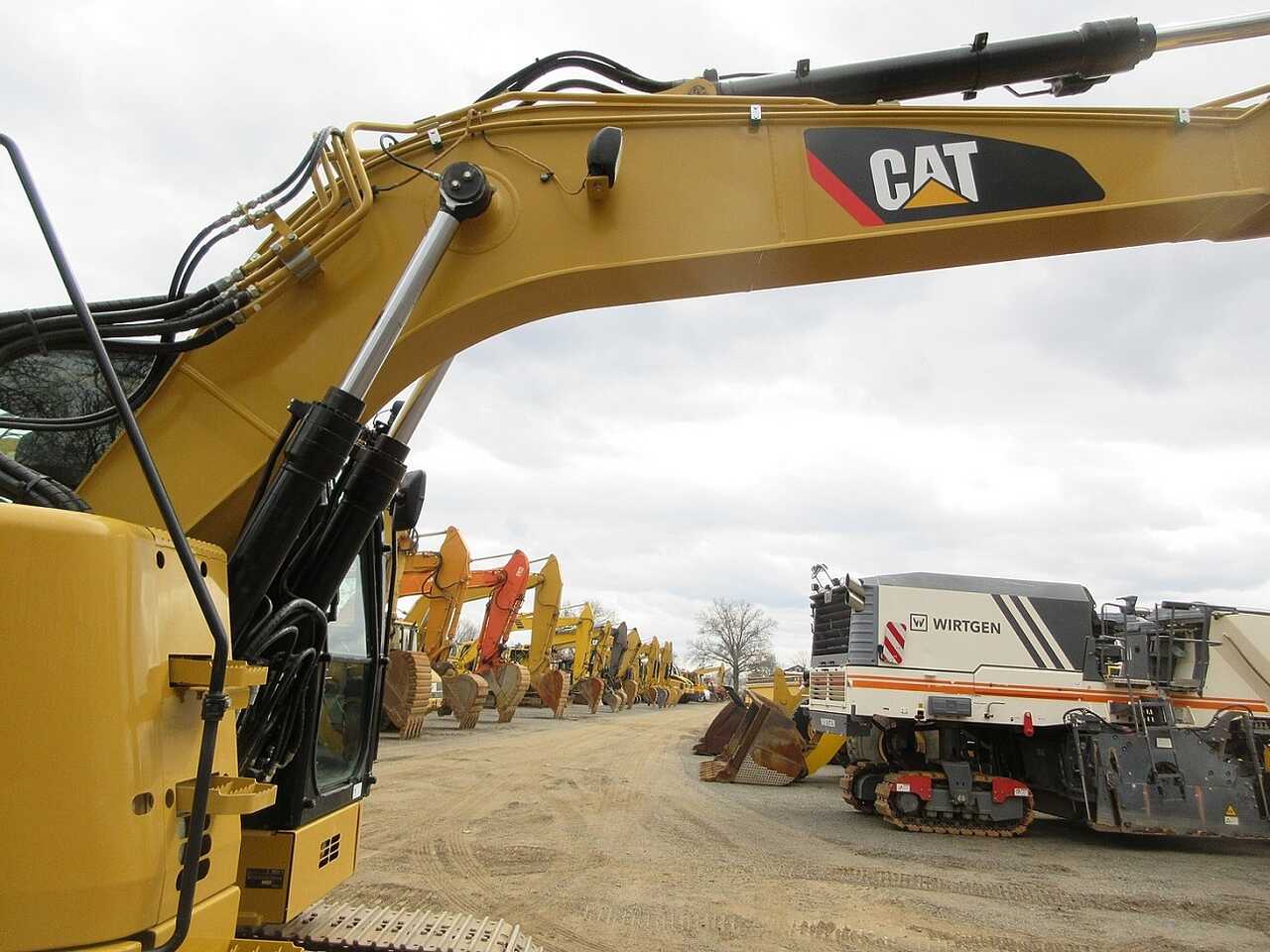

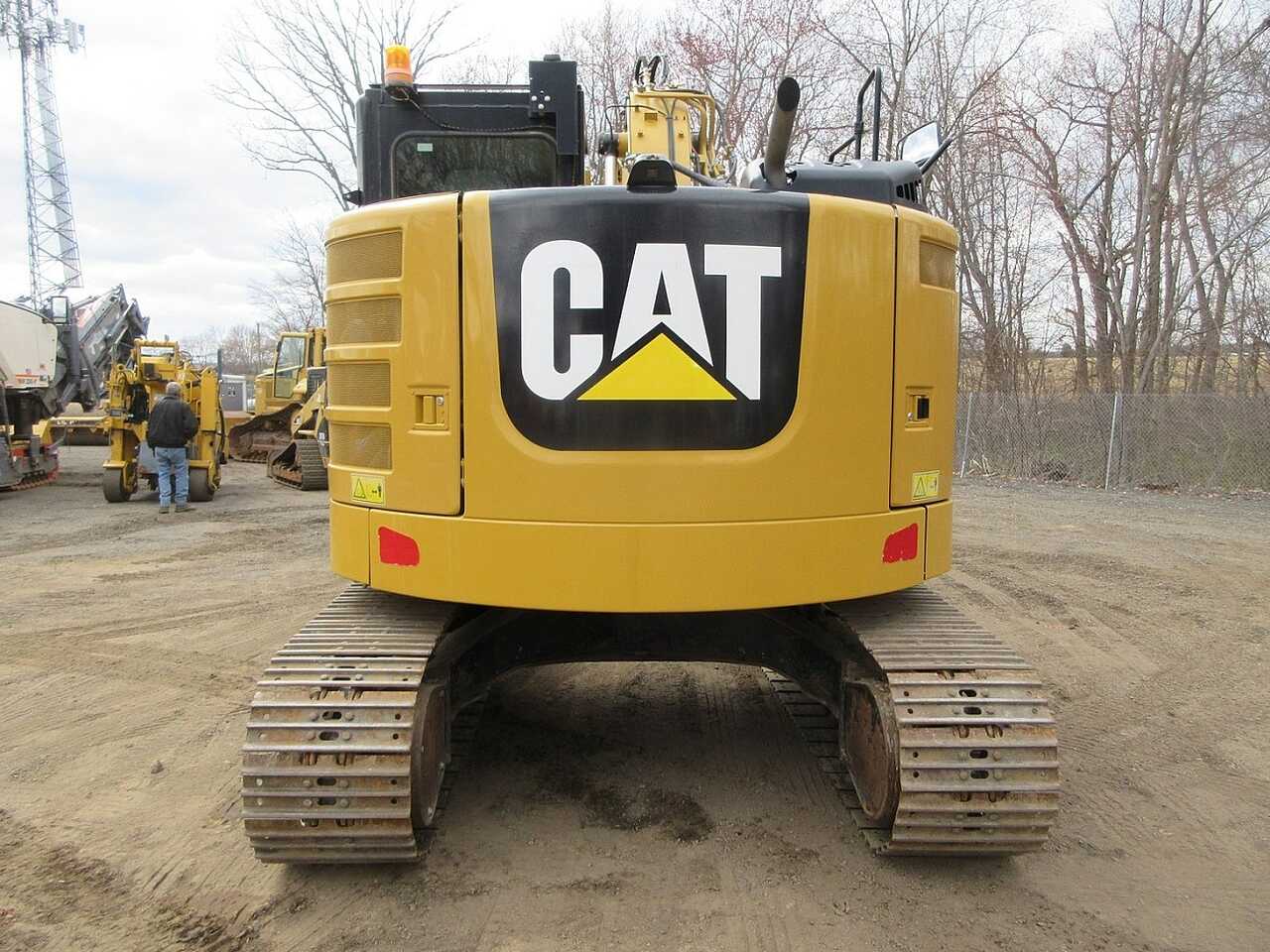

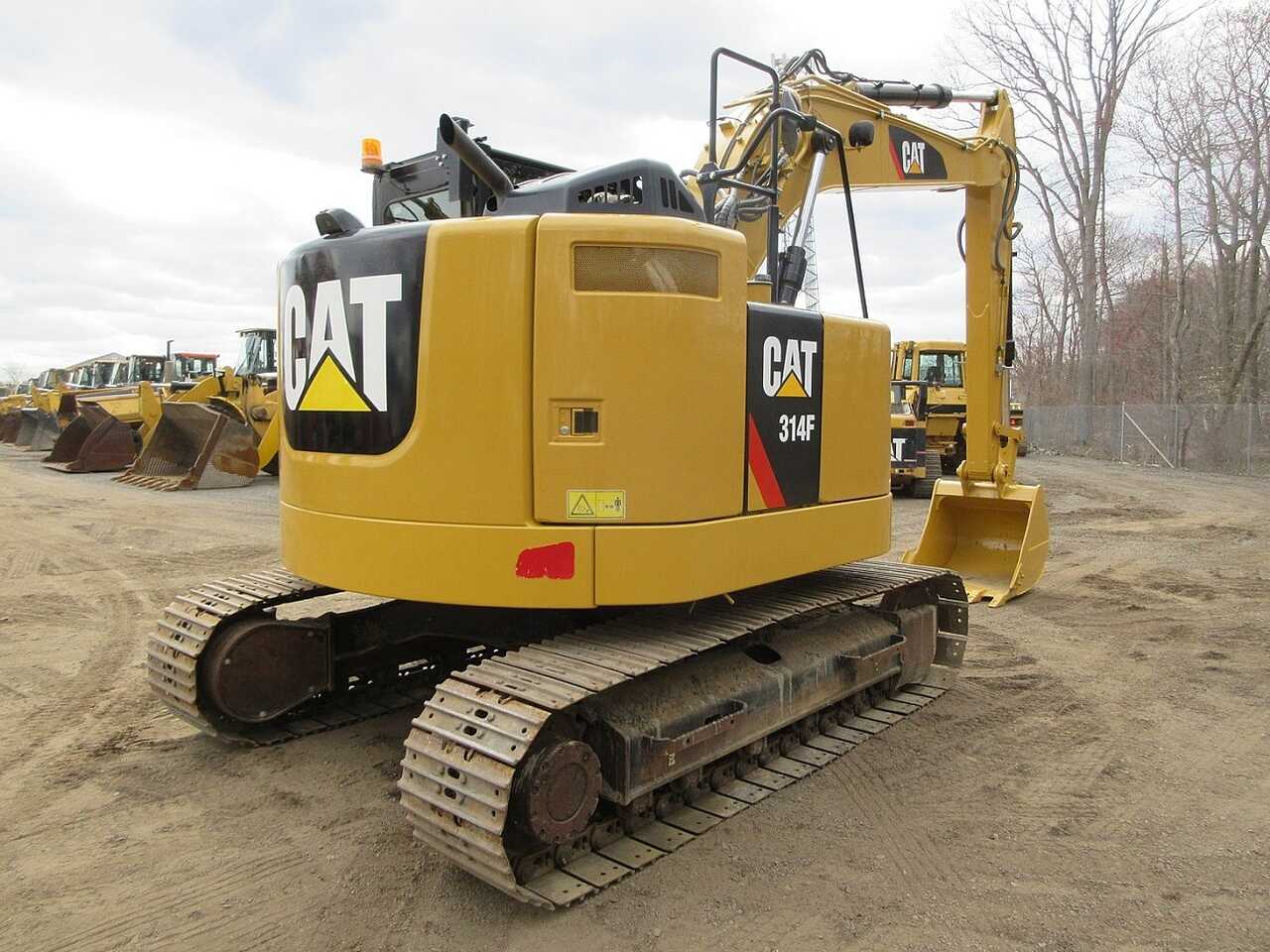

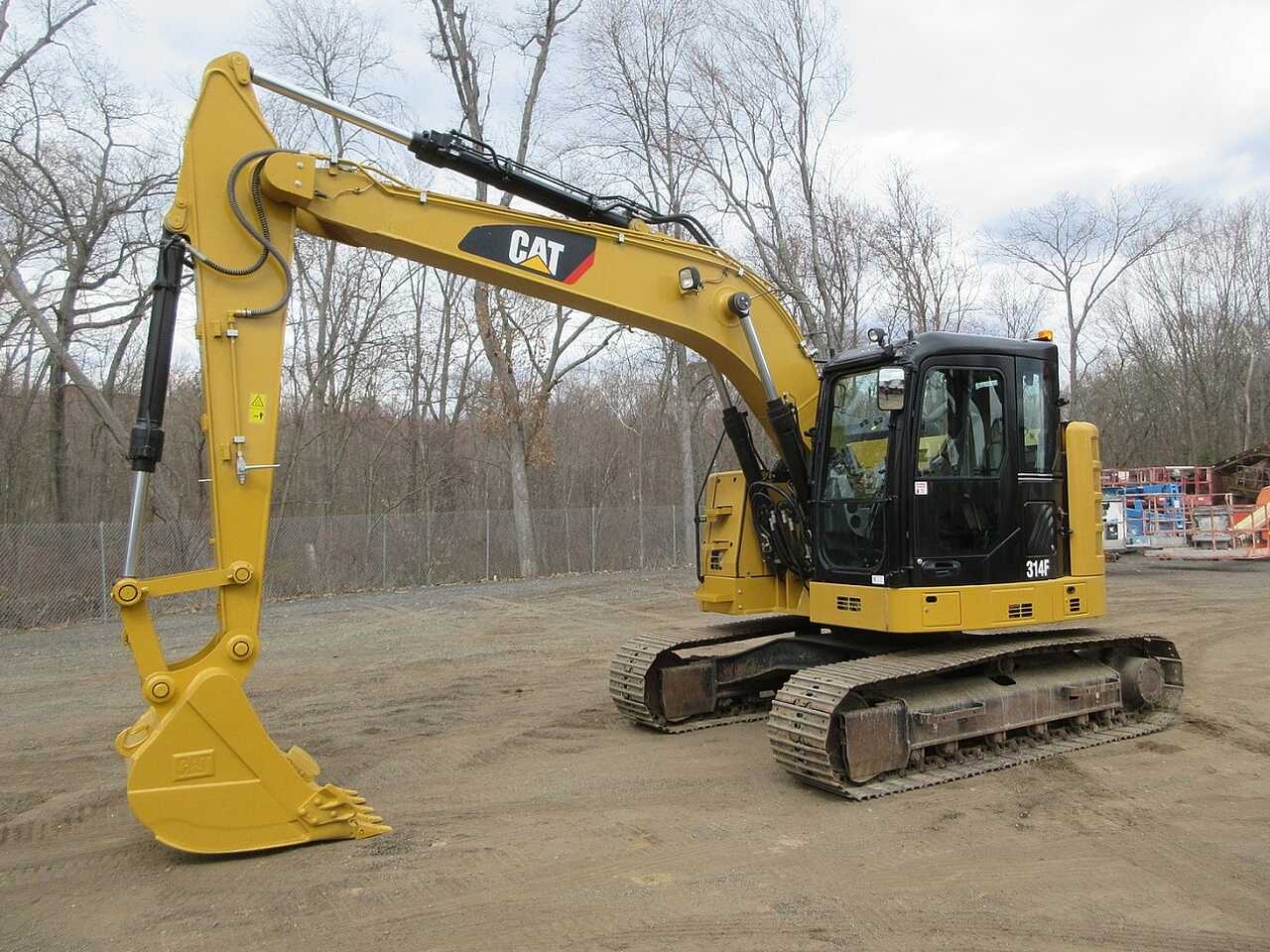

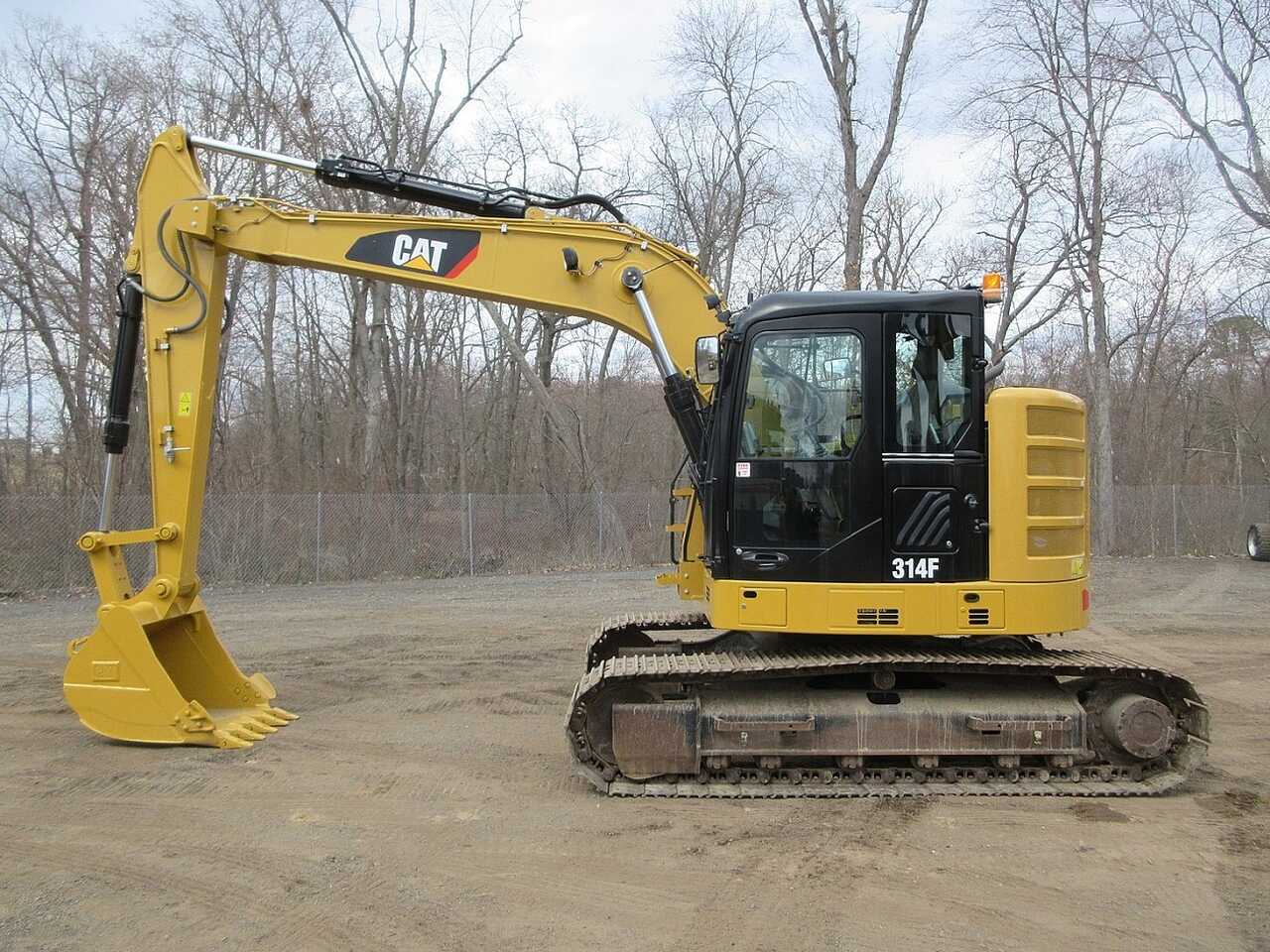

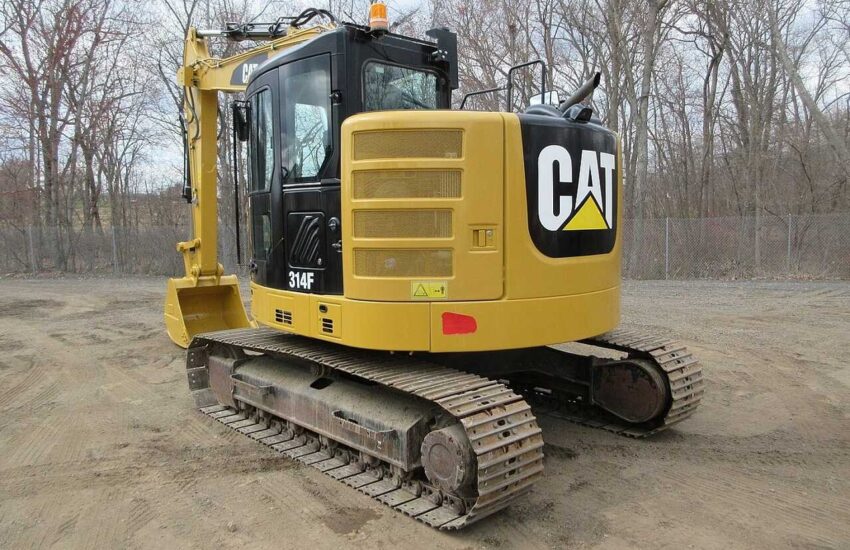

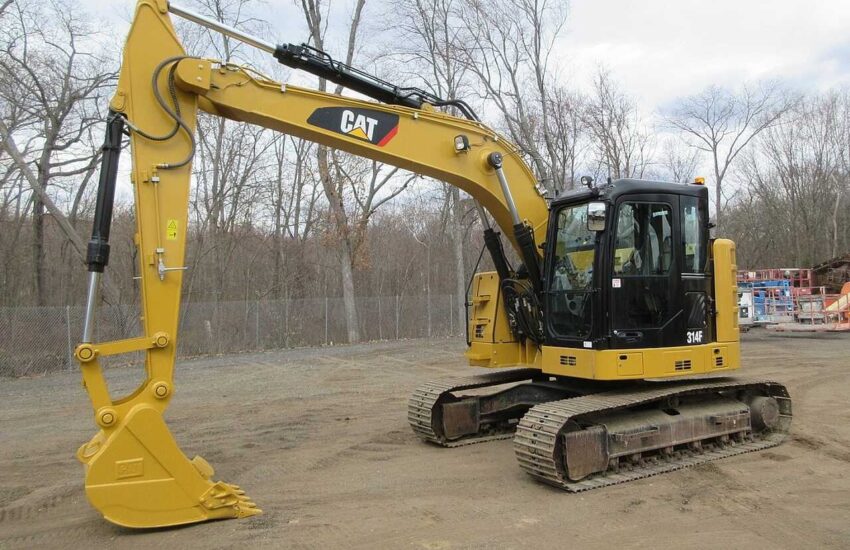

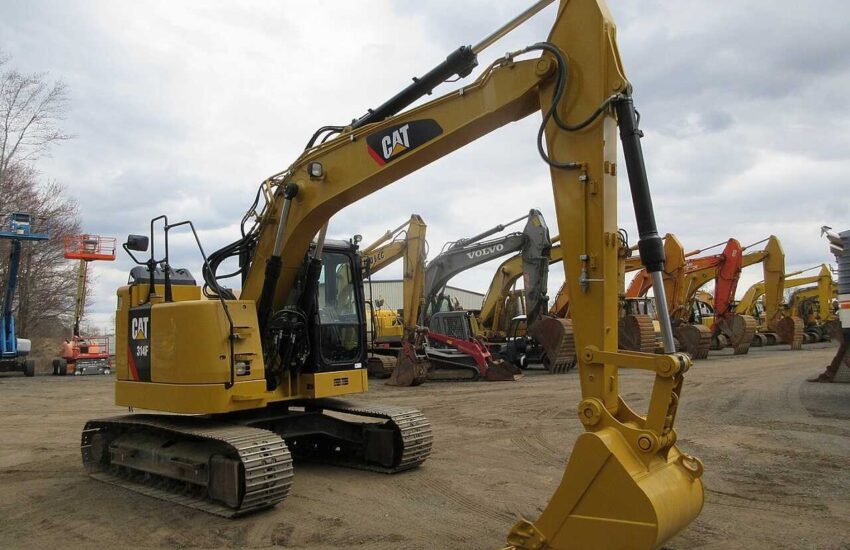

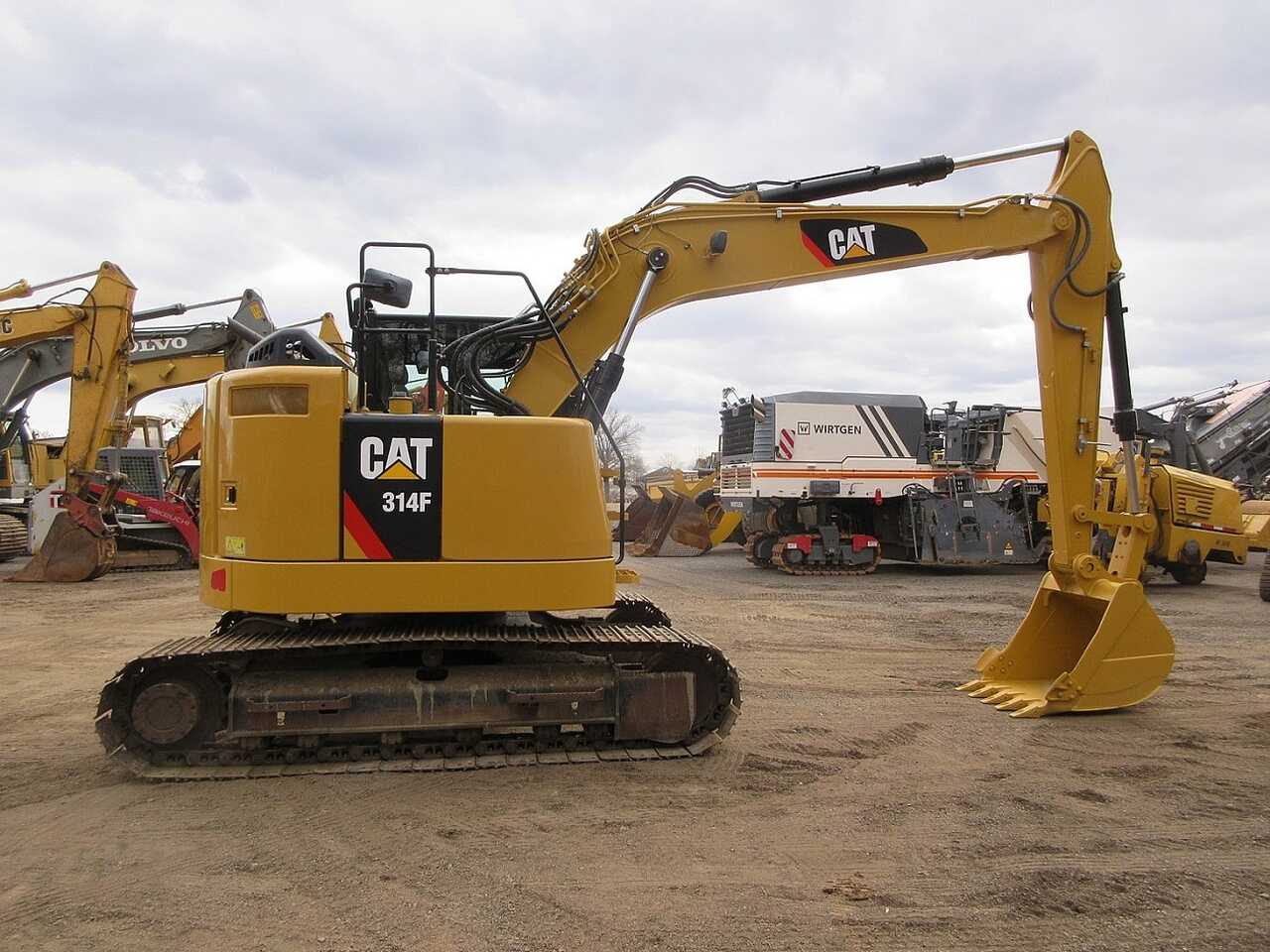

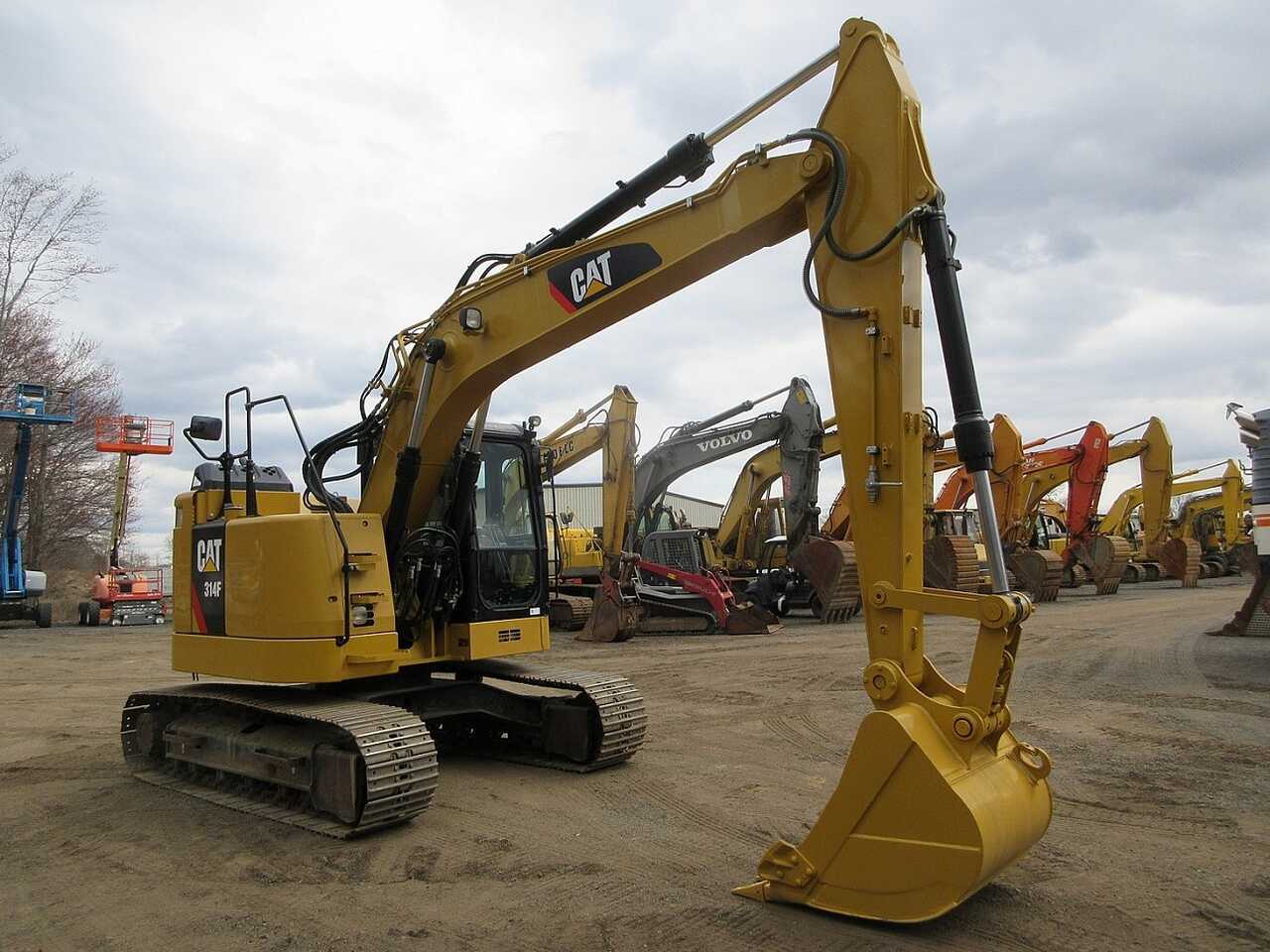

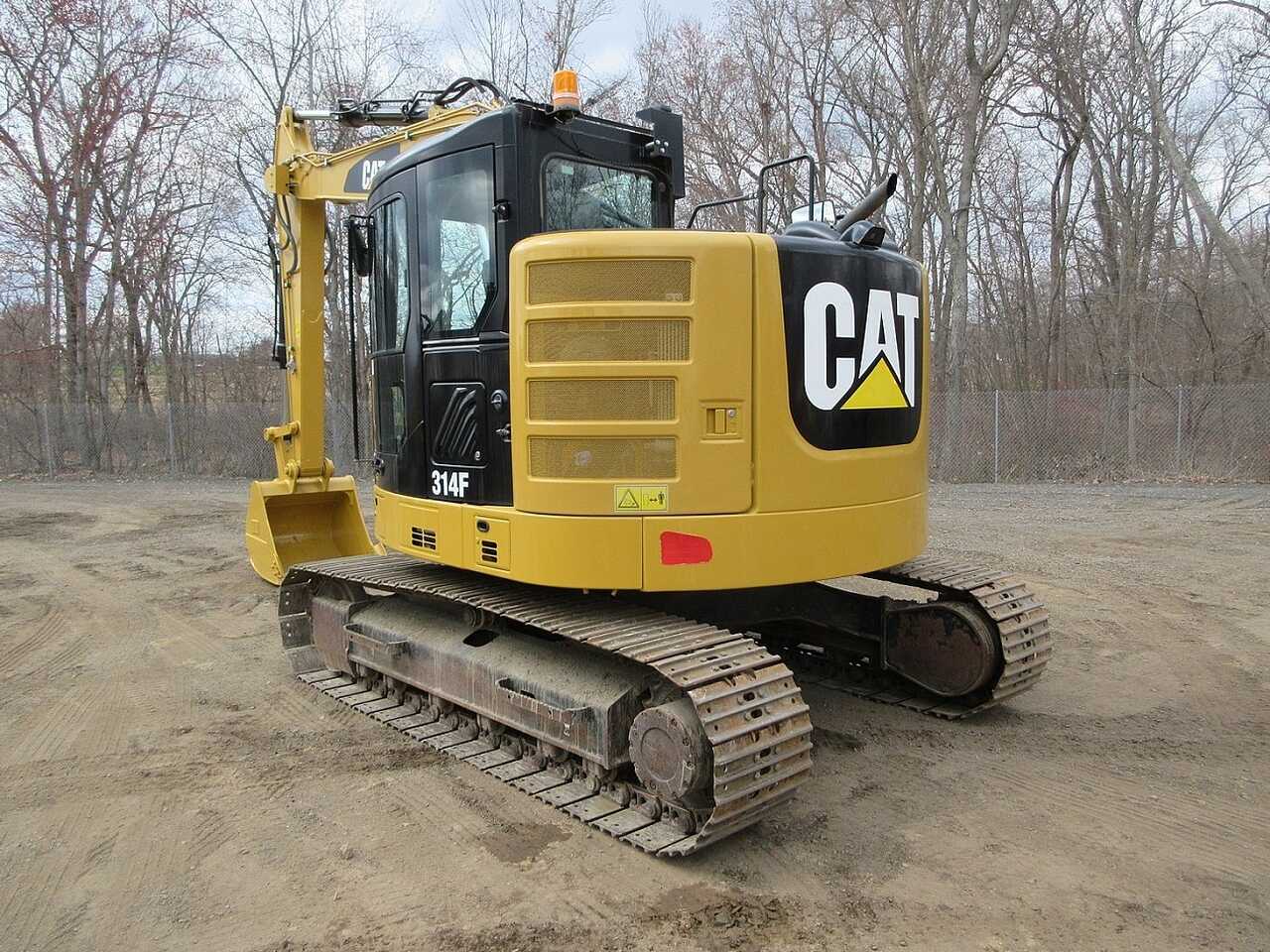

2018 Caterpillar 314F CR

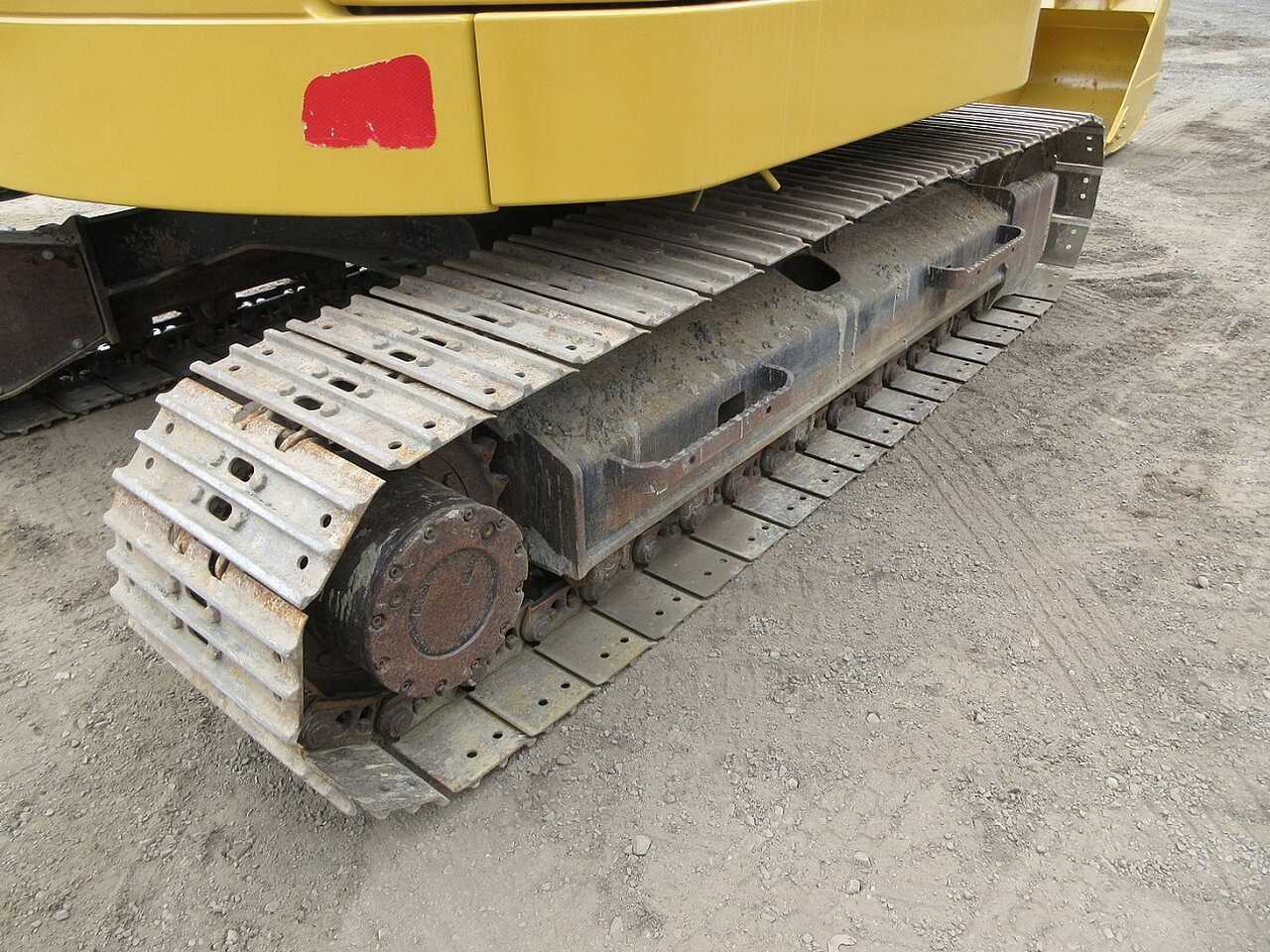

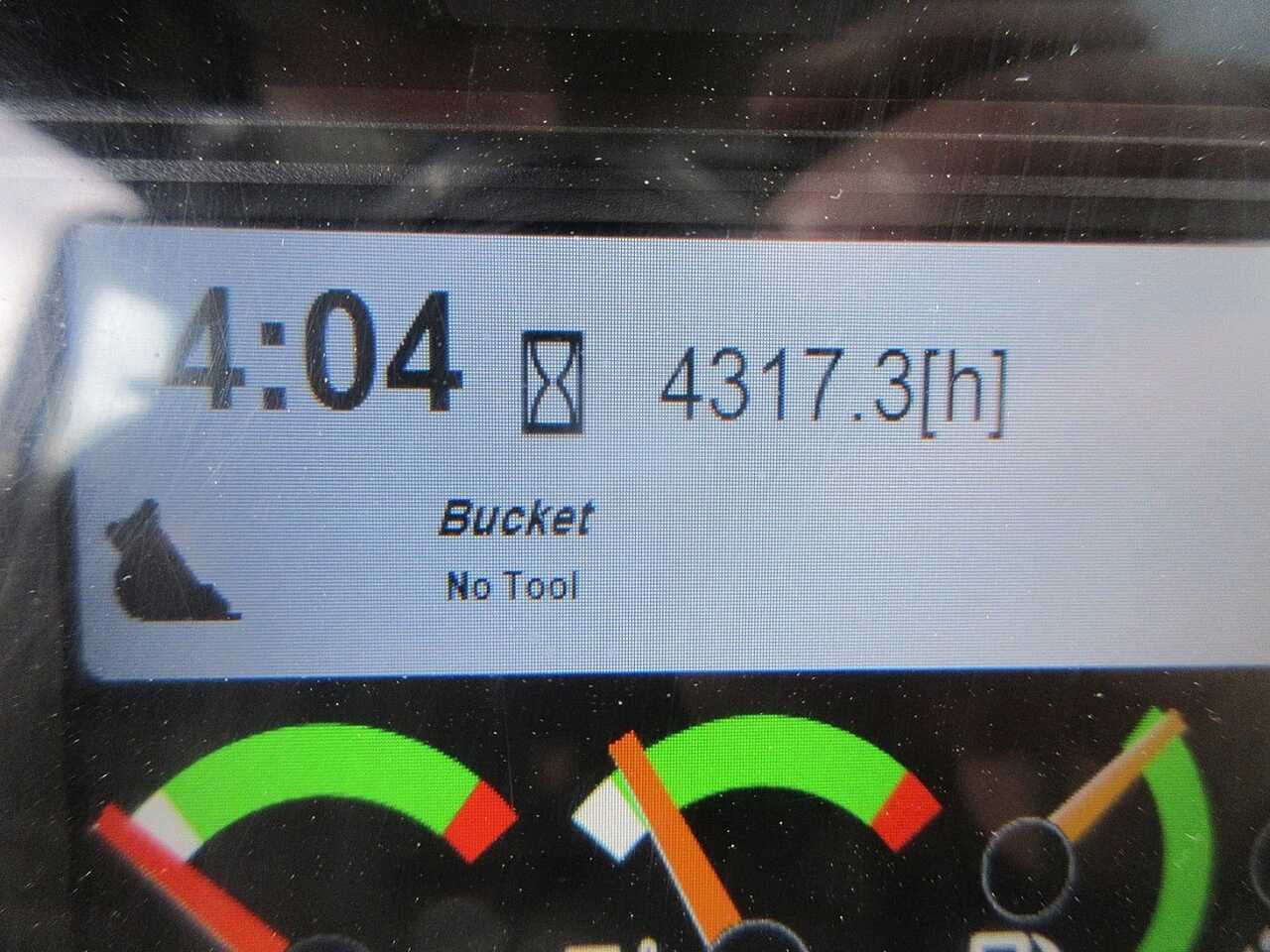

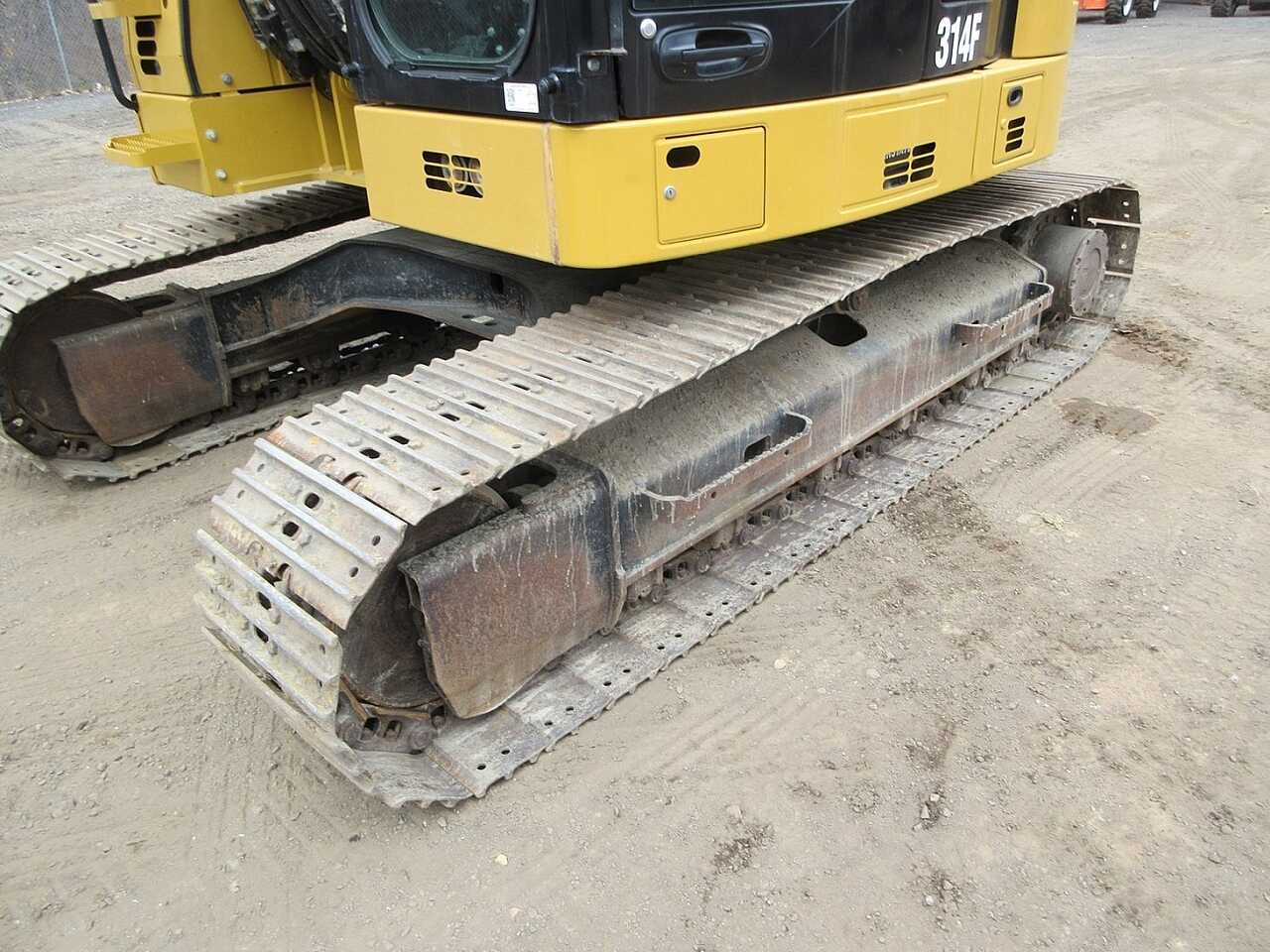

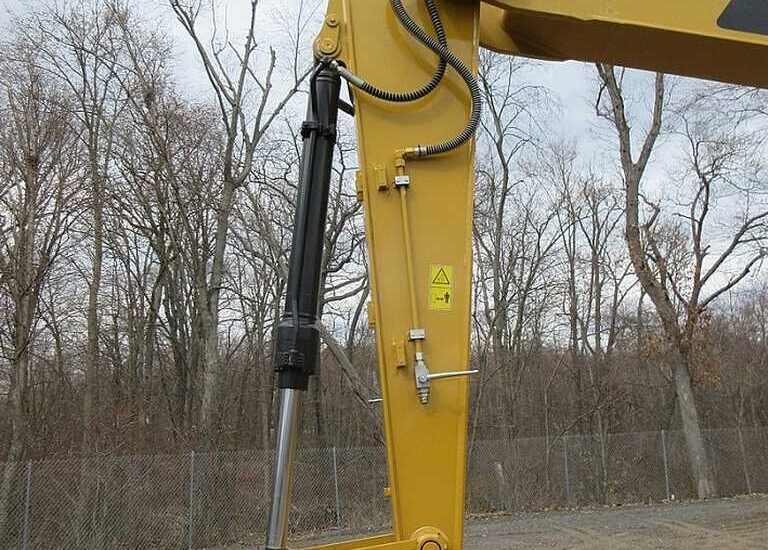

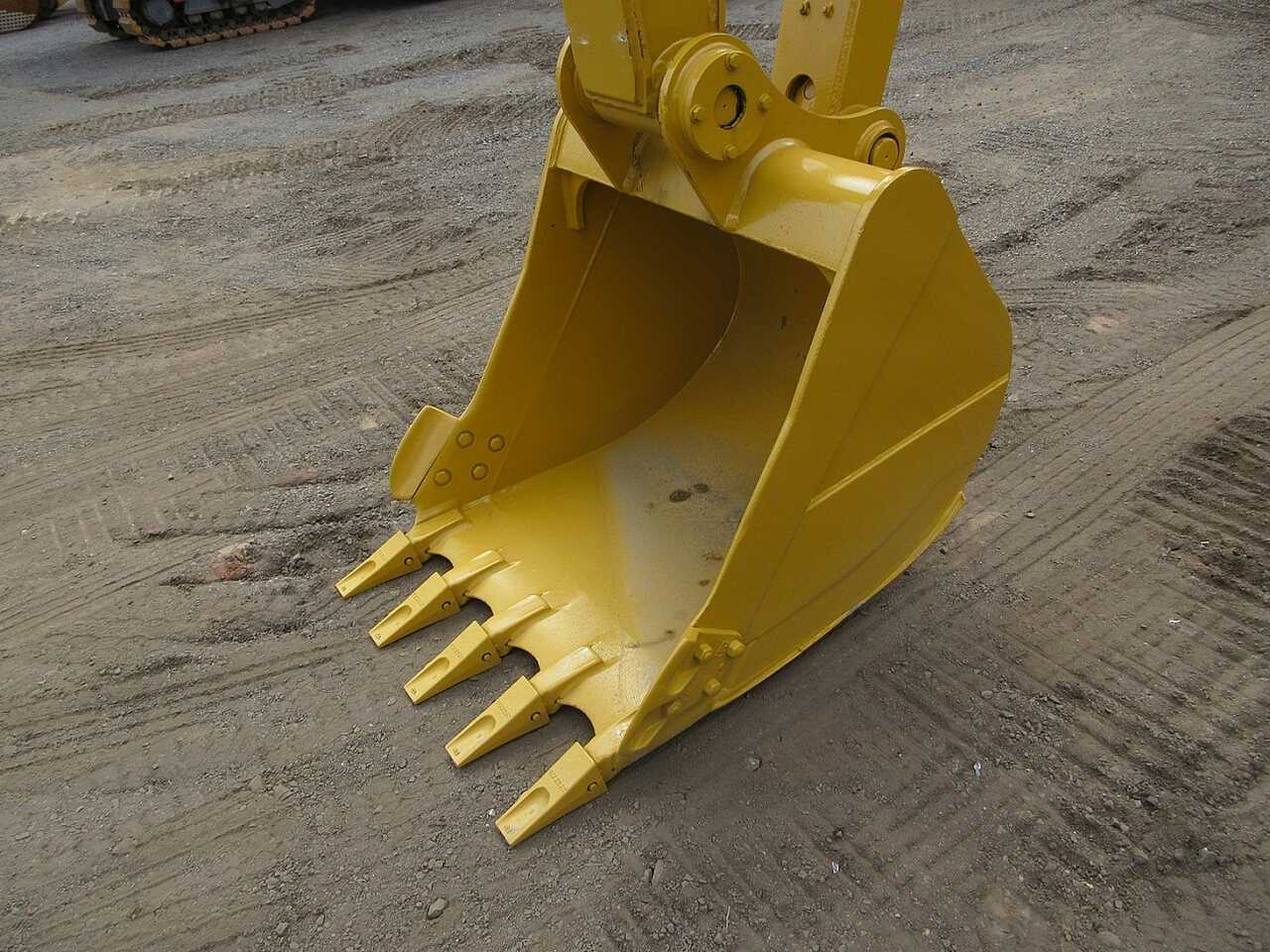

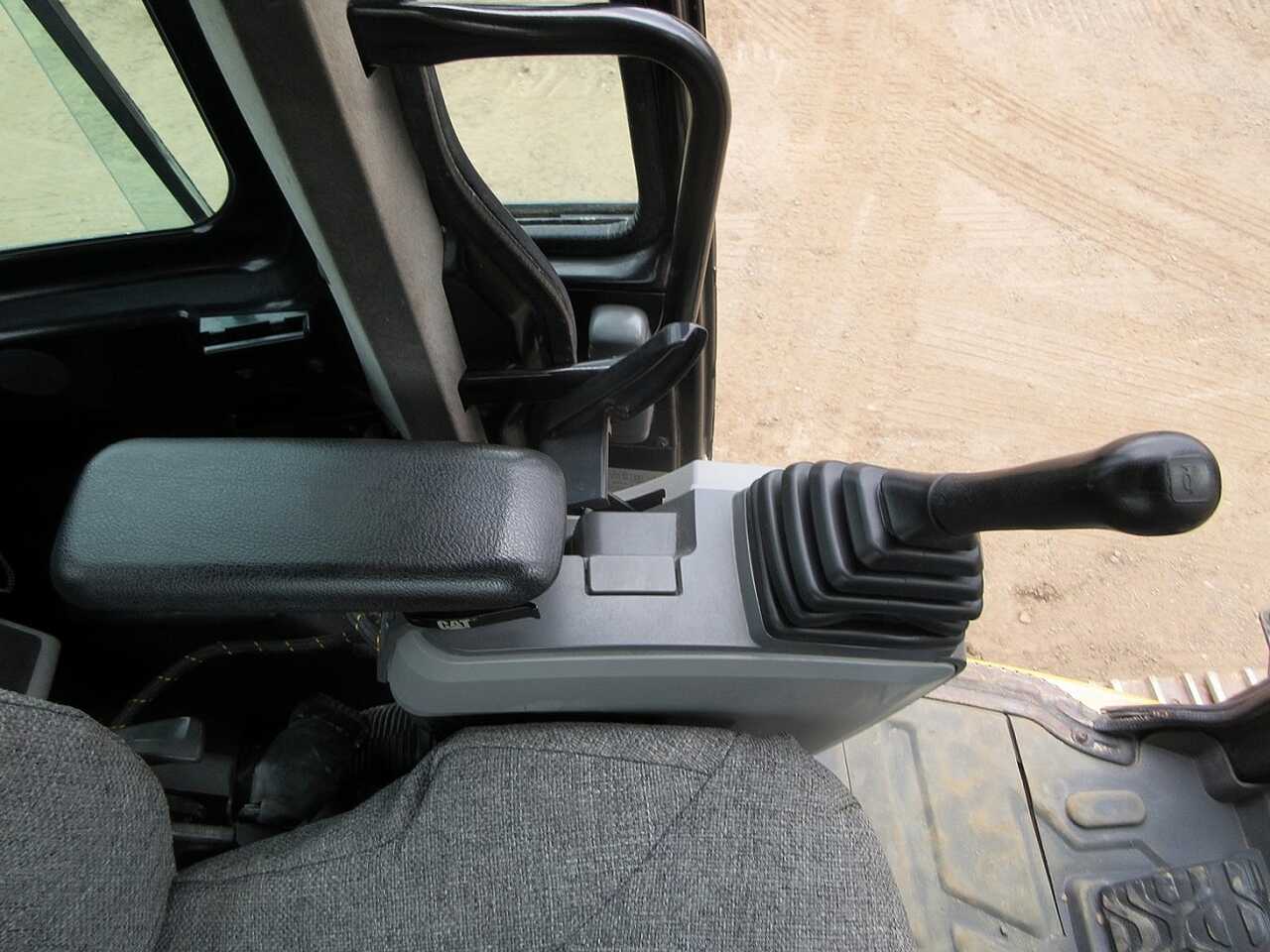

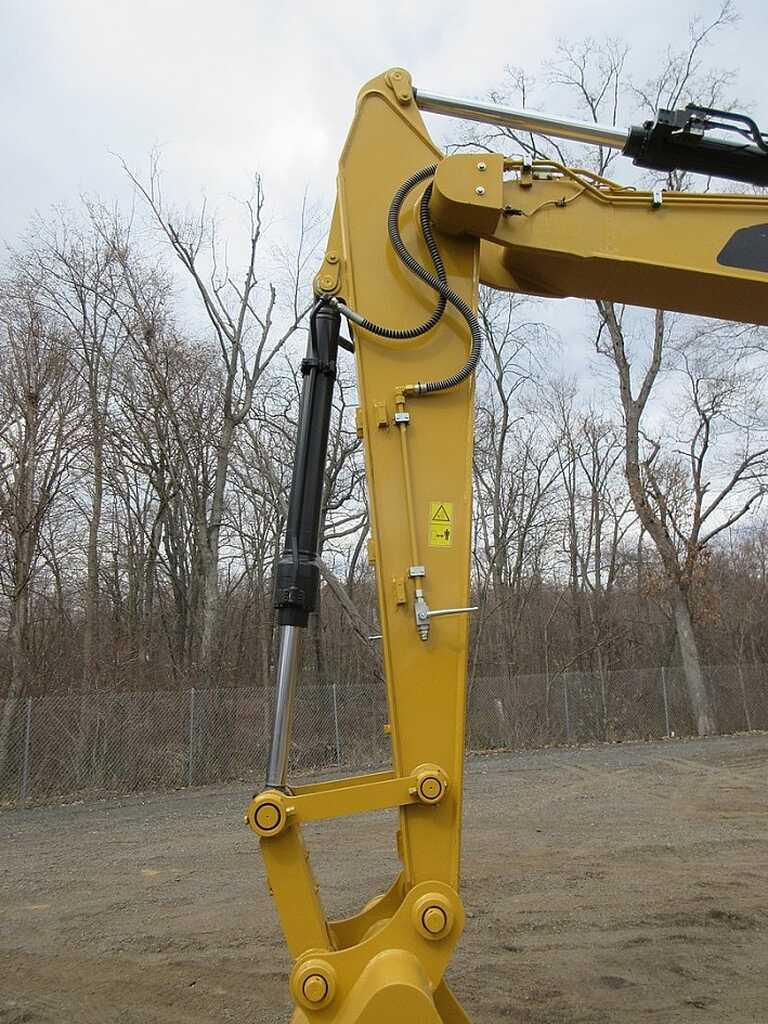

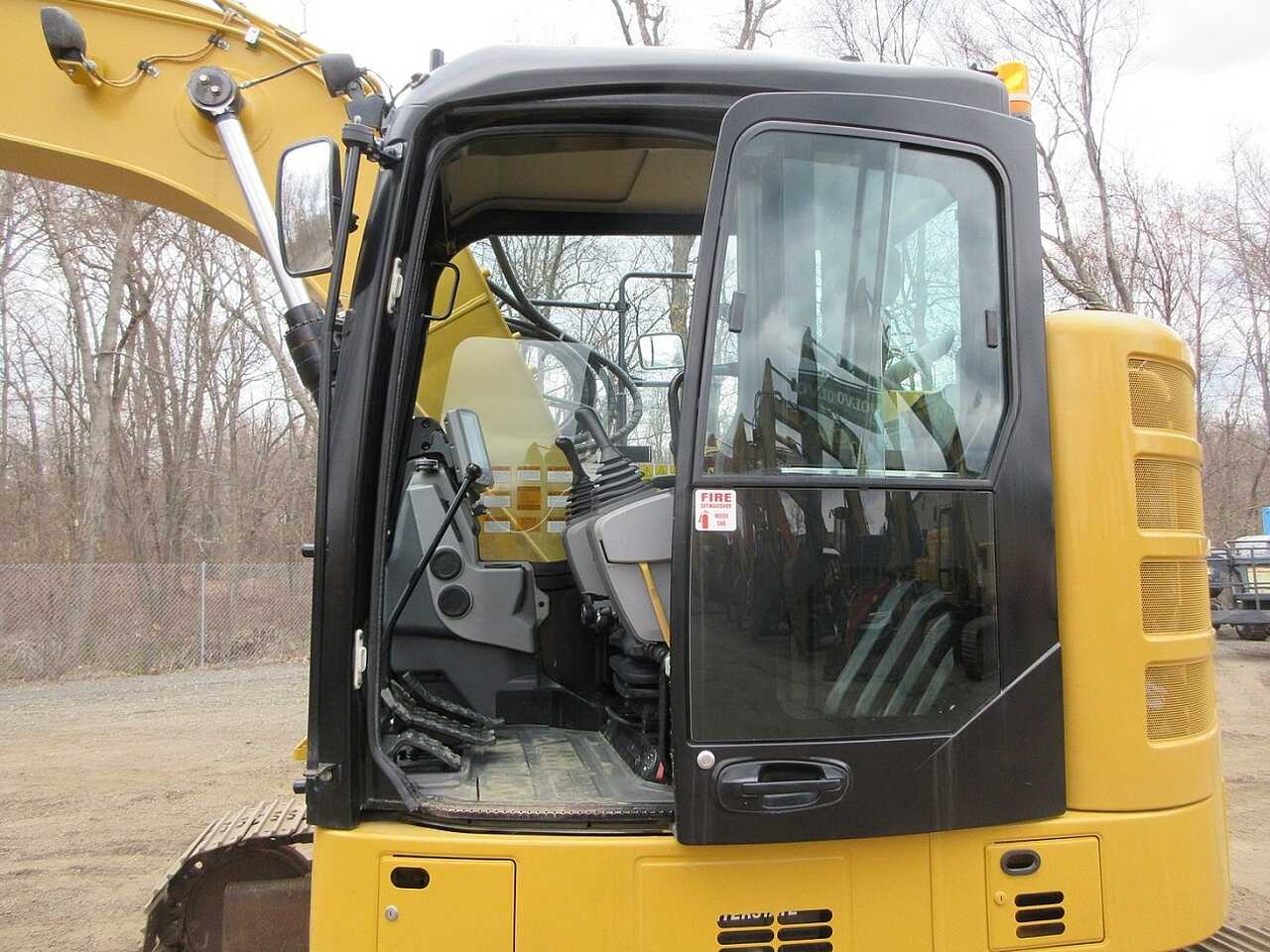

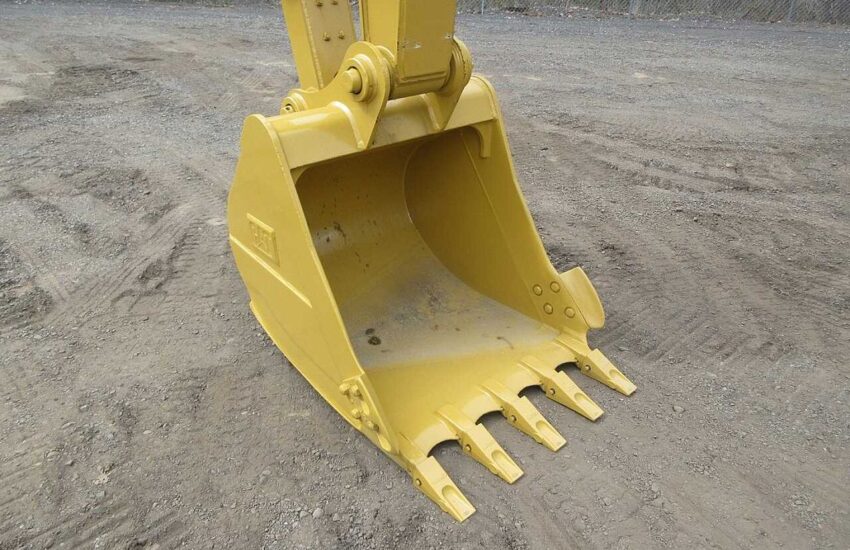

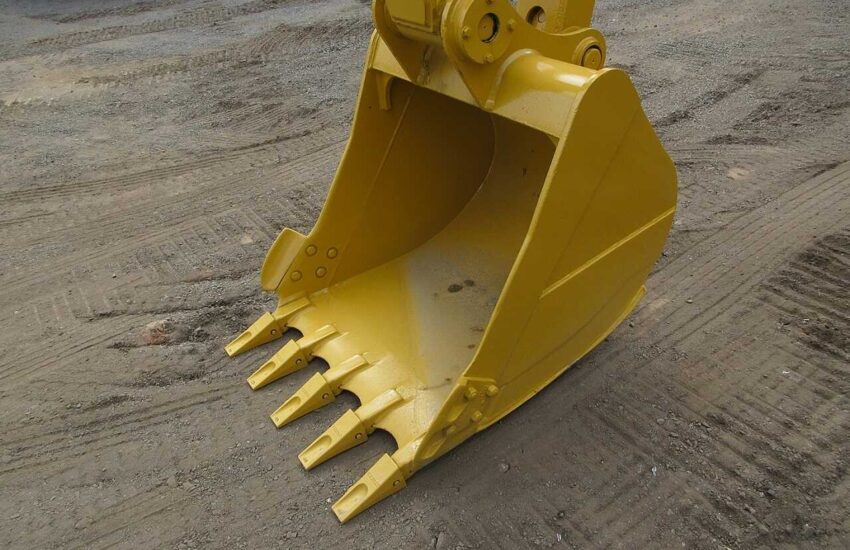

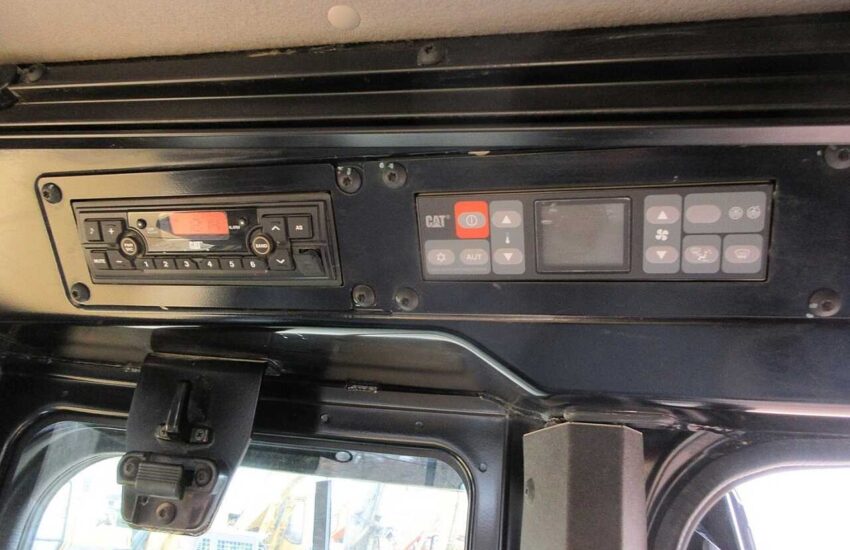

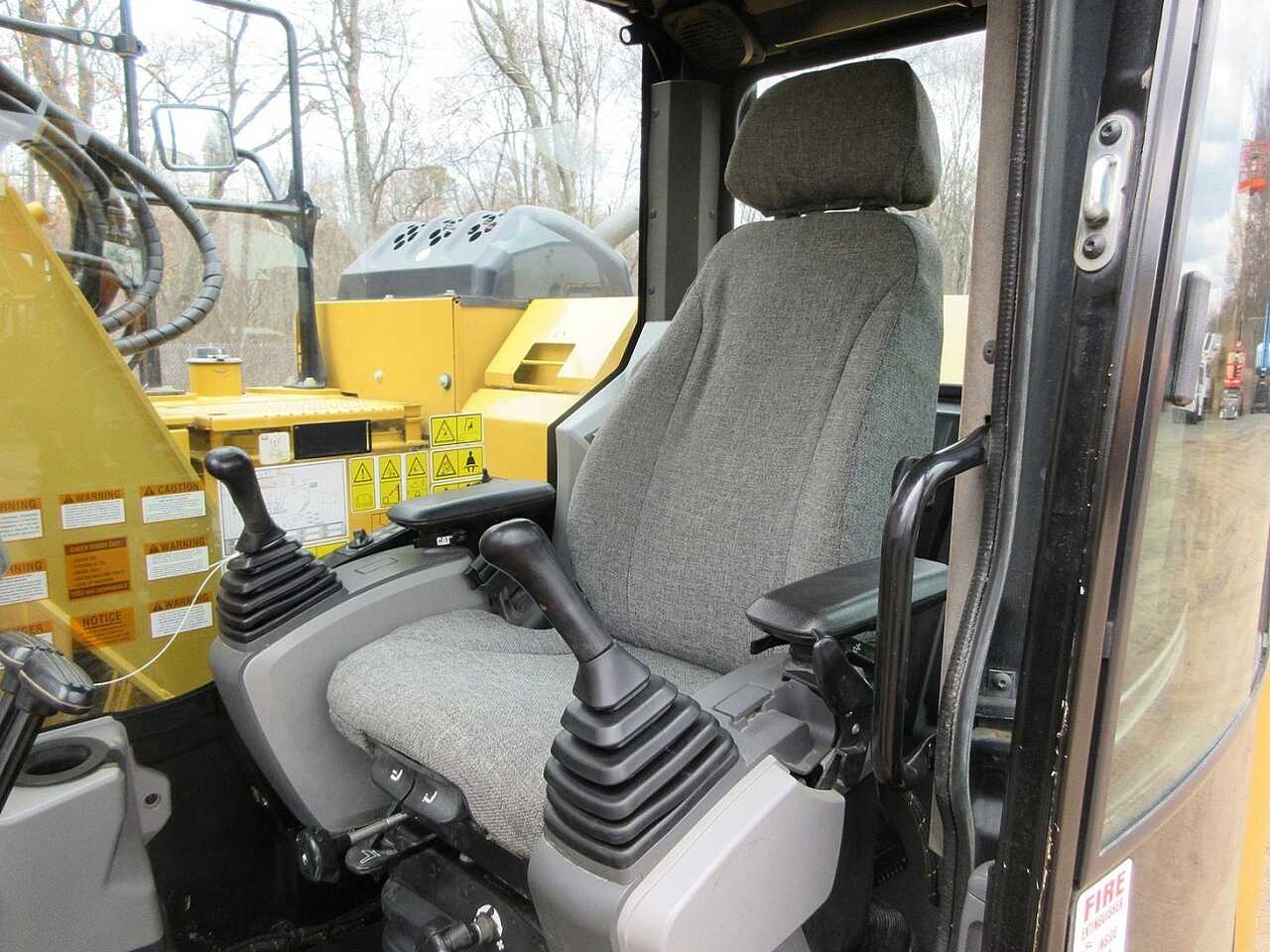

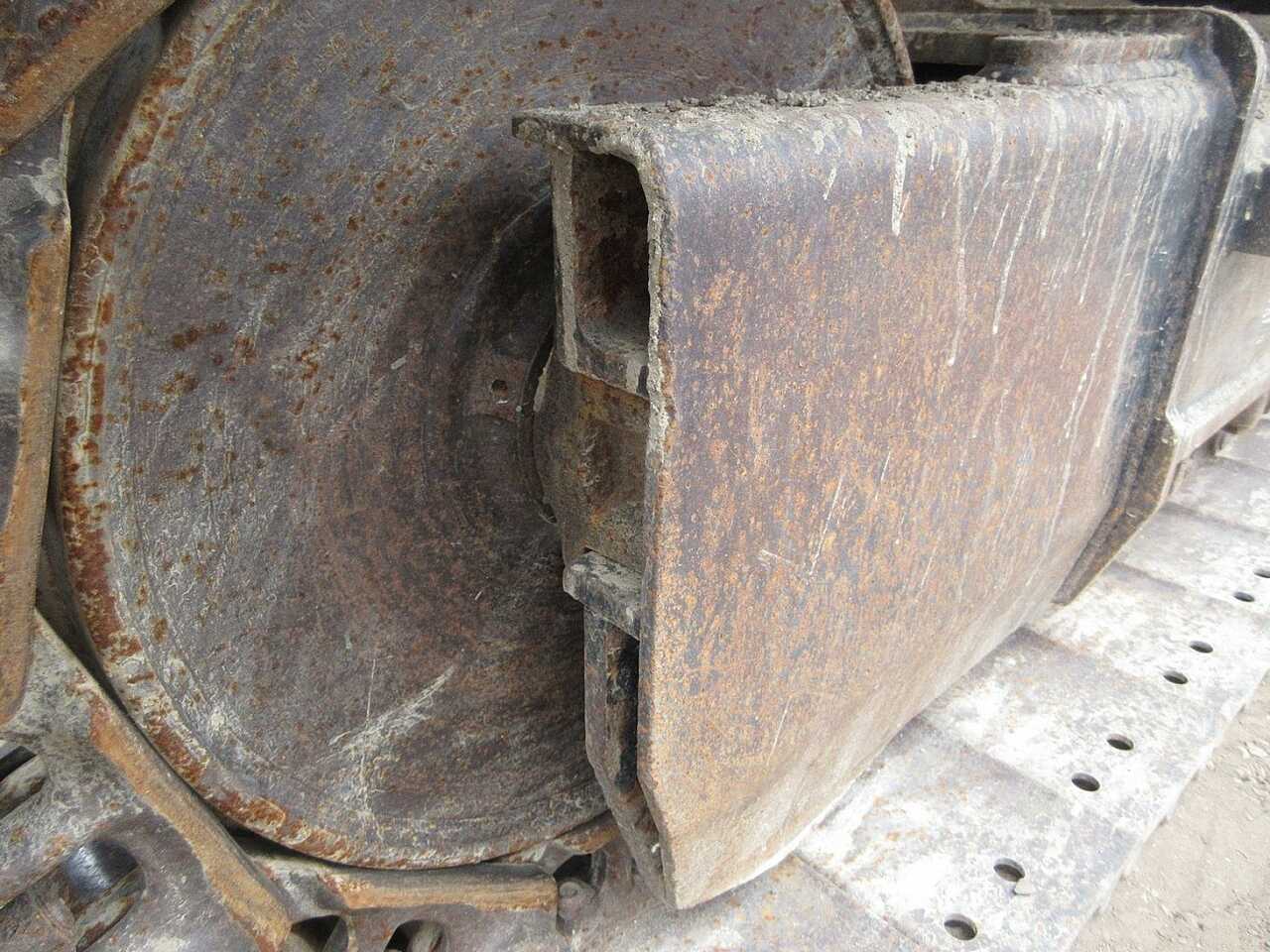

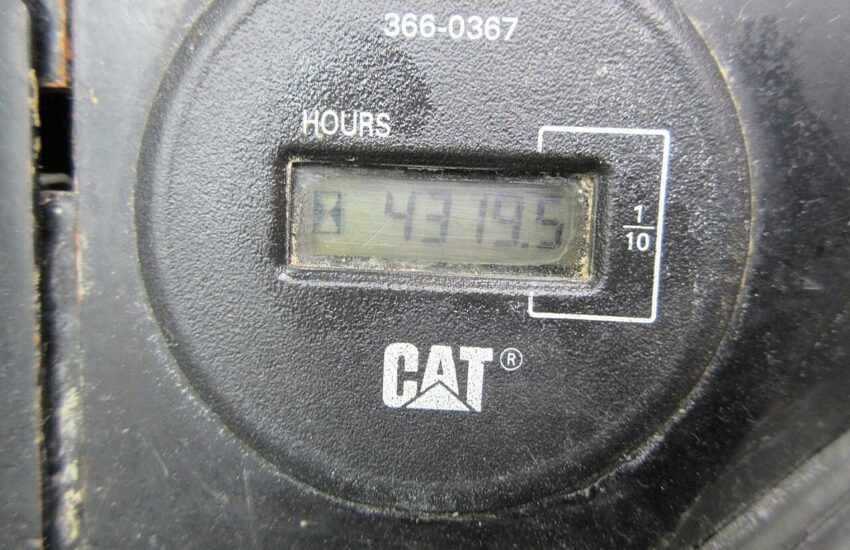

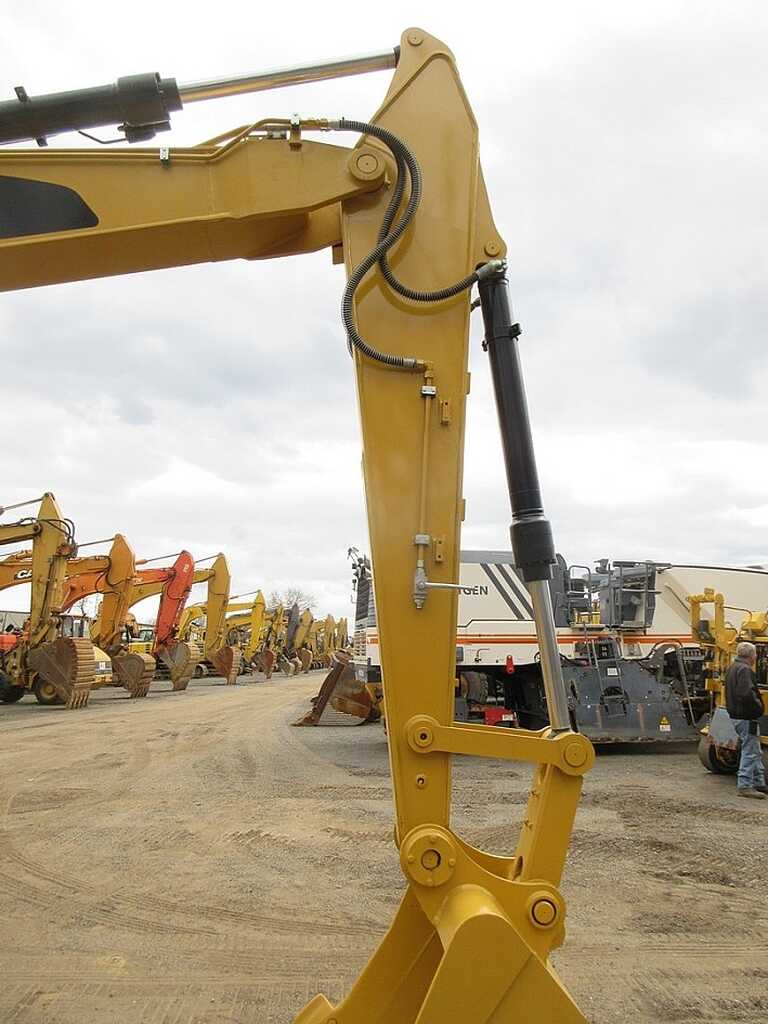

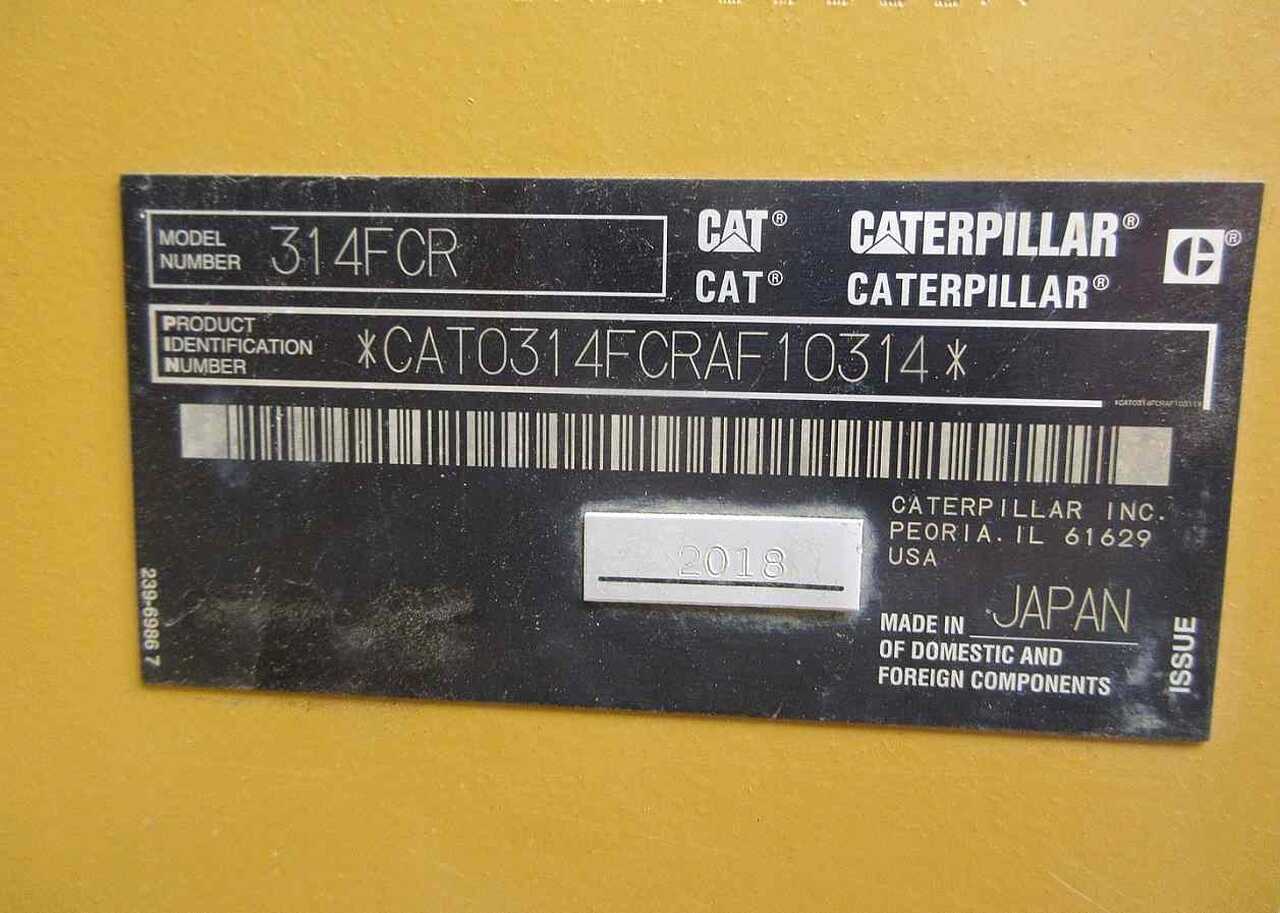

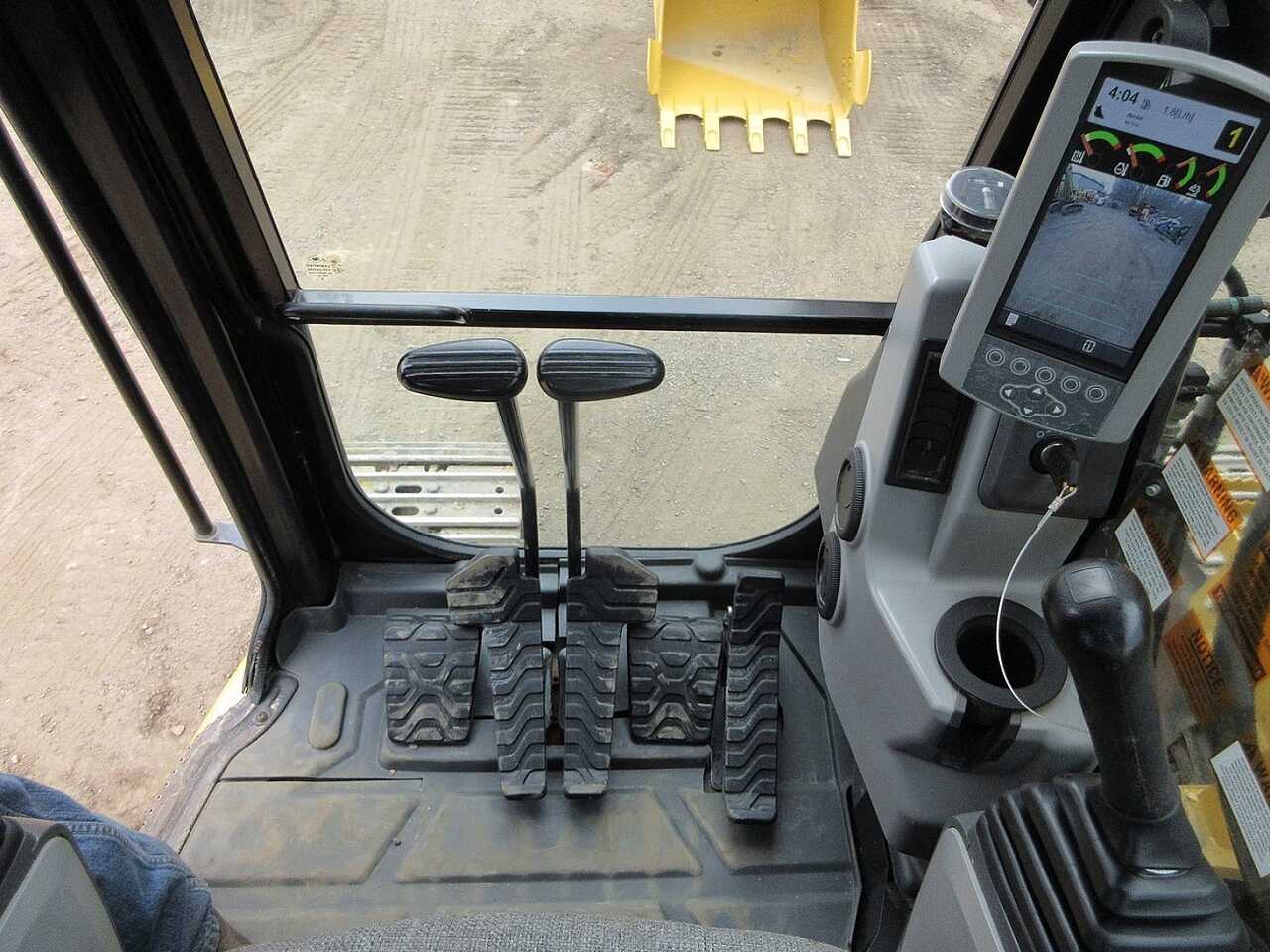

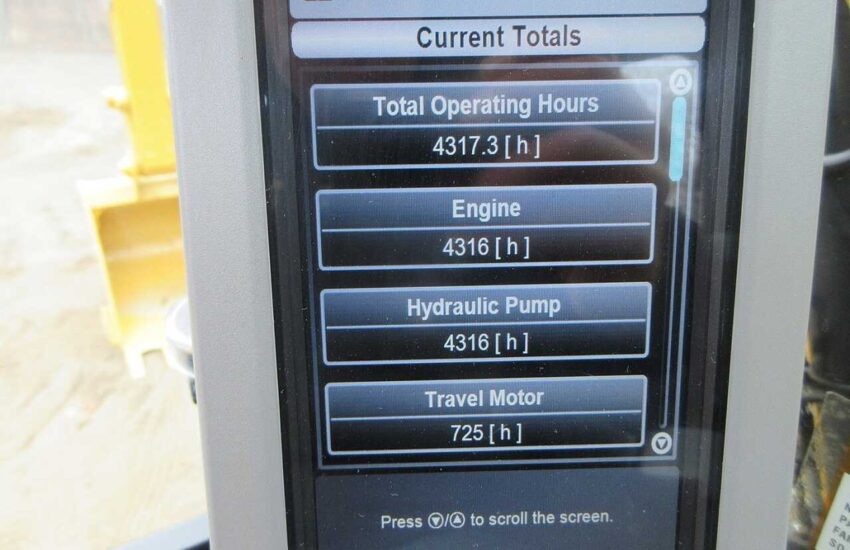

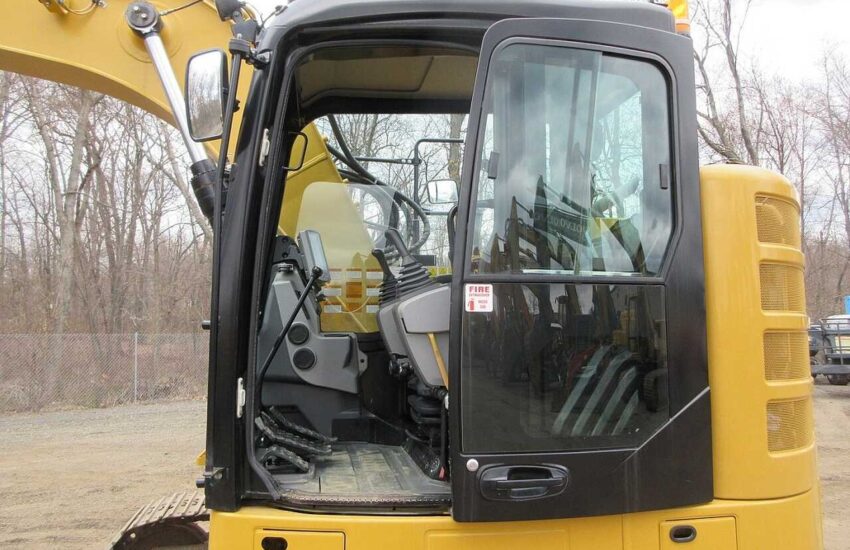

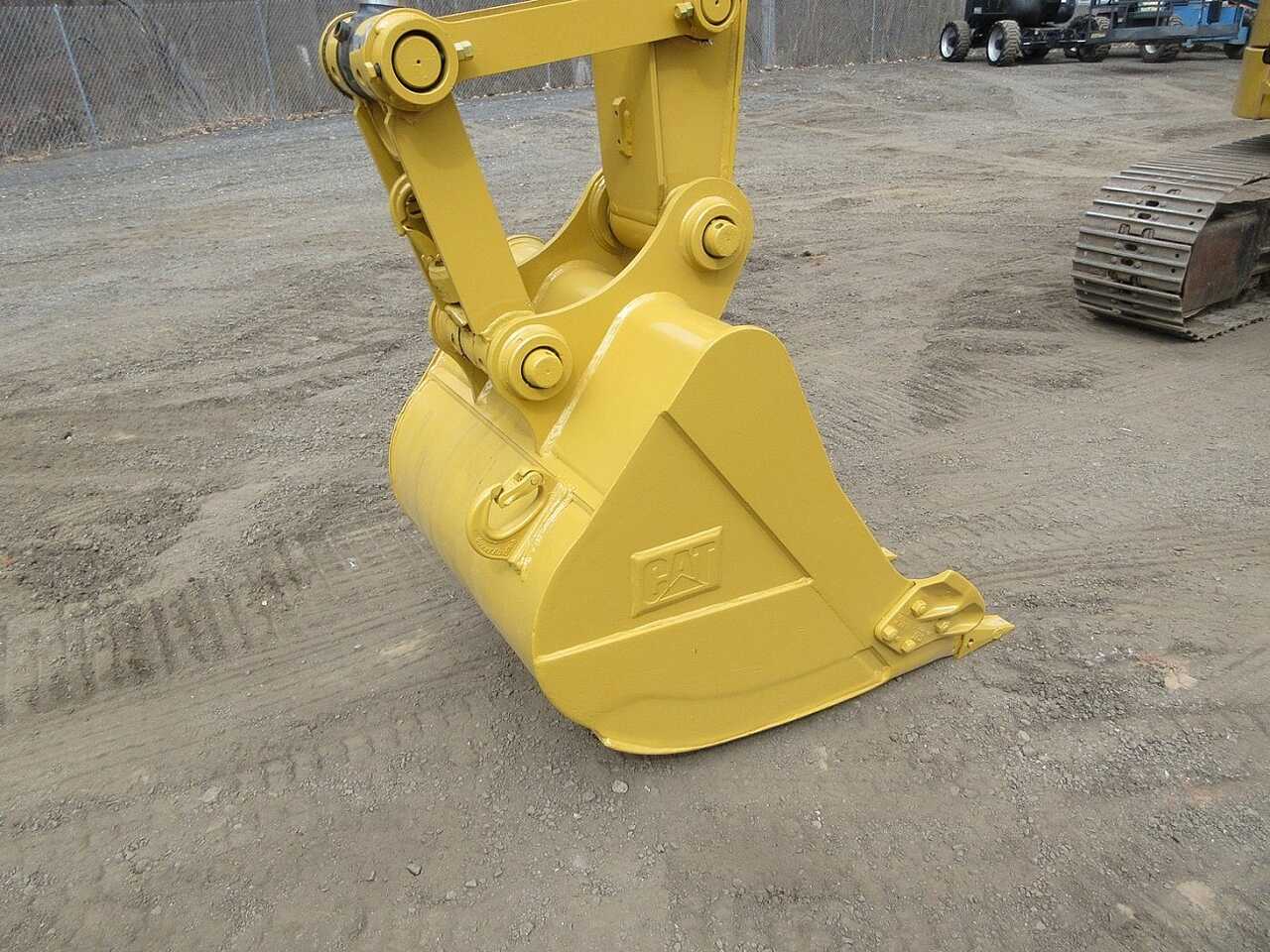

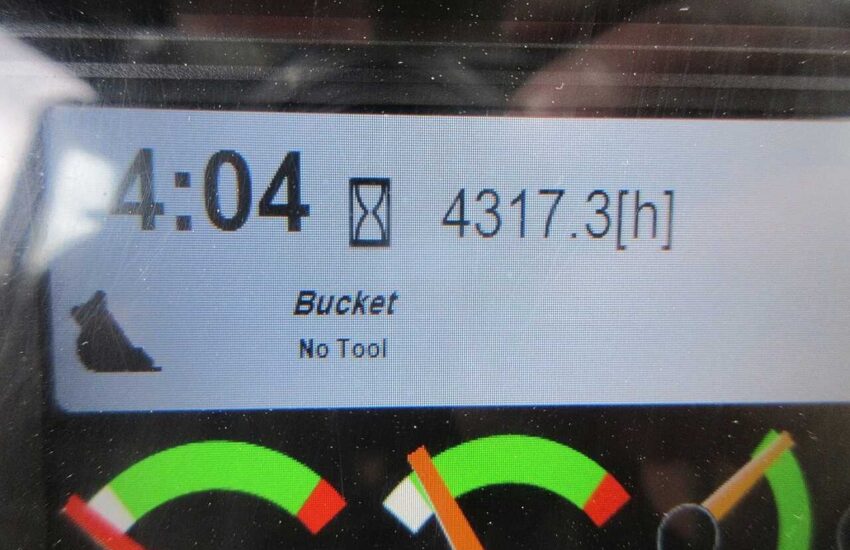

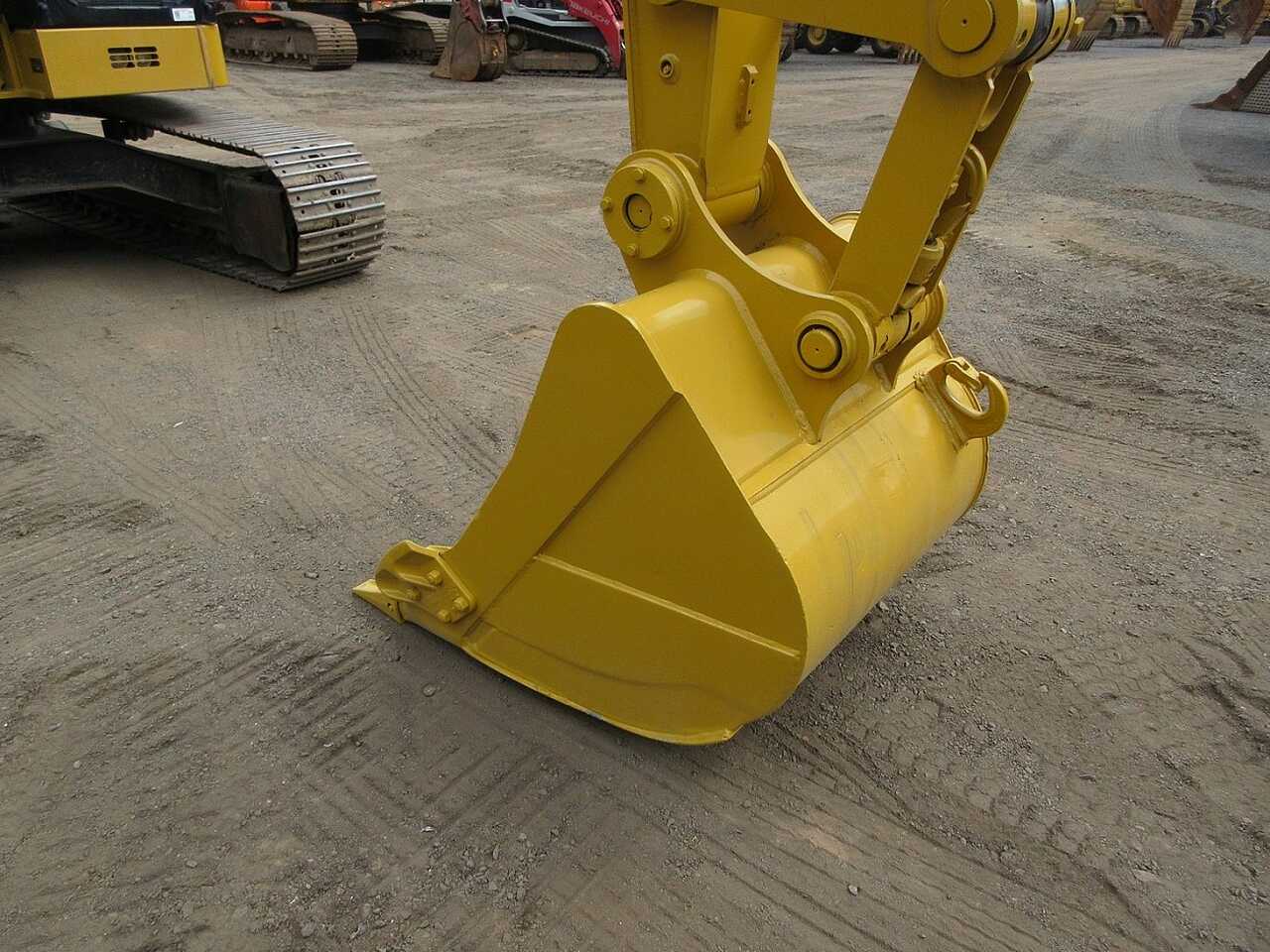

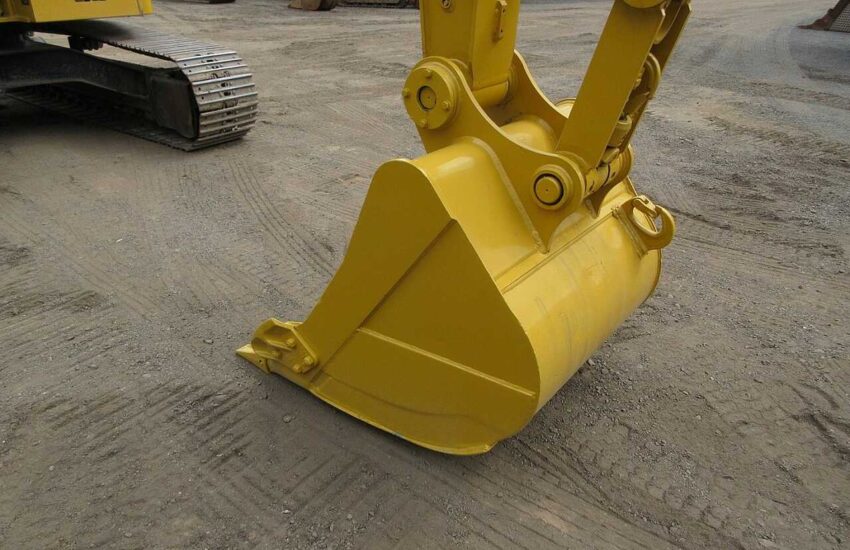

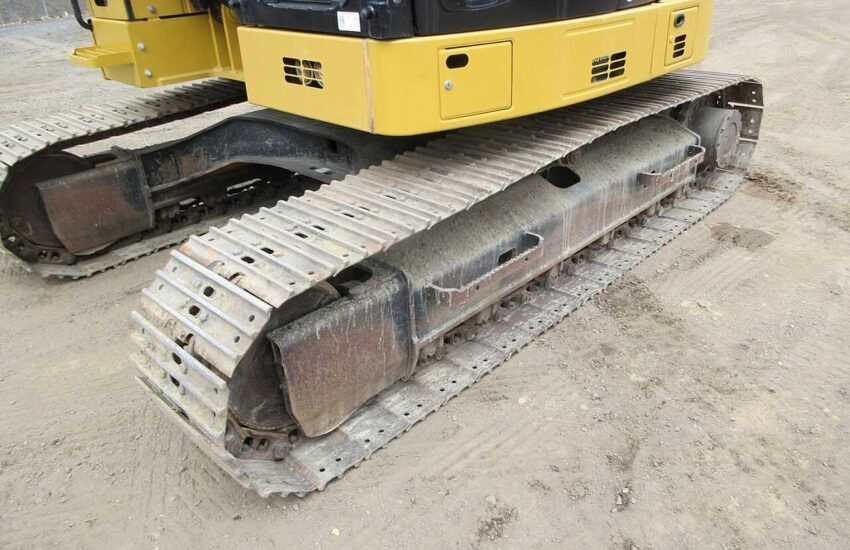

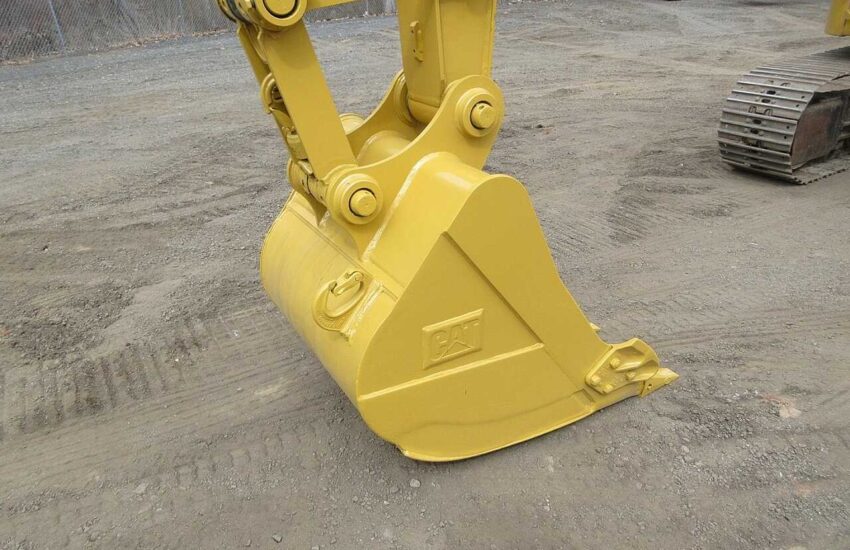

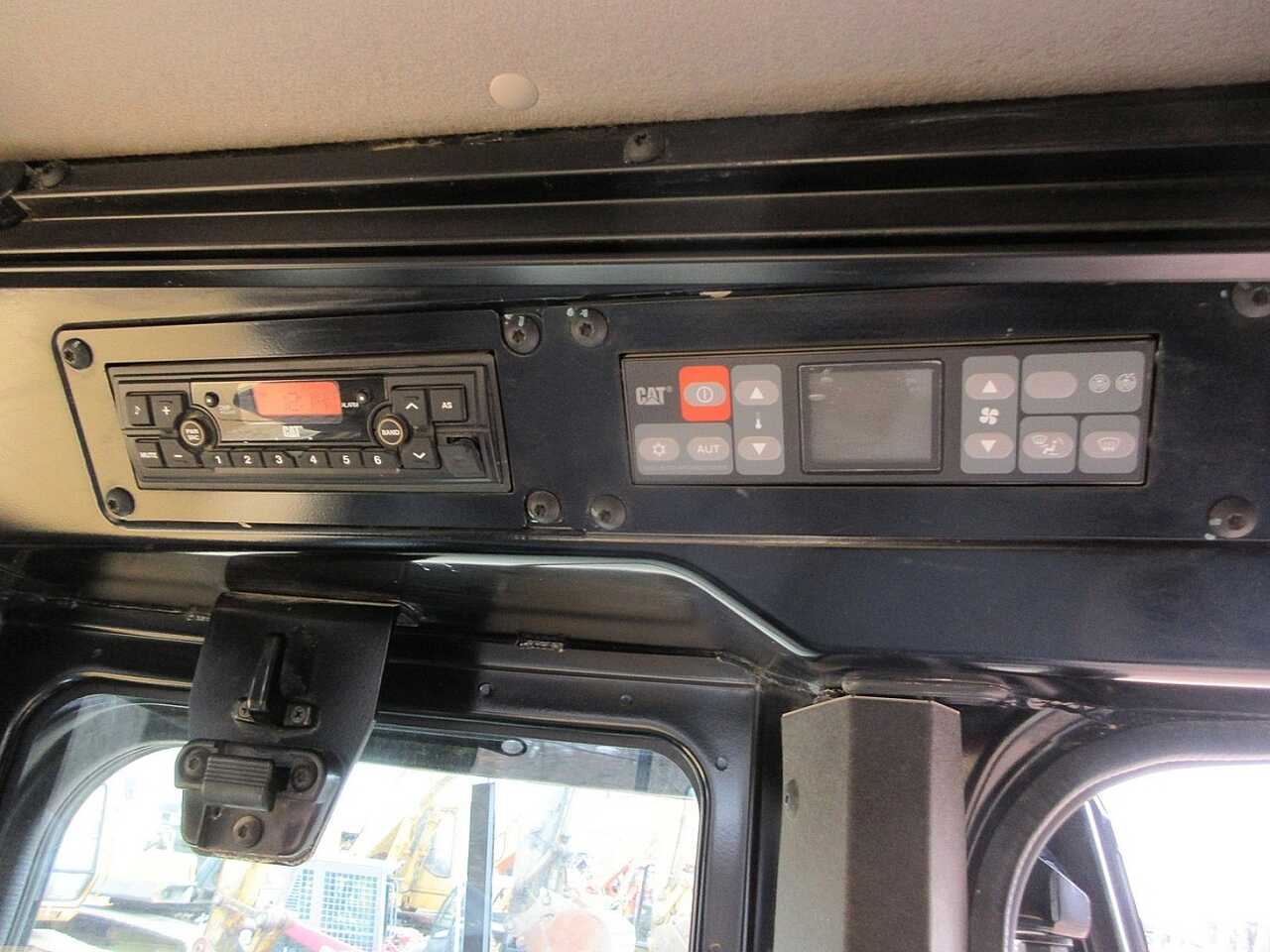

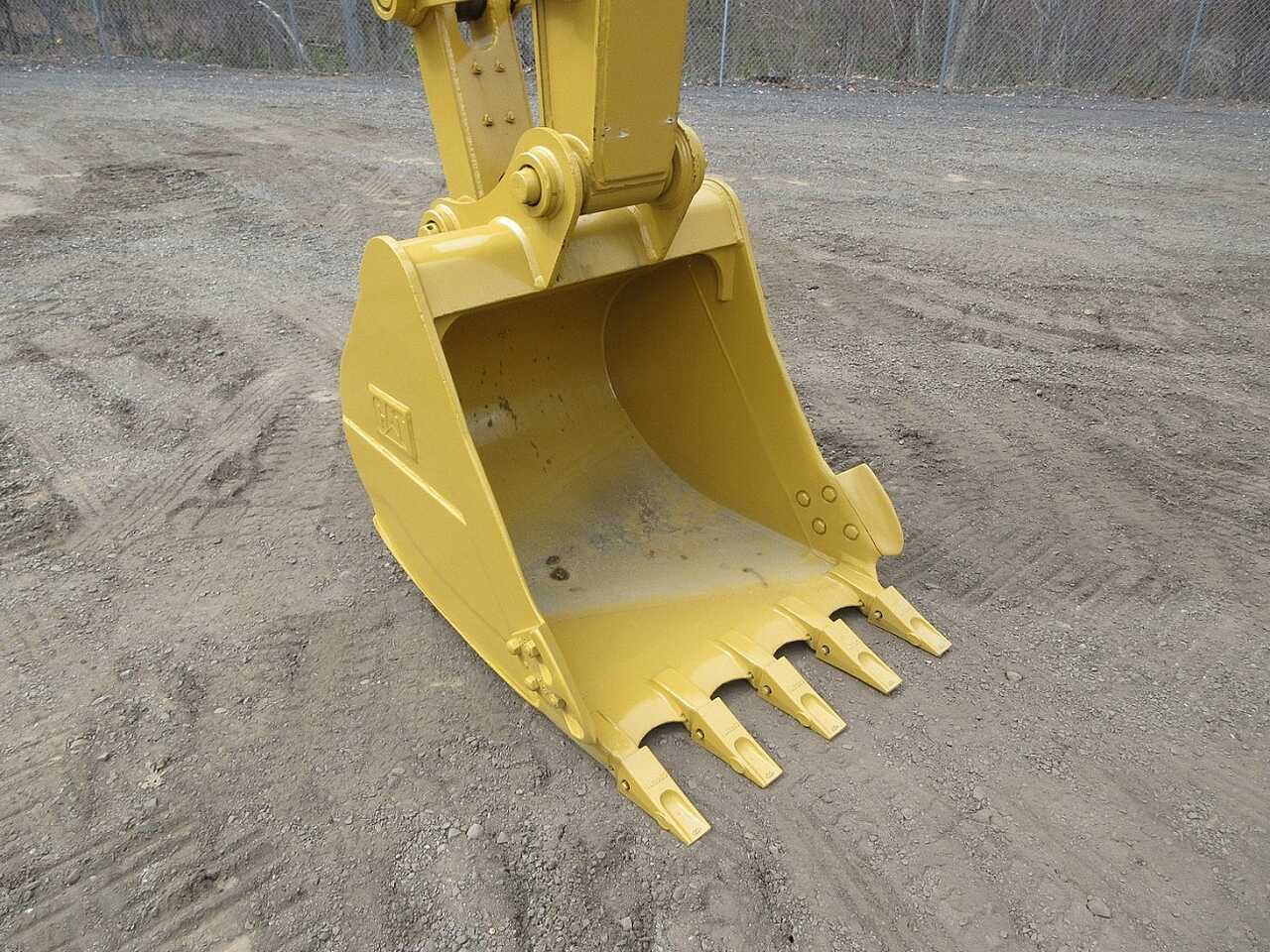

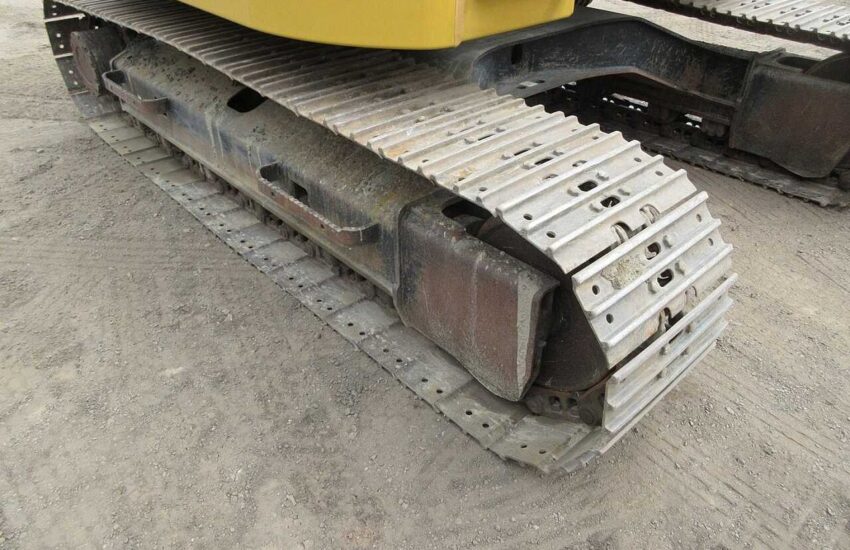

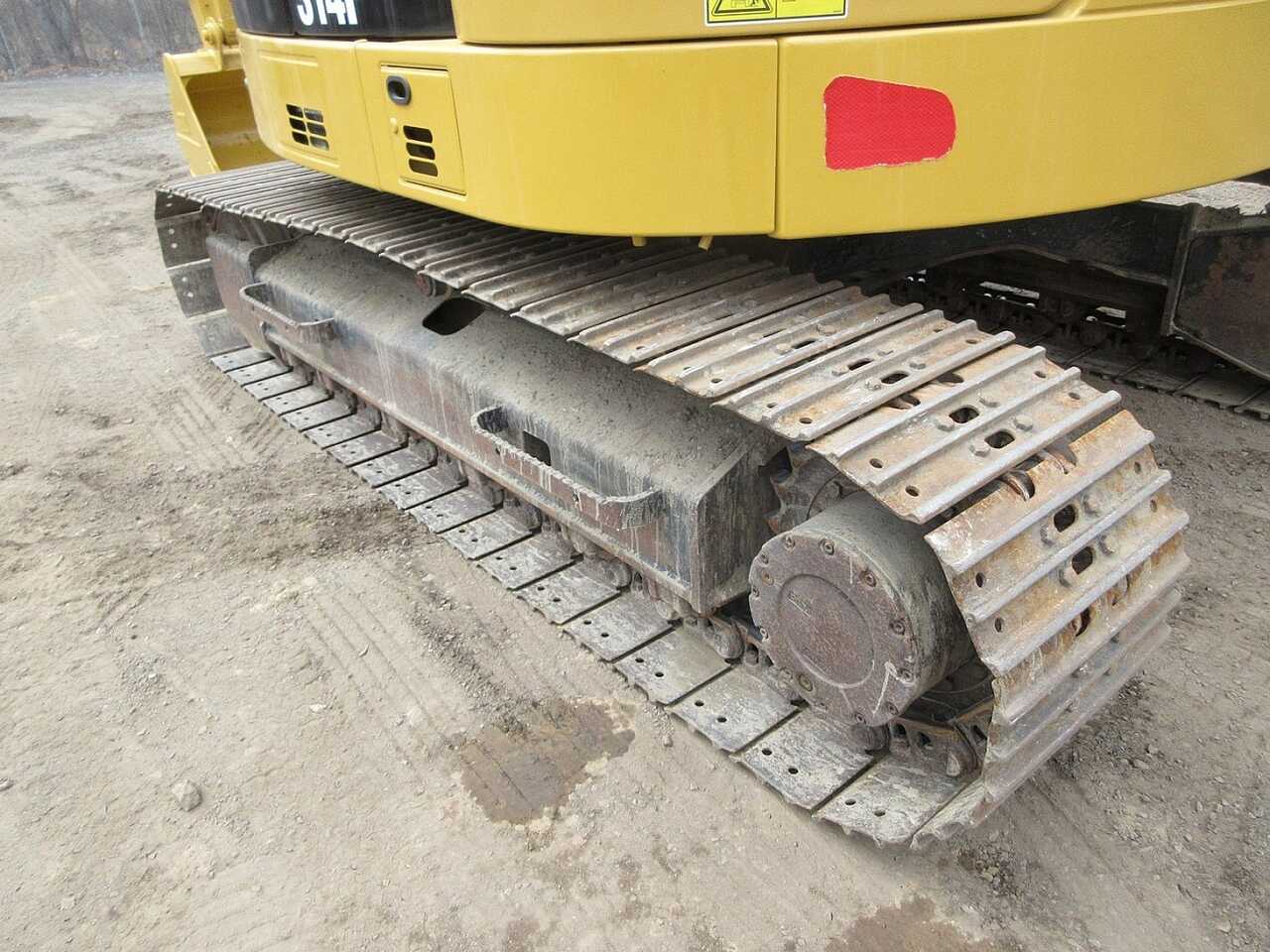

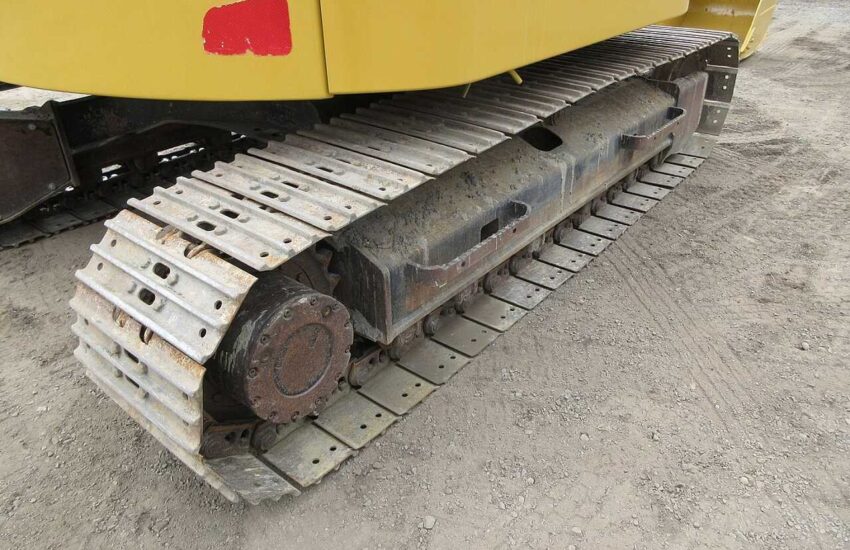

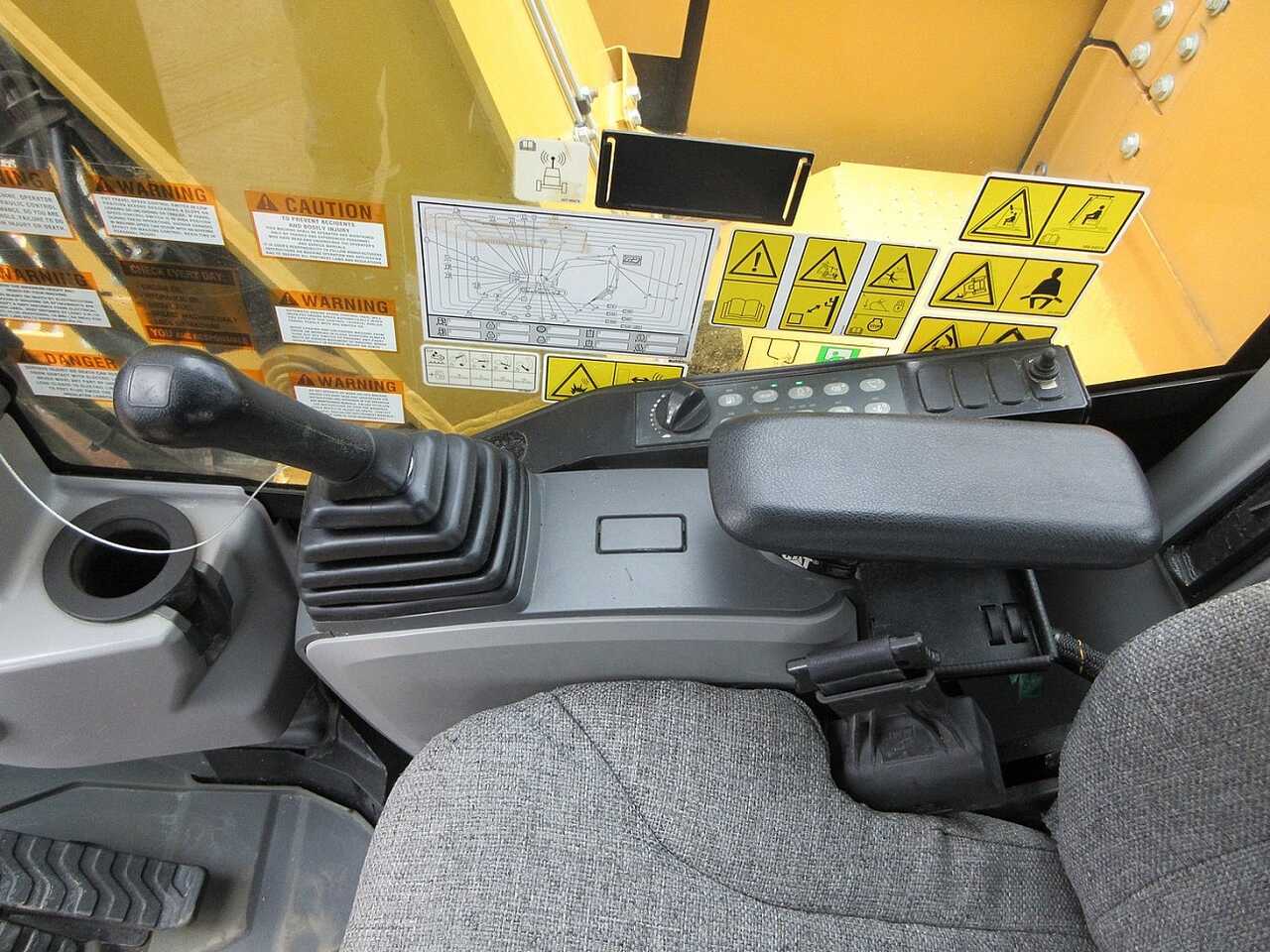

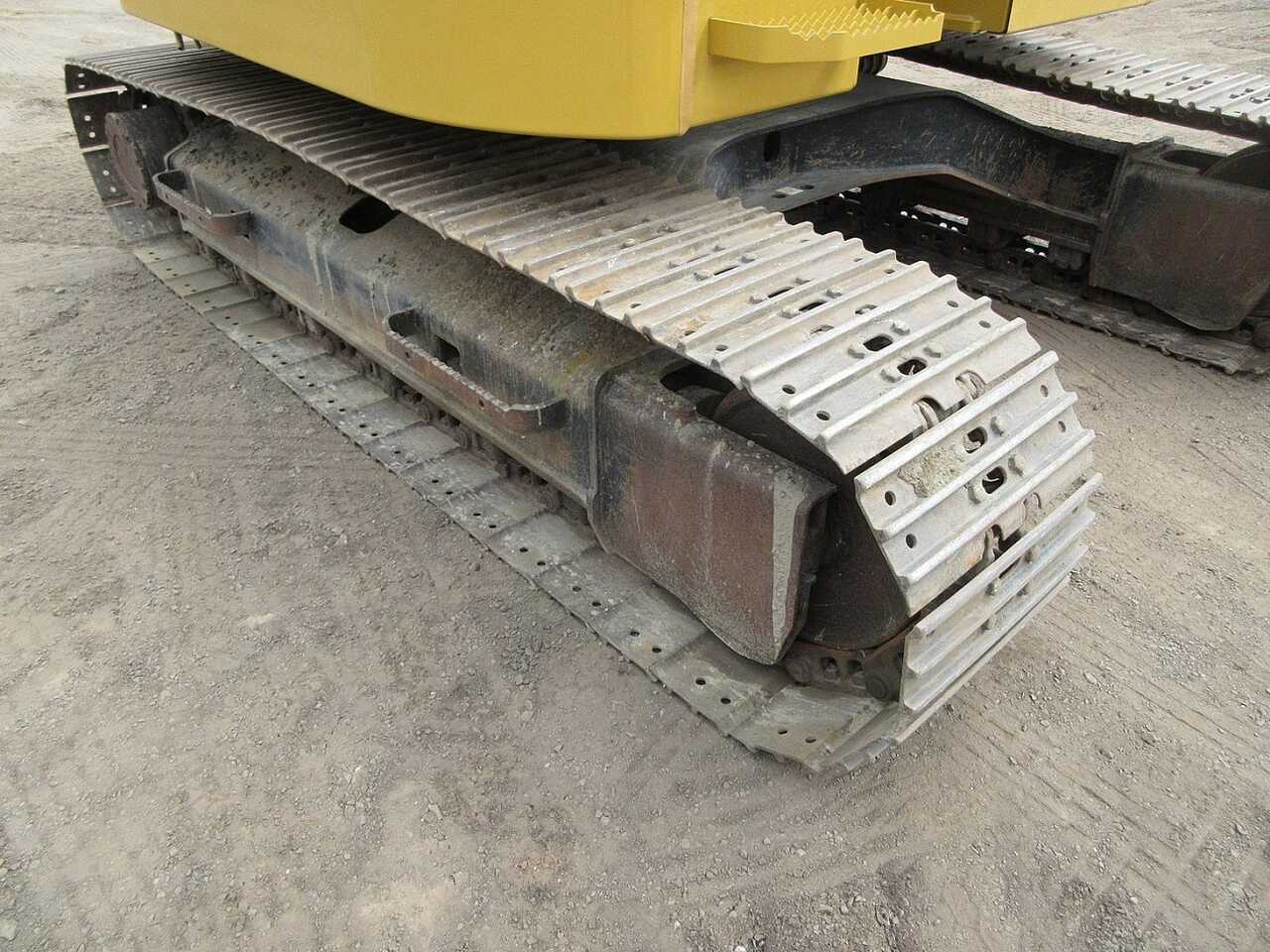

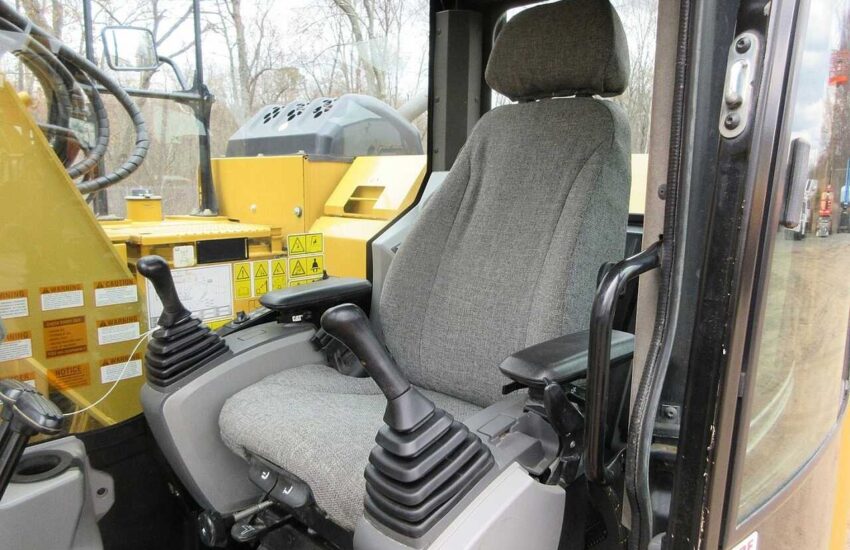

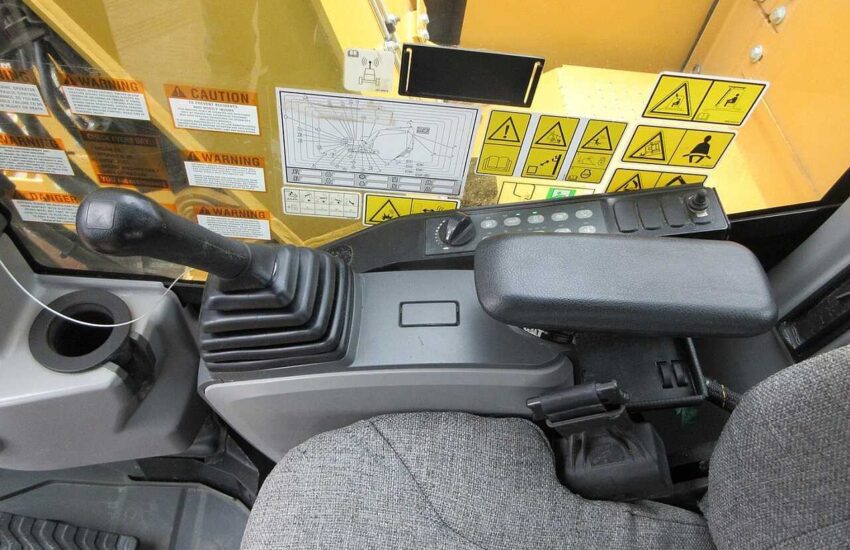

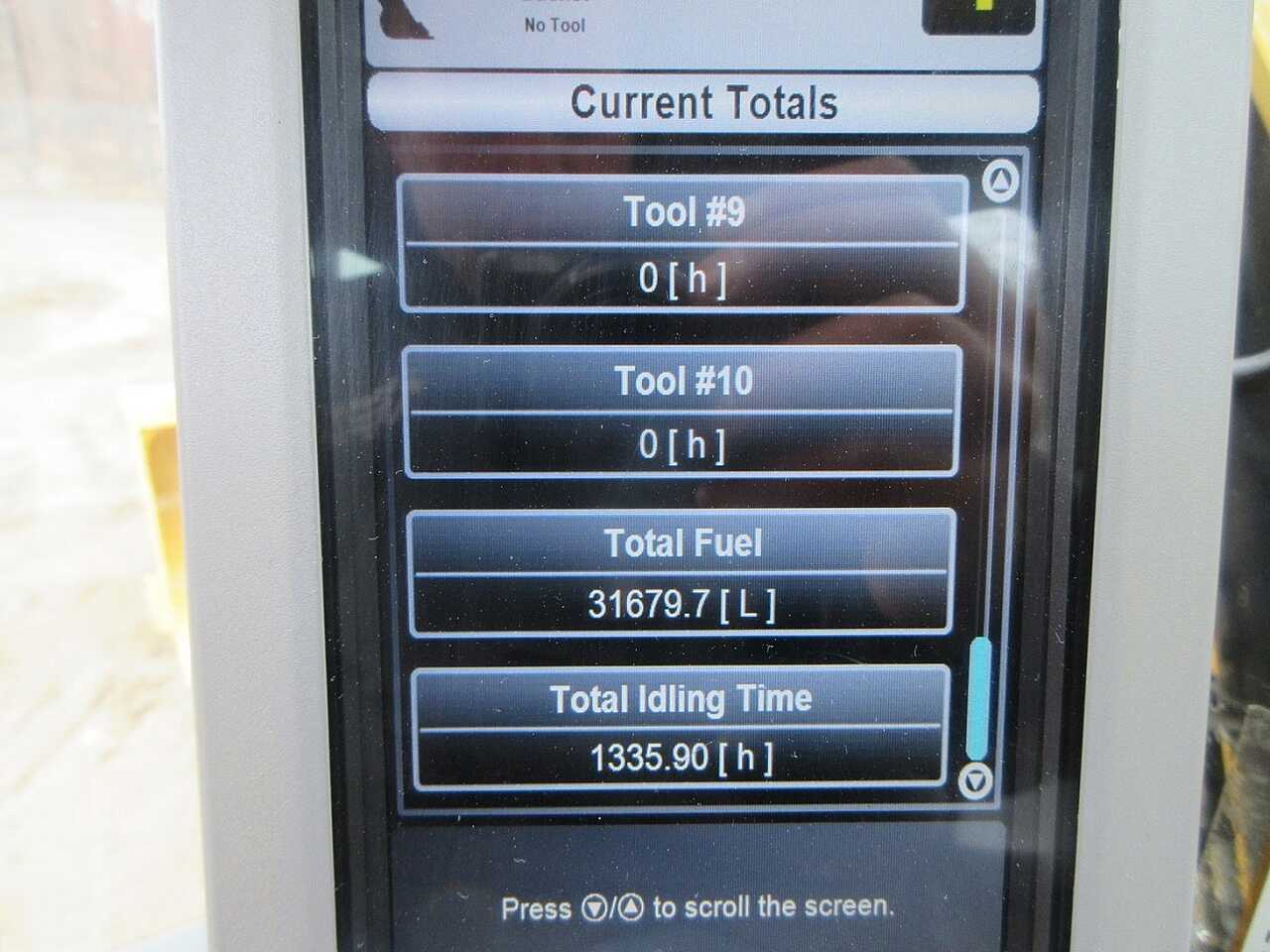

CATERPILLAR C4.4 ACERT 4 CYL TURBO DIESEL, CAB WITH HEAT, A/C, STEREO, AUTO IDLE, 2 SPEED TRAVEL, REARVIEW CAMERA, 20″ TRACK PADS, AUX HYD, 8′ STICK, BUCKET WITH TEETH, METER READS 4319 HOURS, S/N CAT0314FCRAF10314

ENGINE & PERFORMANCE

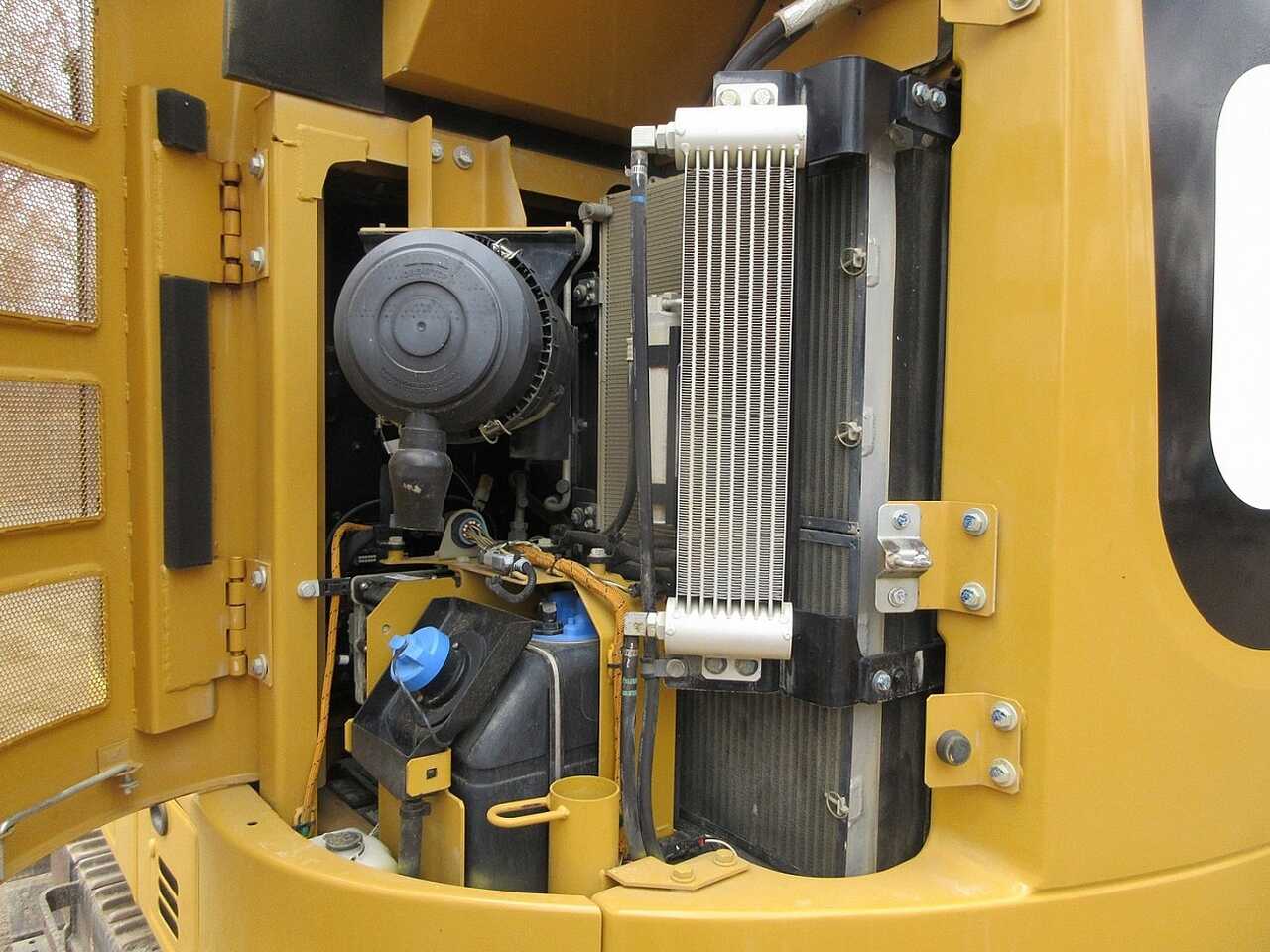

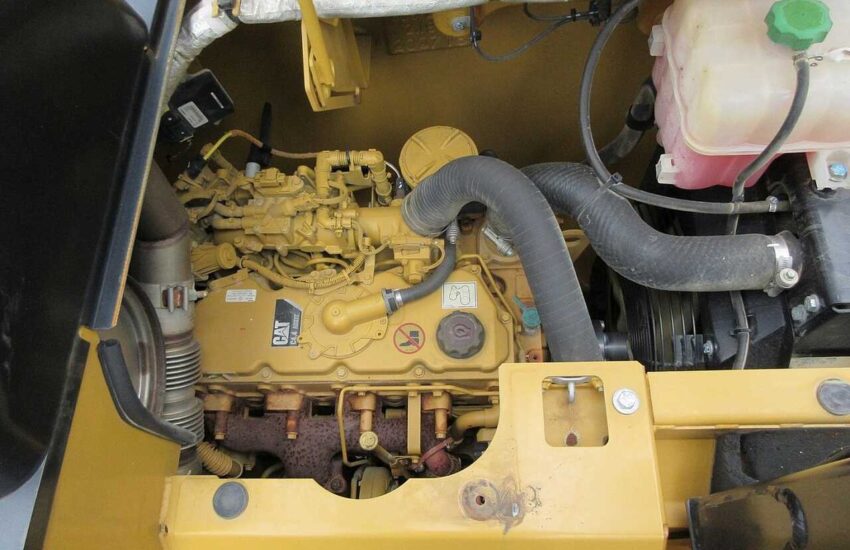

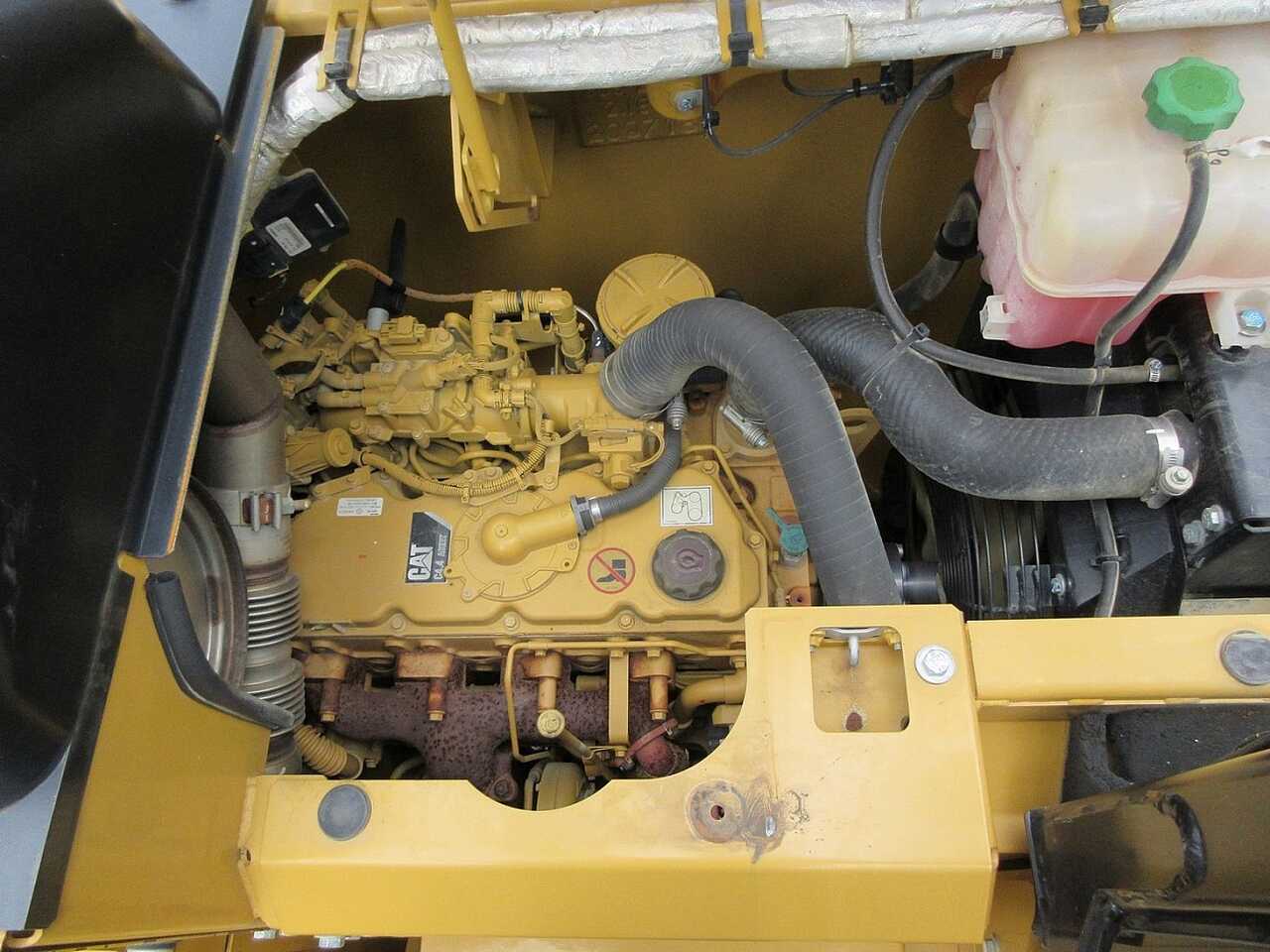

Engine Model: Caterpillar C4.4 ACERT™
Net Power: 72.9 hp (54.4 kW) @ 2,200 rpm
Gross Power: 74.3 hp (55.4 kW) @ 2,200 rpm
Displacement: 4.4 L (268 in³)
Emissions Compliance: Tier 4 Final / EU Stage IIIB
Maximum Torque: ~225 lb-ft (305 Nm)

DIMENSIONS & WEIGHT

Operating Weight: Approximately 14,000–15,000 kg (30,865–33,069 lbs)
Overall Length: ~7.5 m (24.6 ft)
Width: ~2.5 m (8.2 ft)
Height to Top of Cab: ~2.8 m (9.2 ft)
Tail Swing Radius: Minimal (compact design for tight spaces)
Ground Clearance: ~0.4 m (1.3 ft)

HYDRAULIC SYSTEM

Maximum Flow: ~256 L/min (67.5 gpm)
Maximum Pressure – Equipment: 30,500 kPa (4,426 psi)
Maximum Pressure – Travel: 35,000 kPa (5,076 psi)
Maximum Pressure – Swing: 25,000 kPa (3,626 psi)
Pilot System – Maximum Flow: 22 L/min (5.8 gpm)
Pilot System – Maximum Pressure: 4,120 kPa (598 psi)

PERFORMANCE & REACH

Maximum Digging Depth: ~5.5 m (18 ft)
Maximum Reach at Ground Level: ~8.3 m (27.2 ft)
Maximum Cutting Height: ~9.3 m (30.5 ft)
Maximum Loading Height: ~6.8 m (22.3 ft)
Bucket Digging Force: ~95 kN (21,358 lbf)
Stick Digging Force: ~65 kN (14,634 lbf)

SWING & TRAVEL

Swing Speed: ~11.5 rpm
Swing Torque: ~30.9 kN·m (22,800 lbf·ft)
Maximum Travel Speed: ~5.5 km/h (3.4 mph)
Maximum Drawbar Pull: ~112 kN (25,200 lbf)

SERVICE REFILL CAPACITIES

Fuel Tank: ~178 L (47 gal)
DEF Tank: ~19 L (5 gal)
Cooling System: ~28 L (7.4 gal)
Engine Oil: ~13.5 L (3.6 gal)
Swing Drive: ~2.4 L (0.6 gal)

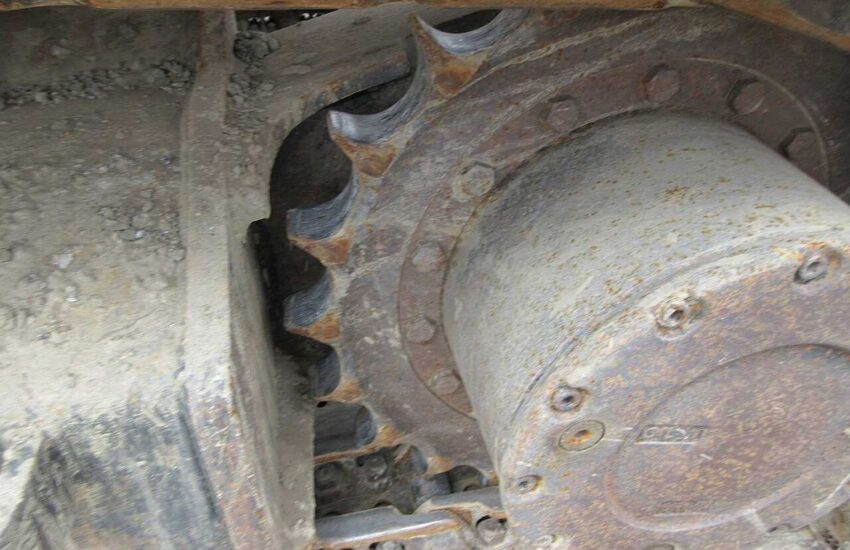

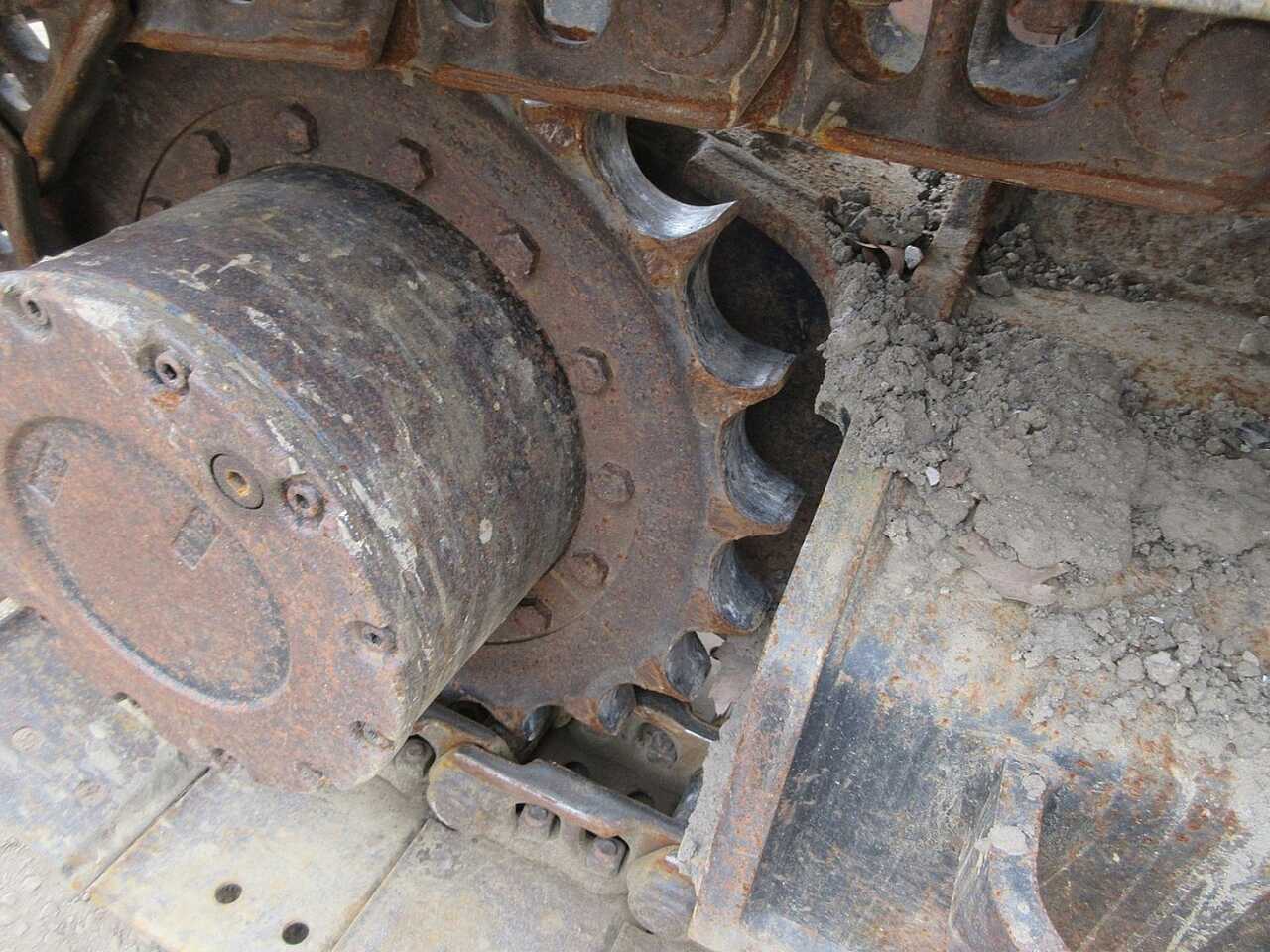

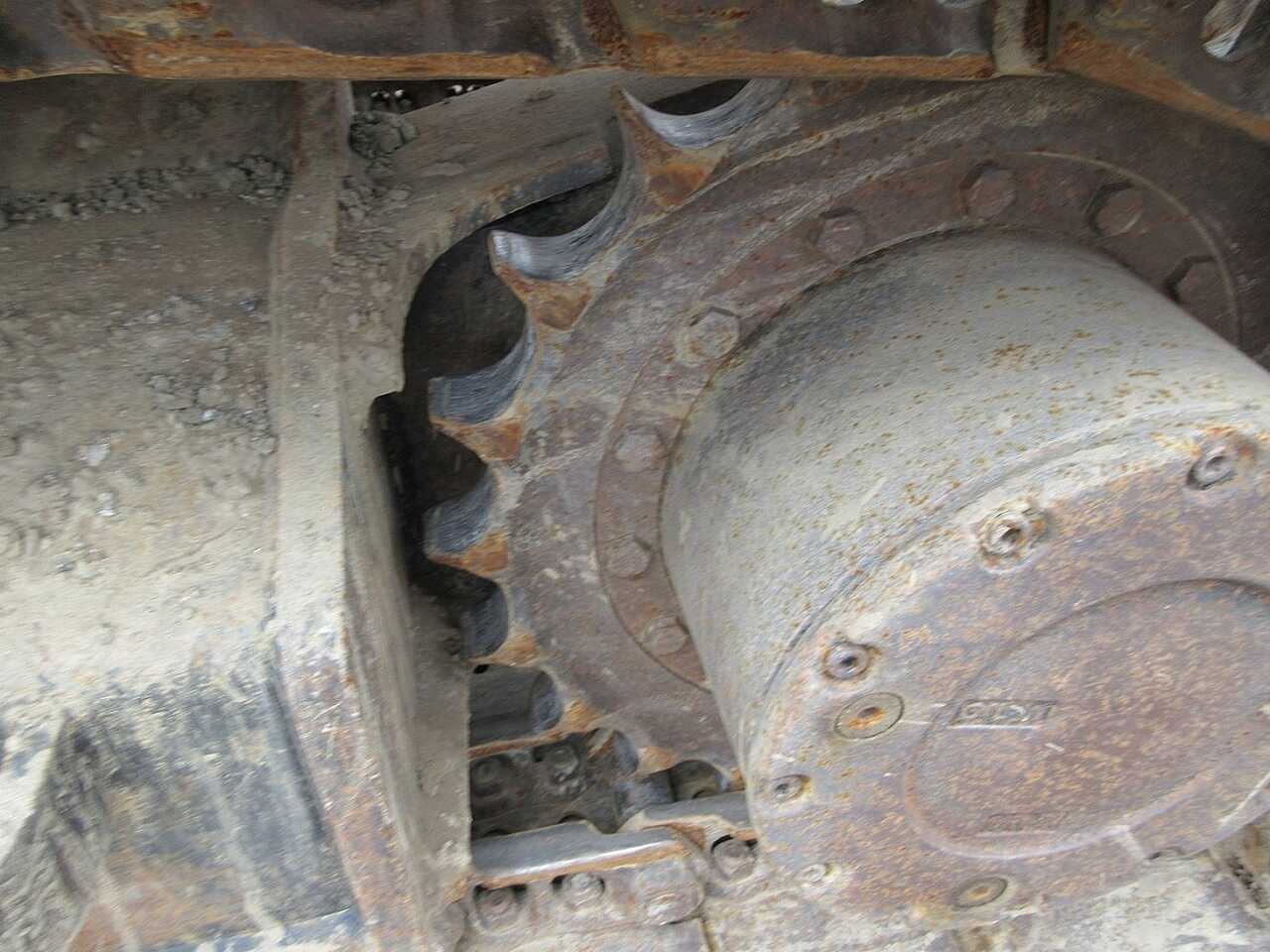

Final Drive (each): ~3 L (0.8 gal)
Hydraulic System Oil: ~160 L (42.3 gal)
Hydraulic Tank Oil: ~84 L (22.2 gal)

SAFETY & FEATURES

ROPS/FOPS: Certified cab for operator protection
Auxiliary Hydraulics: Available for attachments
Pattern Changer: Allows for different control patterns
Travel Alarm: Audible alert when moving

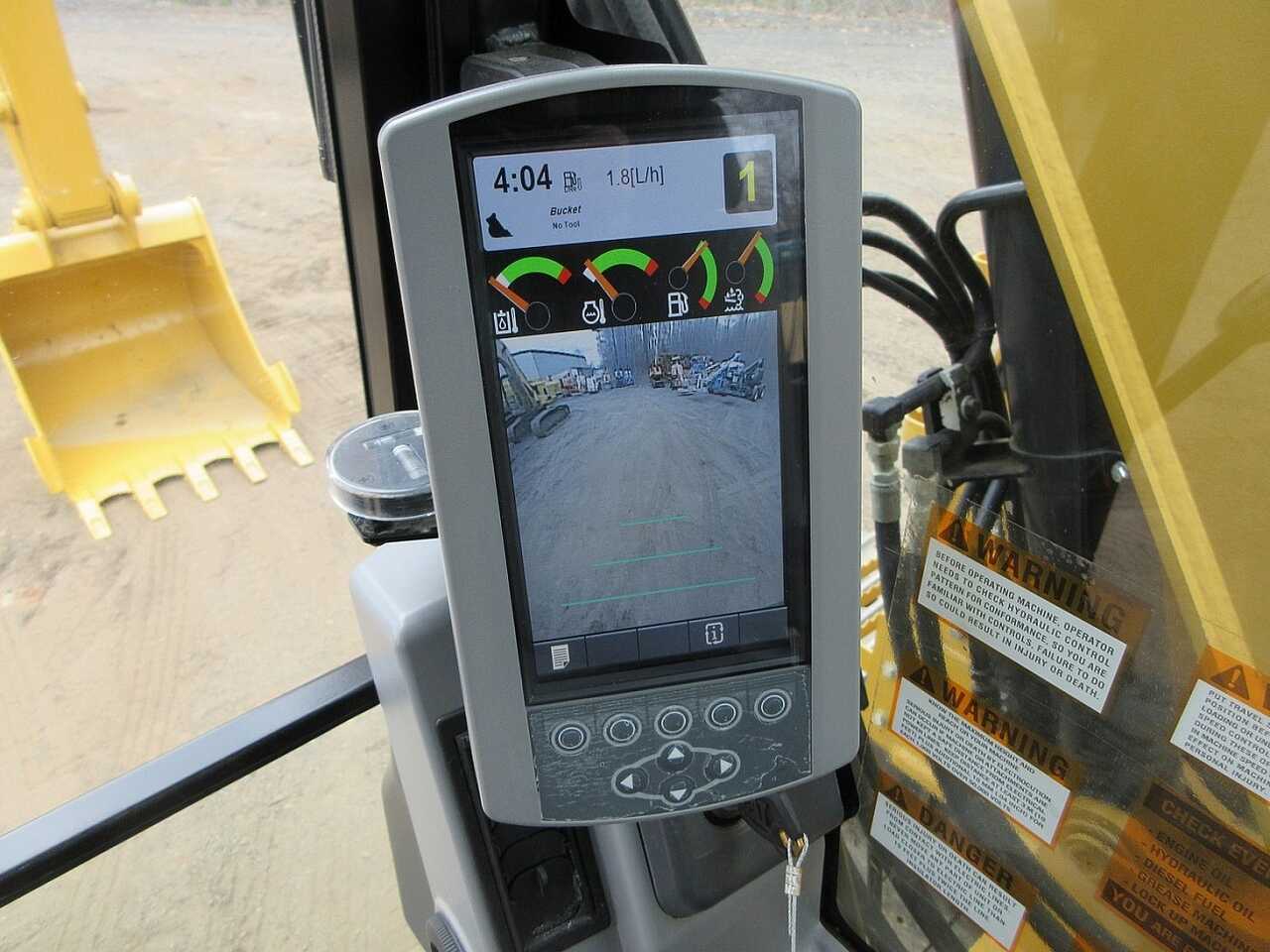

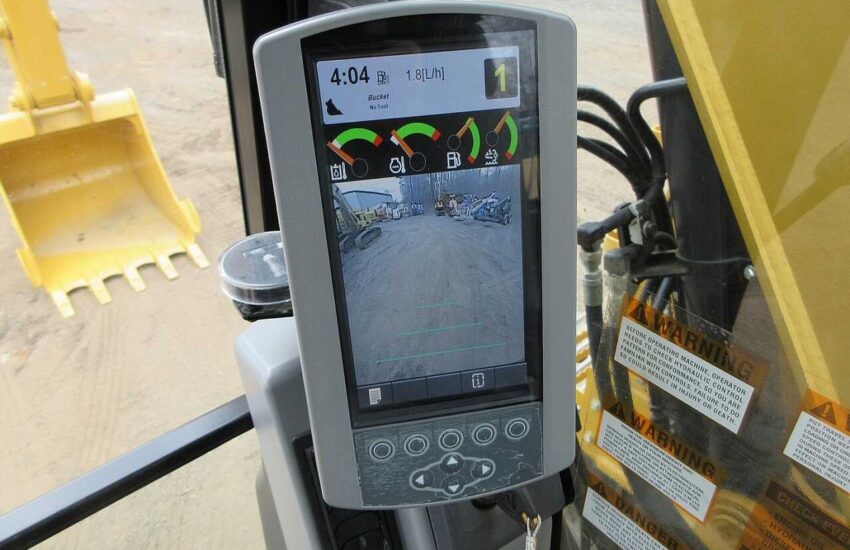

Rearview Camera: Enhances visibility
Tool Box: For on-site maintenance
Fire Extinguisher: Standard safety equipment
