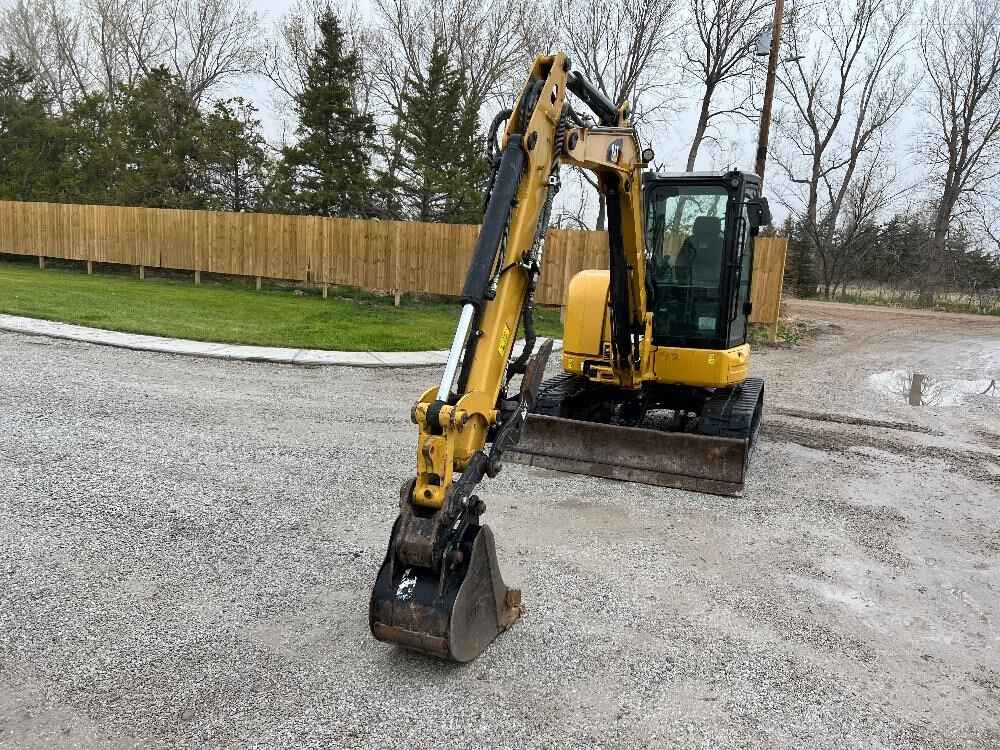

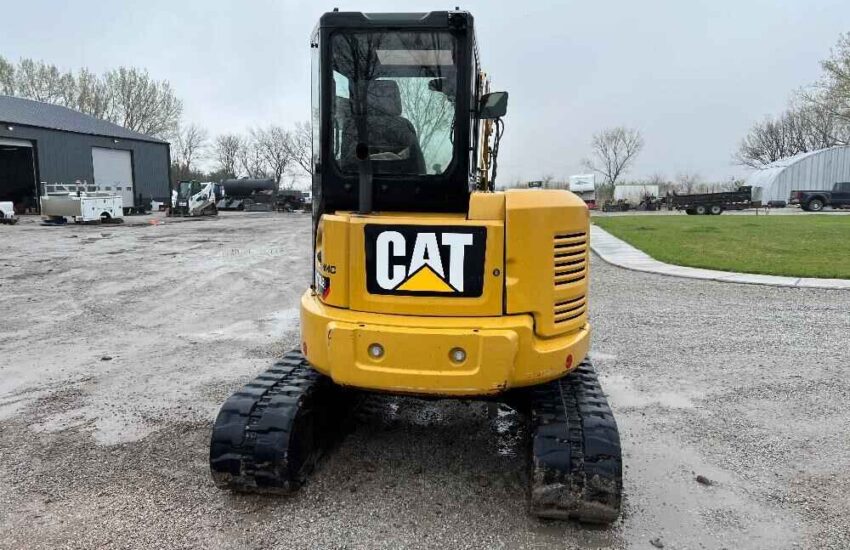

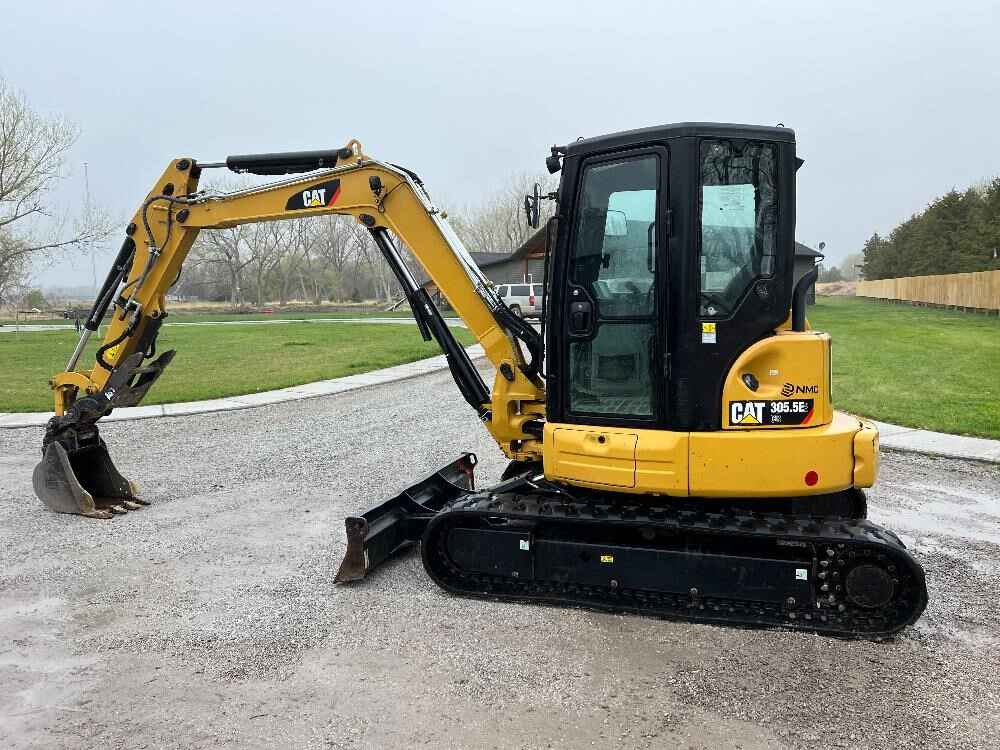

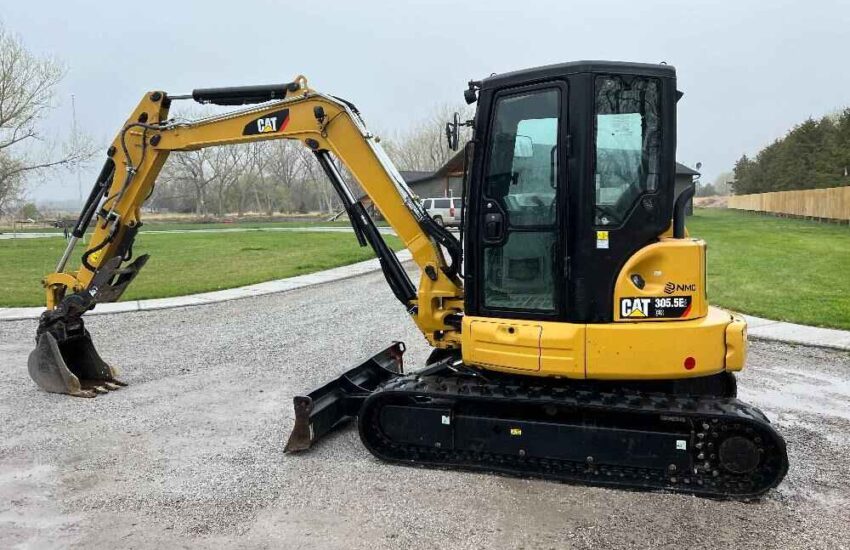

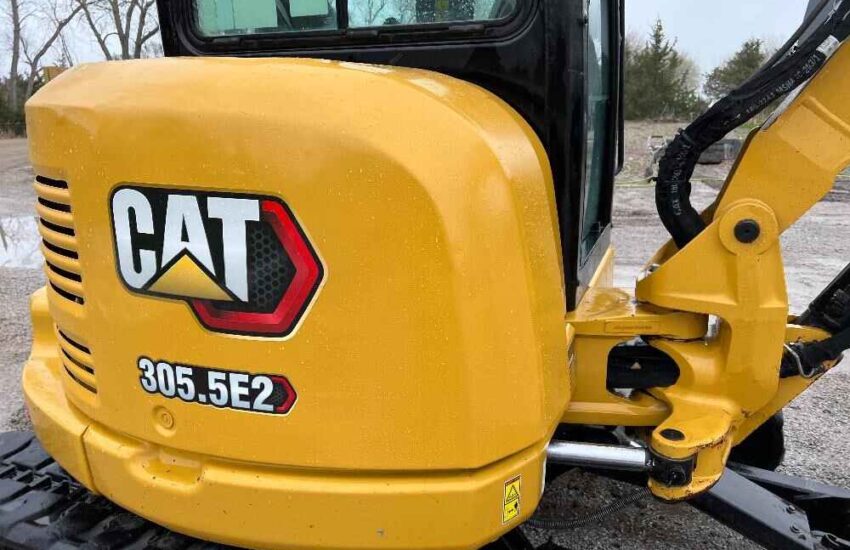

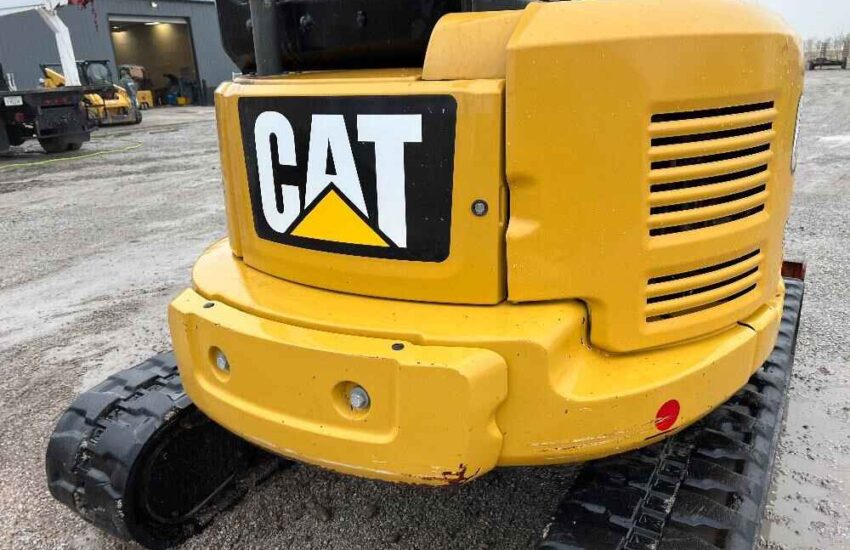

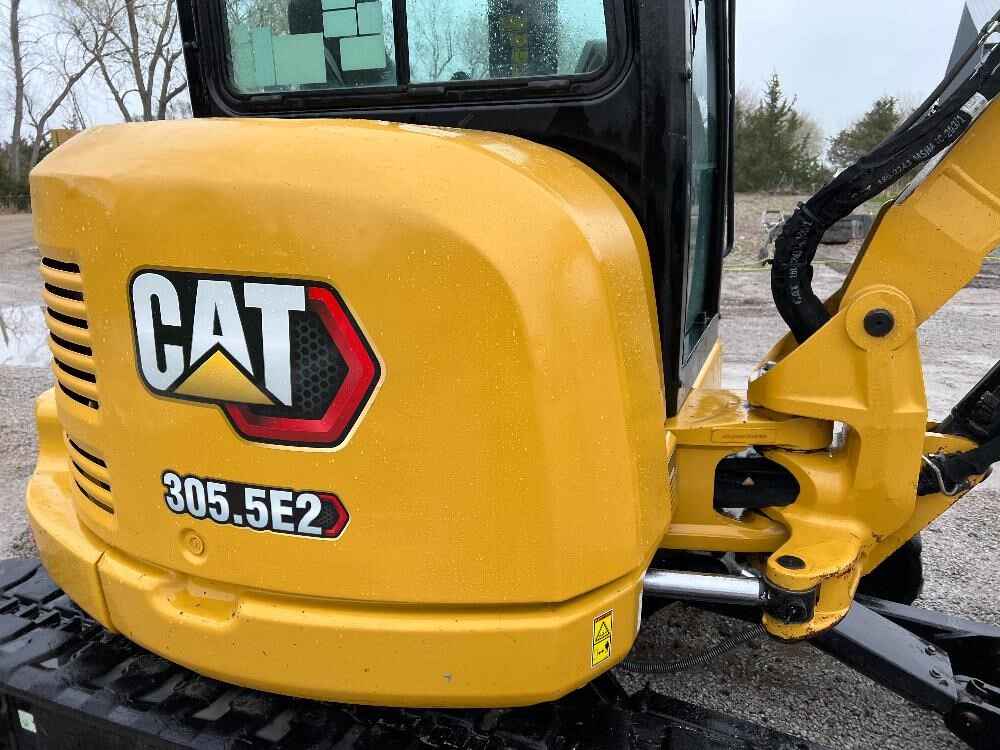

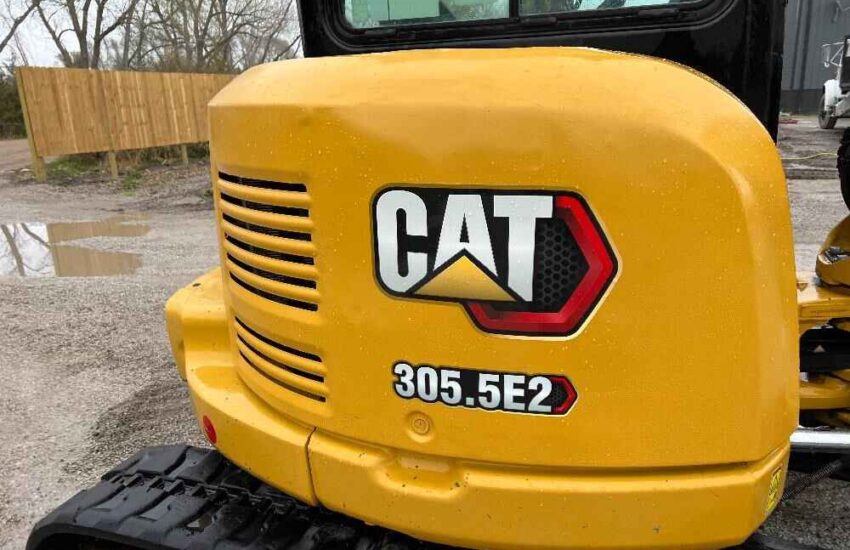

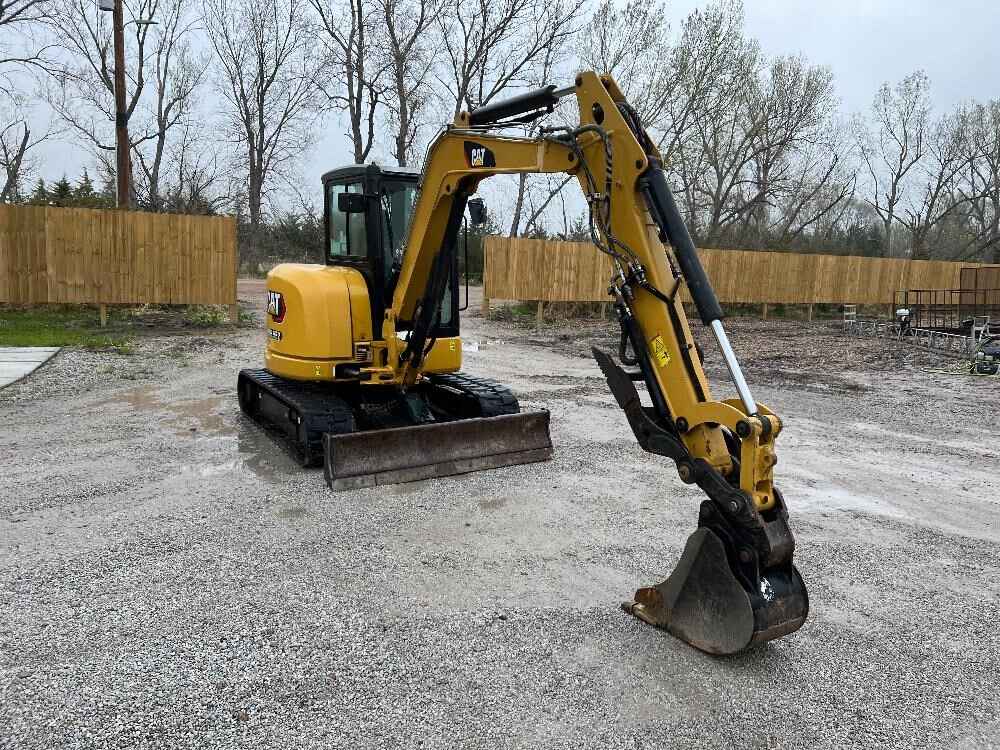

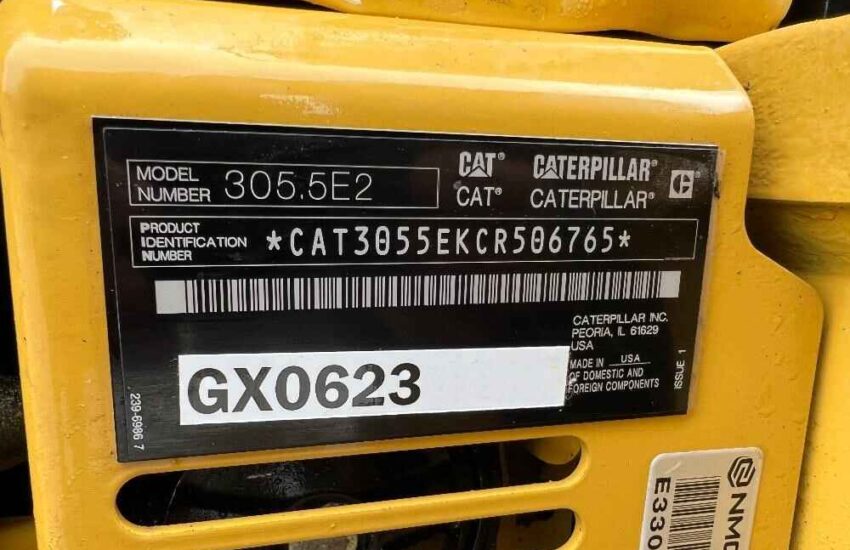

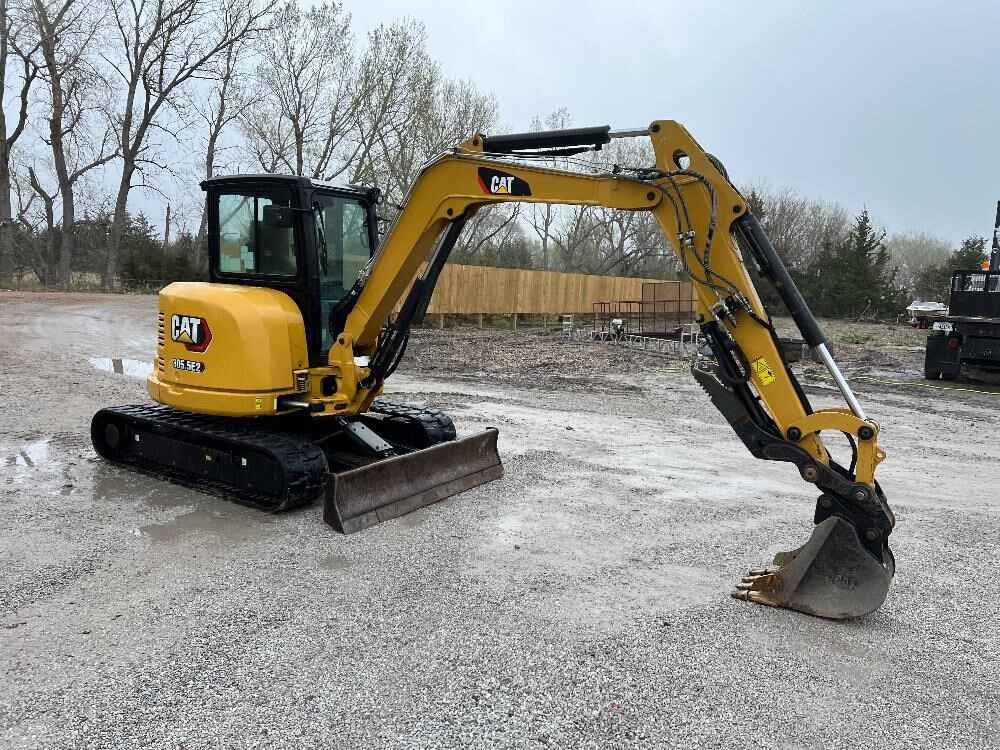

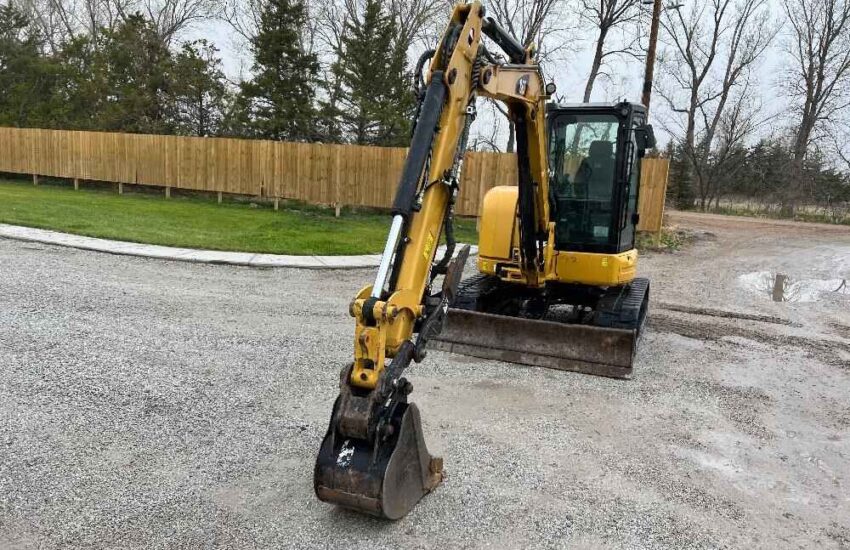

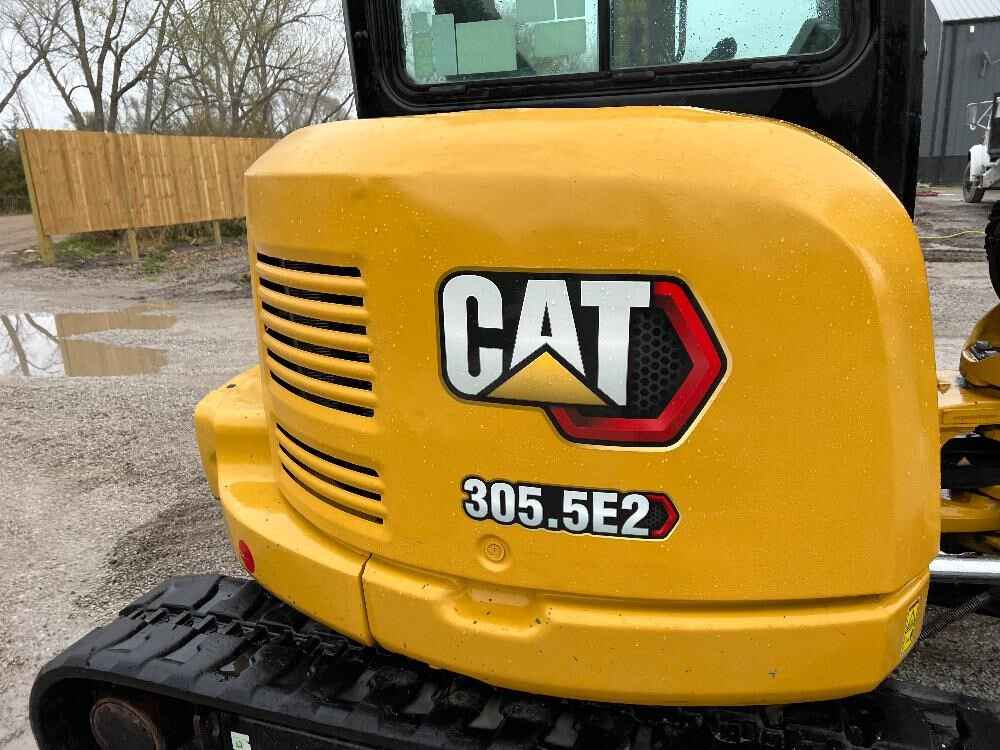

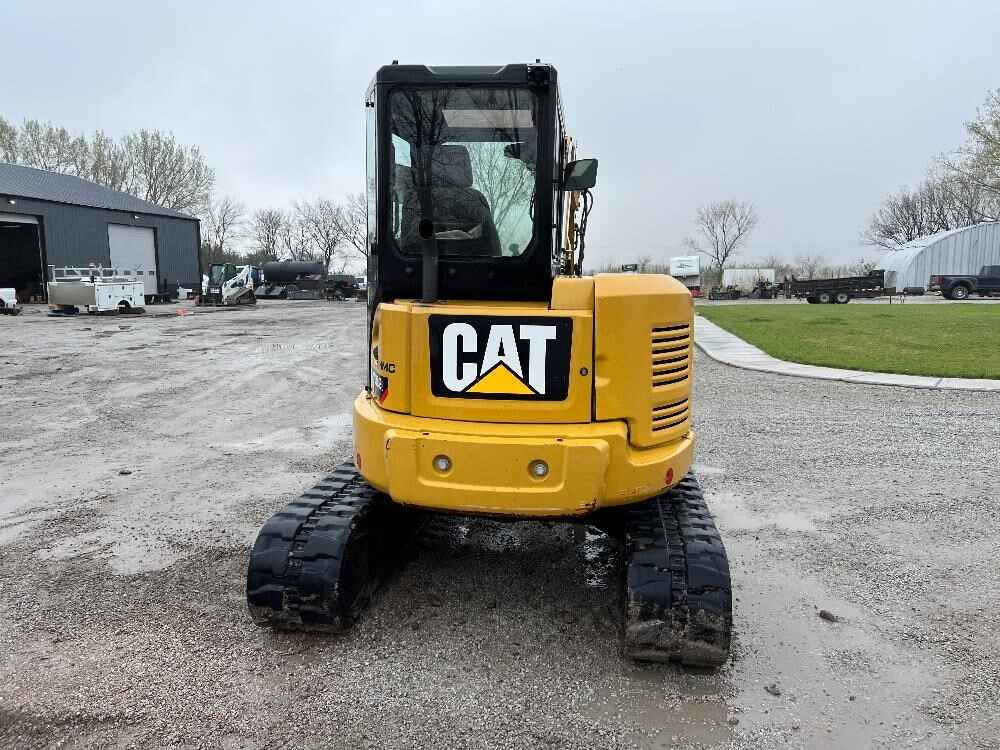

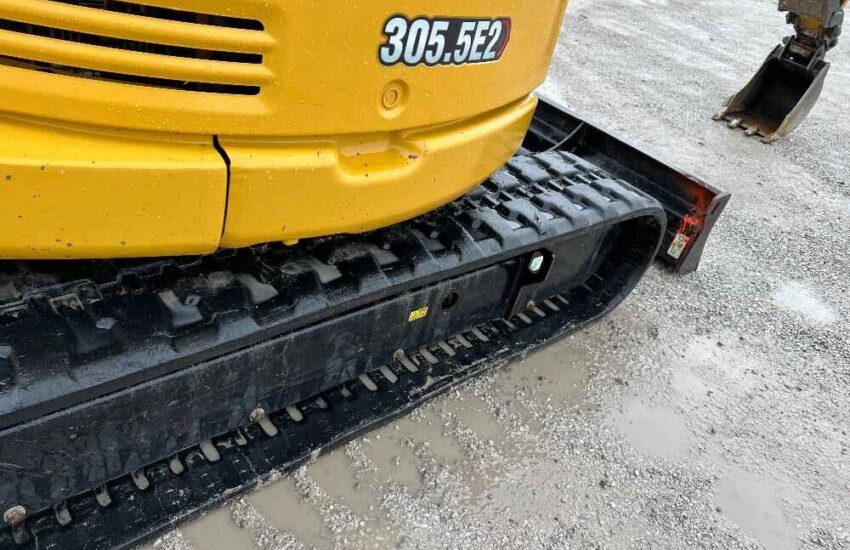

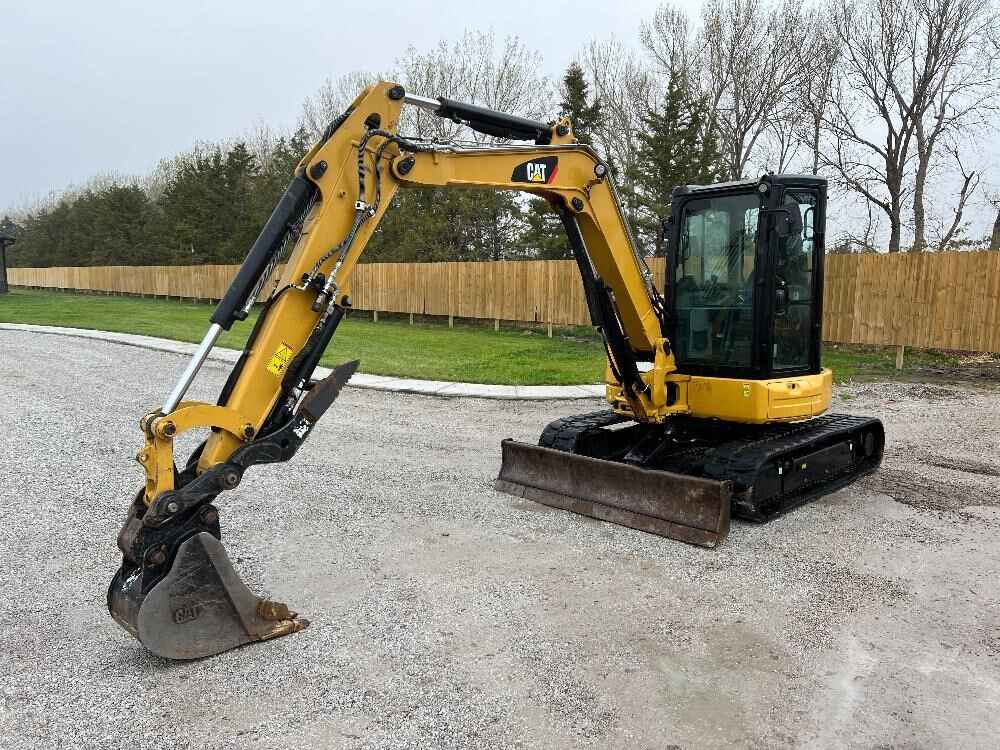

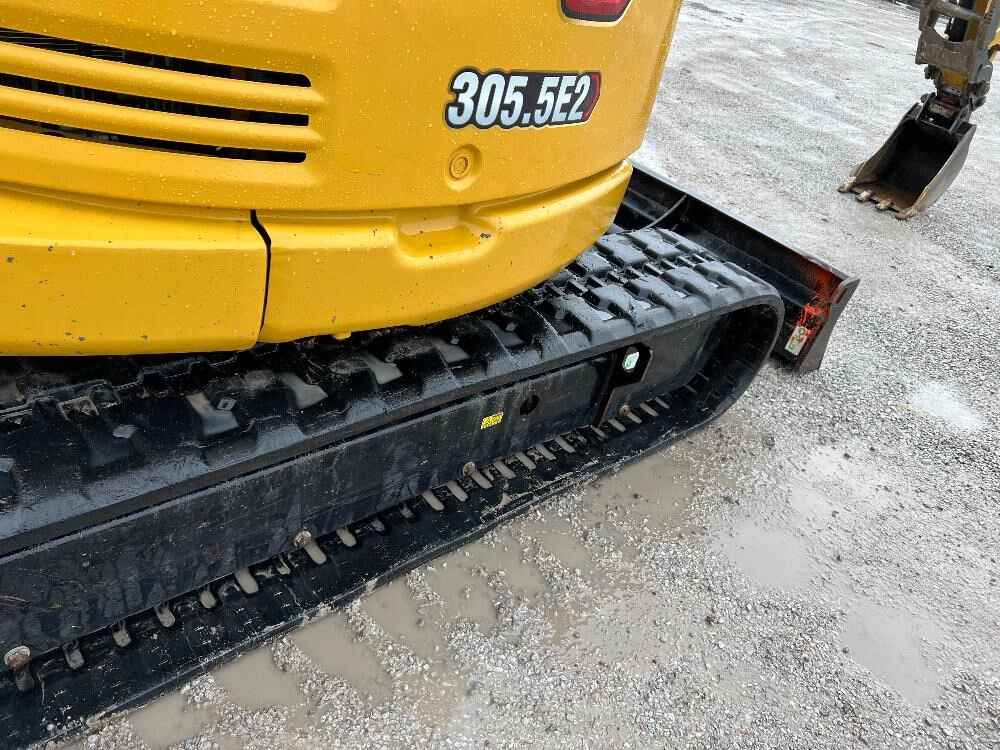

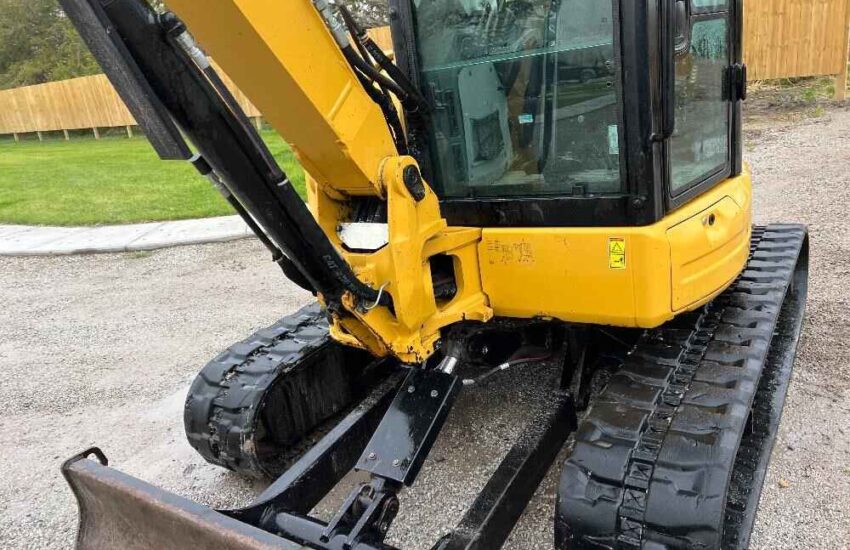

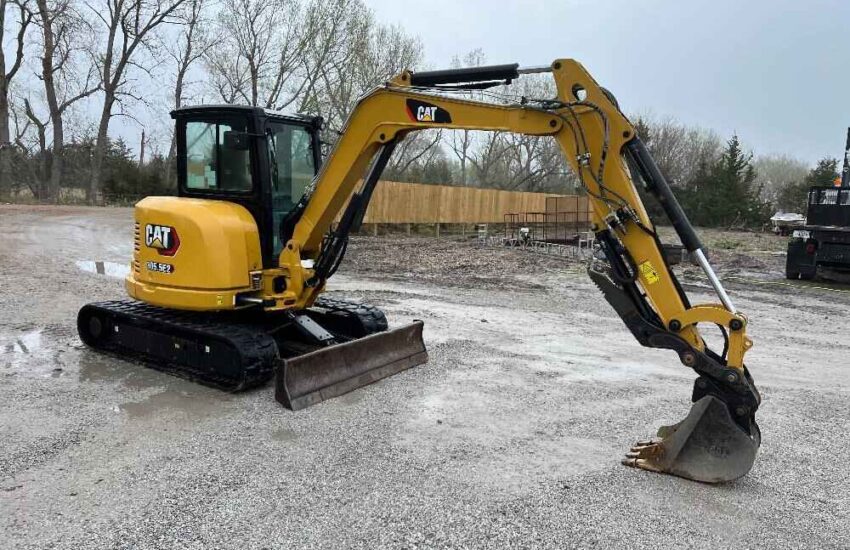

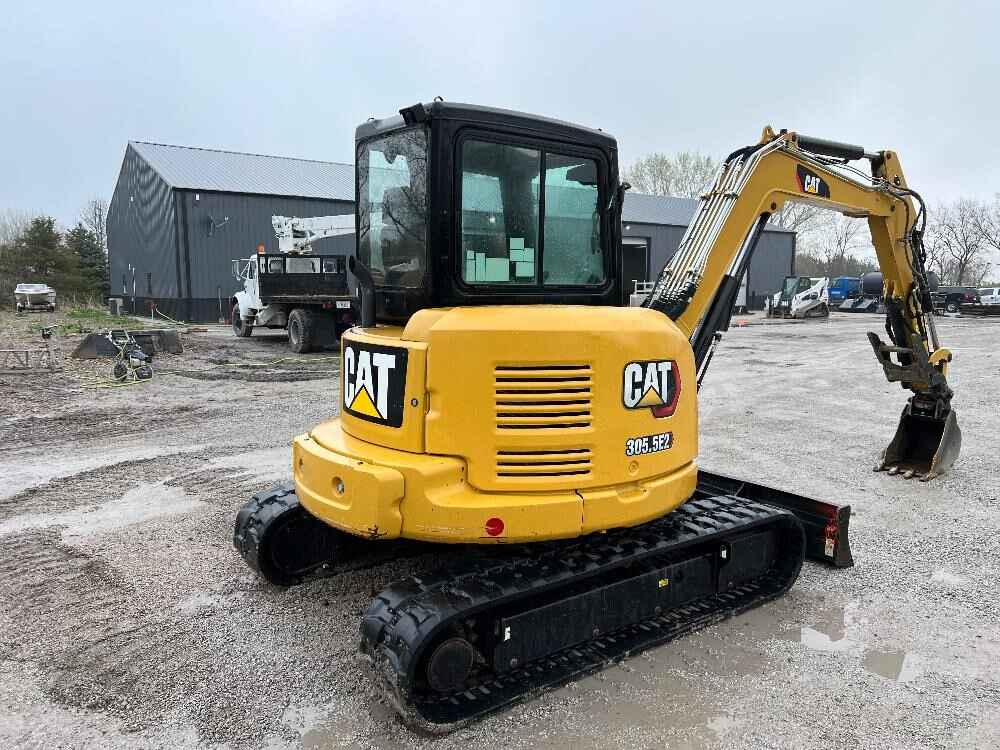

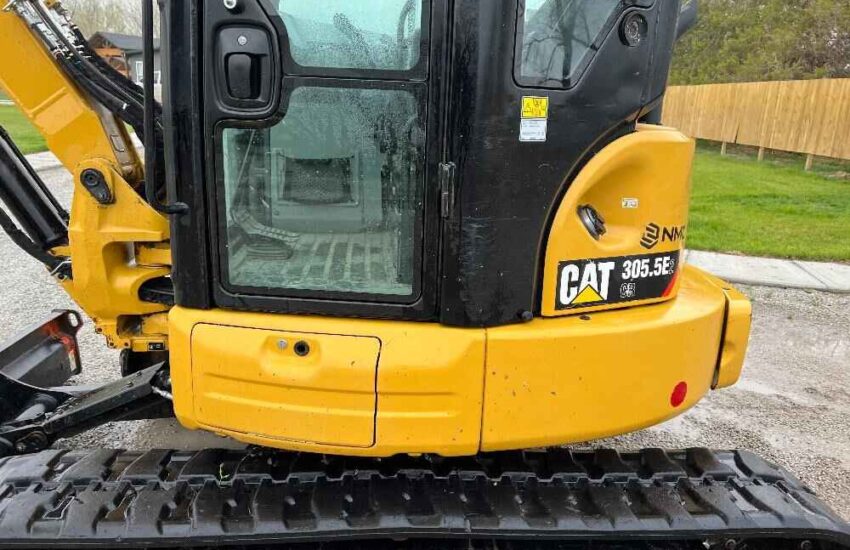

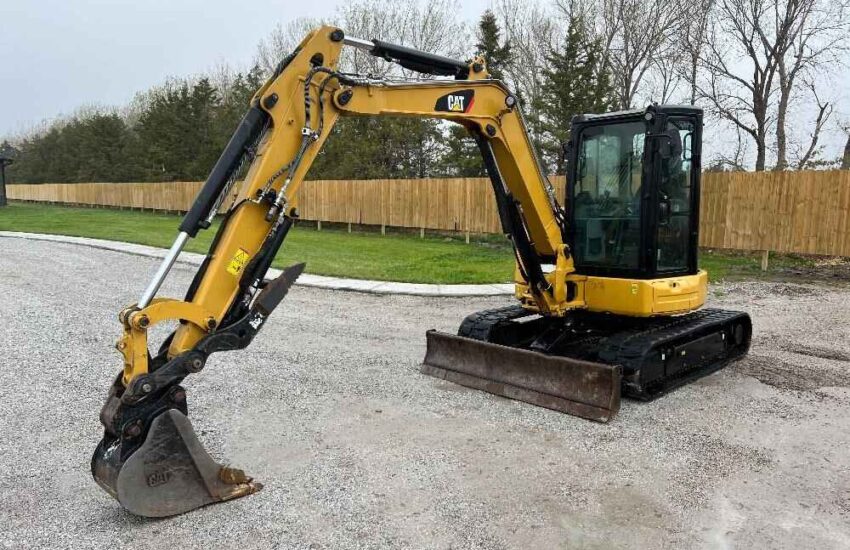

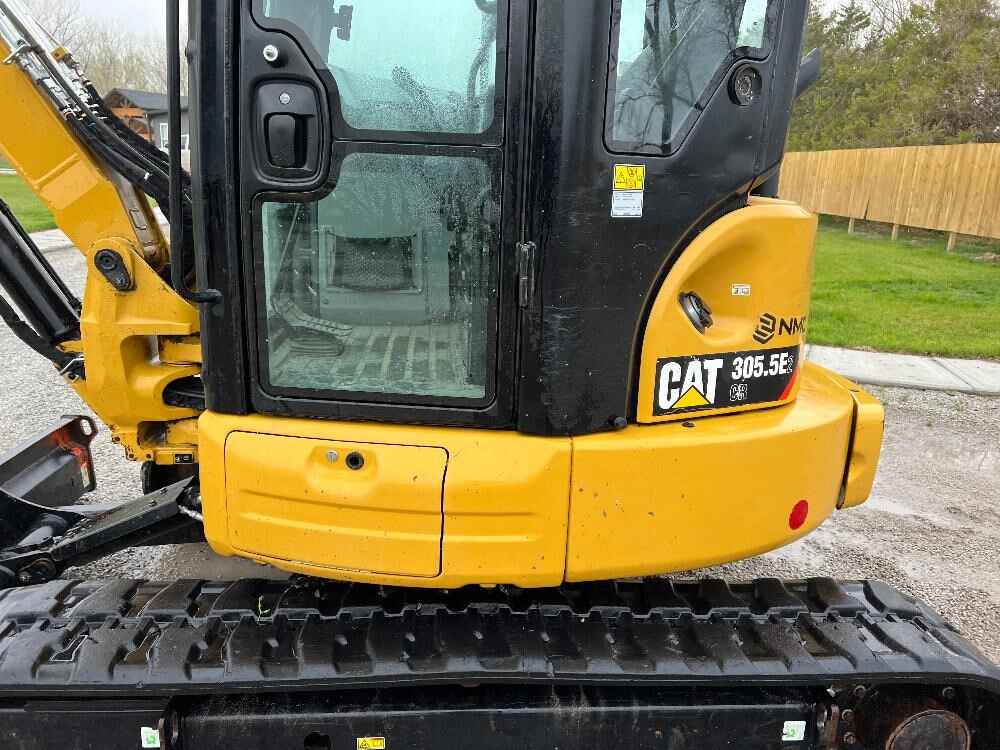

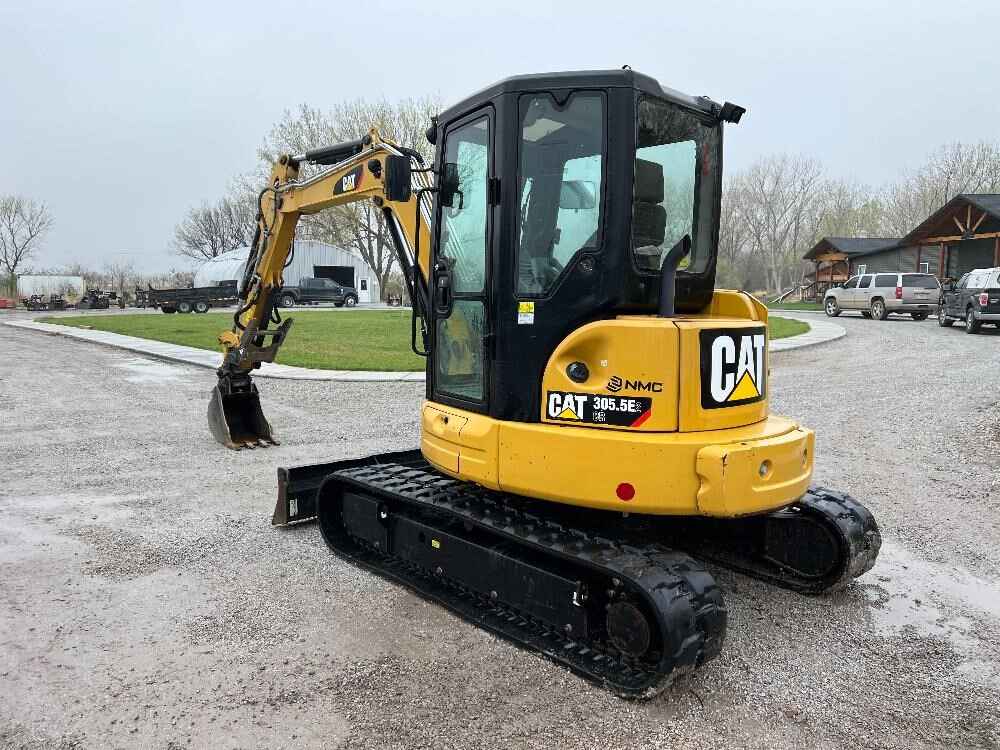

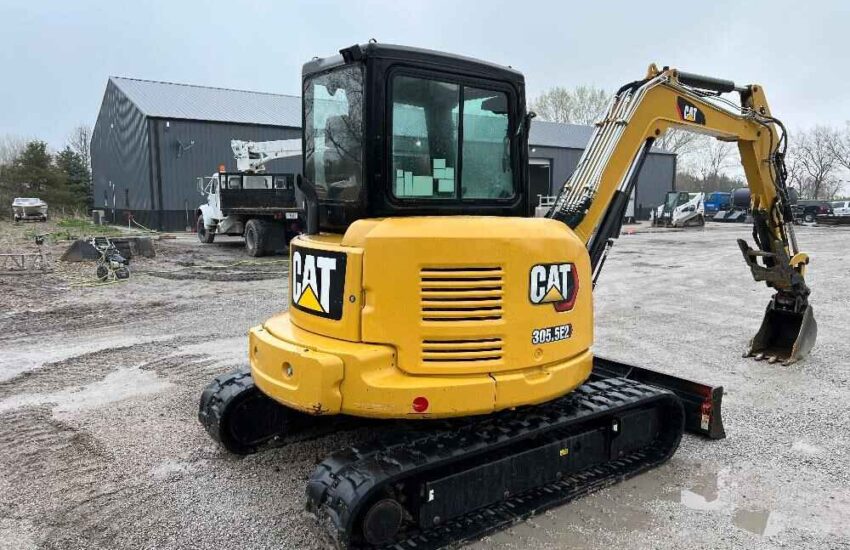

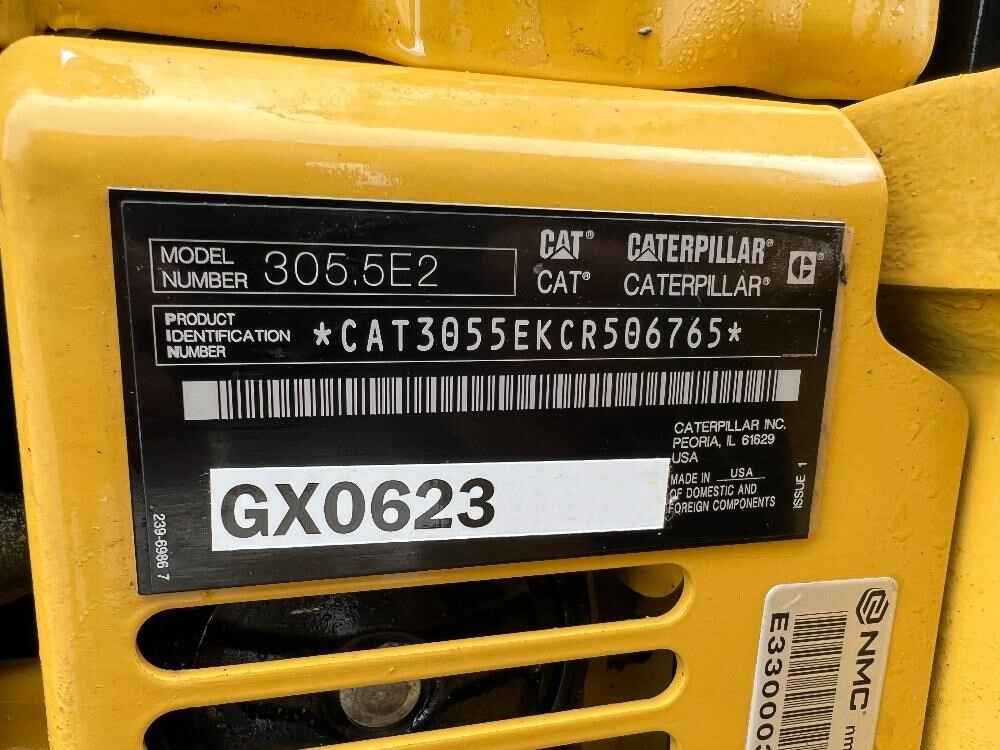

2018 Caterpillar 305.5E2 CR

ALL ORIGINAL YELLOW PAINT & DECALS!

Machine was just fully cleaned, greased, serviced and looked over. Photos just taken. Video available. Delivery Available!

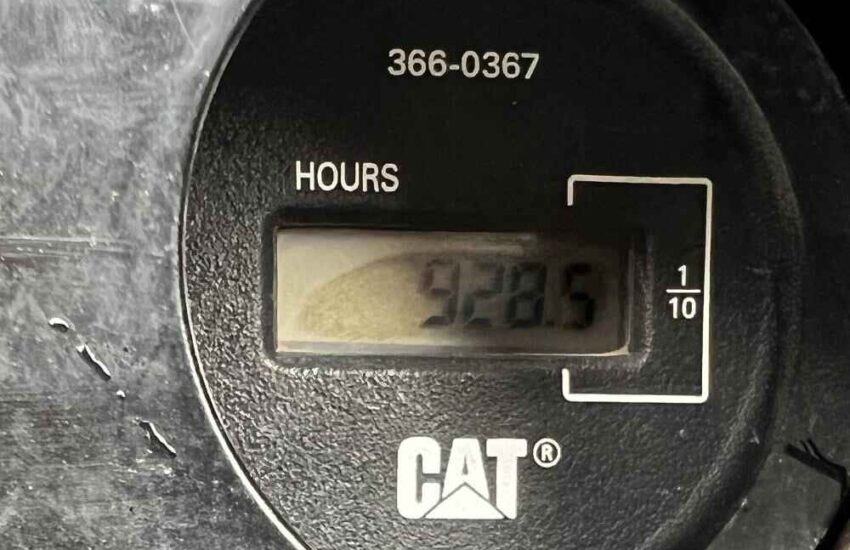

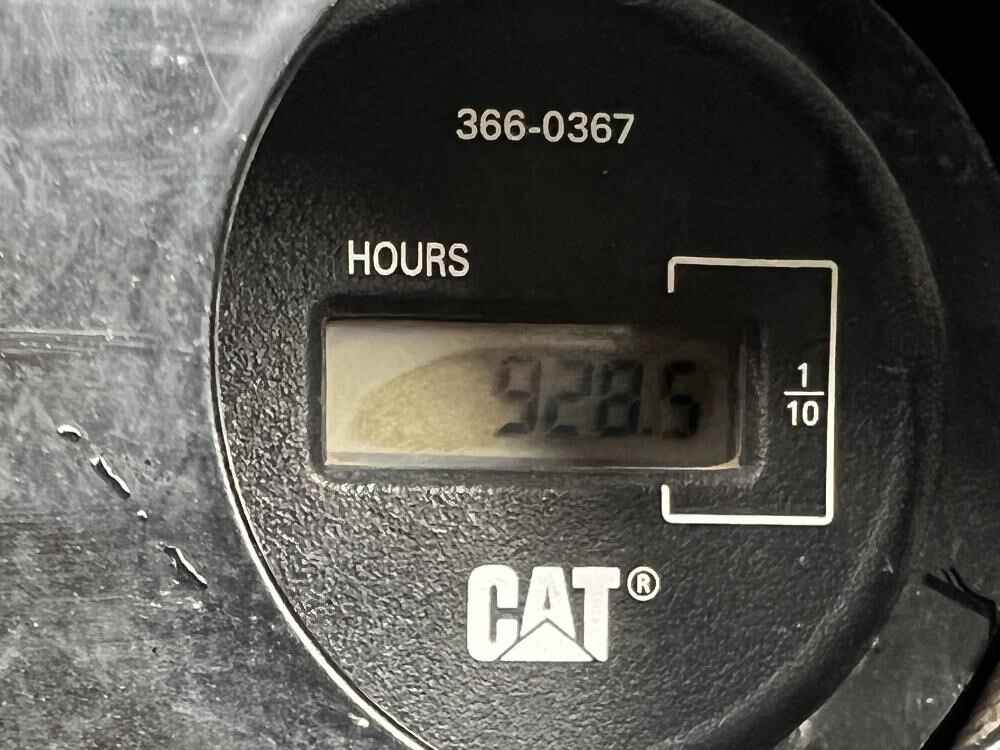

– Only 928 hours!

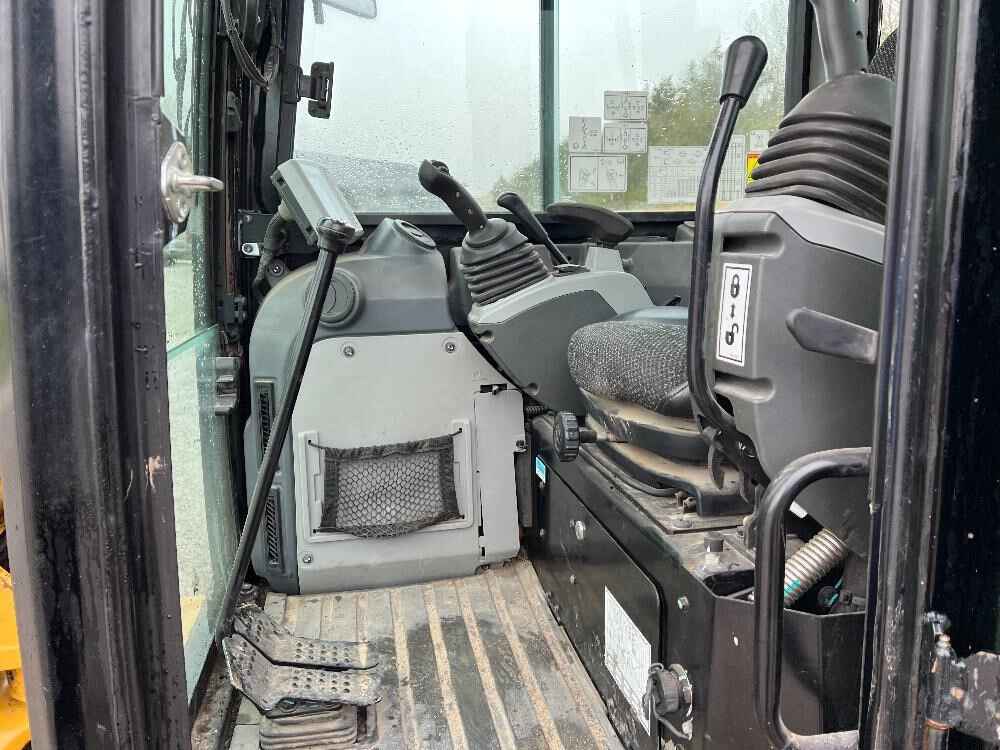

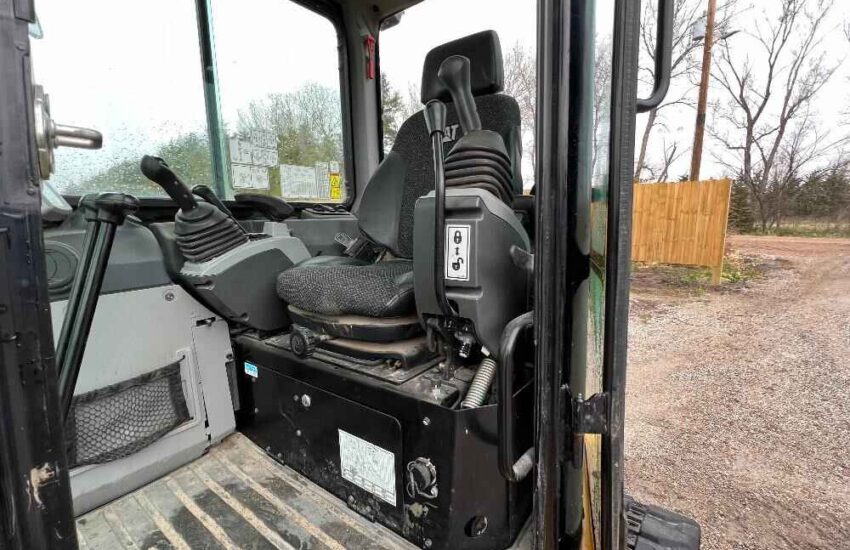

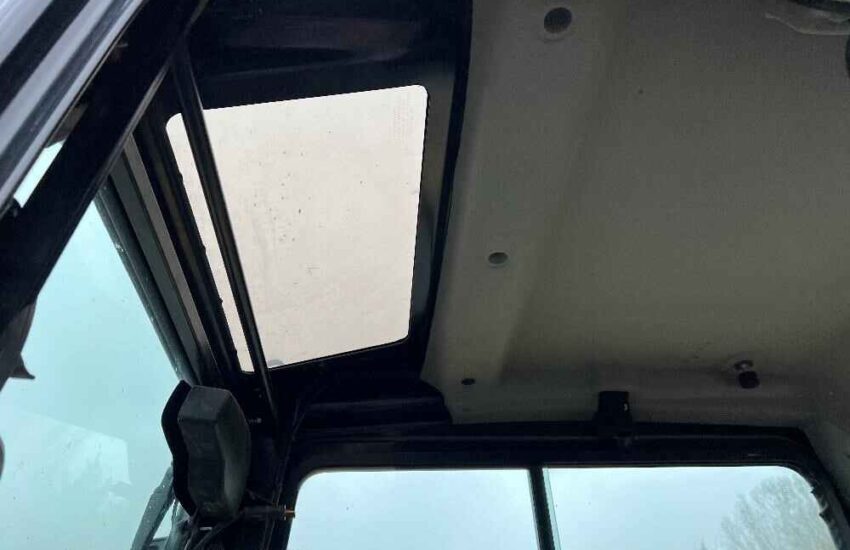

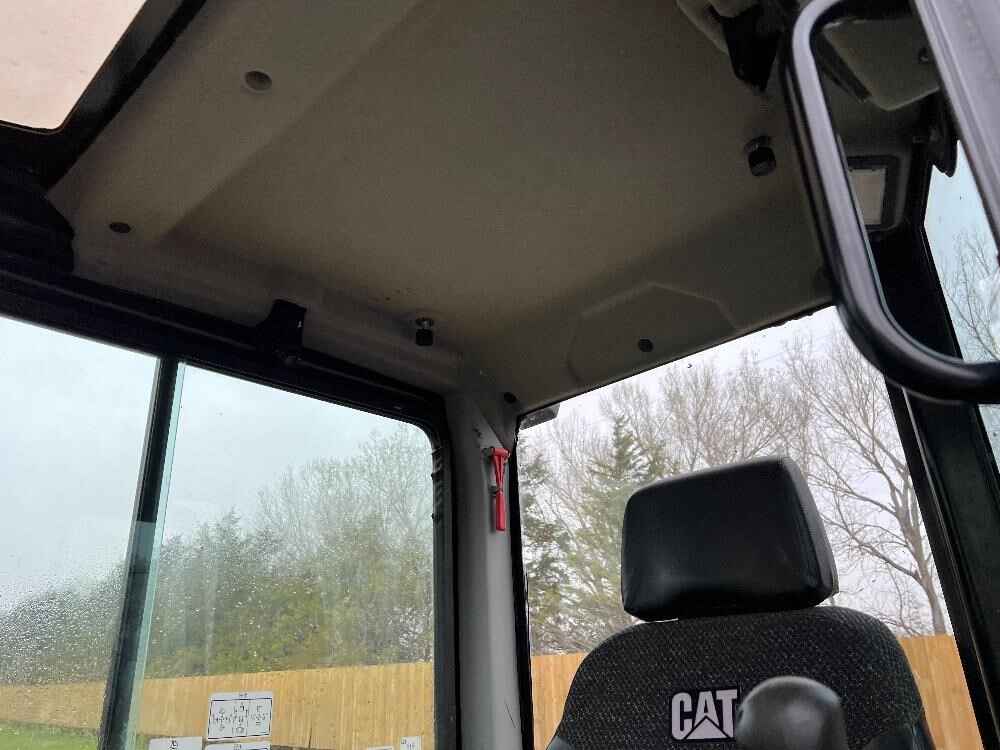

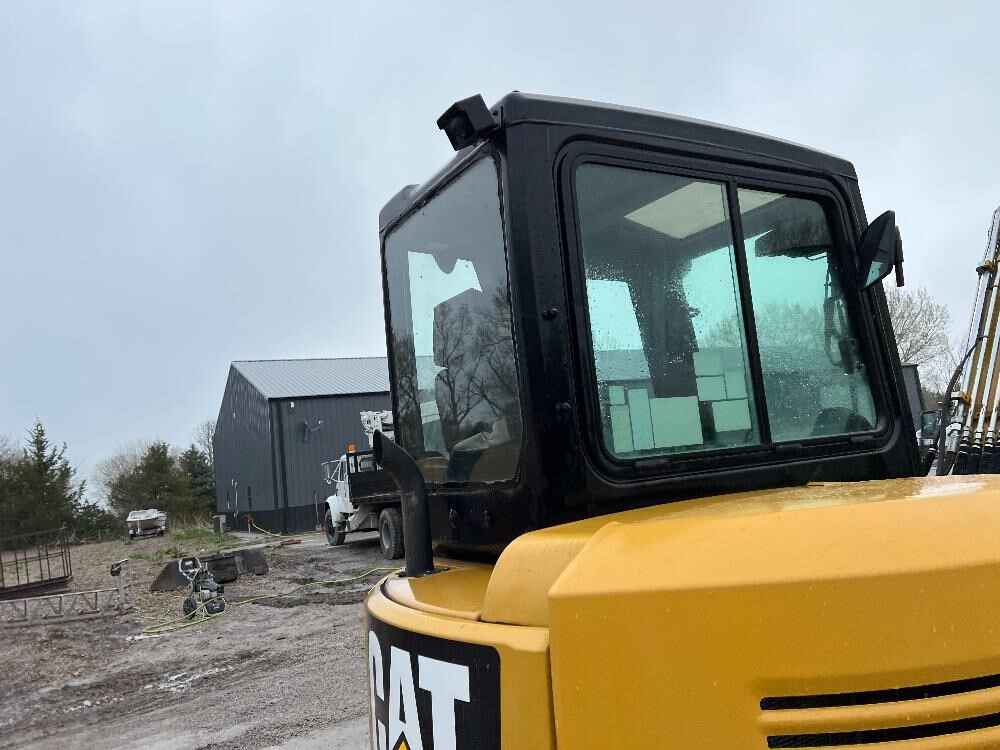

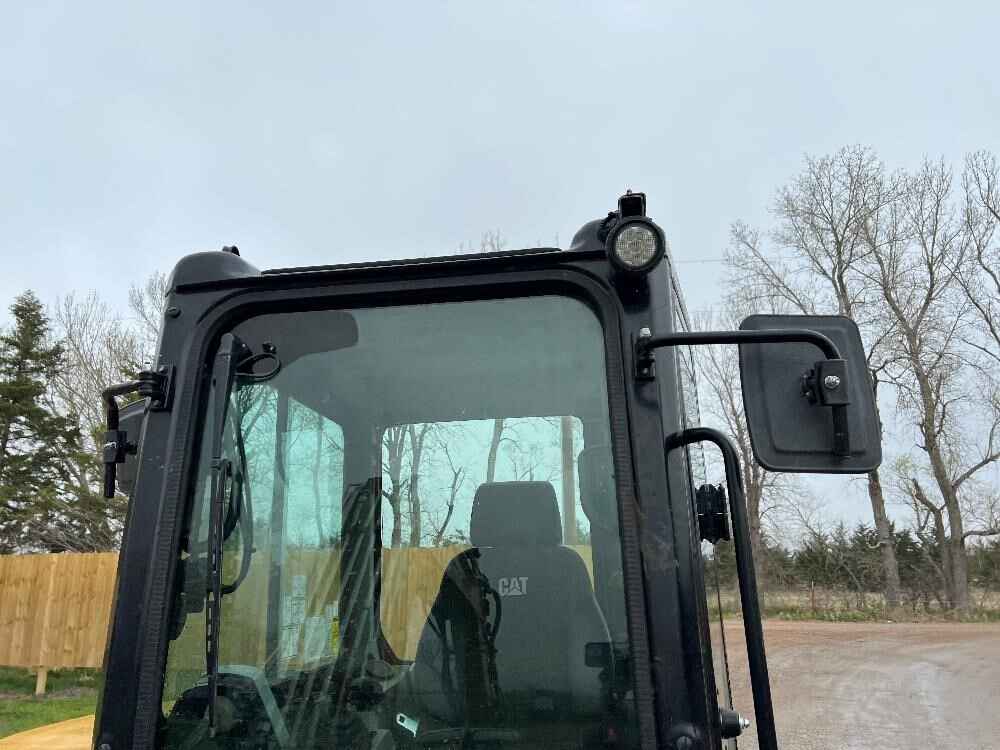

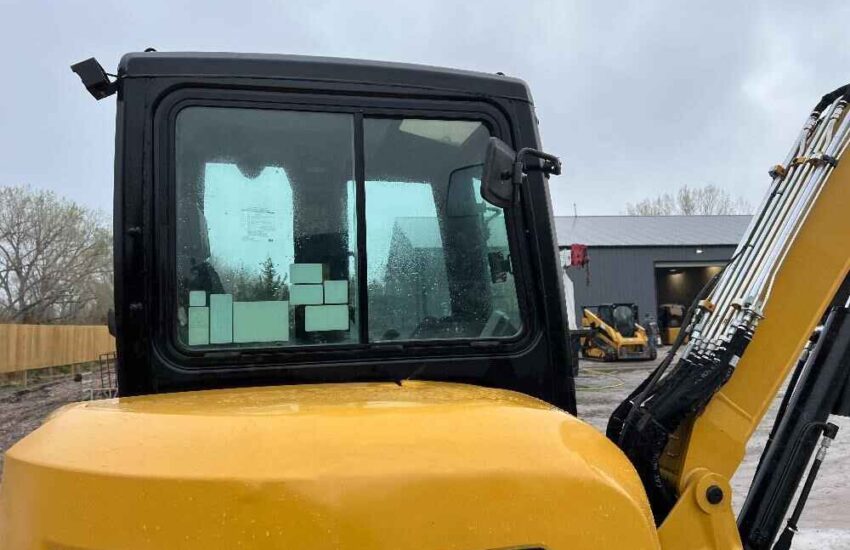

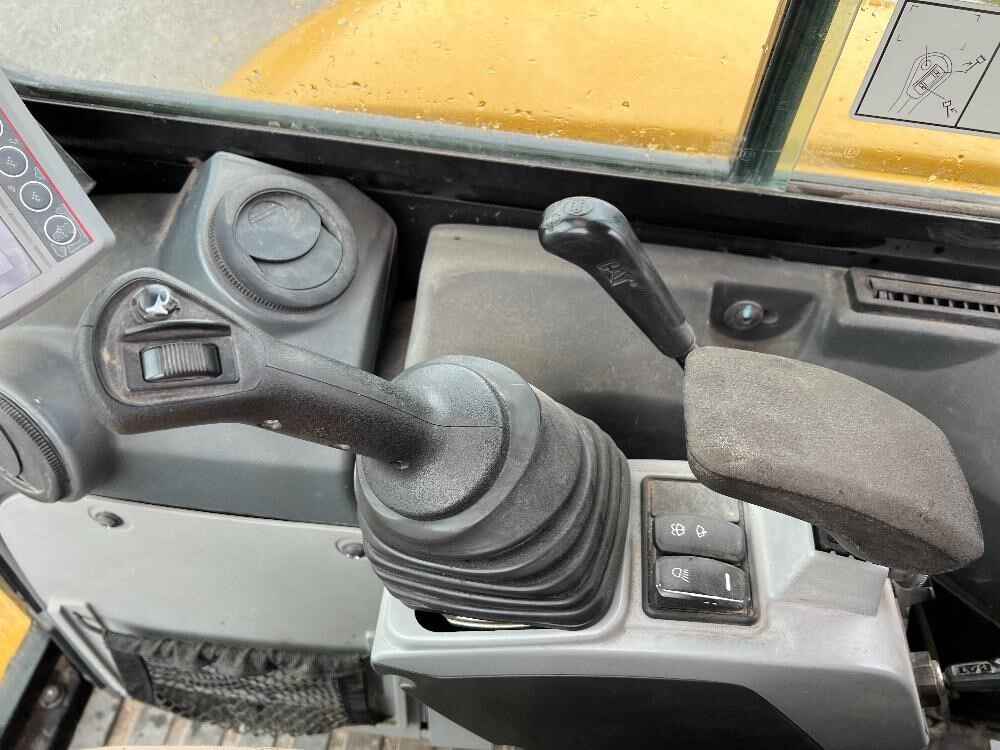

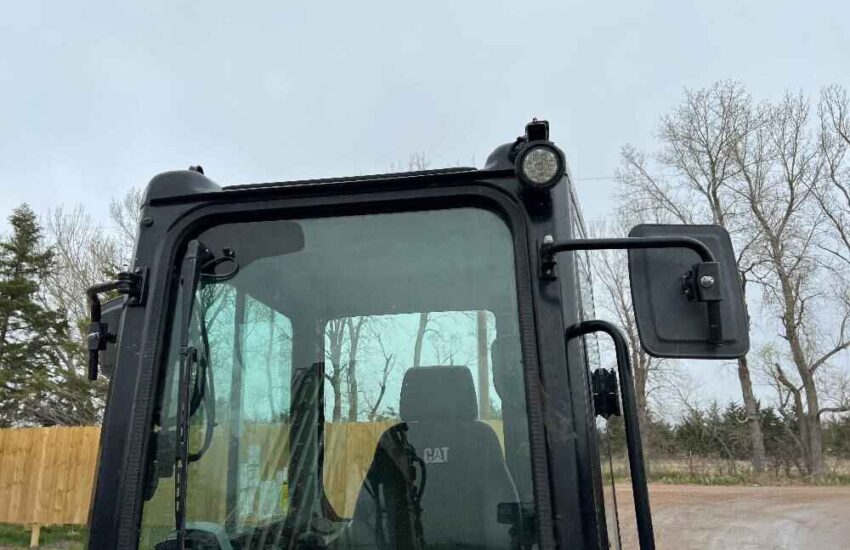

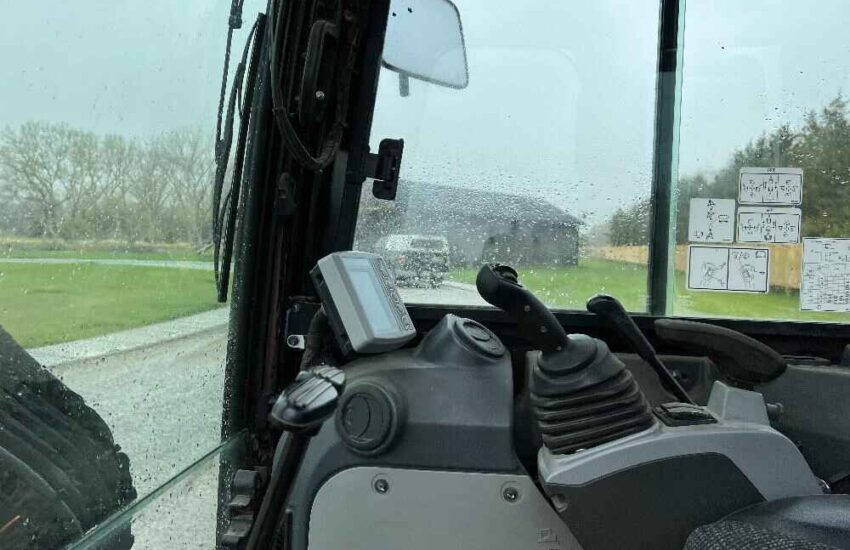

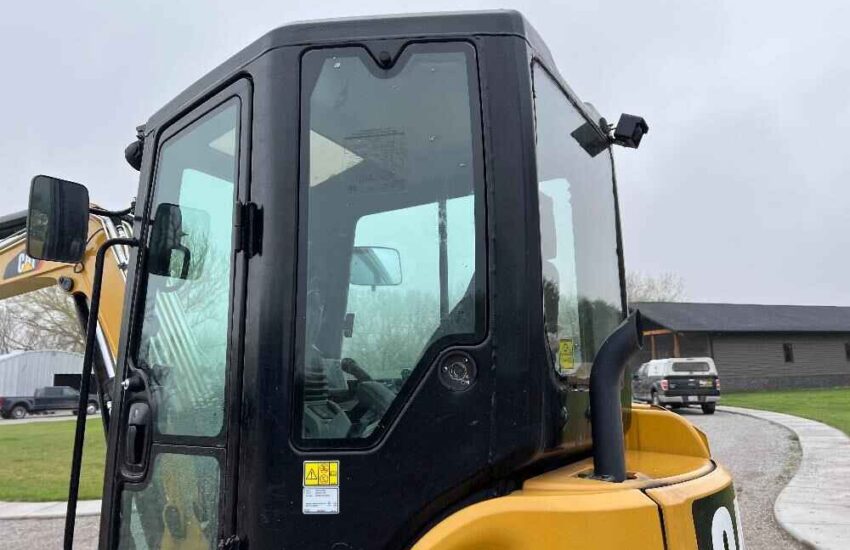

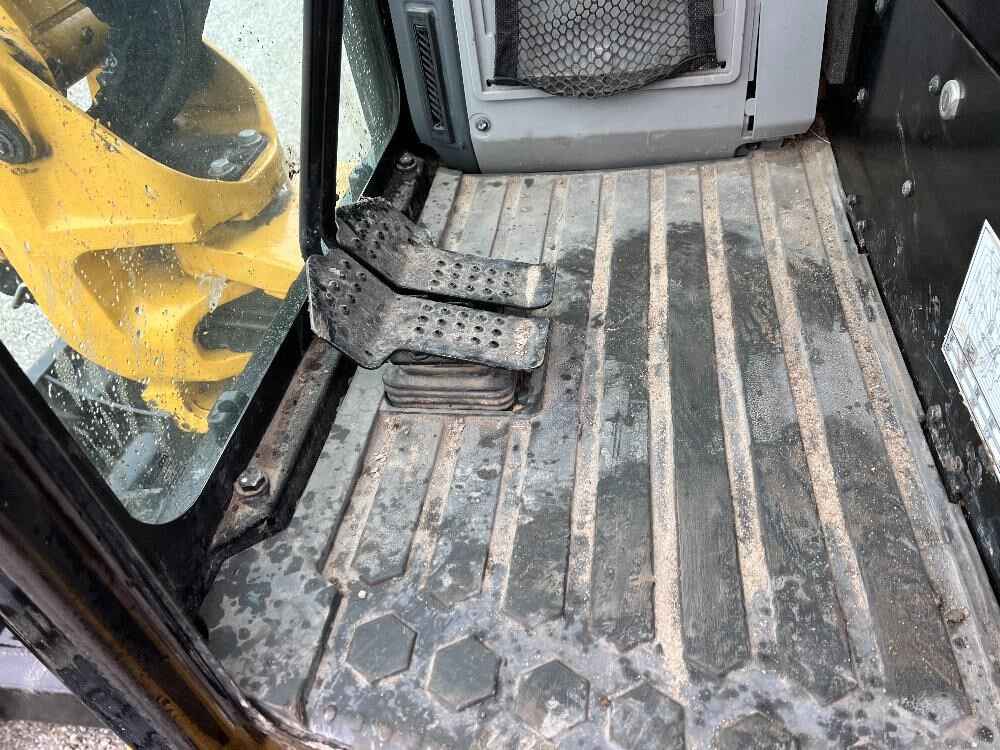

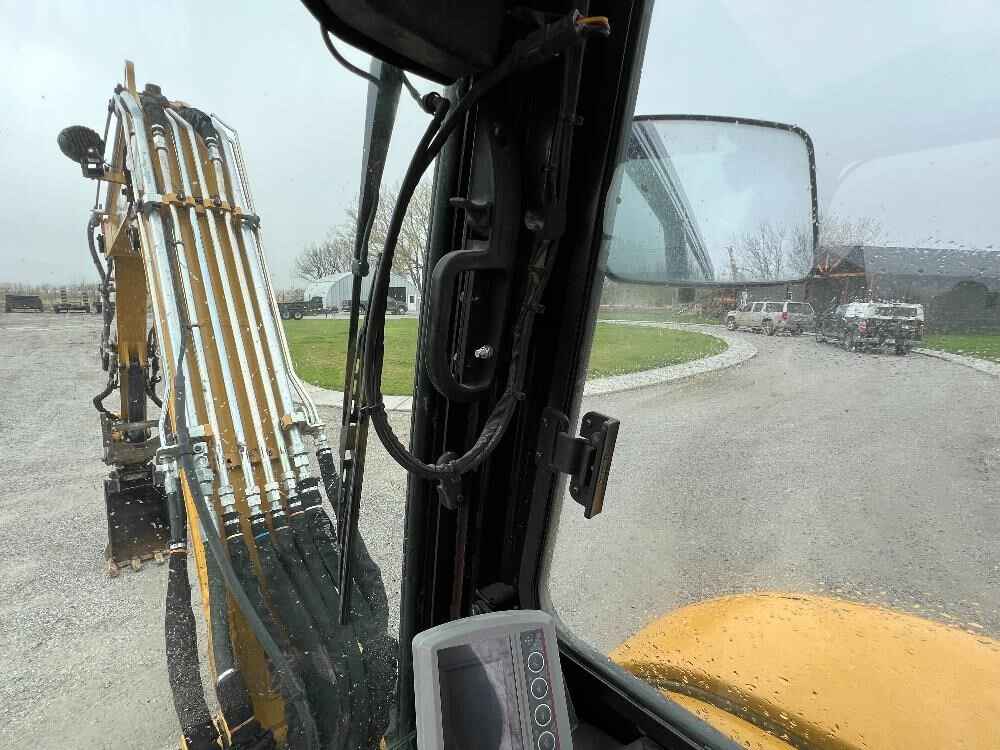

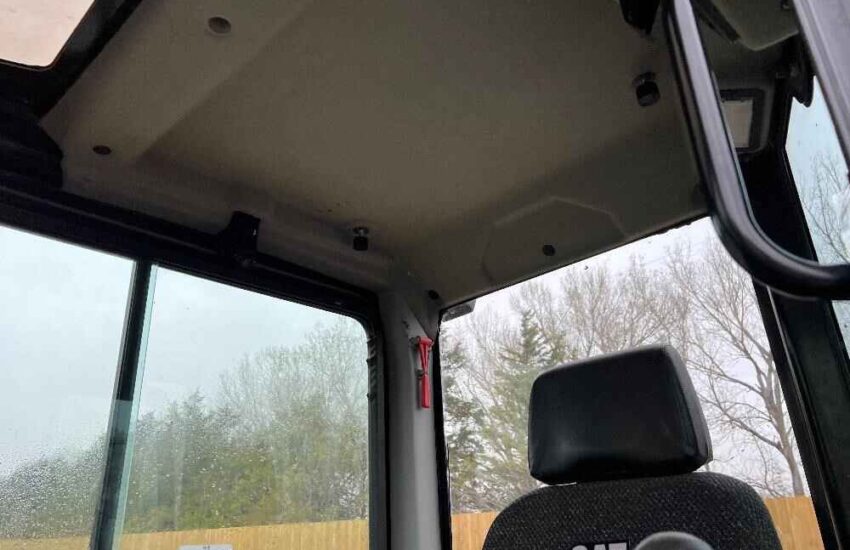

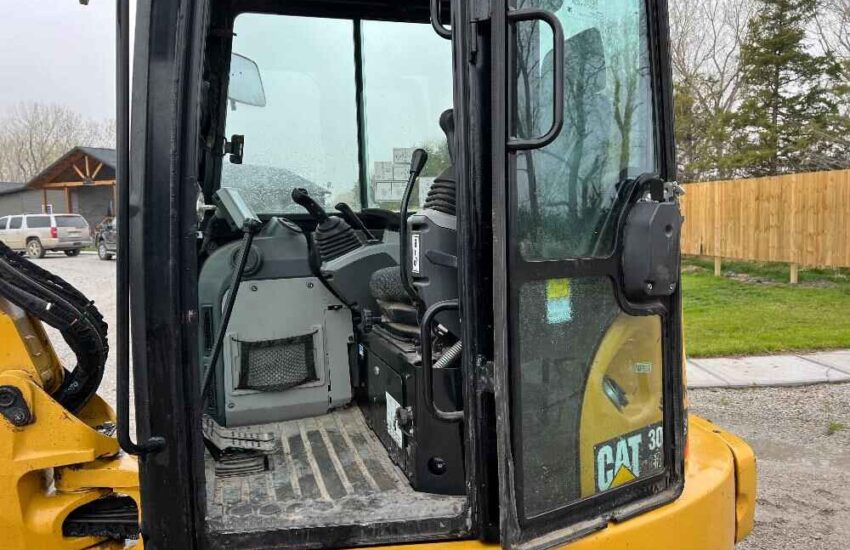

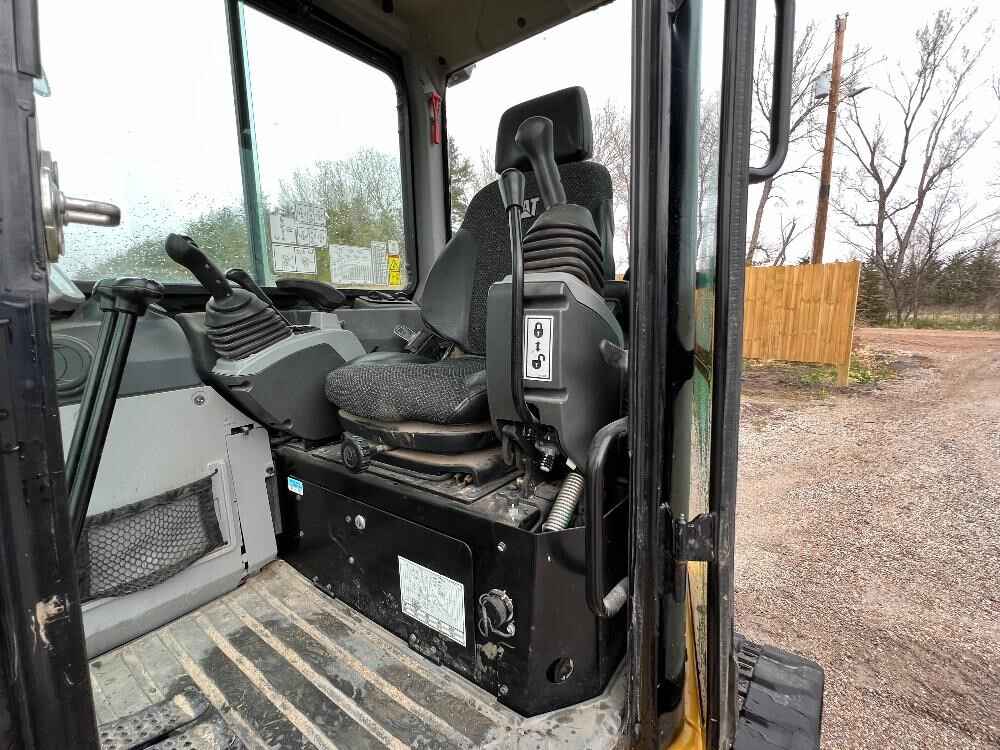

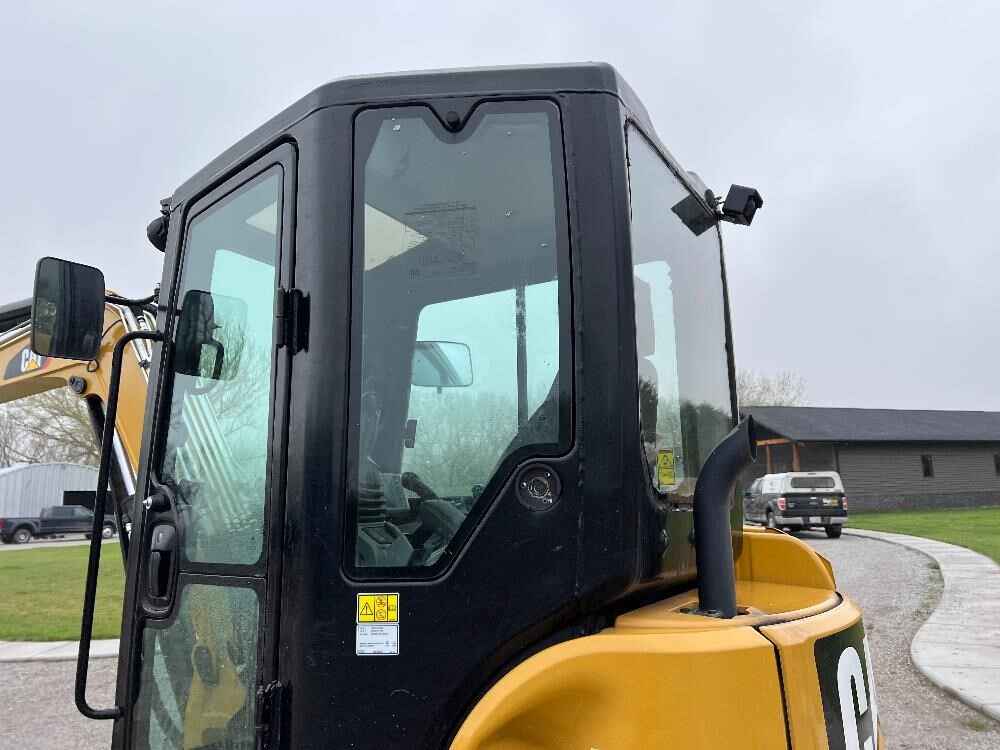

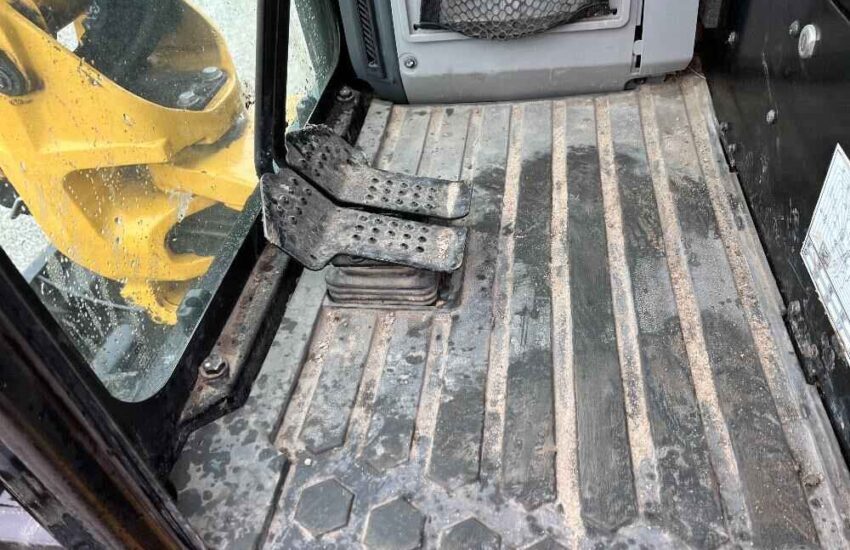

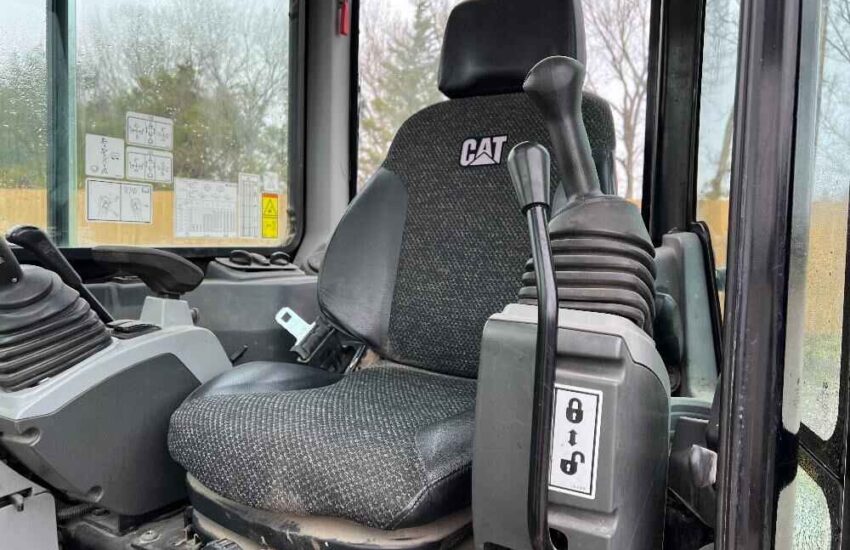

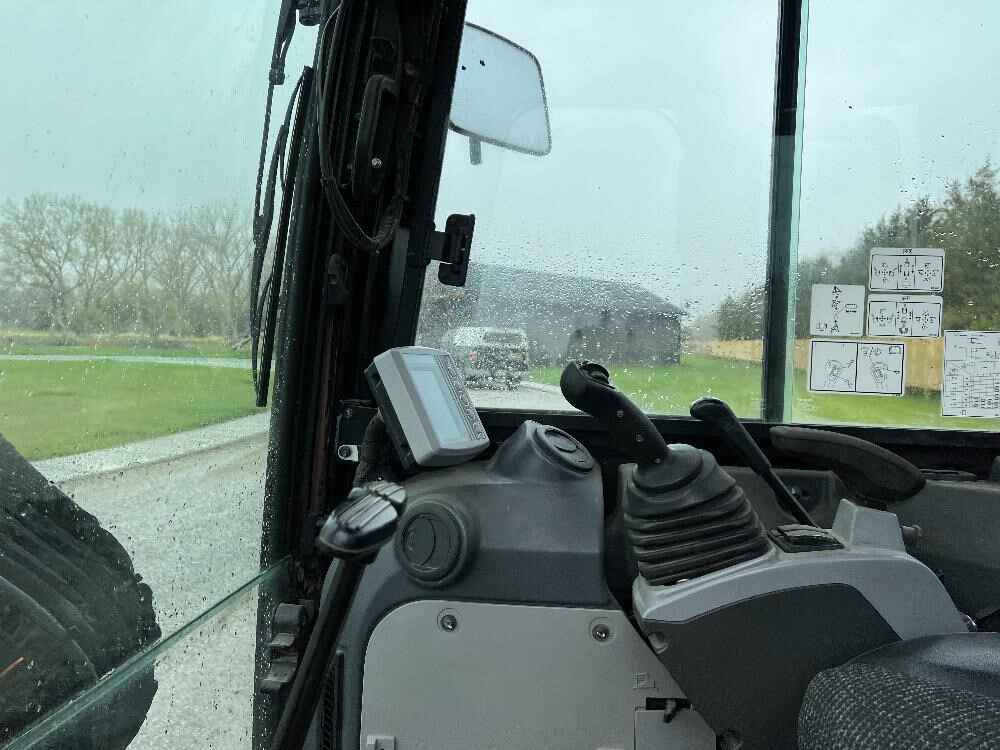

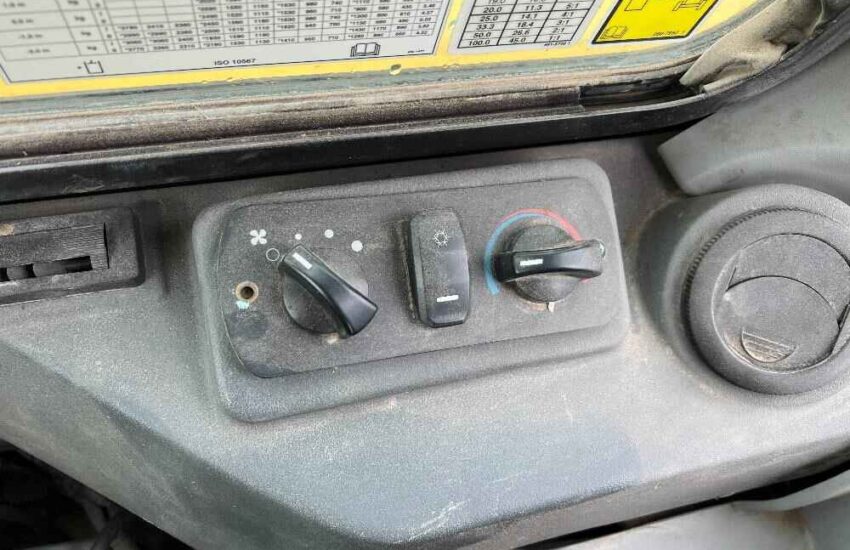

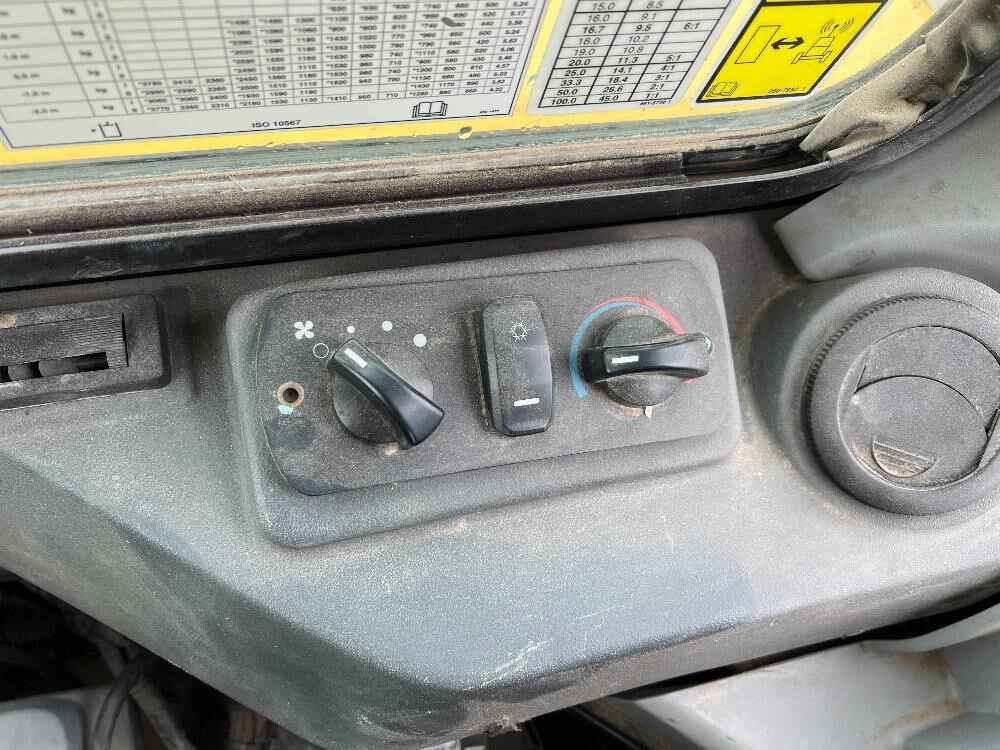

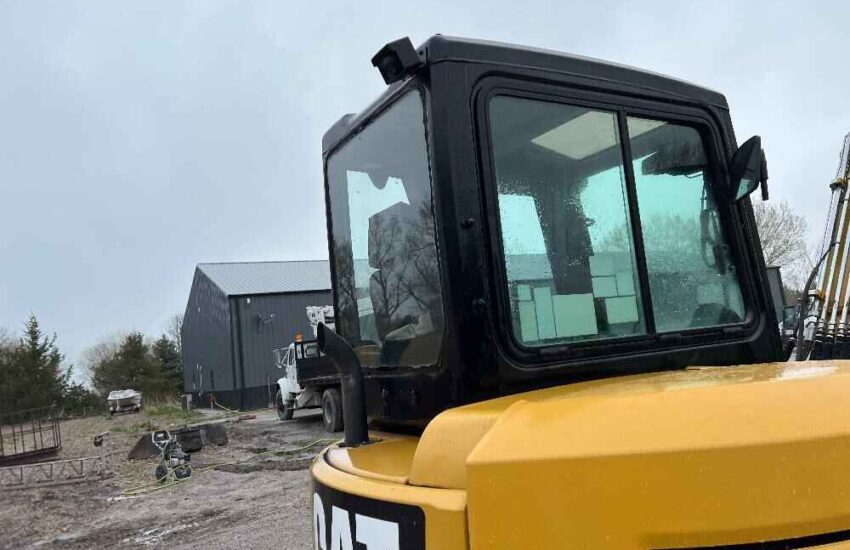

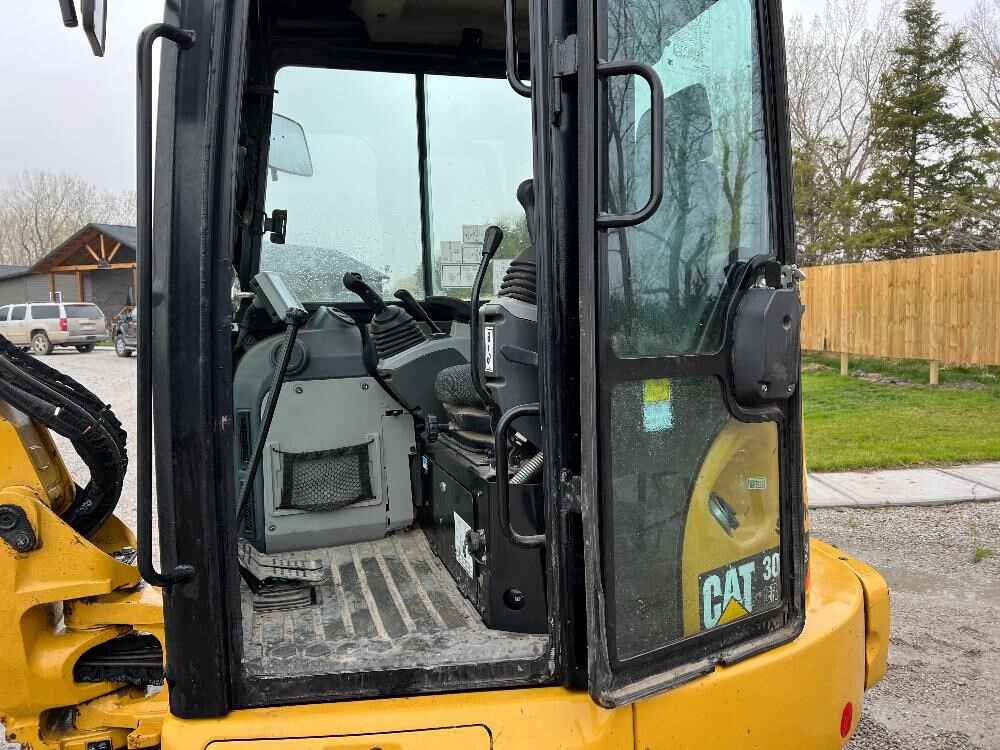

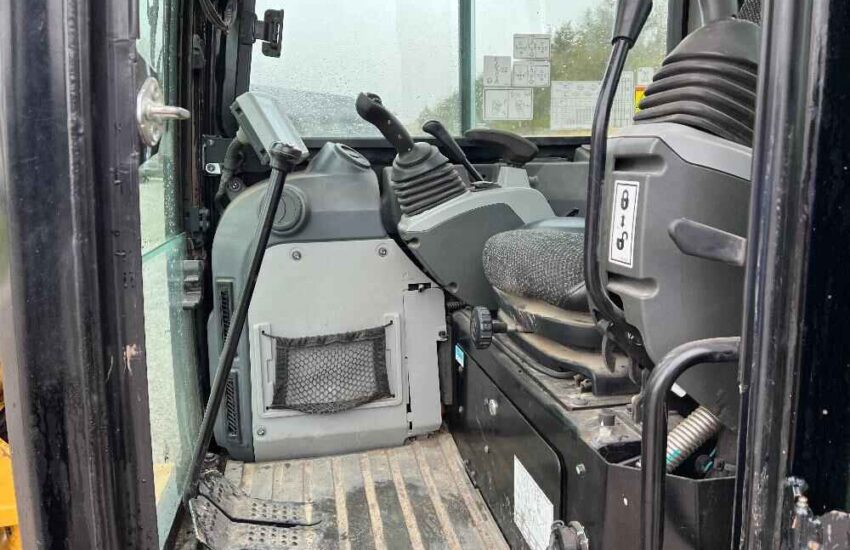

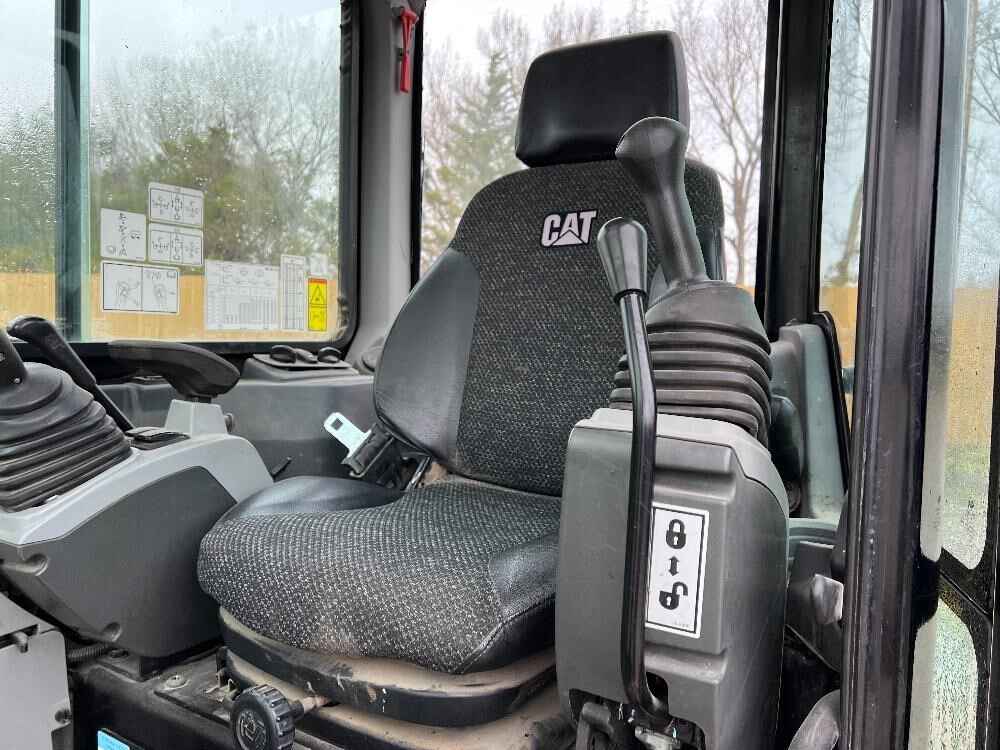

– Enclosed HEAT/AC/RADIO
– Rear Camera

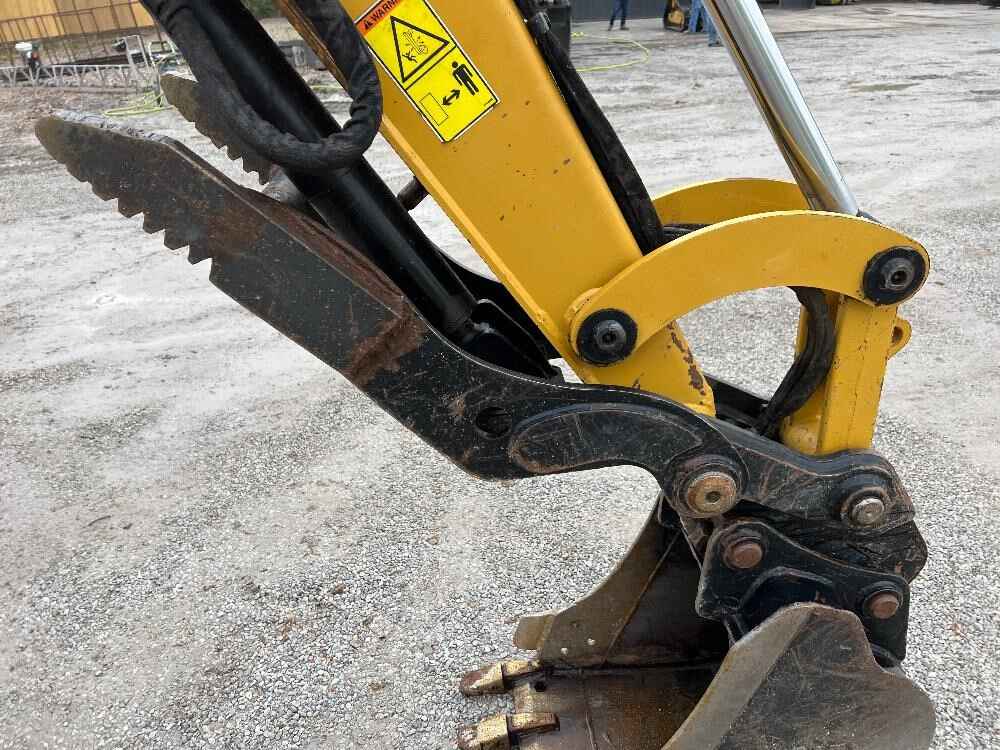

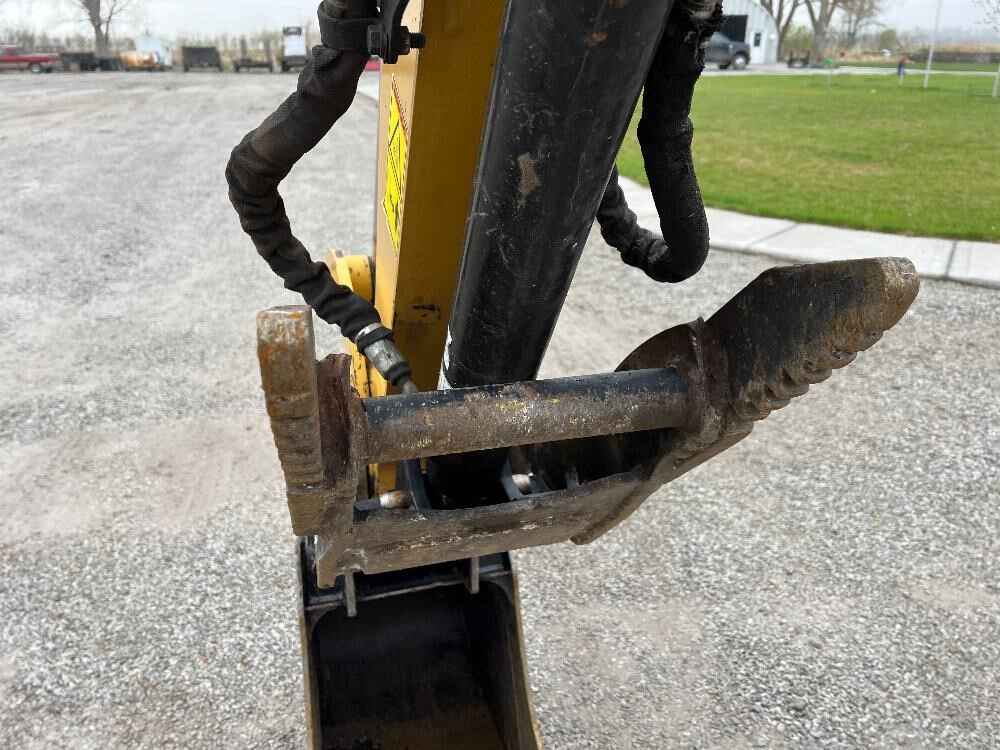

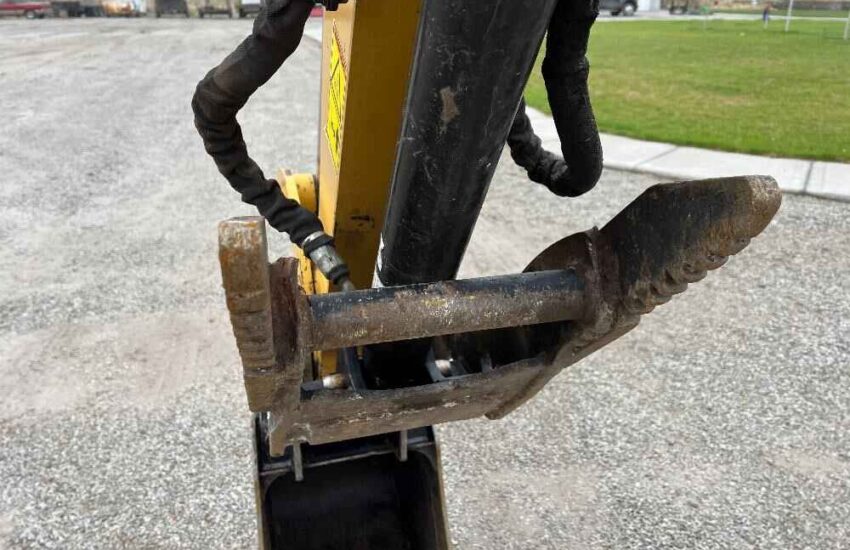

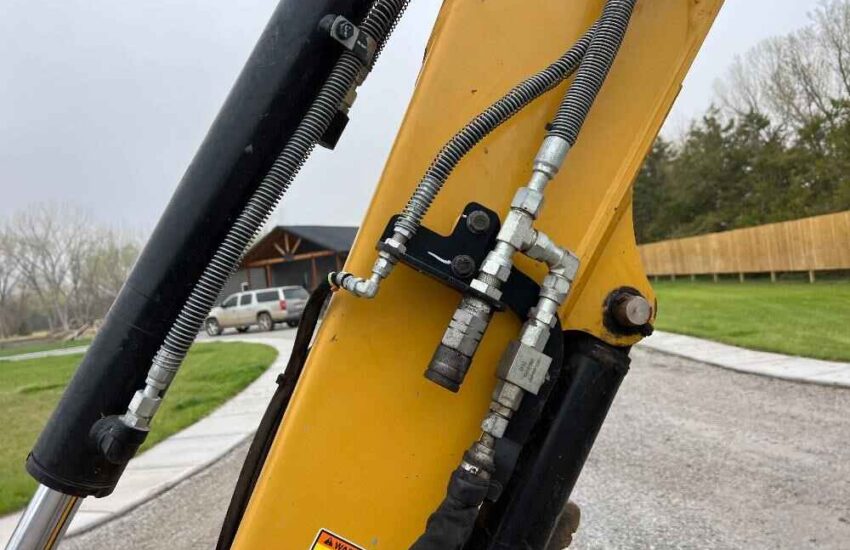

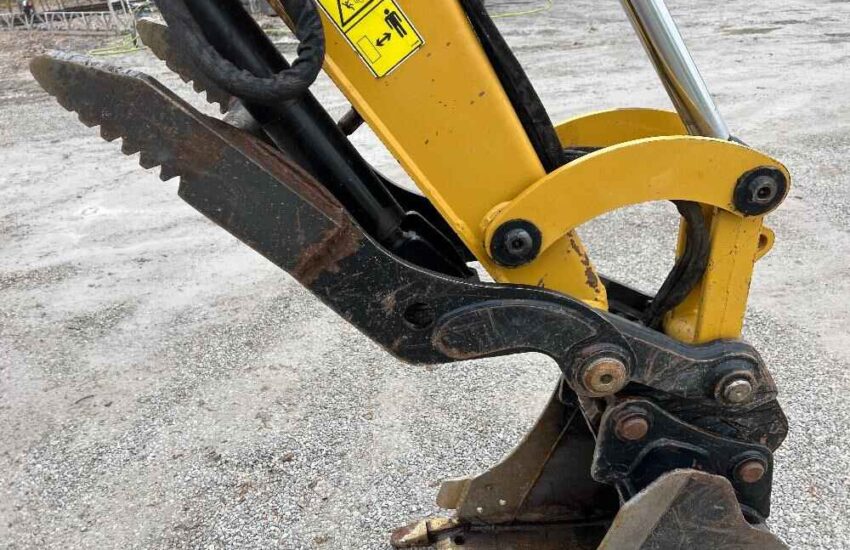

– Hydraulic Thumb

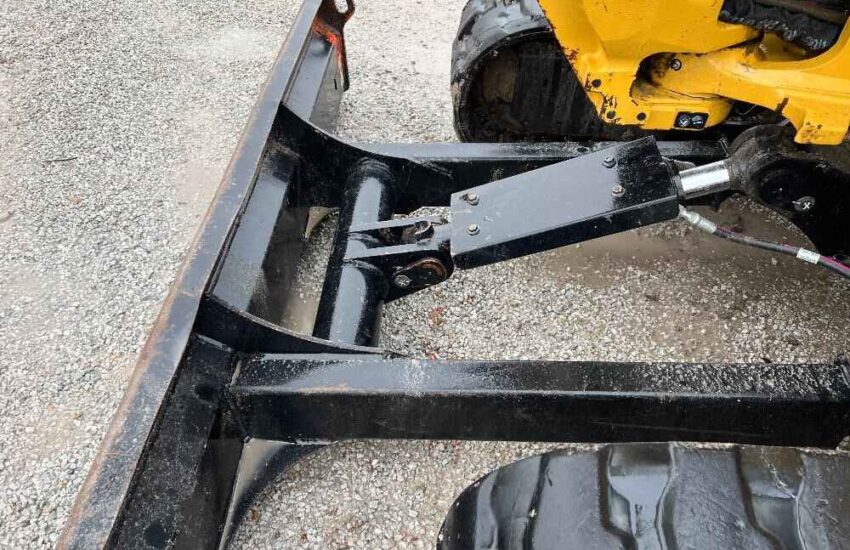

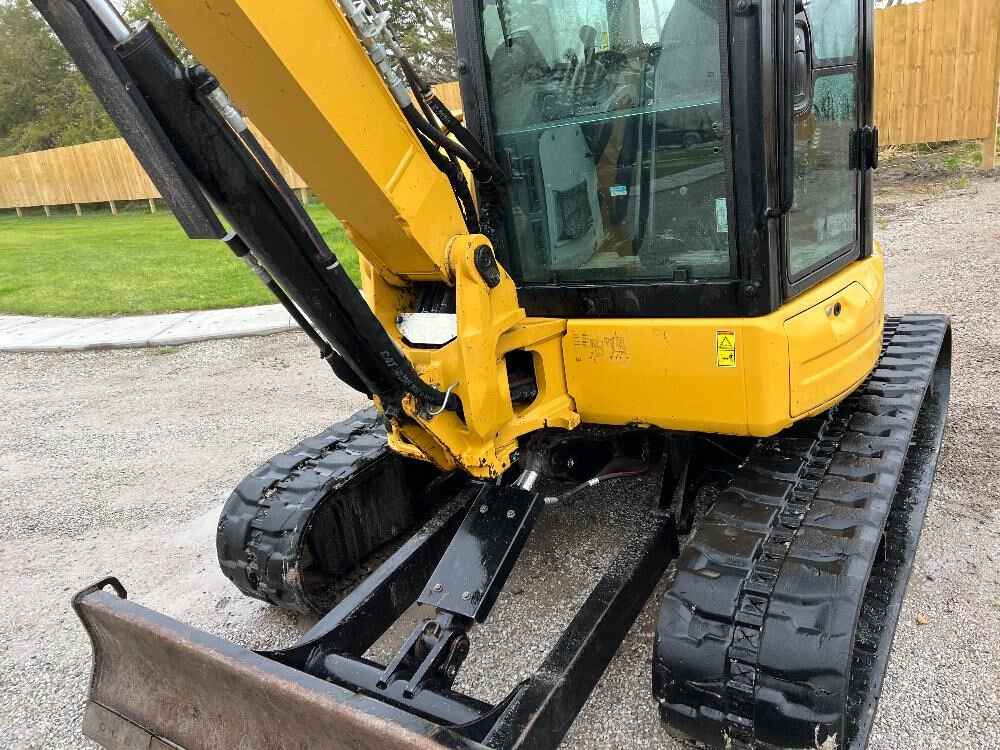

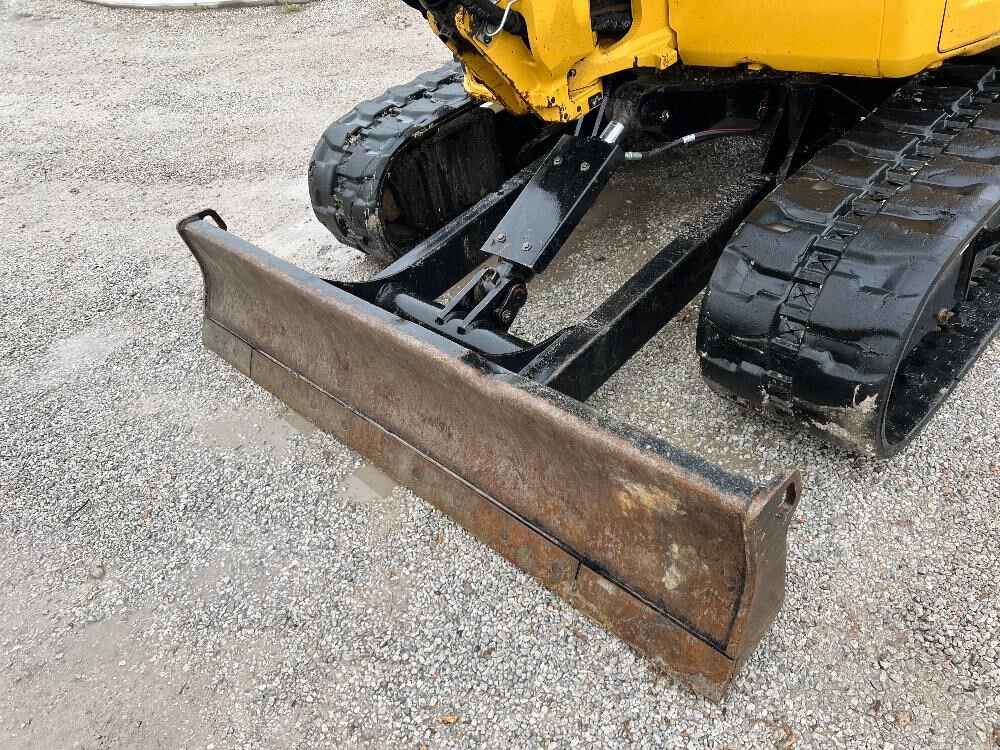

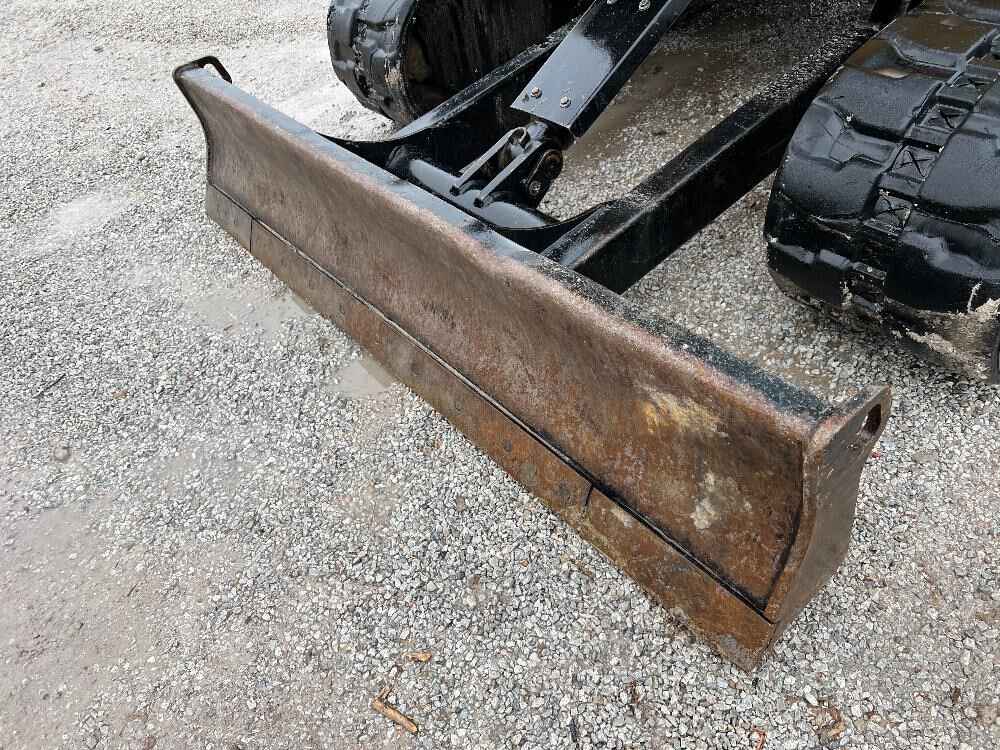

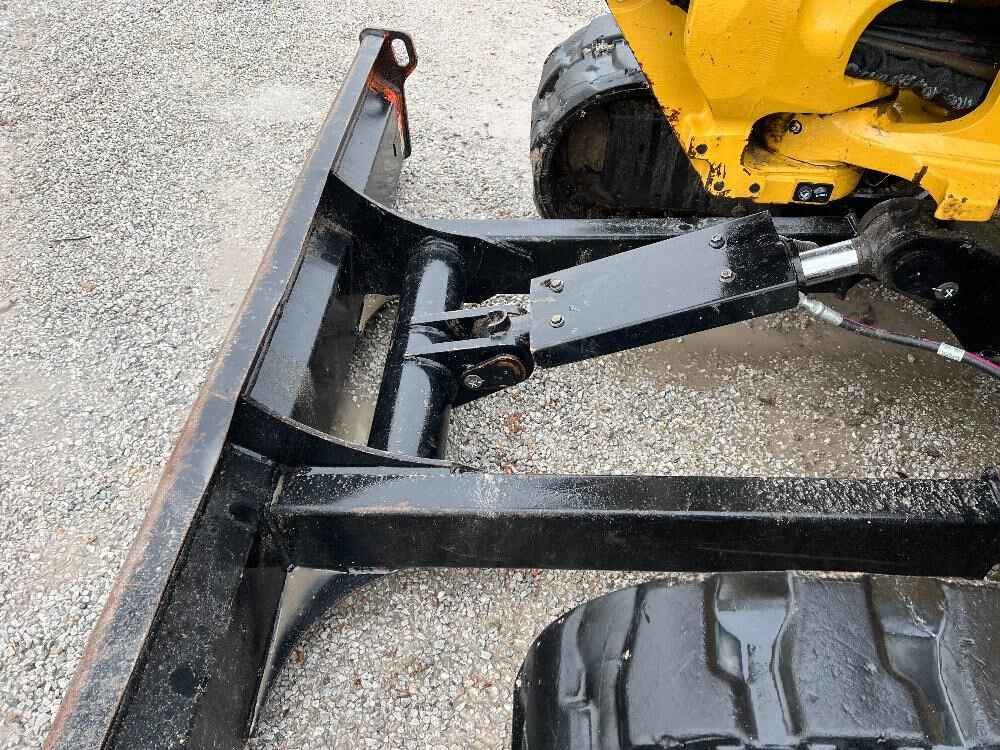

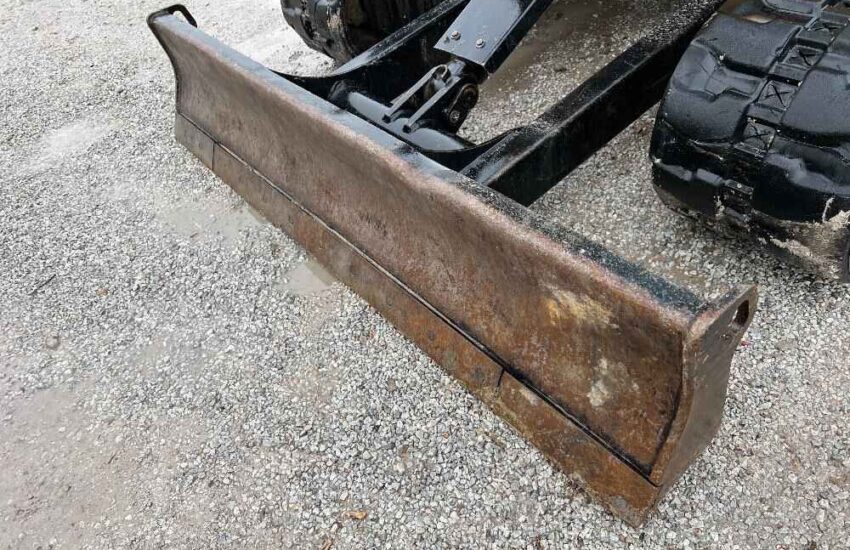

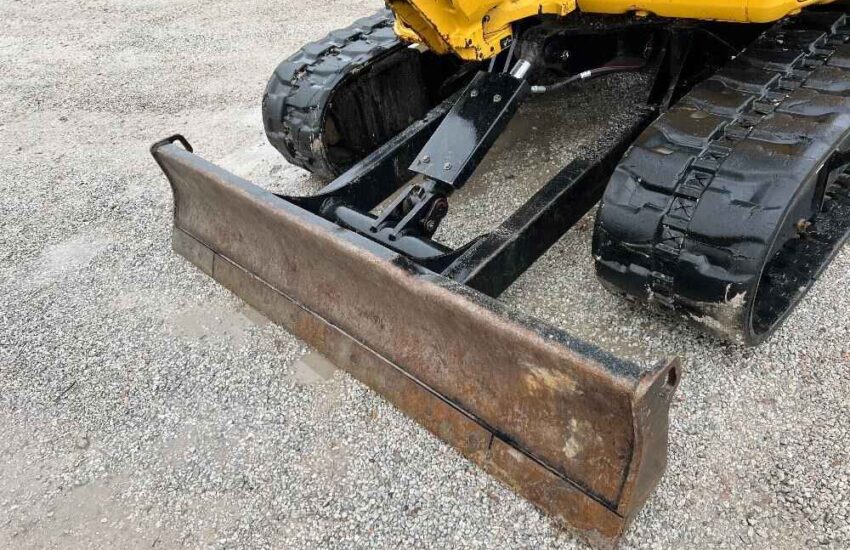

– Hydraulic Angle Blade
– 2 speed
– 24” & 36” buckets
– Manual Quick Coupler
– No leaks, No smoke, No issues
– 46 Hp
– 12k Lbs
Machine is TIGHT & READY TO WORK

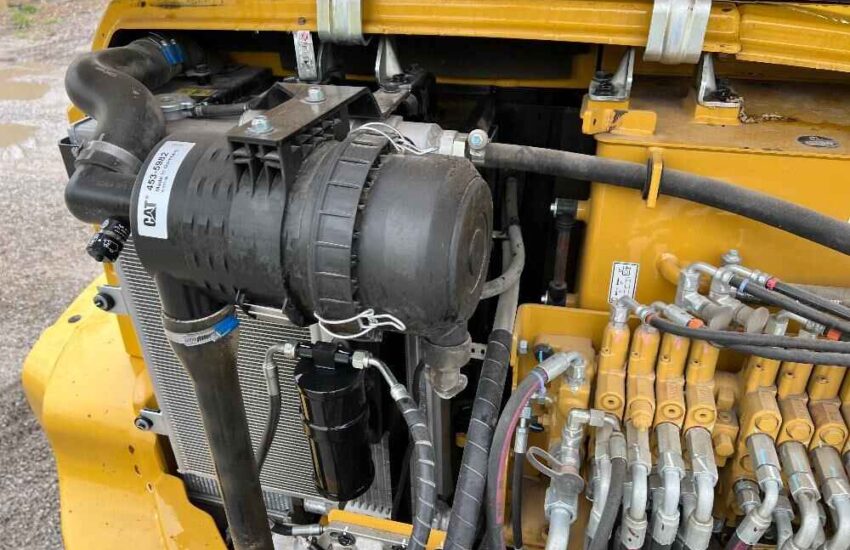

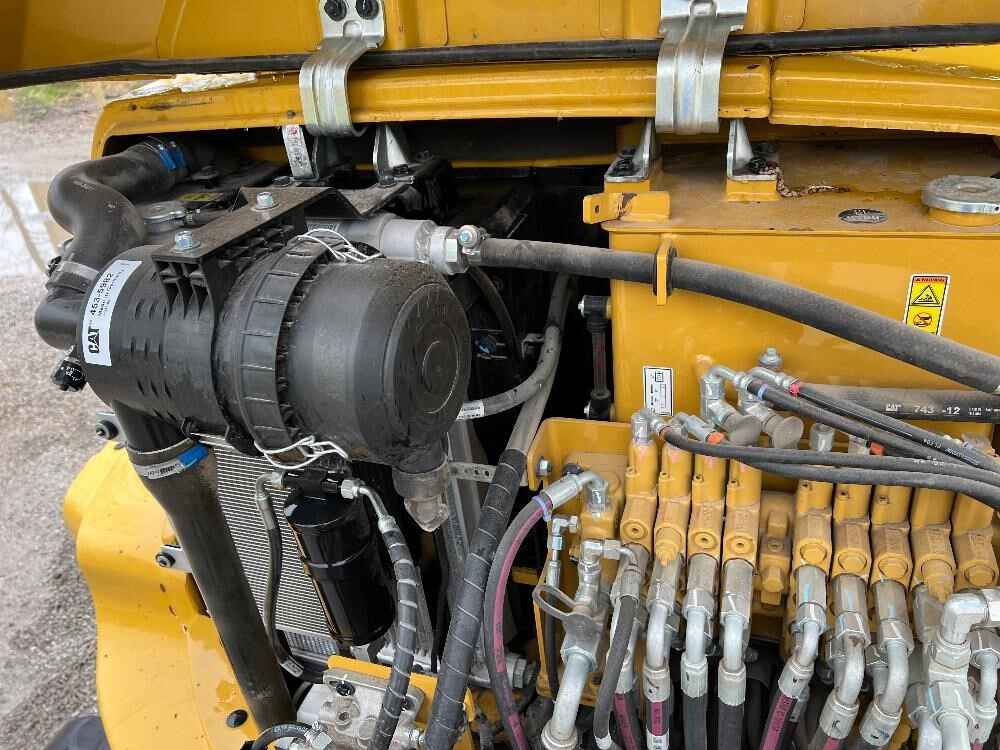

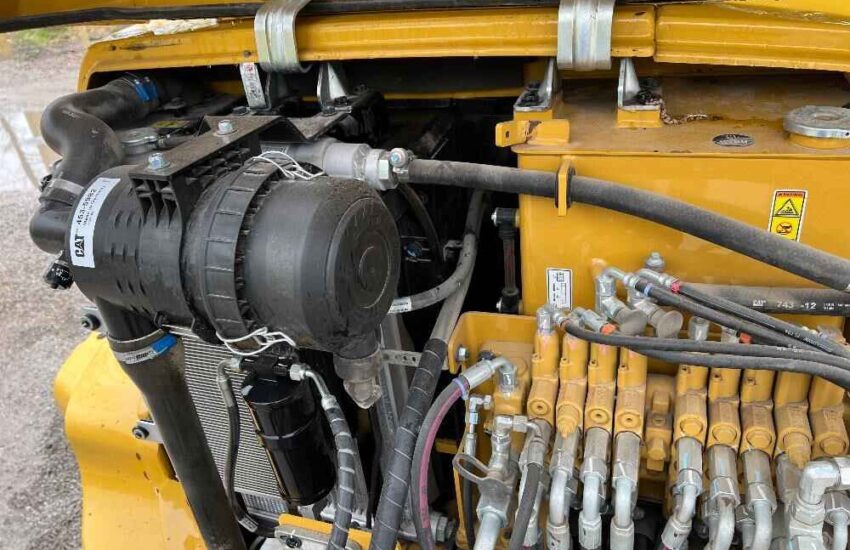

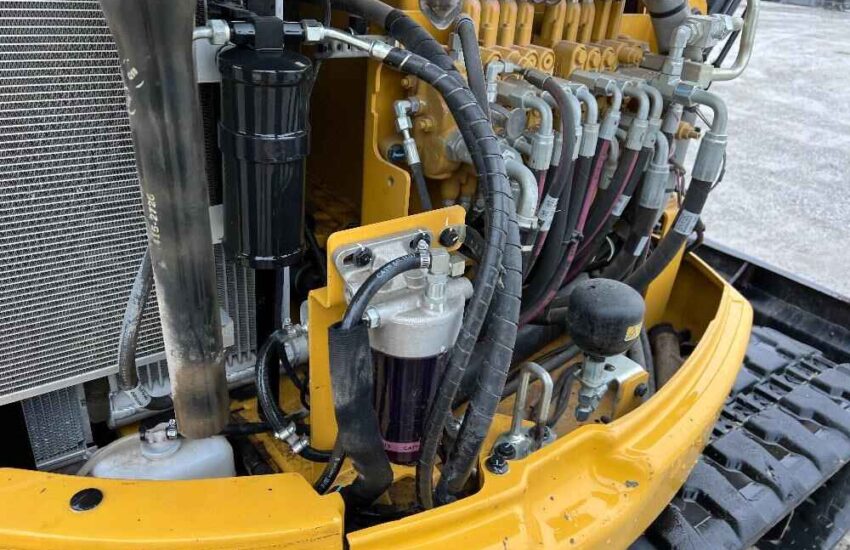

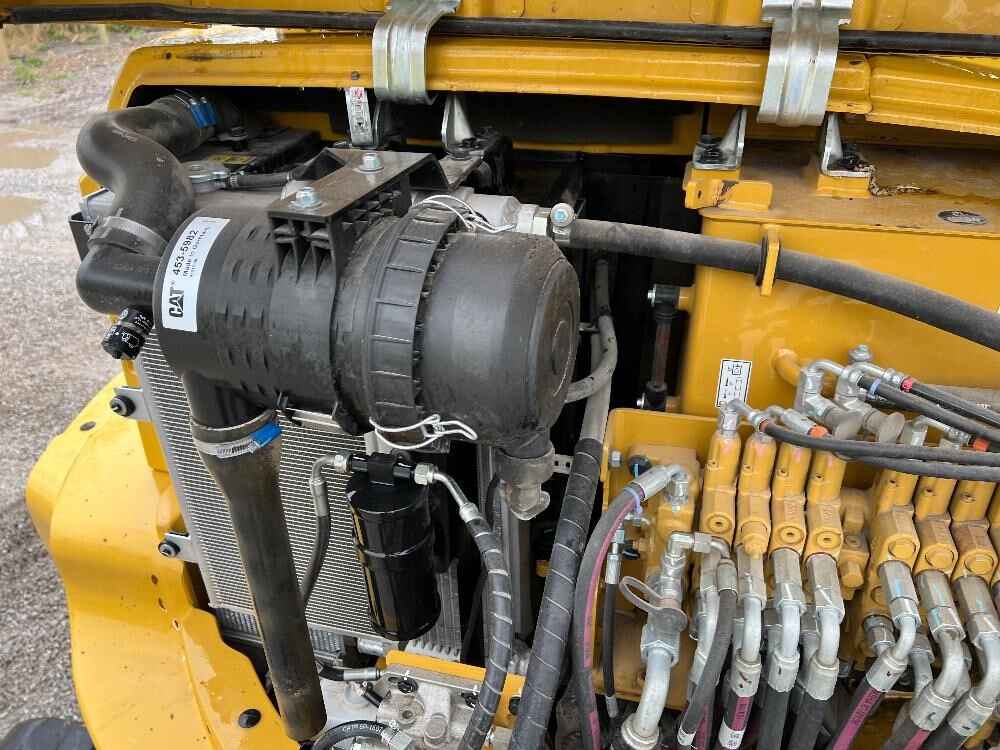

Engine
Model: Cat C2.4
Net Power: 44.1 hp (32.9 kW)
Gross Power: 45.7 hp (34.1 kW)
Displacement: 146 in³ (2.4 L)
Emissions: Meets U.S. EPA Tier 4 Final/EU Stage IIIA emission standards
Weights
Operating Weight (Cab, Standard Stick): 11,863 lbs (5,380 kg)
Operating Weight (Cab, Long Stick): 11,958 lbs (5,423 kg)
Performance
Maximum Dig Depth (Standard Stick): 11 ft 5 in (3,470 mm)
Maximum Dig Depth (Long Stick): 12 ft 8 in (3,870 mm)
Maximum Reach at Ground Level (Standard Stick): 18 ft 6 in (5,630 mm)
Maximum Reach at Ground Level (Long Stick): 19 ft 9 in (6,020 mm)
Maximum Dump Clearance (Standard Stick): 12 ft 6 in (3,820 mm)
Maximum Dump Clearance (Long Stick): 13 ft 5 in (4,080 mm)
Bucket Digging Force: 11,445 lbf (50.9 kN)
Stick Digging Force (Standard Stick): 6,500 lbf (28.9 kN)
Stick Digging Force (Long Stick): 5,575 lbf (24.8 kN)

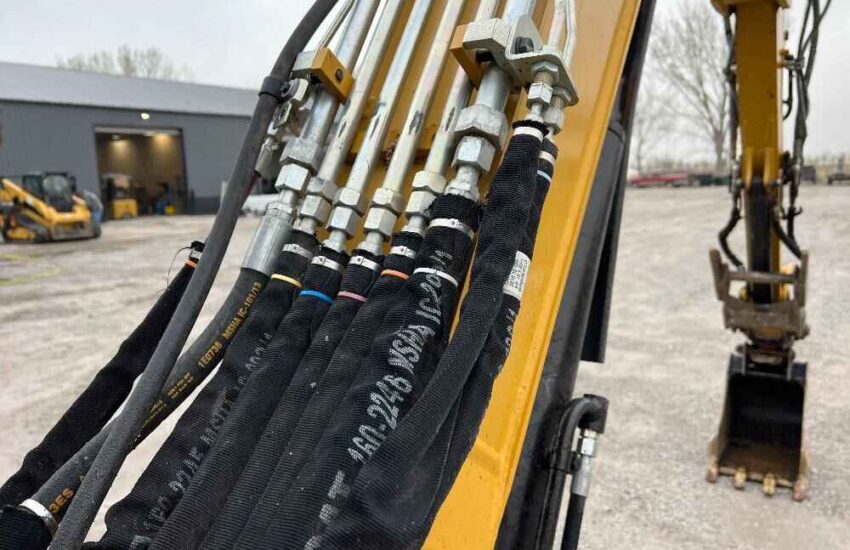

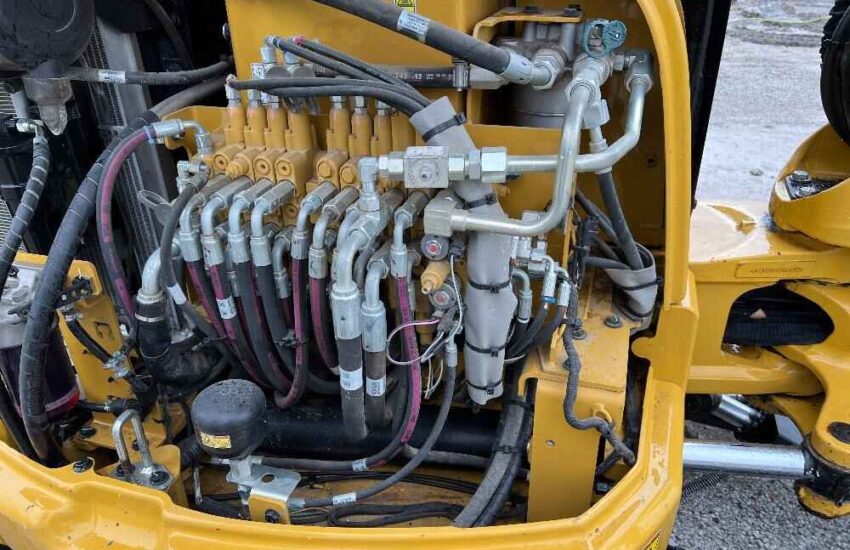

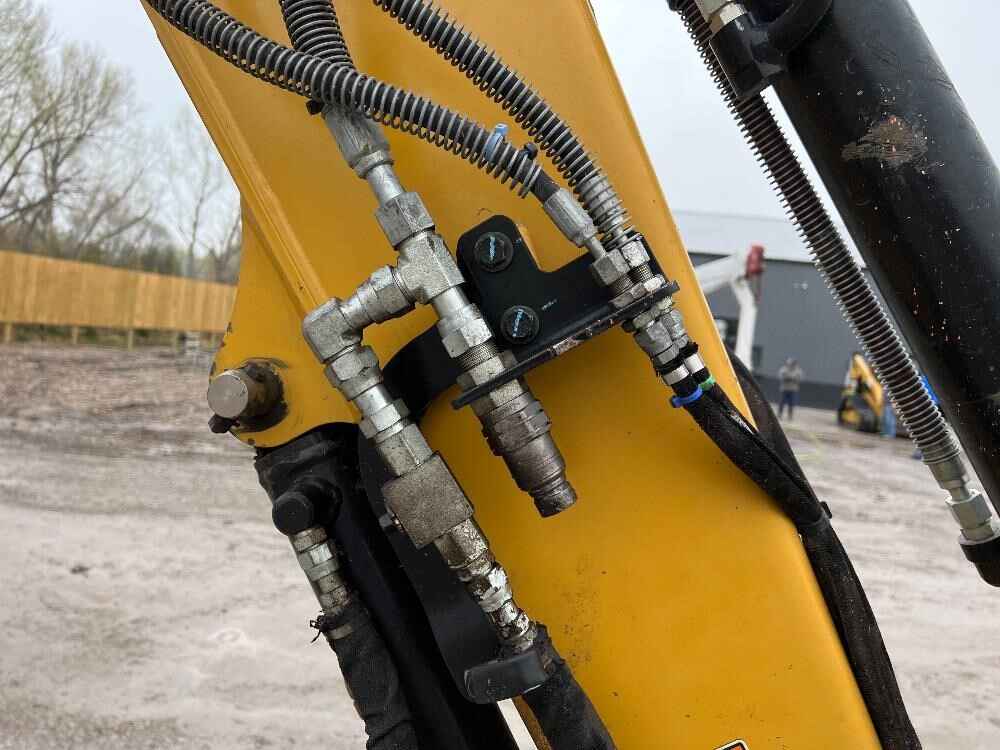

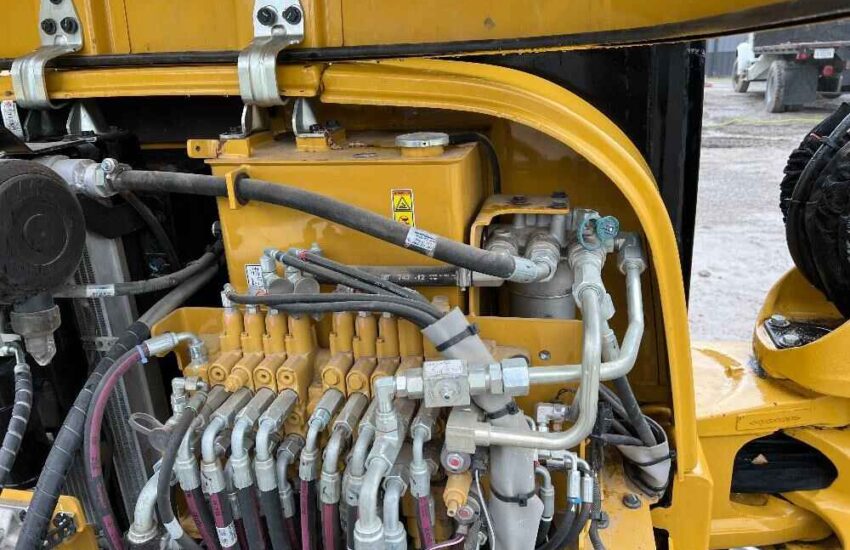

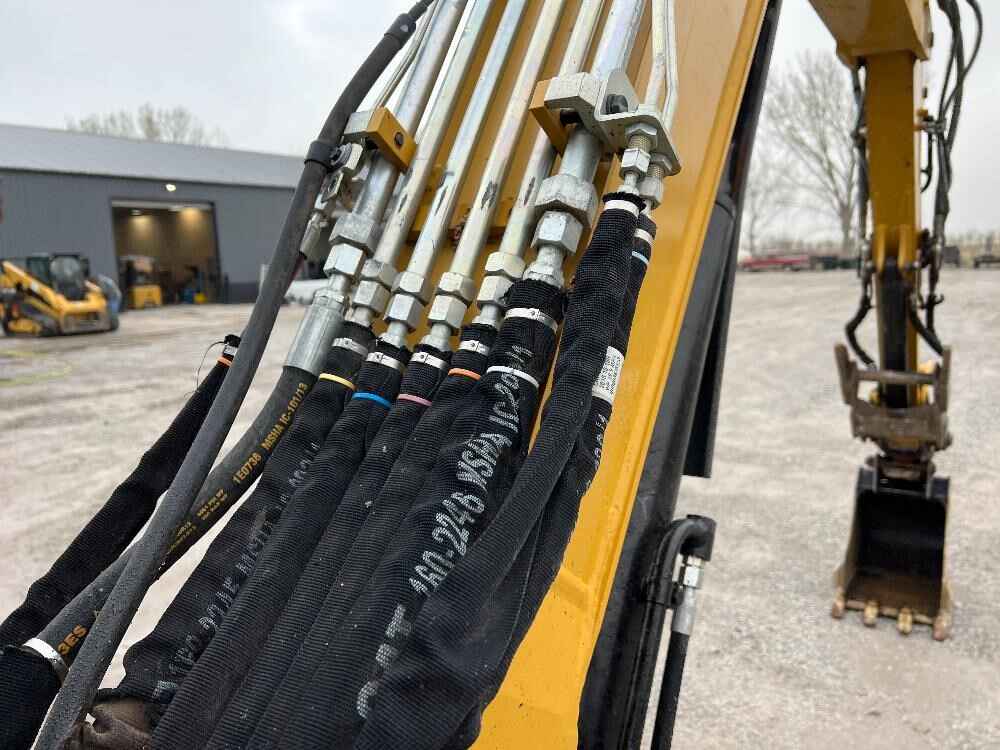

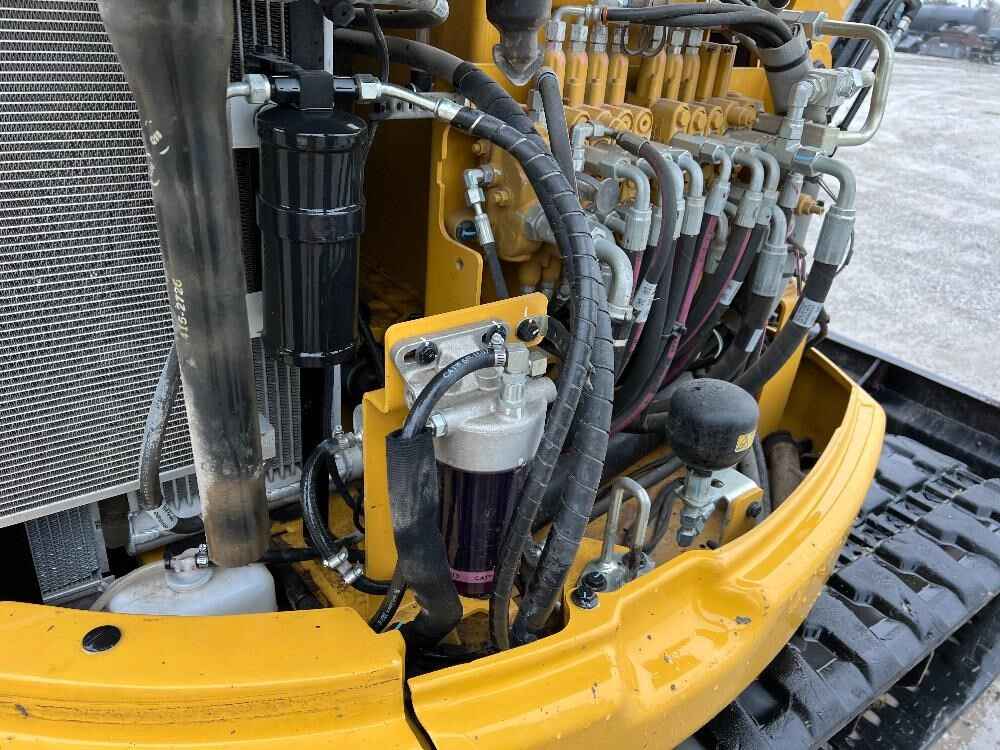

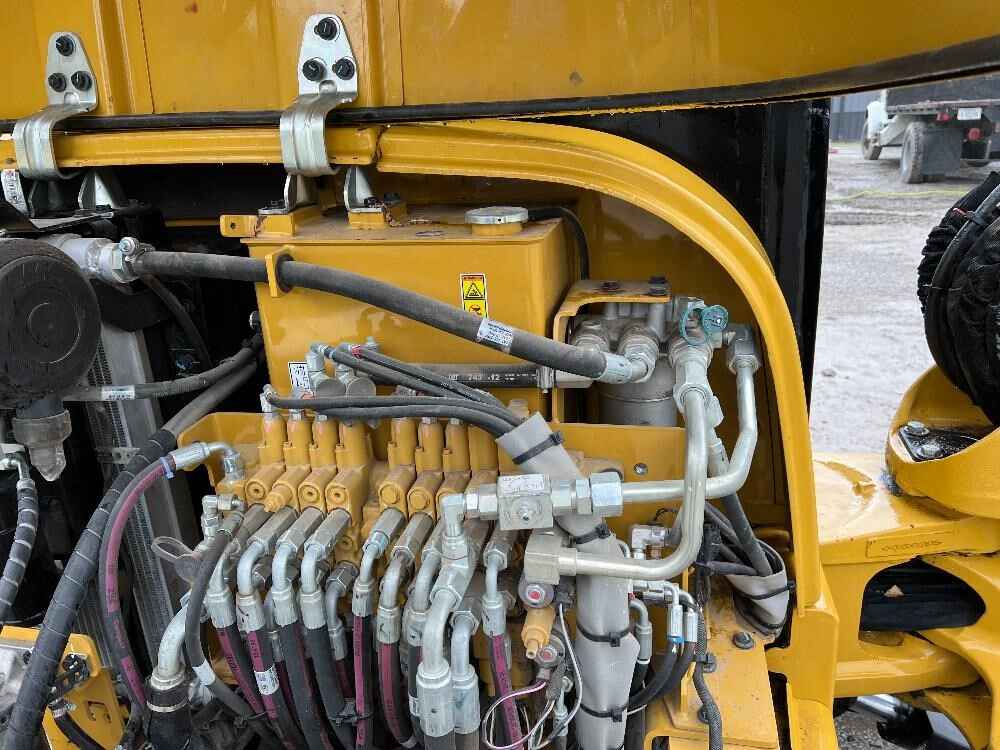

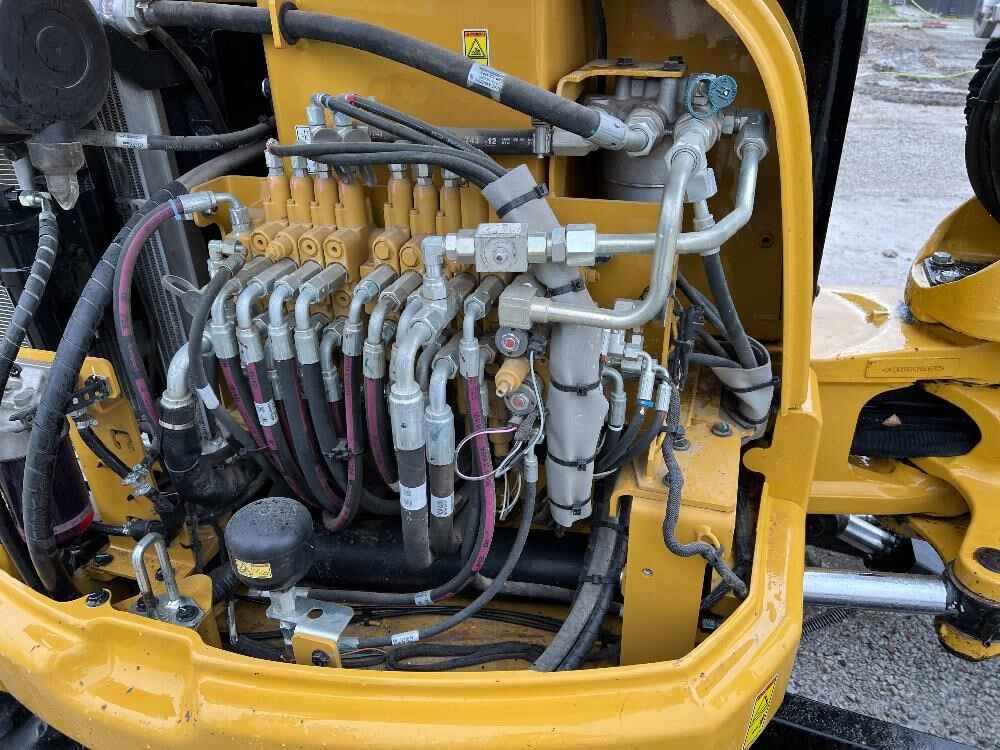

Hydraulics
Main Pump Flow: 39.6 gal/min (150 L/min)

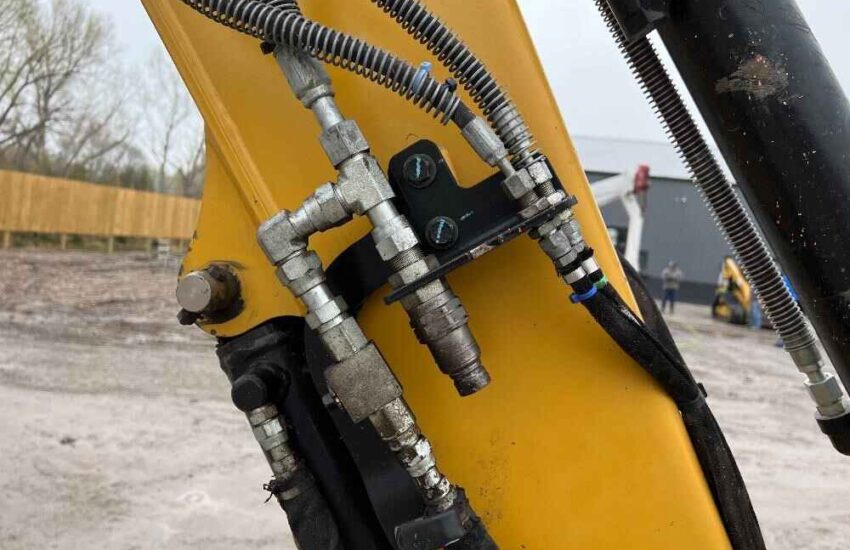

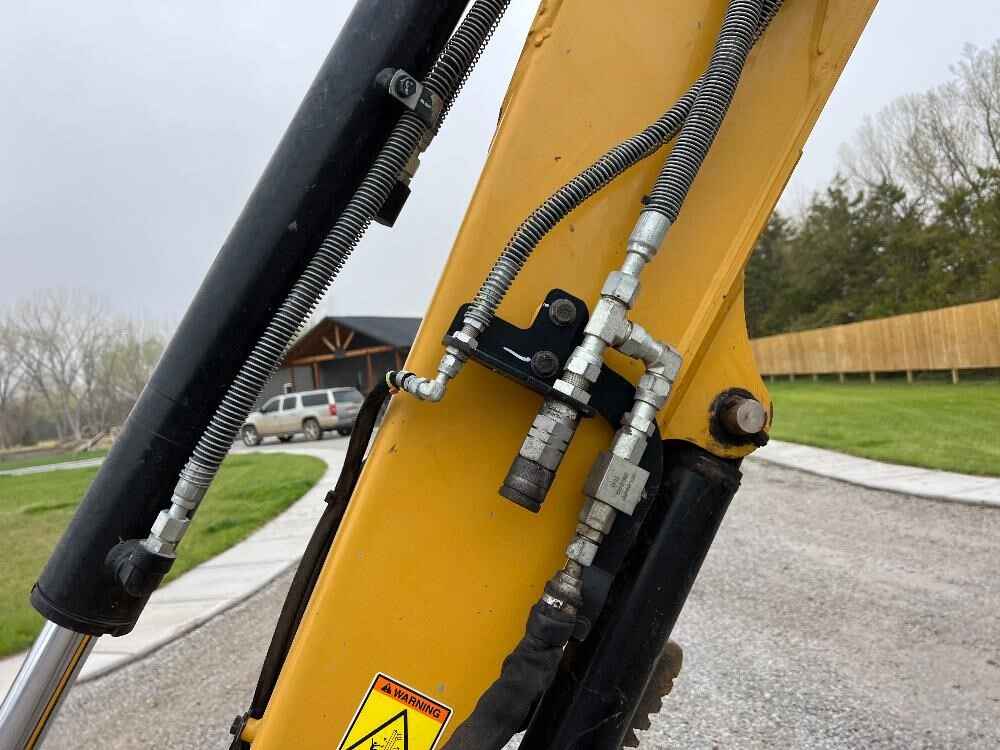

Auxiliary Circuit – Primary: 21.1 gal/min (80 L/min) at 2,734 psi (186 bar)
Auxiliary Circuit – Secondary: 6.6 gal/min (25 L/min) at 2,524 psi (174 bar)
Operating Pressure – Equipment: 3,553 psi (245 bar)
Operating Pressure – Travel: 3,553 psi (245 bar)
Operating Pressure – Swing: 3,132 psi (216 bar)
Dimensions
Overall Length (Standard Stick): 17 ft 6 in (5,330 mm)
Overall Length (Long Stick): 17 ft 11 in (5,460 mm)
Overall Width: 6 ft 6 in (1,980 mm)
Overall Height: 8 ft 4 in (2,550 mm)
Tail Swing Radius: 3 ft 8 in (1,130 mm)
Ground Clearance: 1 ft 4 in (405 mm)

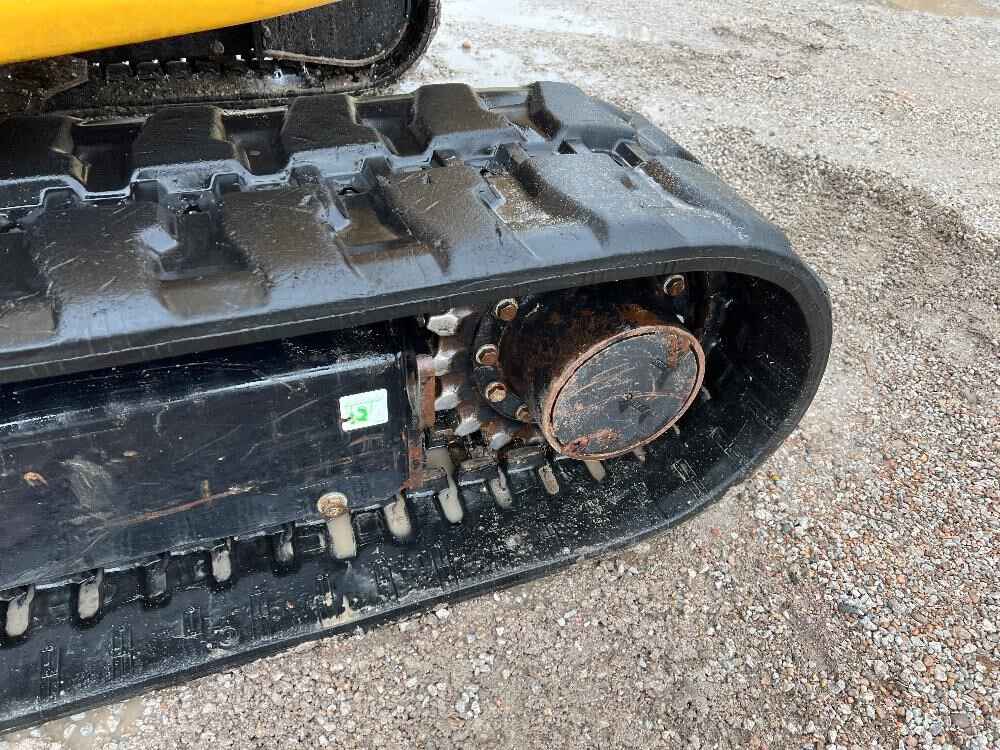

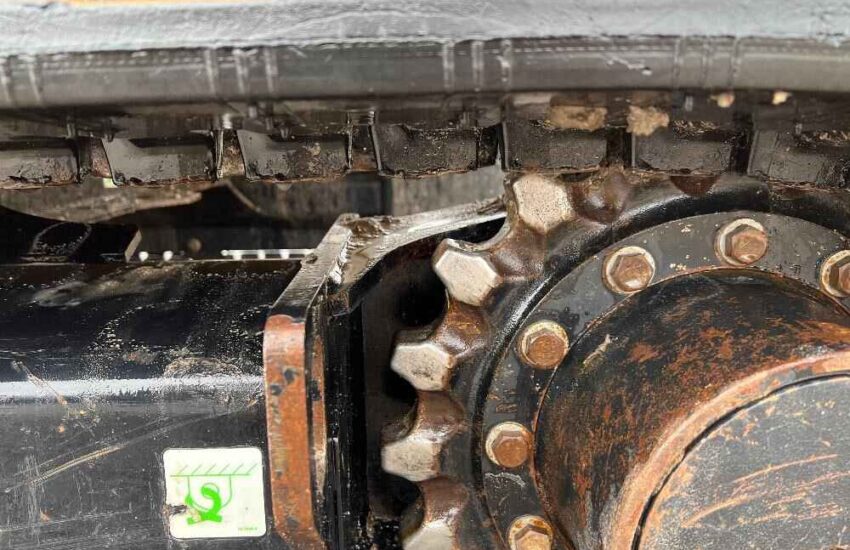

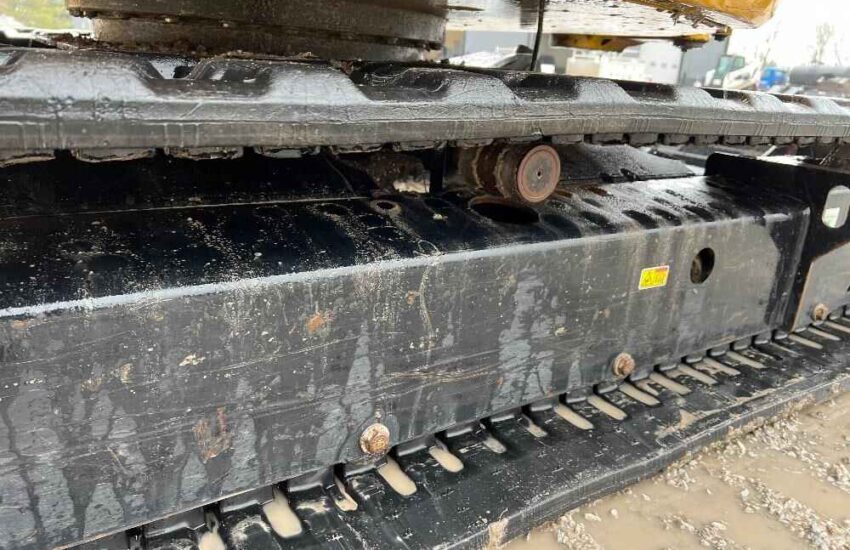

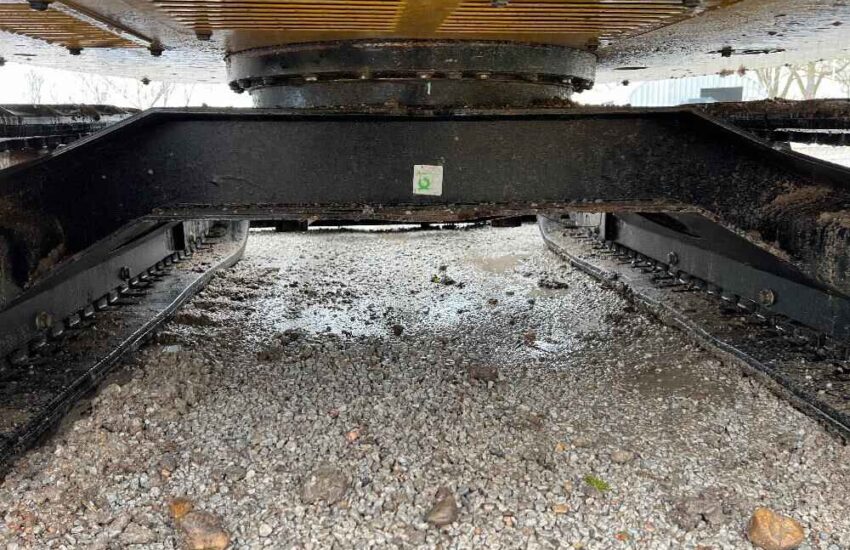

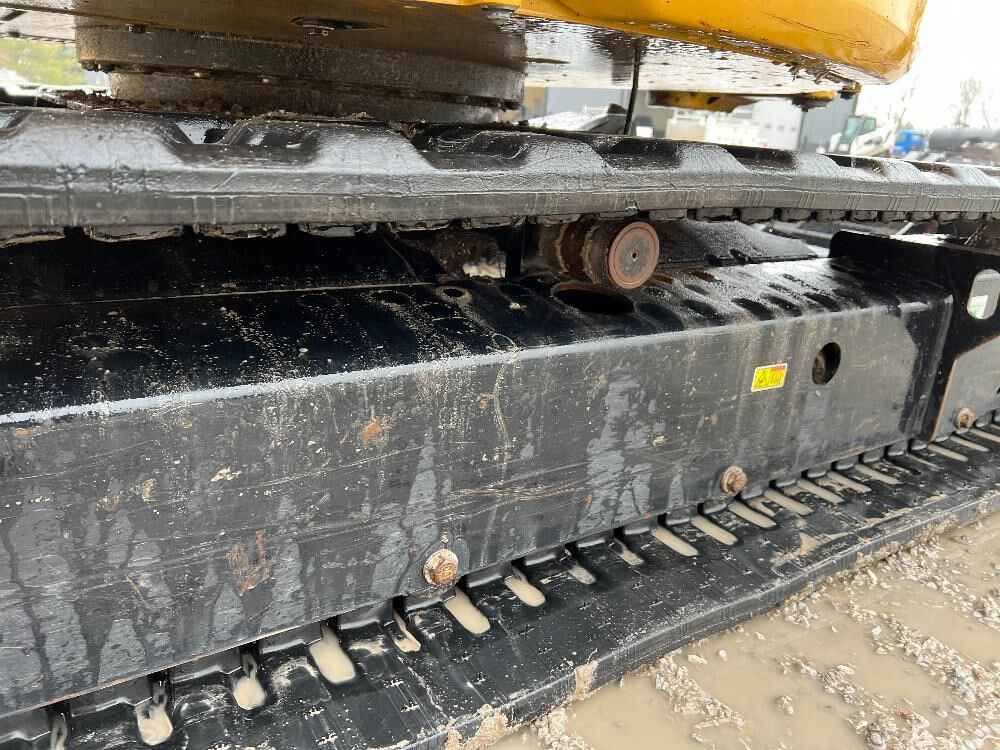

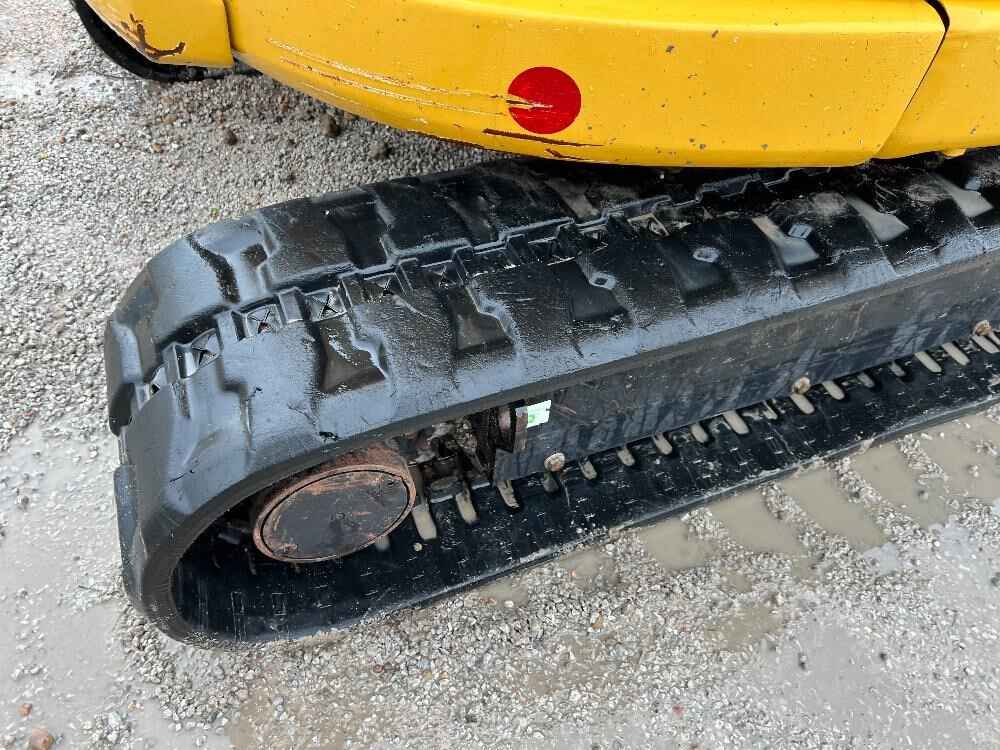

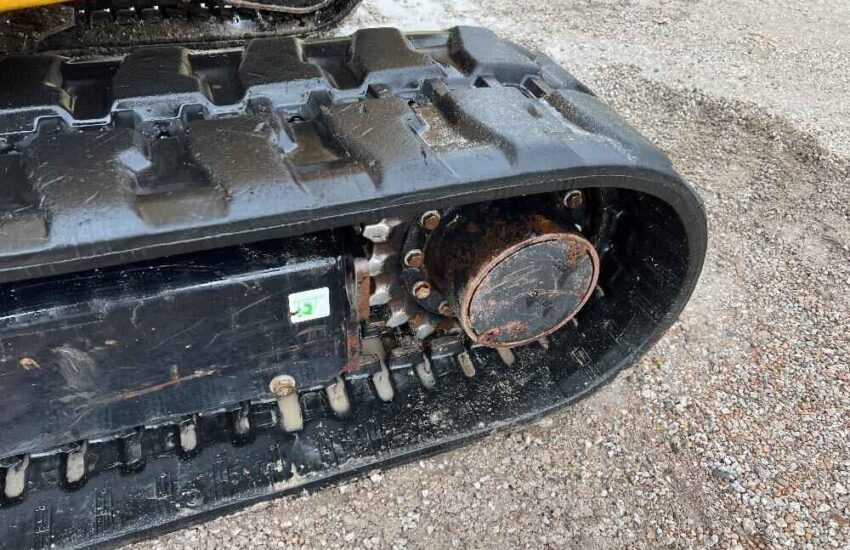

Travel System
Travel Speed – High: 2.8 mph (4.5 km/h)
Travel Speed – Low: 1.7 mph (2.8 km/h)
Maximum Traction Force – High Speed: 6,025 lbf (26.8 kN)
Maximum Traction Force – Low Speed: 10,746 lbf (47.8 kN)
Gradeability (maximum): 30°
Service Refill Capacities

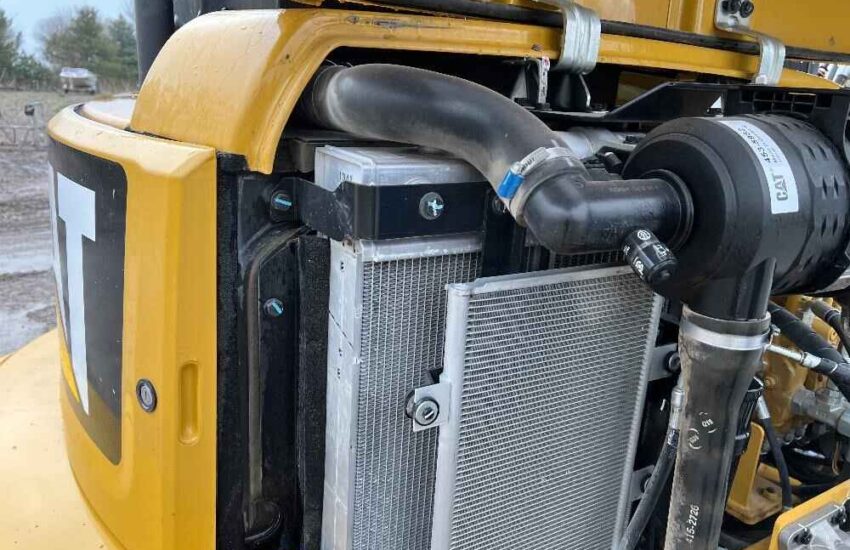

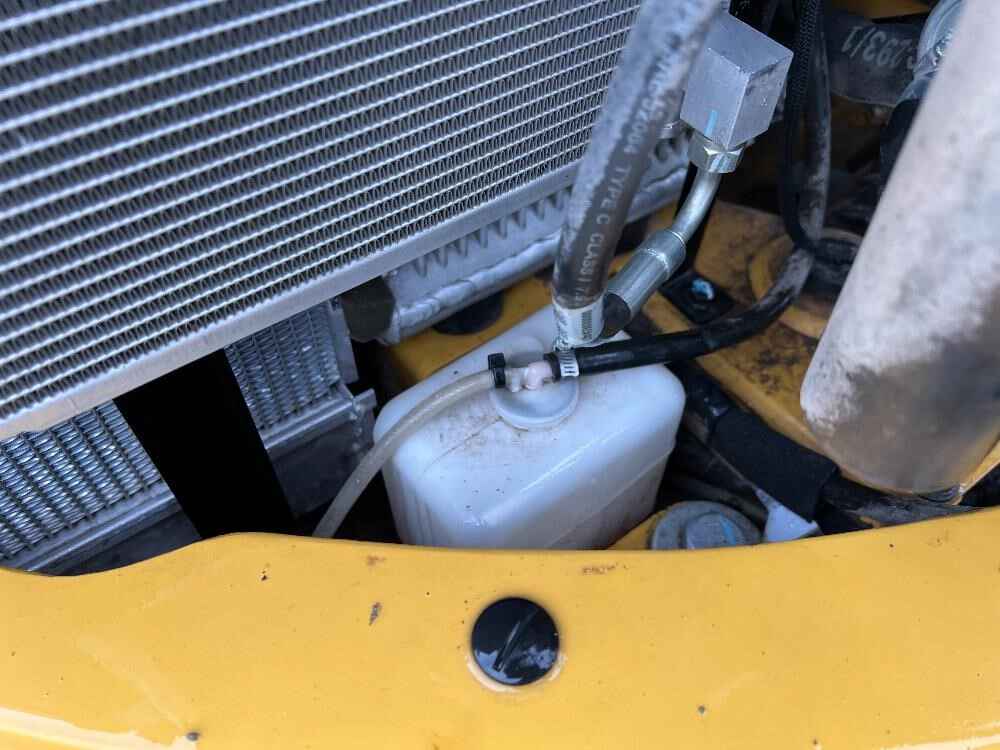

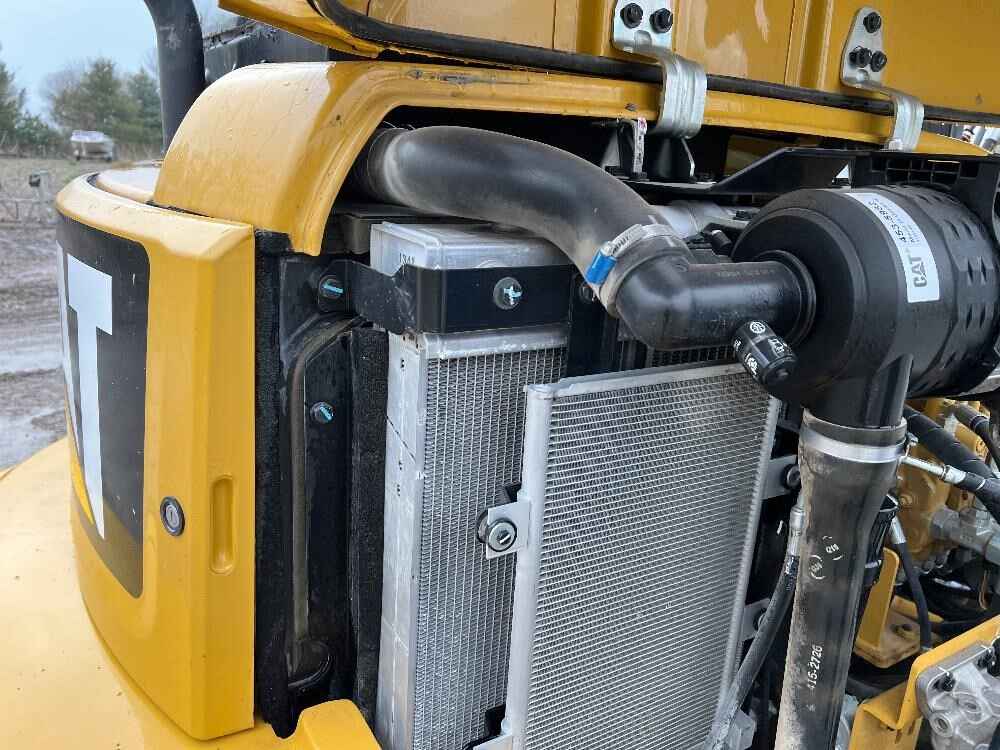

Cooling System: 2.8 gal (10.5 L)
Engine Oil: 2.5 gal (9.5 L)
Fuel Tank: 16.6 gal (63 L)
Hydraulic Tank: 18 gal (68.3 L)
Hydraulic System: 20.6 gal (78 L)
