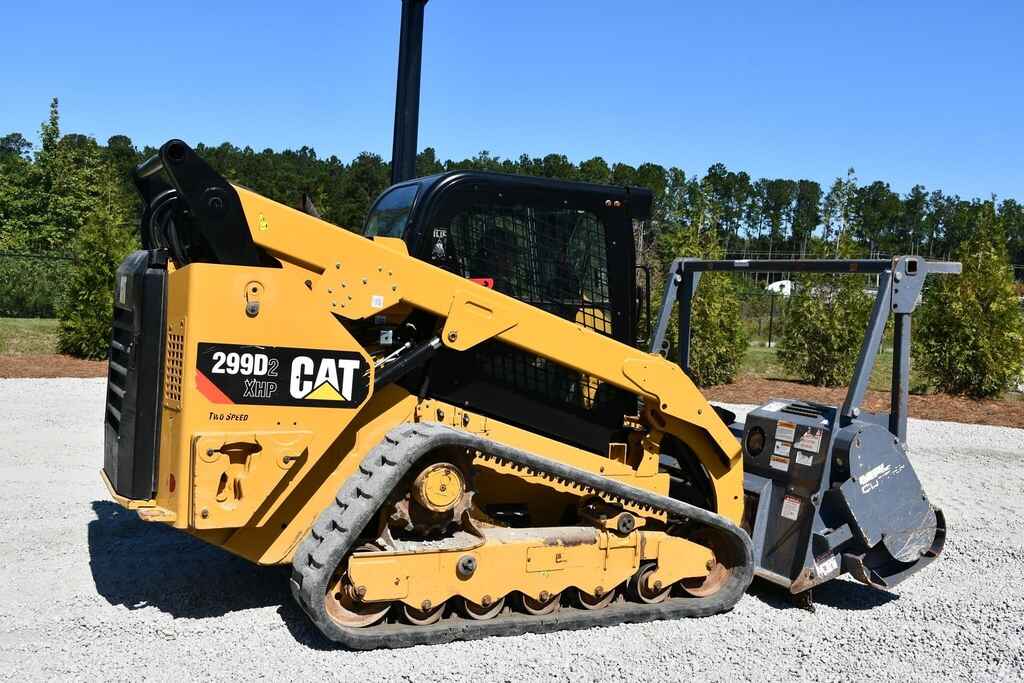

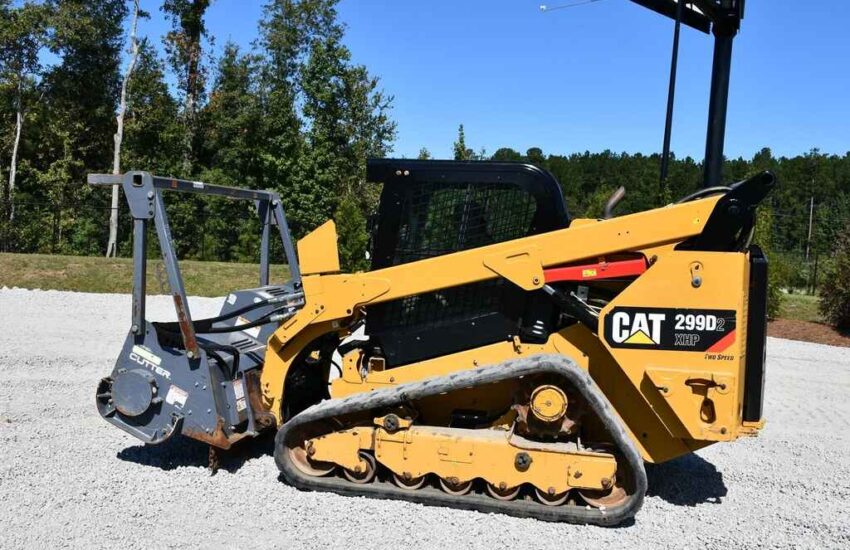

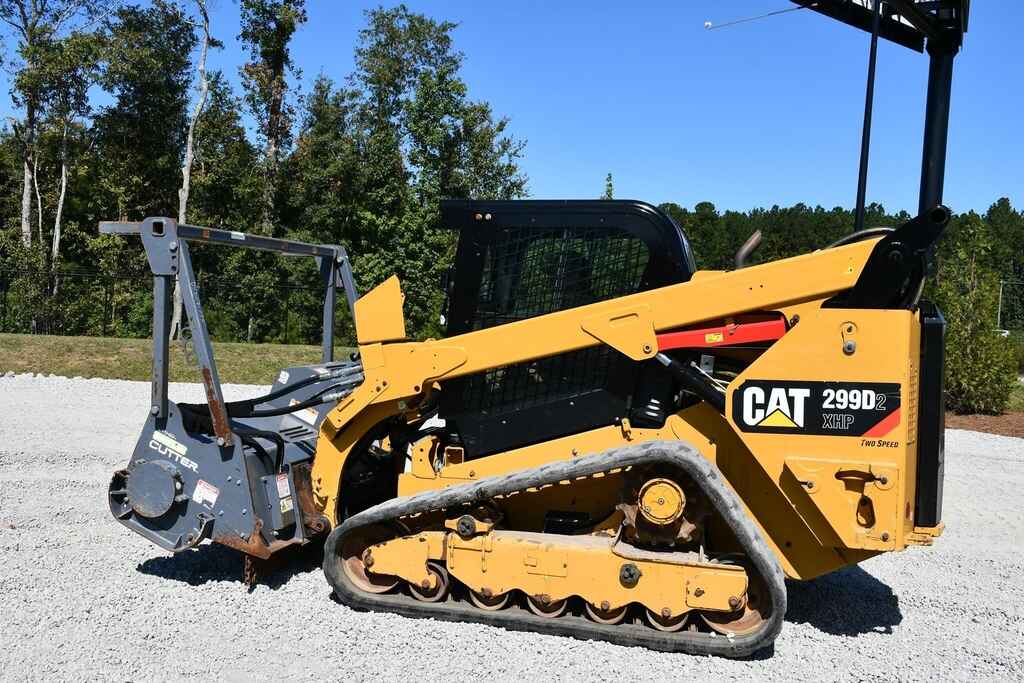

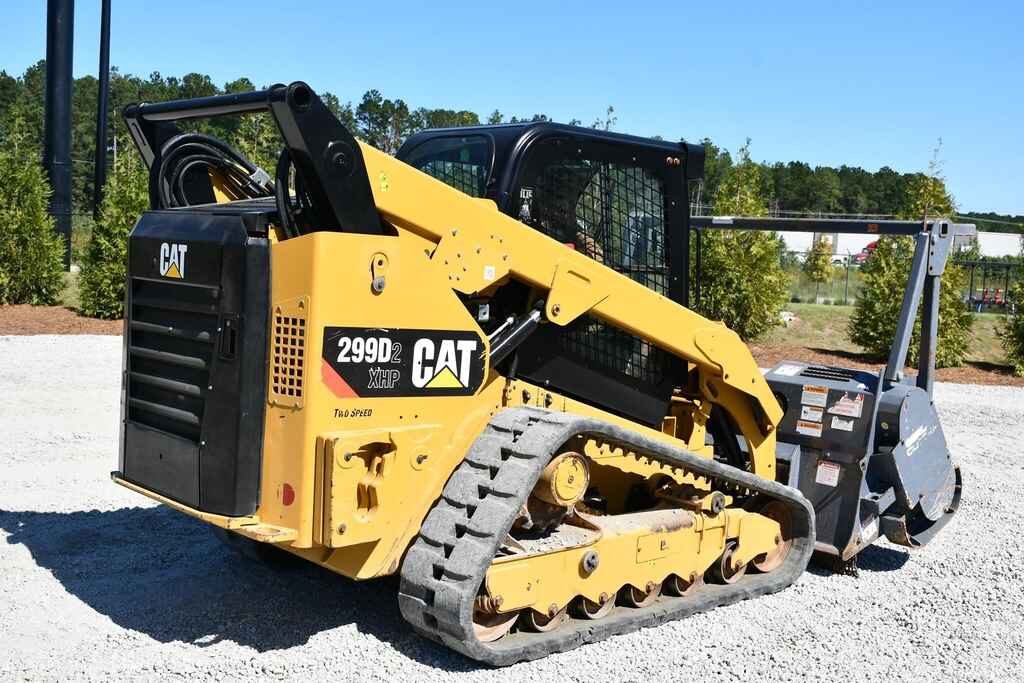

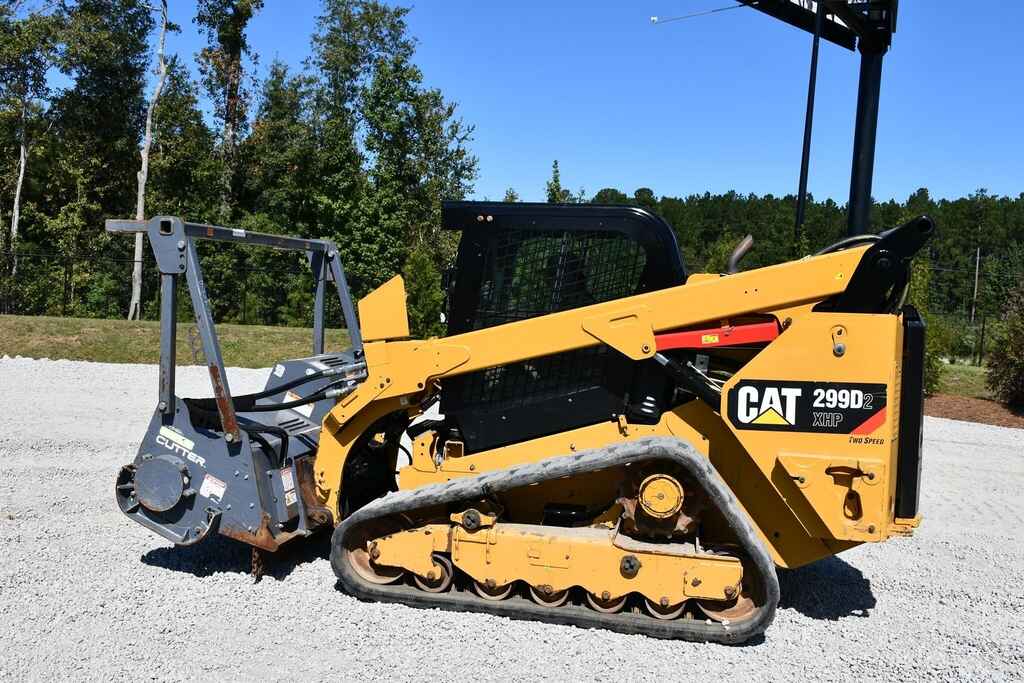

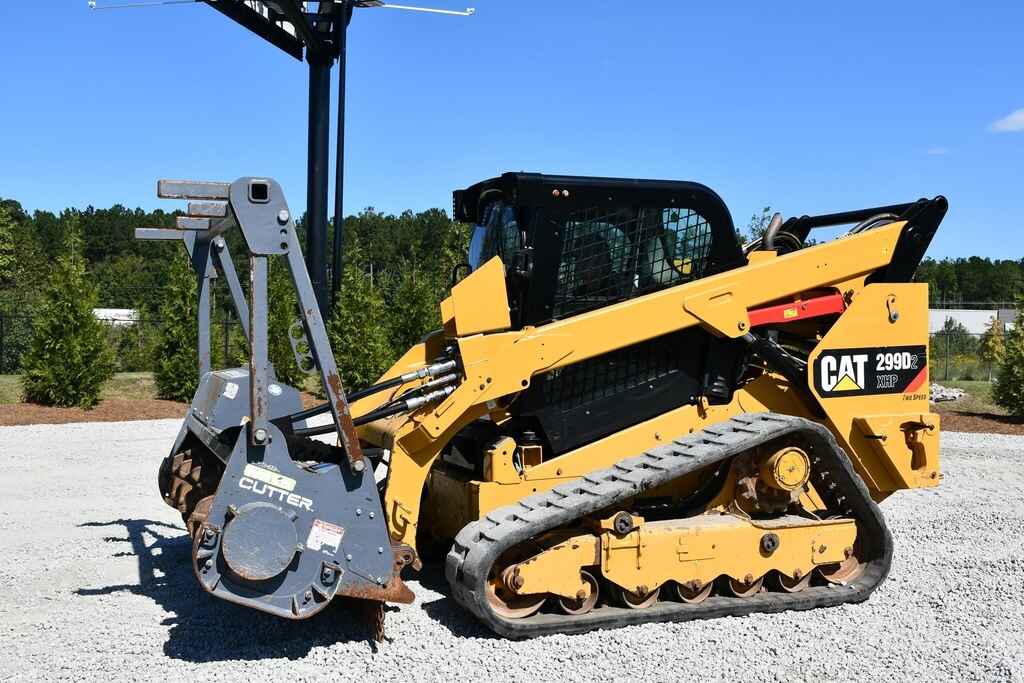

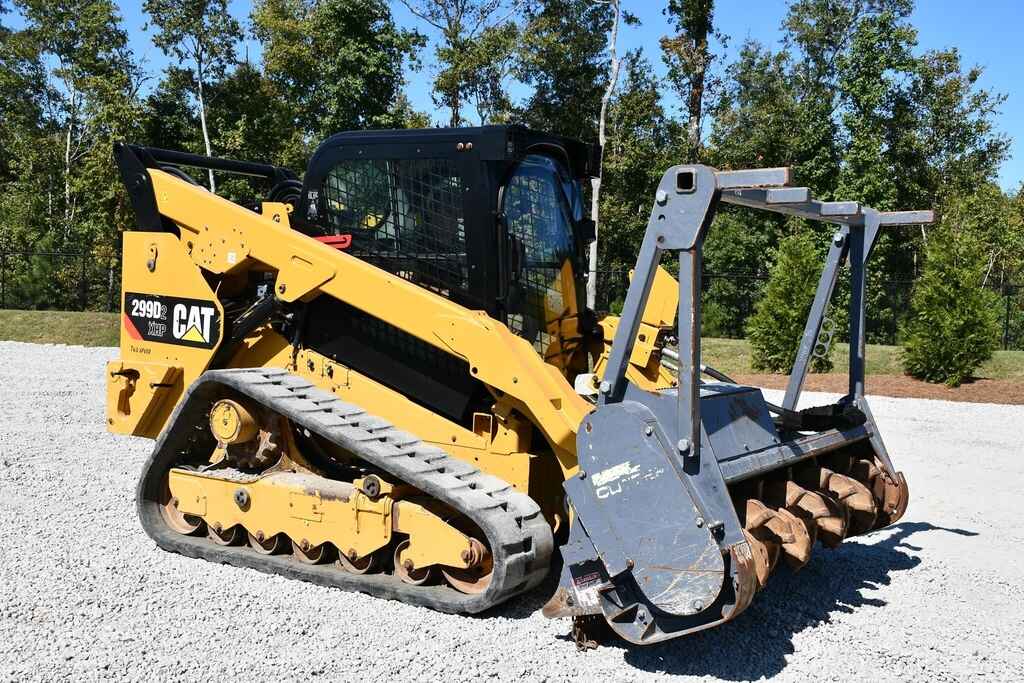

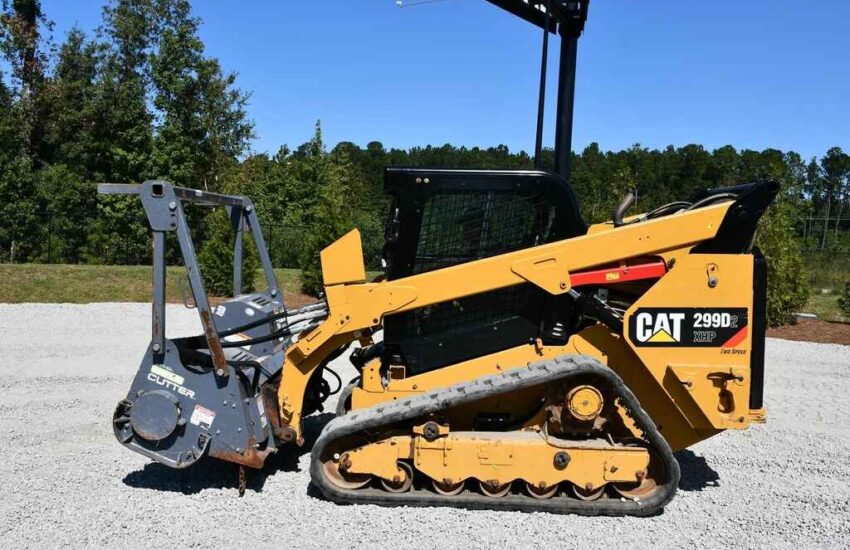

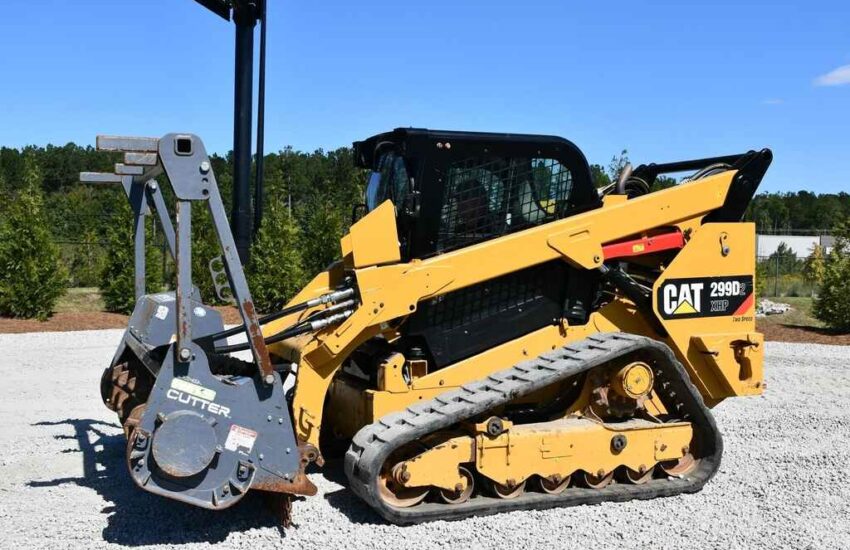

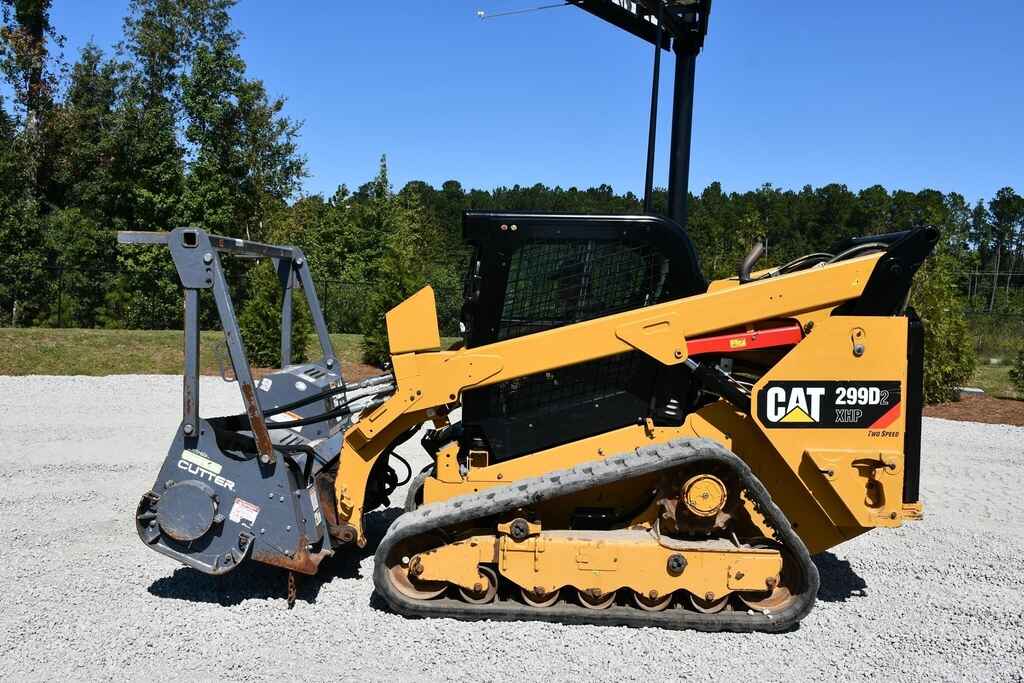

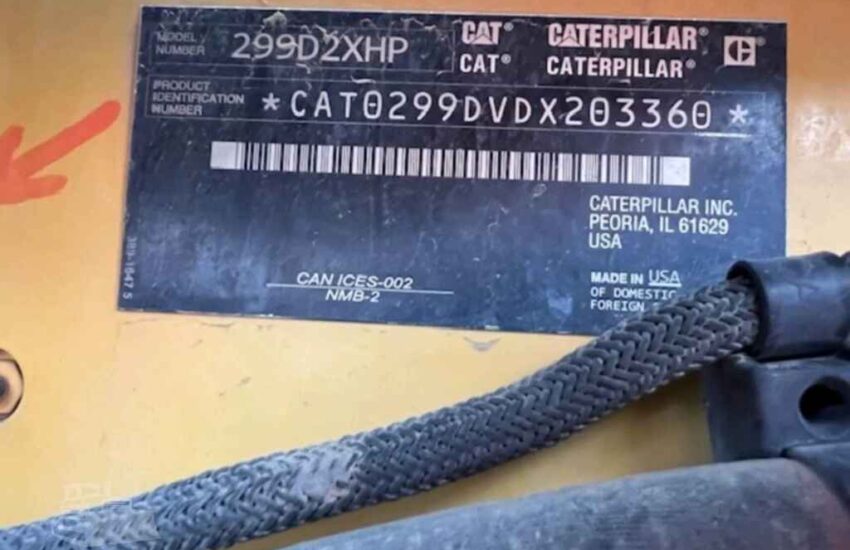

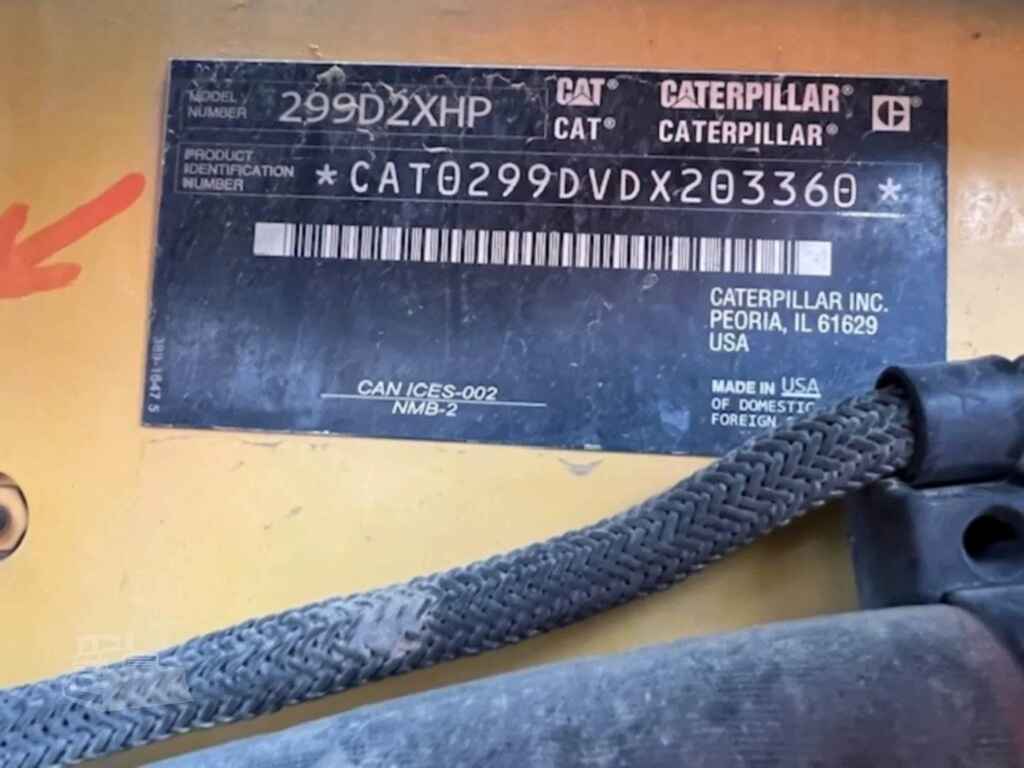

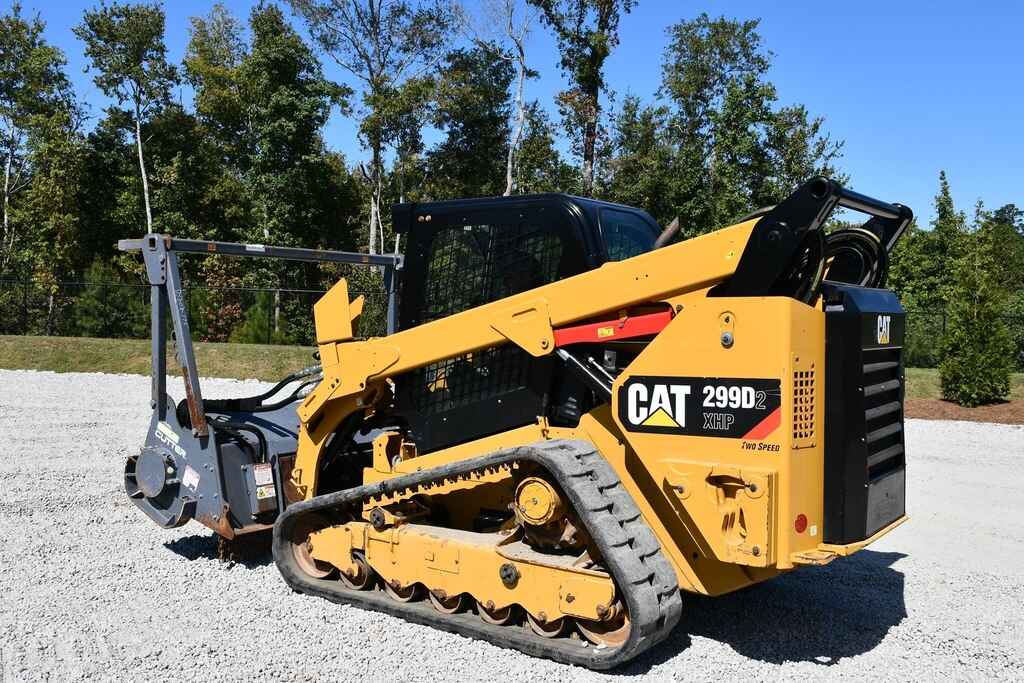

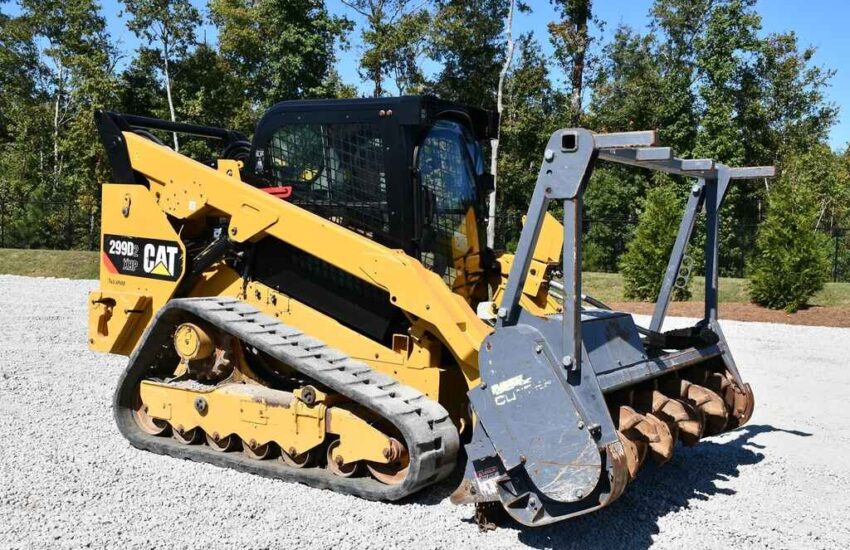

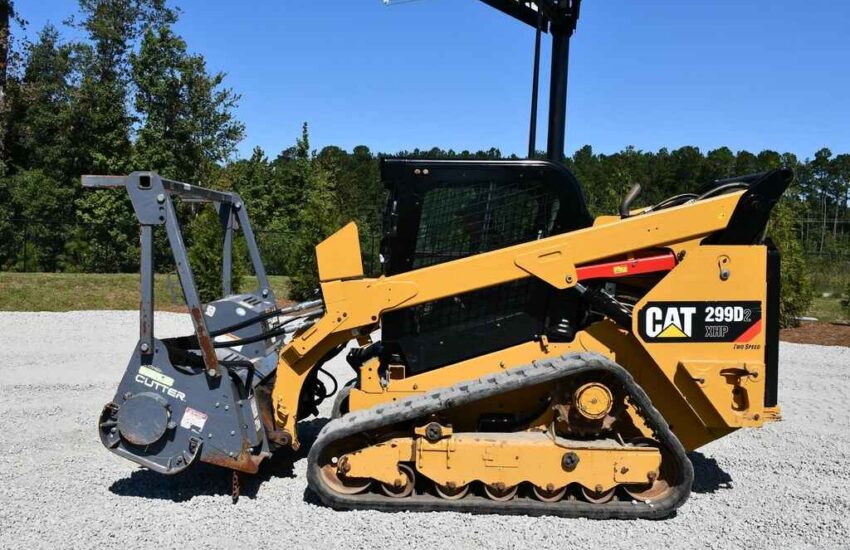

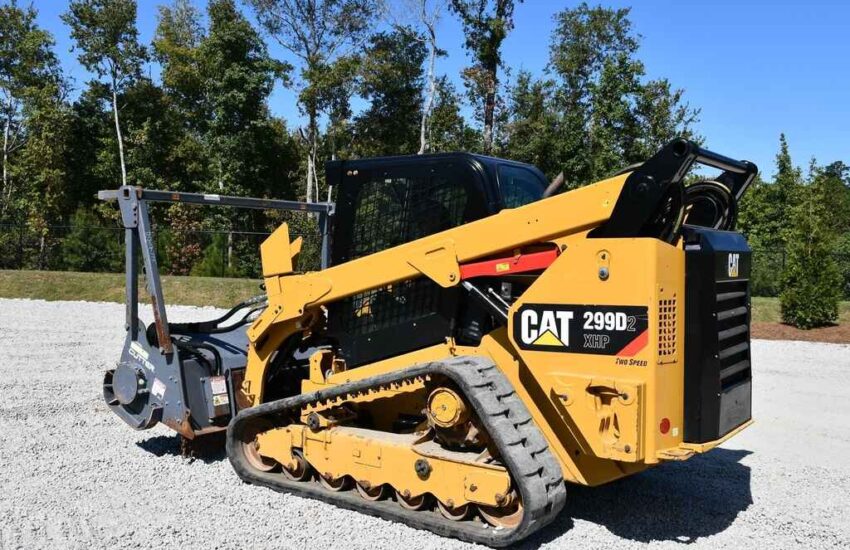

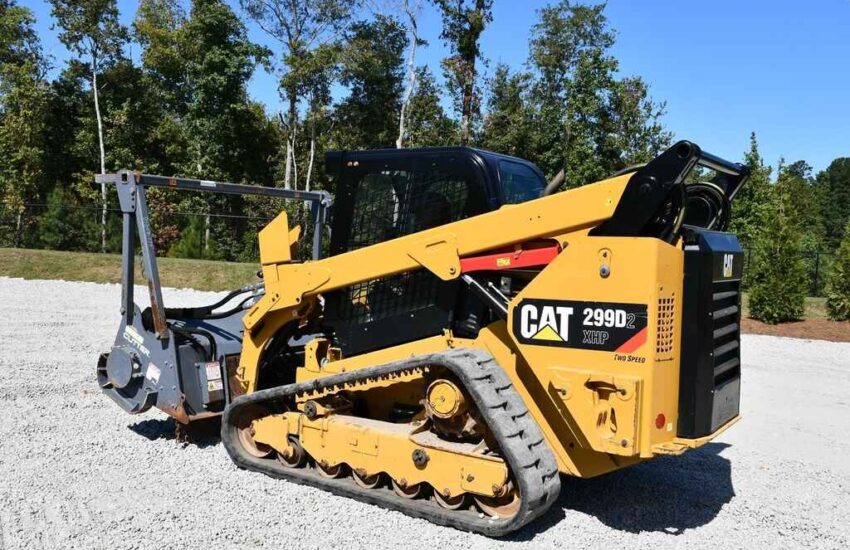

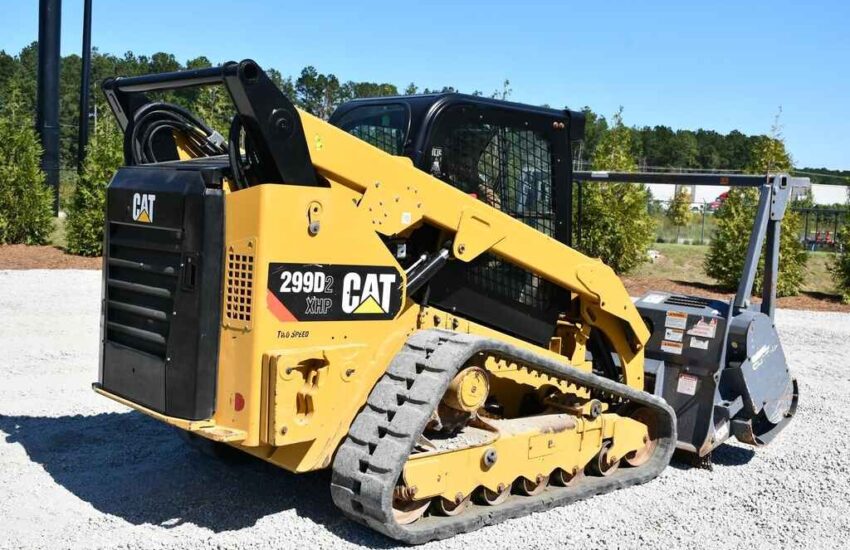

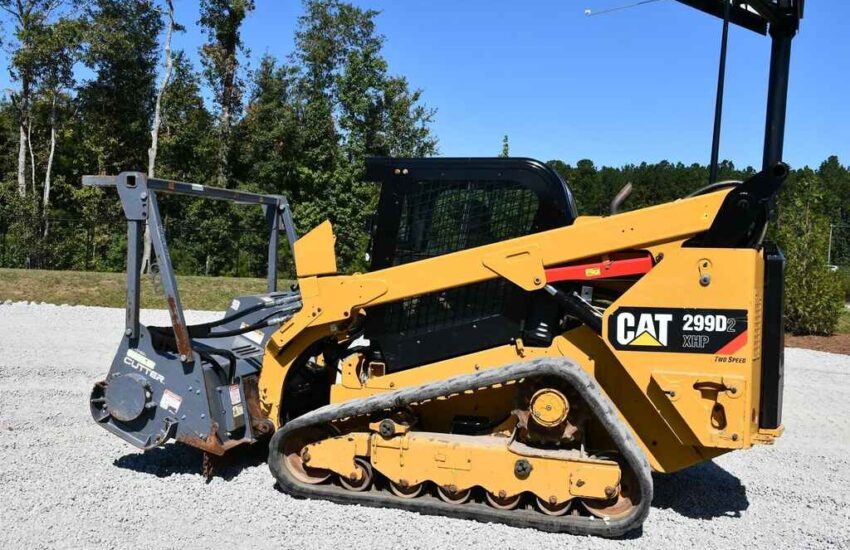

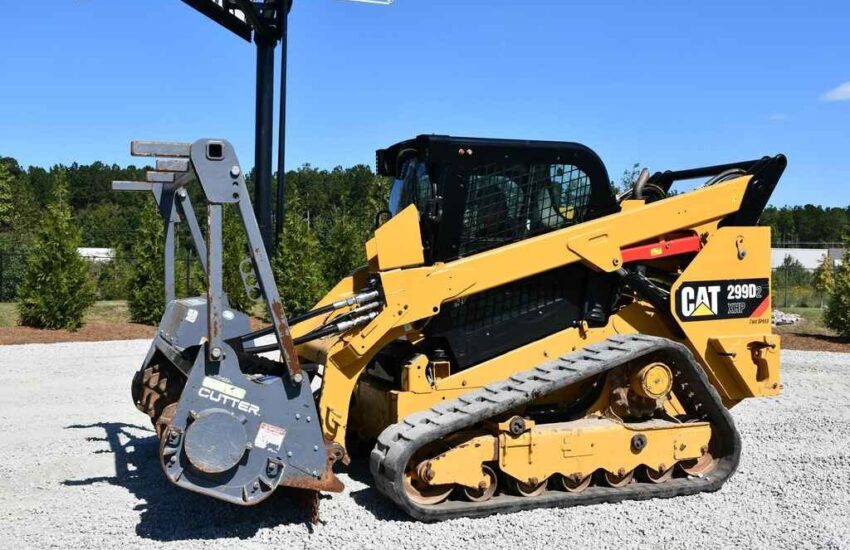

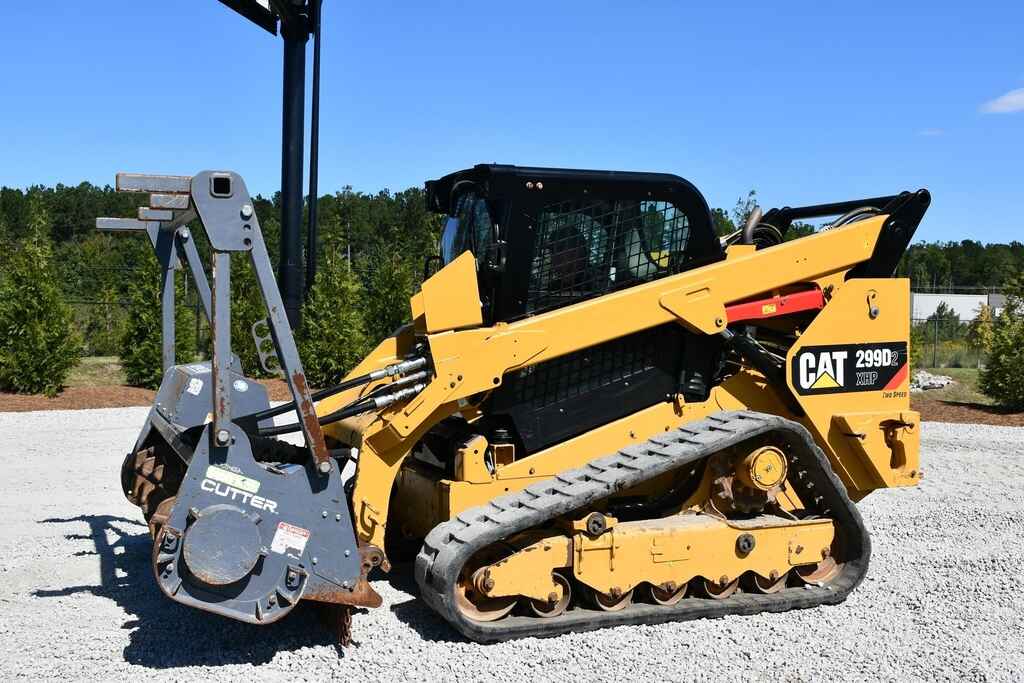

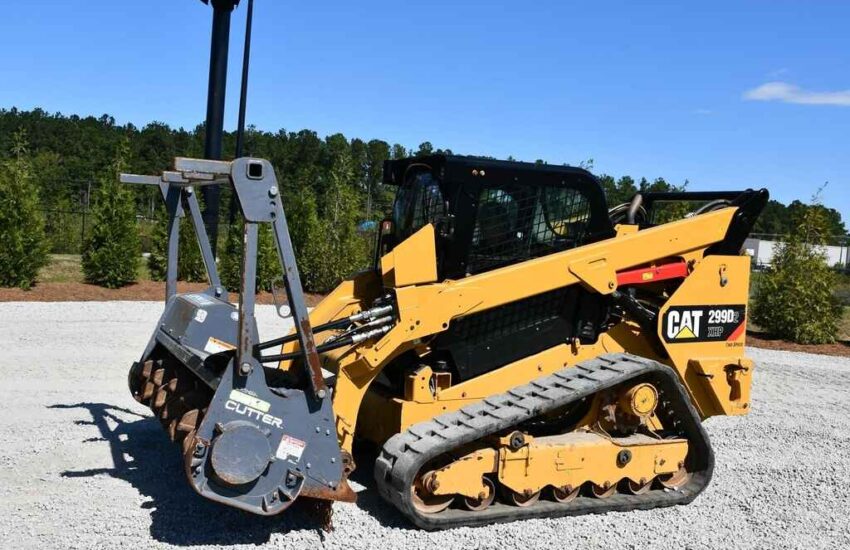

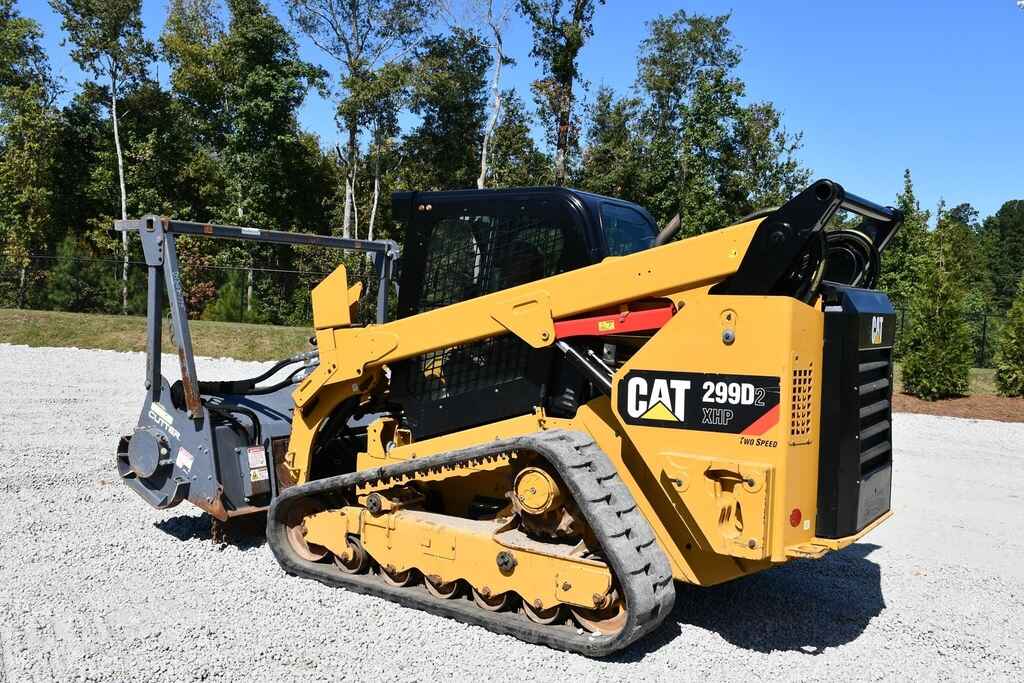

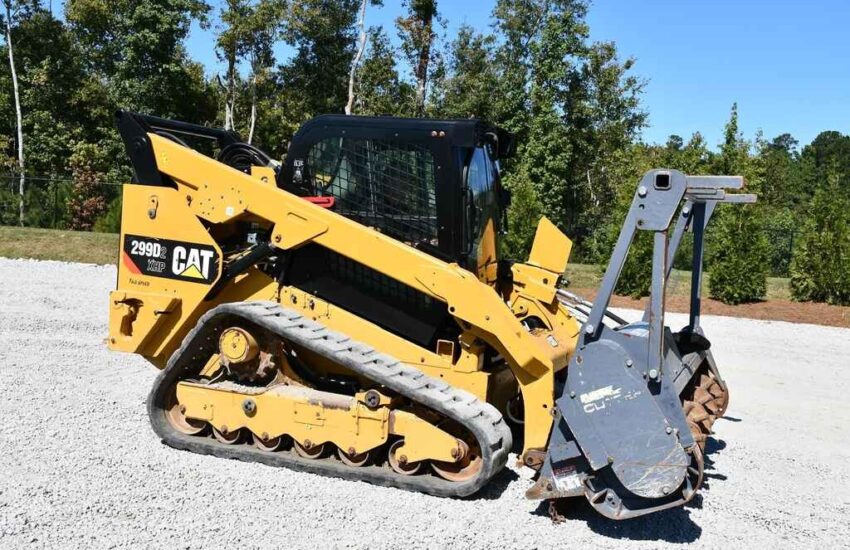

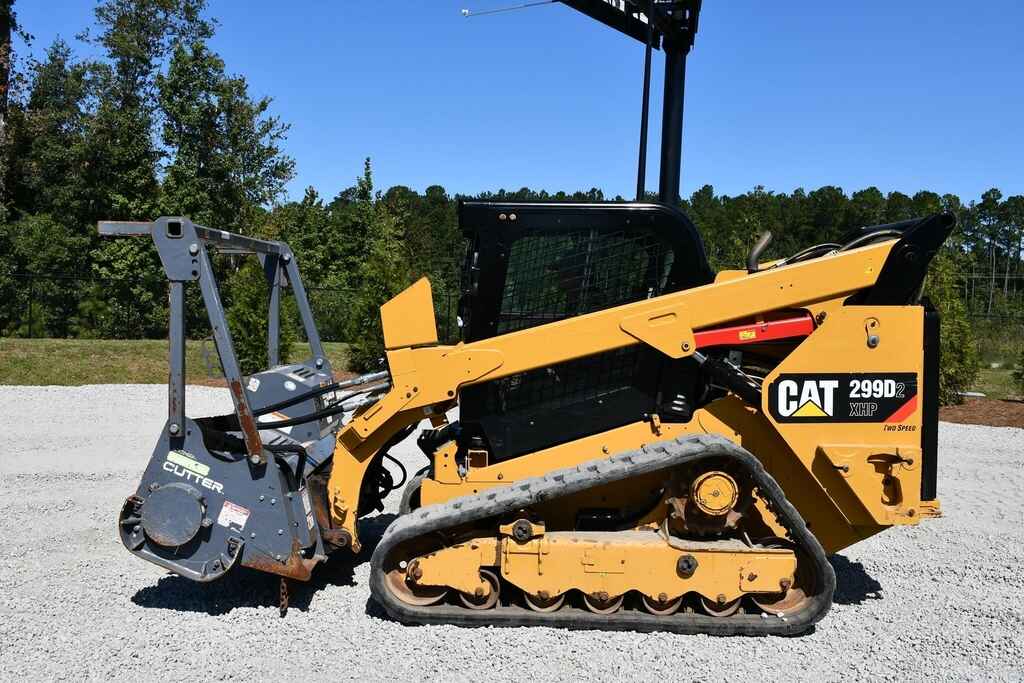

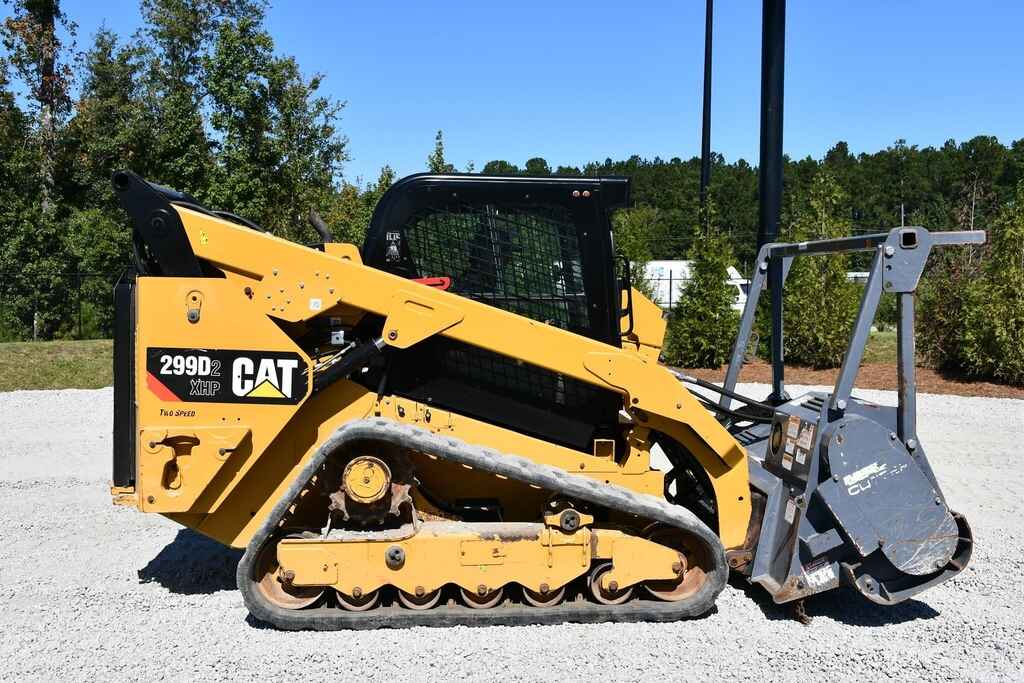

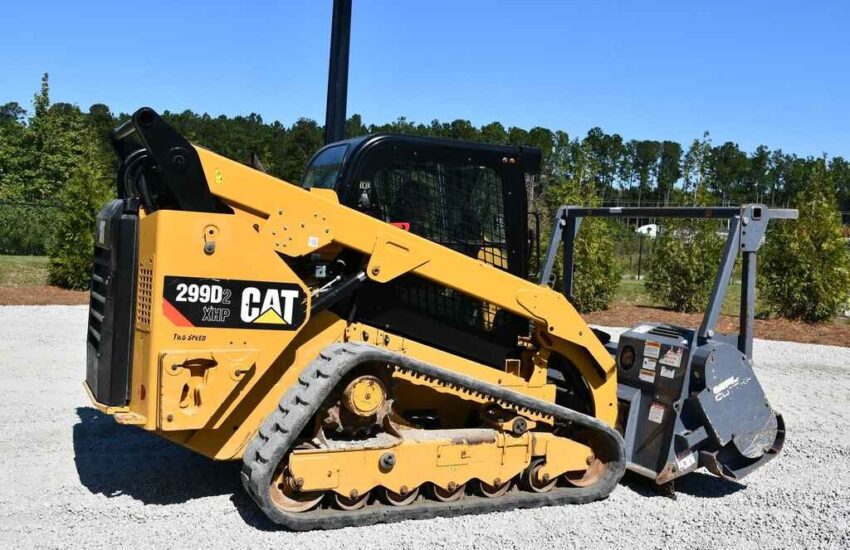

2018 Caterpillar 299D2 XHP

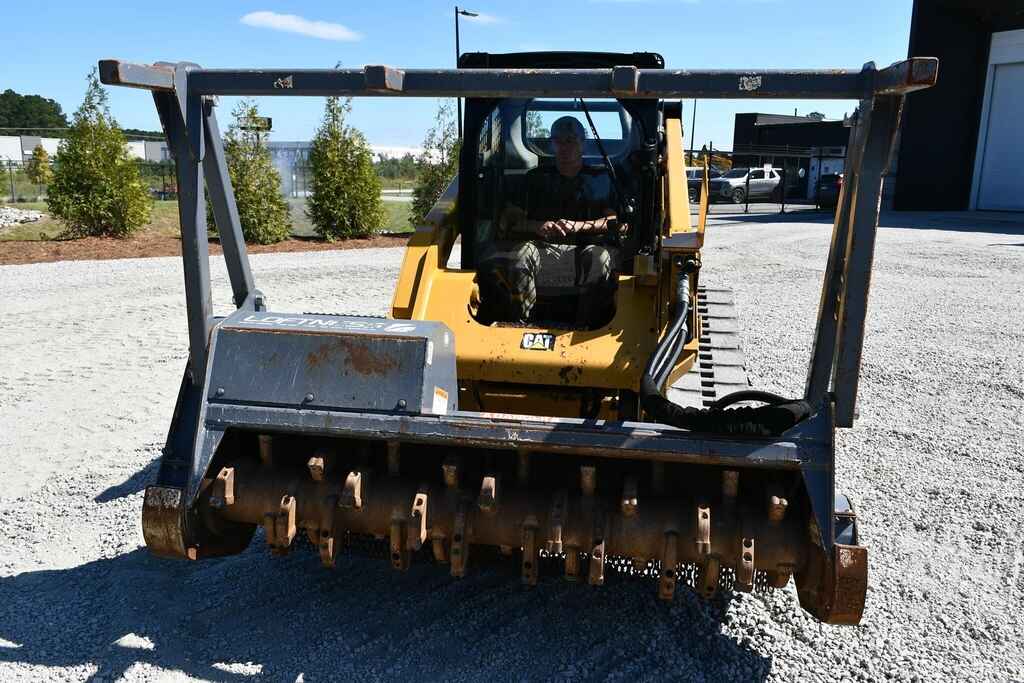

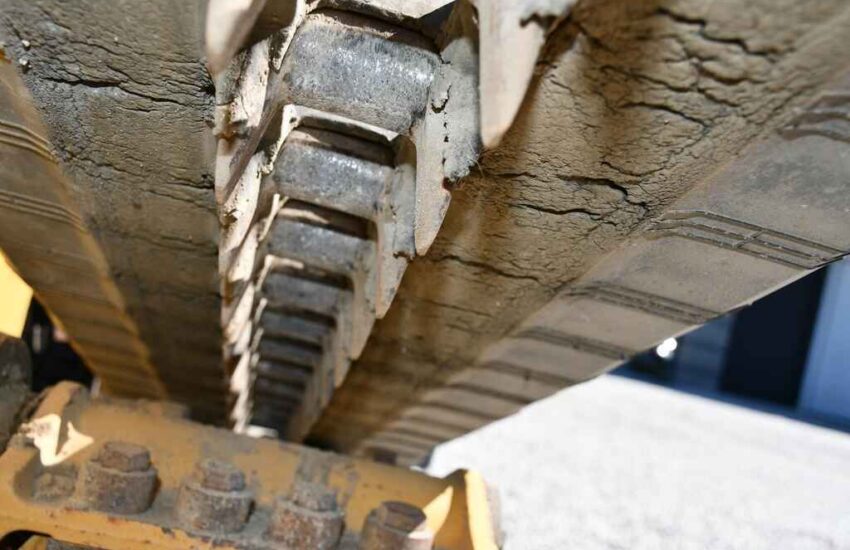

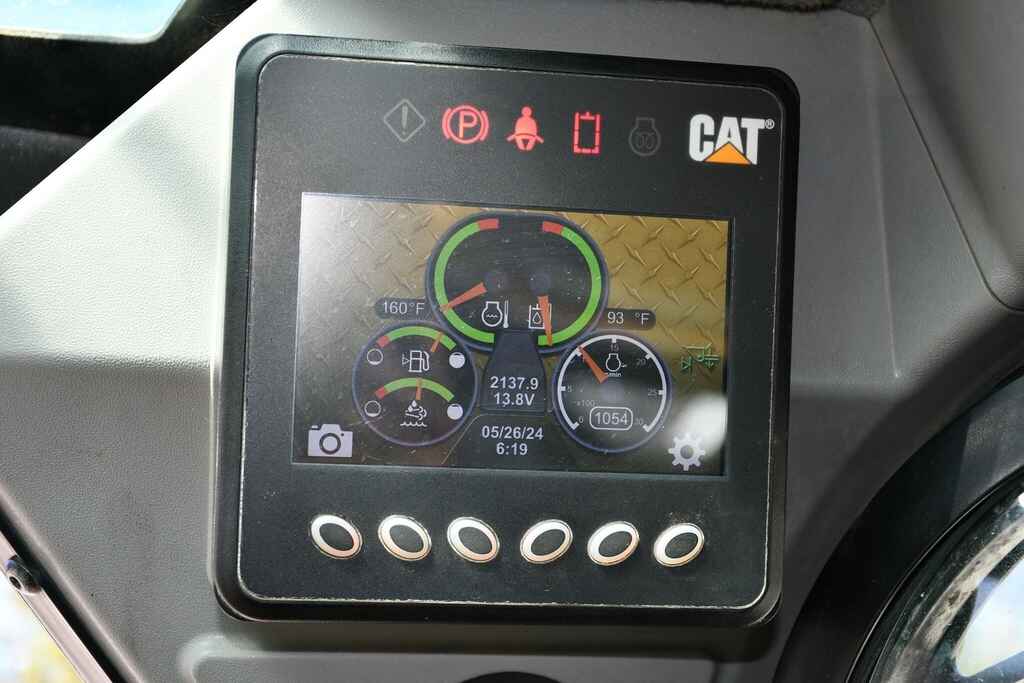

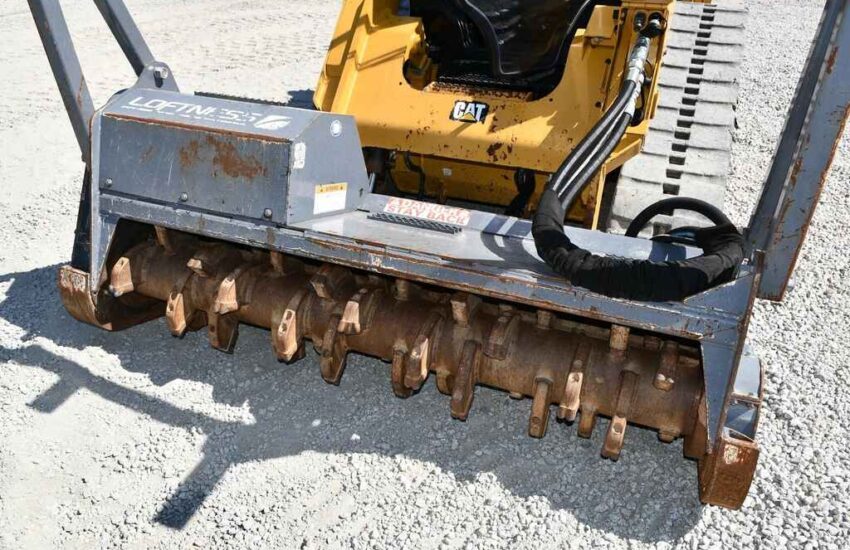

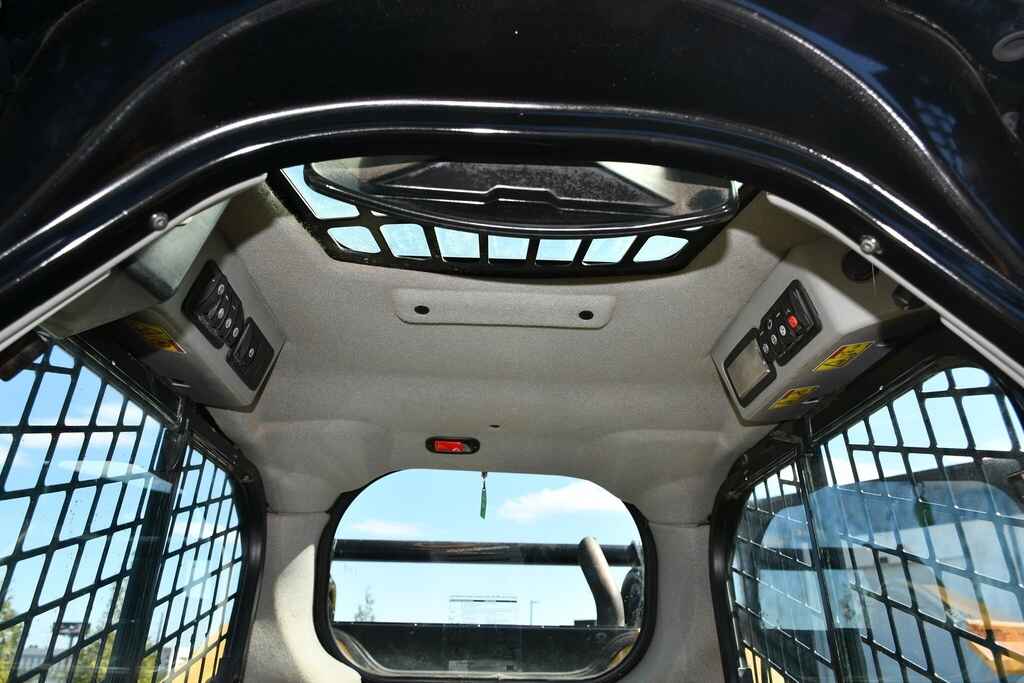

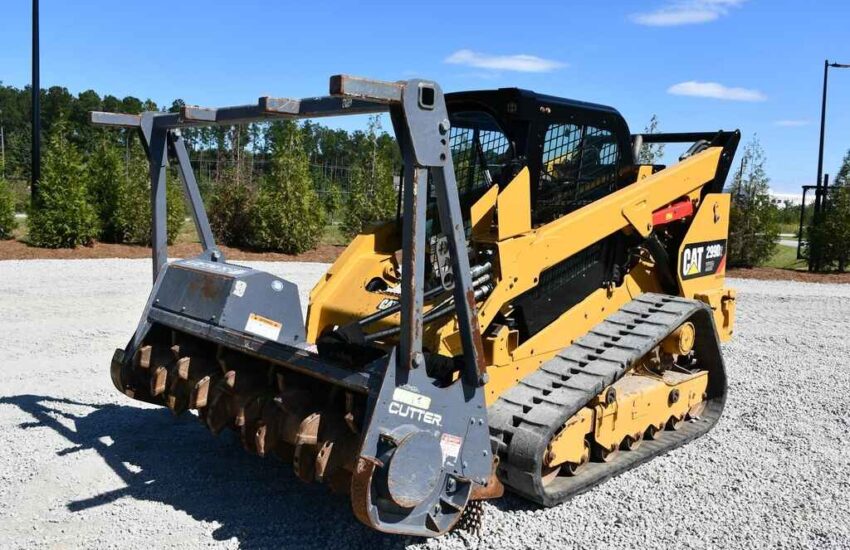

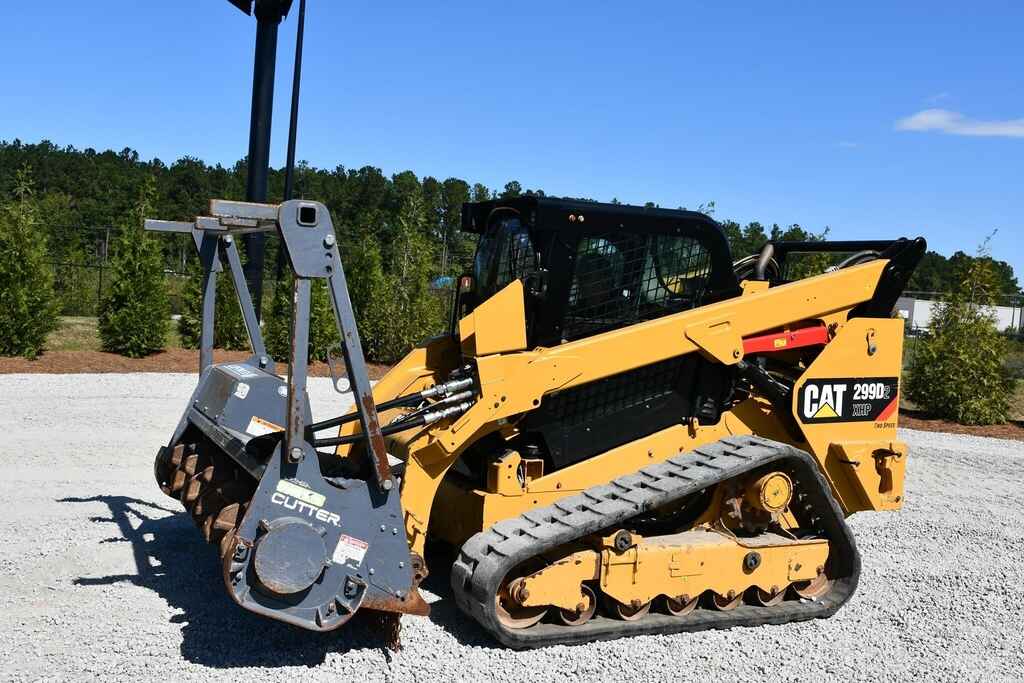

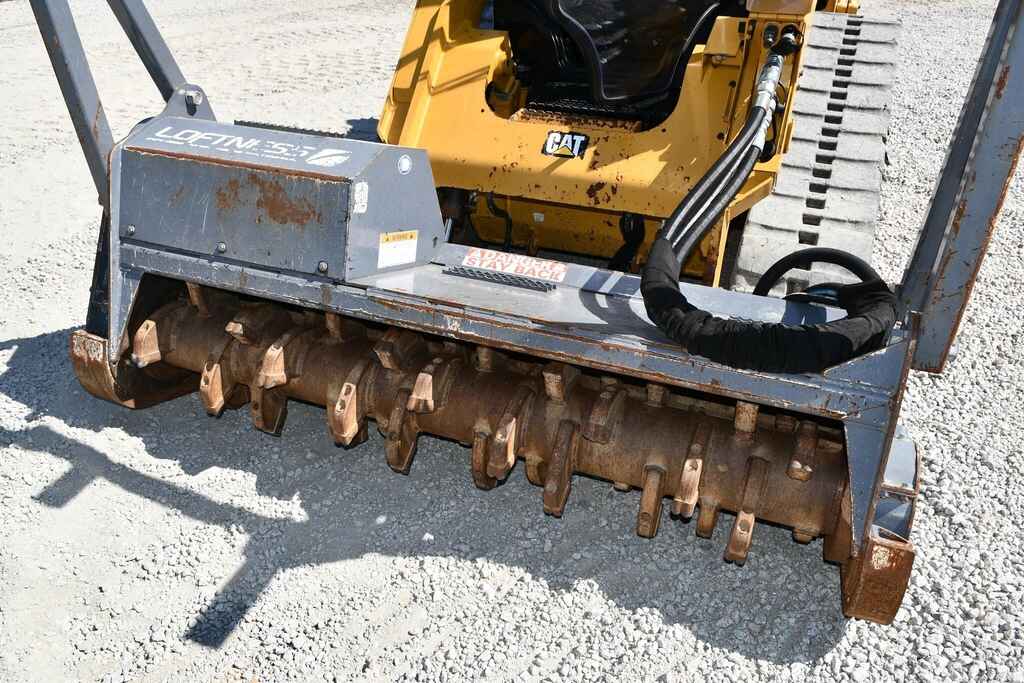

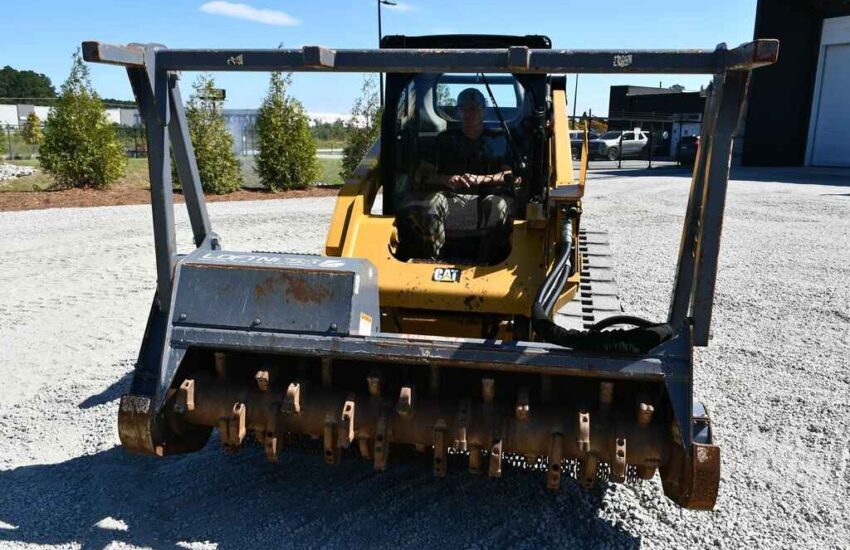

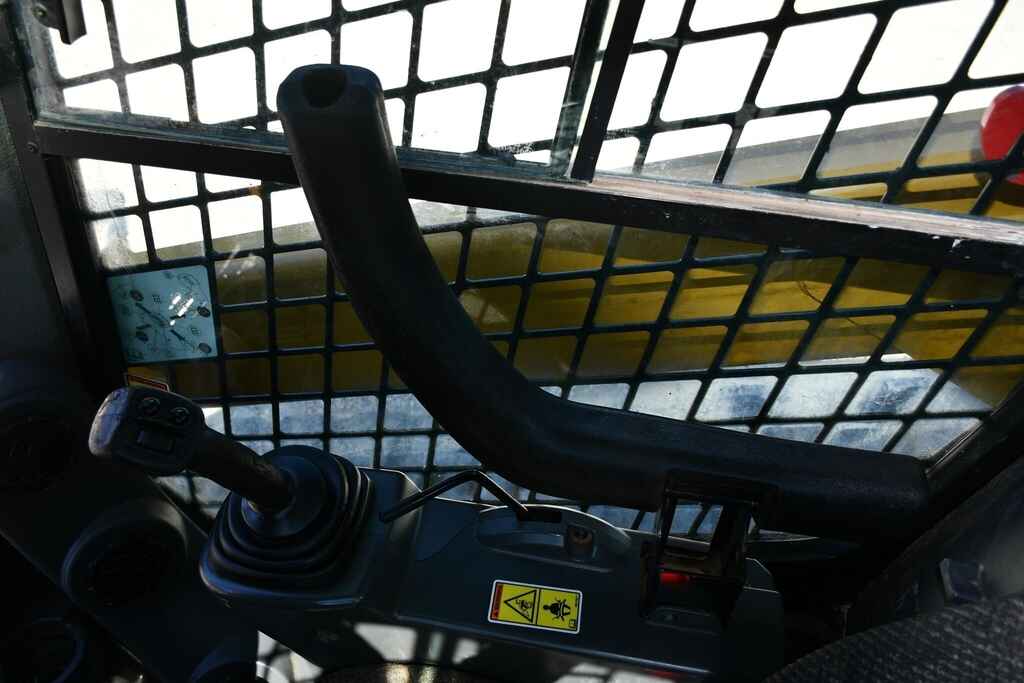

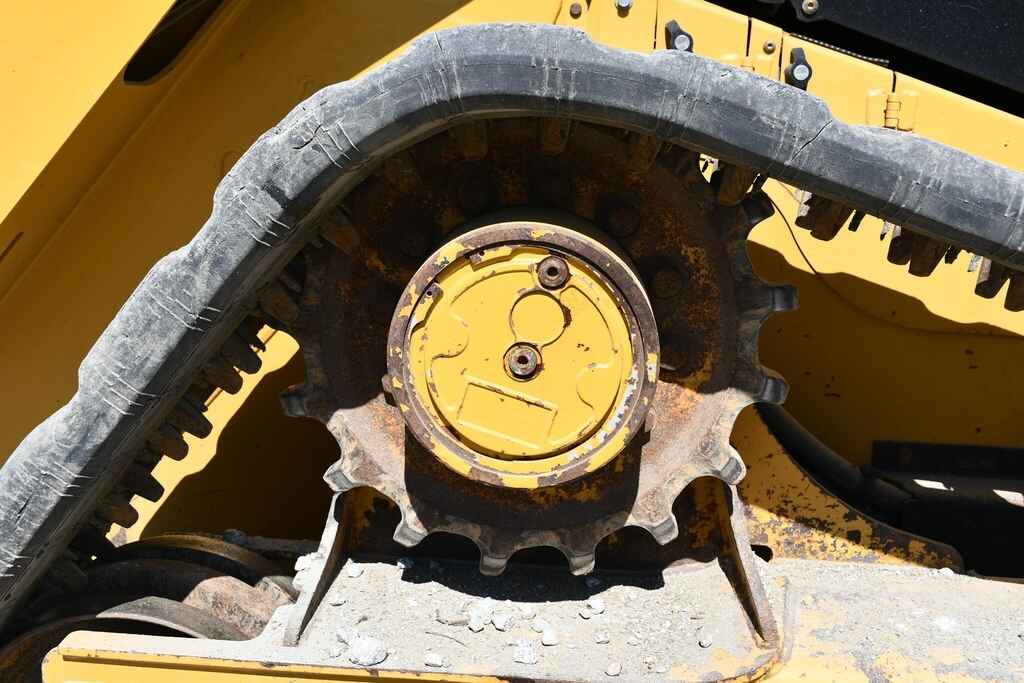

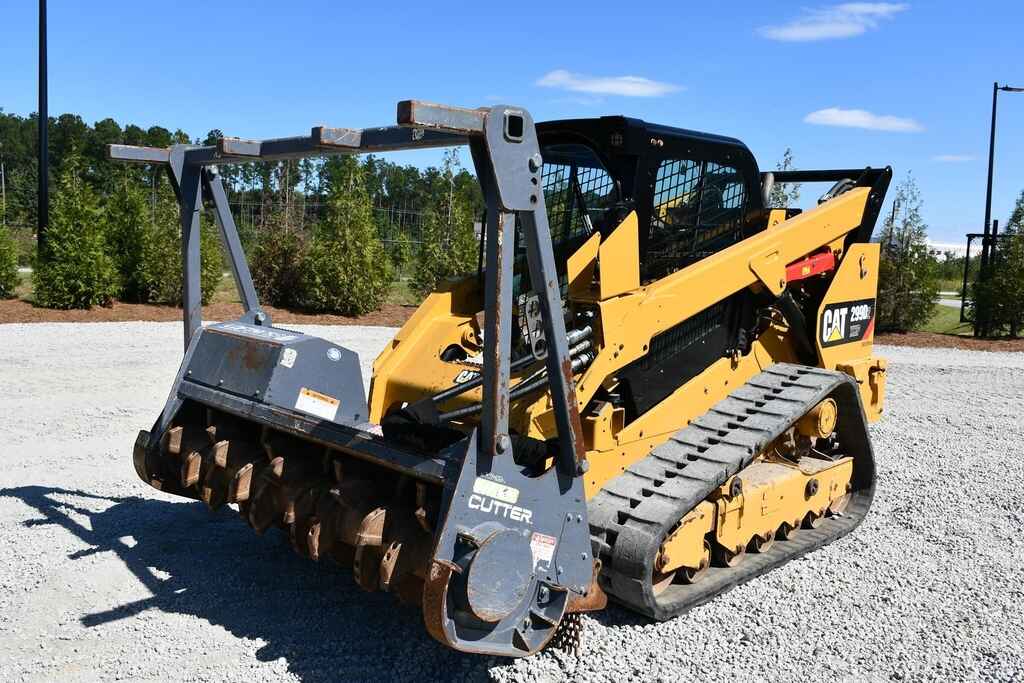

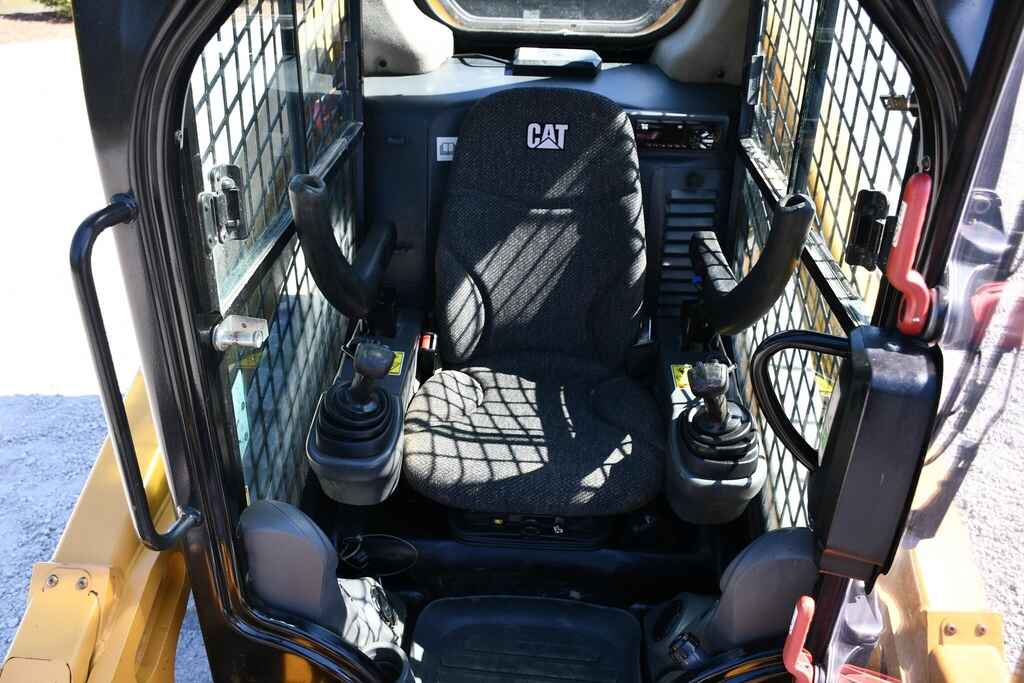

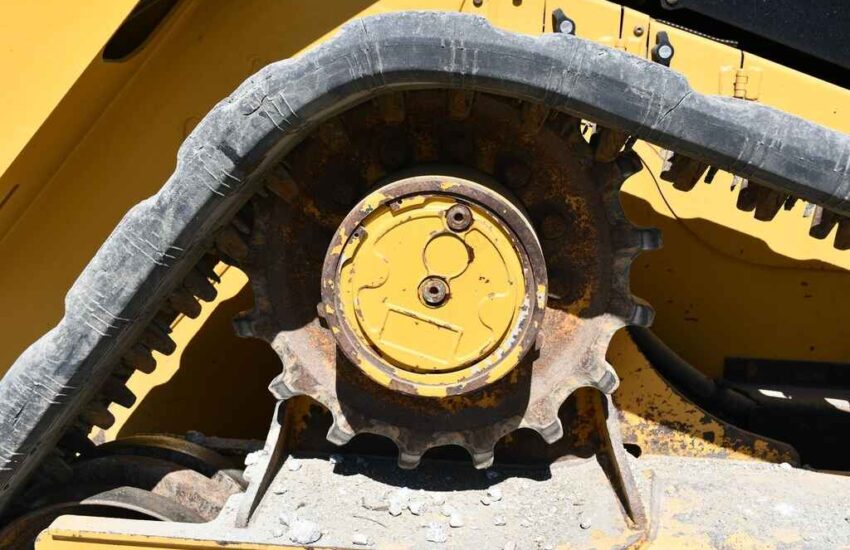

Enclosed Cab, Air Conditioner, Air Ride Seat, meter reads 2135 hours, Joystick Steering, Tier 4, 2017 US EPA Label, Requires Diesel Exhaust Fluid, 16 in Track Belts, 9 Pin Electric Kit, Hydraulic Coupler, 79 in Bucket, Mulcher, Counterweight Kit.

Machine Dimensions
Ground Clearance: 0.8 ft
Bucket Pin Height – Carry Position: 7.1 in
Bucket Pin Height – Maximum Lift: 10.53 ft
Bucket Pin Reach – Maximum Lift: 19.4 in
Clearance At Maximum Lift And Dump: 94.5 in
Departure Angle: 33 degrees
Height – Top Of Cab: 6.97 ft
Length – Track On Ground: 69.6 in
Length – With Bucket On Ground: 154.7 in
Length – Without Bucket: 125.5 in
Maximum Dump Angle: 54 degrees
Maximum Overall Height: 158.7 in
Maximum Reach – With Arms Parallel To Ground: 51.9 in
Overall Length – Track: 89.4 in
Rack Back Angle – Maximum Height: 81 degrees
Reach – Maximum Lift/Dump: 33.6 in
Roll Back Angle: 25 degrees
Turning Radius From Center – Bucket (Racked): 91.1 in
Turning Radius From Center – Coupler: 58.1 in
Turning Radius From Center – Machine Rear: 74 in
Note
Operating Weight, Operating Specifications, and Dimensions are based on the following conditions:

75 kg (165 lb) operator
All fluids
Two-speed system
Ride control
Enclosed cab with glass door and side windows
Air conditioning

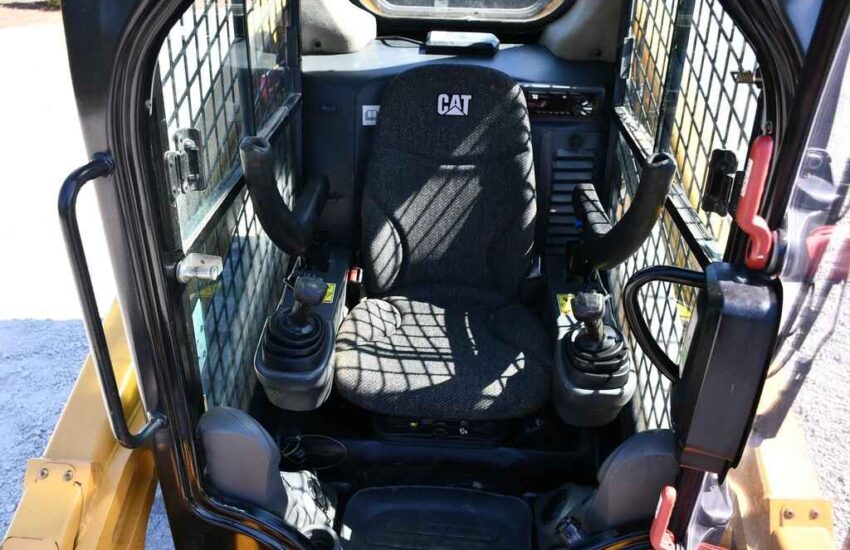

Air ride seat

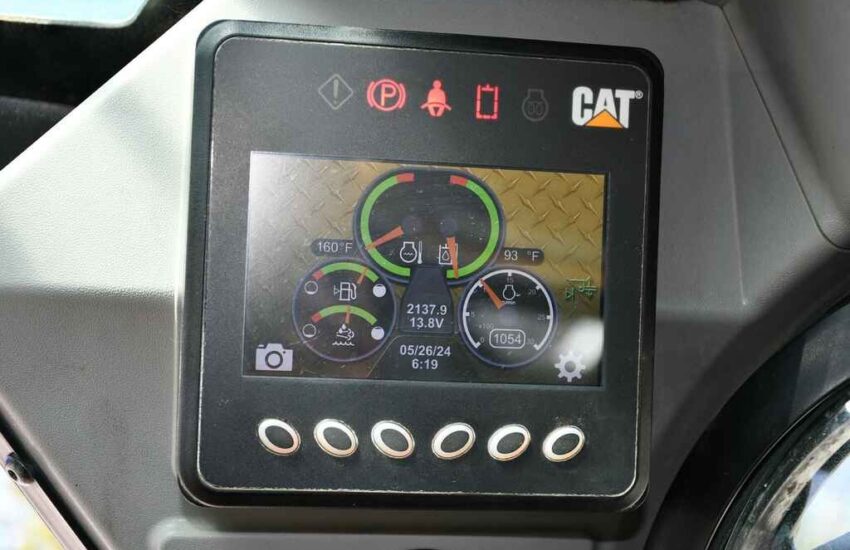

Advanced display
Rearview camera
1,000 CCA battery
Dual direction self-leveling
1981 mm (78 in) dirt bucket

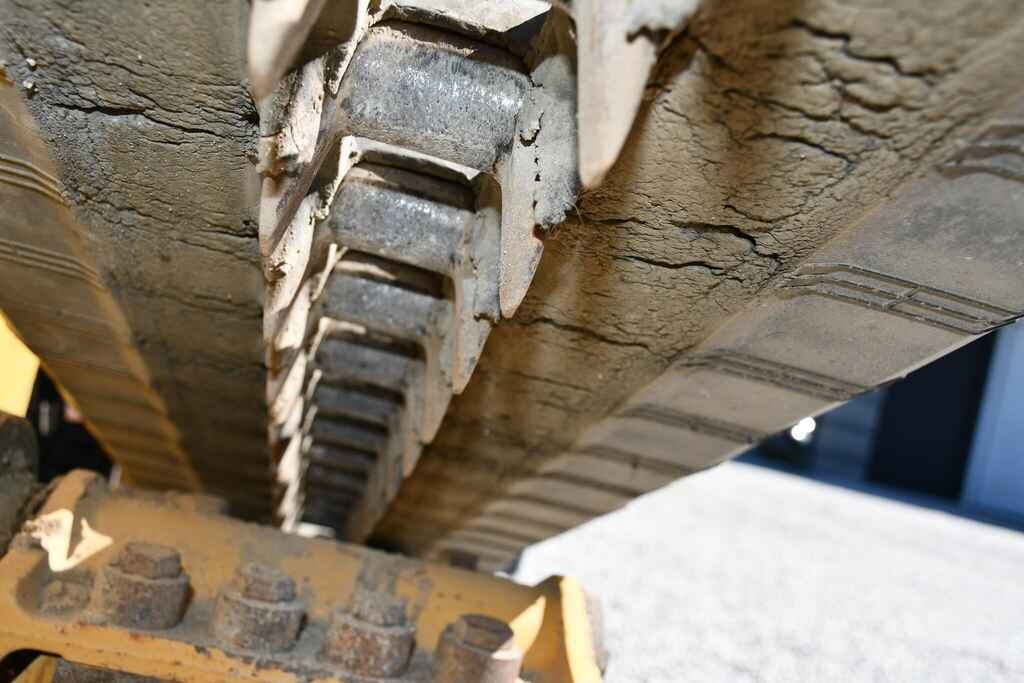

400 mm (15.7 in) tracks
Triple flange front/rear idlers
No optional counterweights
Manual quick coupler (unless otherwise noted)
Vehicle Width (400 Mm / 15.7 In Tracks)
Width: 76 in

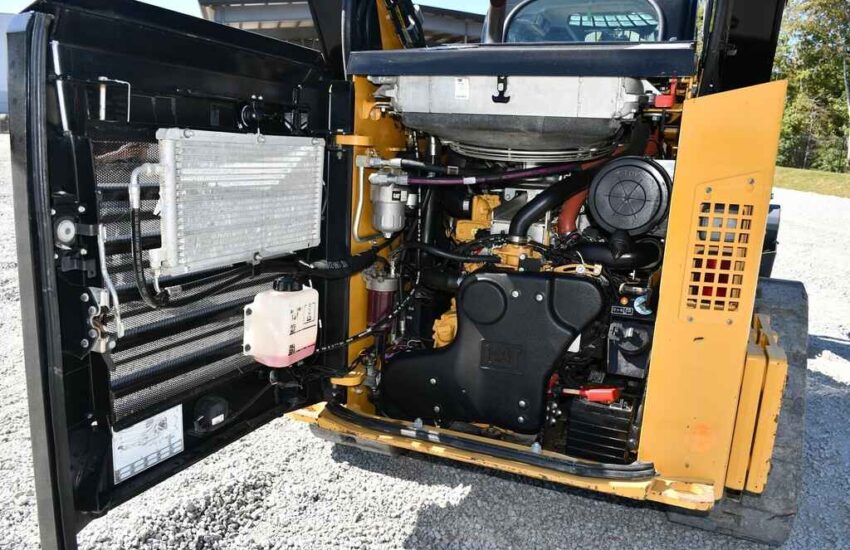

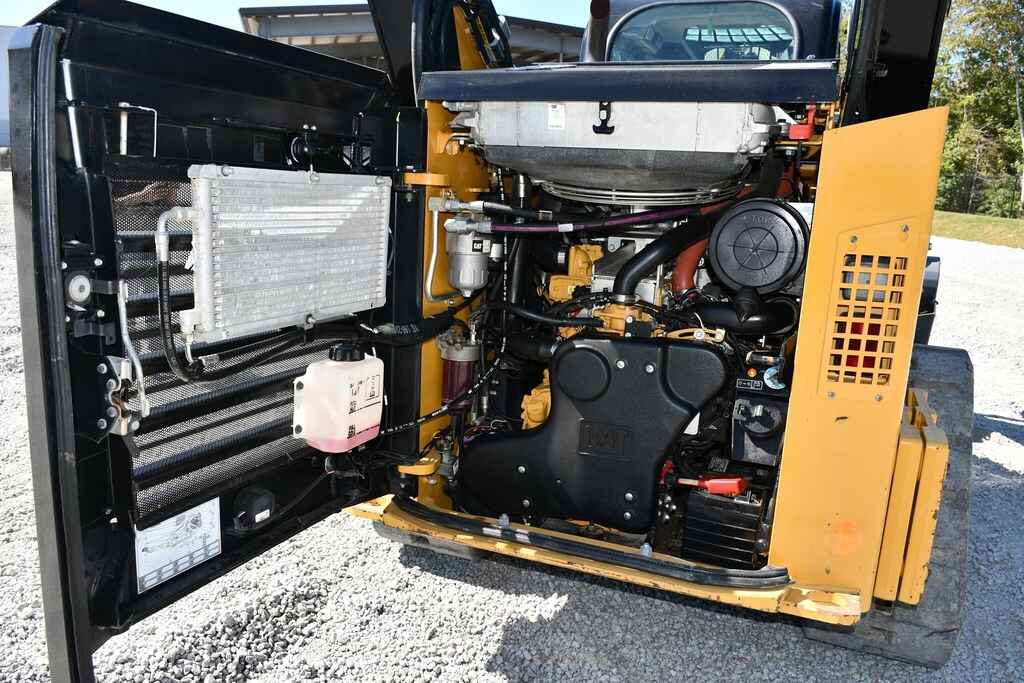

Engine Specifications
Net Power: 106 hp
Displacement: 232 cu in
Bore: 3.9 in
Stroke: 4.7 in
Net Power – ISO 9249: 107 hp
Gross Power – SAE J1995: 110 hp
Engine Model: Cat C3.8 DIT (turbo)
Net Power – SAE 1349: 106 hp
Peak Torque – 1,500 RPM – SAE J1995: 276 lb-ft
Operational Specifications
Operating Weight: 11,608 lb
Power Train Specifications
Travel Speed – Forward Or Reverse (One Speed): 5.2 mph
Travel Speed – Forward Or Reverse (Two Speed): 8.4 mph
