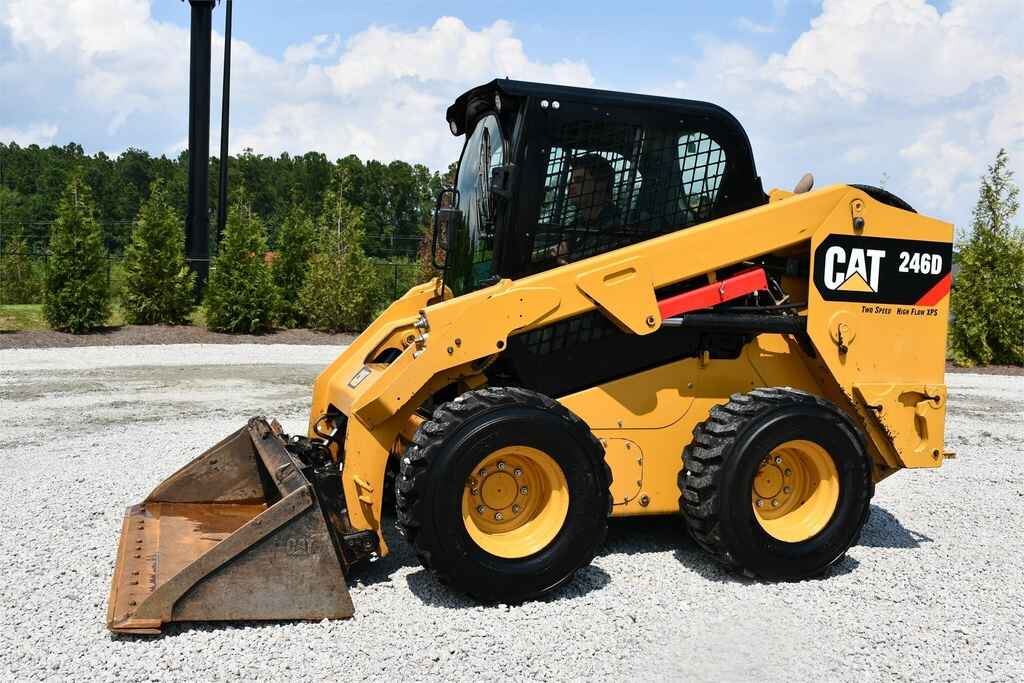

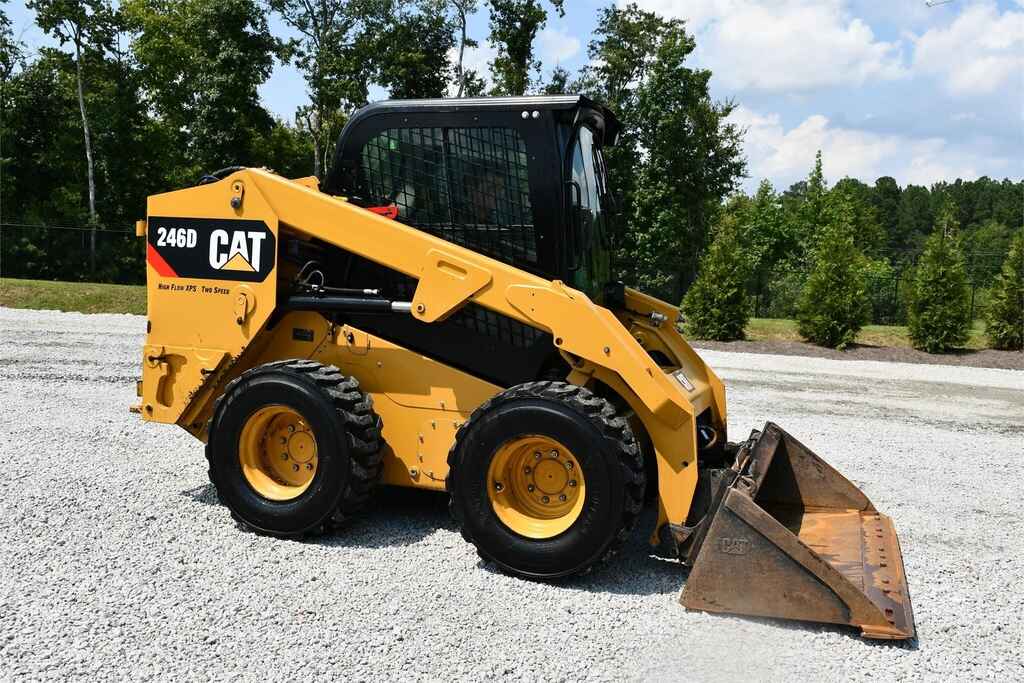

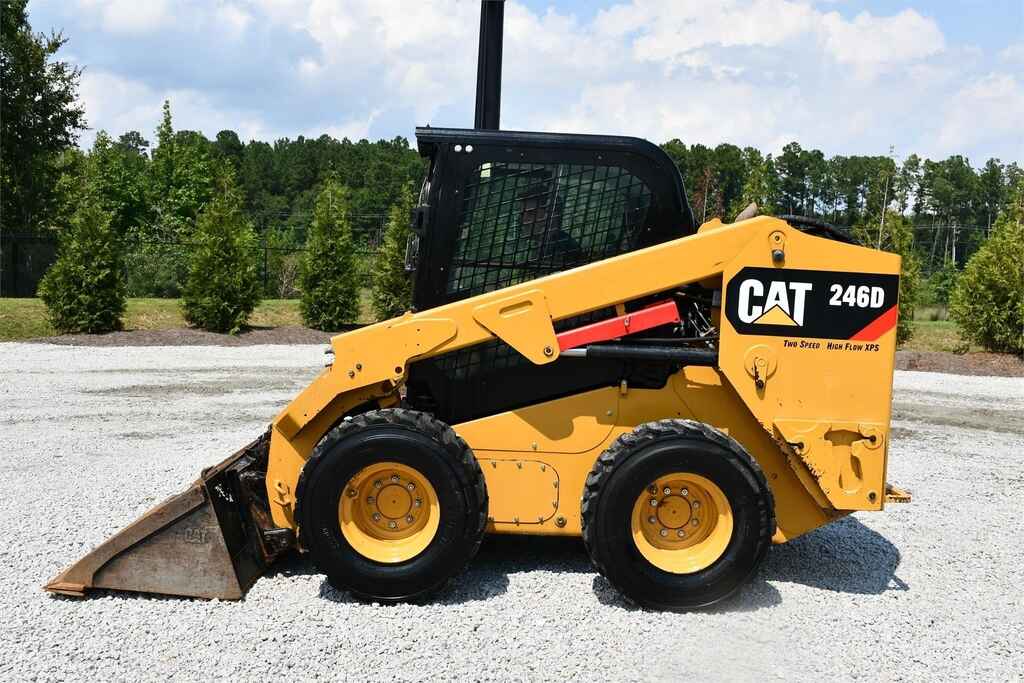

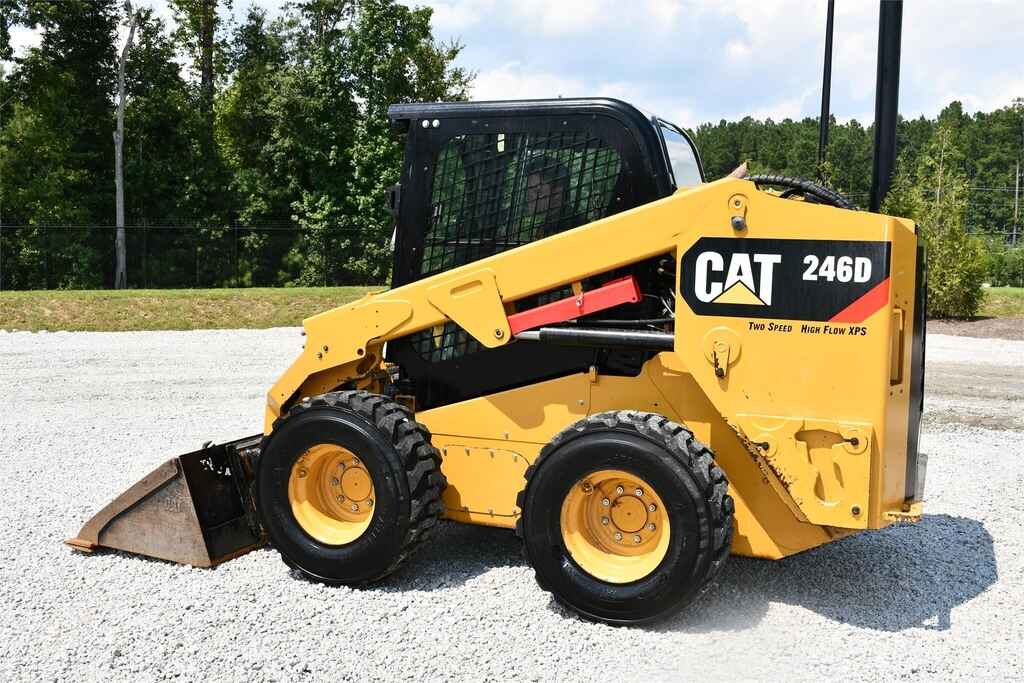

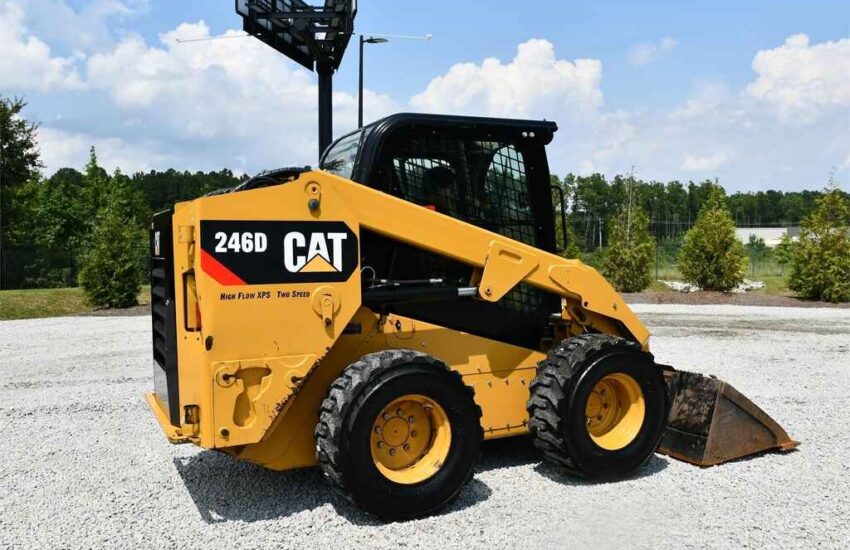

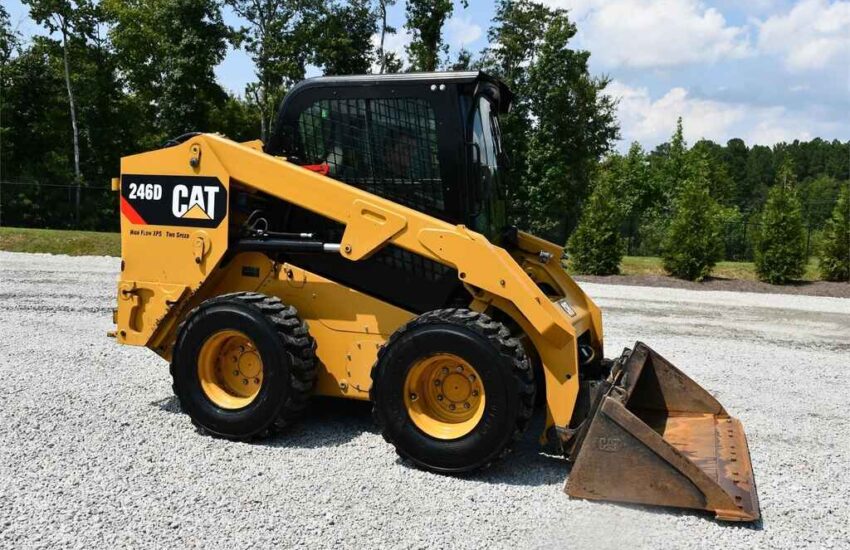

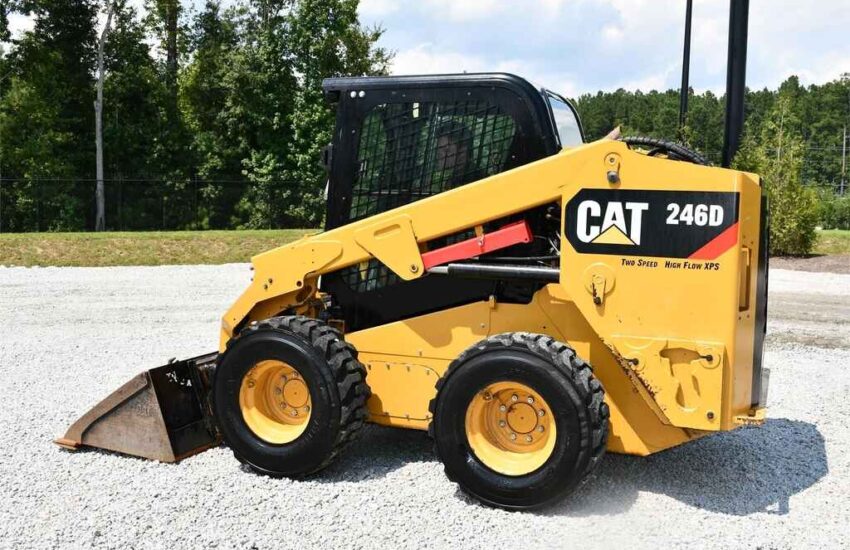

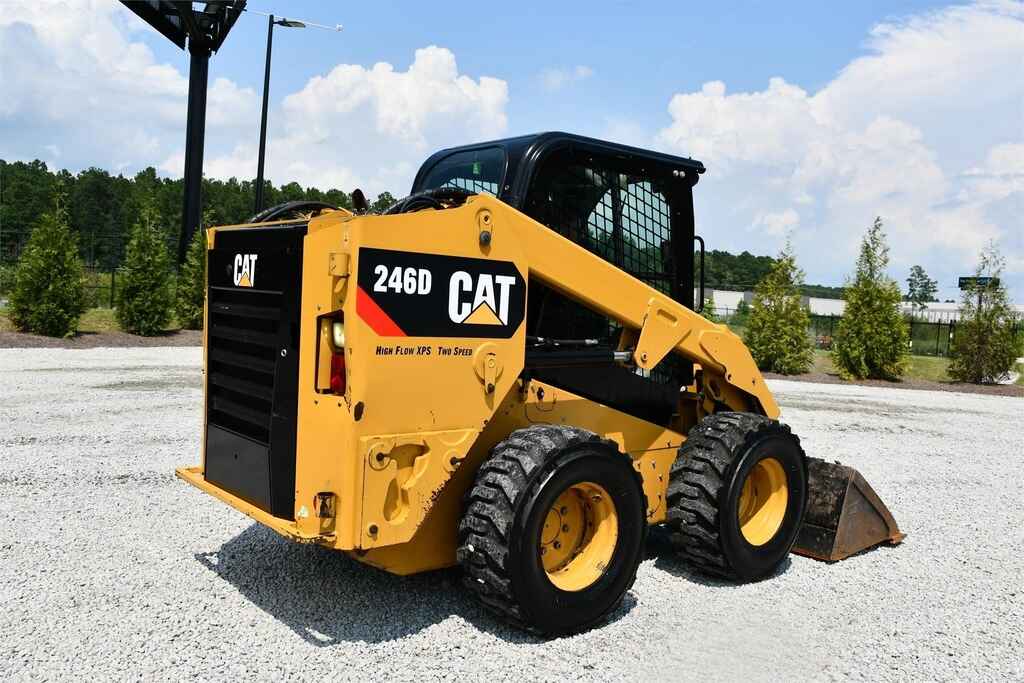

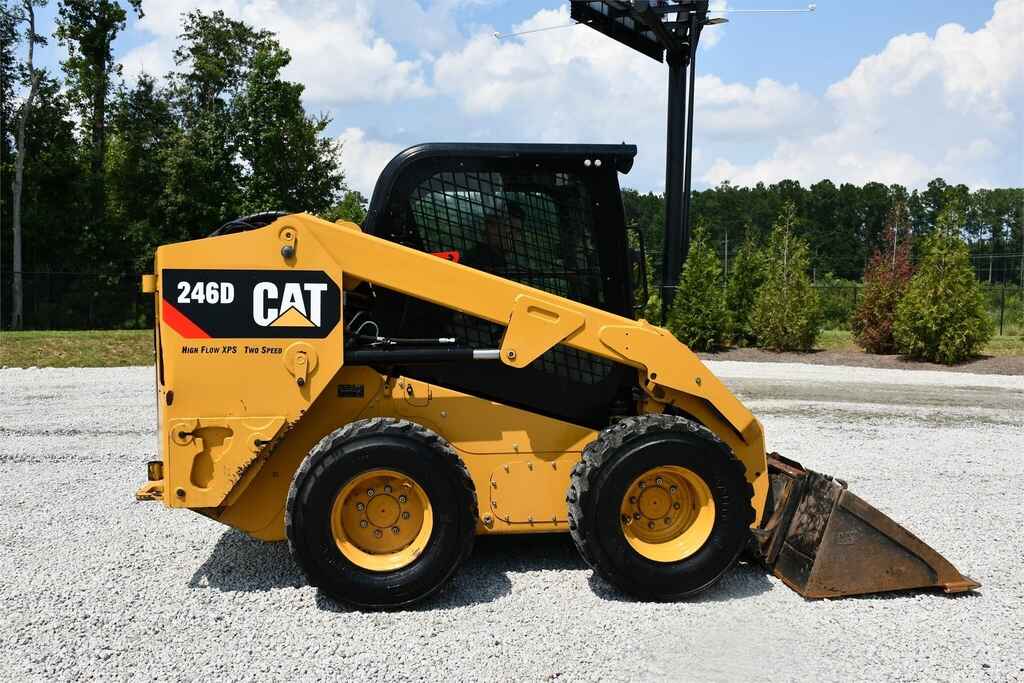

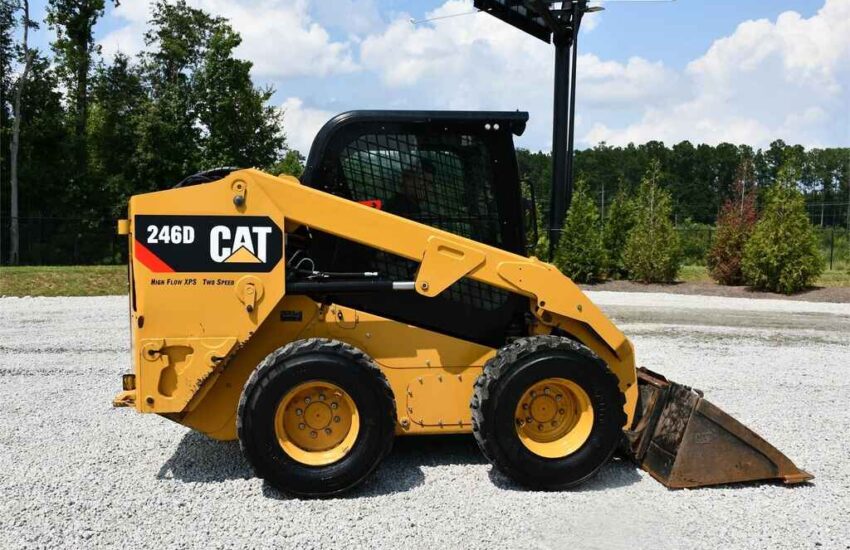

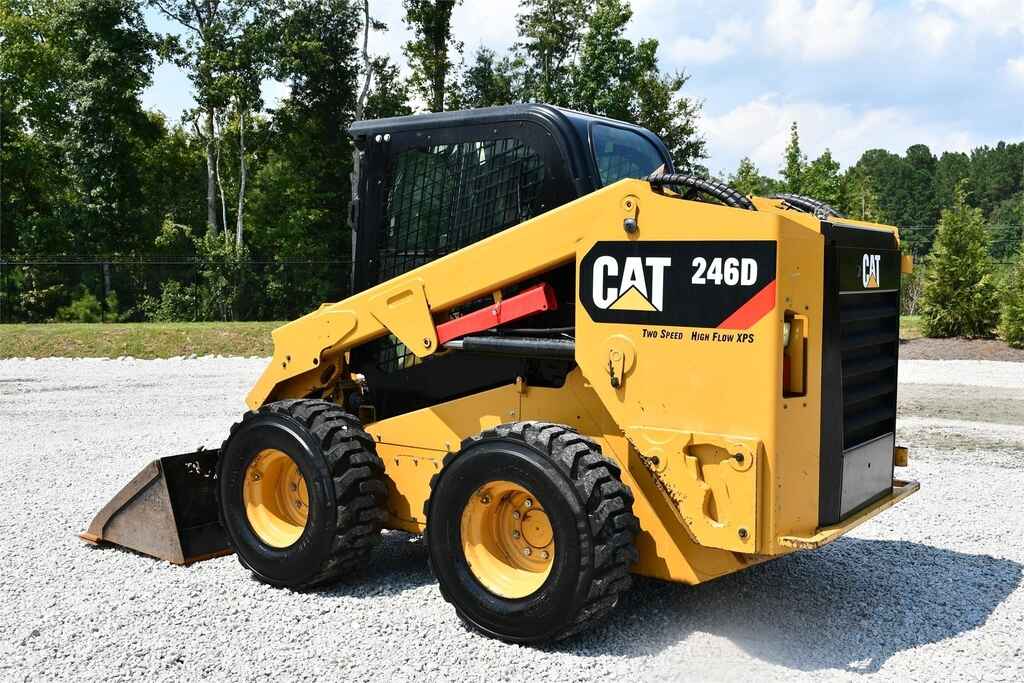

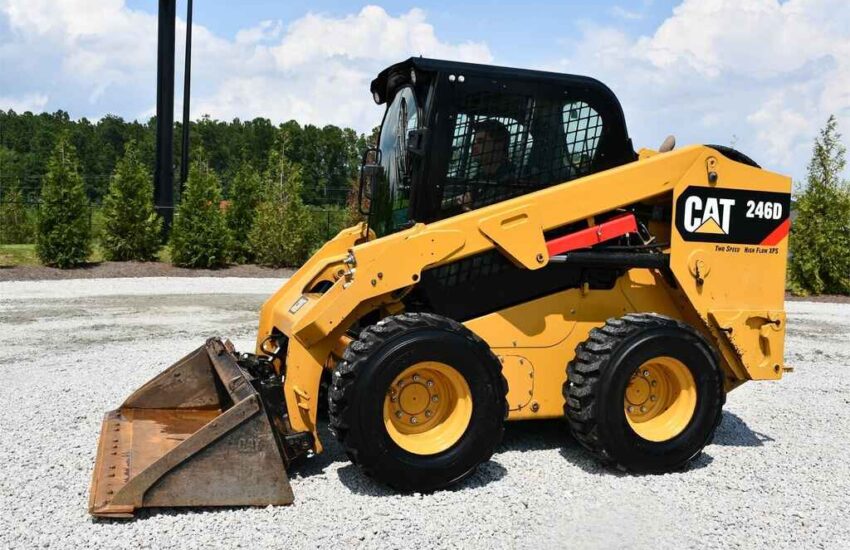

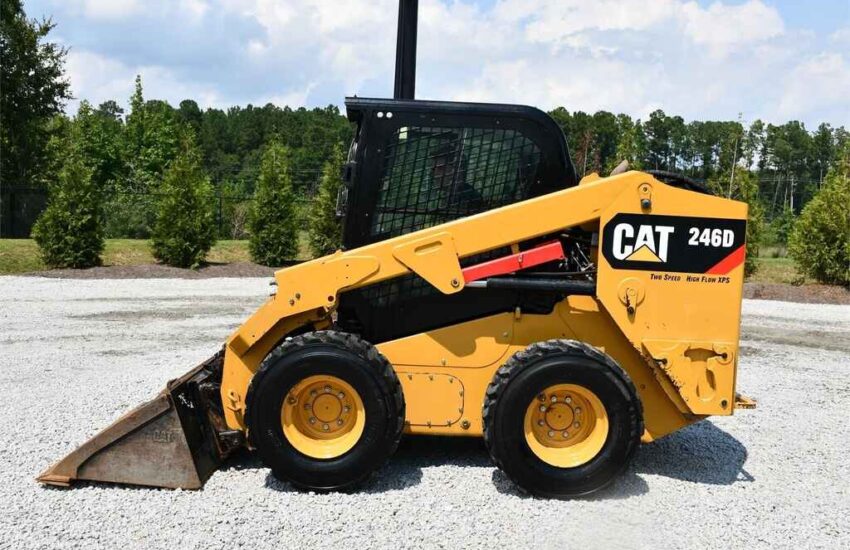

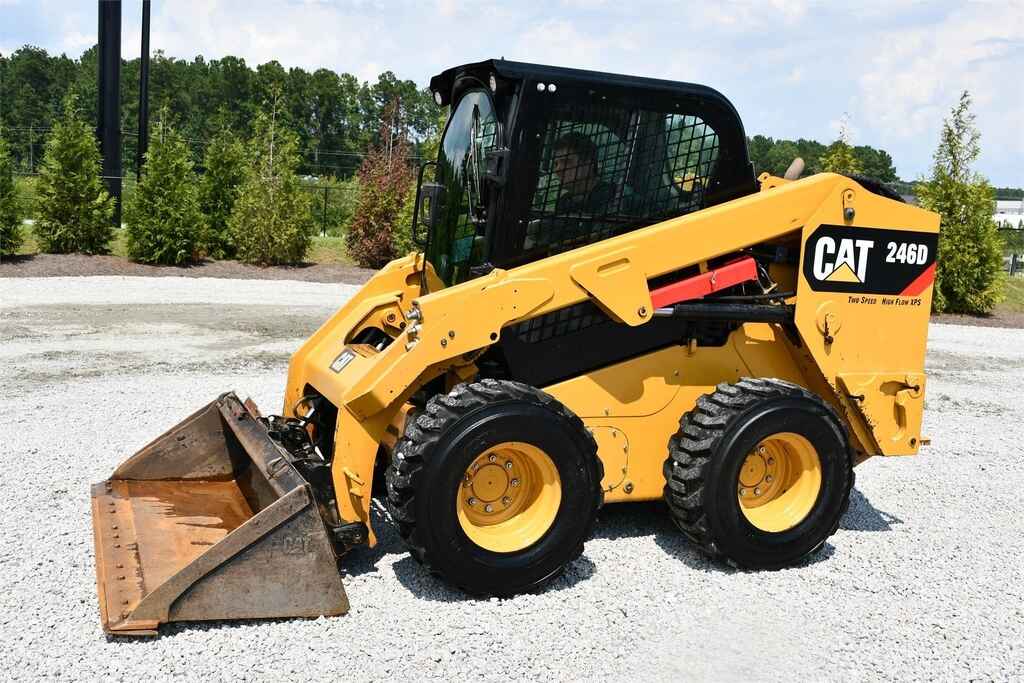

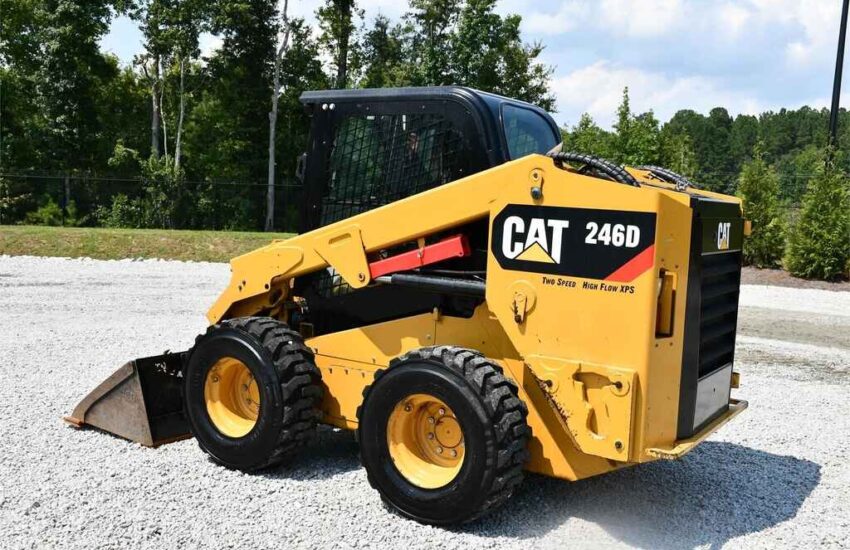

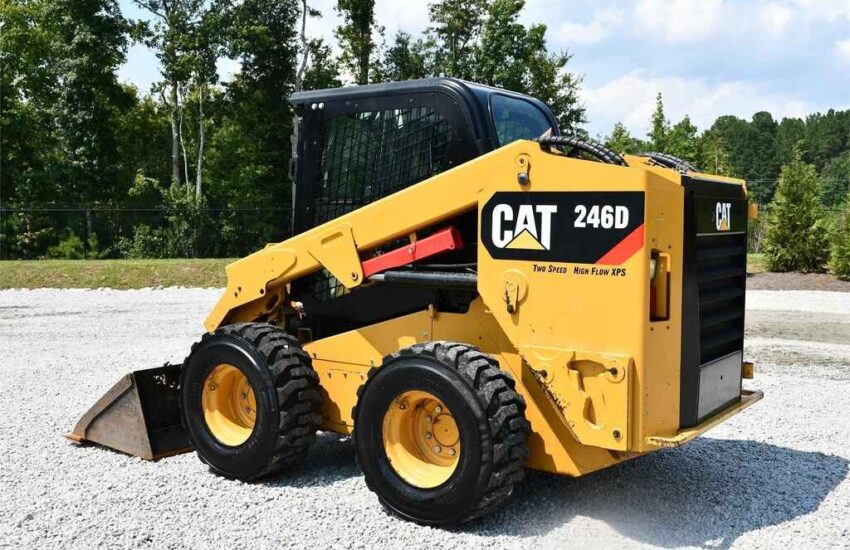

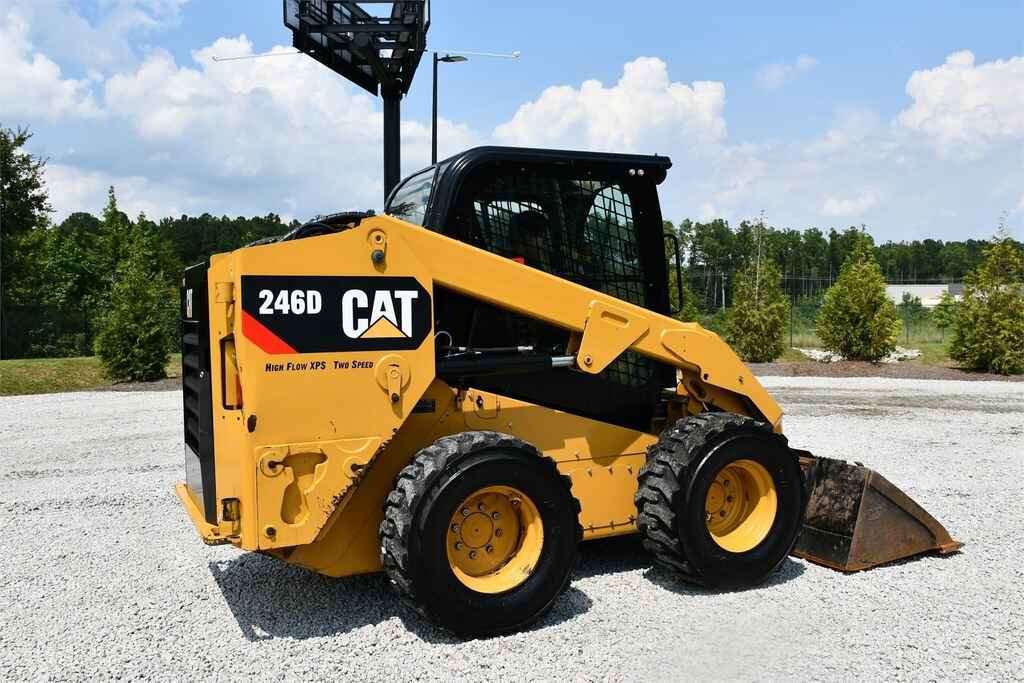

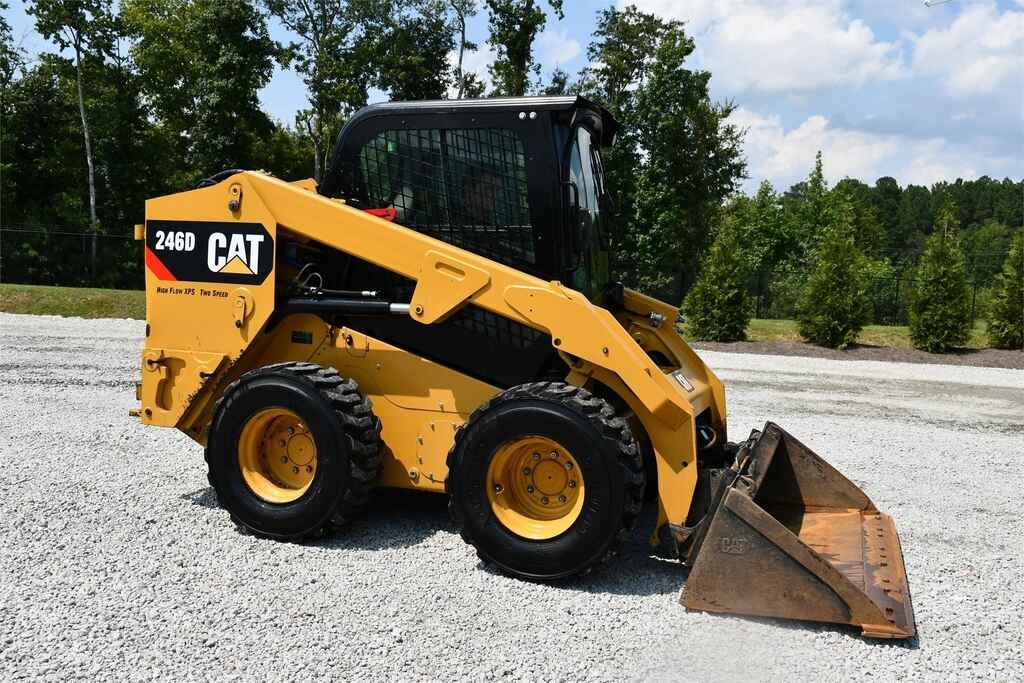

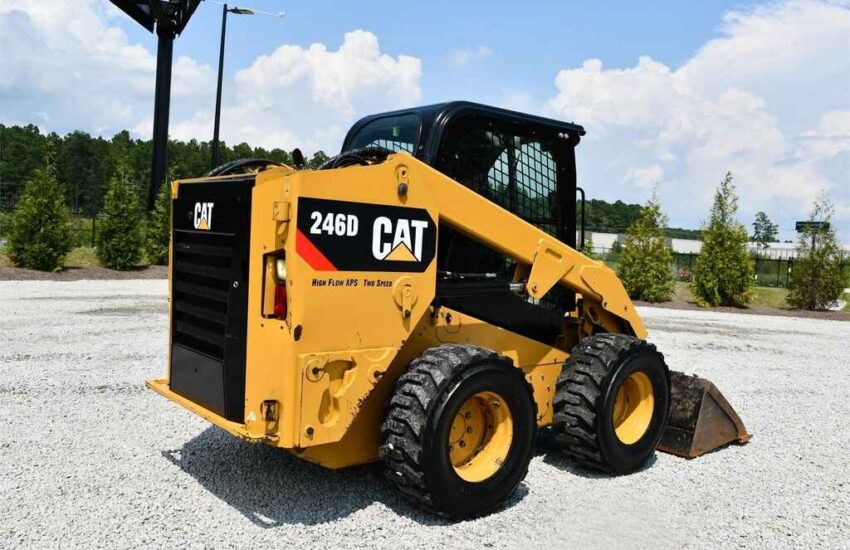

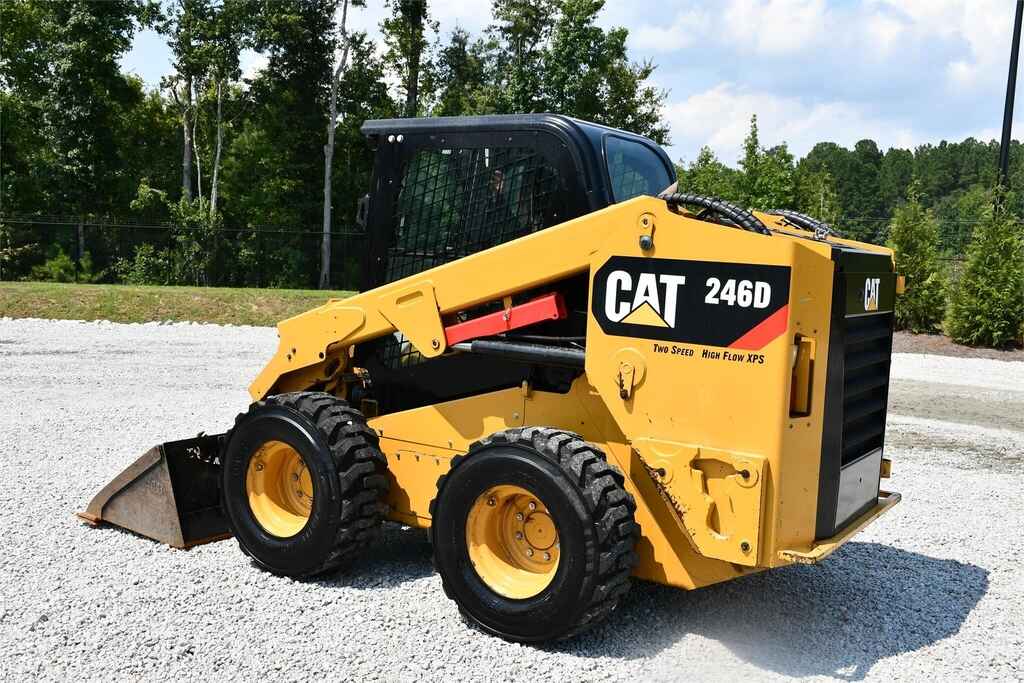

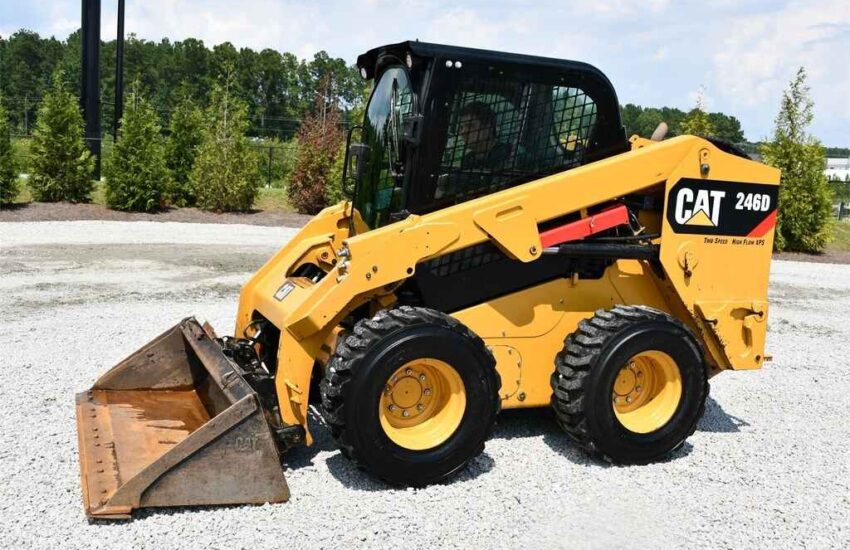

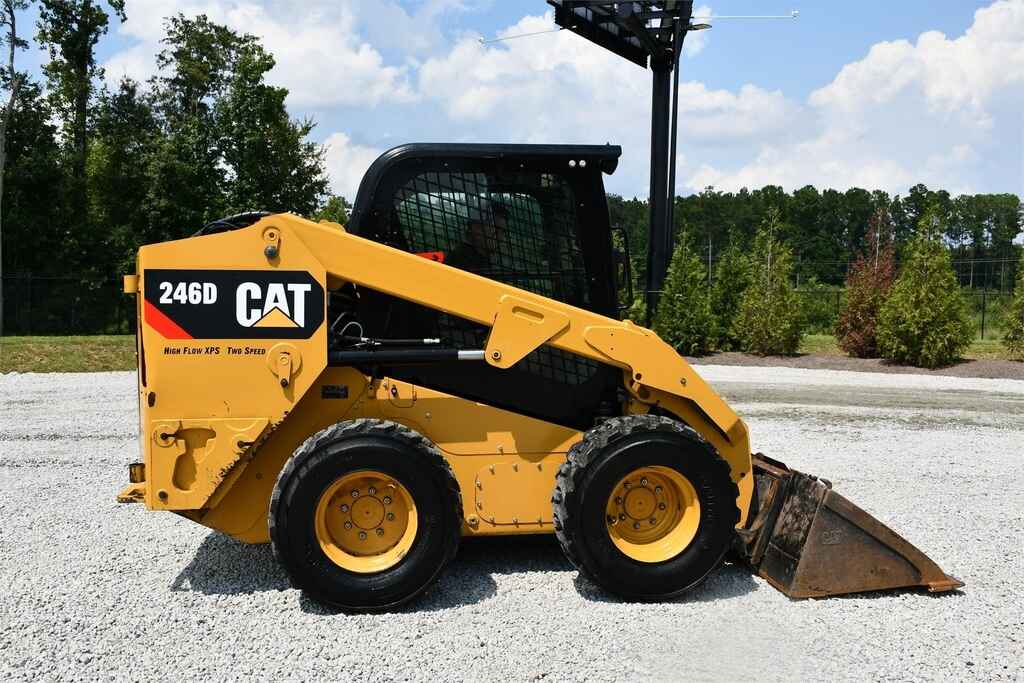

2018 Caterpillar 246D

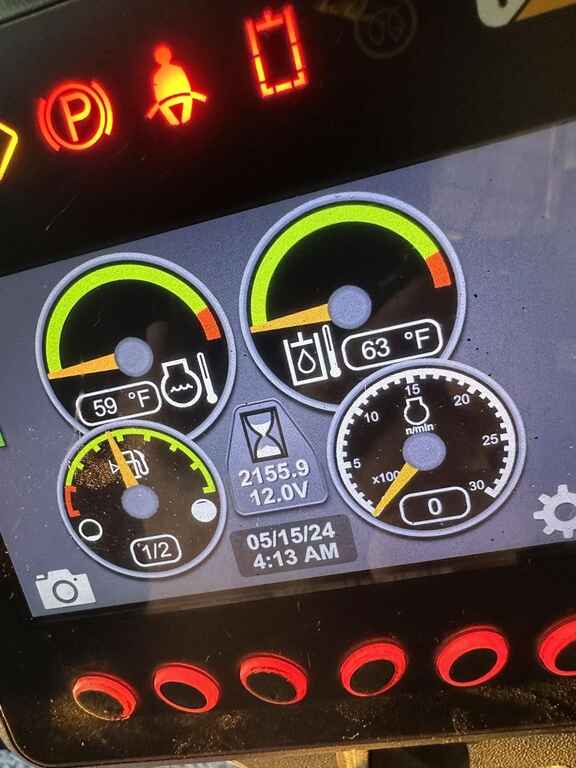

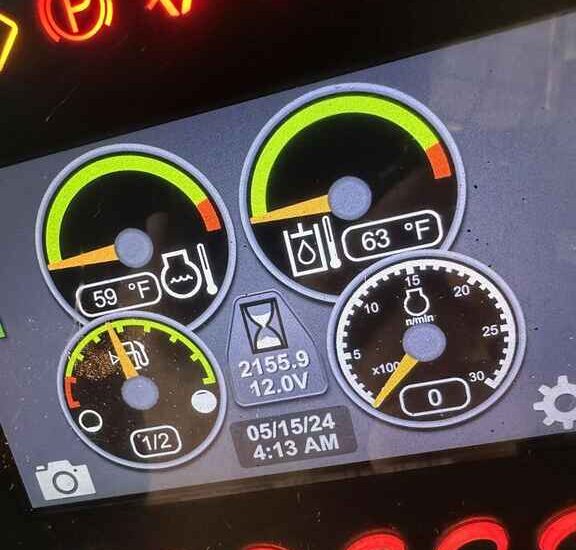

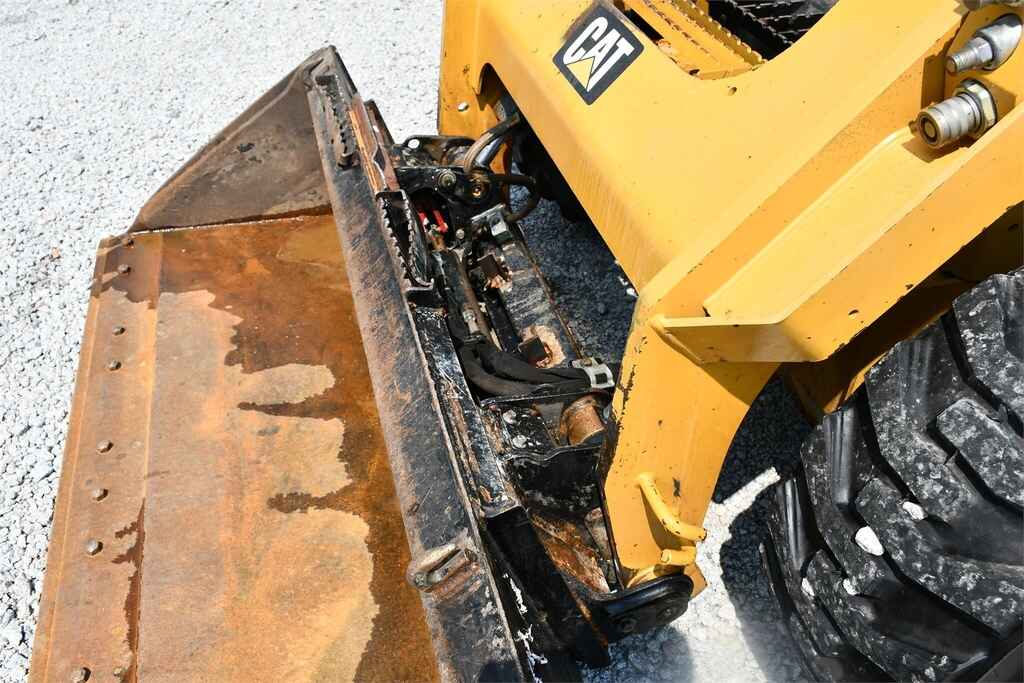

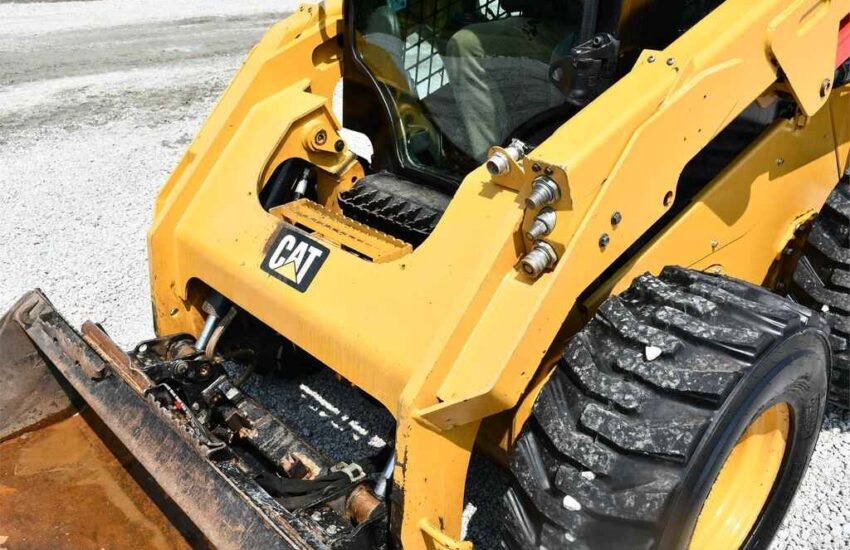

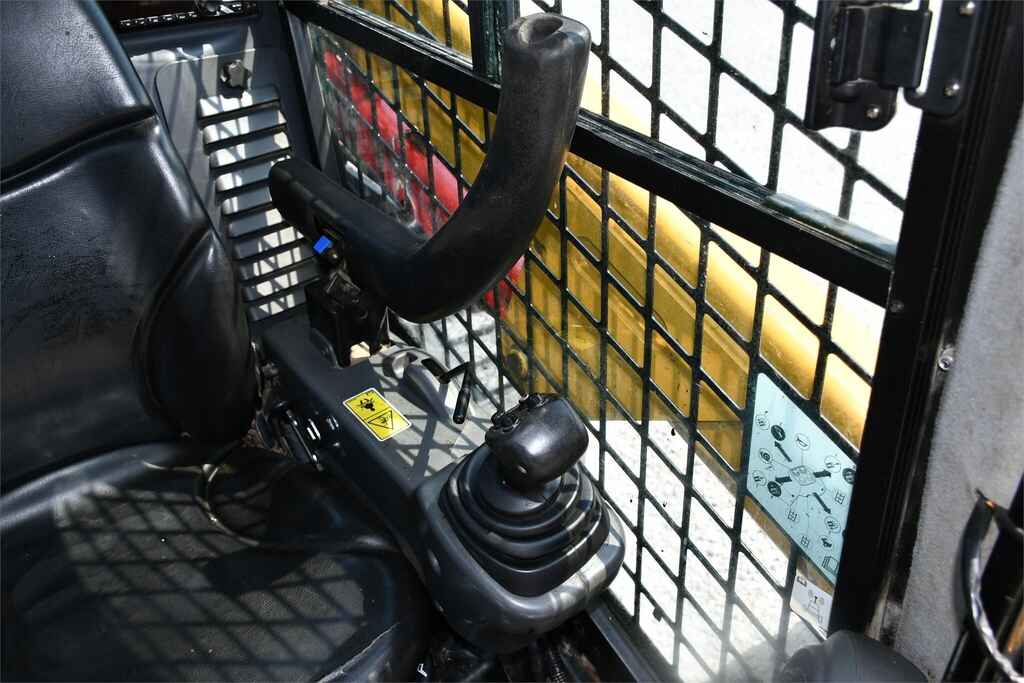

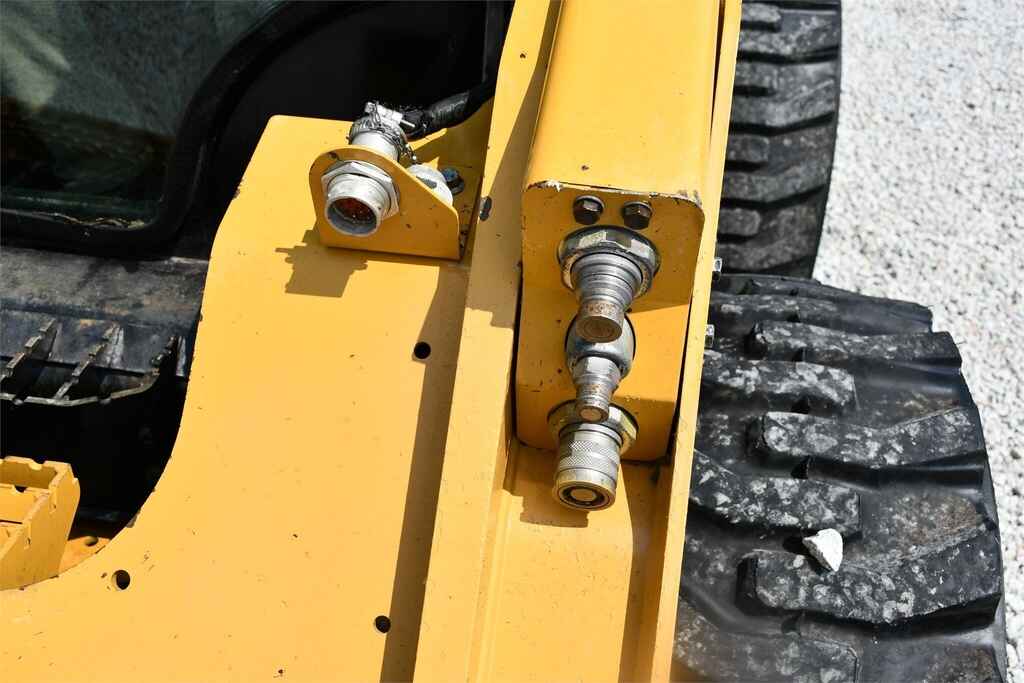

Cab, A/C, meter reads 2159 hours, GP bucket, coupler, Auxiliary hydraulics

Dimensions
Length With Bucket: 11.8ft
Width Over Tires: 6.01ft
Ground Clearance: 9in
Height To Top Of Cab: 6.87ft
Wheelbase: 3.73ft
Length Without Bucket: 9.19ft
Clearance At Max Lift And Dump: 7.87ft
Reach At Max Lift And Dump: 23.12in
Bucket Pin Height – Carry Position: 10in
Clearance At Maximum Lift And Dump: 94in
Length – Without Bucket: 110in
Bucket Pin Height – Maximum Lift: 10.17ft
Maximum Overall Height: 156in
Height – Top Of Cab: 6.84ft
Bumper Overhang – Rear Axle: 41in
Reach – Maximum Lift/Dump: 21in
Turning Radius From Center – Inc Bucket: 86.5in
Length – With Bucket On Ground: 138in
Vehicle Width Over Tires: 66in
Operating Specifications
Breakout Force – Tilt Cylinder: 5259lb
Breakout Force – Lift Cylinder: 4339lb
Rated Operating Capacity: 2000lb
Rated Operating Capacity With Optional Counterweight: 2100lb
Tipping Load: 4000lb
Specifications
Engine:
Number Of Cylinders: 4
Engine Make: 2236
Engine Model: 3034T
Gross Power: 80hp
Net Power: 74hp
Power Measured @: 2600rpm
Aspiration: Turbocharged
Displacement: 183cu in
Bore: 3.9in
Stroke: 4in
Engine Model: Cat 3034C
Net Flywheel Power: 55hp
Operational
Operational Weight: 7230lb
Fuel Capacity: 23.8gal
Max Speed: 6.9mph
Hydraulic System Fluid Capacity: 13.8gal
Operating Speed: 7.6mph
Loader
Operating Load Rating: 2000lb
Tipping Angle: 34°
Bucket Capacity: 0.6yd³
Weights
Operating Weight: 7087lb
Hydraulic
Pump Flow Capacity: 22gal/min
Loader Hydraulic Pressure: 3300 psi
Loader Hydraulic Flow: 22 gal/min
Hydraulic Flow: Standard flow
Service Refill Capacities
Cooling System: 2.6gal
Fuel Tank: 23.8gal
Hydraulic Tank: 9.2gal
Engine Crankcase: 1.8gal
Hydraulic System: 13.7gal
Chain Box – Each Side: 2gal

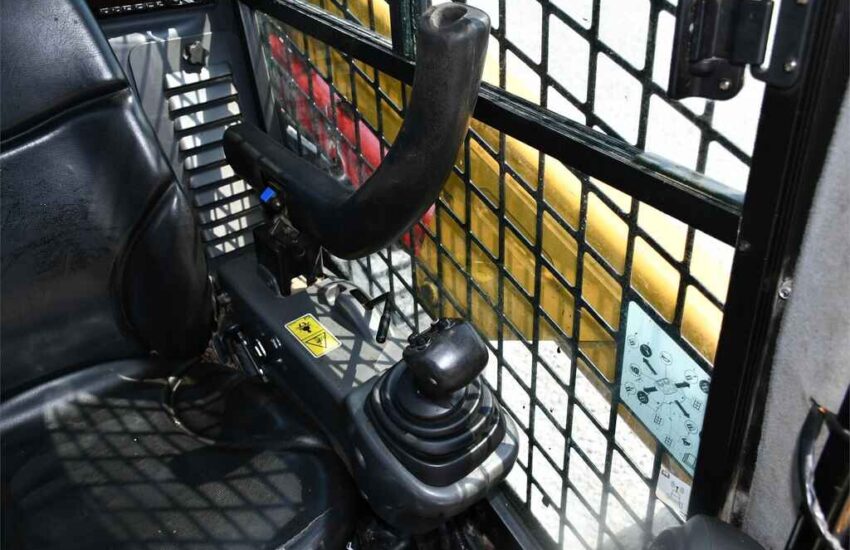

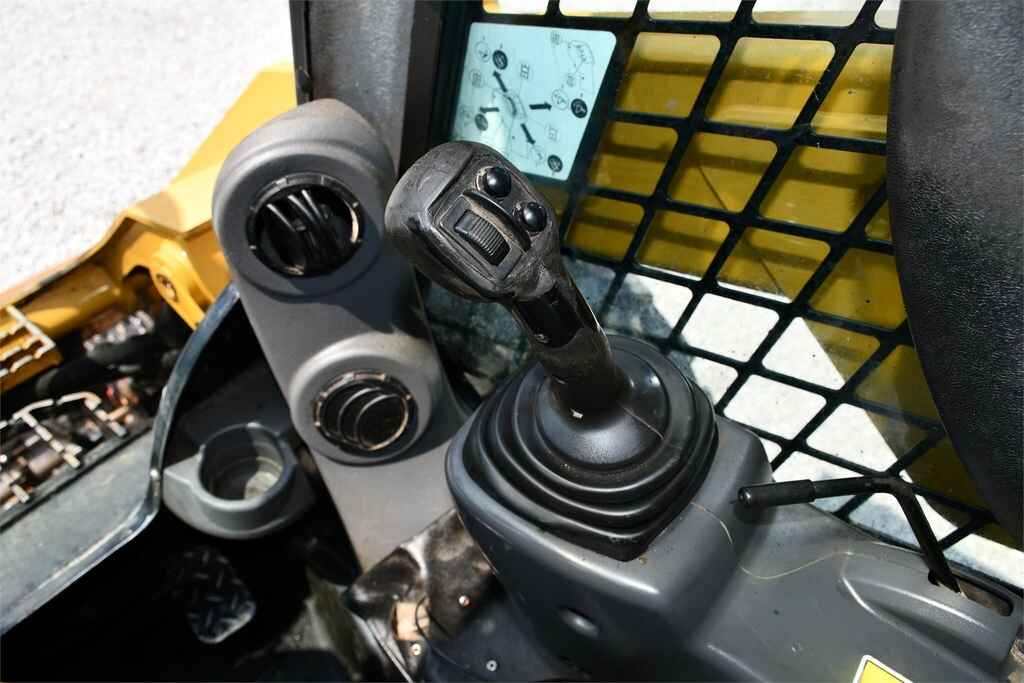

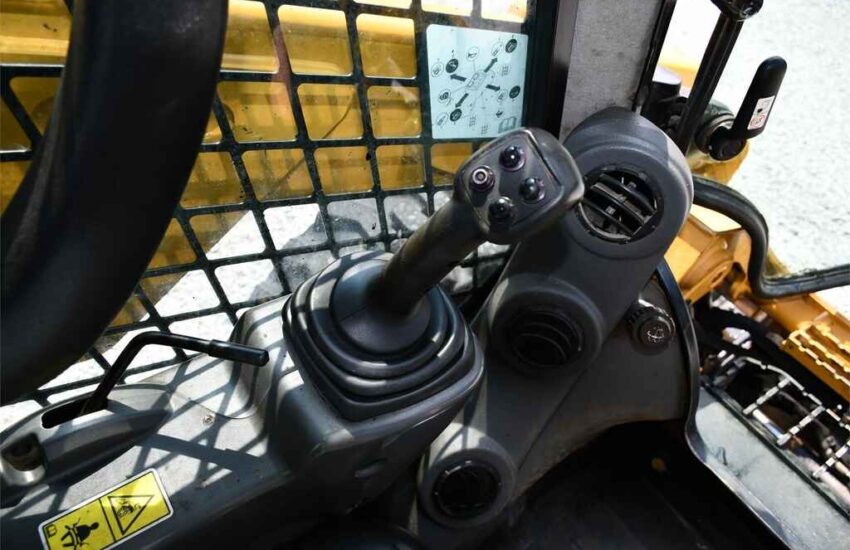

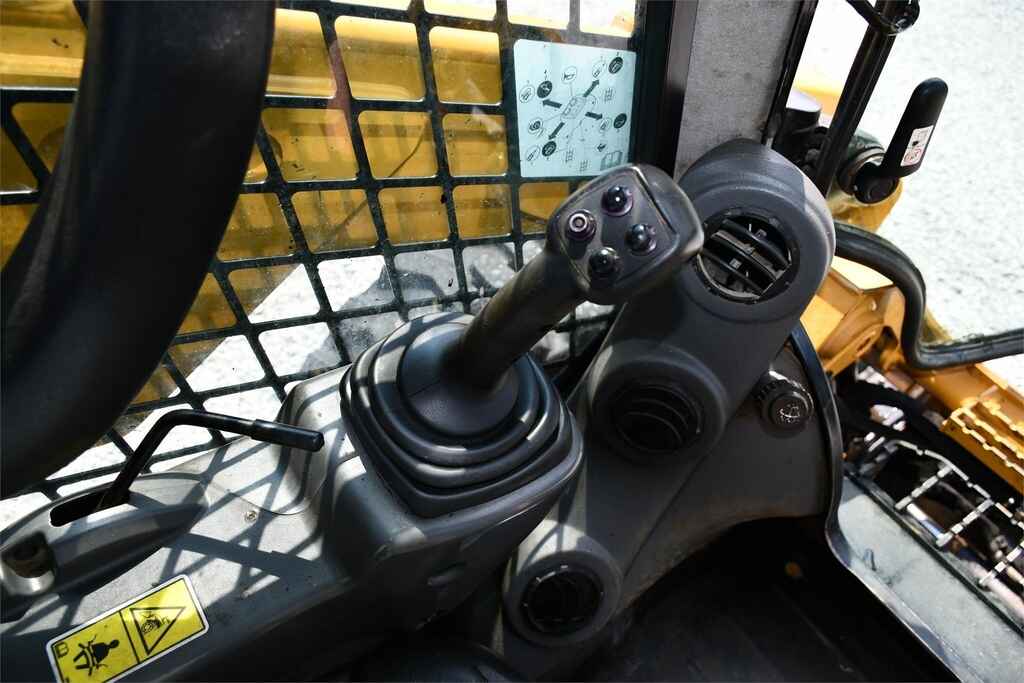

Cab
ROPS: SAE J1040 MAY94 and ISO3471:1994
FOPS: SAEJ/ISO 3449 APR98 Level I and ISO3449:1992 Level I
FOPS Level II: SAEJ/ISO 3449 APR 98 Level II and ISO 3449:1992 Level II (optional)
