Details
-
Industry:
-
Make:
-
Model:
-
Color:
-
Transmission:
-
Condition:
-
Year:2018
-
Fuel Type:
-
Engine:Bobcat D24
-

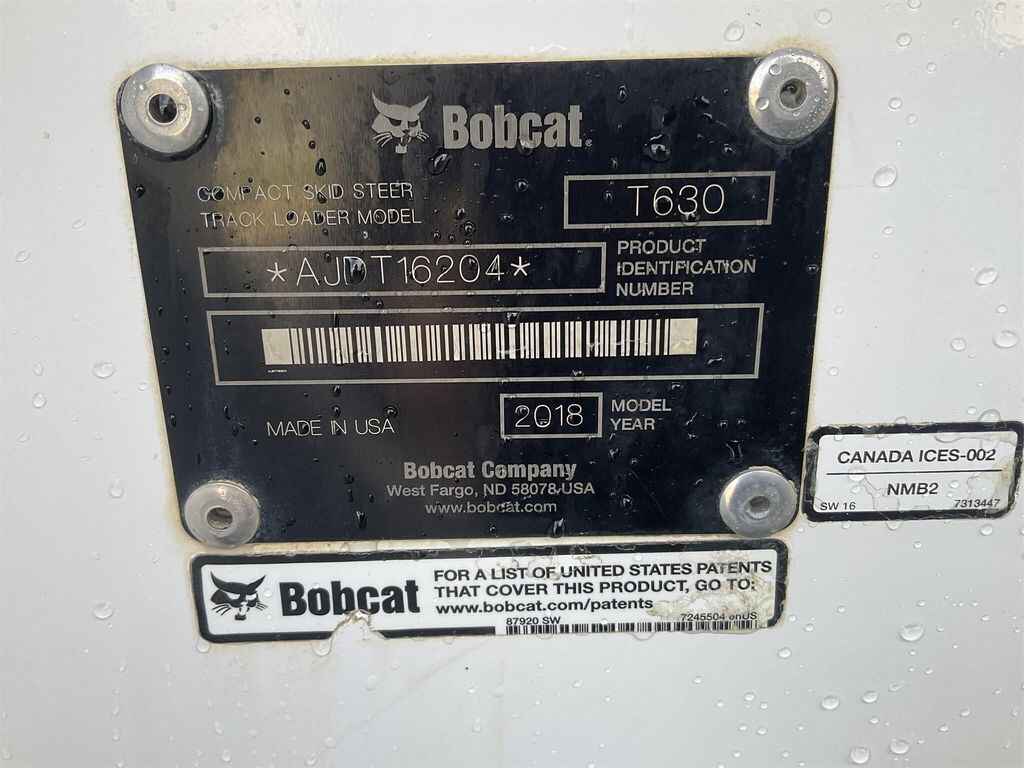

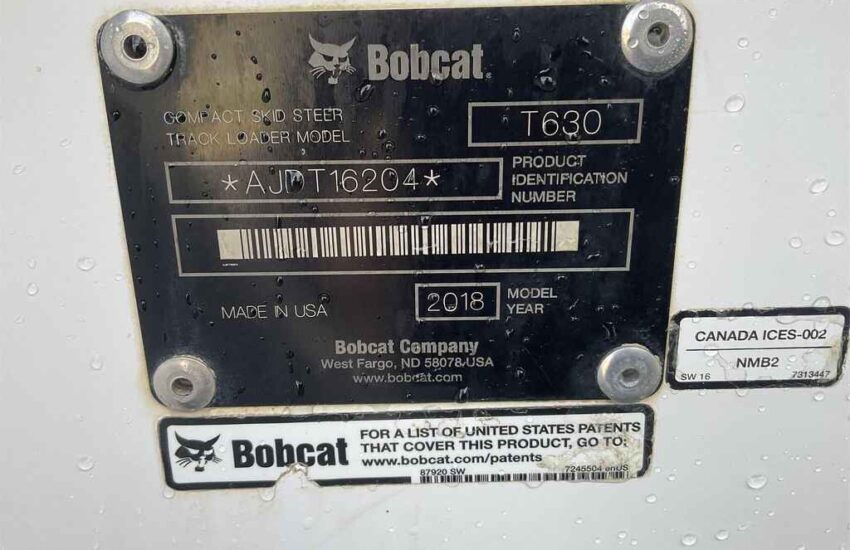

Serial:AJDT16204
-

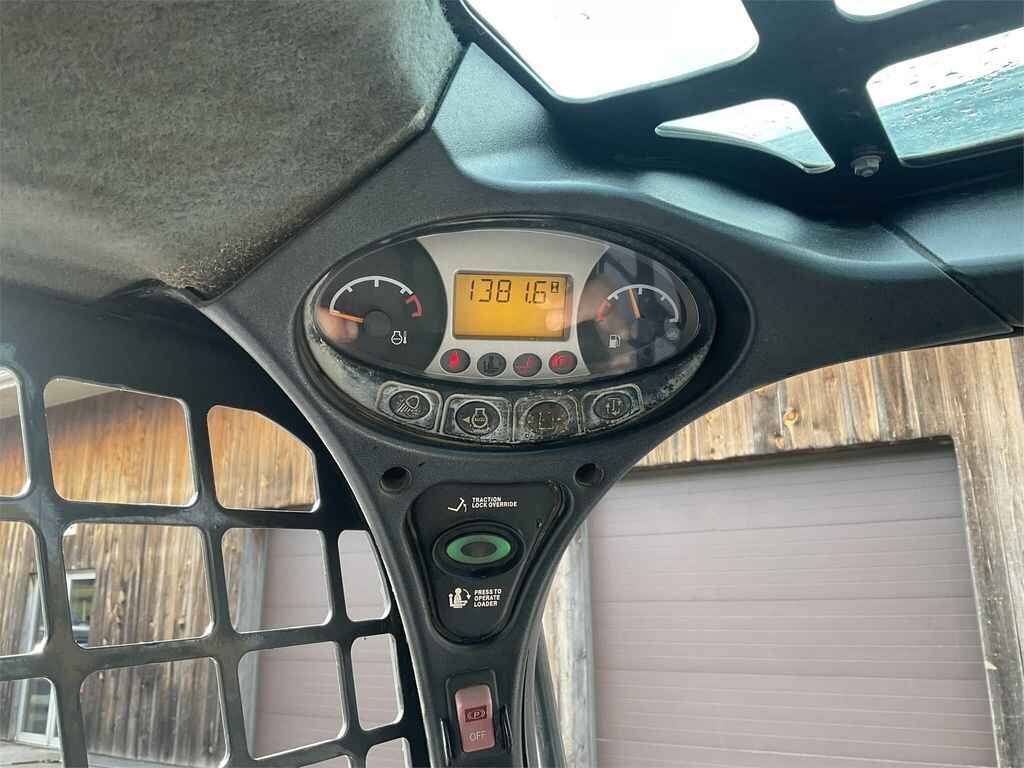

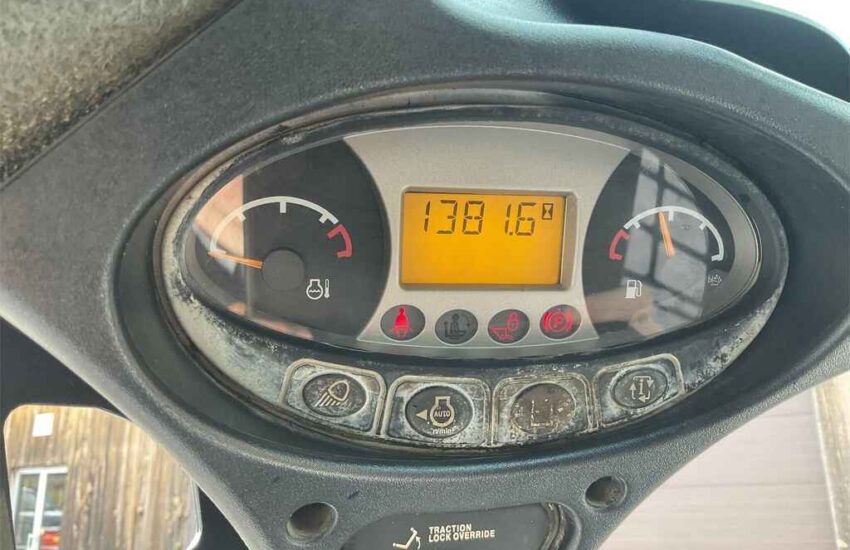

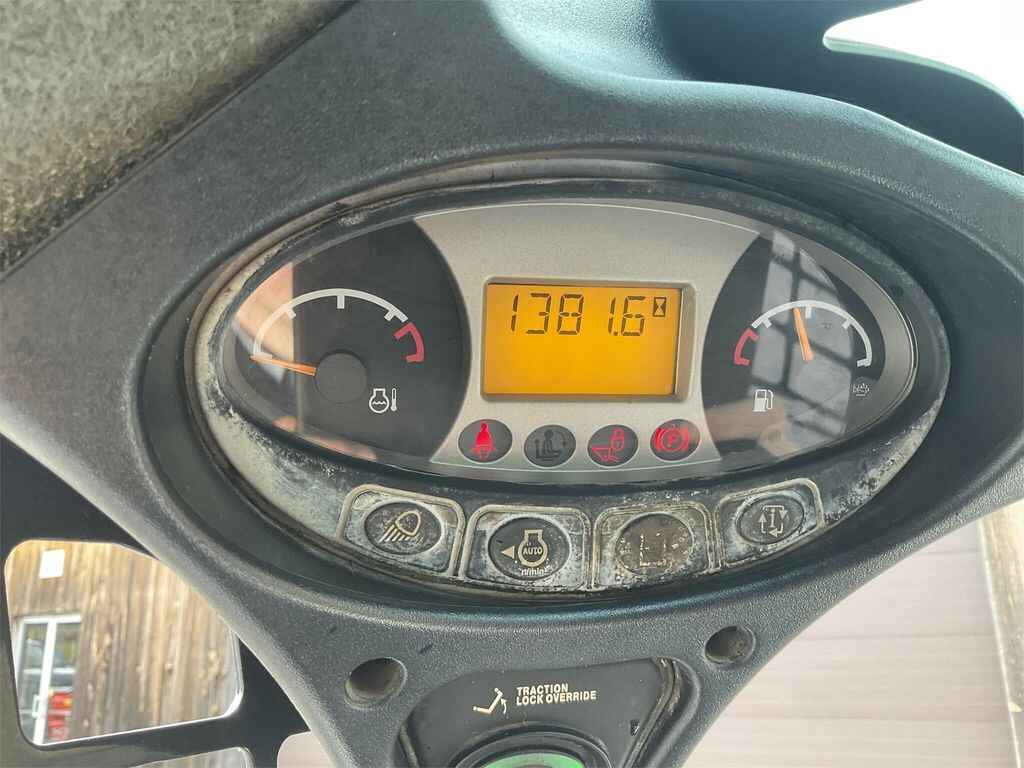

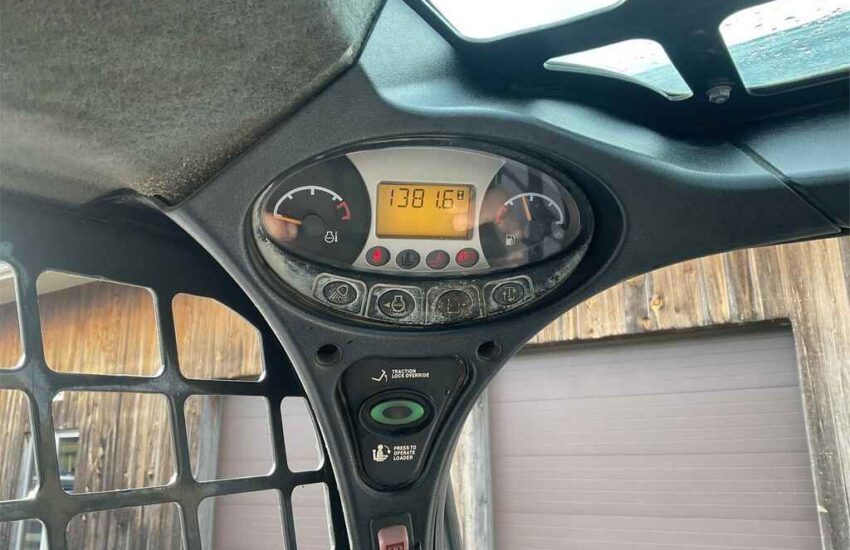

Hours:1380
-
Stock#:16204
Overview

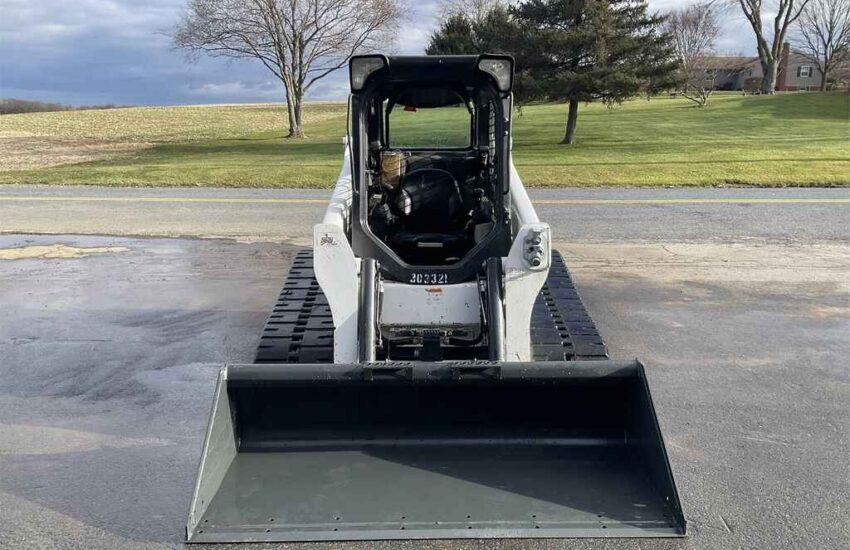

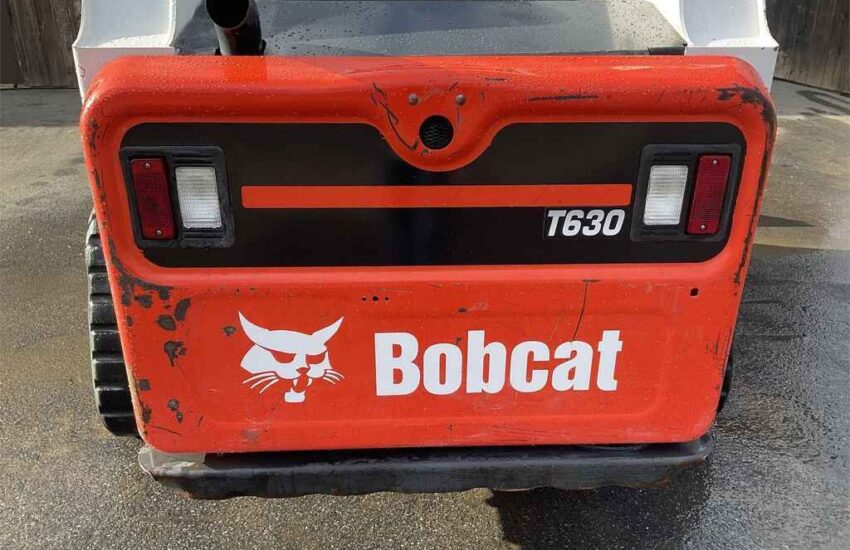

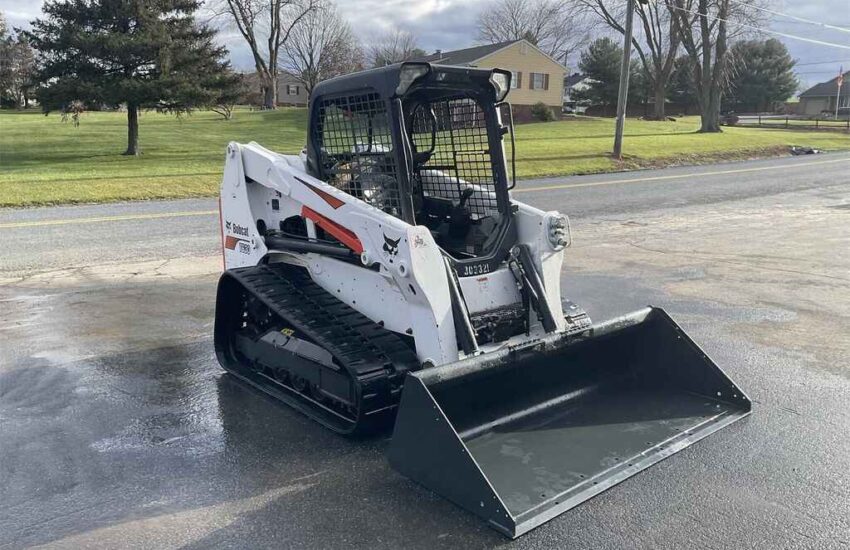

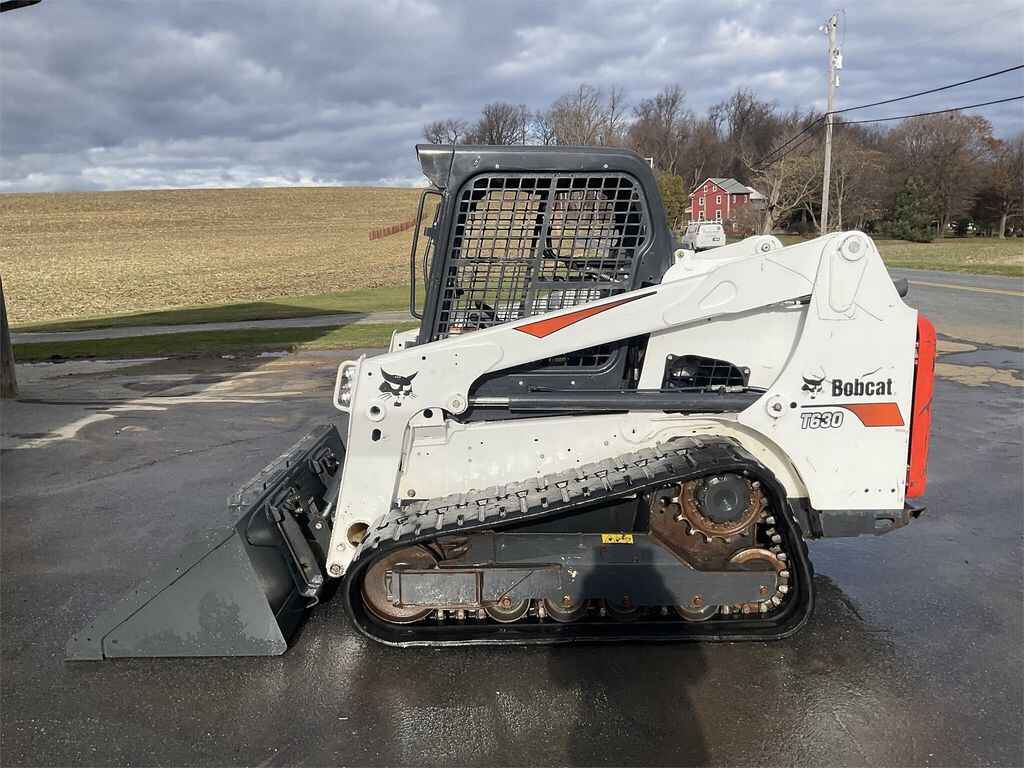

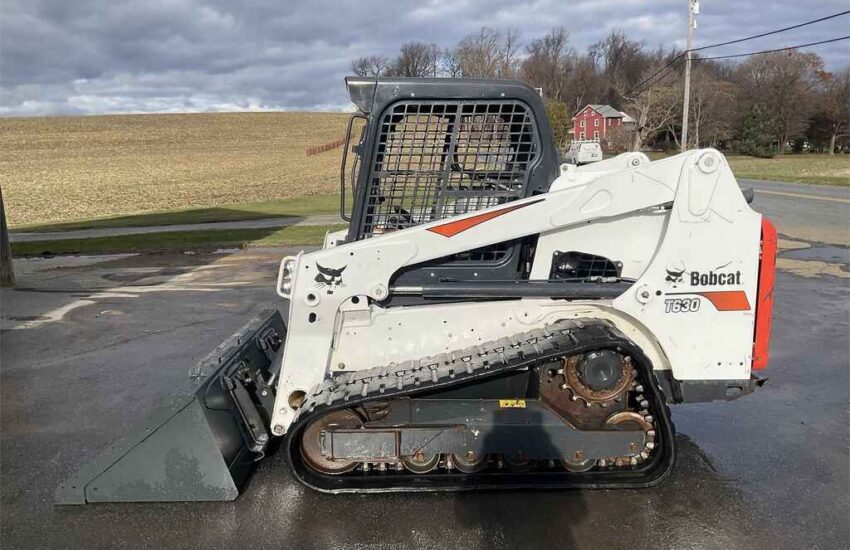

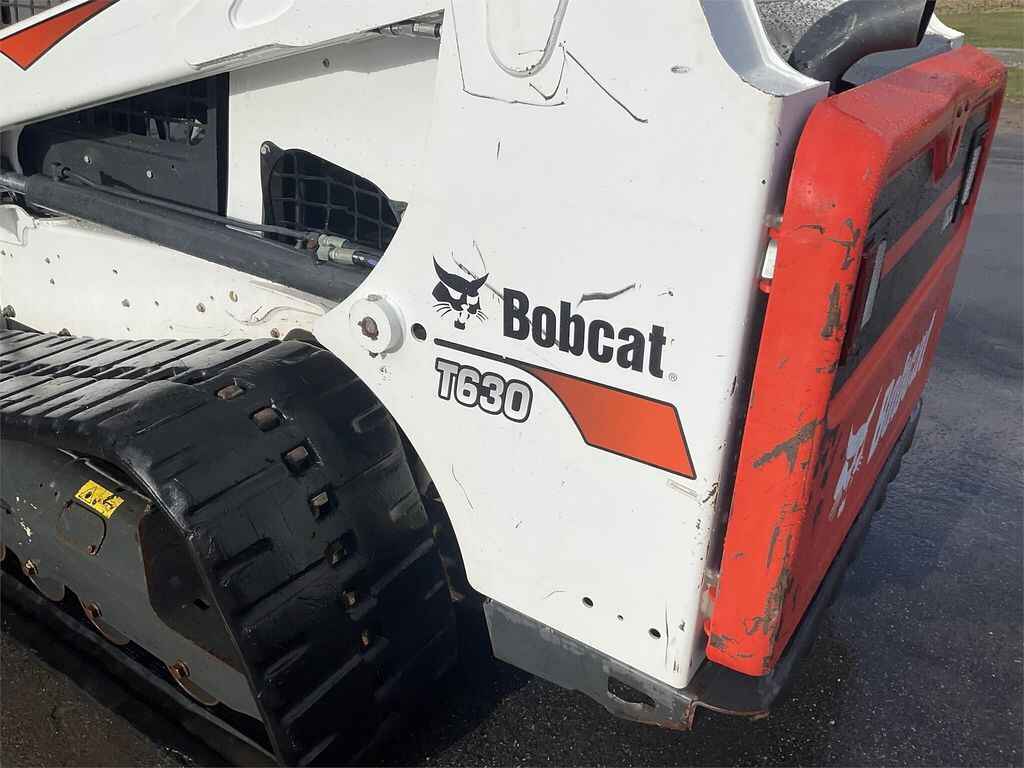

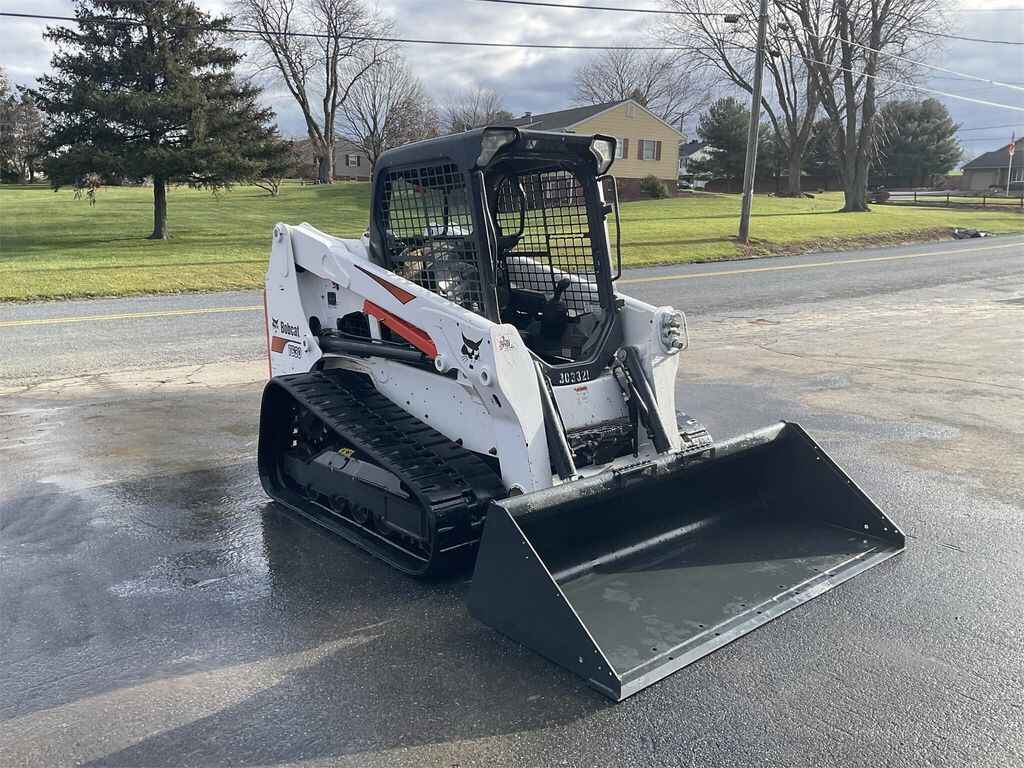

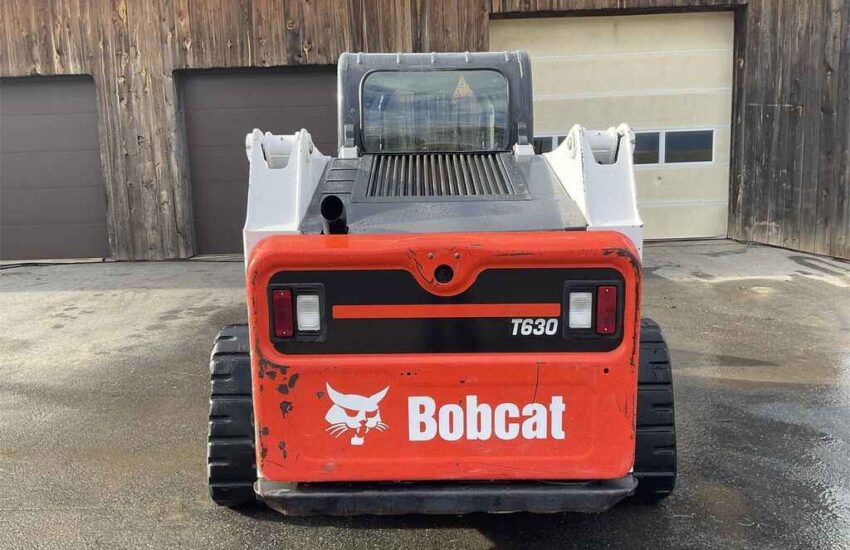

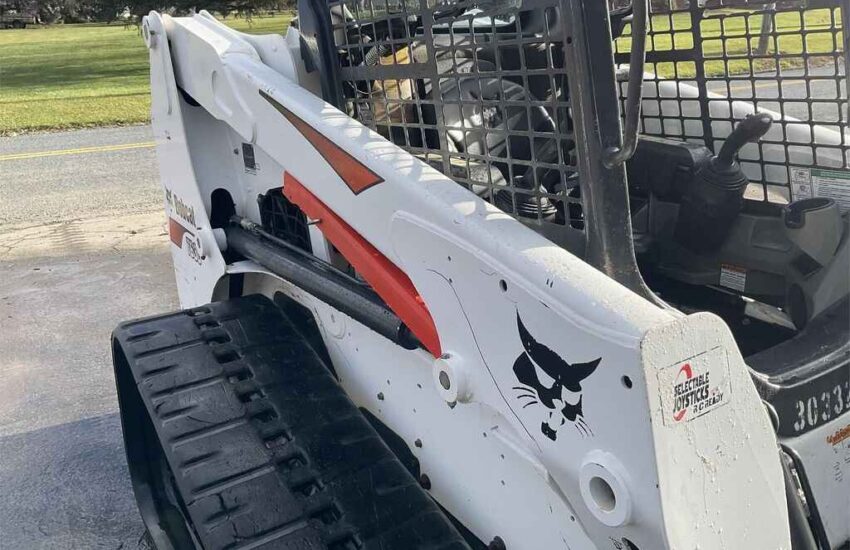

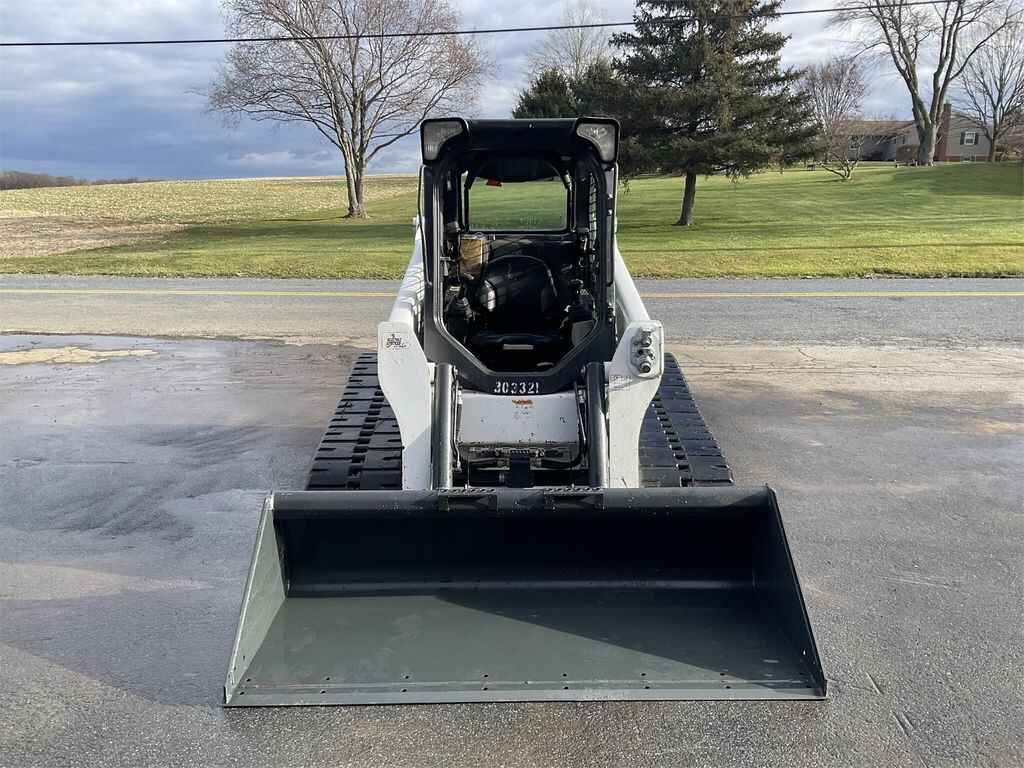

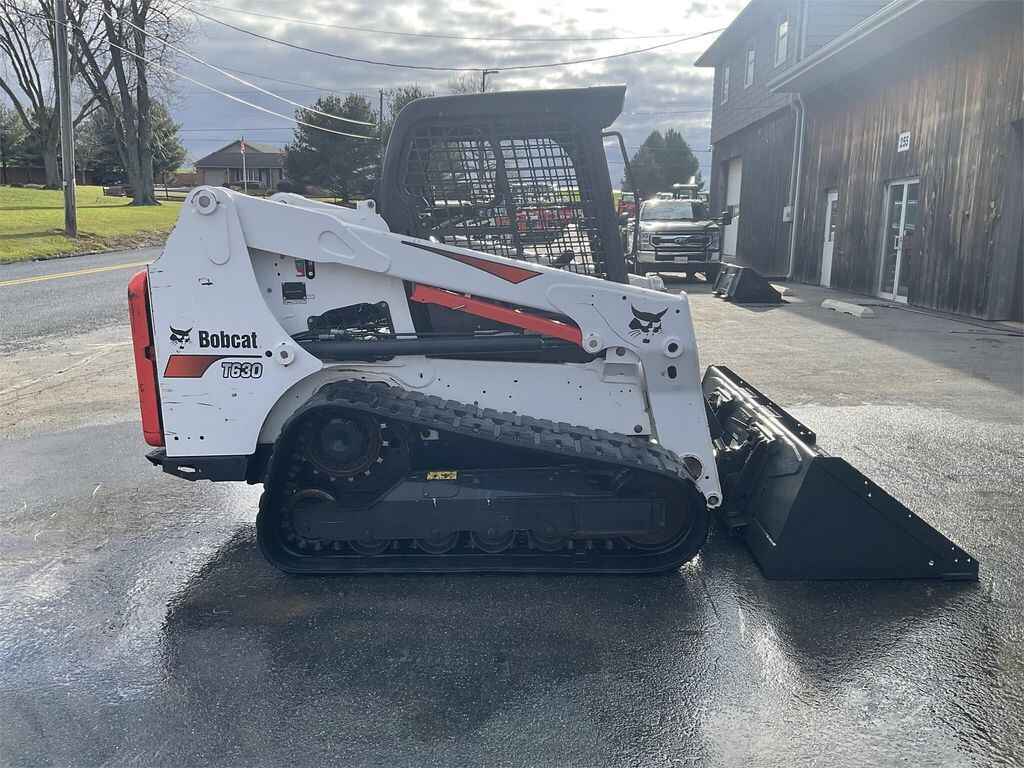

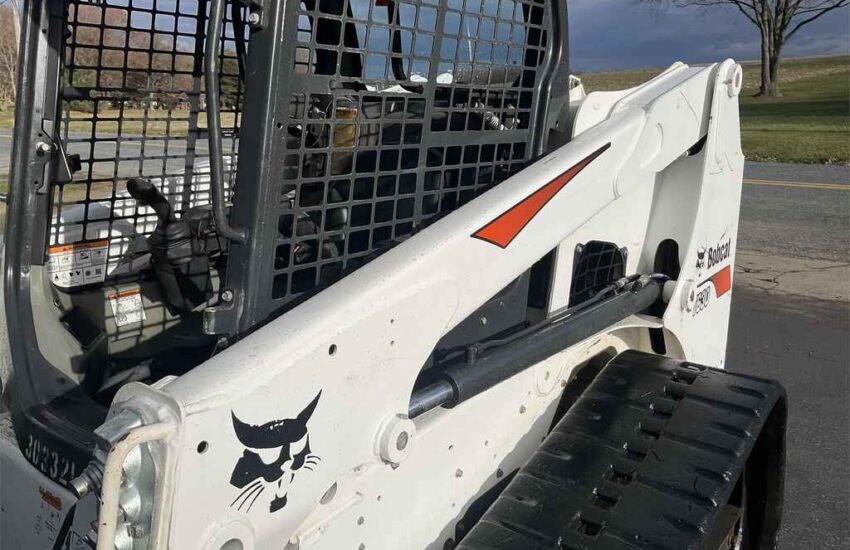

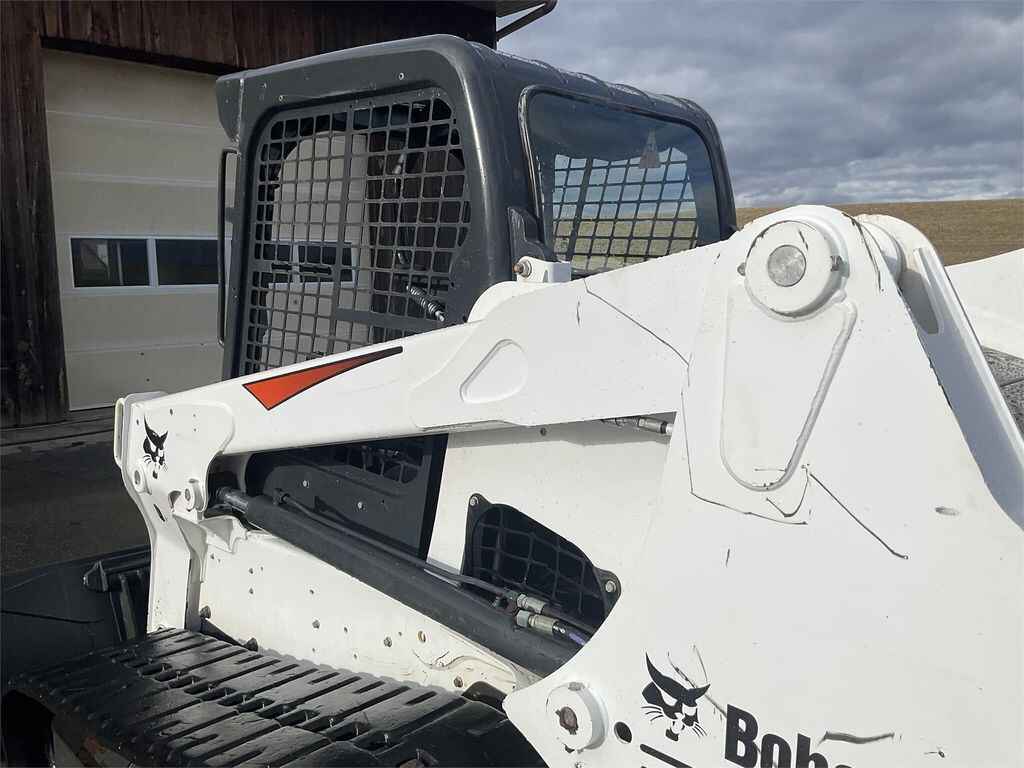

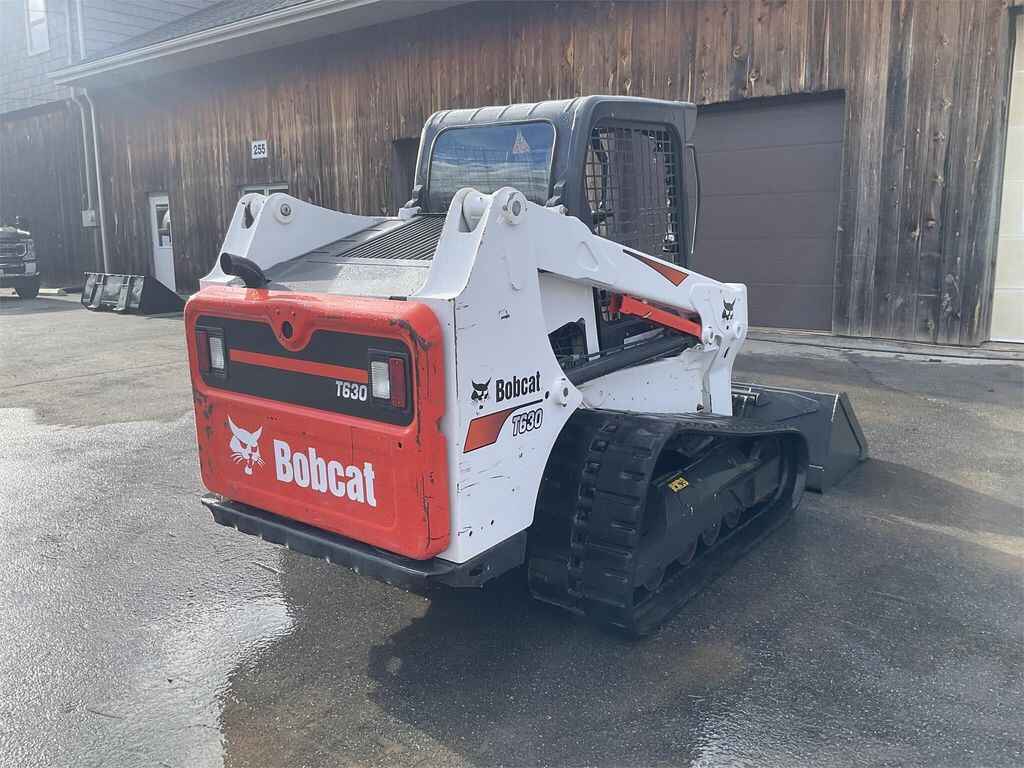

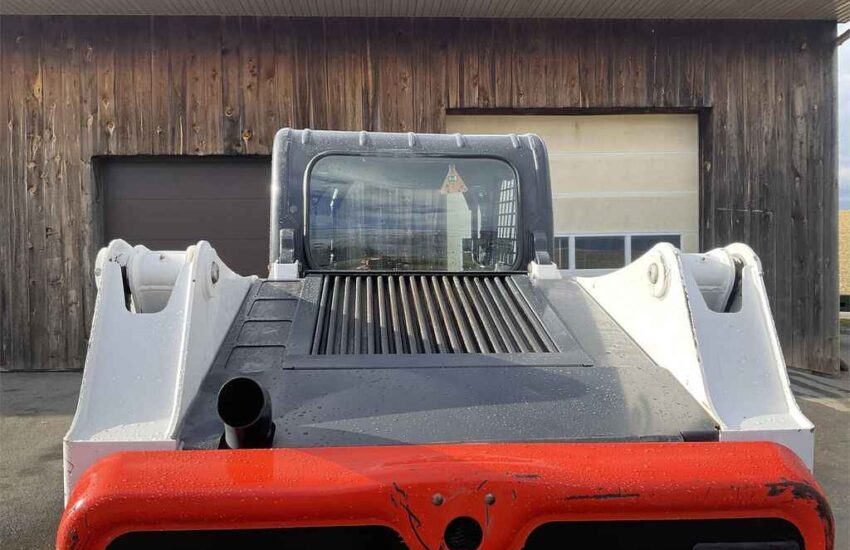

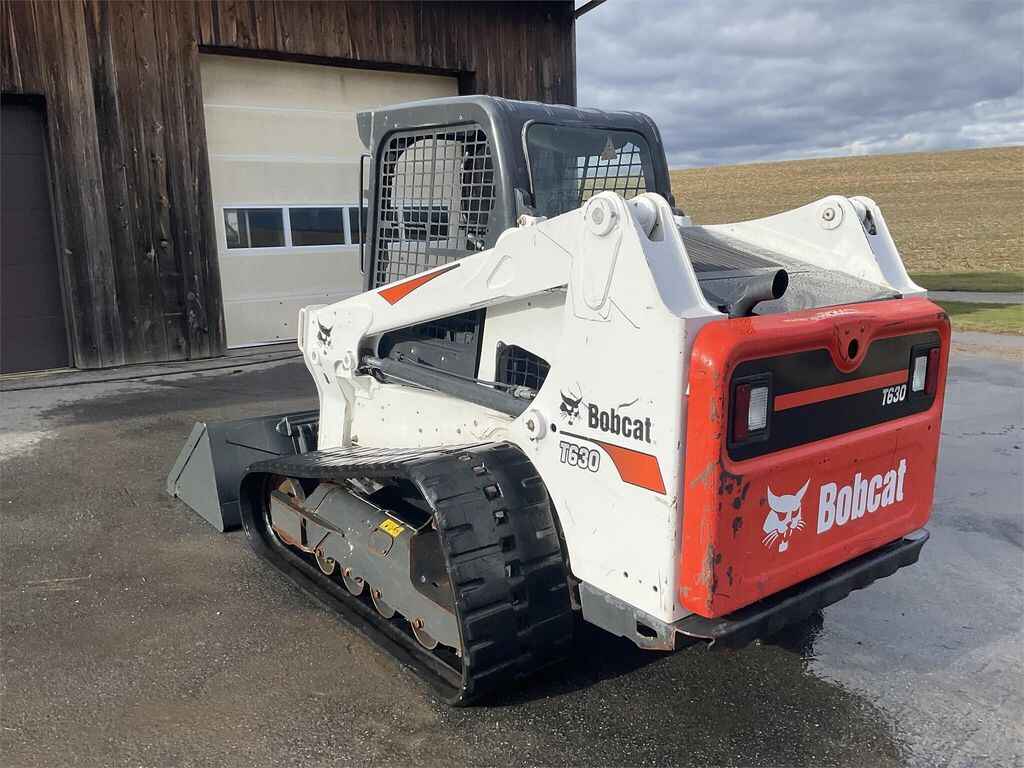

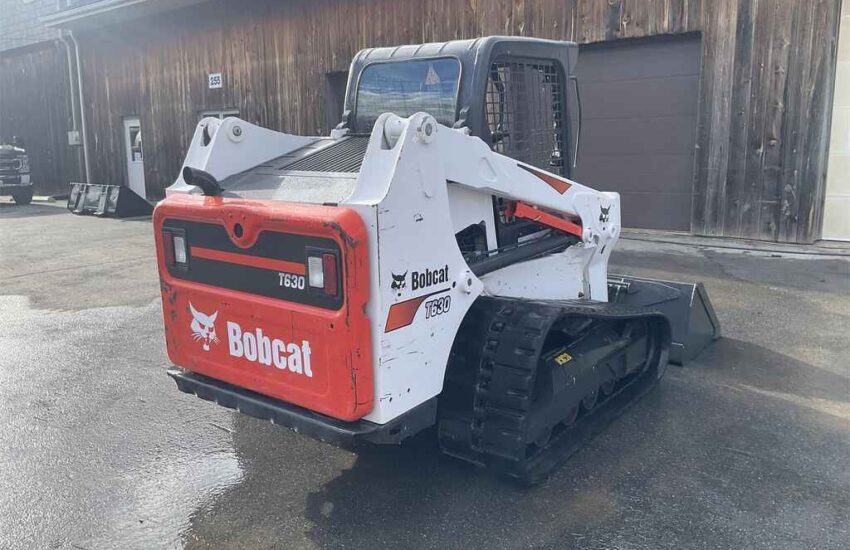

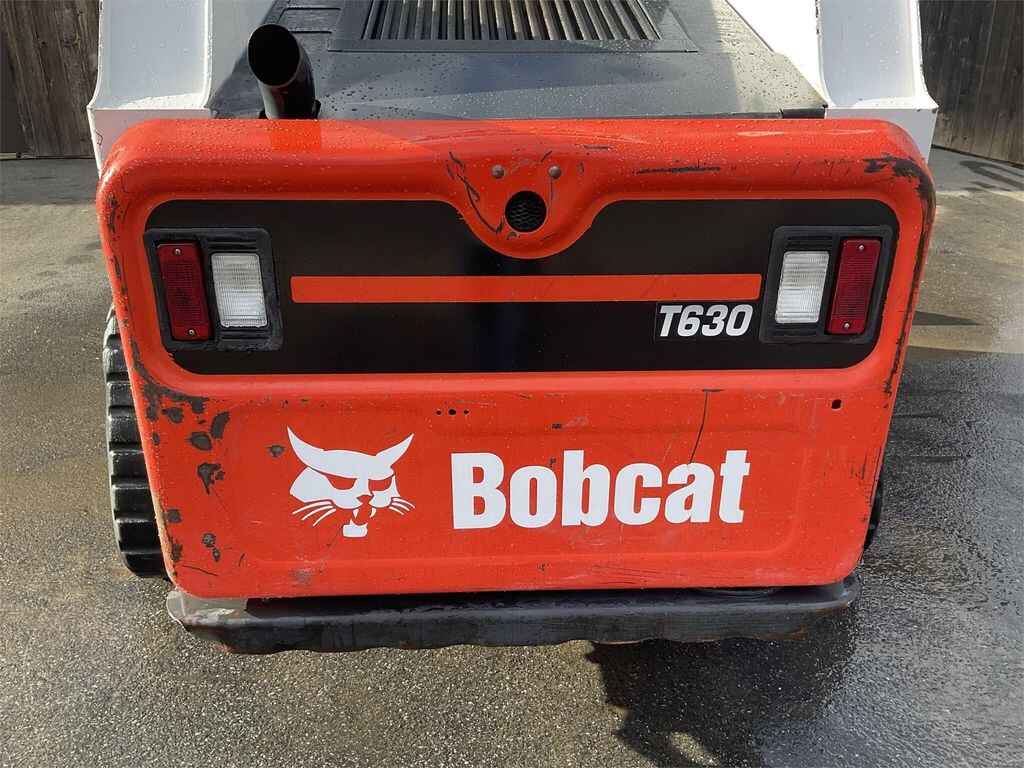

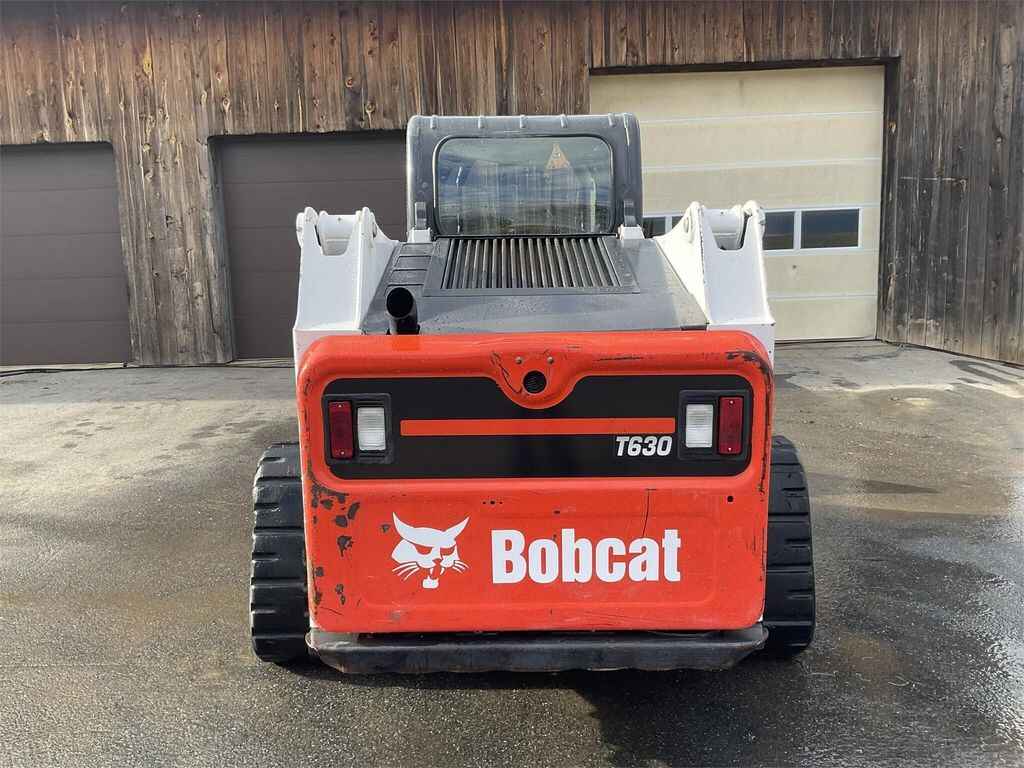

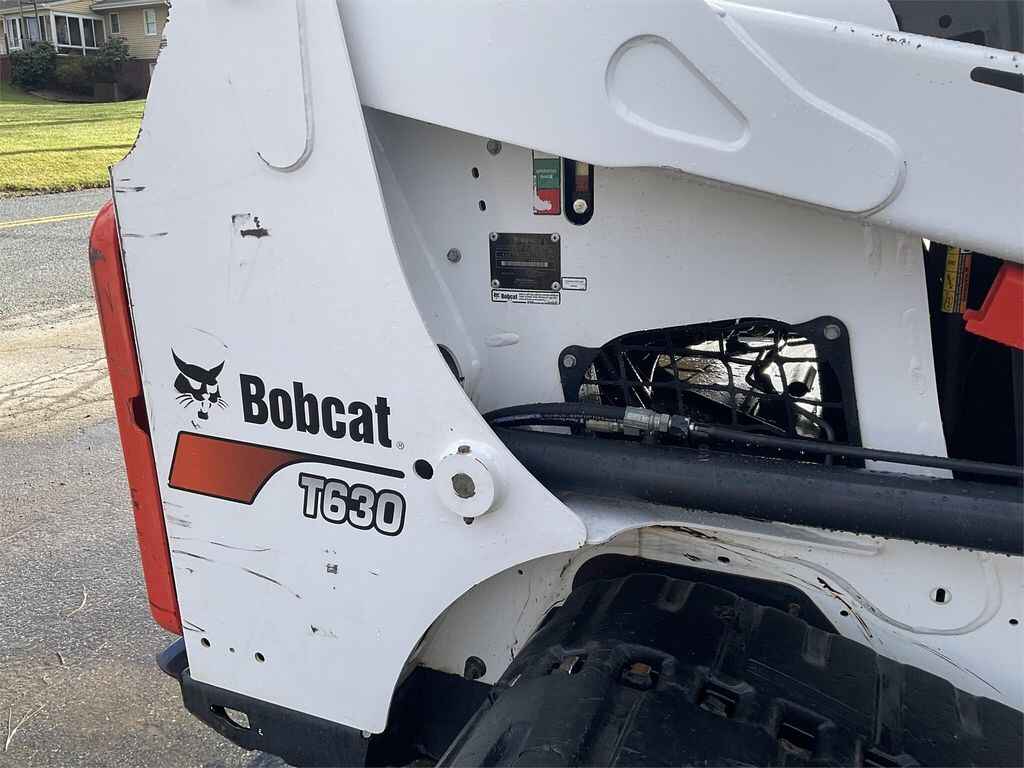

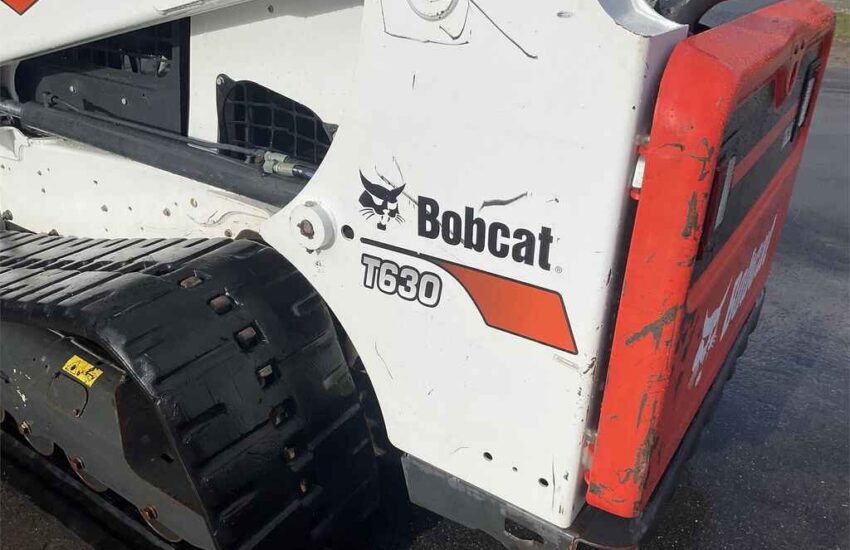

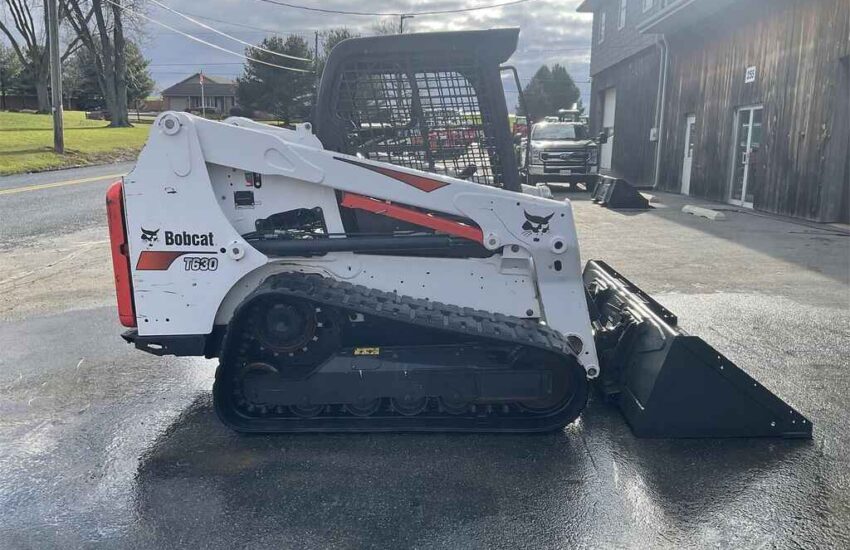

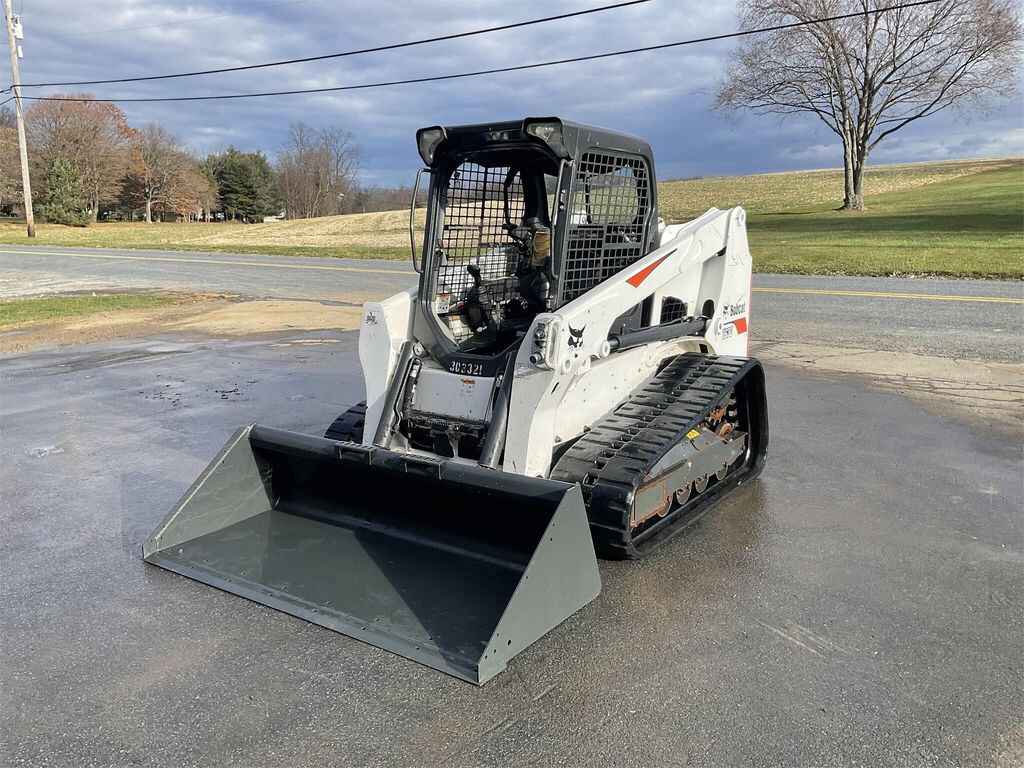

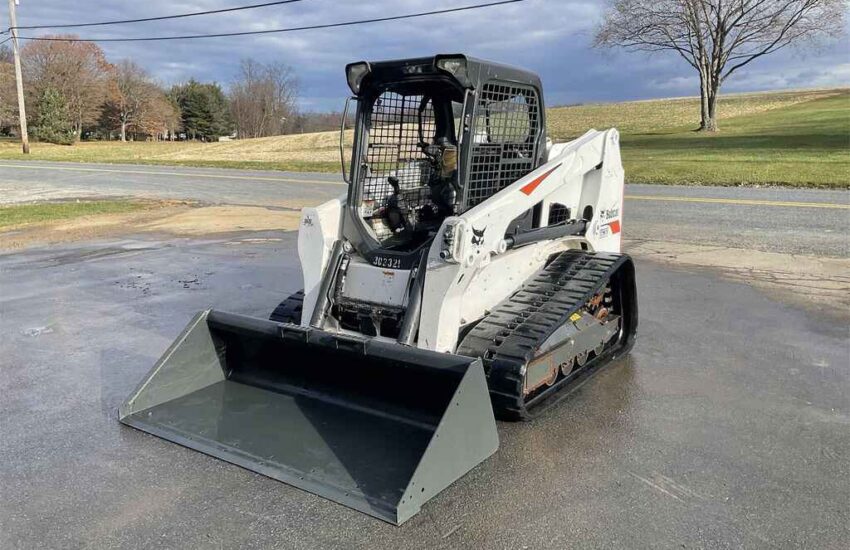

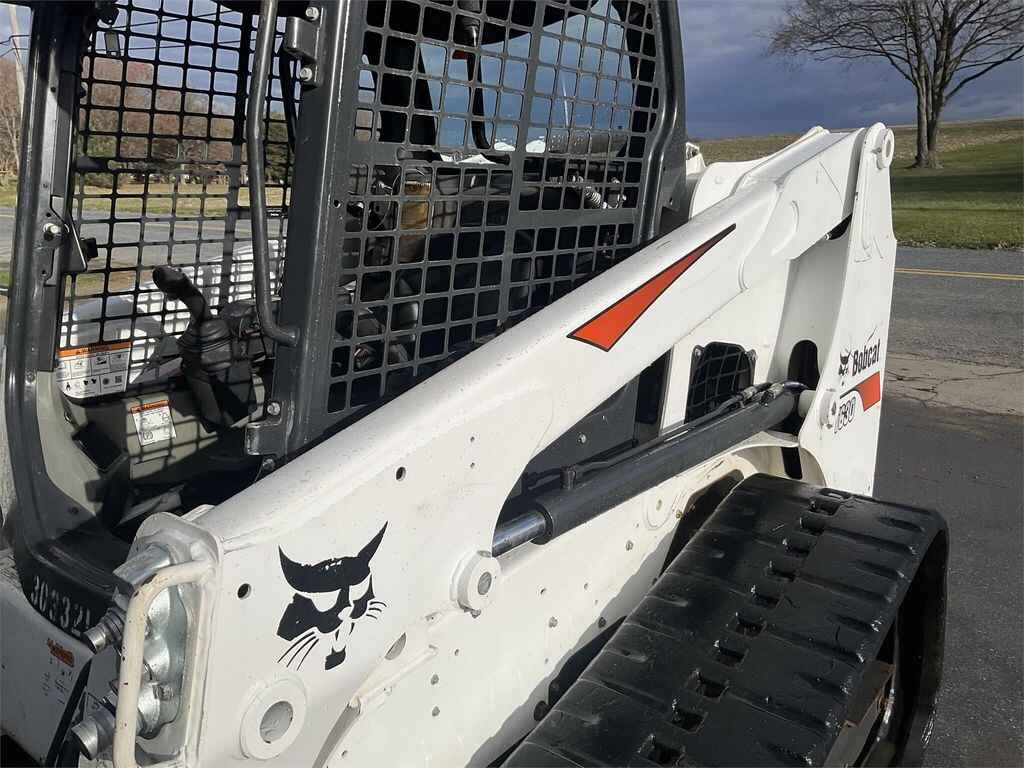

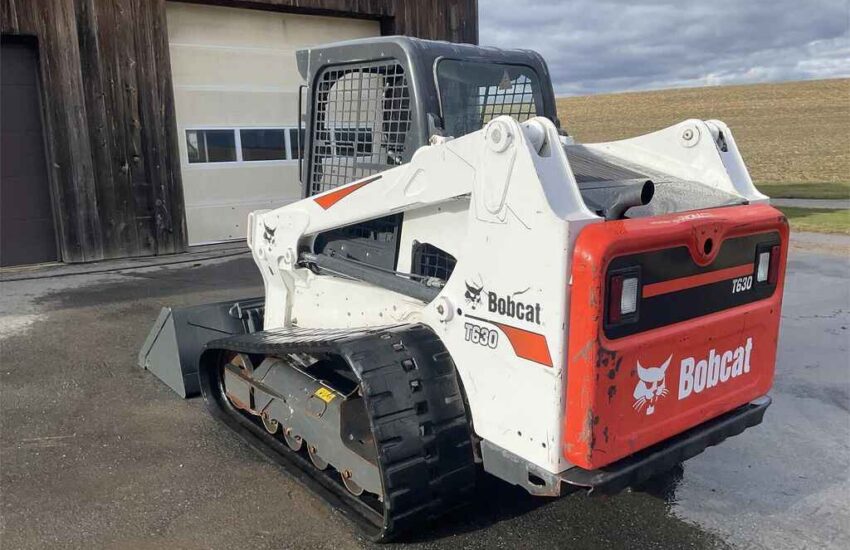

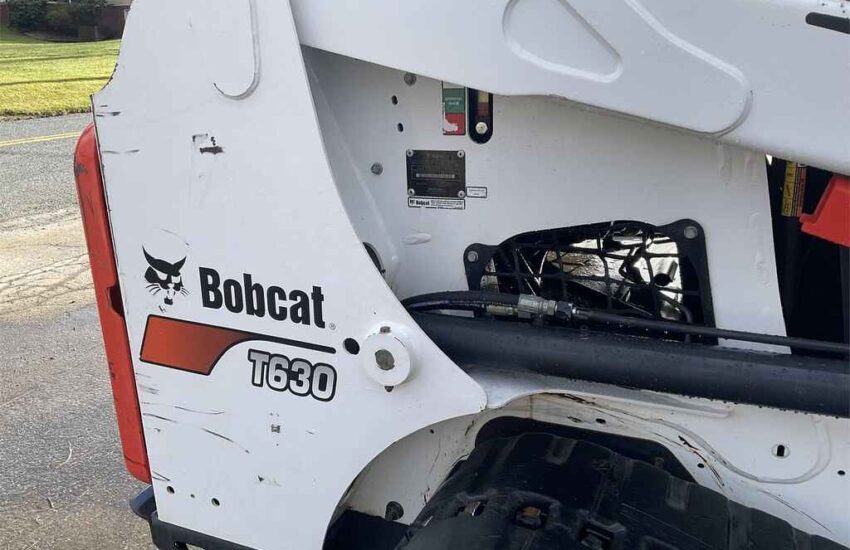

2018 Bobcat T630 Track Skid Steer Loader ( ONLY 1,380 Hours and SJC Joystick Controls!)
– 74 HP Engine
– 2,300 LB Lift Capacity / 8,750 LB Operating Weight

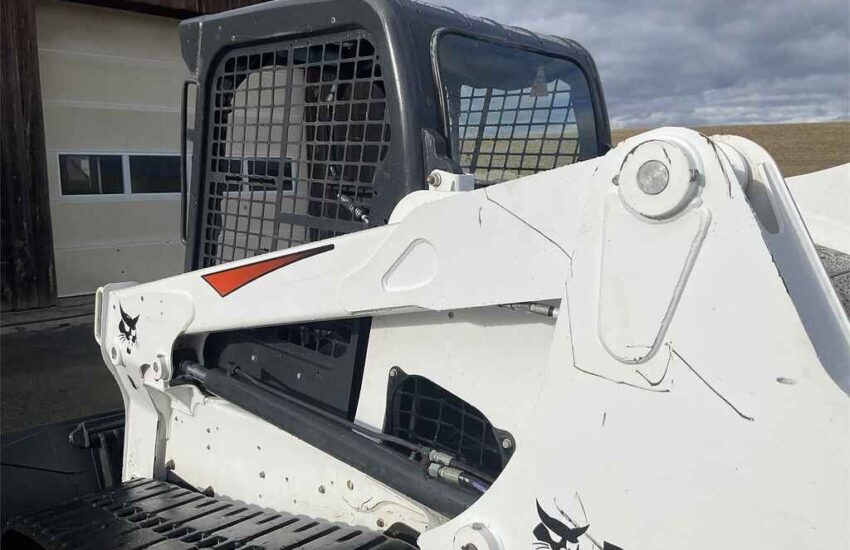

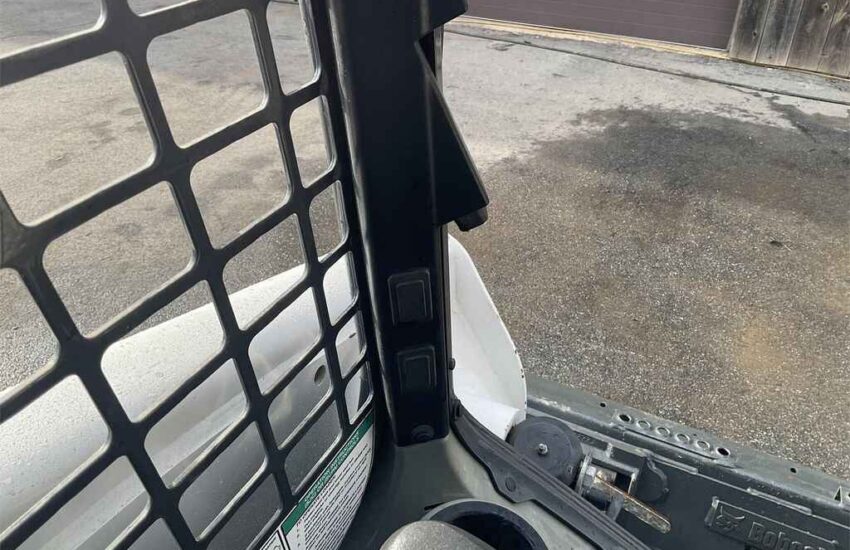

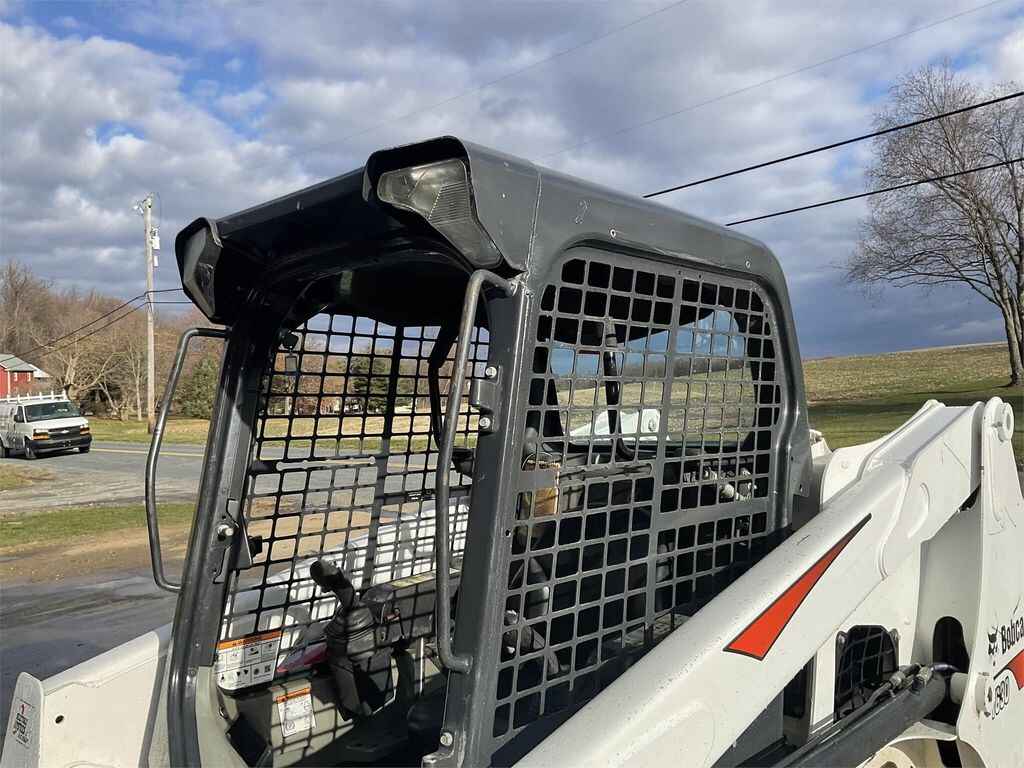

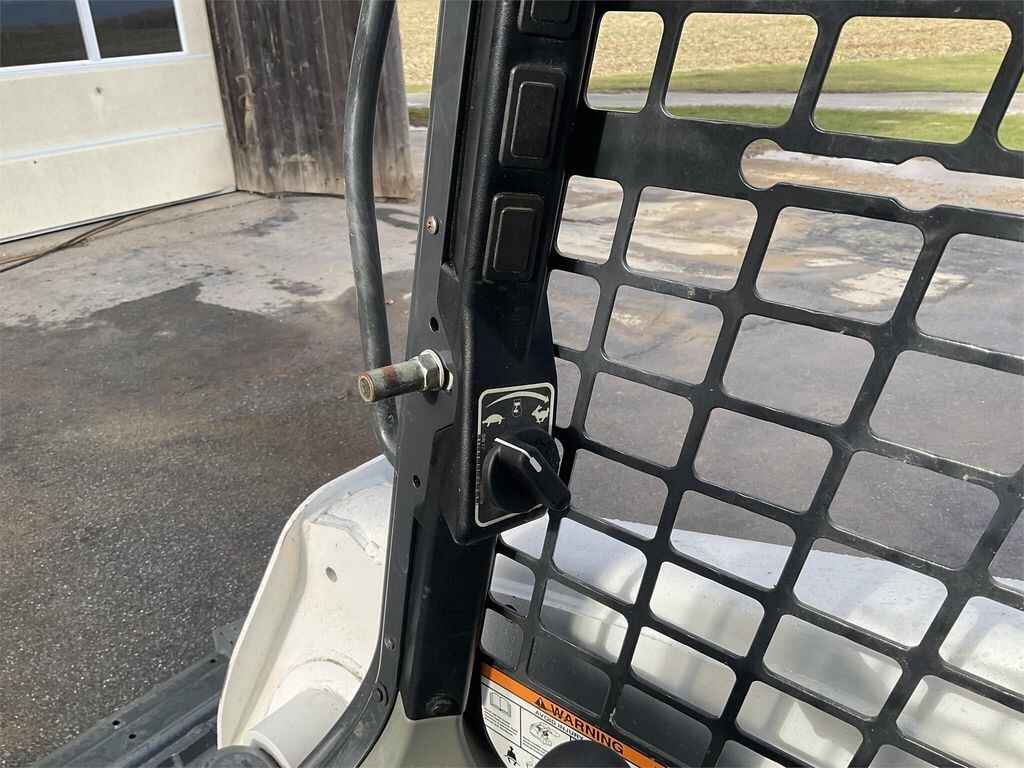

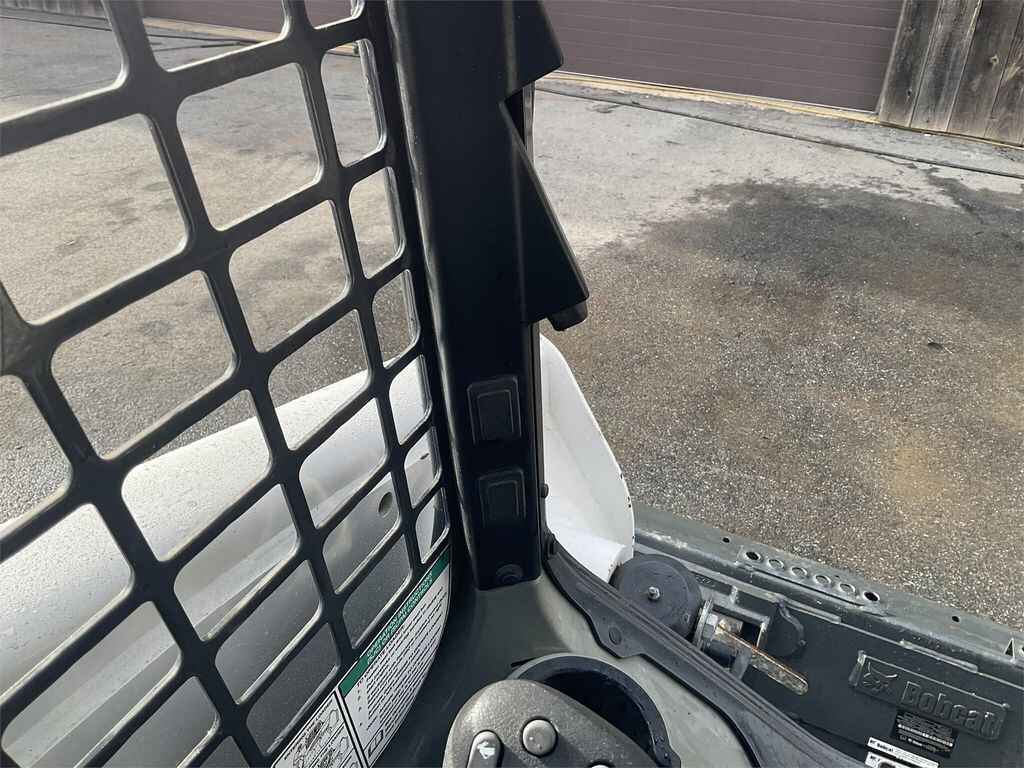

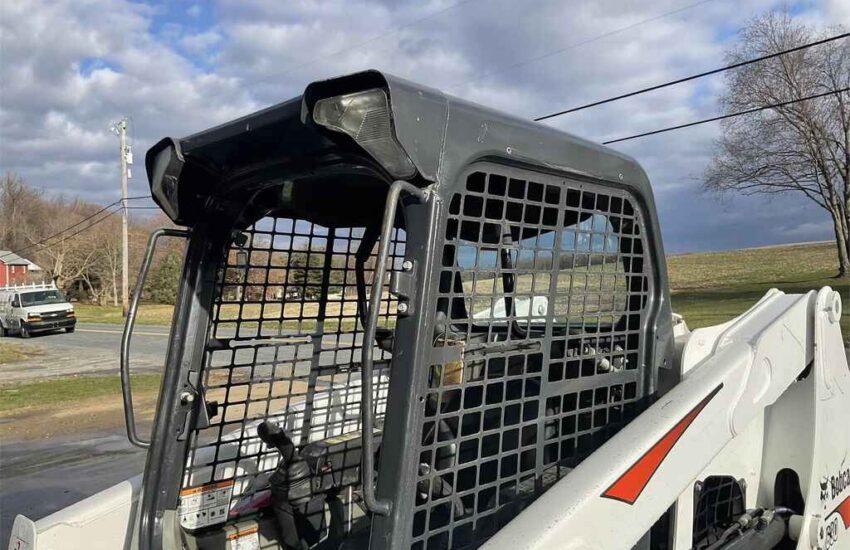

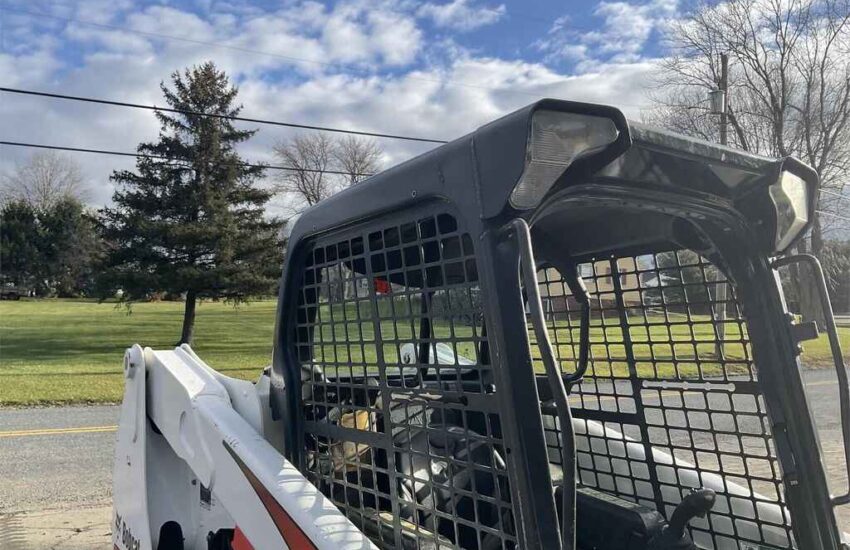

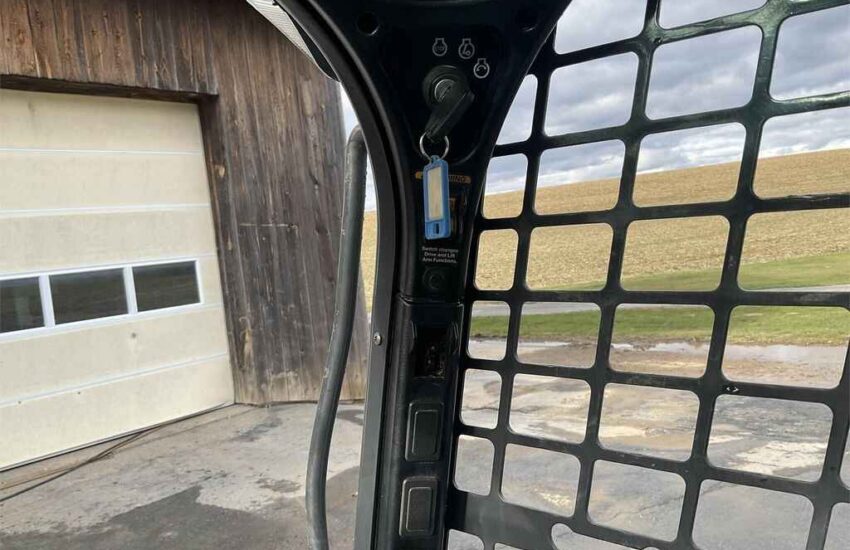

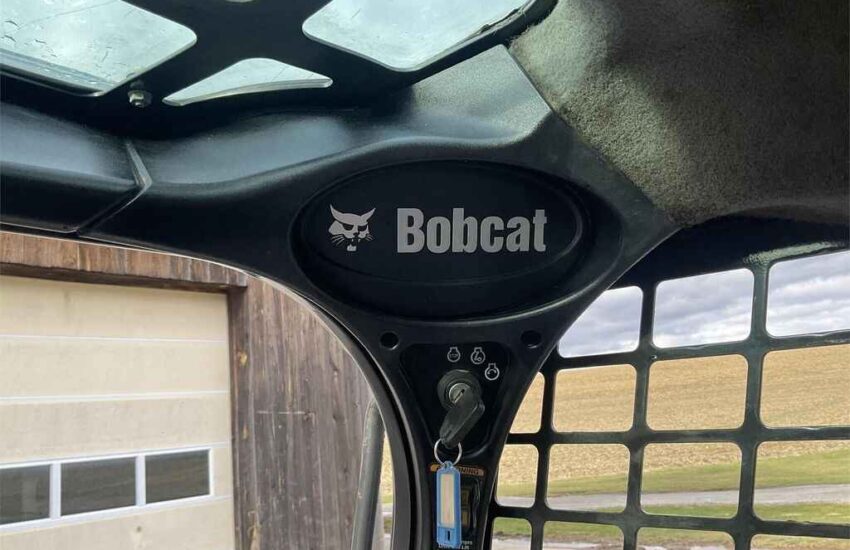

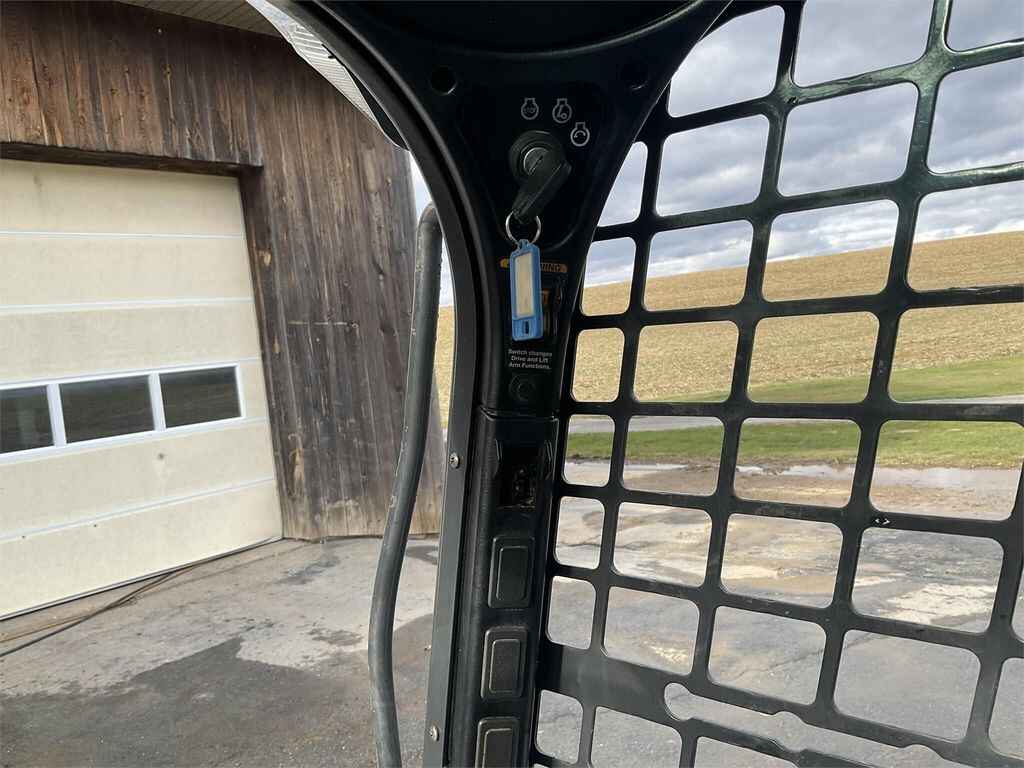

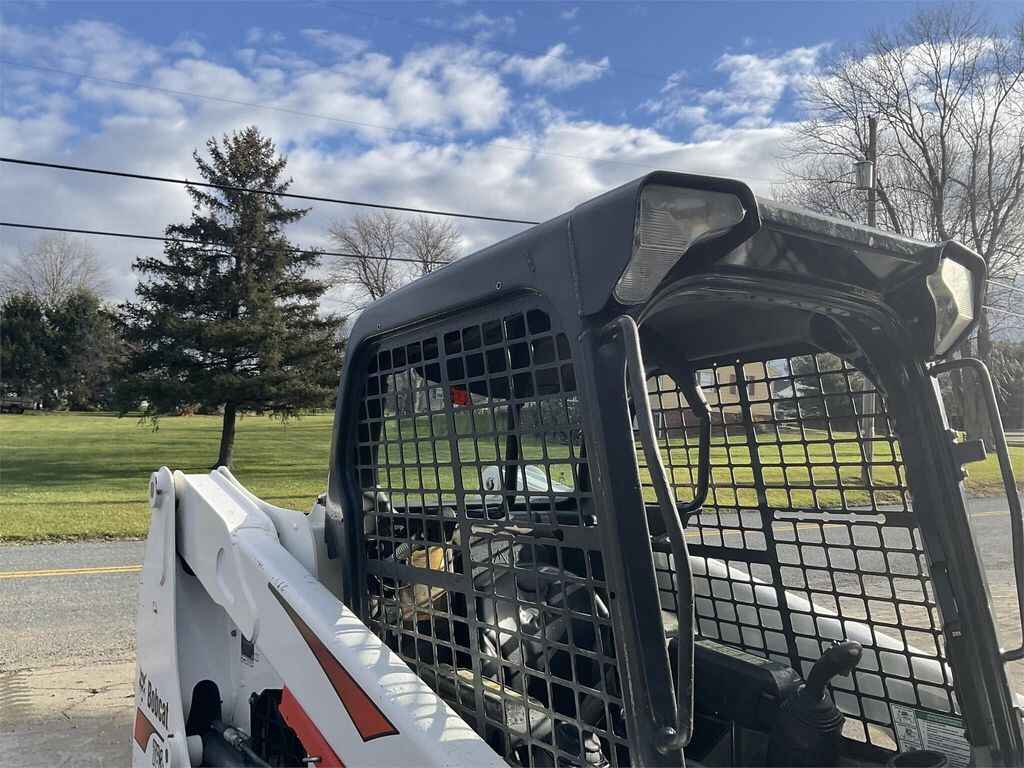

– OPEN ROPS Canopy
– ONLY 1,380 Hours!

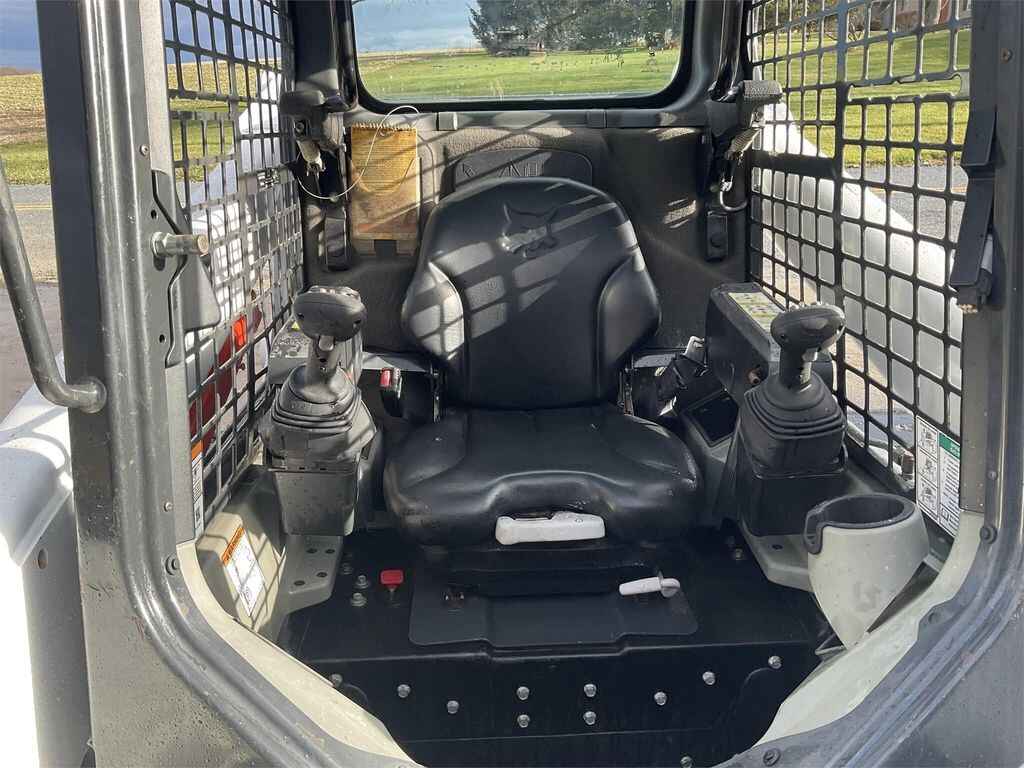

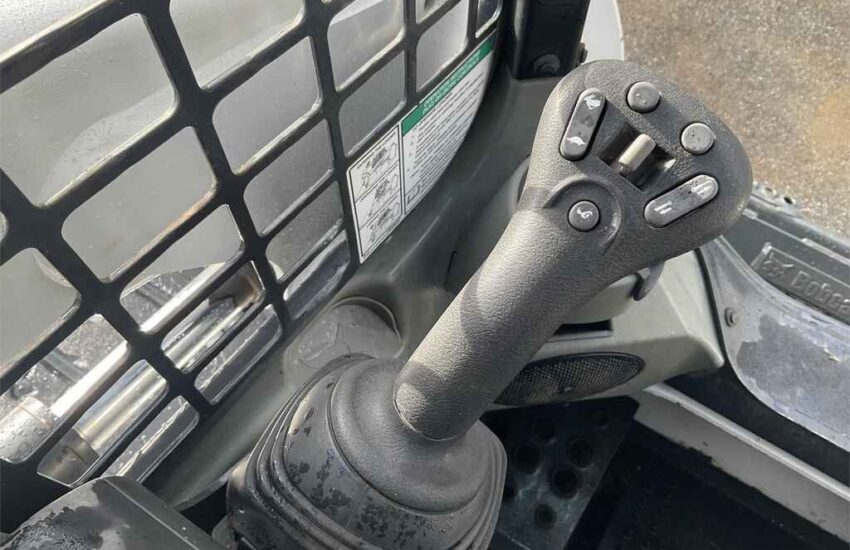

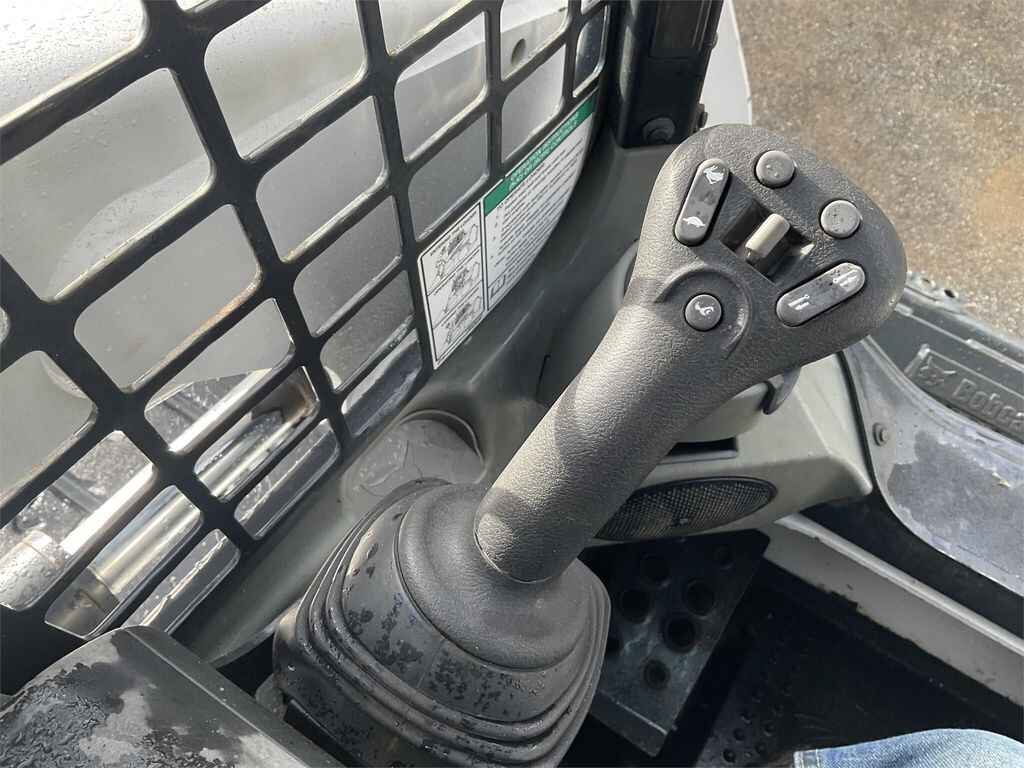

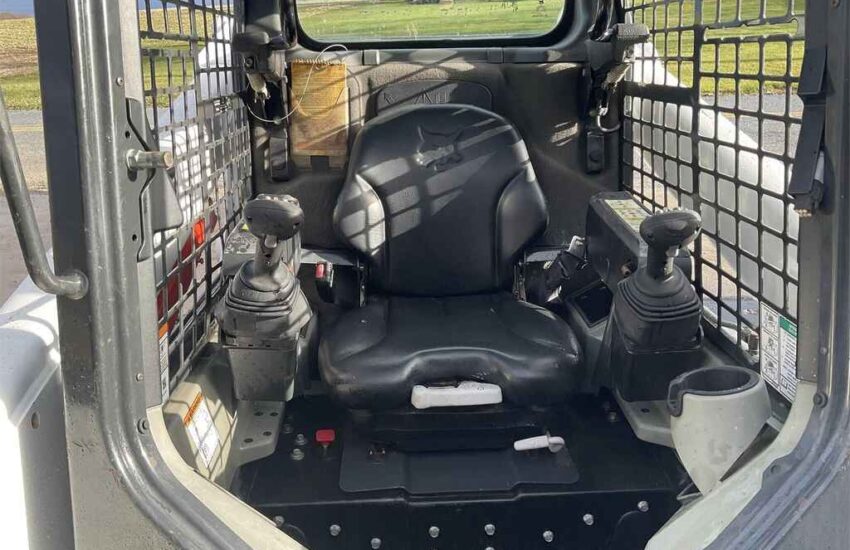

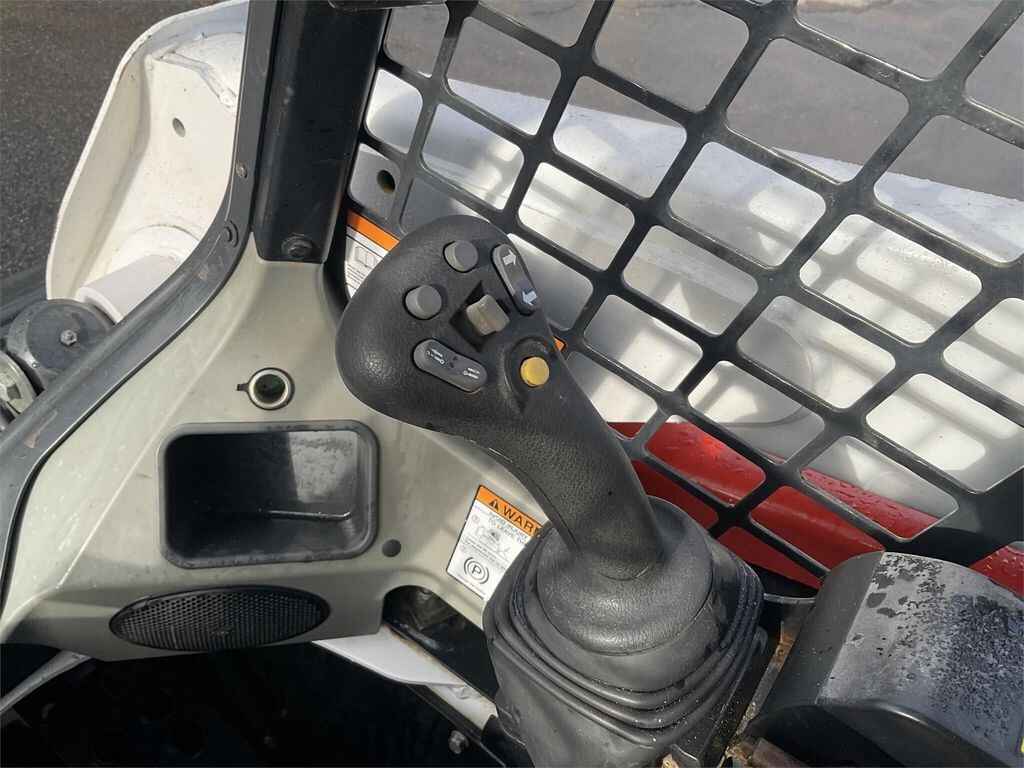

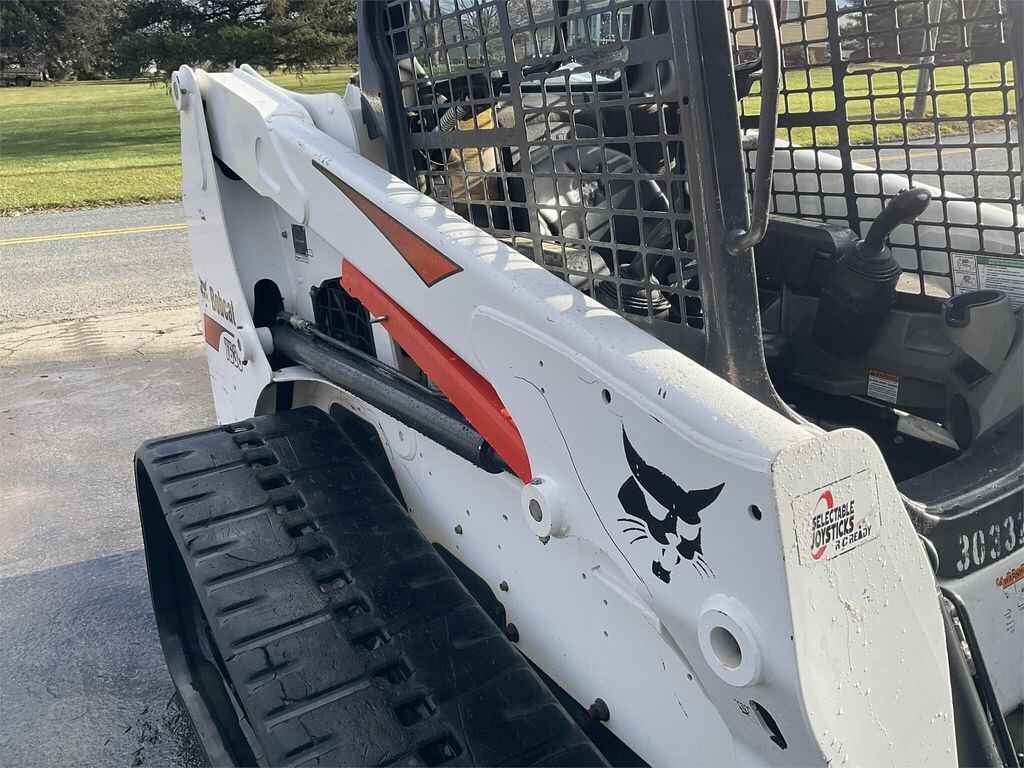

– SJC Joystick Controls
– Single Speed Travel

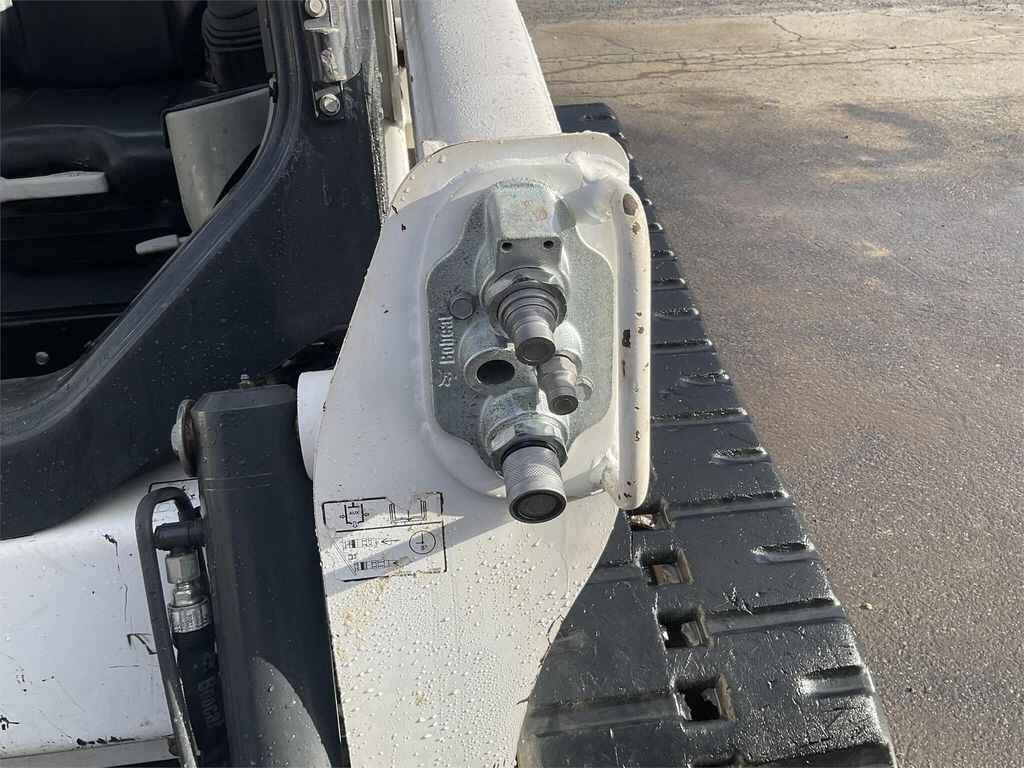

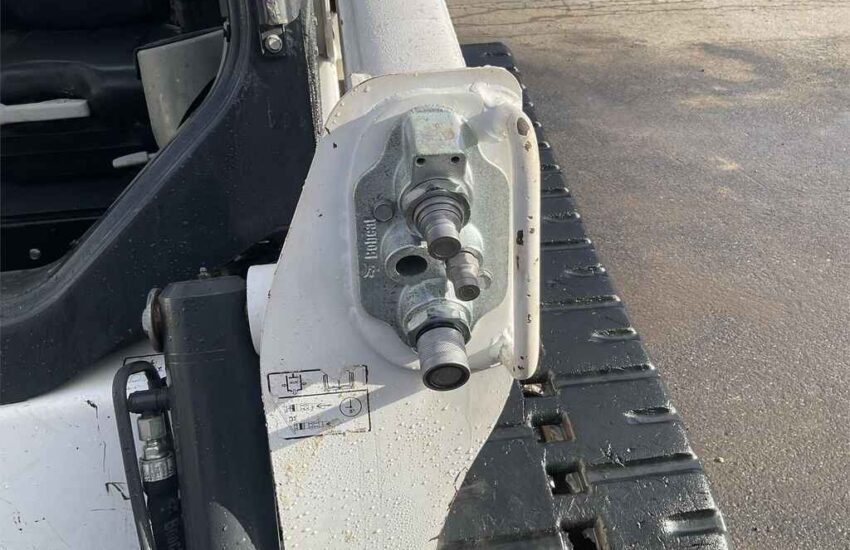

– Standard Flow Auxiliary Hydraulics – 23 Gallon Per Minute Flow

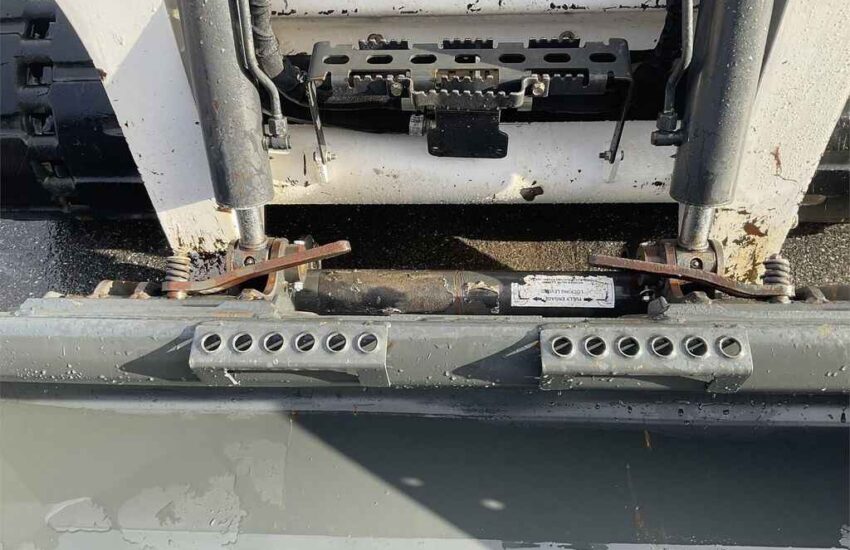

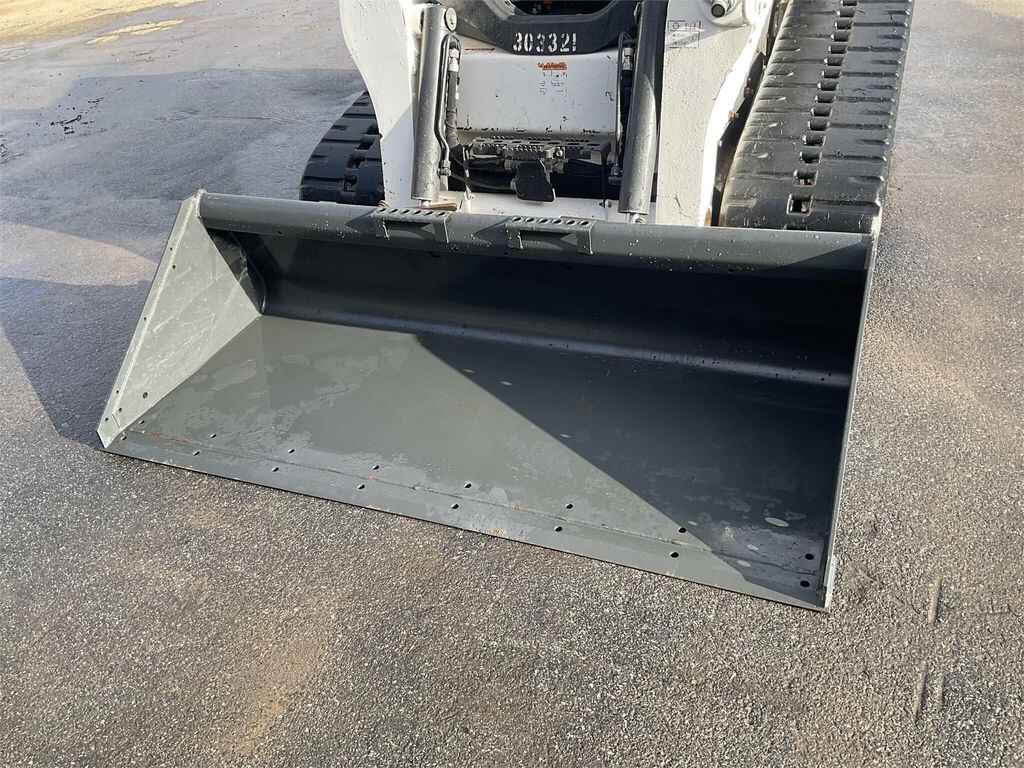

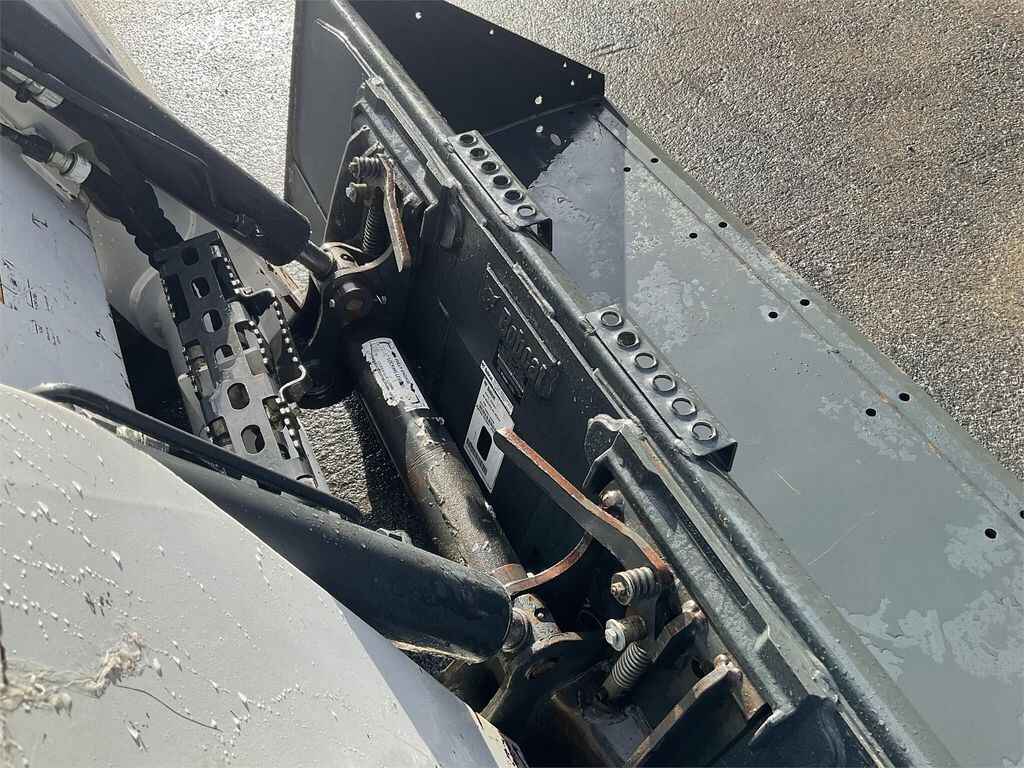

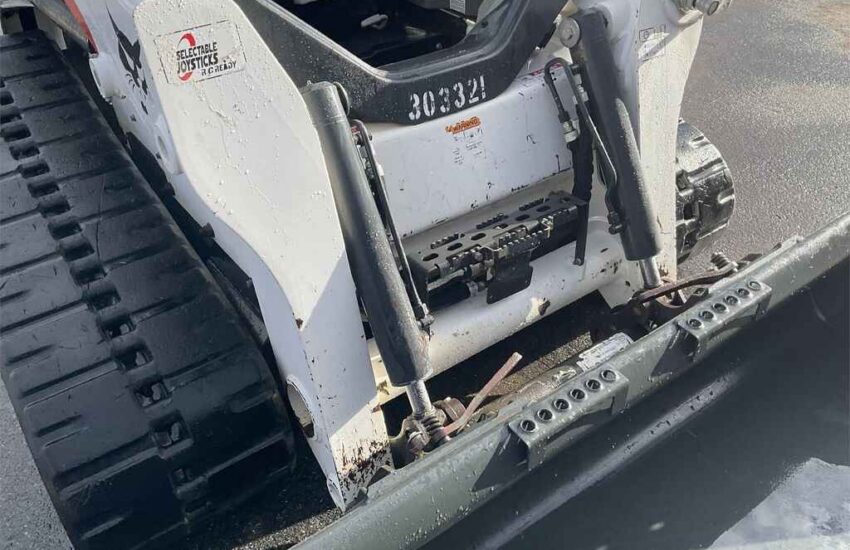

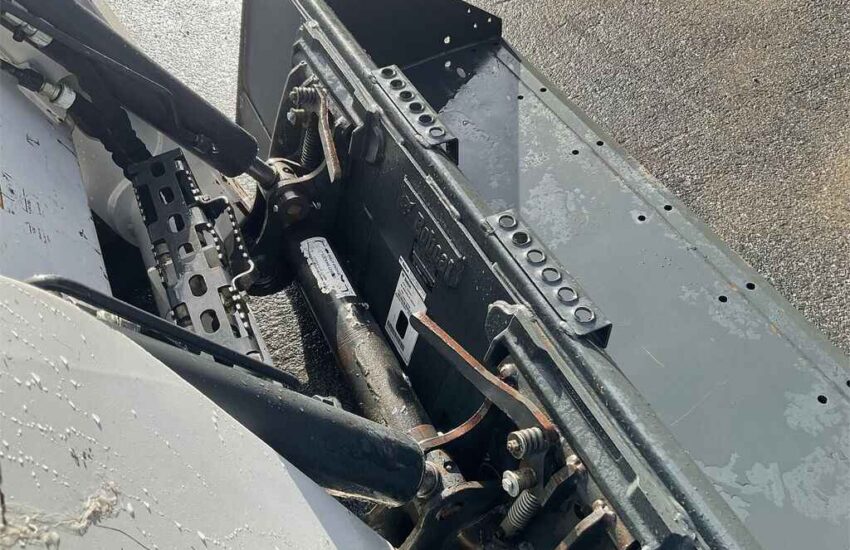

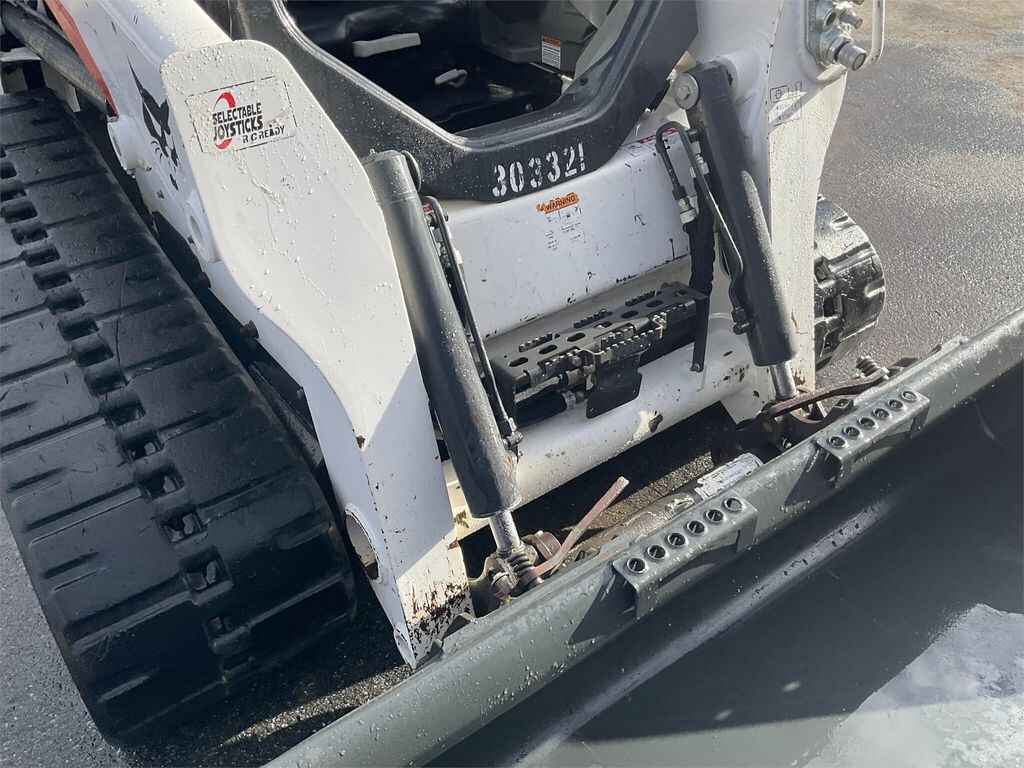

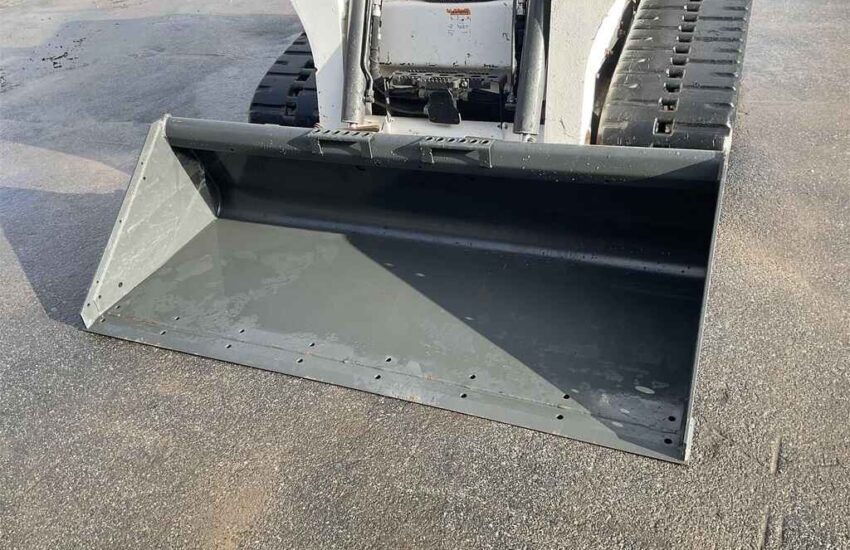

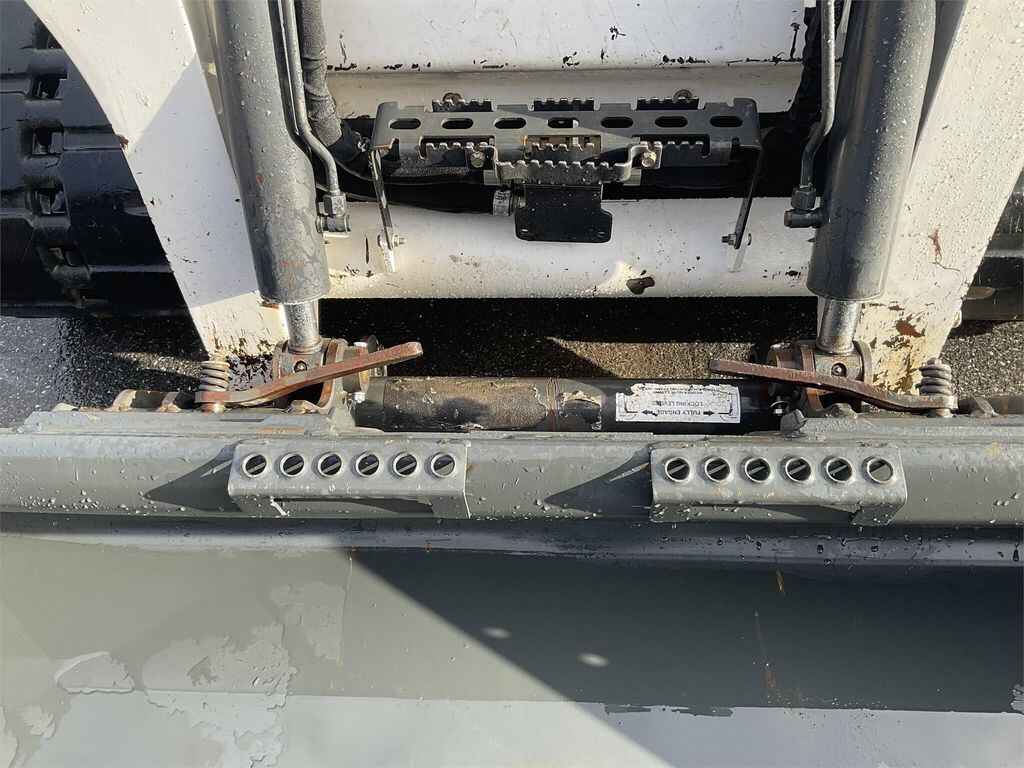

– Universal Bucket Coupler
– Clean, Low Hour Skid Steer!

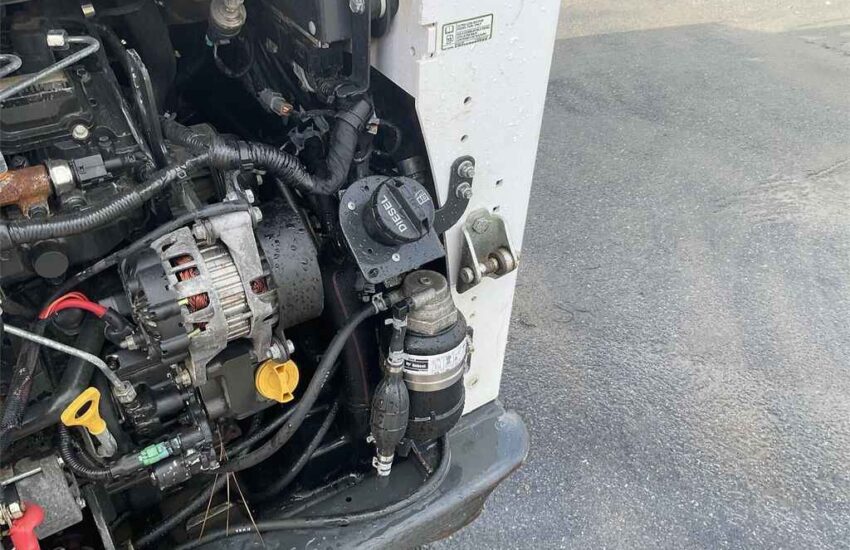

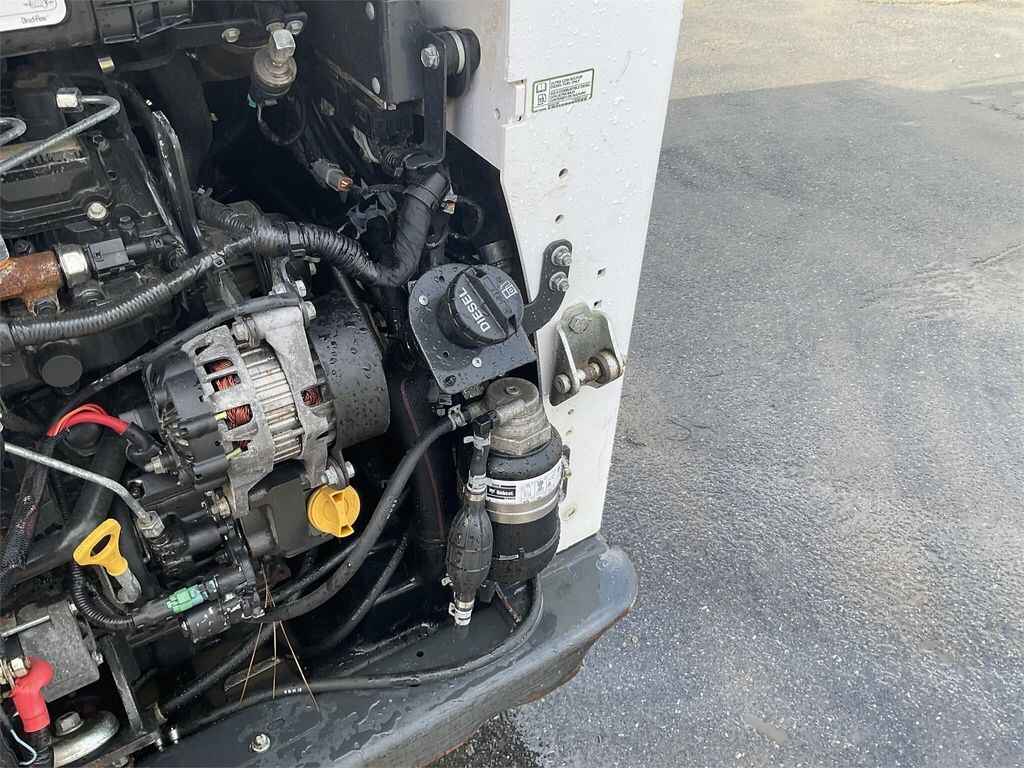

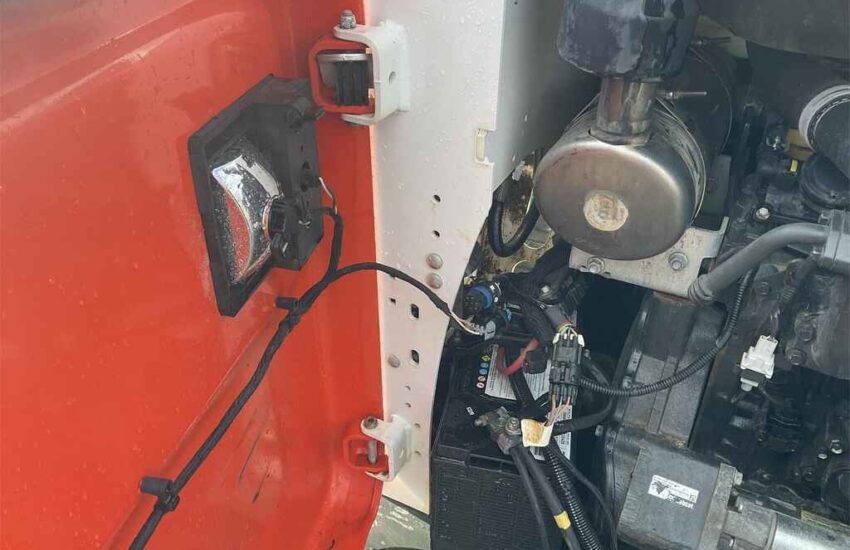

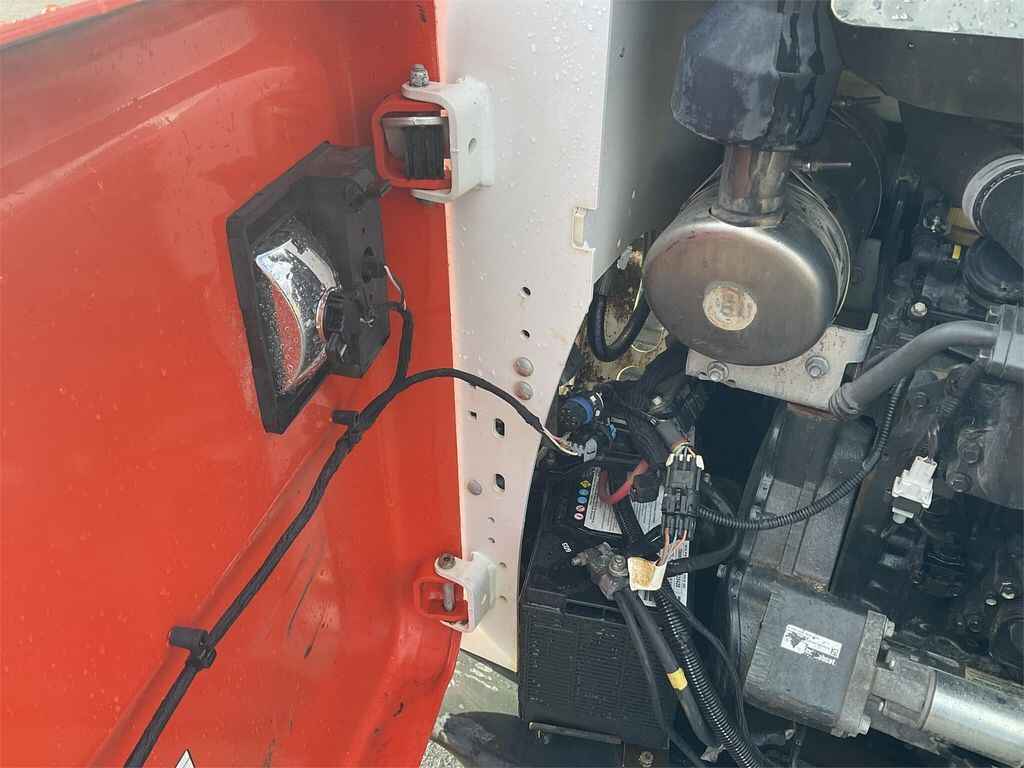

Engine
Model: Kubota V3307-DI-T
Gross Power: 74.3 hp (55.4 kW)
Net Power: 70.3 hp (52.4 kW)
Displacement: 203.3 in³ (3.3 L)
Fuel Capacity: 27.3 gal (103.3 L)
Weights
Operating Weight: 8,555 lbs (3,880 kg)
Performance
Rated Operating Capacity (35% of Tipping Load): 2,230 lbs (1,011.5 kg)
Rated Operating Capacity (50% of Tipping Load): 3,000 lbs (1,360.8 kg)
Tipping Load: 6,371 lbs (2,889.8 kg)
Lift Breakout Force: 6,200 lbs (2,812.3 kg)
Tilt Breakout Force: 6,250 lbs (2,835.0 kg)
Push Force: 5,900 lbs (2,676.0 kg)
Maximum Travel Speed: 6.6 mph (10.6 km/h)
Optional High Speed: 10.7 mph (17.2 km/h)
Ground Pressure: 5.5 psi (37.9 kPa)
Hydraulics
Standard Flow: 23.0 gal/min (87.1 L/min)
Optional High Flow: 30.5 gal/min (115.5 L/min)
System Relief Pressure: 3,550 psi (24.5 MPa)
Dimensions
Height: 81.3 in (206.5 cm)
Bucket Hinge Pin Height: 121.0 in (307.3 cm)
Width: 72.9 in (185.1 cm)
Length with Standard Bucket: 136.8 in (347.4 cm)
Dump Height: 93.2 in (236.7 cm)
Dump Reach: 24.1 in (61.2 cm)
Ground Clearance: 9.2 in (23.3 cm)
Dump Angle: 42°
Rollback Angle: 31°
Departure Angle: 31°

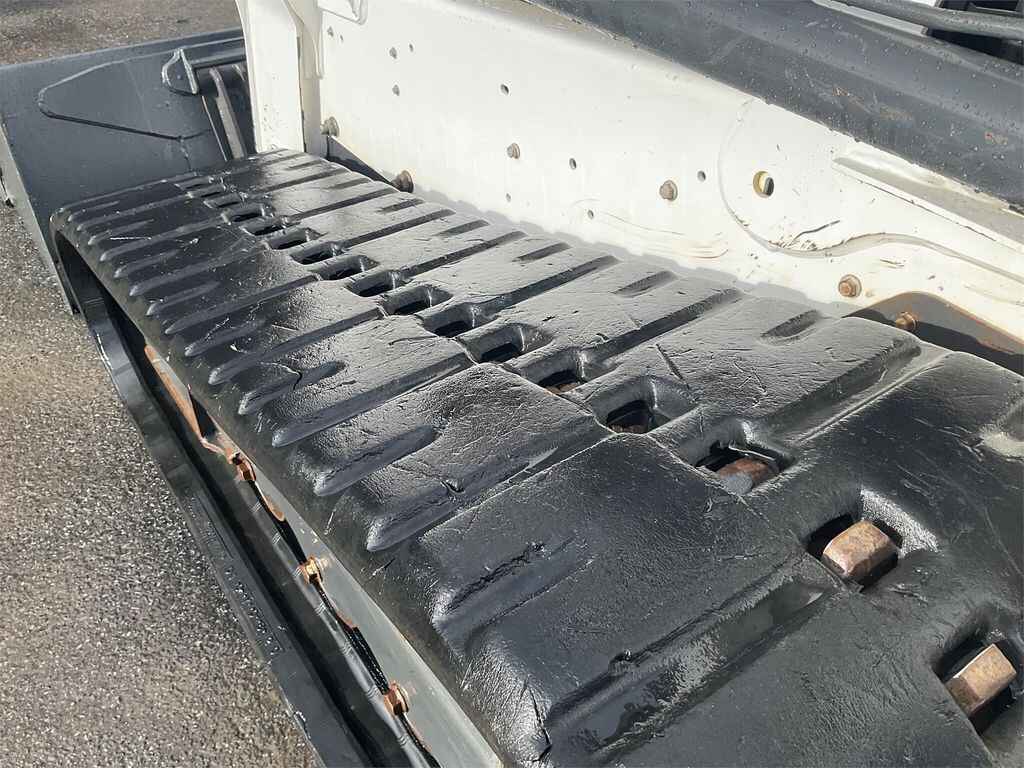

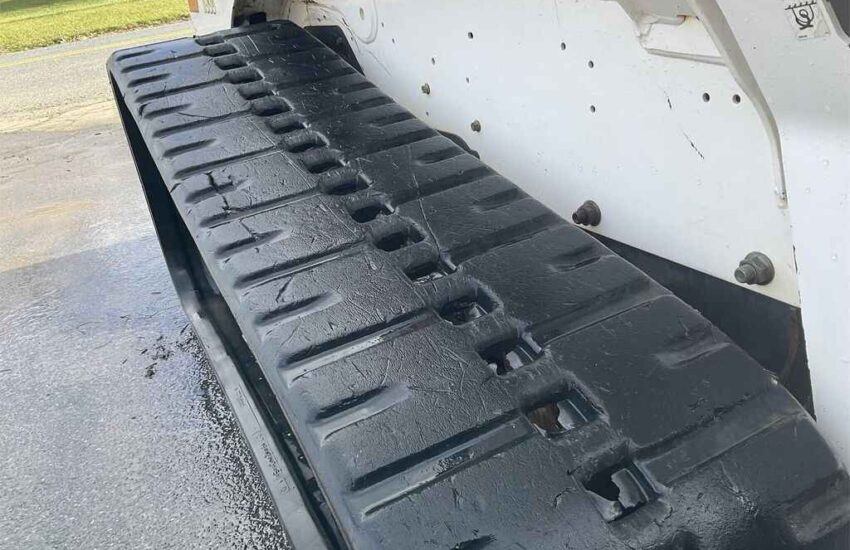

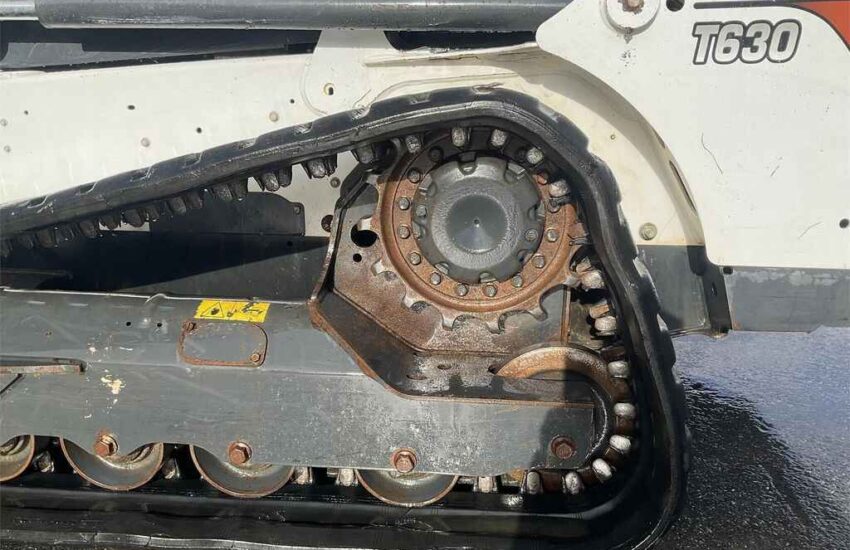

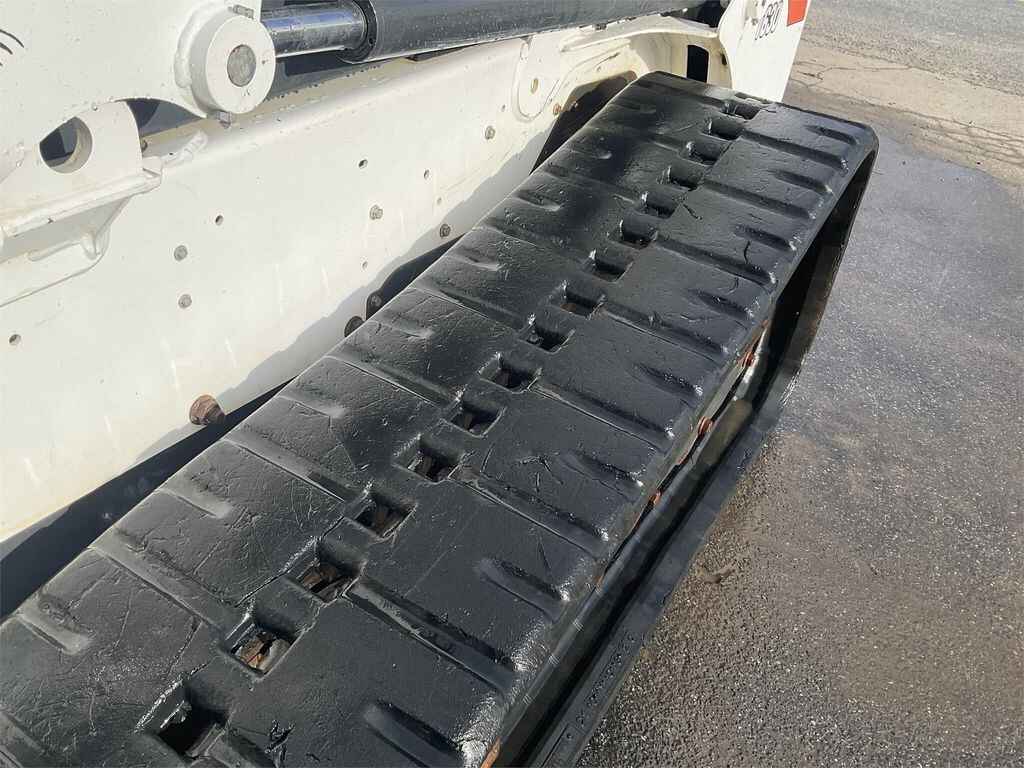

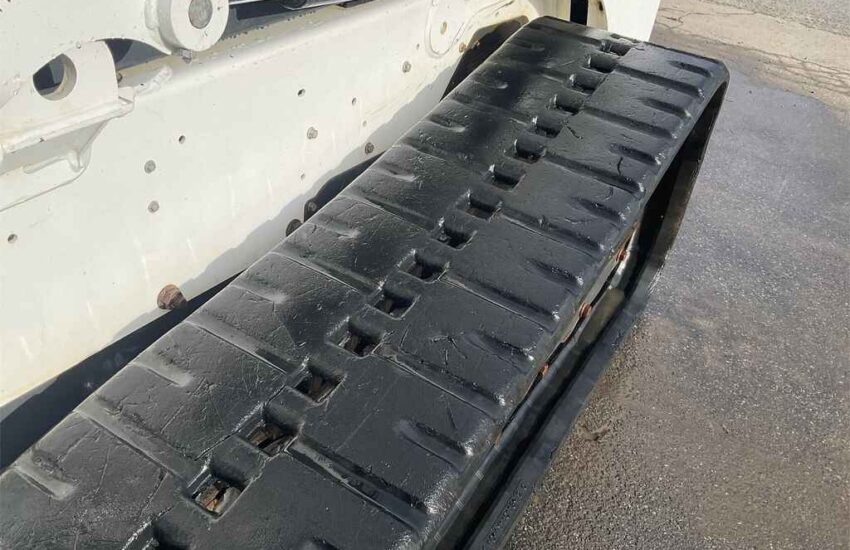

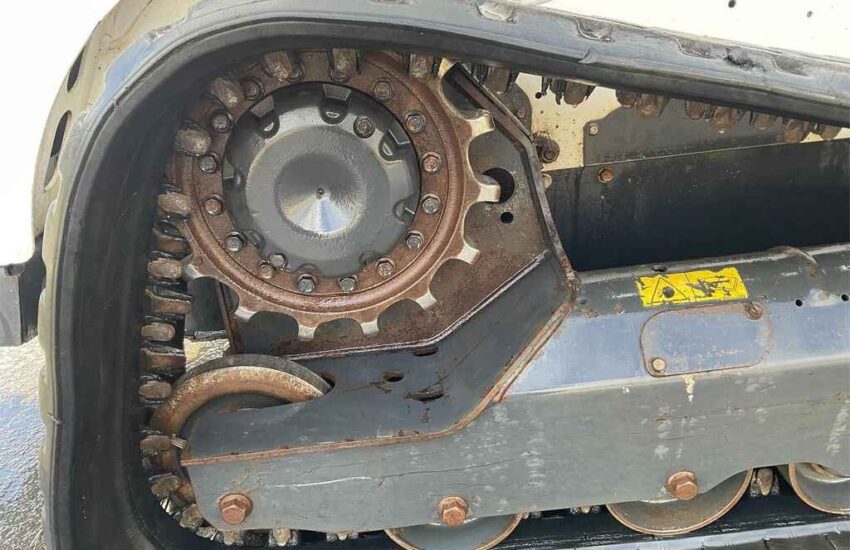

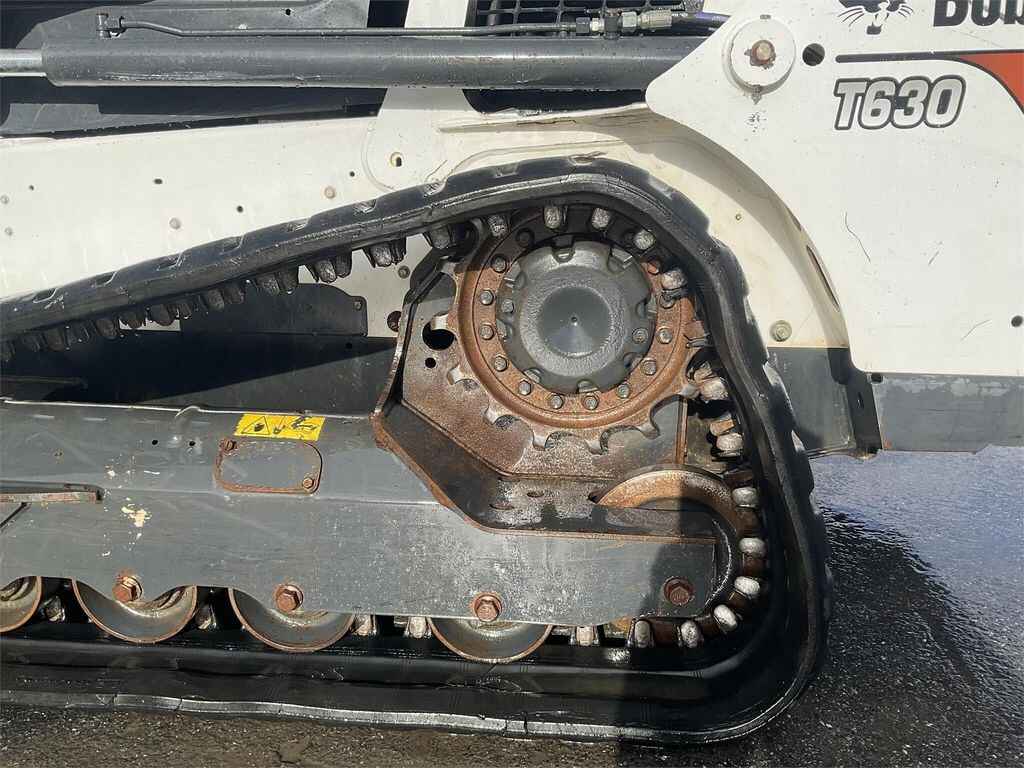

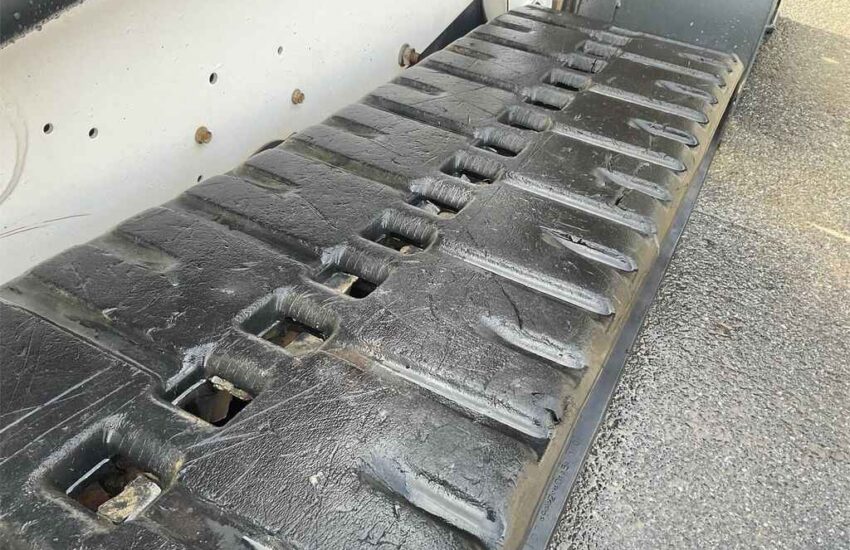

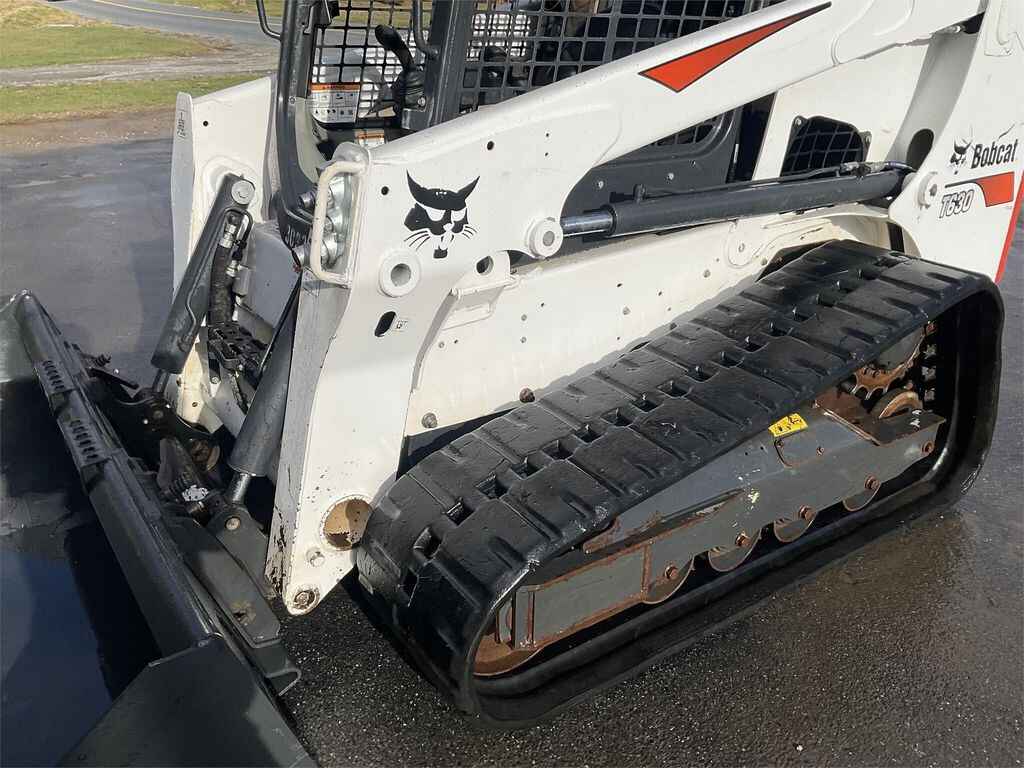

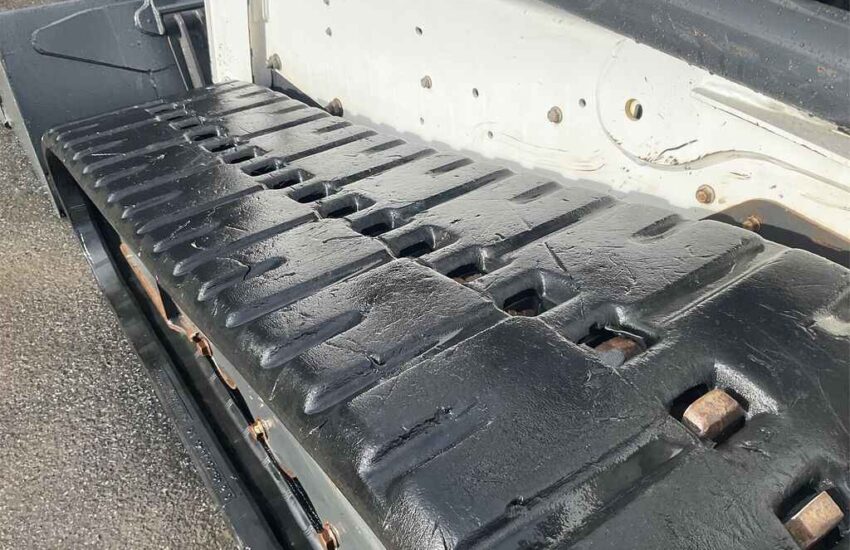

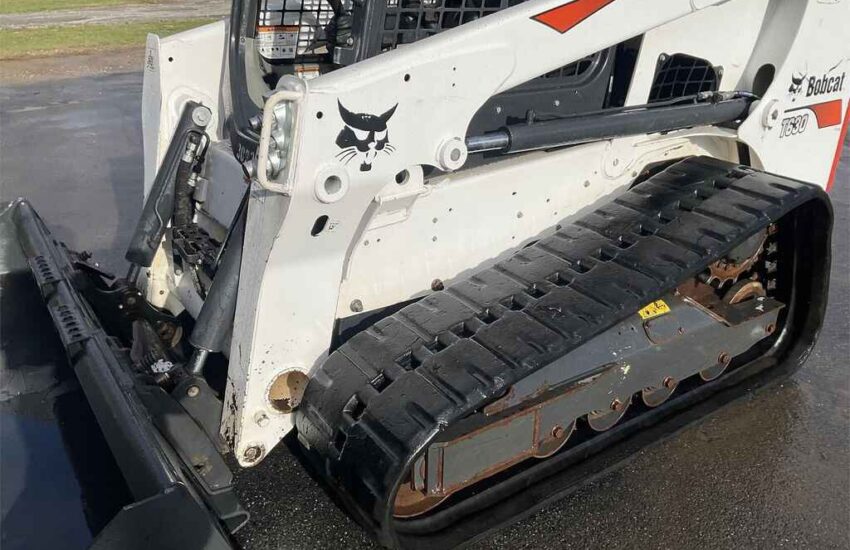

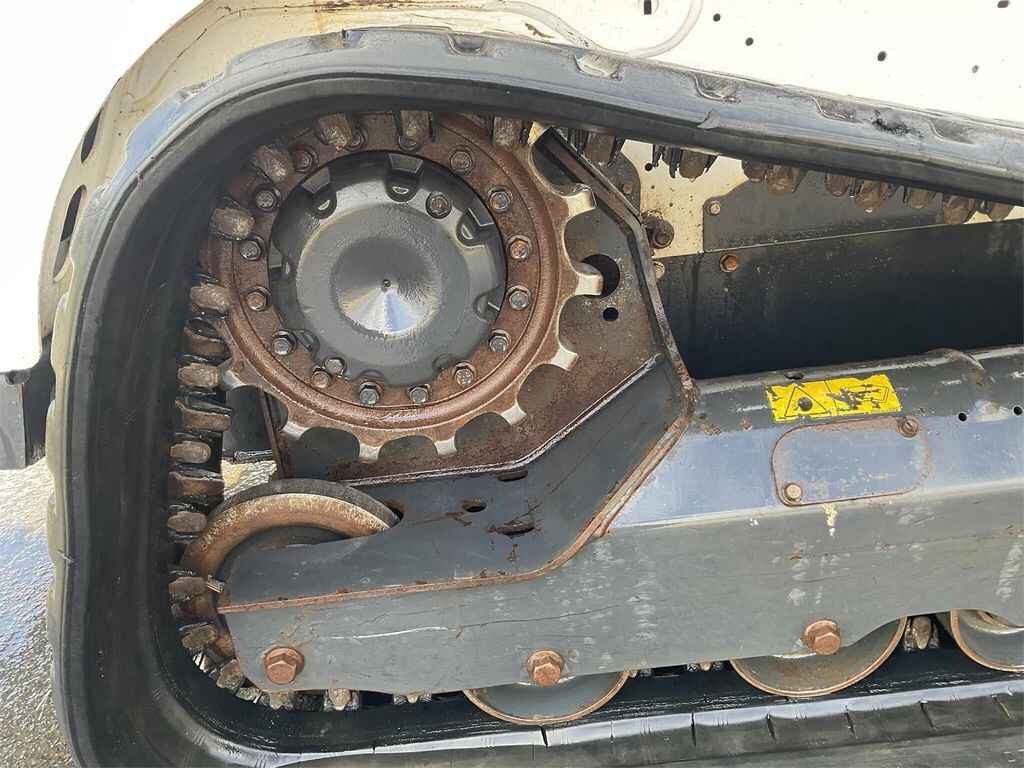

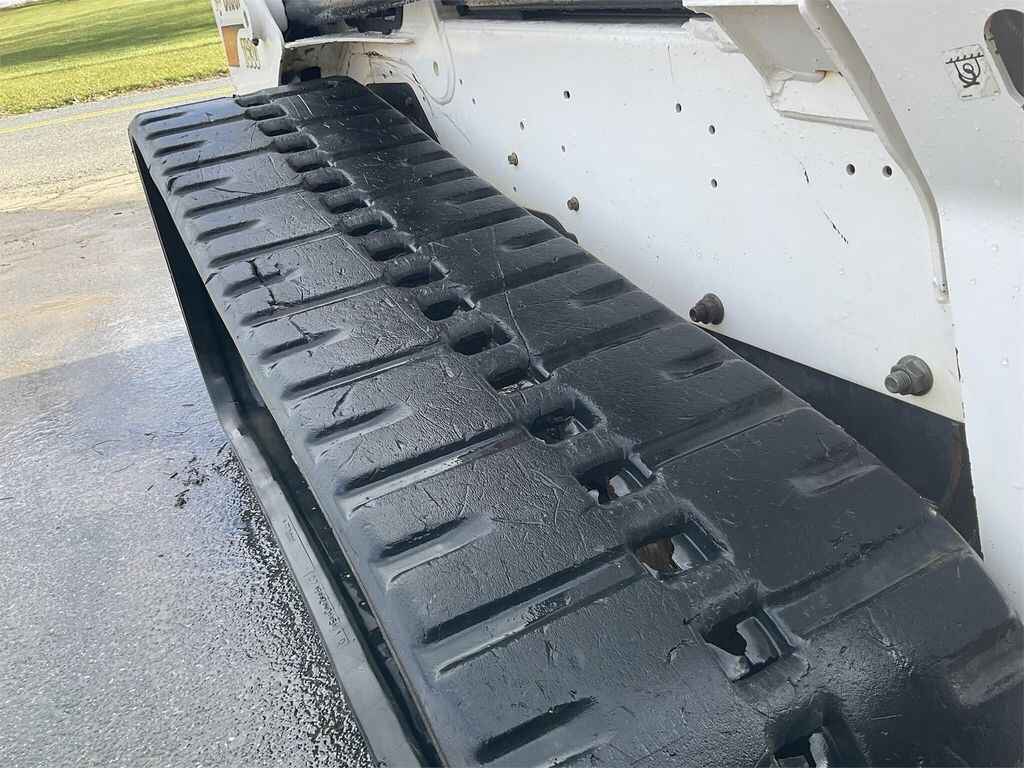

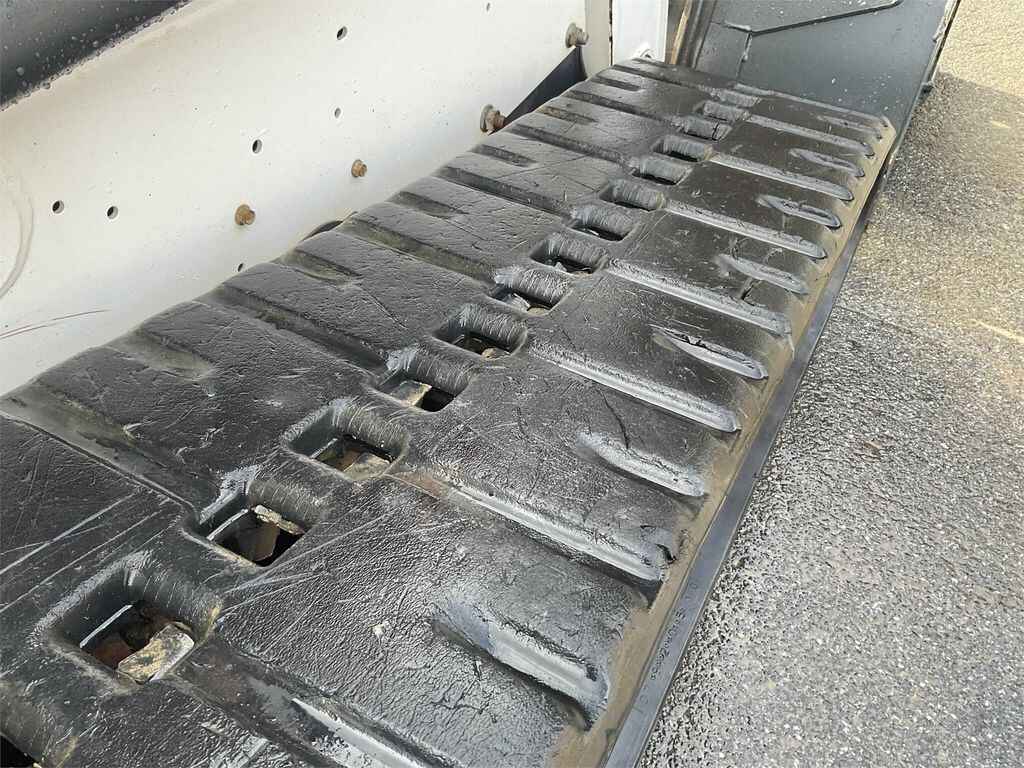

Undercarriage
Track Width: 12.6 in (32.0 cm)
Track Length: 108.4 in (275.3 cm)
Ground Contact Length: 59.0 in (149.9 cm)
Features
- Air Conditioner
- Bluetooth
- Heater
