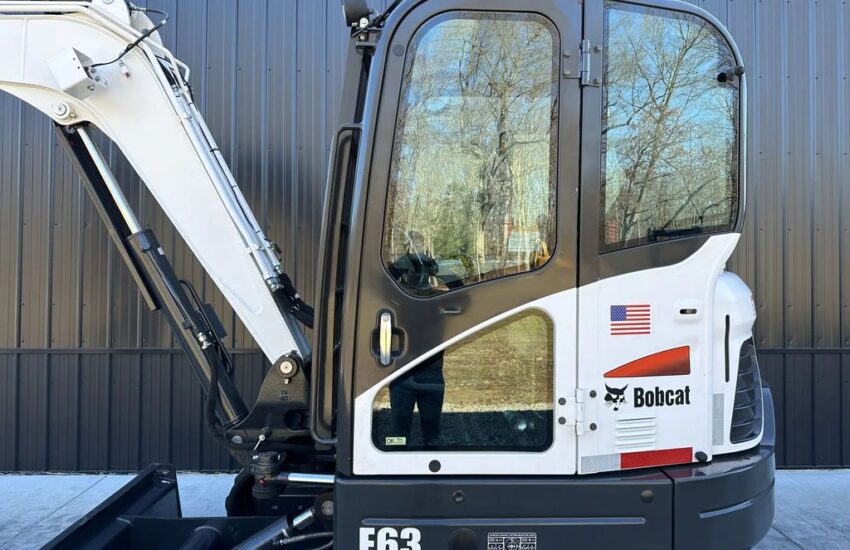

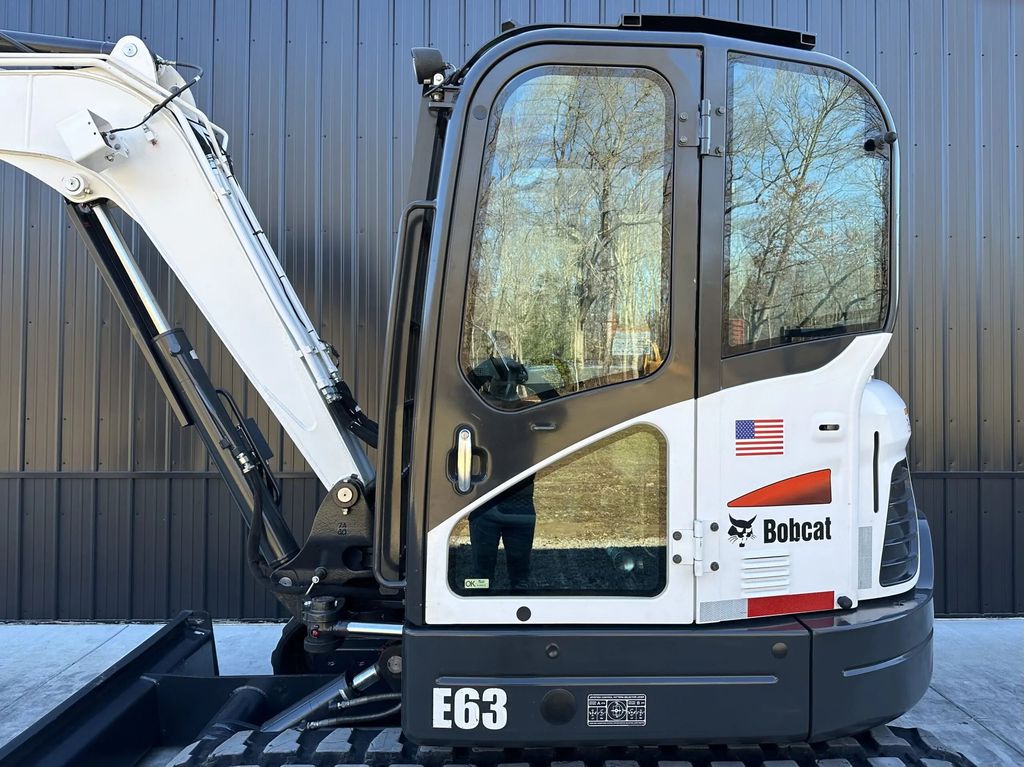

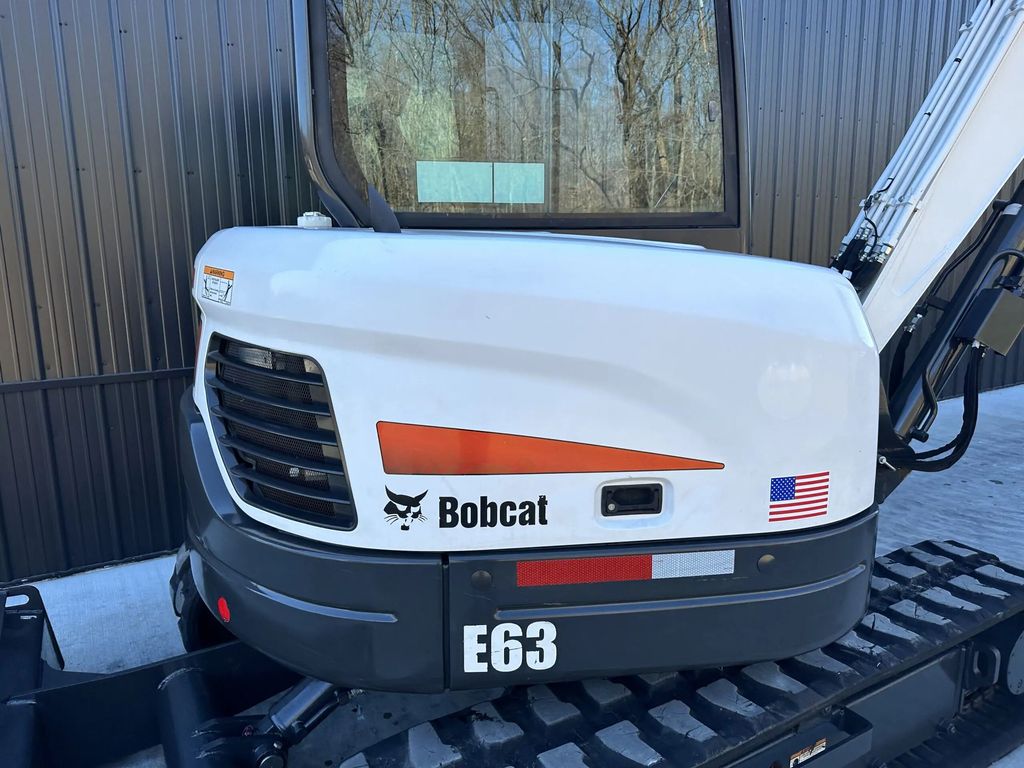

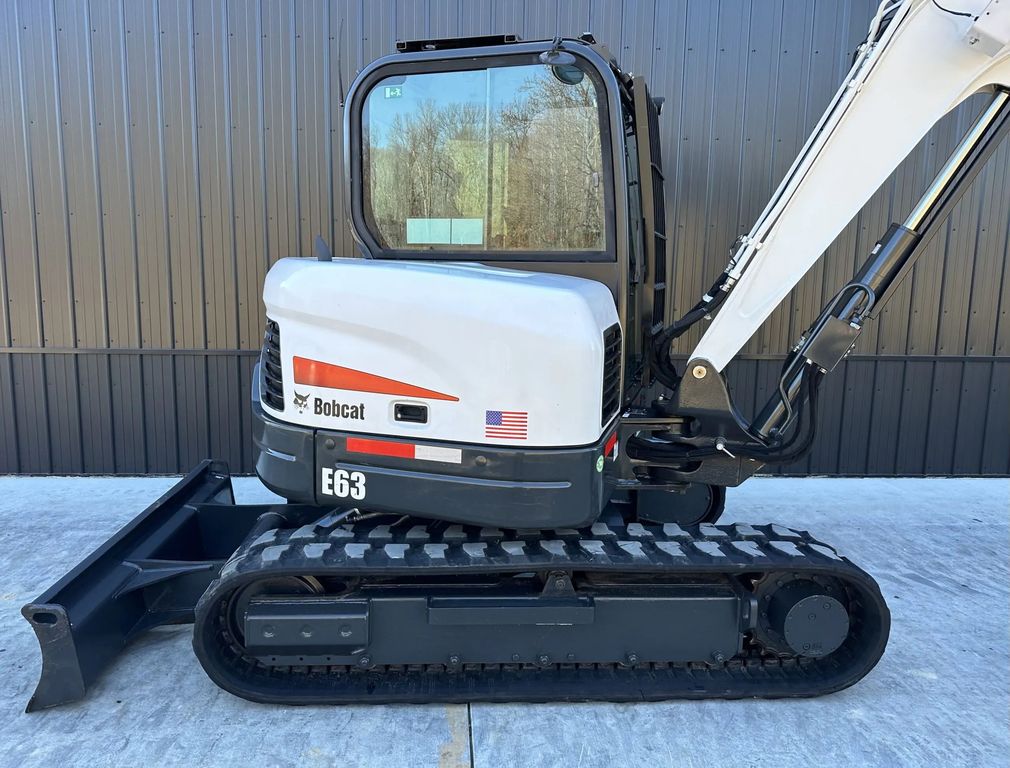

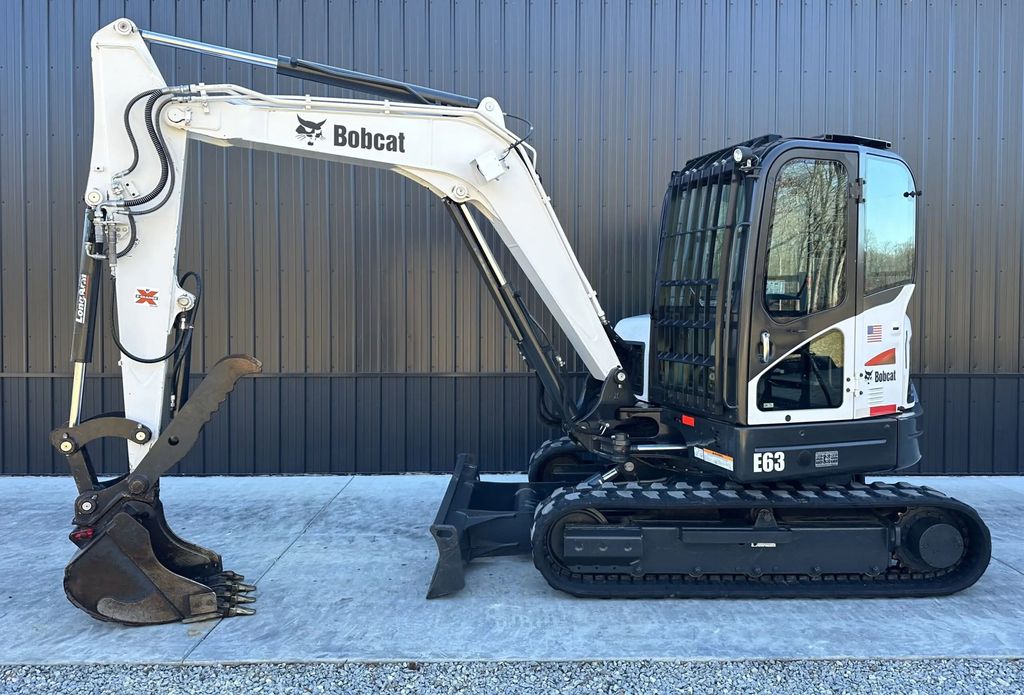

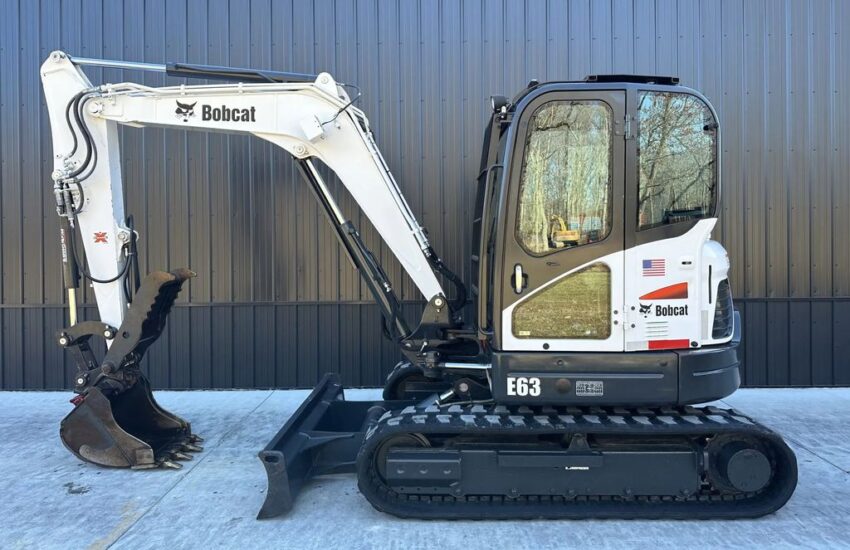

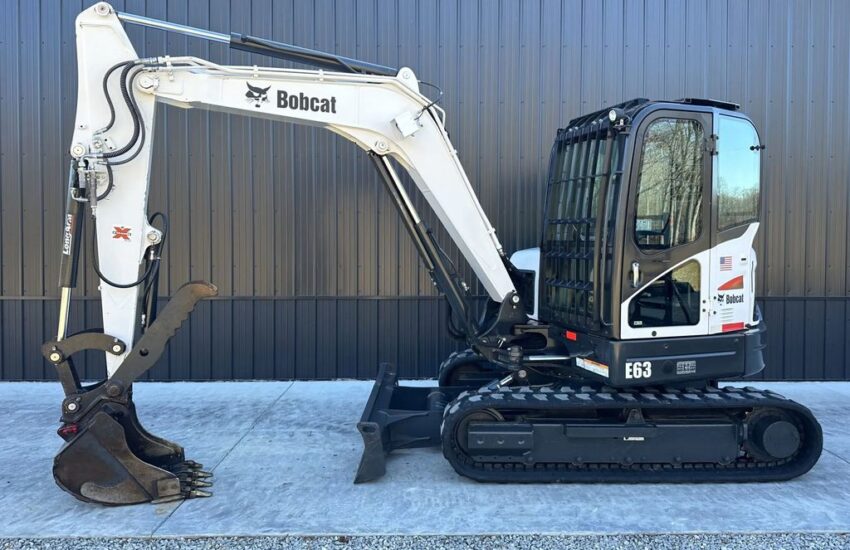

2018 Bobcat E63

2018 BOBCAT E63 Long Arm
PRICE FIRM NO TAX OR FEES

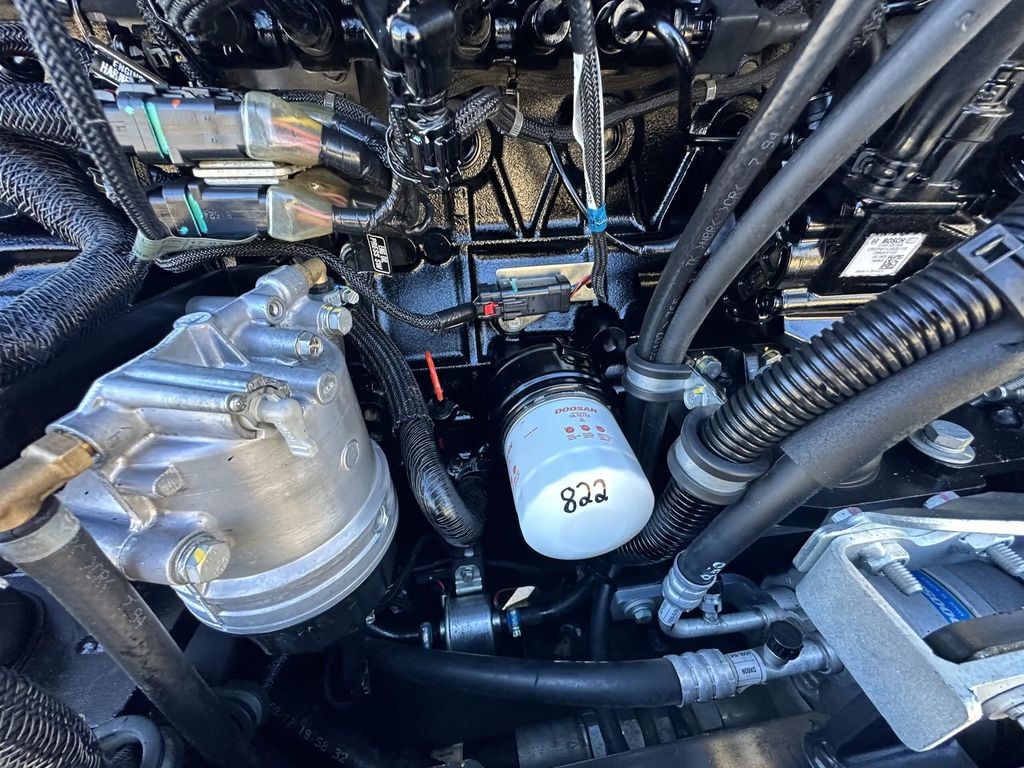

Machine was just fully serviced, cleaned, greased and looked over. Photos just taken.

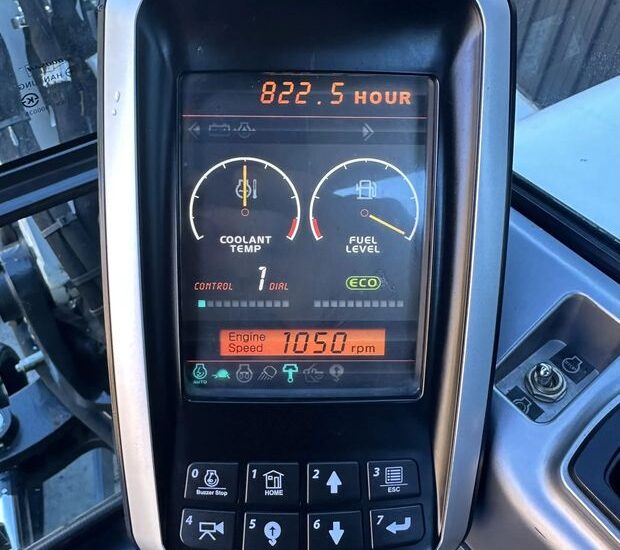

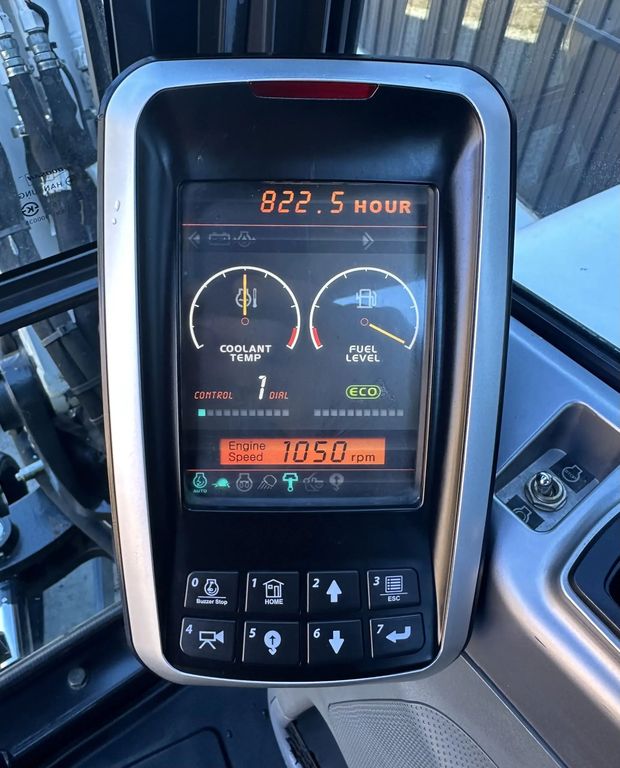

– ONLY 822 Hours!

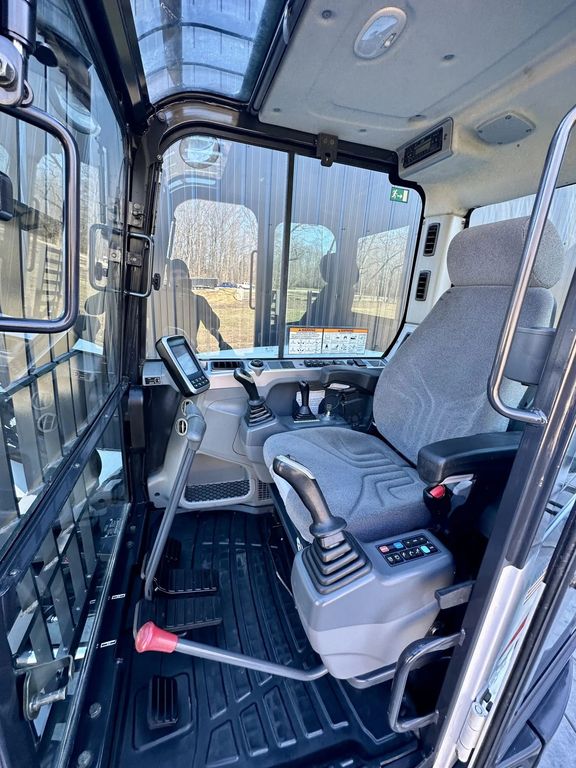

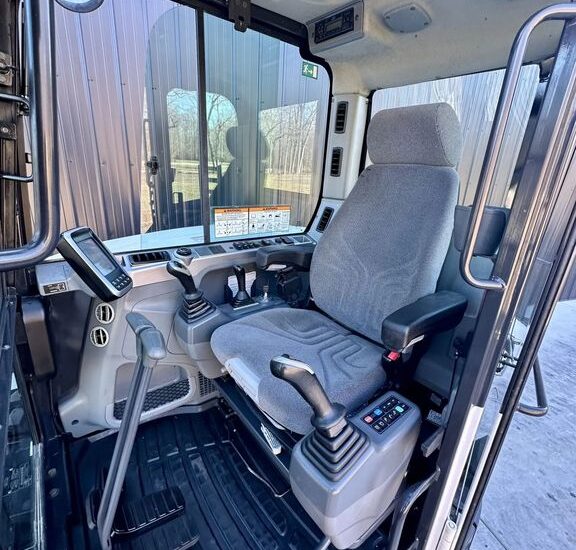

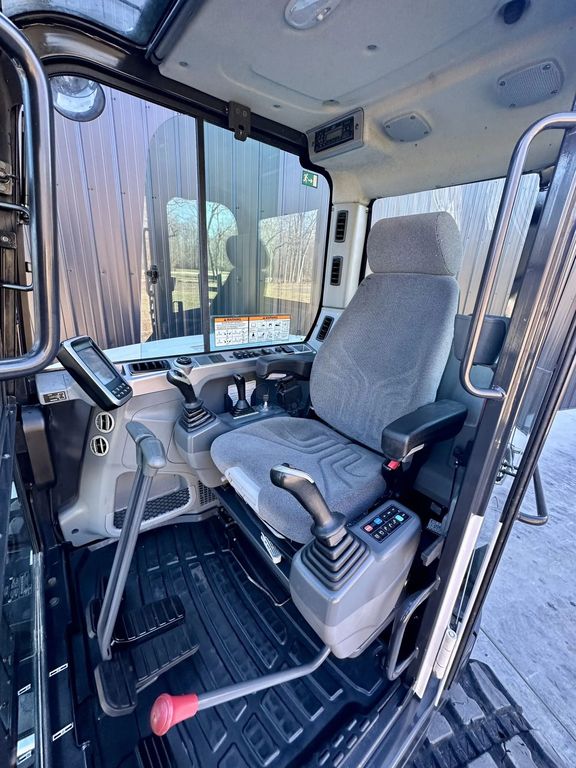

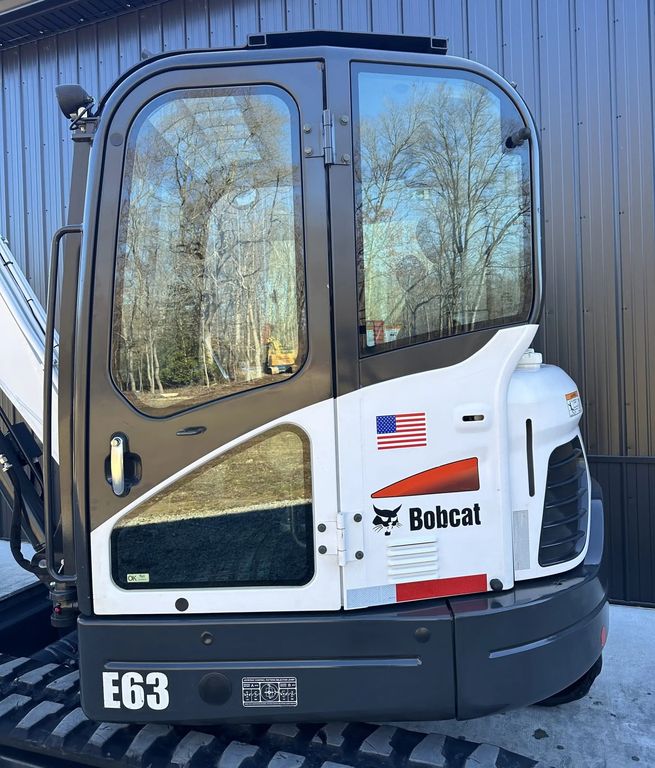

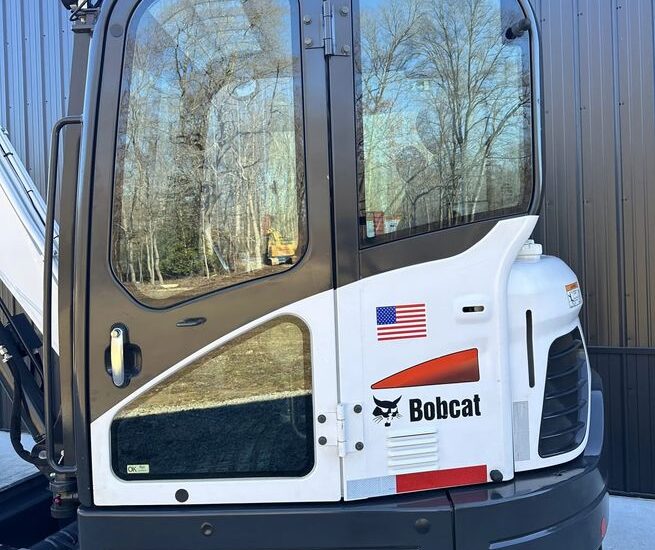

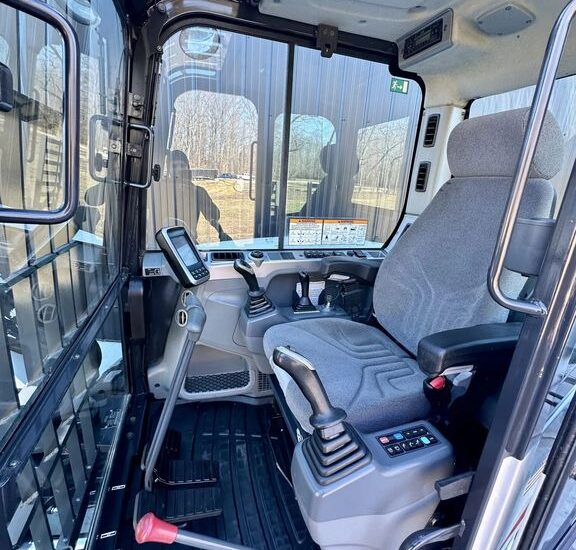

– Heat/AC/Radio

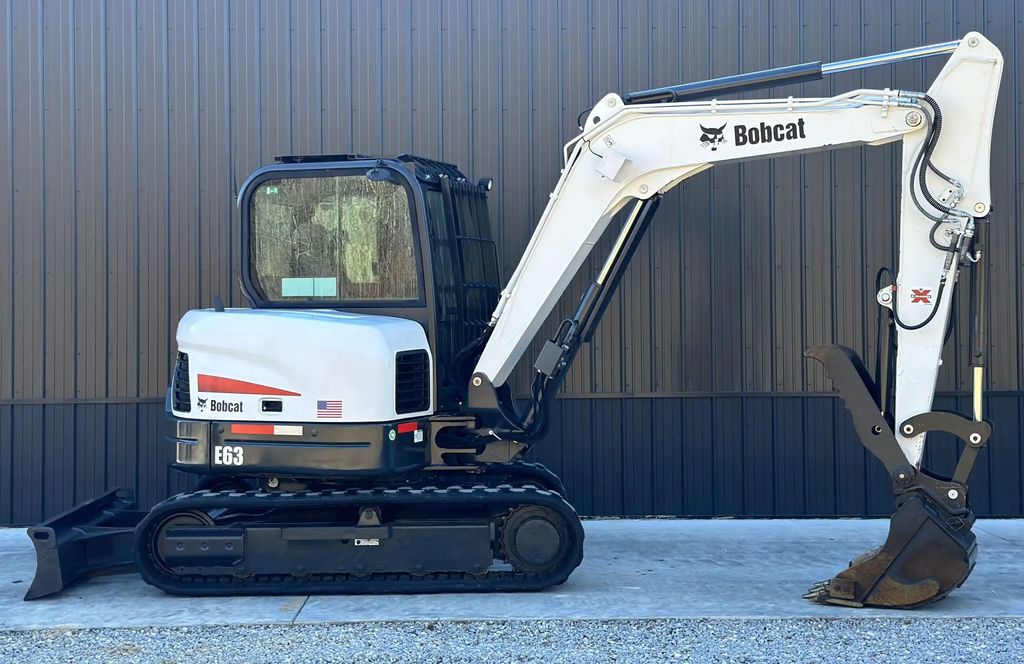

– Long Arm

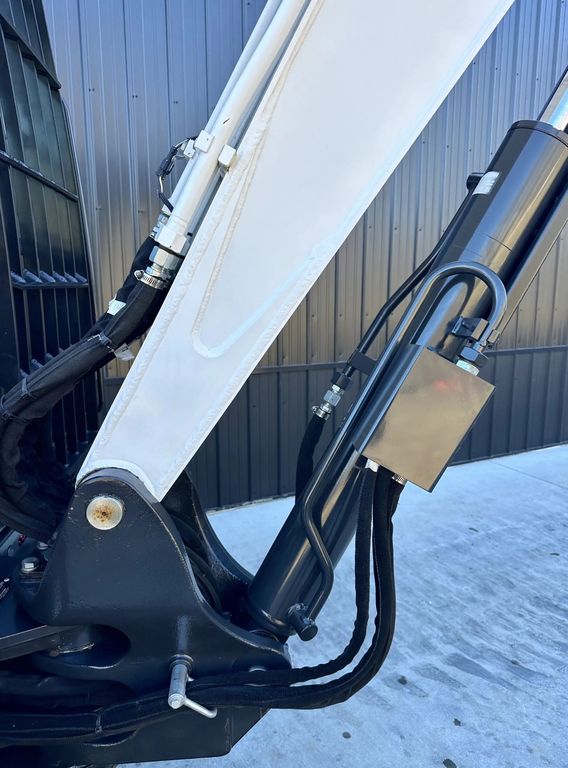

– Hydraulic Thumb
– 2 Speed
– 24” bucket

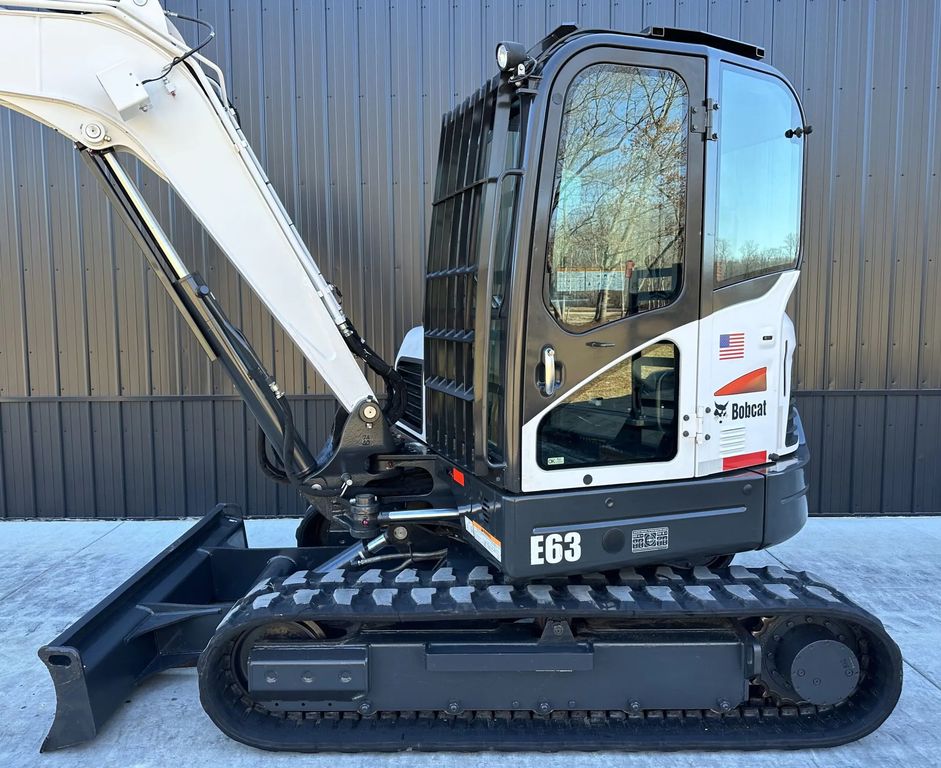

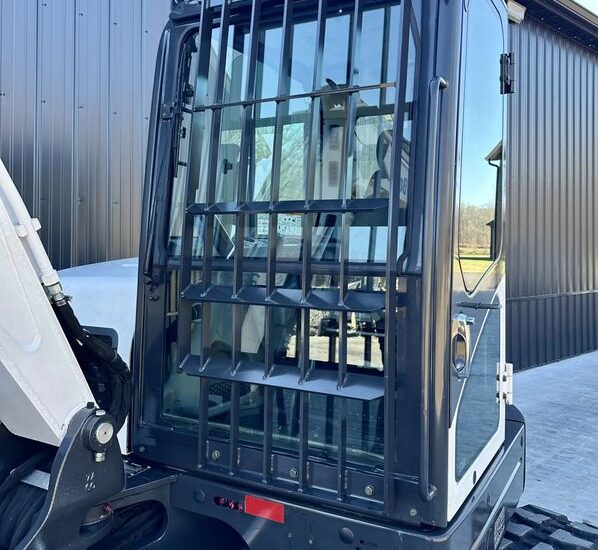

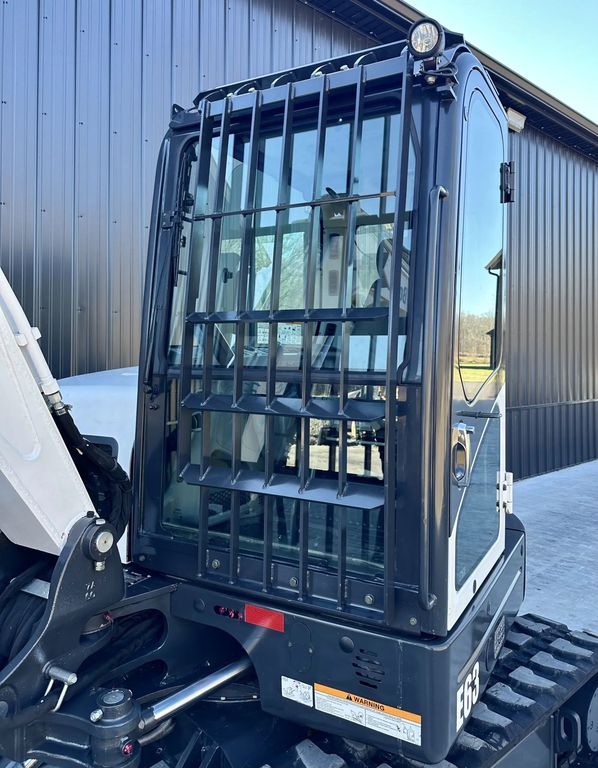

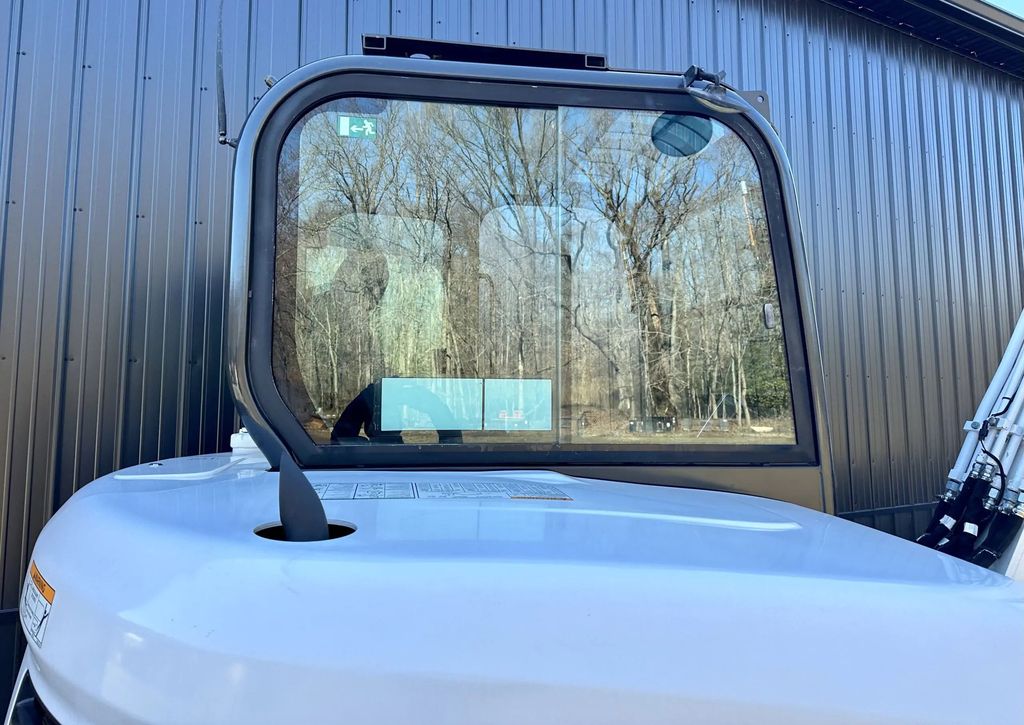

– Forestry door cage
– 13,800 Lbs
– 60 Hp
Machine is TIGHT & READY TO WORK!

SPECIFICATIONS

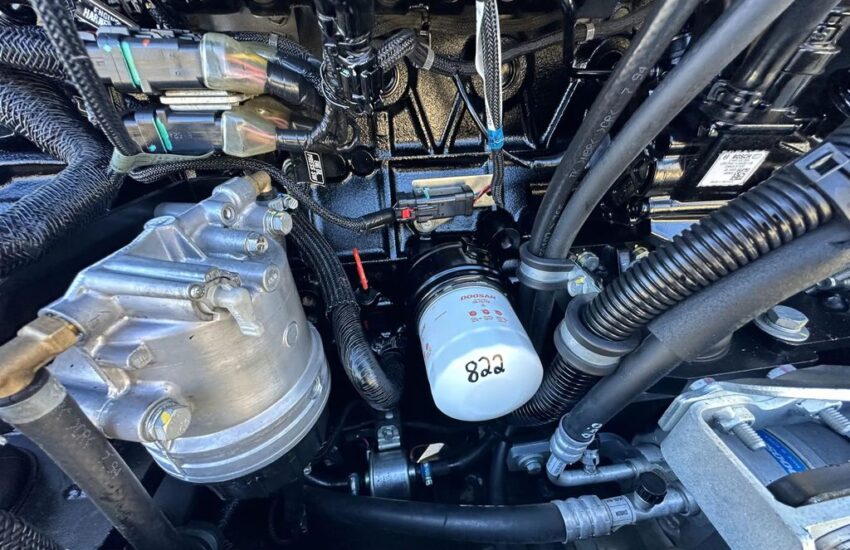

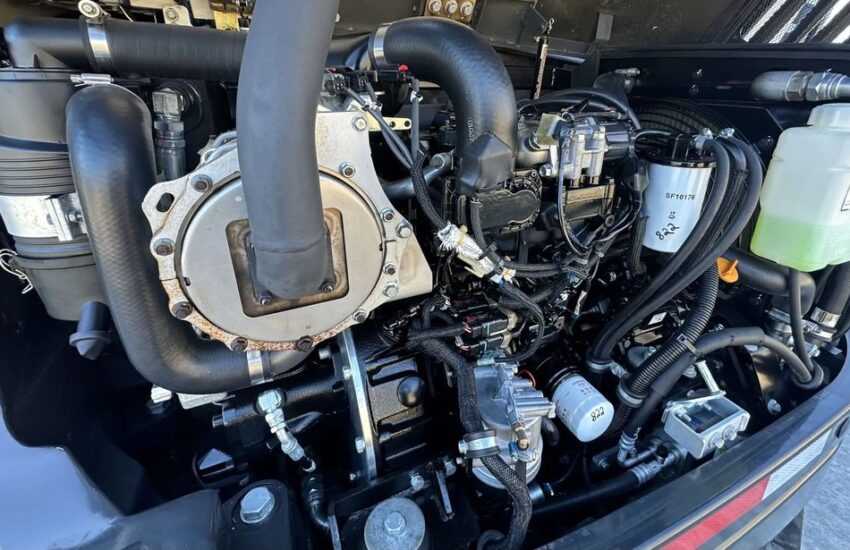

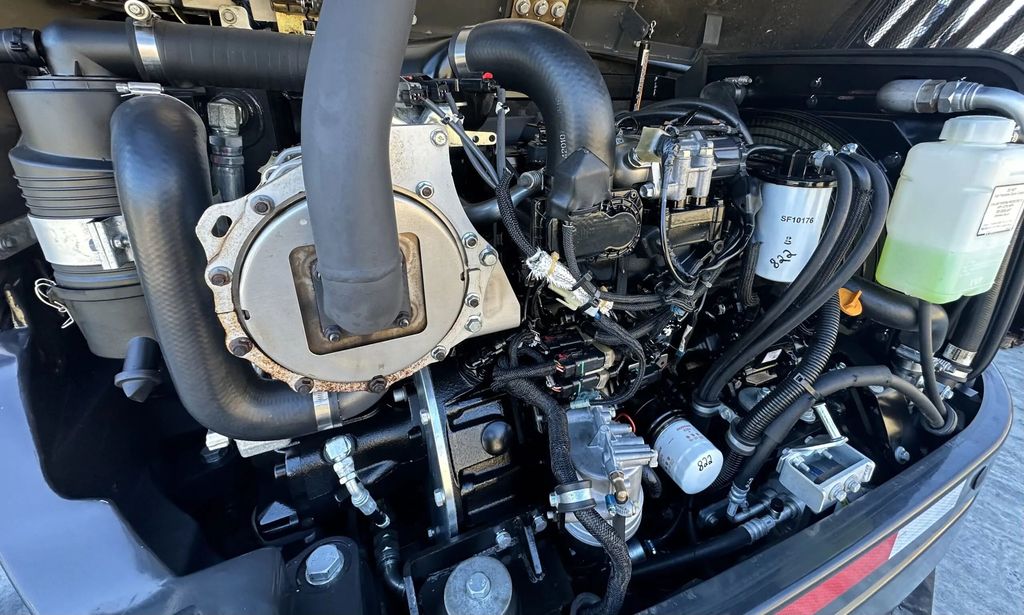

Engine
• Model: Bobcat D24 (Tier 4)
• Net Power: 59.4 HP (44.3 kW)
• Gross Power: 60.1 HP (44.8 kW)
• Displacement: 146.5 in³ (2.4 L)
• Net Torque: 177.5 Nm @ 1,600 RPM
• Fuel Capacity: 27.2 gal (102.9 L)

Weights
• Operating Weight (with Cab): 13,779 lbs (6,250 kg)
• Operating Weight (with Canopy): Not applicable

Performance
• Dig Depth: 13 ft 6 in (4.11 m)
• Max Dump Height: 14 ft 6 in (4.42 m)
• Max Reach at Ground Level: 21 ft 4 in (6.51 m)
• Maximum Travel Speed: 3.3 mph (5.3 km/h)
• Swing Speed: 9.4 RPM
• Bucket Breakout Force: 9,601 lbf (42.7 kN)
• Stick Breakout Force: 7,414 lbf (33 kN)

Hydraulics
• Main System – Maximum Flow: 24.1 gal/min (91.2 L/min)
• System Pressure (Standard): 3,553 psi (24.5 MPa)
• Auxiliary Hydraulics (Standard Flow): 20.9 gal/min (79 L/min)

Dimensions
• Overall Length: 20 ft 5 in (6.22 m)
• Overall Width: 6 ft 7 in (2.01 m)
• Height to Top of Cab: 8 ft 4 in (2.54 m)
• Tail Swing Radius: 4 ft 10 in (1.47 m)
• Ground Clearance: 1 ft 1 in (0.33 m)

Track System
• Track Width: 15.7 in (400 mm)
• Track Length: 9 ft 1 in (2.77 m)
• Ground Pressure: 4.6 psi (31.8 kPa)
