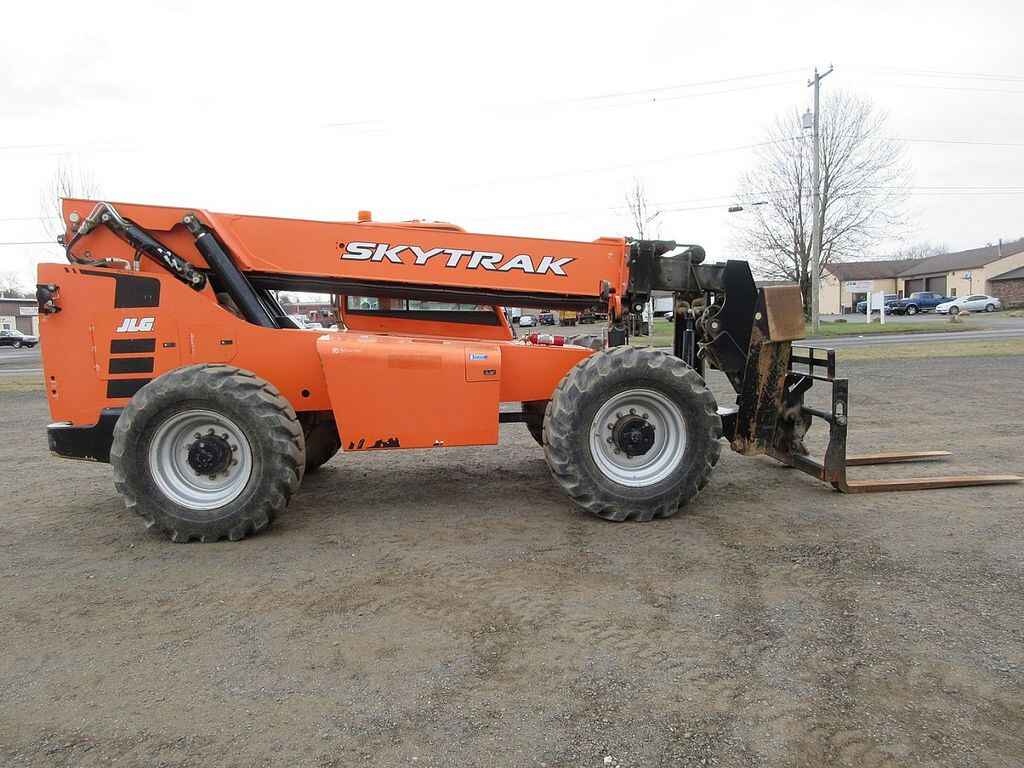

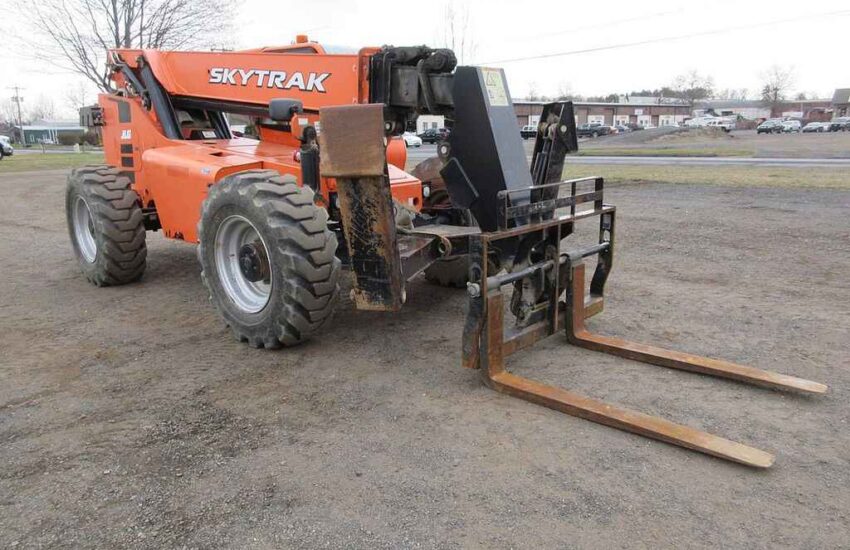

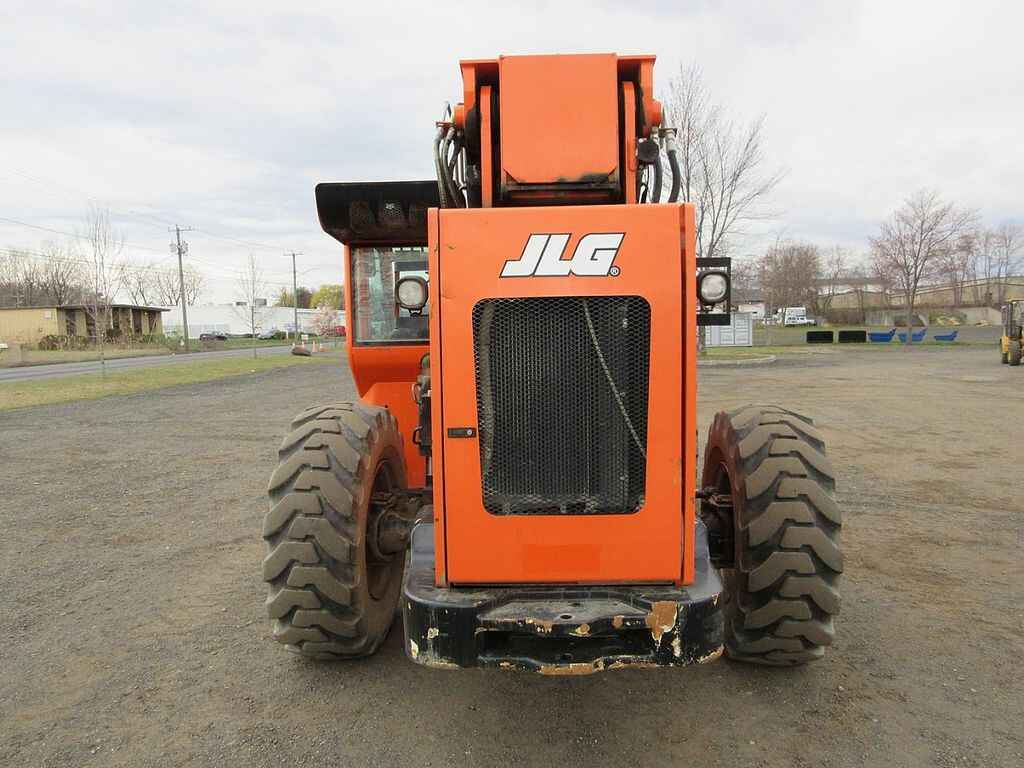

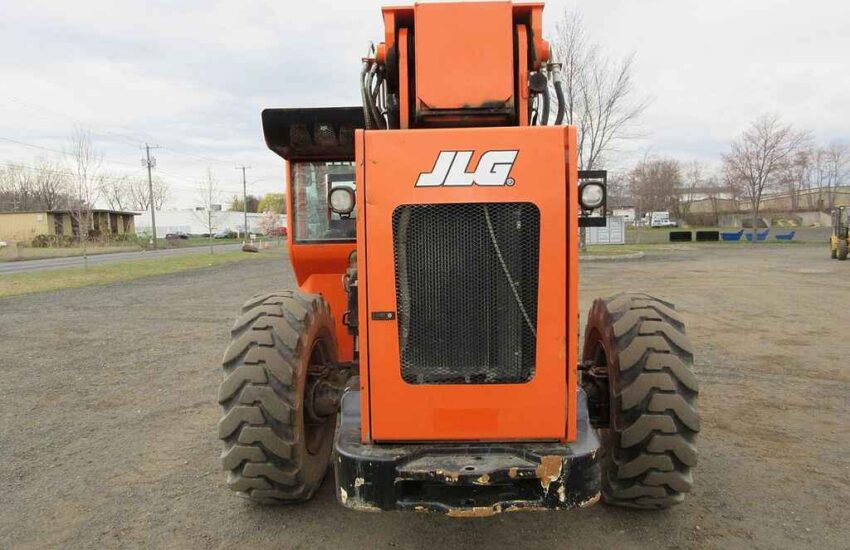

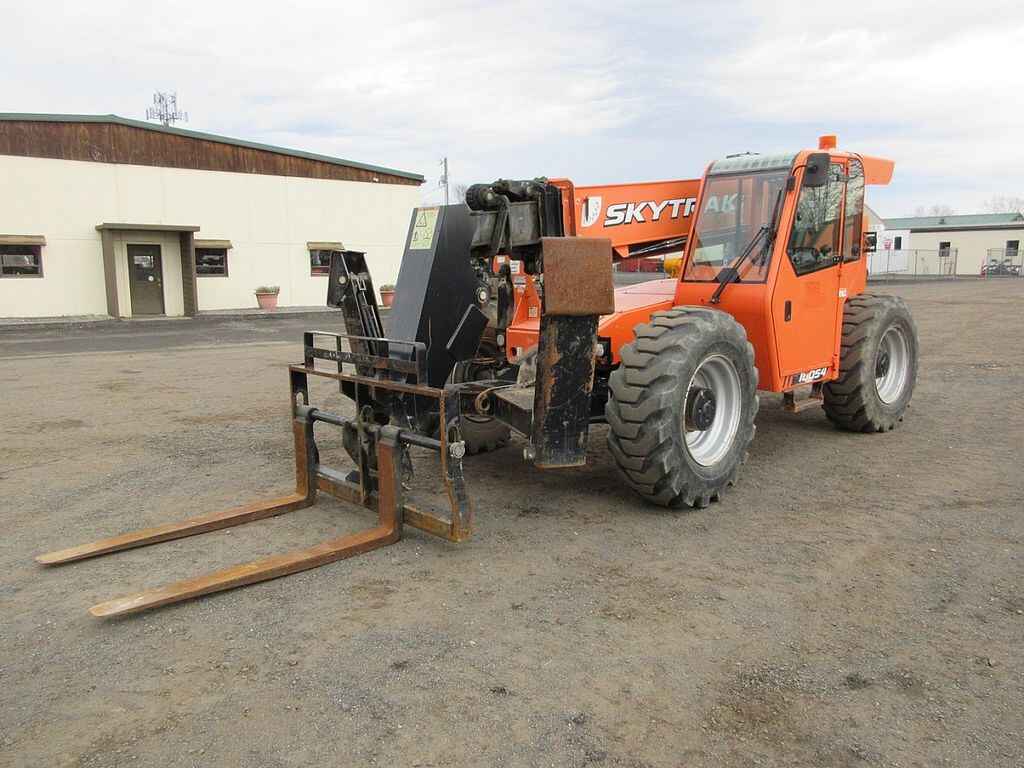

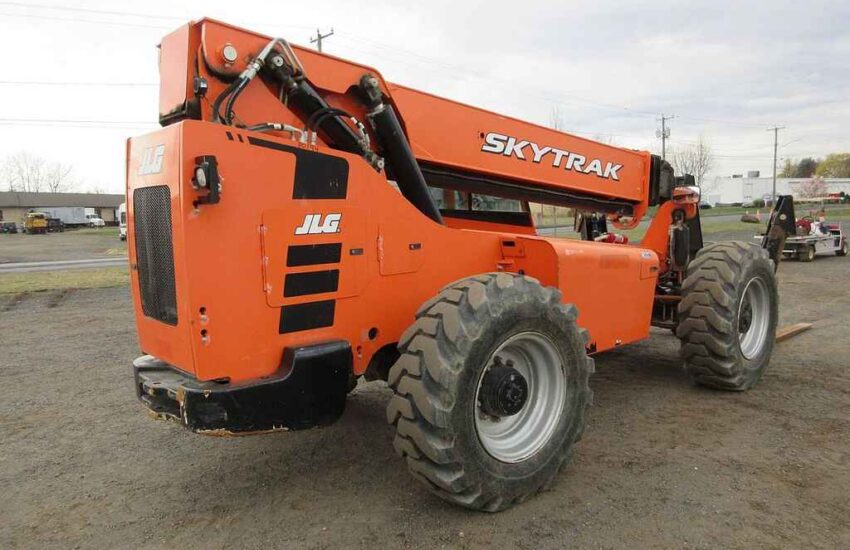

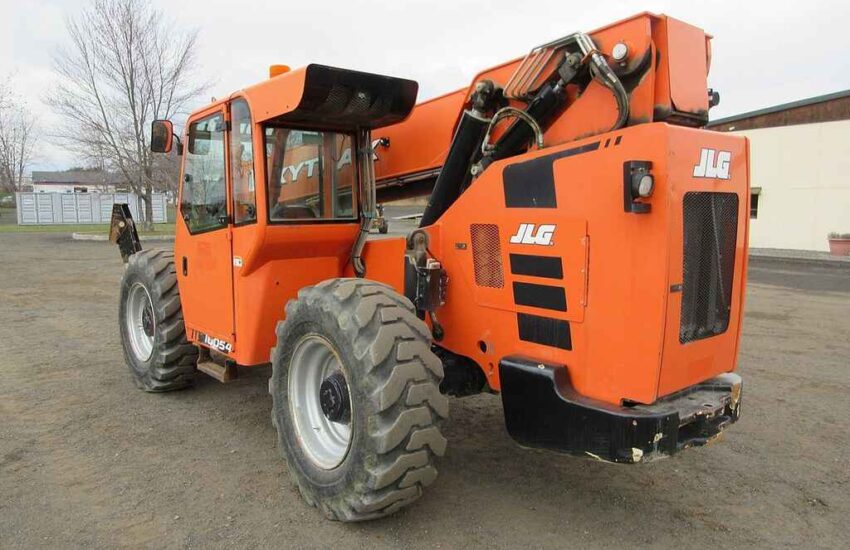

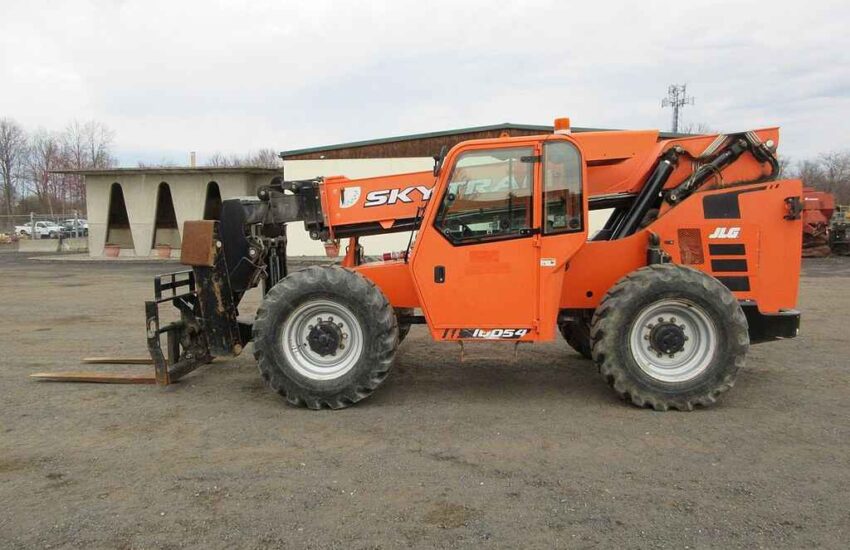

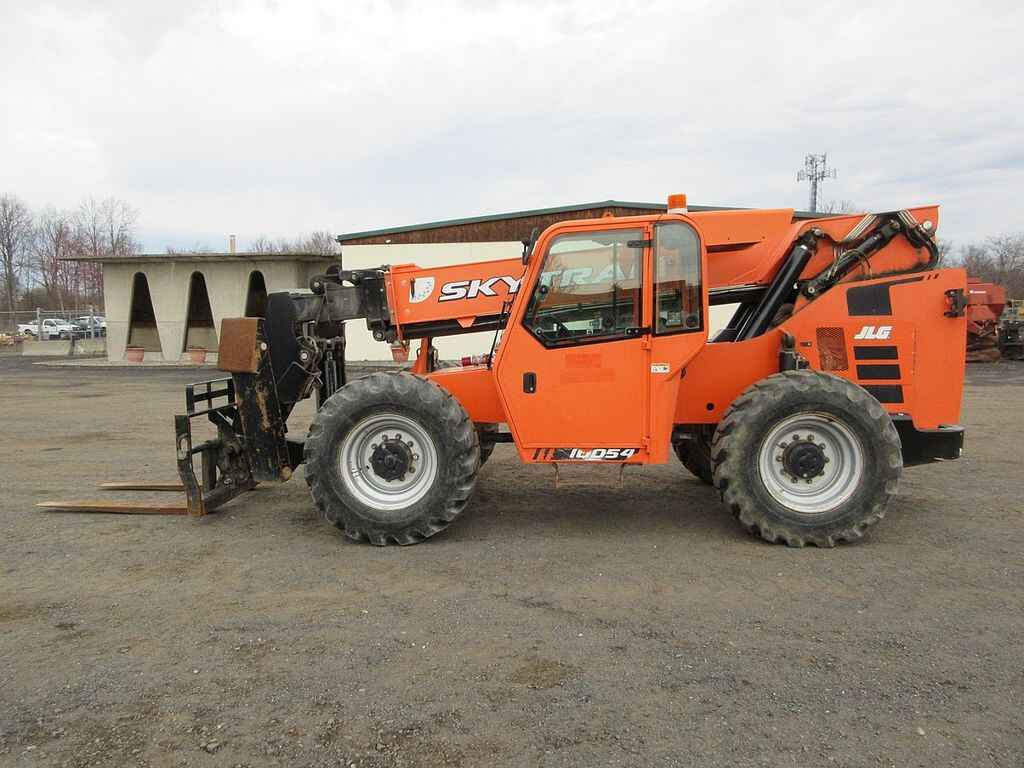

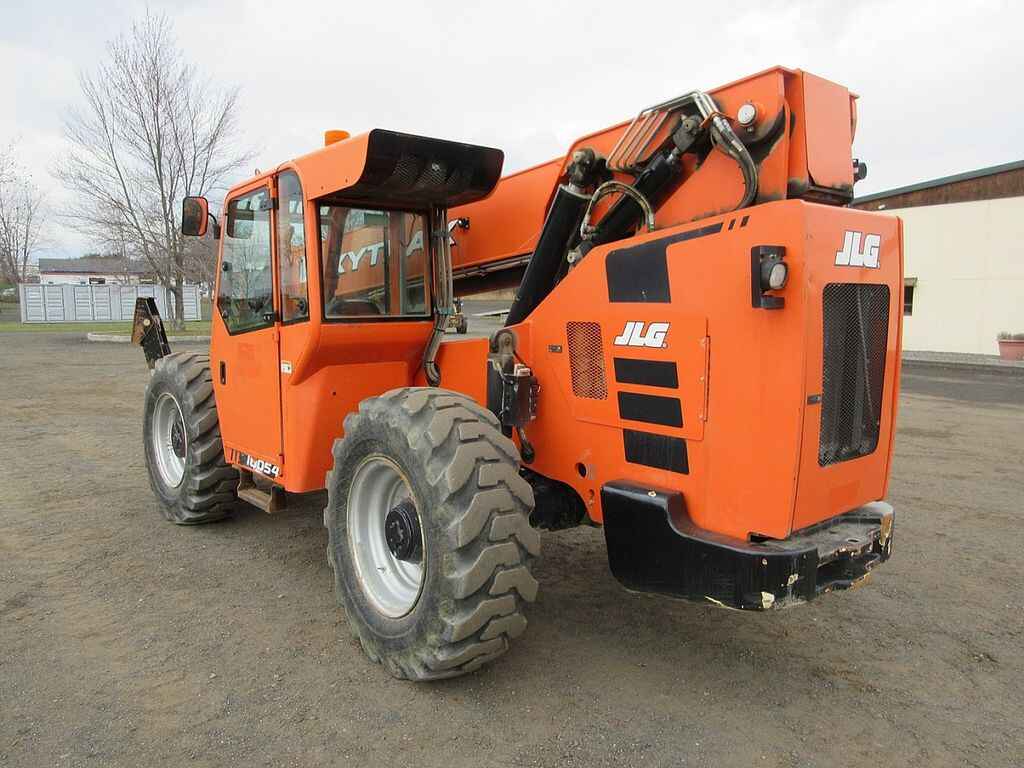

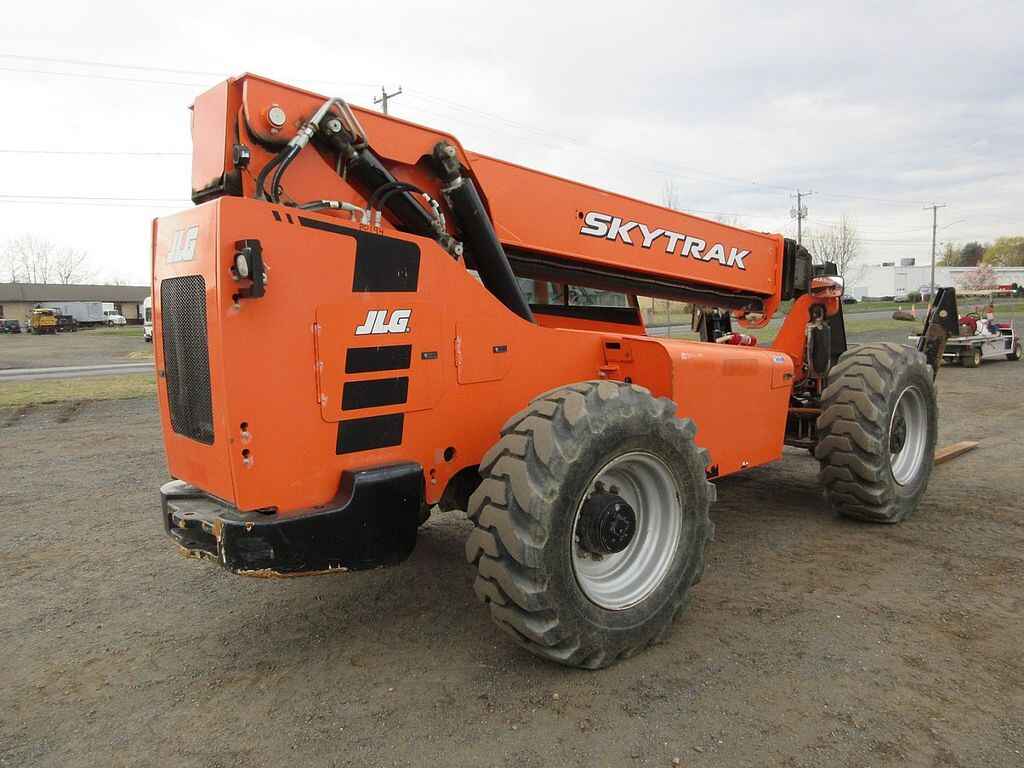

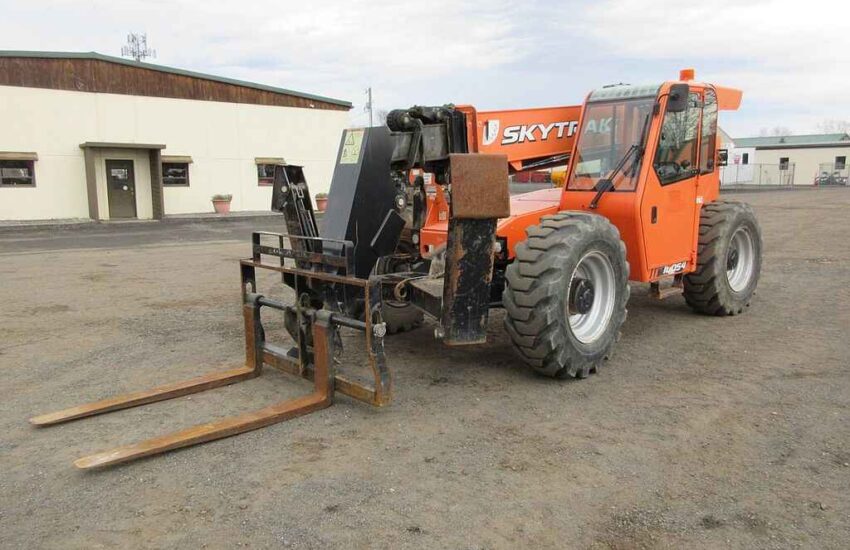

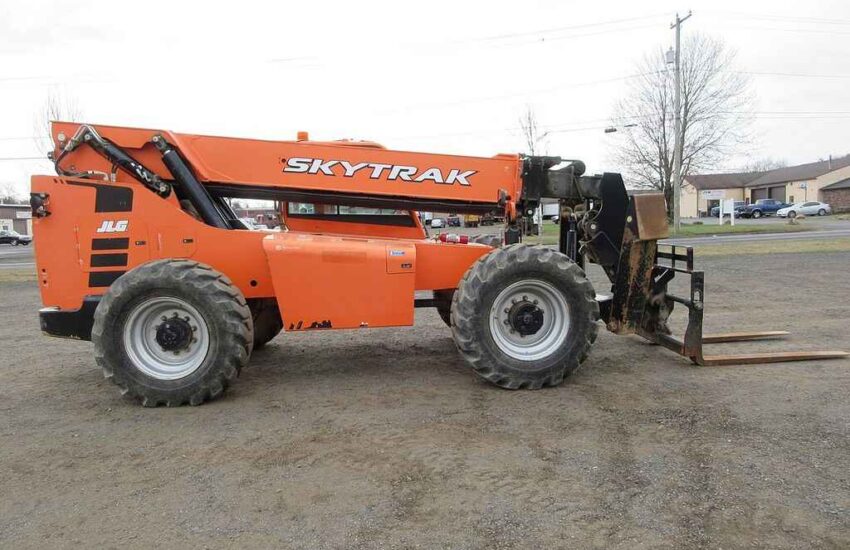

2017 Sky Trak 10054

$36,400

Details

Overview

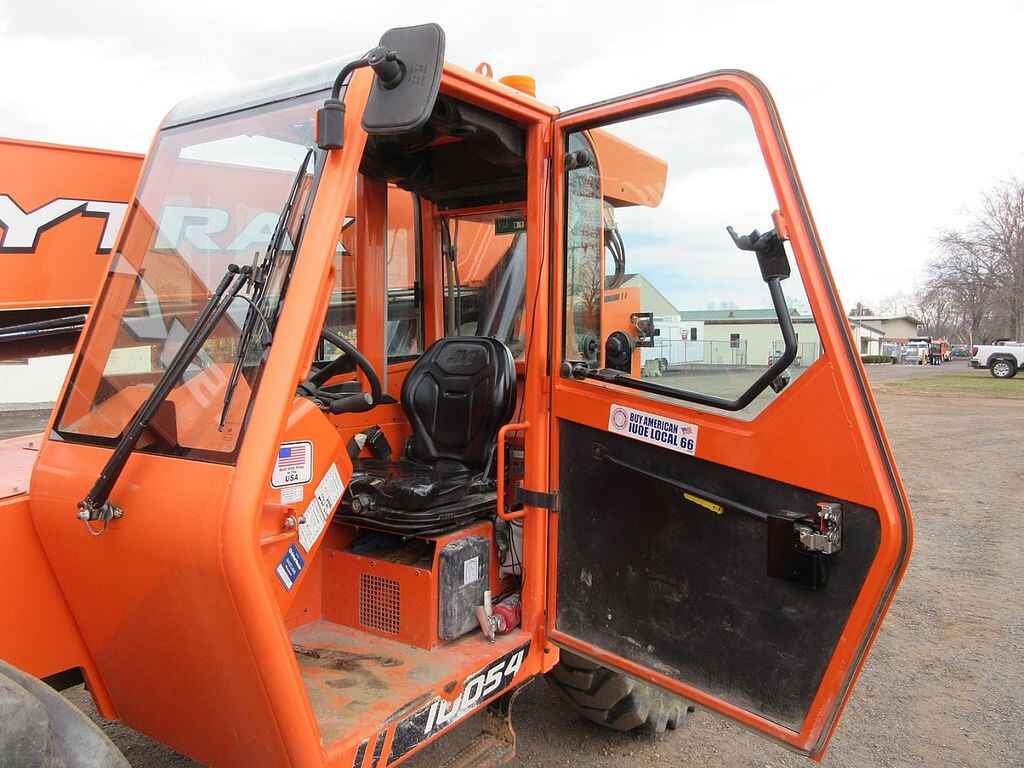

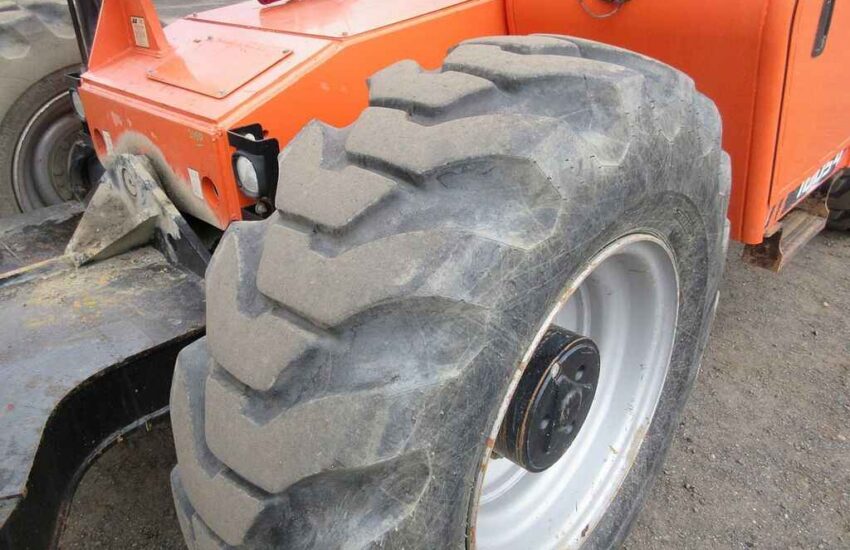

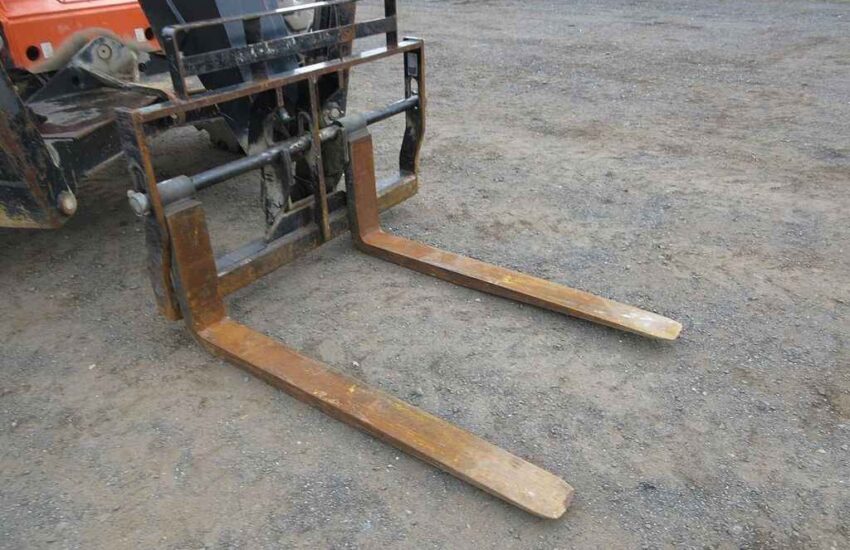

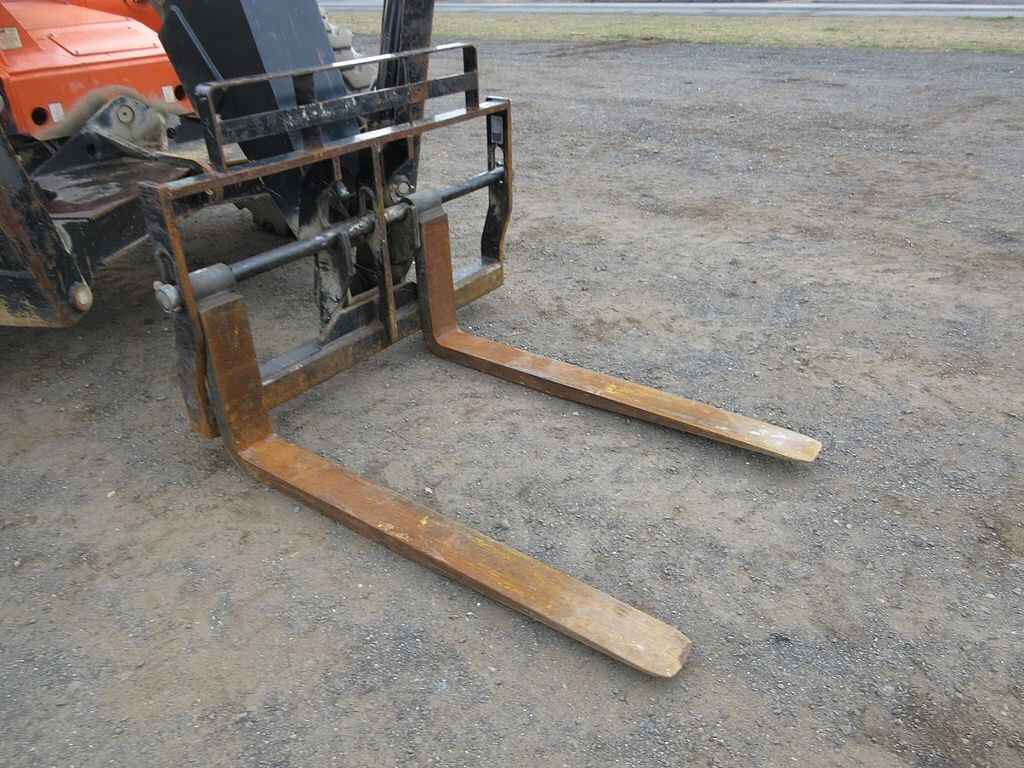

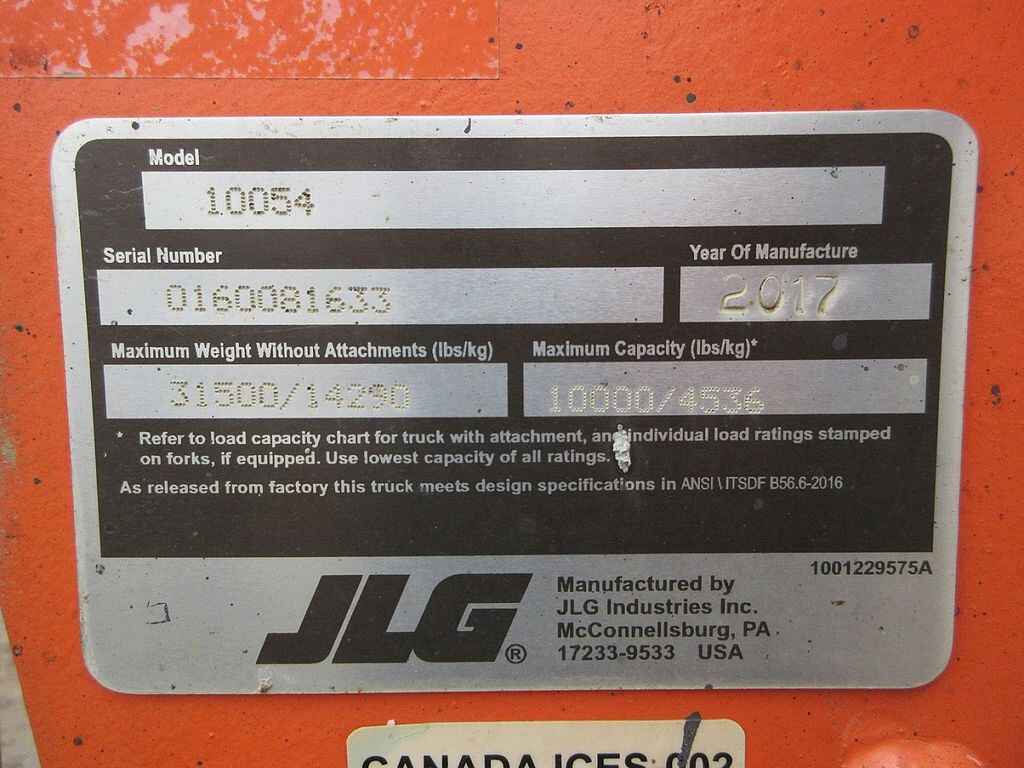

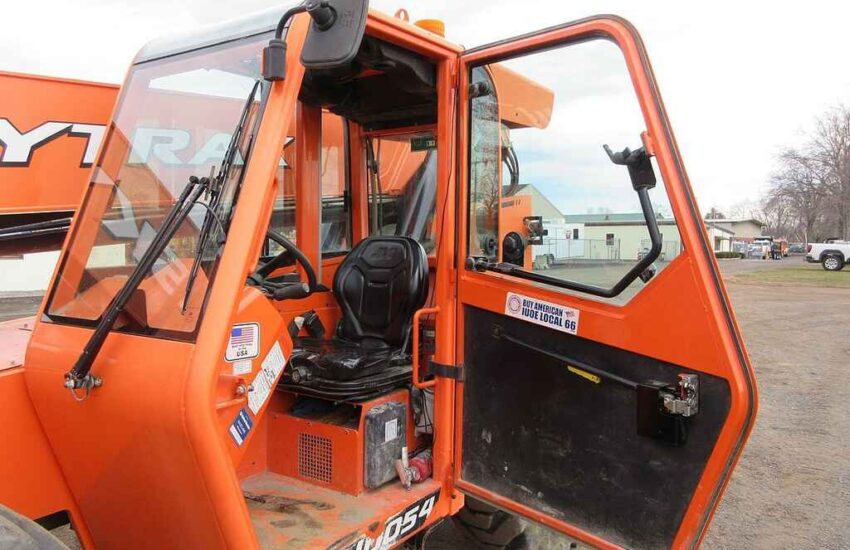

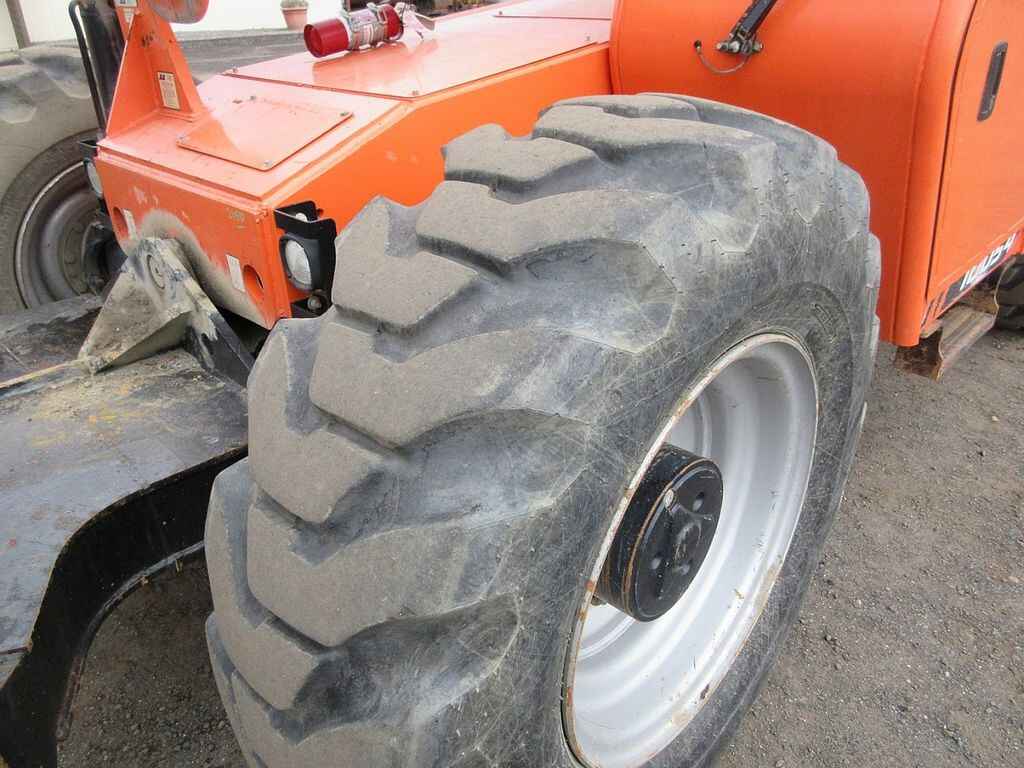

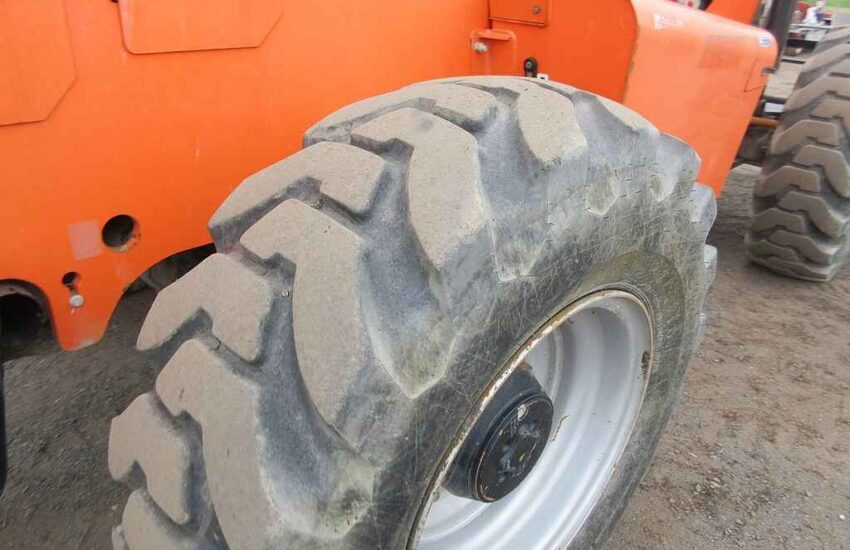

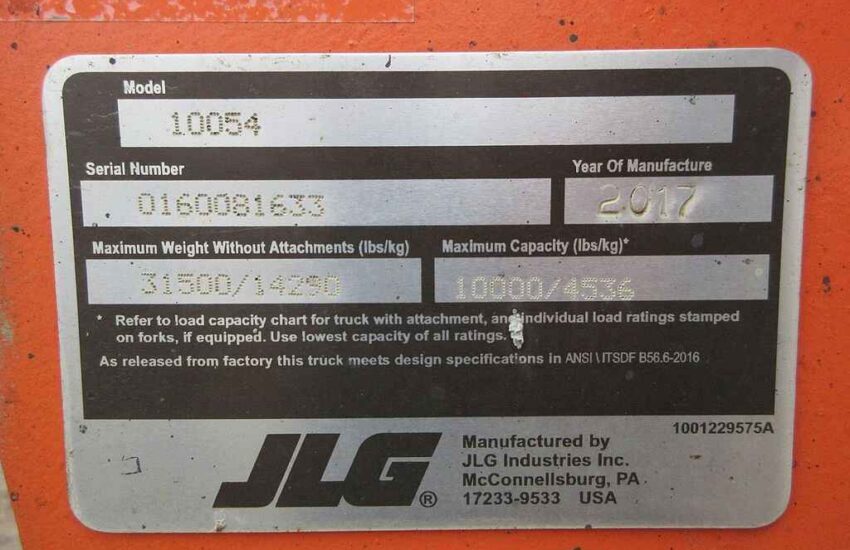

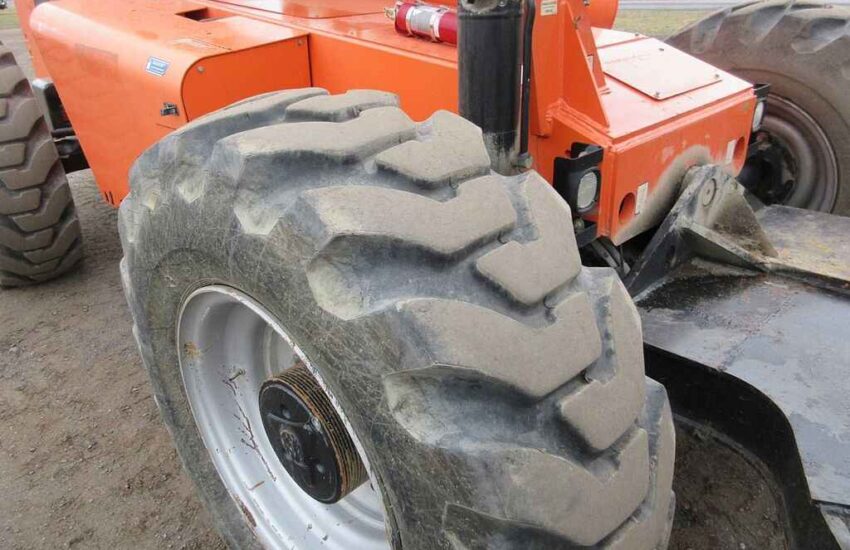

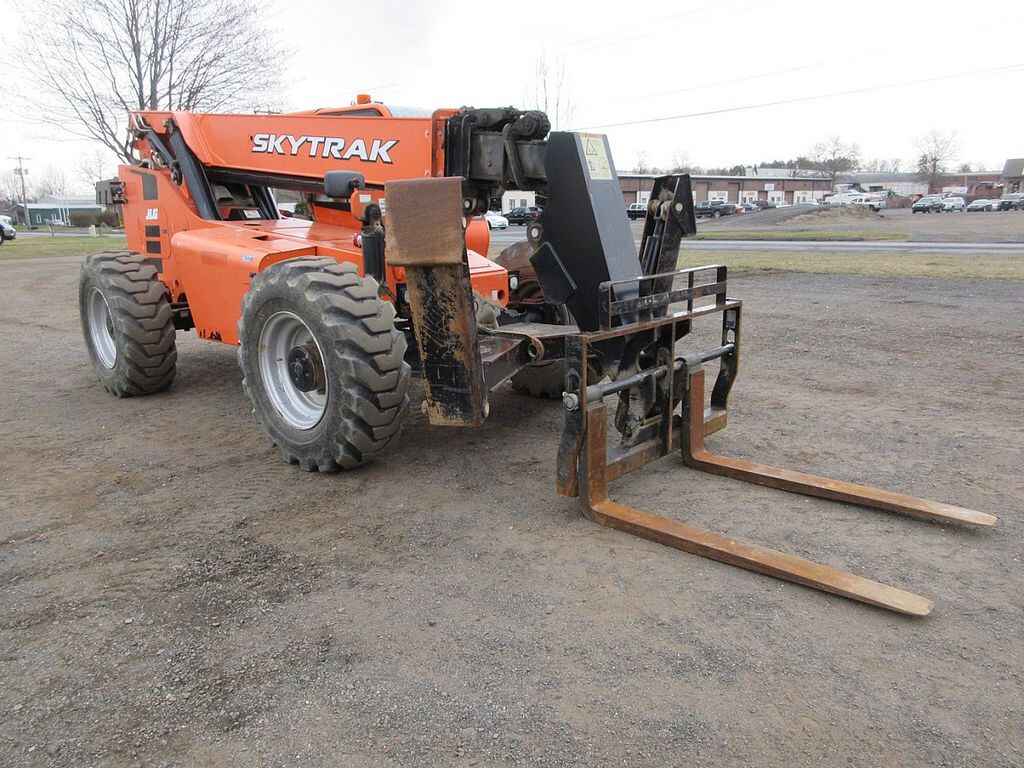

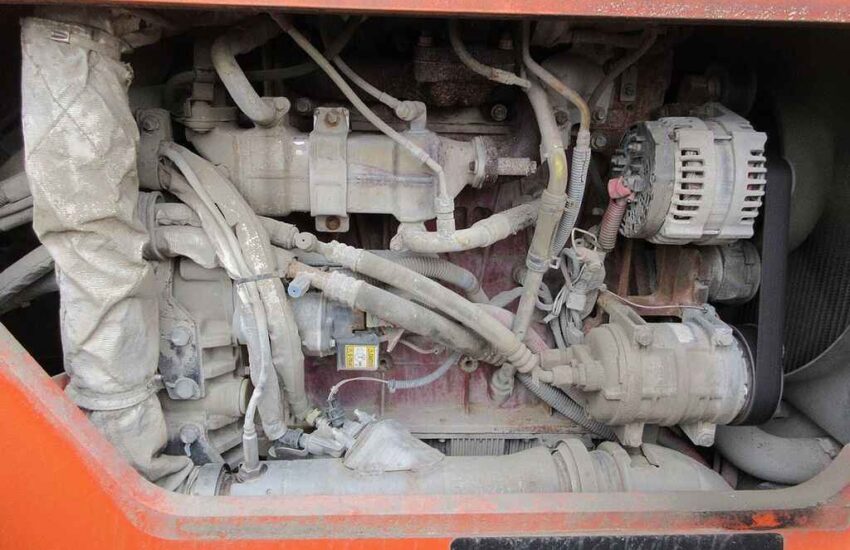

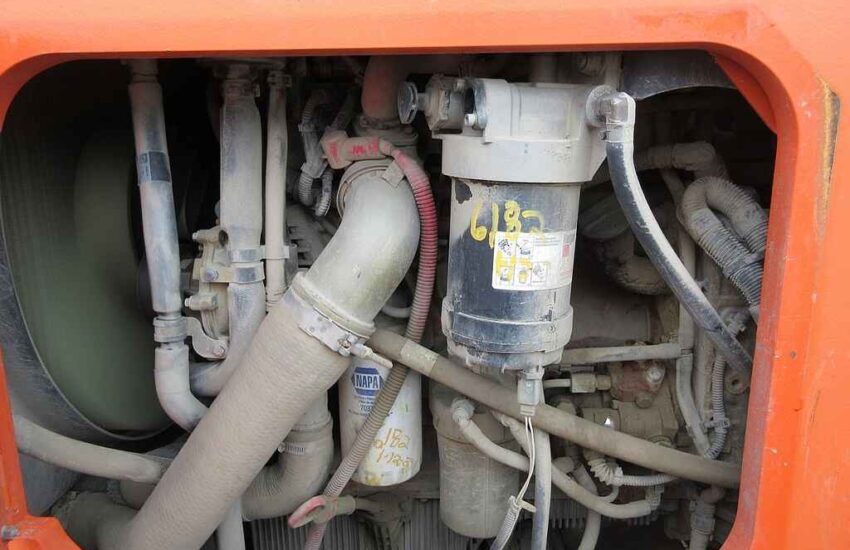

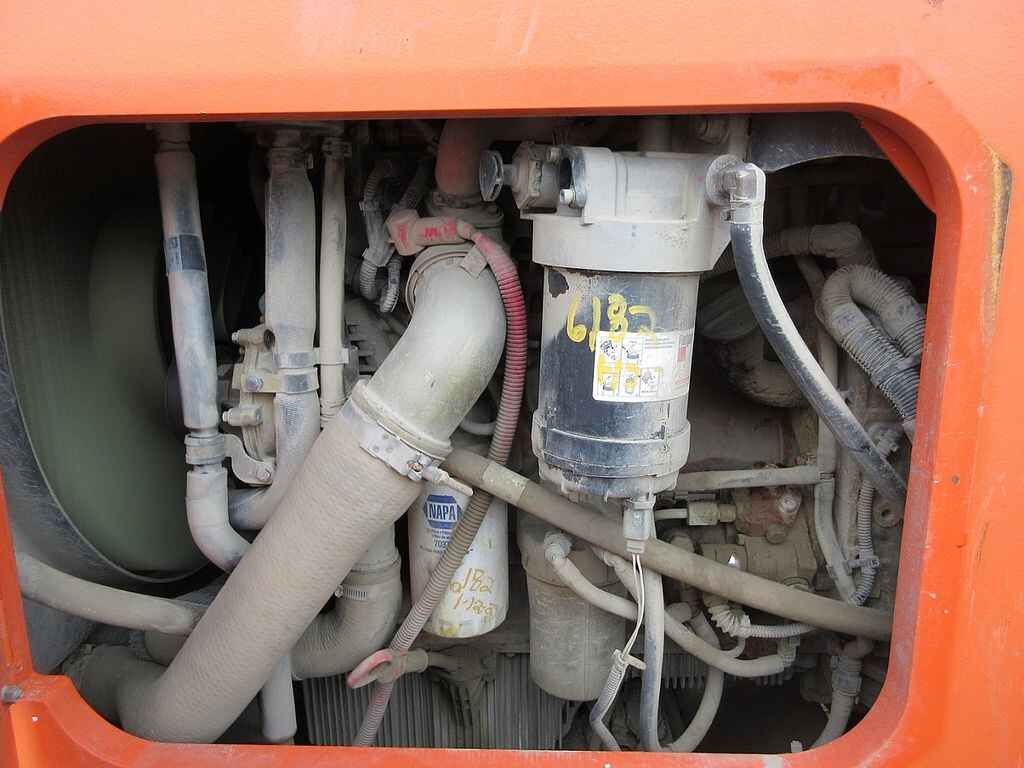

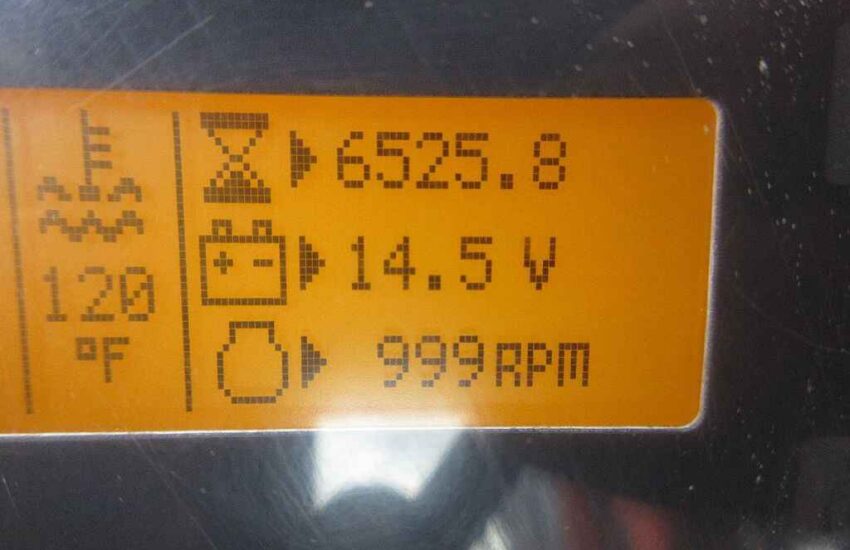

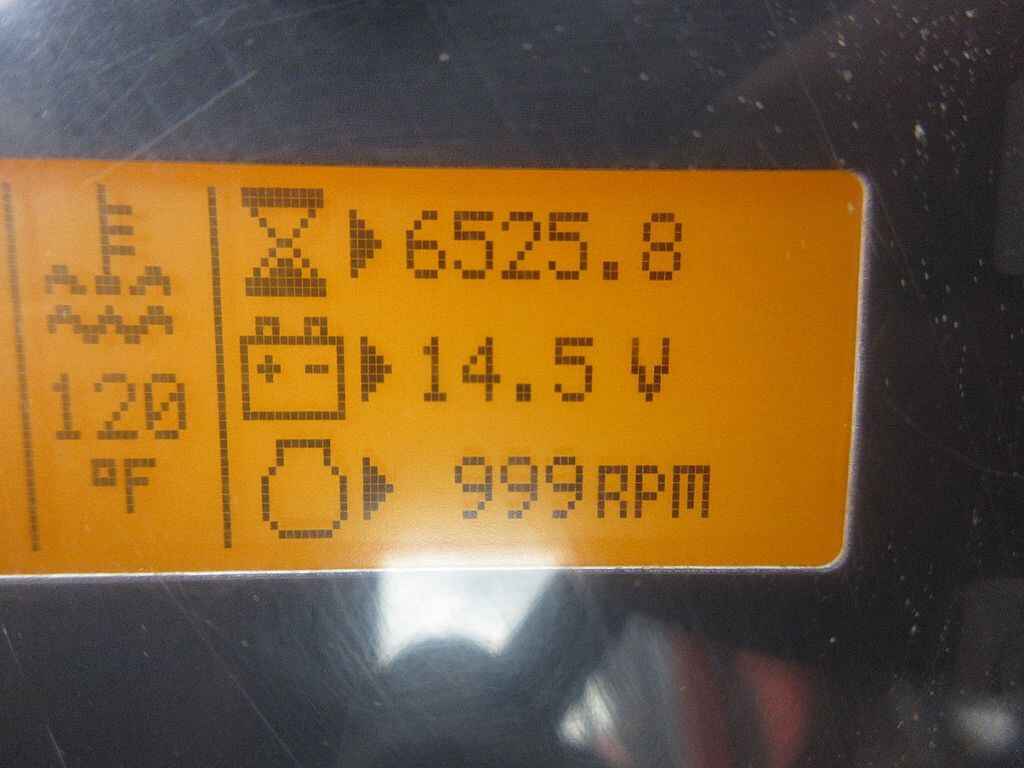

4 cyl Cummins turbo diesel, cab with heat, A/C, 4 x 4 x 4, 10000# capacity, 54′ reach, foam filled tires, 60″ forks, meter reads 6525 hours, S/N 0160081633

SPECIFICATIONS

Performance
Maximum Lift Capacity: 10,000 lbs (4,536 kg)
Maximum Lift Height: 53 ft 2 in (16.21 m)
Maximum Forward Reach: 38 ft 9 in (11.81 m)
Lift Capacity at Full Height: 4,000 lbs (1,814 kg)
Lift Capacity at Maximum Reach: 1,400 lbs (635 kg)
Frame Leveling: ±10°
Drawbar Pull: 24,500 lbs (11,113 kg)
Maximum Travel Speed: 20 mph (32.19 km/h)

Dimensions
Overall Length (to Fork Face): 21 ft (6.4 m)
Overall Width: 8 ft 6 in (2.59 m)
Overall Height: 8 ft 4 in (2.54 m)
Wheelbase: 10 ft (3.04 m)
Ground Clearance: 1 ft 6 in (0.46 m)
Outside Turning Radius: 13 ft 9 in (4.19 m)

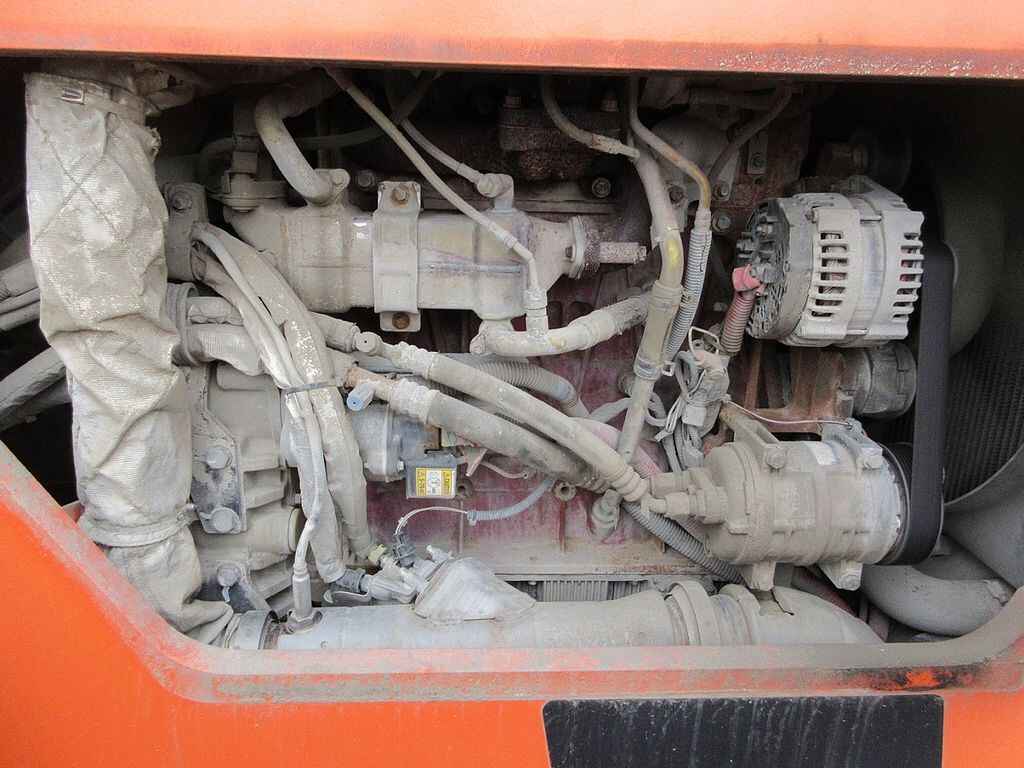

Engine
Manufacturer: Cummins
Model: QSF3.8L (Tier 4 Final)
Gross Power: 110 hp (82.06 kW)
Maximum Engine RPM: 1,500 rpm
Fuel Tank Capacity: 35 gal (132.49 L)

Hydraulic System
System Type: Variable flow, load-sensing piston pump
System Pressure: 3,100 psi (21,375 kPa)
Hydraulic Reservoir Capacity: 60 gal (227 L)

Transmission
Type: Powershift
Forward Gears: 4
Reverse Gears: 3

Axles
Front Axle: High-bias limited slip
Rear Axle: Oscillating

Brakes
Service Brakes: Wet multi-disc

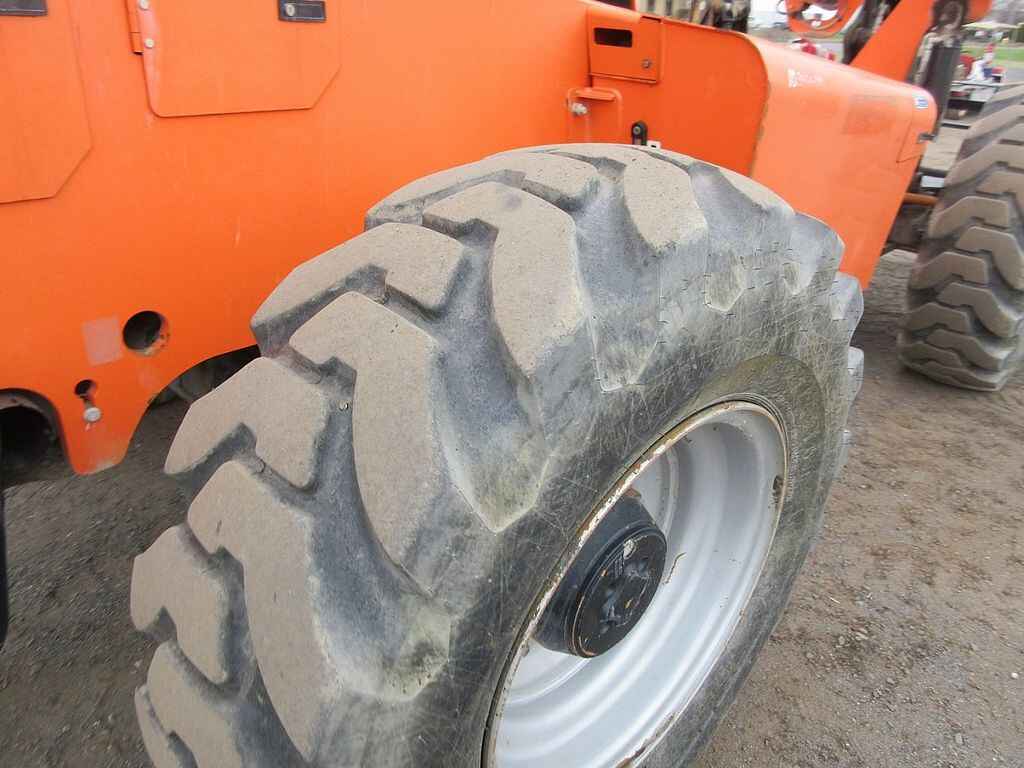

Tires

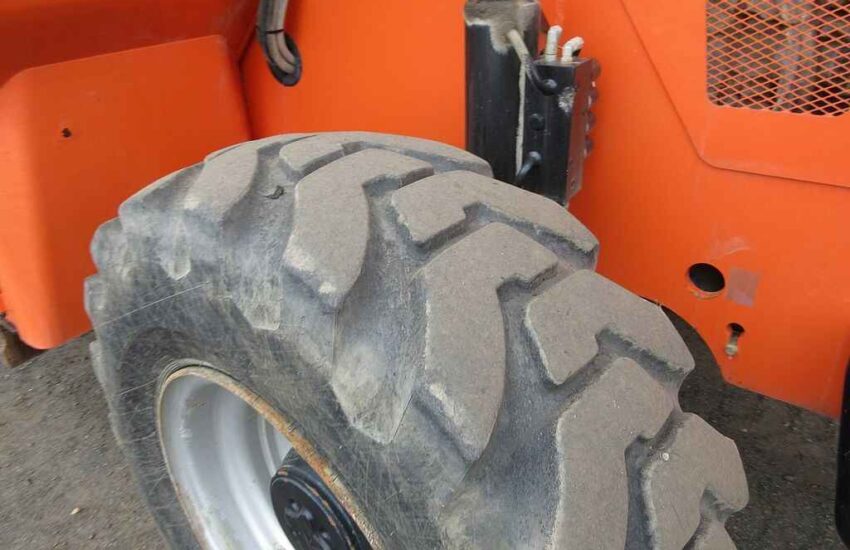

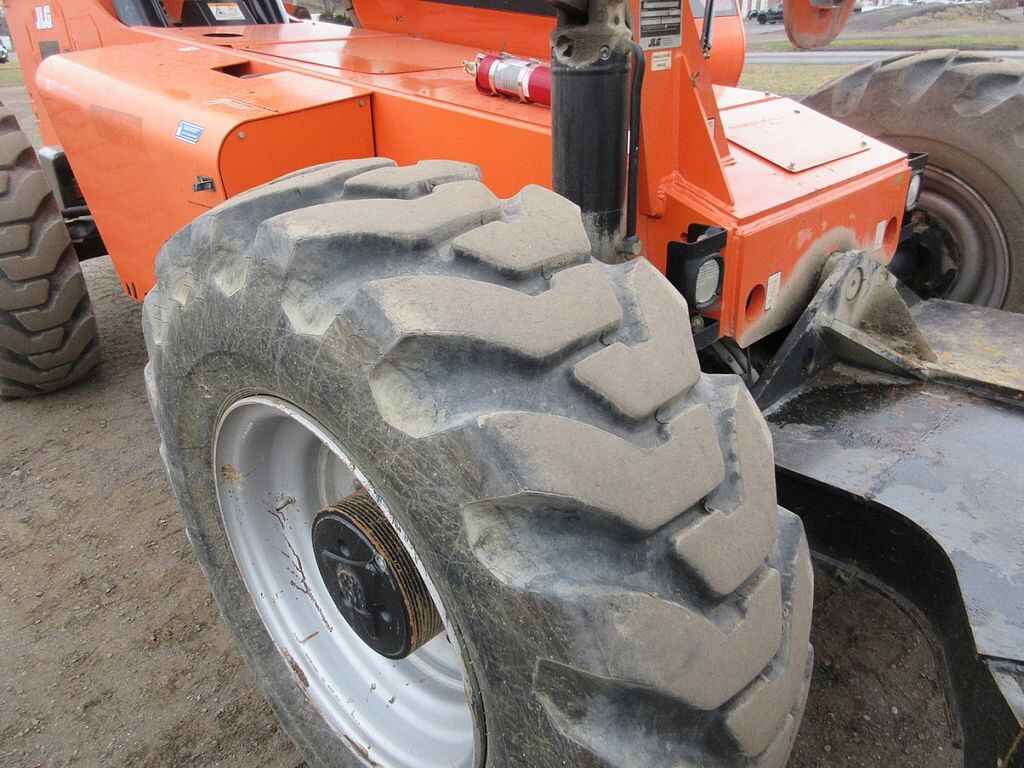

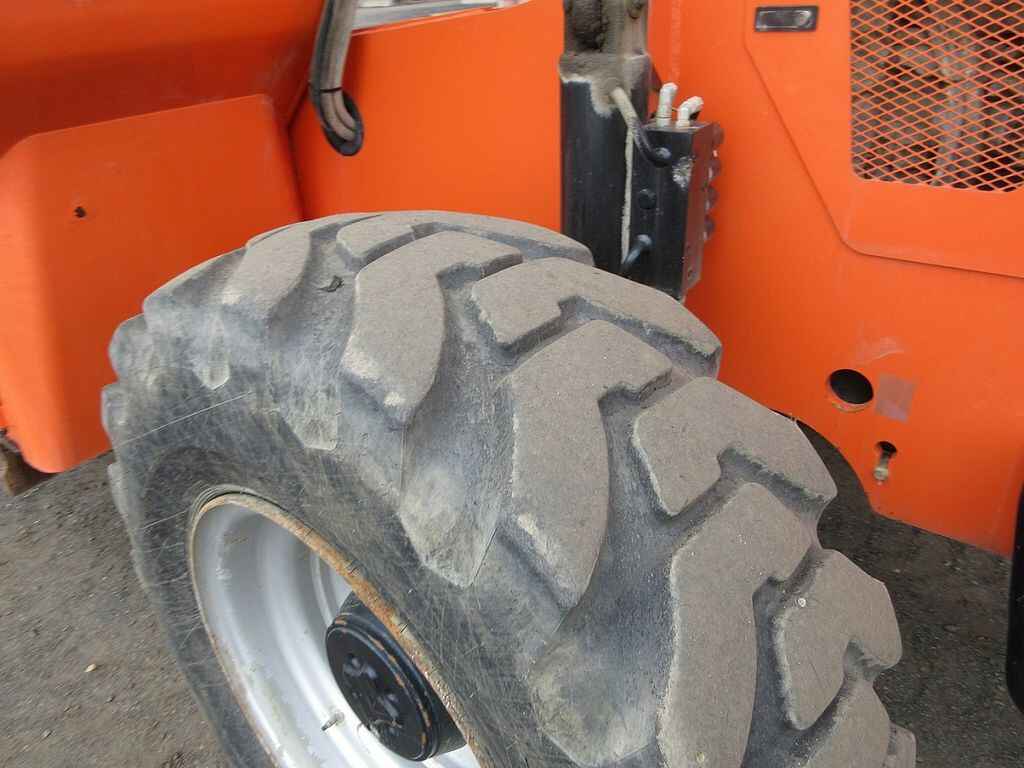

Size: 400/75-28

Features

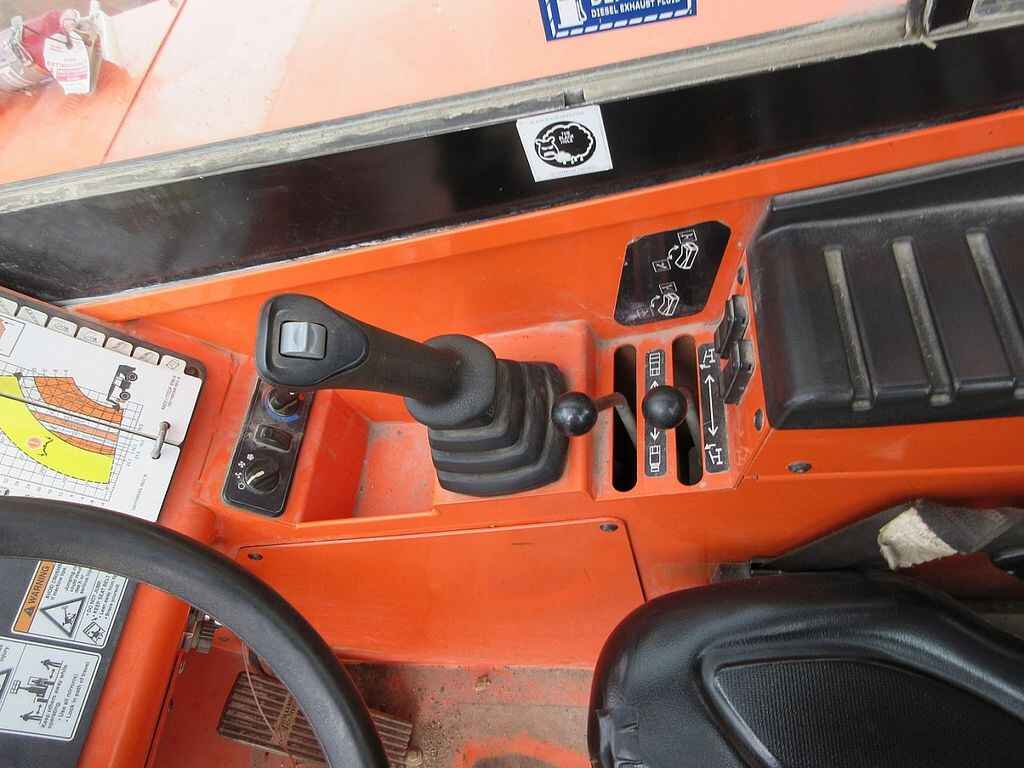

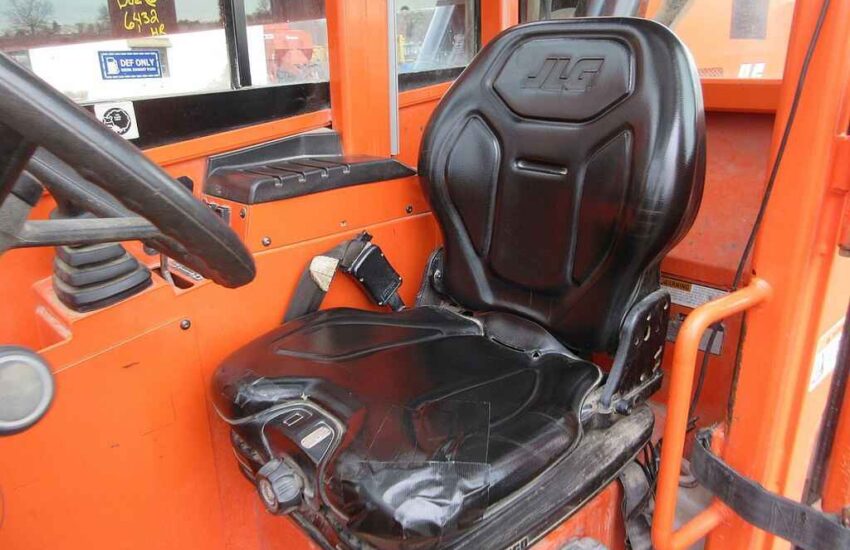

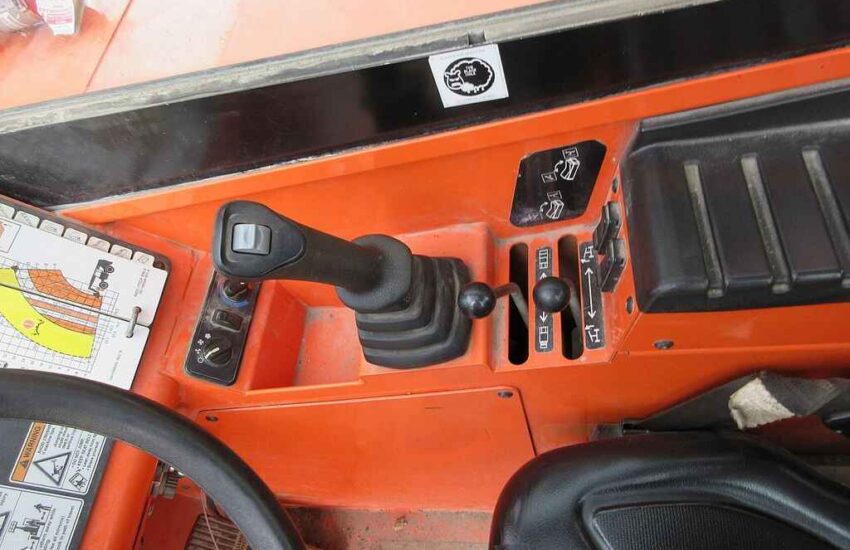

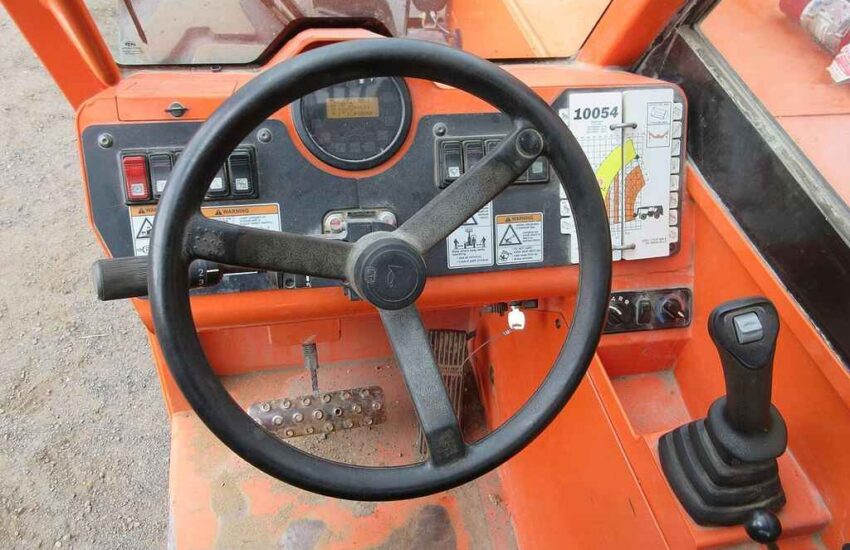

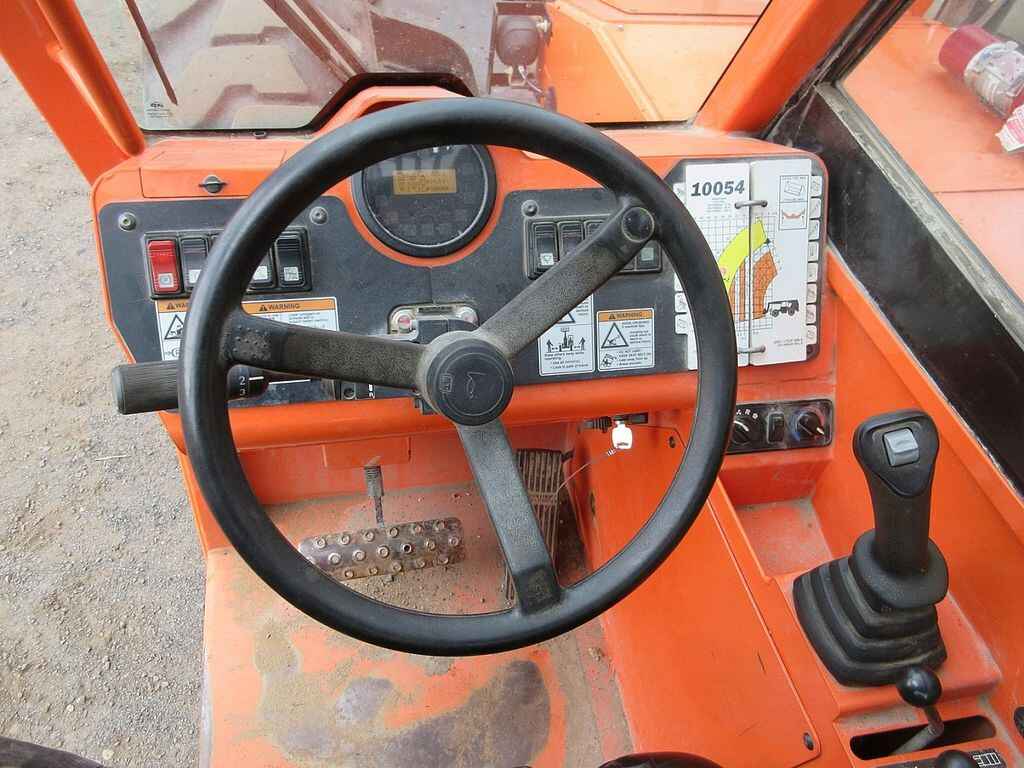

Single Joystick & Integrated Armrest: Reduces operator fatigue
Optional Air Conditioning: Enhances comfort in cab
Stabil-Trak Rear Axle Stabilization: Improves load placement confidence
Optional 74 hp Engine Variant: Tier 4 Final compliant, no DEF required

Features

Comfort & Convenience
  • Radio
Interior

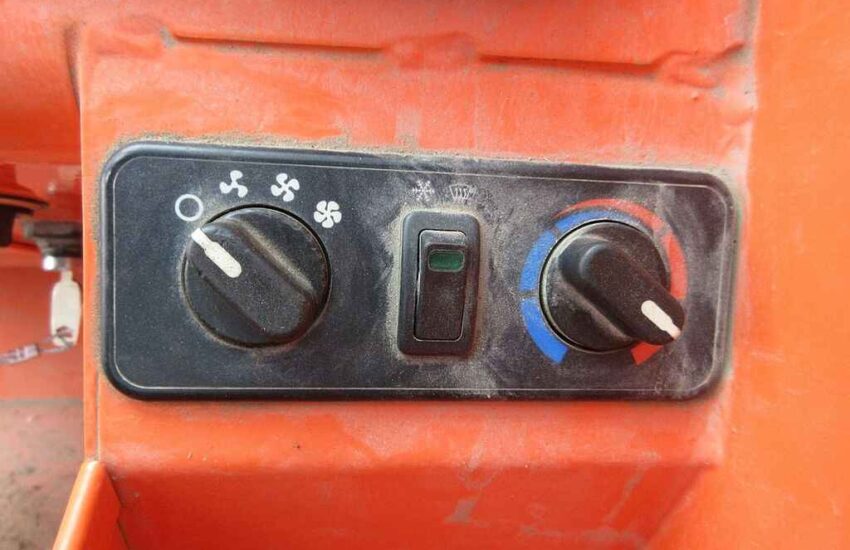

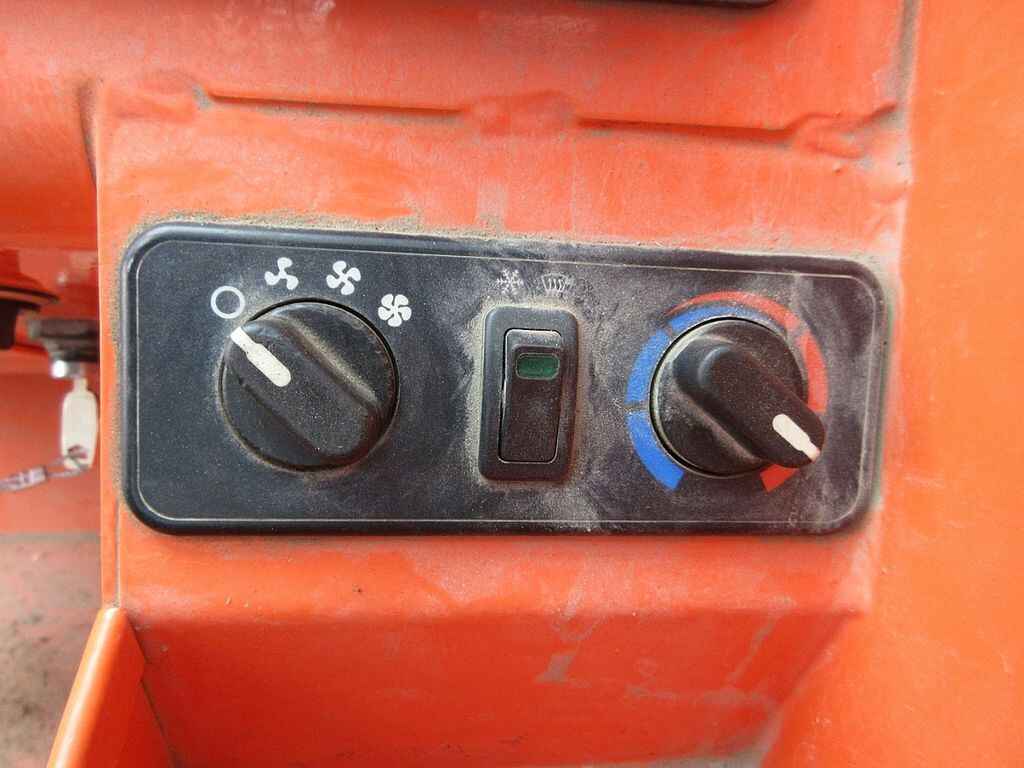

  • Air Conditioner
  • Heater
