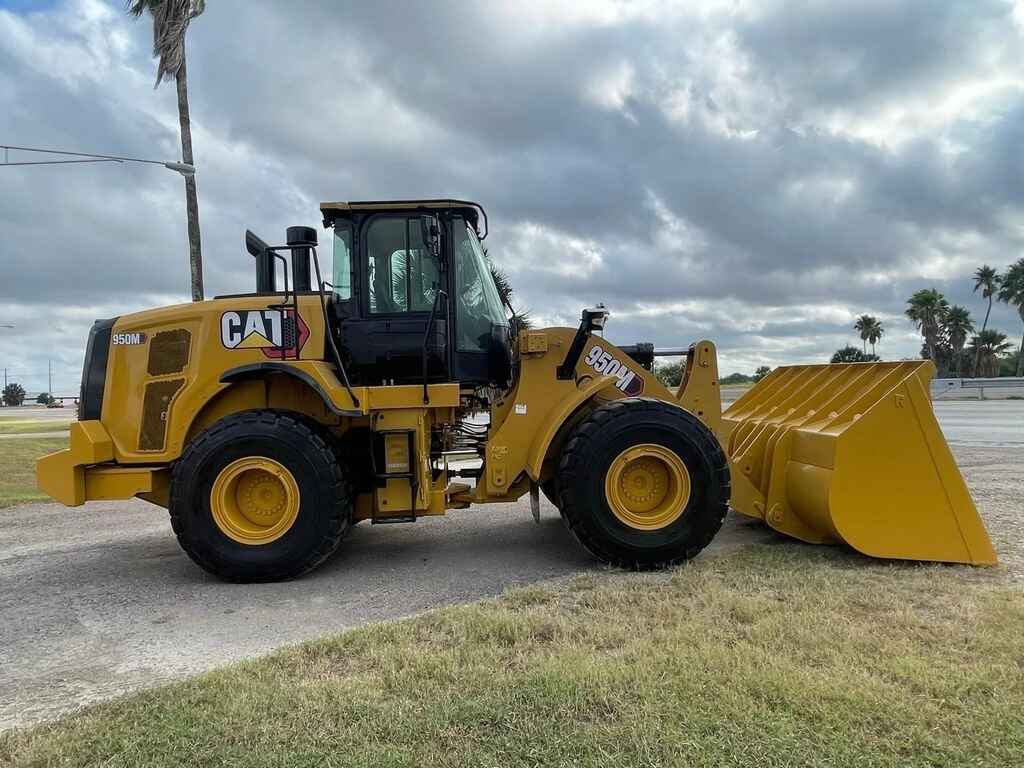

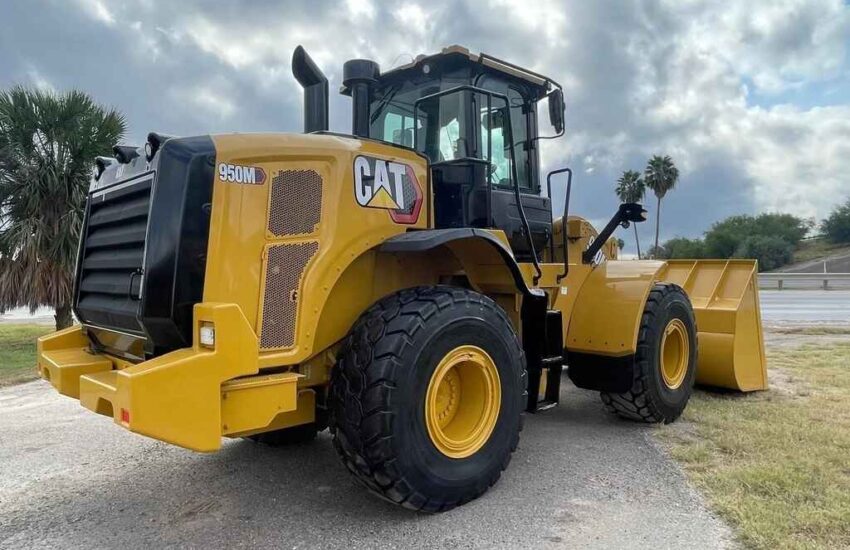

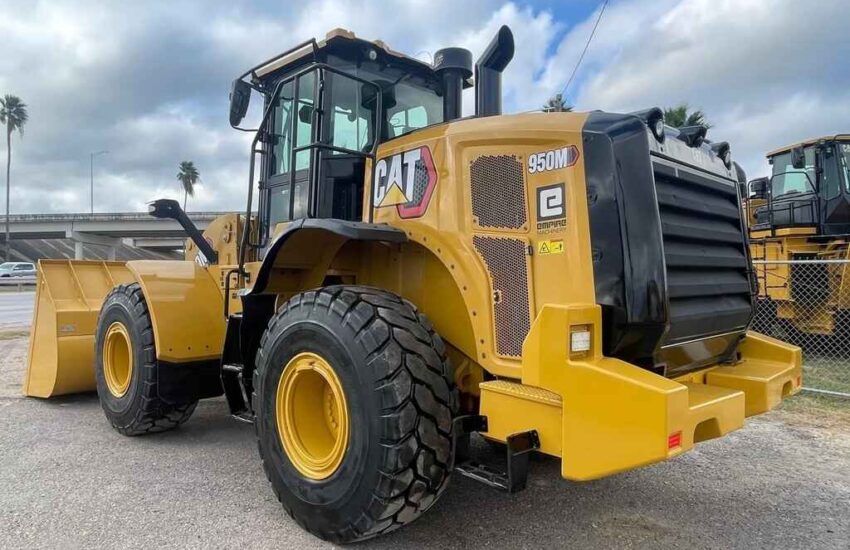

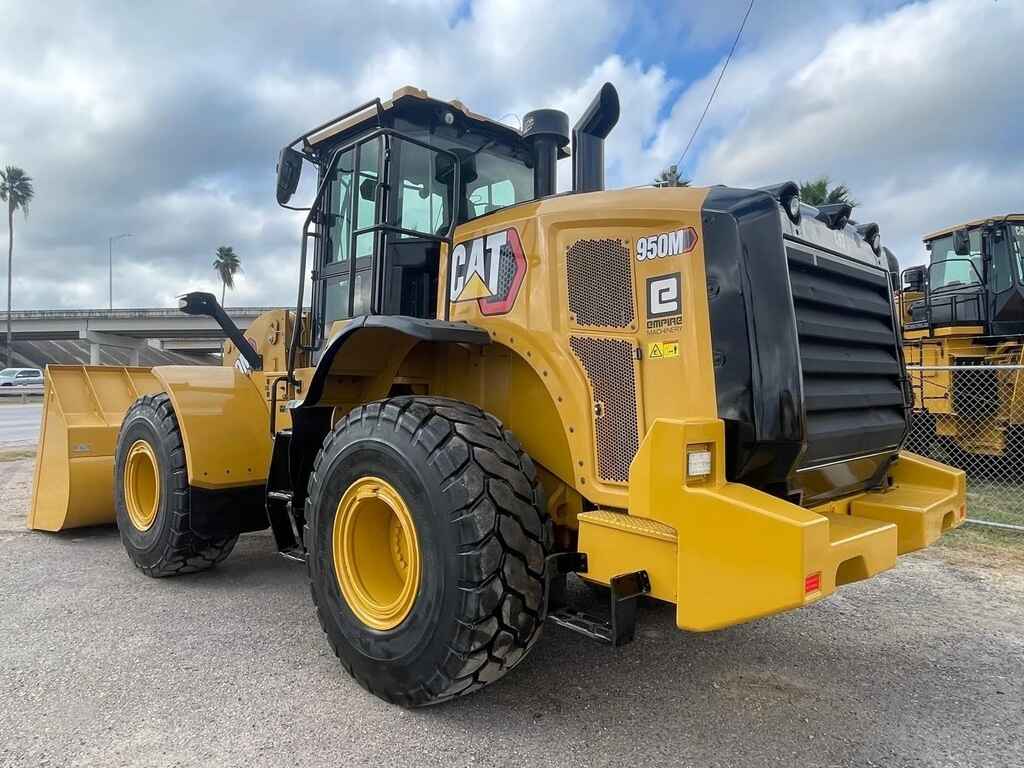

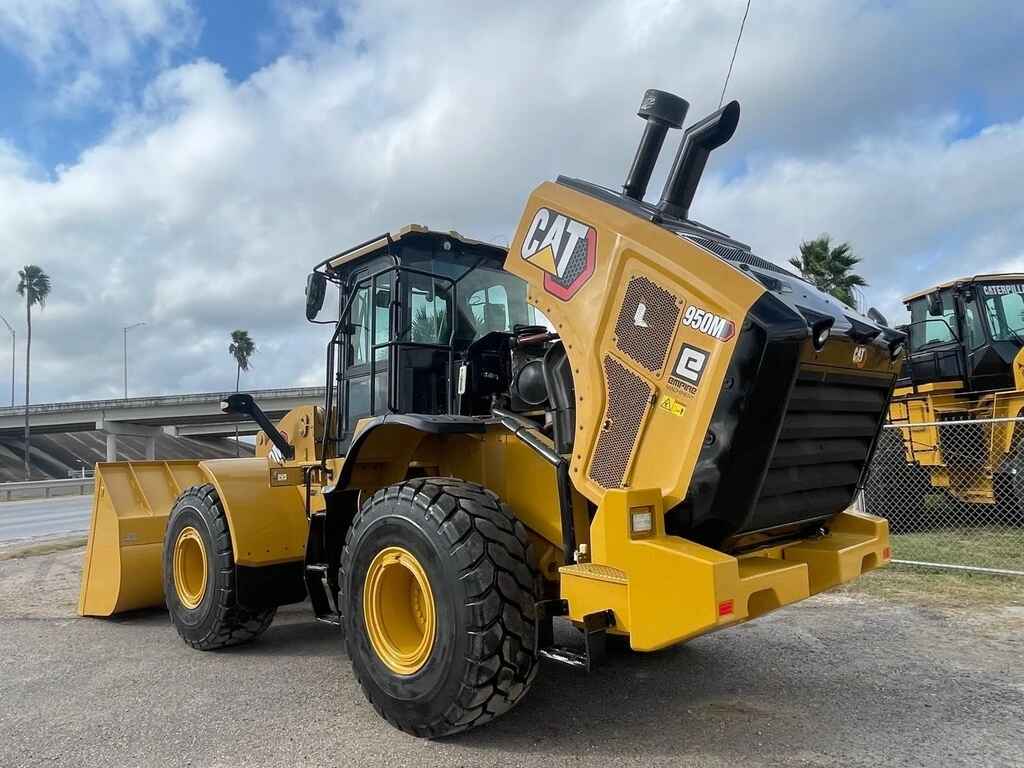

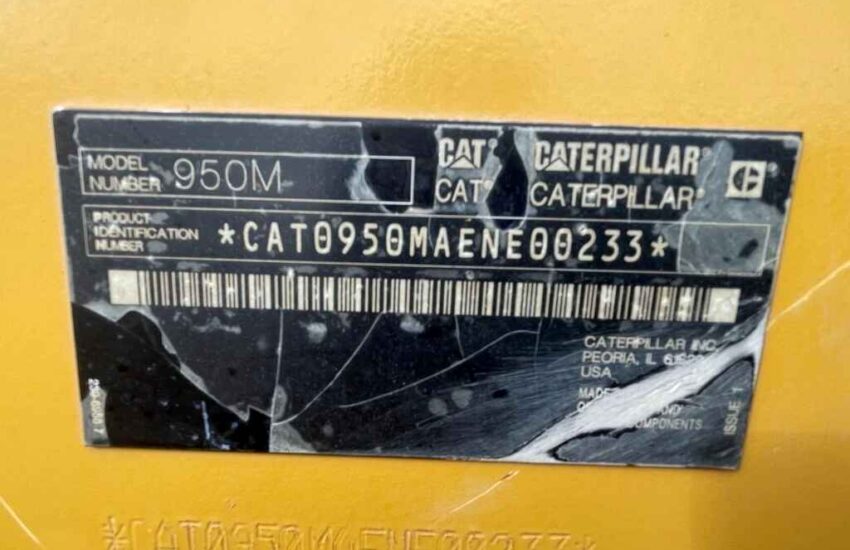

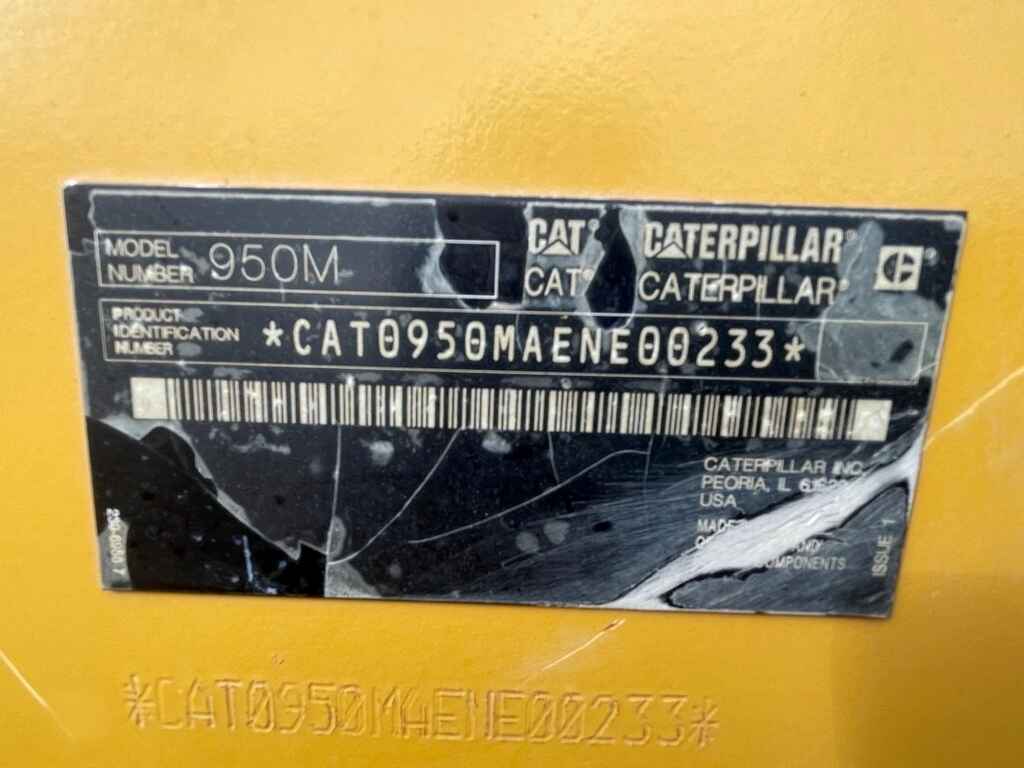

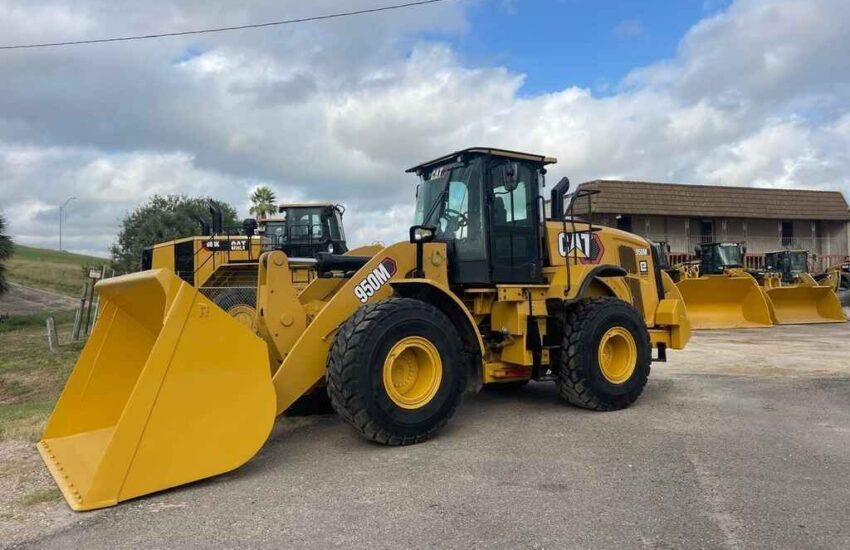

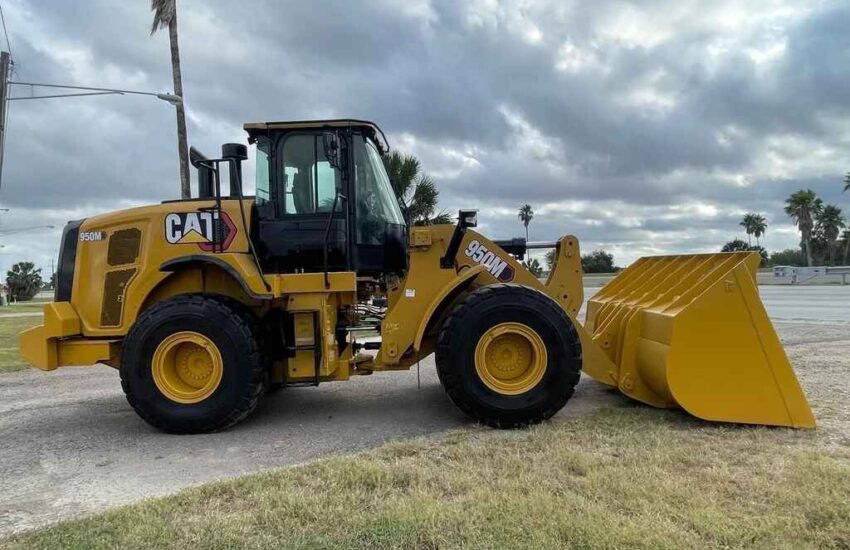

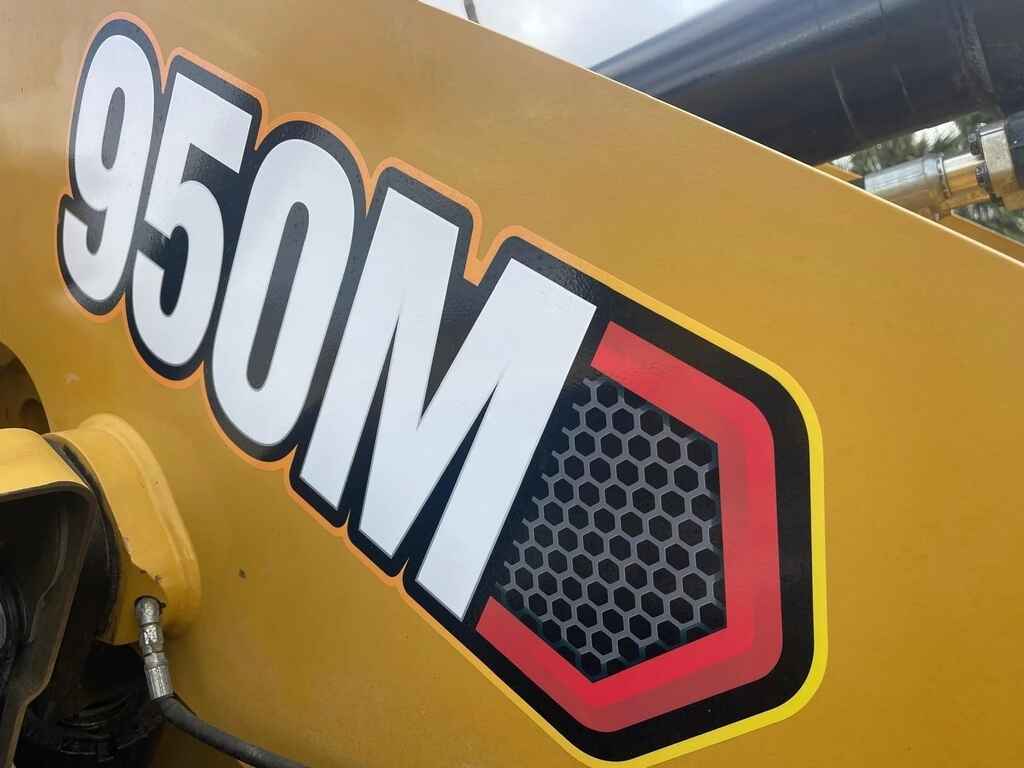

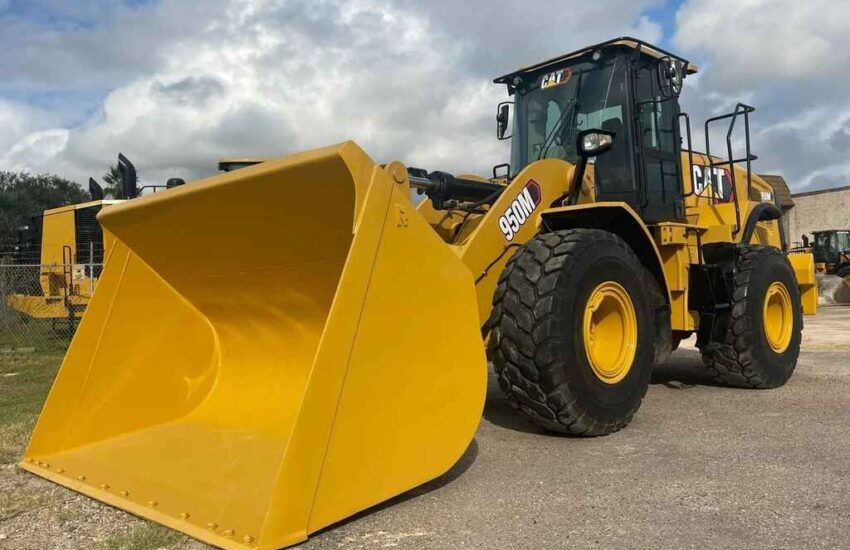

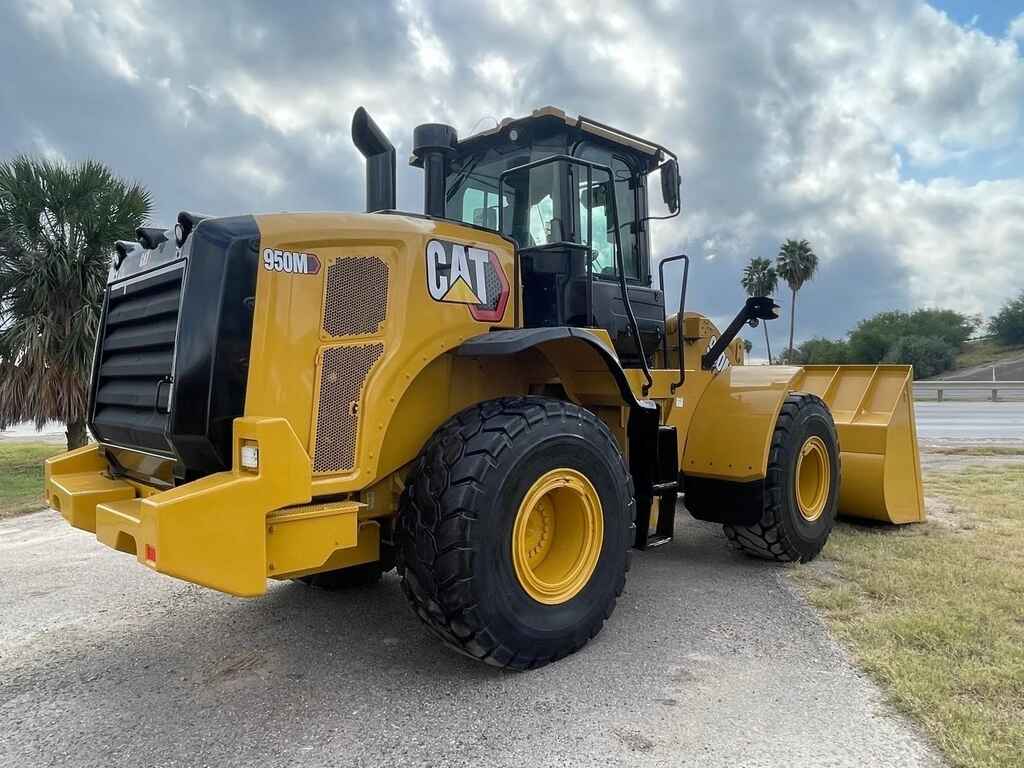

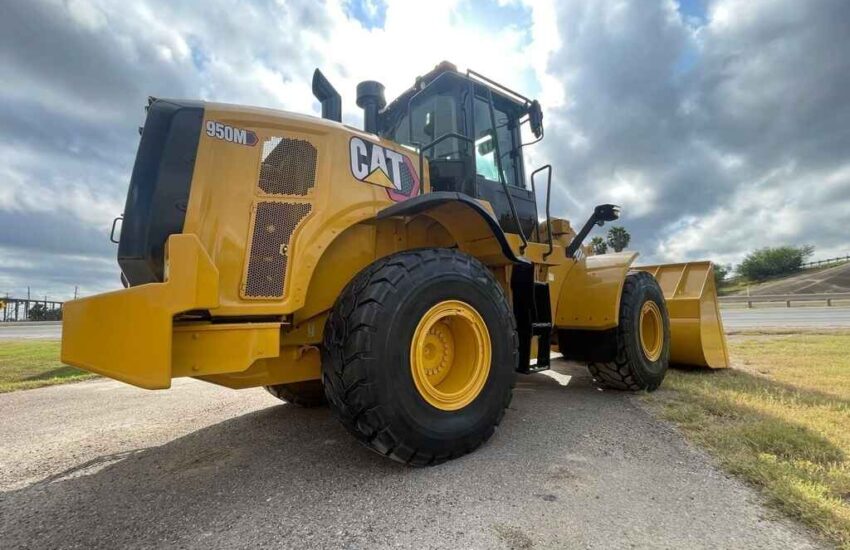

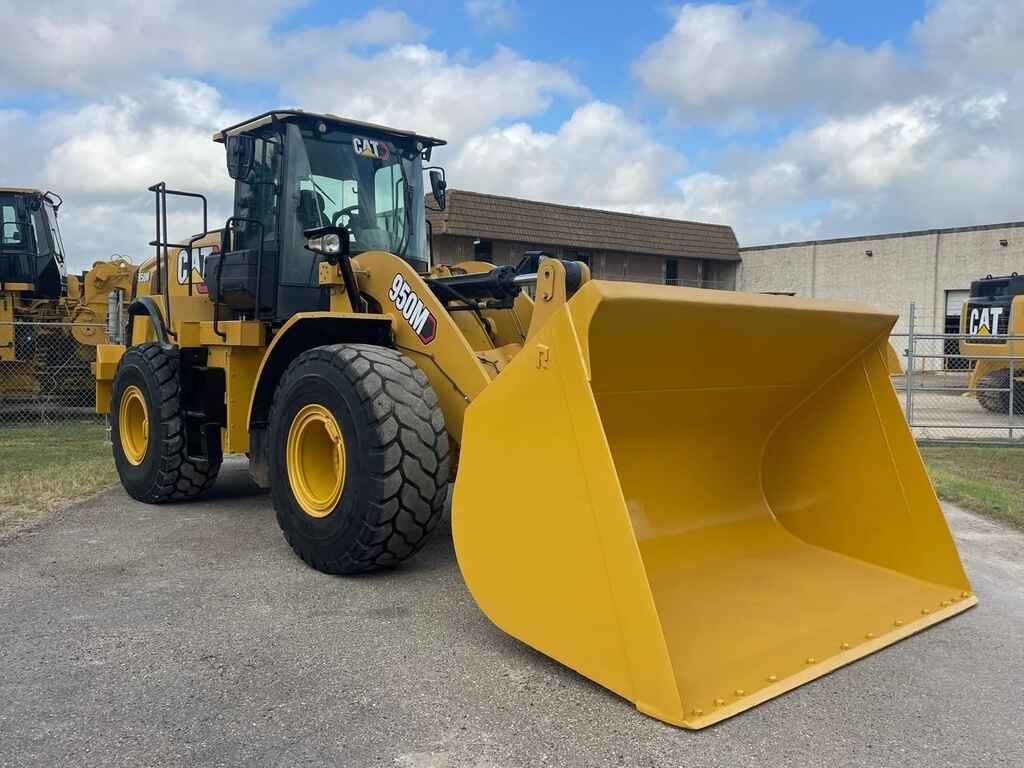

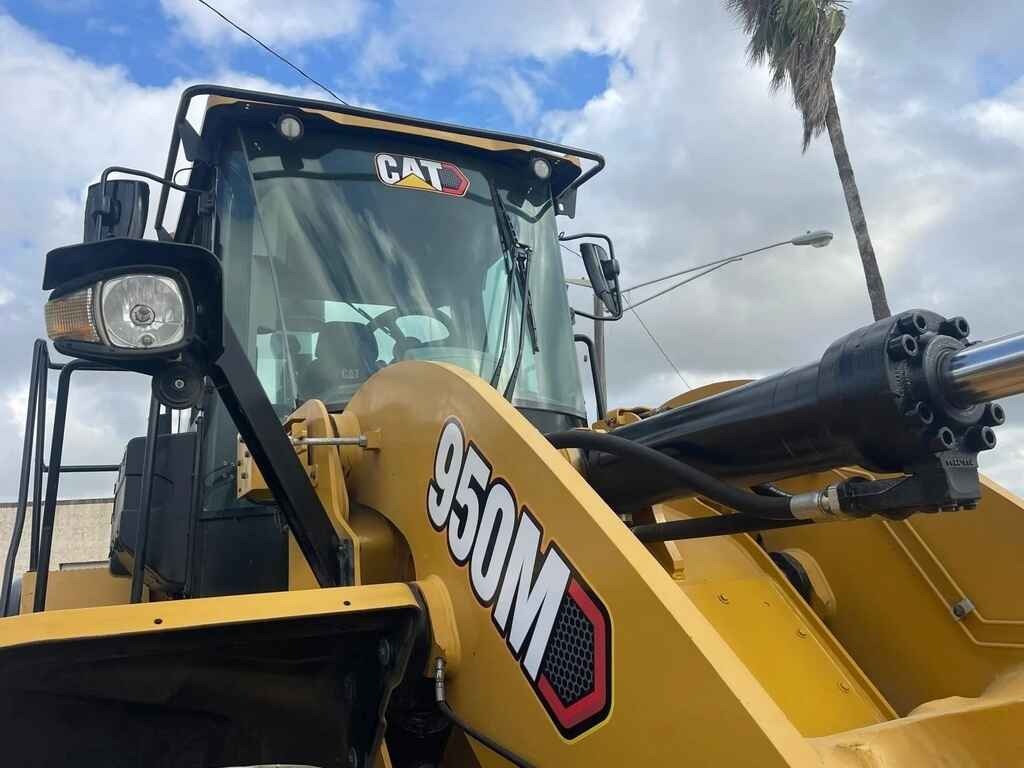

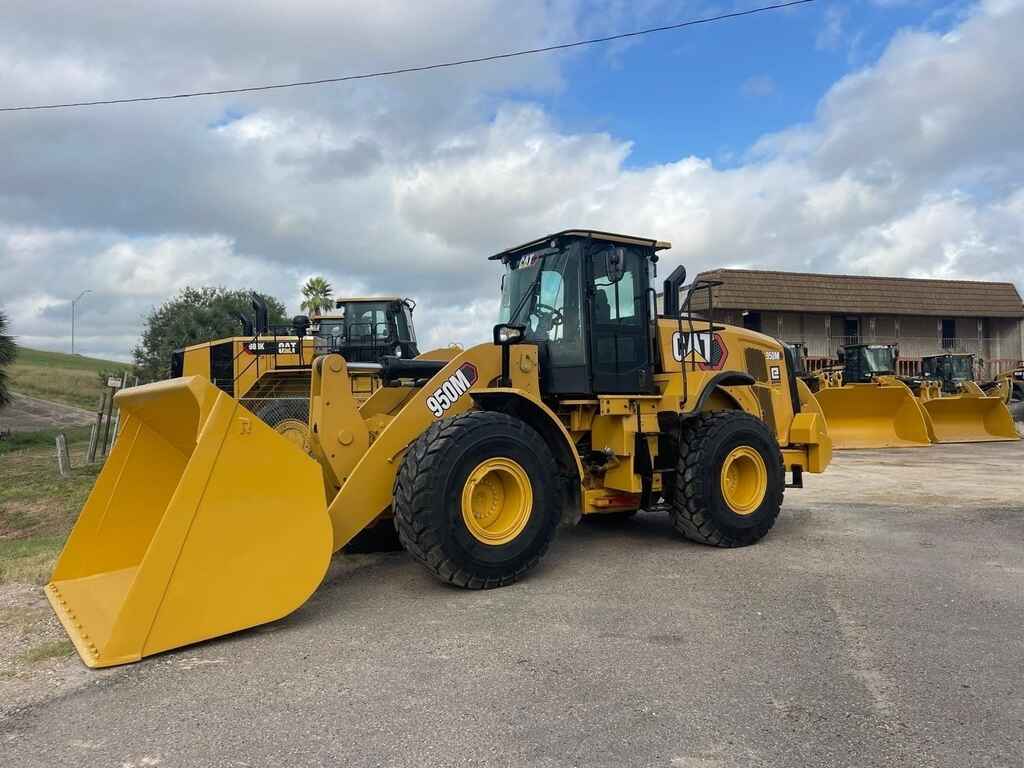

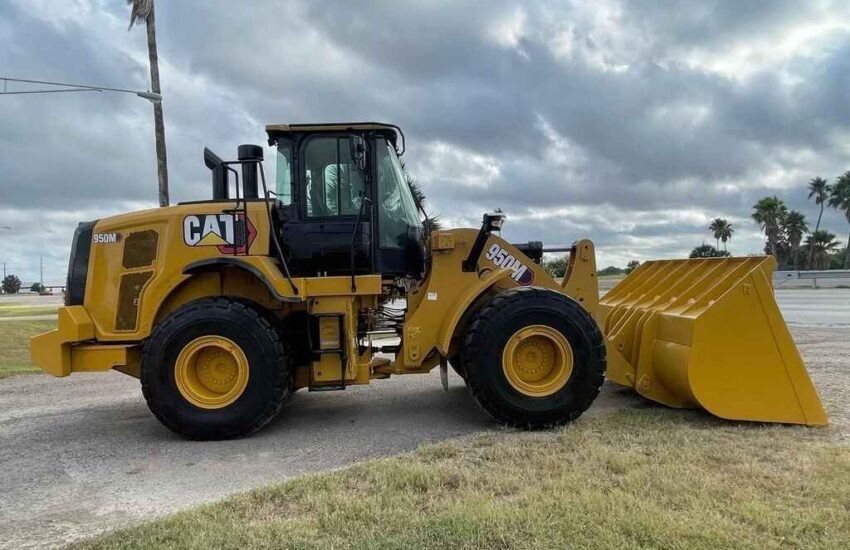

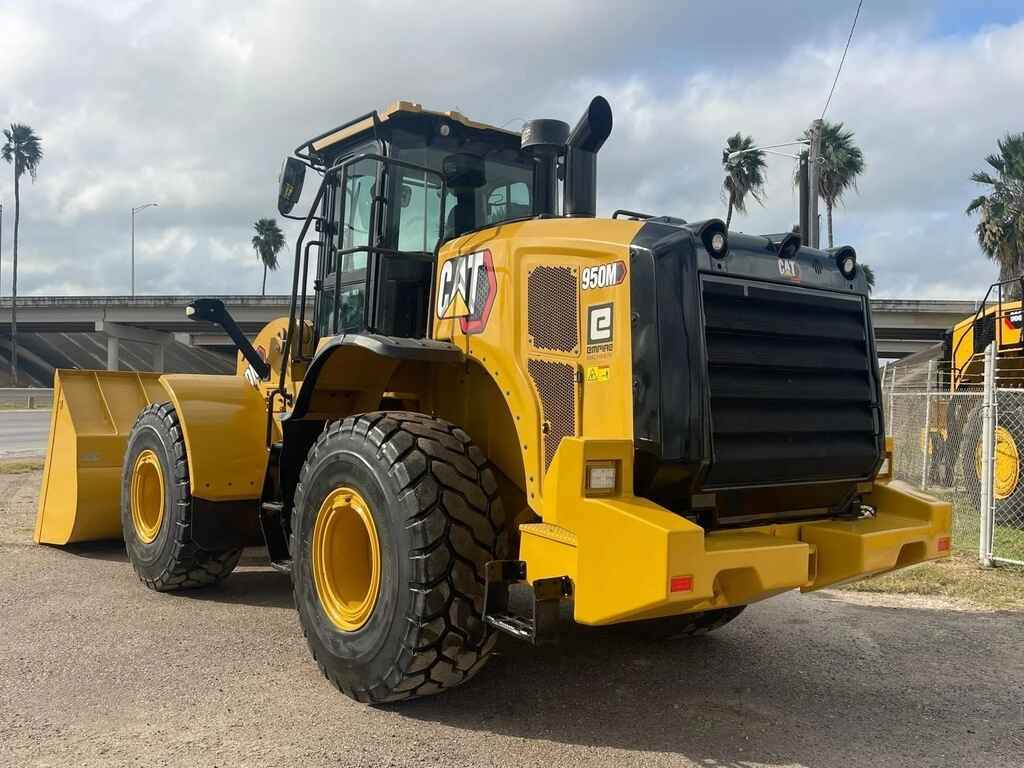

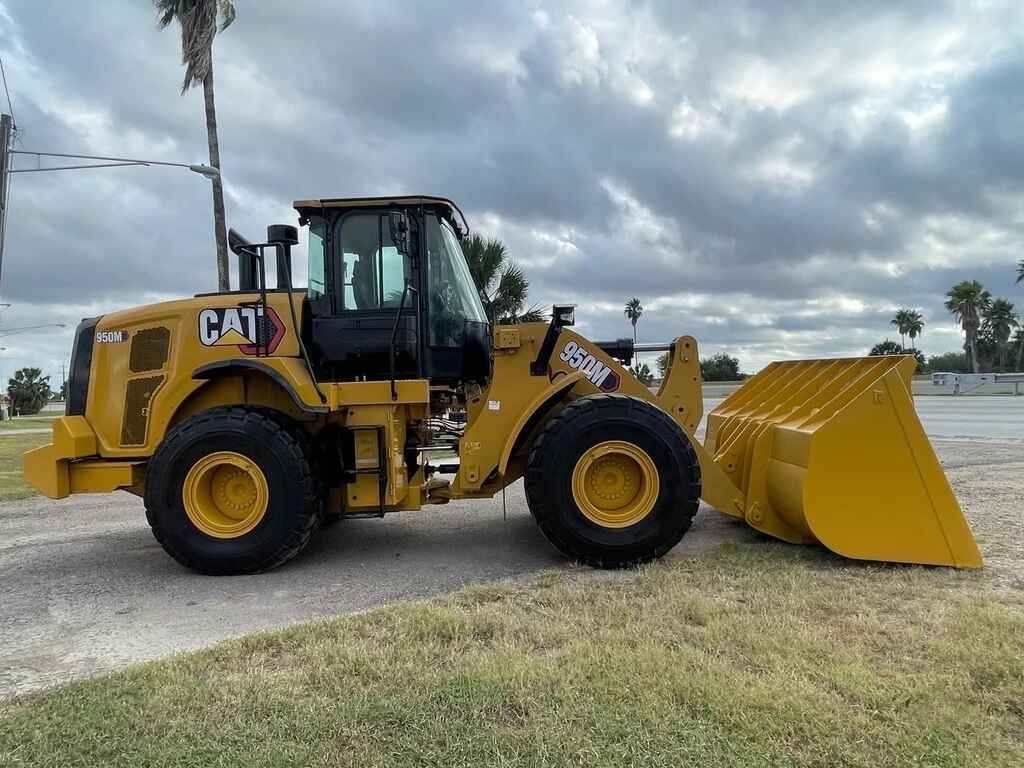

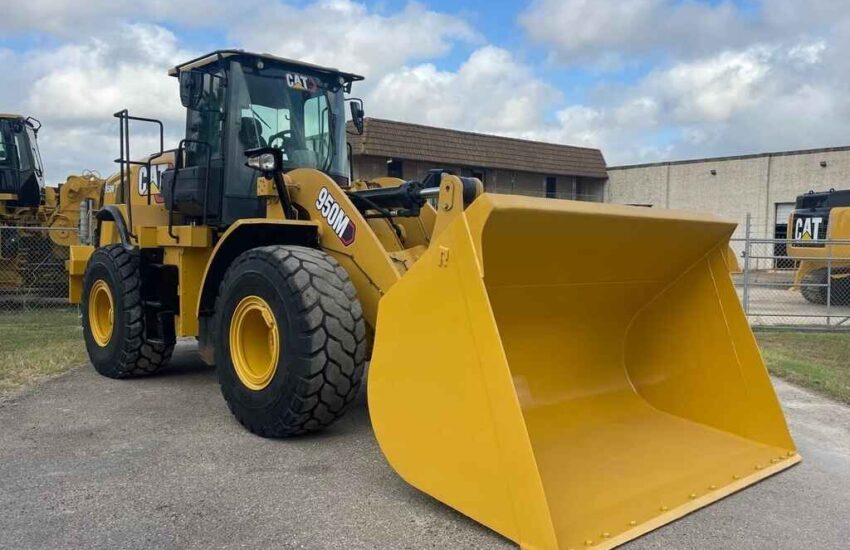

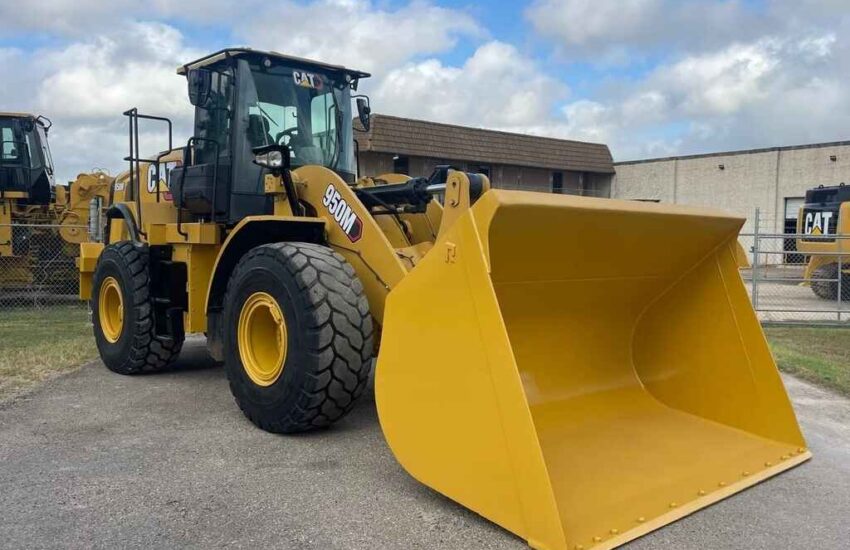

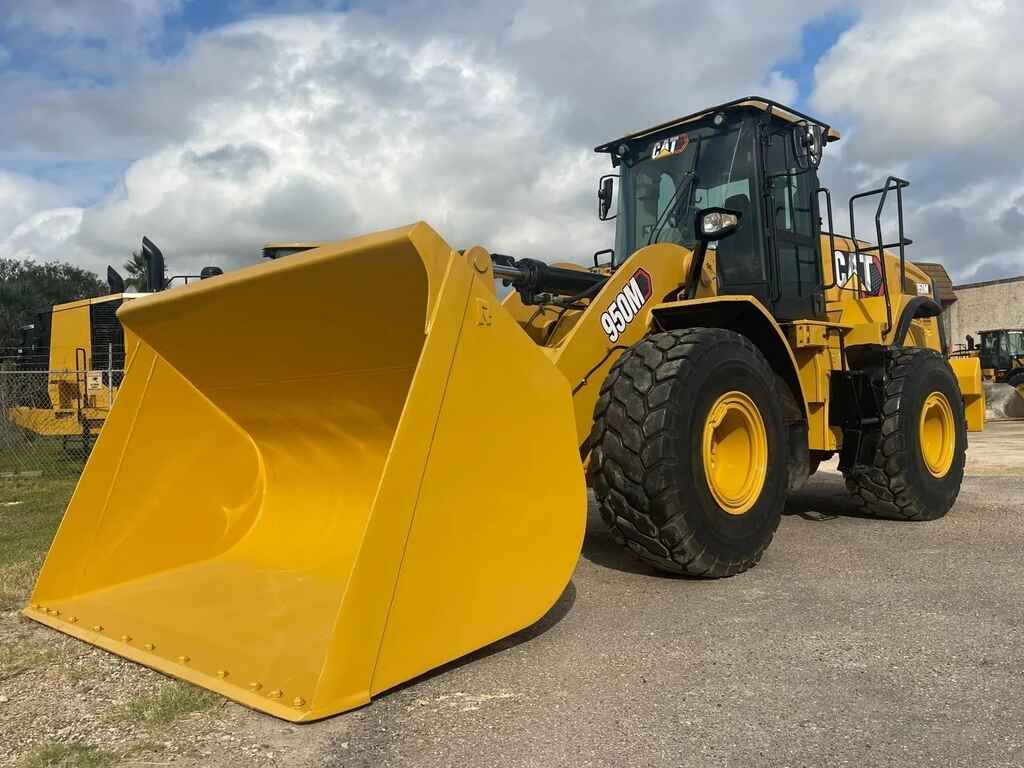

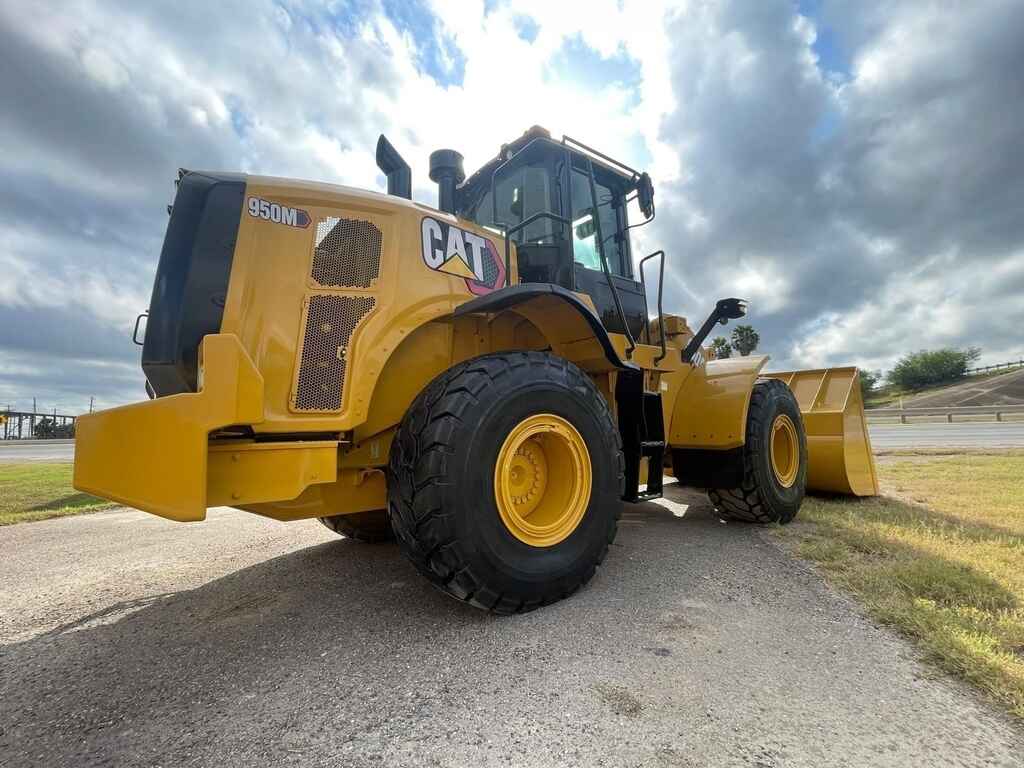

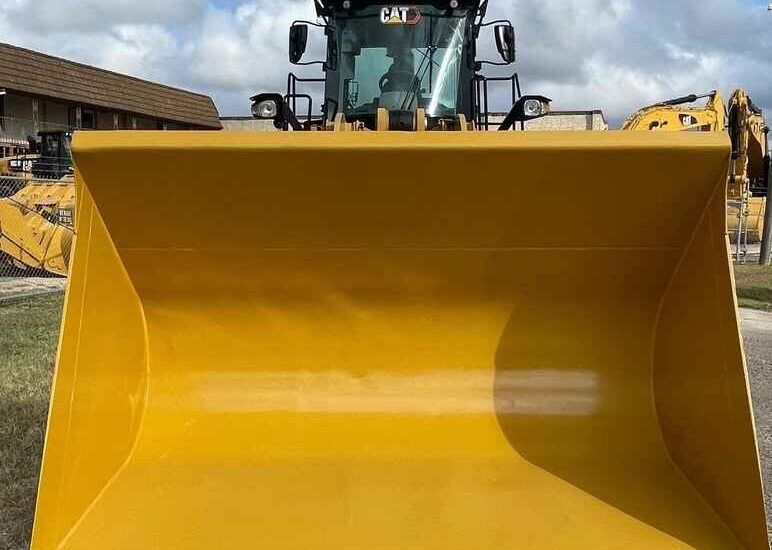

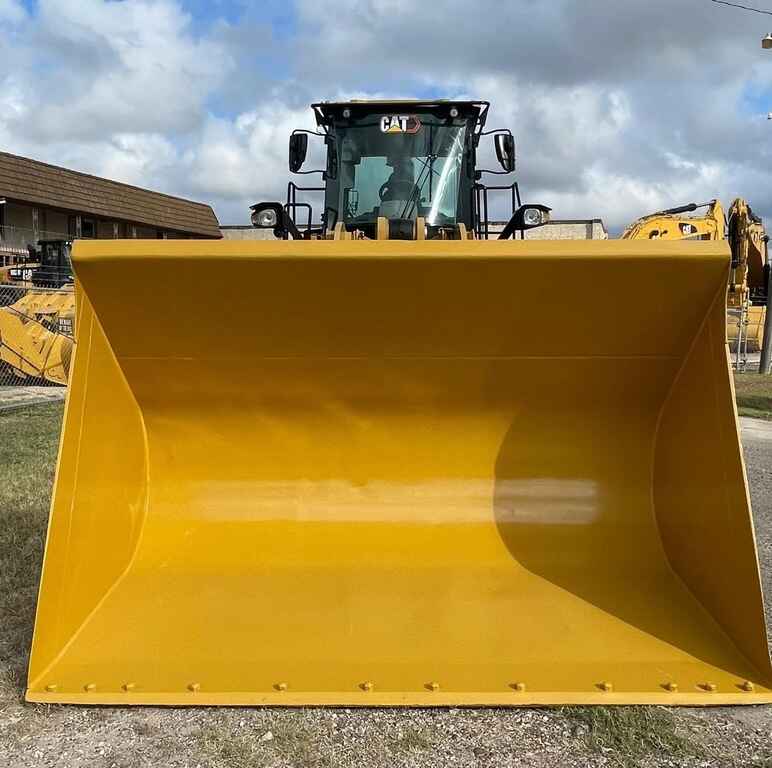

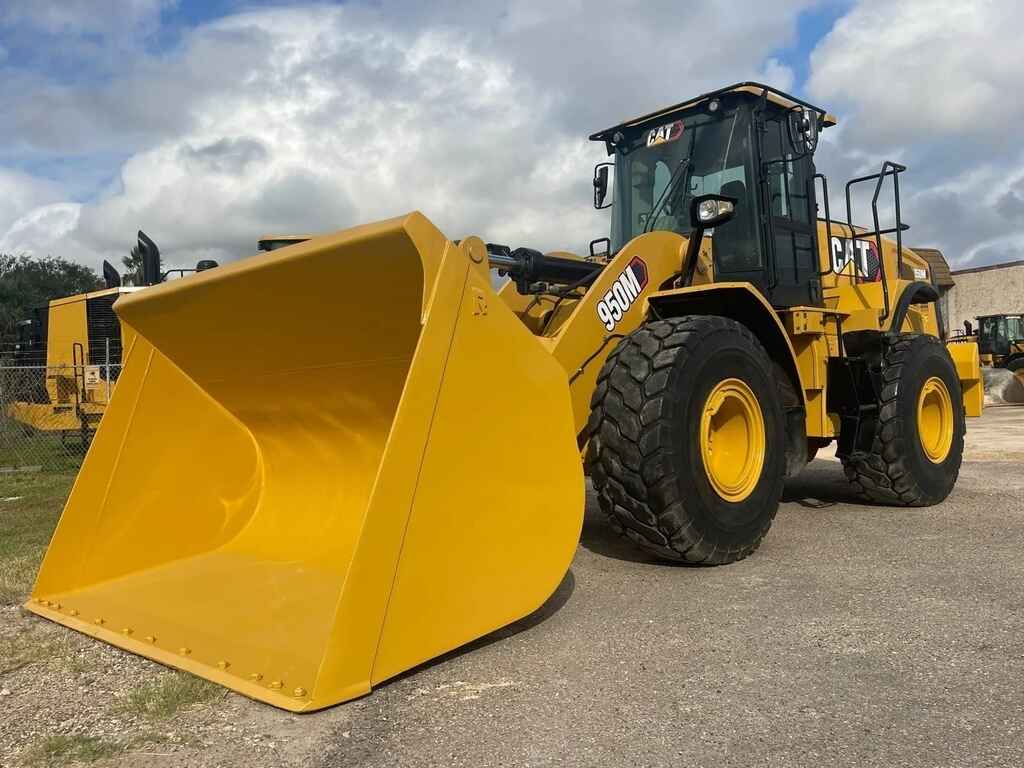

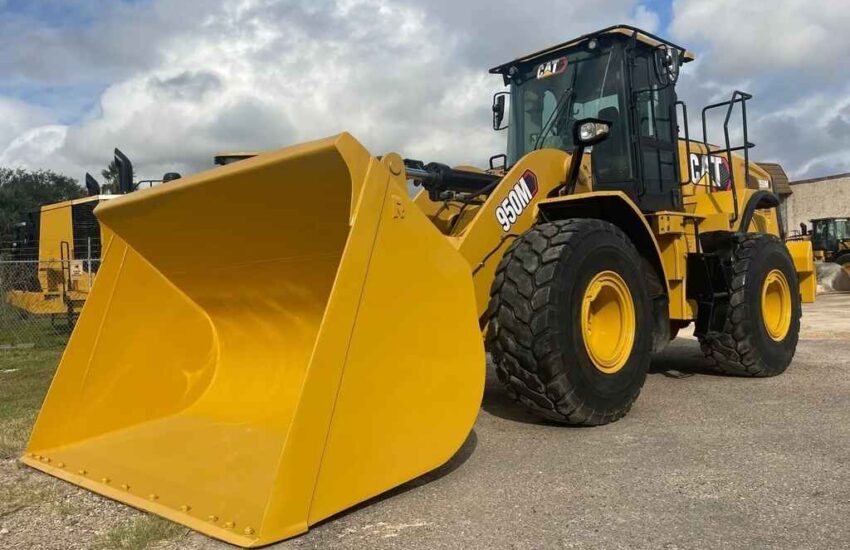

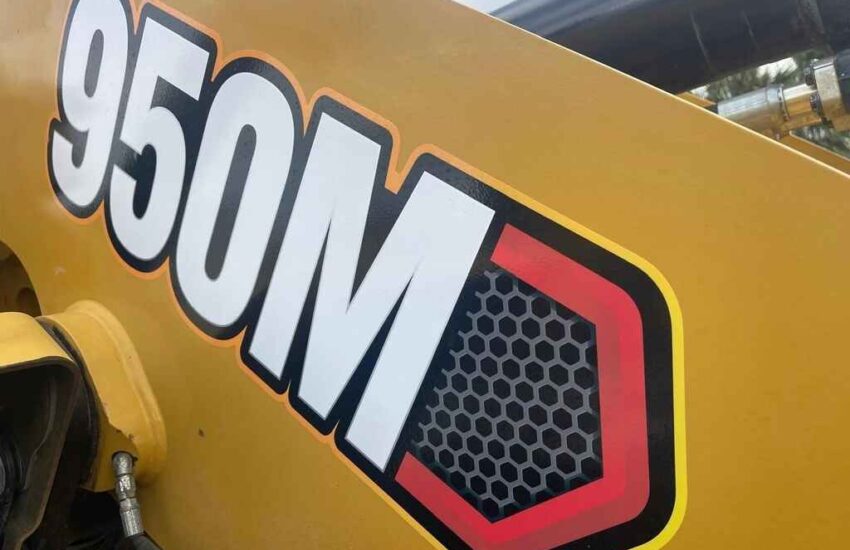

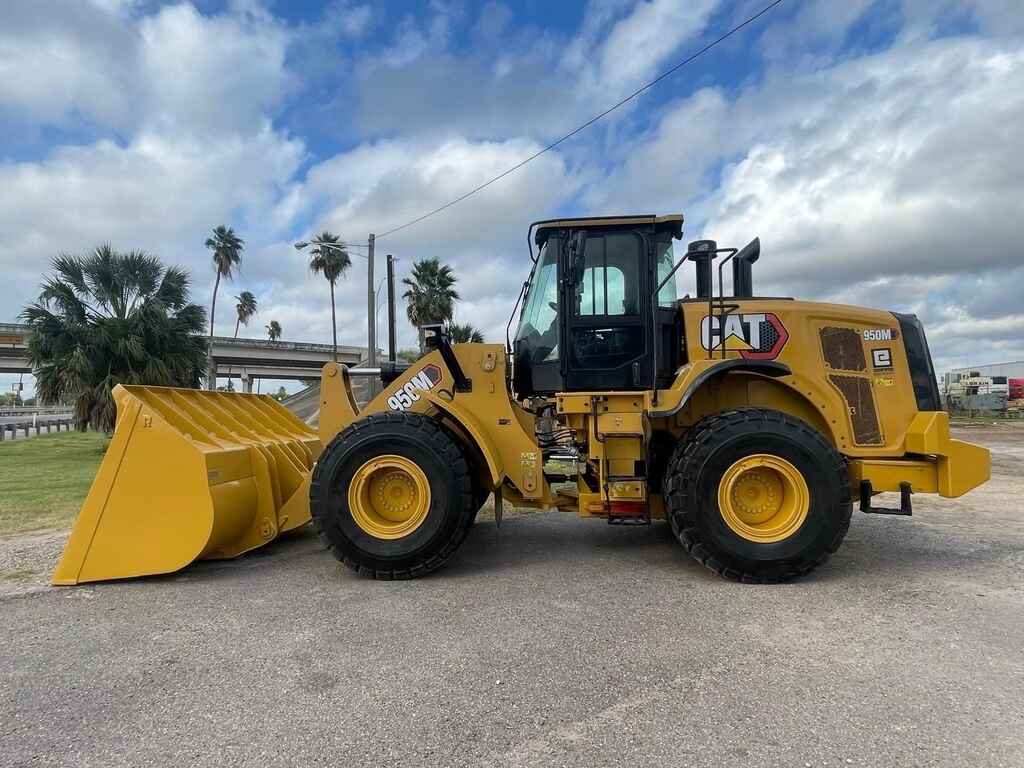

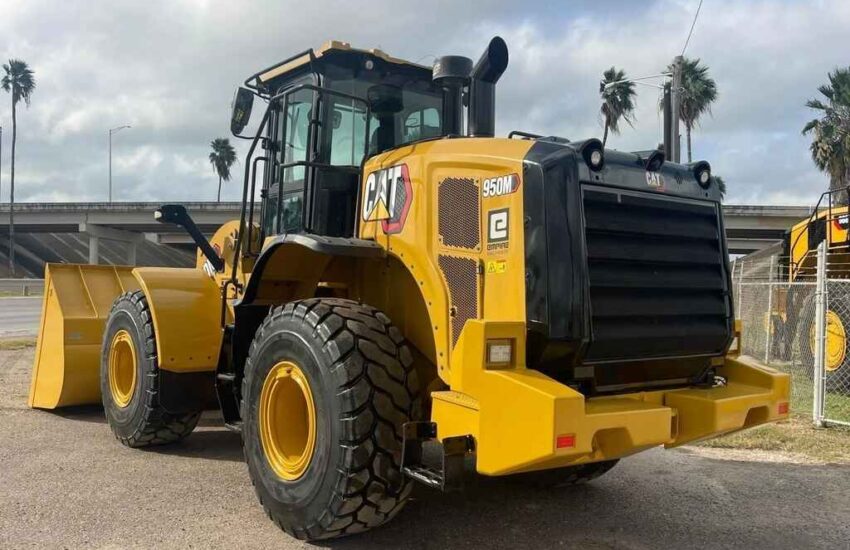

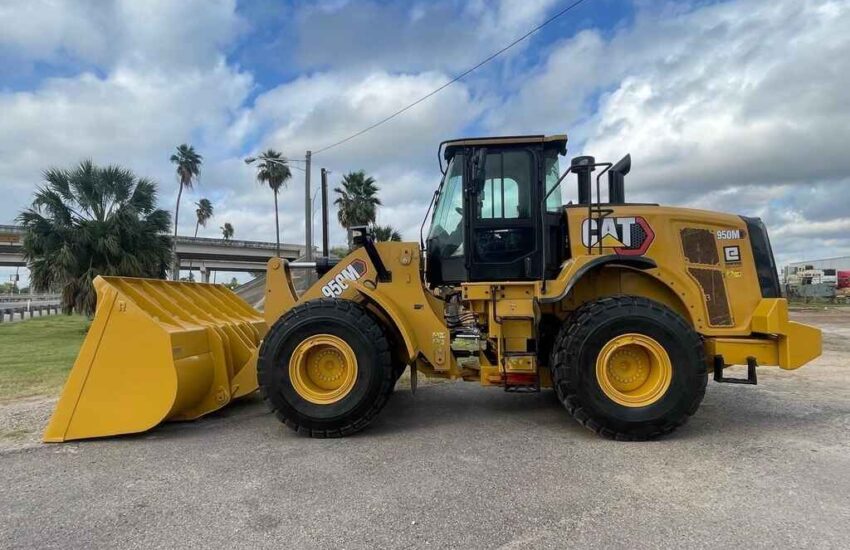

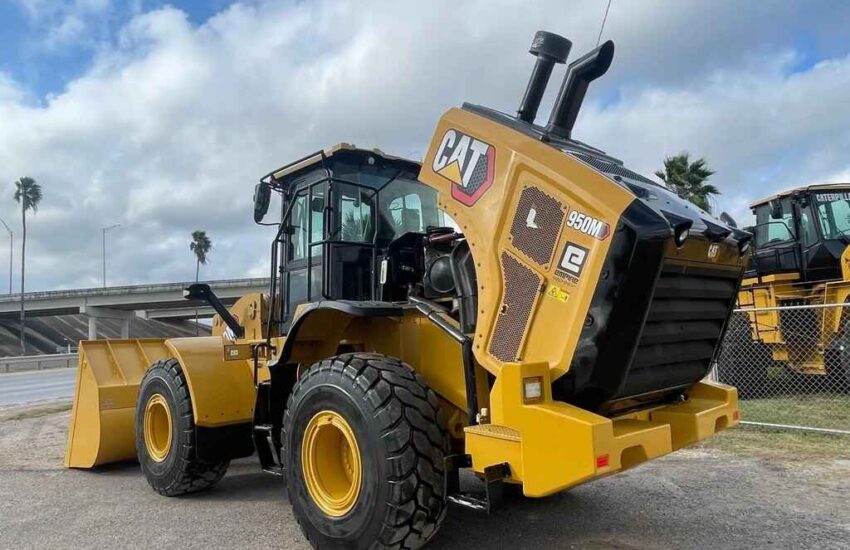

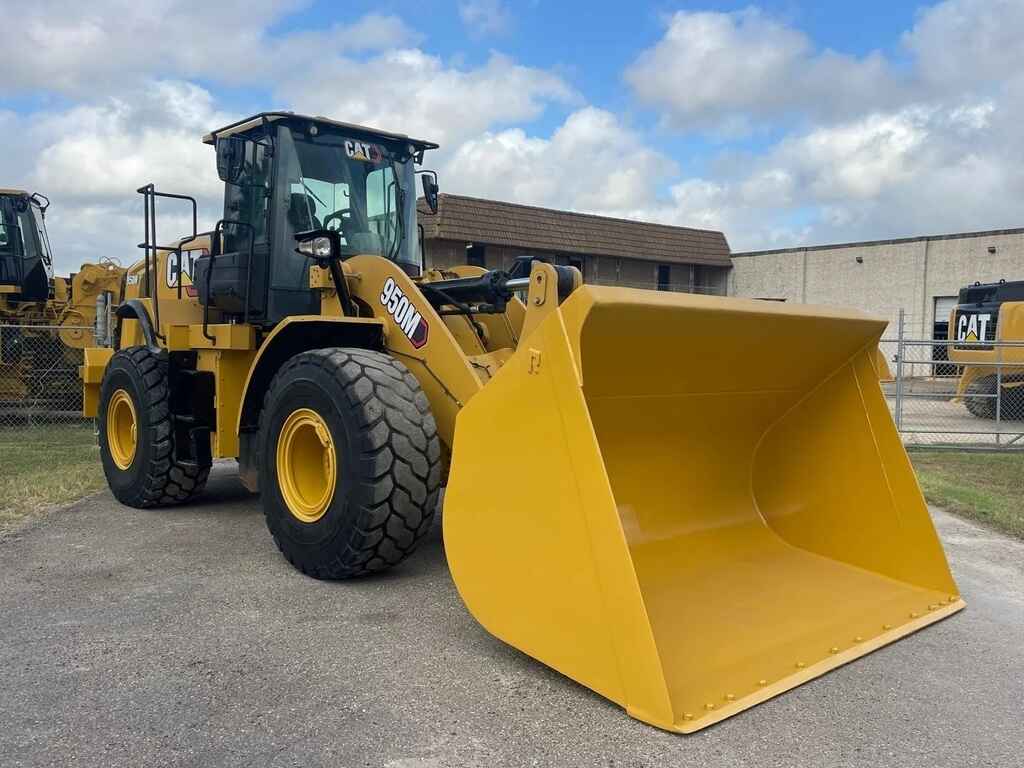

2017 Caterpillar 950M

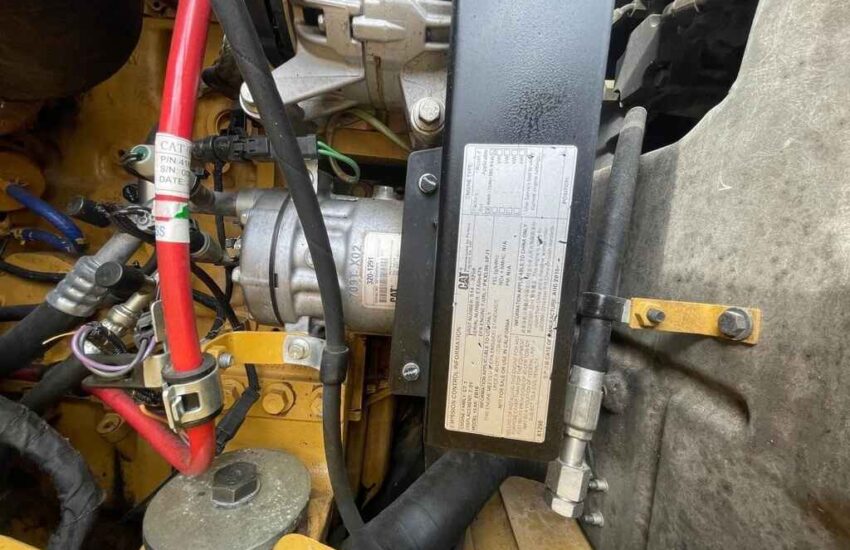

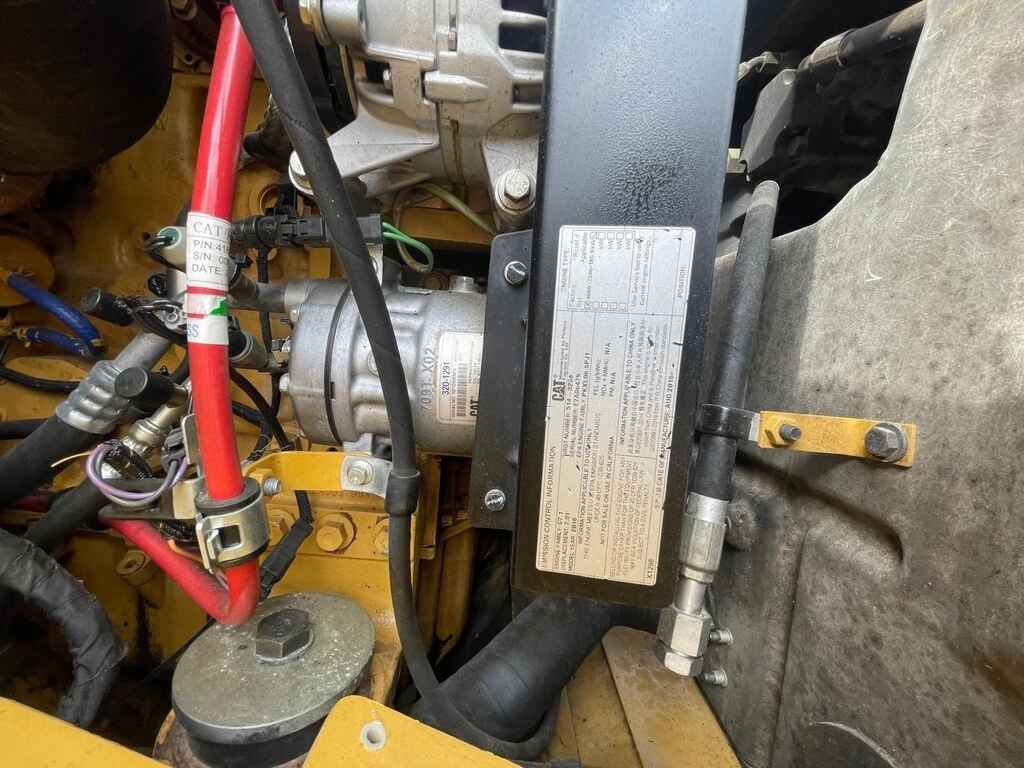

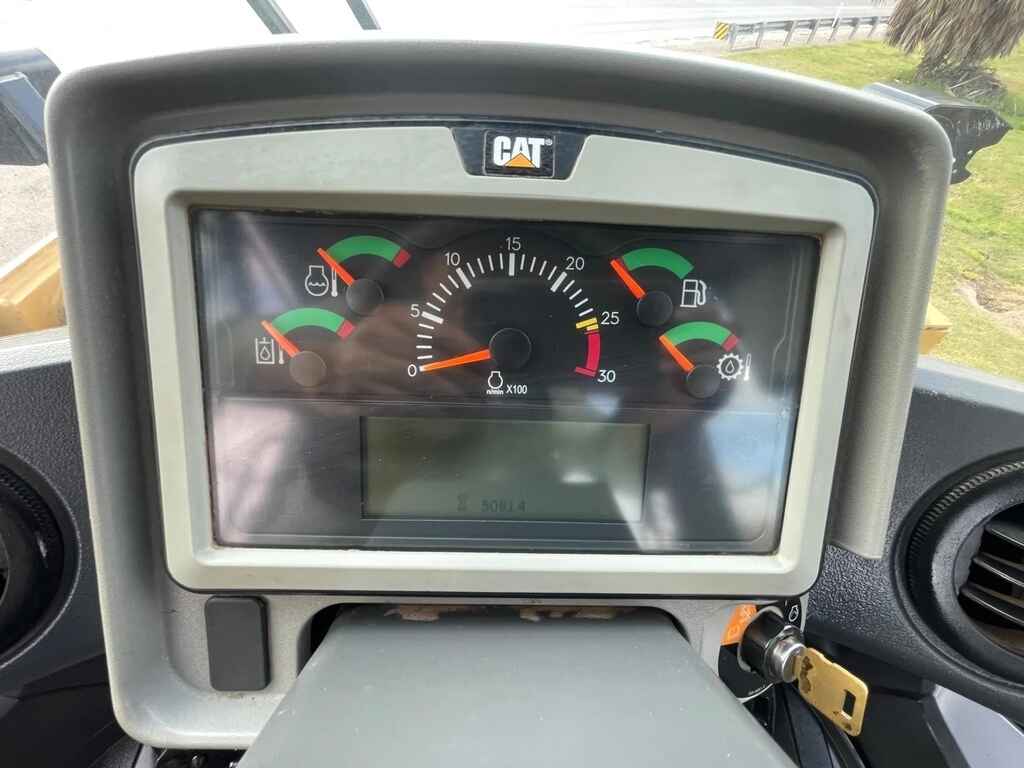

2017 950M AIR CONDITIONER RADIO AM FM BLUETOOTH AUTOSHIFT TRANSMISSION ENGINE CAT C7 WITH 5081 HOURS REAR CAMERA EXTREMELY CLEAN. FORKS AVAILABLE ON THIS PRICE.

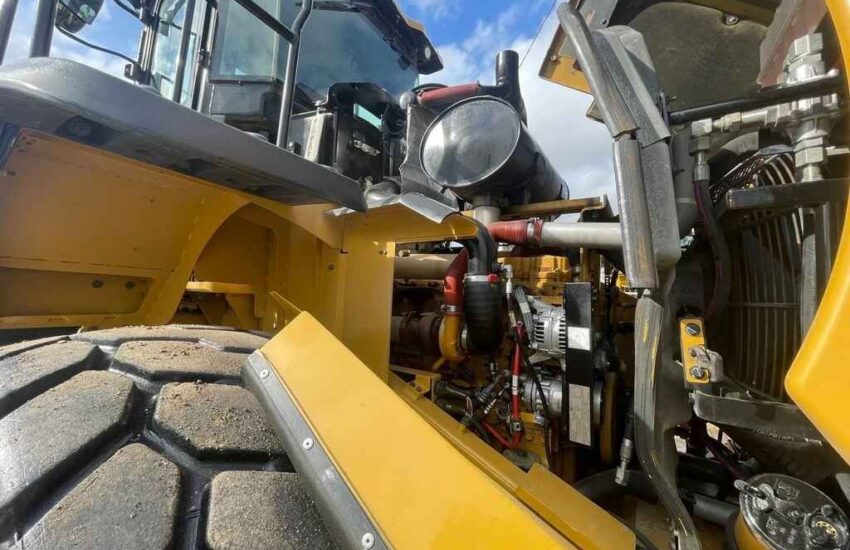

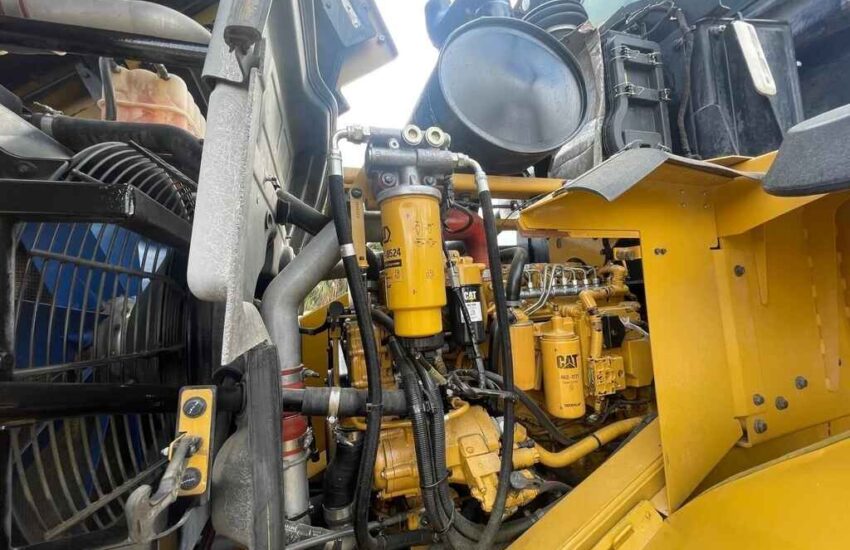

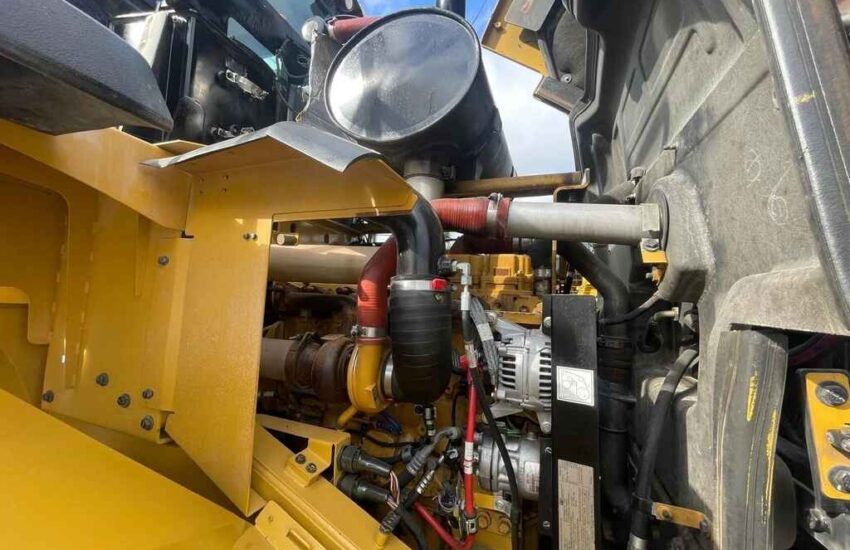

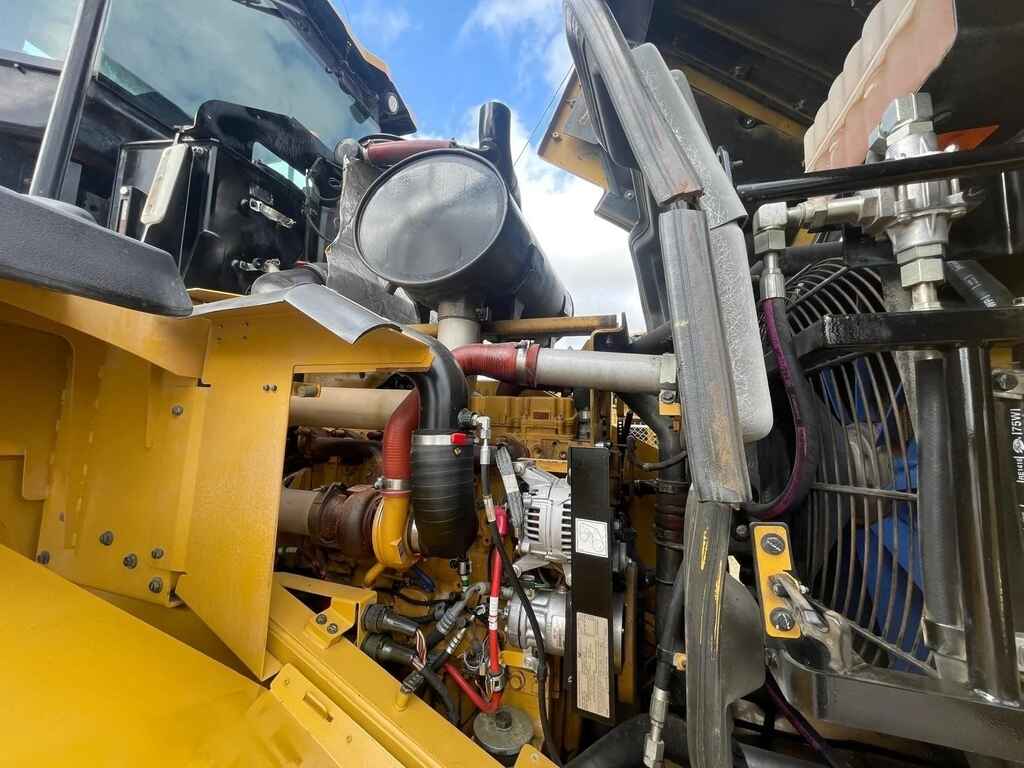

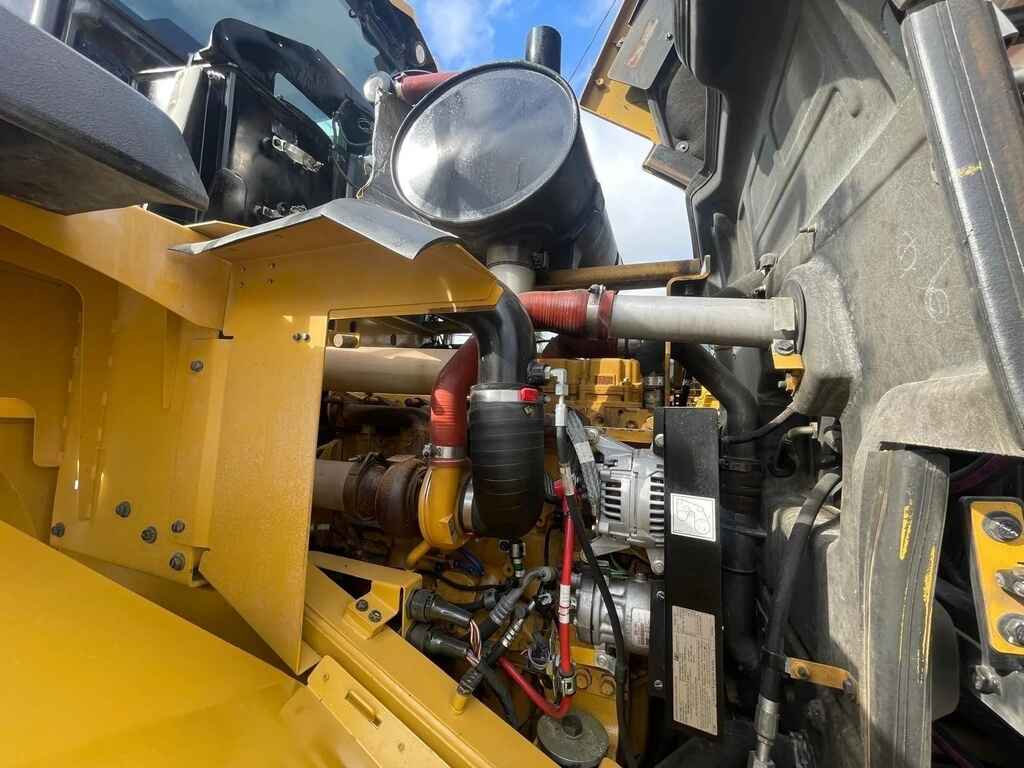

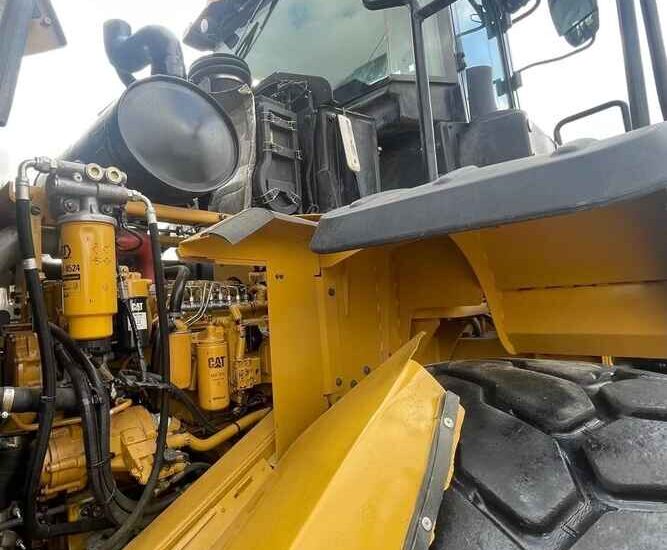

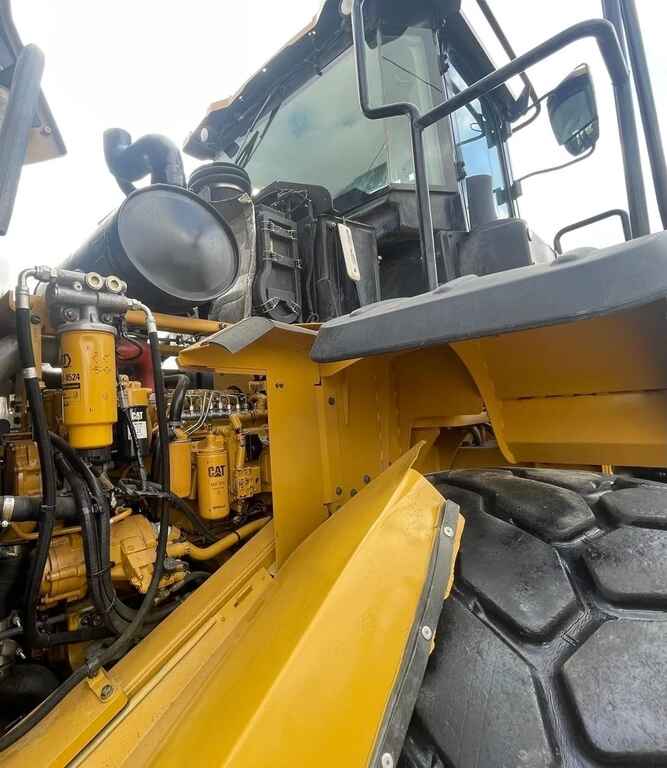

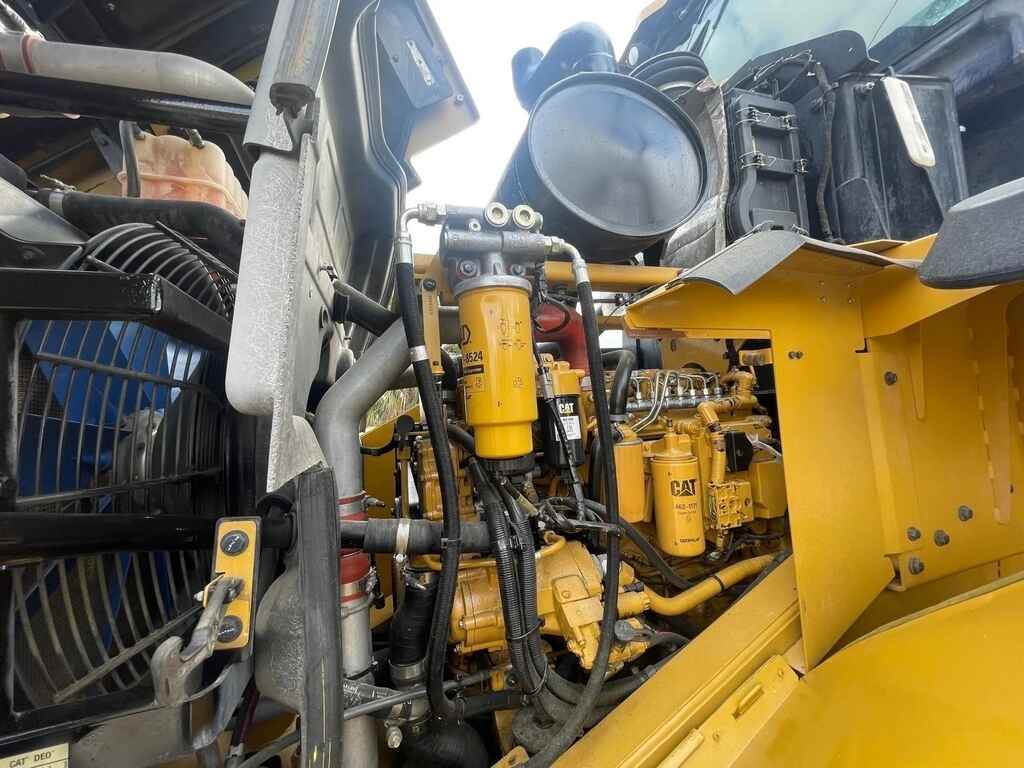

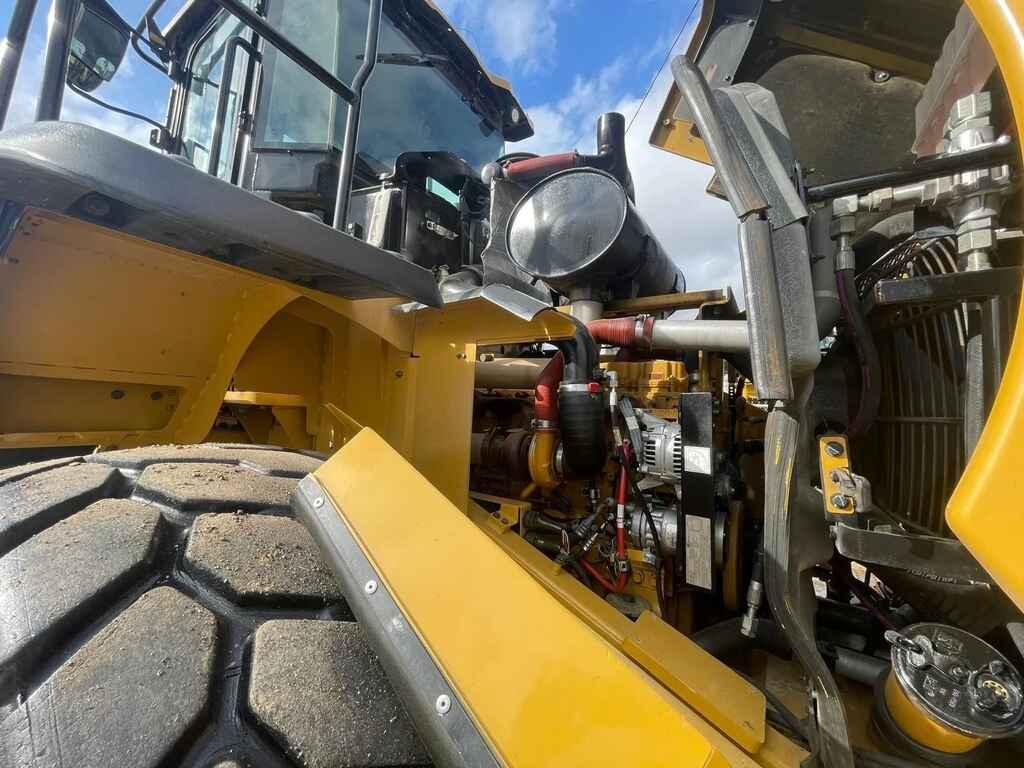

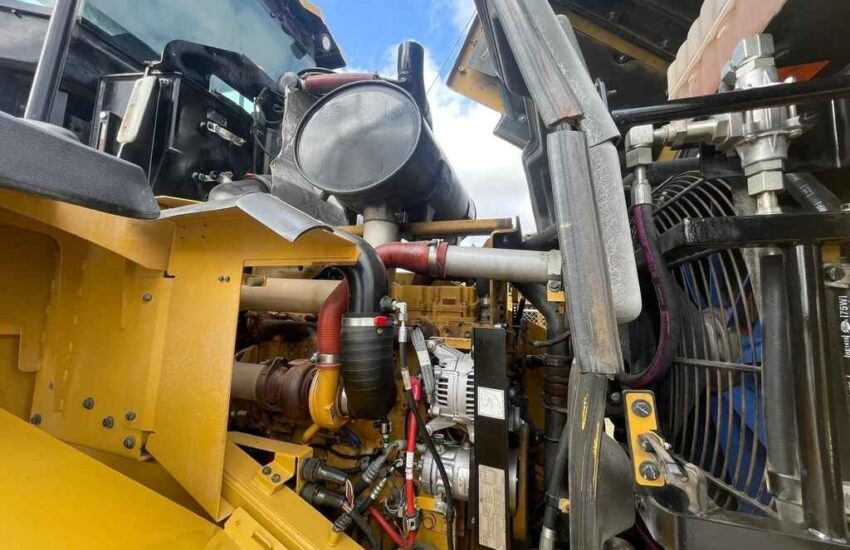

Engine
Model: Cat C7.1 ACERT
Gross Power: 254 hp (187 kW)
Net Power: 232 hp (171 kW)
Displacement: 428 in³ (7.01 L)
Emissions: Meets Tier 4 Final/Stage IV standards
Weights
Operating Weight: 42,481 lbs (19,269 kg)
Performance
Bucket Capacities: 3.3 to 12.0 yd³ (2.5 to 9.2 m³)
Breakout Force: 40,320 lbf (179.4 kN)
Static Tipping Load (Full Turn): 25,962 lbs (11,776 kg)
Maximum Travel Speed: 24.5 mph (39.5 km/h)

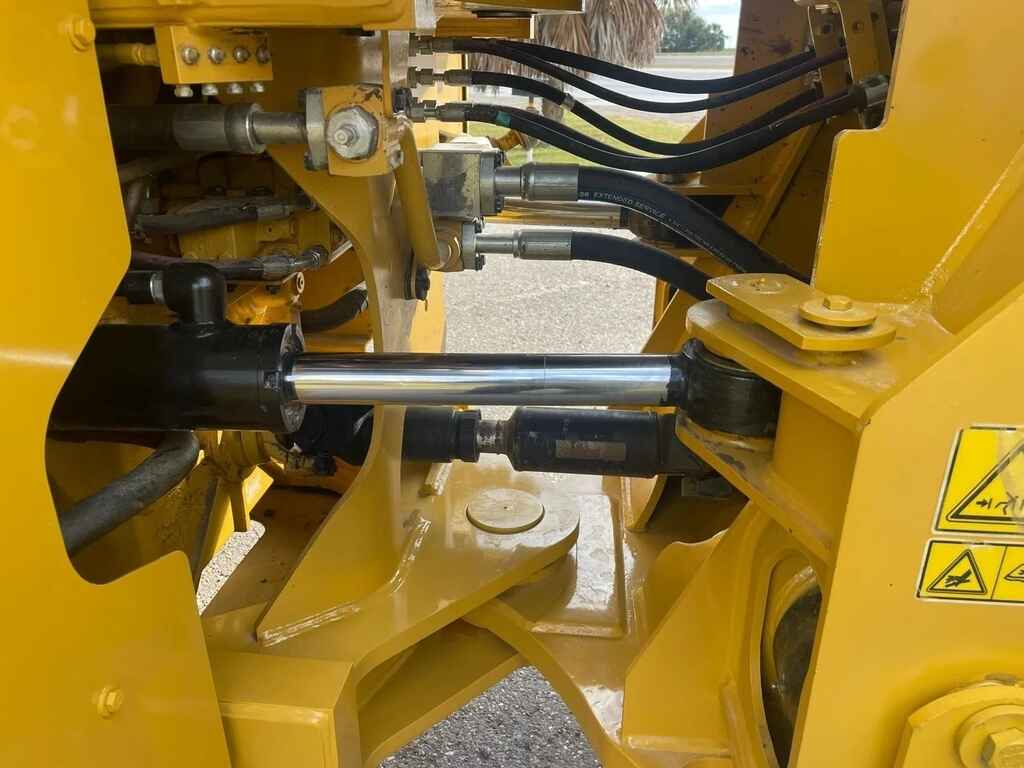

Hydraulics
Implement Pump Type: Variable axial piston
Maximum Pump Output: 76 gal/min (286 L/min)
Maximum Operating Pressure: 4,250 psi (29,300 kPa)
Hydraulic Cycle Time (Raise): 5.1 seconds
Hydraulic Cycle Time (Dump): 1.5 seconds
Hydraulic Cycle Time (Lower): 2.3 seconds
Total Hydraulic Cycle Time: 8.9 seconds
Dimensions
Length (with Bucket on Ground): 25 ft 1 in (7.65 m)
Width (over Tires): 9 ft 3 in (2.82 m)
Height (to Top of Cab): 11 ft 4 in (3.45 m)
Ground Clearance: 1 ft 2 in (0.36 m)
Wheelbase: 11 ft 11 in (3.63 m)
Turning Radius (over Bucket): 20 ft 10 in (6.35 m)
Features
Transmission: 5-speed automatic with lock-up clutch torque converter
Axles: Front fixed, rear oscillating ±13 degrees
Brakes: Inboard wet disc service brakes; external caliper disc parking brakes

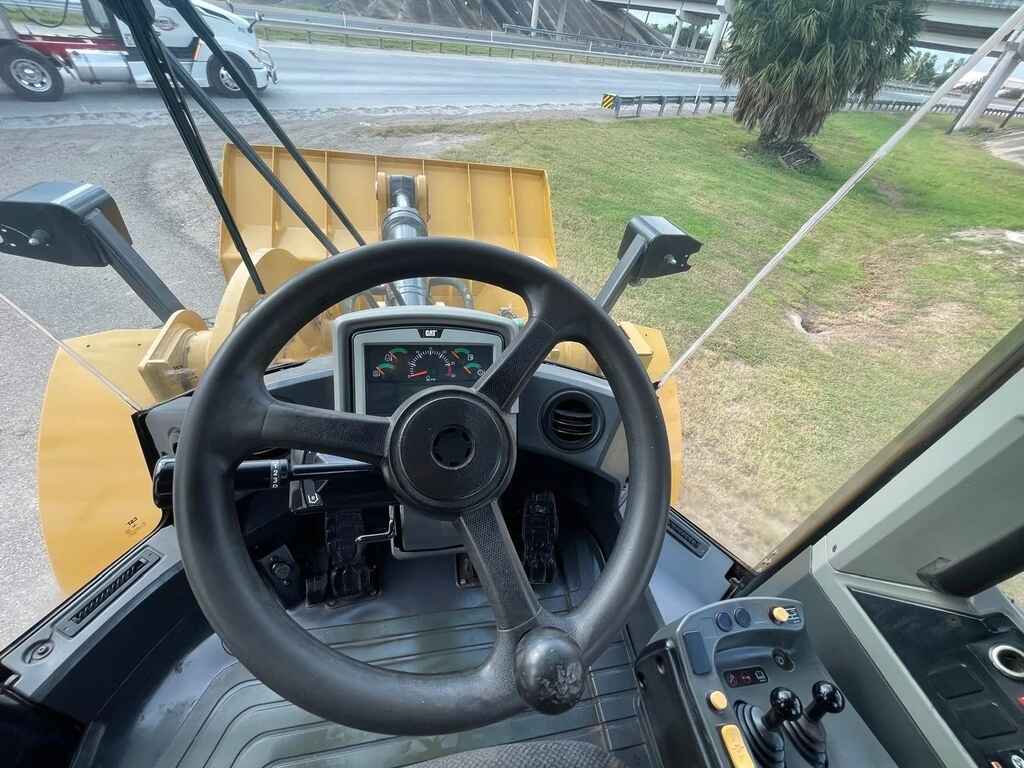

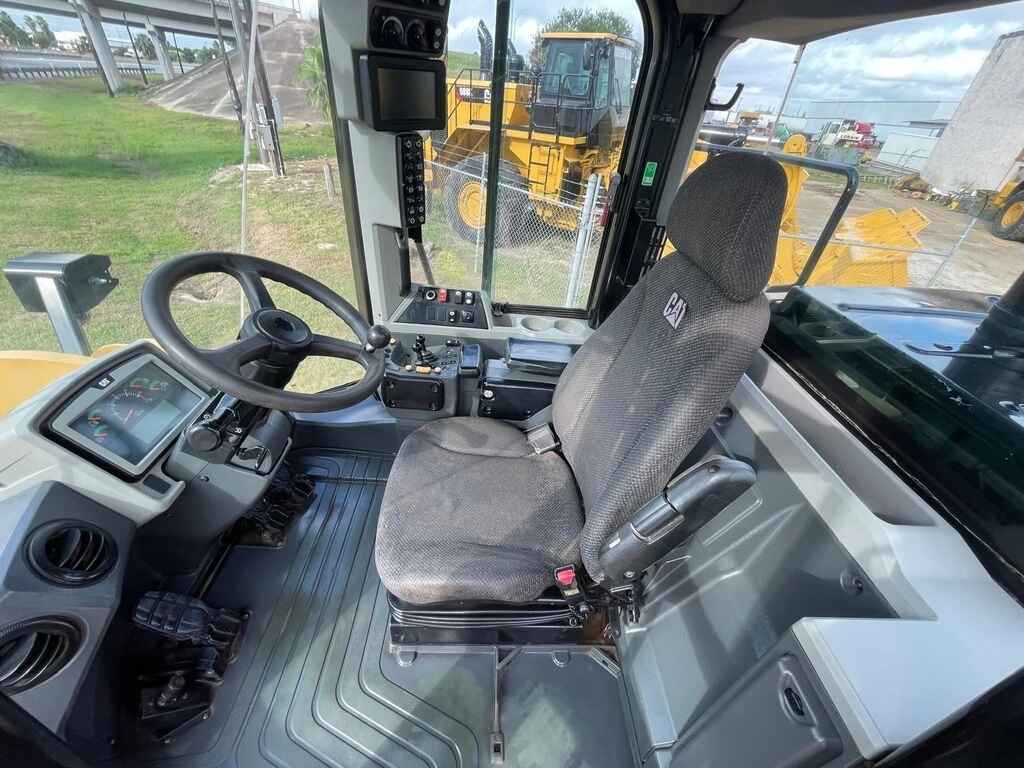

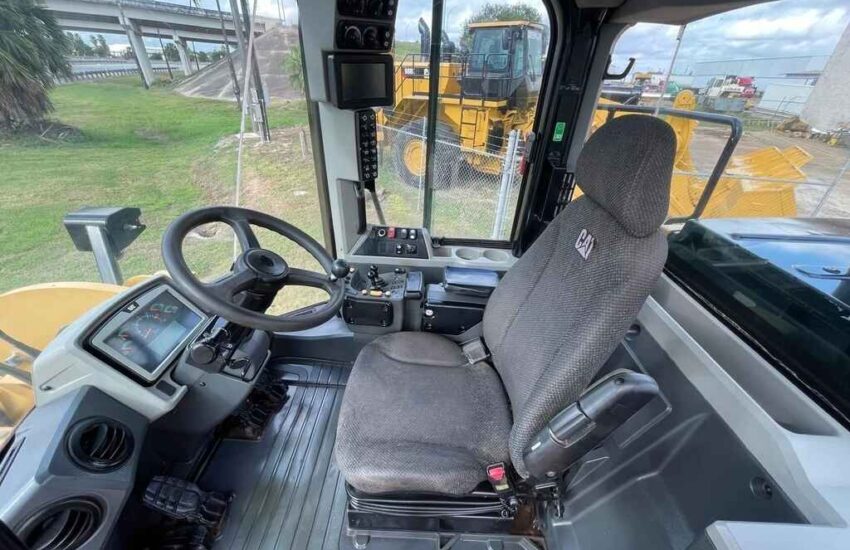

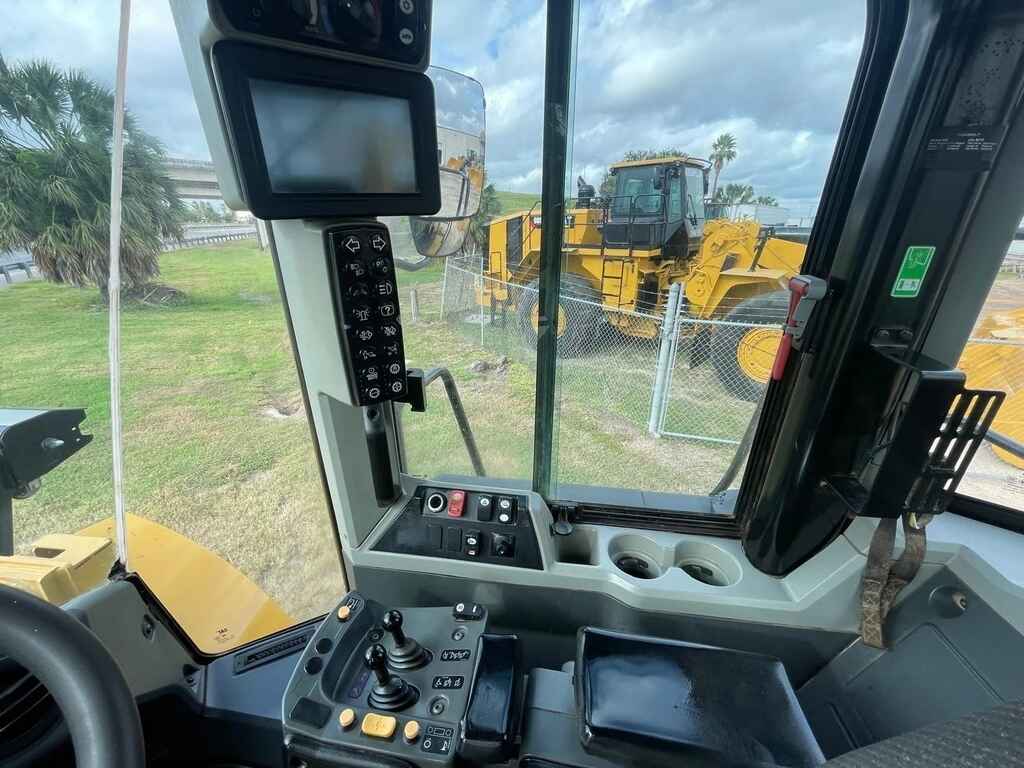

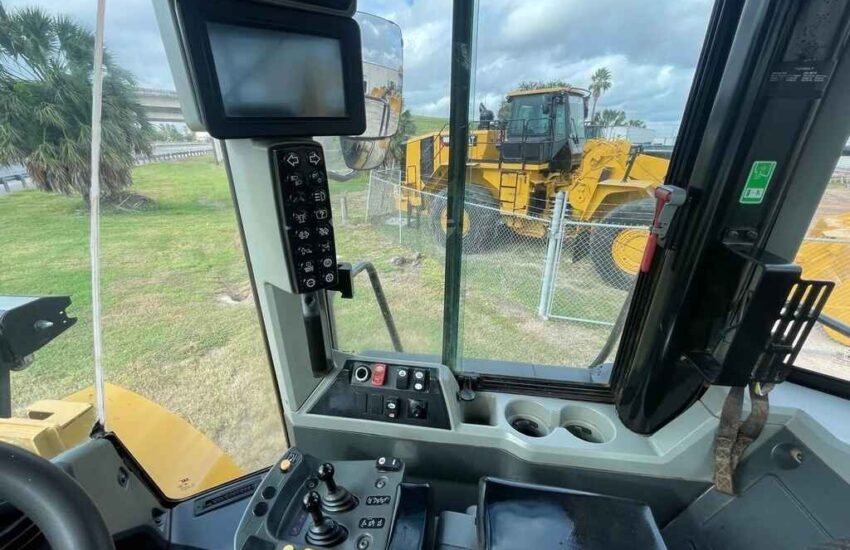

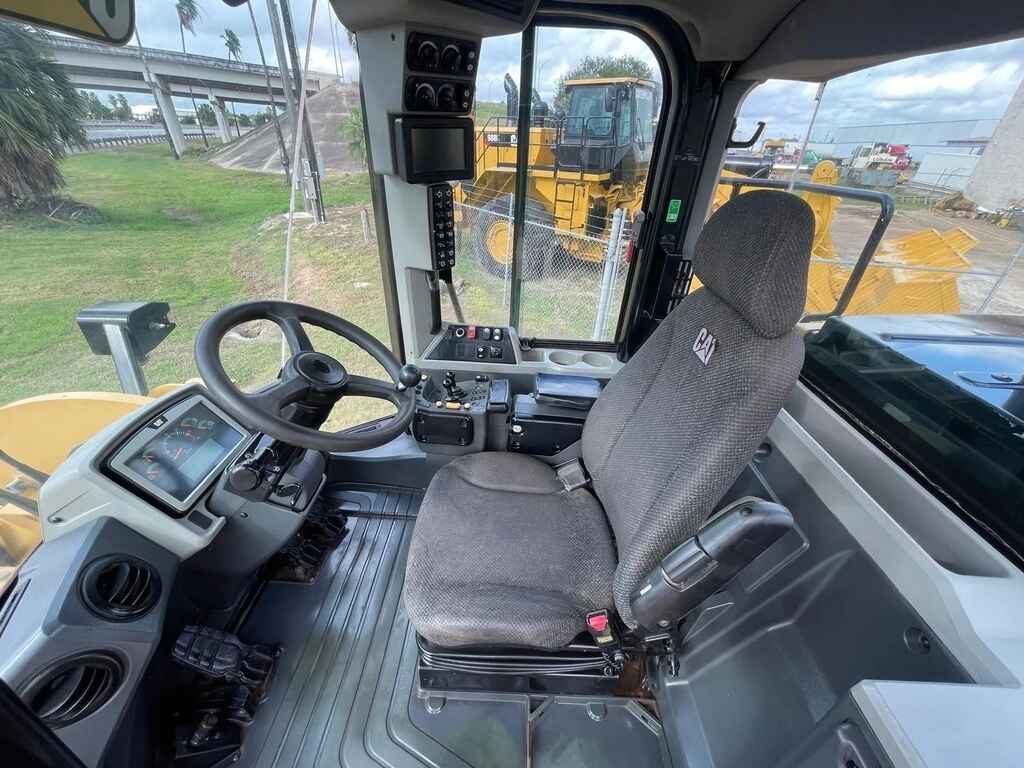

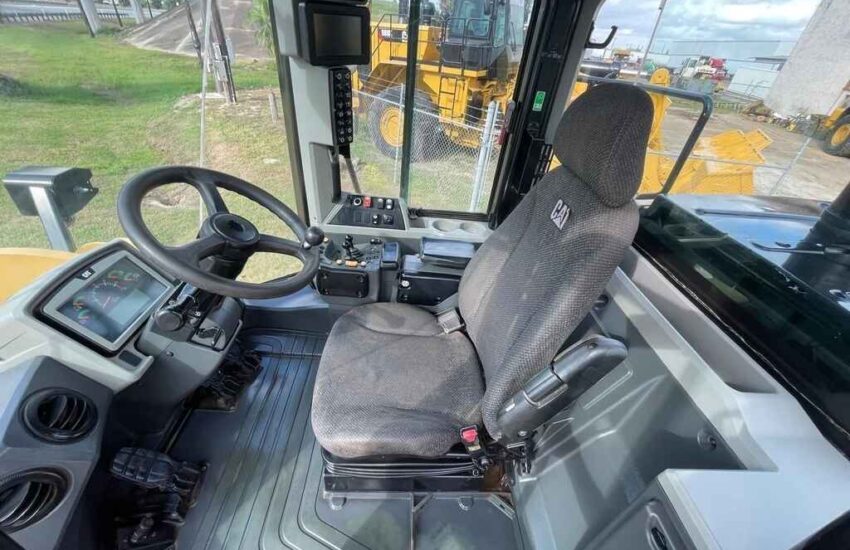

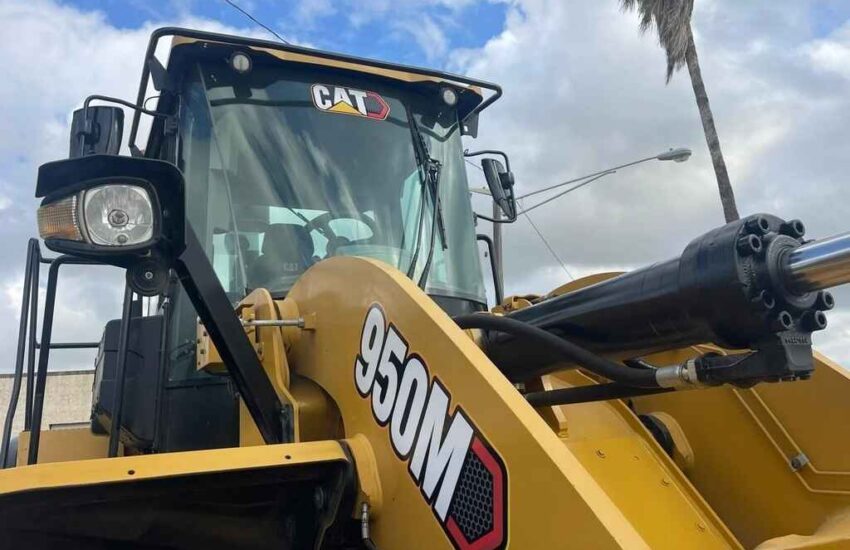

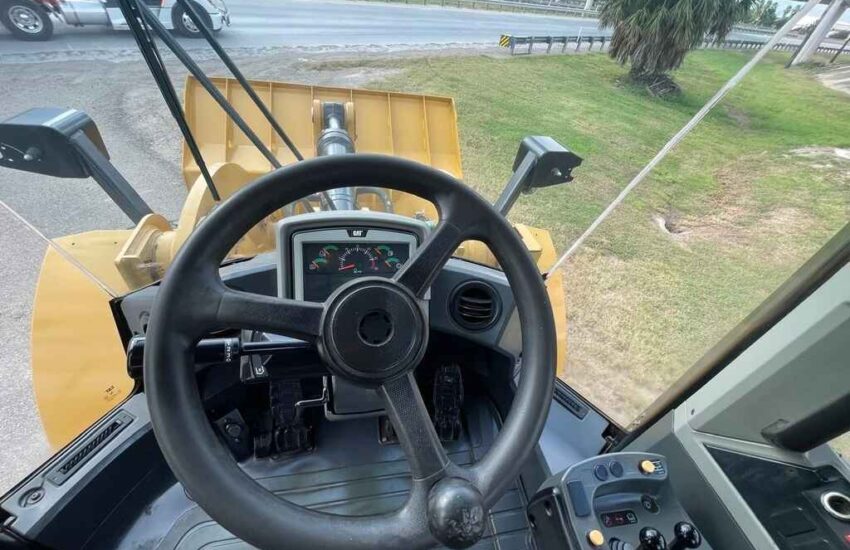

Operator Cab: ROPS/FOPS certified, sound-suppressed, pressurized

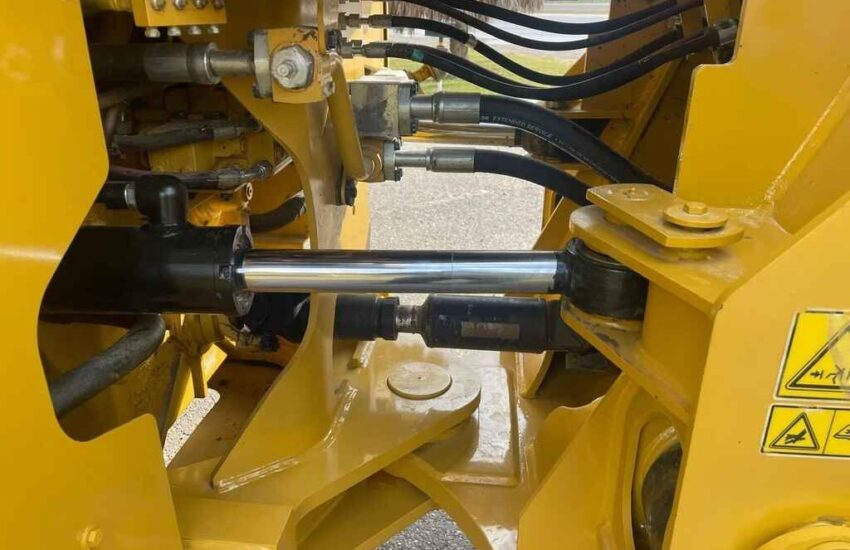

Steering: Load-sensing hydraulic steering system
Tires: 23.5R25 radial
