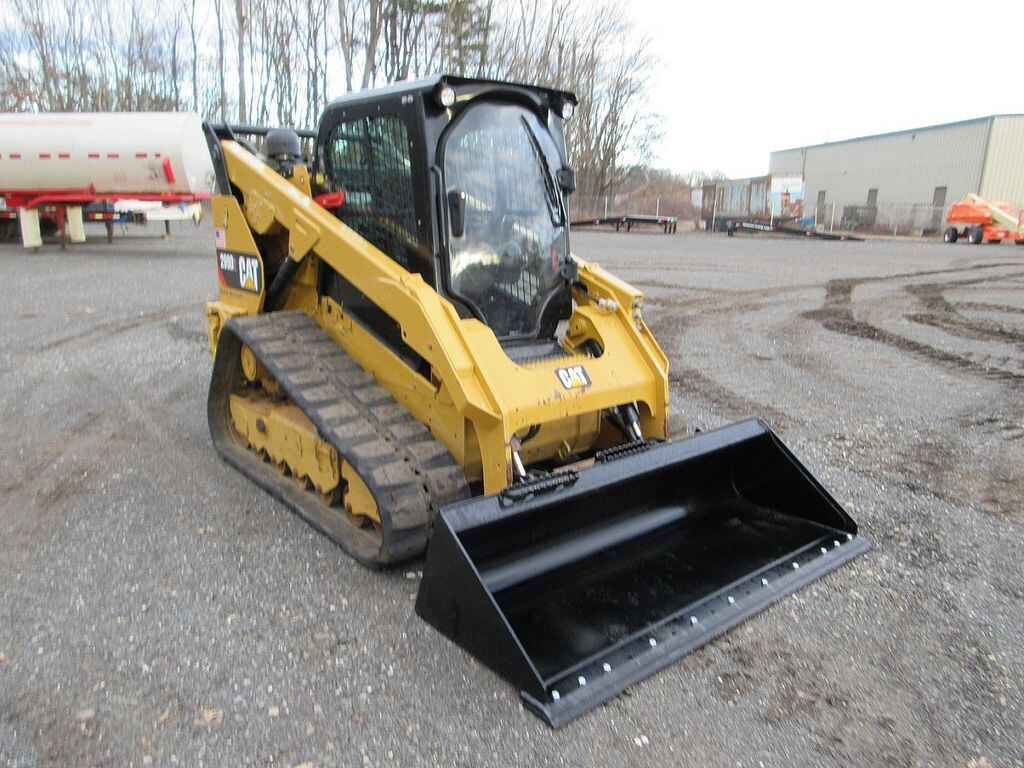

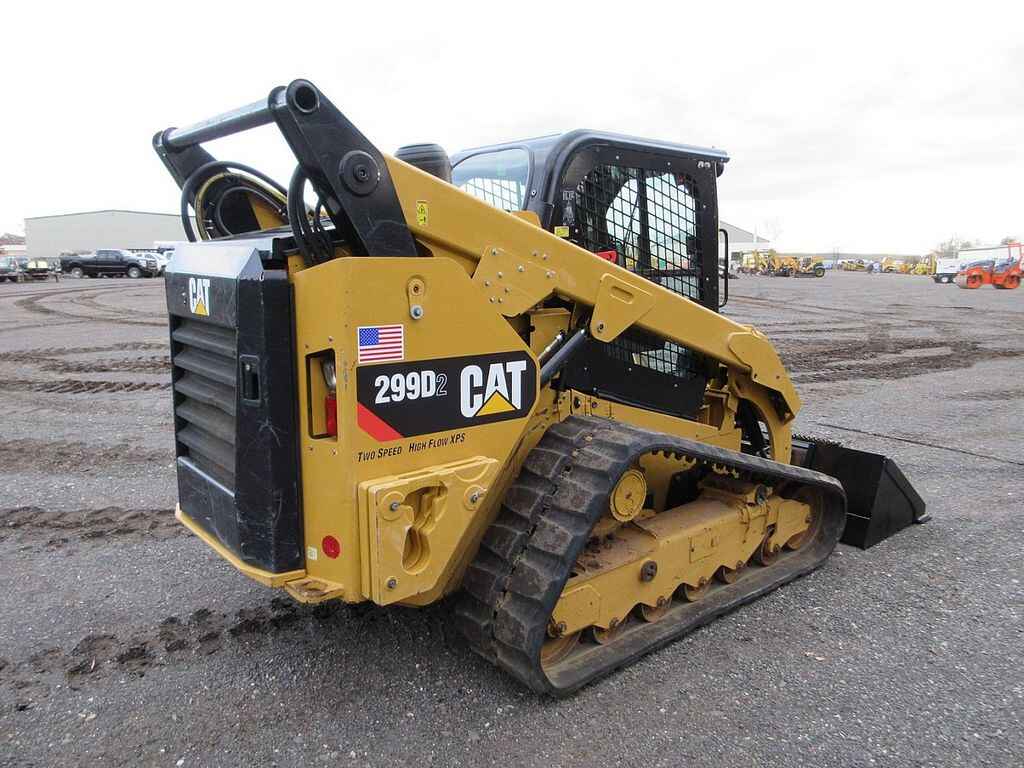

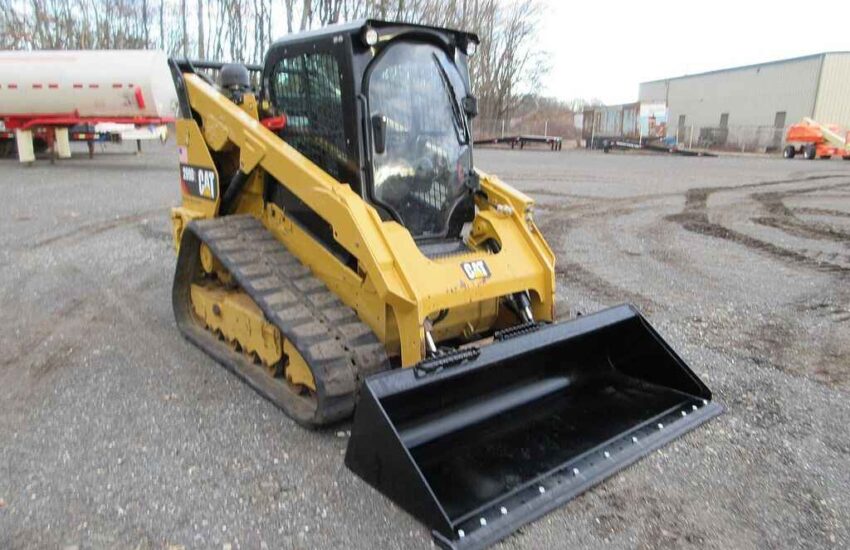

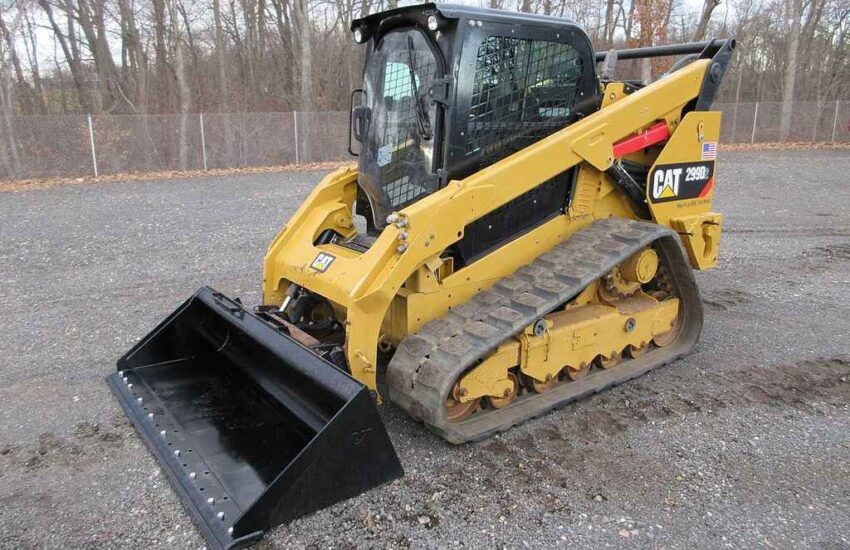

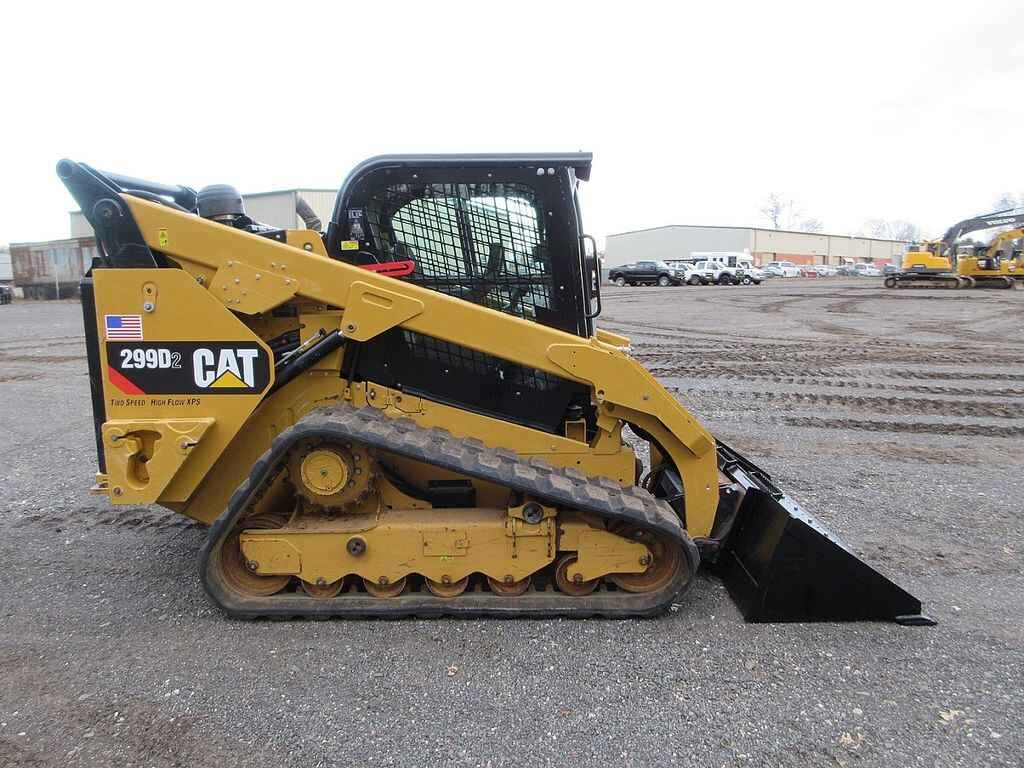

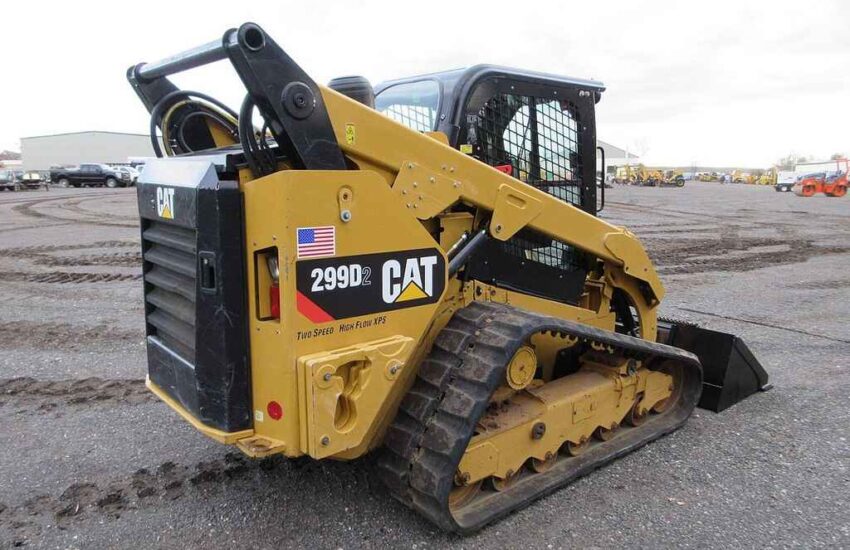

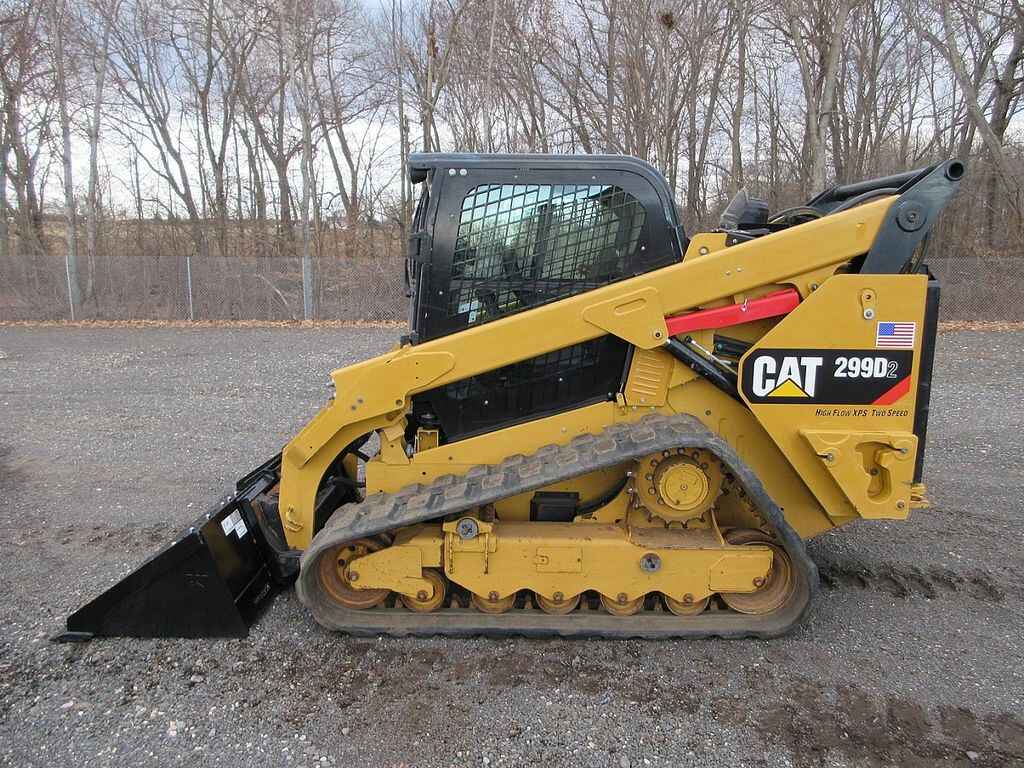

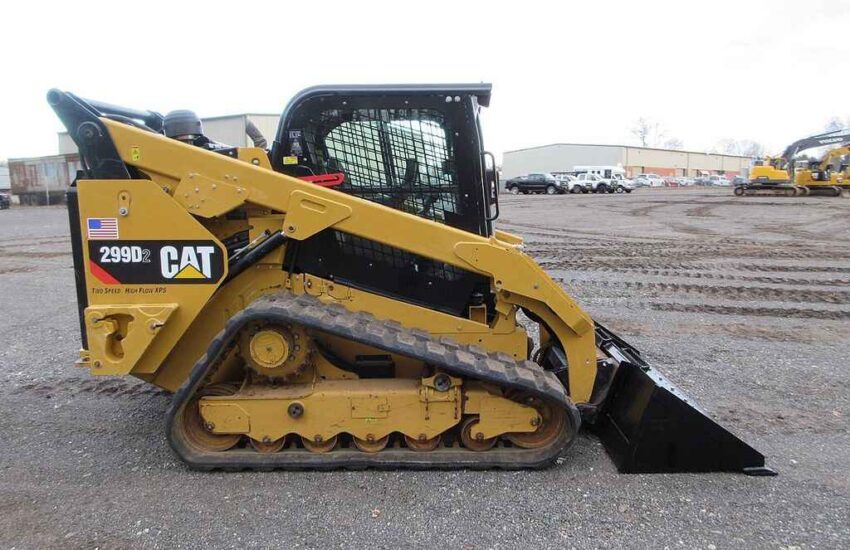

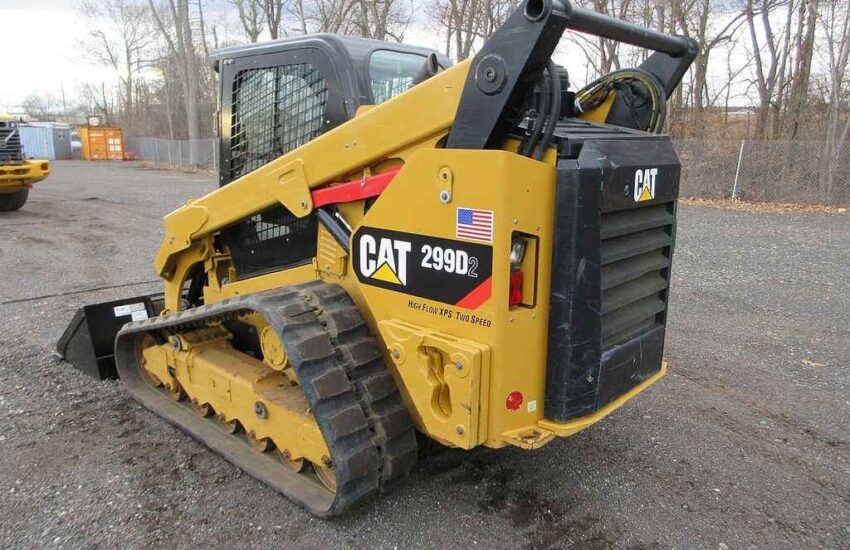

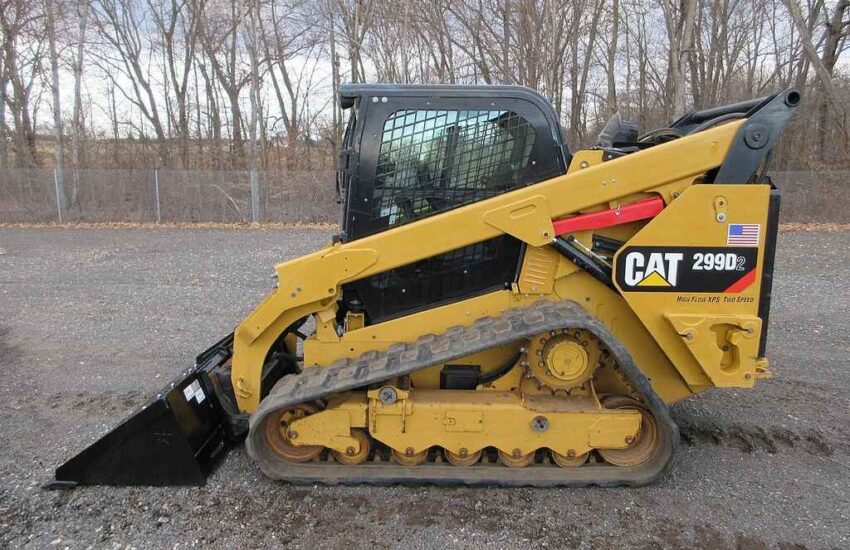

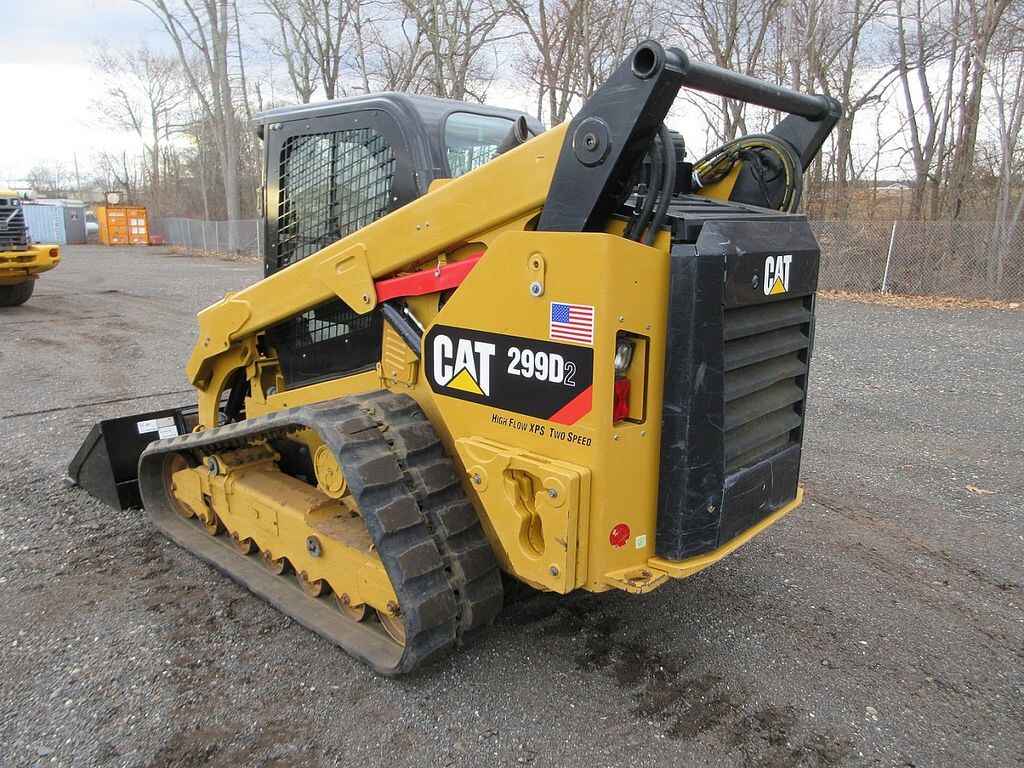

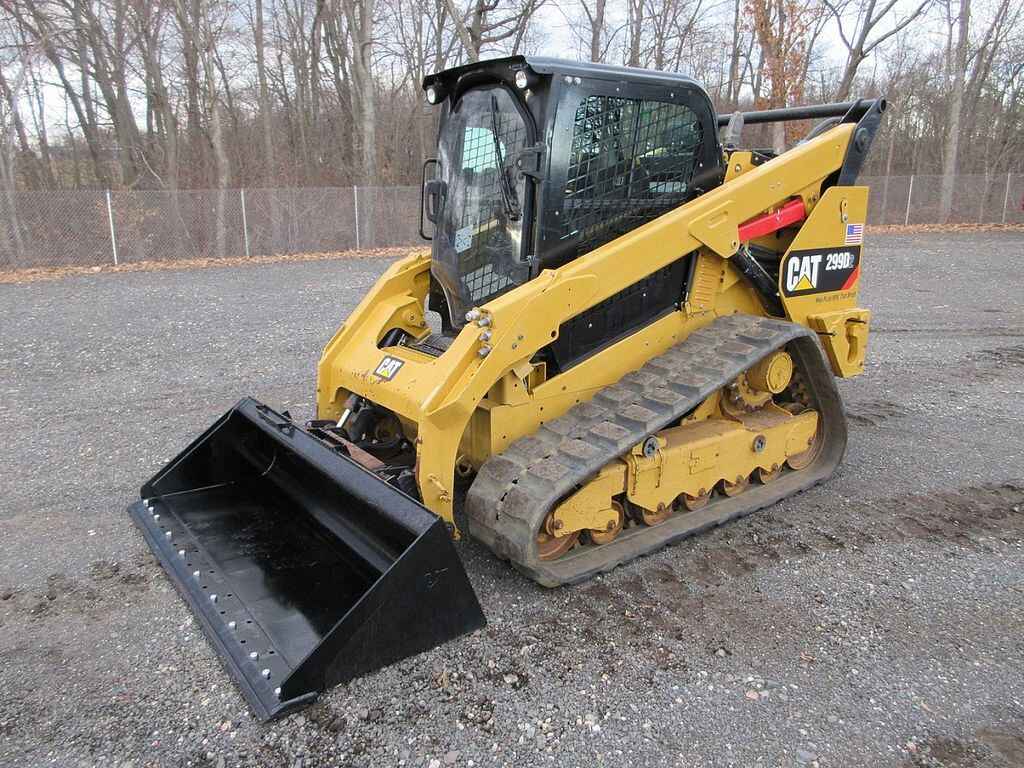

2017 Caterpillar 299D2

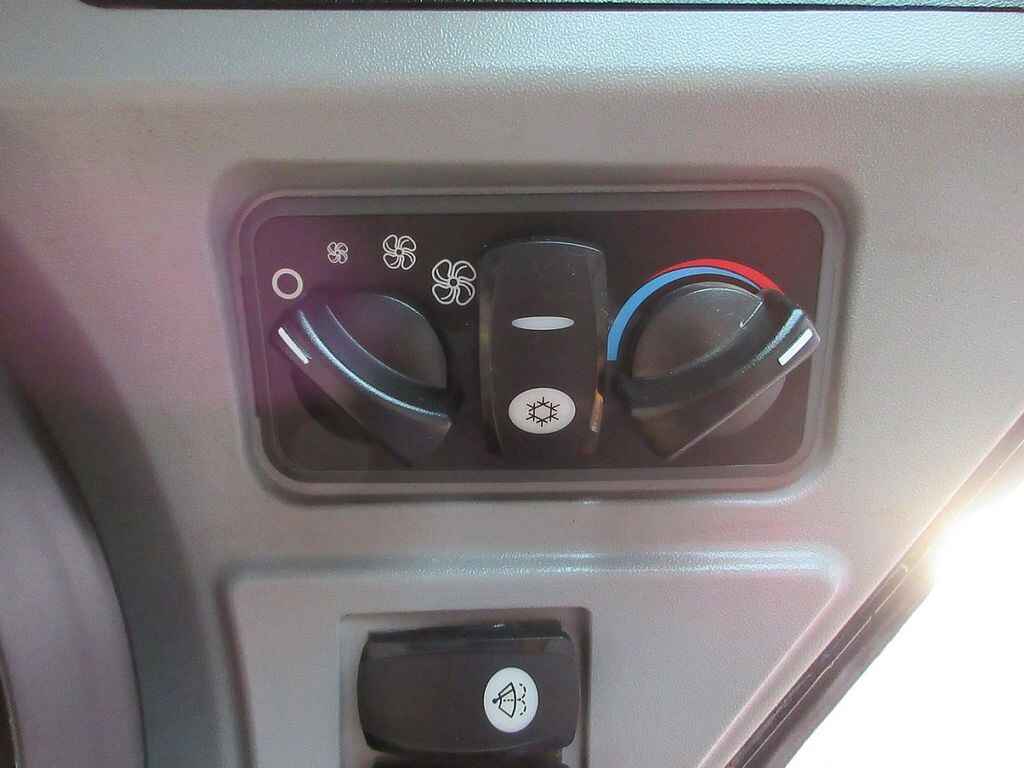

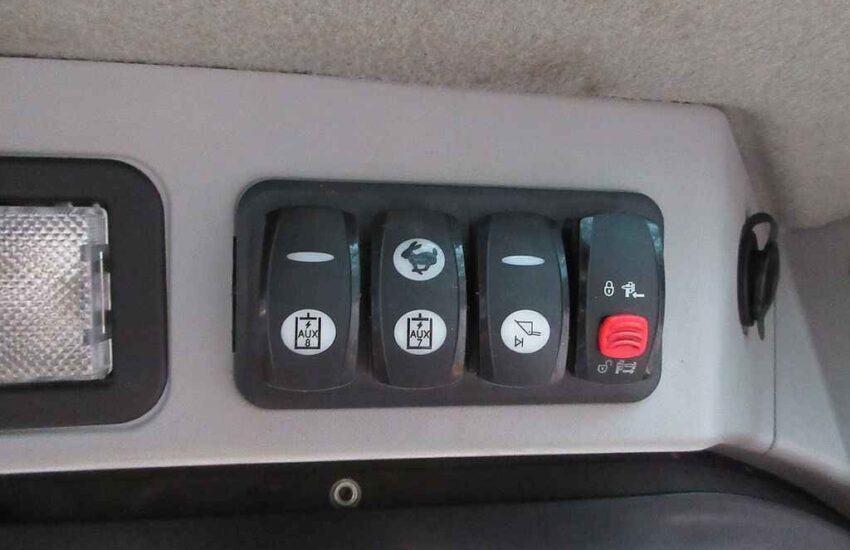

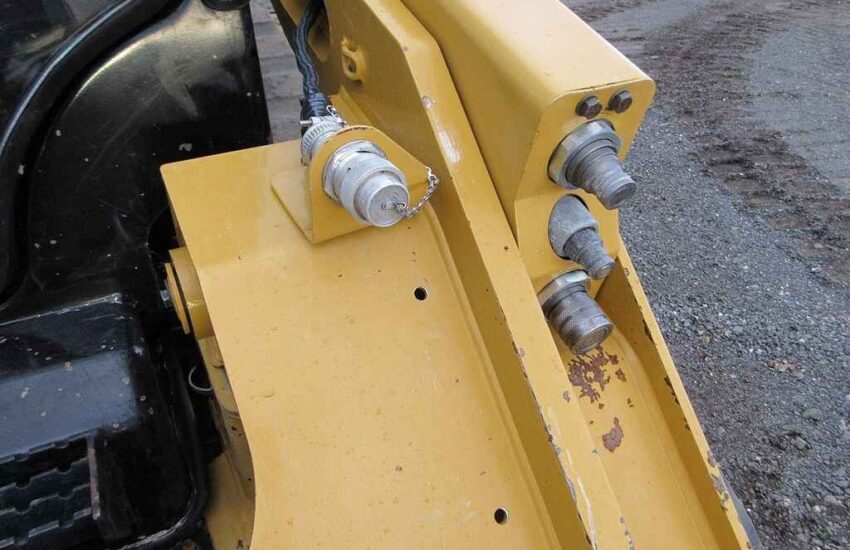

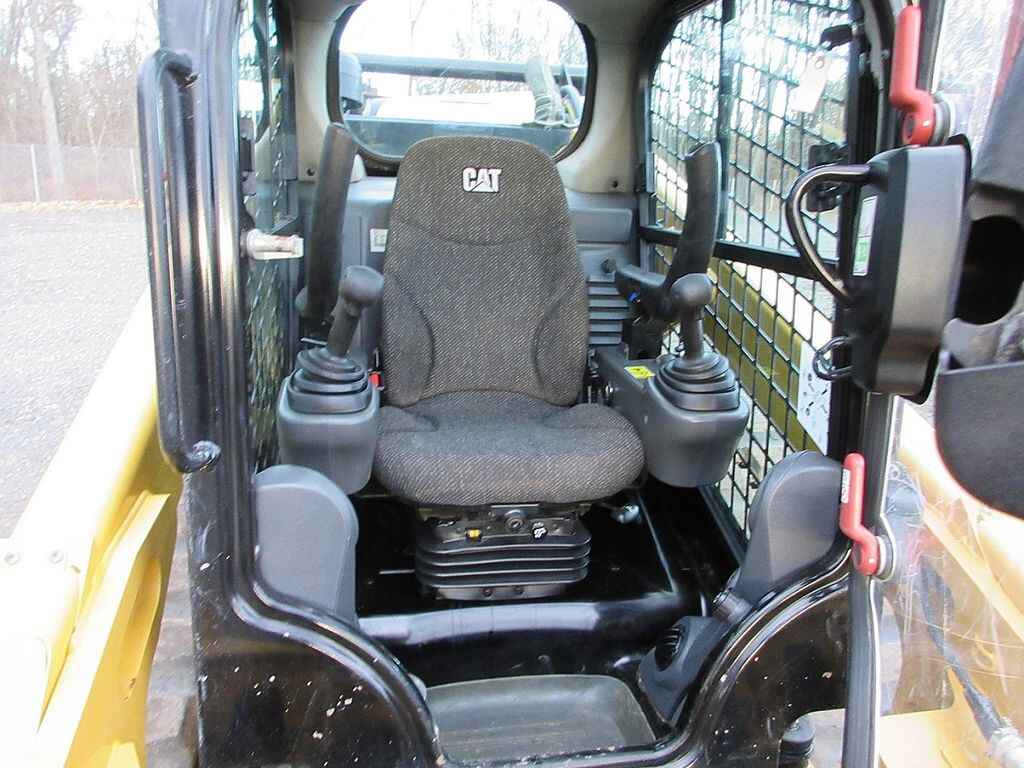

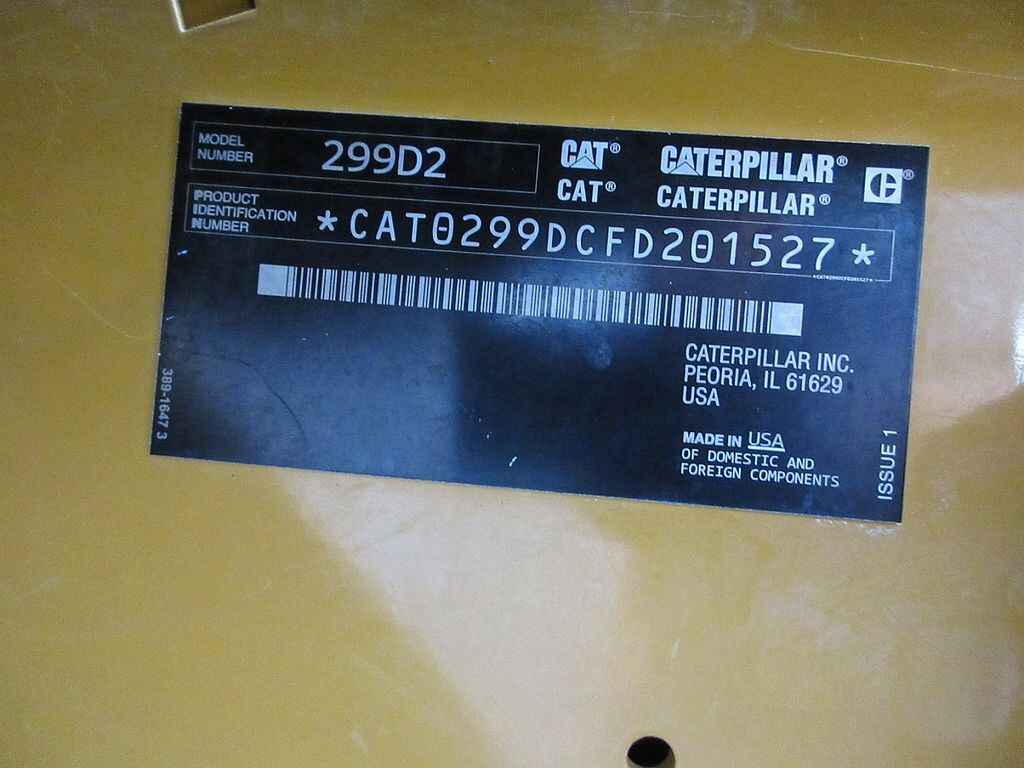

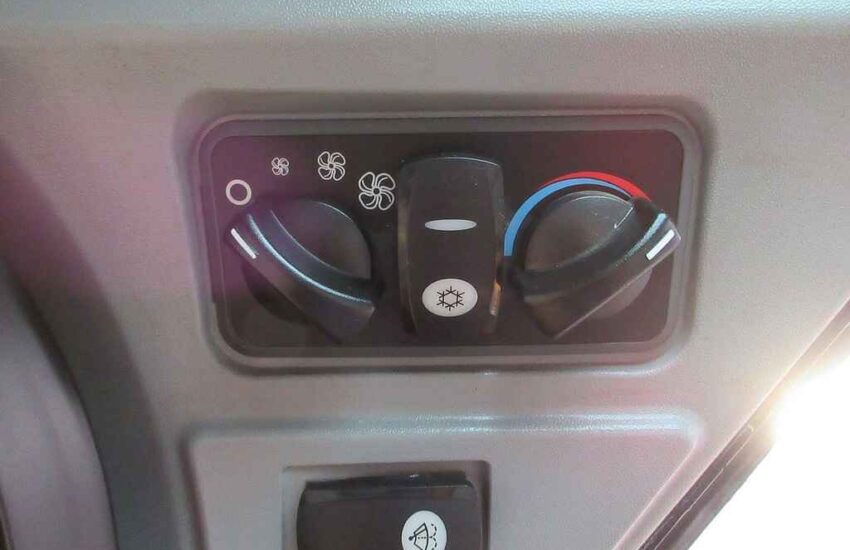

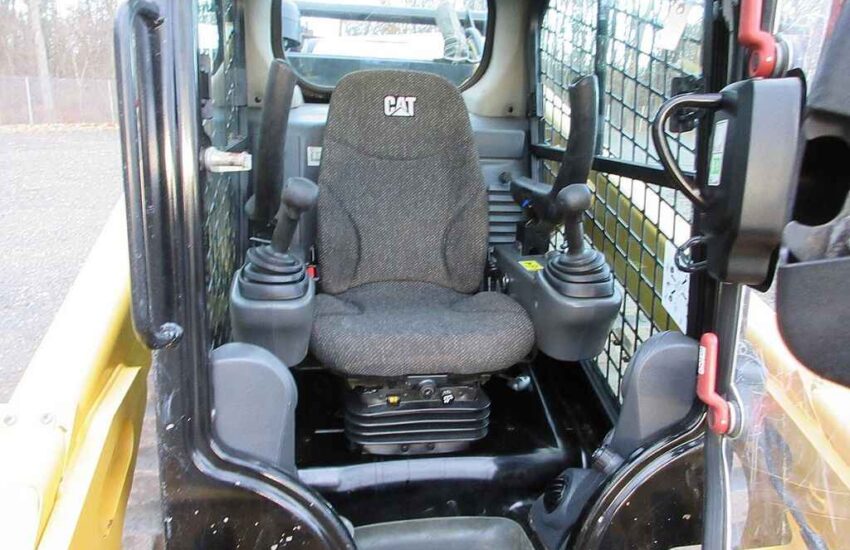

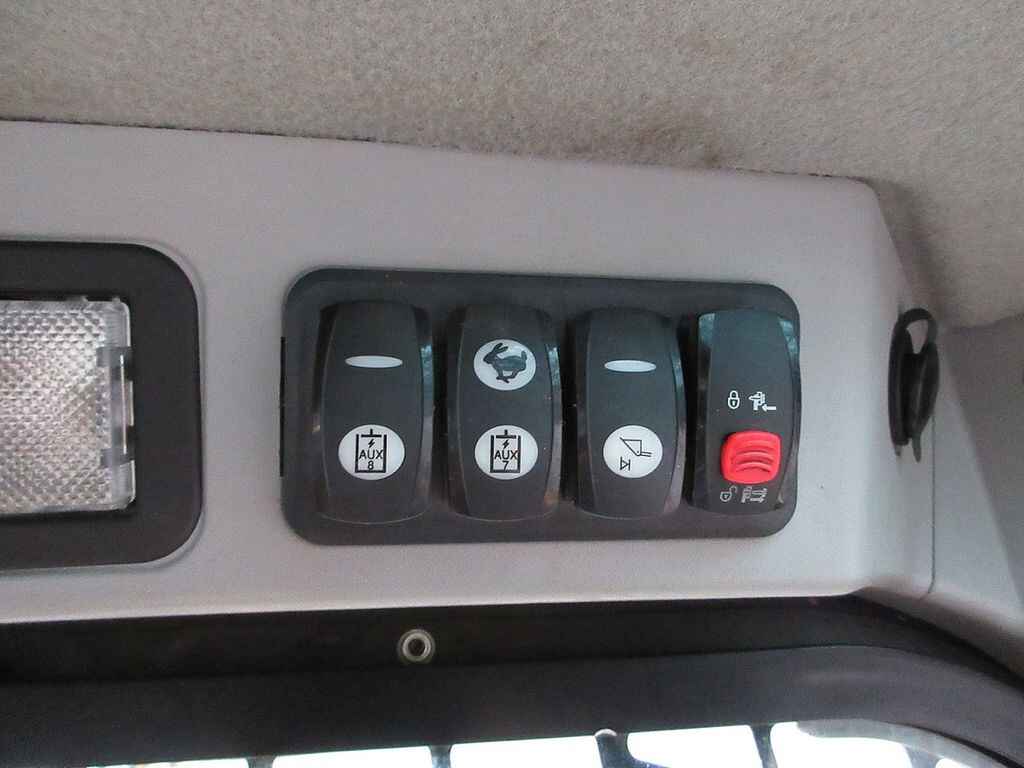

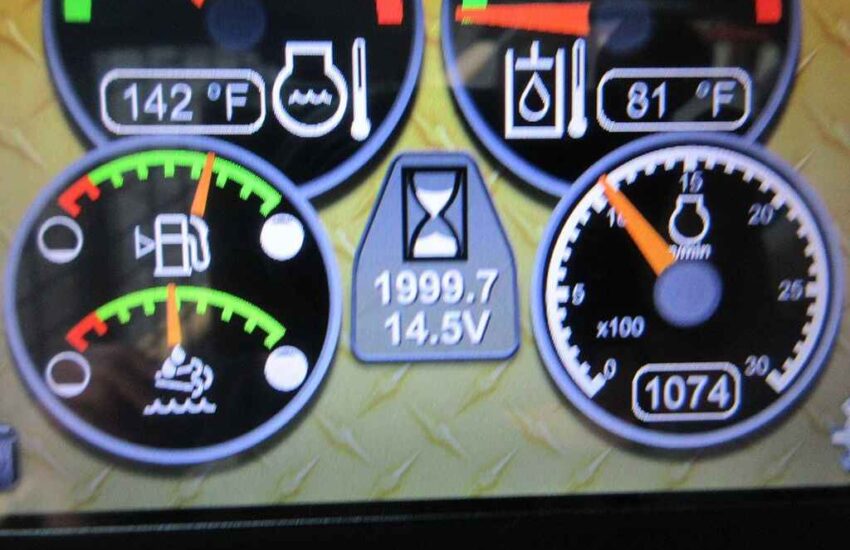

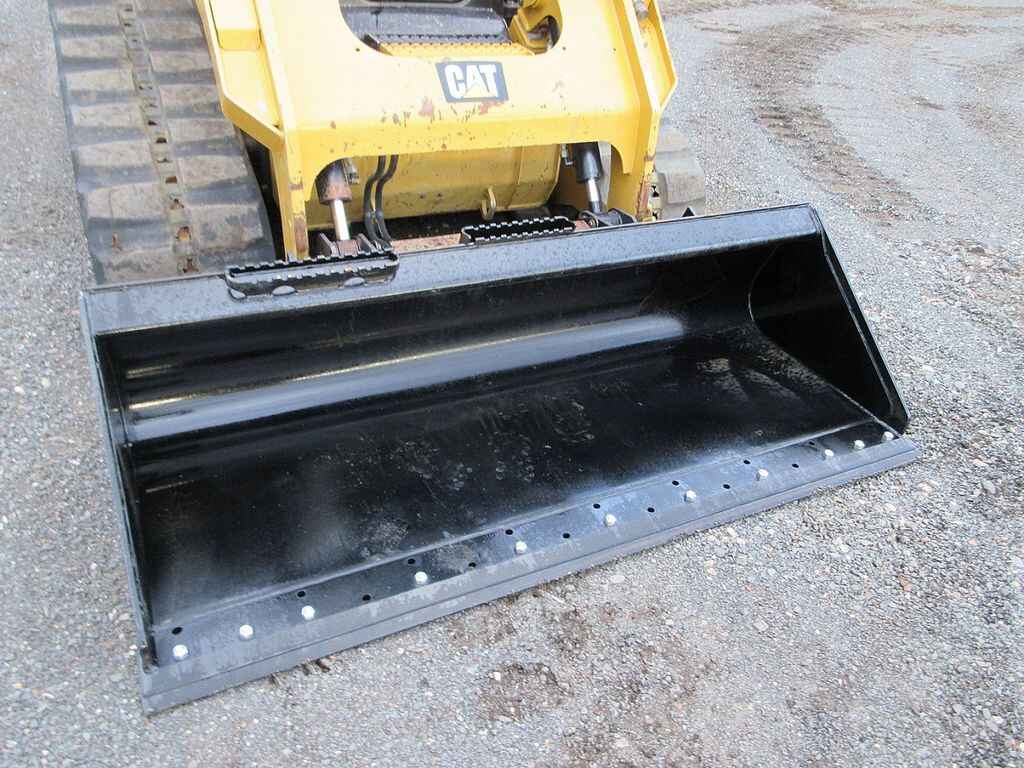

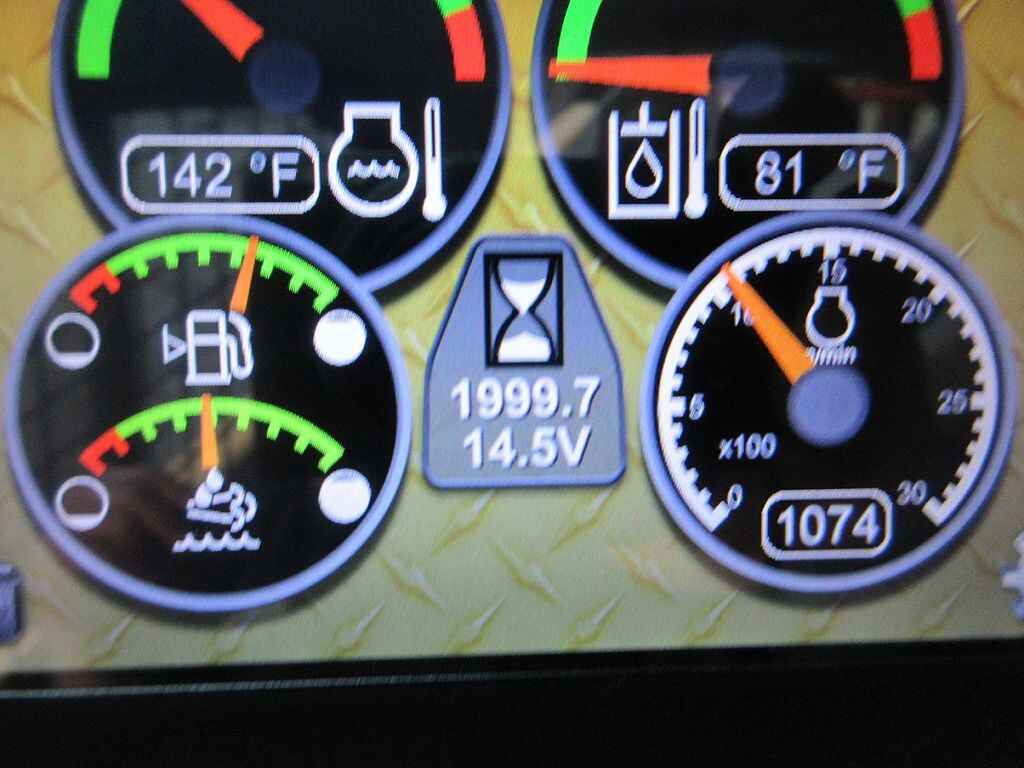

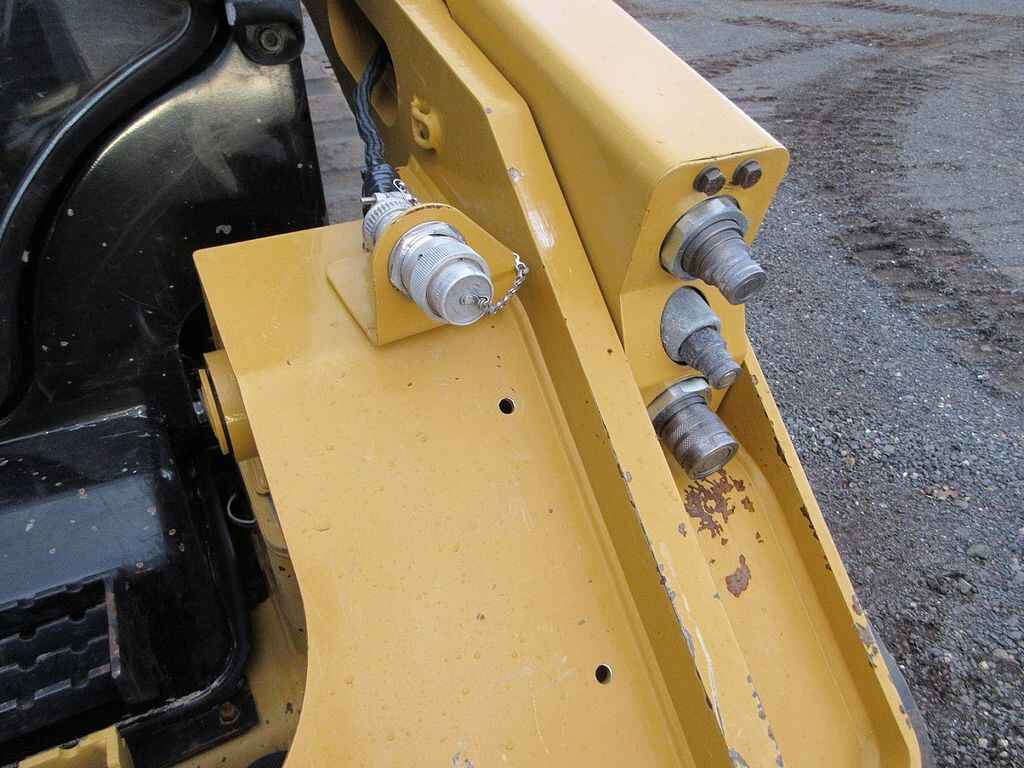

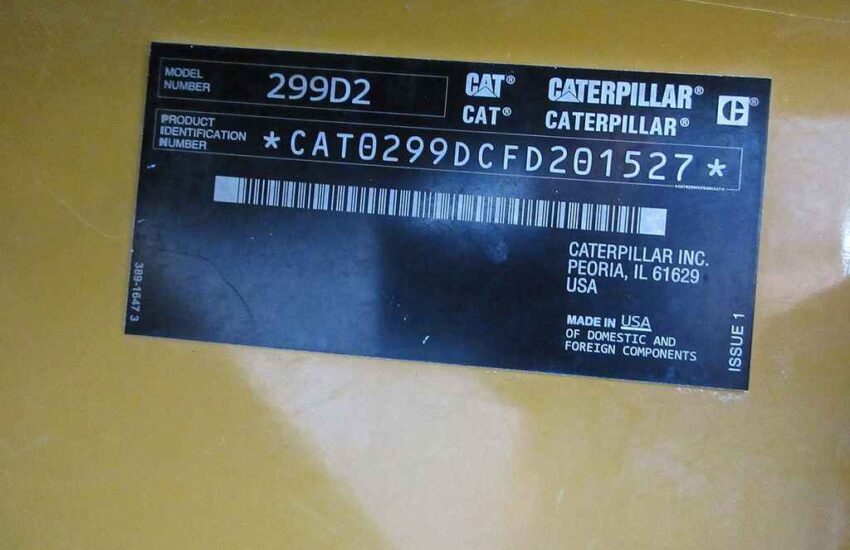

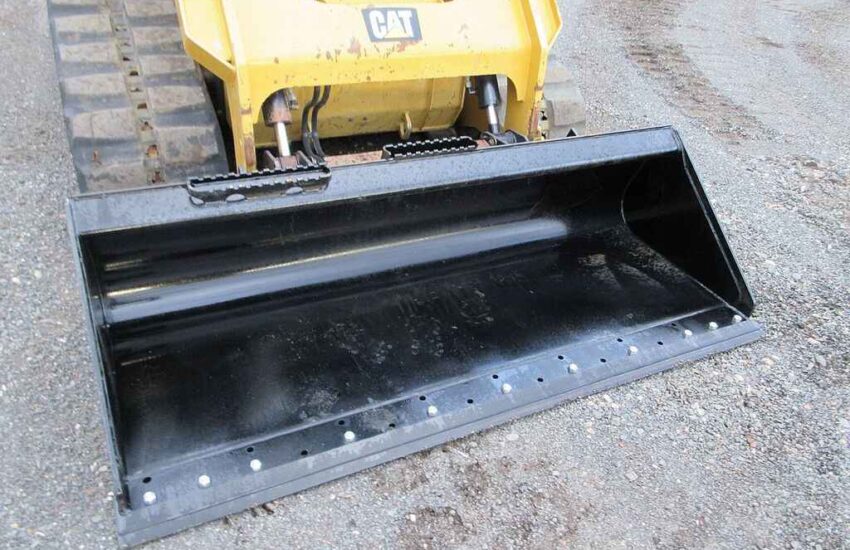

Caterpillar C3.8 4 cyl turbo diesel, cab with heat, A/C, 2 speed travel, rearview camera, High Flow aux hyd, aux electrical connector, electric coupler, GP bucket with BOCE, meter reads 1999 hours, S/N CAT0299DCFD201527

Specifications

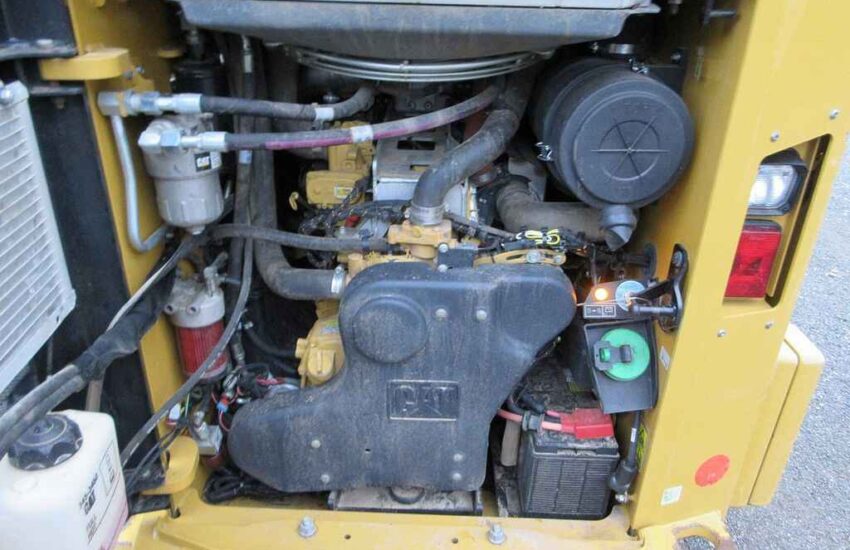

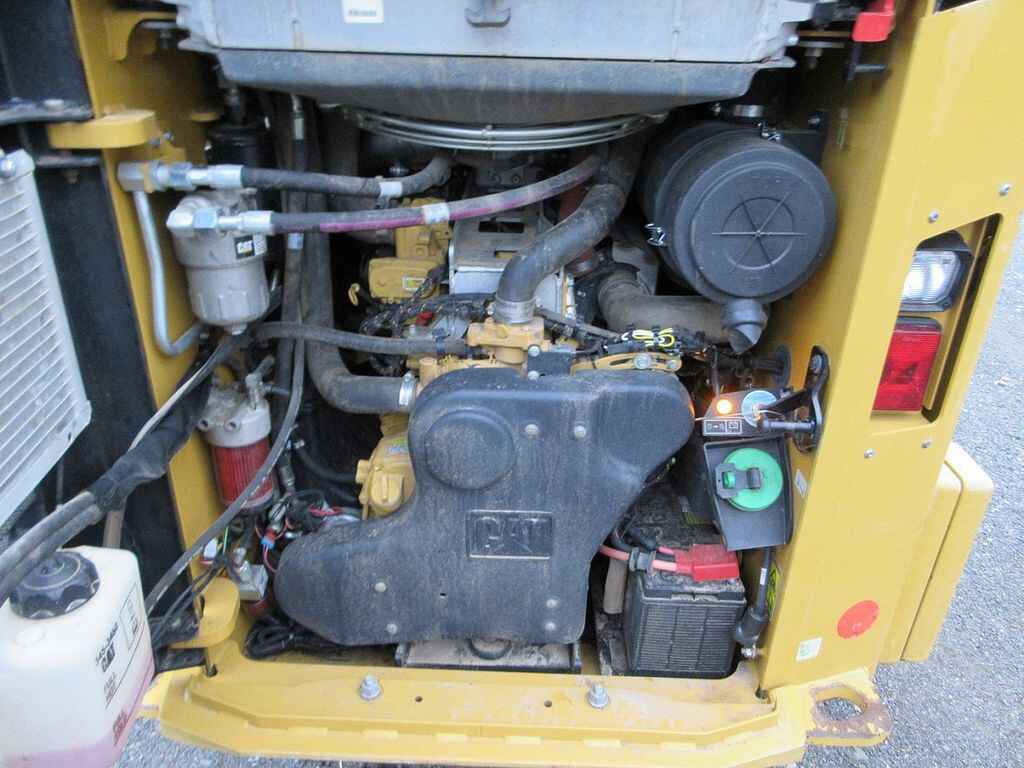

Engine
Model: Cat C3.8 DIT (turbo)
Net Power: 95 hp (71 kW)
Gross Power: 98 hp (73 kW)
Displacement: 232 in³ (3.8 L)
Bore: 3.9 in (100 mm)
Stroke: 4.7 in (120 mm)
Weights
Operating Weight: 11,275 lbs (5,115 kg)
Performance
Rated Operating Capacity (50% Tipping Load): 4,600 lbs (2,087 kg)
Rated Operating Capacity (35% Tipping Load): 3,200 lbs (1,451 kg)
Tipping Load: 9,200 lbs (4,173 kg)
Breakout Force – Tilt Cylinder: 7,270 lbs (32.3 kN)
Breakout Force – Lift Cylinder: 6,162 lbs (27.4 kN)
Hydraulics
Standard Flow – Loader Hydraulic Flow: 23 gal/min (87 L/min)
Standard Flow – Loader Hydraulic Pressure: 3,335 psi (23 MPa)
High Flow XPS – Maximum Loader Hydraulic Flow: 32 gal/min (121 L/min)
High Flow XPS – Maximum Loader Hydraulic Pressure: 4,061 psi (28 MPa)
Dimensions
Length with Bucket on Ground: 154.7 in (3,930 mm)
Length without Bucket: 125.5 in (3,190 mm)
Height to Top of Cab: 83.6 in (2,125 mm)

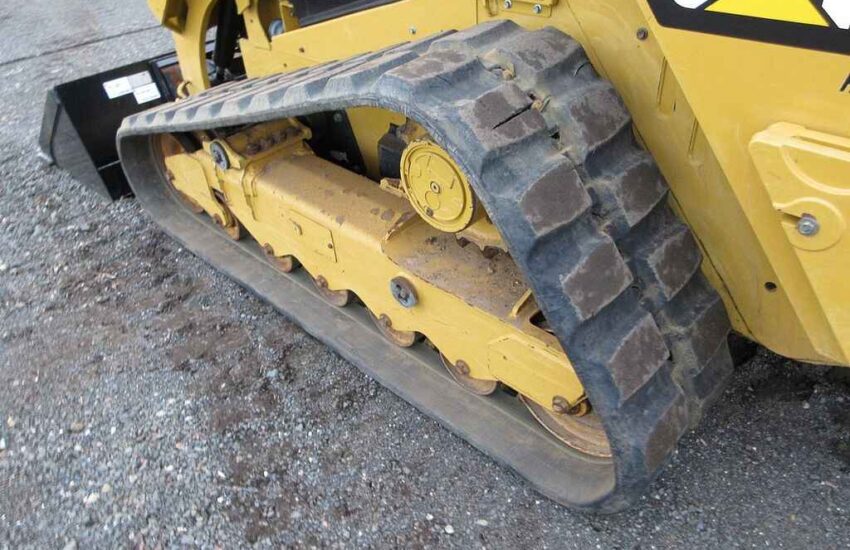

Vehicle Width (400 mm tracks): 76 in (1,930 mm)
Ground Clearance: 9.6 in (245 mm)
Departure Angle: 33 degrees
Capacities
Fuel Tank: 32.2 gal (122 L)
Hydraulic System: 14.5 gal (55 L)
Hydraulic Tank: 10.3 gal (39 L)
Cooling System: 4.1 gal (15.5 L)
Engine Crankcase: 3.5 gal (13.2 L)
Diesel Exhaust Fluid (DEF) Tank: 5 gal (19 L)
