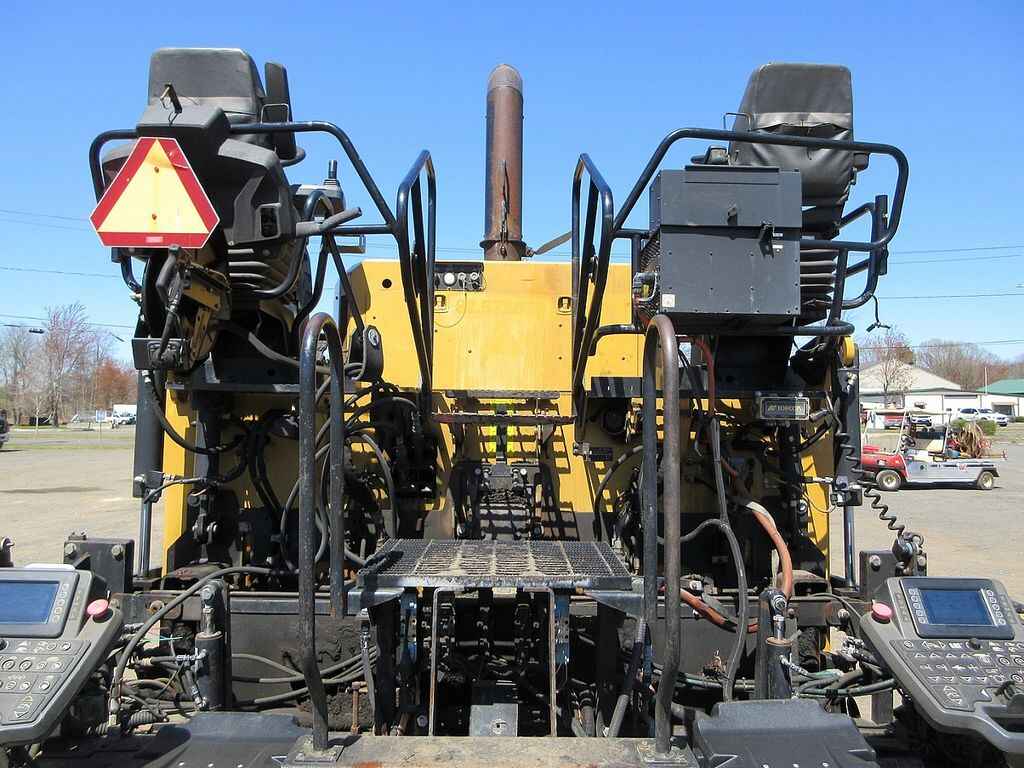

2016 Caterpillar AP-1000F

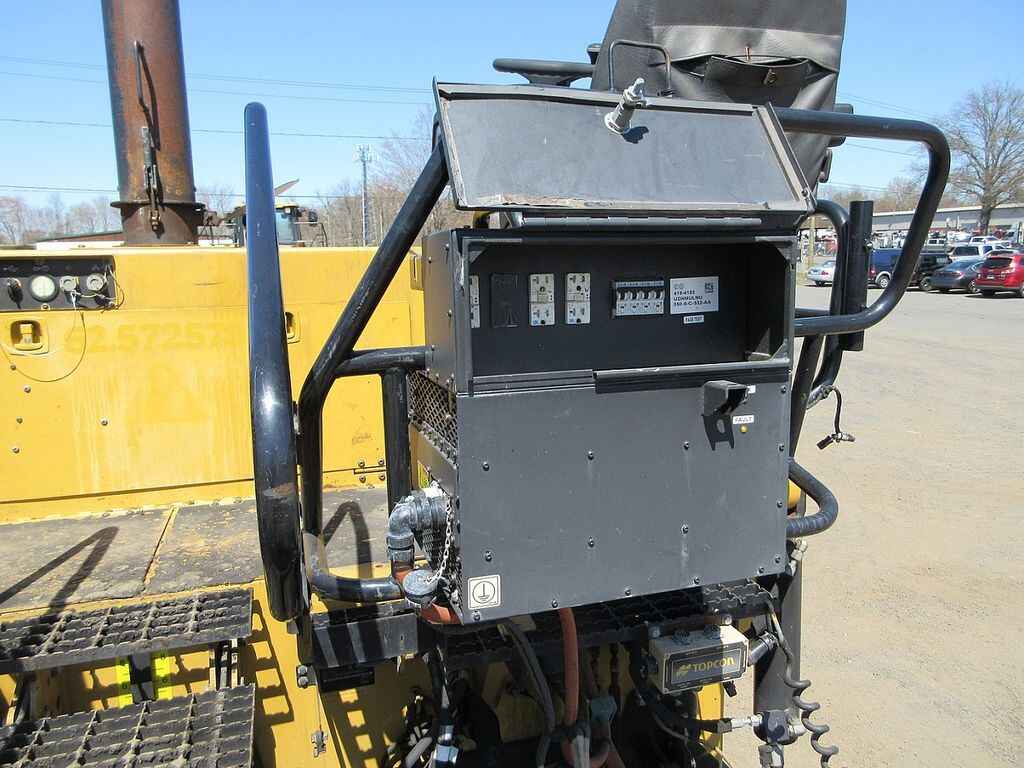

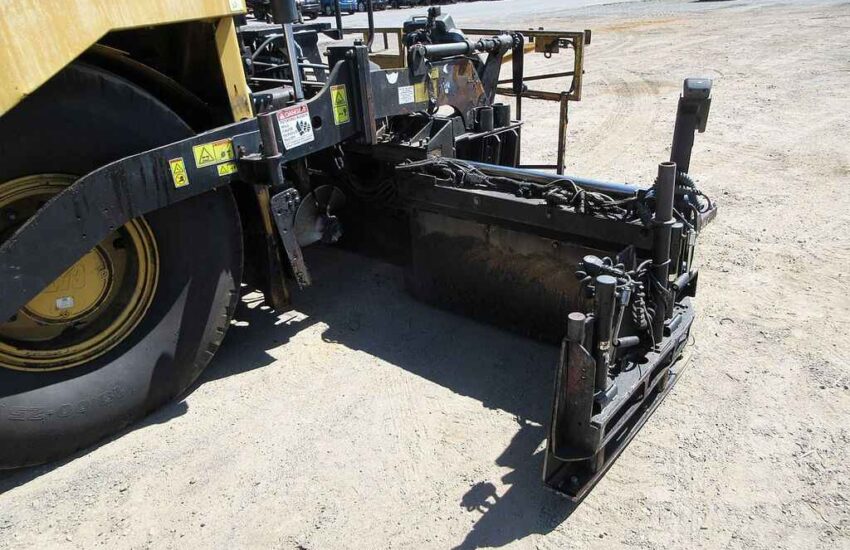

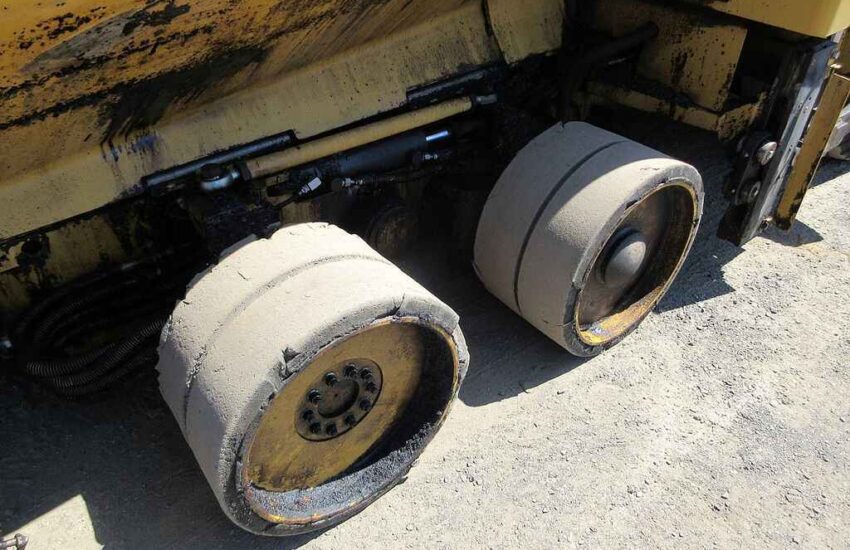

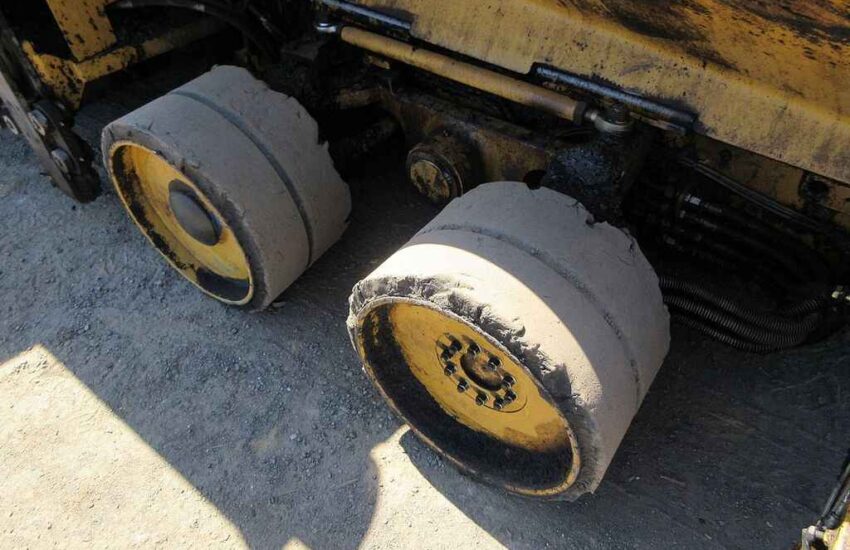

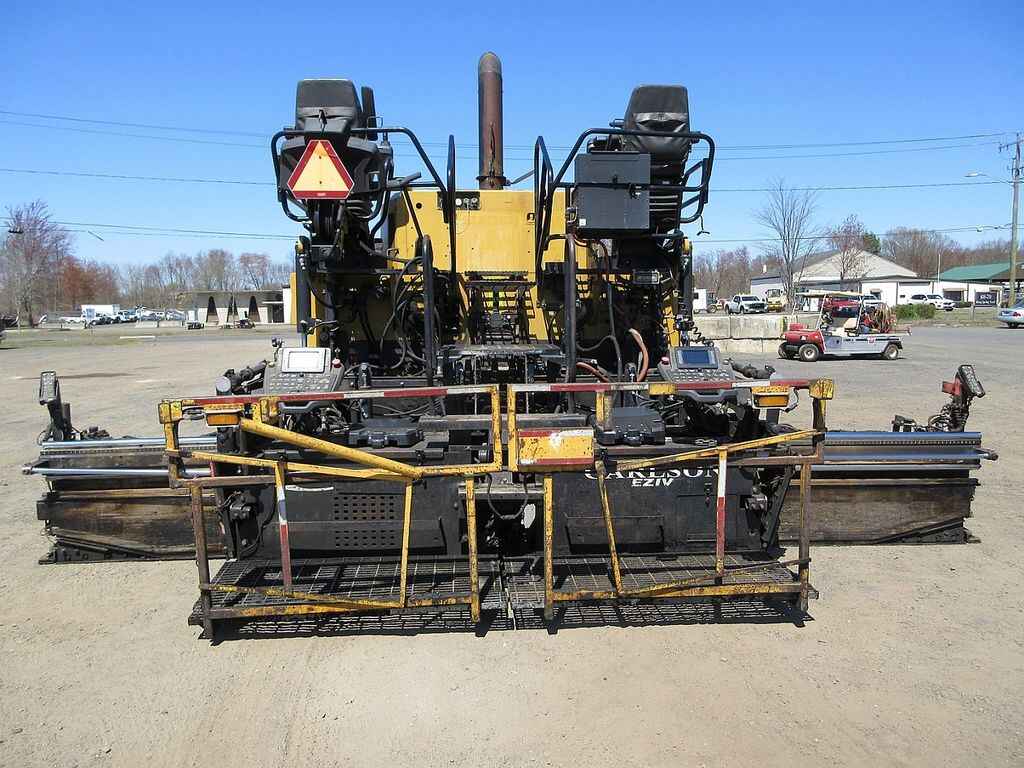

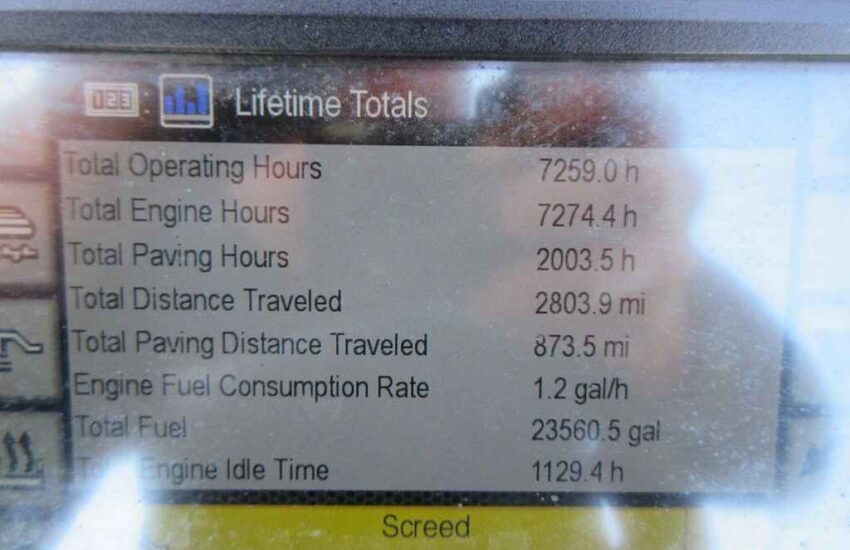

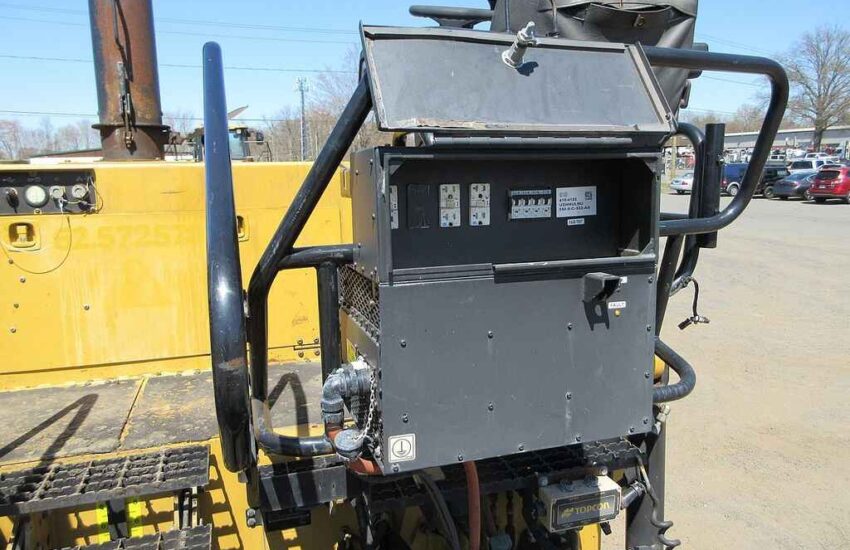

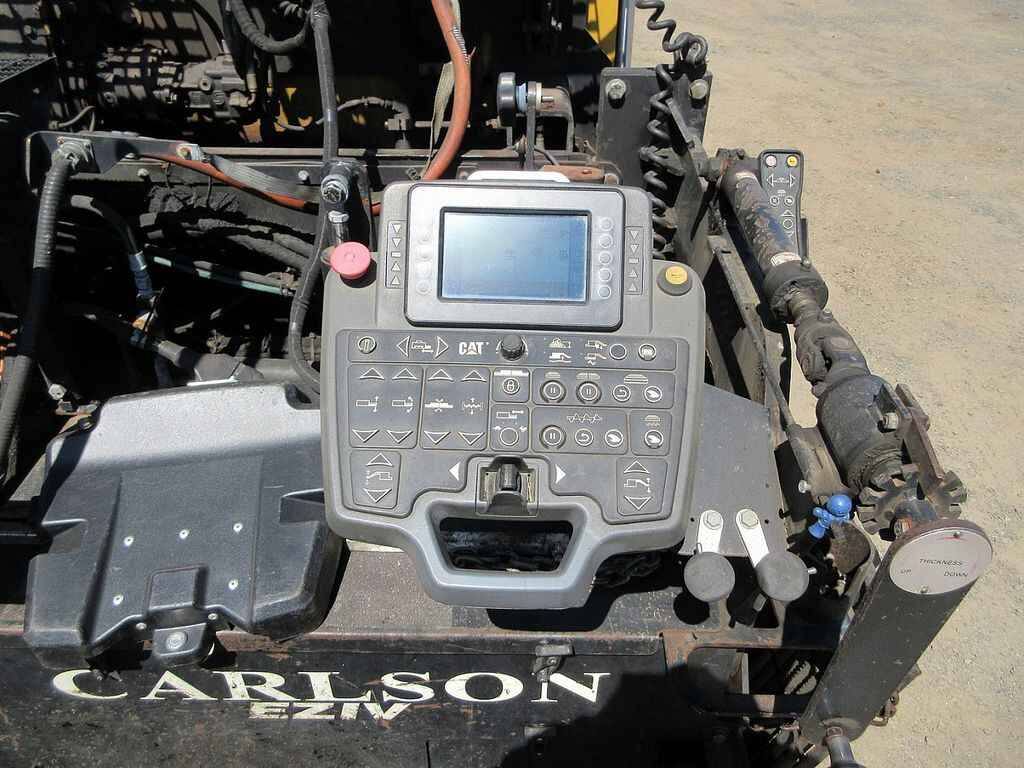

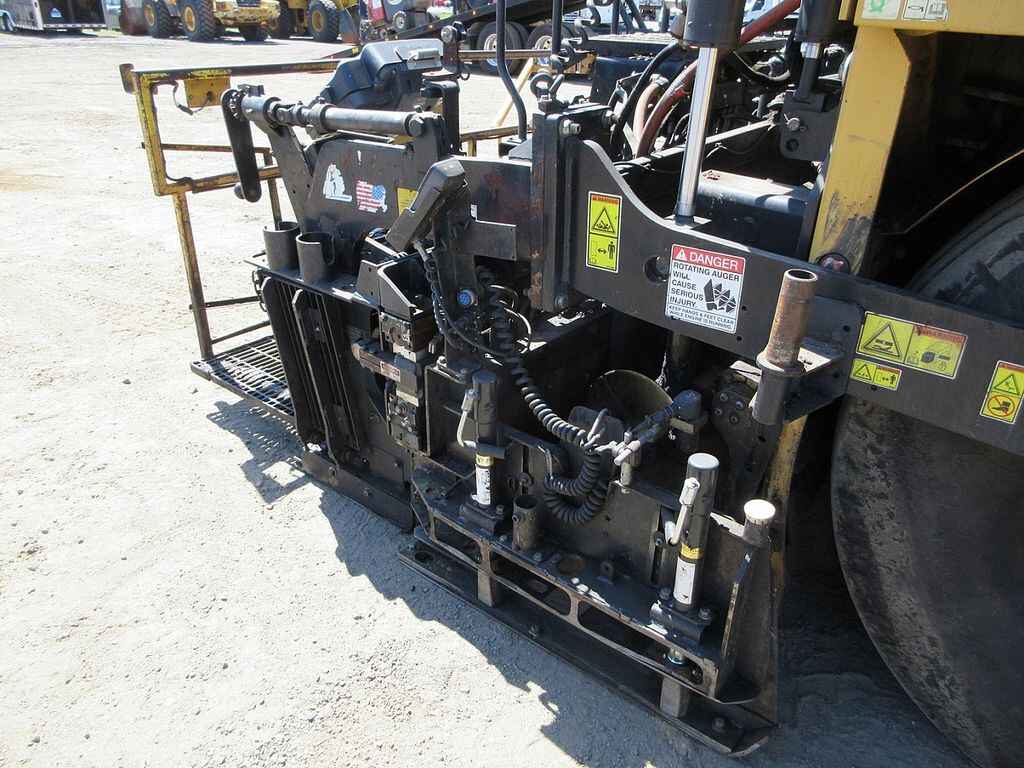

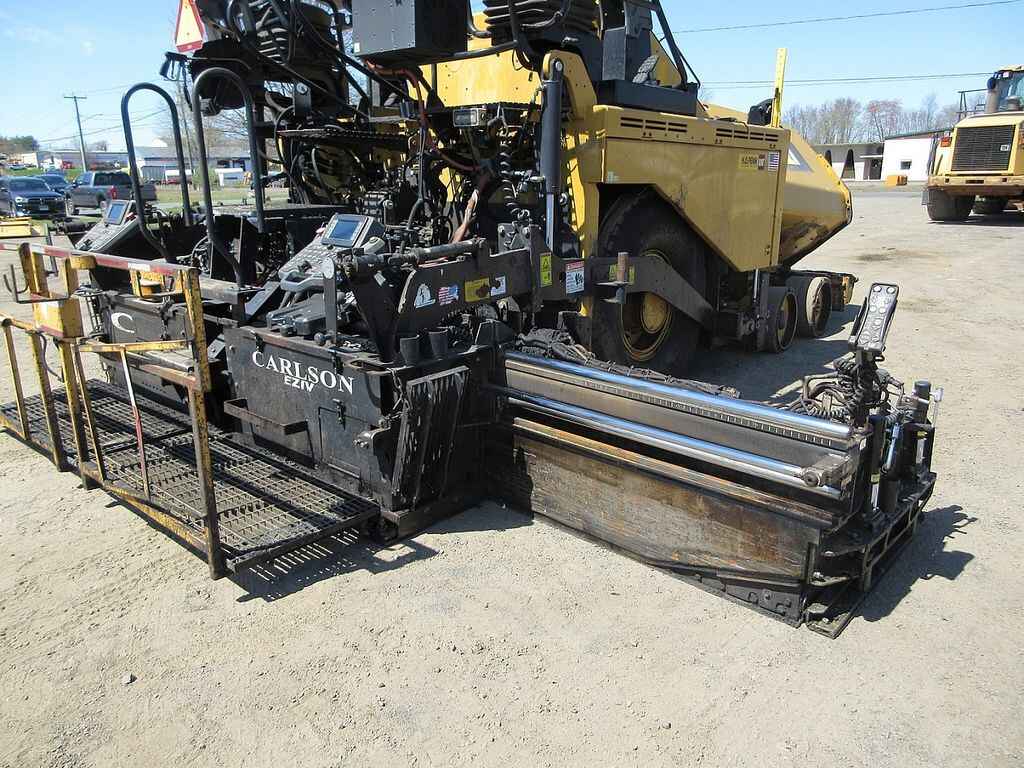

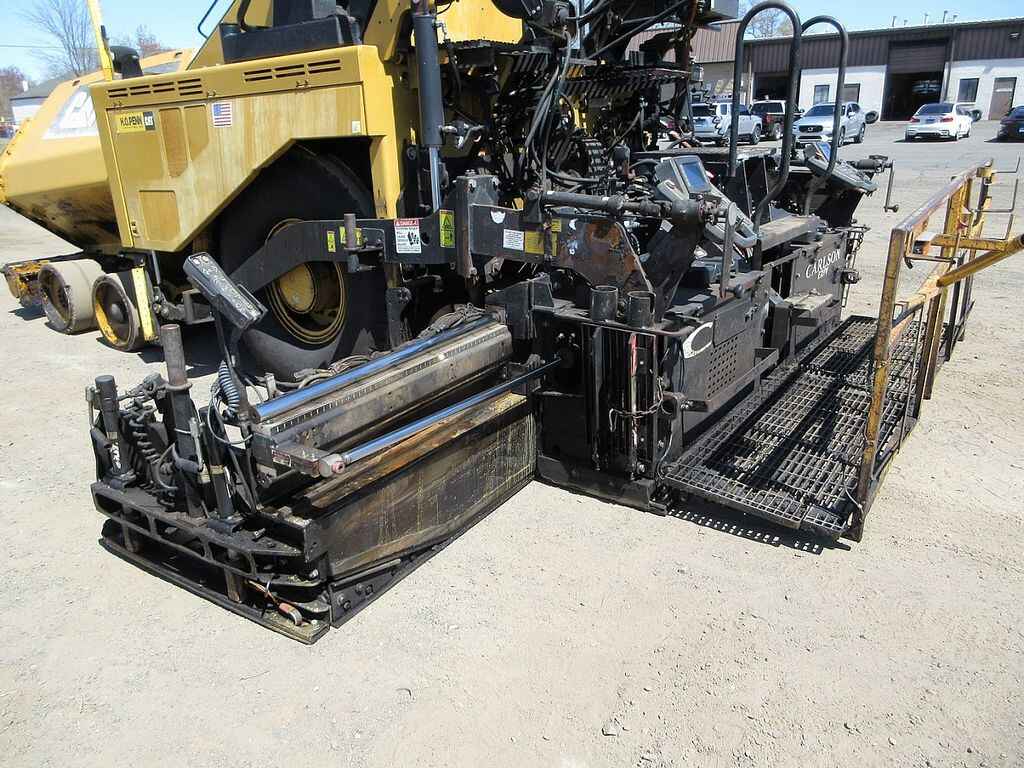

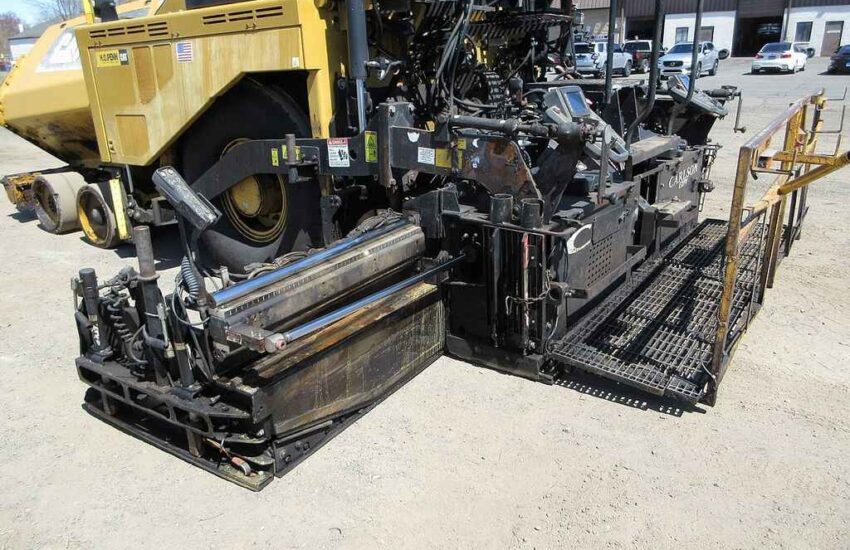

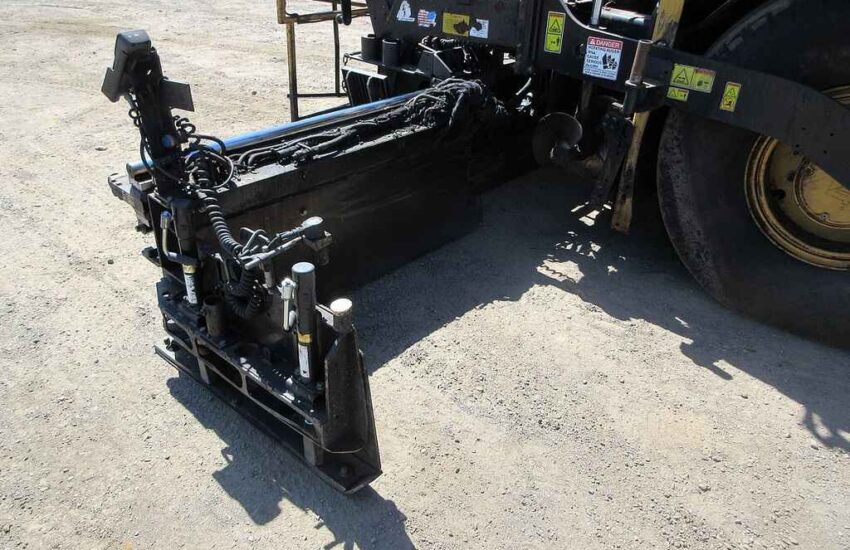

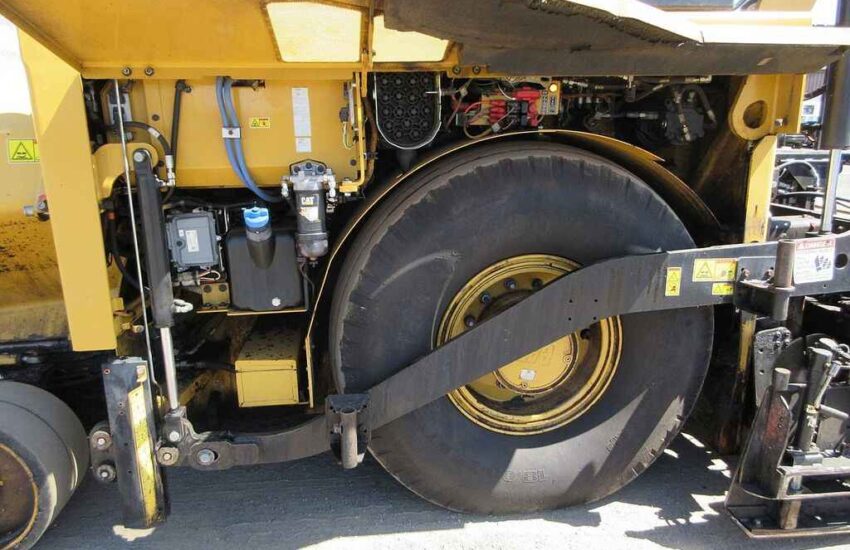

Caterpillar C7.1 Acert 6 cyl turbo diesel, Carlson EZIV10 screed, 10′ – 19′ paving width, sonics, on board generator, fume extraction system, front wheel assist, meter reads 7258 hours, meter reads 2003 paving hours, S/N CATAP100VAC400246

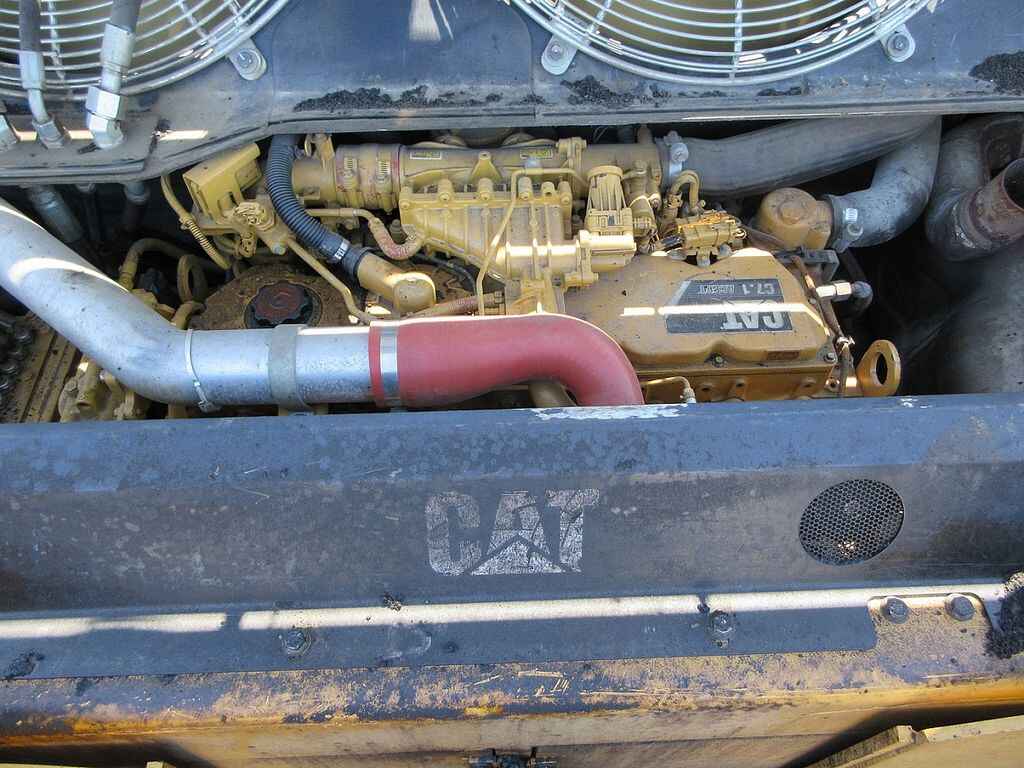

Engine
Model: Cat C7.1 with ACERT
Gross Power: 225 hp (168 kW)
Weights
Operating Weight with SE60 V Screed: 41,985 lbs (19,050 kg)
Operating Weight with SE60 V XW Screed: 43,472 lbs (19,715 kg)
Operating Weight with SE60 VT XW Screed: 45,419 lbs (20,600 kg)
Tractor Operating Weight: 34,820 lbs (15,800 kg)
Tractor Shipping Weight: 34,228 lbs (15,526 kg)
Performance
Standard Paving Range: 9 ft 10 in – 19 ft 6 in (3.0 – 6.0 m)
Maximum Paving Width with SE60 V Screed: 25 ft (7.6 m)
Maximum Paving Width with SE60 V XW or VT XW Screed: 25 ft (7.6 m)
Maximum Paving Speed with Vibratory Screed: 250 ft/min (76 m/min)
Maximum Paving Speed with Tamper Bar Screed: 82 ft/min (25 m/min)
Maximum Travel Speed: 12 mph (19 km/h)
Inside Turn Radius: 1.5 ft (0.5 m)
Maximum Throughput Capacity: 1,766 tons/hr (1,600 tonnes/hr)

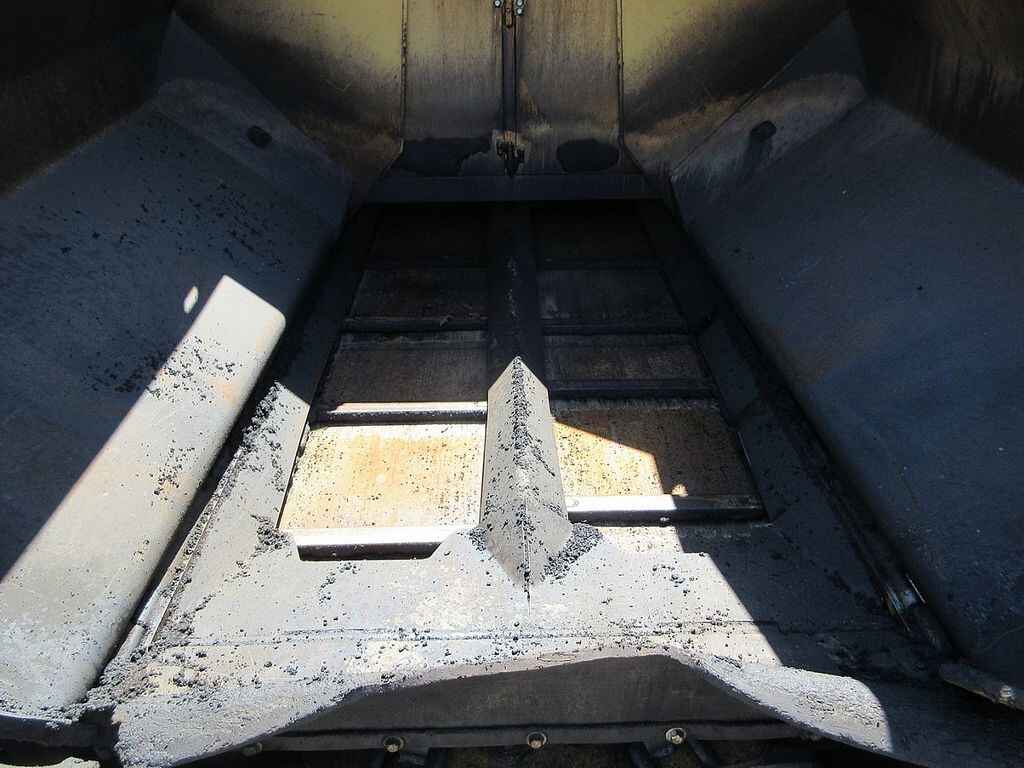

Hopper Capacity (Standard Entry): 267 ft³ (7.6 m³)
Hopper Capacity (Low Entry): 286 ft³ (8.1 m³)
Dimensions
Operating Length with SE60 V Screed: 22.5 ft (6.9 m)
Operating Length with SE60 V XW Screed: 23.1 ft (7.0 m)
Operating Width (Standard Entry Hopper): 132 in (3,353 mm)
Operating Width (Low Entry Hopper): 142 in (3,607 mm)
Operating Height with Canopy: 157 in (3,988 mm)
Operating Height without Canopy: 146 in (3,708 mm)
Transport Length with SE60 V Screed: 22.1 ft (6.7 m)
Transport Length with SE60 XW-Series Screed: 22.6 ft (6.9 m)
Transport Width with End Gates Folded: 9.83 ft (3.0 m)
Transport Width with Screed End Gates: 10.66 ft (3.3 m)
Transport Height with Canopy Retracted: 10.1 ft (3.1 m)
Transport Height without Canopy: 9.83 ft (3.0 m)
Truck Entry Height (Standard Entry Hopper): 22.5 in (572 mm)
Truck Entry Height (Low Entry Hopper): 21 in (533 mm)
Service Refill Capacities
Fuel Tank Capacity: 92 gal (348 L)
DEF Tank: 5 gal (19 L)
