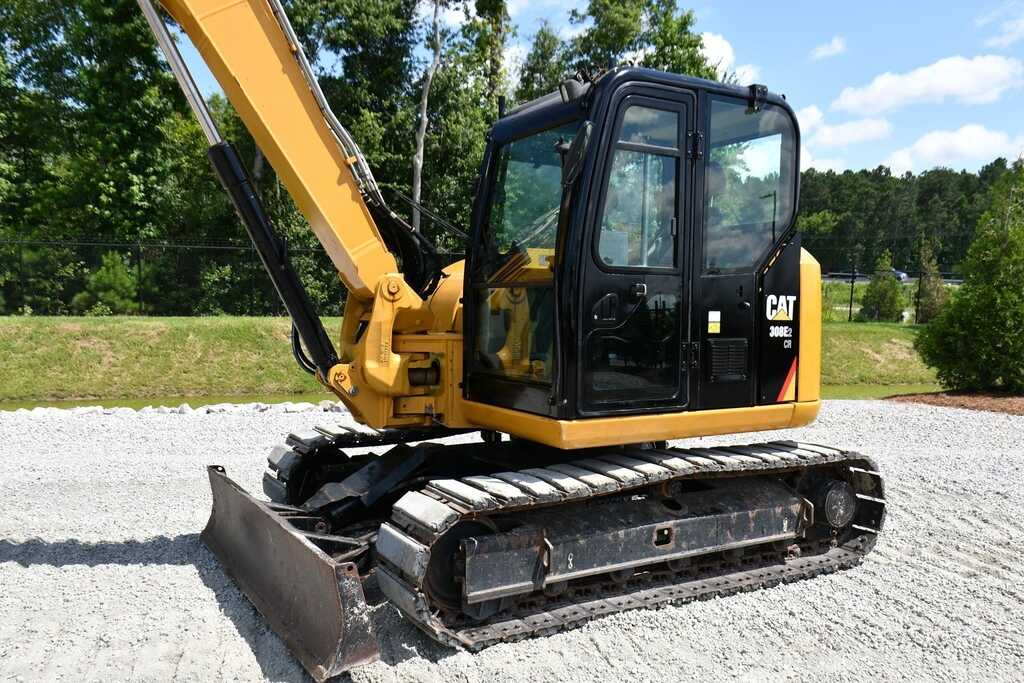

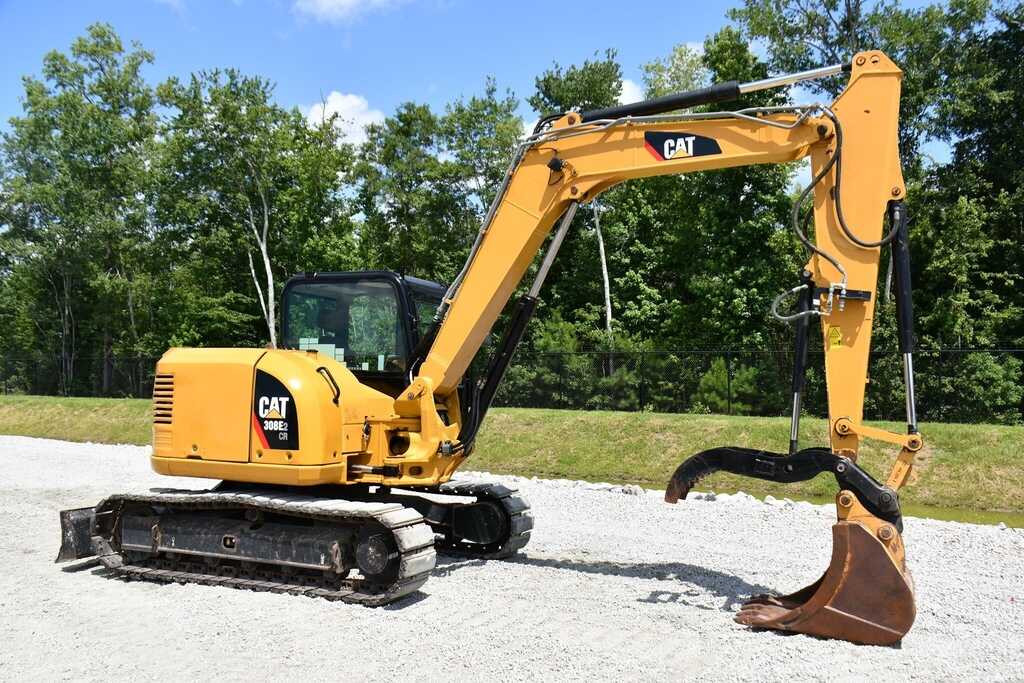

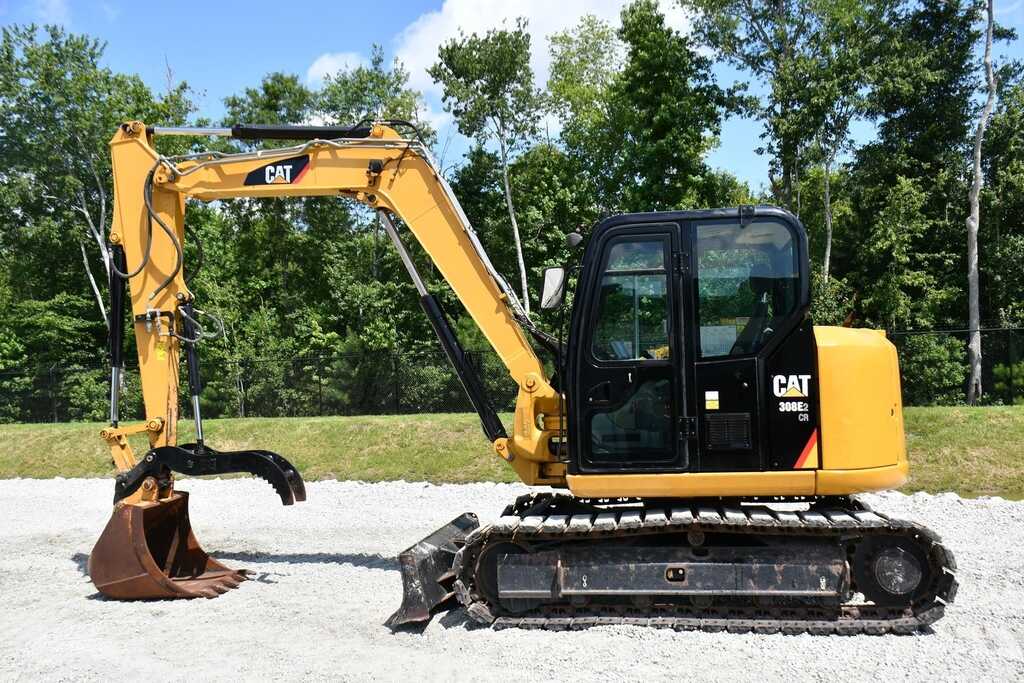

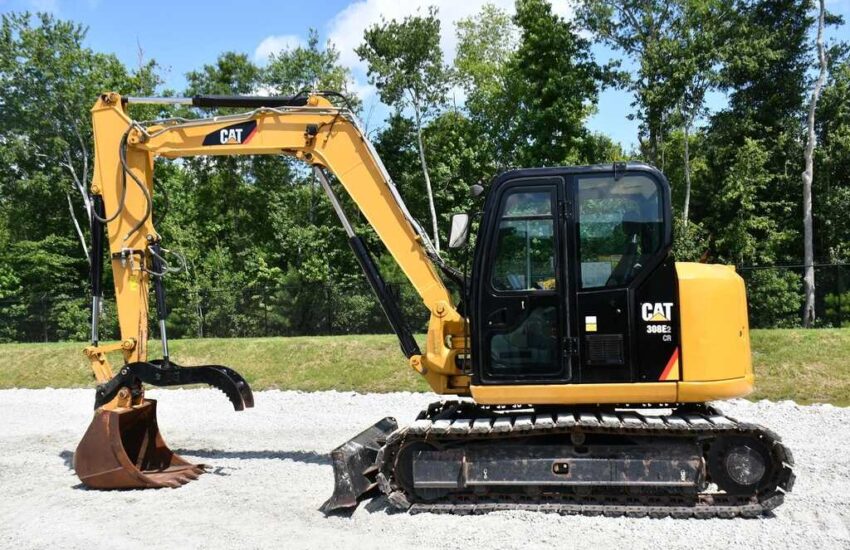

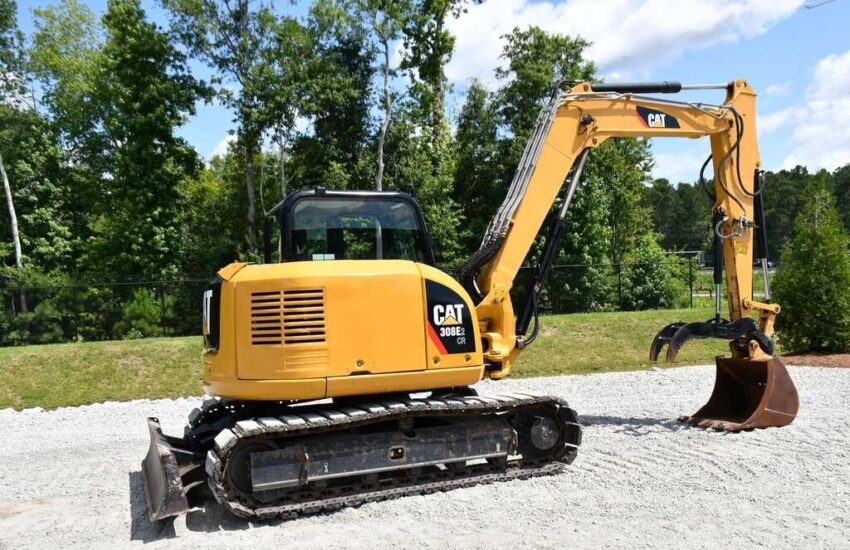

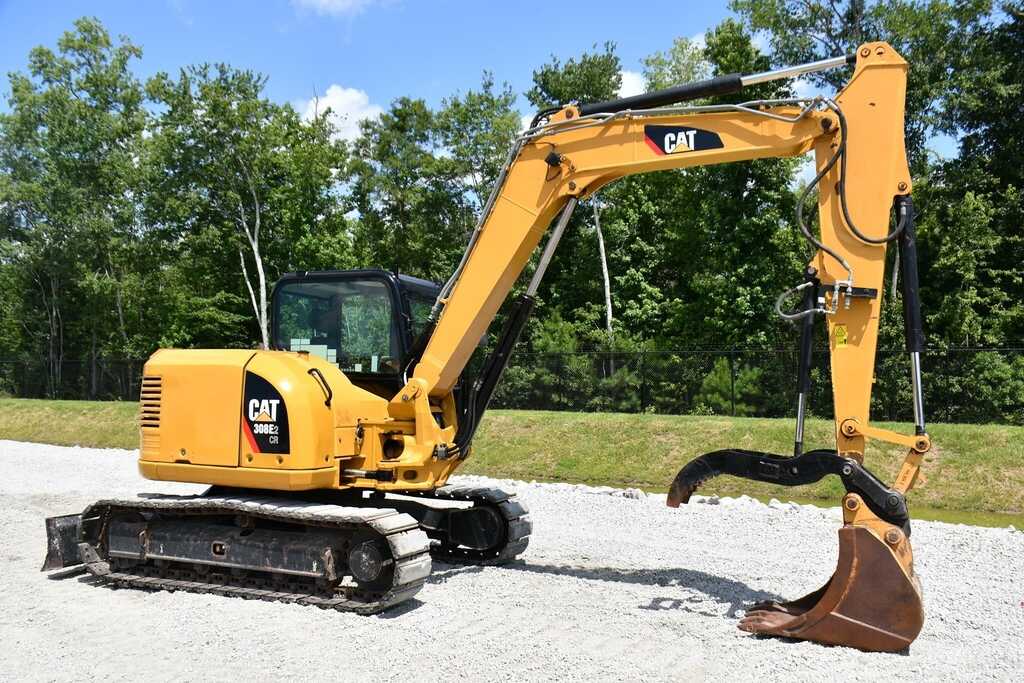

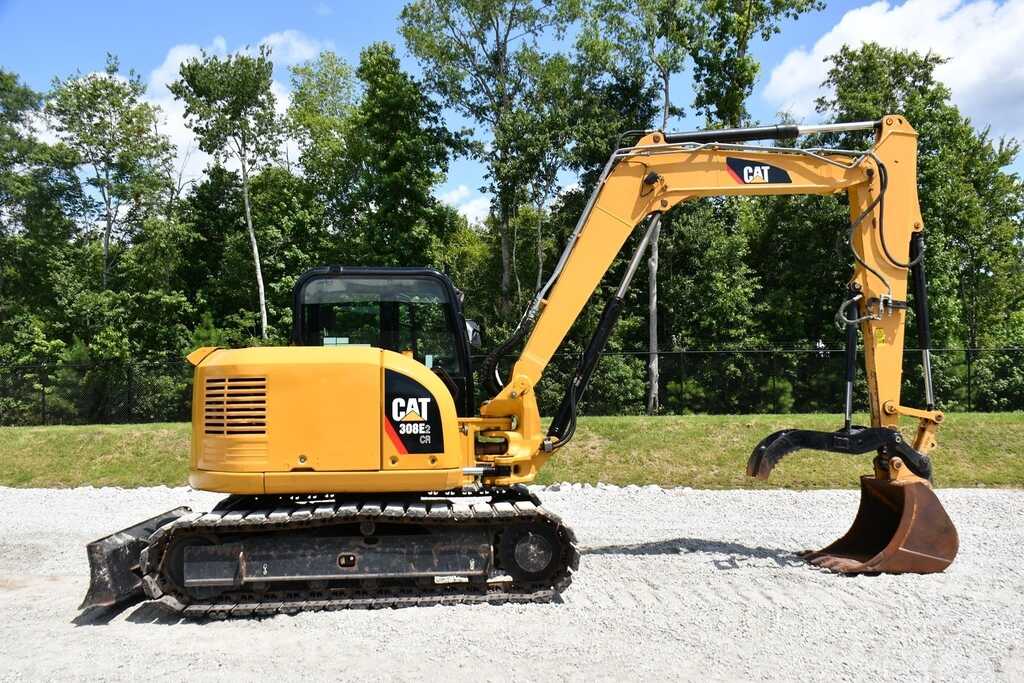

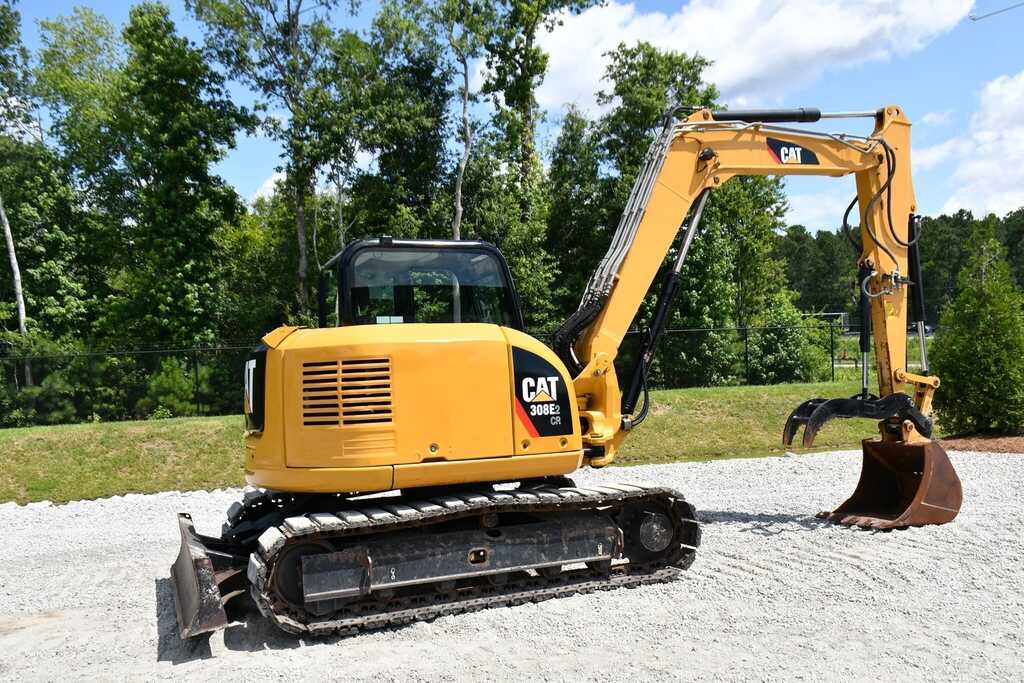

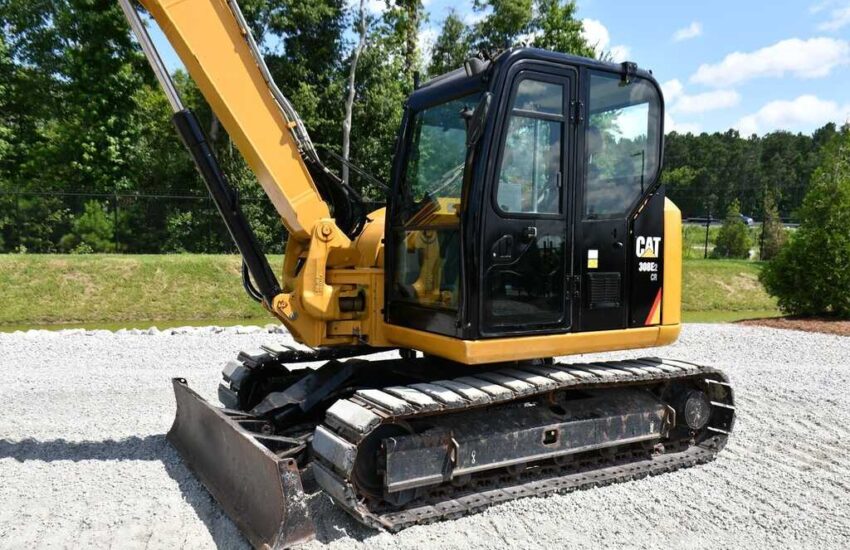

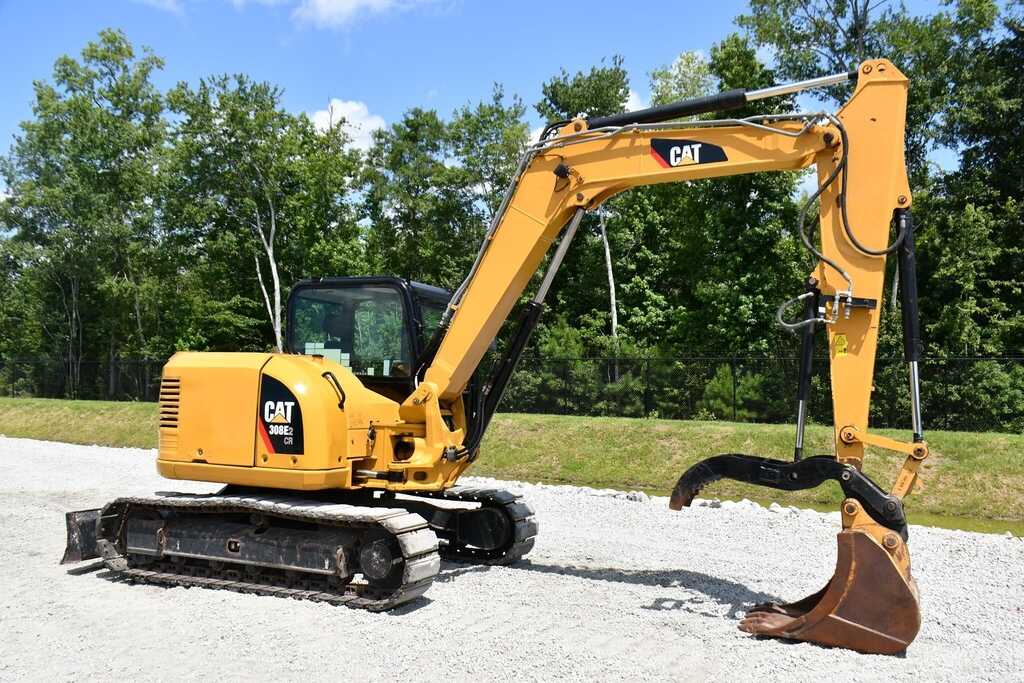

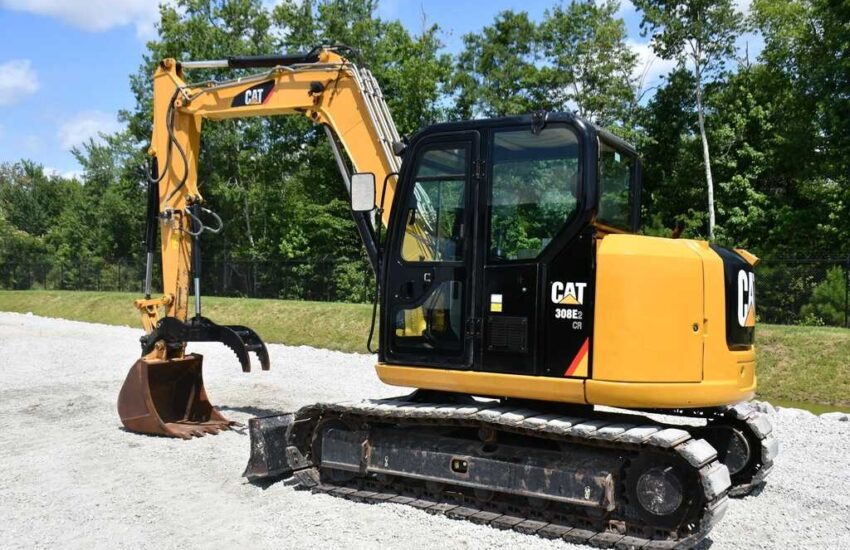

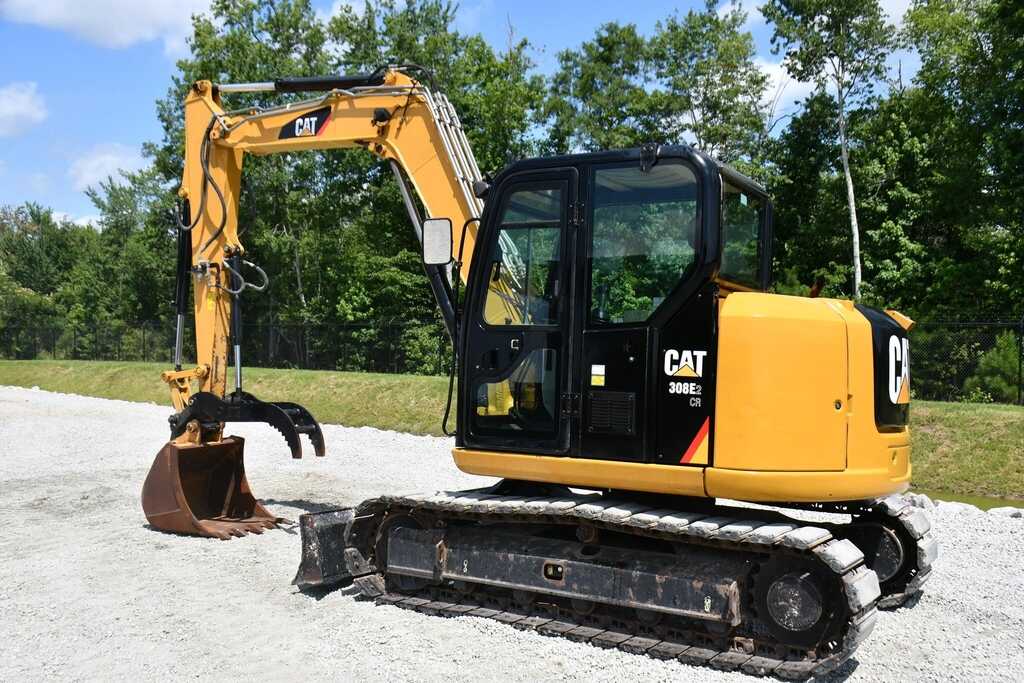

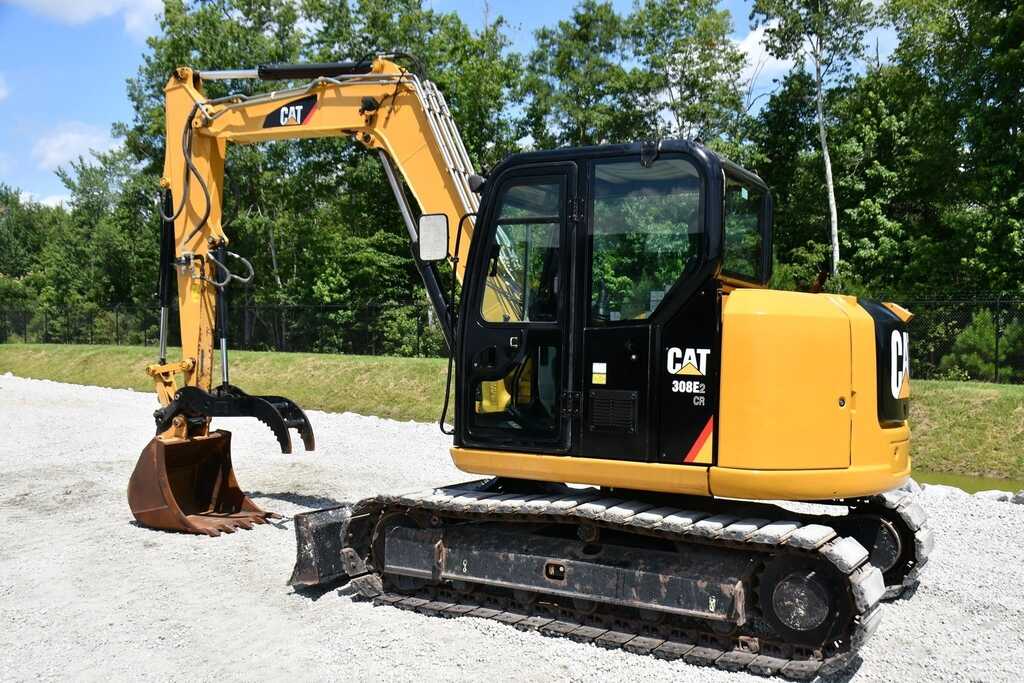

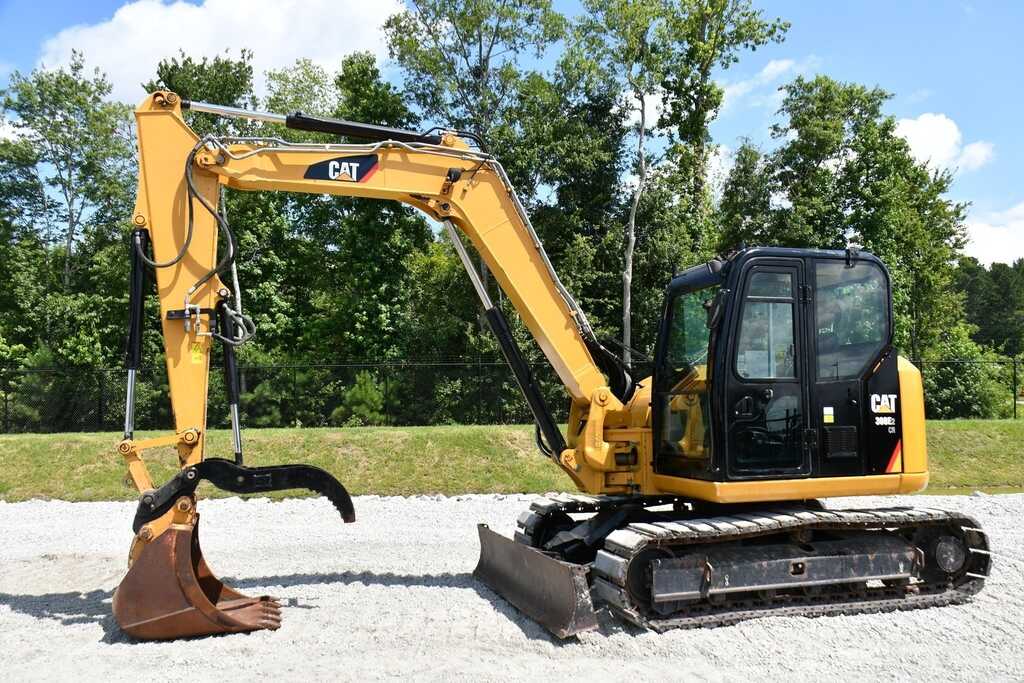

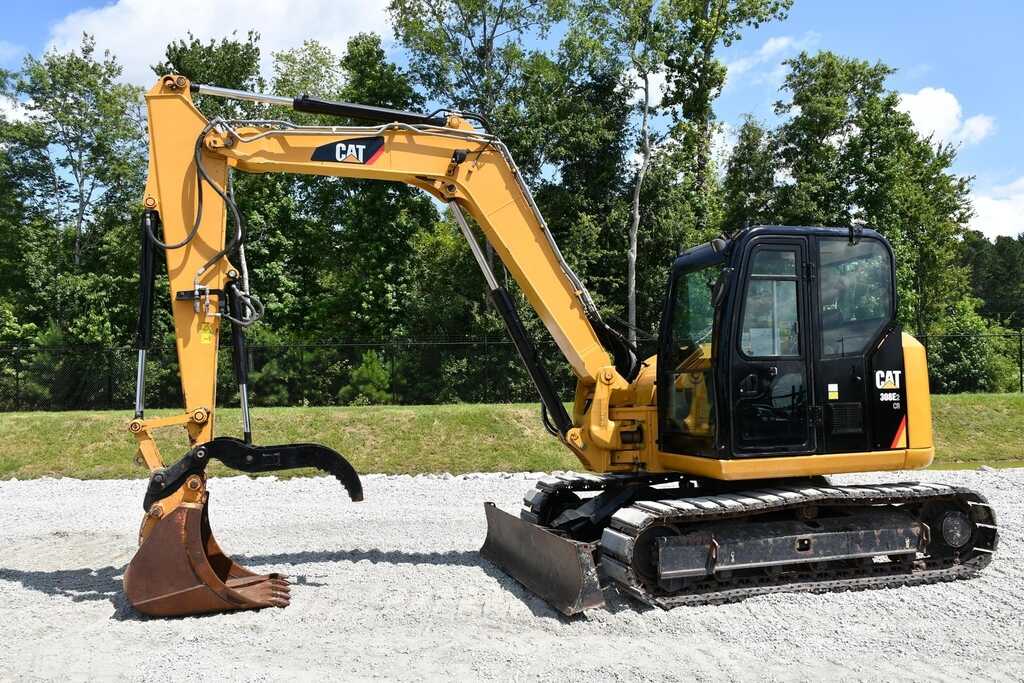

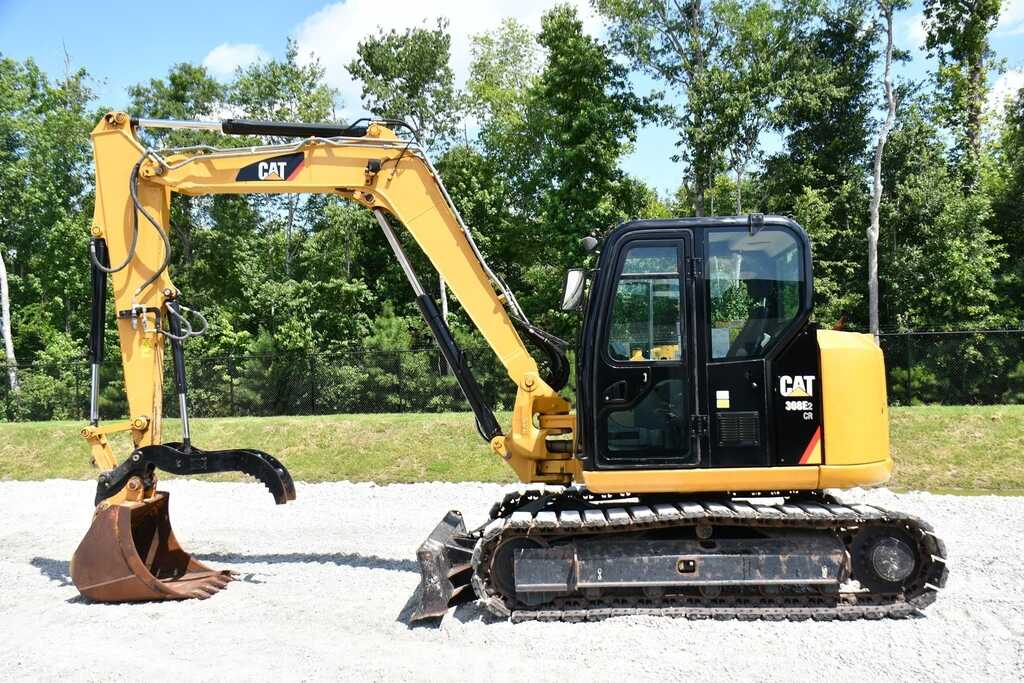

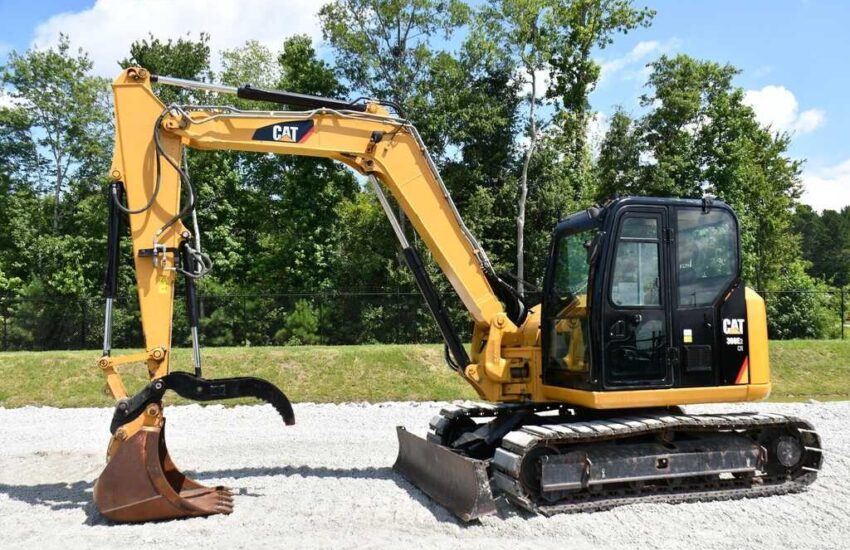

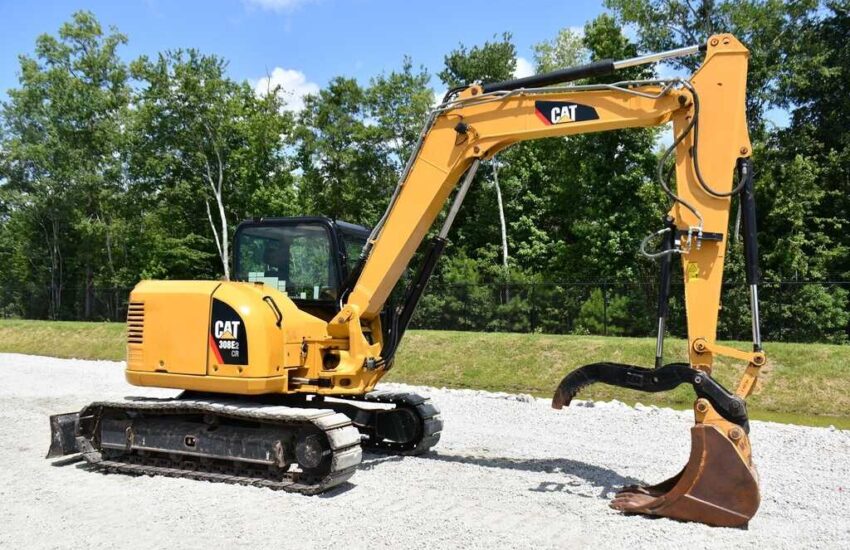

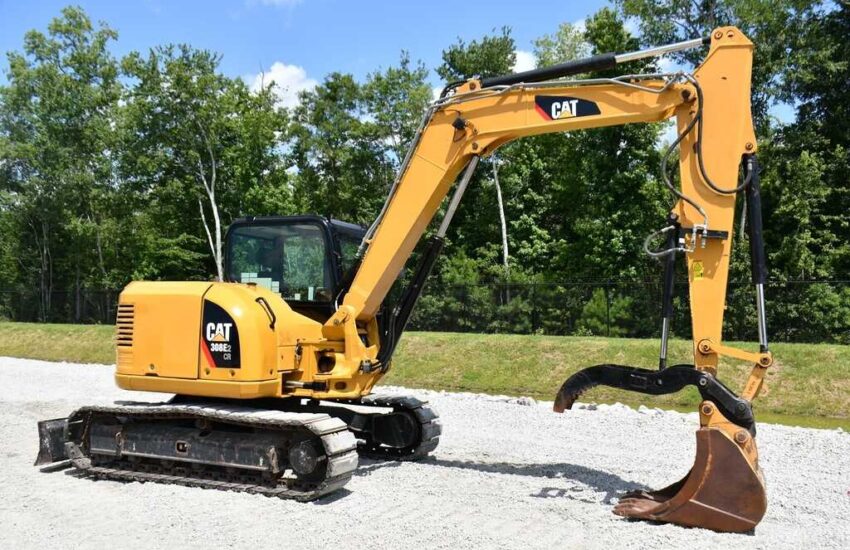

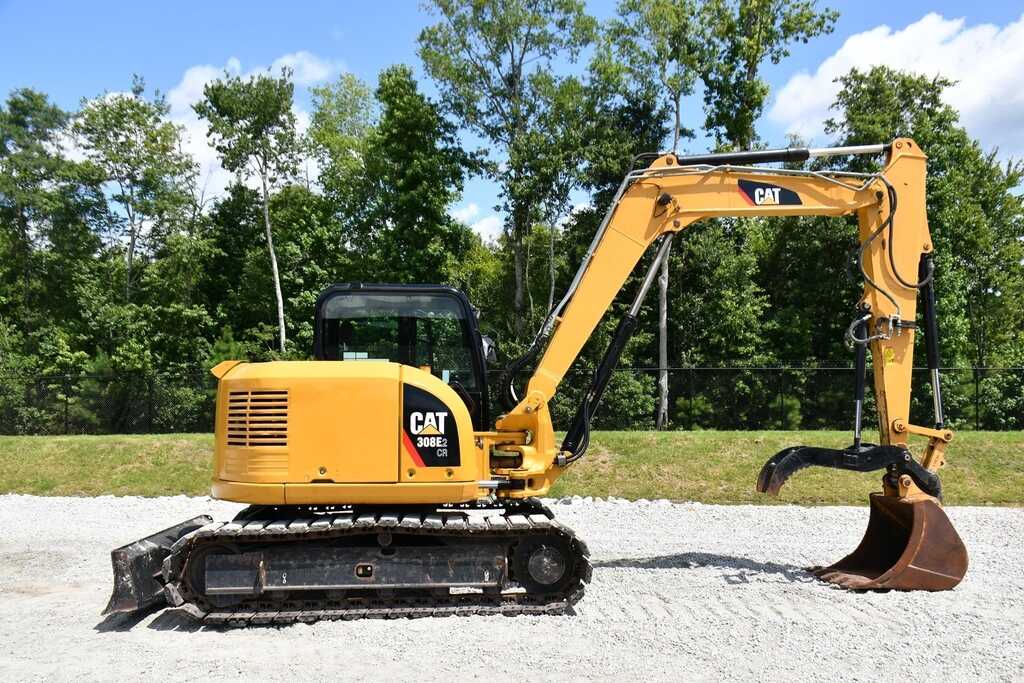

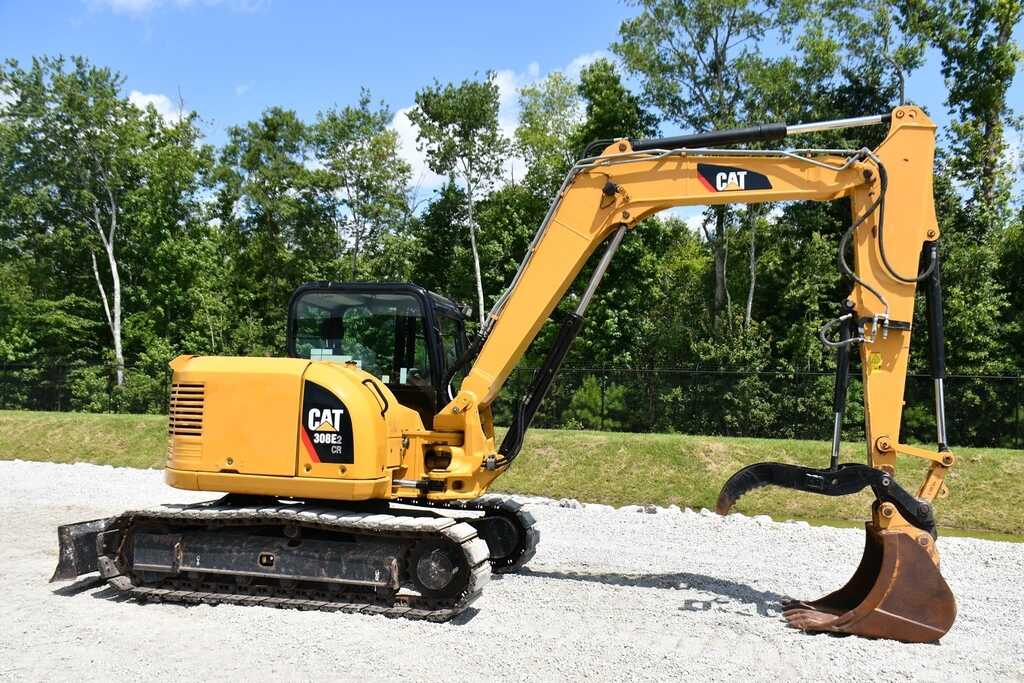

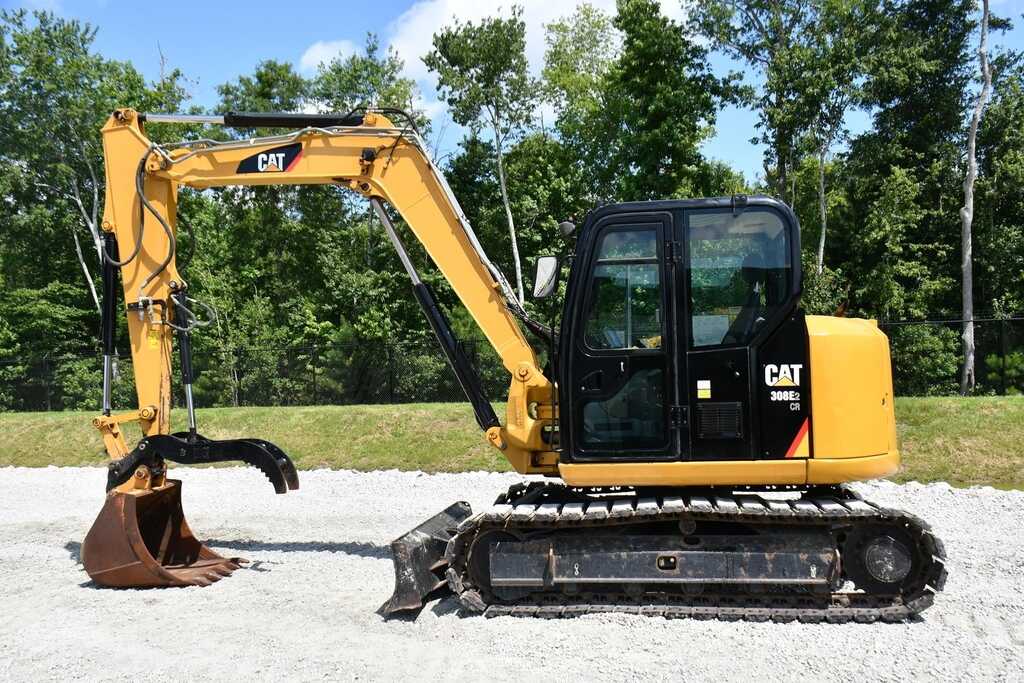

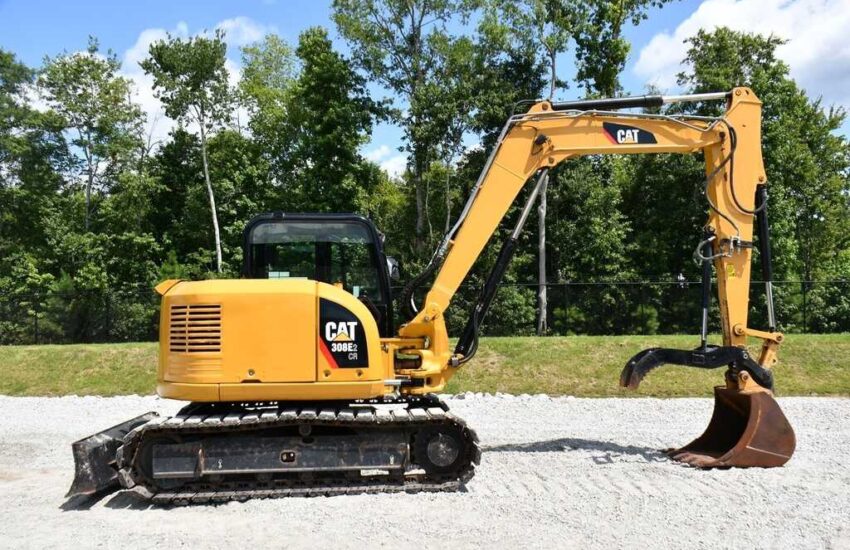

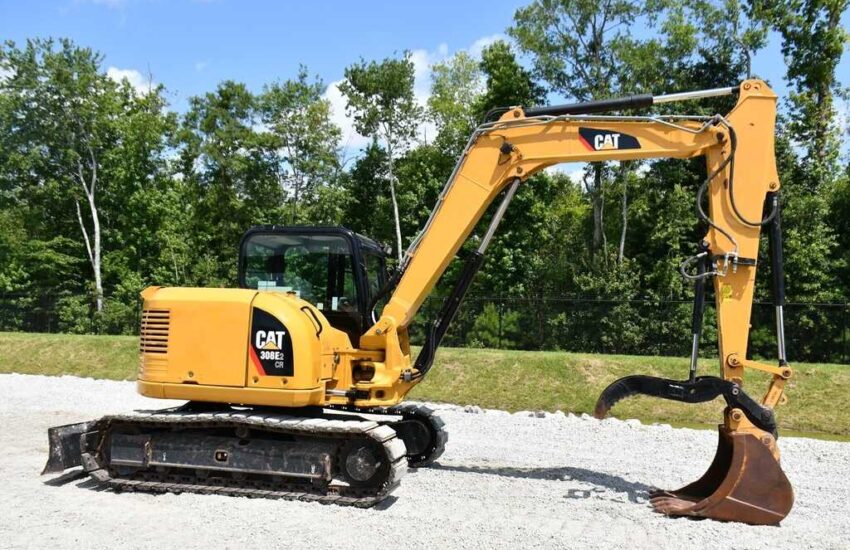

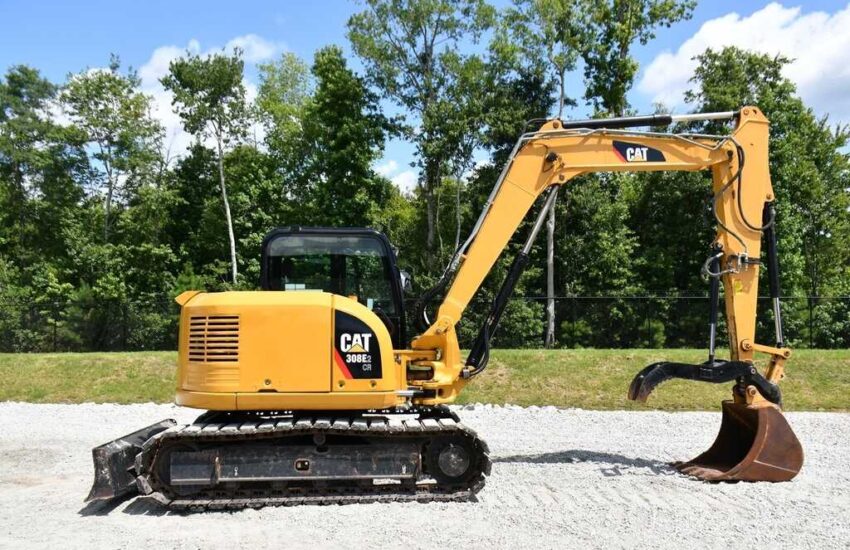

2016 Caterpillar 308E2 CR

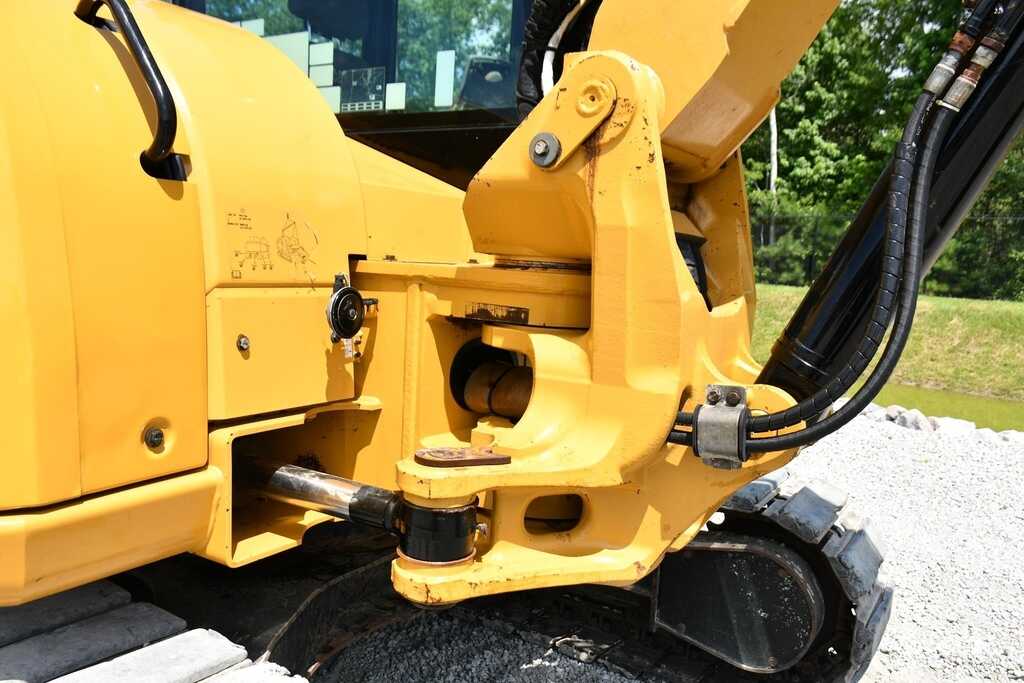

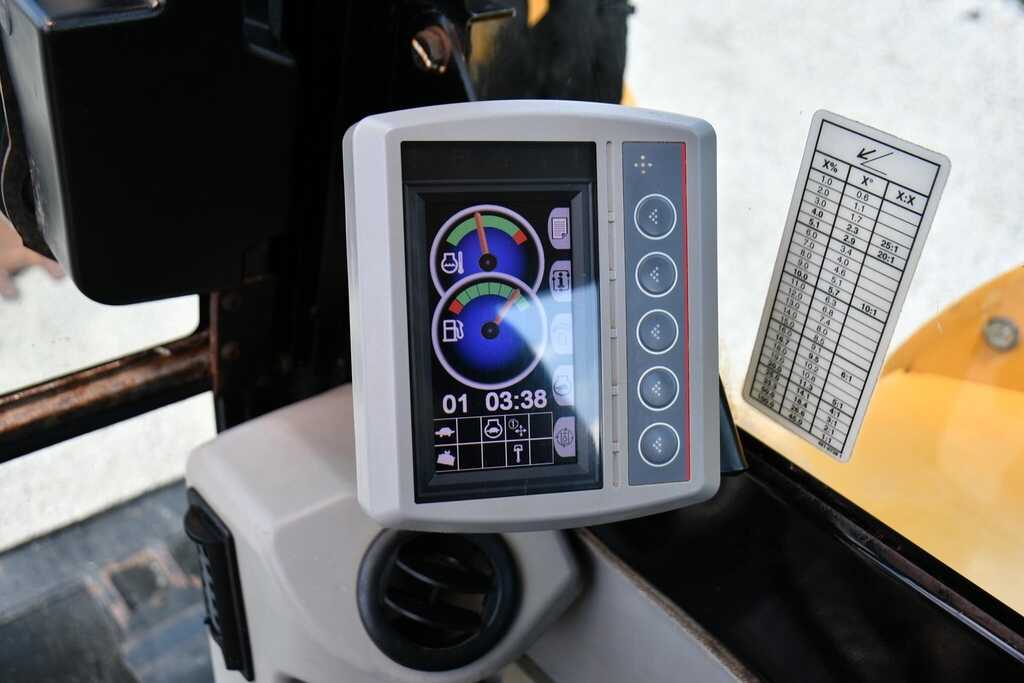

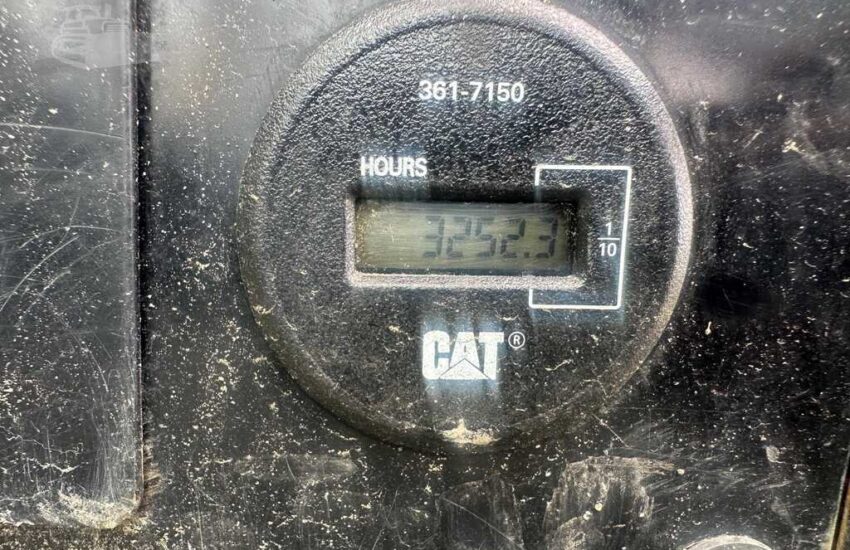

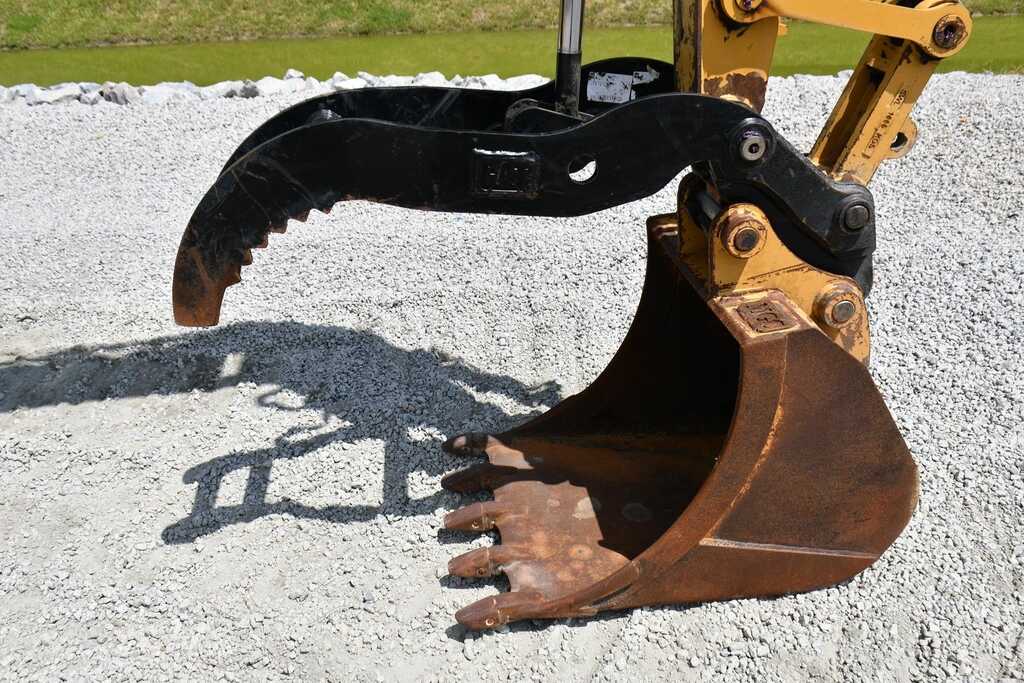

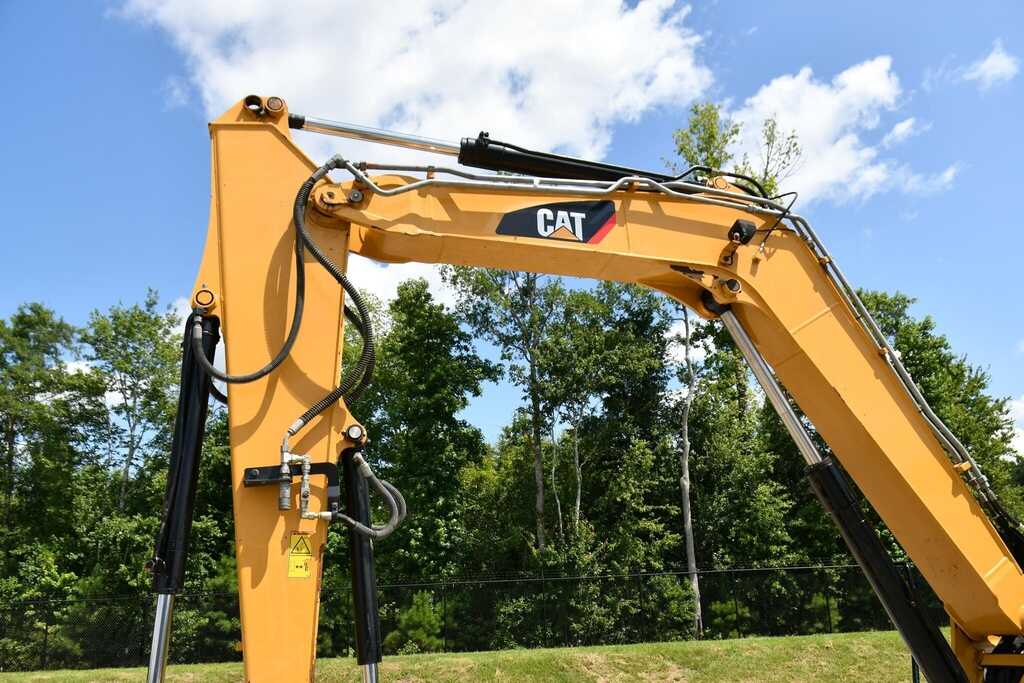

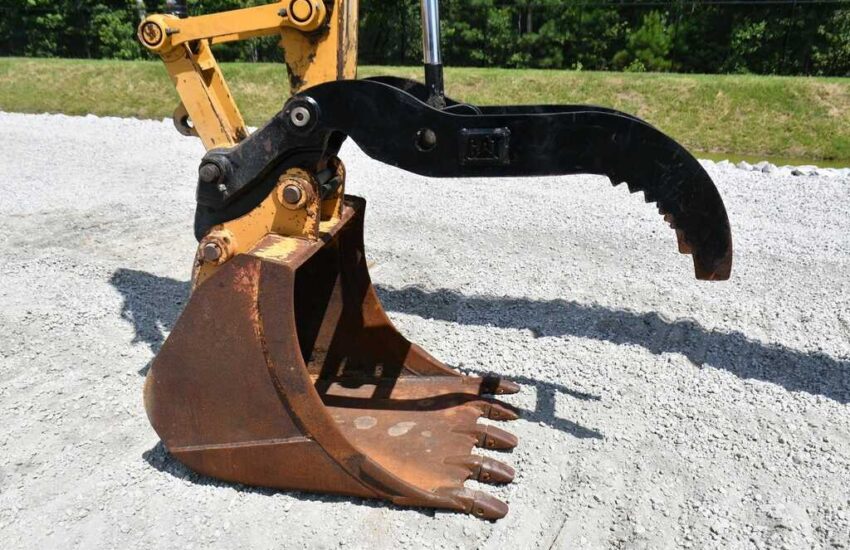

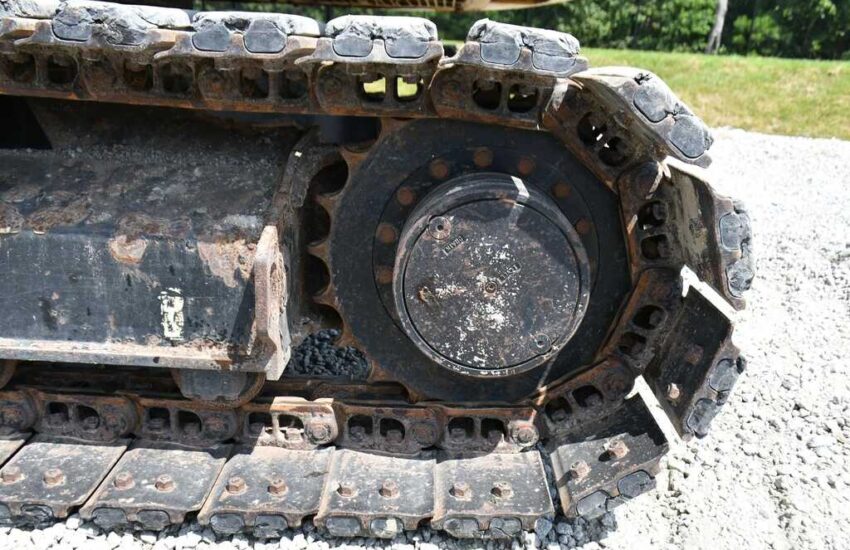

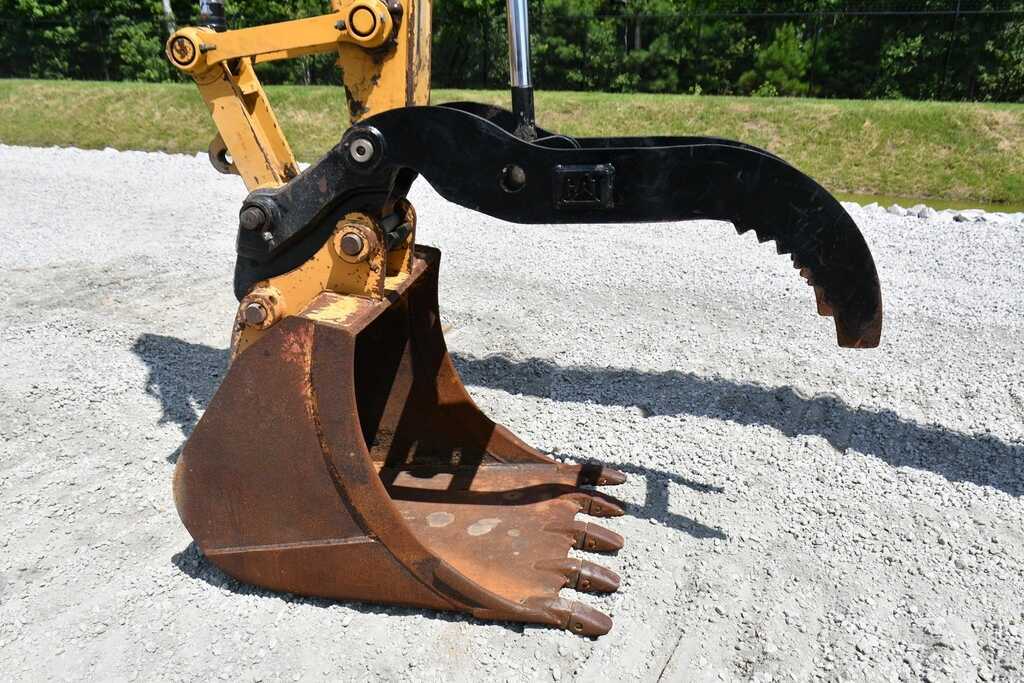

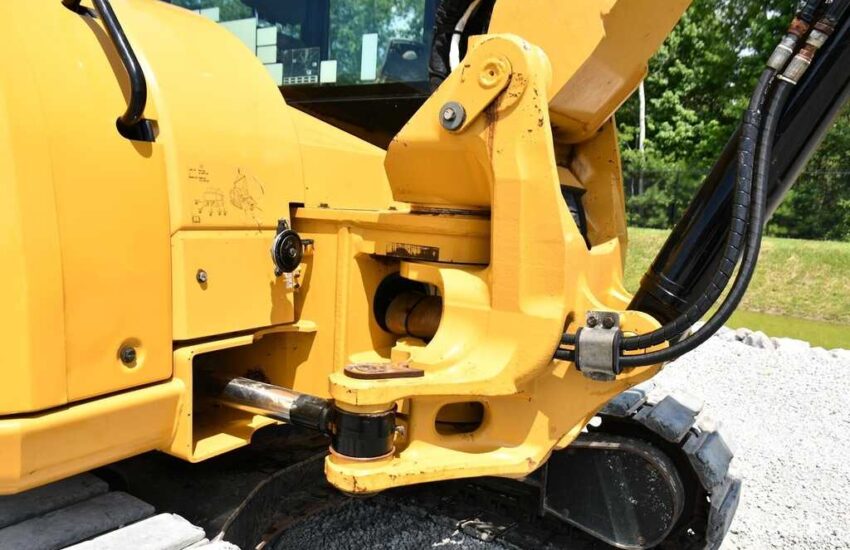

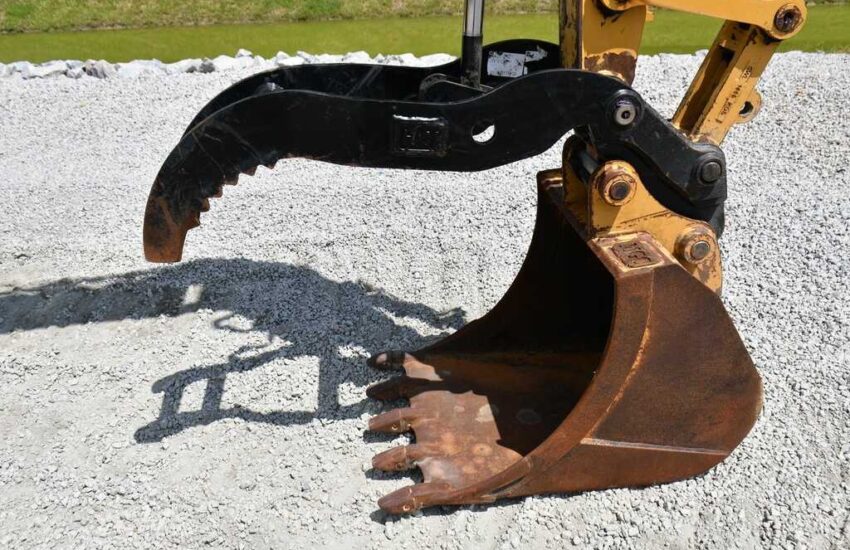

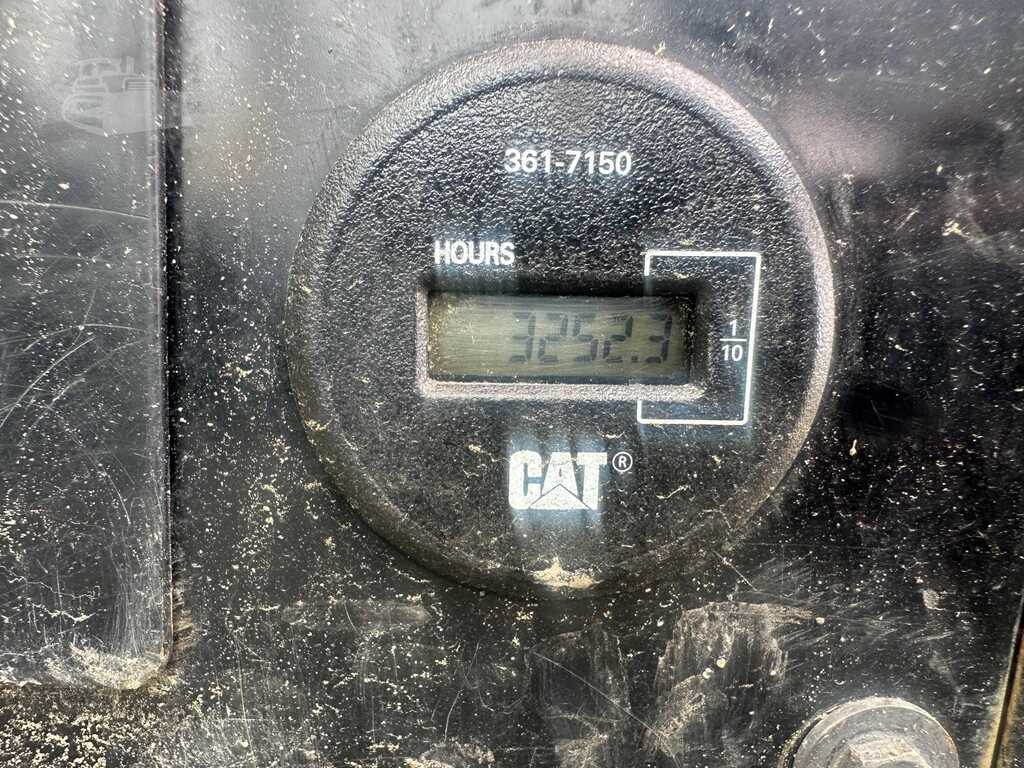

Hyd QC Wedge Style, 24″ Dig, 42″ CU, Hyd Thumb, Aux Hyd, Swing Boom, FOG, Blade, 18″ TBG, Pattern Control Changer, Tool Selector, Rear View Camera, A/C, Heat, meter reads 3252 hours.

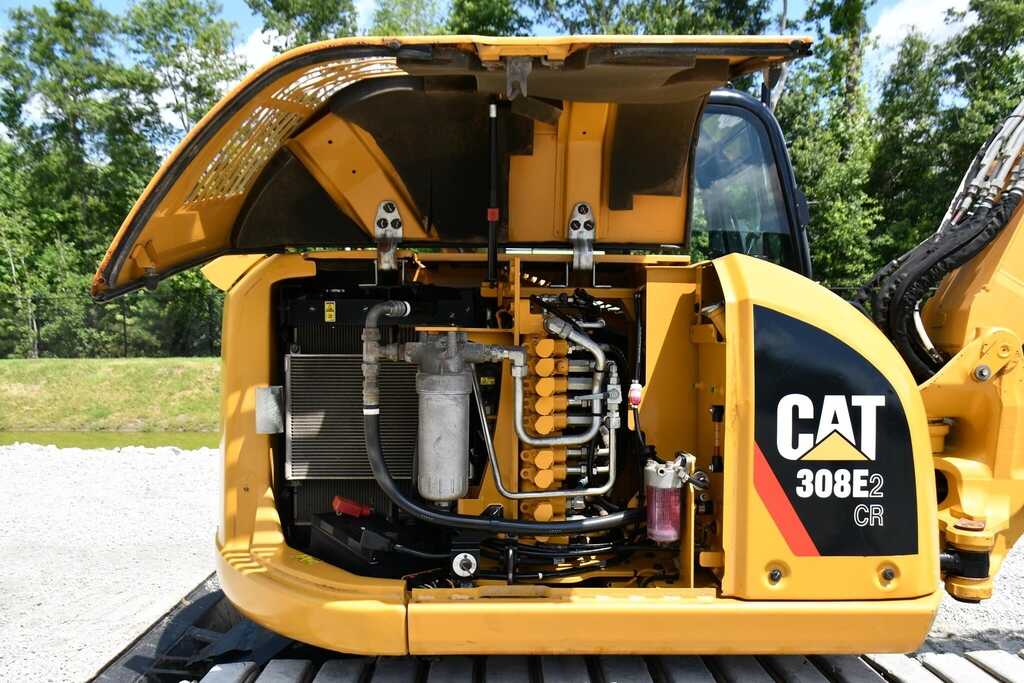

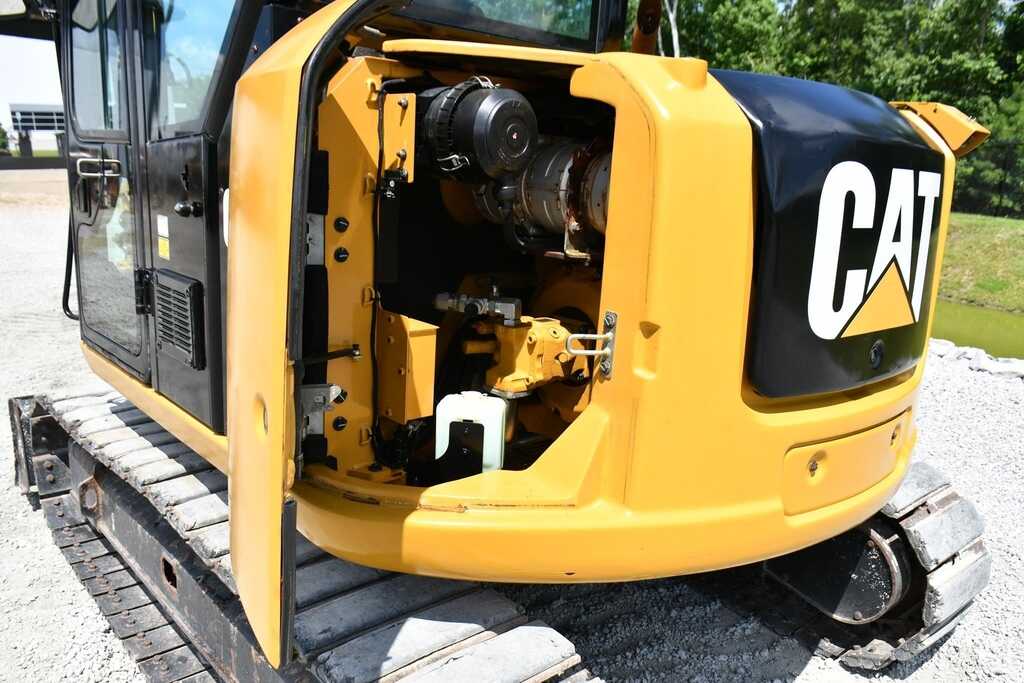

Engine

Model: Cat C3.3B
Gross Power: 66.6 hp (49.7 kW)
Net Power: 65 hp (48.5 kW)
Displacement: 203.2 in³ (3.33 L)
Emissions: Meets U.S. EPA Tier 4 Final and EU Stage IIIB emission standards

Weights

Operating Weight: 18,519 lbs (8,400 kg)

Performance

Maximum Digging Depth: 13 ft 7.5 in (4,150 mm)
Maximum Reach at Ground Level: 25 ft 6.5 in (7,780 mm)
Bucket Digging Force: 13,534 lbf (60.2 kN)
Stick Digging Force (Standard): 9,015 lbf (40.1 kN)
Stick Digging Force (Long): 7,891 lbf (35.1 kN)
Travel Speed – High: 3.2 mph (5.1 km/h)
Travel Speed – Low: 1.8 mph (2.8 km/h)

Hydraulics

Main System – Maximum Flow: 39.6 gal/min (150 L/min)
Auxiliary Circuit – Primary (186 bar / 2,734 psi): 33.8 gal/min (128 L/min)
Auxiliary Circuit – Secondary (174 bar / 2,524 psi): 16.9 gal/min (64 L/min)
Operating Pressure – Equipment: 4,061 psi (28,000 kPa)
Operating Pressure – Travel: 4,061 psi (28,000 kPa)
Operating Pressure – Swing: 3,481 psi (24,000 kPa)

Dimensions

Overall Length: 21 ft 6 in (6,550 mm)
Overall Width: 7 ft 7 in (2,320 mm)
Overall Height: 8 ft 4 in (2,540 mm)
Tail Swing Radius: 5 ft 3 in (1,600 mm)
Ground Clearance: 1 ft 1 in (335 mm)

Features

Compact Radius Design allows operation in confined spaces

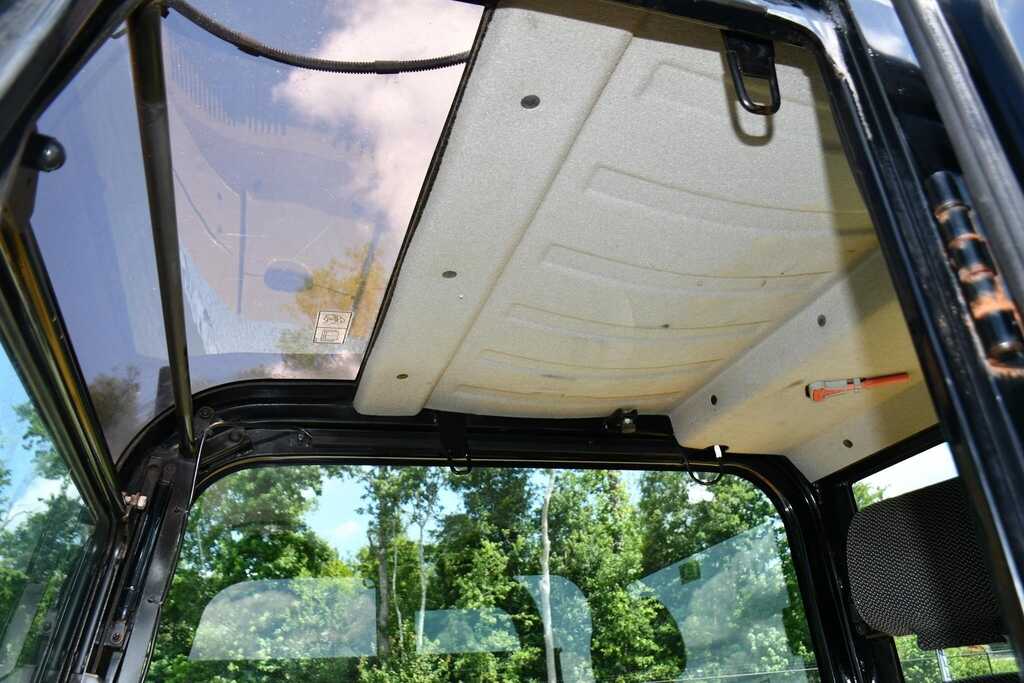

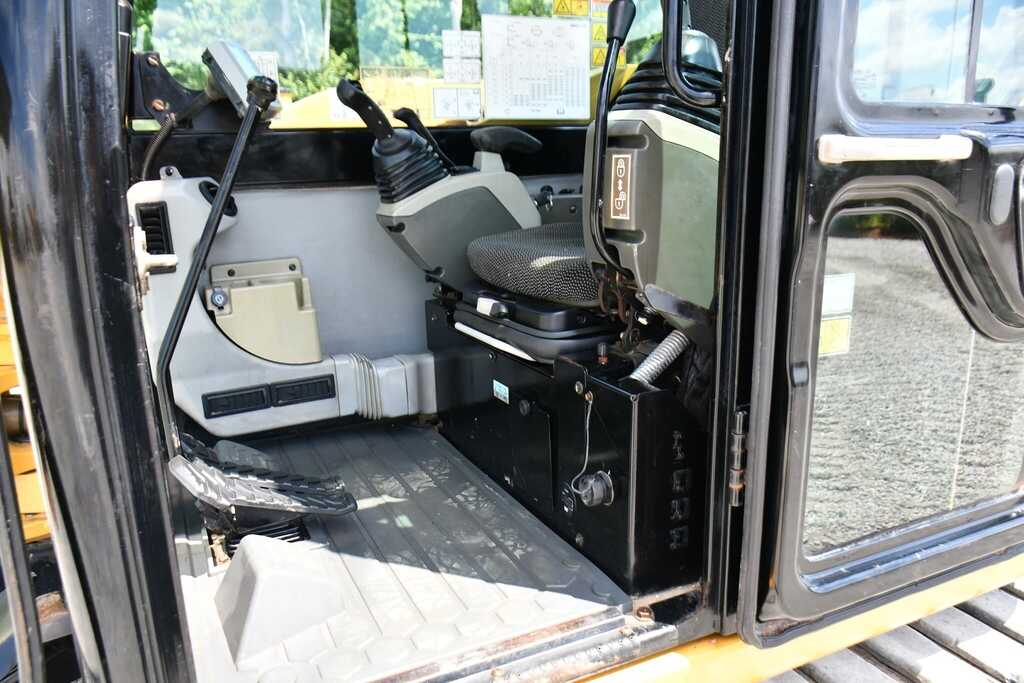

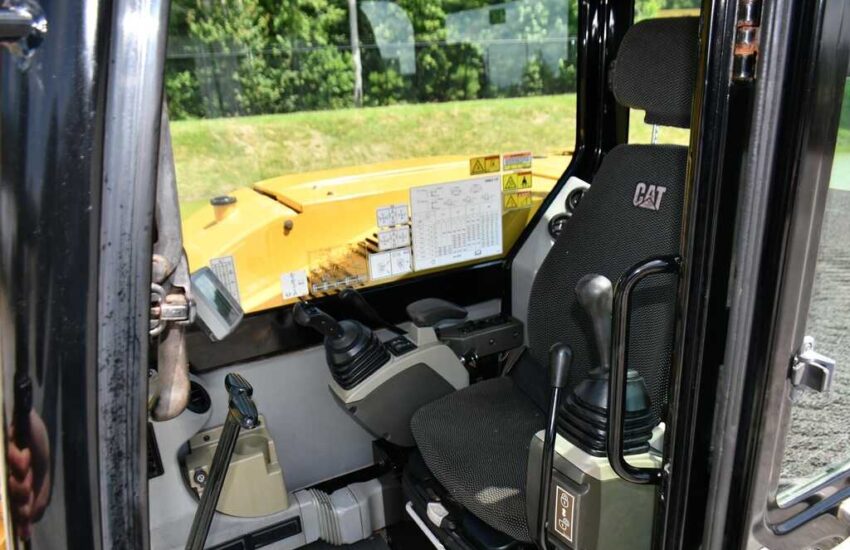

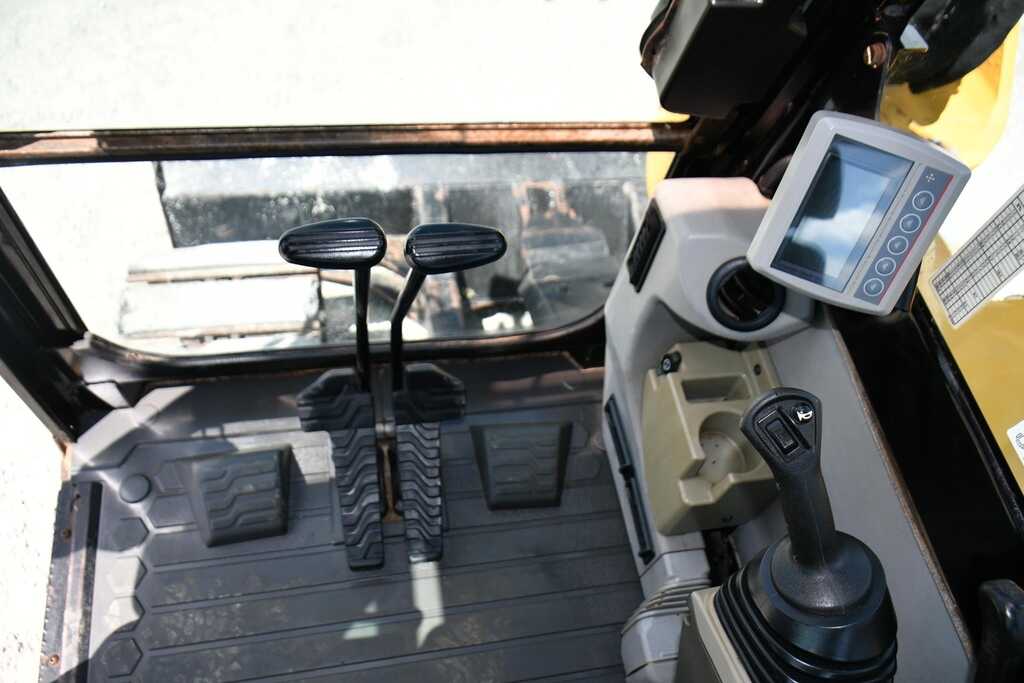

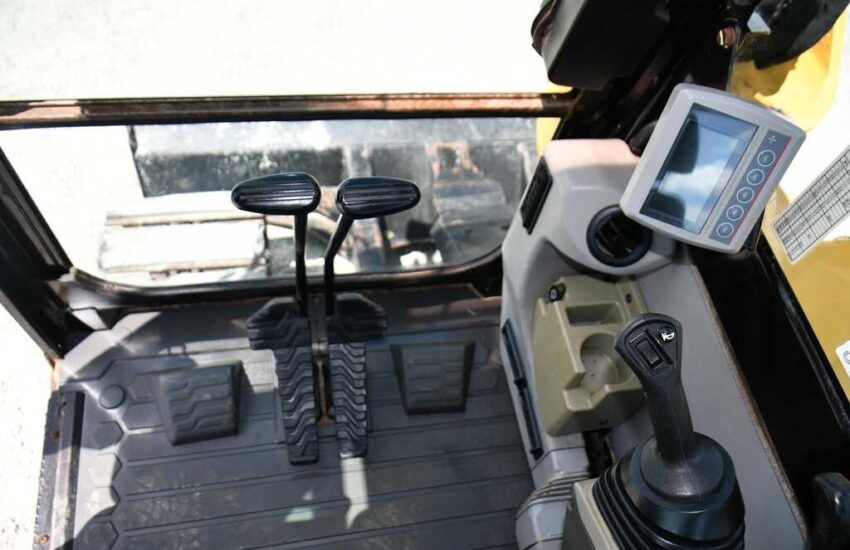

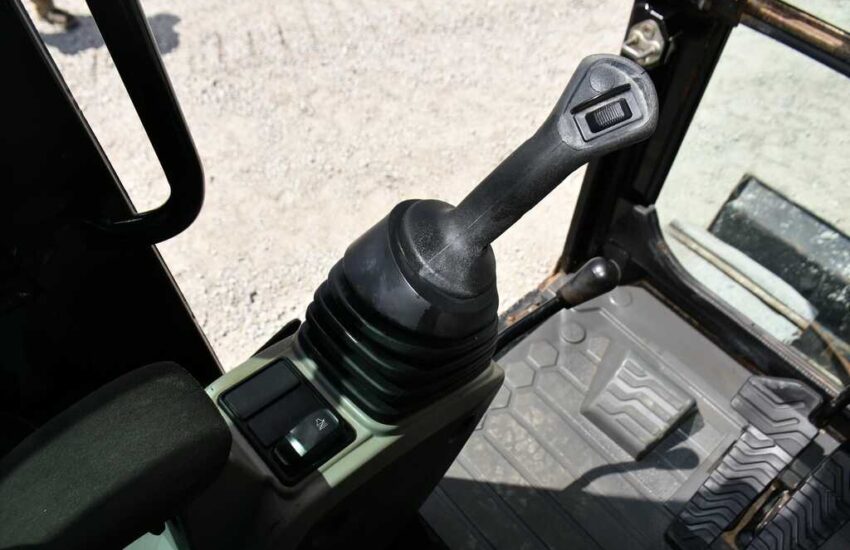

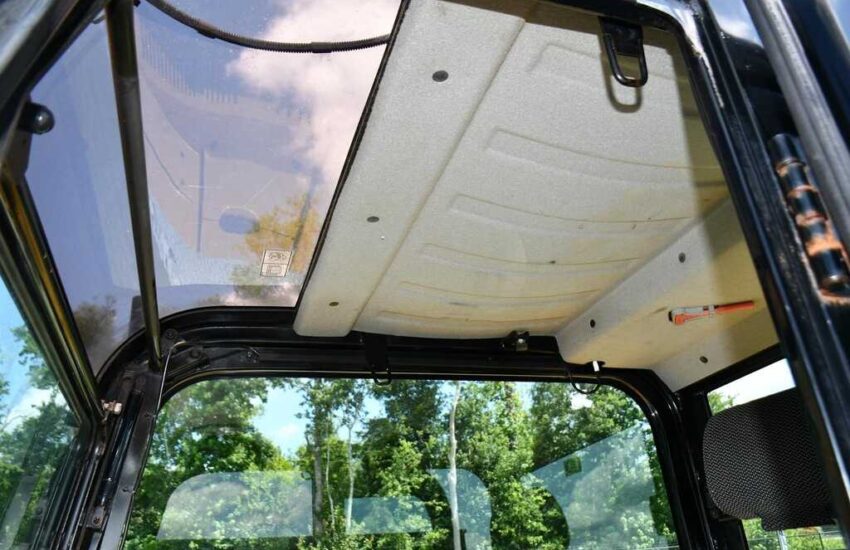

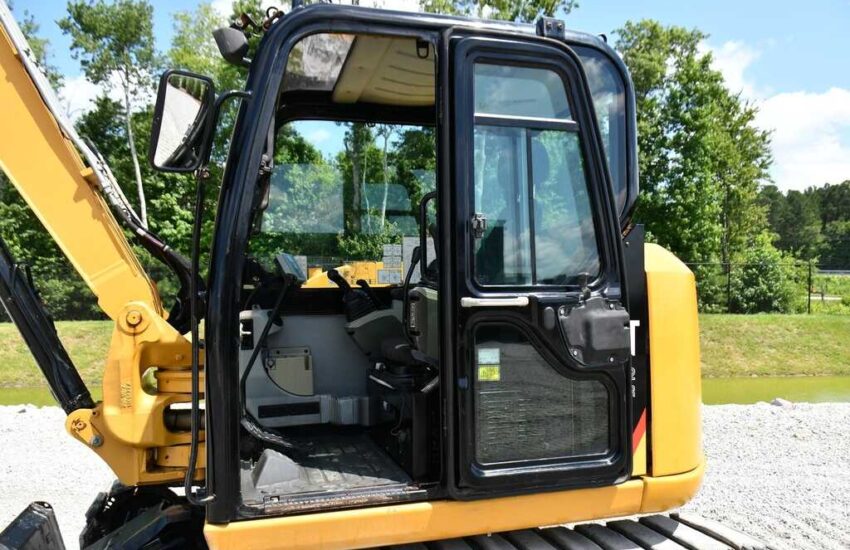

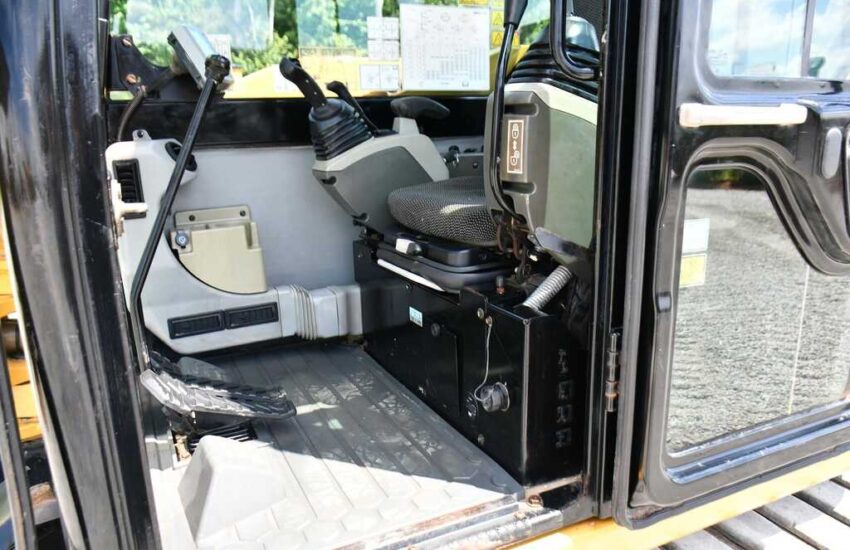

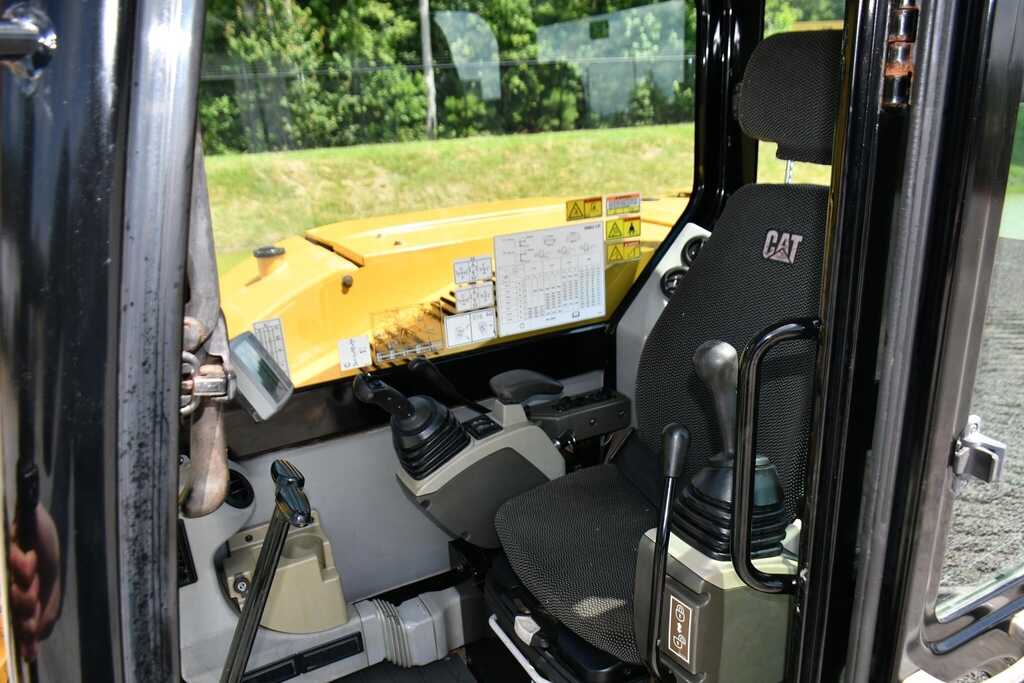

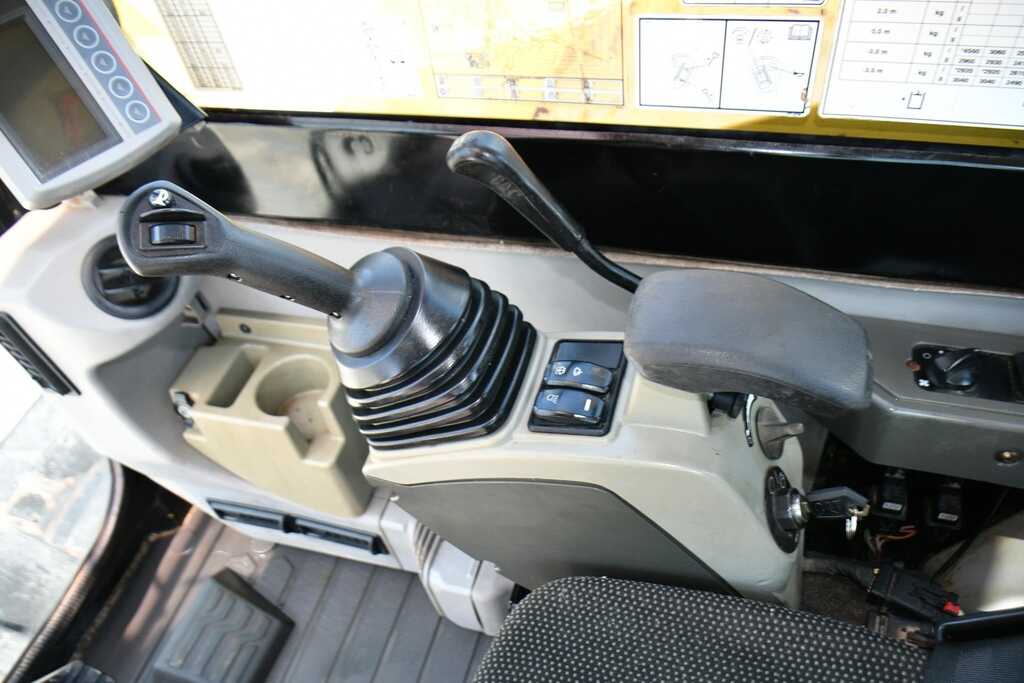

Operator Environment includes a spacious cab with ergonomic controls

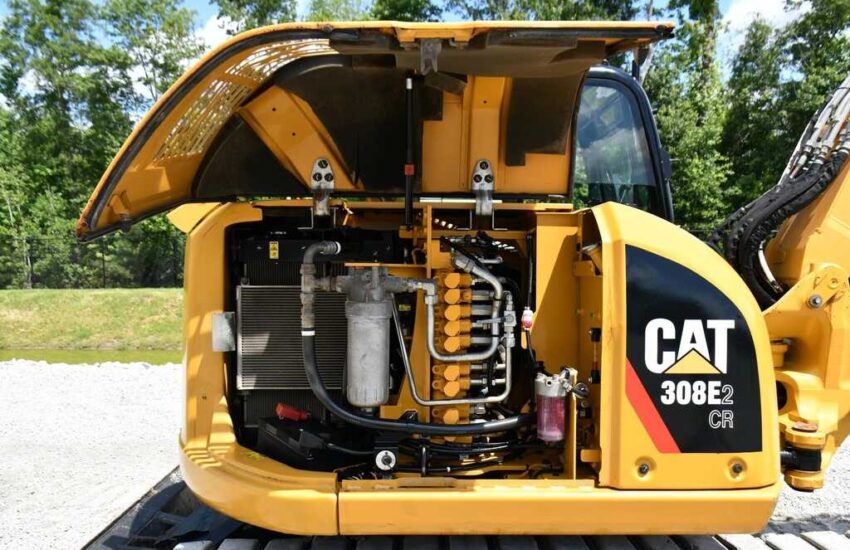

Hydraulic System uses load sensing hydraulics with a variable displacement piston pump

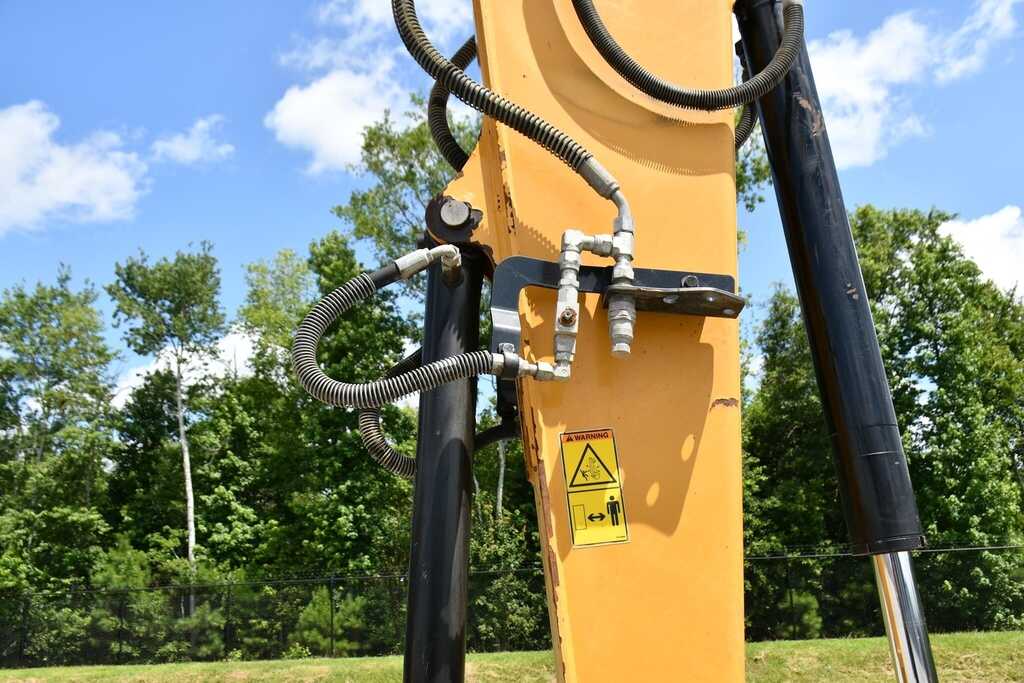

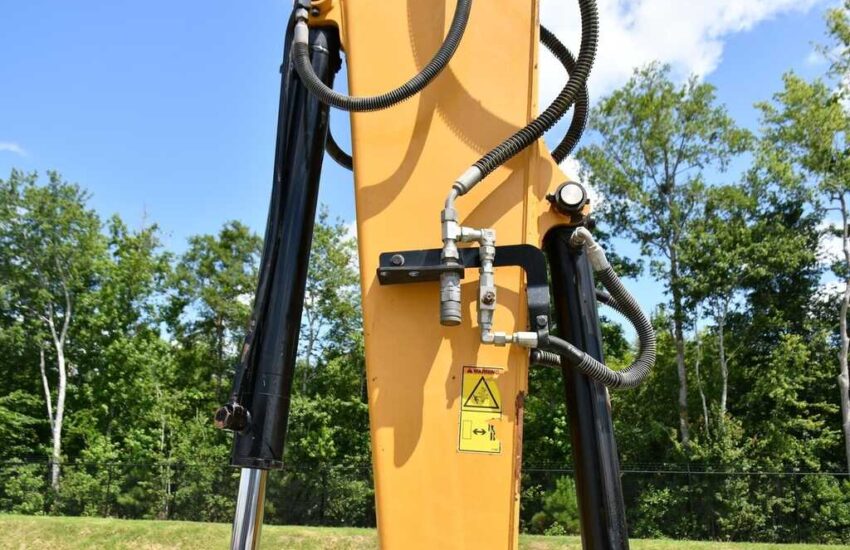

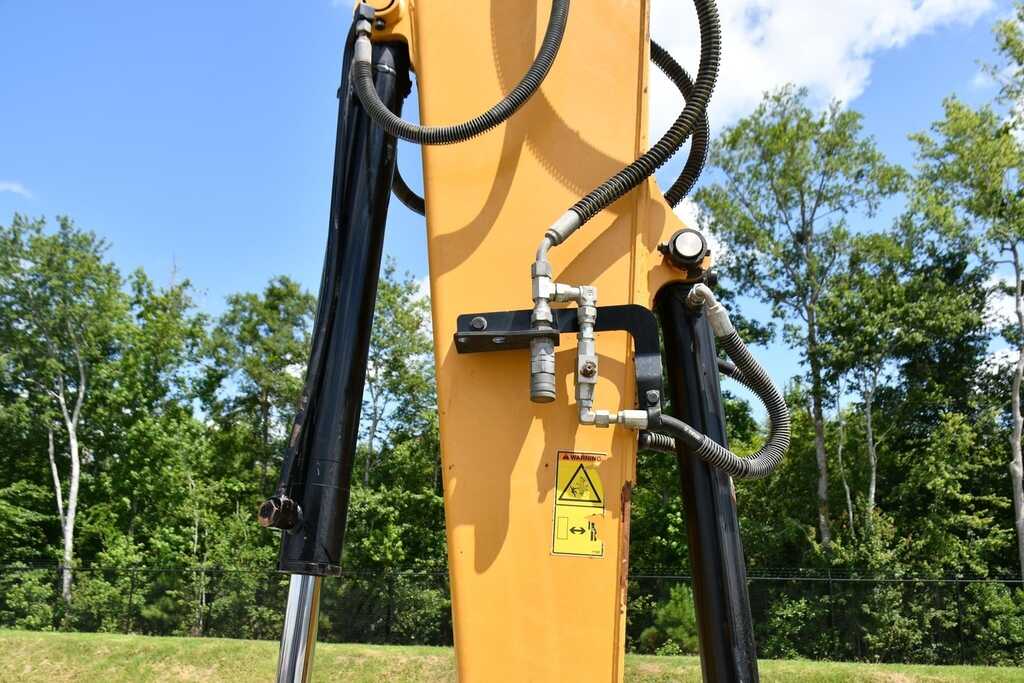

Auxiliary Hydraulics are standard with quick connectors

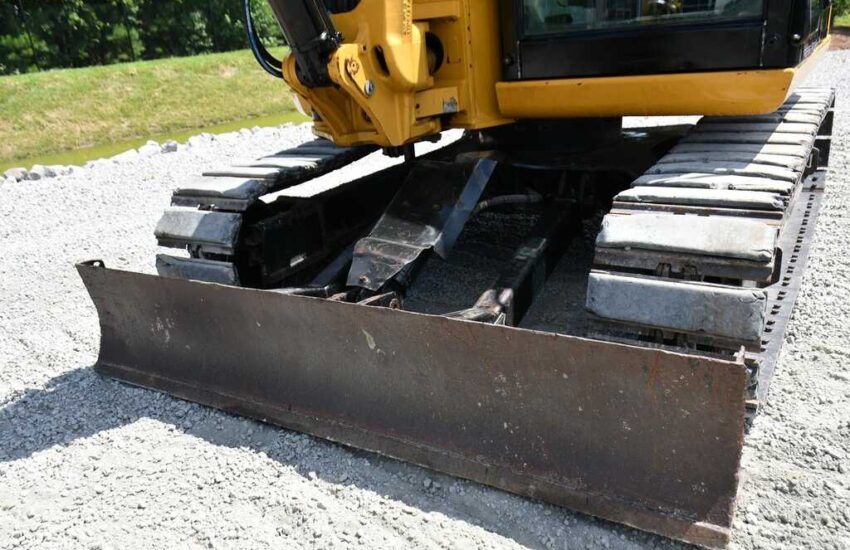

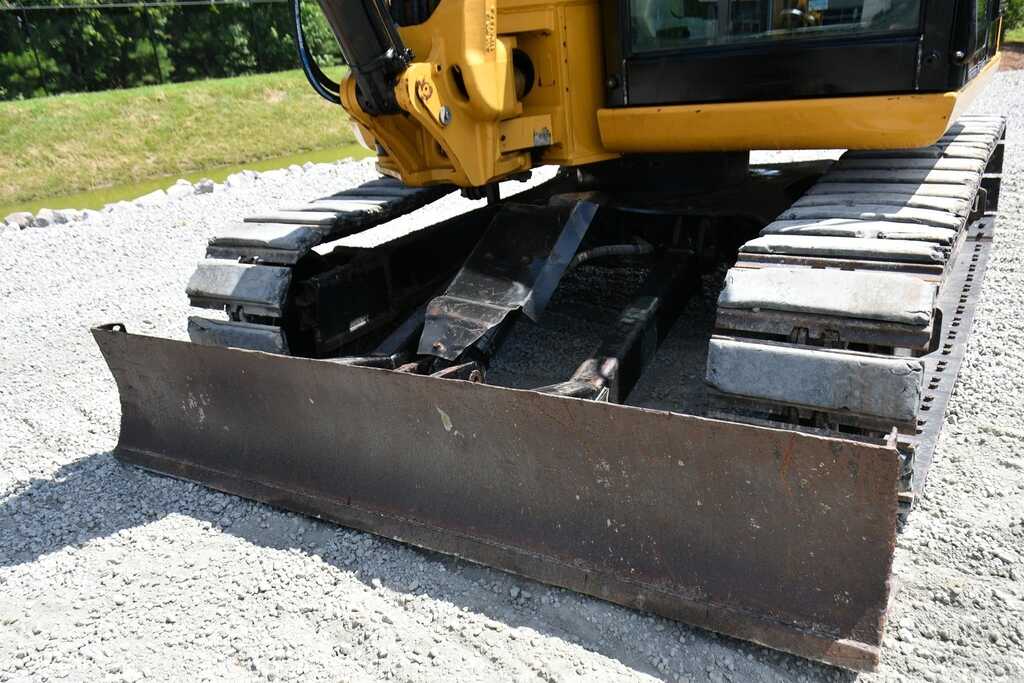

Blade dimensions are 7 ft 7 in (2,320 mm) wide and 17.8 in (452 mm) high
