Details
-
Industry:
-
Make:
-
Model:
-
Color:
-
Drive Type:
-
Transmission:
-
Condition:
-
Year:2015
-
Fuel Type:
-

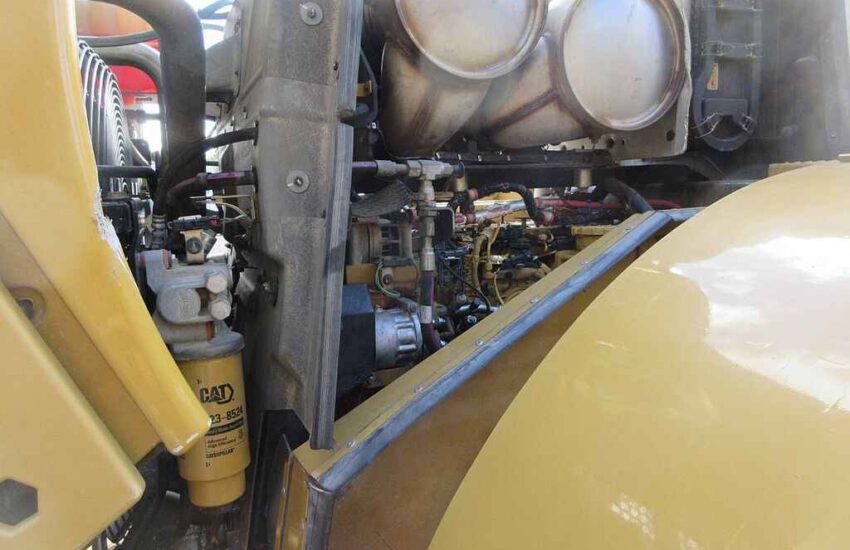

Engine:Cat C9.3 ACERT
-
Cylinder:
-

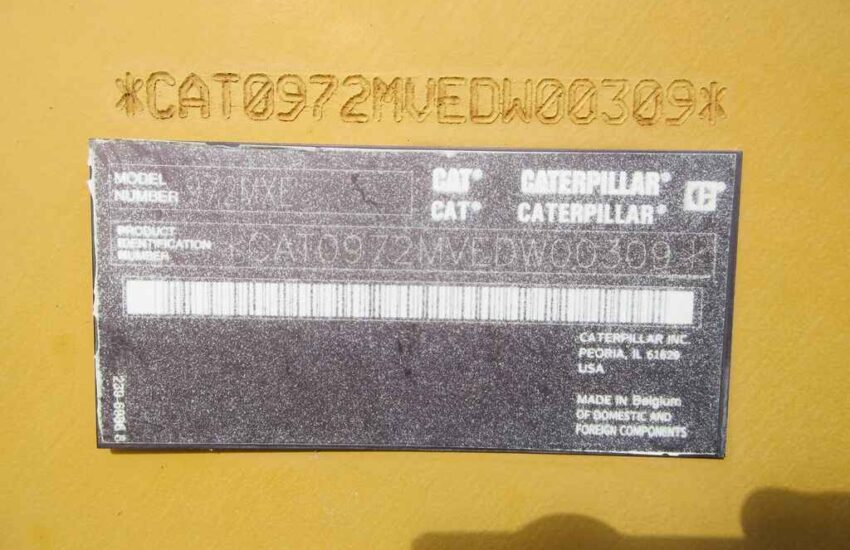

Serial:VEDW00309
-
Hours:15927
-
Stock#:301672
Overview

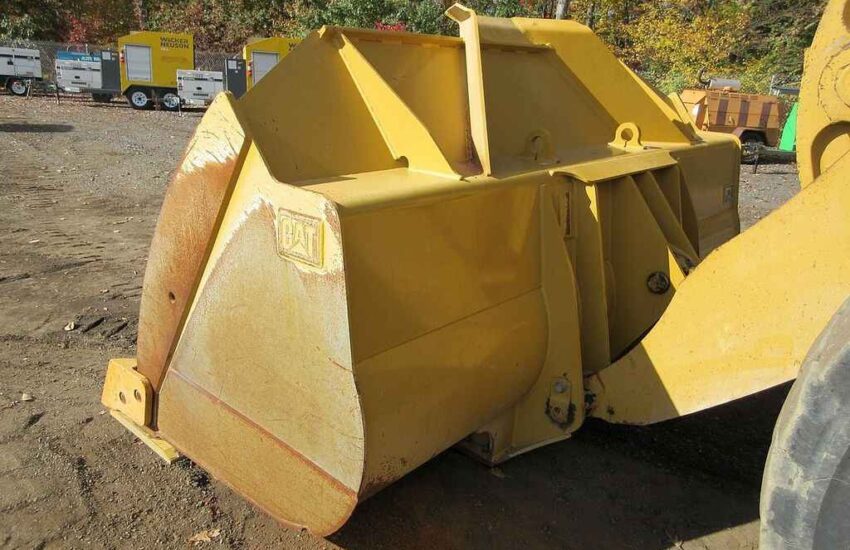

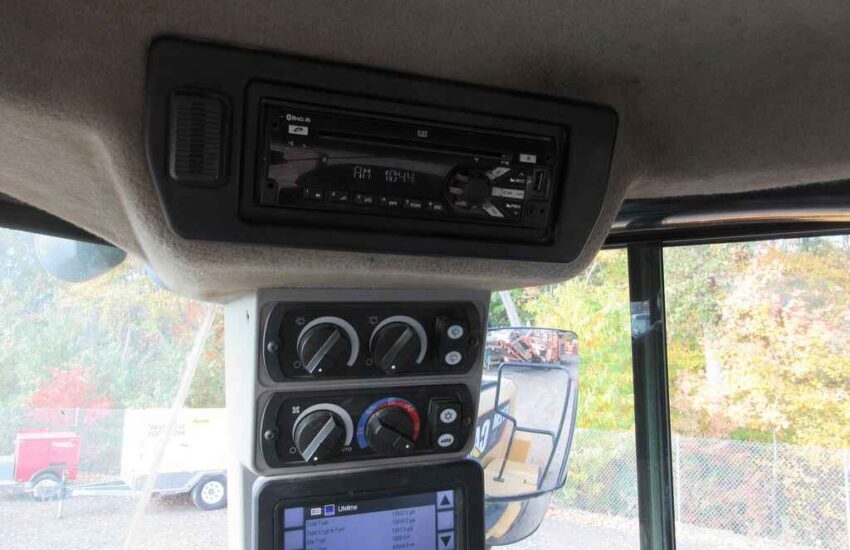

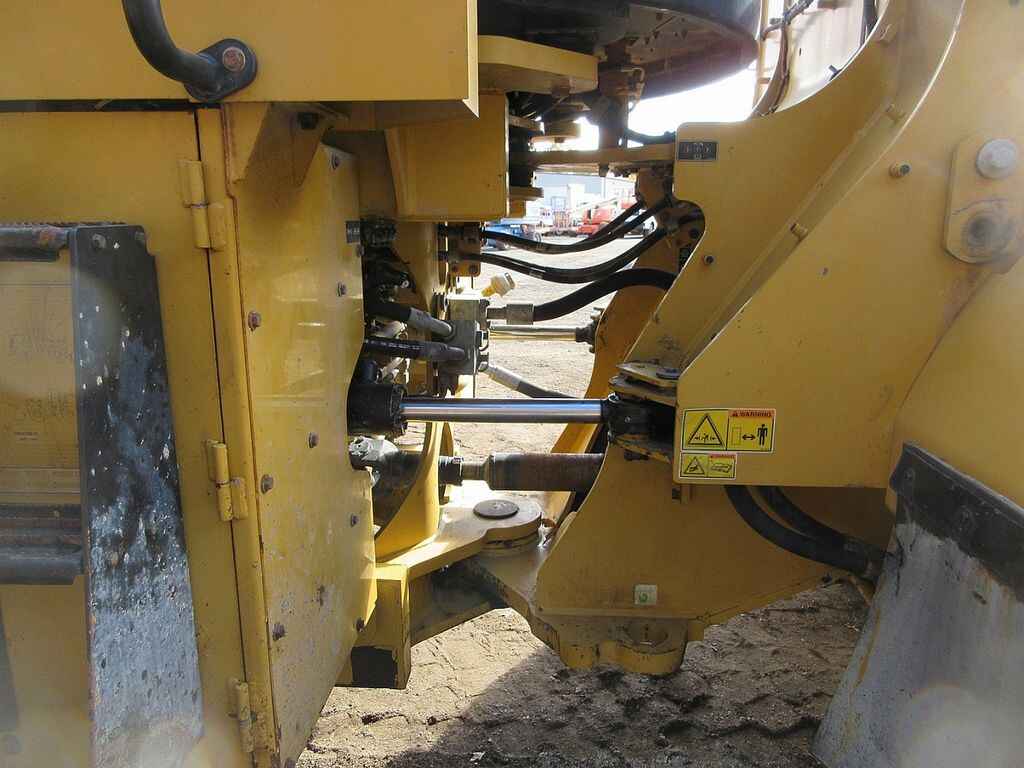

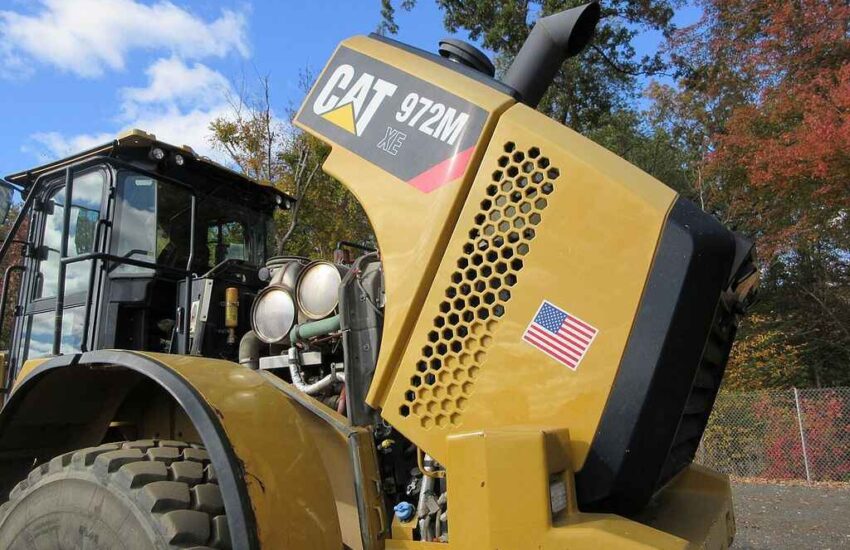

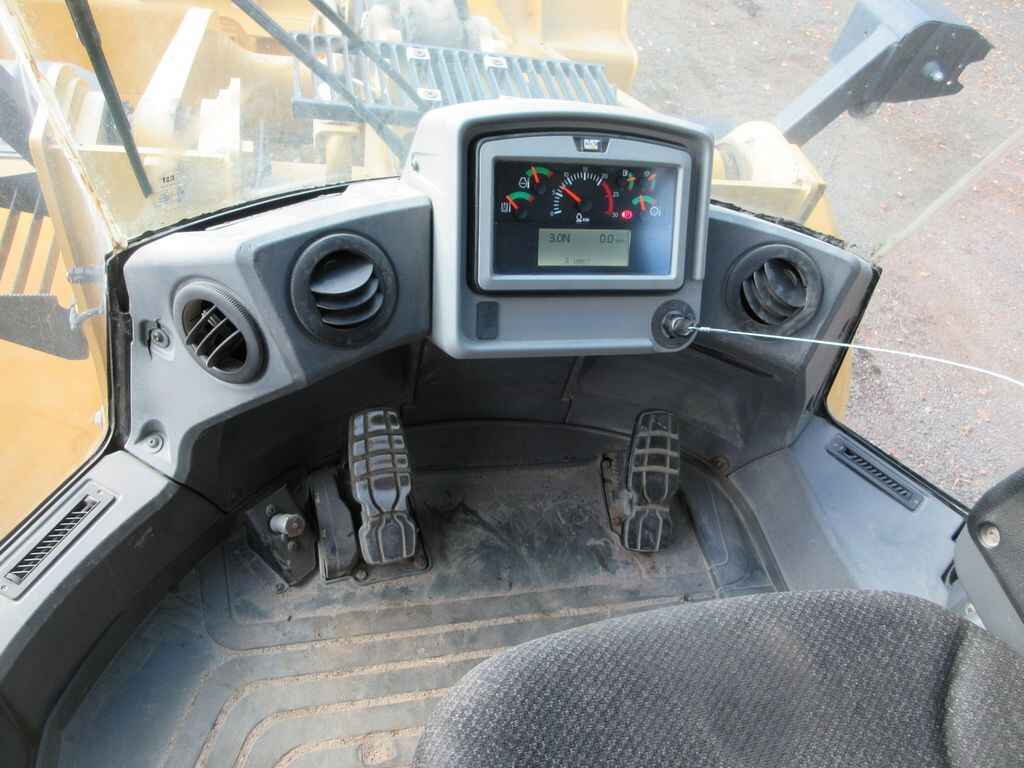

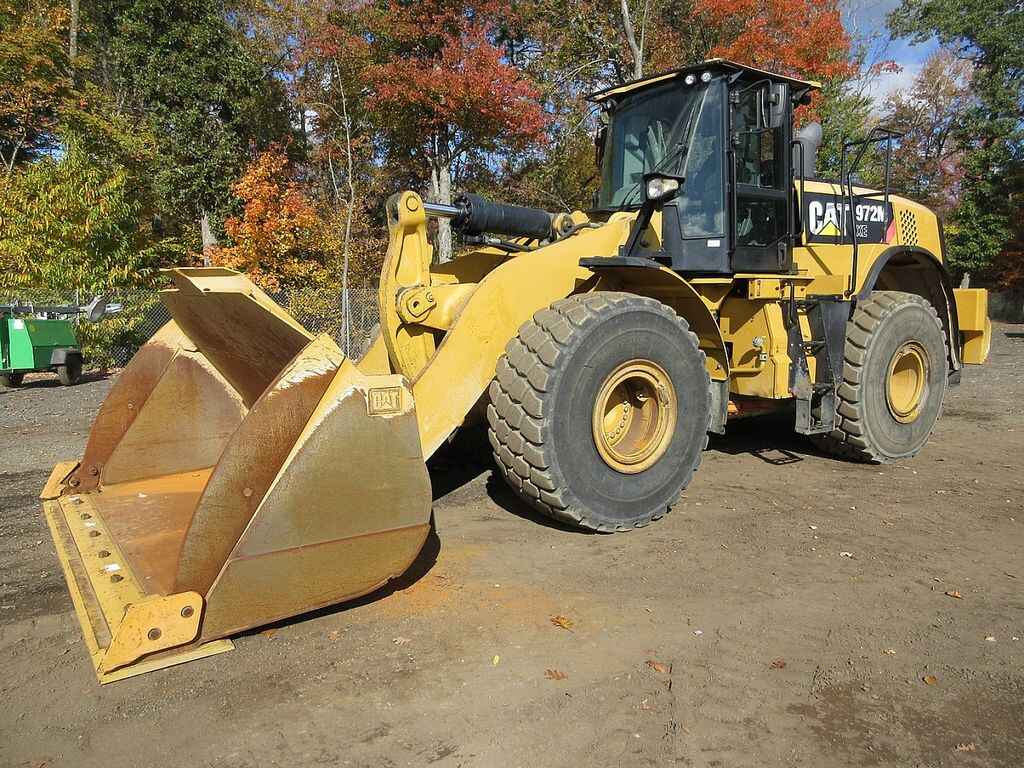

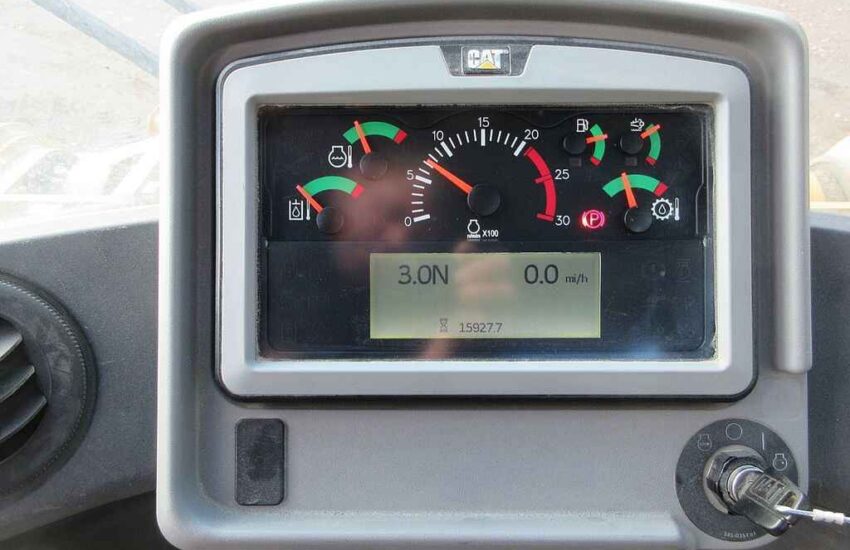

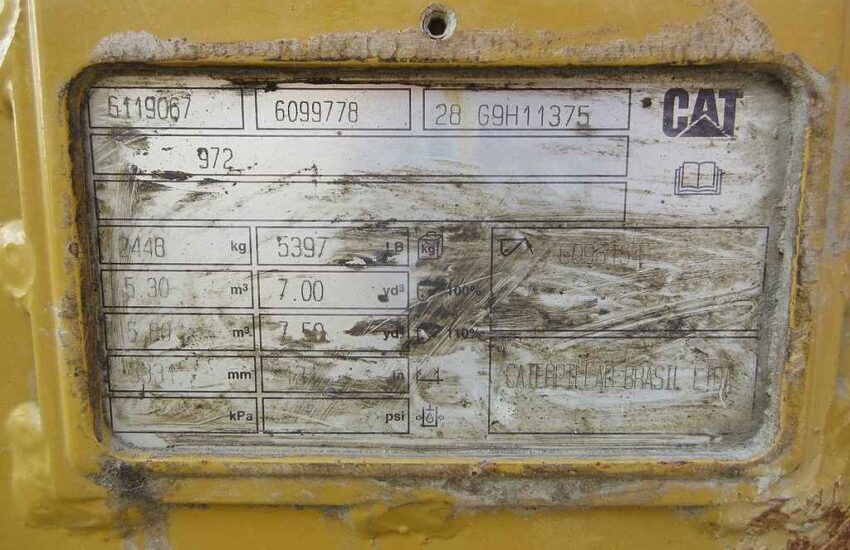

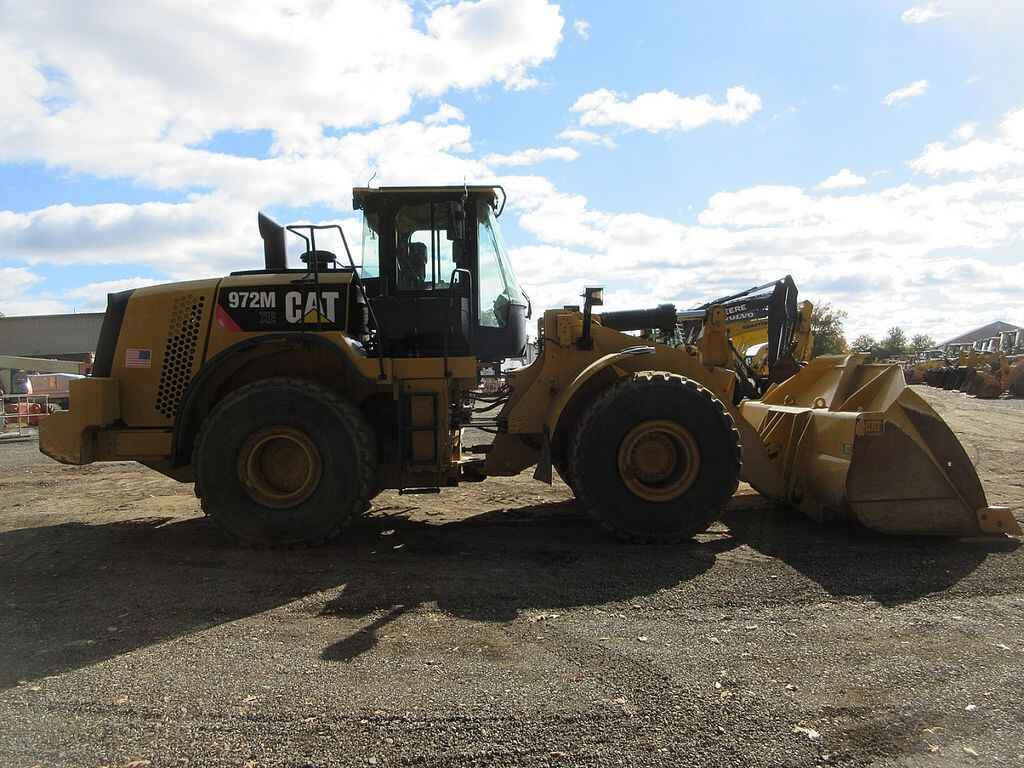

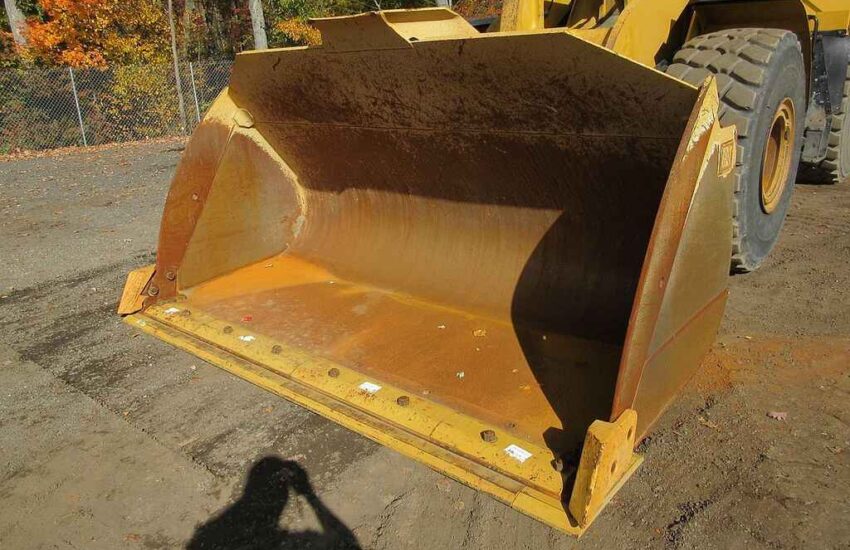

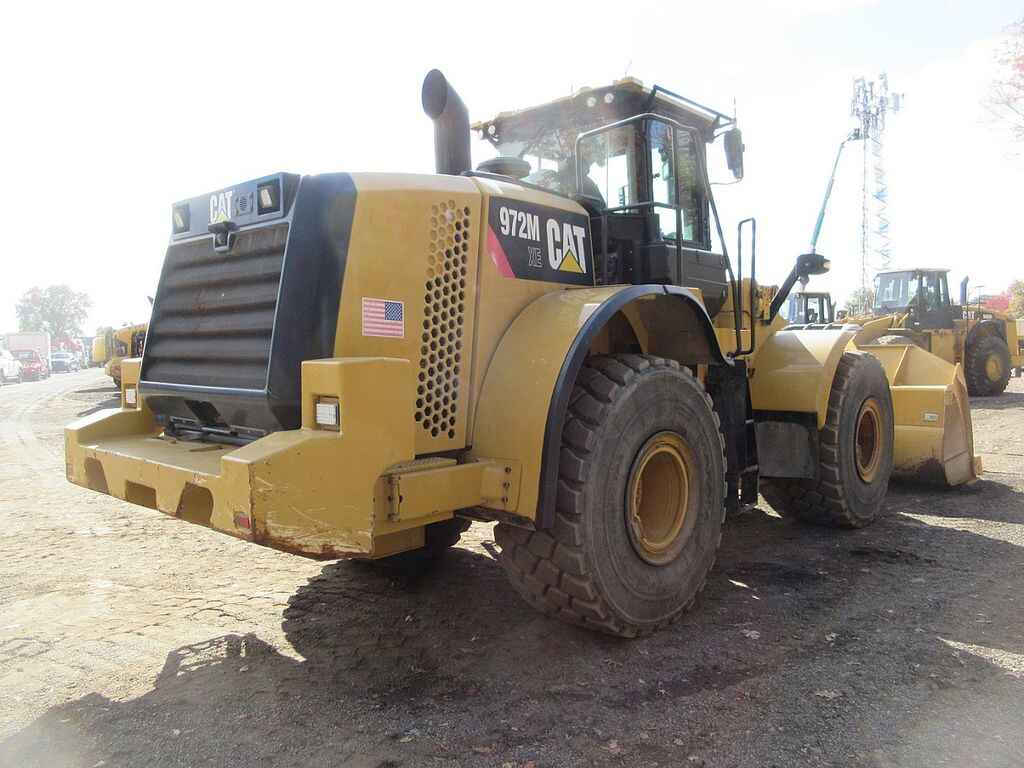

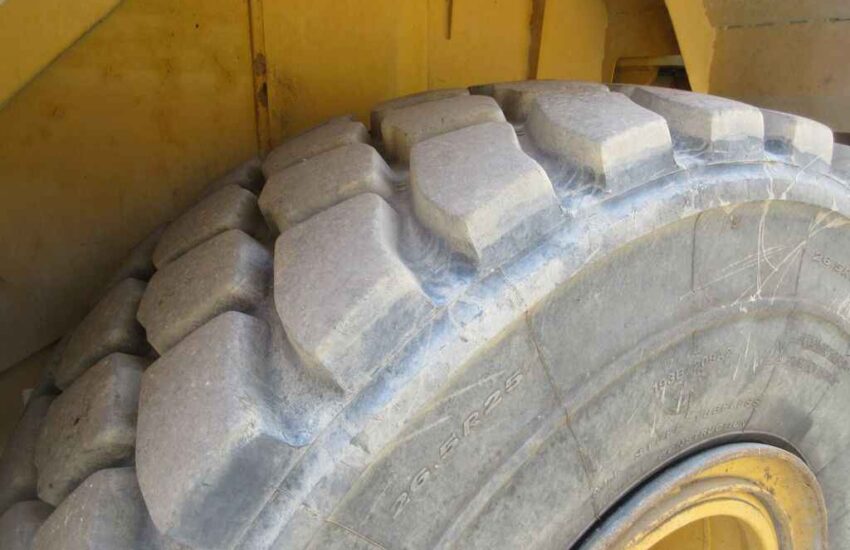

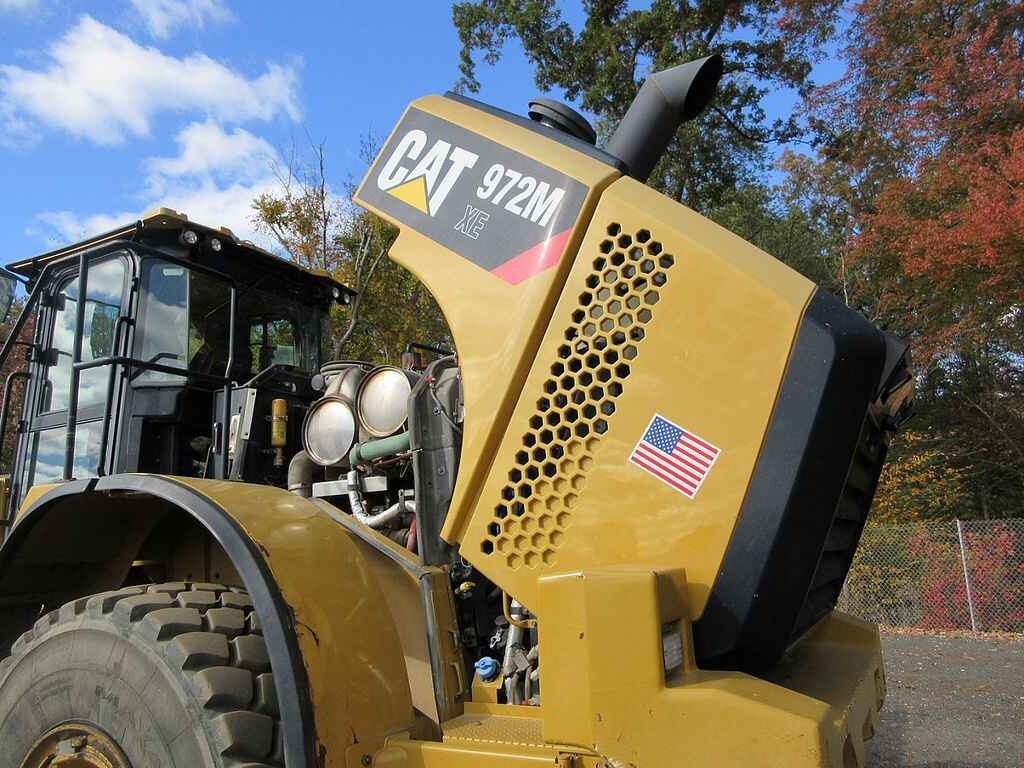

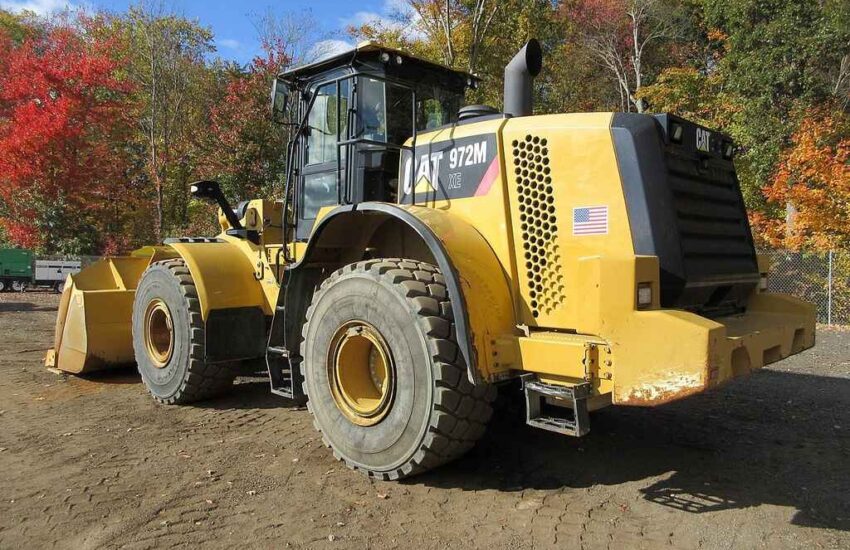

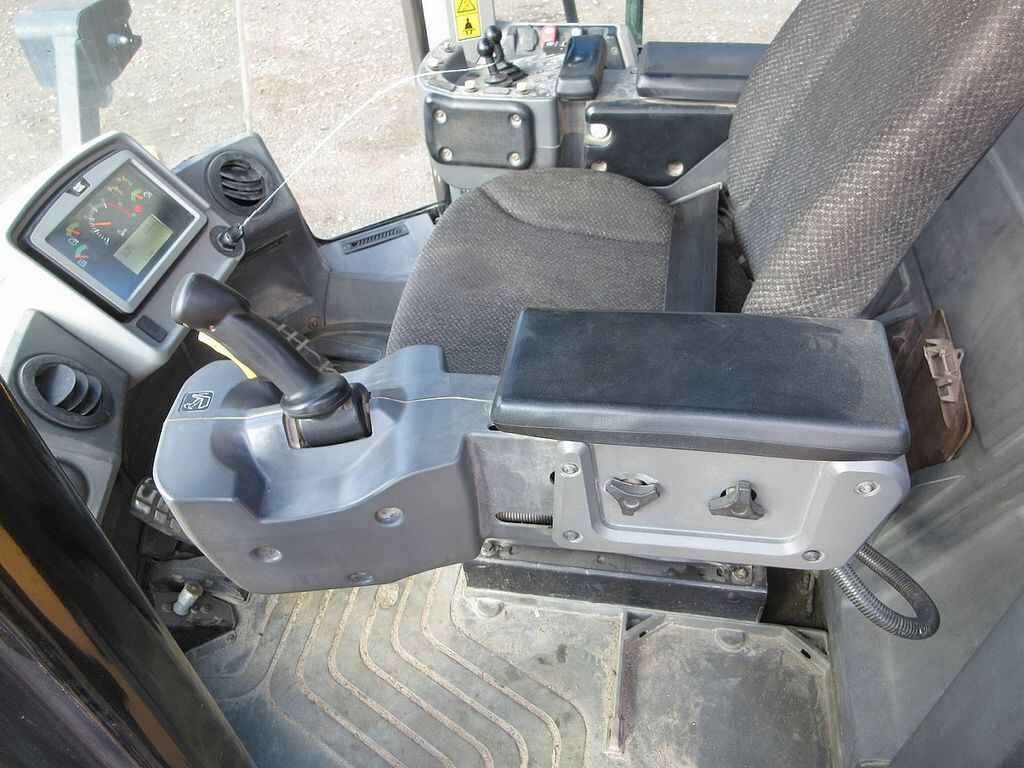

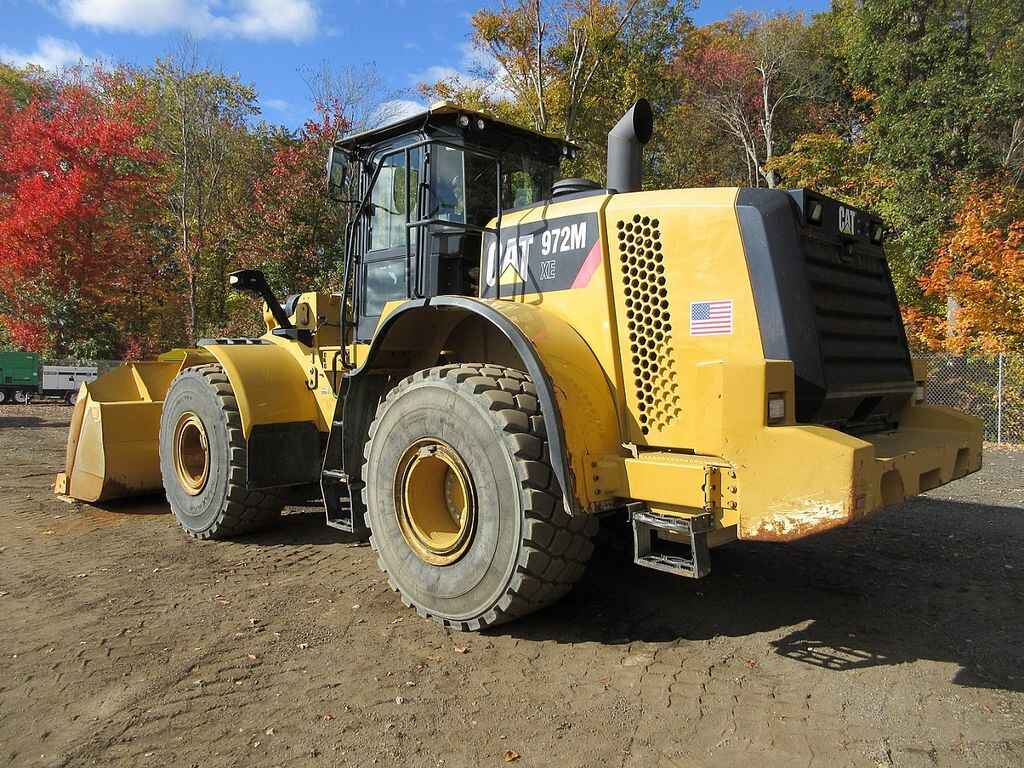

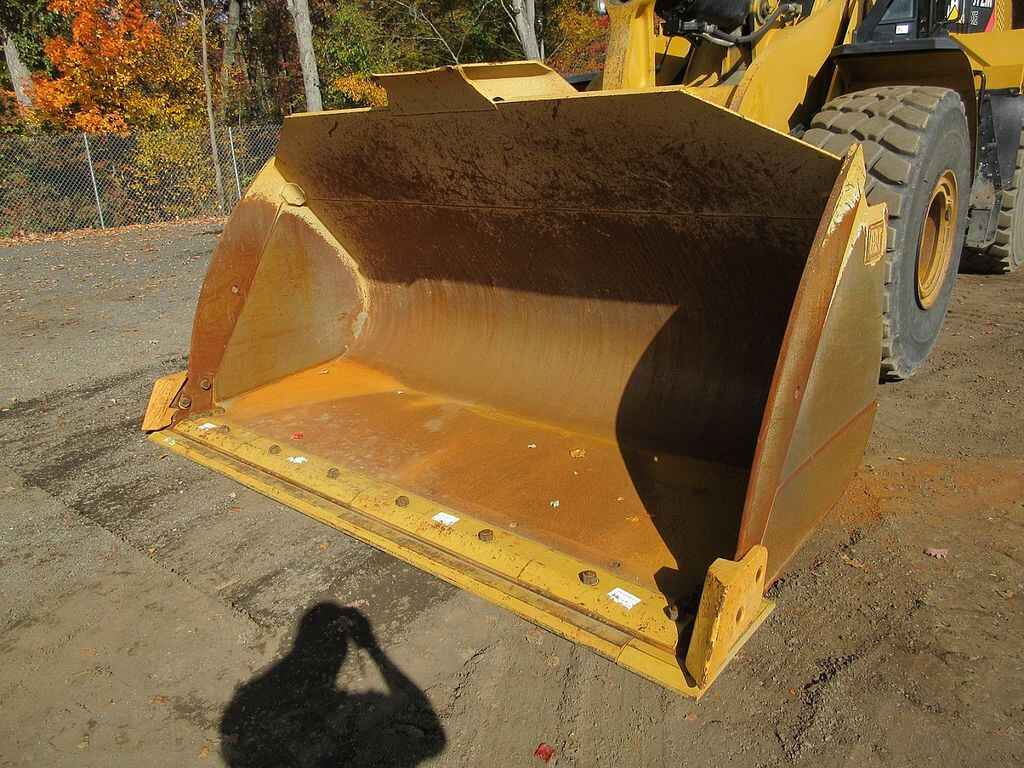

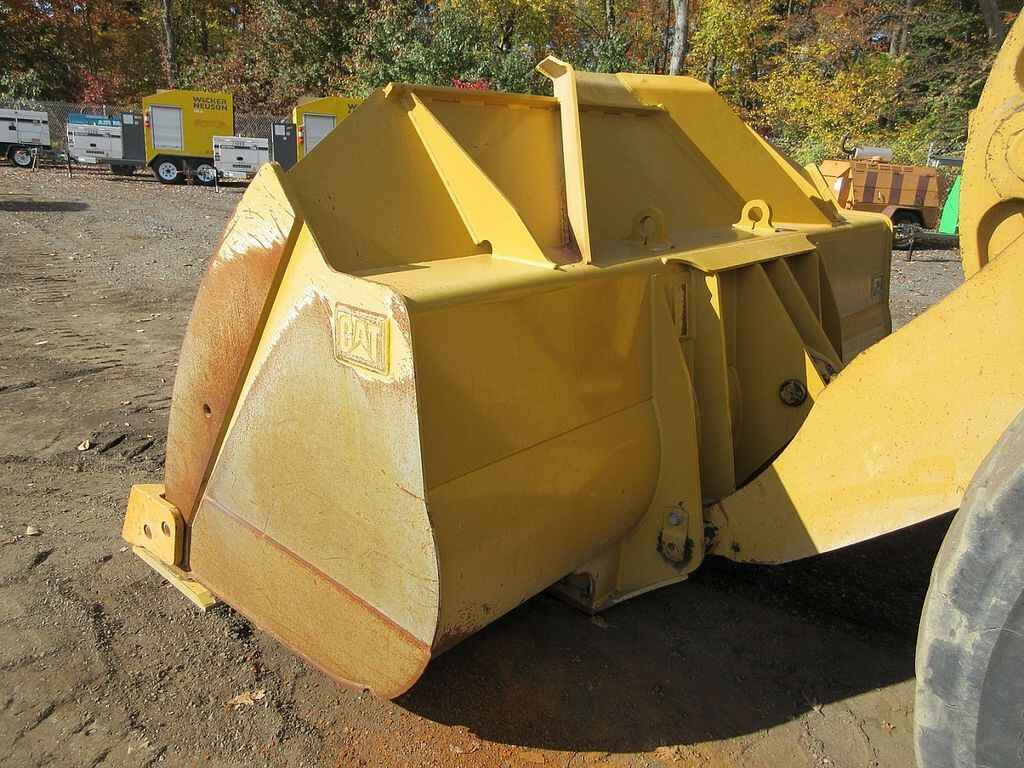

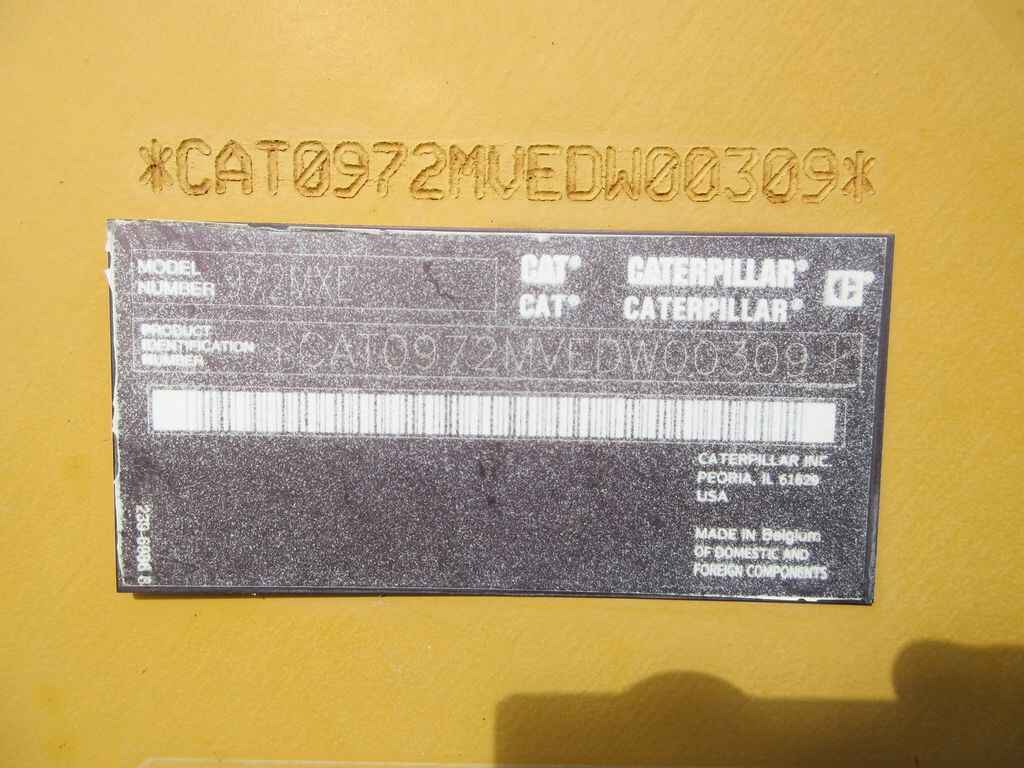

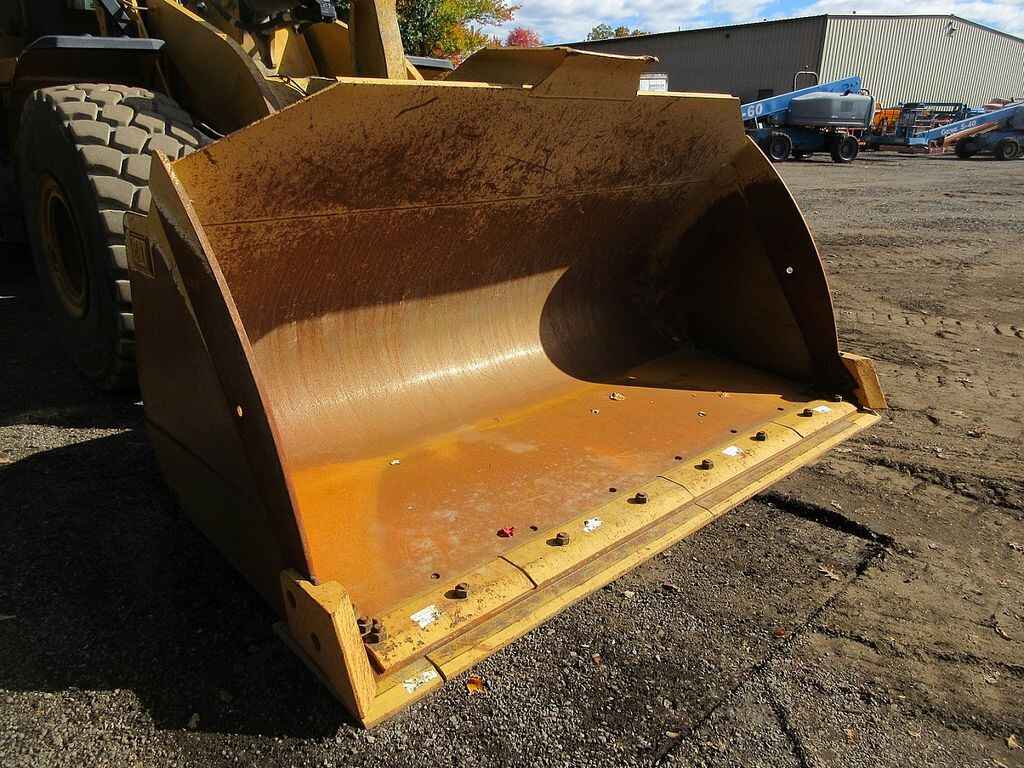

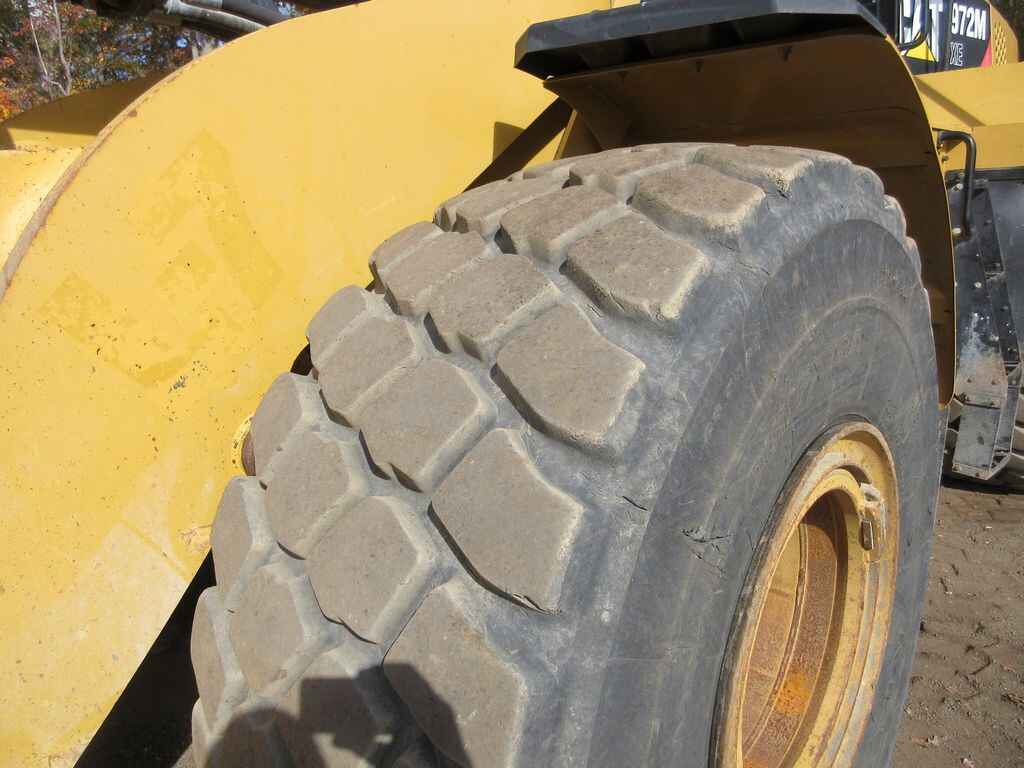

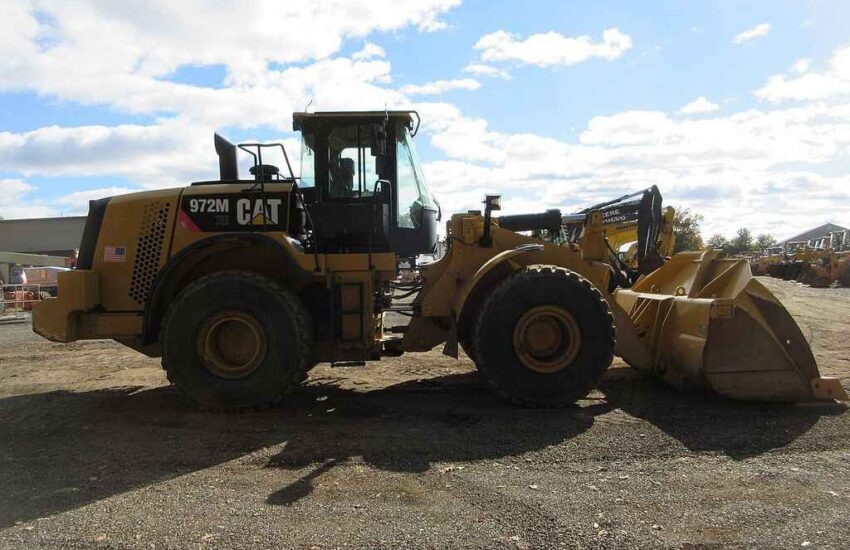

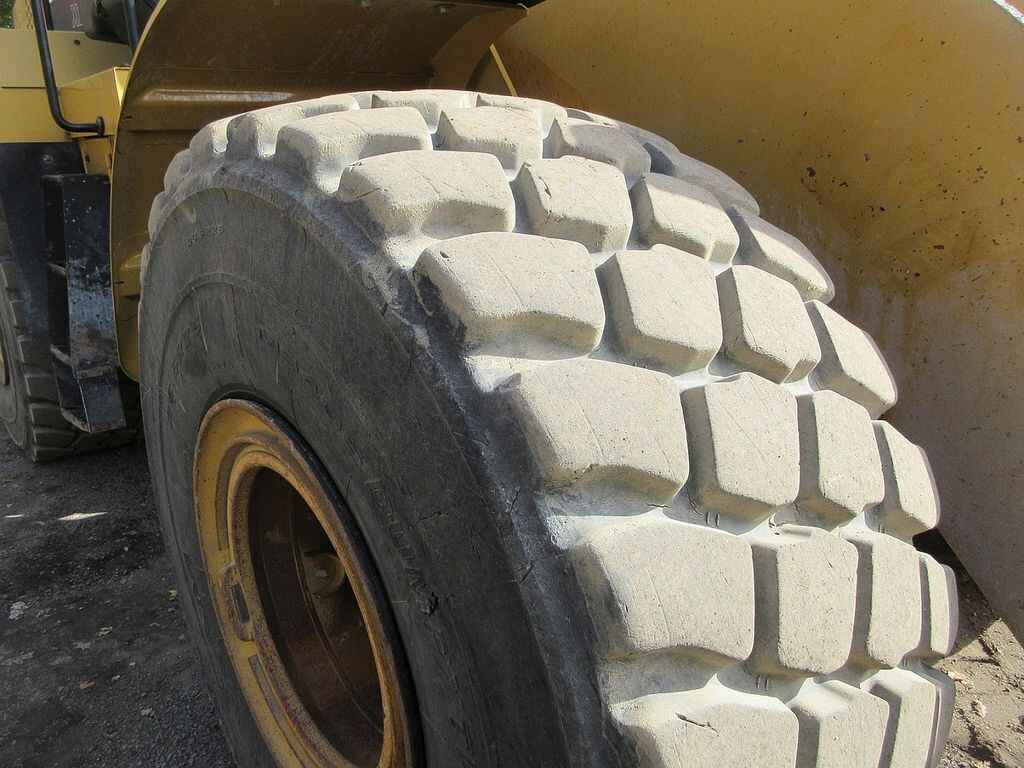

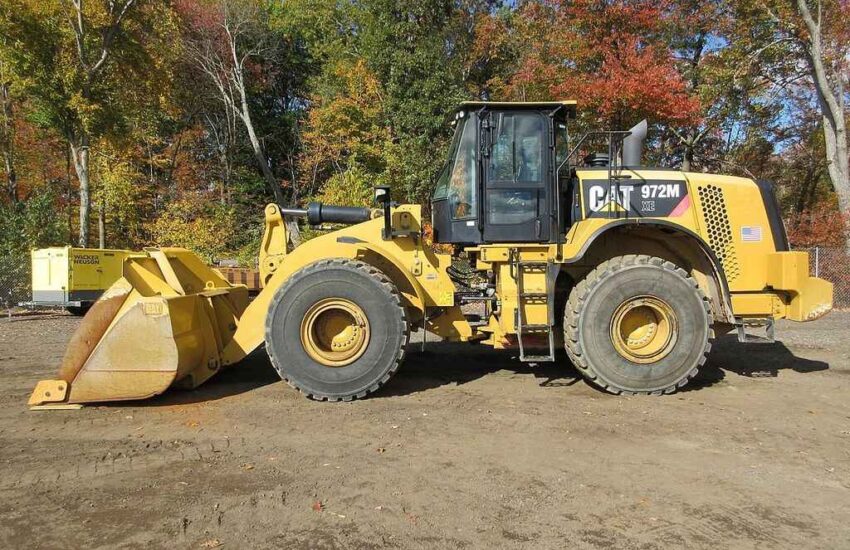

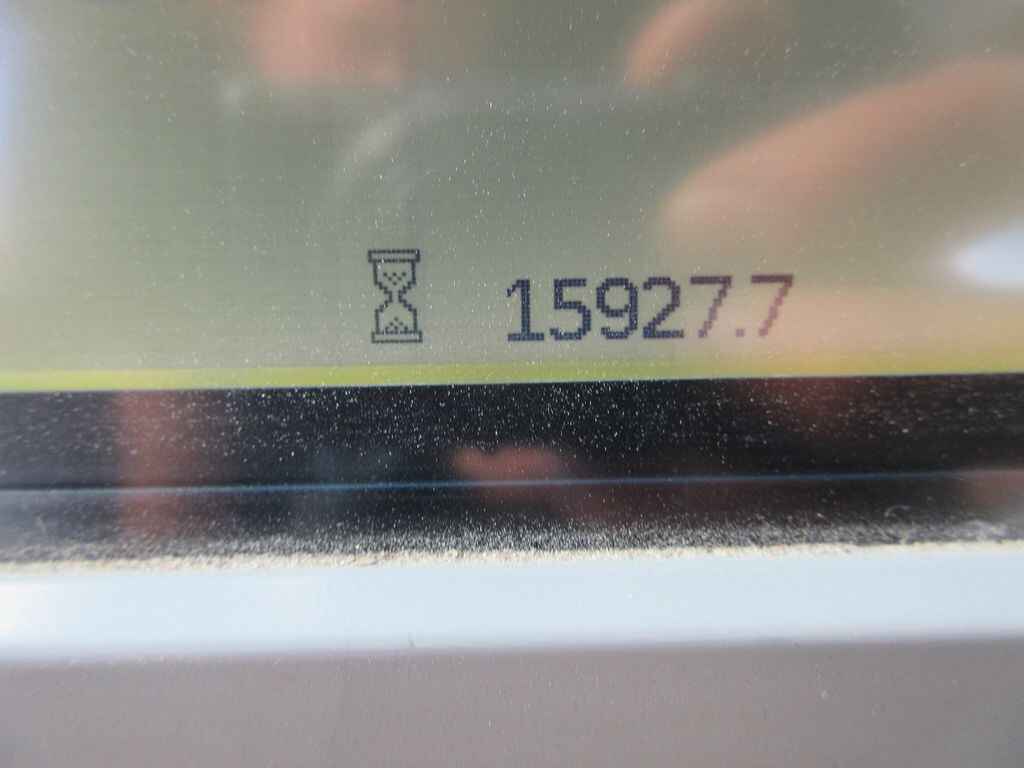

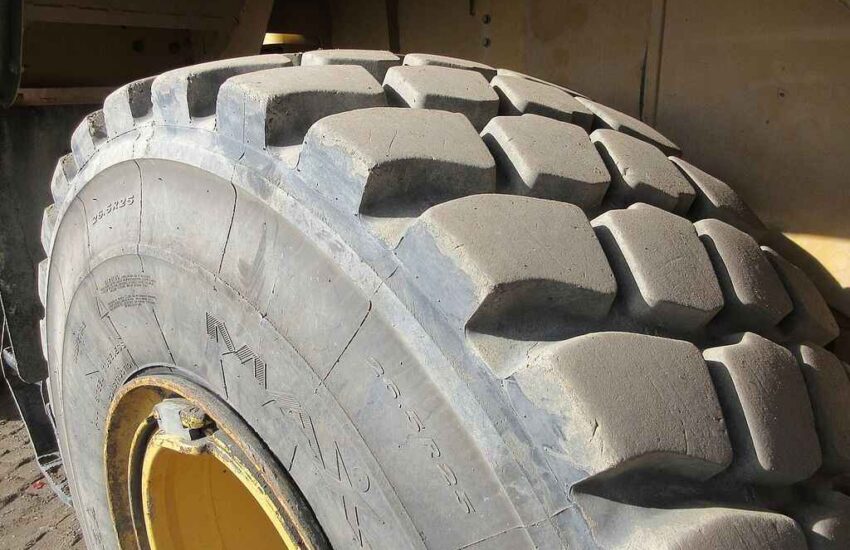

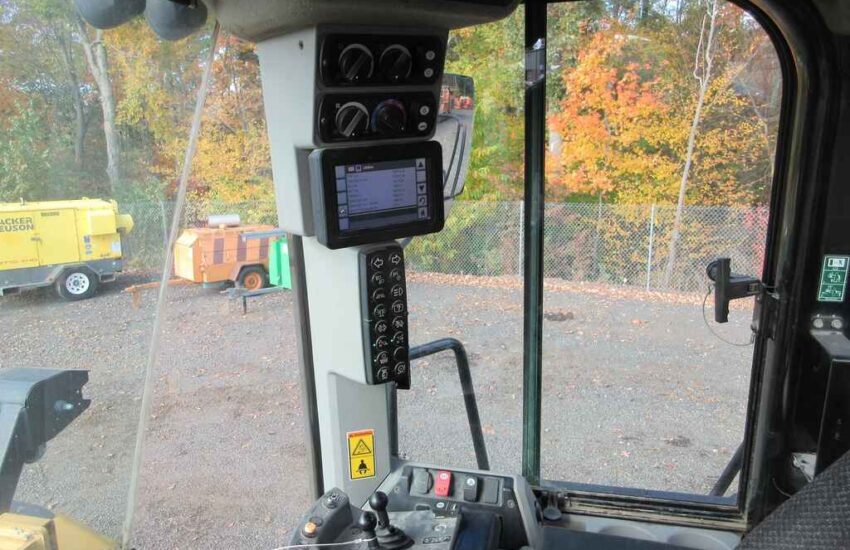

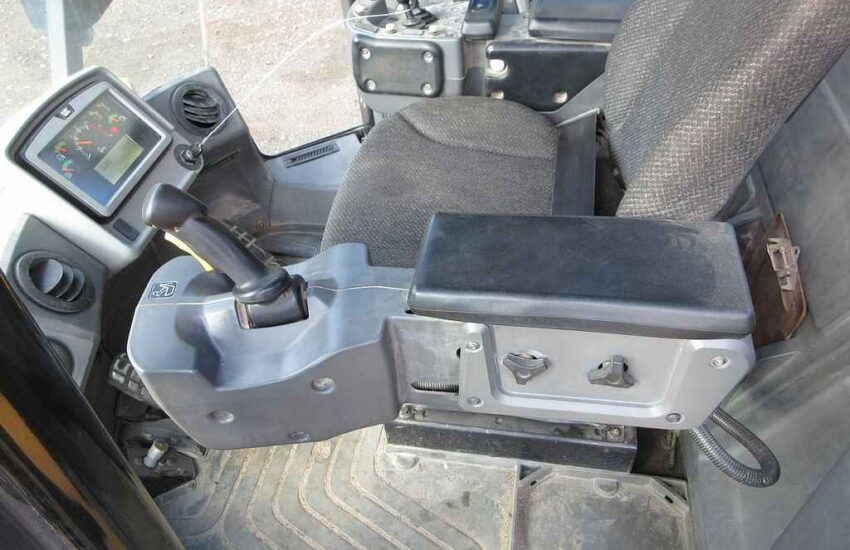

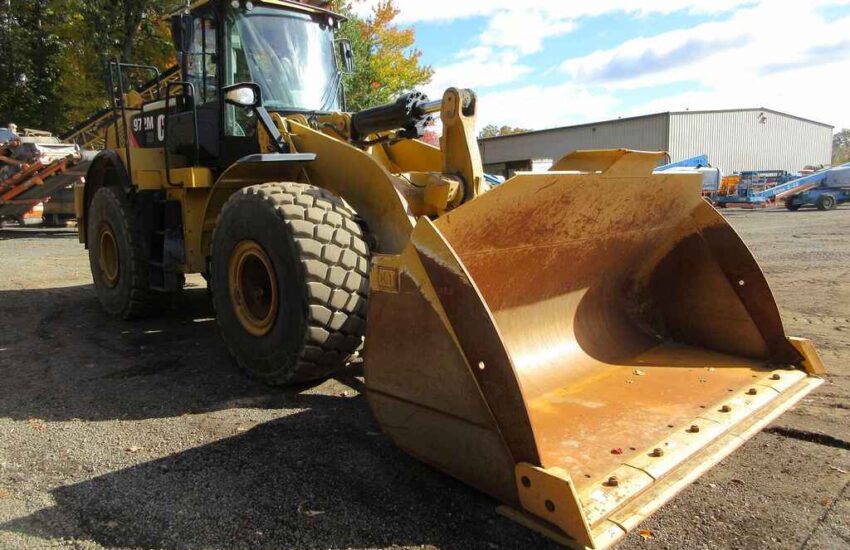

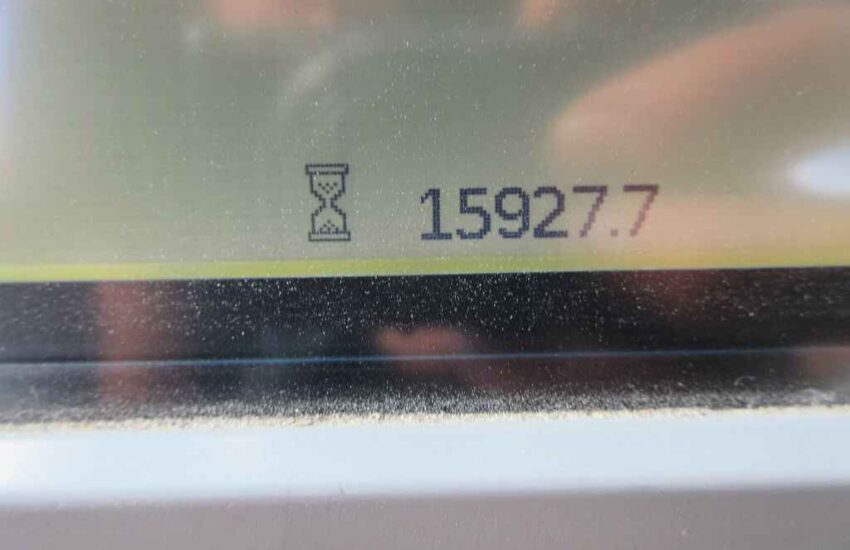

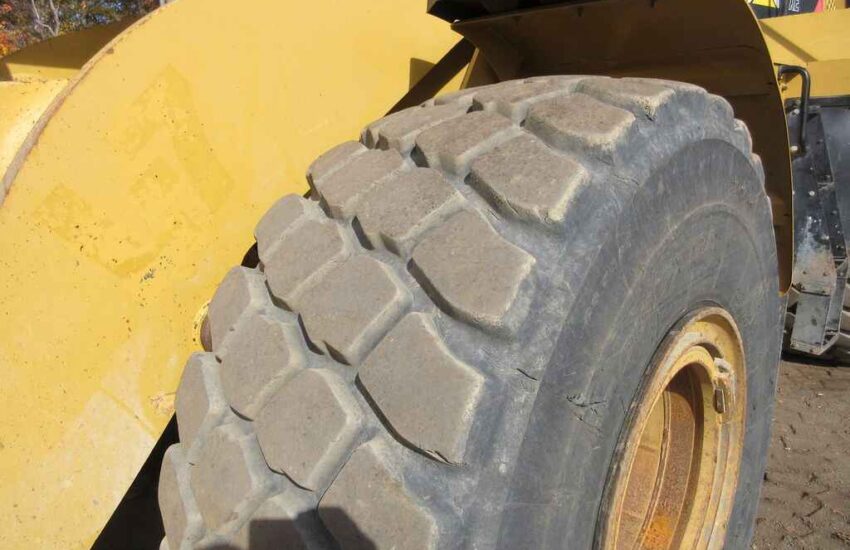

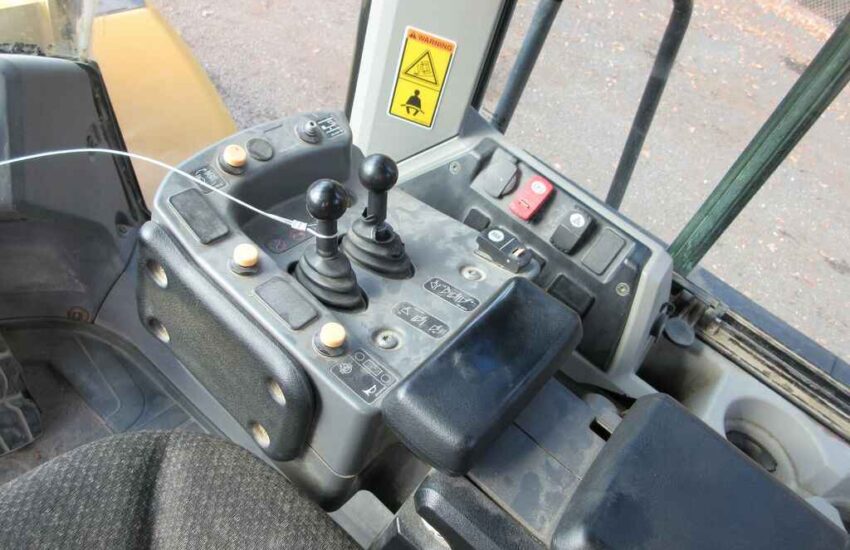

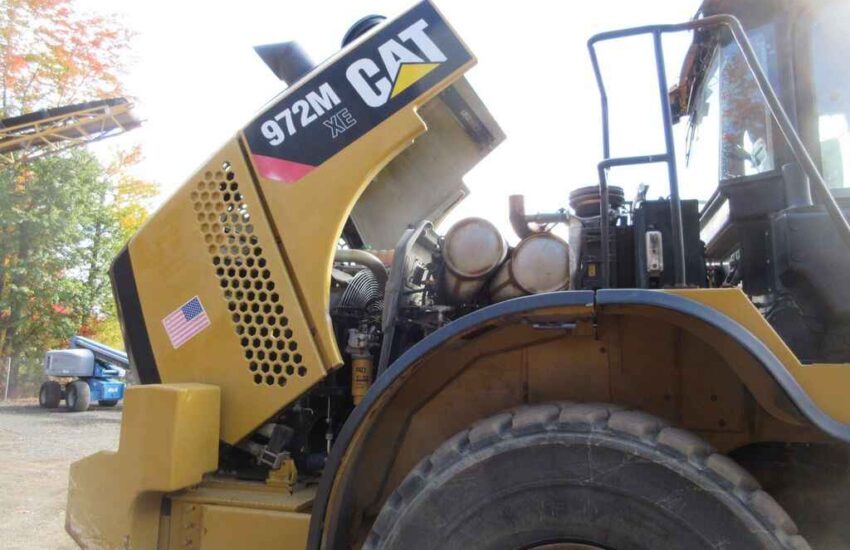

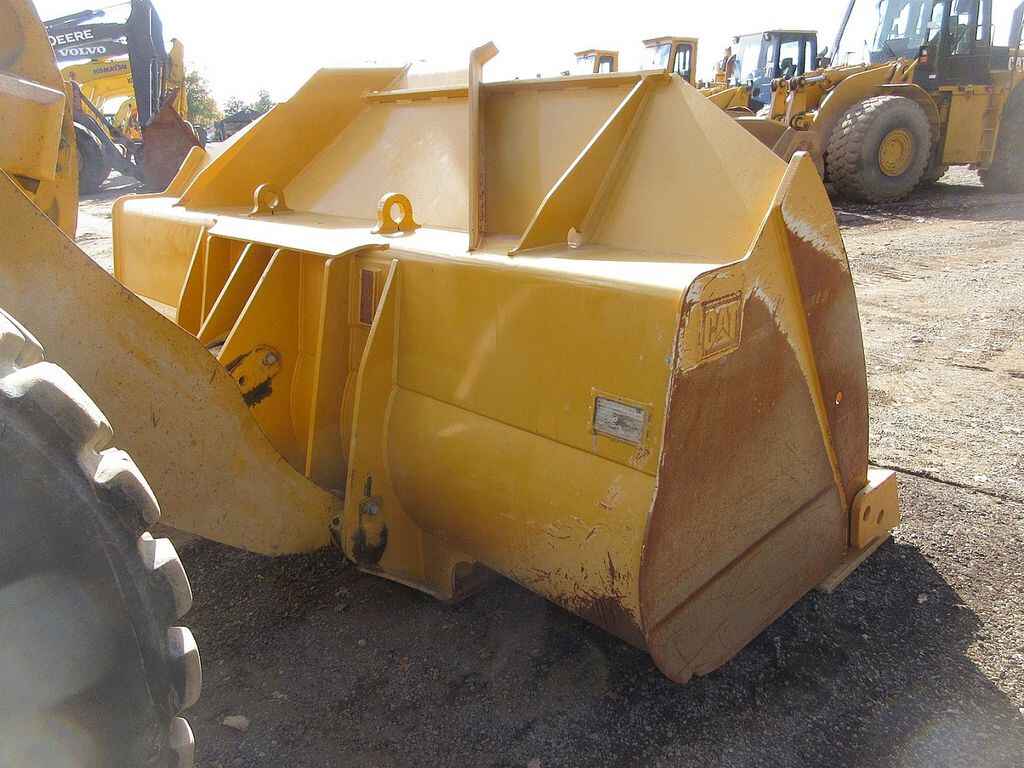

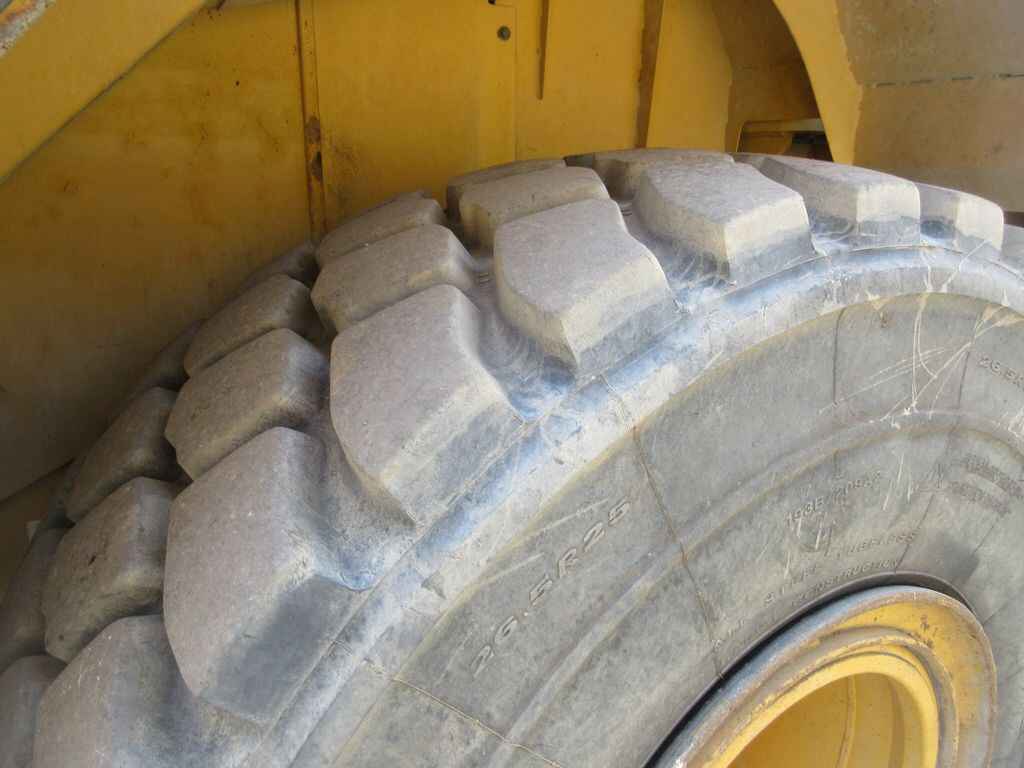

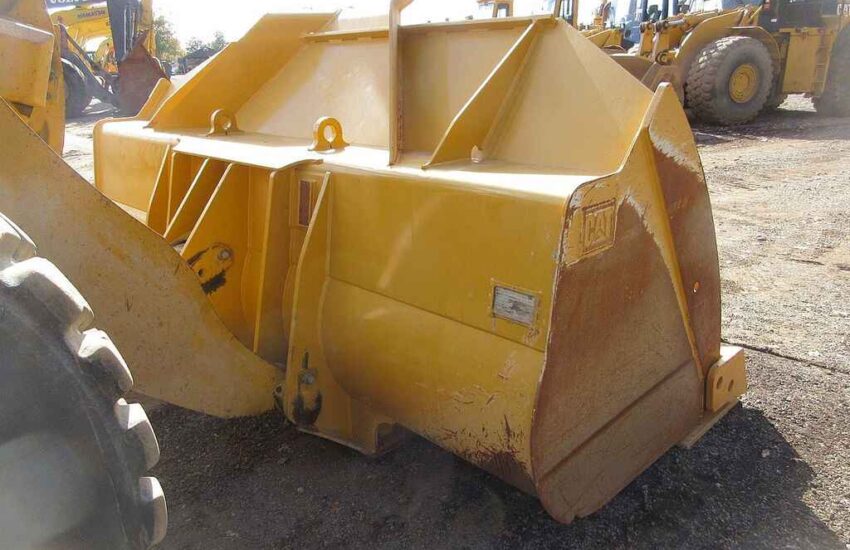

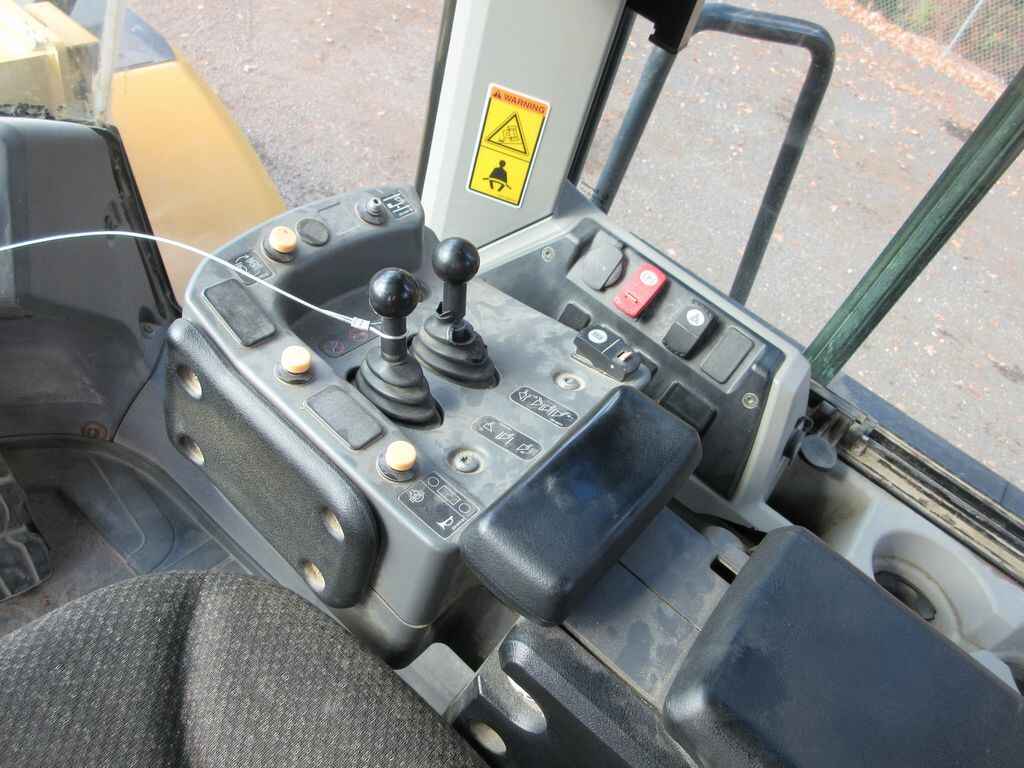

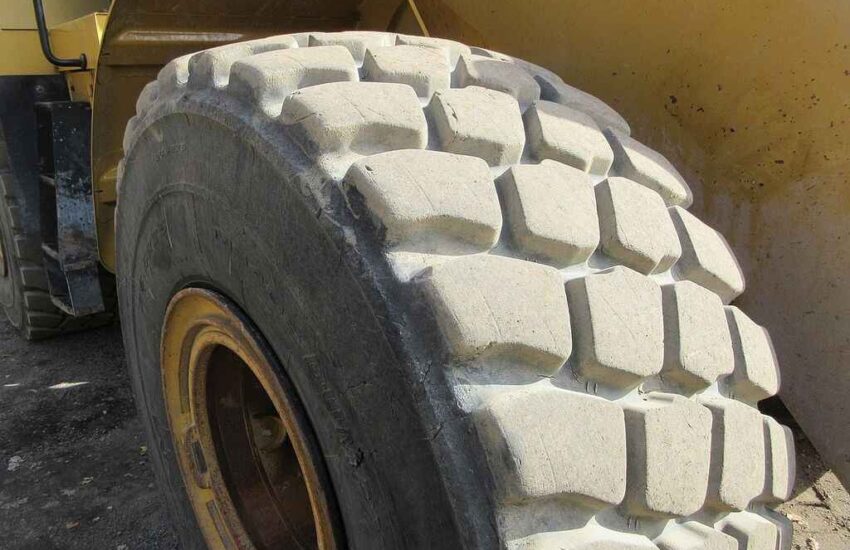

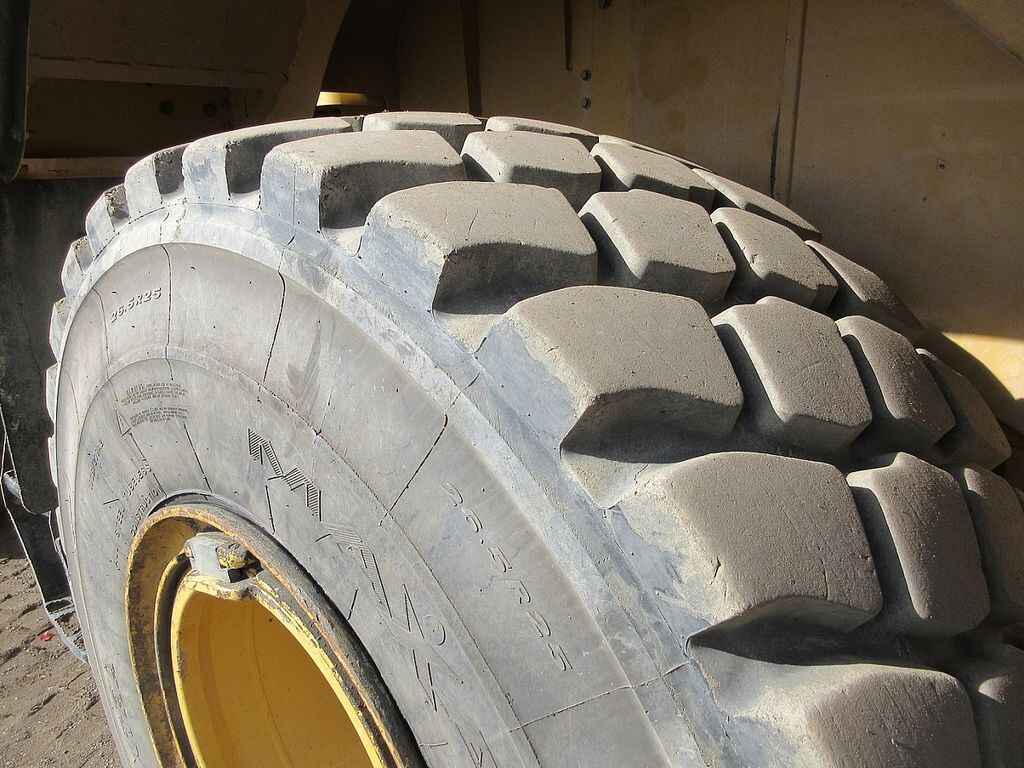

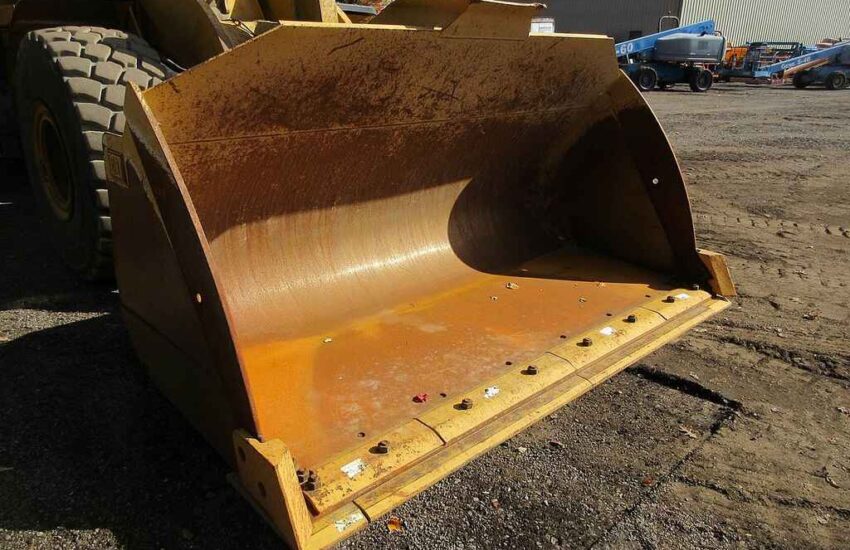

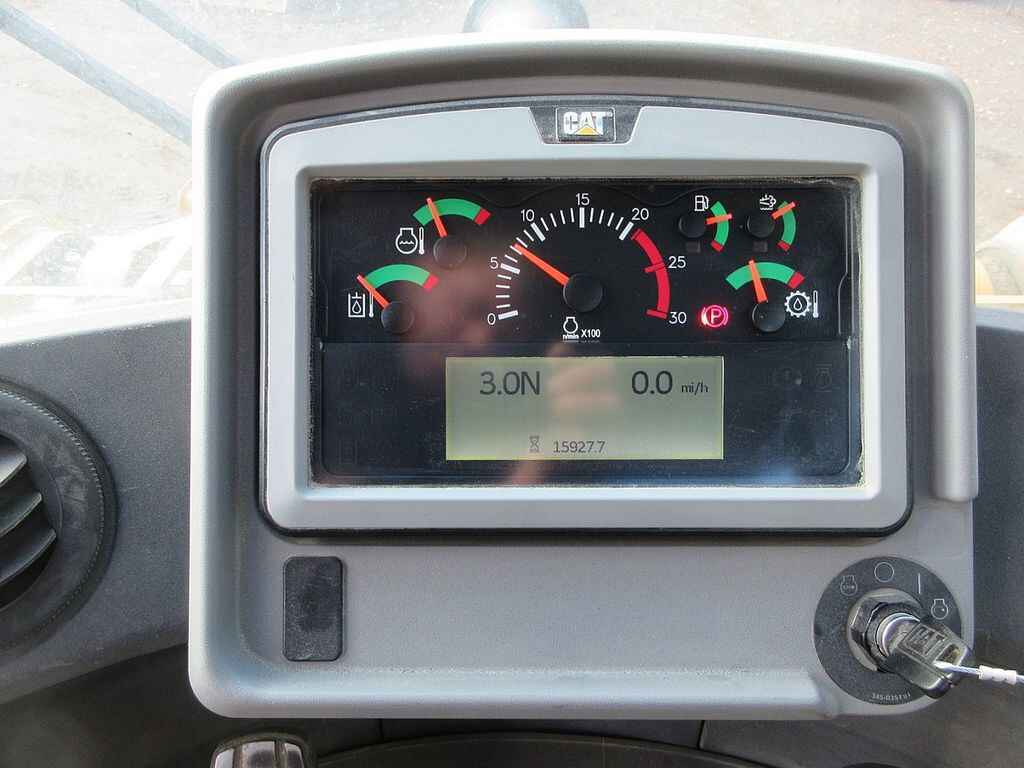

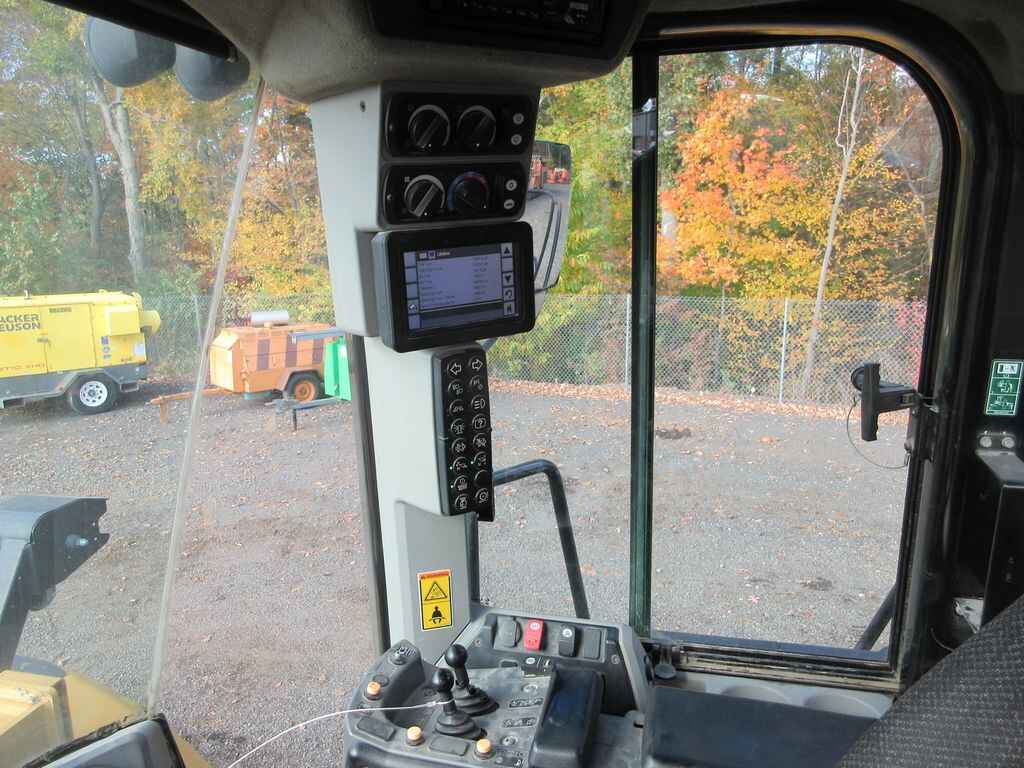

CATERPILLAR C9.3 ACERT 6 CYL TURBO DIESEL, CAB WITH HEAT, A/C, STEREO, AUTOSHIFT, RIDE CONTROL, REARVIEW CAMERA, JOYSTICK STEER, 26.5R25 MAXAM RADIAL RUBBER, GP BUCKET WITH BOCE, METER READS 15927 HOURS, 1029 IDLE HOURS, 4428 NEUTRAL HOURS, S/N CAT0972MVEDW00309
SPECIFICATIONS

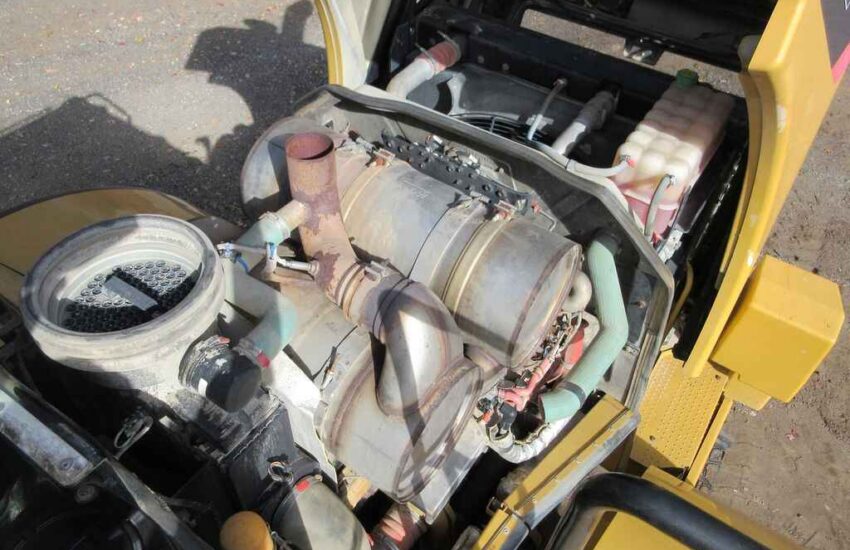

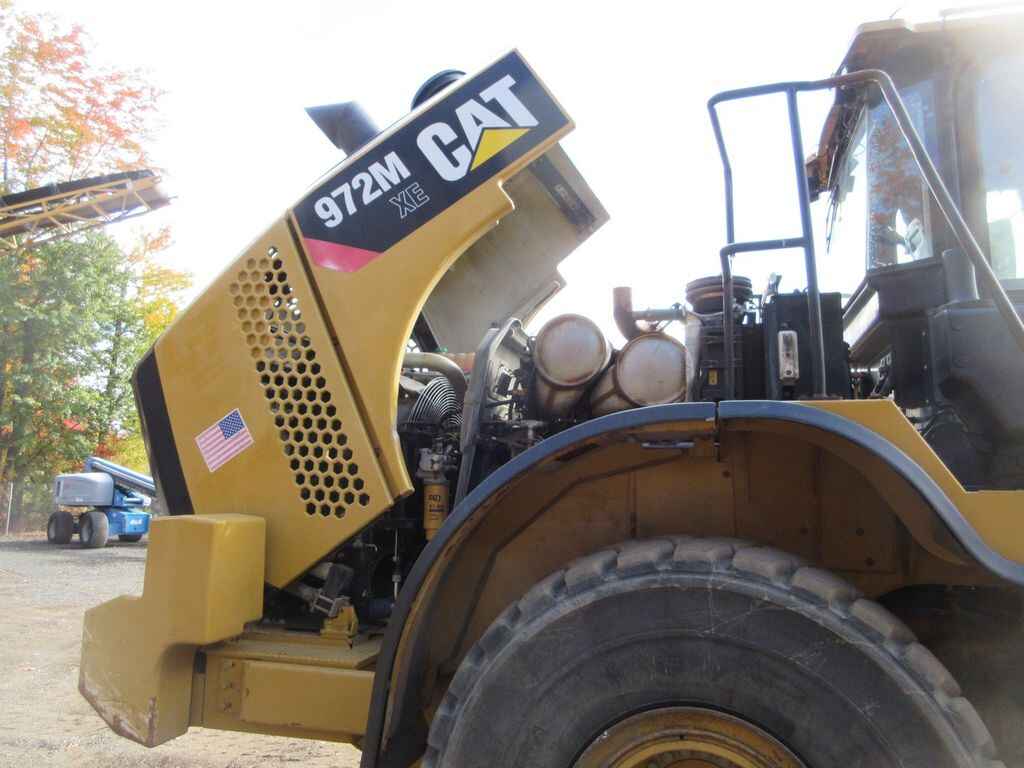

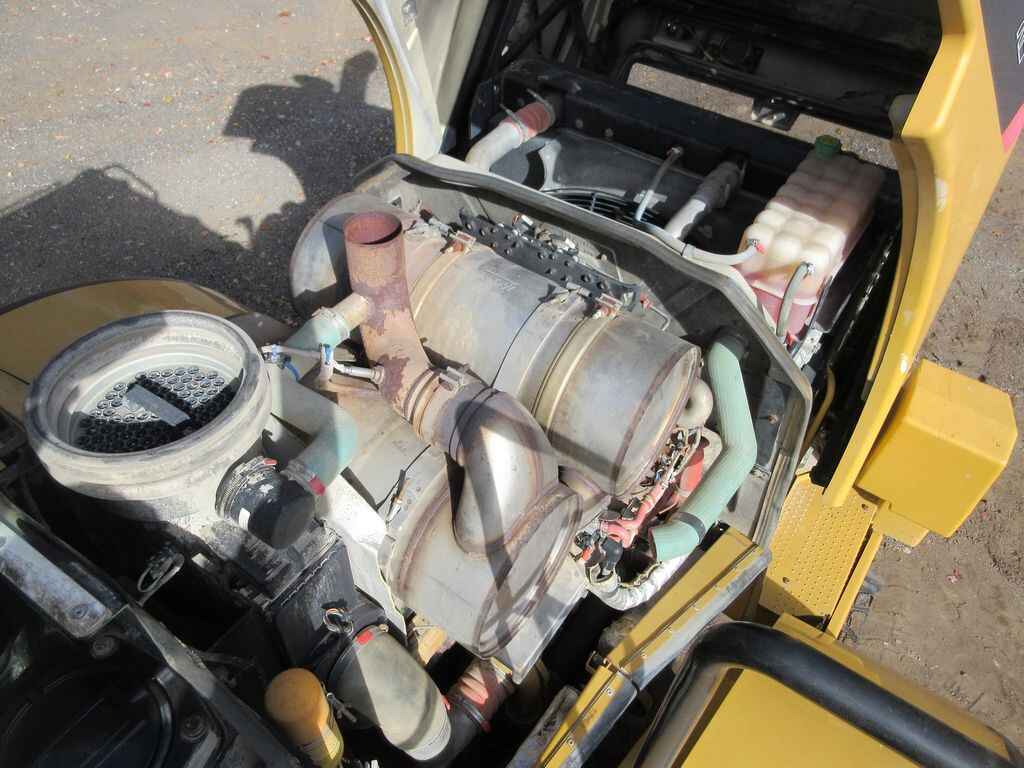

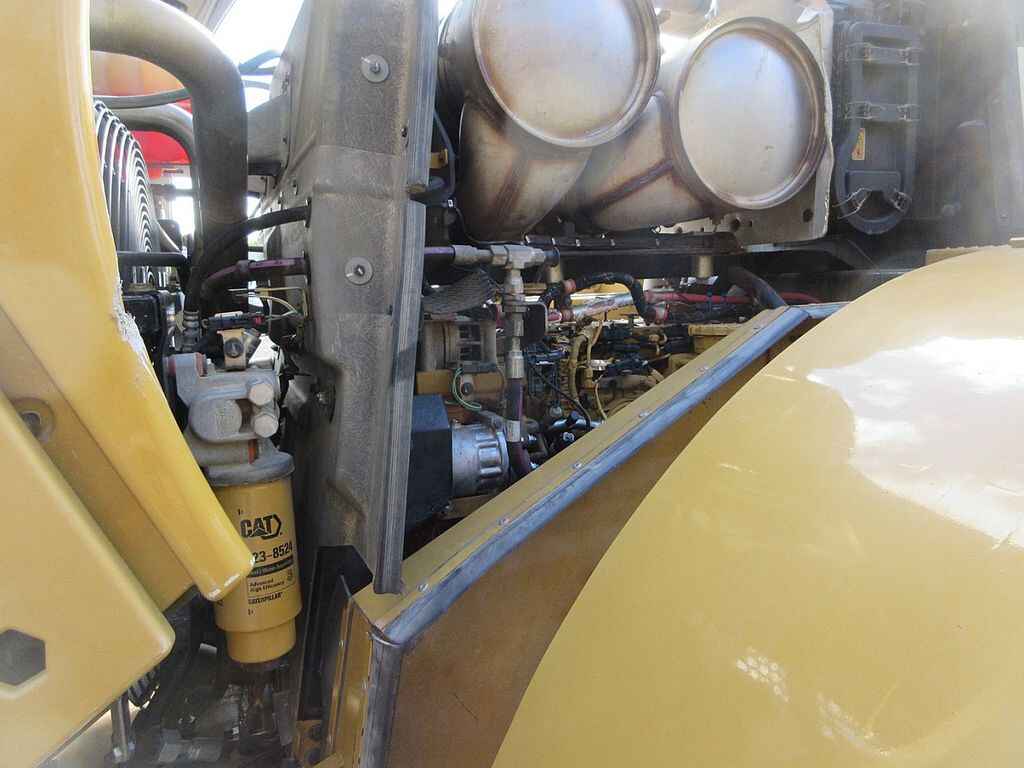

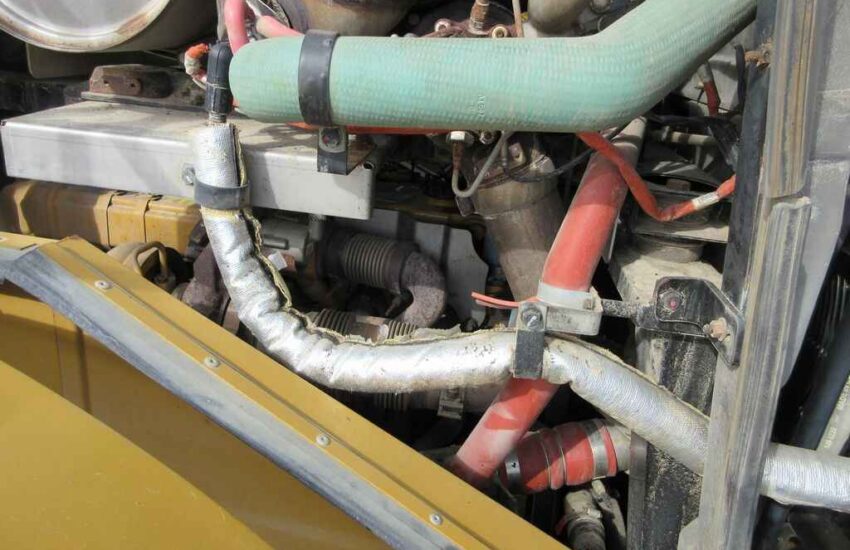

Engine
• Model: Cat C9.3 ACERT
• Gross Power: 337 hp (251 kW)
• Net Power: 299 hp (223 kW)
• Displacement: 568 in³ (9.3 L)
• Peak Gross Torque: 1,275 lb-ft (1,728 N·m) @ 1,200 rpm
Weights
• Operating Weight: 54,871 lbs (24,896 kg)
Performance
• Bucket Capacity Range: 4.19 – 13.0 yd³ (3.20 – 9.94 m³)
• Breakout Force: 44,075 lbs (196 kN)
• Static Tipping Load (Full Turn): 35,626 lbs (16,297 kg)
• Max Travel Speed: 24.5 mph (39.5 km/h)
Hydraulics
• Implement Pump Output (Max): 95 gal/min (360 L/min)
• Implement System Pressure (Max): 4,496 psi (31,000 kPa)
• System Type: Load-sensing with variable displacement piston pump
Dimensions
• Height to Top of ROPS: 11.75 ft (3.58 m)
• Overall Length (without bucket): 26.67 ft (8.13 m)
• Width Over Tires: 9.92 ft (3.02 m)
• Wheelbase: 11.67 ft (3.56 m)
• Ground Clearance: 1.42 ft (0.43 m)
Features
• Transmission: Continuously Variable Transmission (CVT)
• Emission Standards: U.S. EPA Tier 4 Final / EU Stage IV

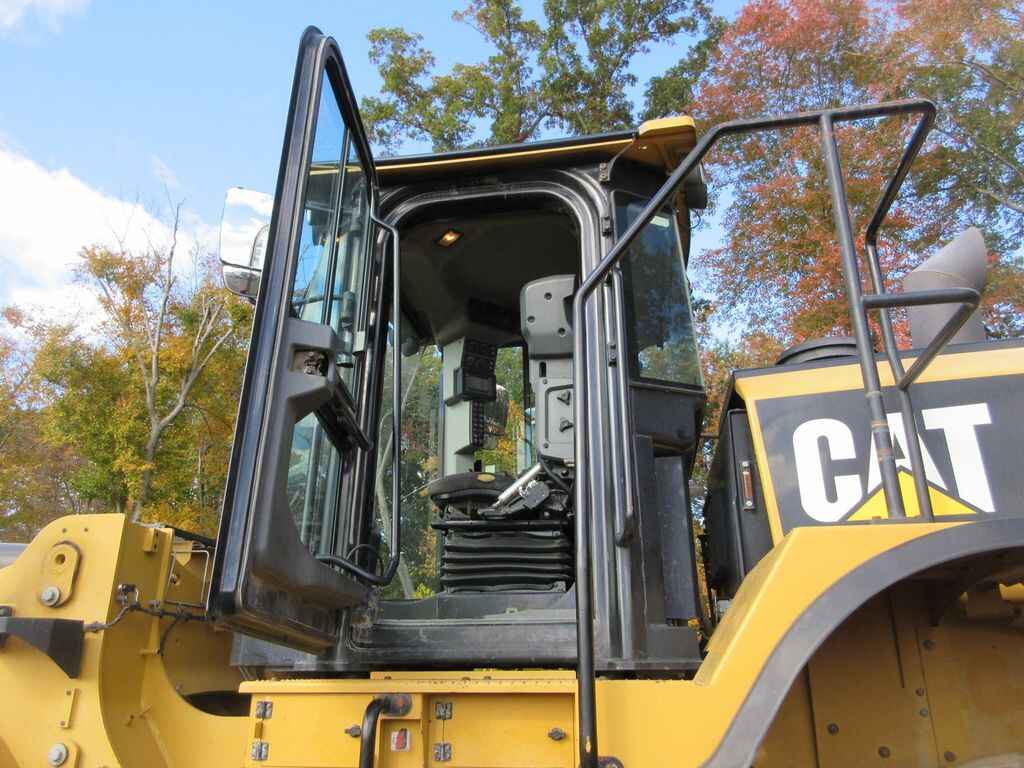

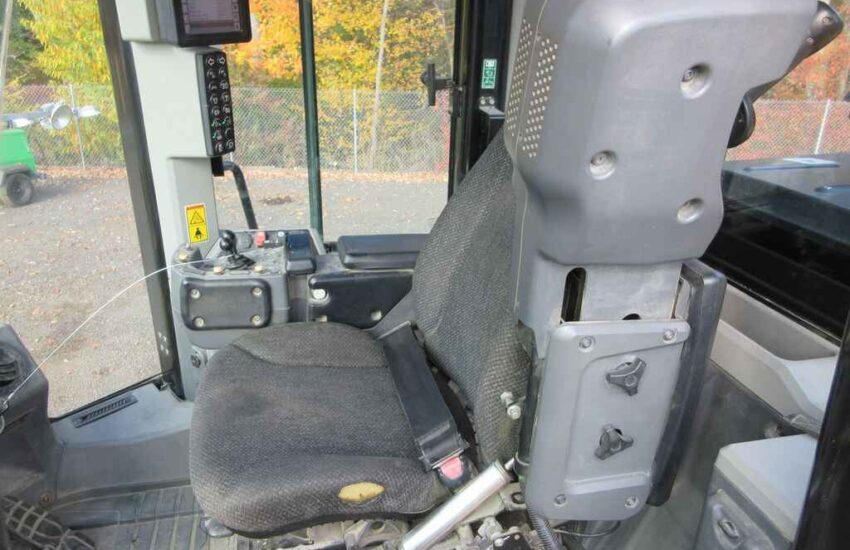

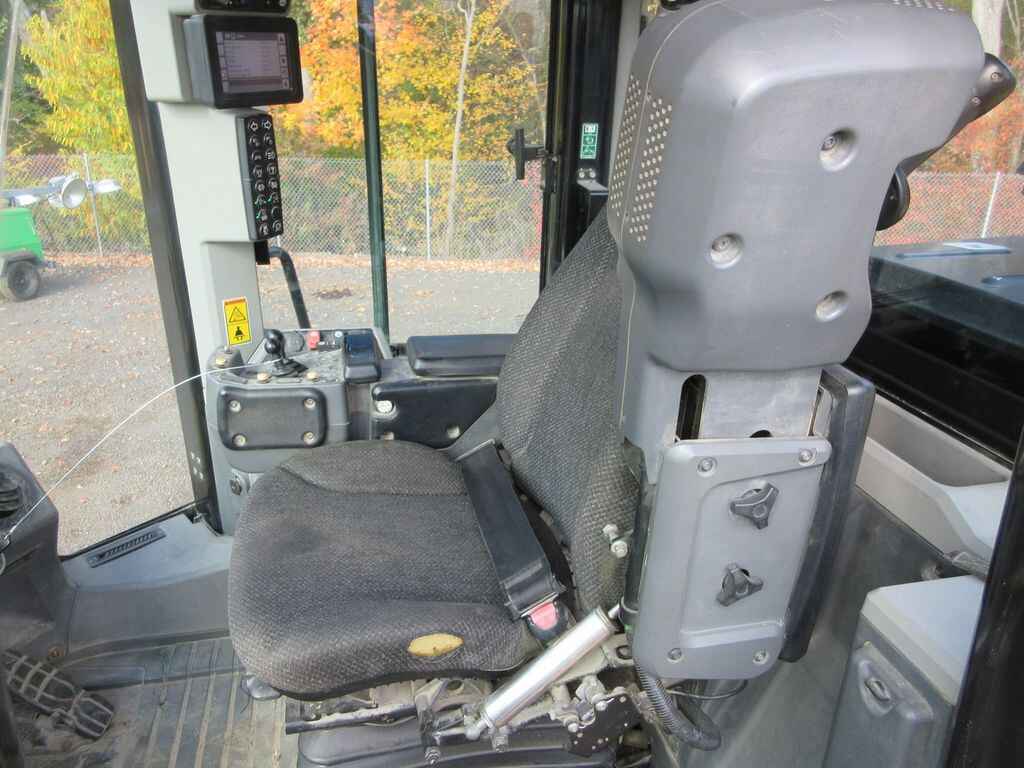

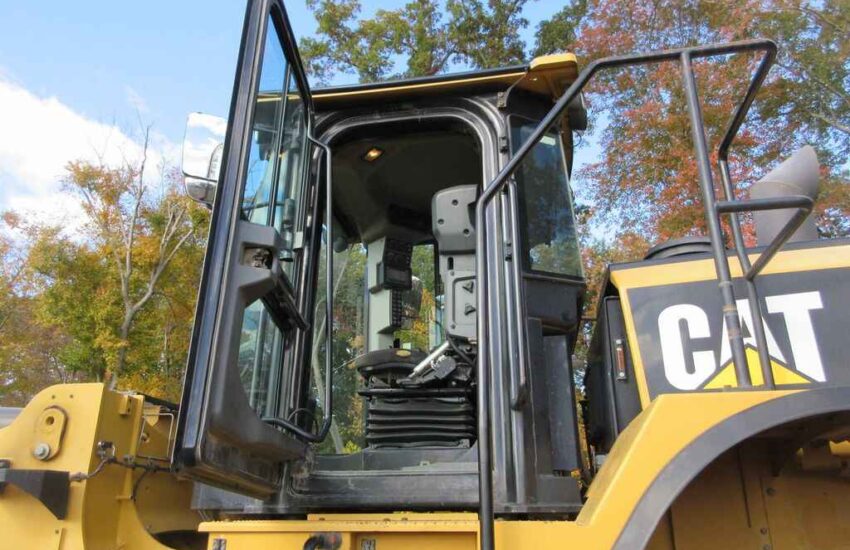

• Operator Cab: ROPS/FOPS certified with sound suppression

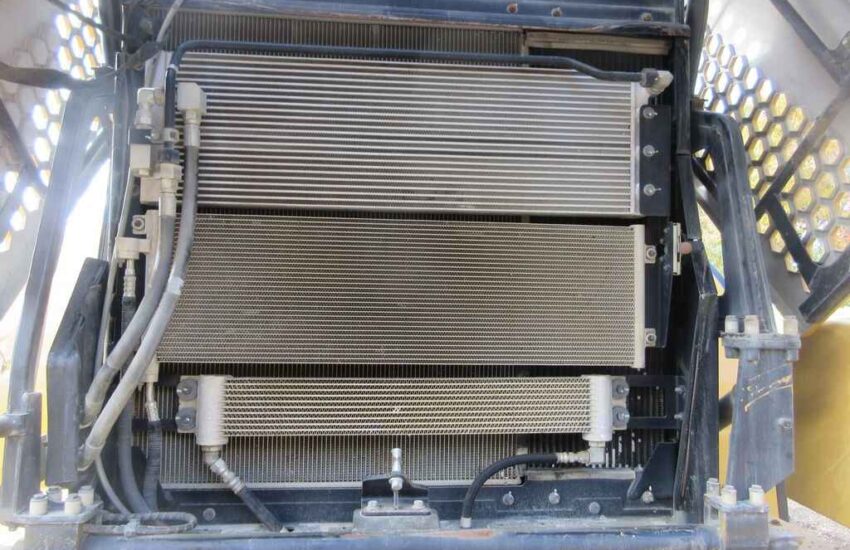

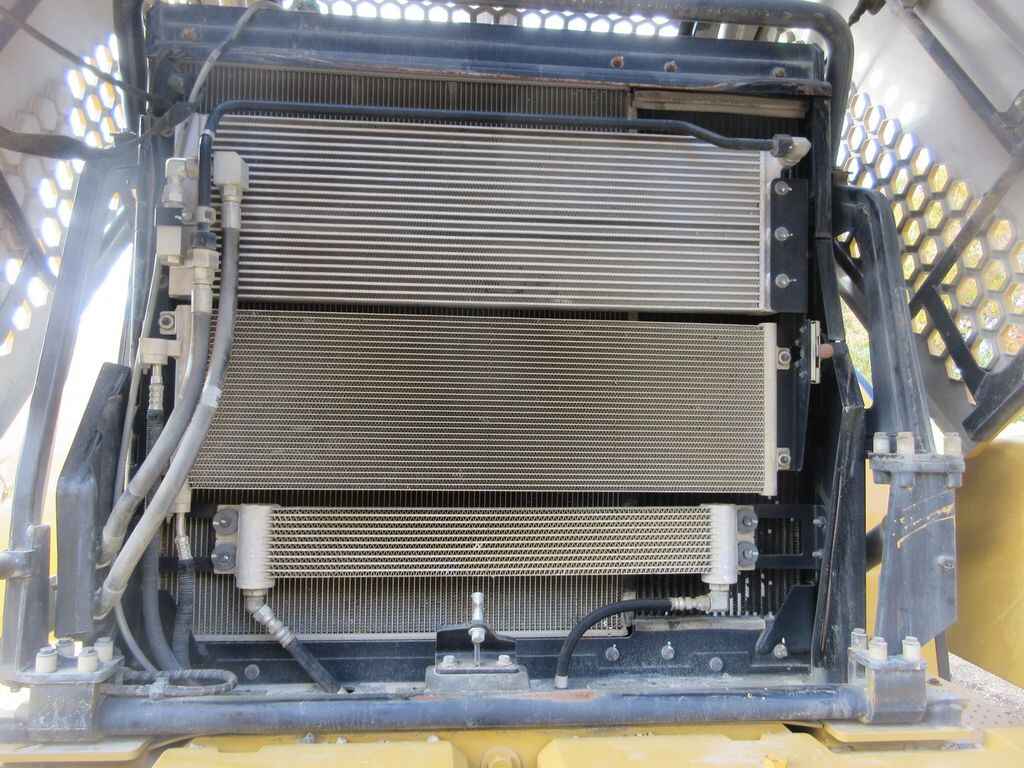

• Cooling: Modular radiator system with on-demand fan
Features

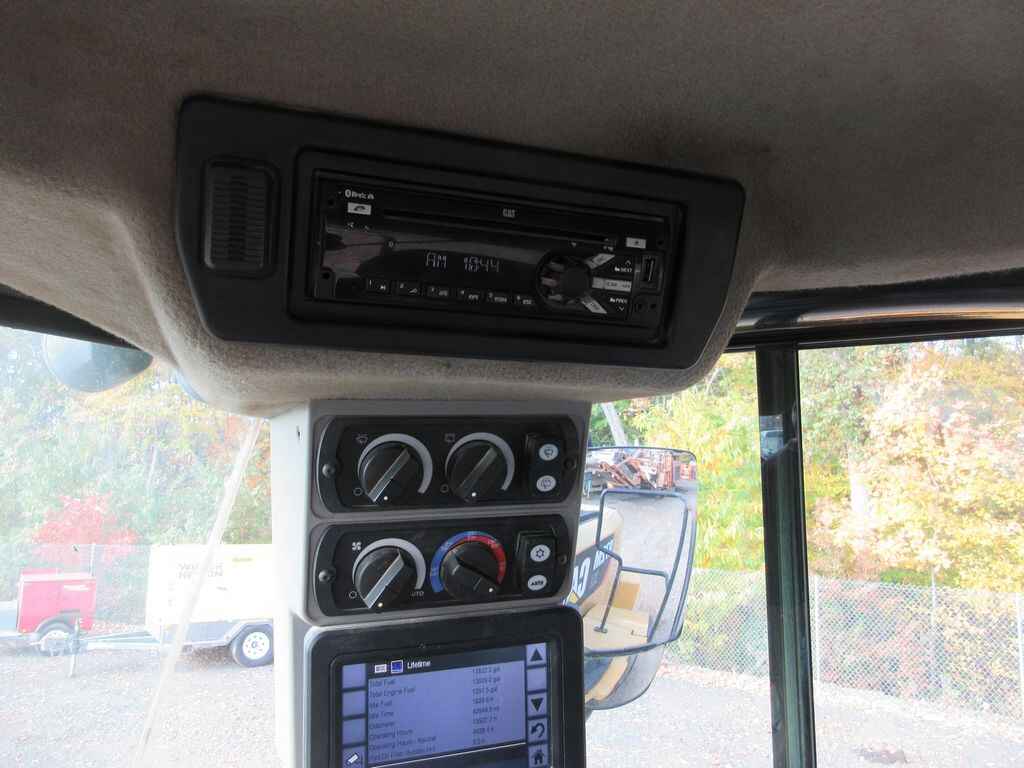

- Radio
- Air Conditioner
- Heater
