Details
-
Industry:
-
Make:
-
Model:
-
Color:
-
Drive Type:
-
Condition:
-
Year:2013
-
Fuel Type:
-
Engine:Volvo D6H
-

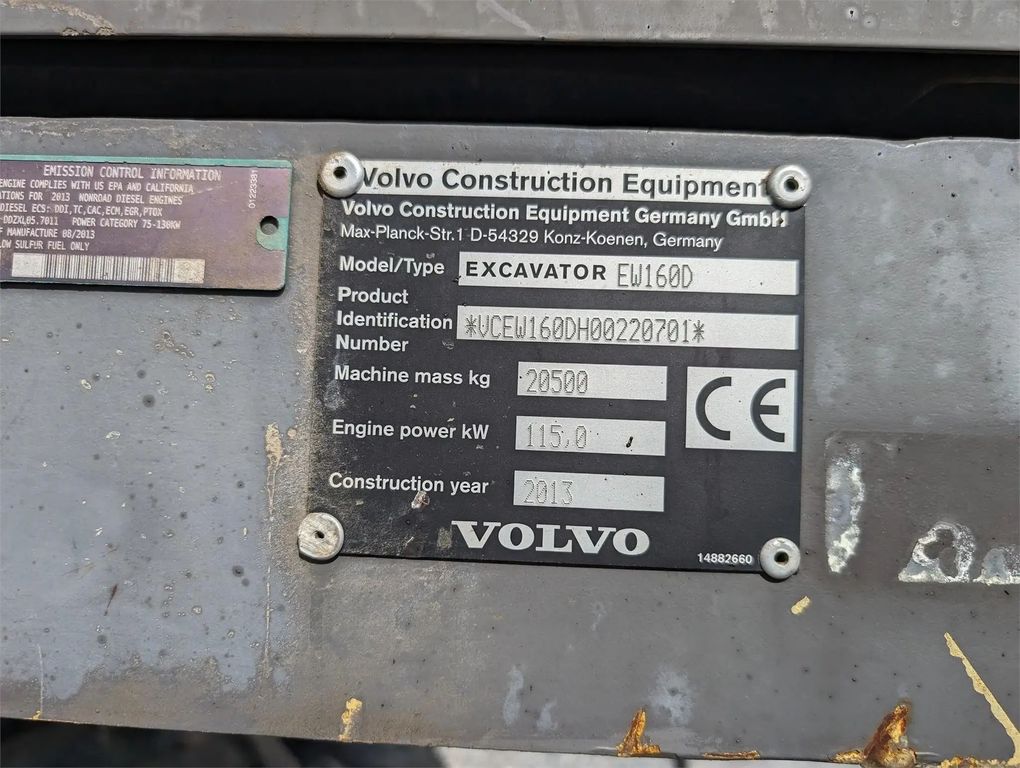

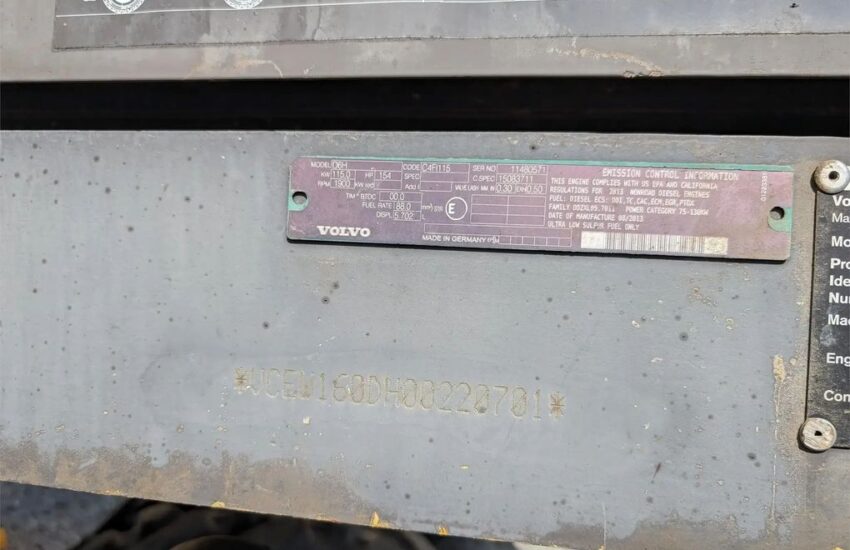

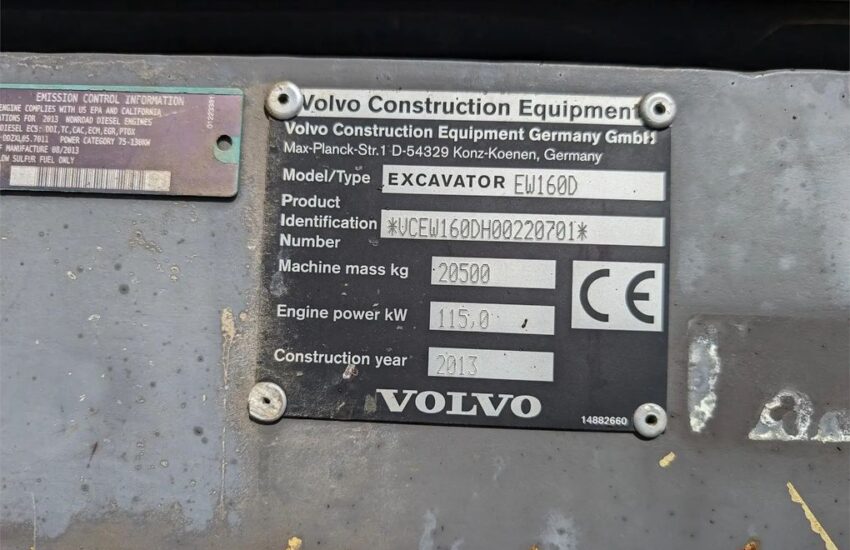

Serial:H00220701
-

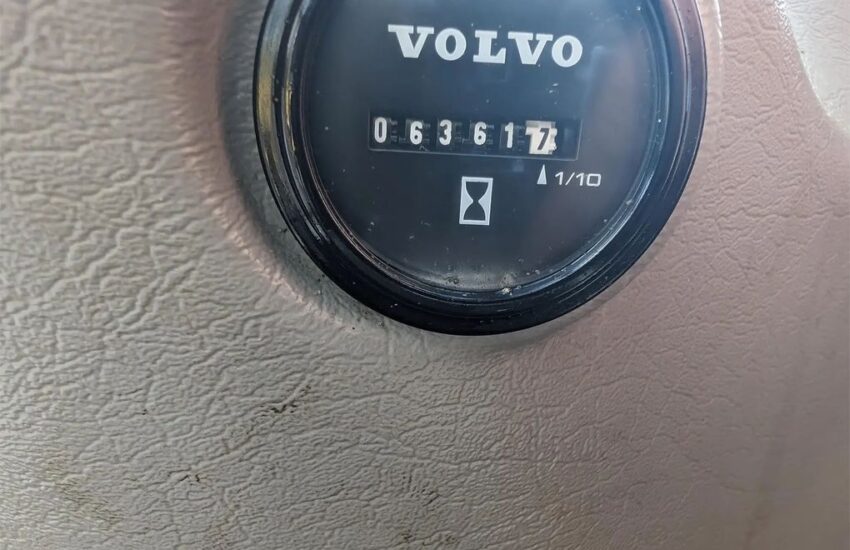

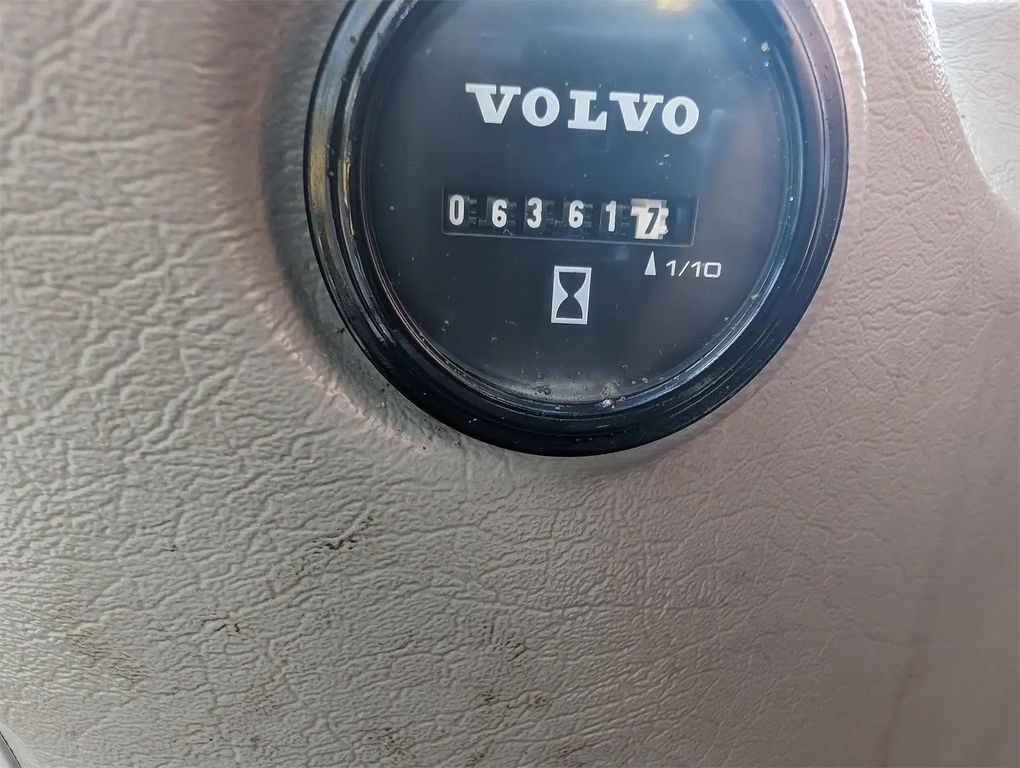

Hours:6361
-
Stock#:H002207012
Overview

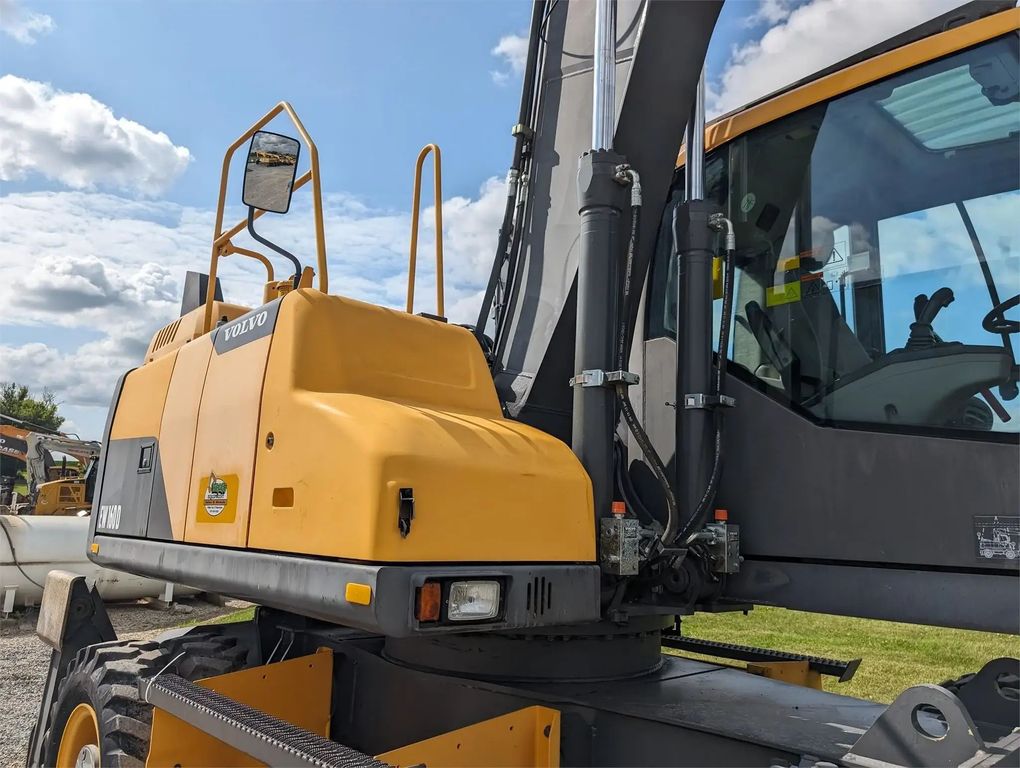

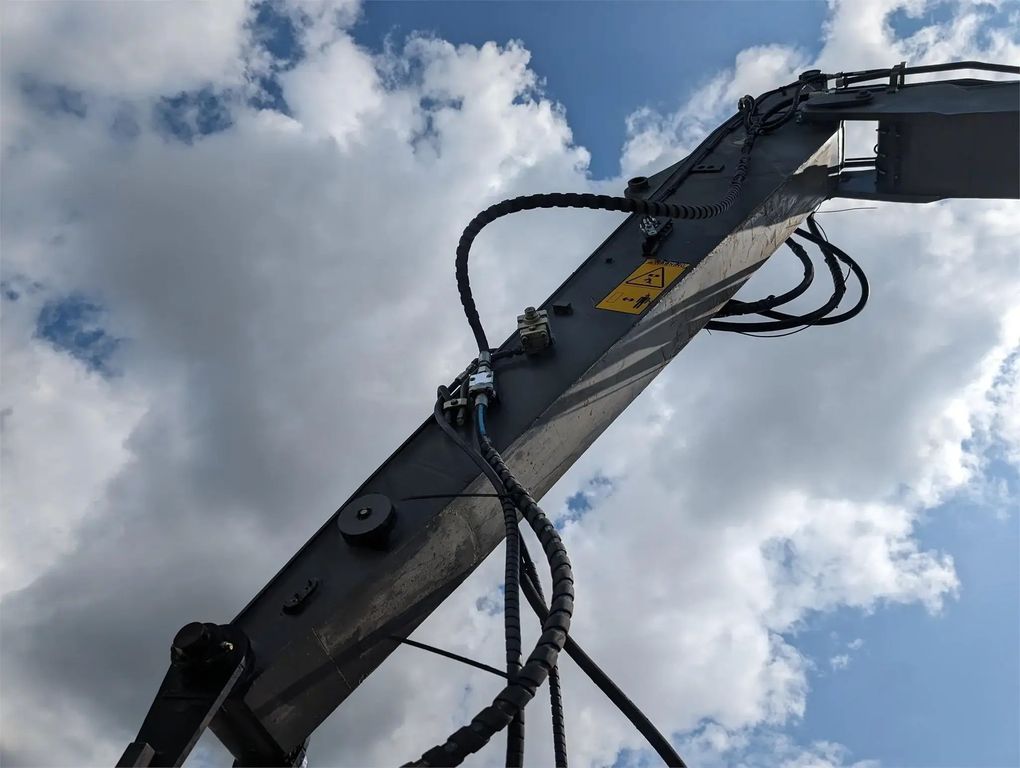

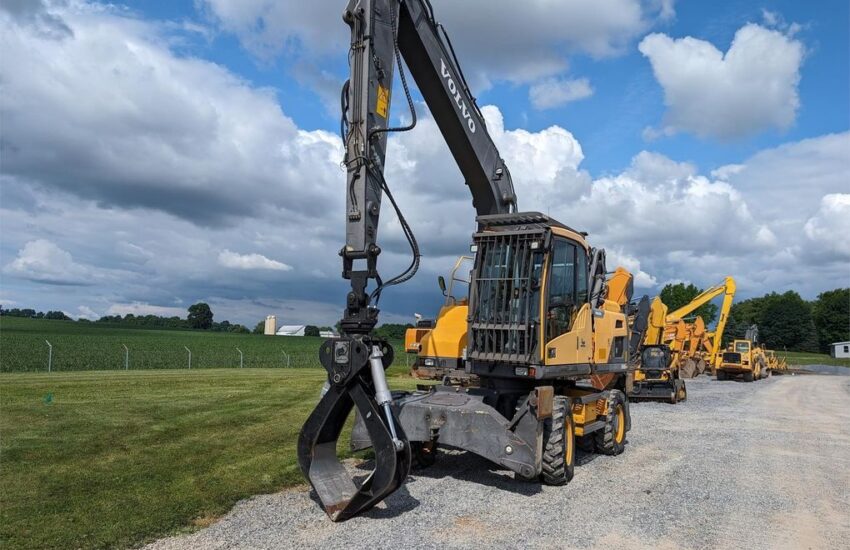

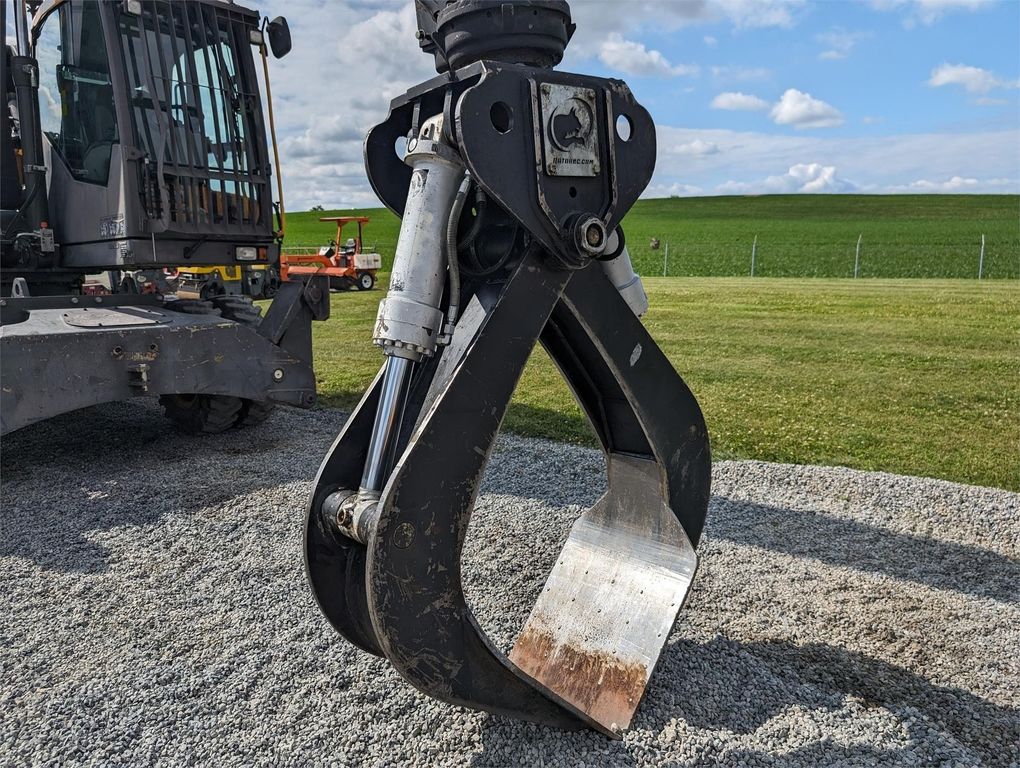

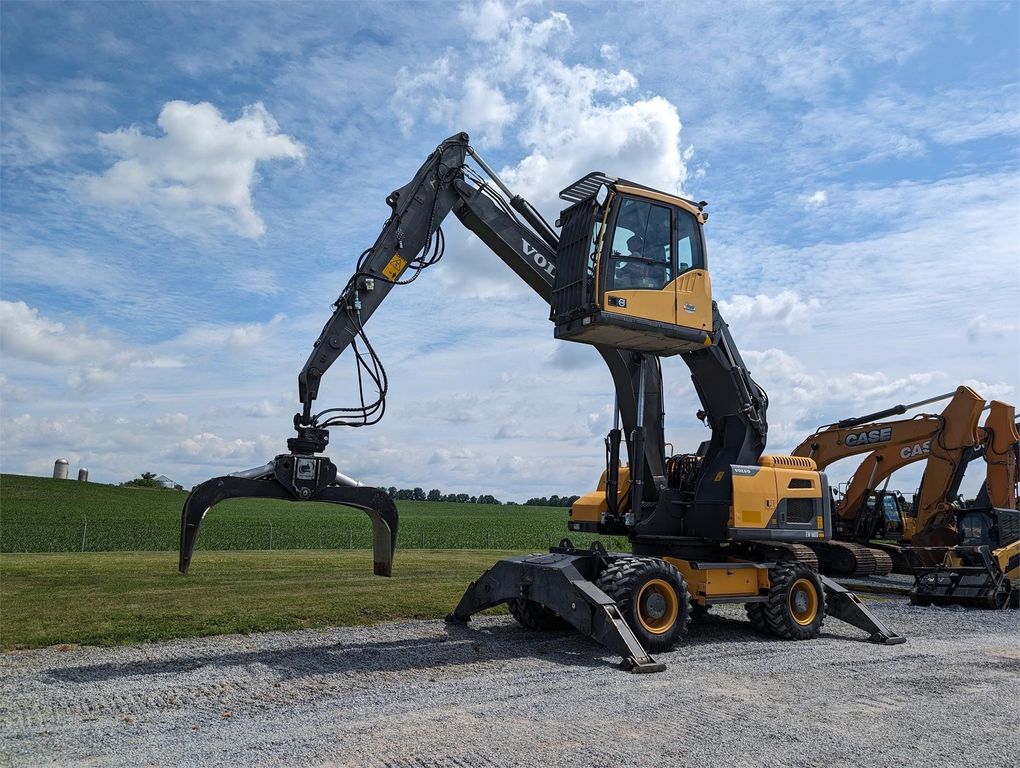

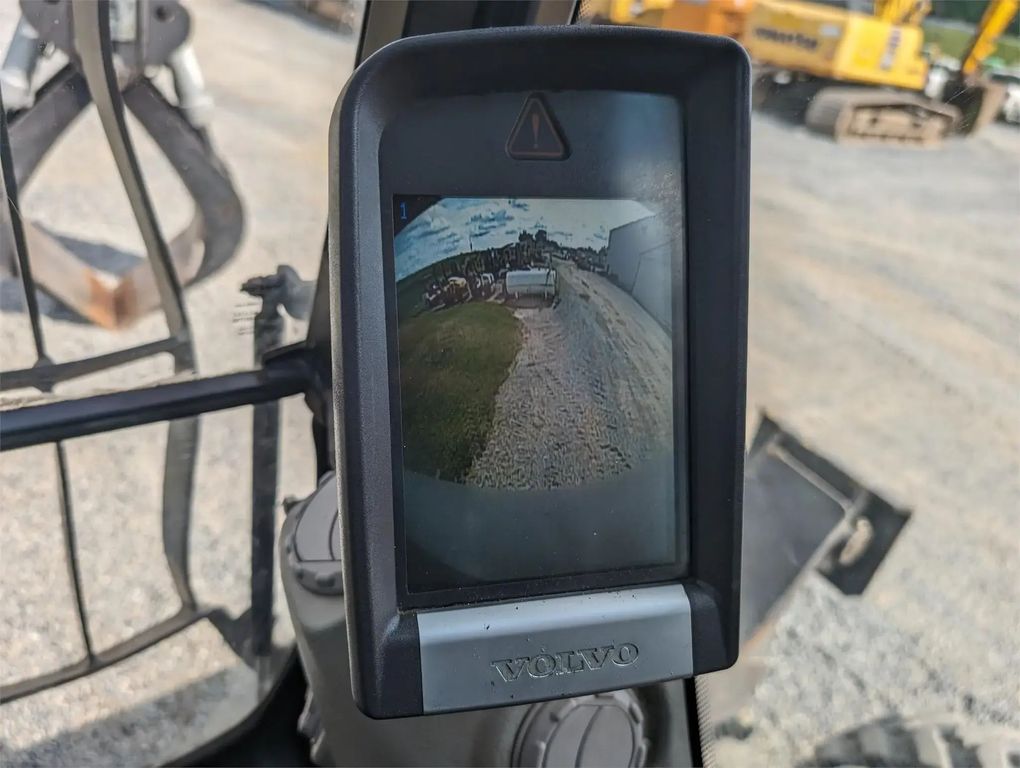

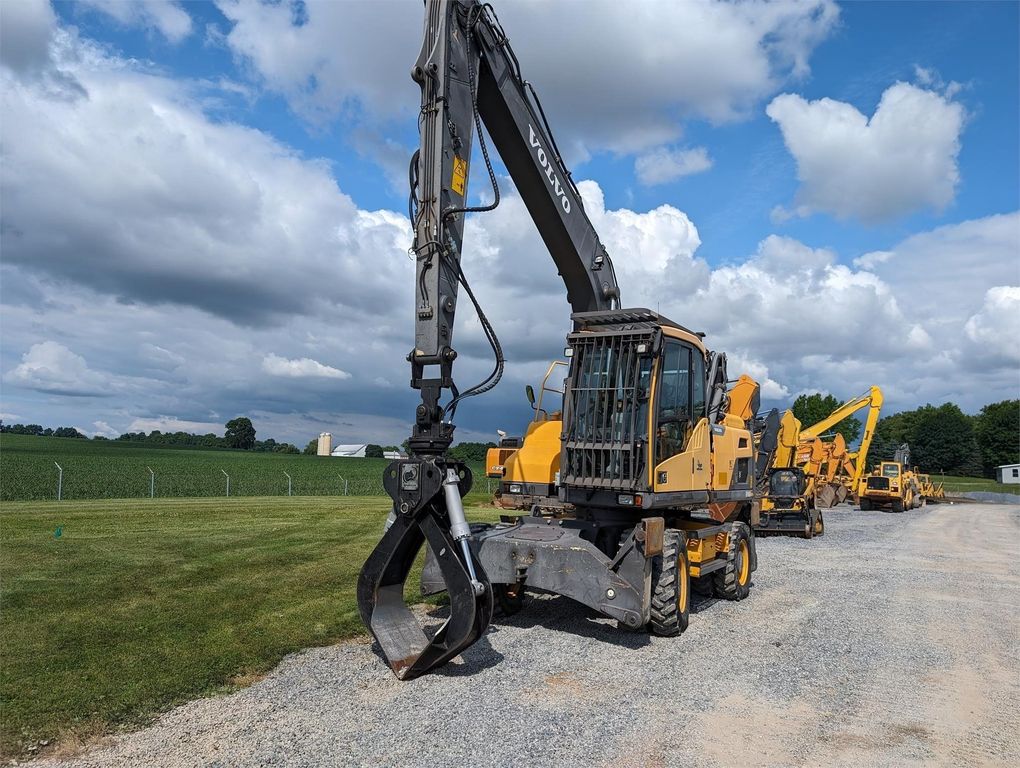

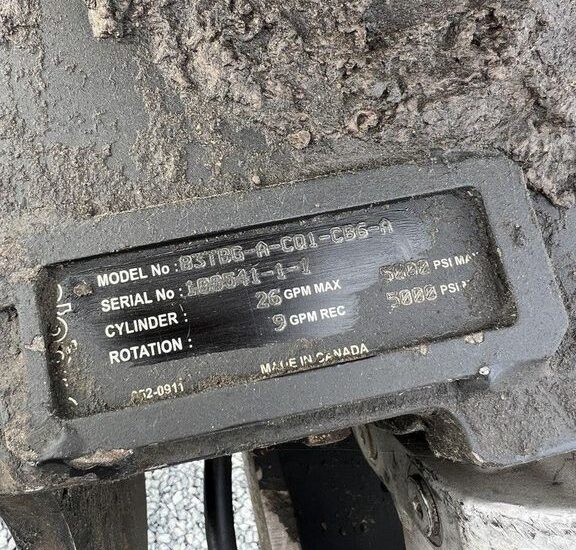

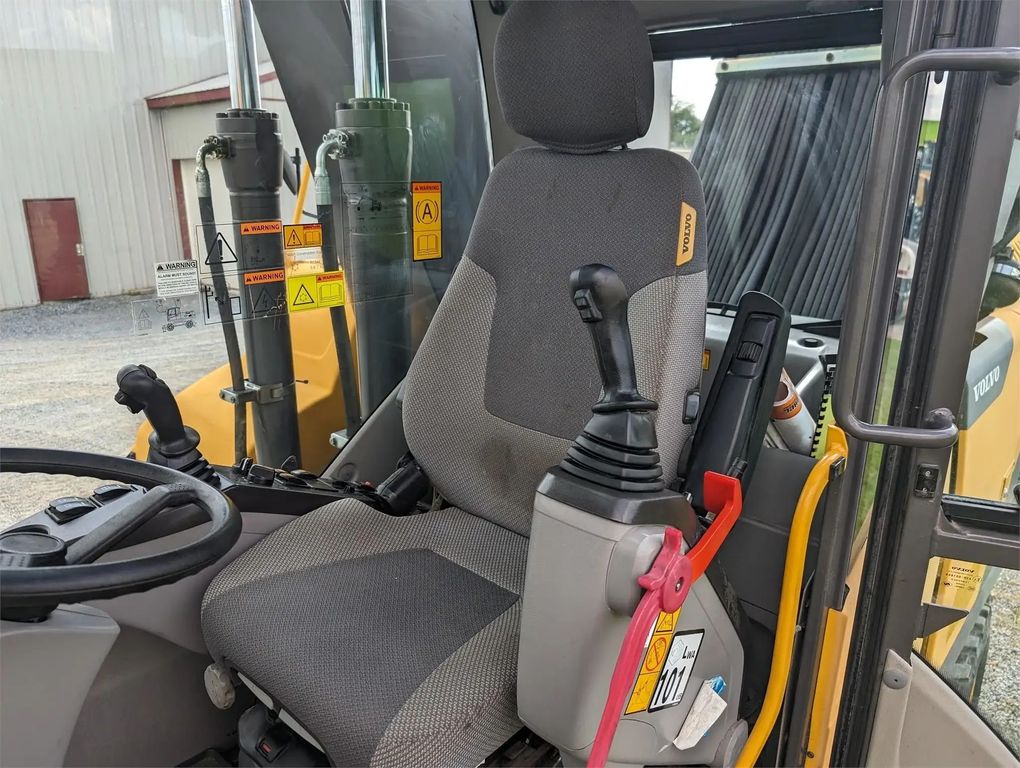

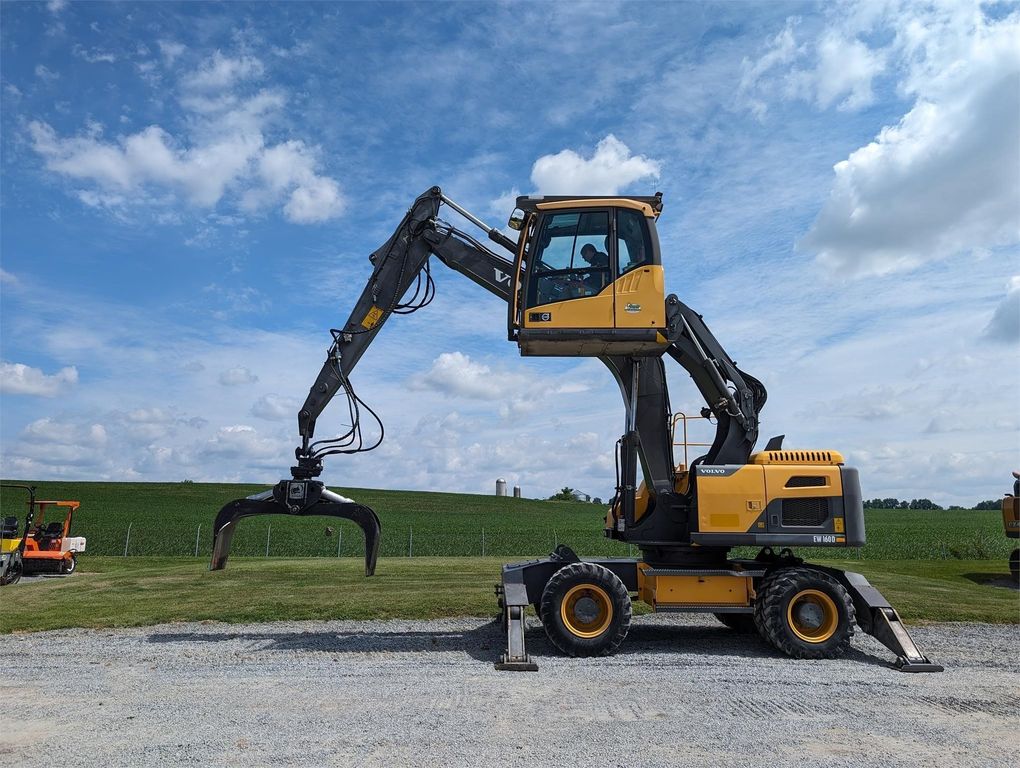

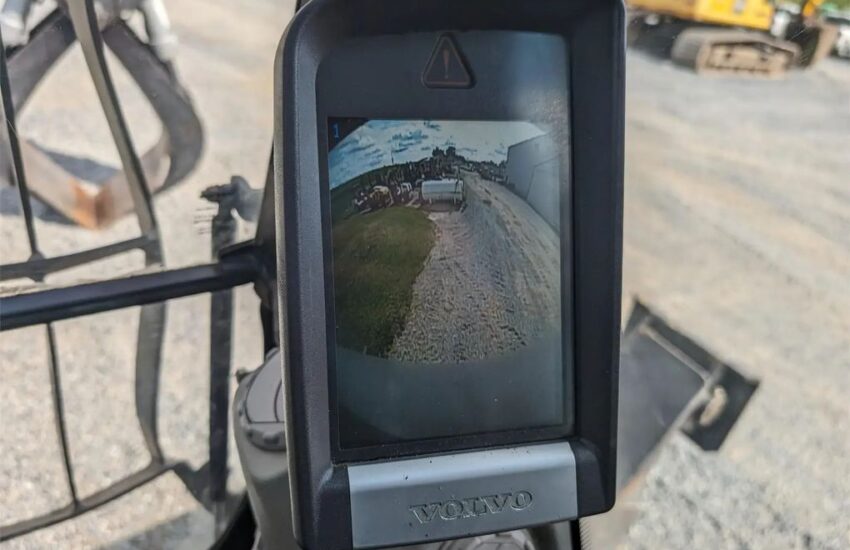

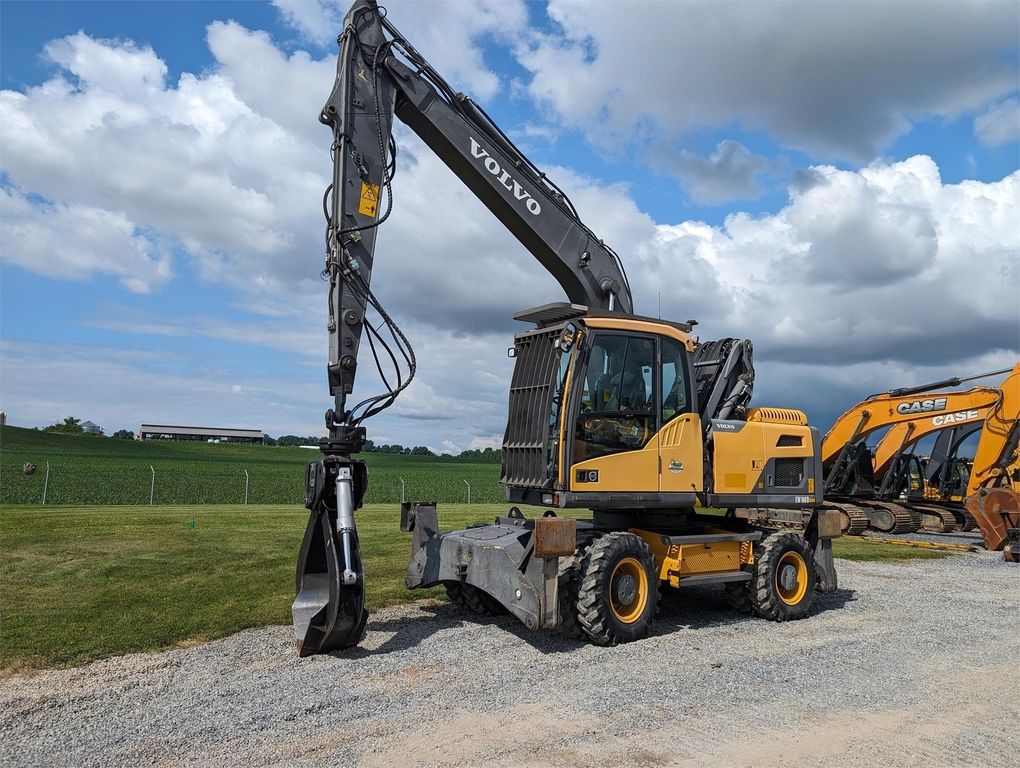

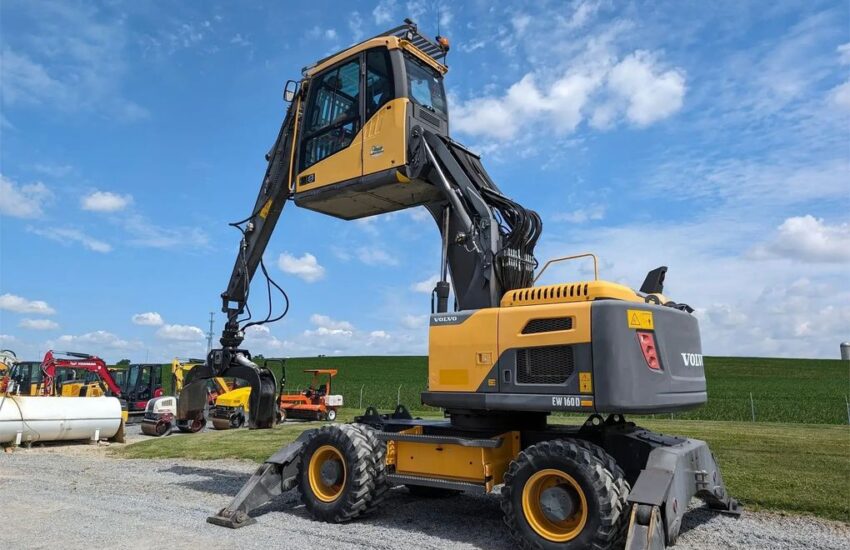

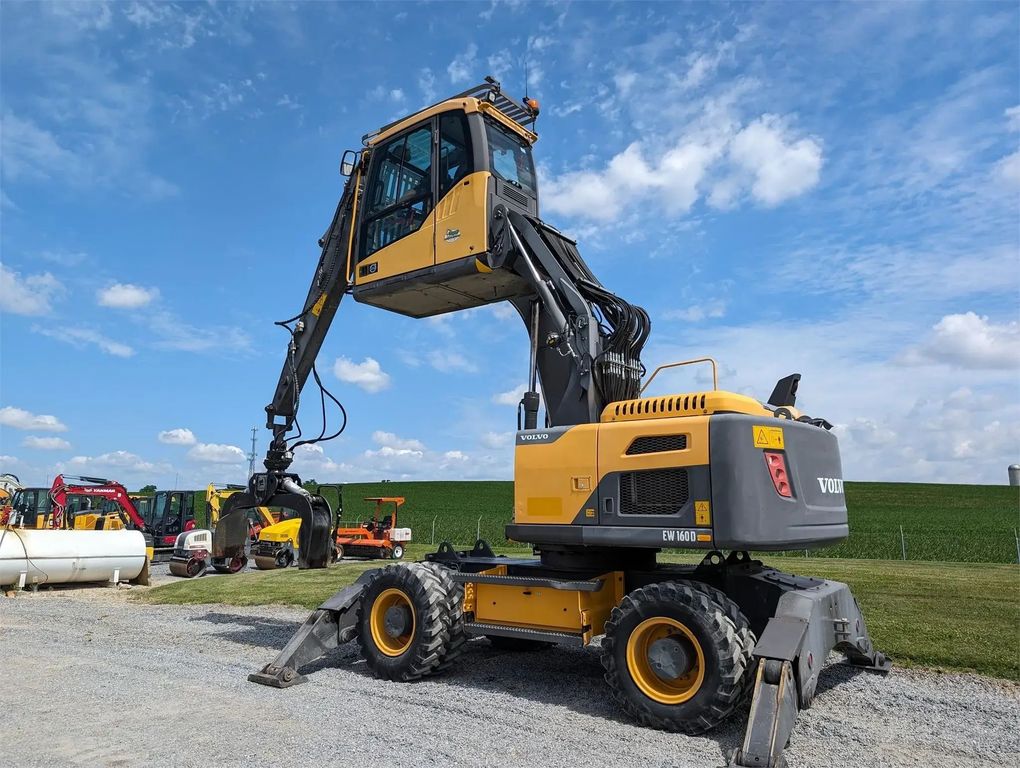

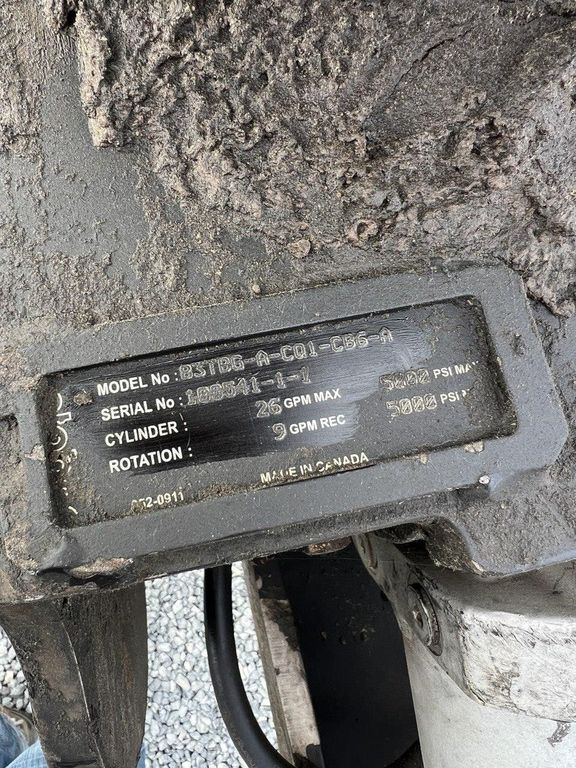

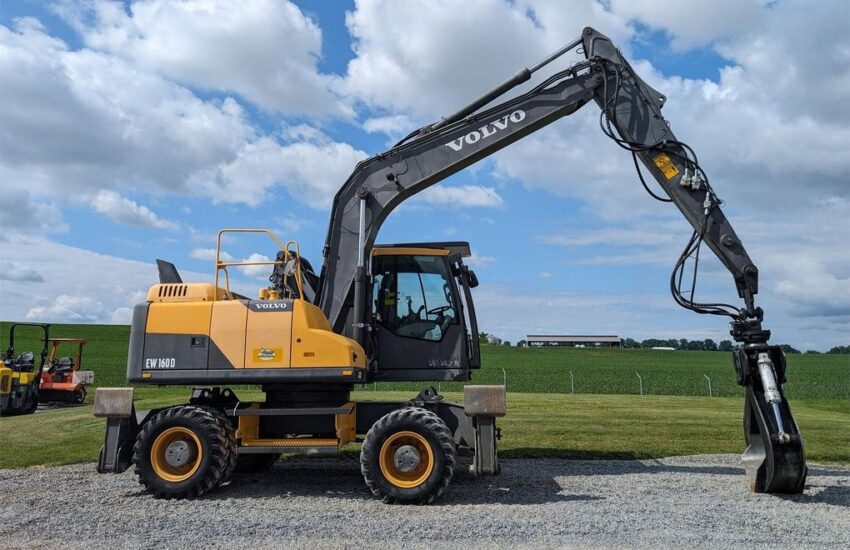

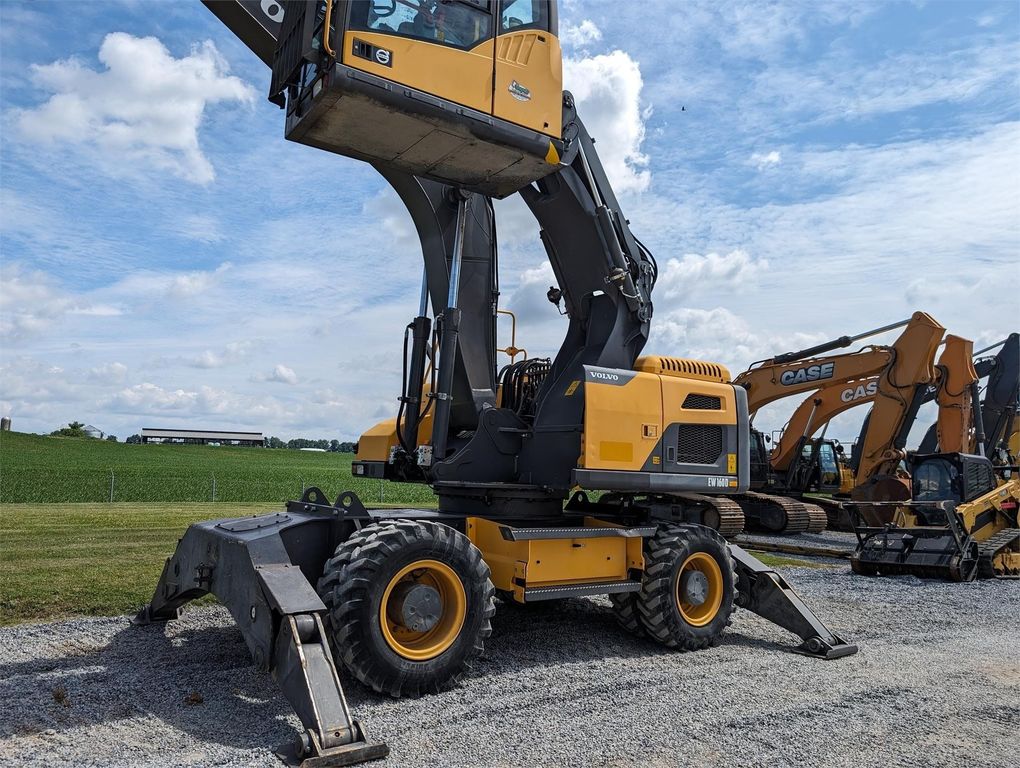

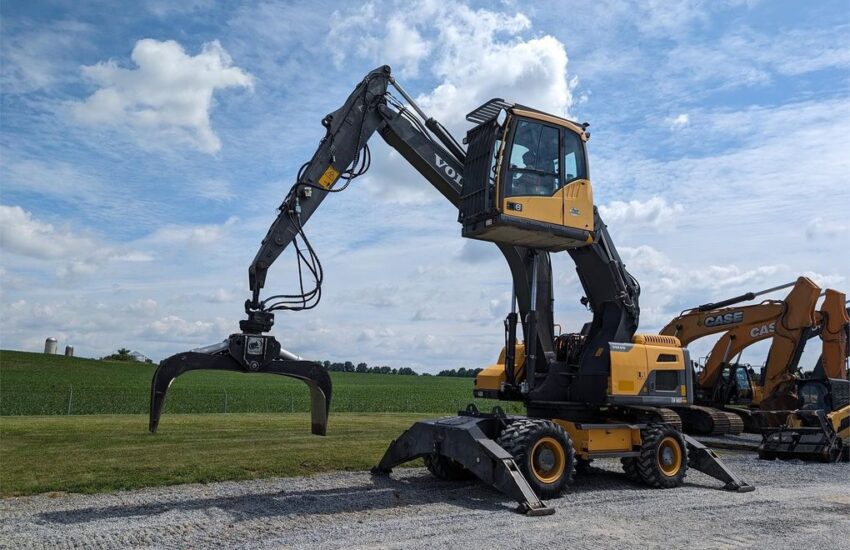

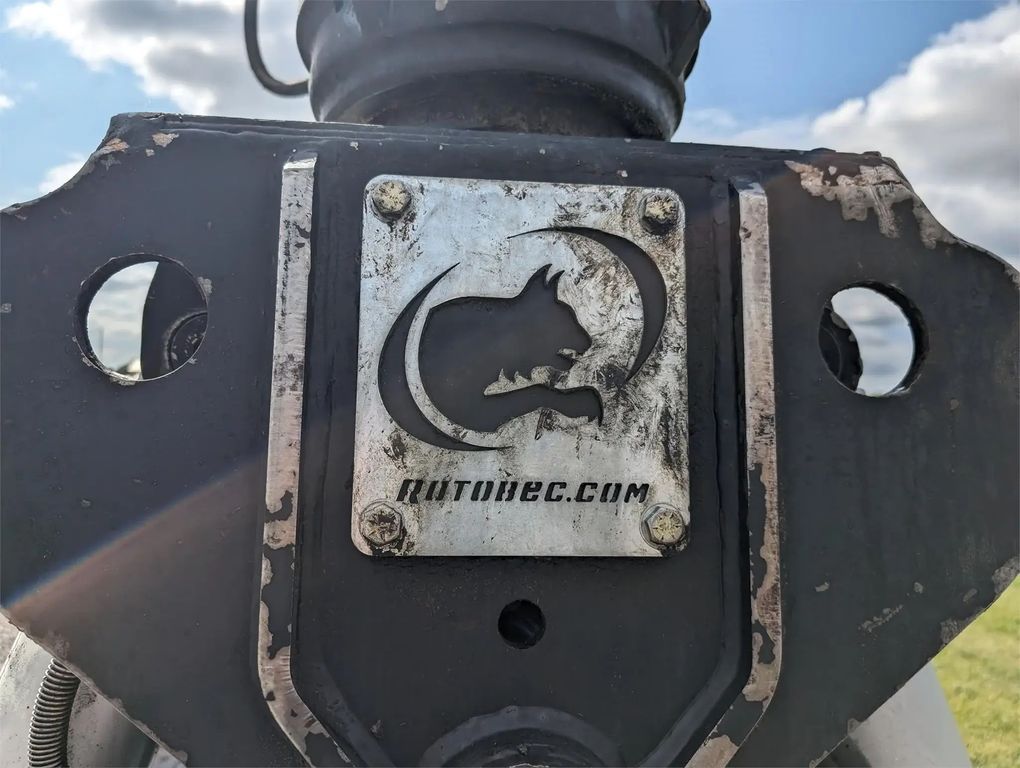

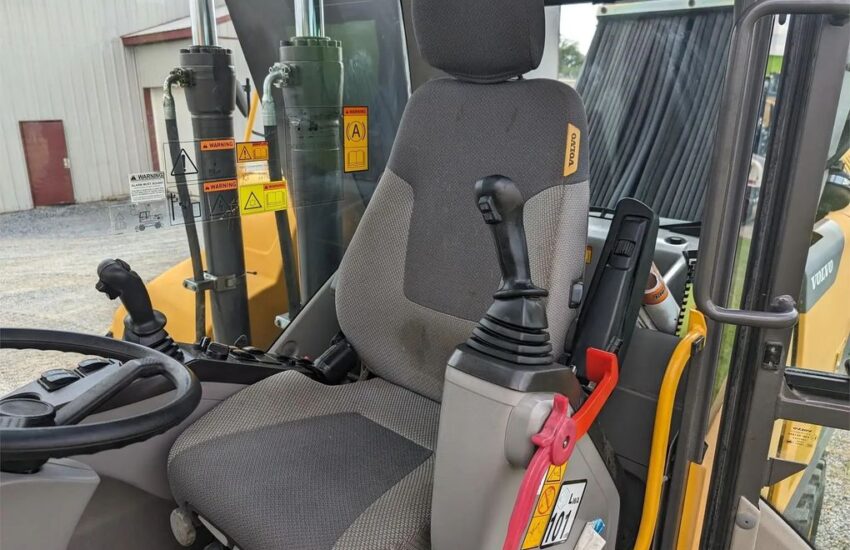

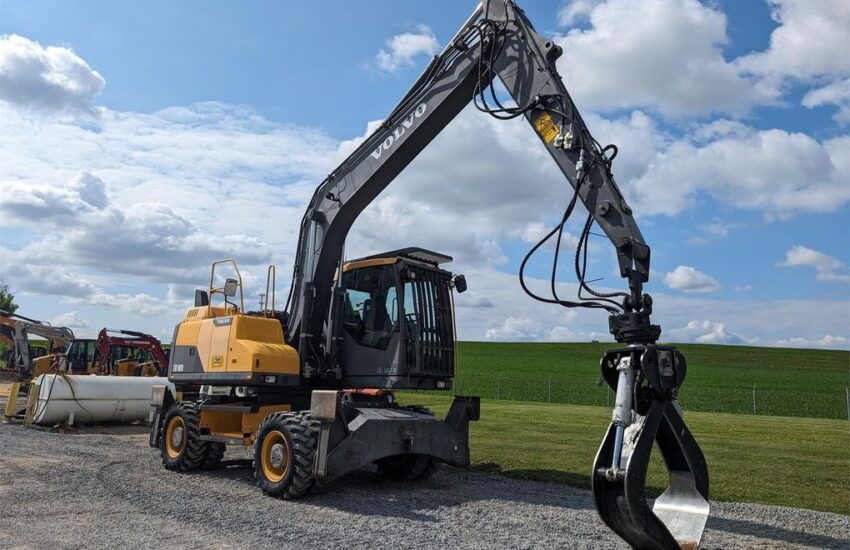

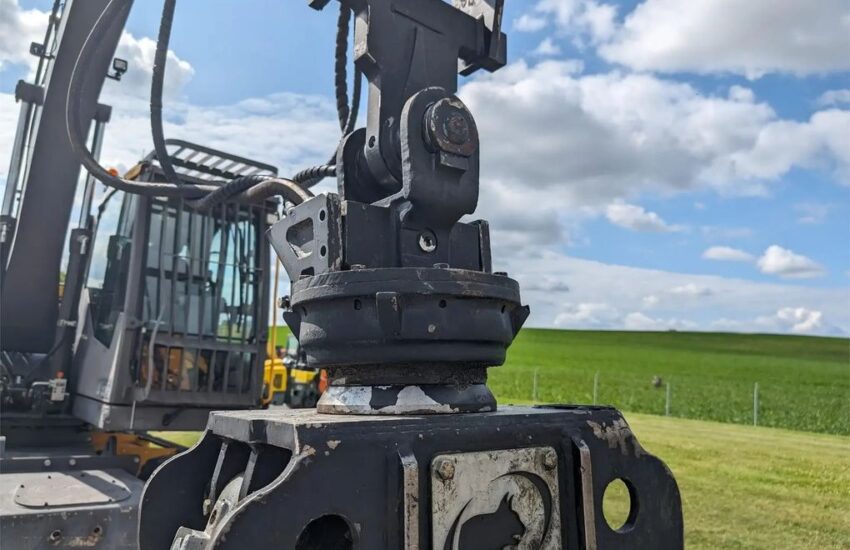

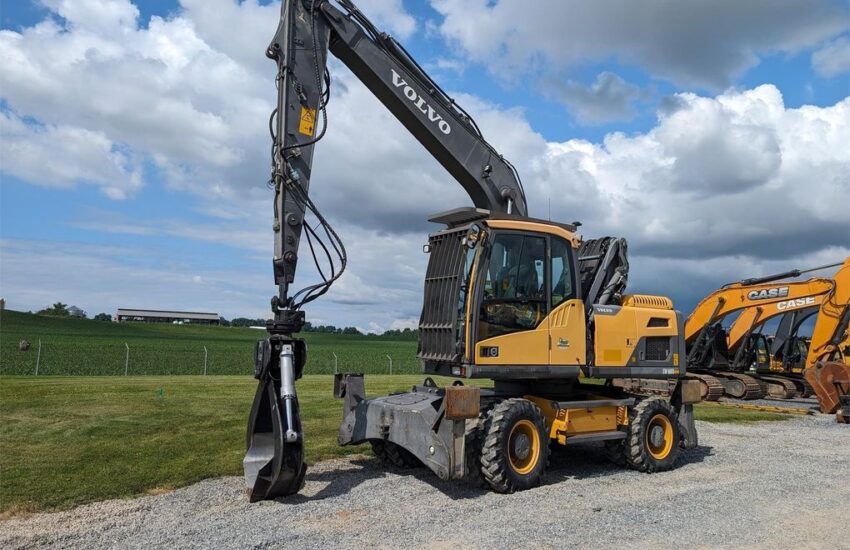

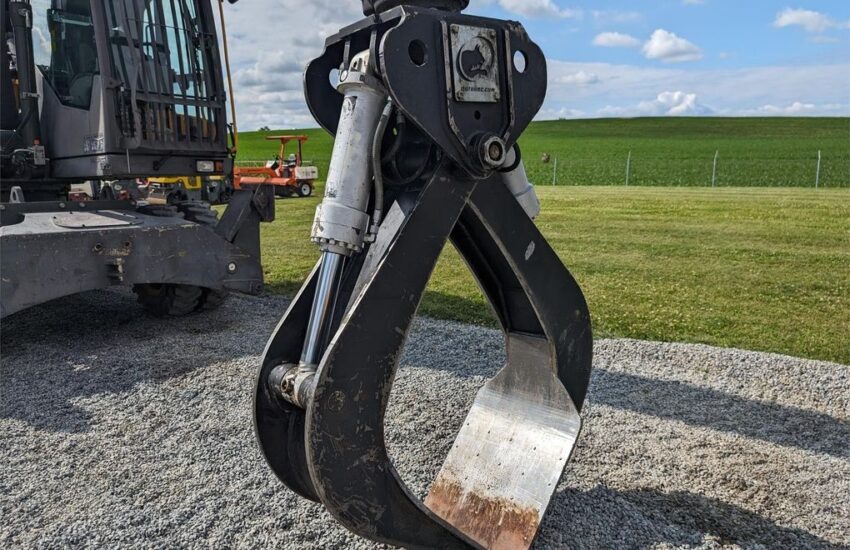

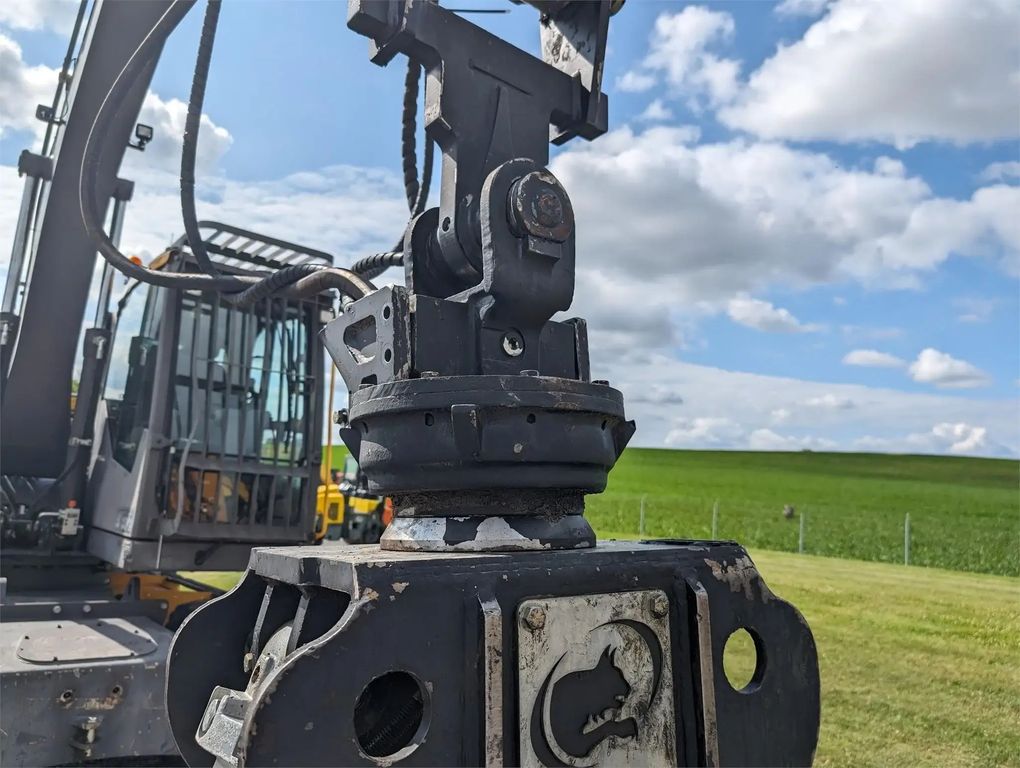

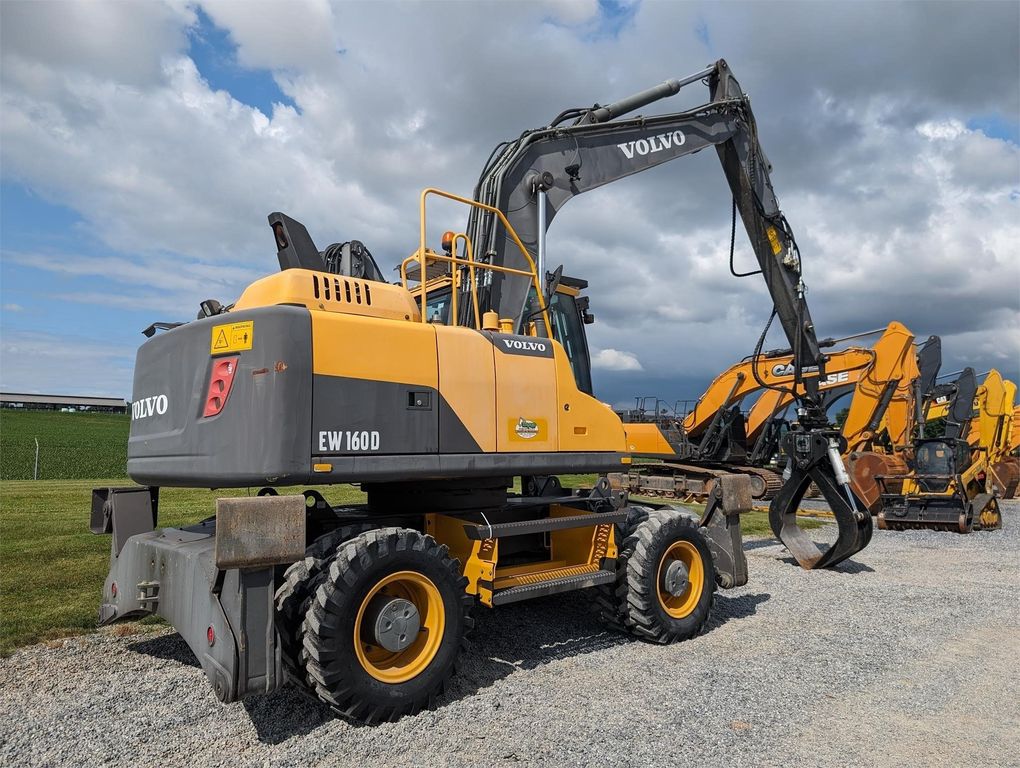

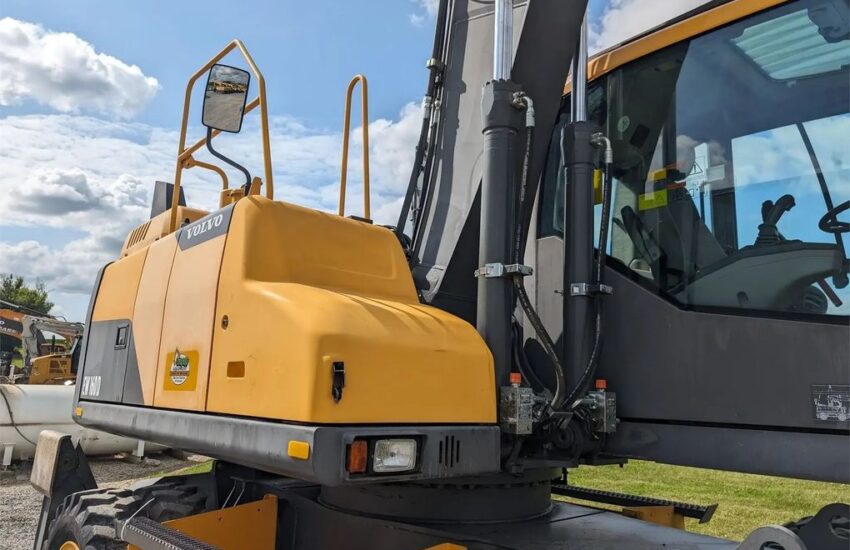

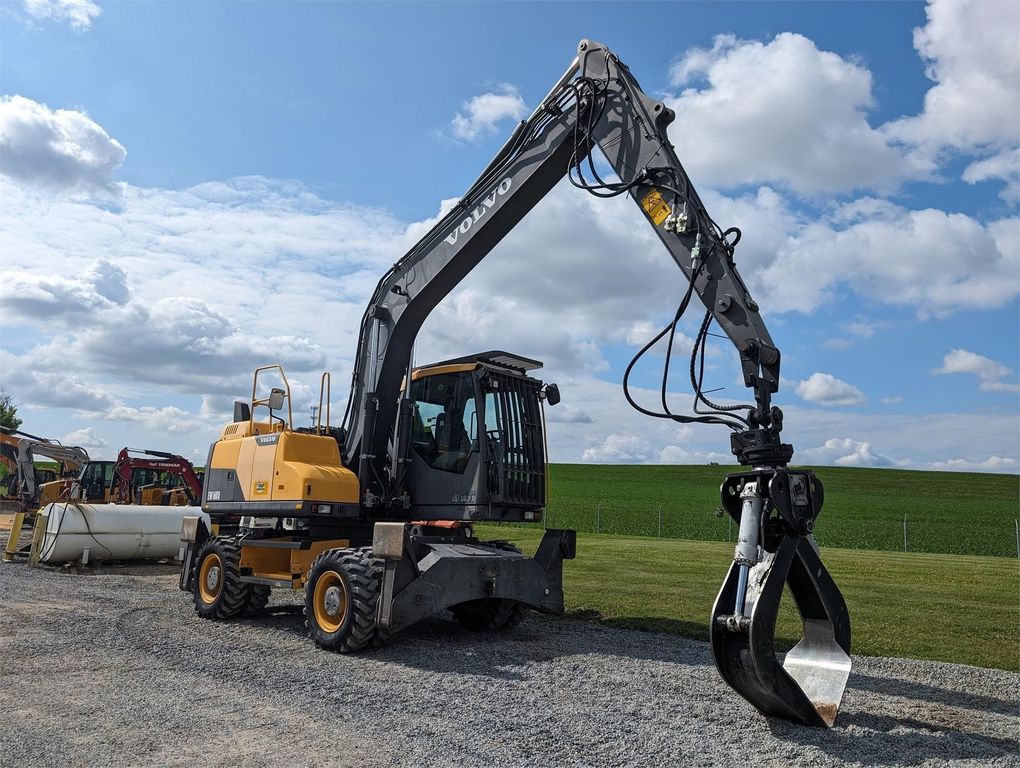

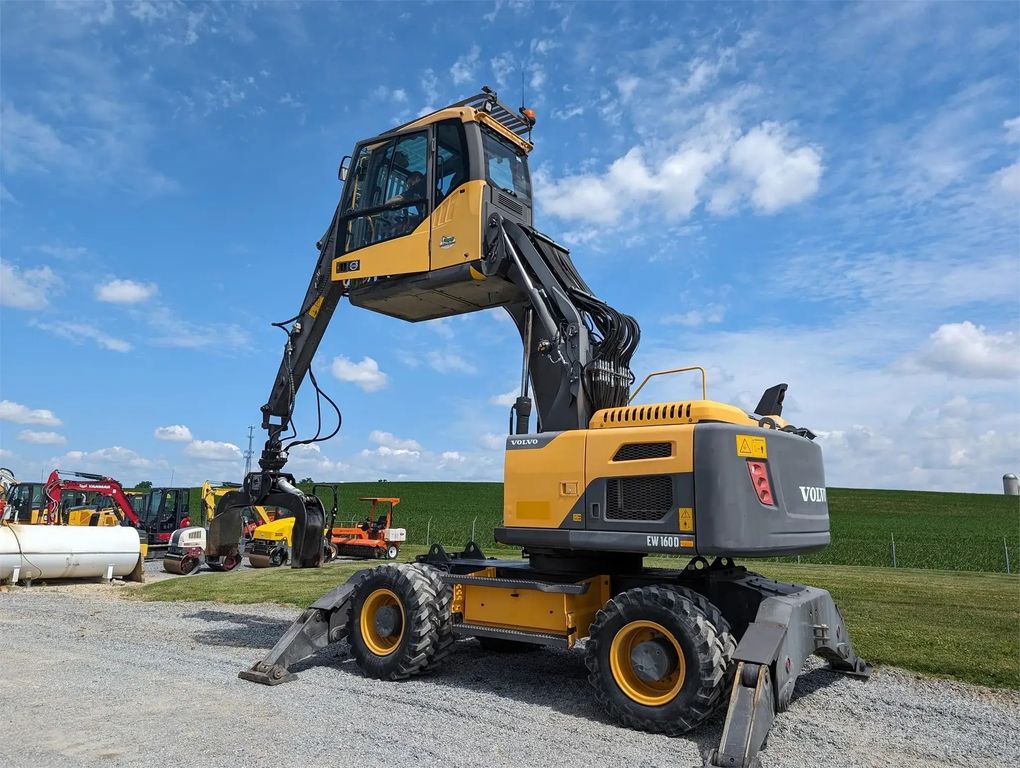

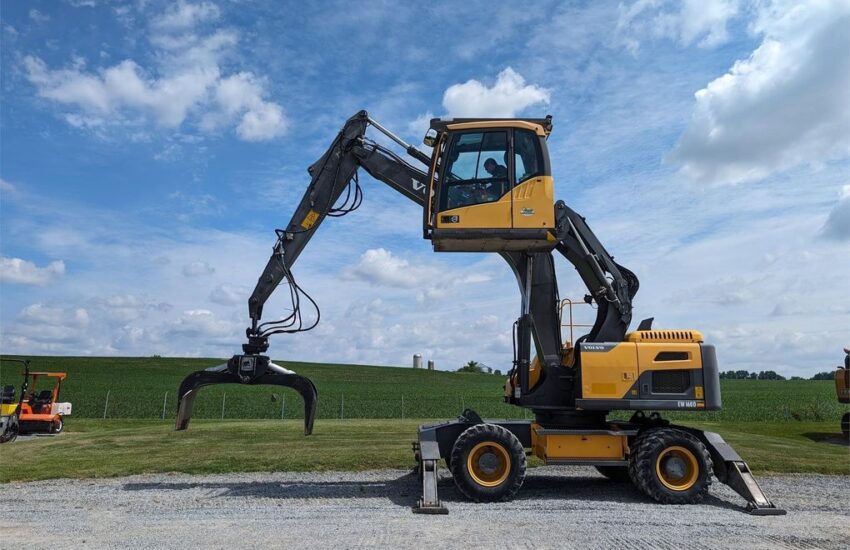

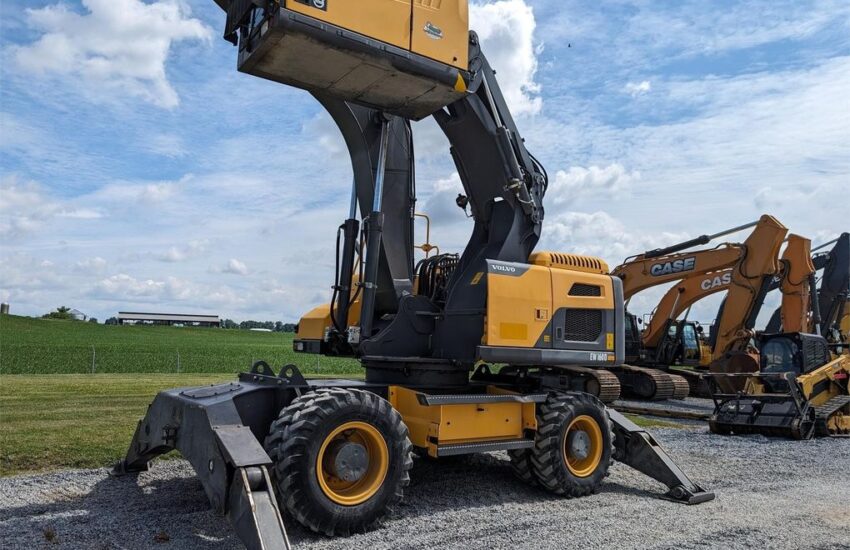

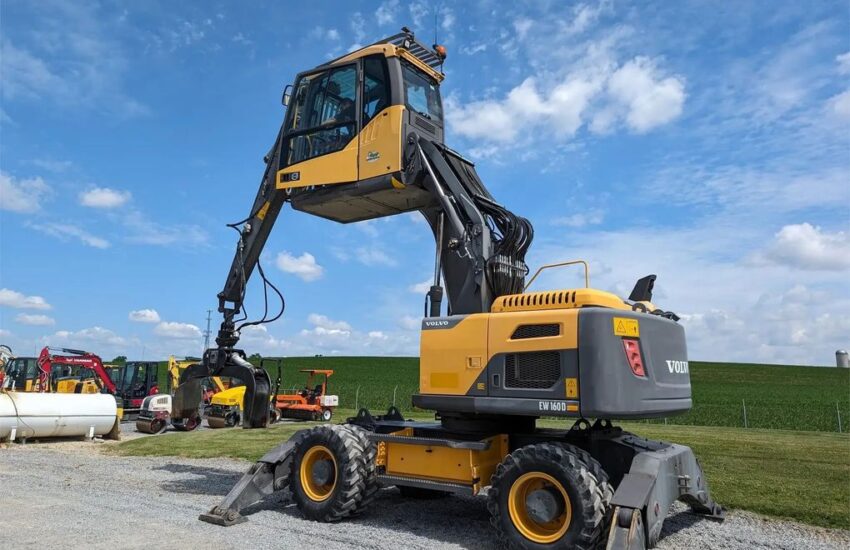

Heat, A/C, Radio, Backup Camera, Hydraulic Elevated Cab, Robotec Grapple, 10’2″ Stick
SPECIFICATIONS
Engine
• Model: Volvo D6H
• Gross Power: 154 hp (115 kW)
• Net Power: 150 hp (112 kW)
• Displacement: 347.9 in³ (5.7 L)
• Number of Cylinders: 6
Performance
• Operating Weight: 37,715 lbs (17,107 kg)
• Max Digging Depth: 16 ft 11 in (5.15 m)
• Max Digging Reach: 28 ft 3 in (8.6 m)
• Max Dumping Height: 19 ft 6 in (5.95 m)
• Tail Swing Radius: 7 ft 0.75 in (2.16 m)
• Travel Speed – On Road: 22 mph (35 km/h)
• Travel Speed – Off Road: 5 mph (8 km/h)

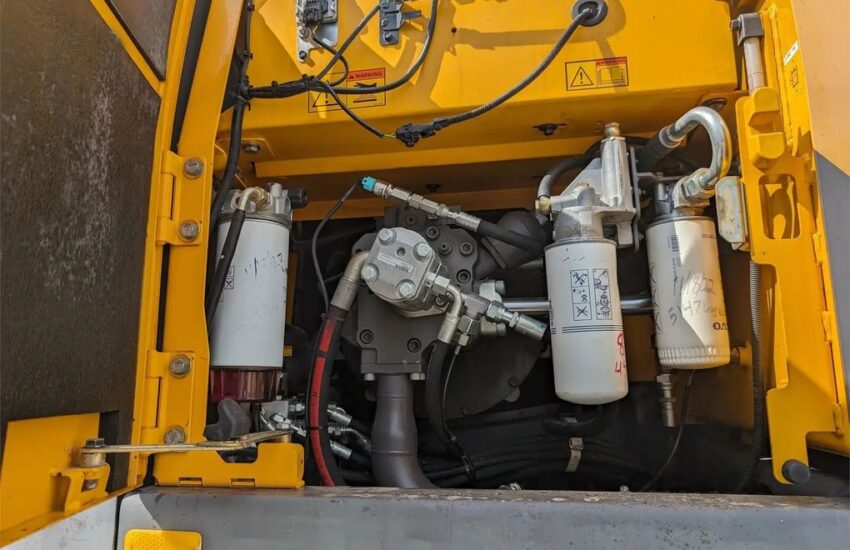

Hydraulics
• Main Pump Type: Low Noise Axial Piston Pump
• Max Flow: 67.7 gal/min (256 L/min)
• Implement Pressure: 4,930 psi (34 MPa)
• Travel Circuit Pressure: 5,440 psi (37.5 MPa)
• Pilot Circuit Pressure: 490 psi (3.4 MPa)
Dimensions
• Overall Length: 27 ft 0.75 in (8.25 m)
• Overall Width: 8 ft 11.25 in (2.72 m)
• Overall Height (to Top of Cab): 10 ft 3.75 in (3.14 m)
• Wheelbase: 8 ft 6.5 in (2.6 m)
• Ground Clearance: 1 ft 2.25 in (0.36 m)
Capacities
• Fuel Tank: 66.1 gal (250 L)
• Hydraulic System Capacity: 68.7 gal (260 L)
• Hydraulic Tank: 32.5 gal (123 L)
• Engine Oil: 6.7 gal (25.4 L)
• Engine Coolant: 8.8 gal (33.3 L)
Features

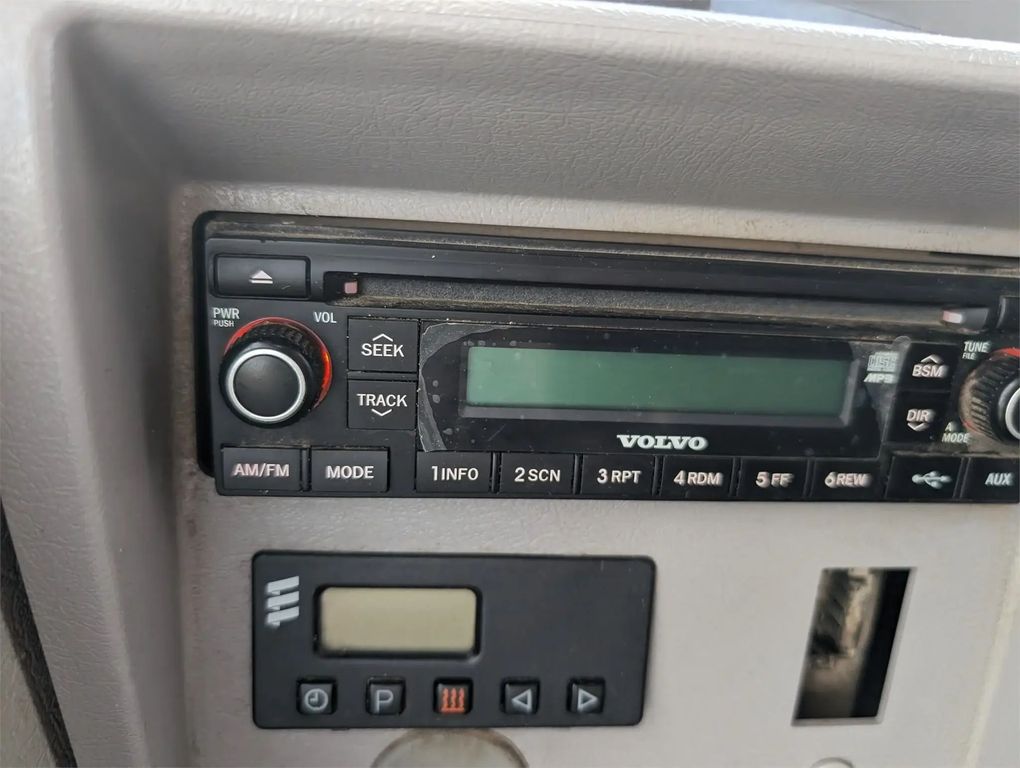

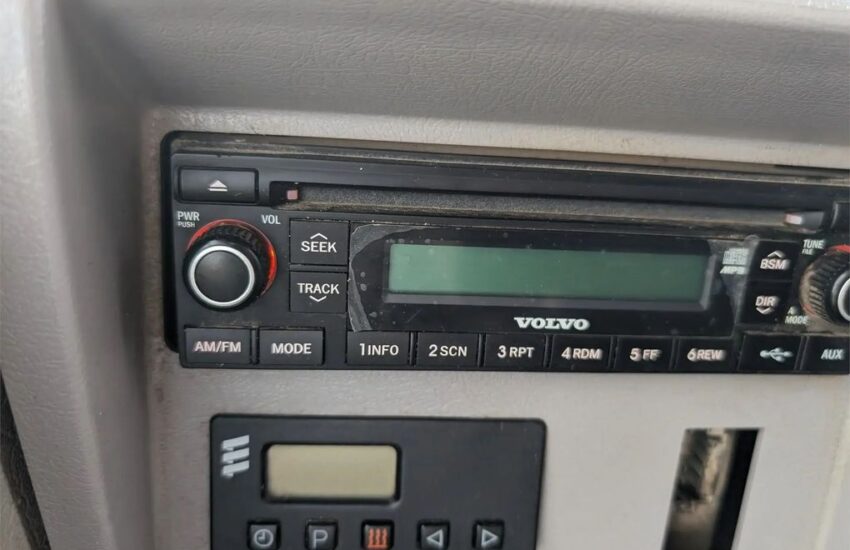

- Radio
- Air Conditioner
- Heater
