Details
-
Industry:
-
Make:
-
Model:
-
Color:
-
Transmission:
-
Condition:
-
Year:2013
-
Fuel Type:
-
Engine:Isuzu AU-4LE2X
-
Cylinder:
-

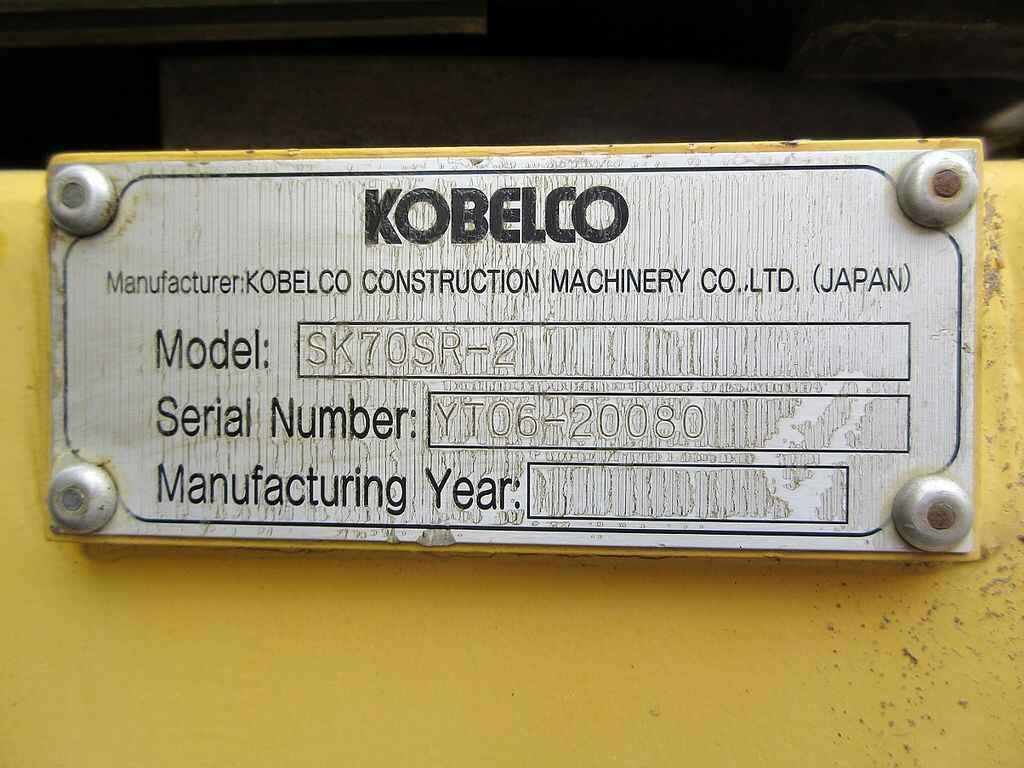

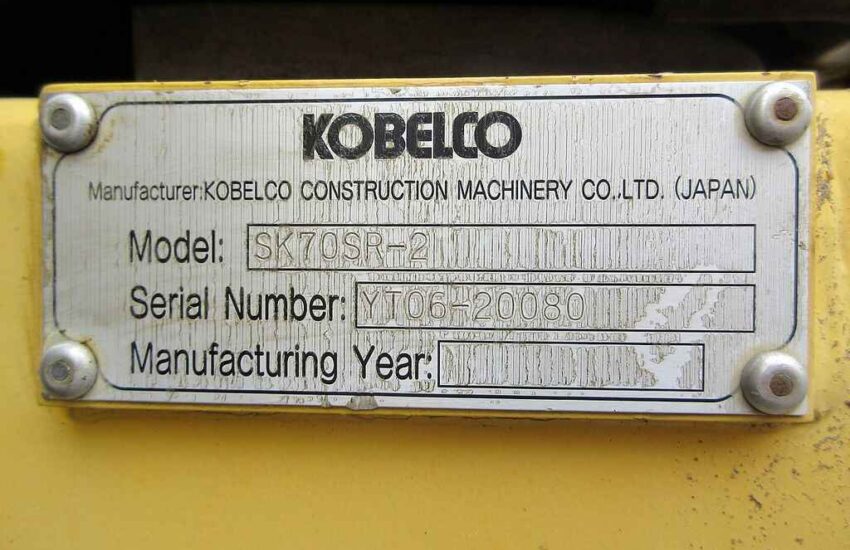

Serial:YT0620080
-

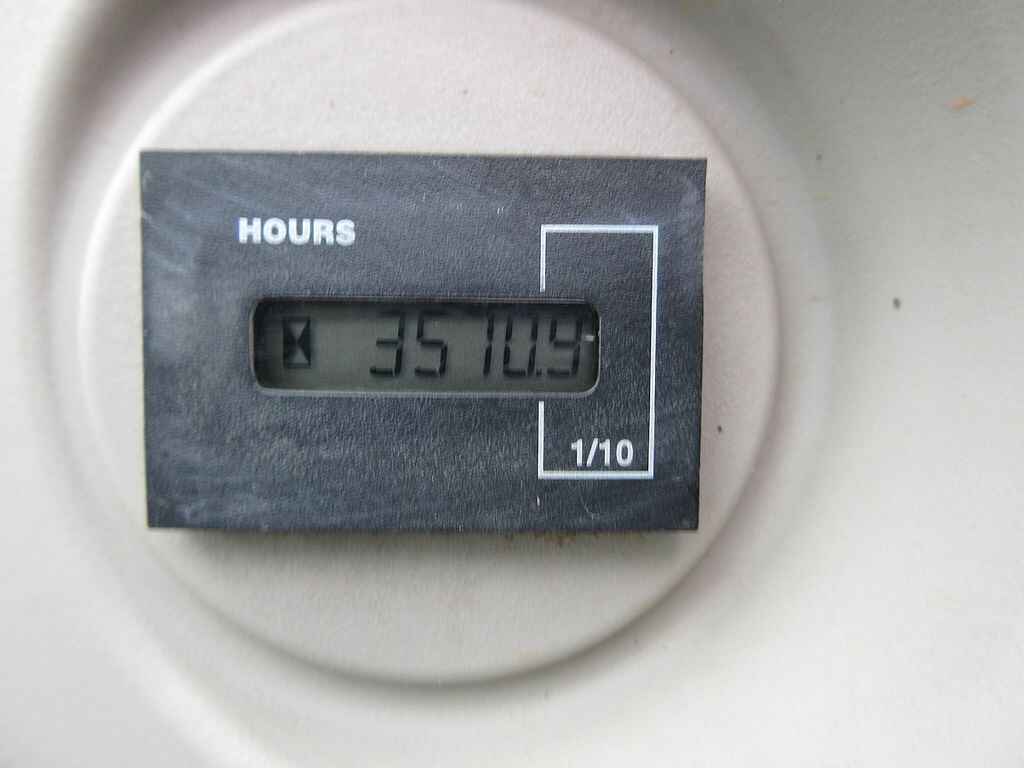

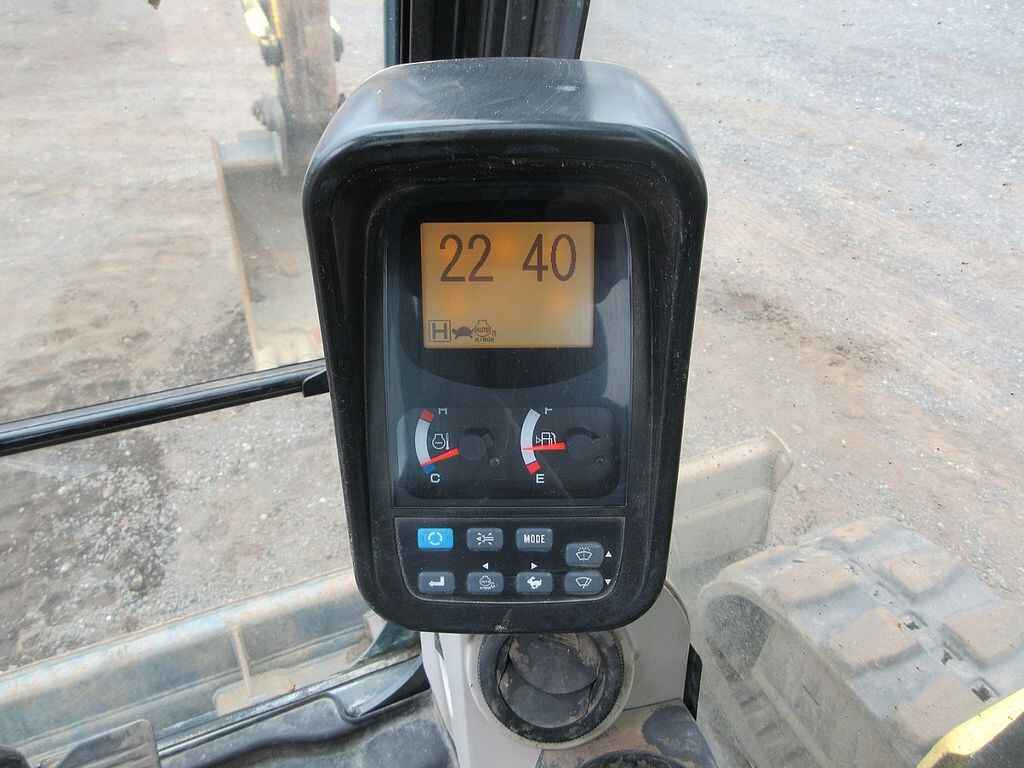

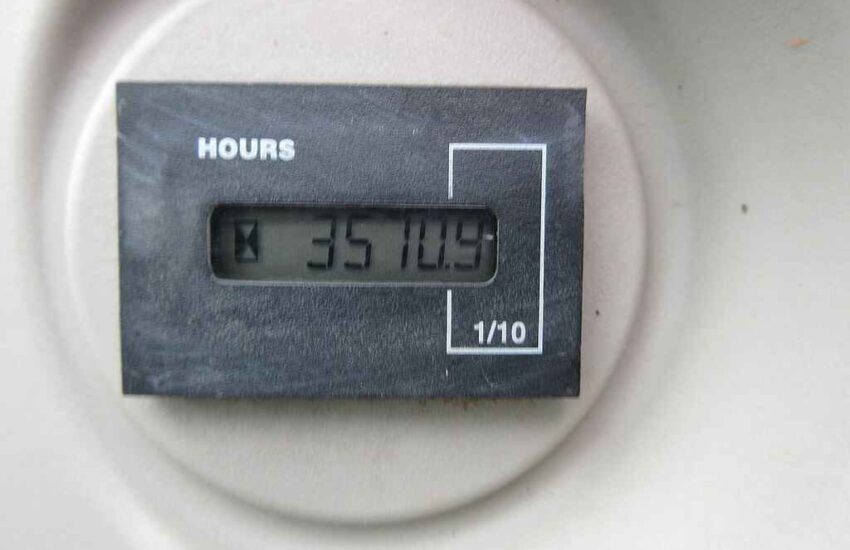

Hours:3570
-
Stock#:217002
Overview

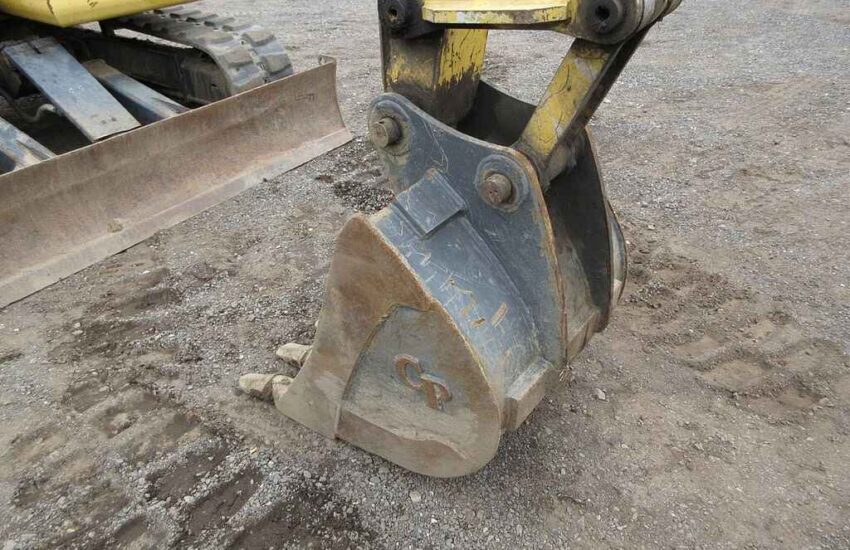

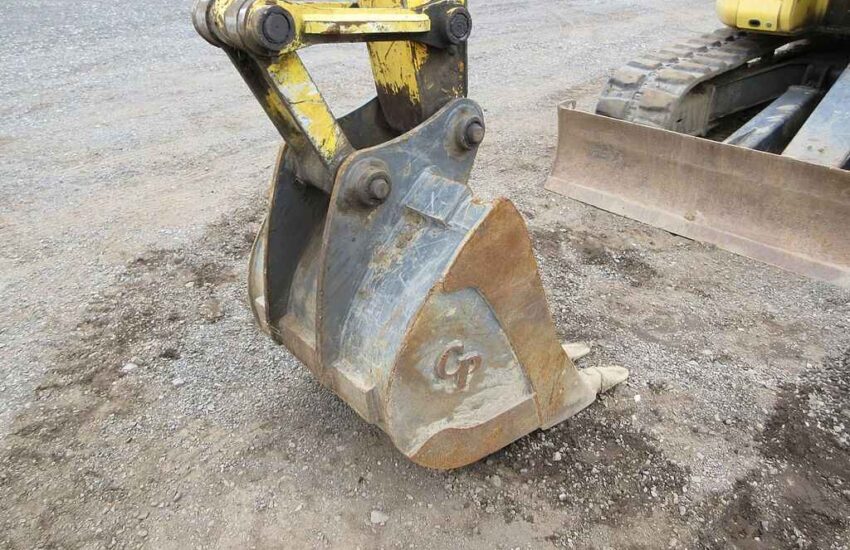

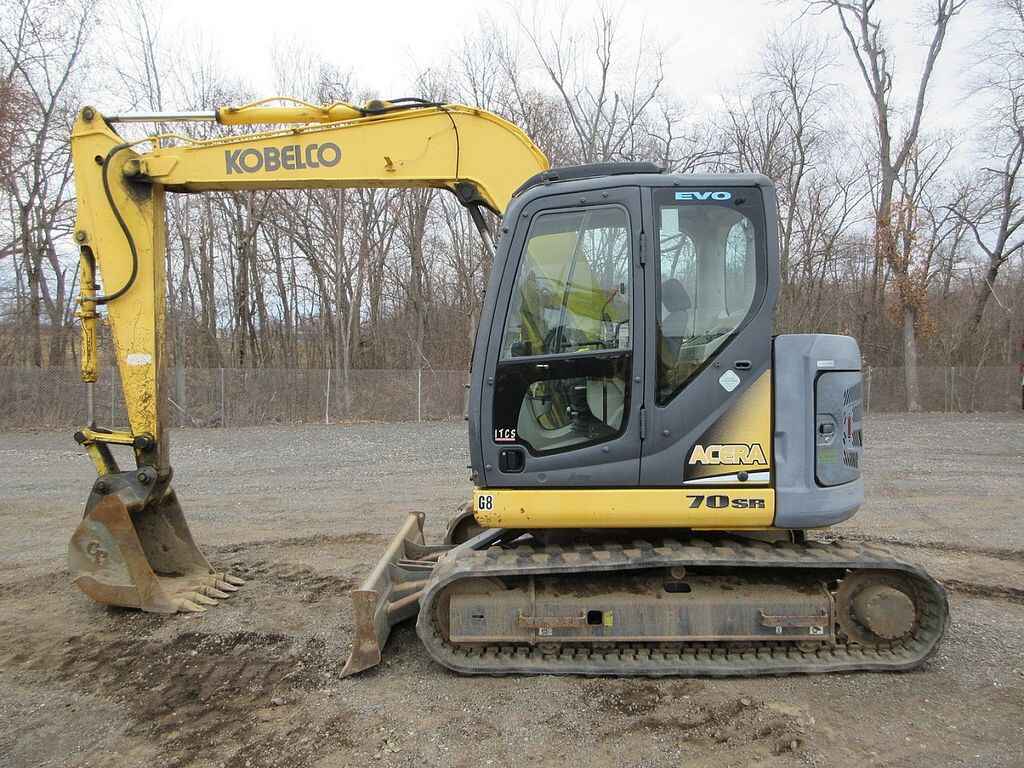

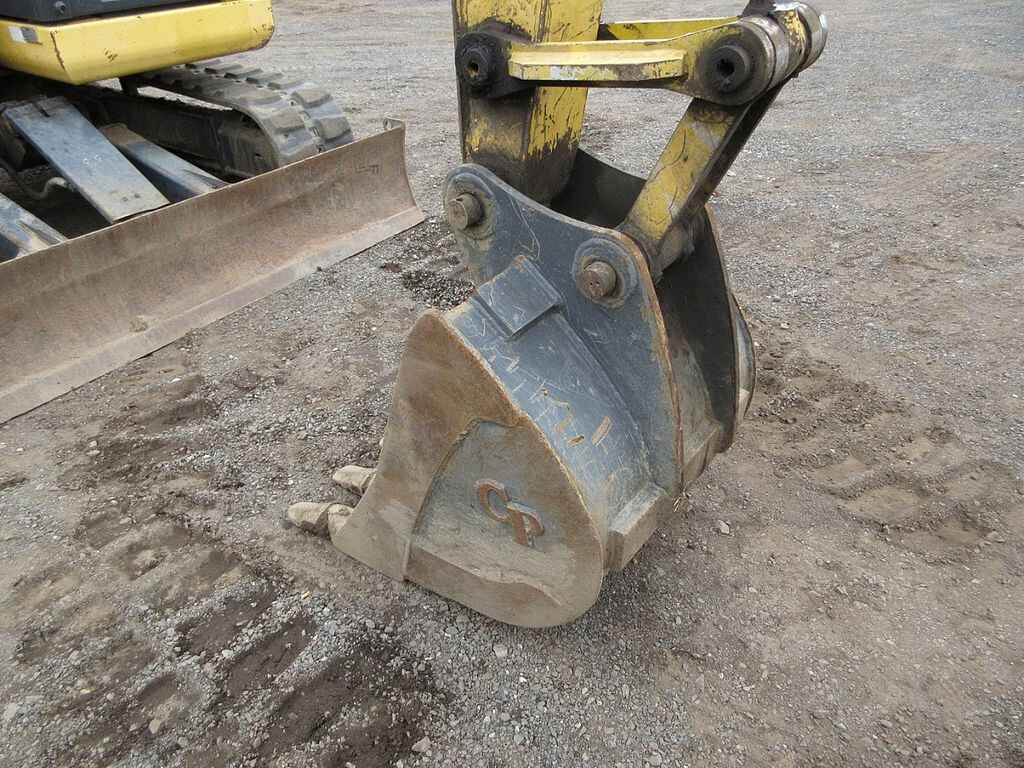

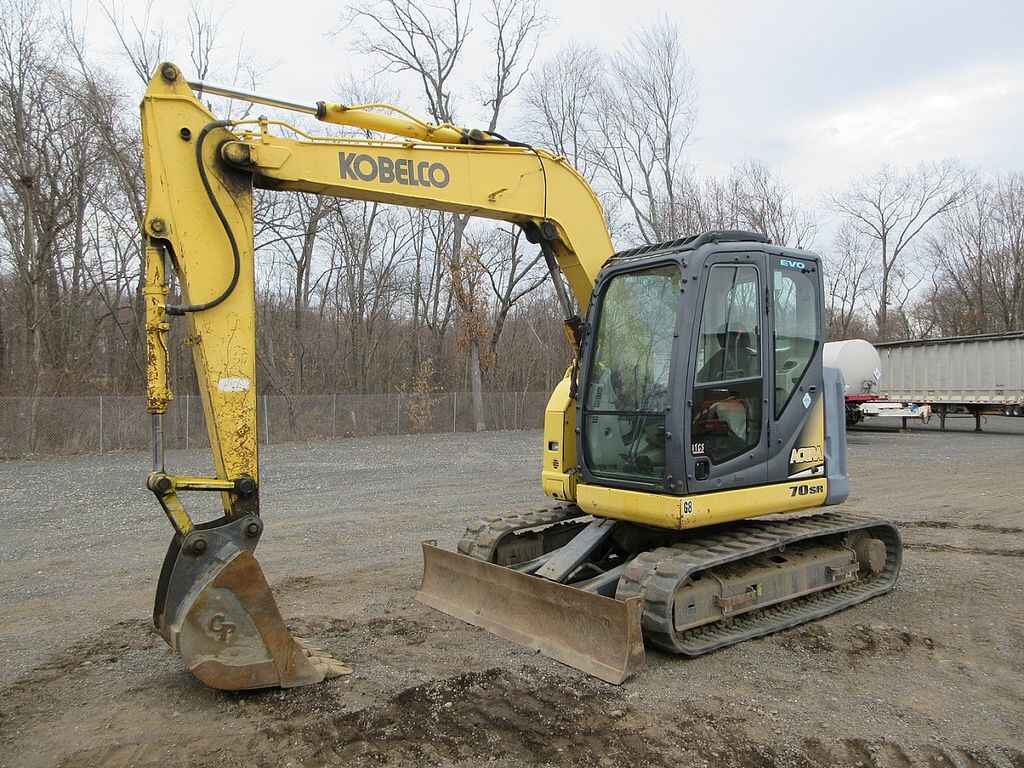

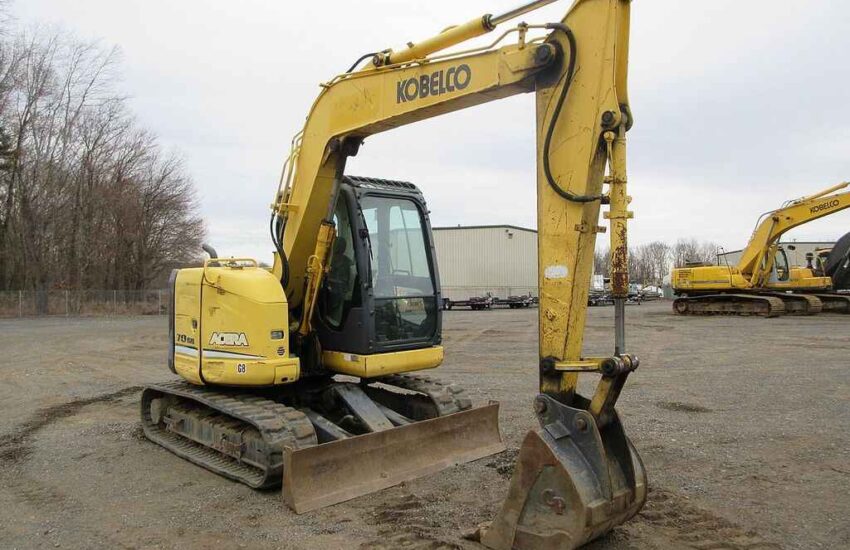

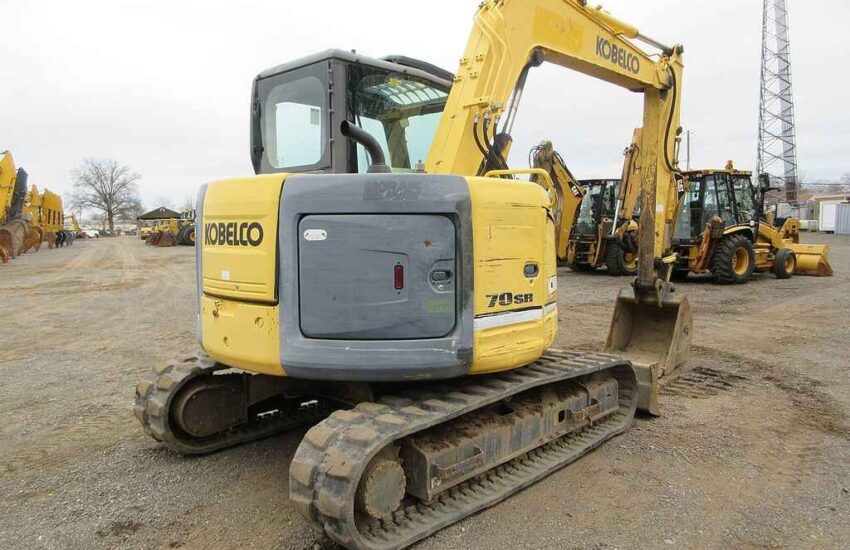

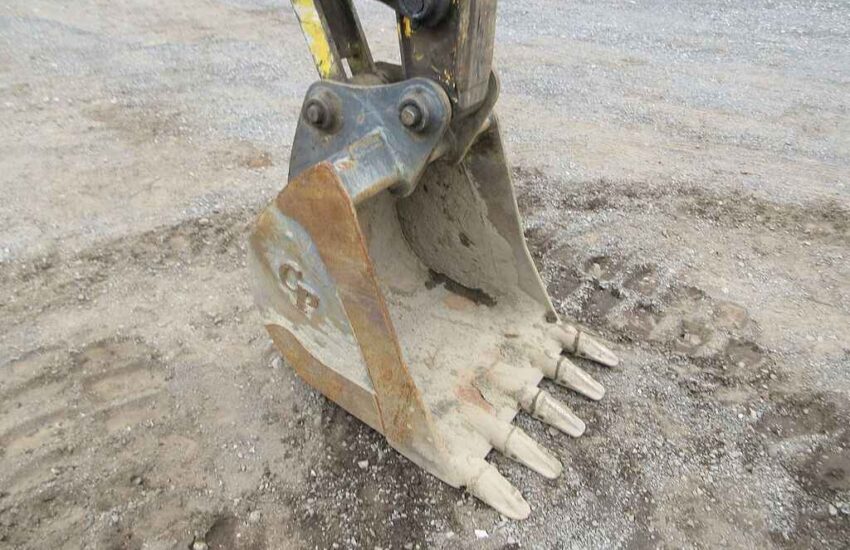

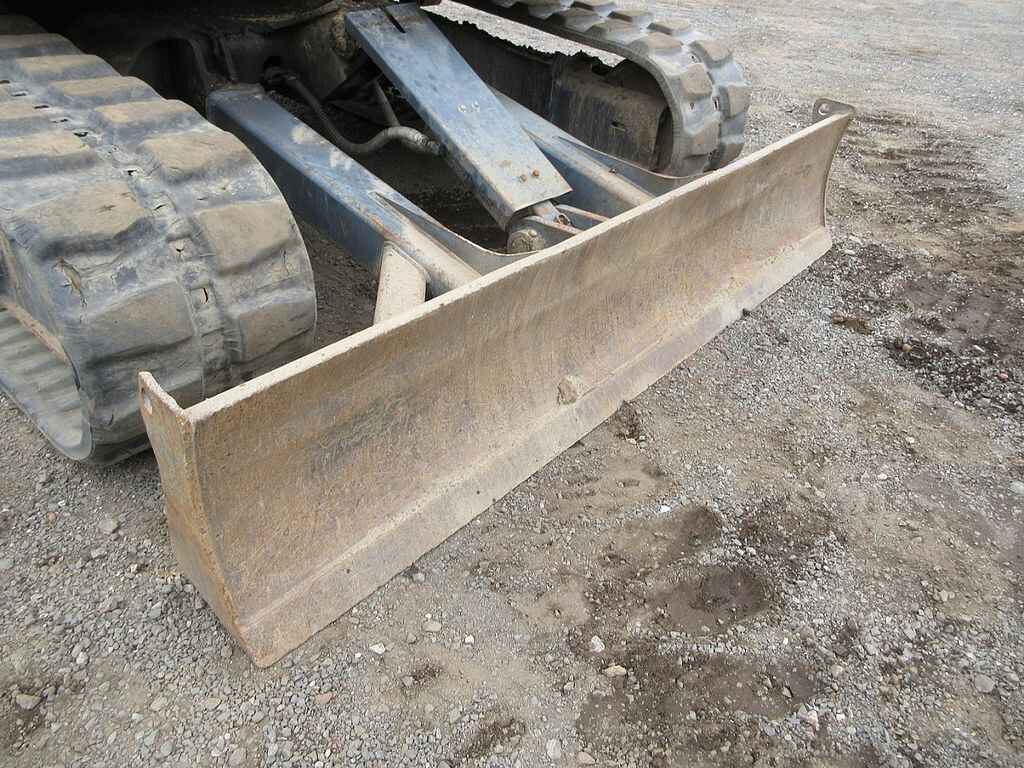

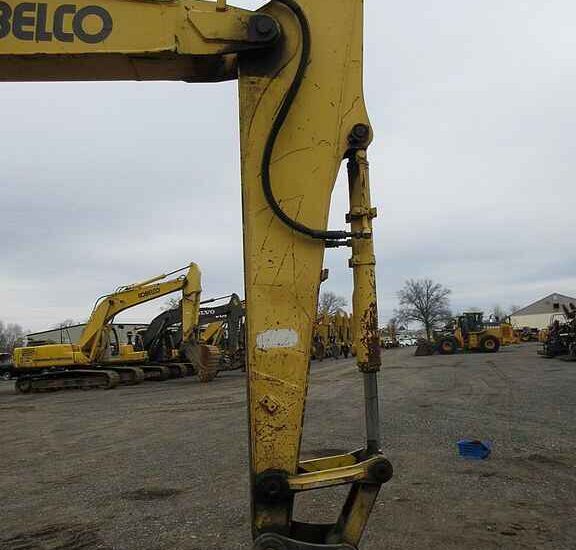

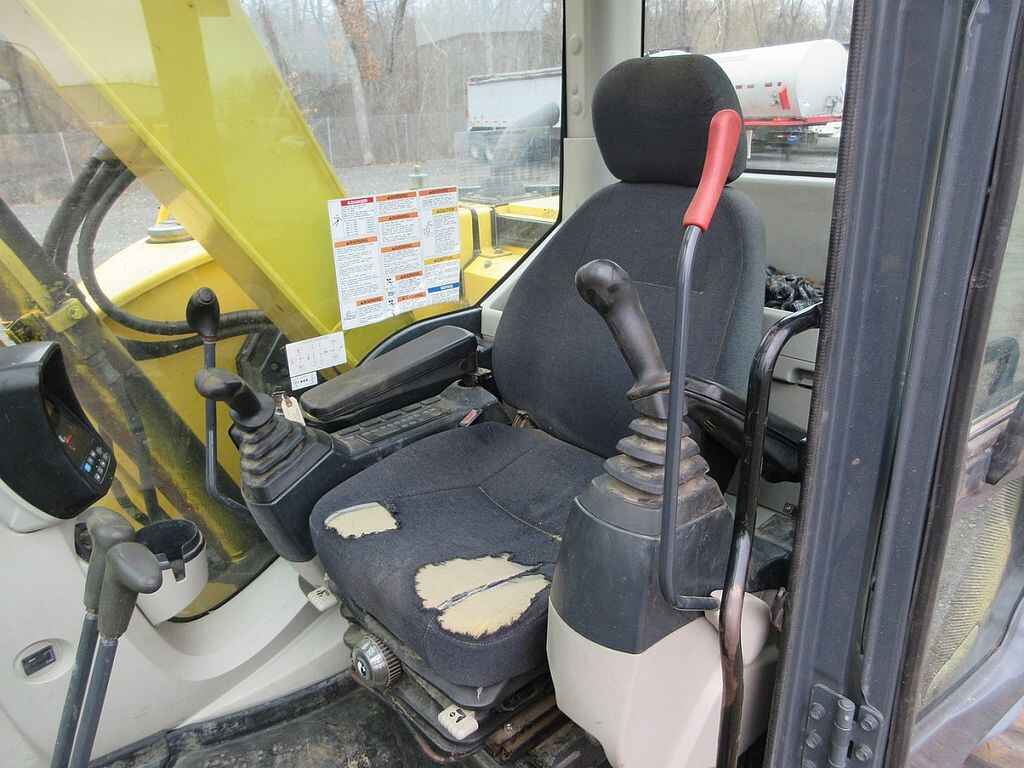

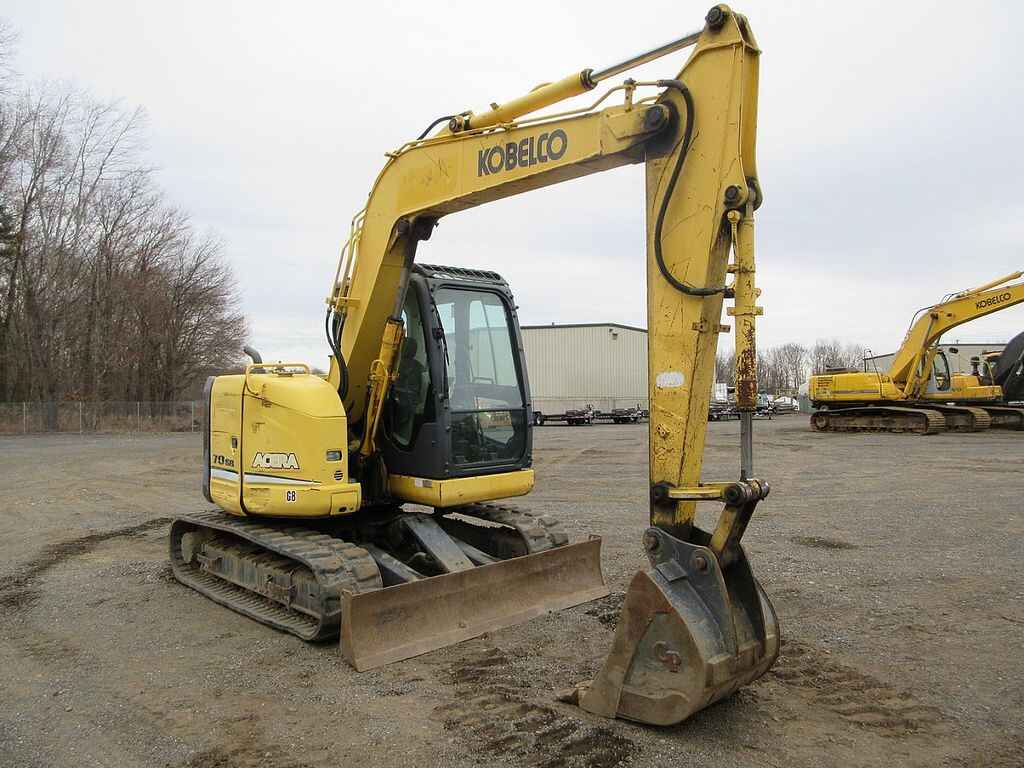

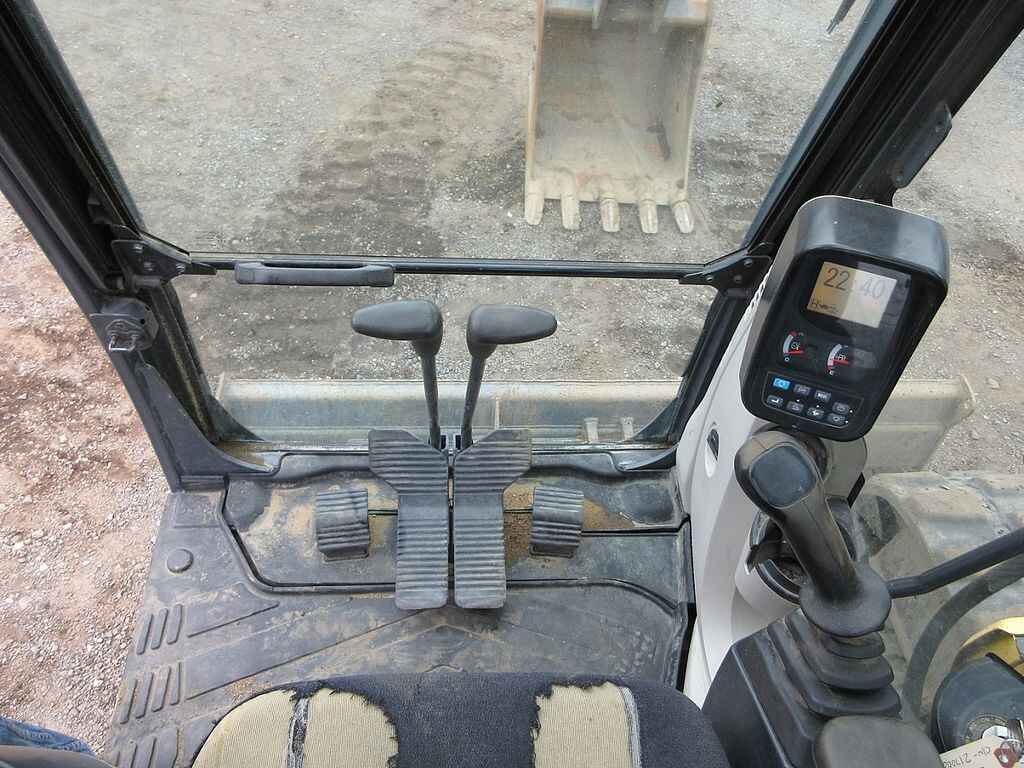

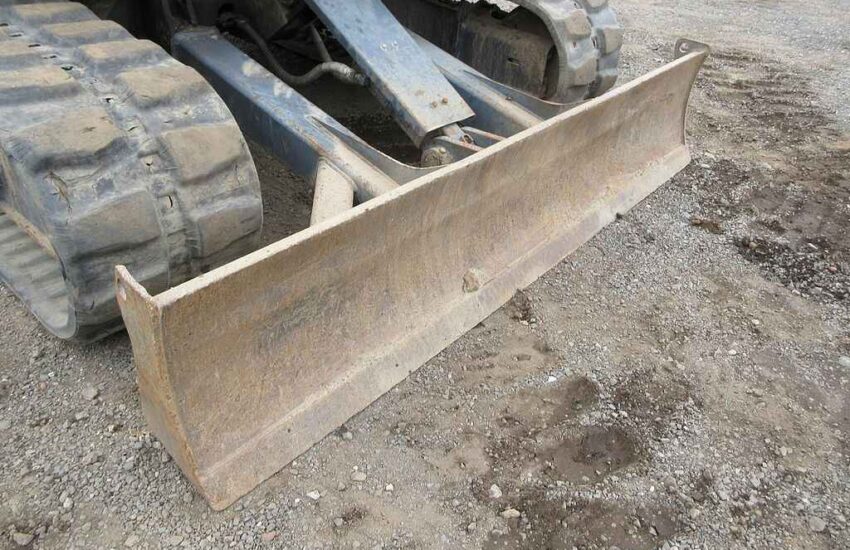

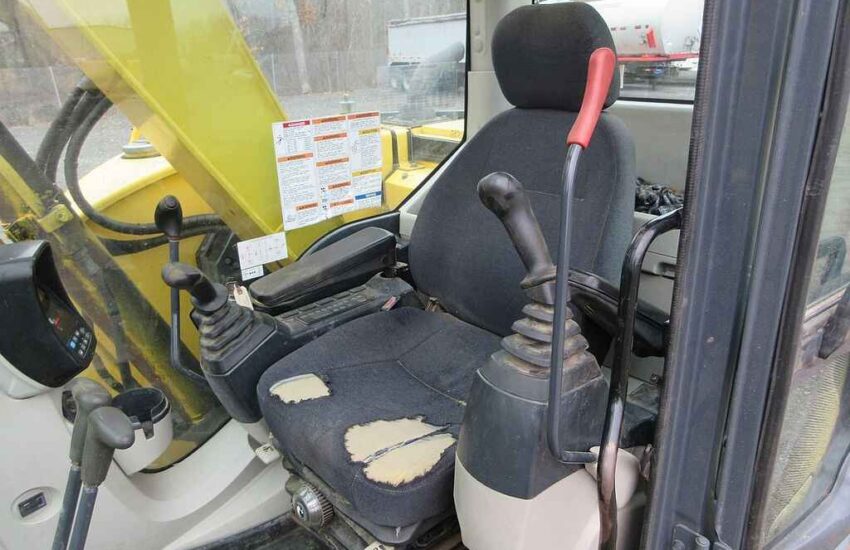

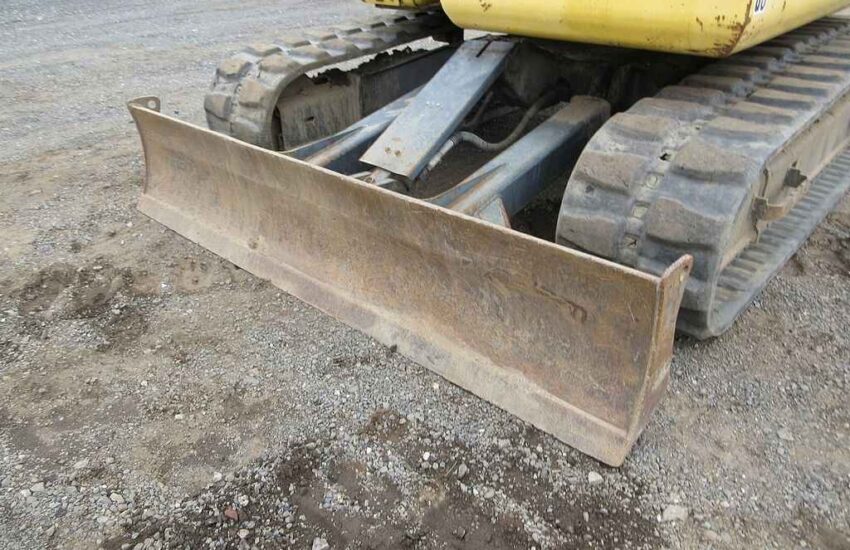

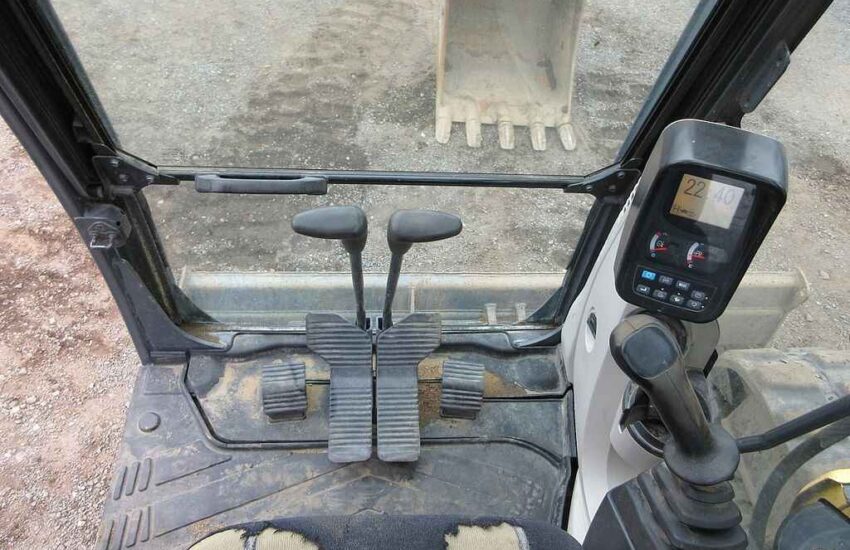

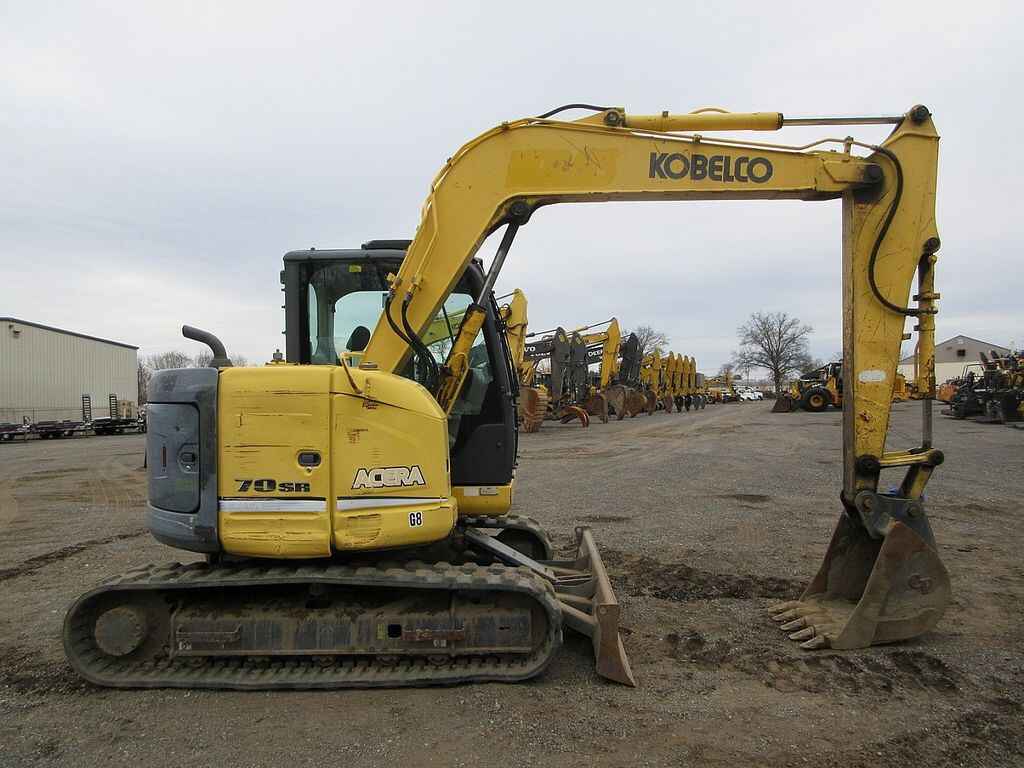

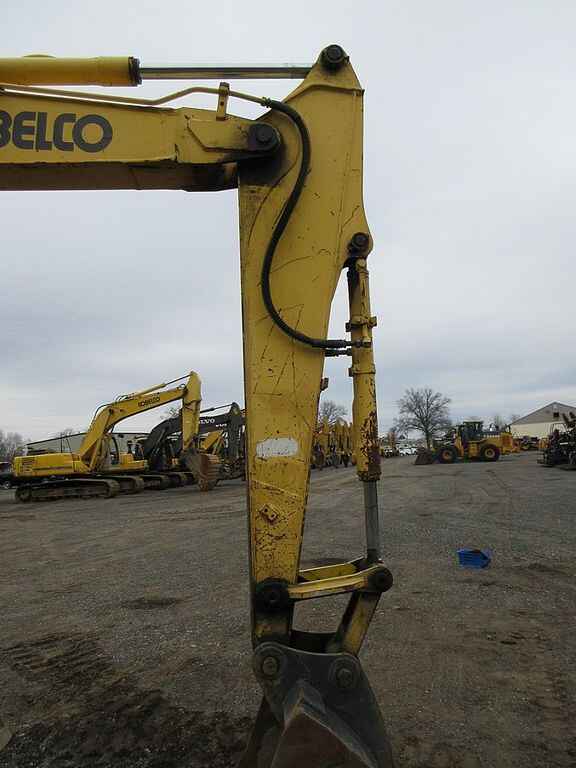

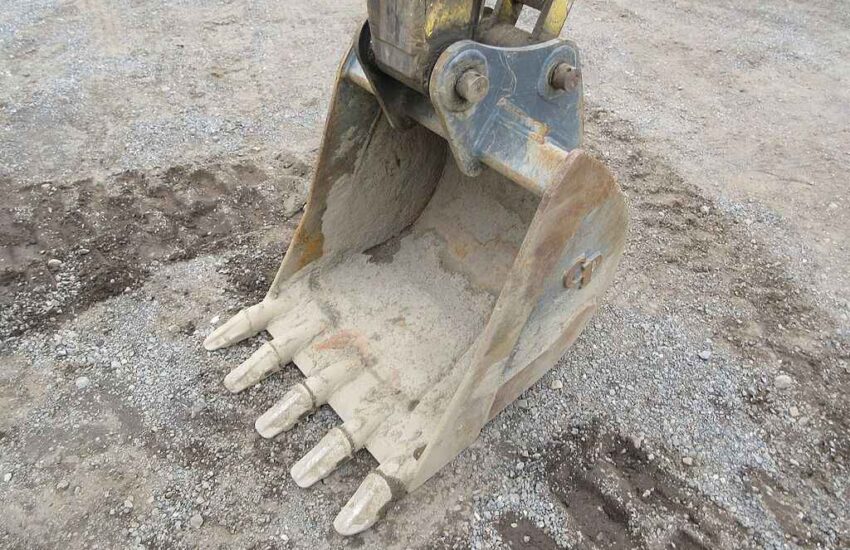

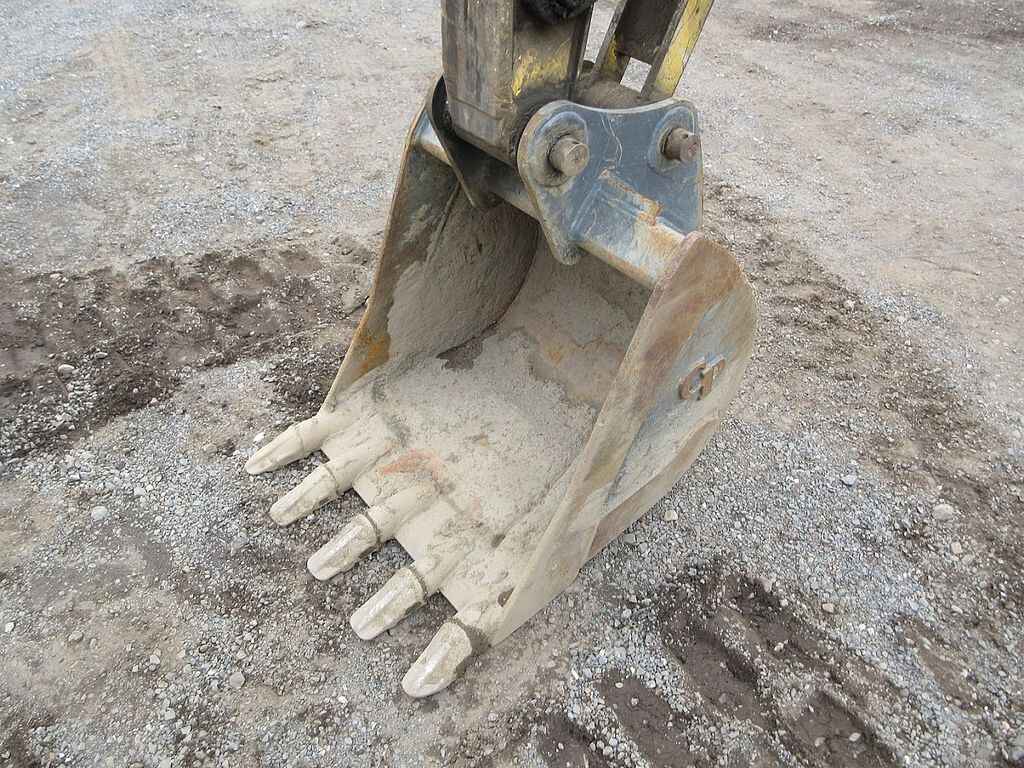

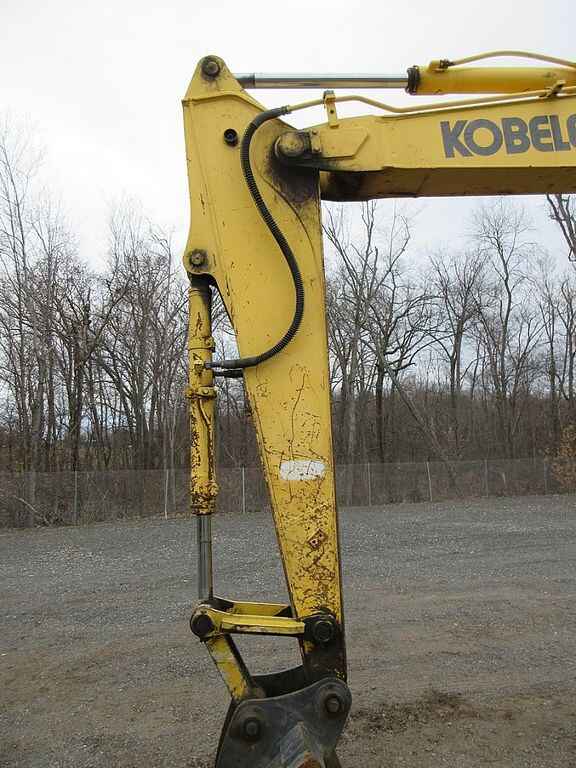

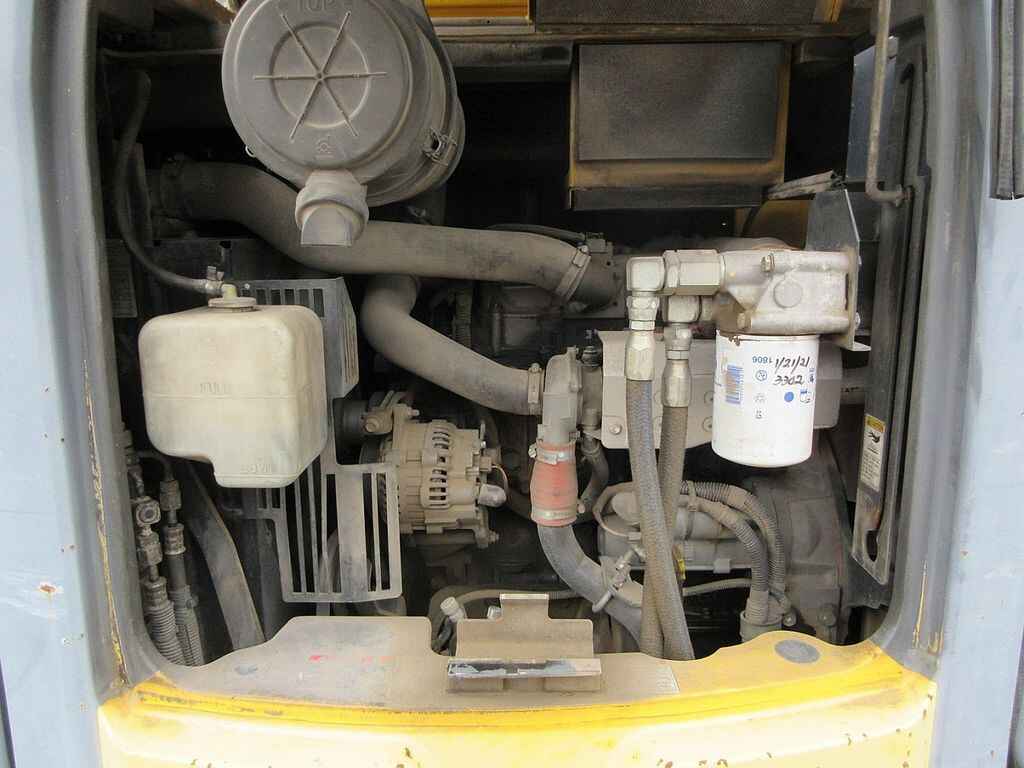

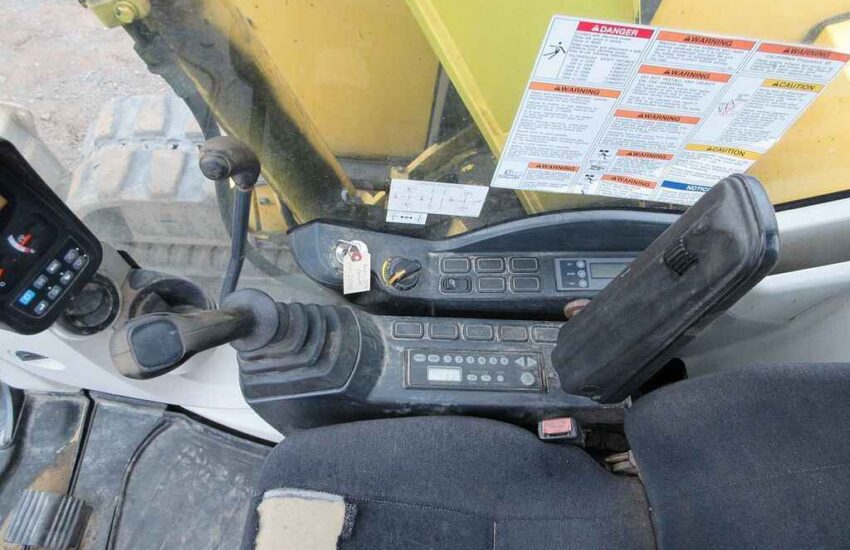

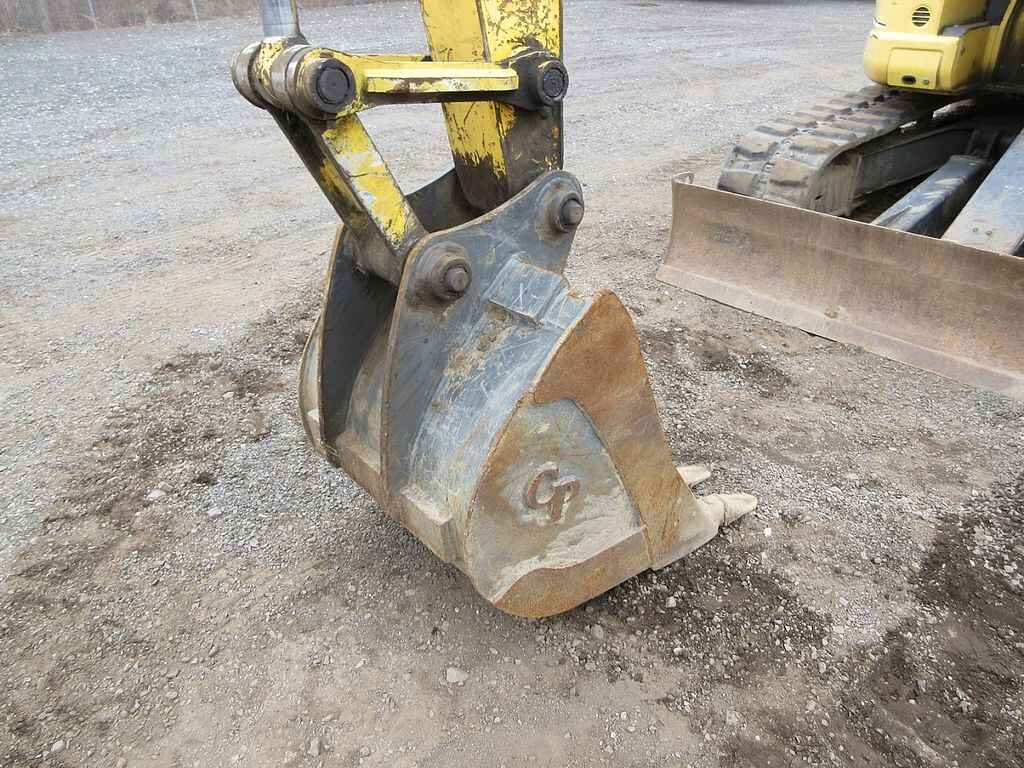

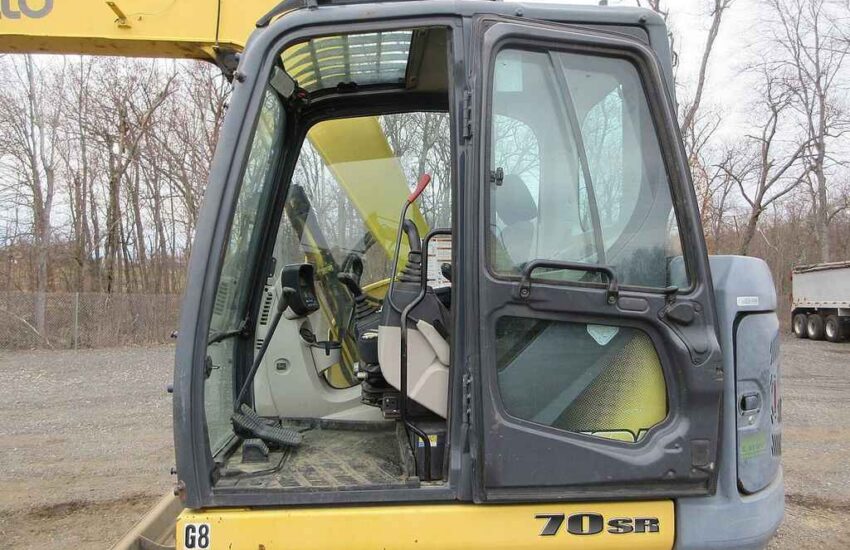

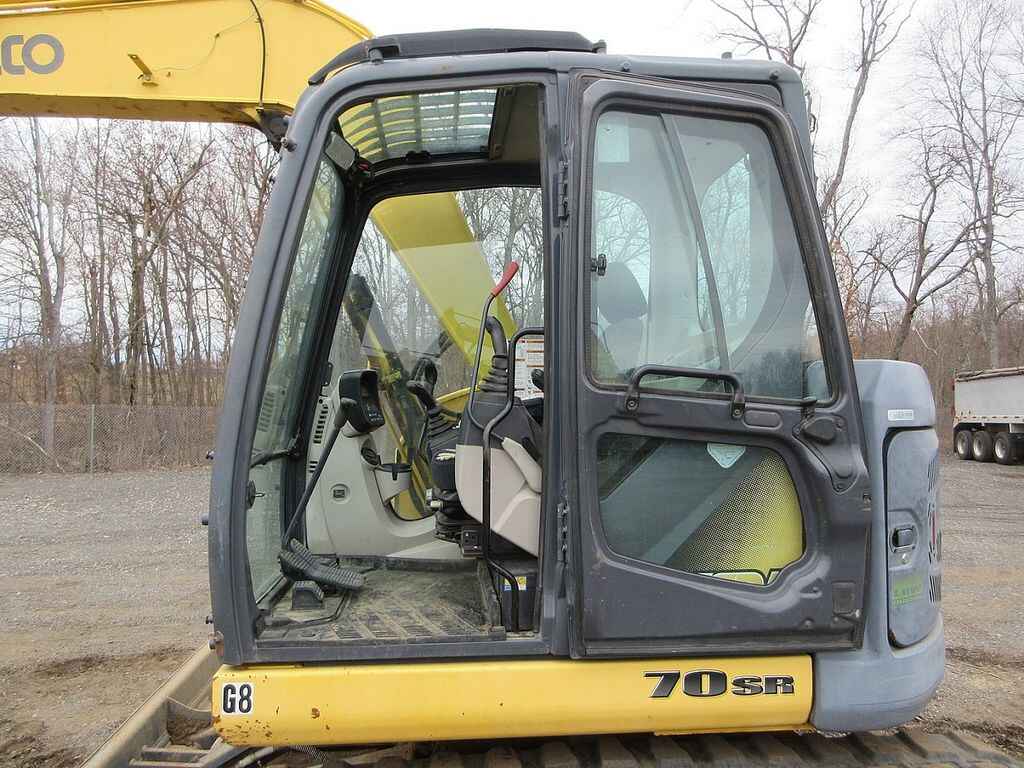

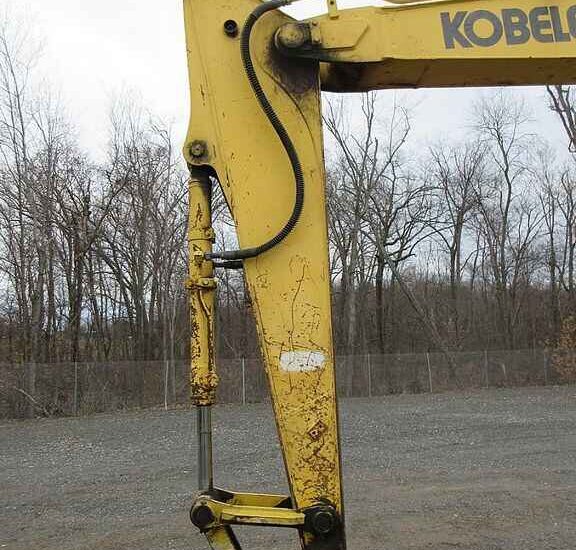

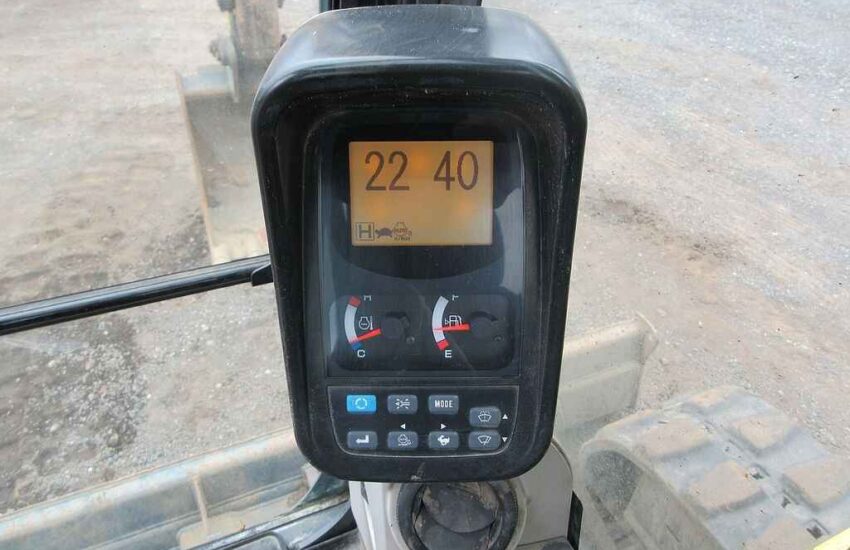

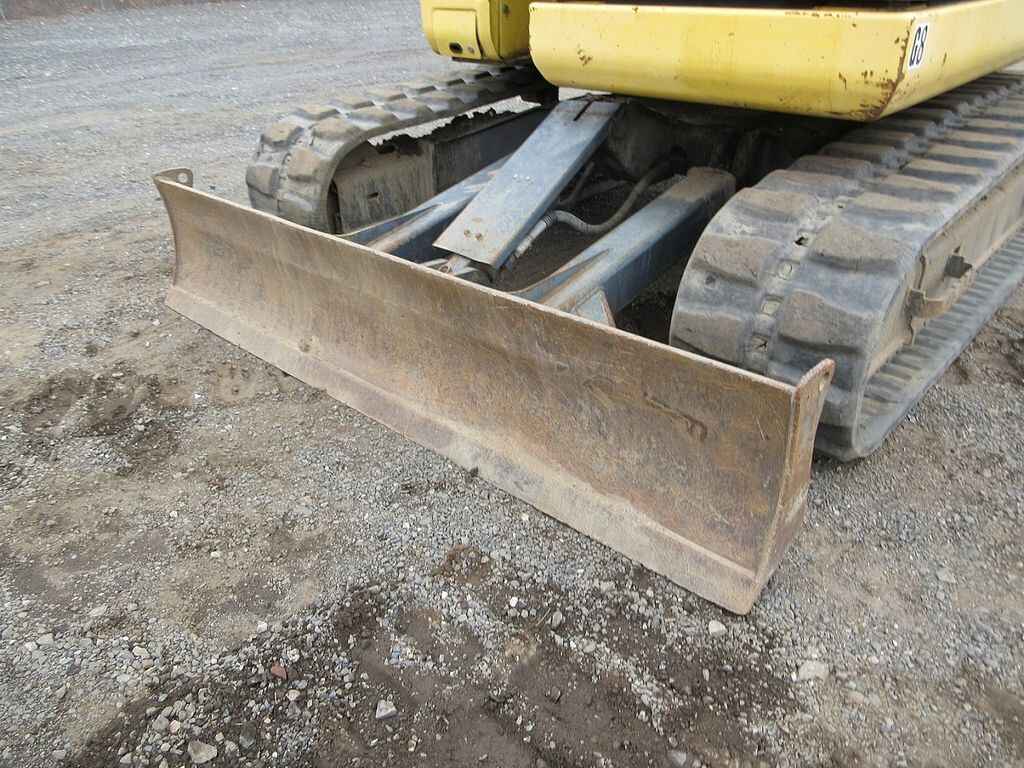

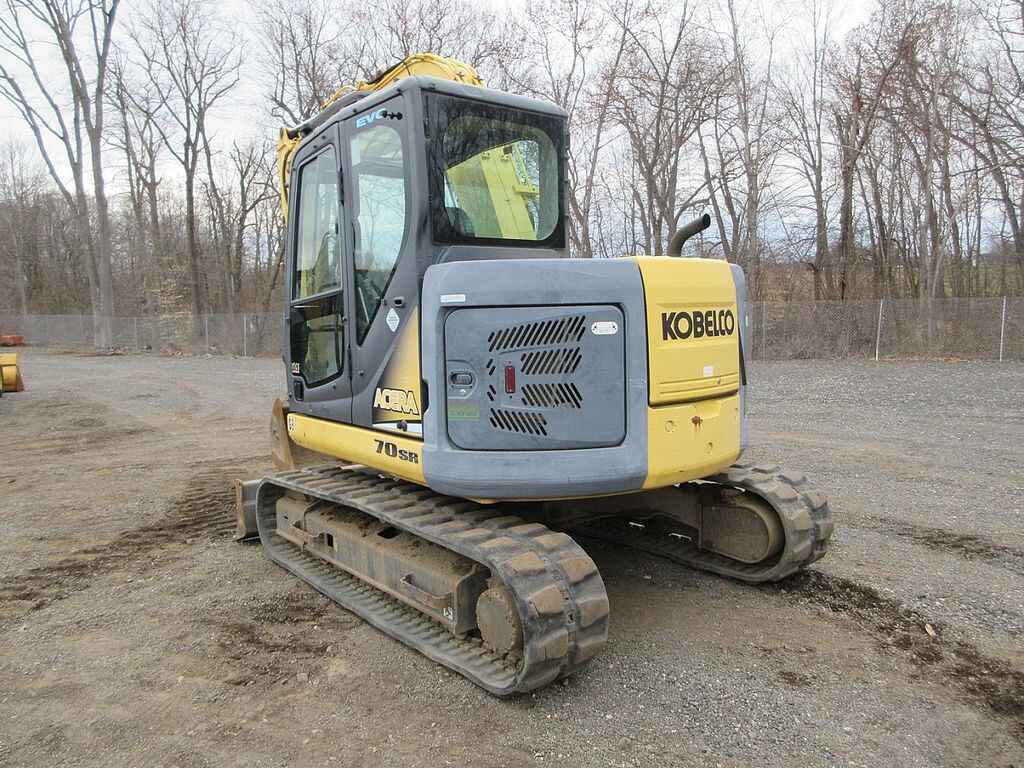

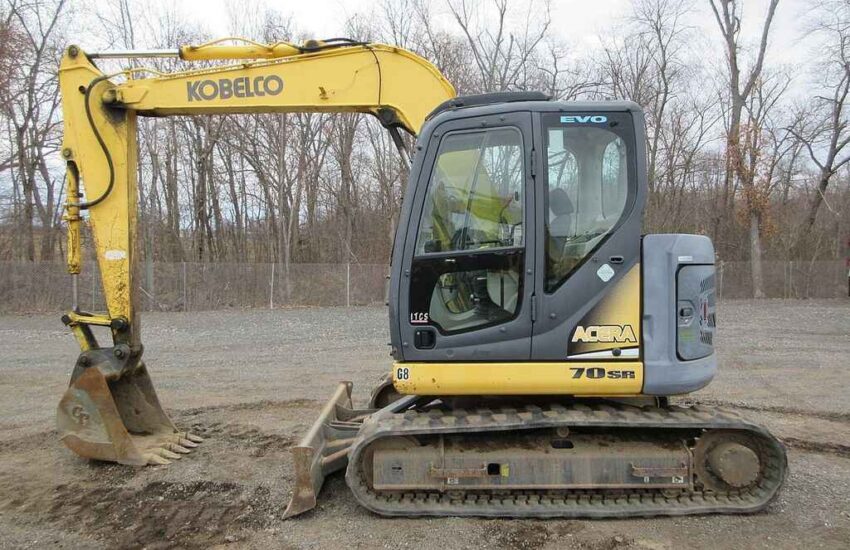

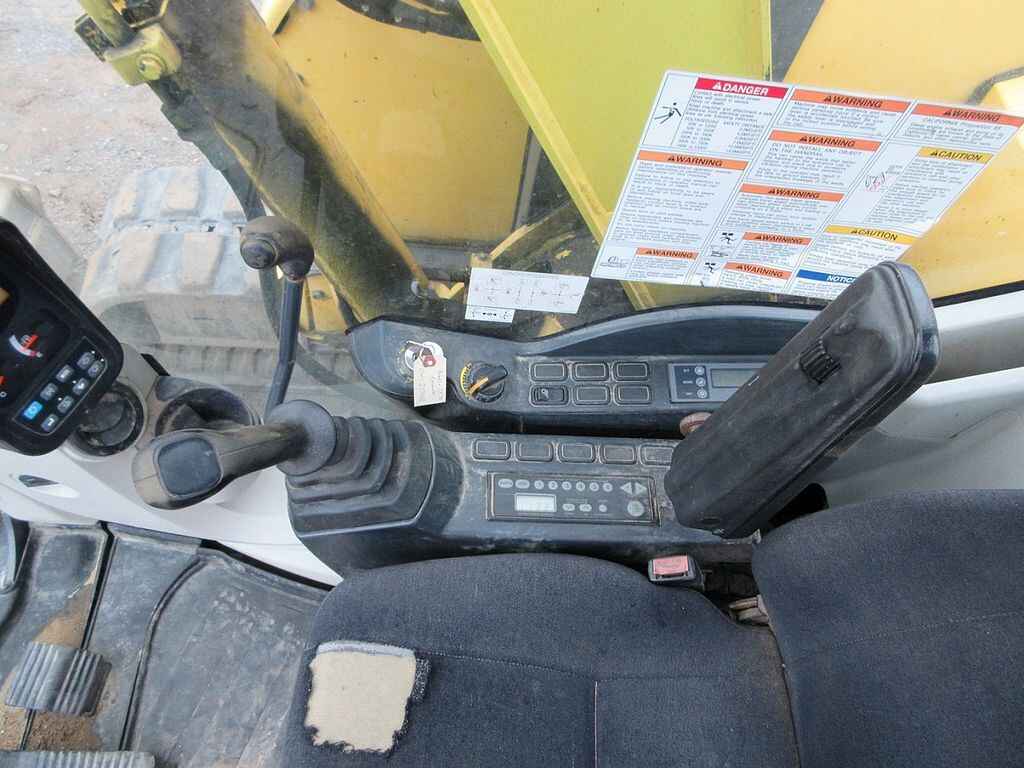

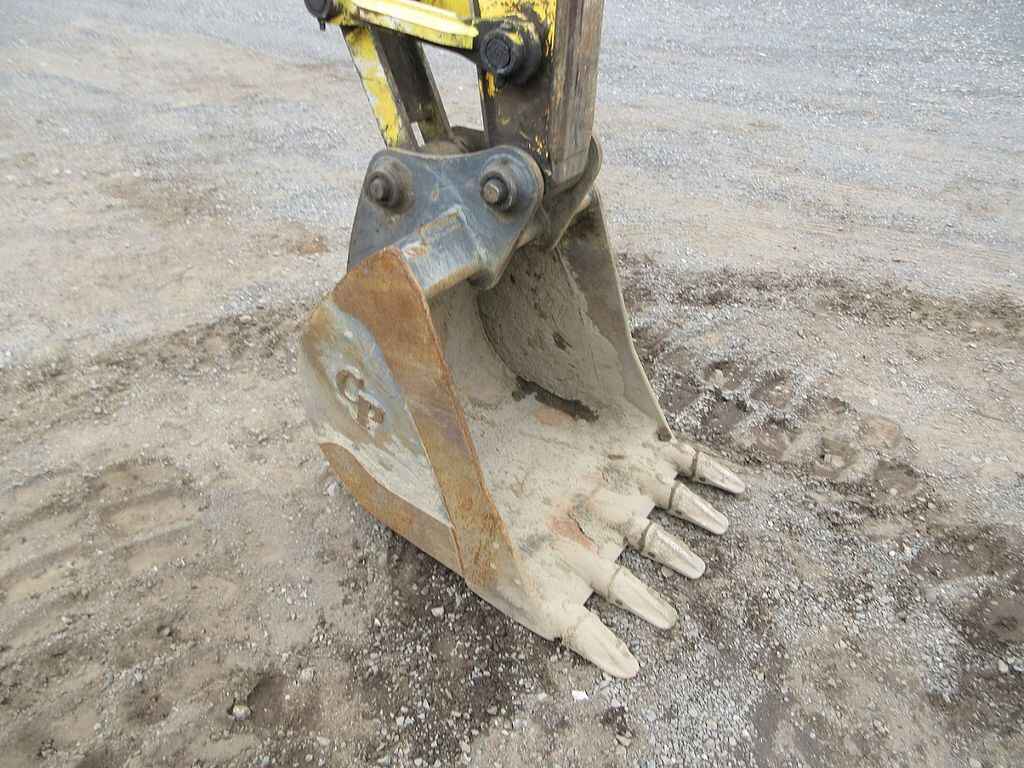

4 cyl Isuzu turbo diesel, cab with heat, A/C, stereo, auto idle, 2 speed travel, backfill blade, 7′ stick, bucket with teeth, meter reads 3570 hours, S/N YT06-20080
Specifications

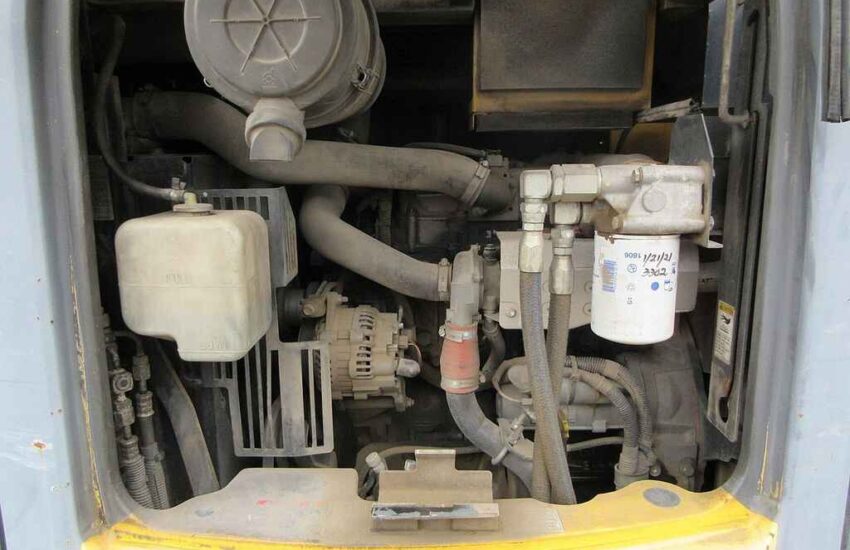

Engine
Model: Isuzu AU-4LE2X
Gross Power: 55 hp (41 kW)
Displacement: 134.3 in³ (2.2 L)
Number of Cylinders: 4
Weights
Operating Weight: 16,469 lbs (7,470 kg)
Performance
Maximum Digging Depth: 13 ft 6 in (4.15 m)
Maximum Reach at Ground Level: 20 ft 8 in (6.3 m)
Maximum Loading Height: 17 ft 6 in (5.33 m)
Maximum Vertical Wall Digging Depth: 11 ft 3 in (3.44 m)

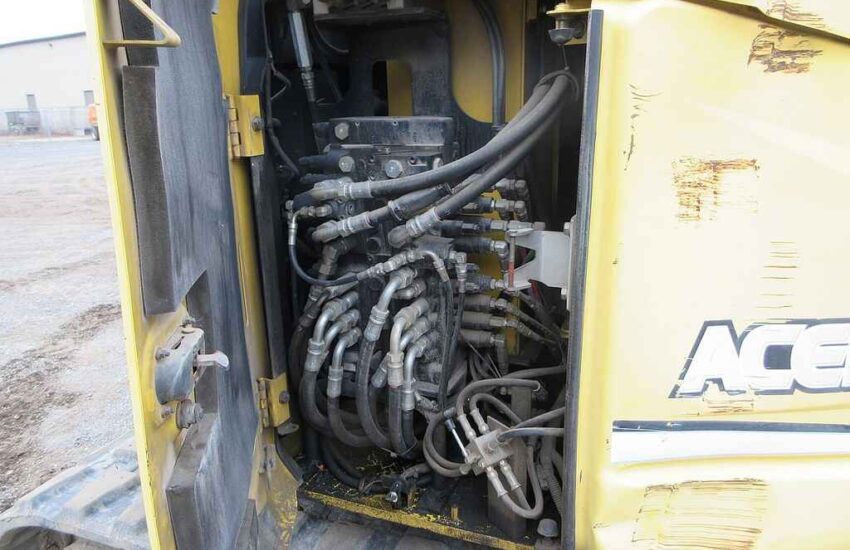

Hydraulics
Hydraulic System Relief Valve Pressure: 4,264 psi (29.4 MPa)
Hydraulic Pump Flow Capacity: 34.9 gal/min (132 L/min)
Dimensions
Shipping Length: 19 ft 1 in (5.82 m)
Shipping Height: 9 ft (2.74 m)
Width to Outside of Tracks: 7 ft 7 in (2.32 m)
Tail Swing Radius: 4 ft 2 in (1.28 m)
Ground Clearance: 1 ft 2 in (0.36 m)

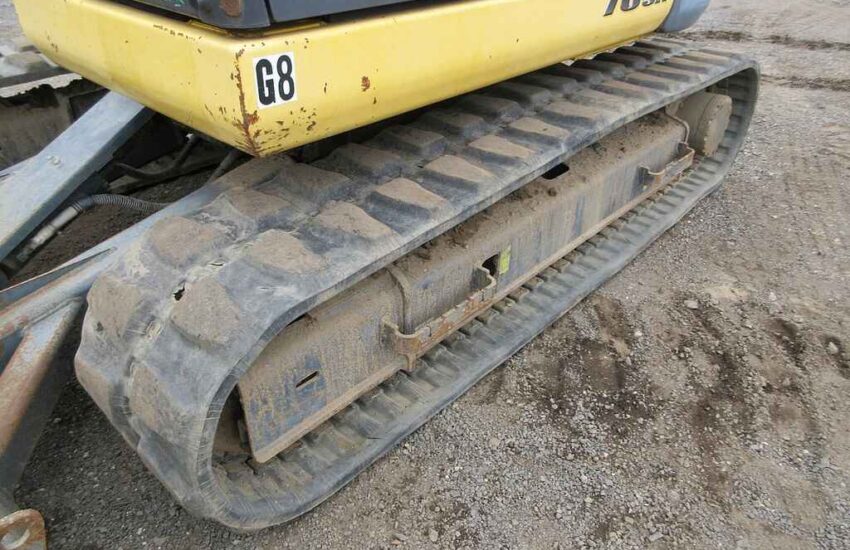

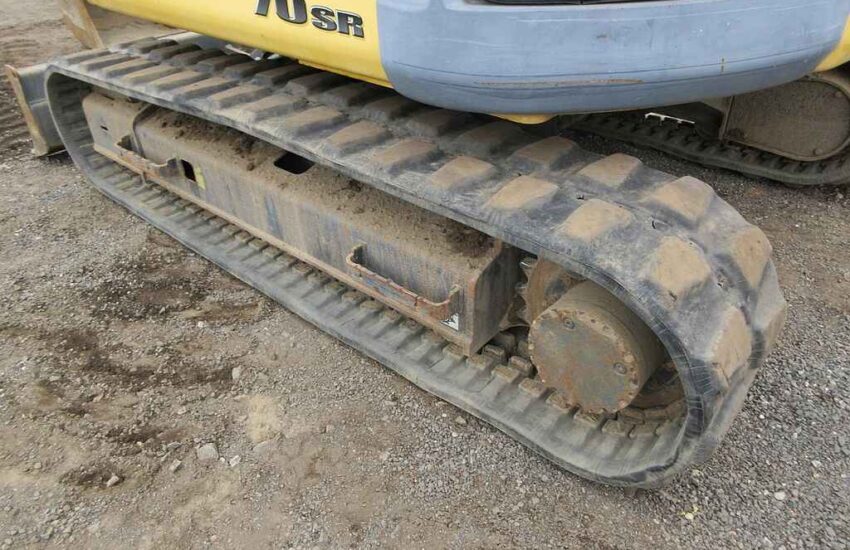

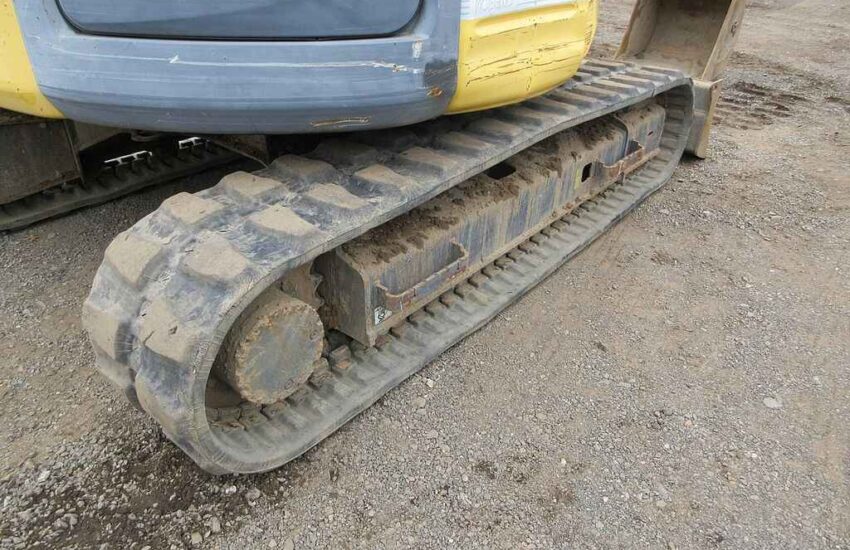

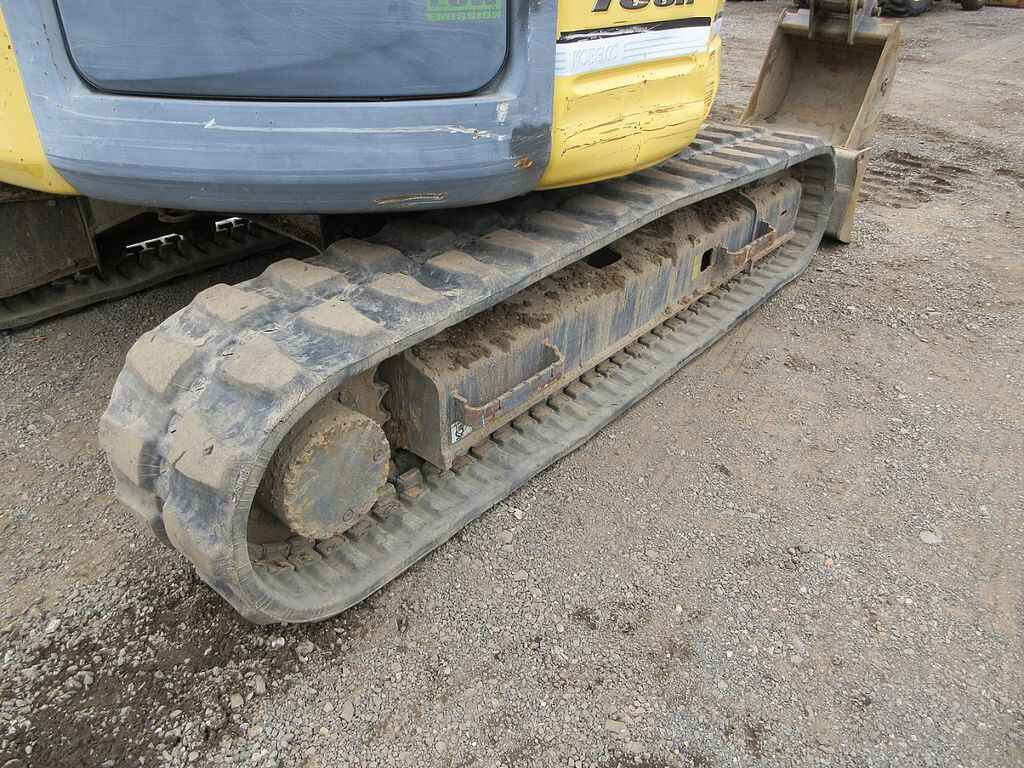

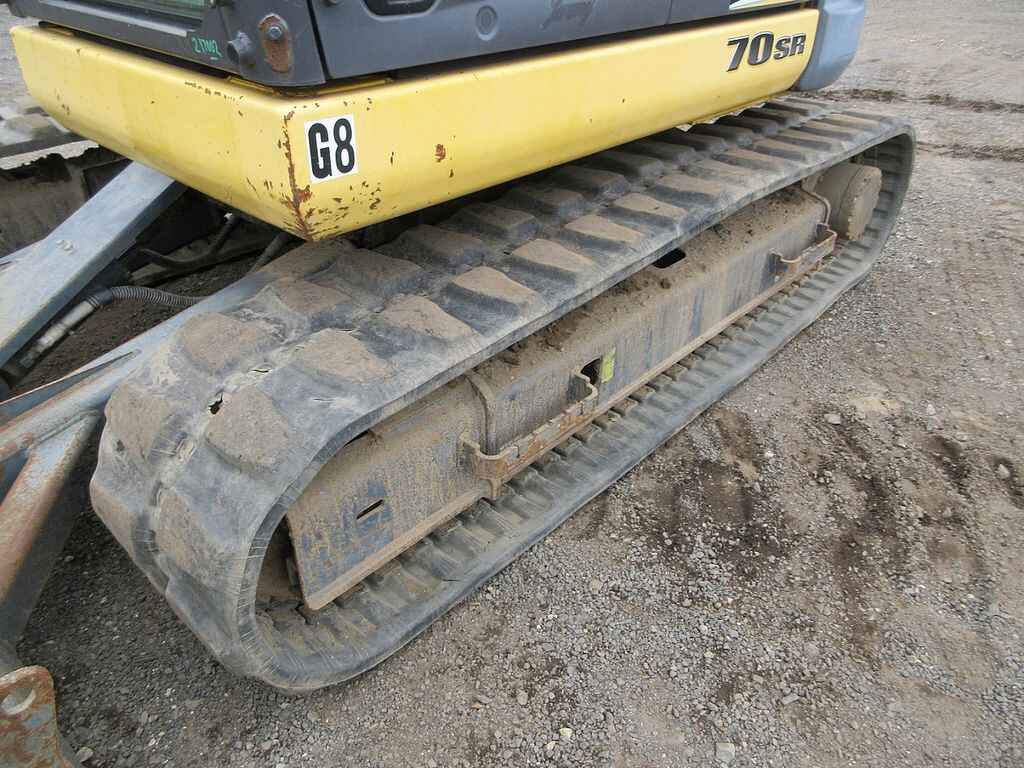

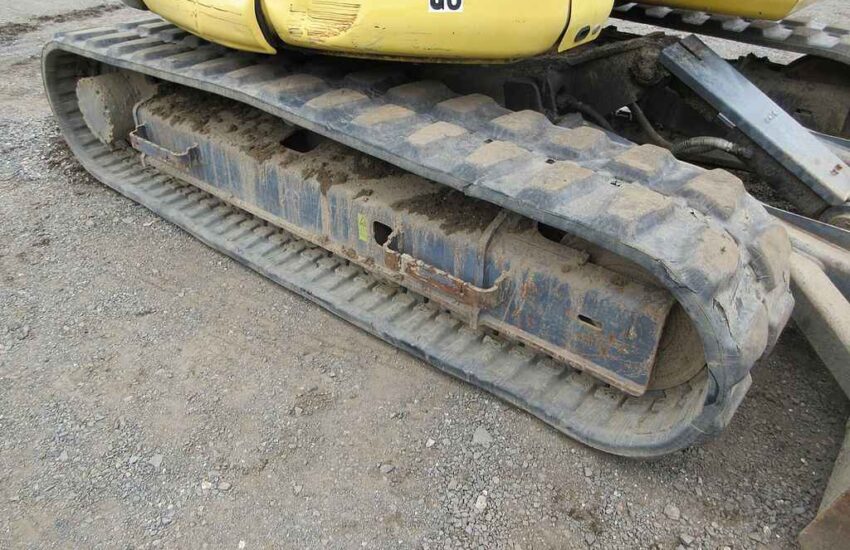

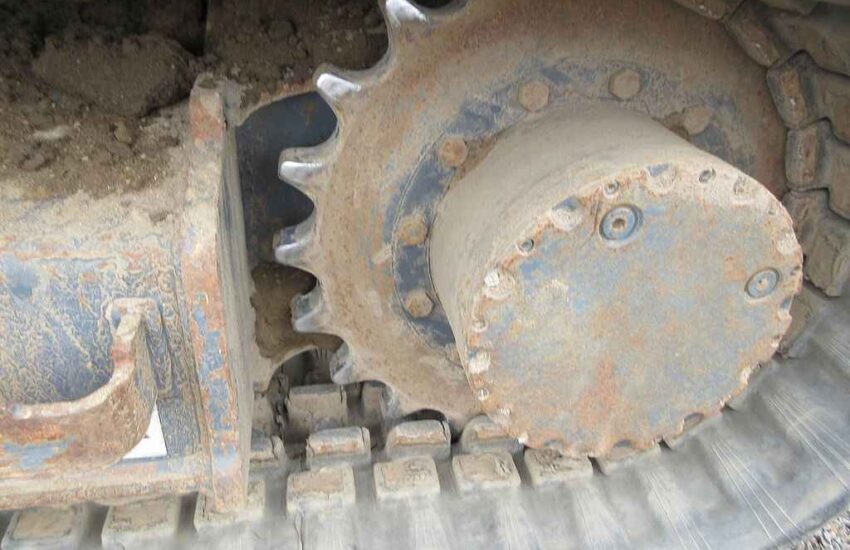

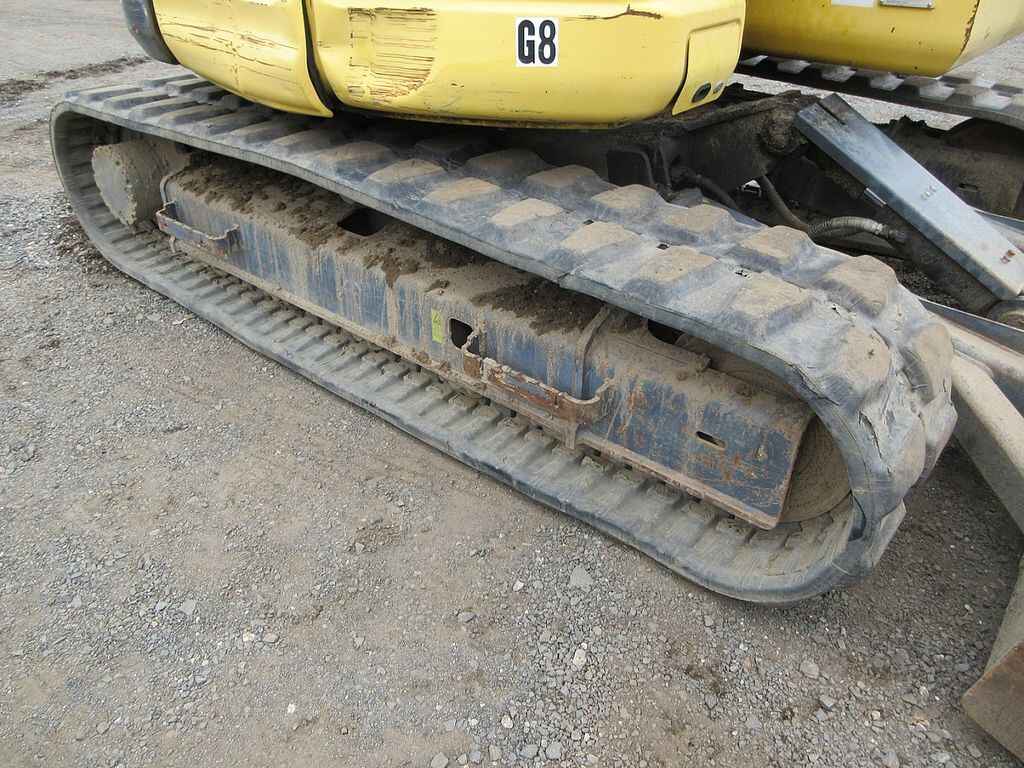

Undercarriage
Shoe Size: 17.7 in (450 mm)
Length of Track on Ground: 7 ft 3 in (2.24 m)
Features
- Radio
- Air Conditioner
- Heater
