Details
-
Industry:
-
Make:
-
Model:
-
Color:
-
Drive Type:
-
Transmission:
-
Condition:
-
Year:2013
-
Fuel Type:
-
Engine:Cat C7.1 ACERT
-
Serial:KRHN02580
-
Hours:6978
-
Stock#:1341JB
Overview

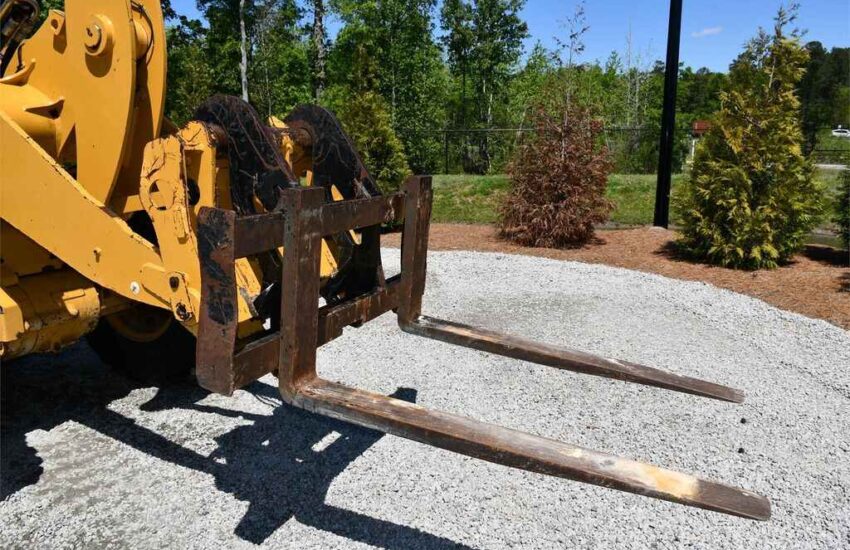

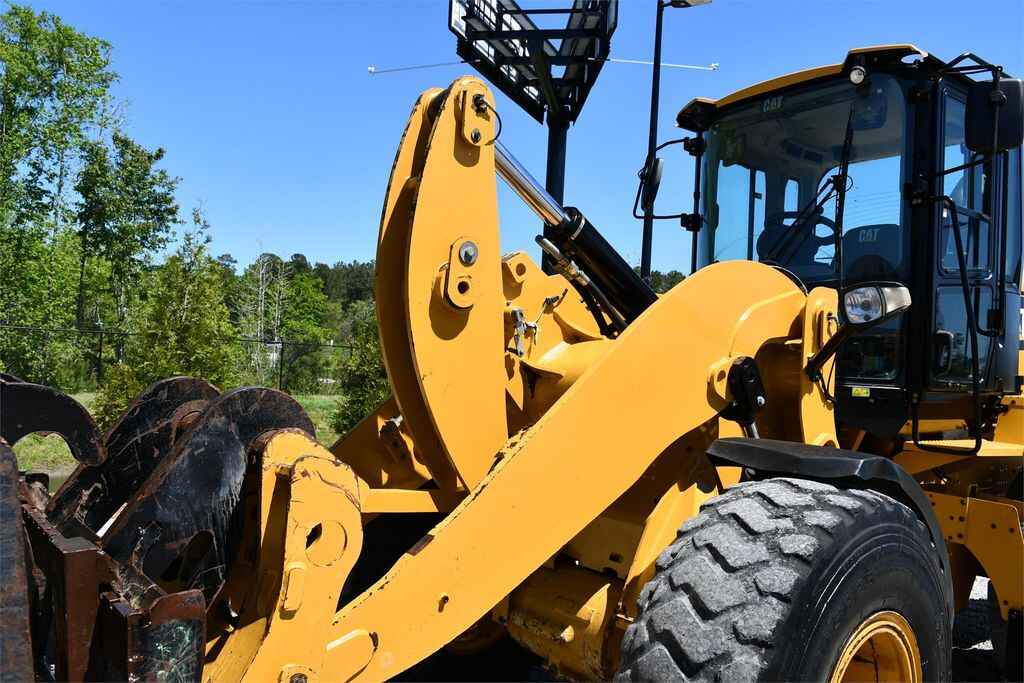

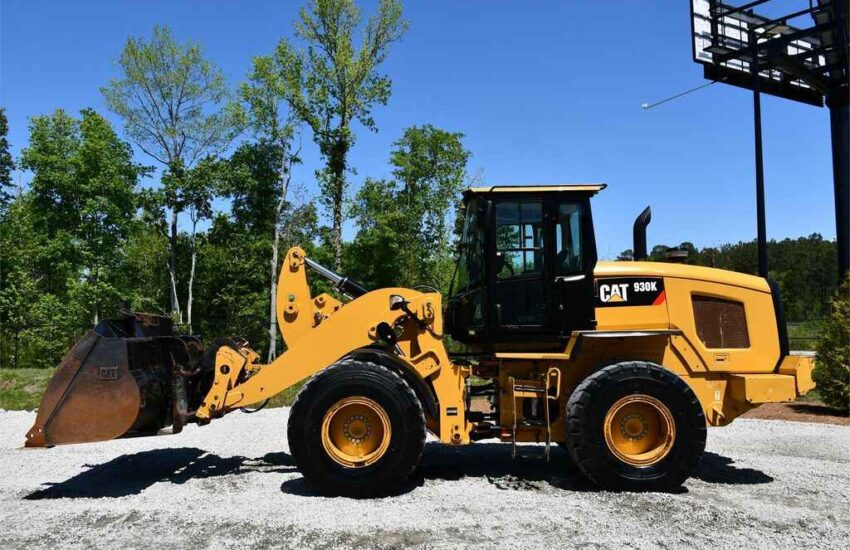

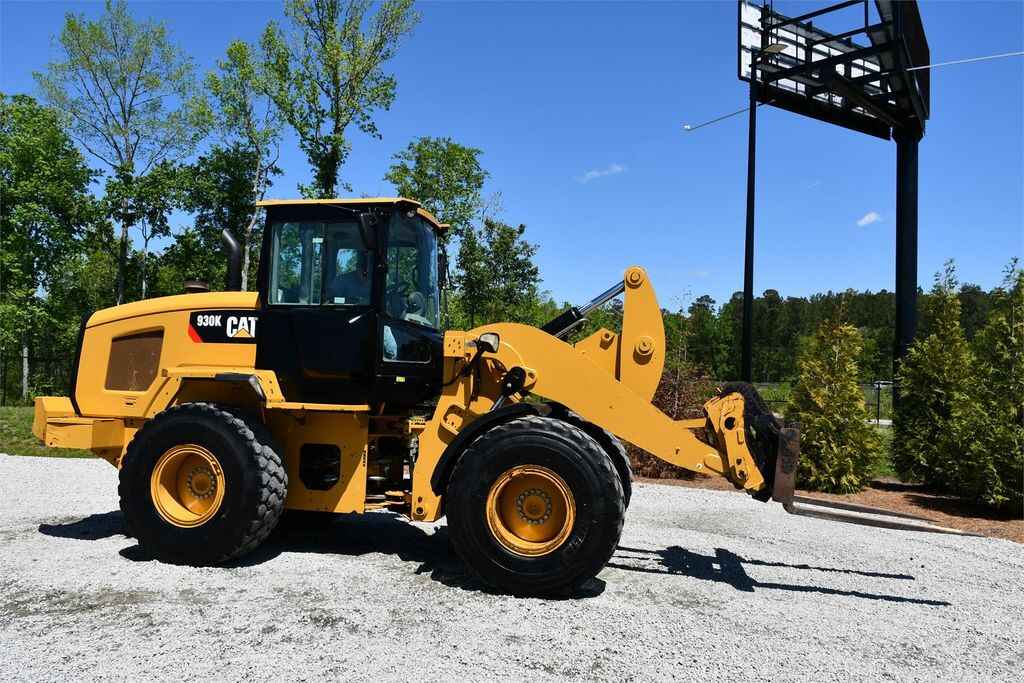

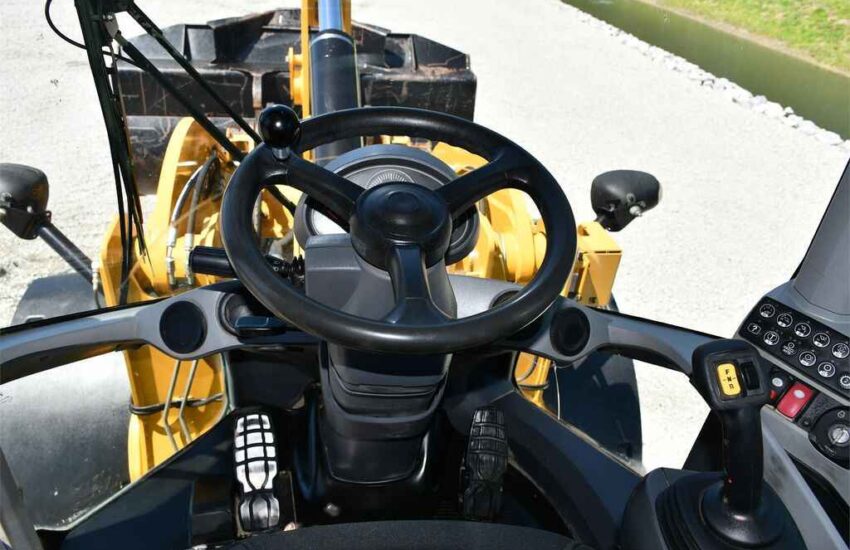

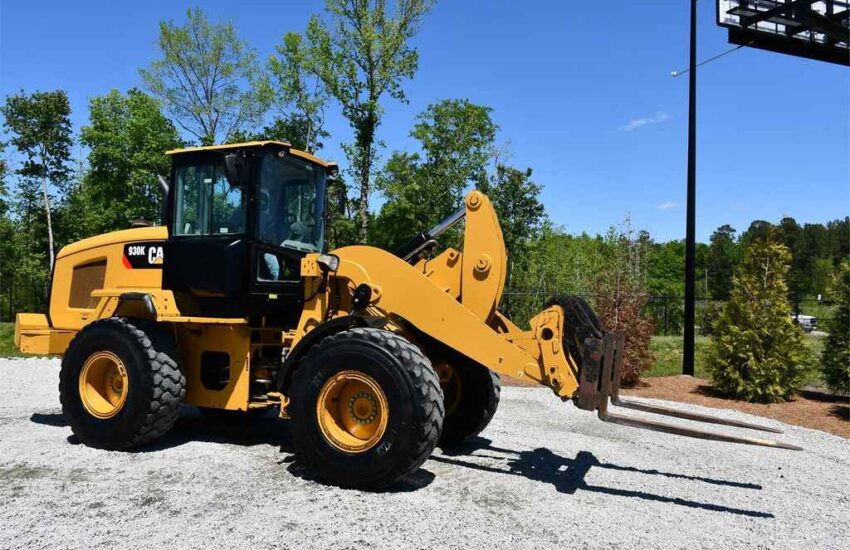

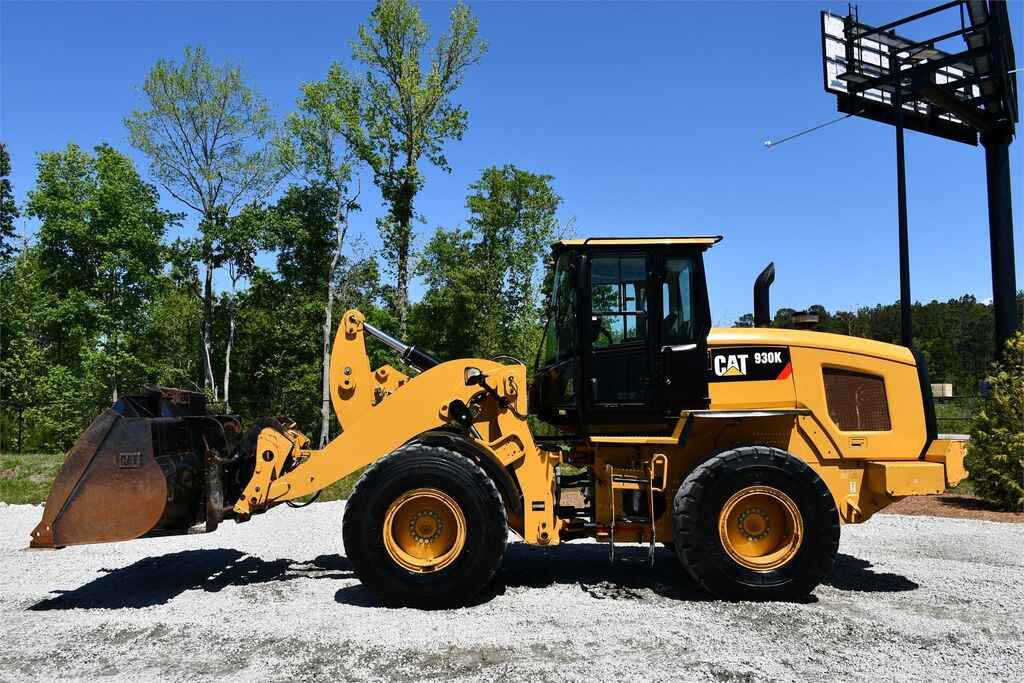

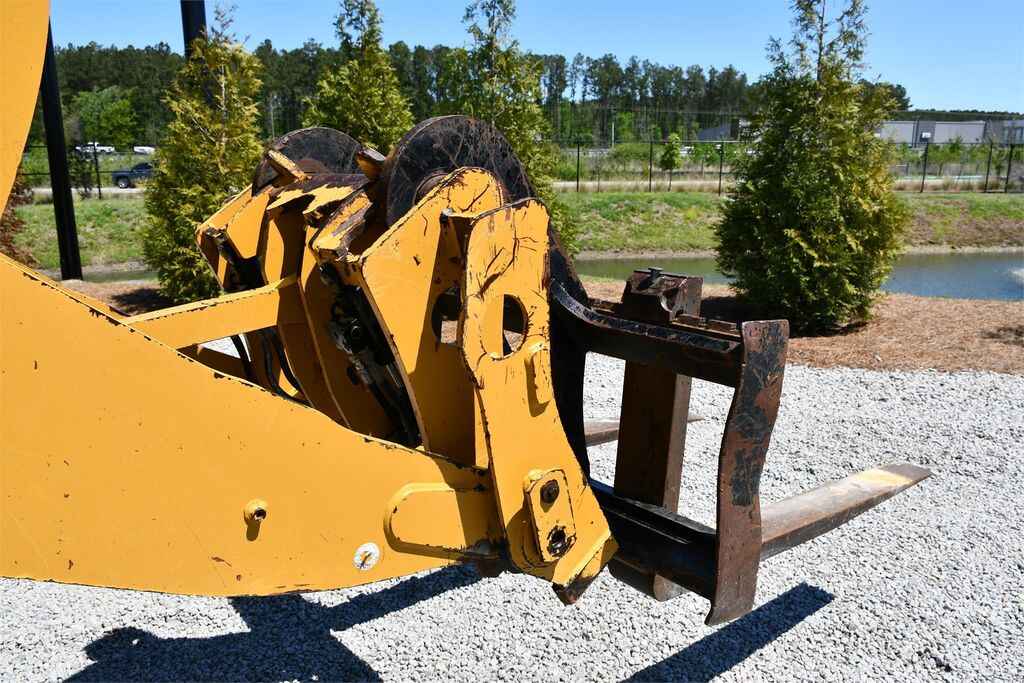

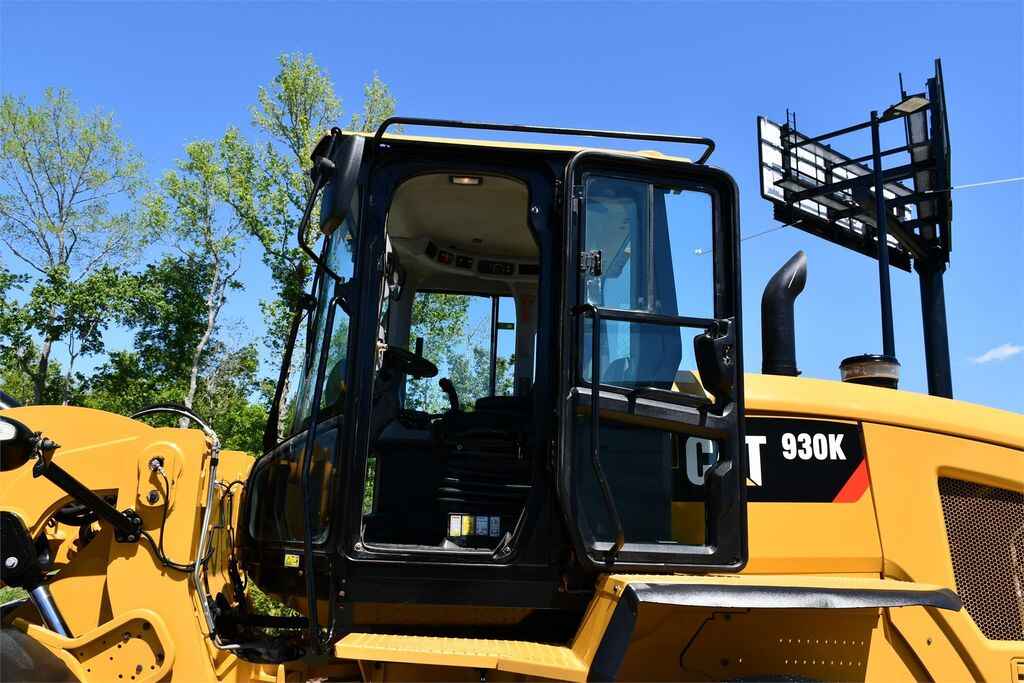

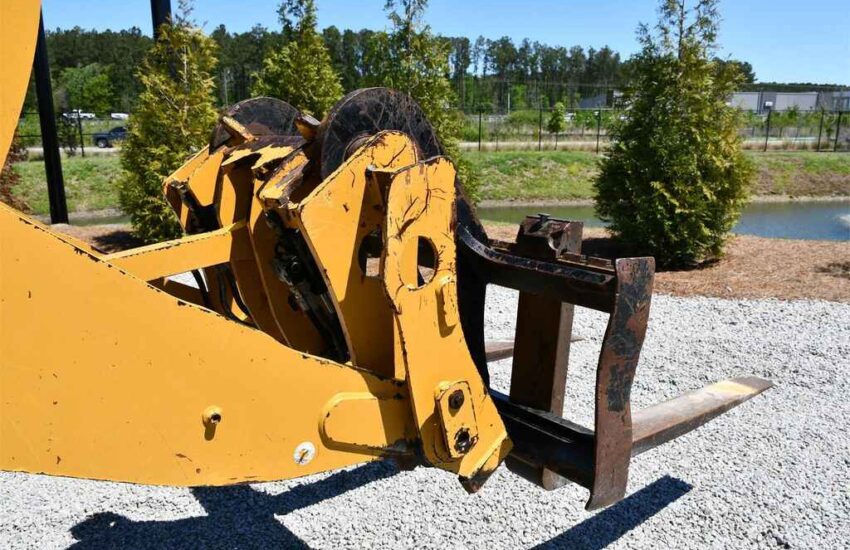

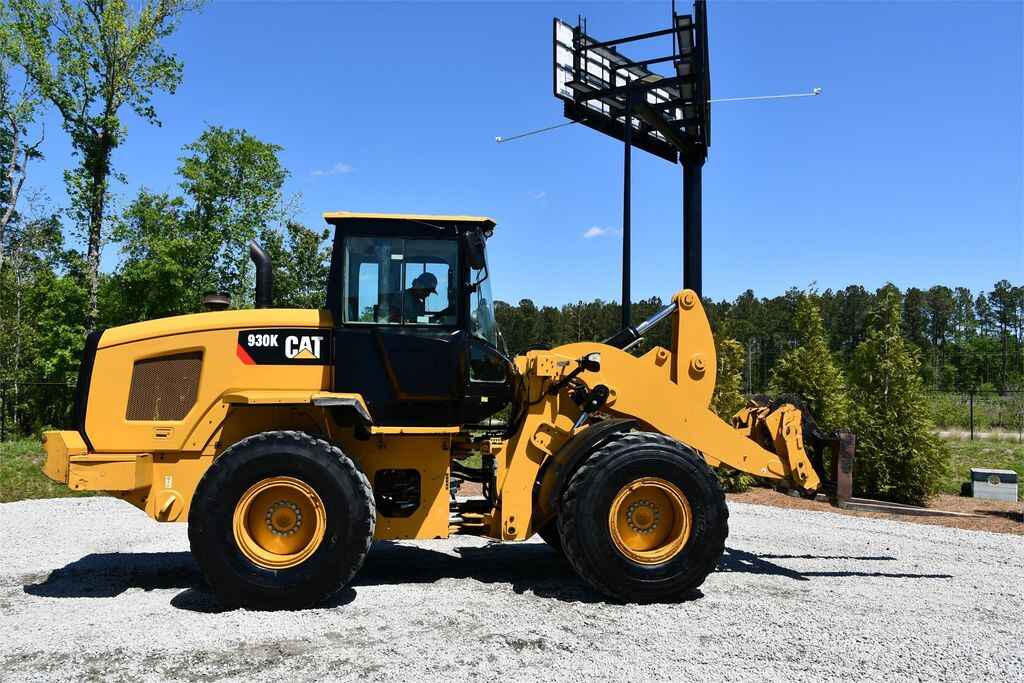

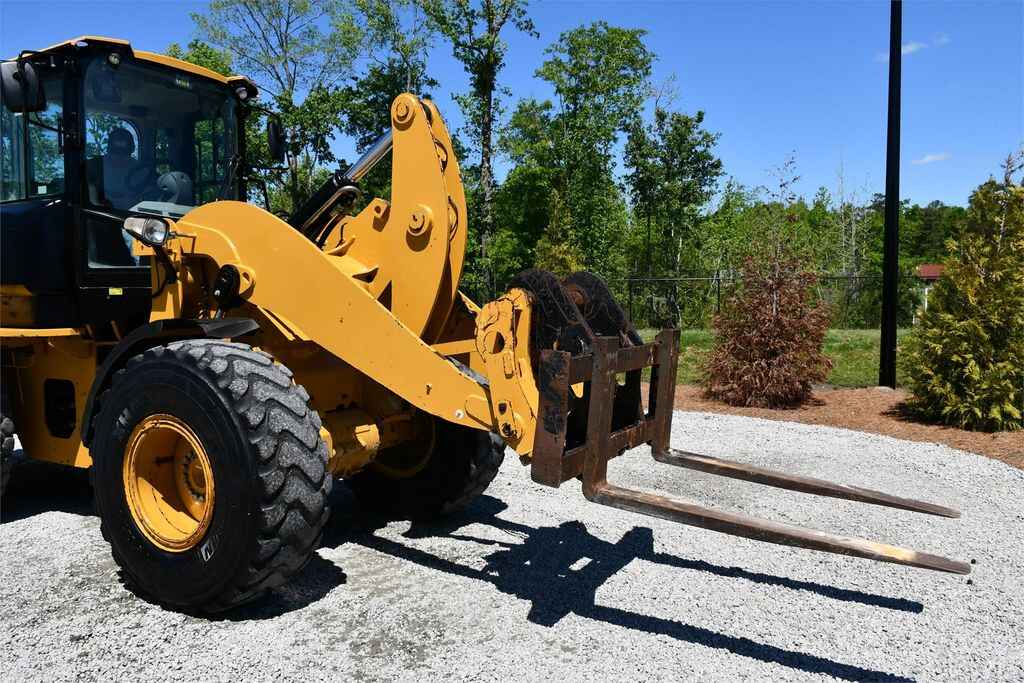

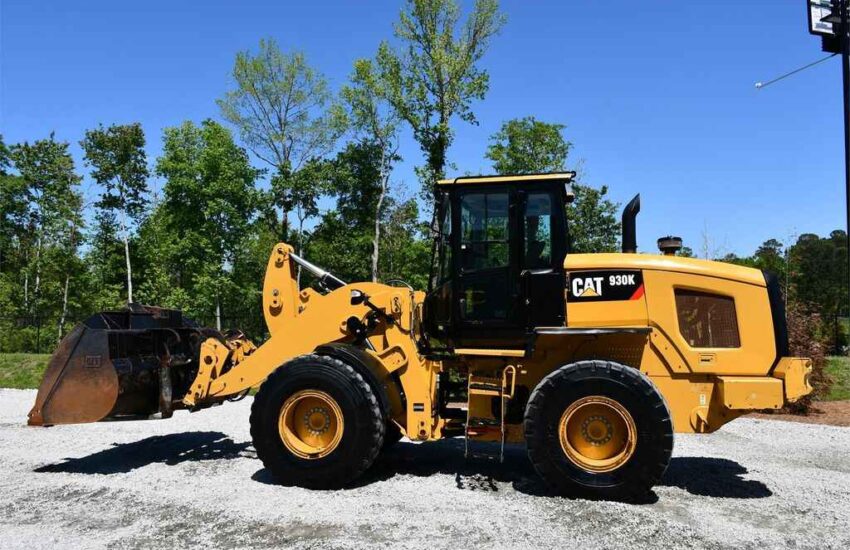

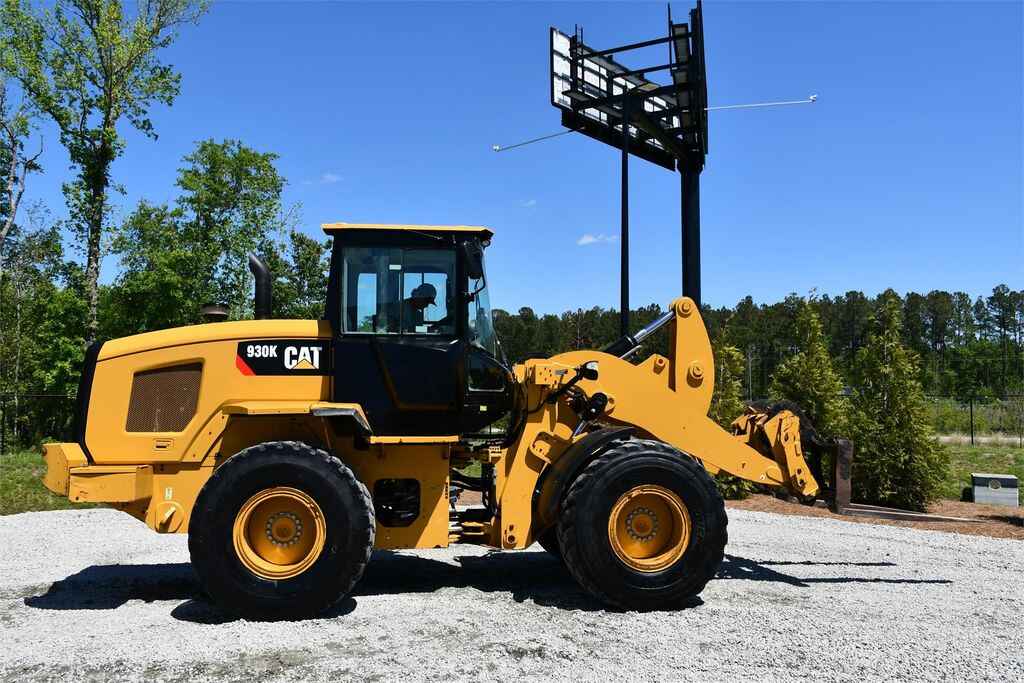

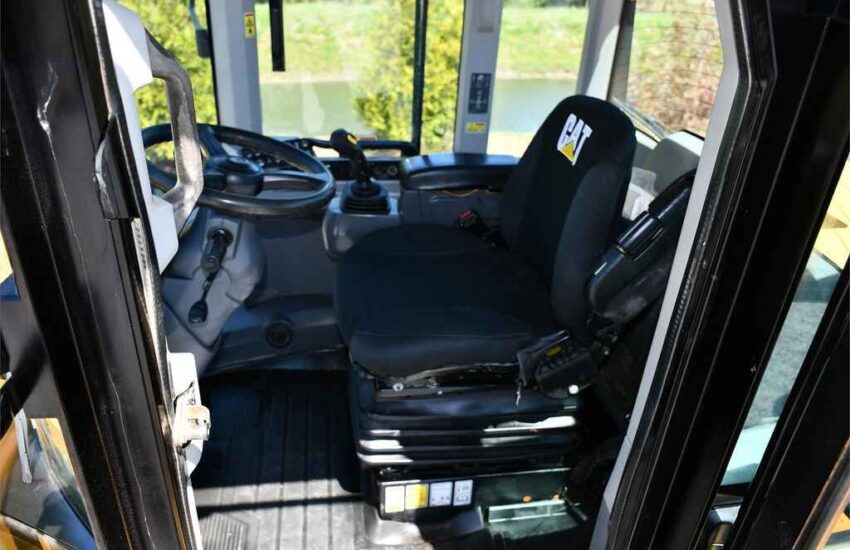

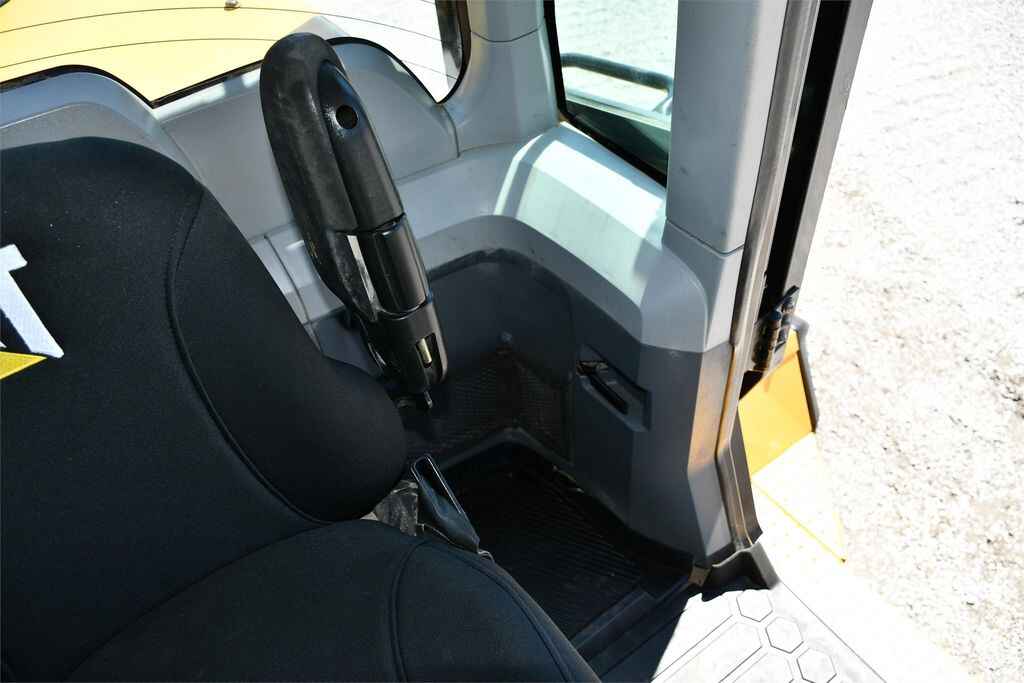

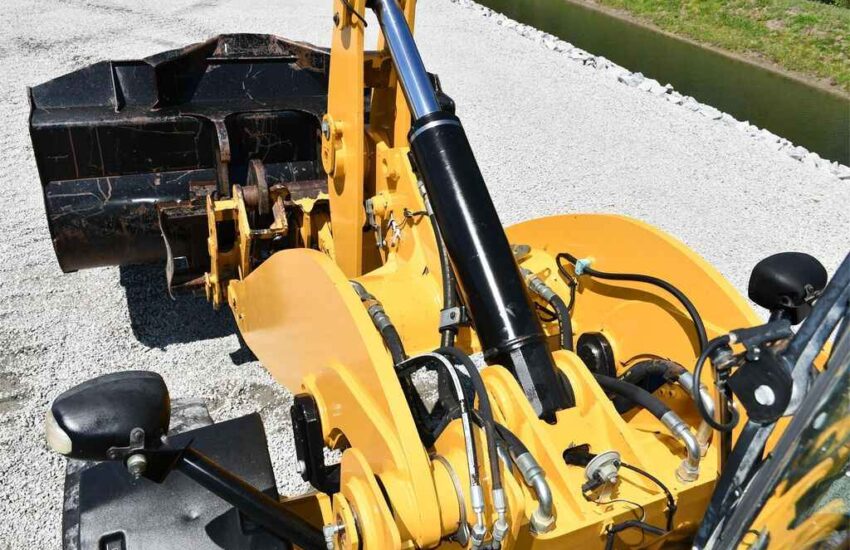

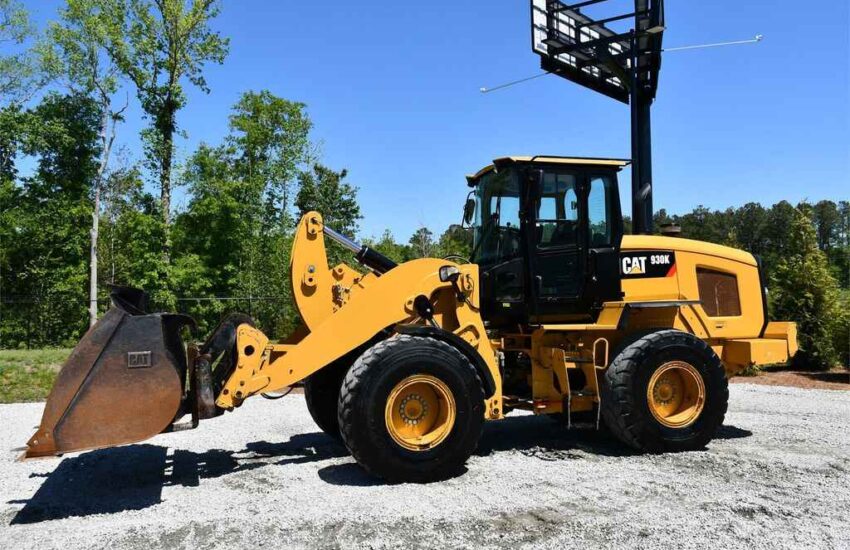

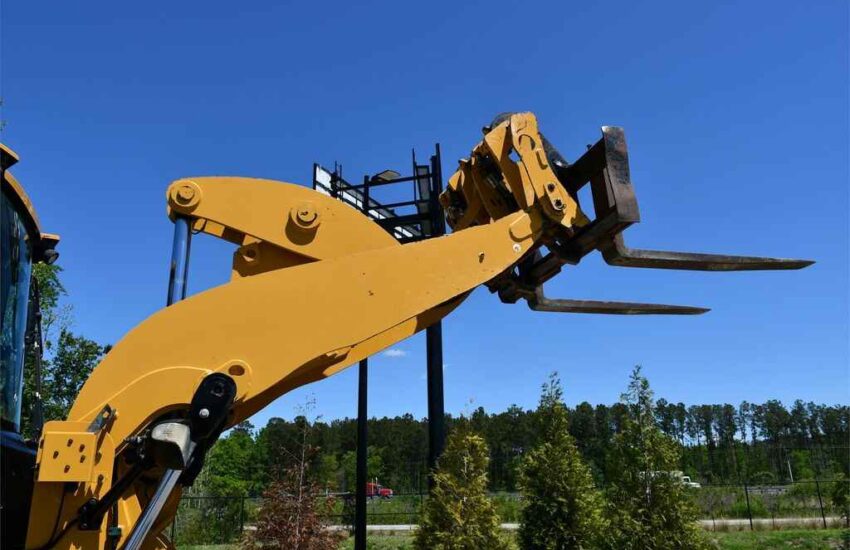

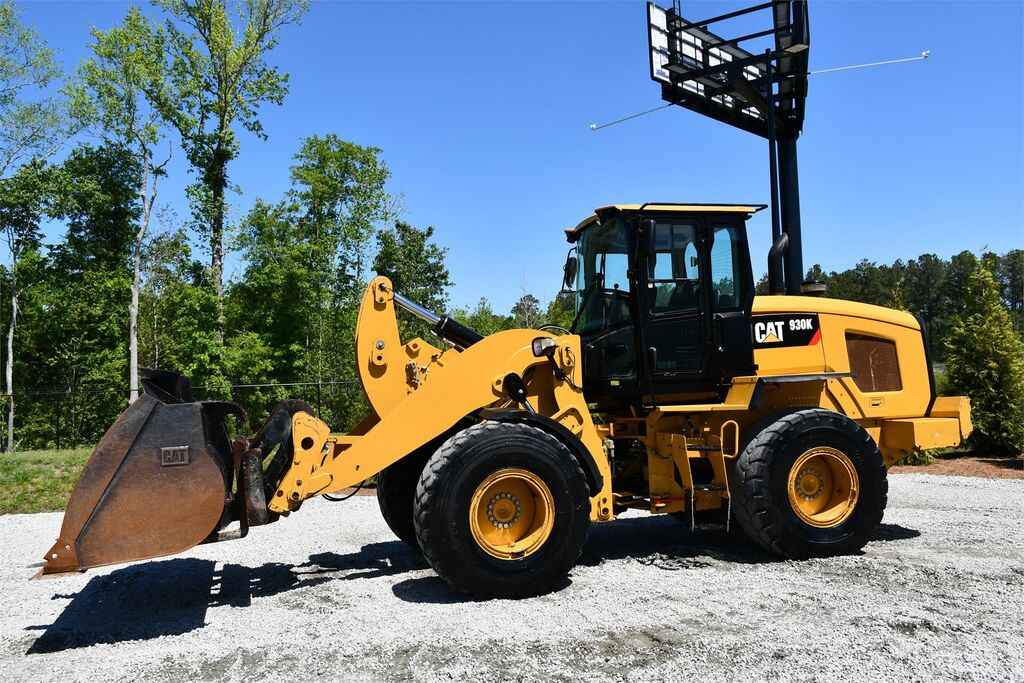

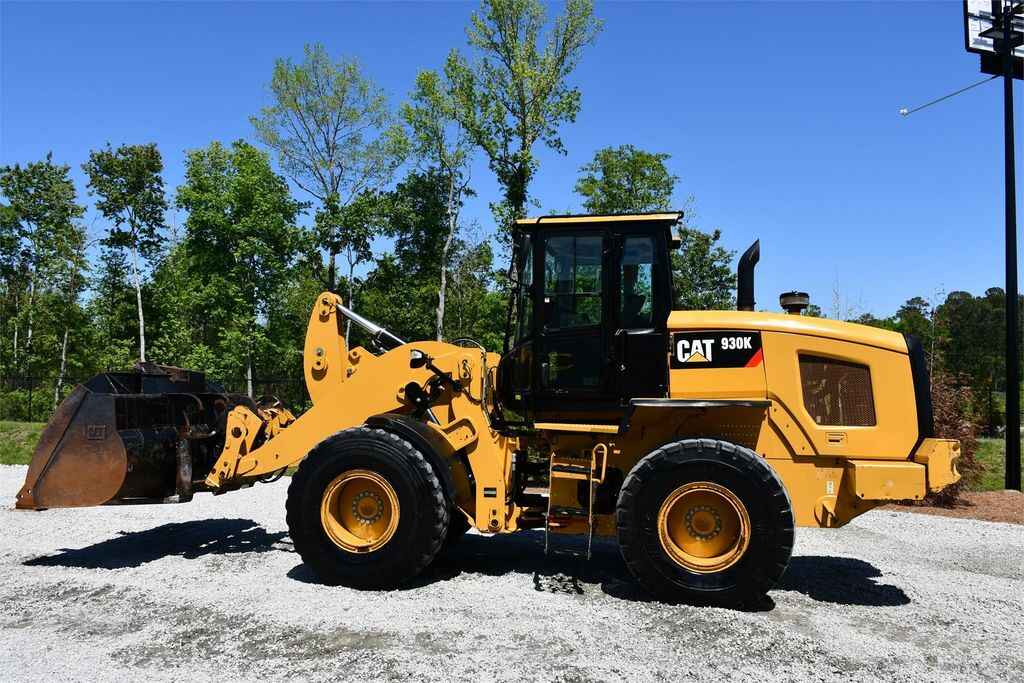

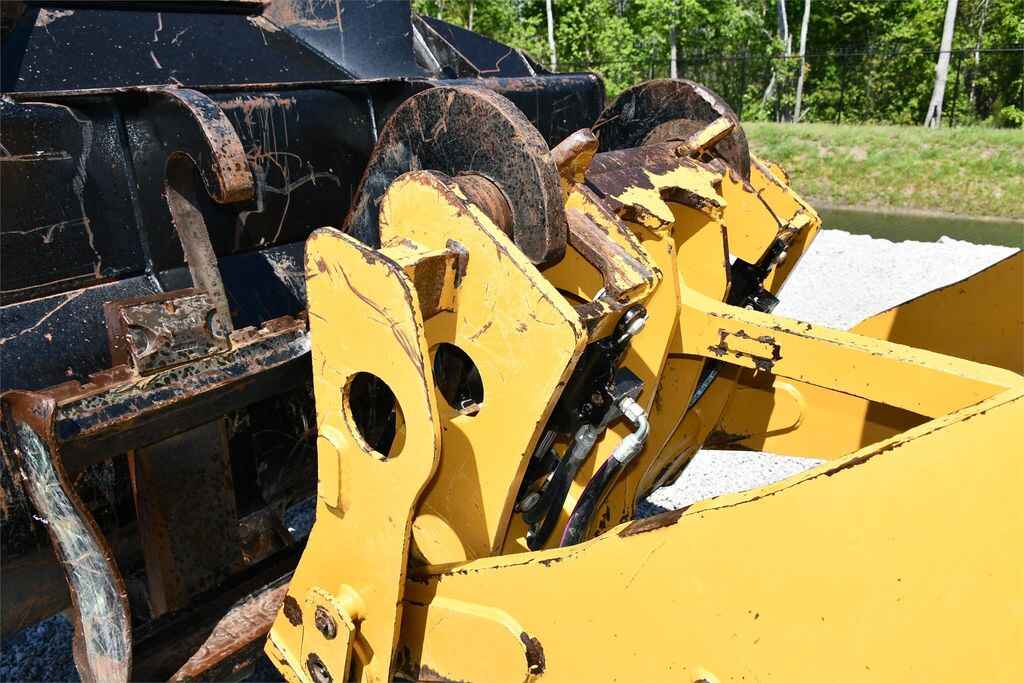

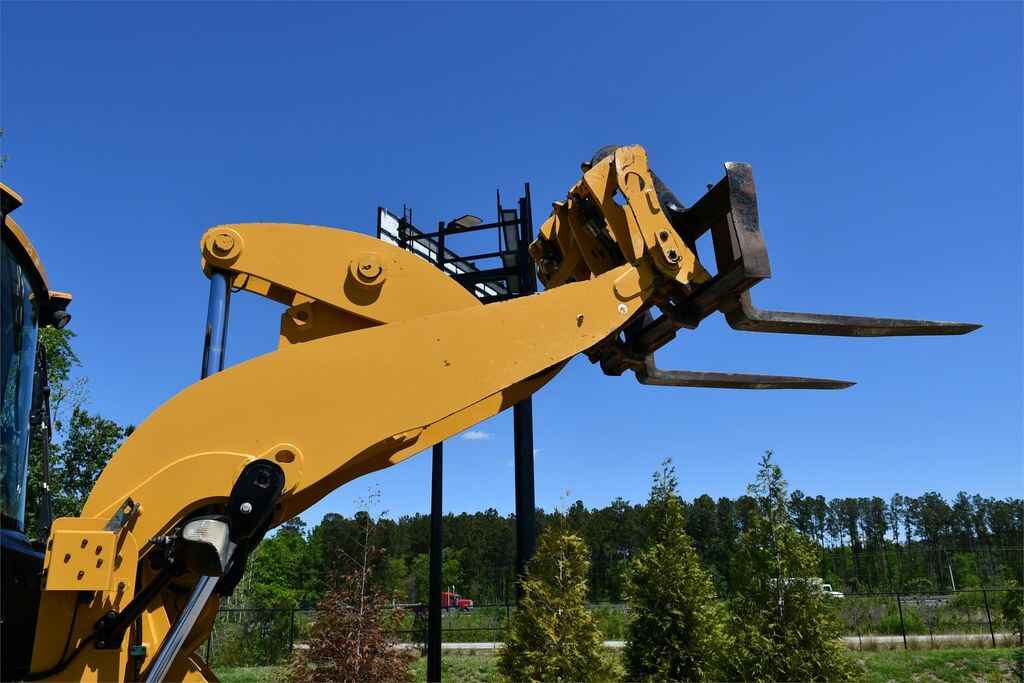

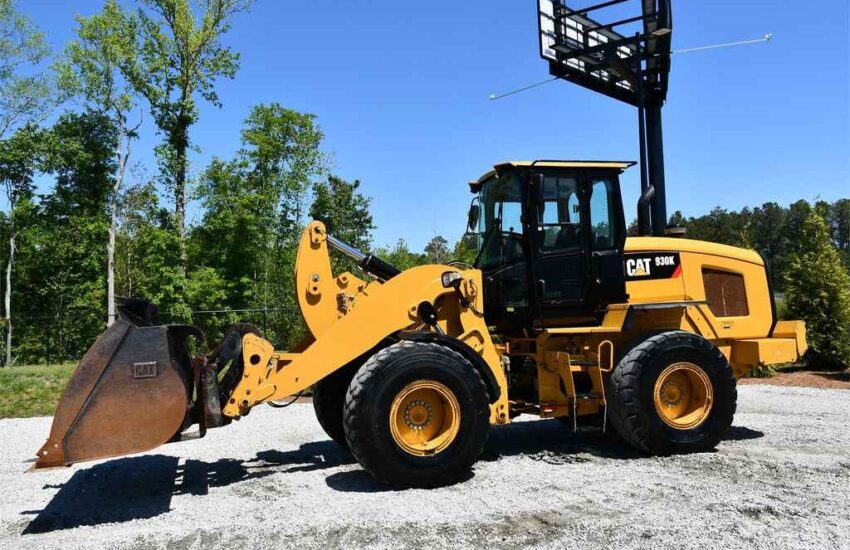

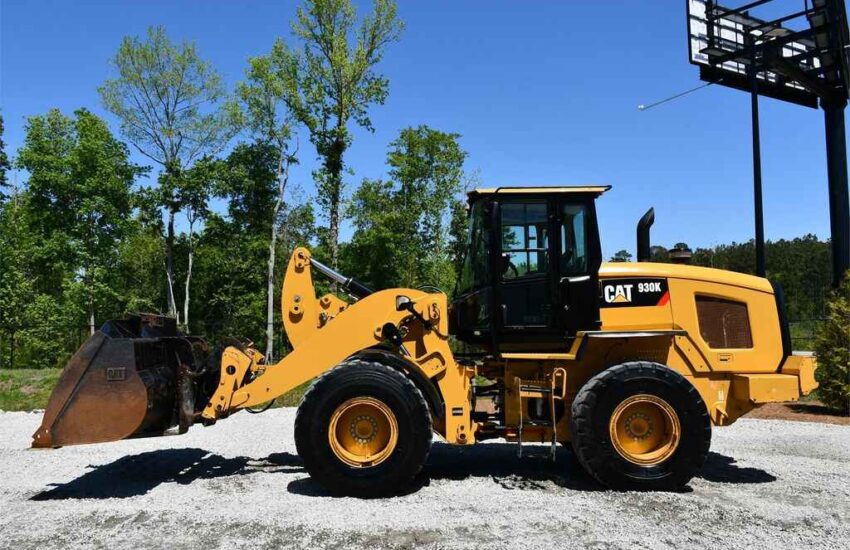

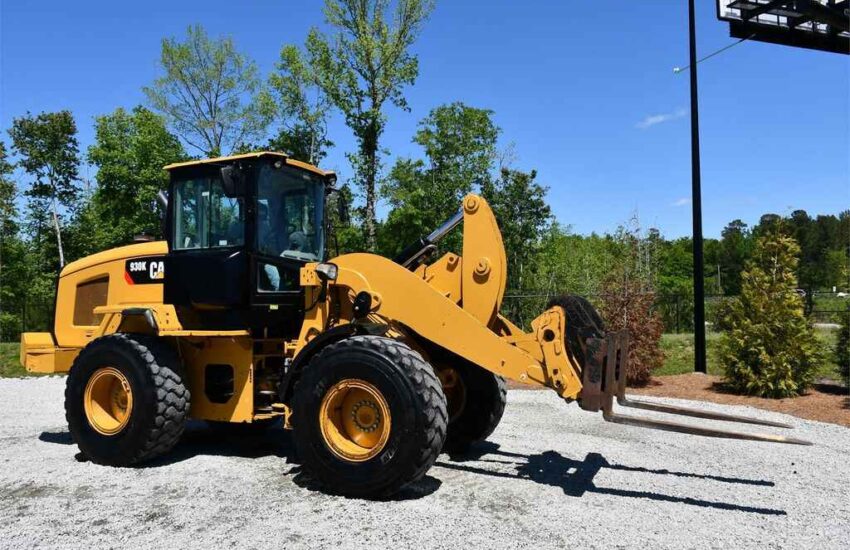

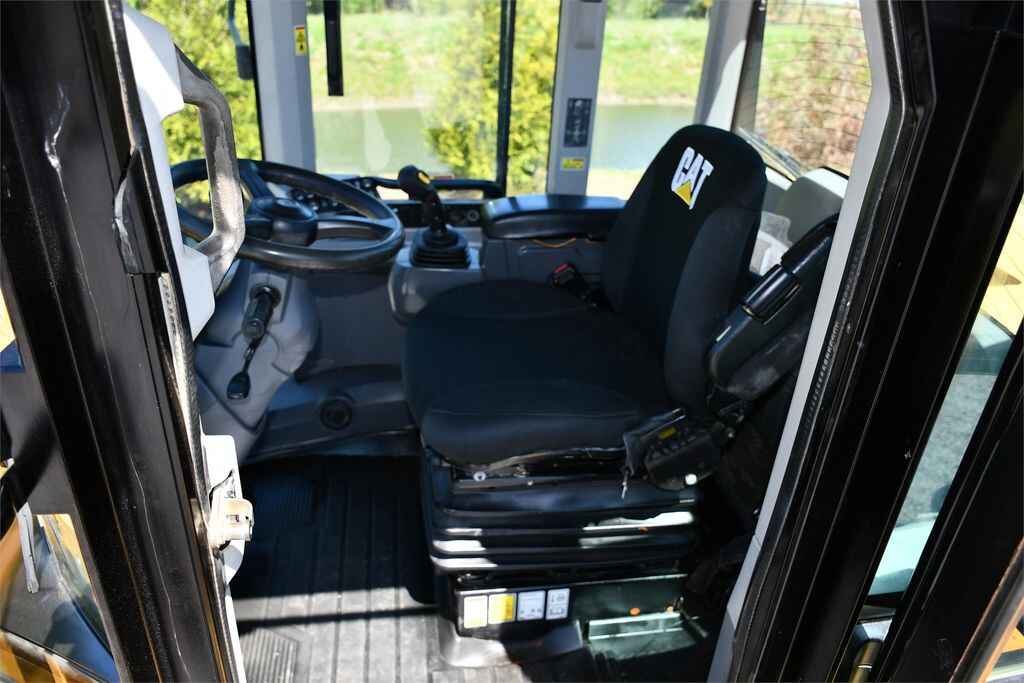

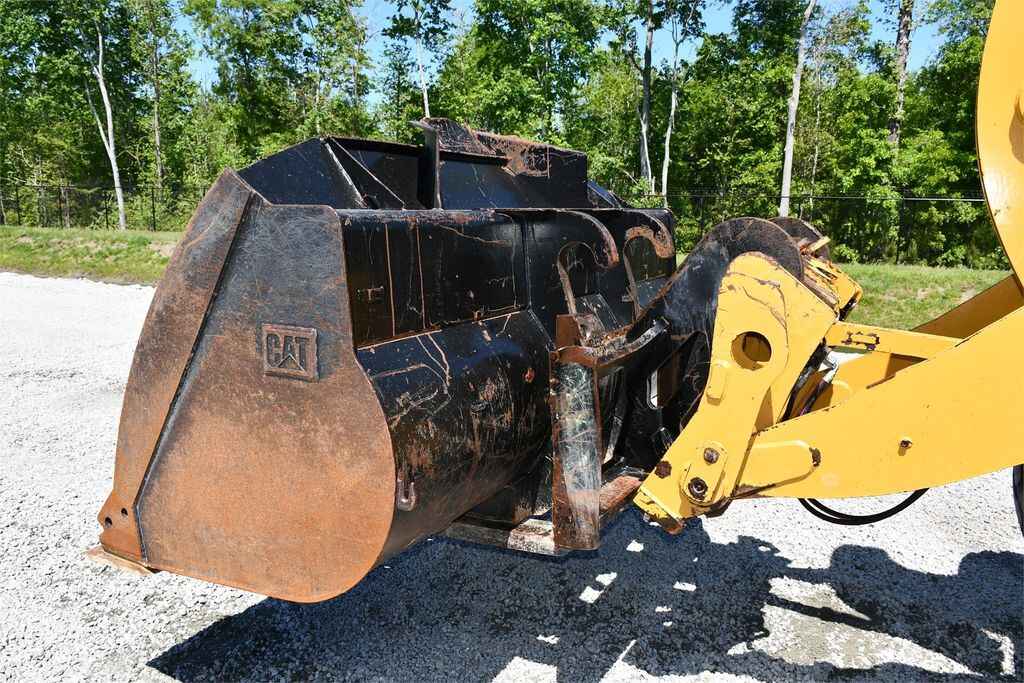

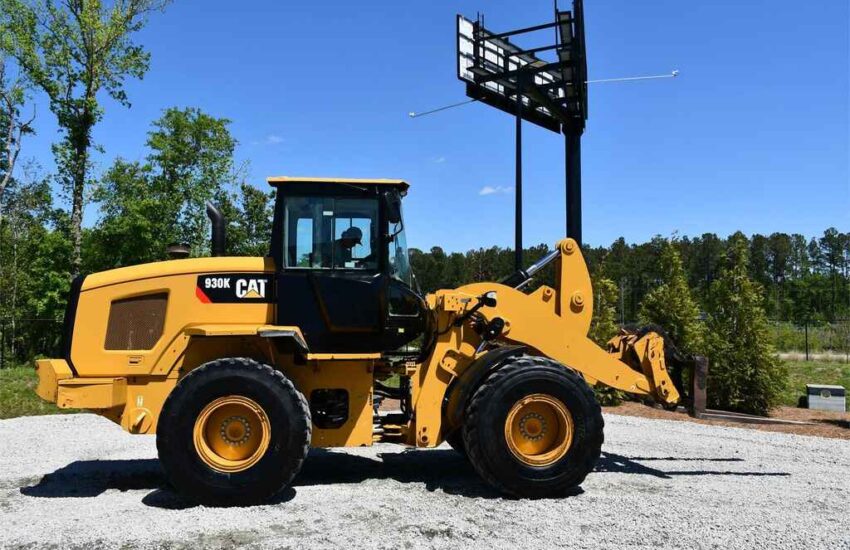

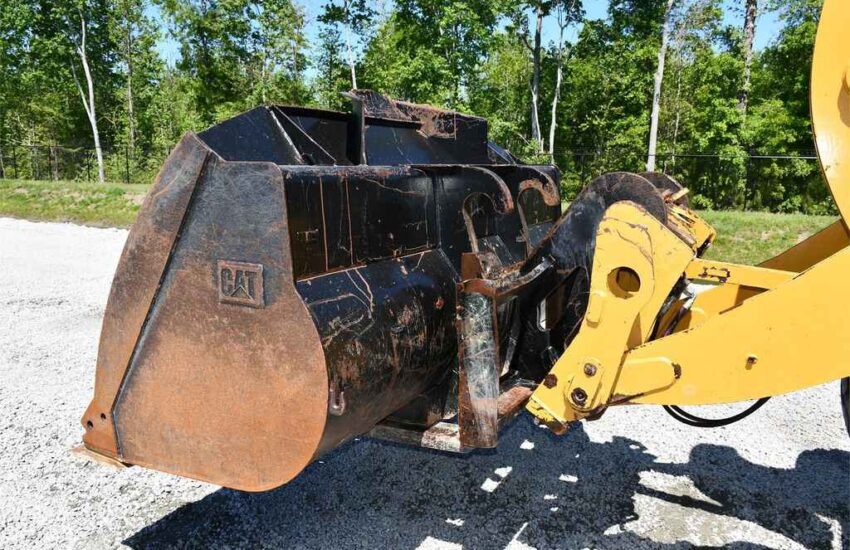

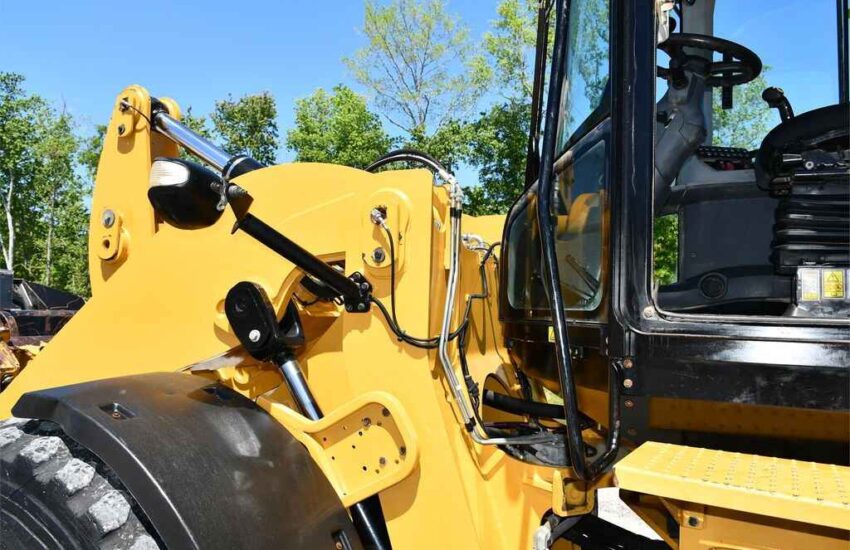

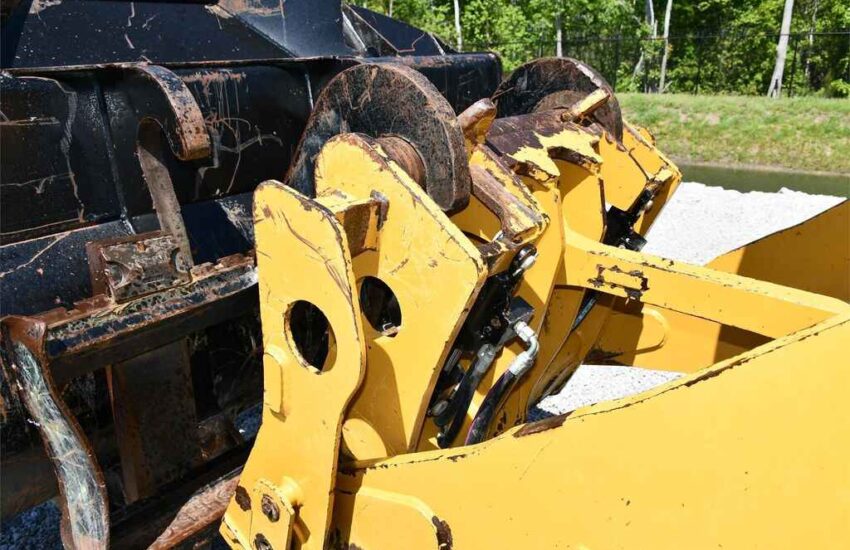

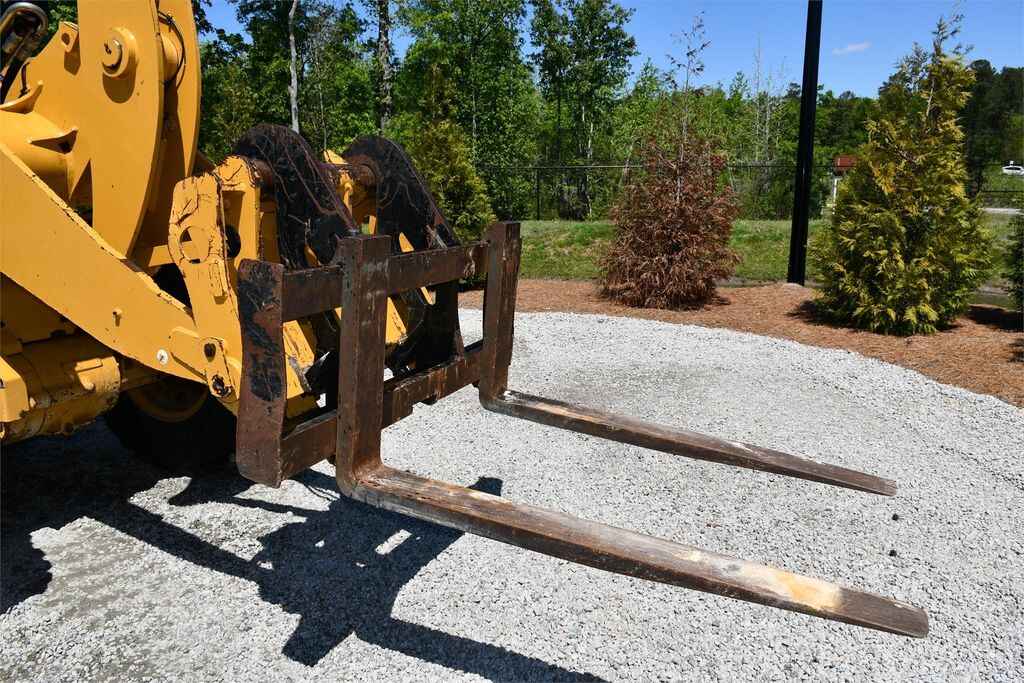

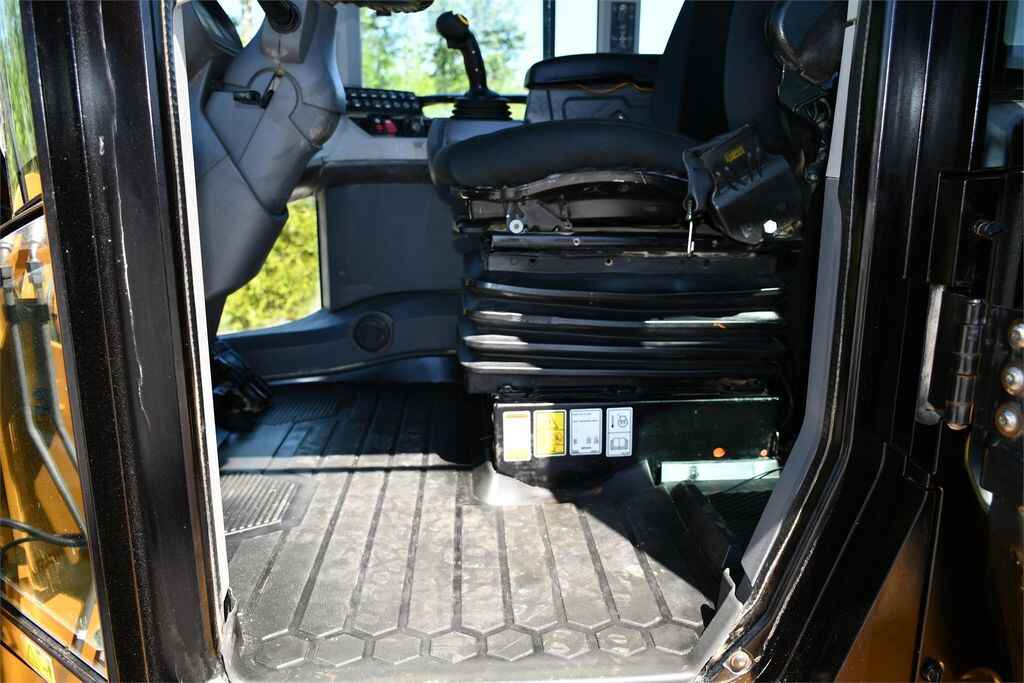

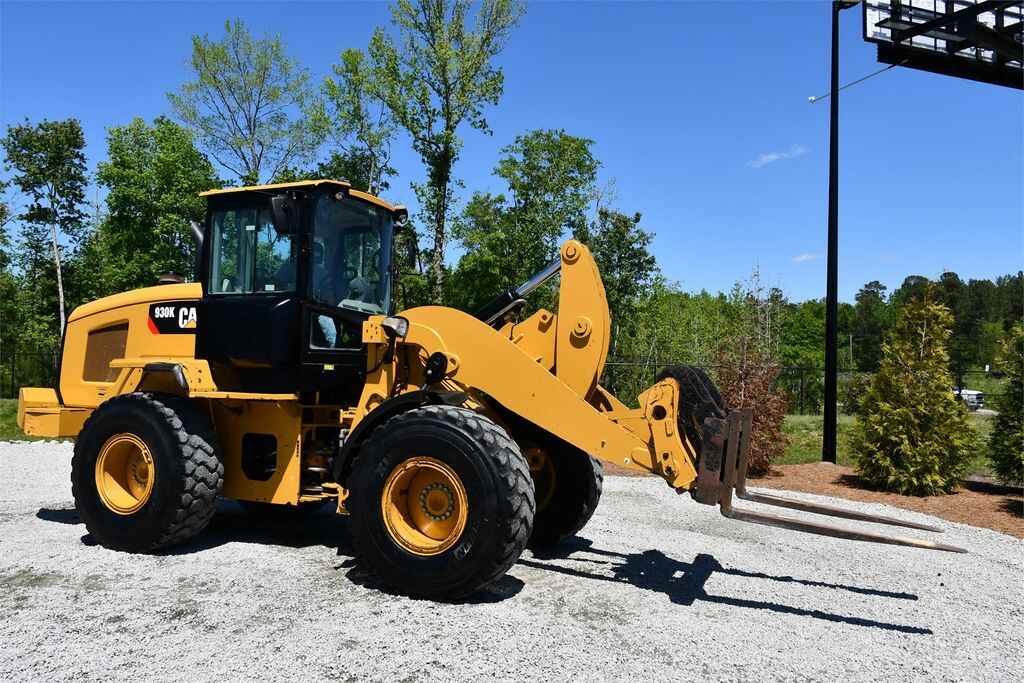

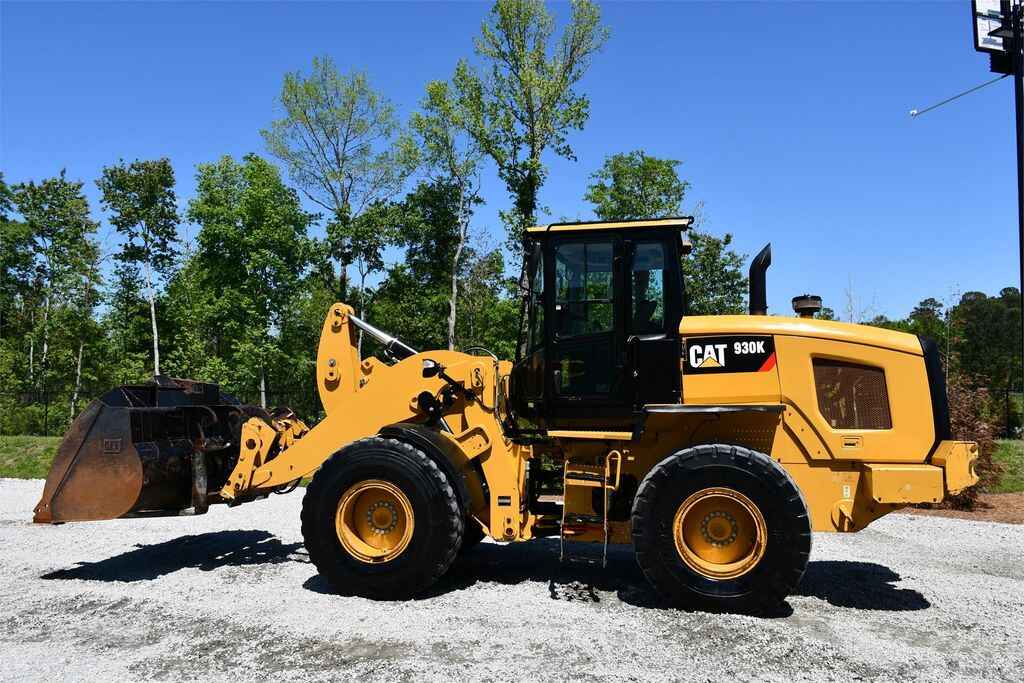

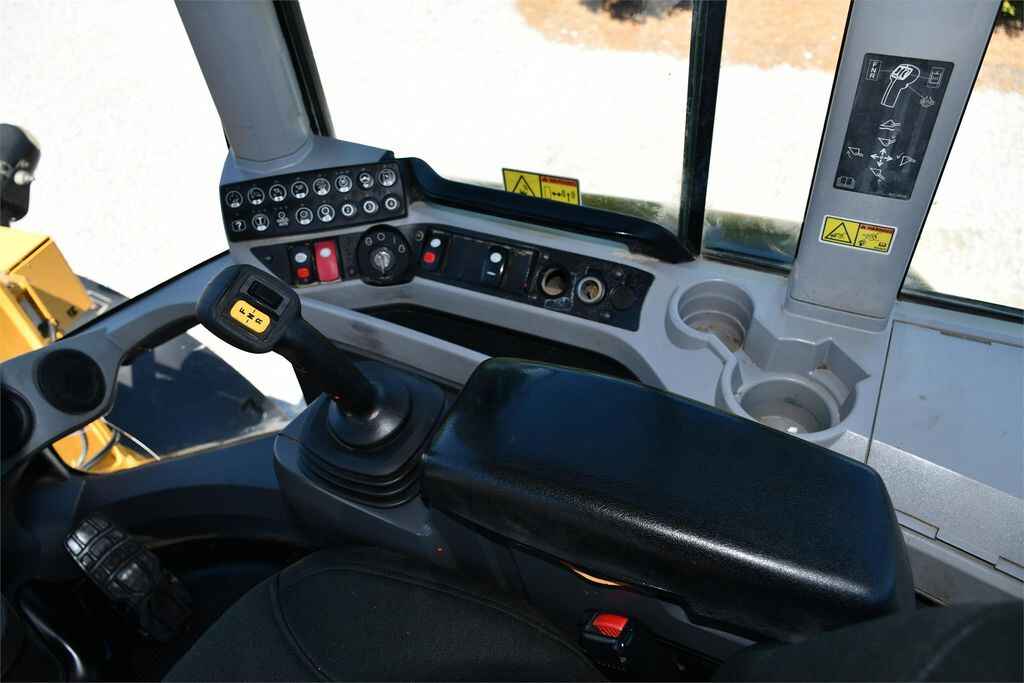

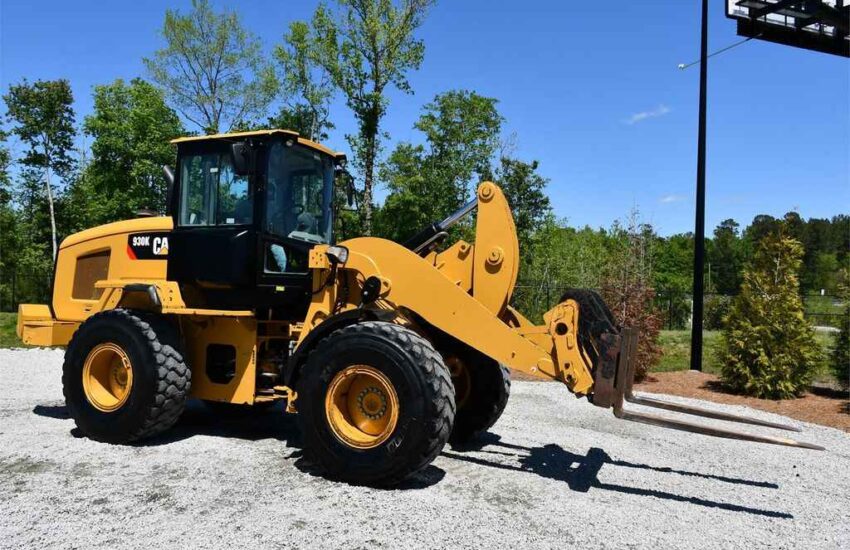

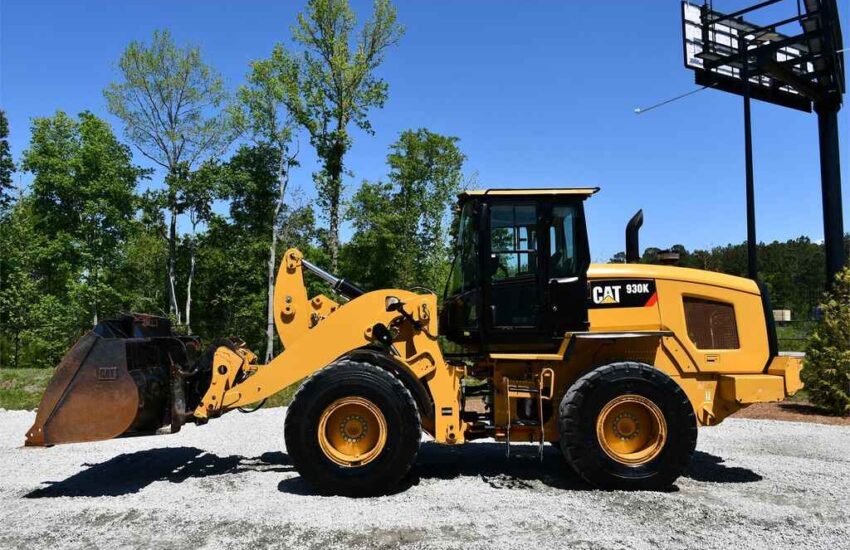

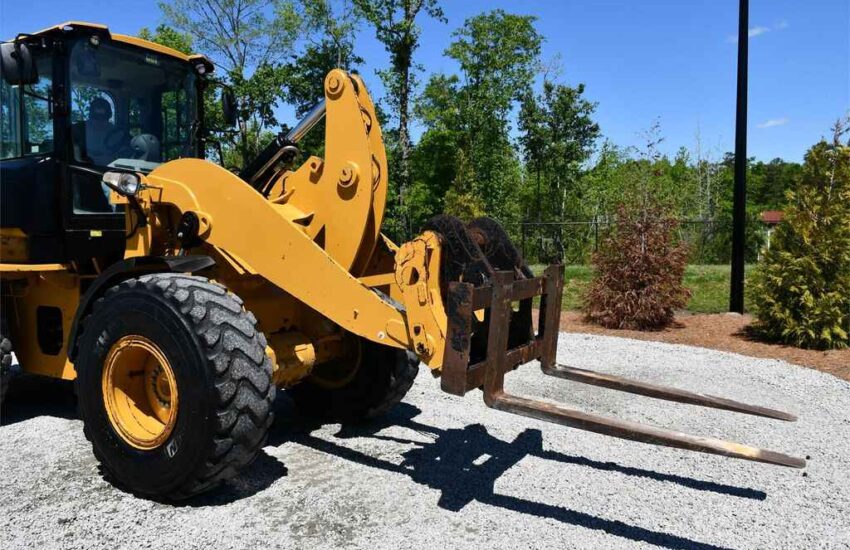

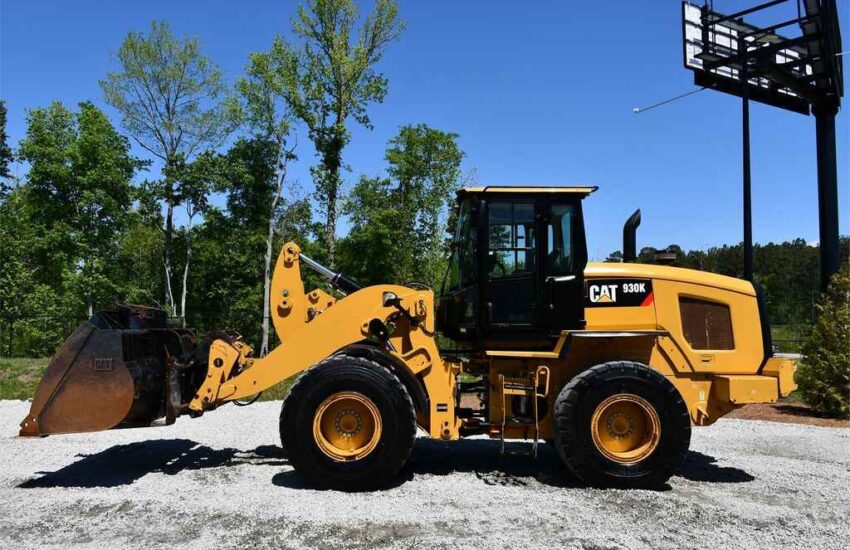

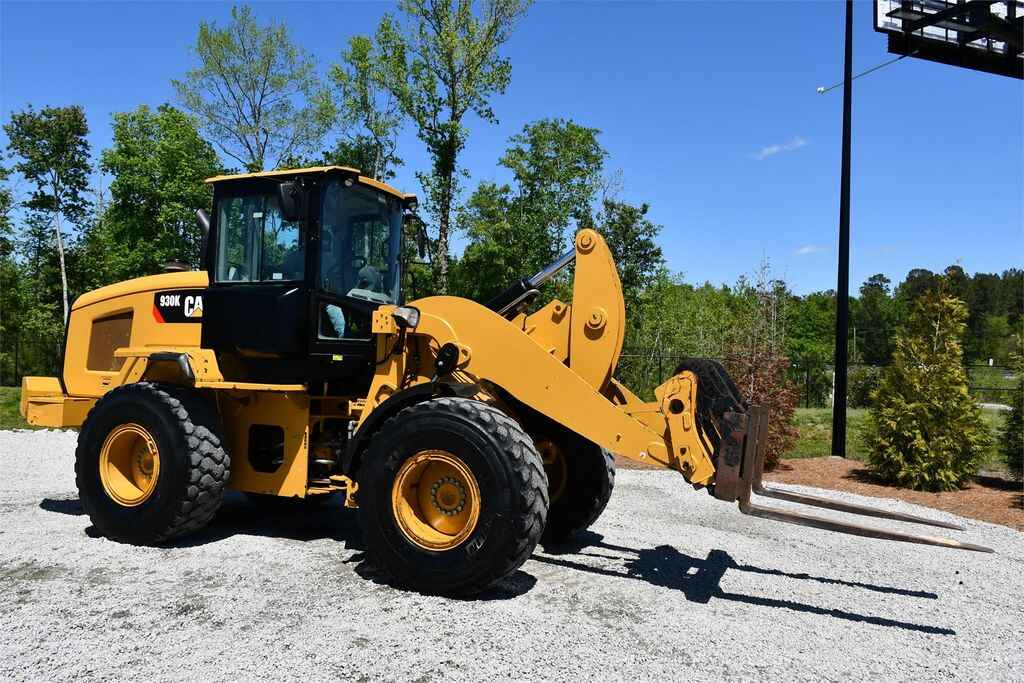

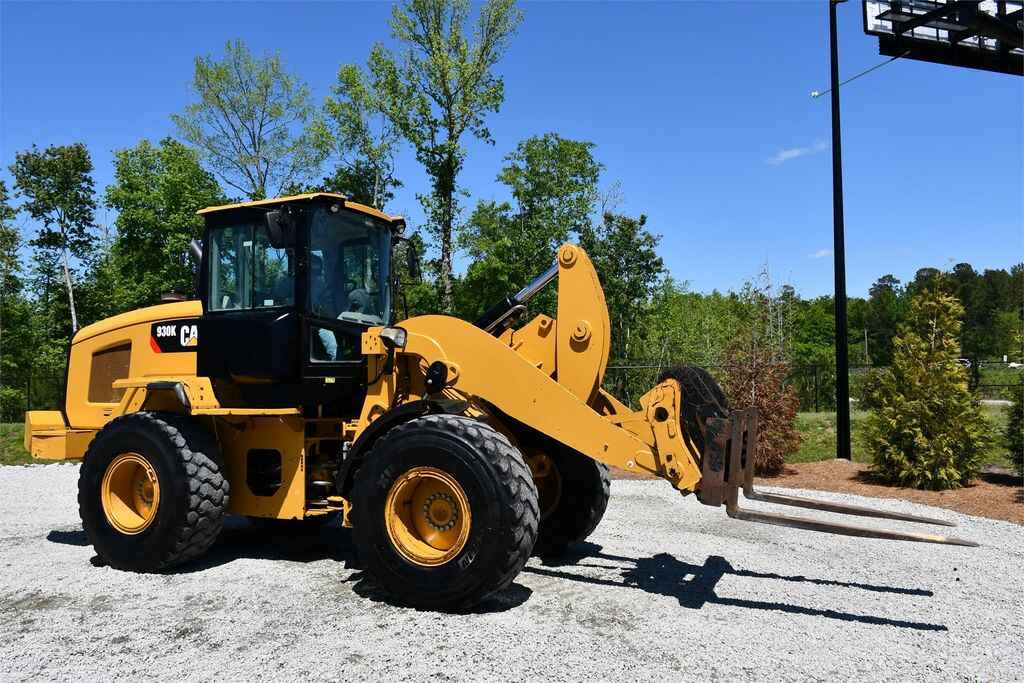

Cab,A/C, meter reads 6978 hours, CAT Infusion Coupler, CAT FORKS, GP bucket, backup camera
SPECIFICATIONS

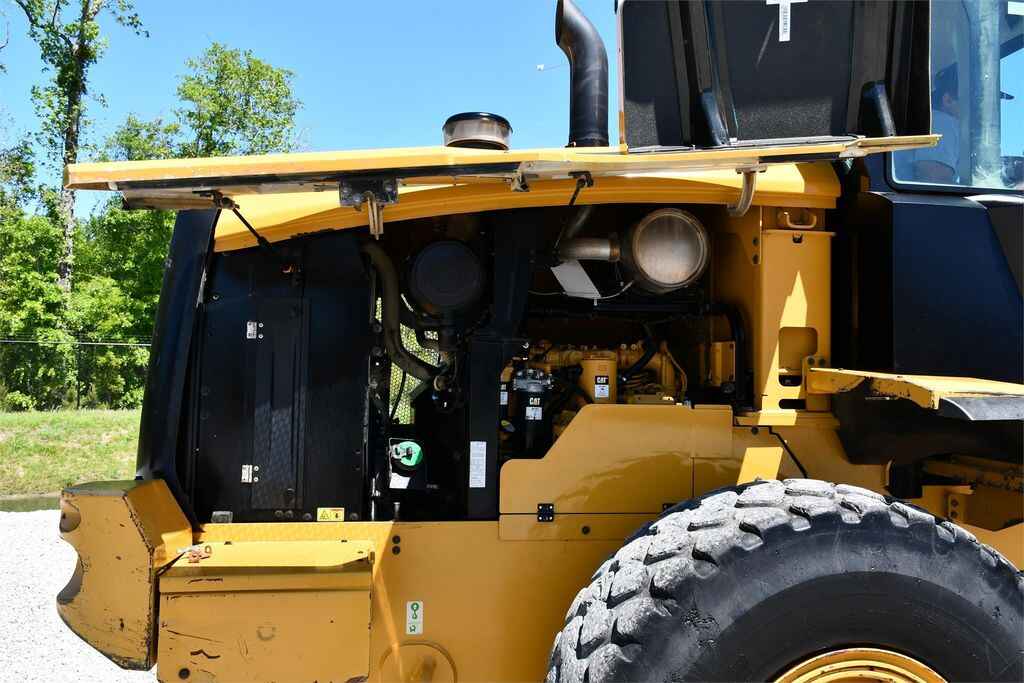

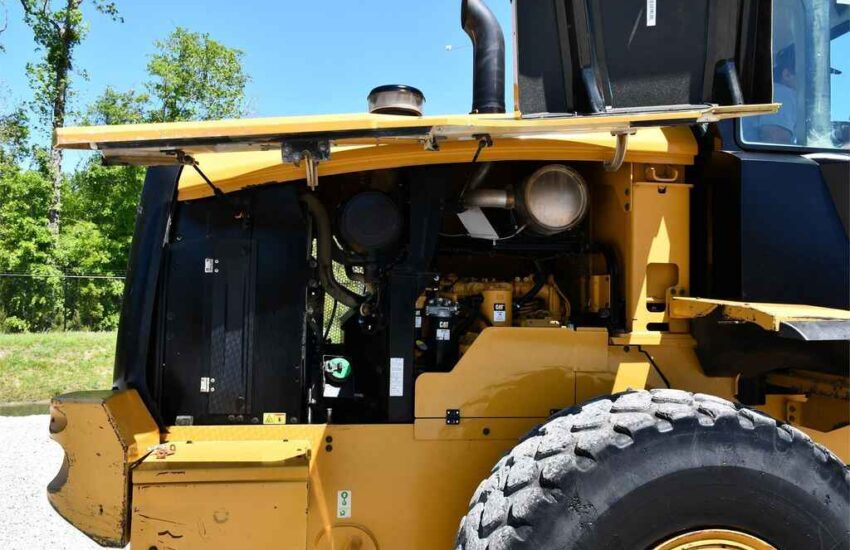

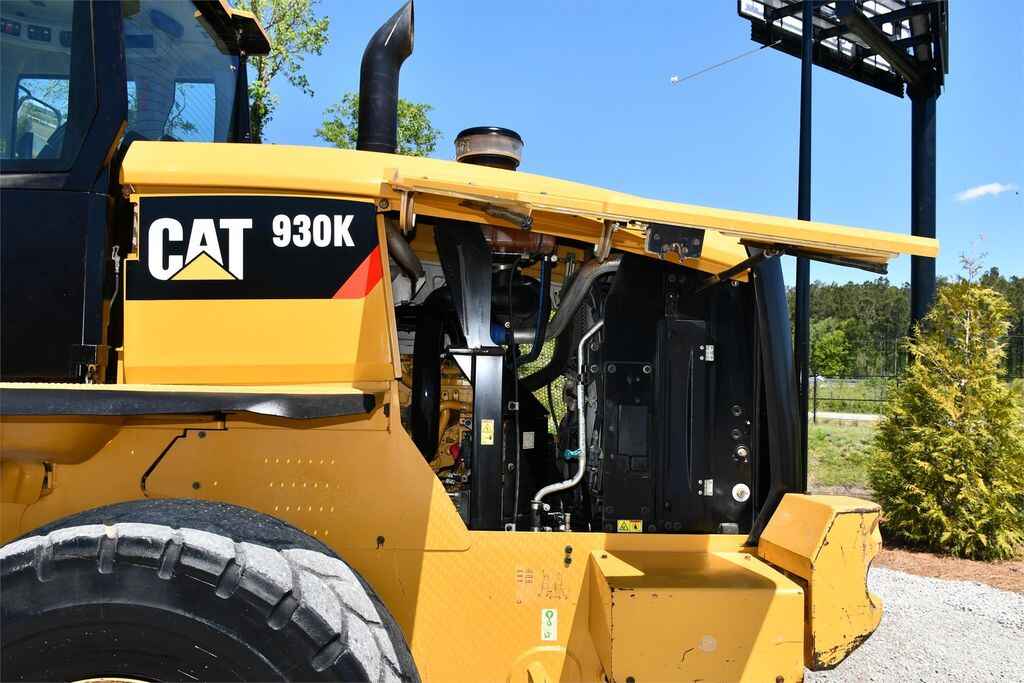

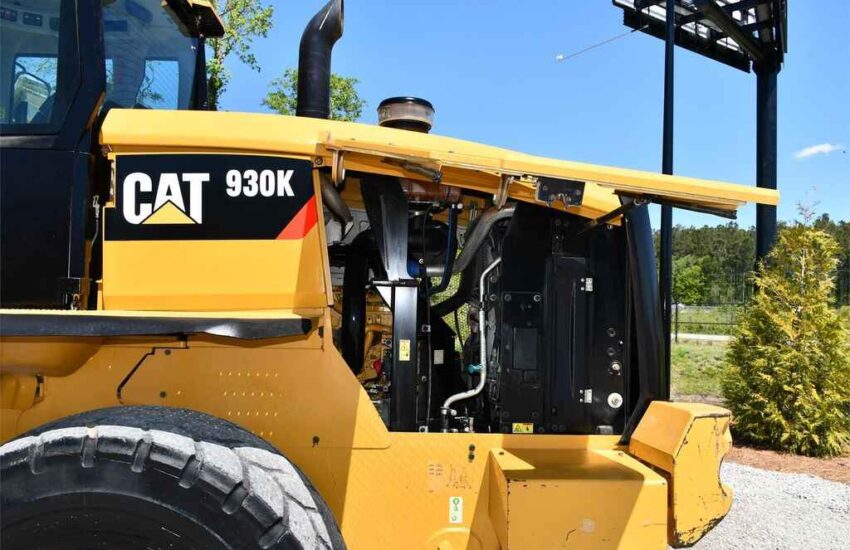

Engine
• Model: Cat C7.1 ACERT
• Gross Power: 154 hp (115 kW)
• Net Power: 152 hp (113 kW)
• Displacement: 402 in³ (6.6 L)
• Number of Cylinders: 6
Weights
• Operating Weight: 30,479 lbs (13,825 kg)
Performance
• Bucket Capacities: 2.1–5.0 m³ (2.7–6.5 yd³)
• Static Tipping Load (Full Turn): 18,444 lbs (8,366 kg)
• Breakout Force: 28,551 lbs (12,950 kg)
• Hydraulic Cycle Times:
– Raise: 5.1 seconds
– Dump: 1.5 seconds
– Lower (Empty, Float Down): 2.7 seconds
– Total Cycle Time: 9.3 seconds

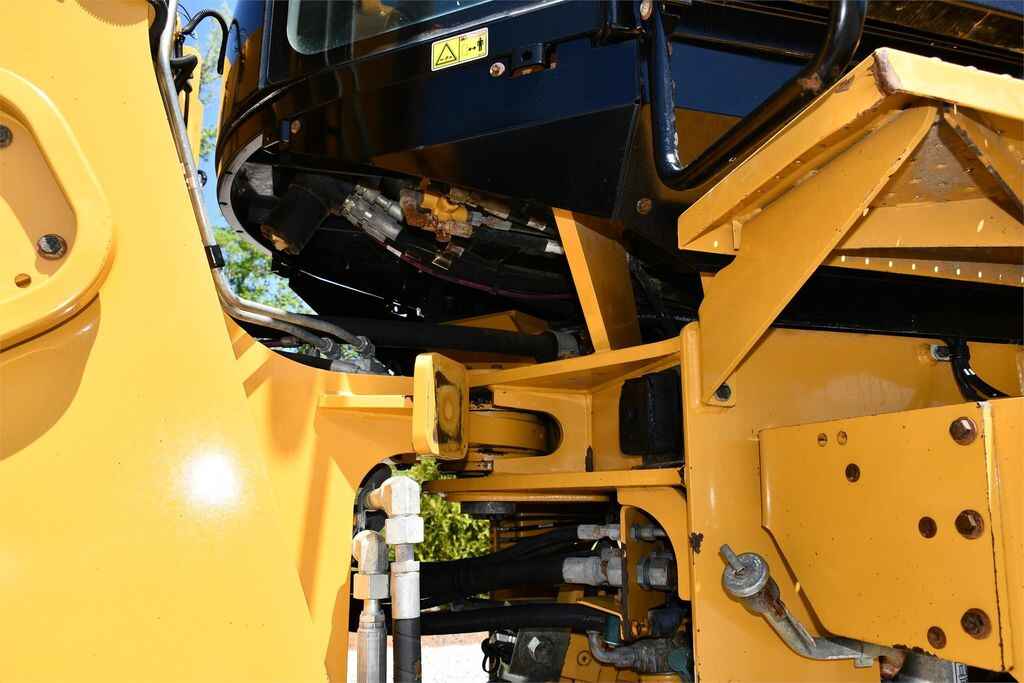

Hydraulics
• Pump Flow Capacity: 50 gal/min (189 L/min)
• Relief Valve Setting: 3,626 psi (25,000 kPa)
Dimensions
• Overall Length: 24 ft 8 in (7.53 m)
• Overall Width (over tires): 8 ft 4 in (2.54 m)
• Height to Top of ROPS/FOPS: 10 ft 11 in (3.34 m)
• Wheelbase: 9 ft 10 in (3.00 m)
• Ground Clearance: 1 ft 3 in (0.397 m)
• Dump Clearance @ Full Lift & 45° Dump: 9 ft 3 in (2.82 m)
• Reach @ Full Lift & 45° Dump: 3 ft 5 in (1.06 m)
Transmission
• Number of Forward Gears: 4
• Number of Reverse Gears: 4
• Max Speed – Forward: 25 mph (40 km/h)
• Max Speed – Reverse: 25 mph (40 km/h)
Service Refill Capacities
• Fuel Tank: 51.5 gal (195 L)
• Cooling System: 8.5 gal (32 L)
• Hydraulic System (total): 43.6 gal (165 L)
• Hydraulic Tank: 23.8 gal (90 L)
• Engine Crankcase: 5.3 gal (20 L)
• Transmission: 2.2 gal (8 L)
• Front Axle/Diff: 6.9 gal (26 L)
• Rear Axle/Diff: 6.9 gal (26 L)
Features
- Radio
- Air Conditioner
- Bluetooth
- Heater
