Details
-
Industry:
-
Make:
-
Model:
-
Color:
-
Transmission:
-
Condition:
-
Year:2011
-
Fuel Type:
-
Engine:Mitsubishi 4M40 TL
-
Serial:CFYC01209
-
Hours:3940
-
Stock#:211008
Overview

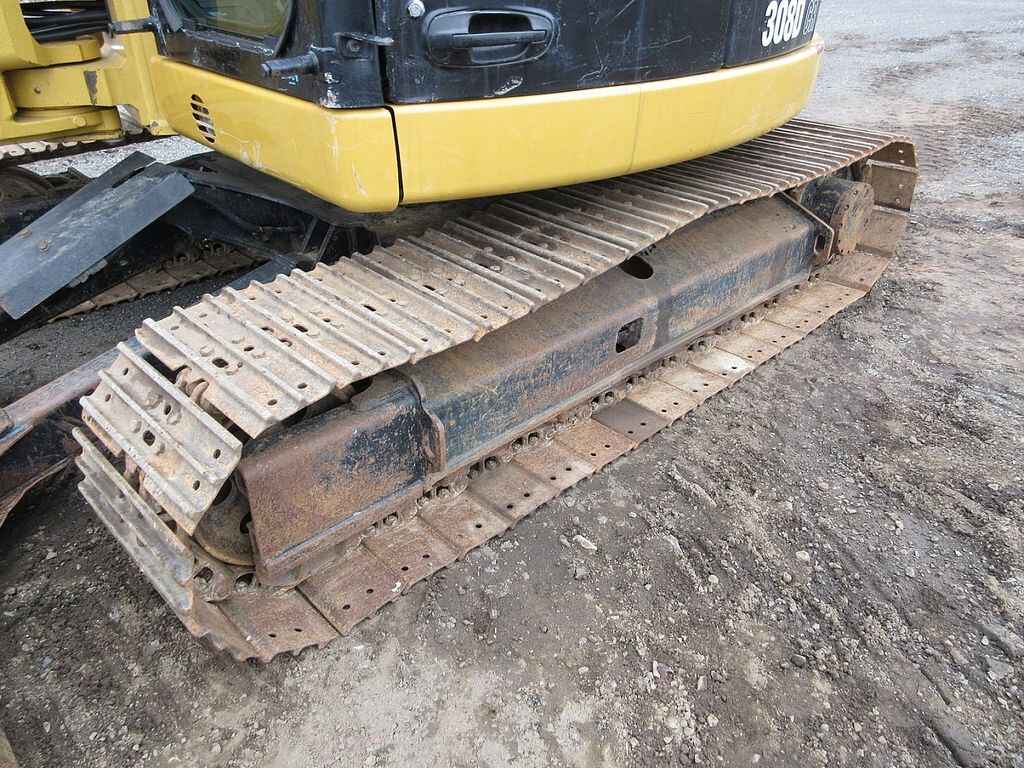

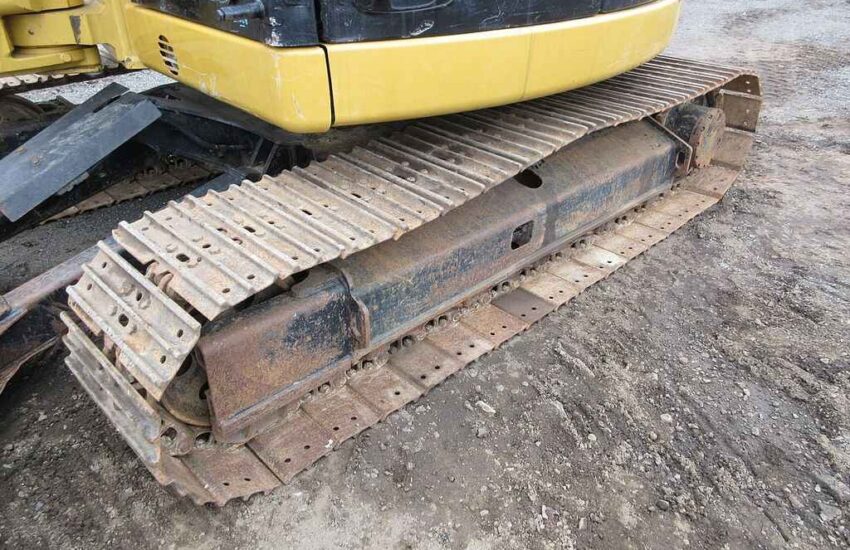

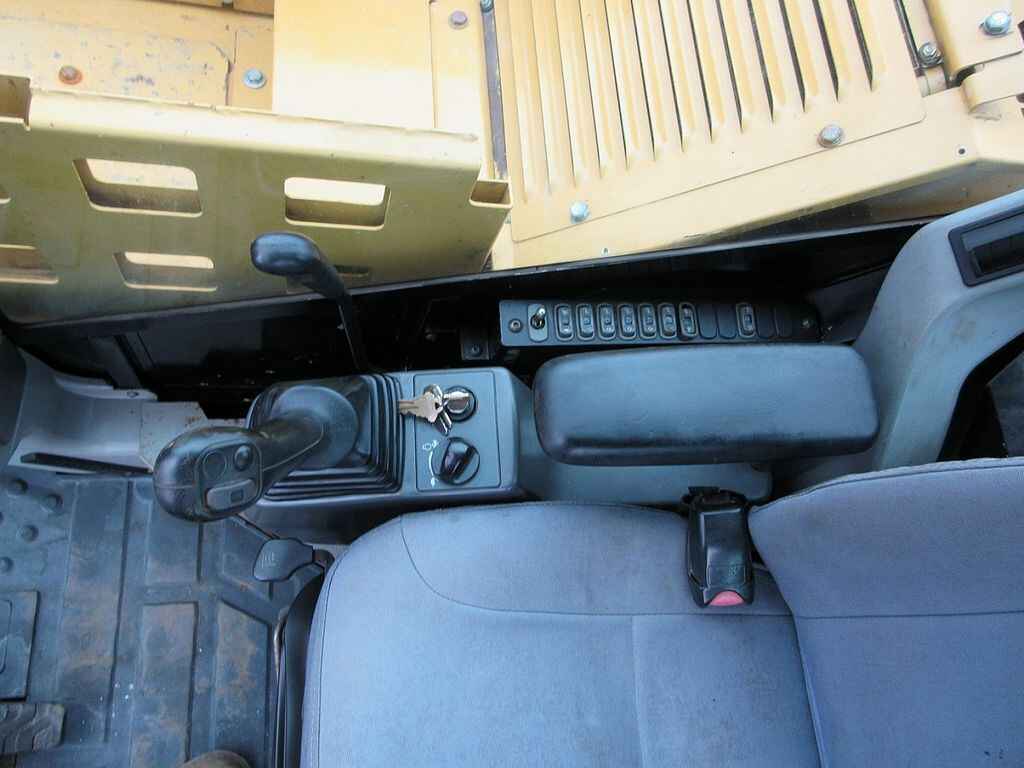

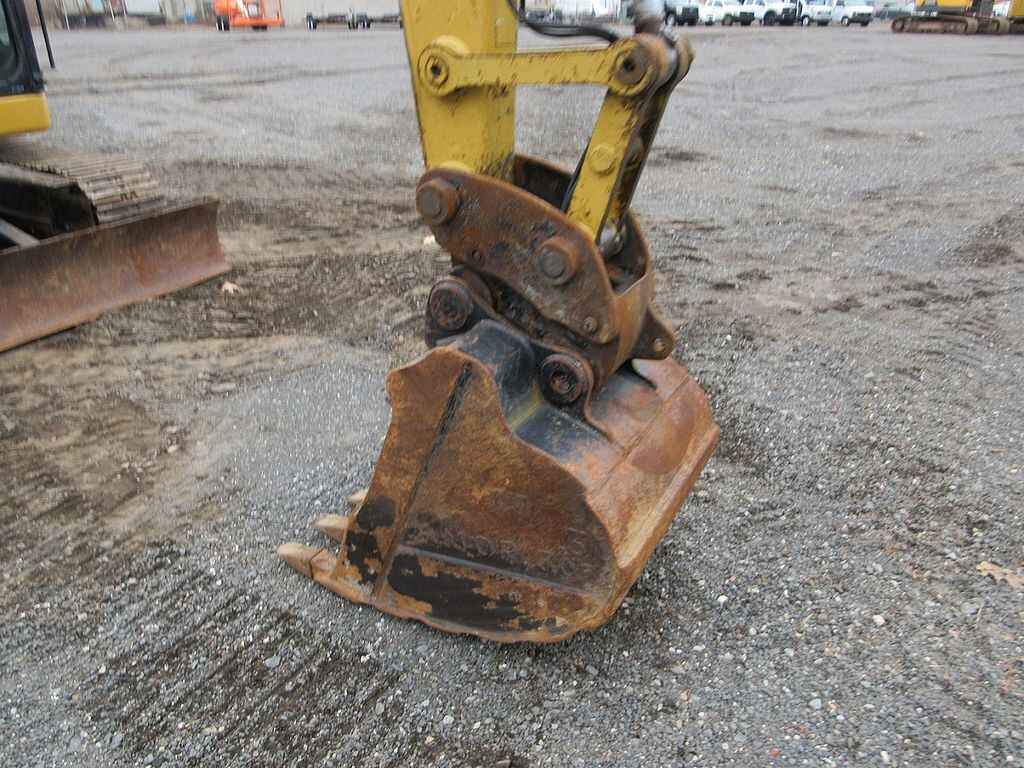

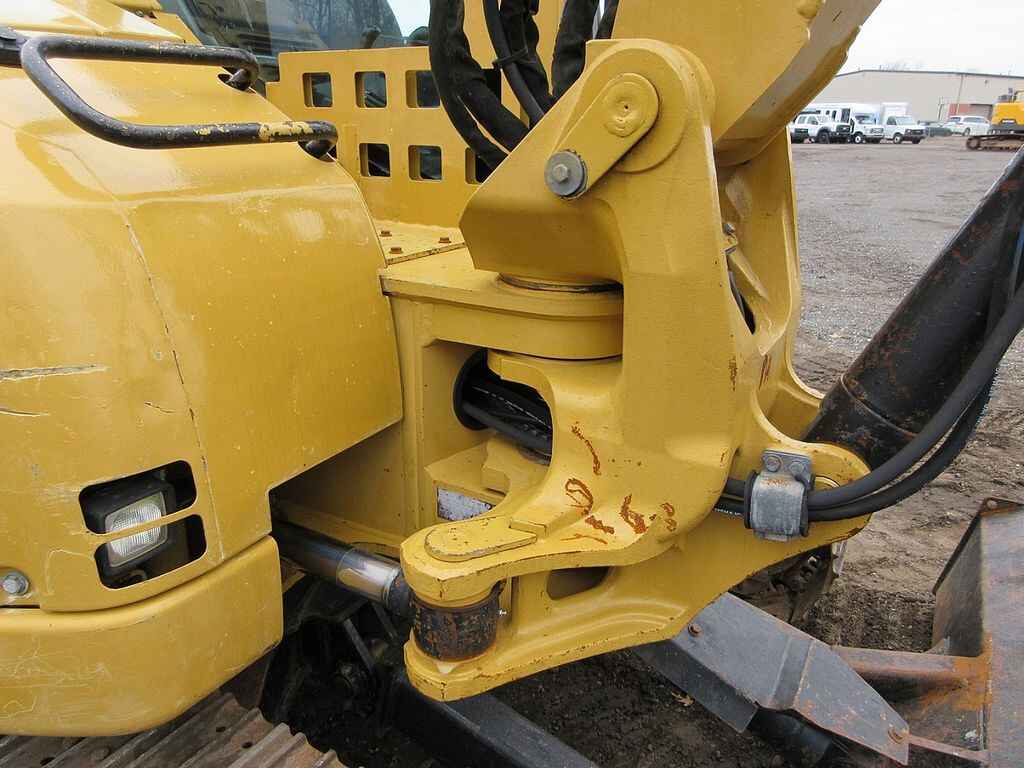

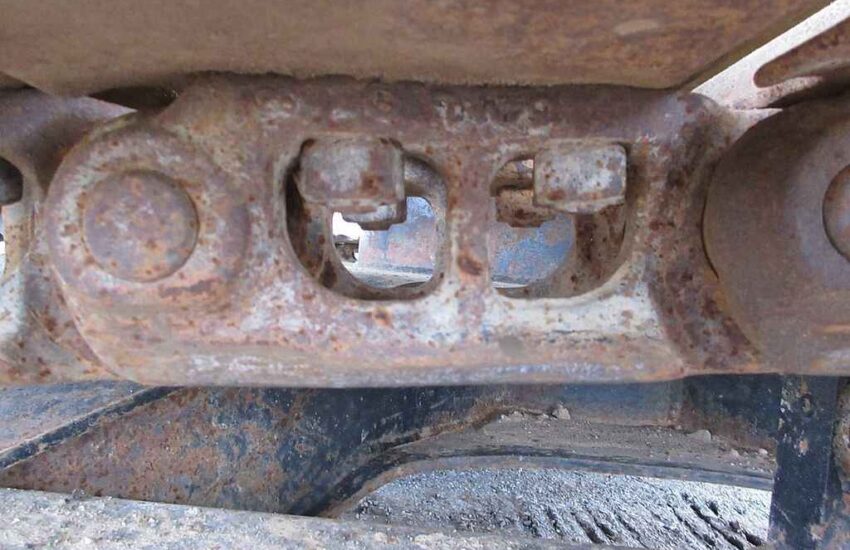

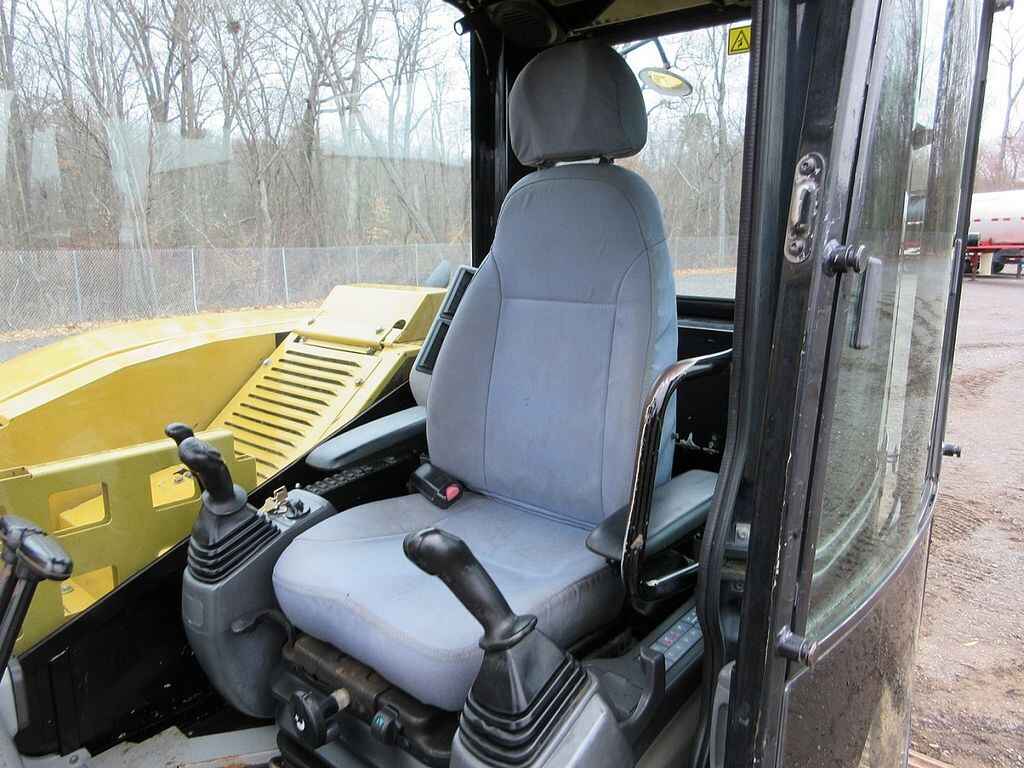

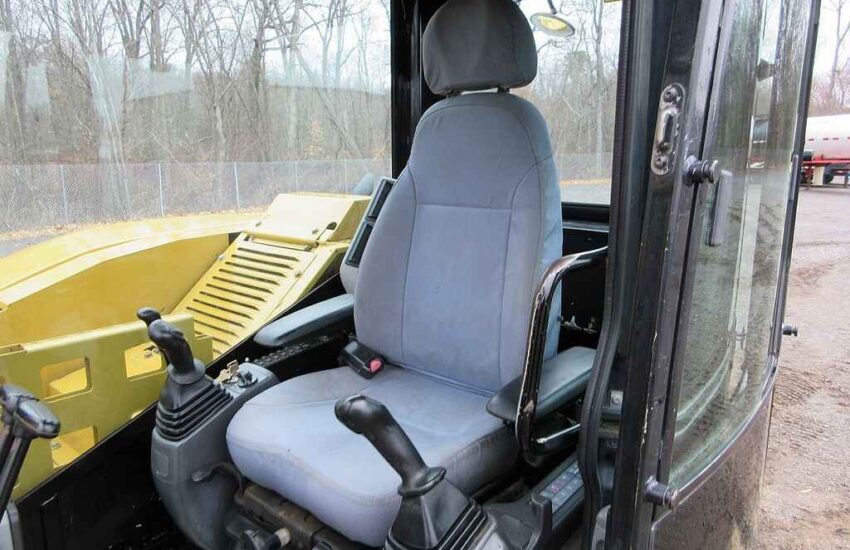

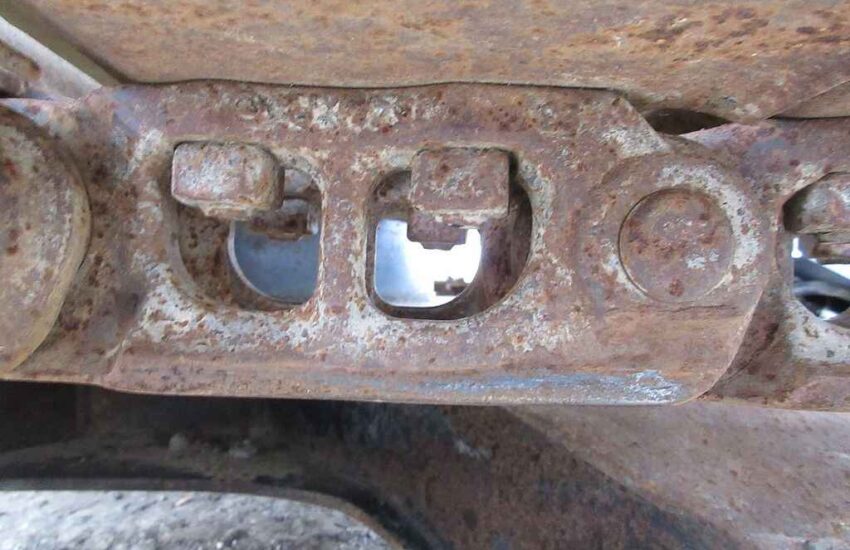

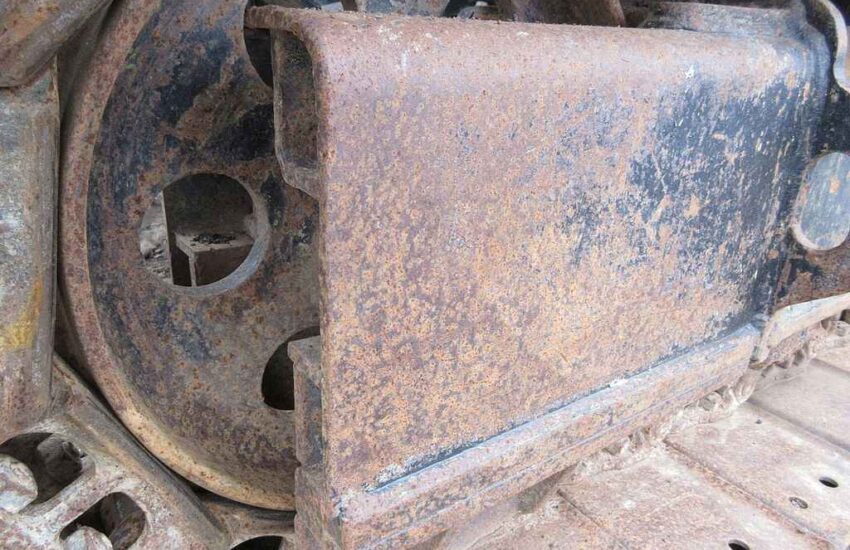

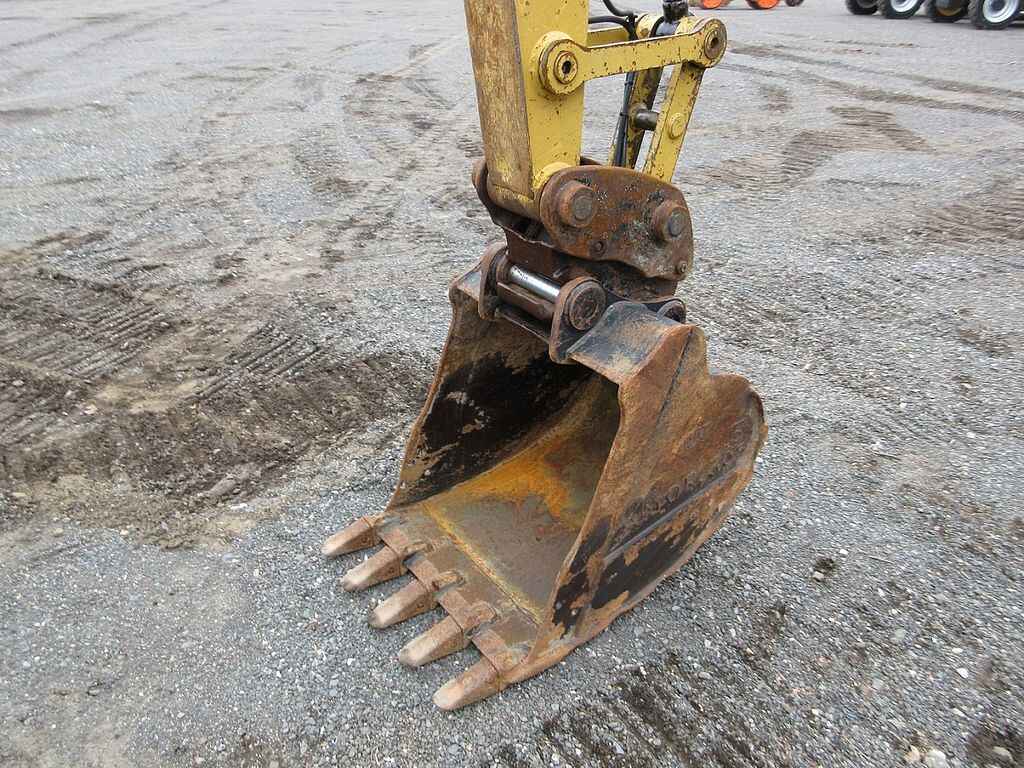

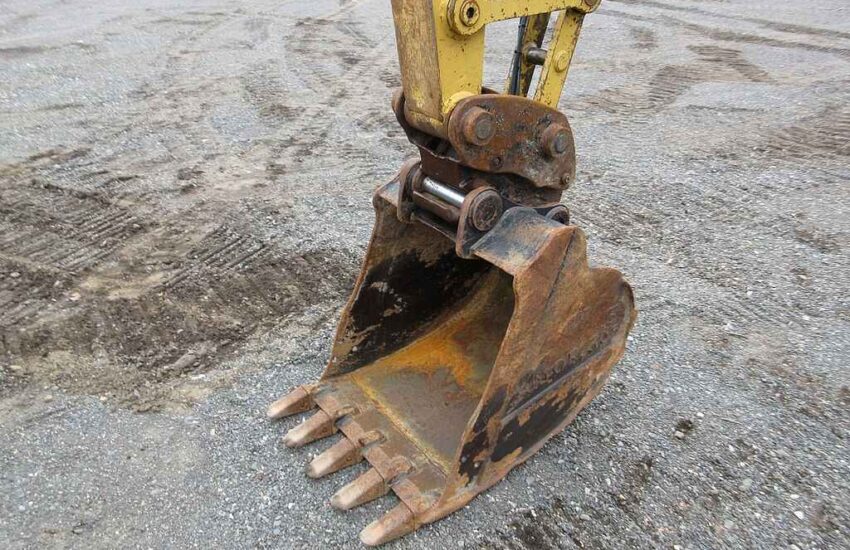

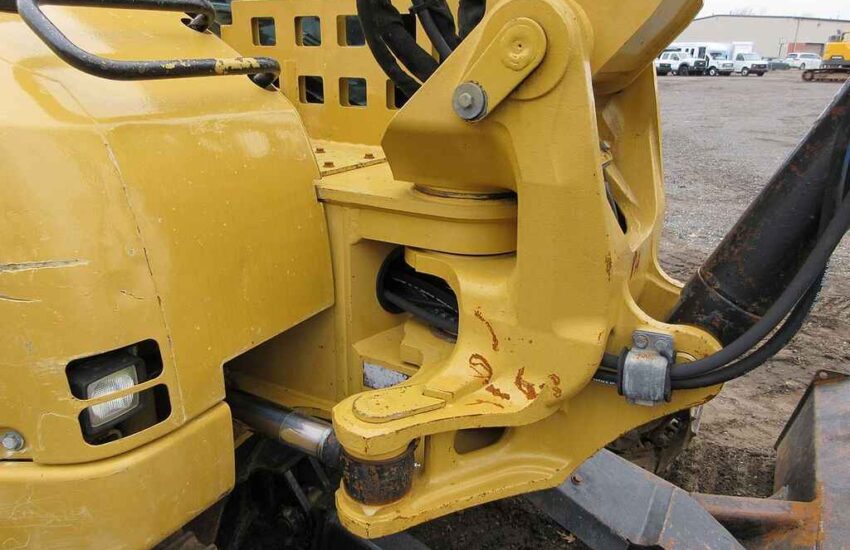

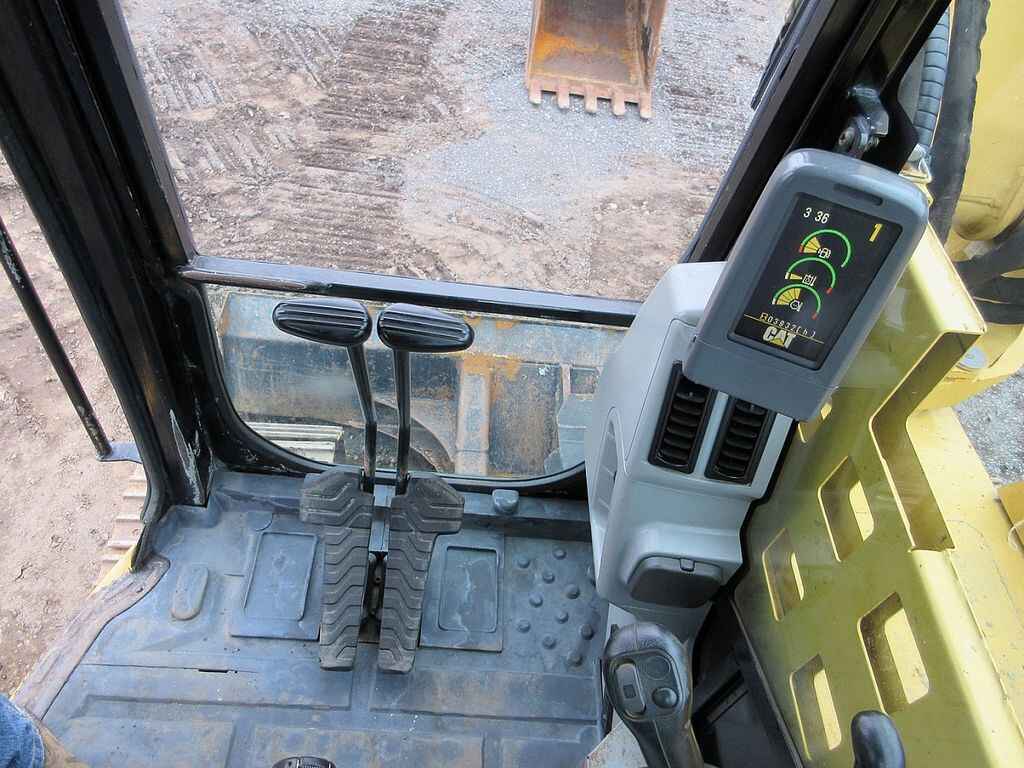

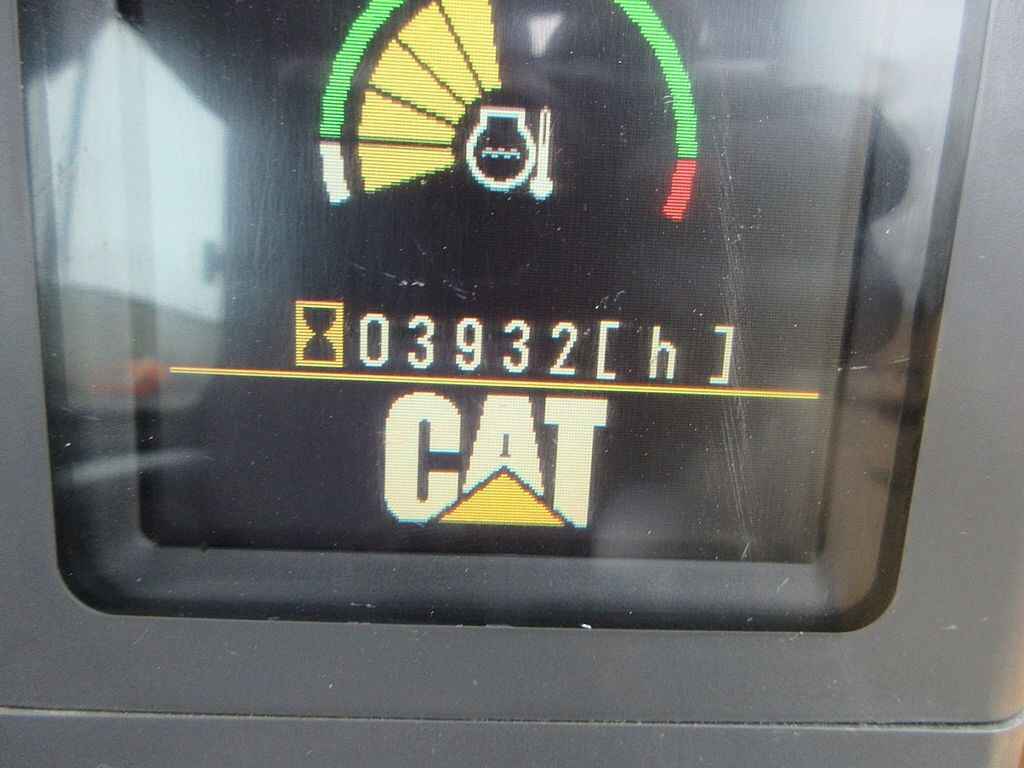

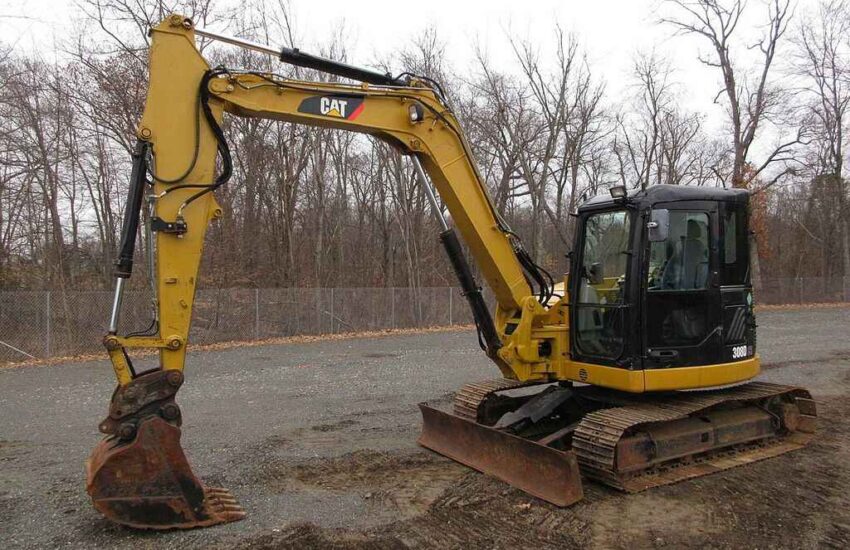

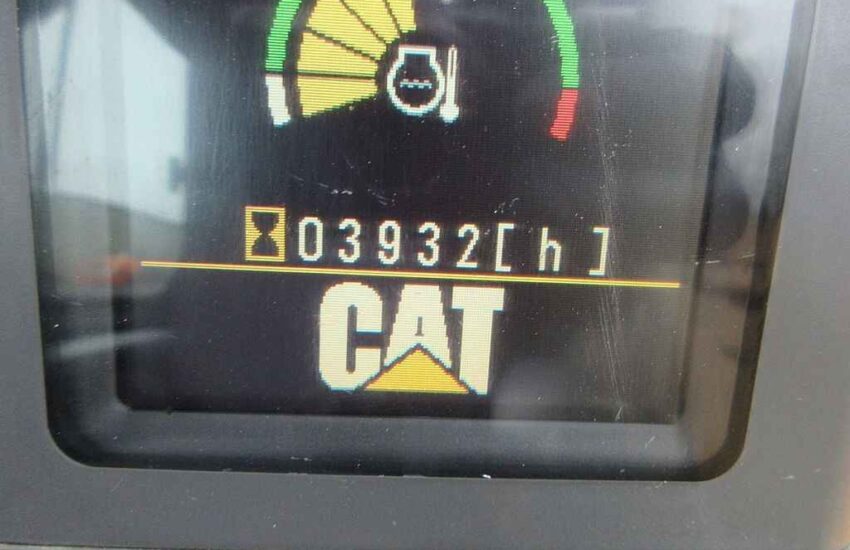

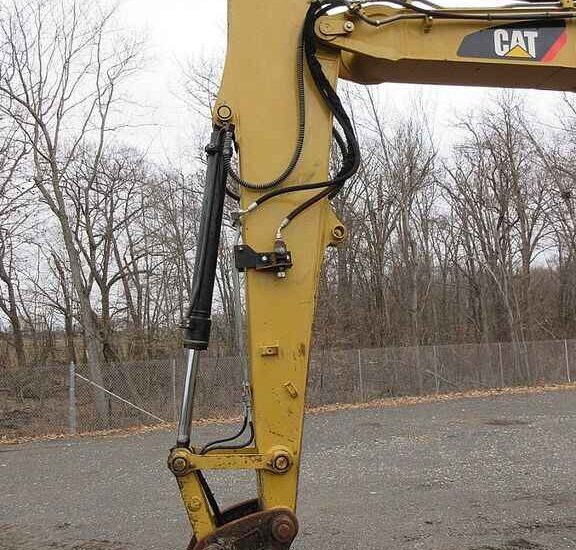

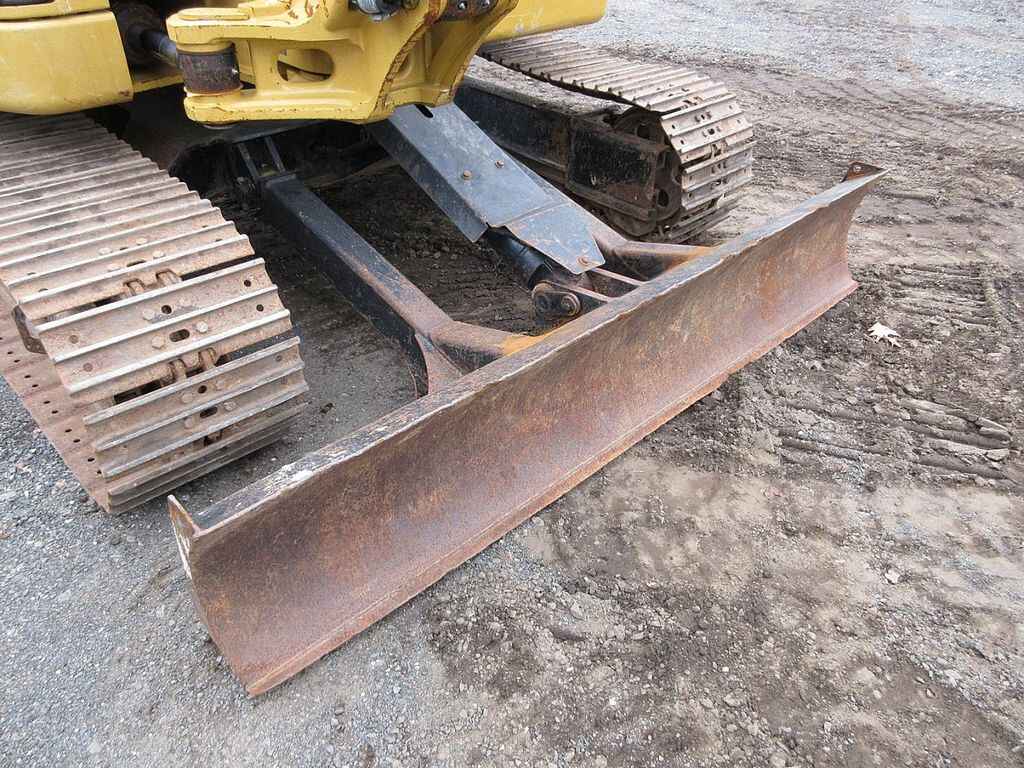

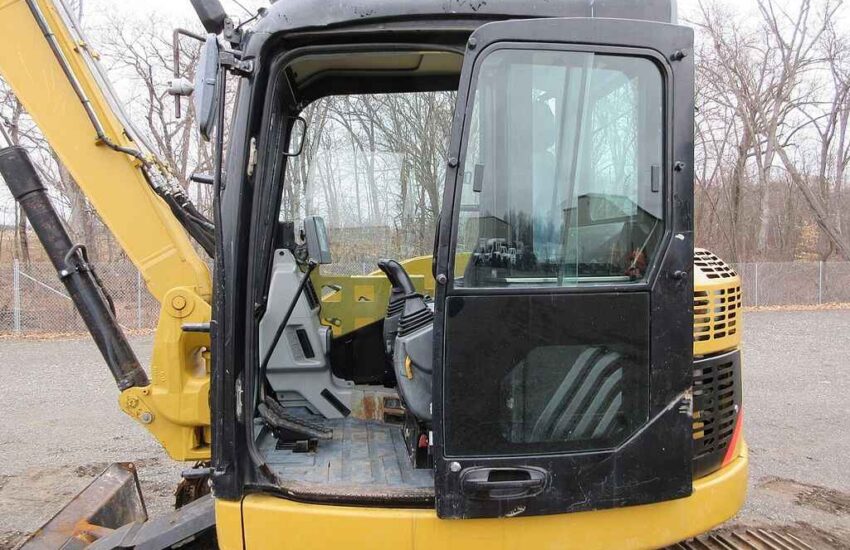

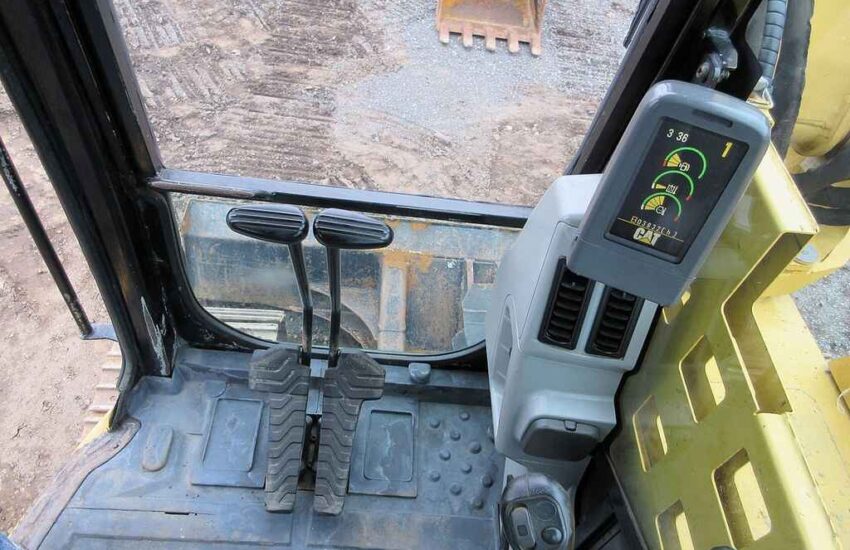

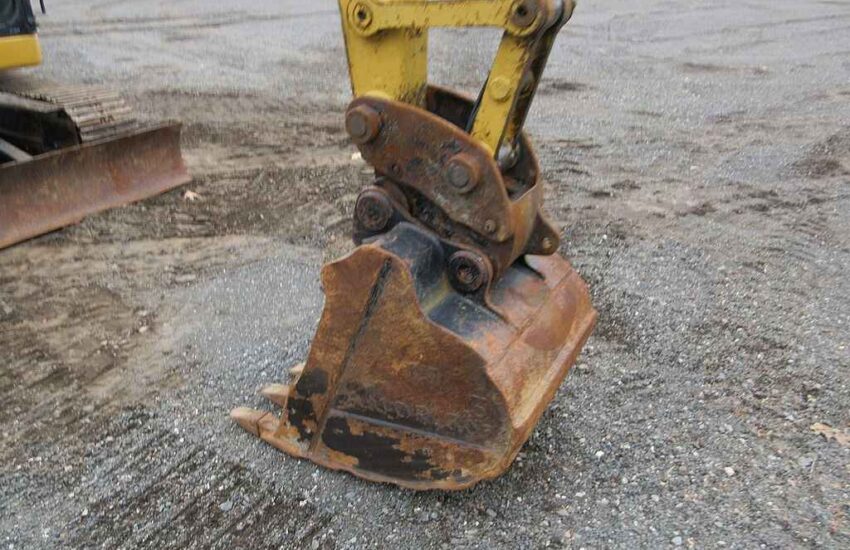

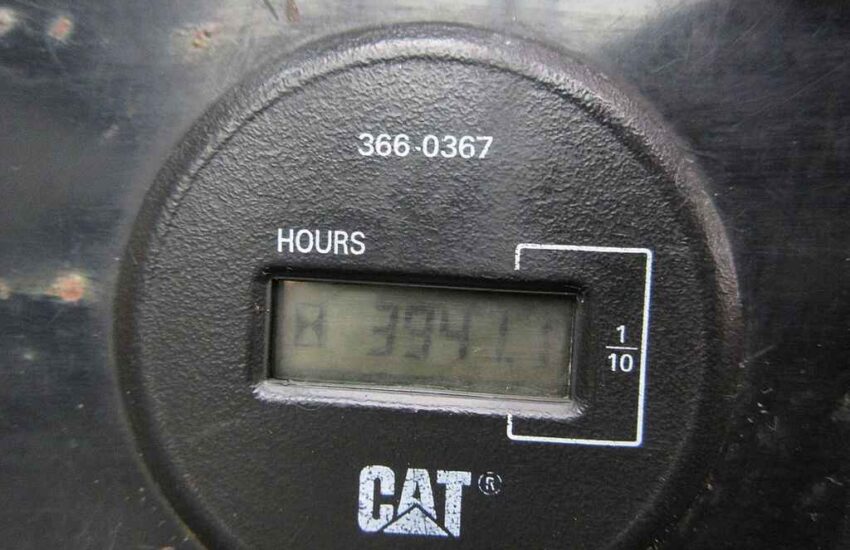

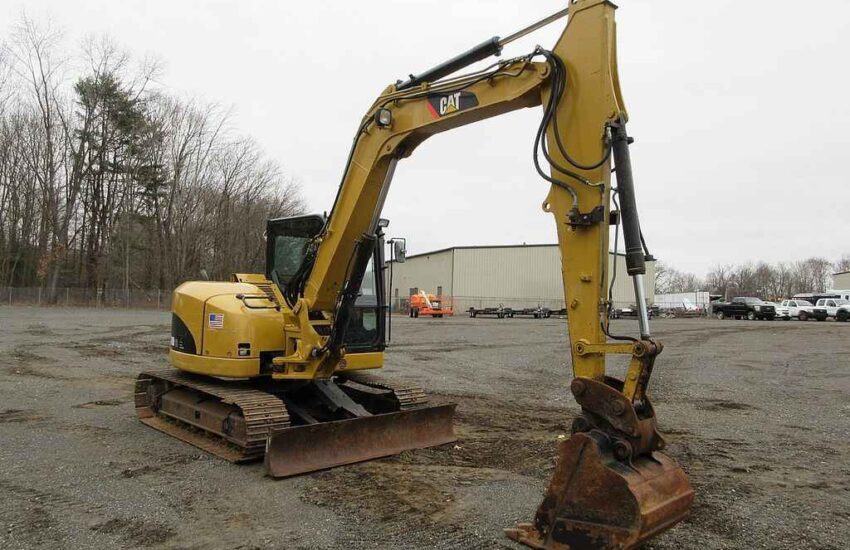

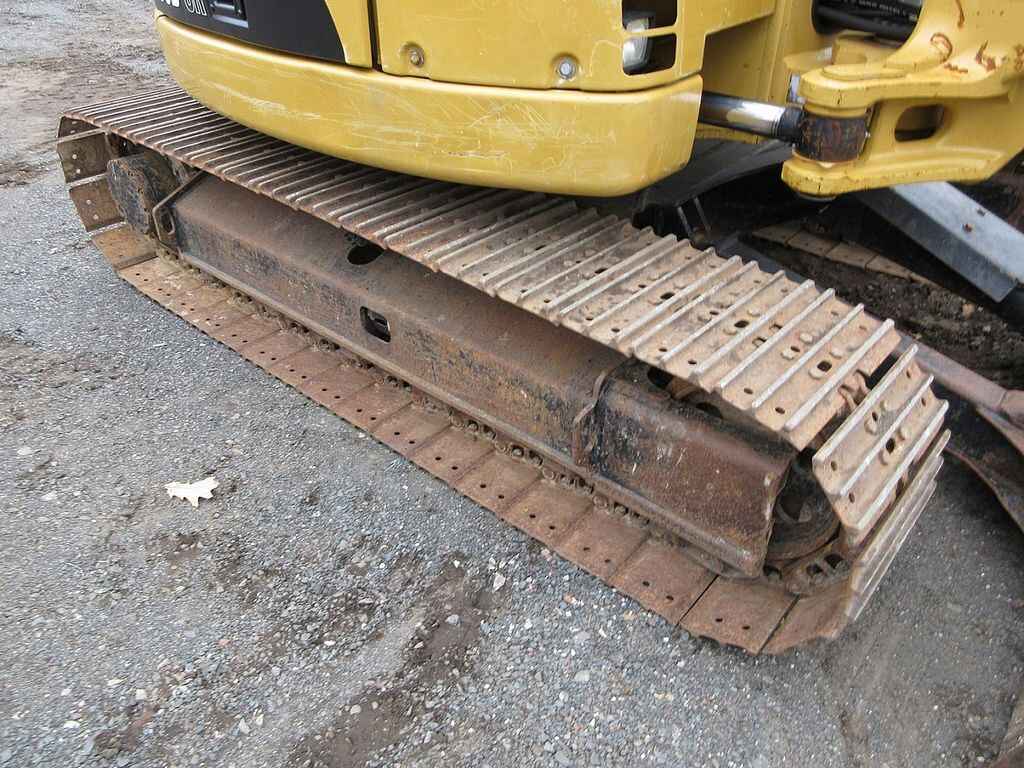

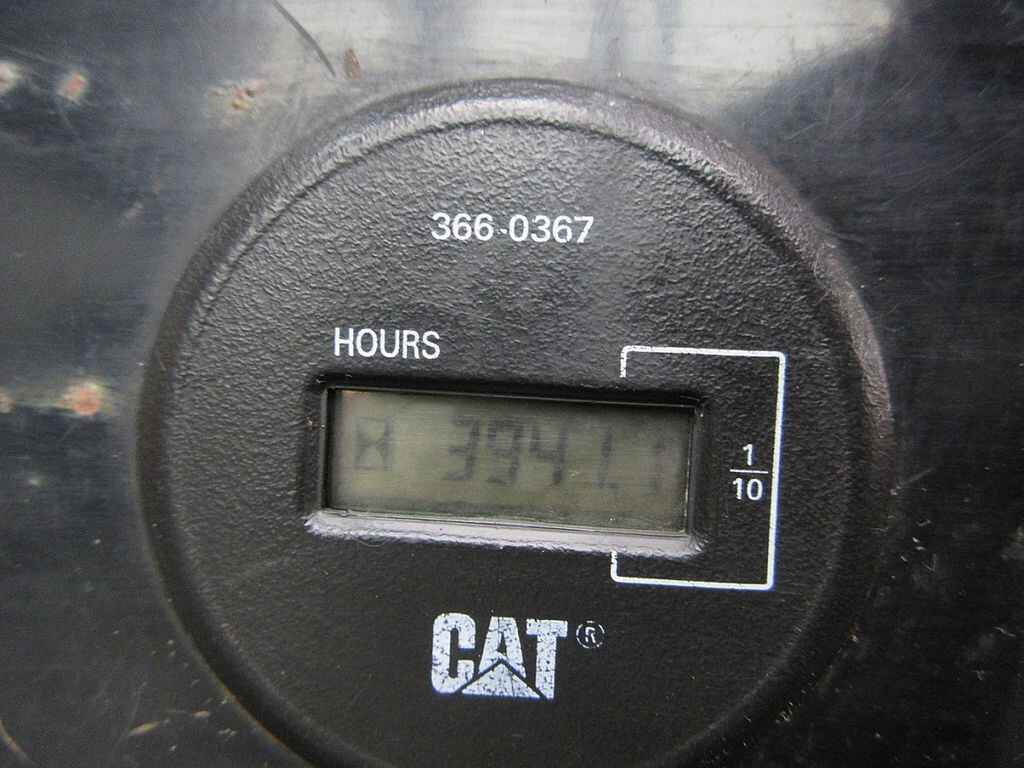

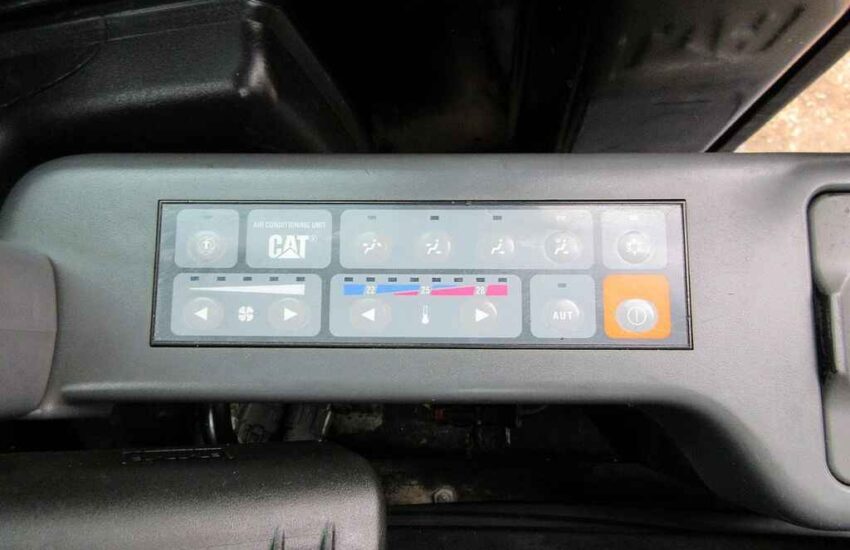

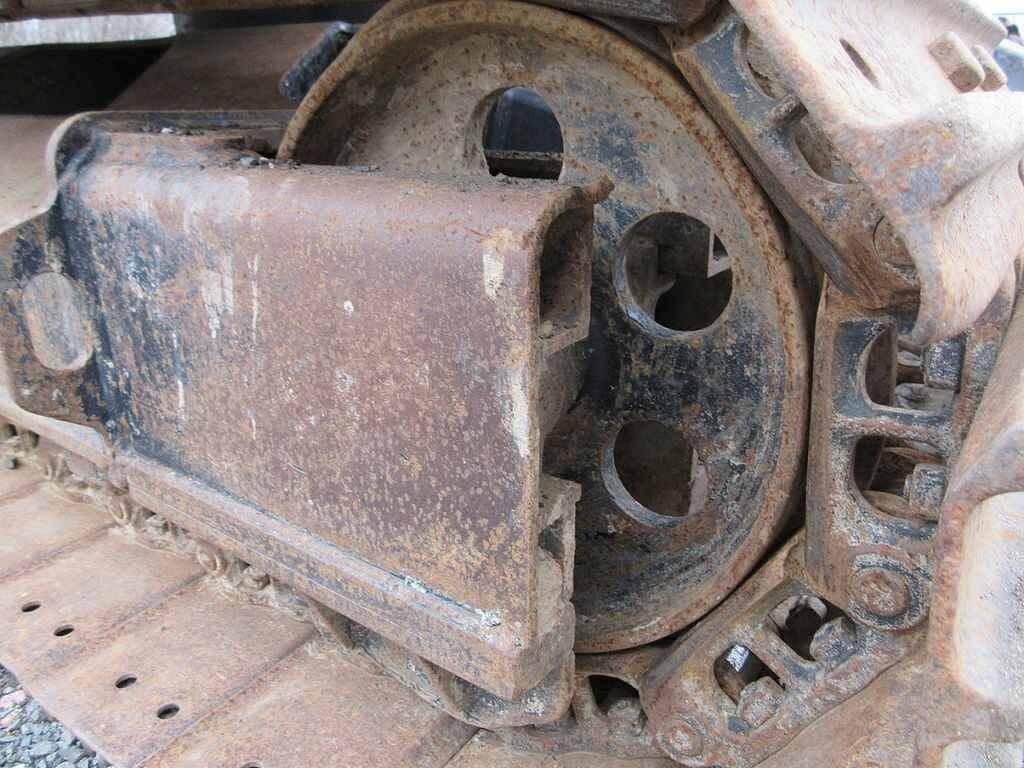

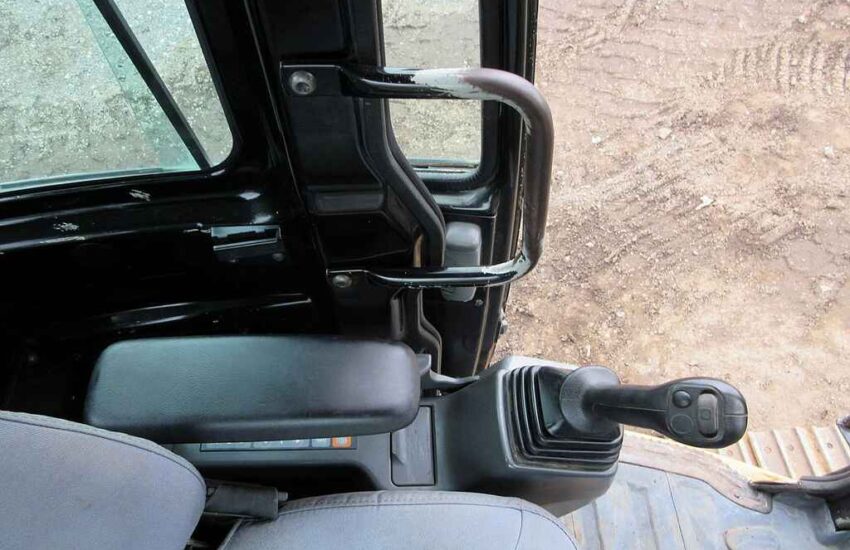

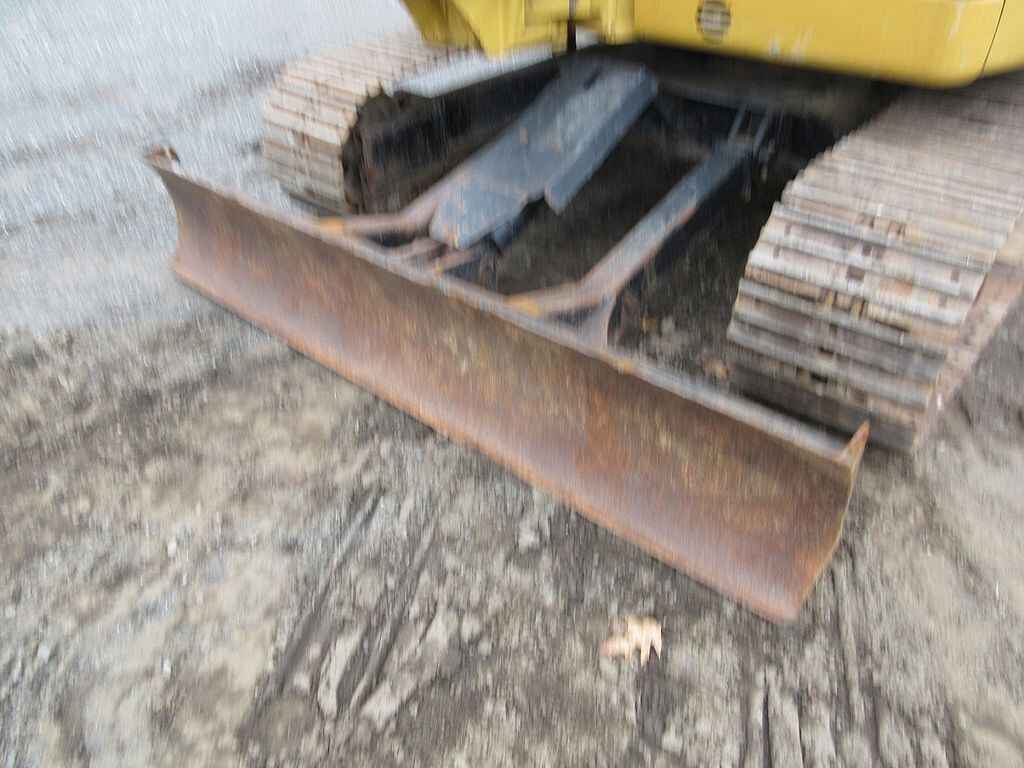

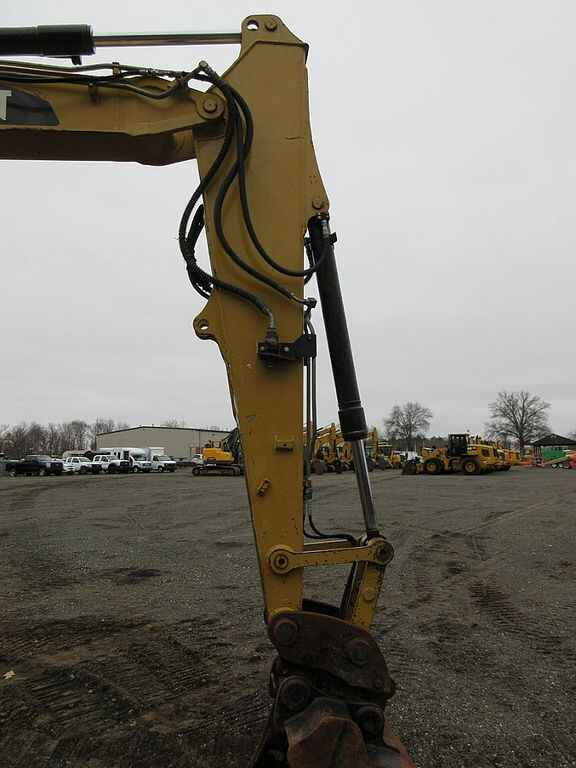

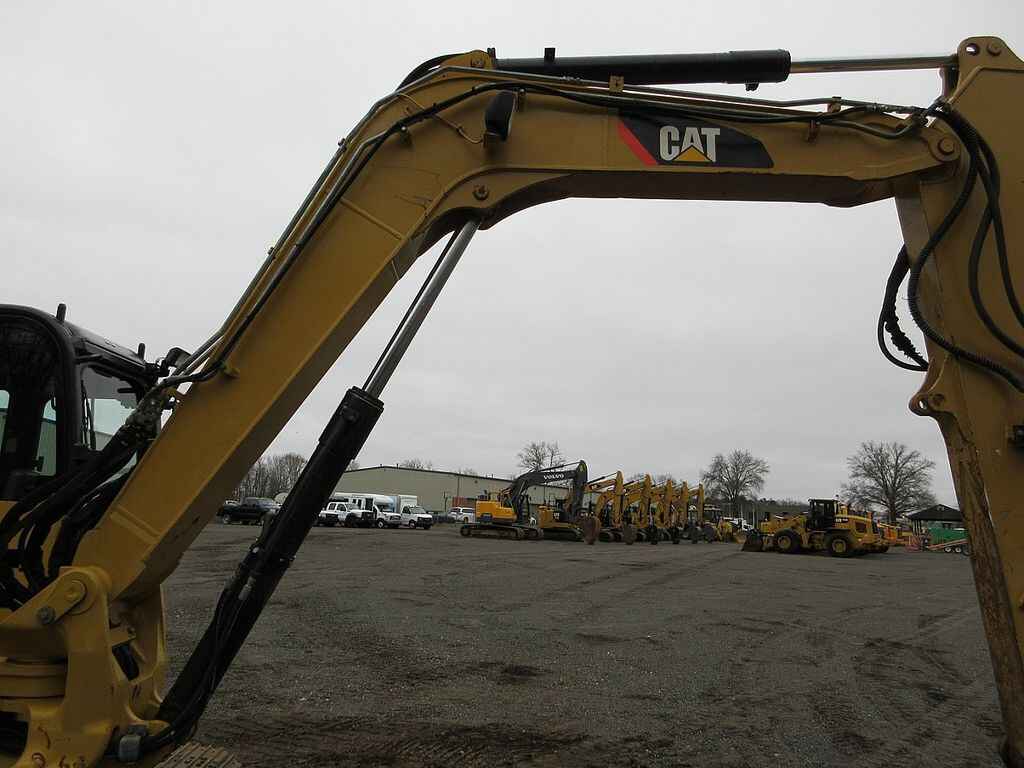

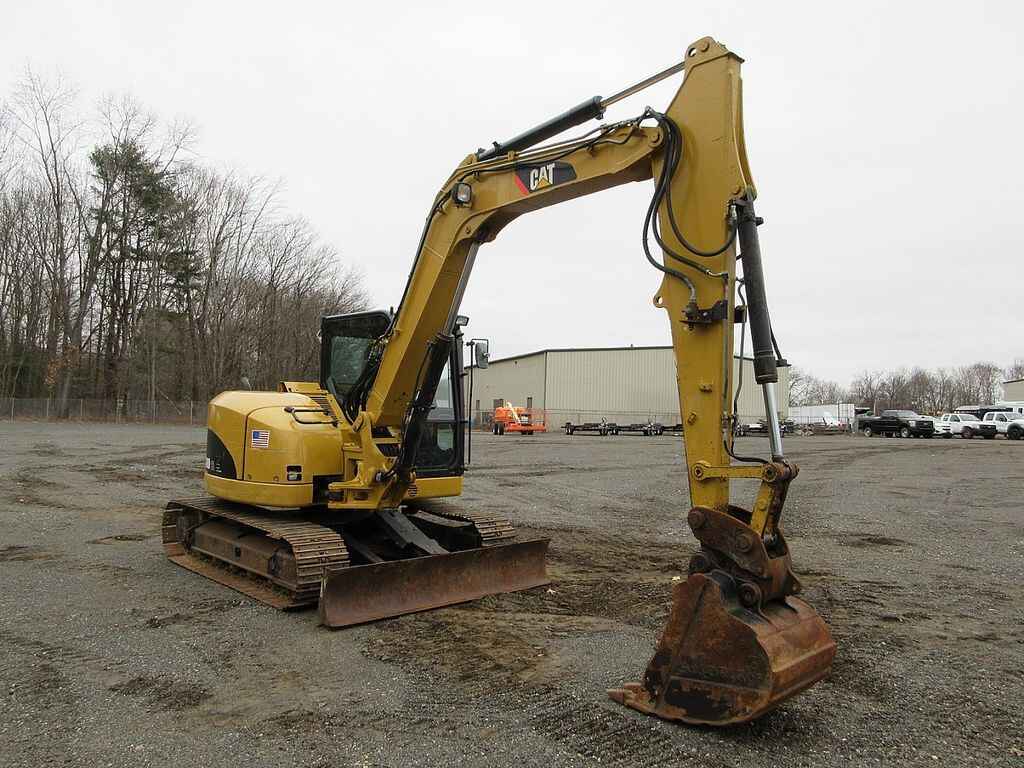

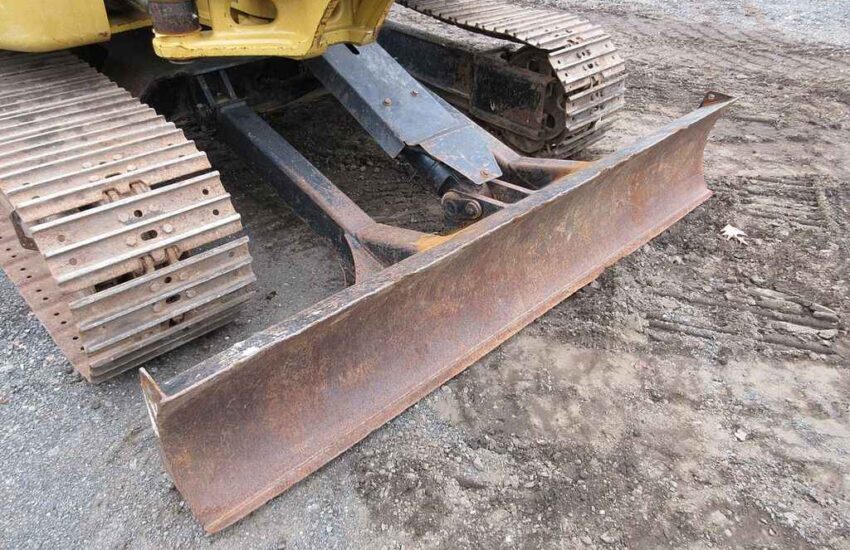

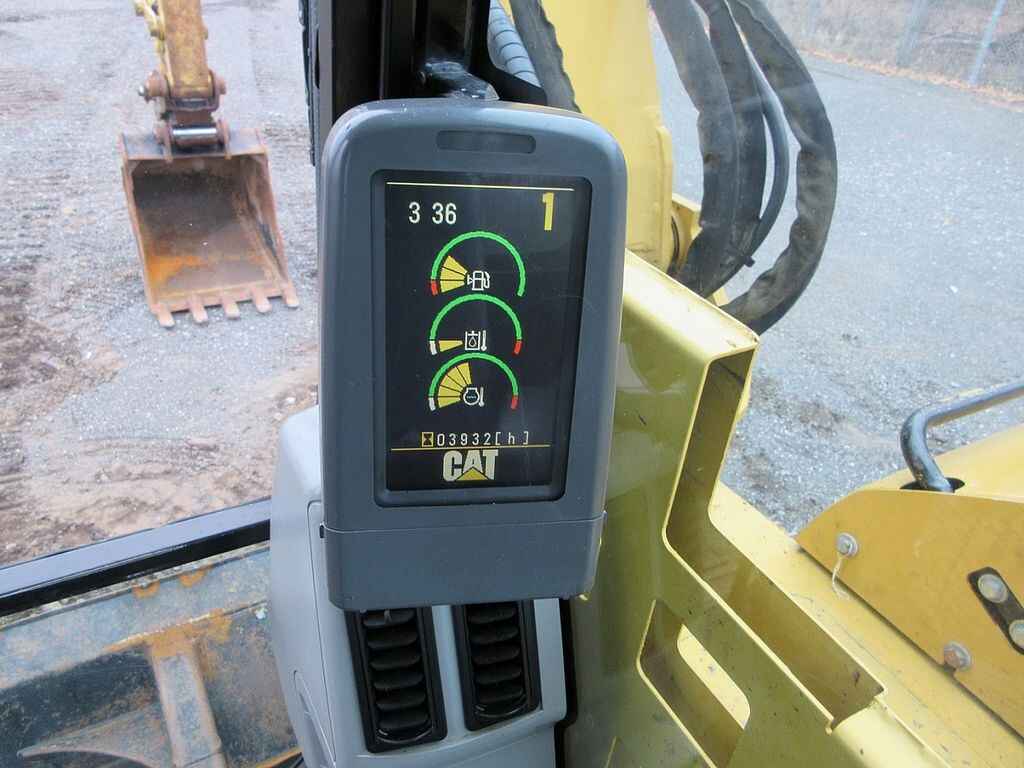

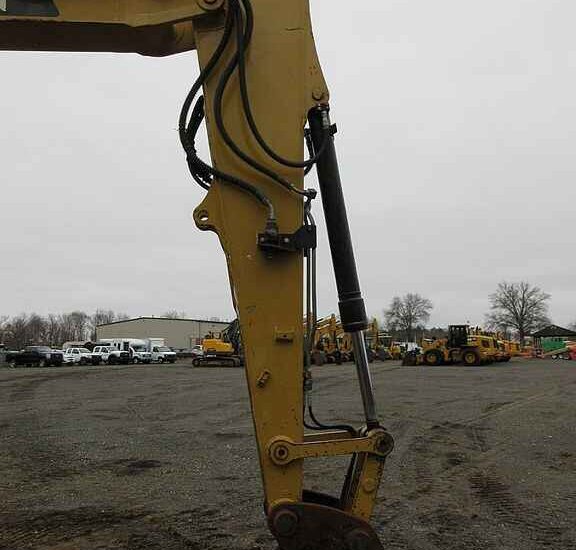

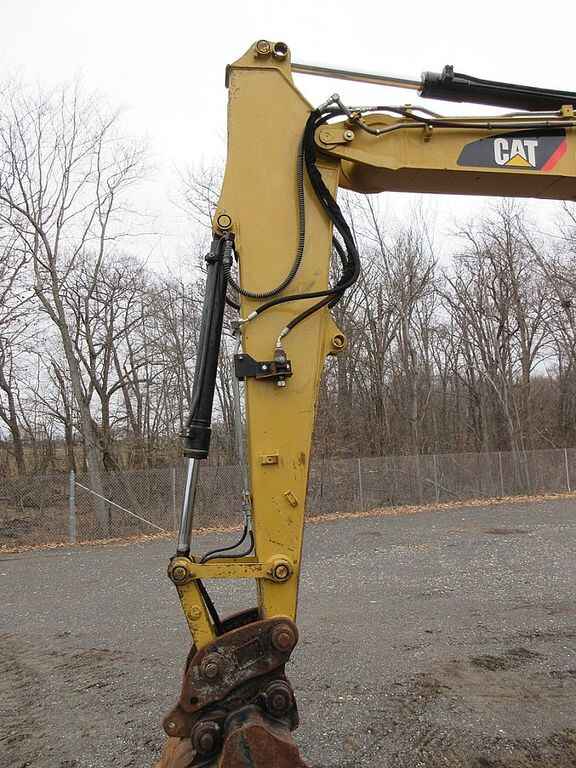

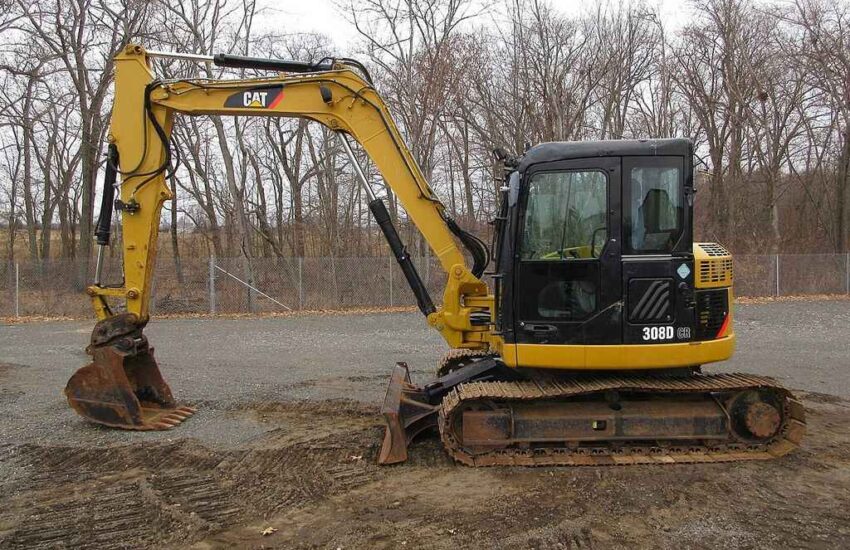

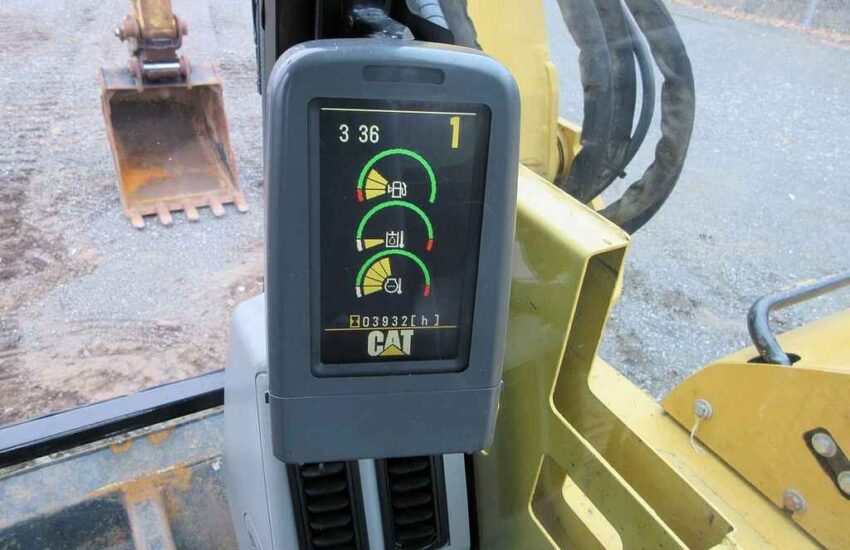

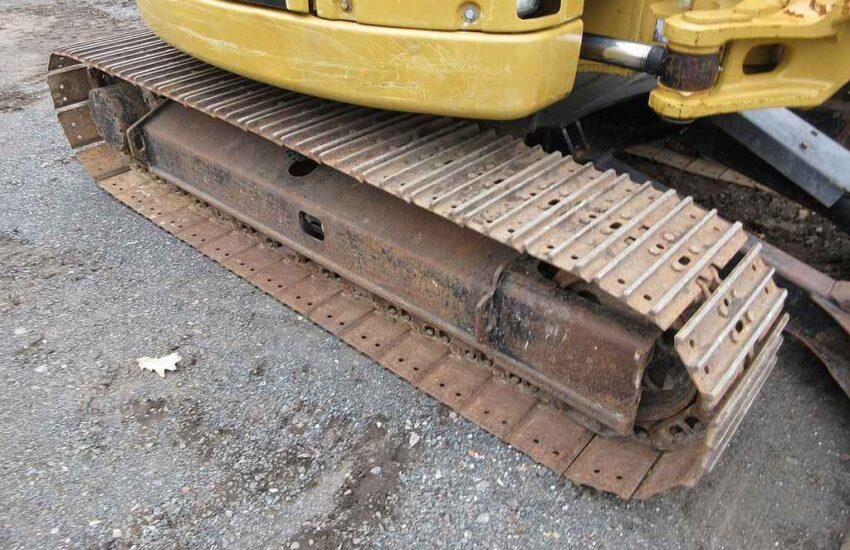

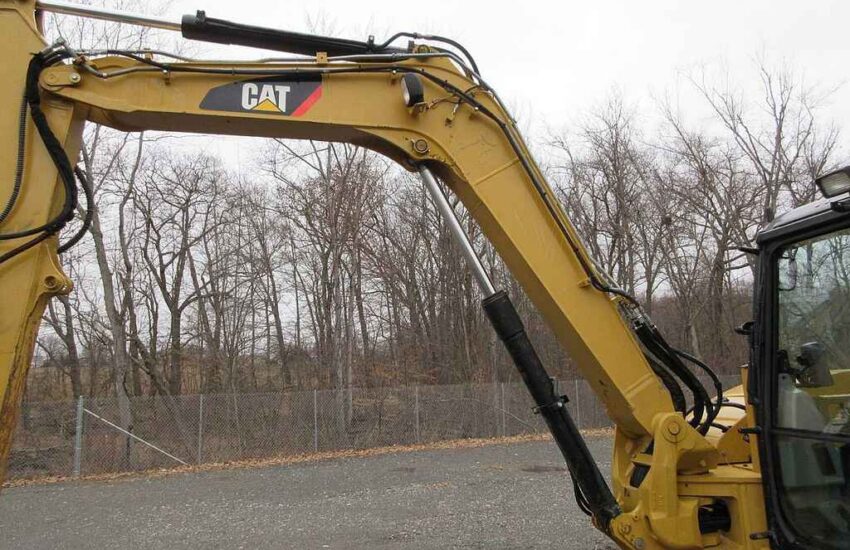

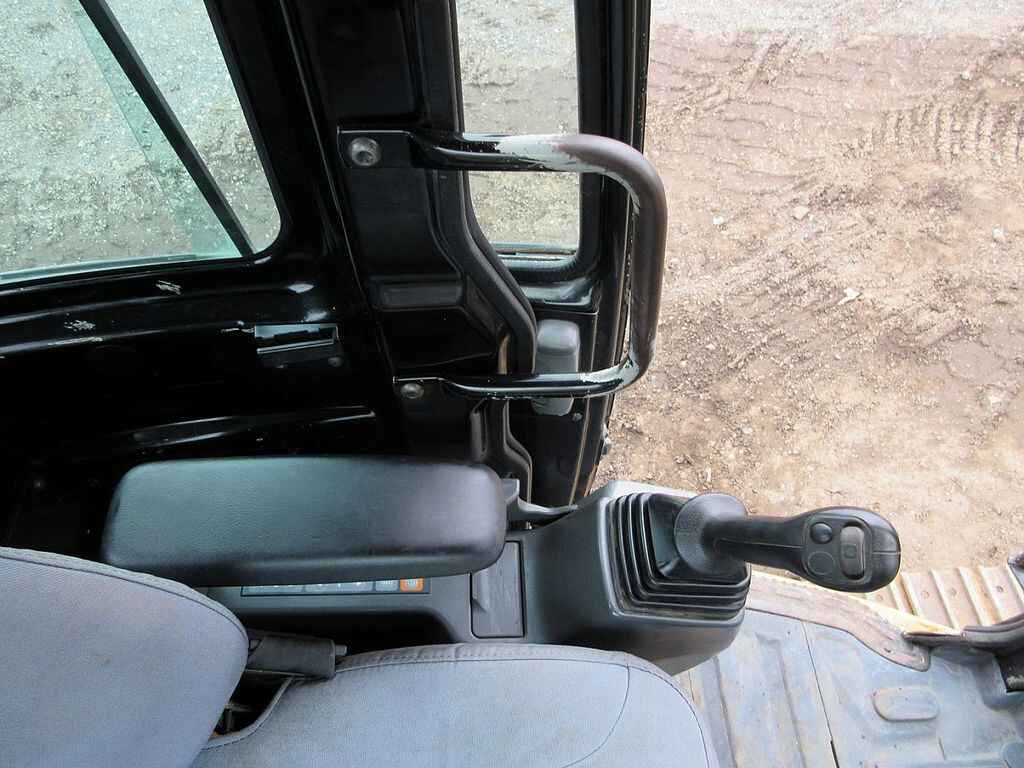

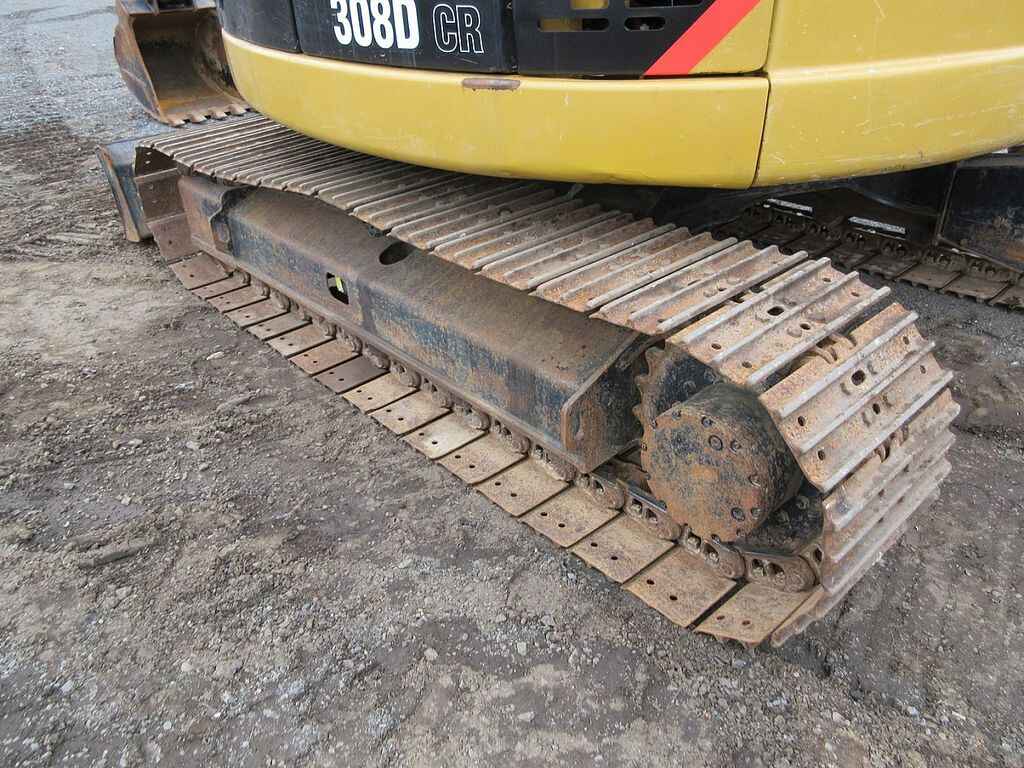

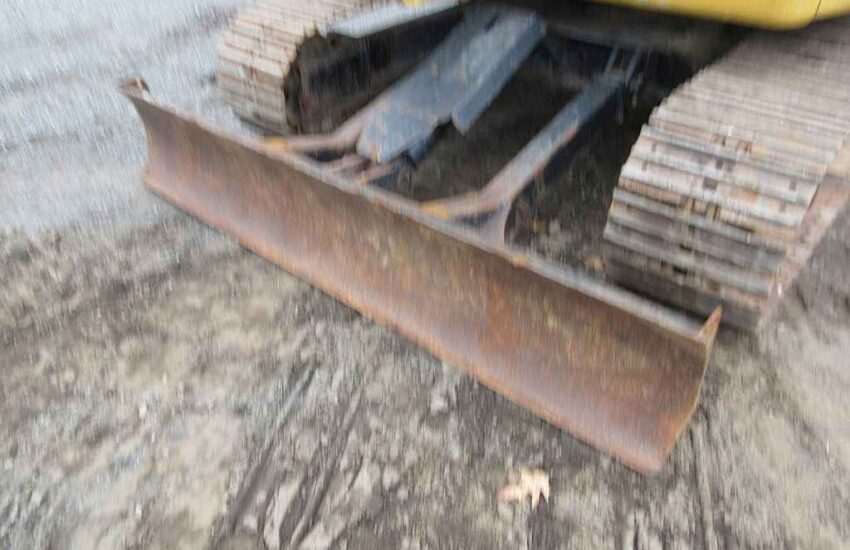

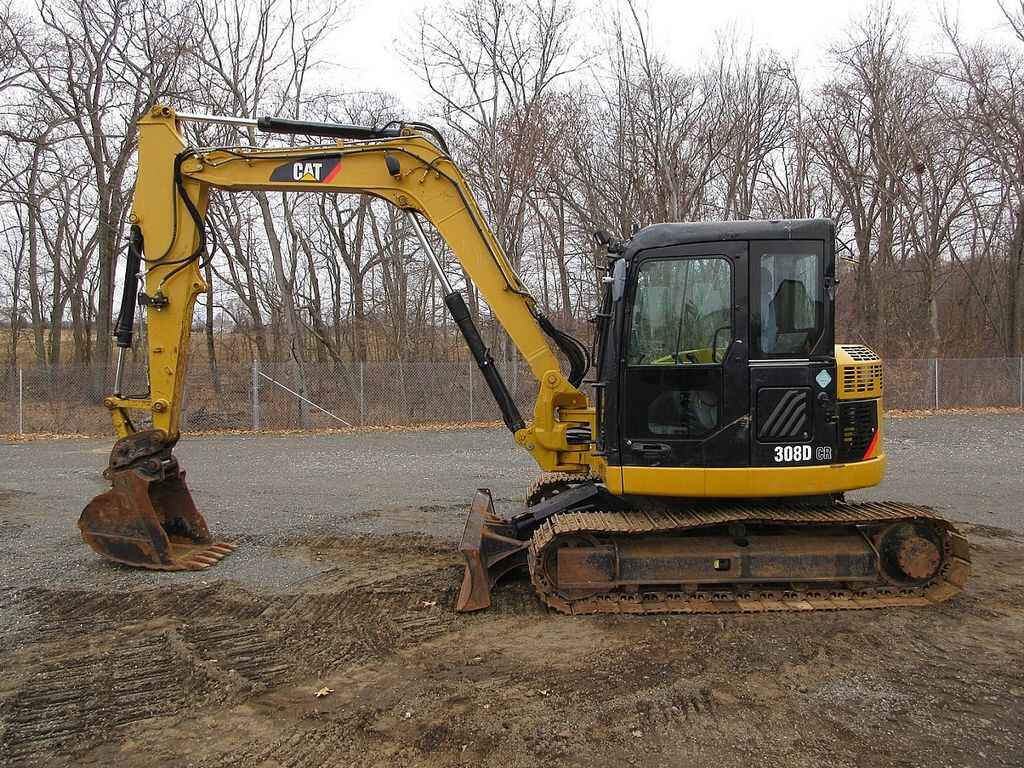

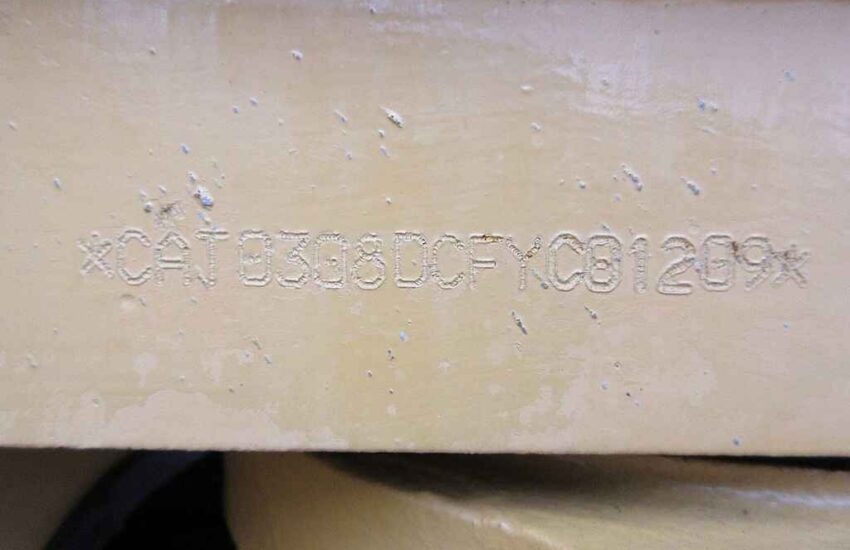

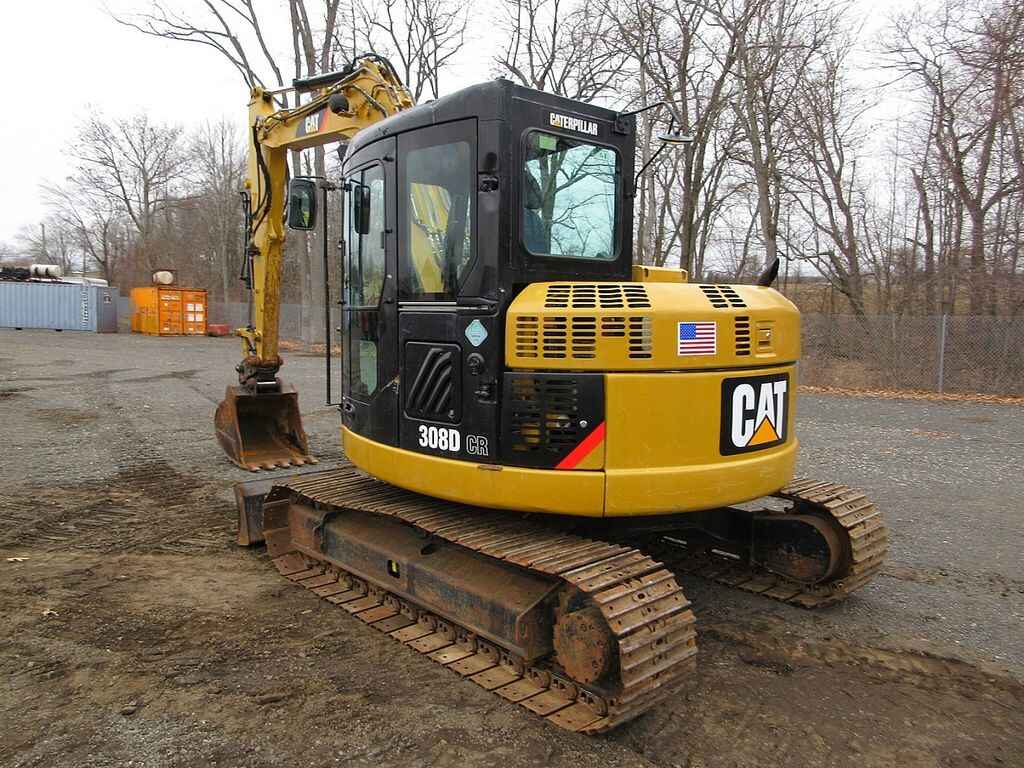

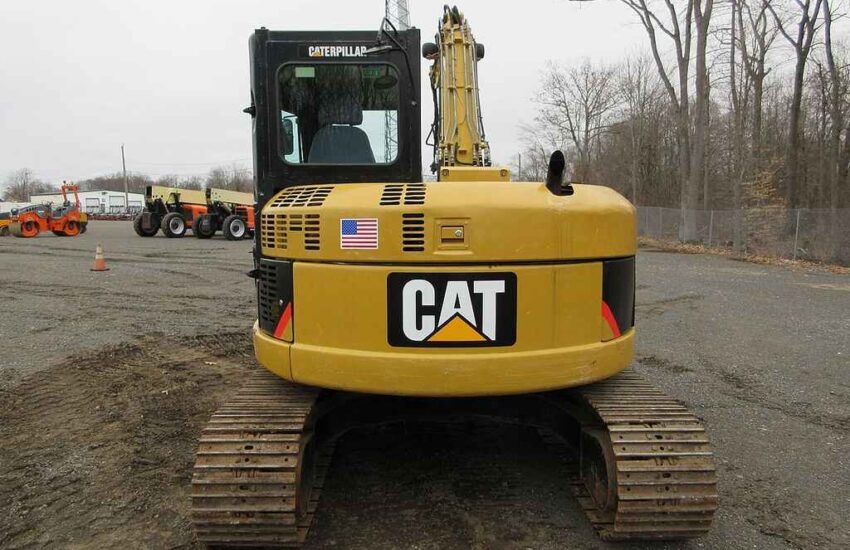

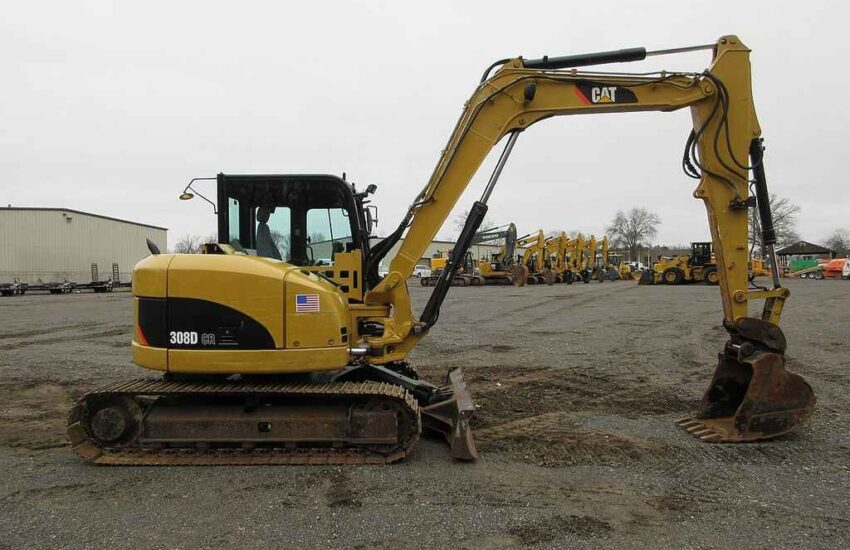

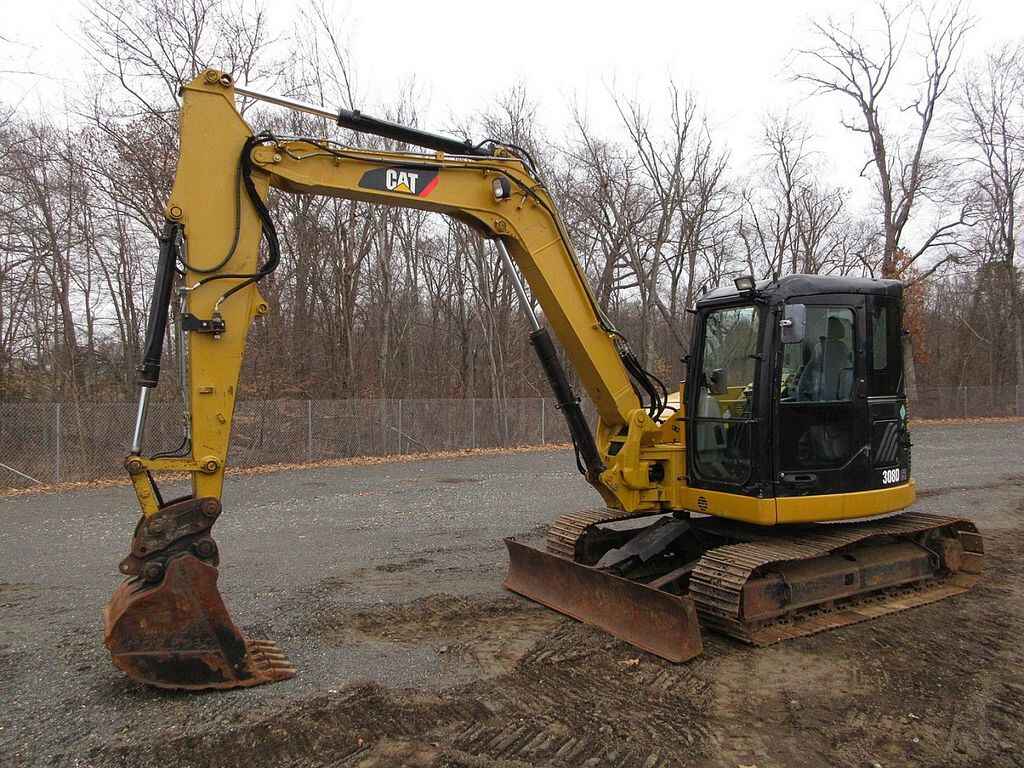

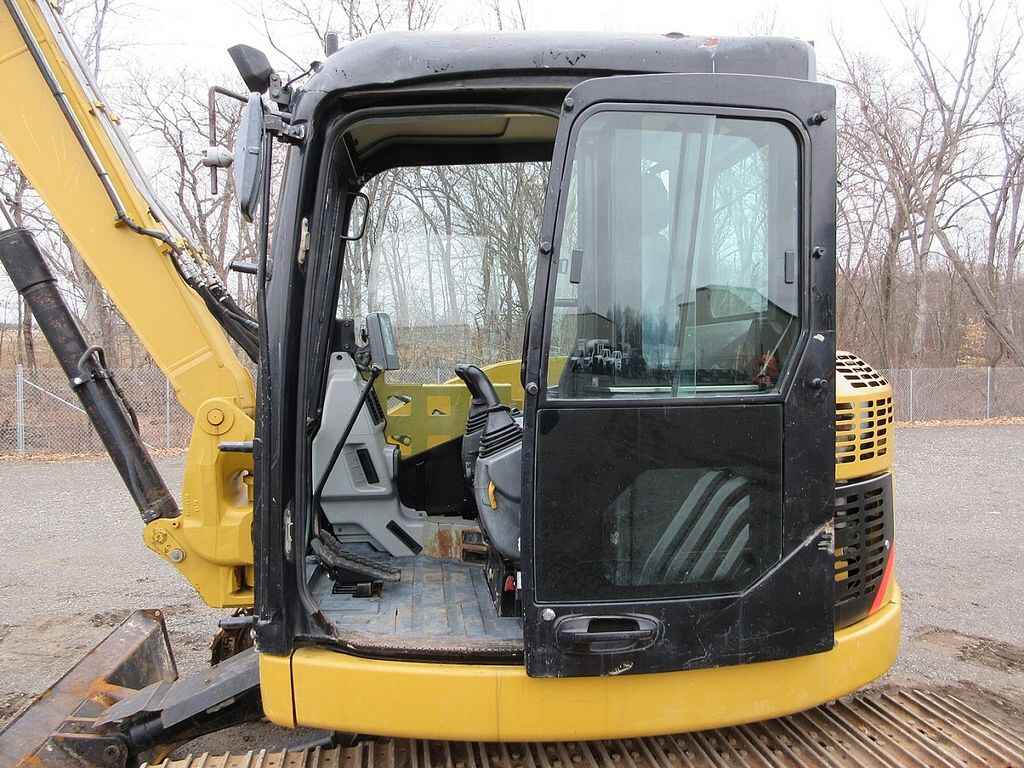

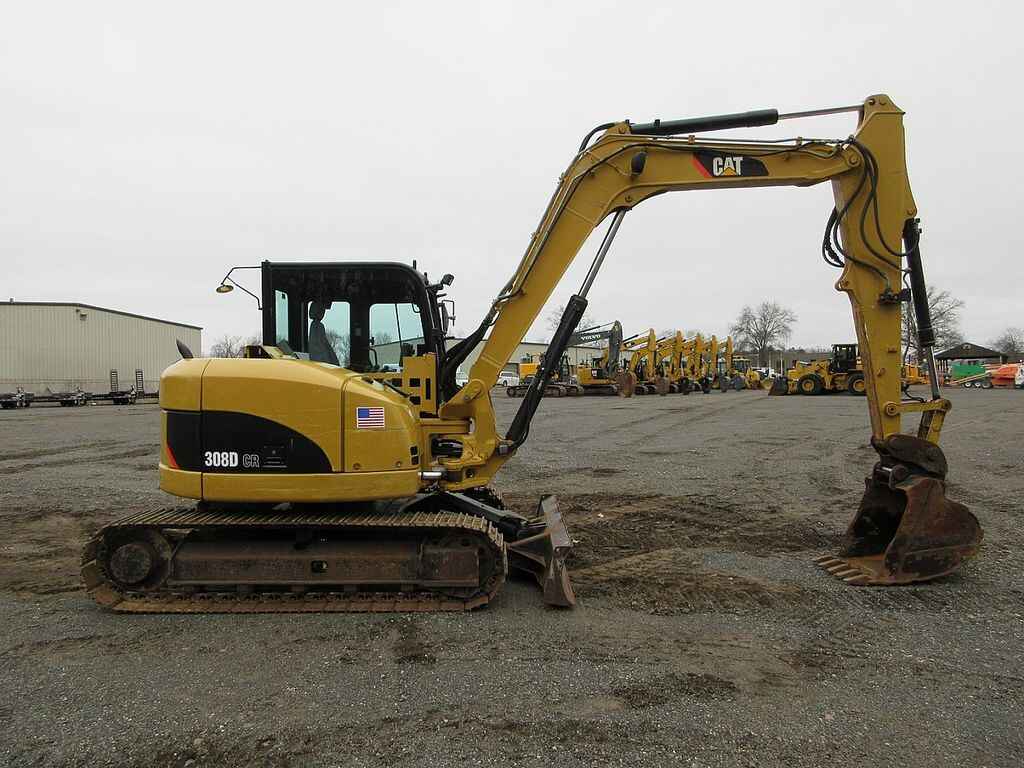

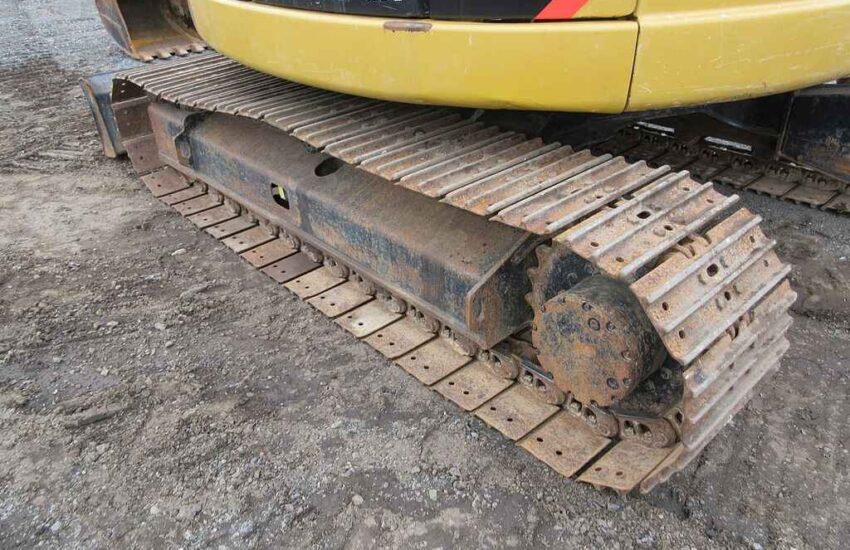

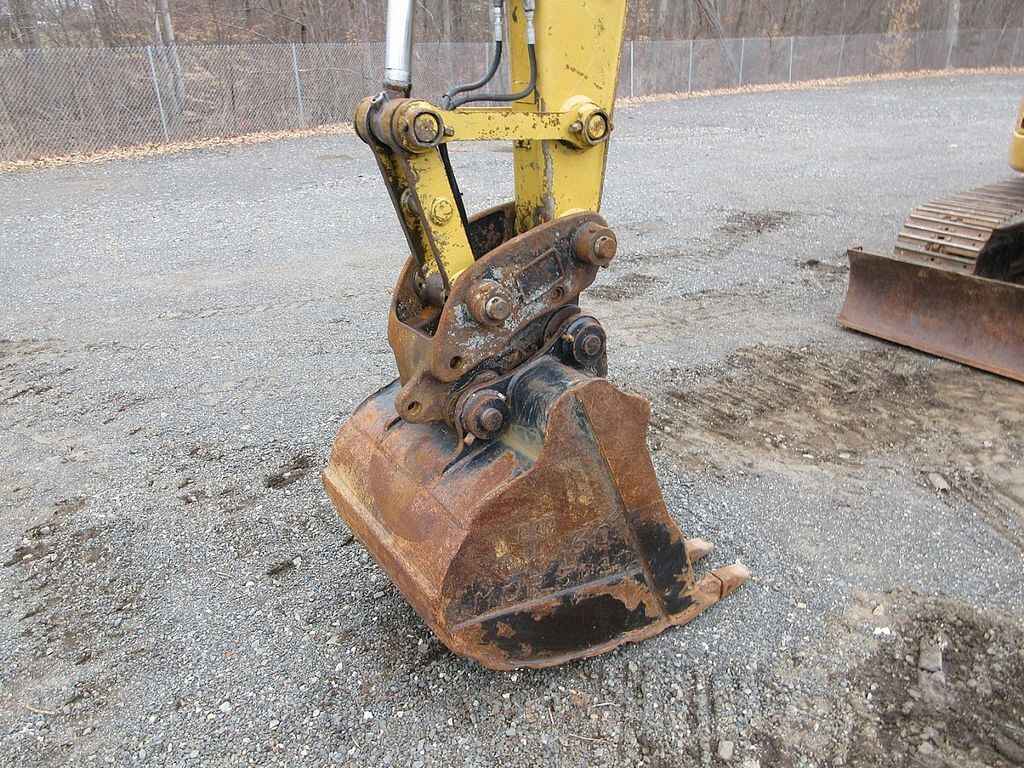

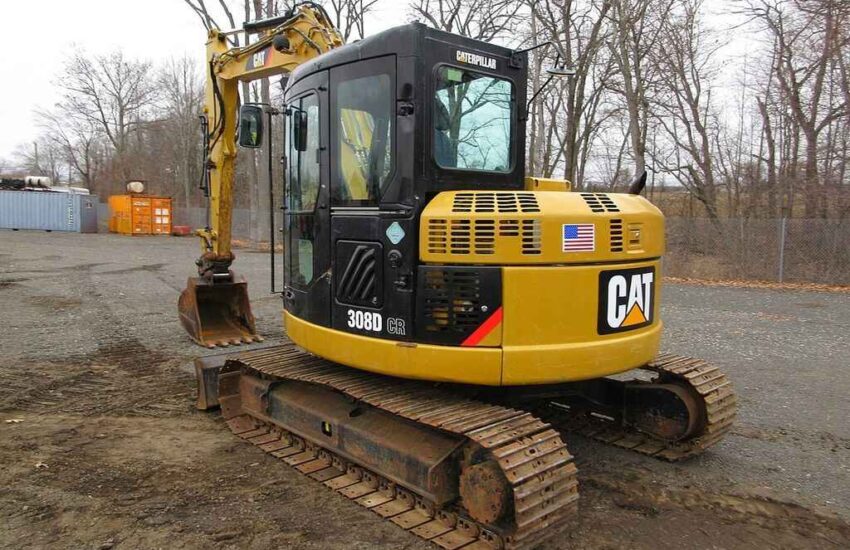

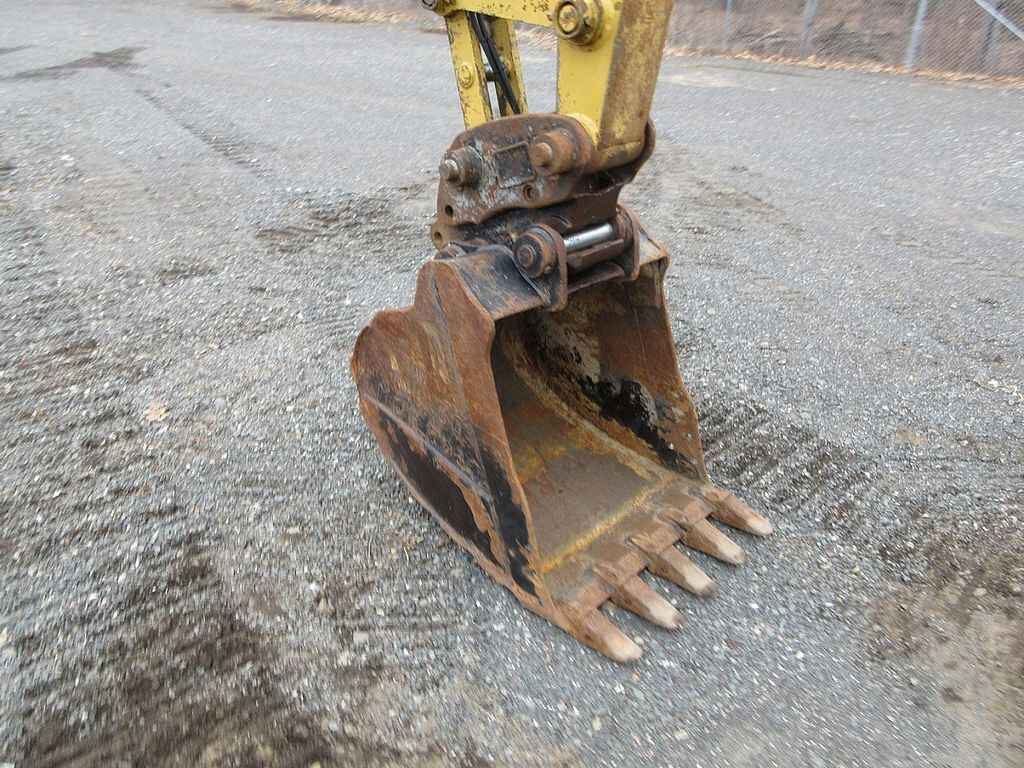

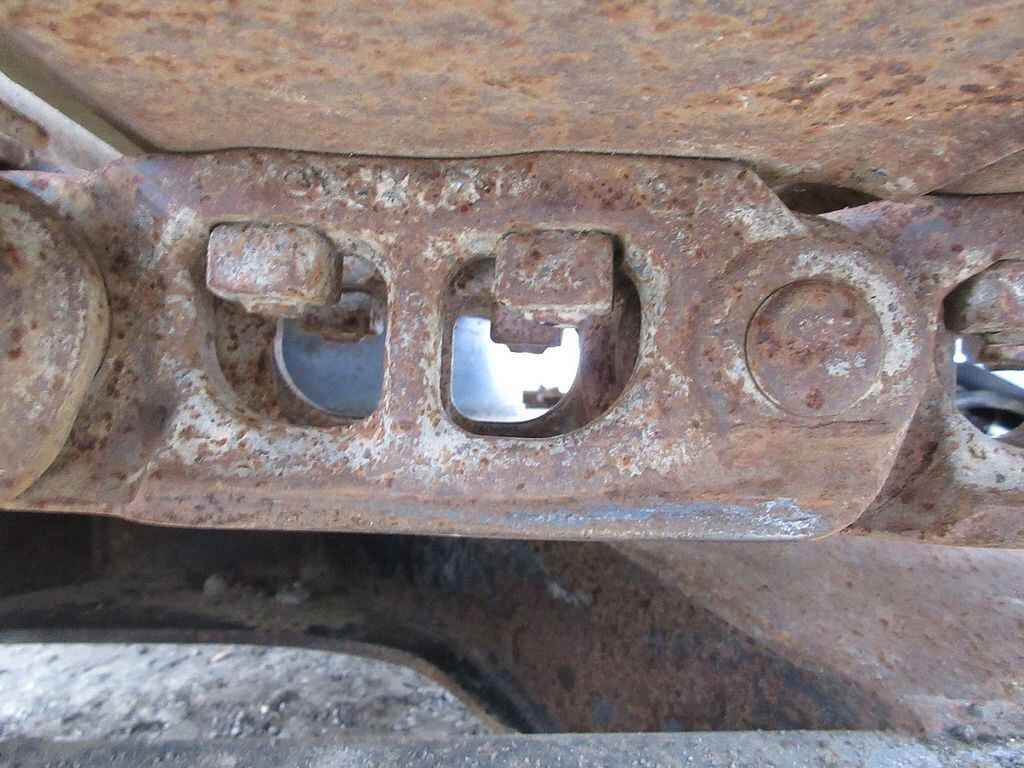

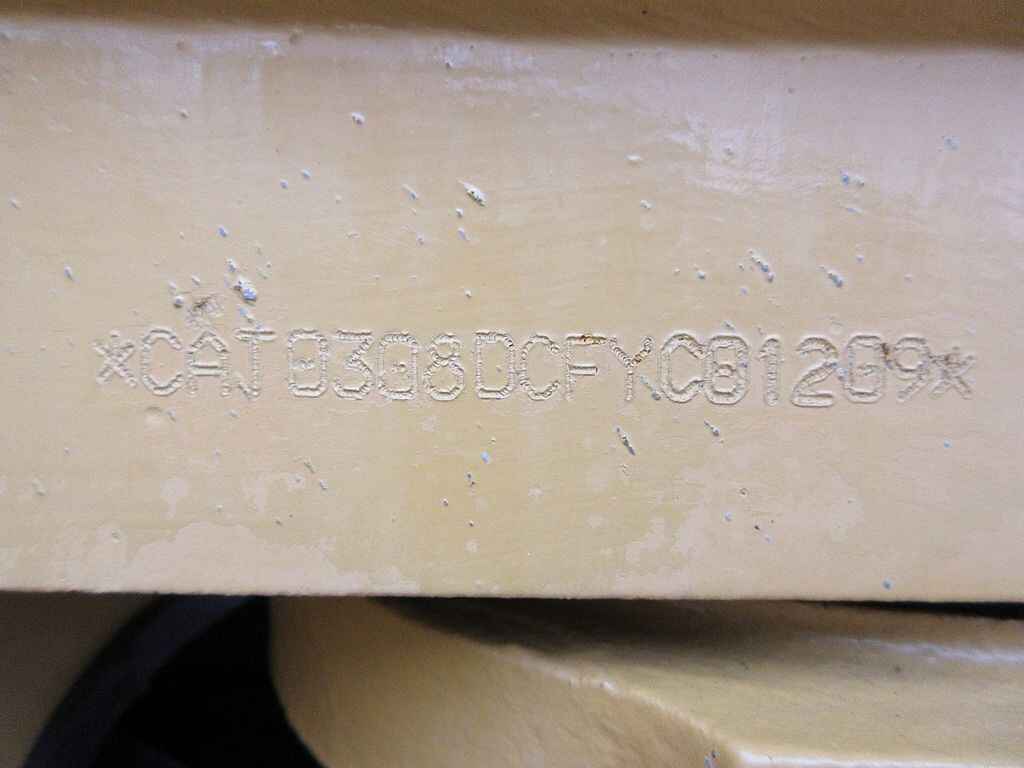

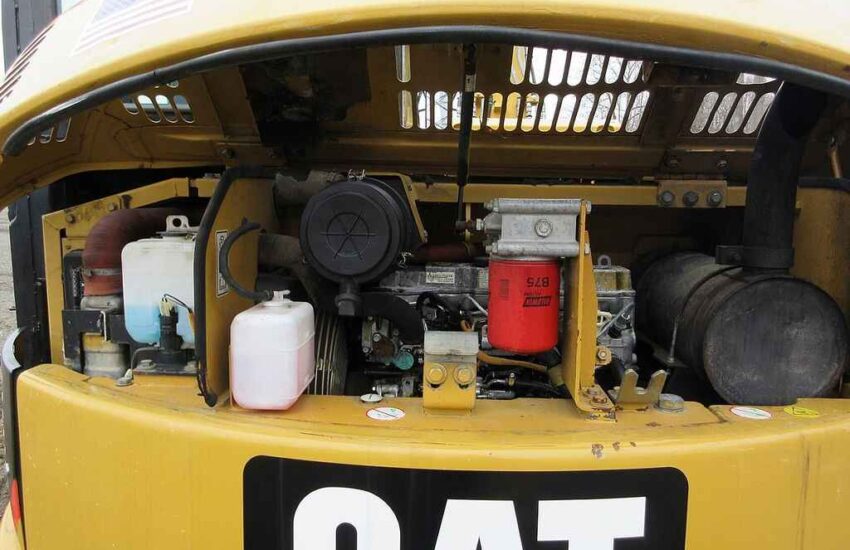

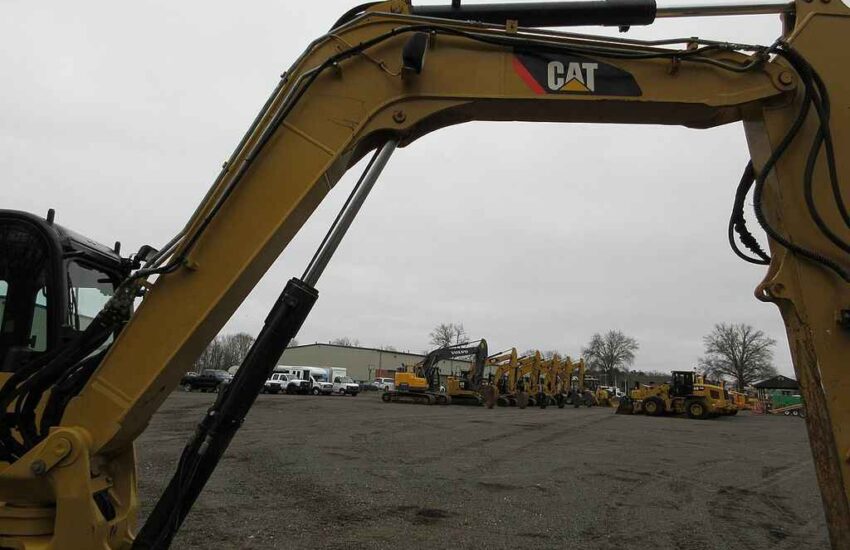

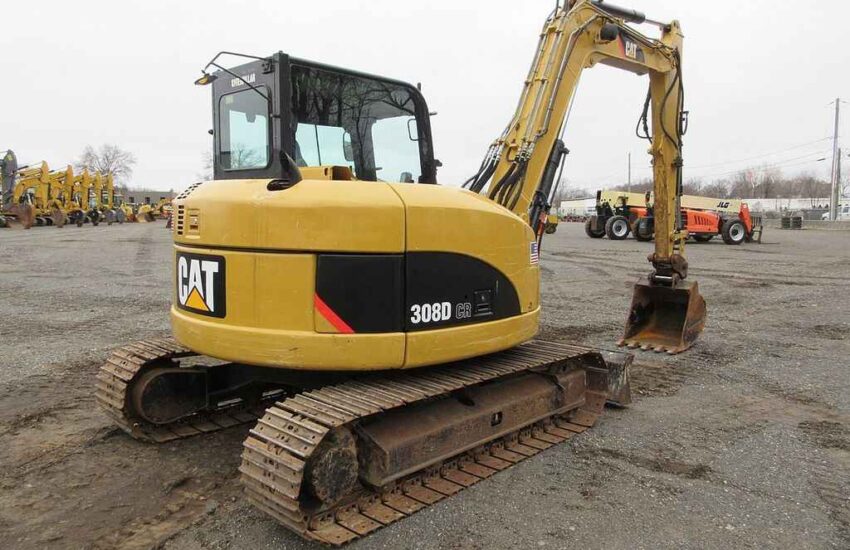

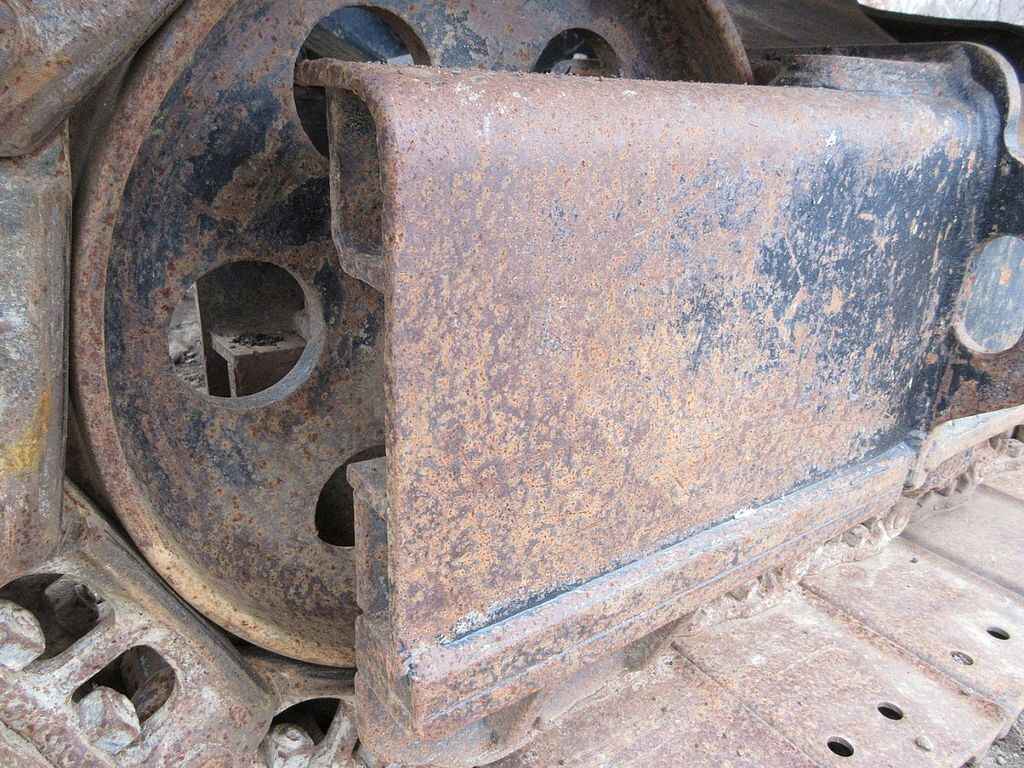

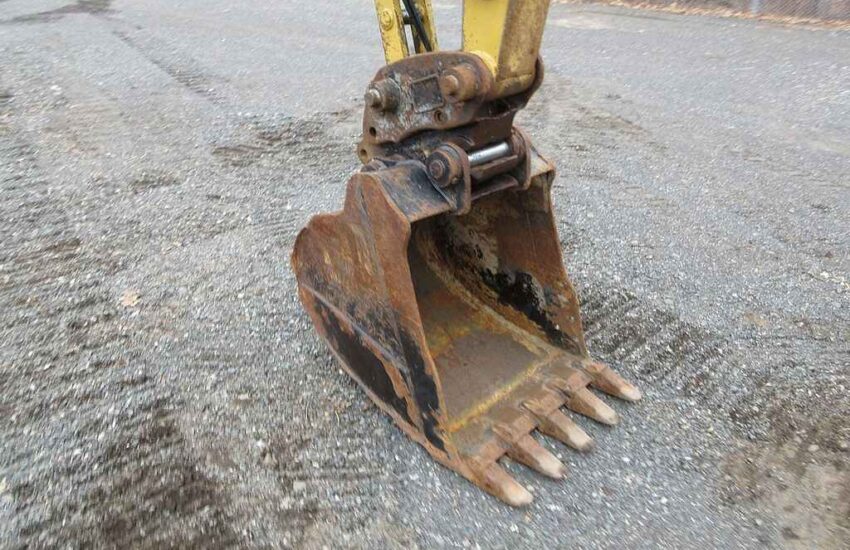

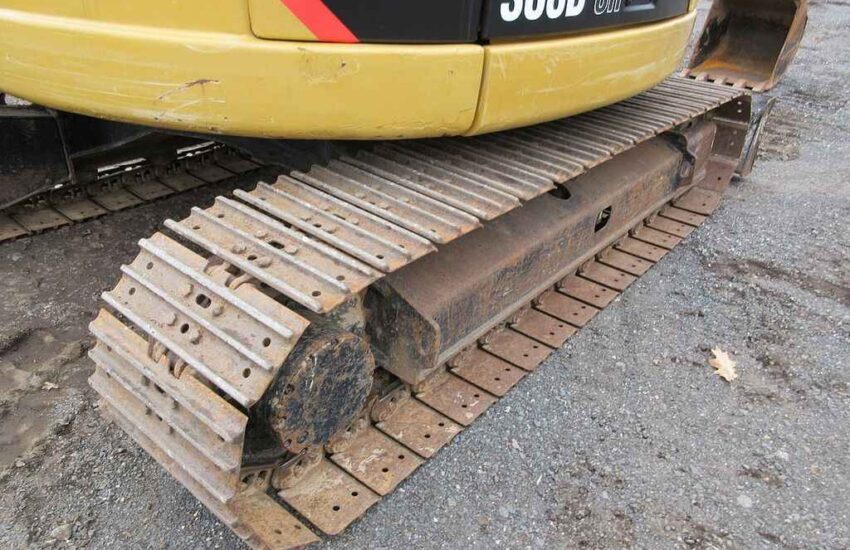

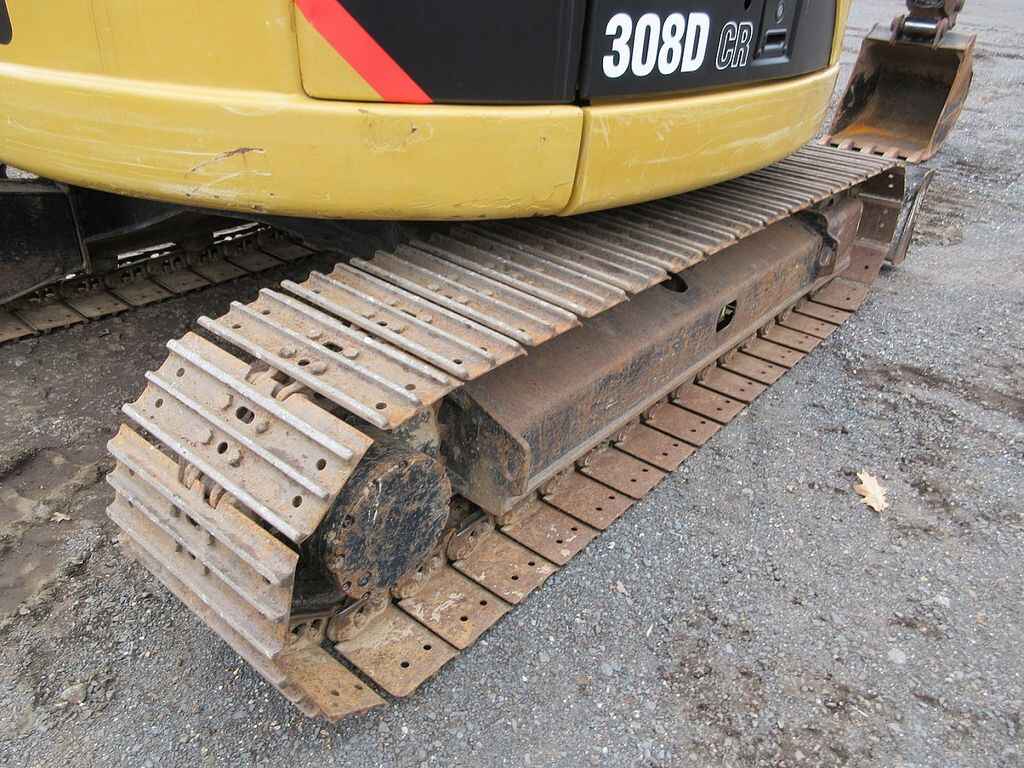

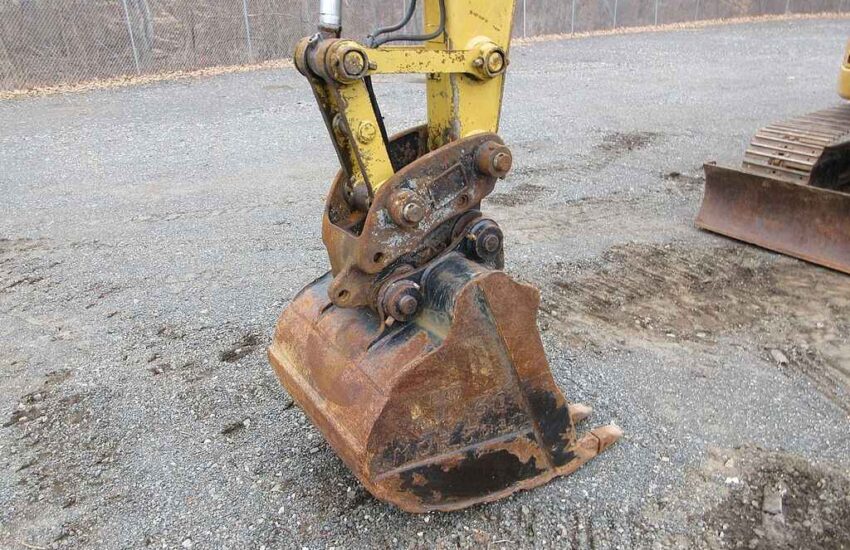

4 cyl turbo diesel, cab with heat, A/C, stereo, auto idle, 2 speed travel, 18″ track pads, backfill blade, swing boom, aux hyd, 7′ 4″ stick, hyd coupler, bucket with teeth, meter reads 3940 hours, S/N CAT0308DCFYC01209
SPECIFICATIONS

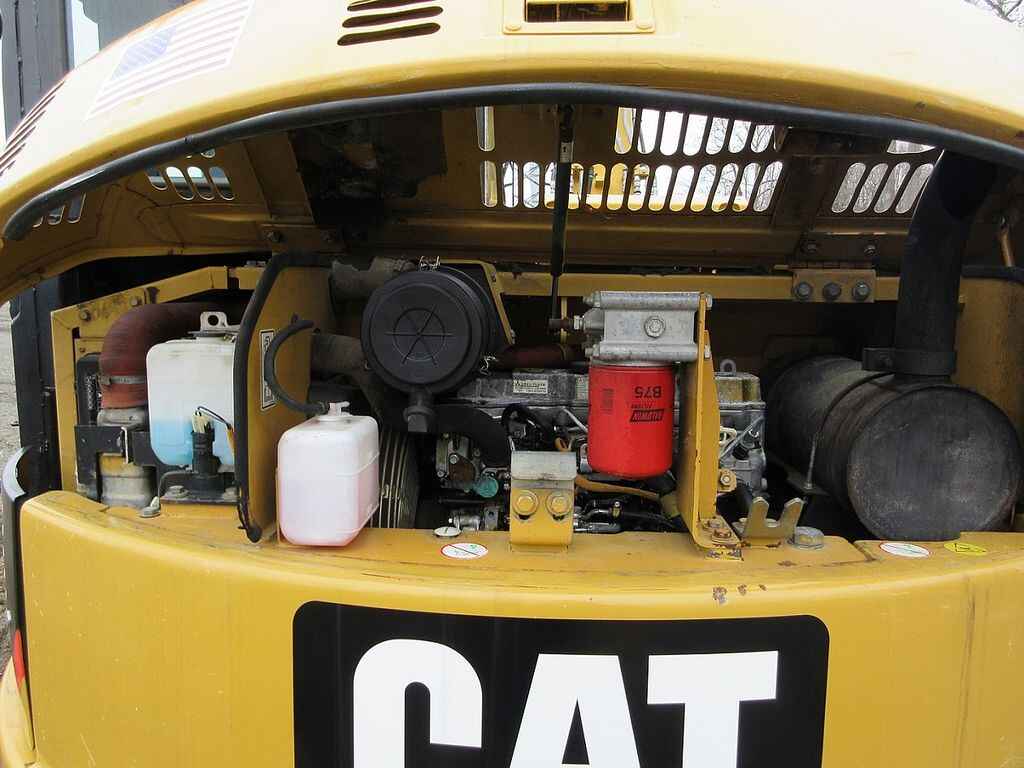

Engine
• Model: Mitsubishi 4M40 TL
• Net Power: 55.6 hp (41.5 kW)
• Gross Power: 57.6 hp (43.0 kW)
• Displacement: 172.7 in³ (2.83 L)
• Rated Speed: 2,000 rpm
Weights
• Operating Weight: 17,306 lbs (7,850 kg)
Performance
• Maximum Digging Depth: 13 ft 5 in (4.1 m)
• Maximum Reach at Ground Level: 20 ft 4 in (6.2 m)
• Maximum Cutting Height: 24 ft 1 in (7.3 m)
• Maximum Loading Height: 17 ft 5 in (5.3 m)
• Tail Swing Radius: 4 ft 3 in (1.3 m)
• Travel Speed (High): 3.1 mph (5.0 km/h)
• Travel Speed (Low): 1.9 mph (3.1 km/h)
Hydraulics
• Operating Pressure – Equipment: 4,061 psi (280 bar)
• Operating Pressure – Travel: 4,641 psi (320 bar)
• Hydraulic Pump Flow Capacity: 71.9 gal/min (272 L/min)
Dimensions
• Shipping Length: 19 ft 1 in (5.8 m)
• Shipping Height: 8 ft 6 in (2.6 m)
• Width (Outside of Tracks): 7 ft 7 in (2.3 m)
• Ground Clearance: 1 ft 3 in (0.4 m)
• Height to Top of Cab: 8 ft 6 in (2.6 m)
Features

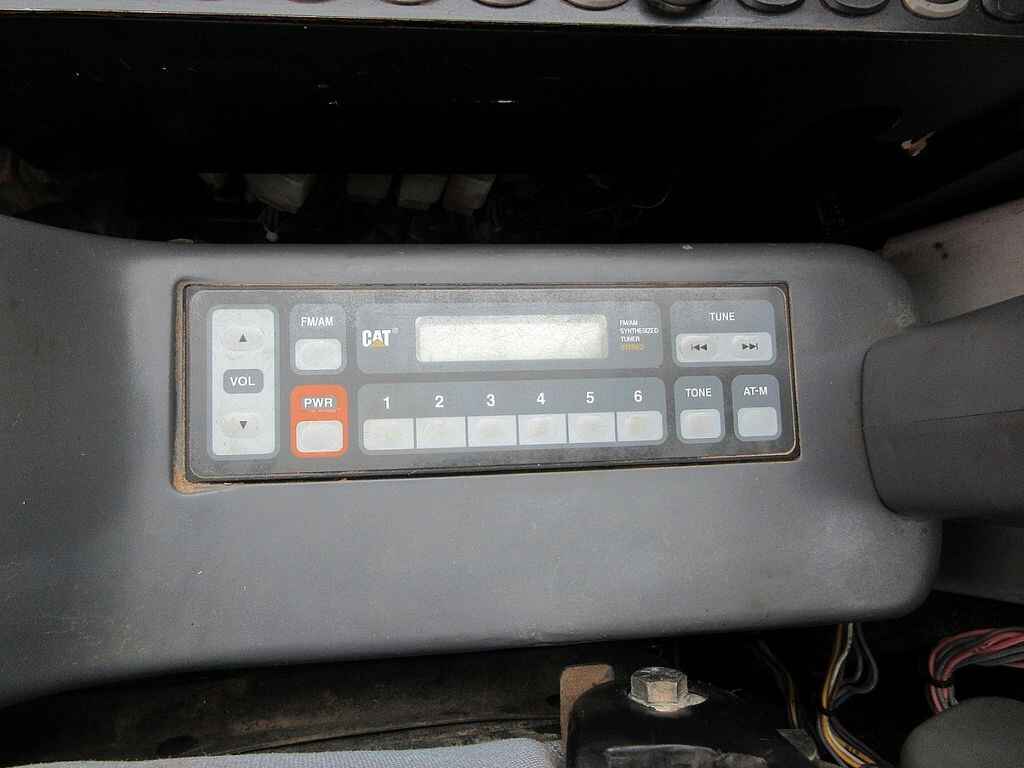

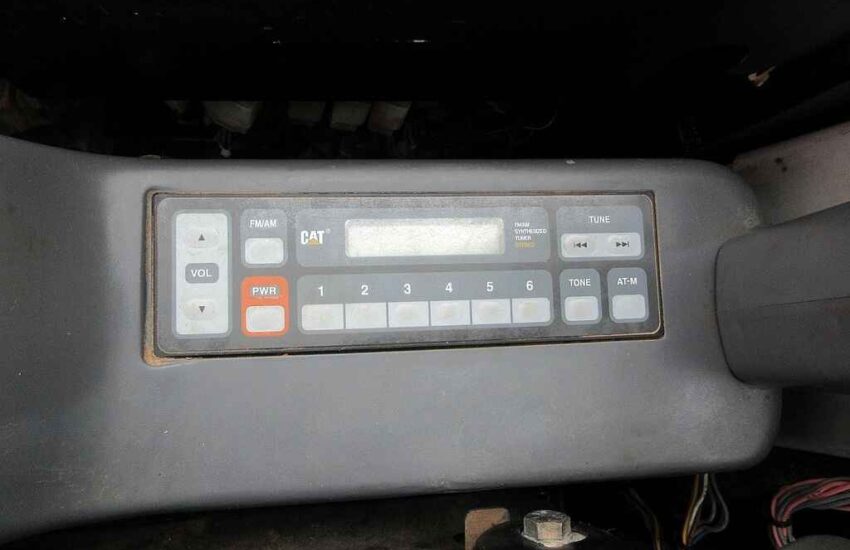

- Radio

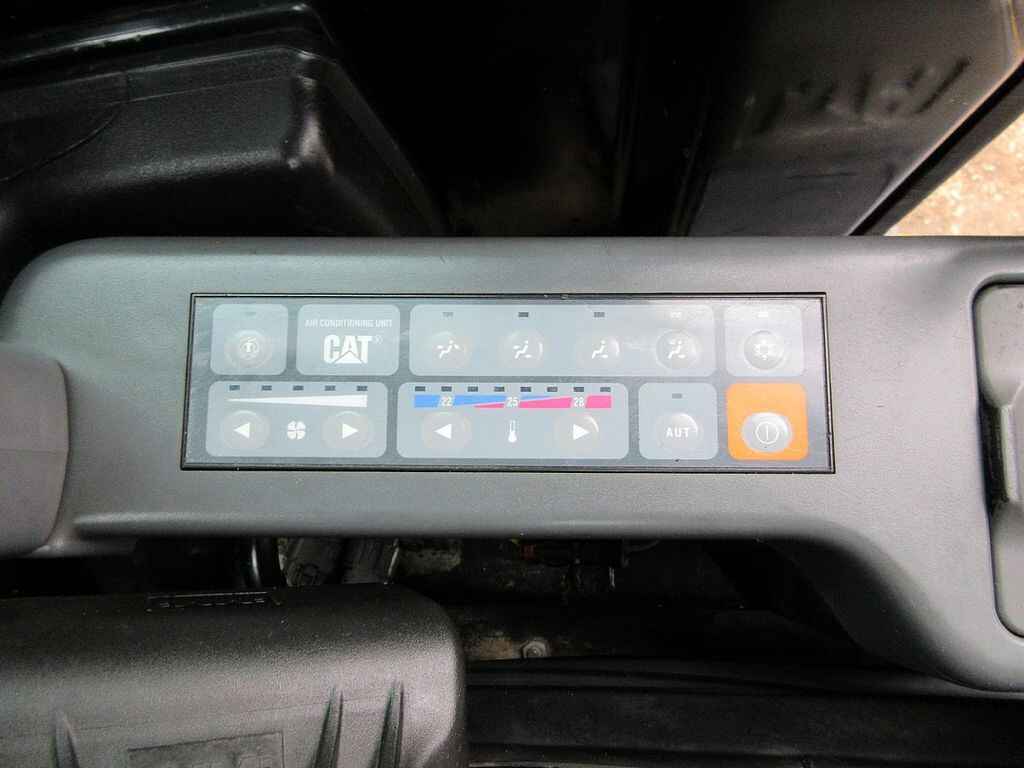

- Air Conditioner
- Heater
