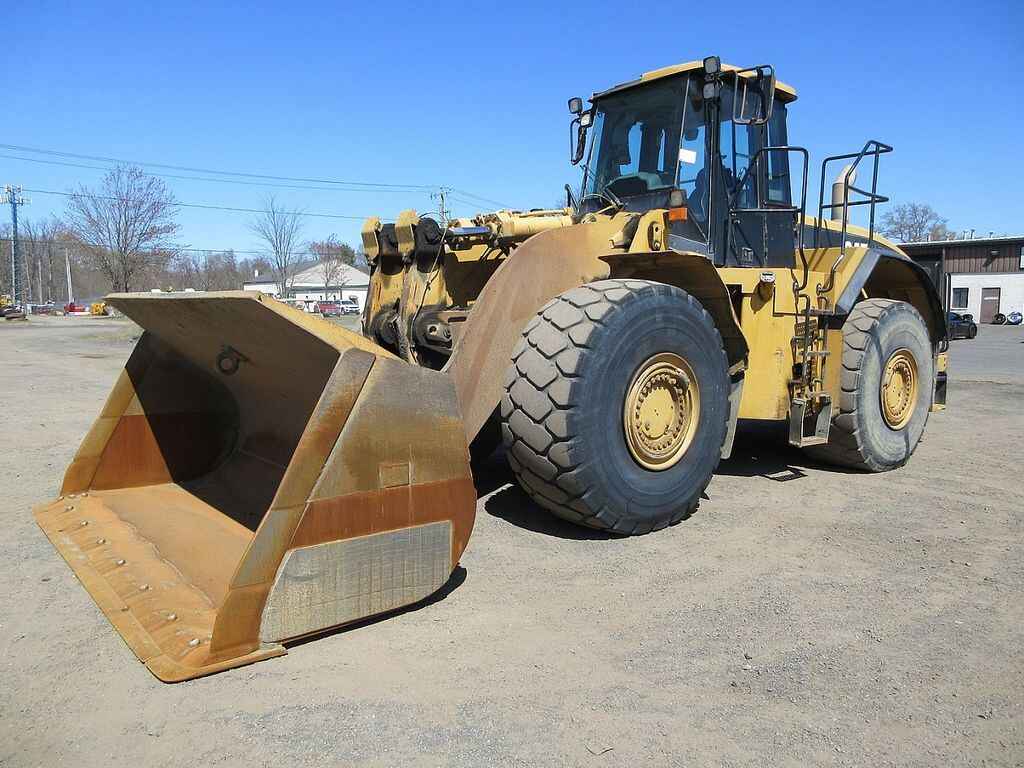

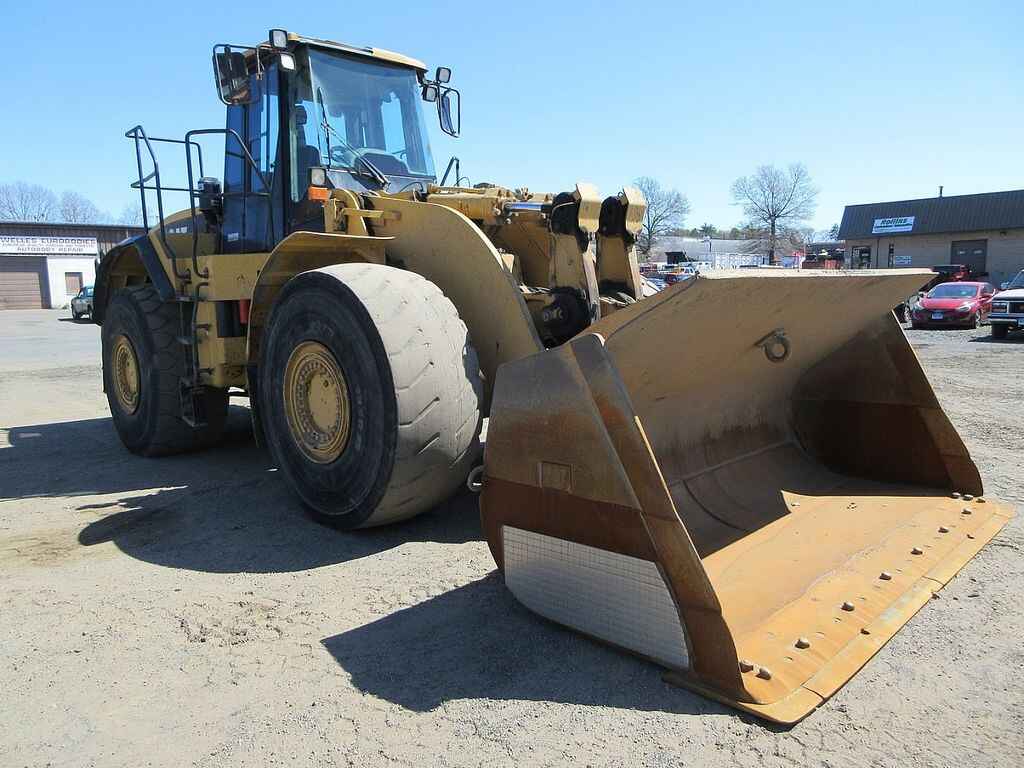

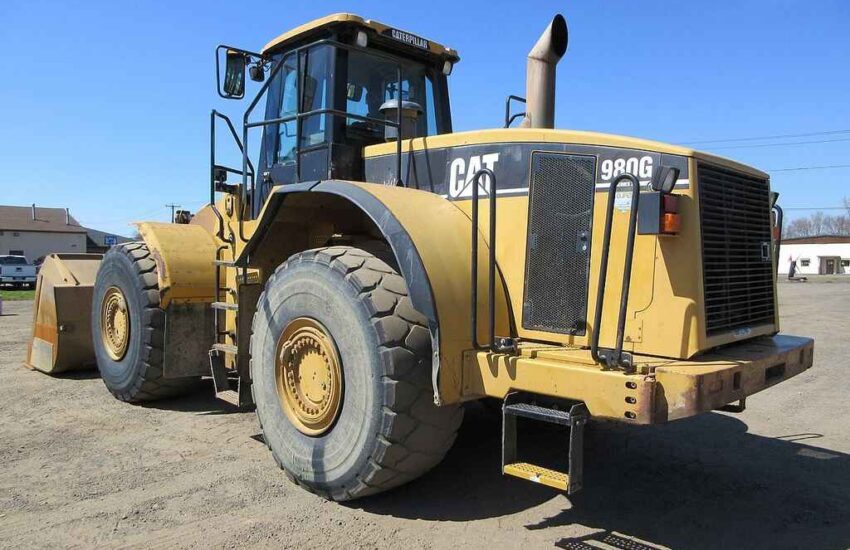

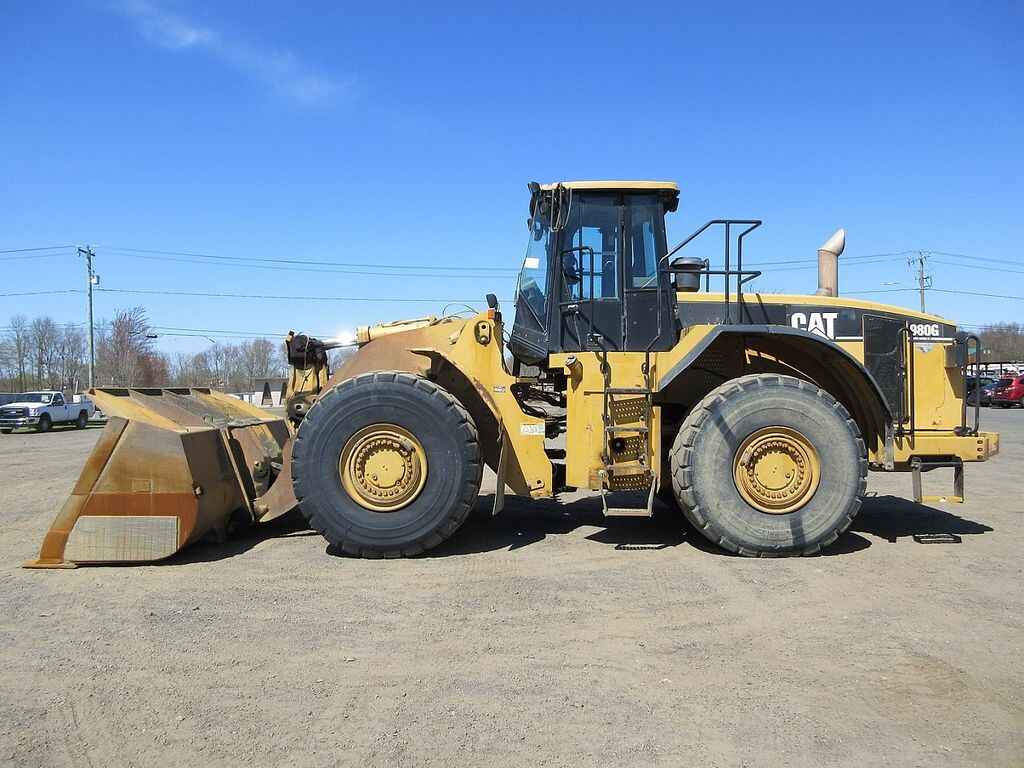

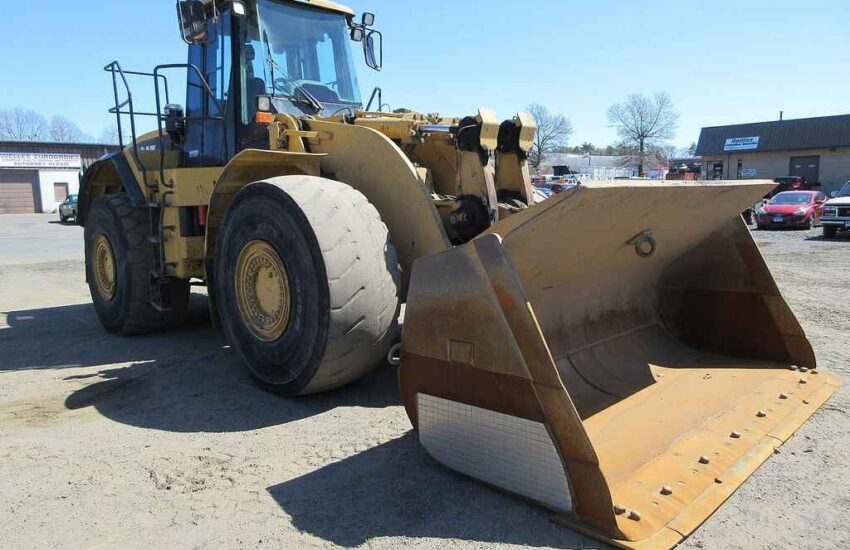

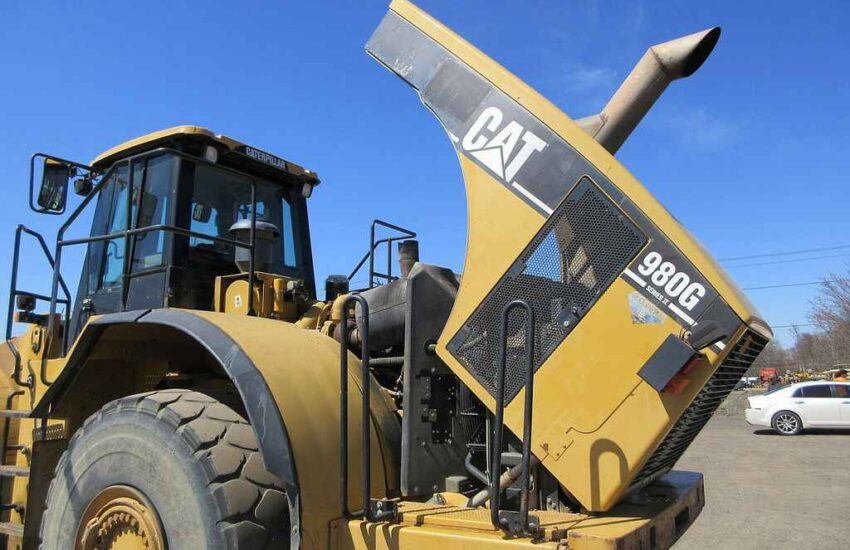

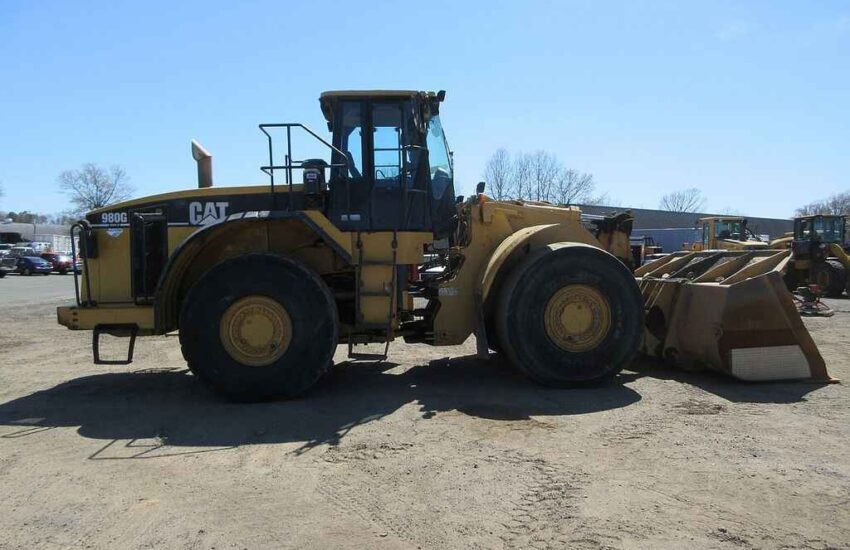

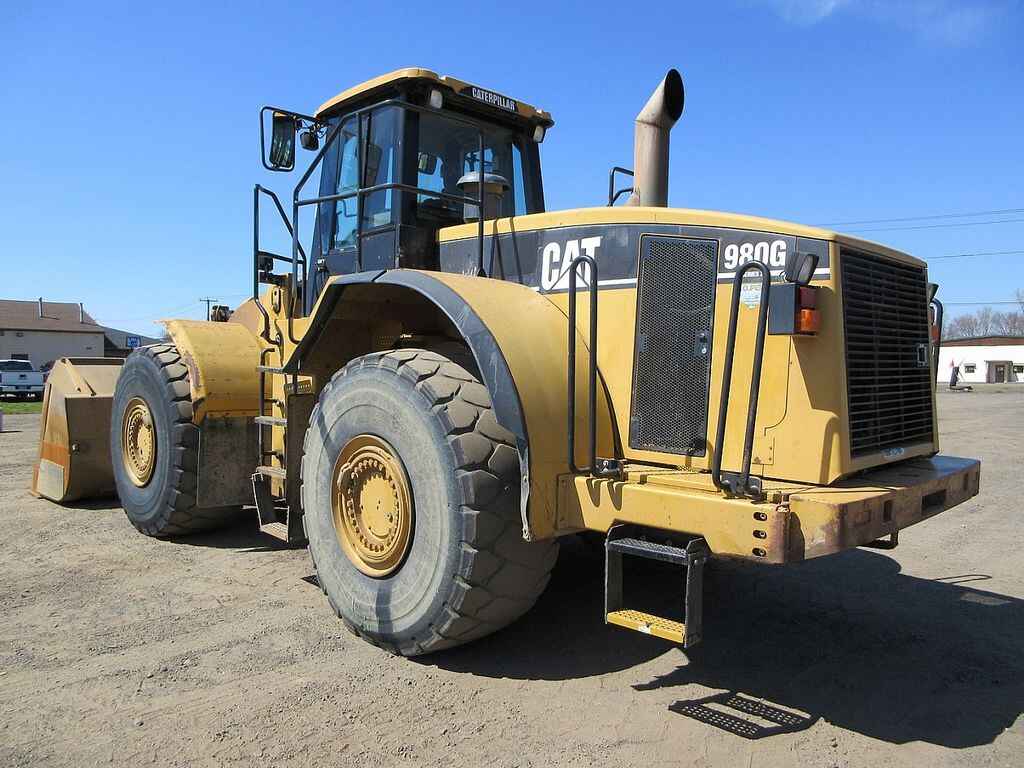

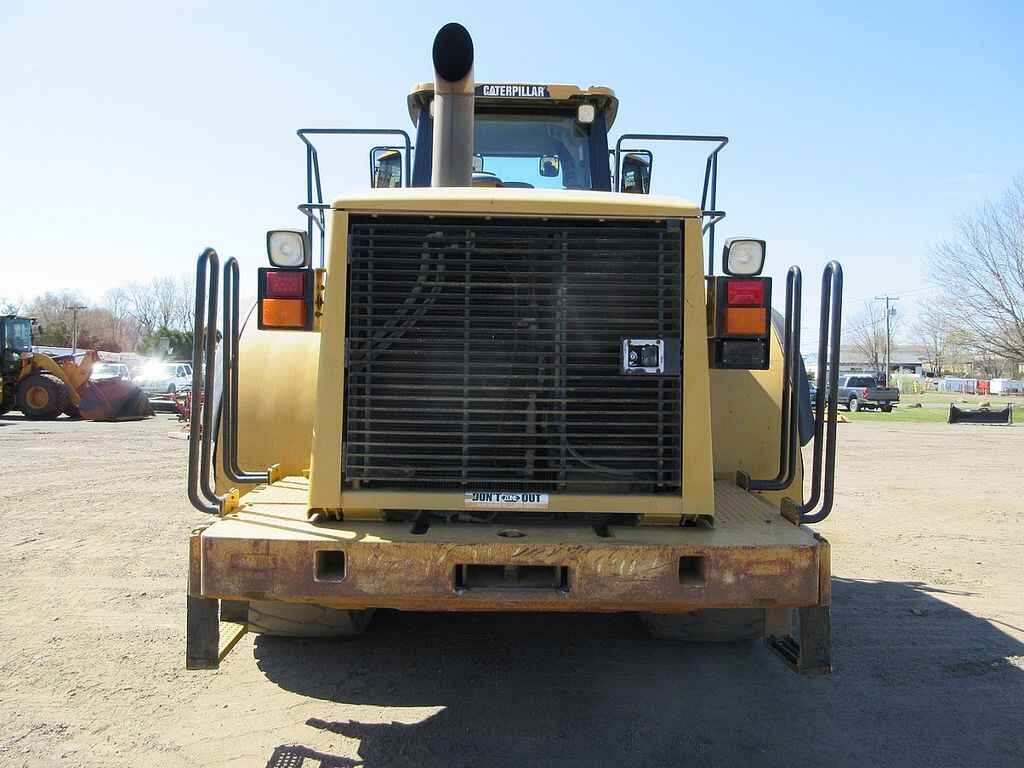

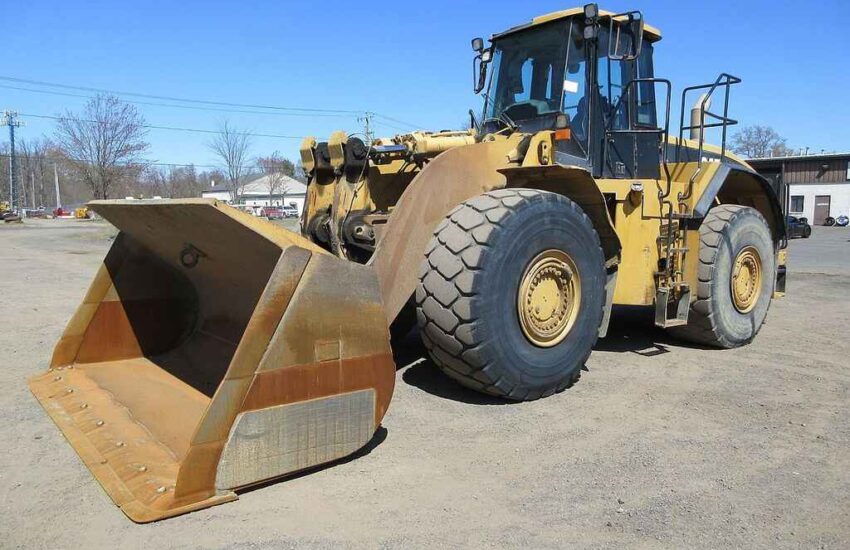

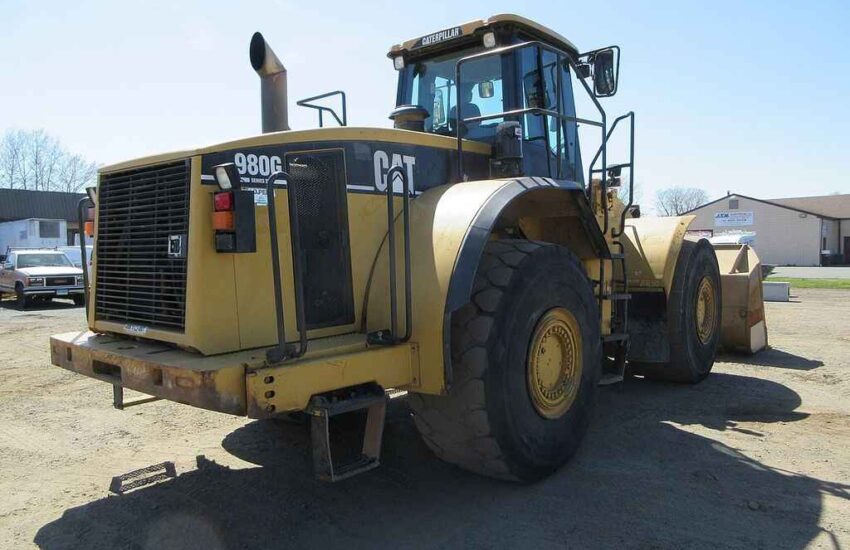

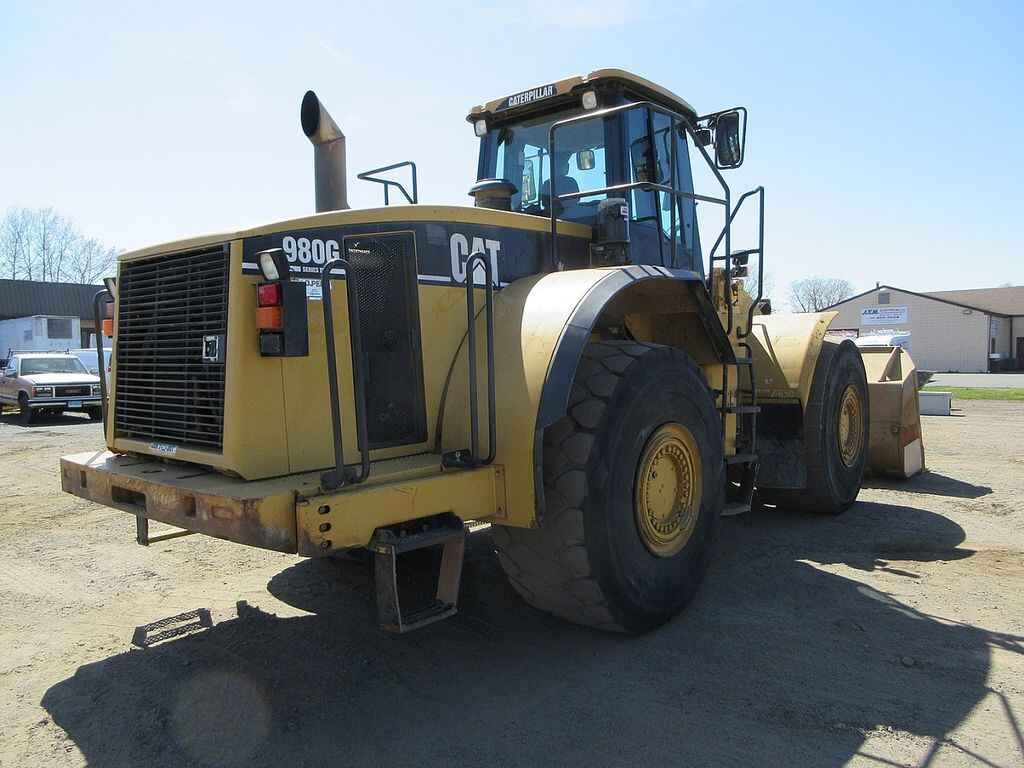

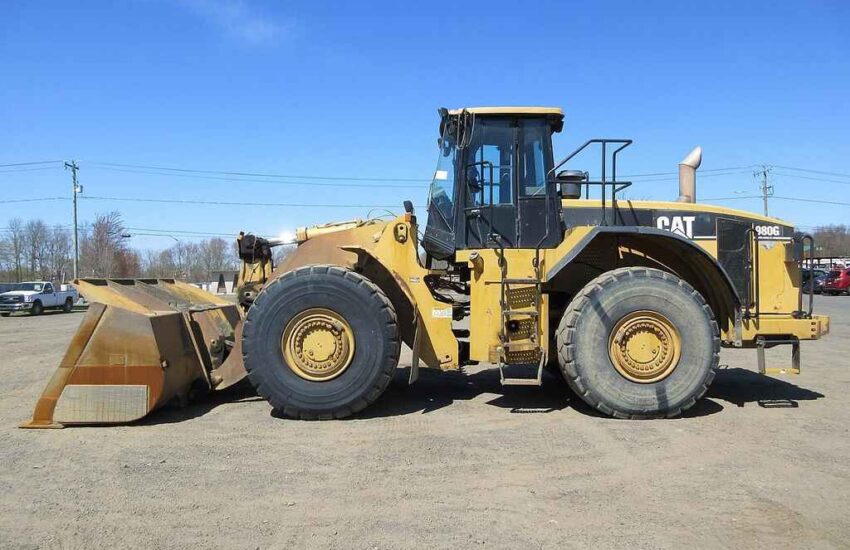

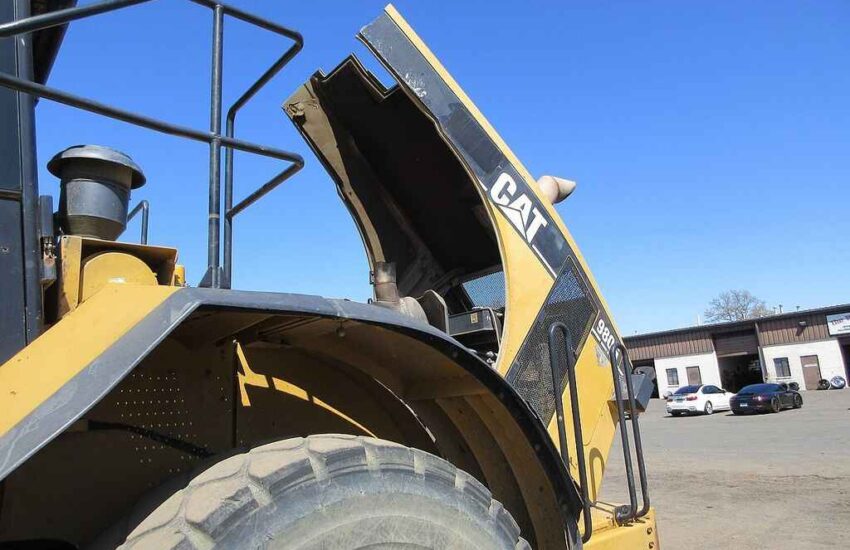

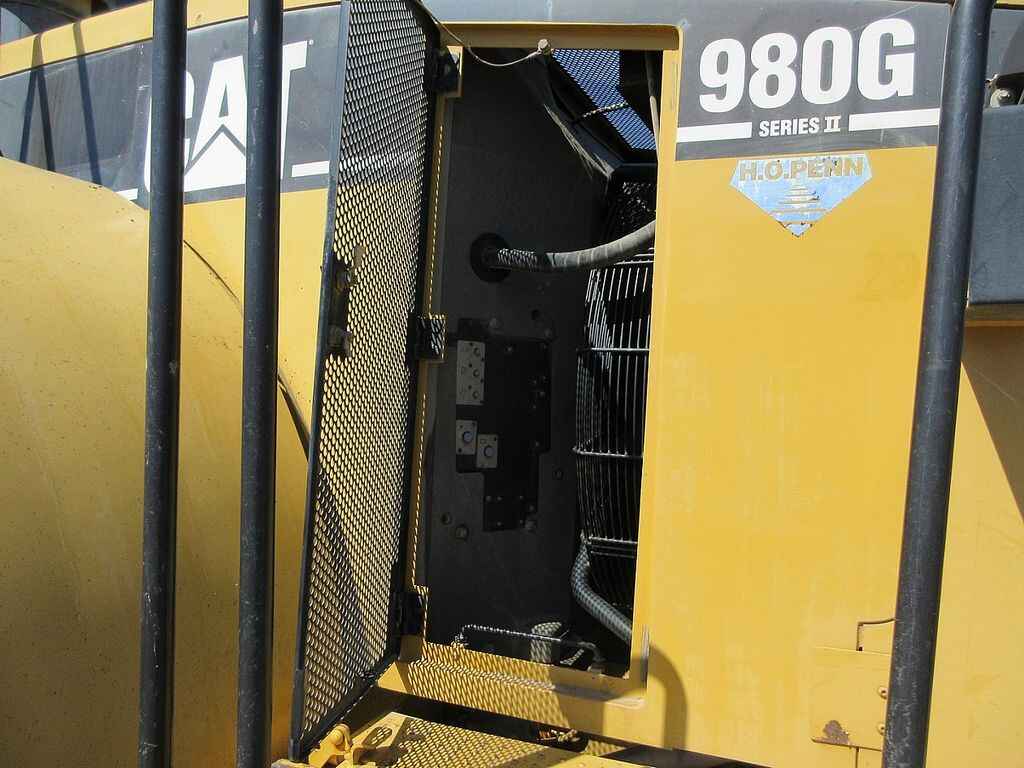

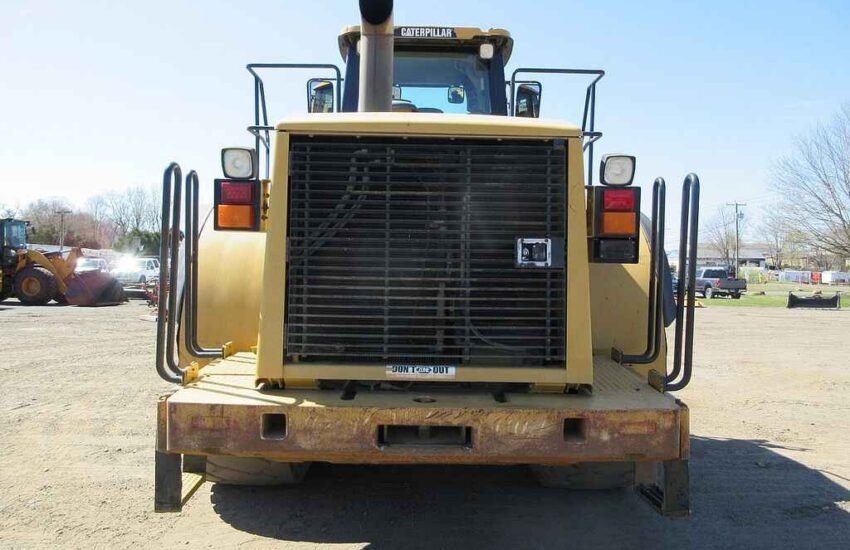

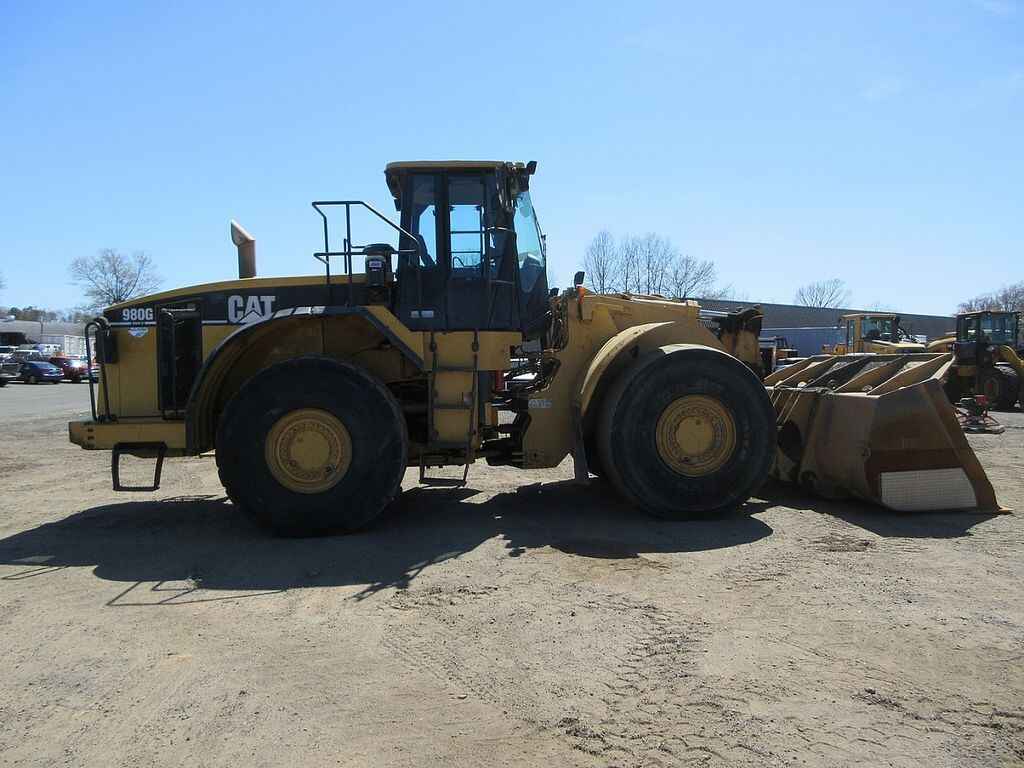

2003 Caterpillar 980G

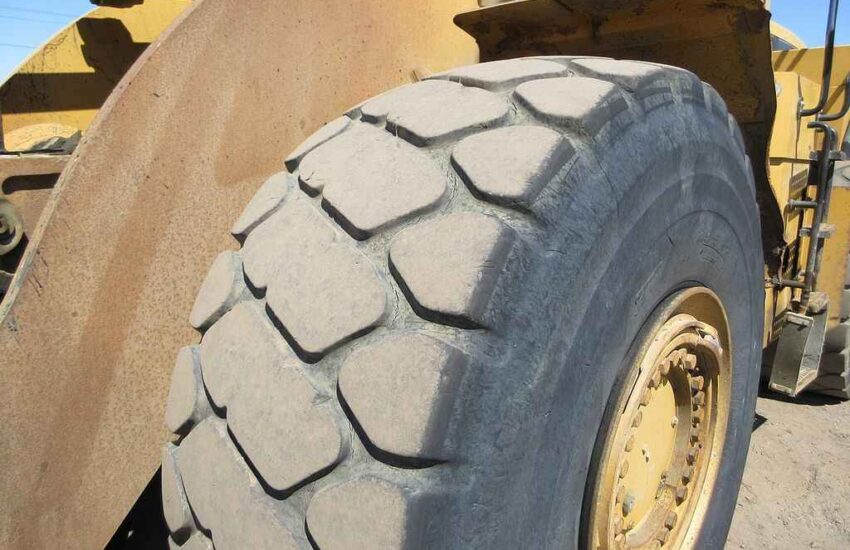

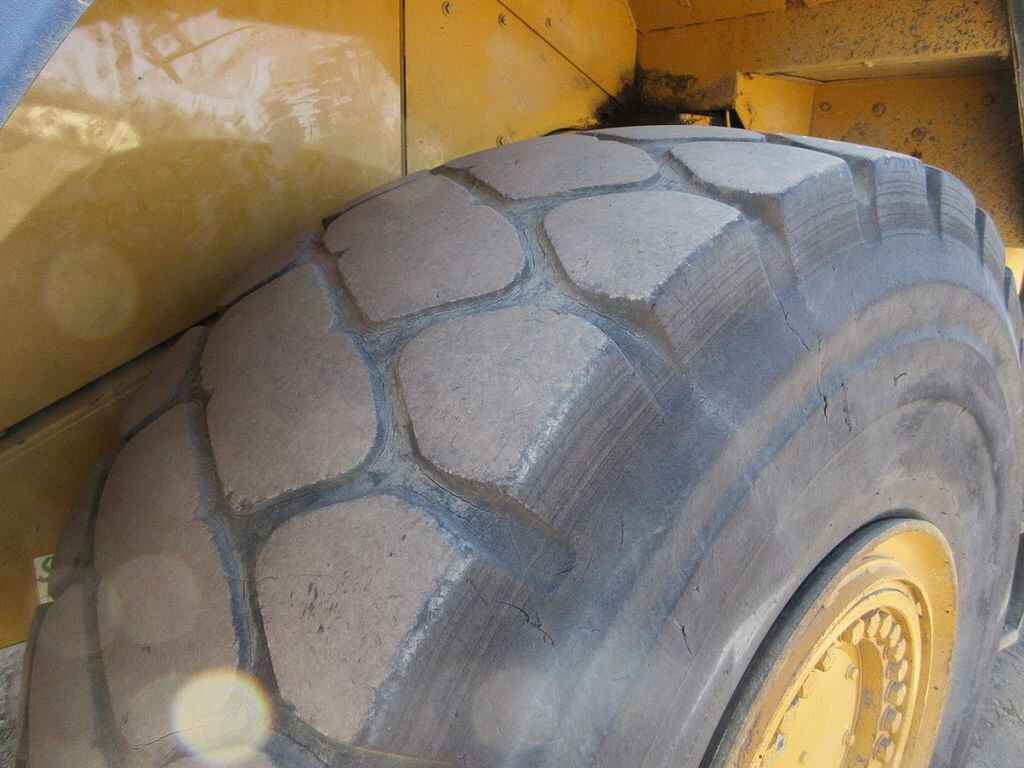

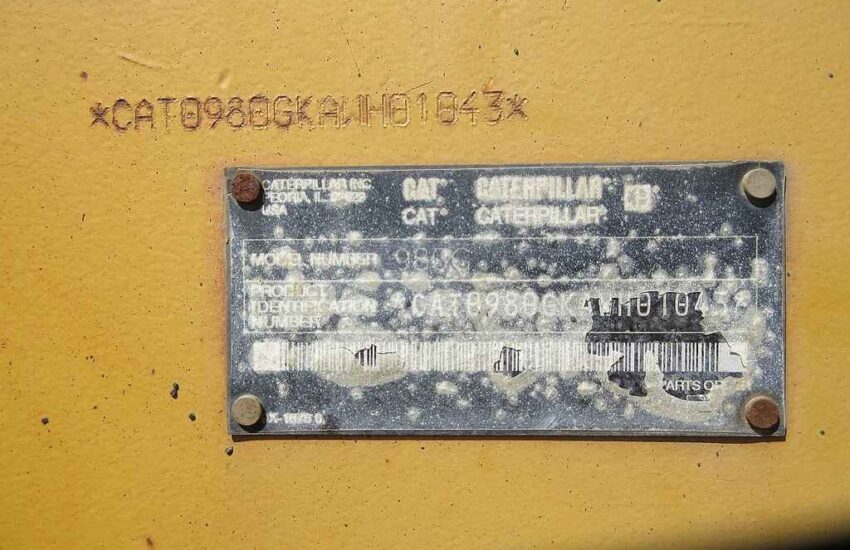

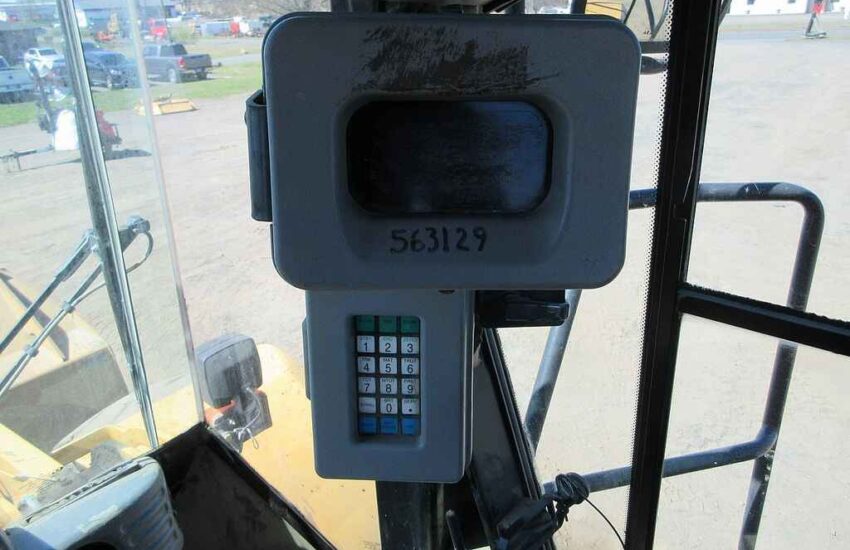

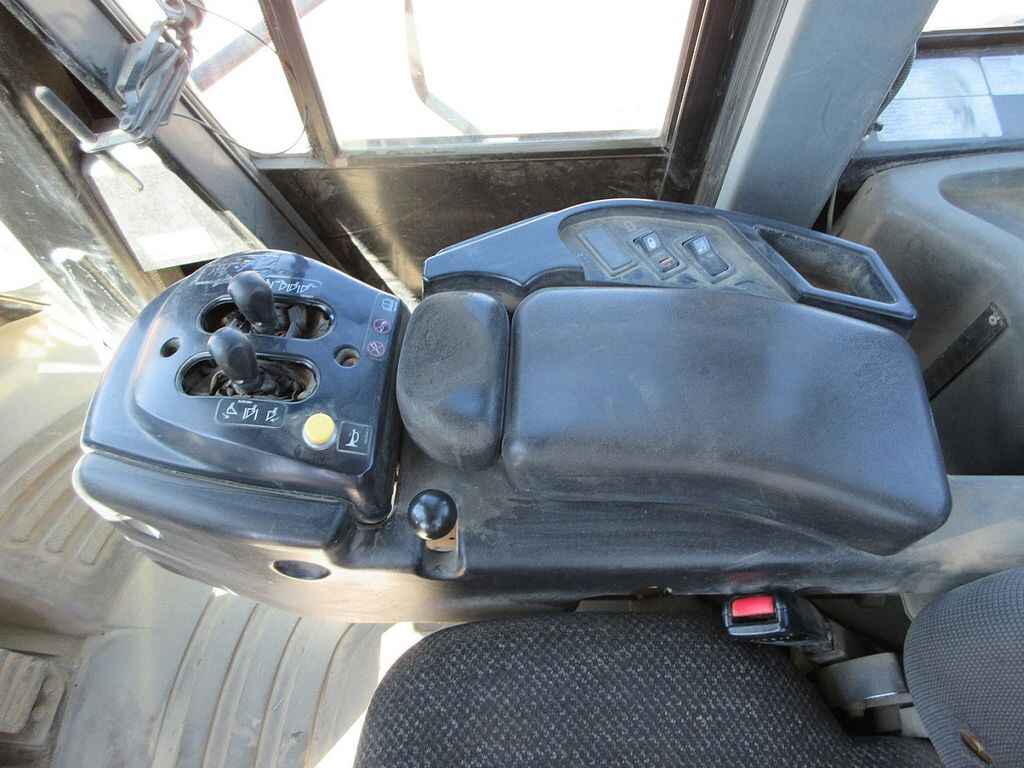

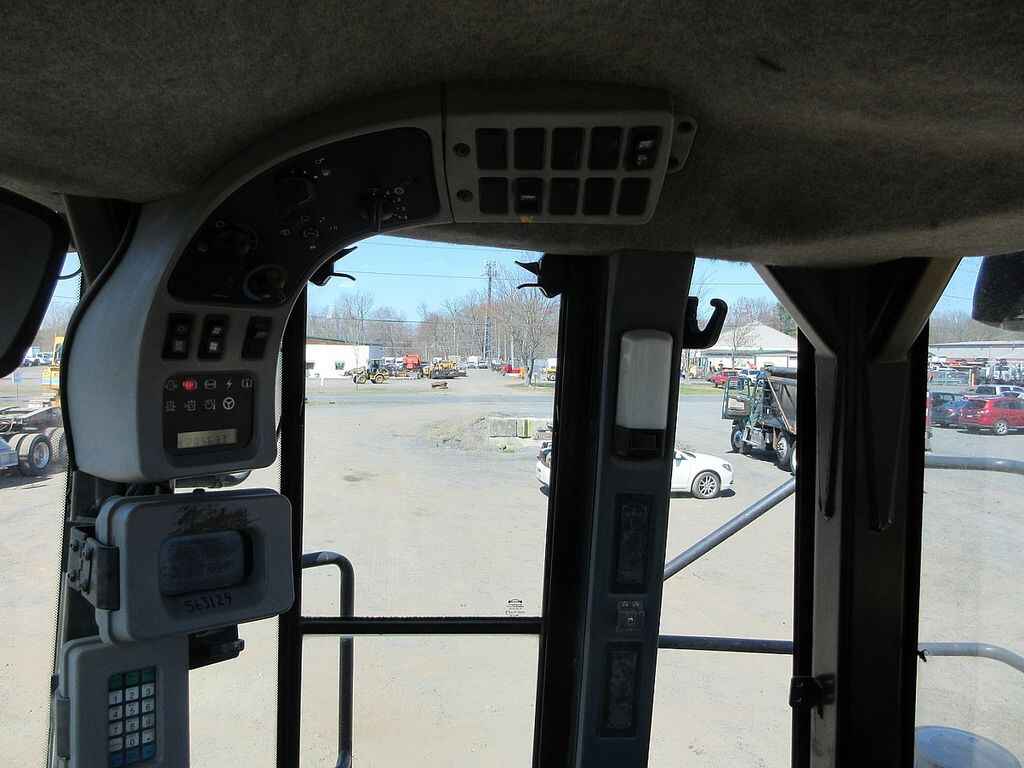

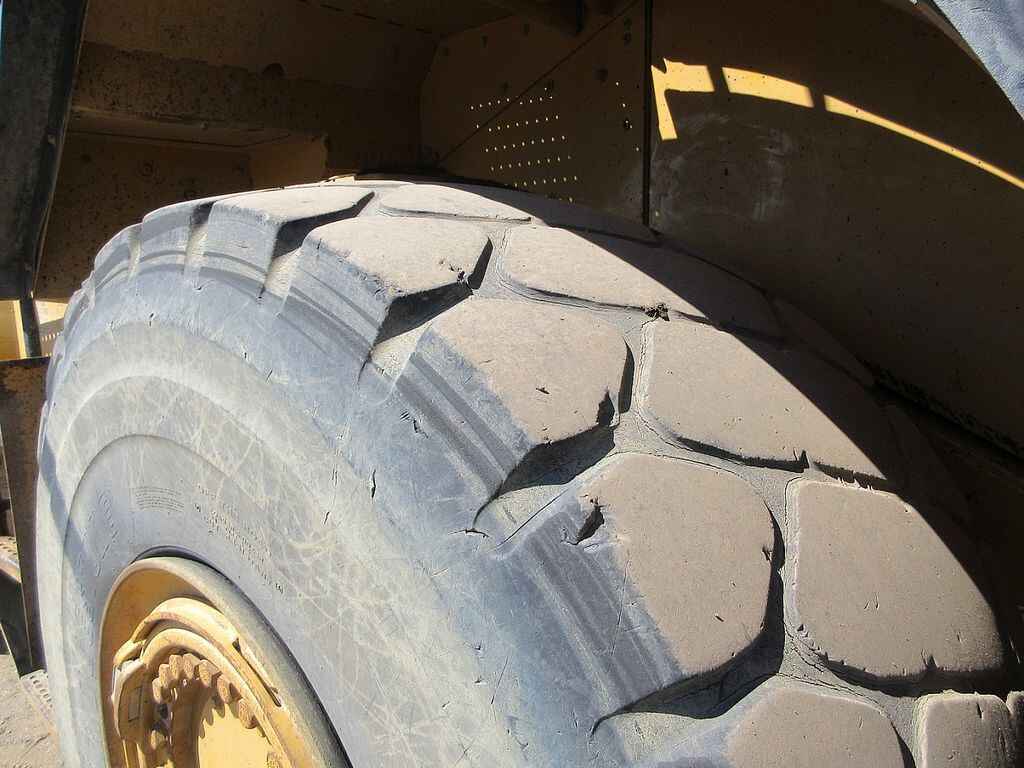

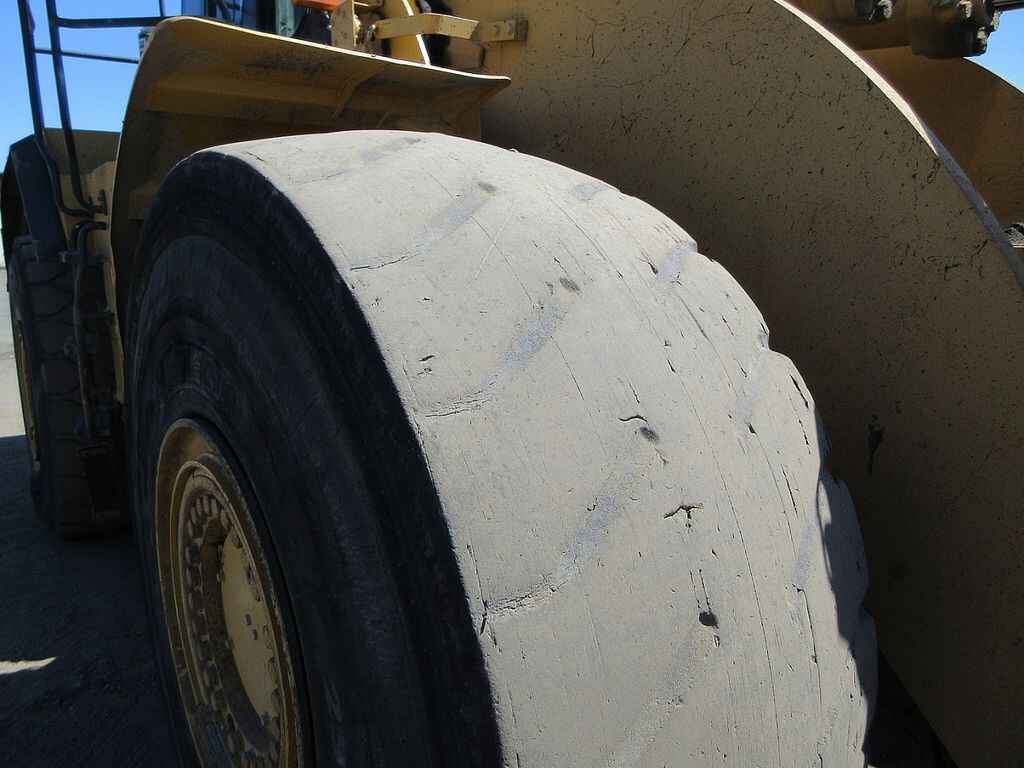

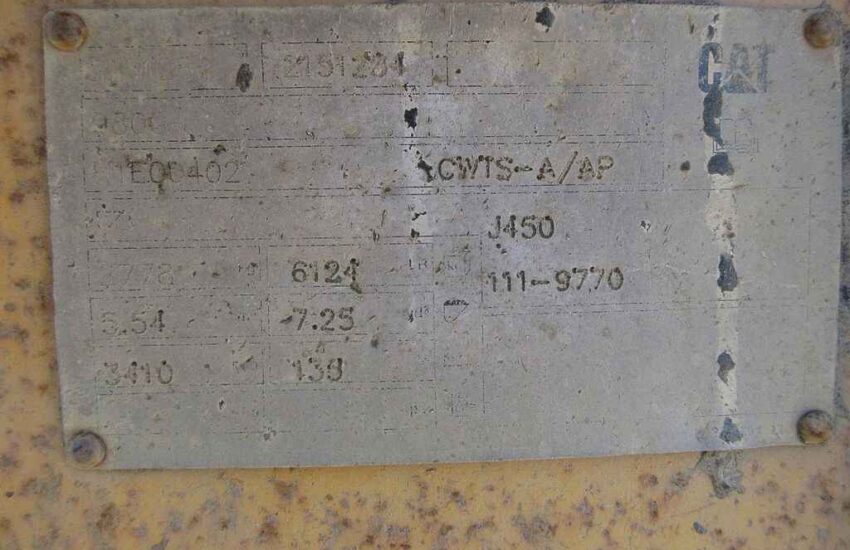

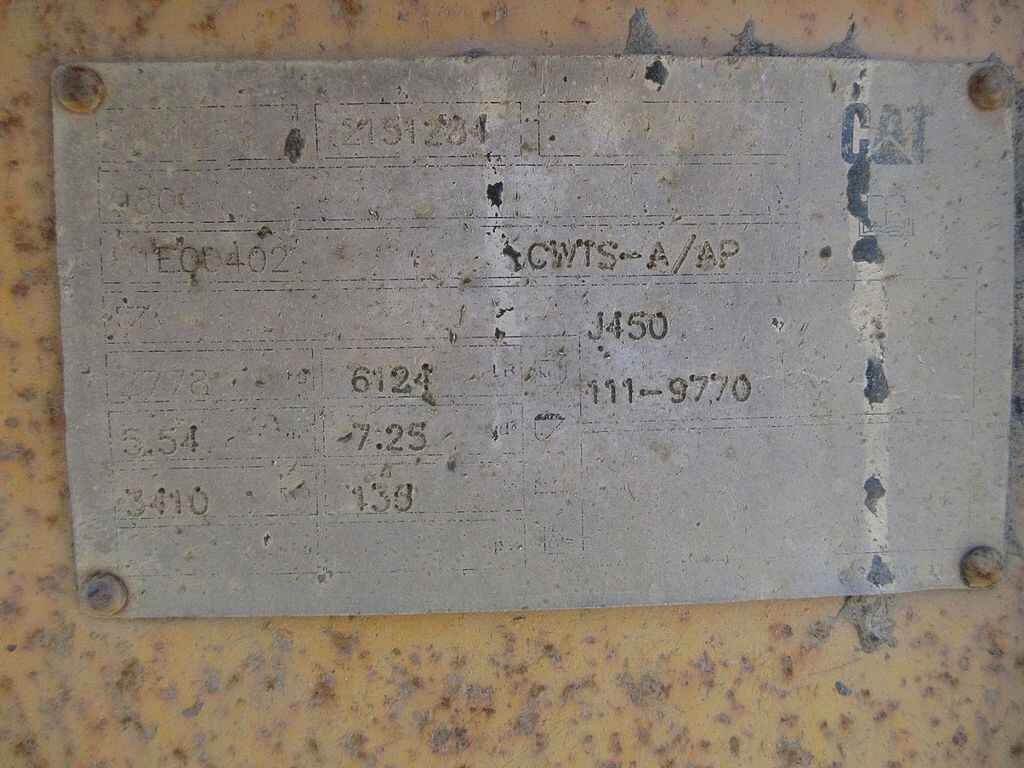

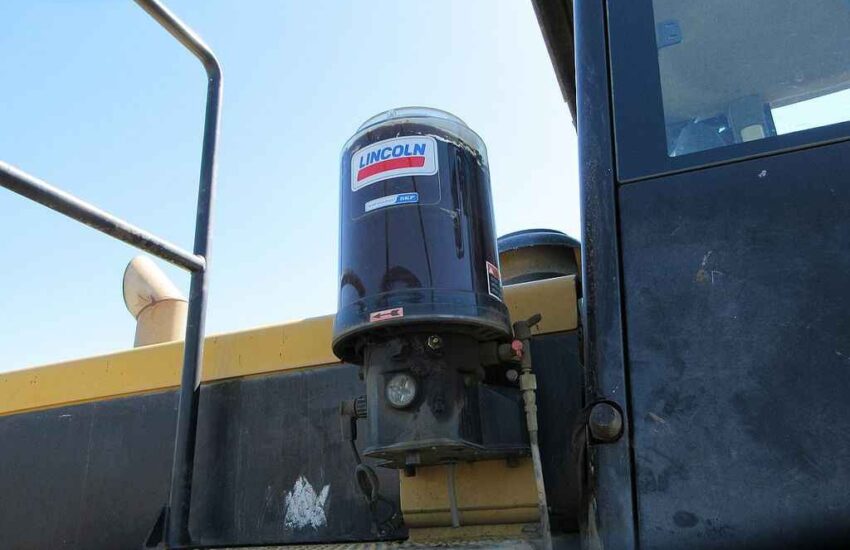

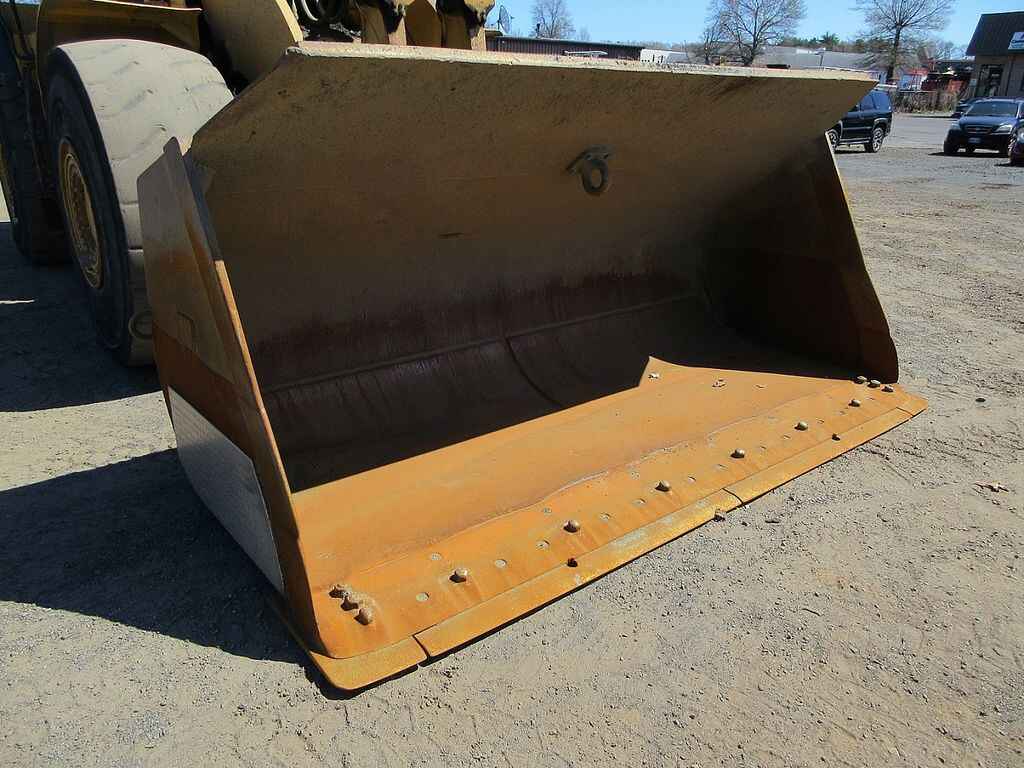

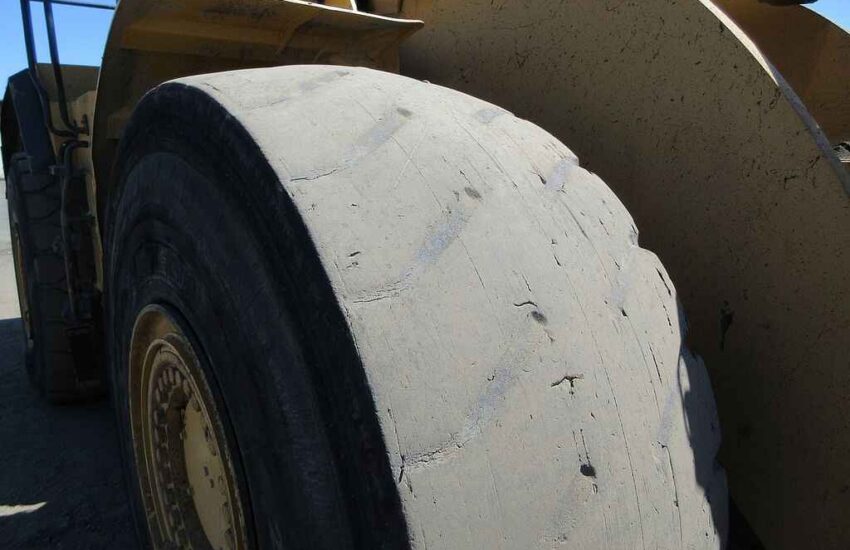

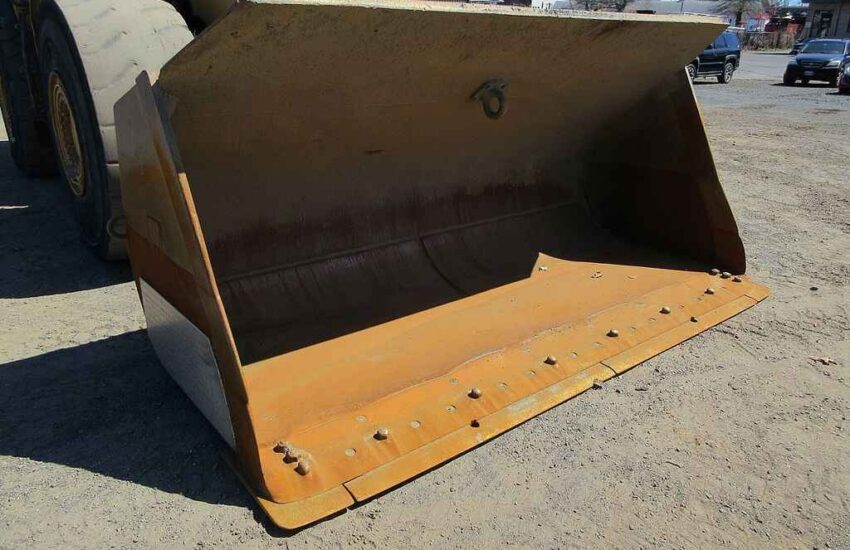

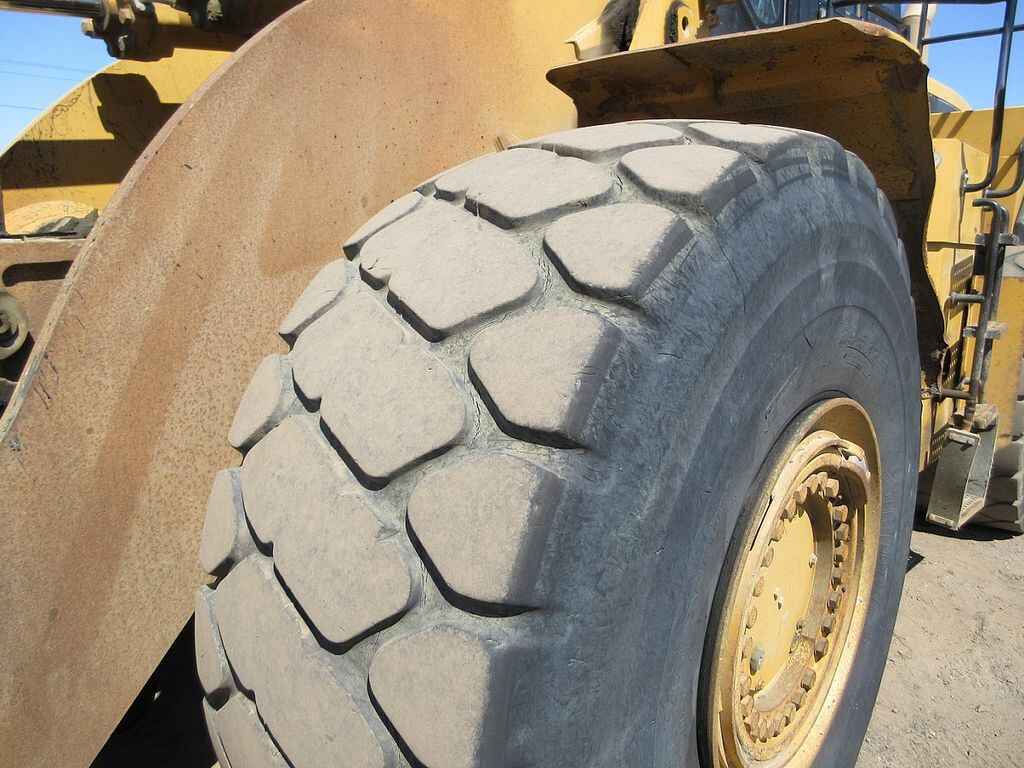

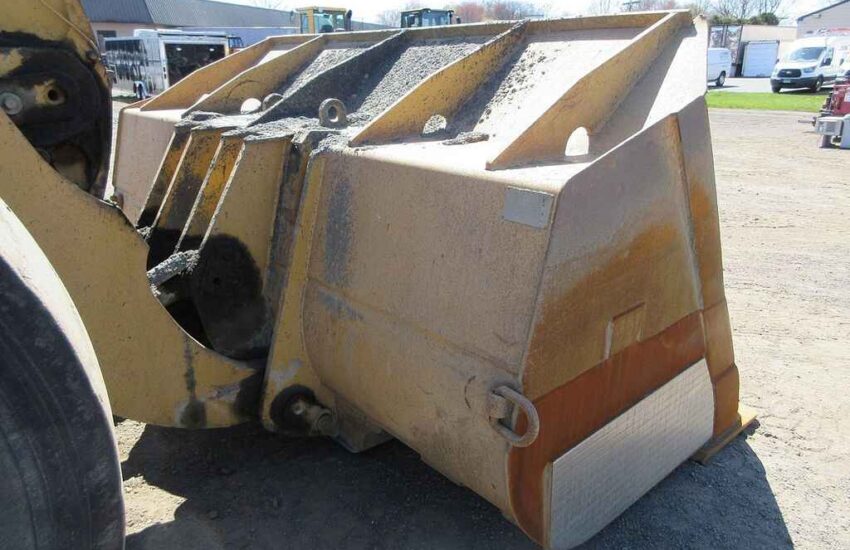

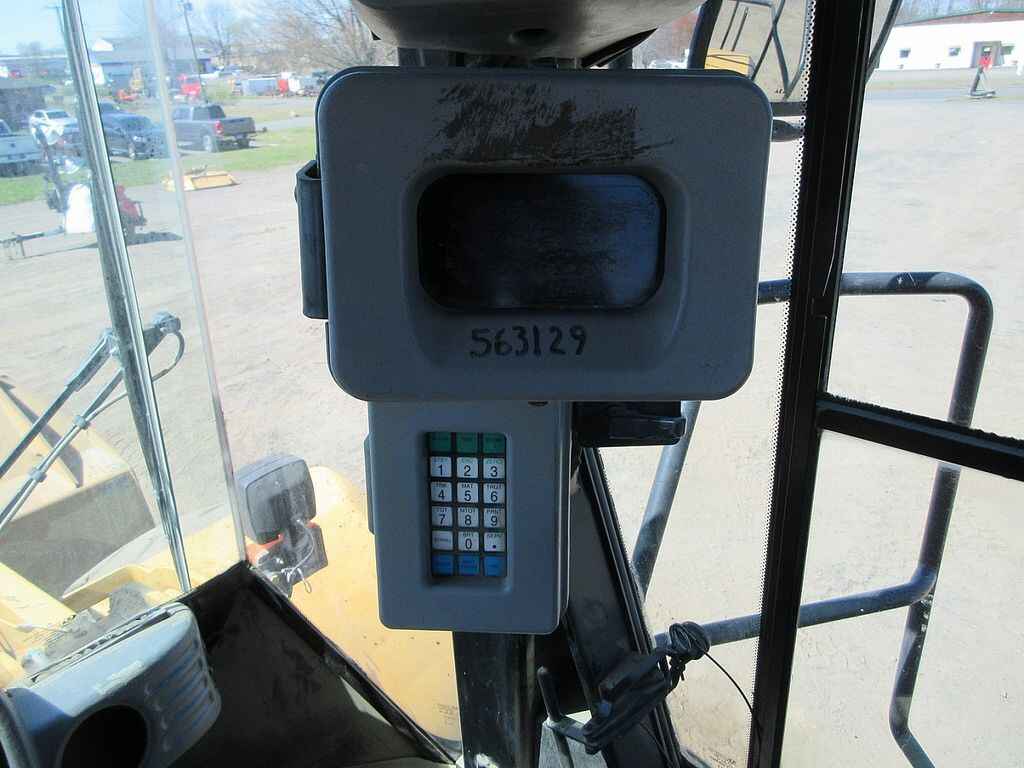

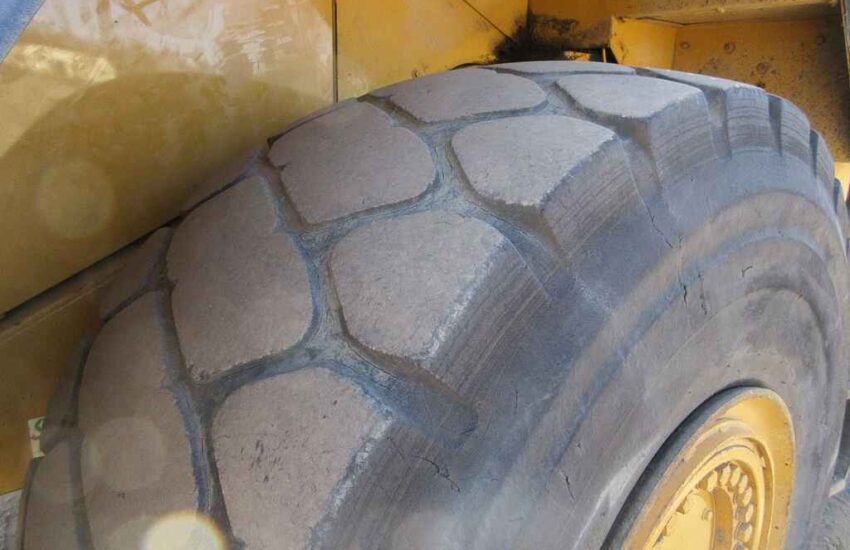

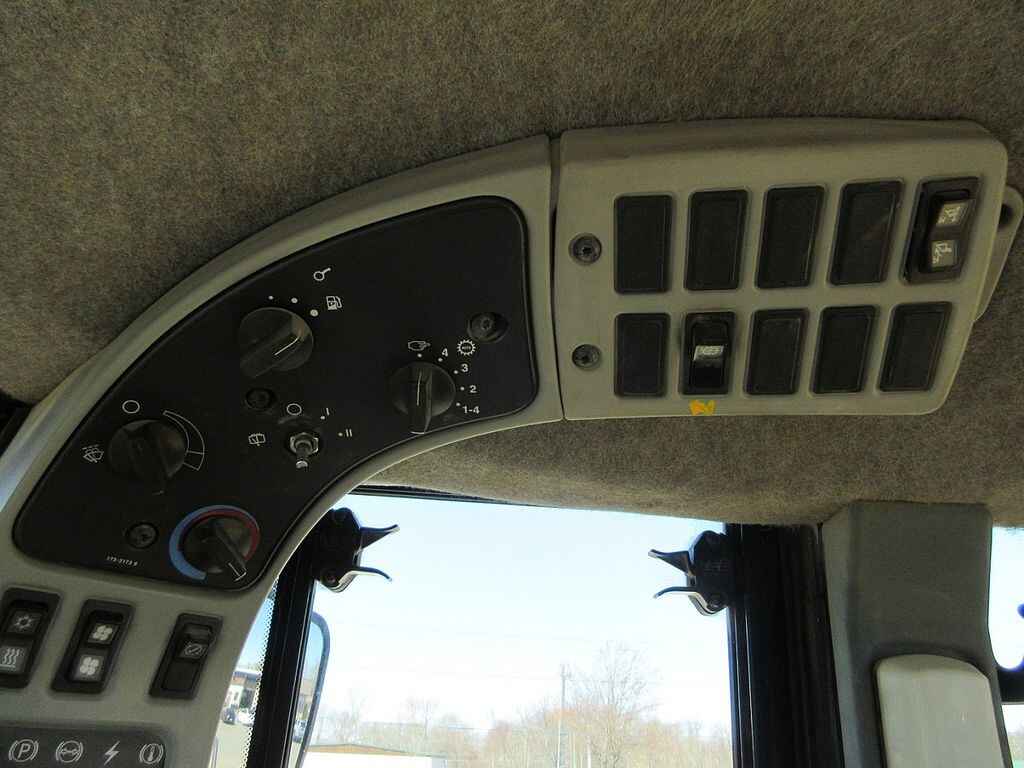

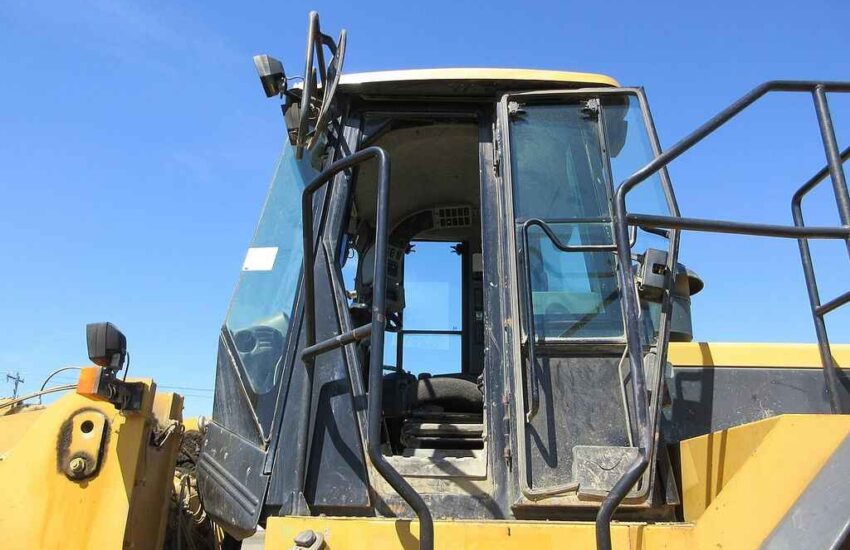

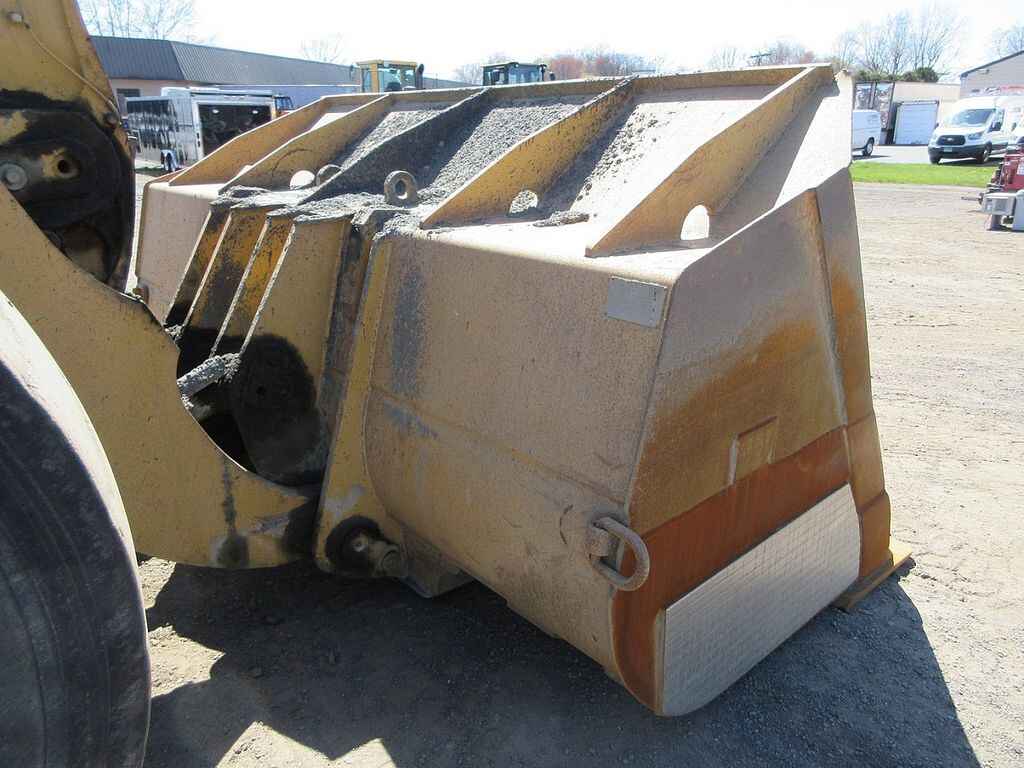

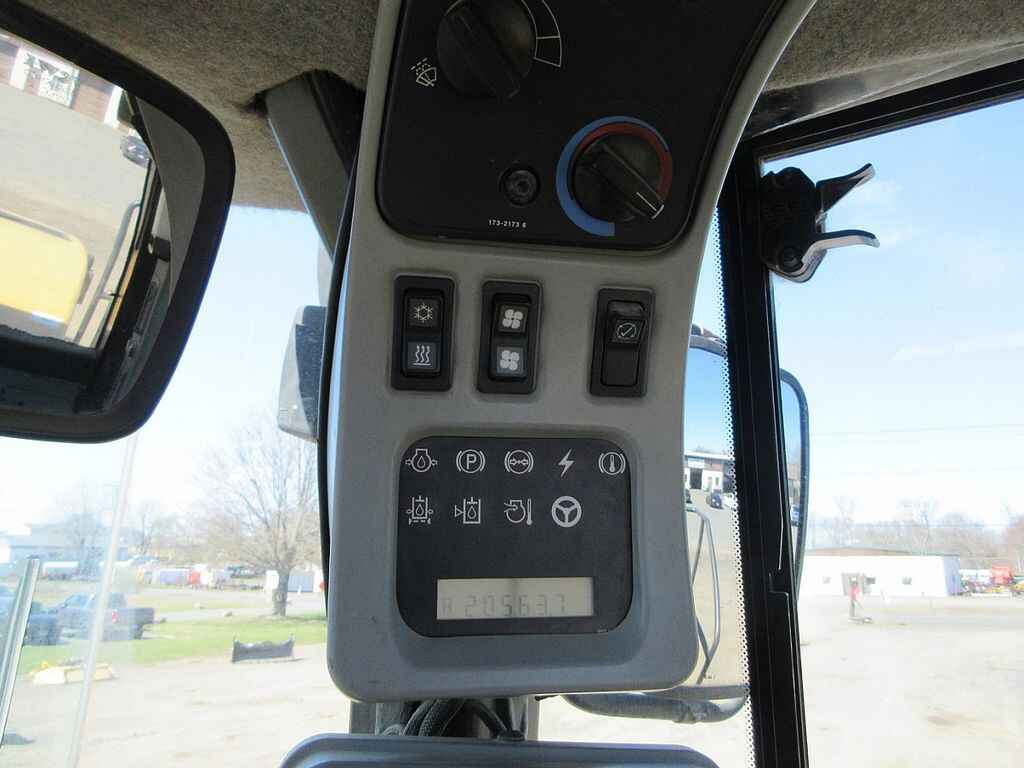

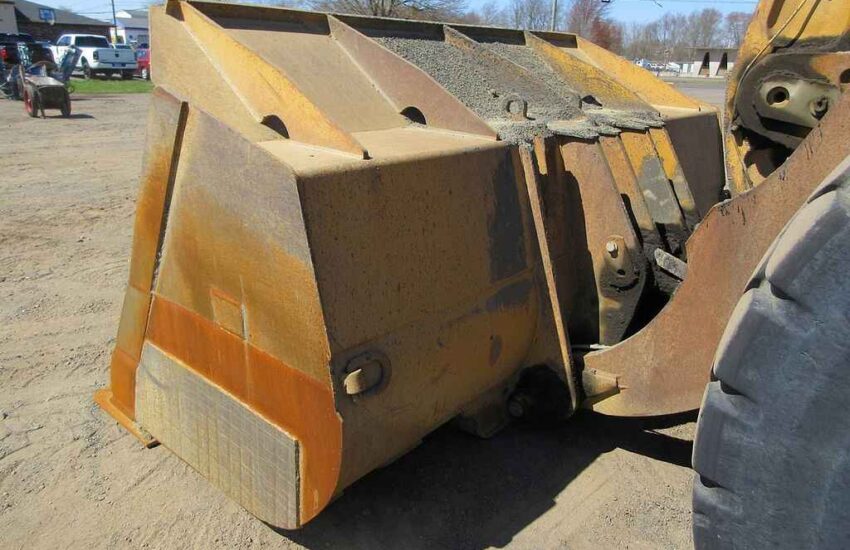

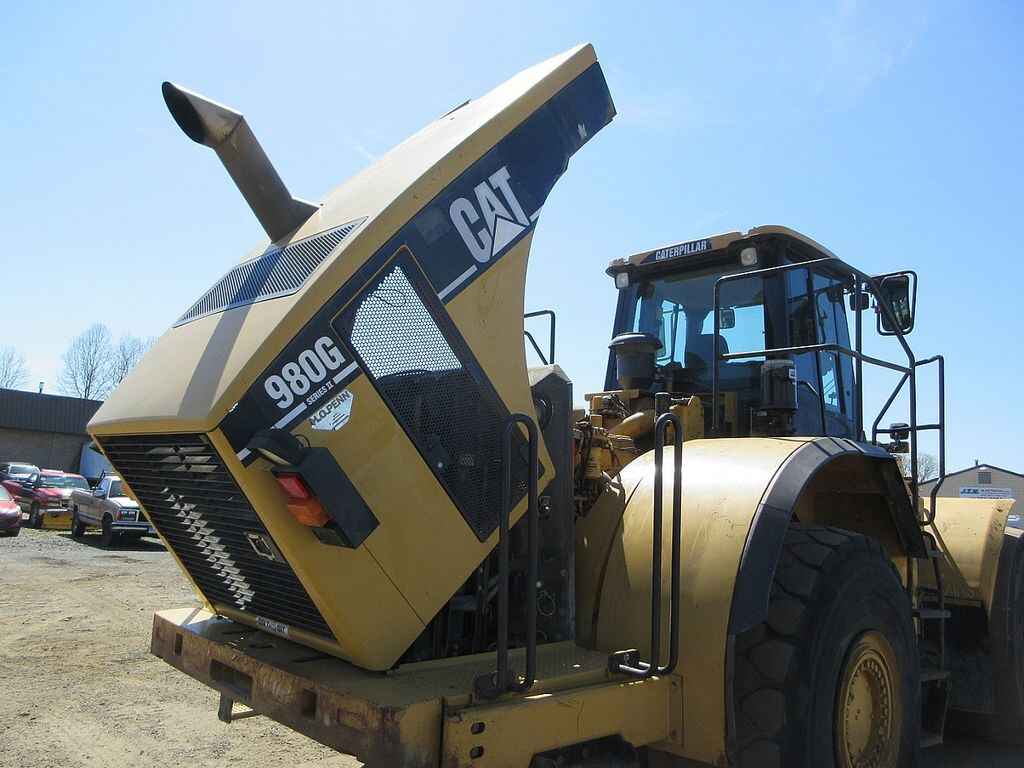

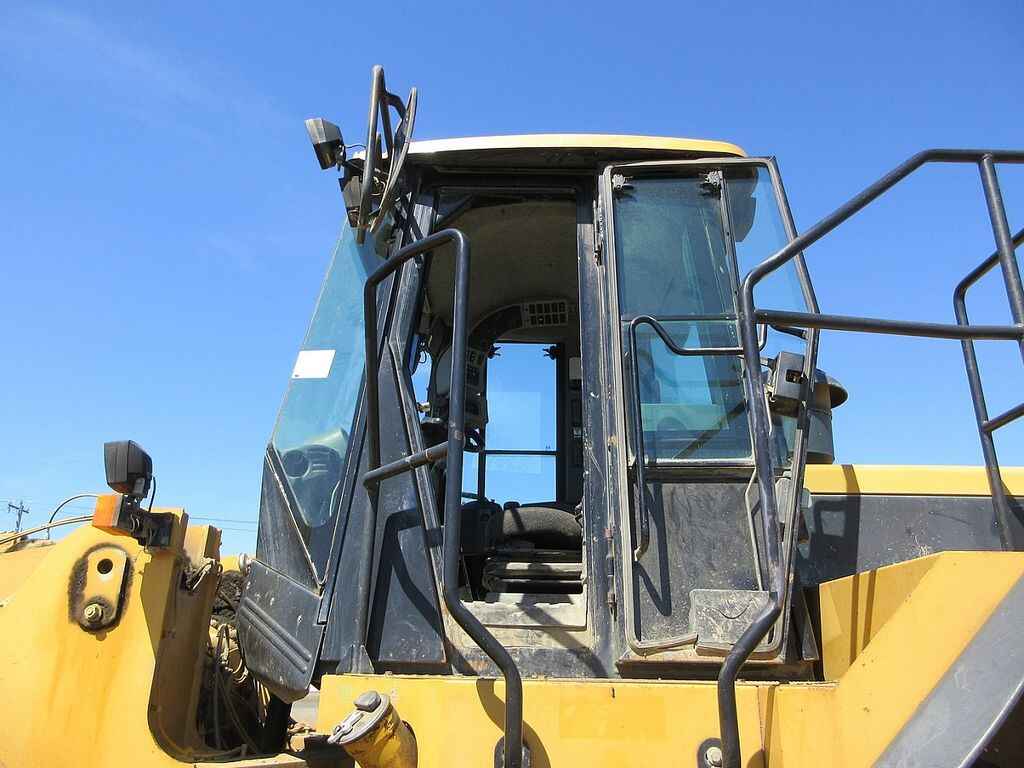

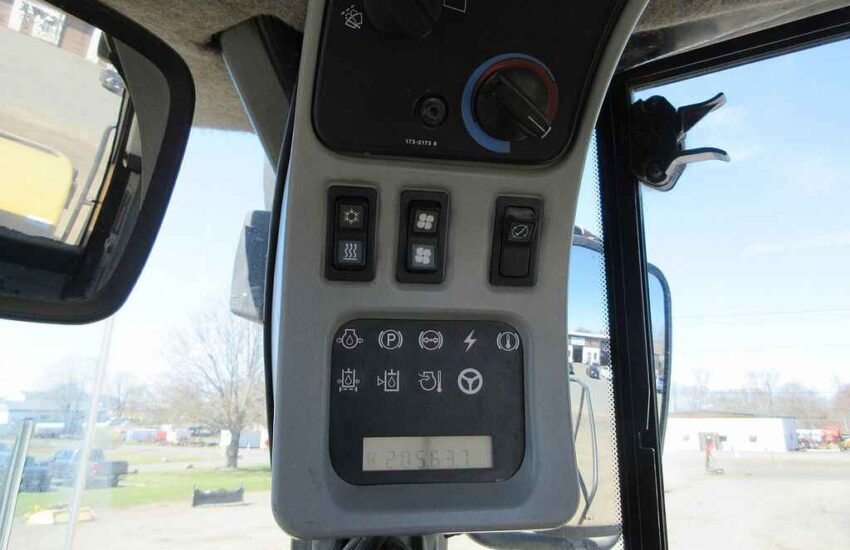

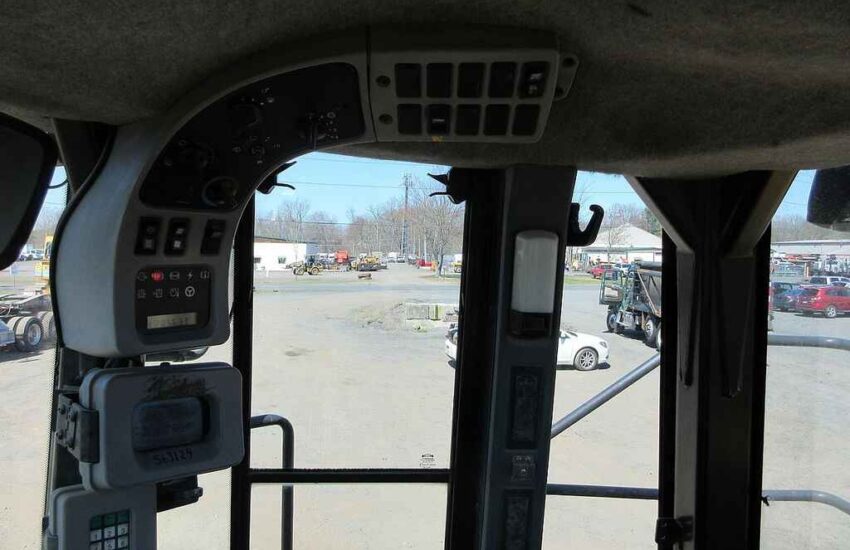

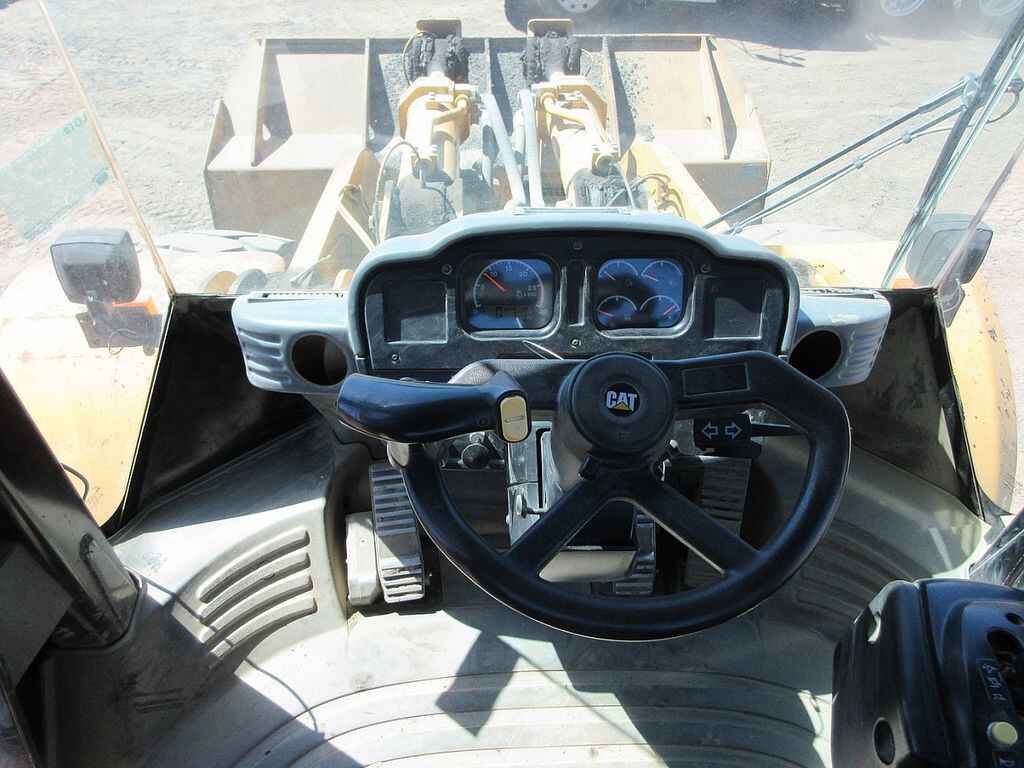

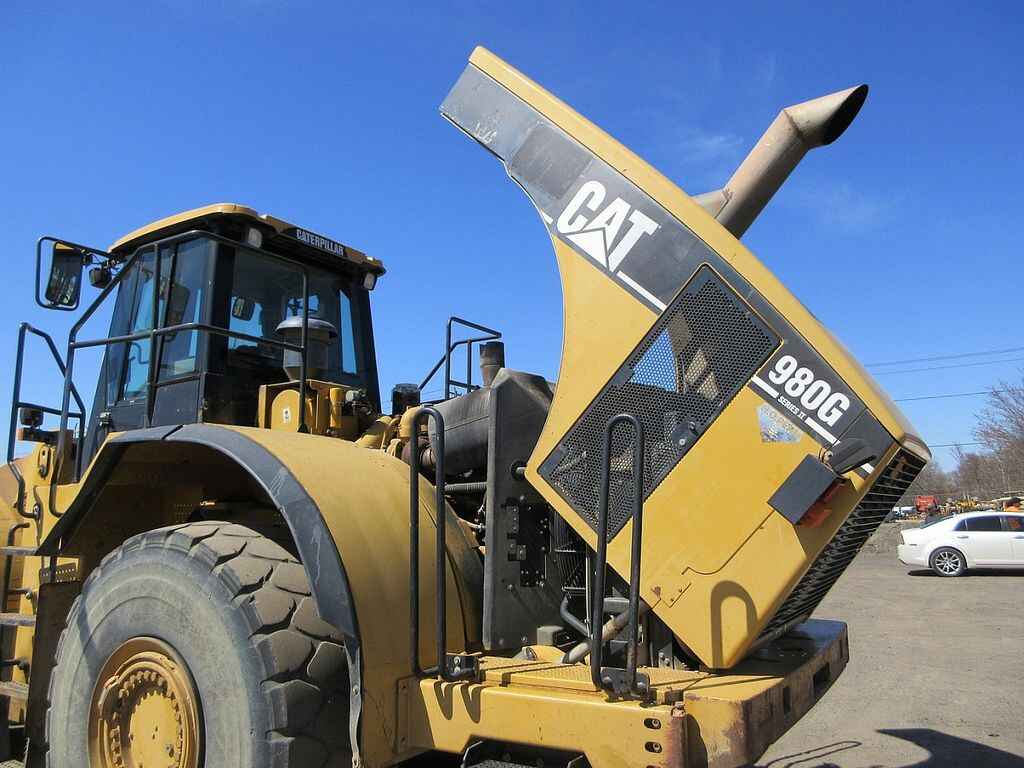

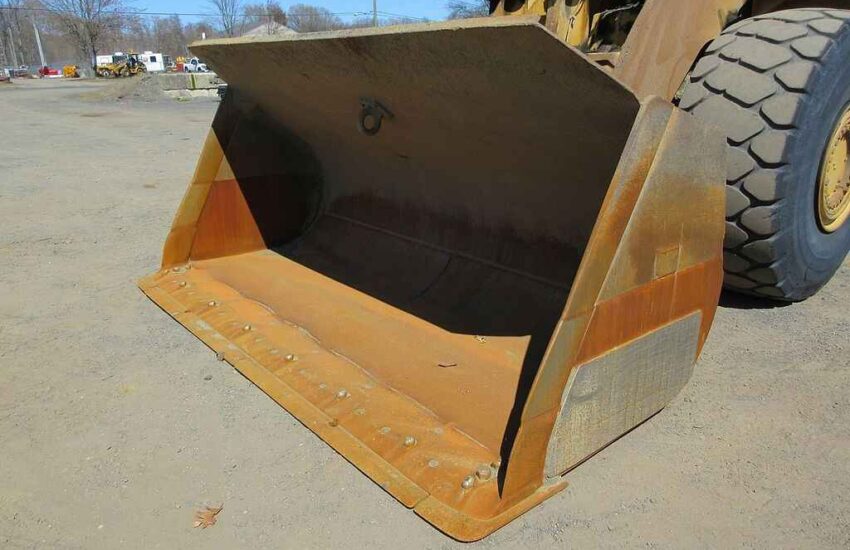

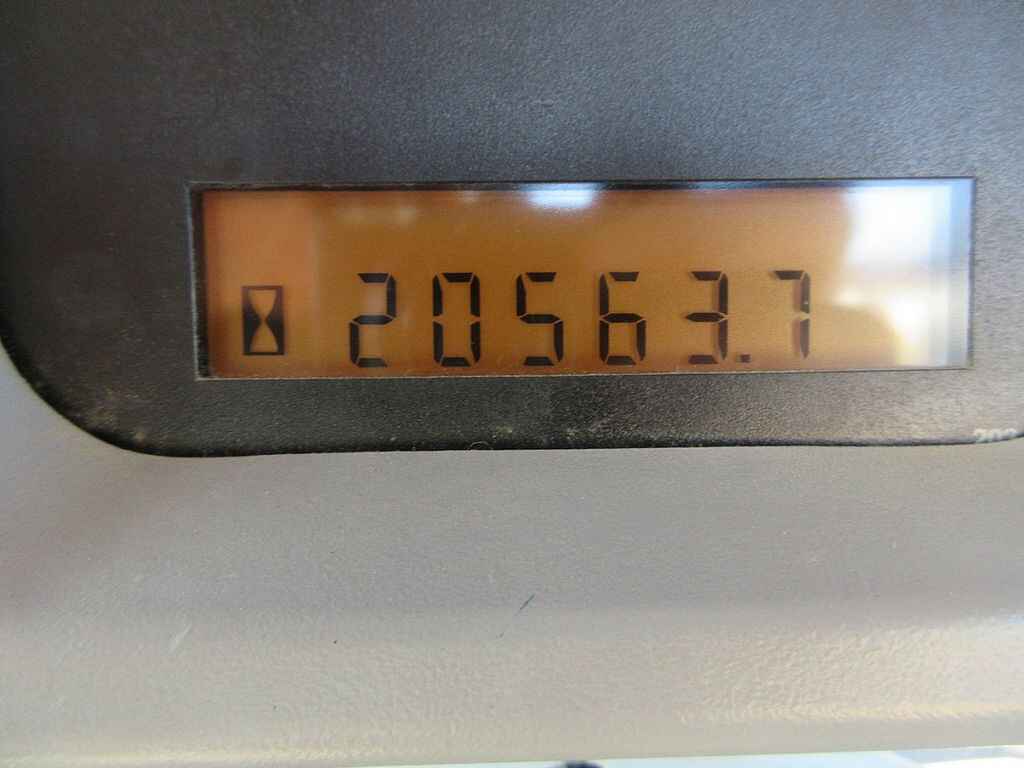

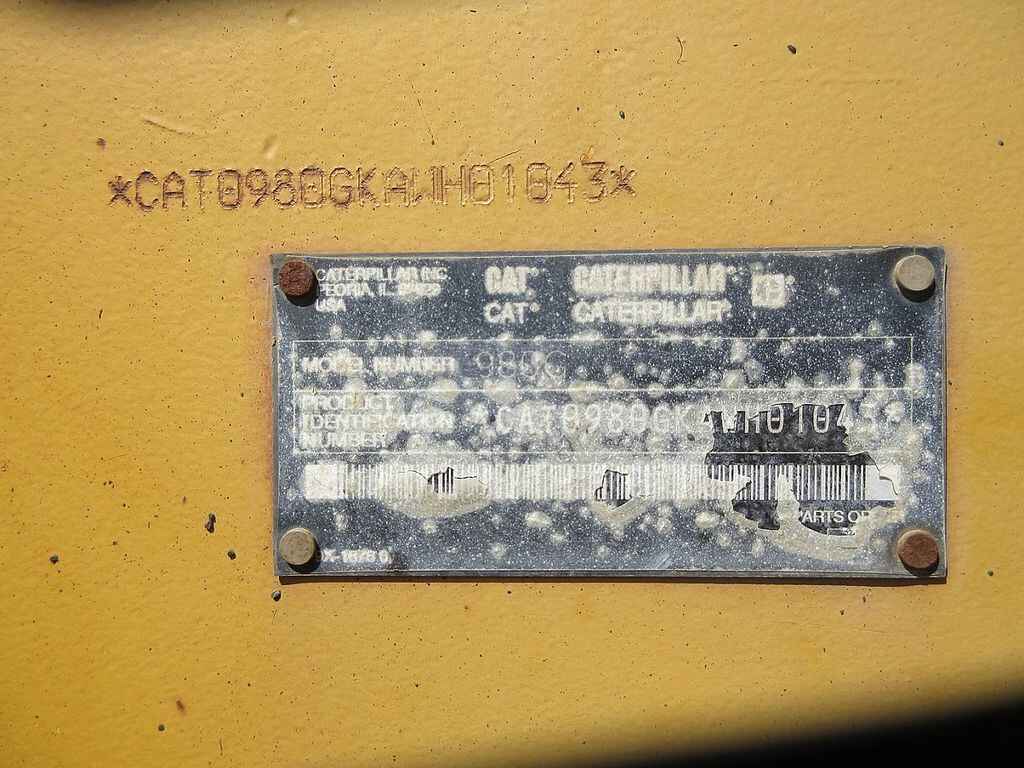

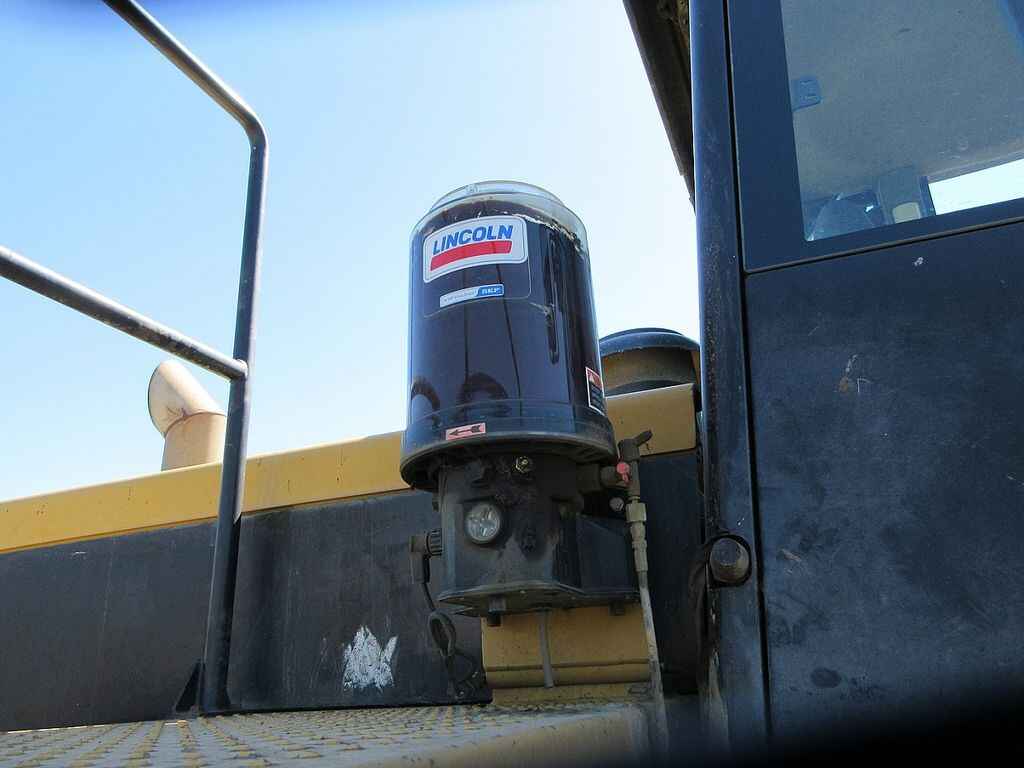

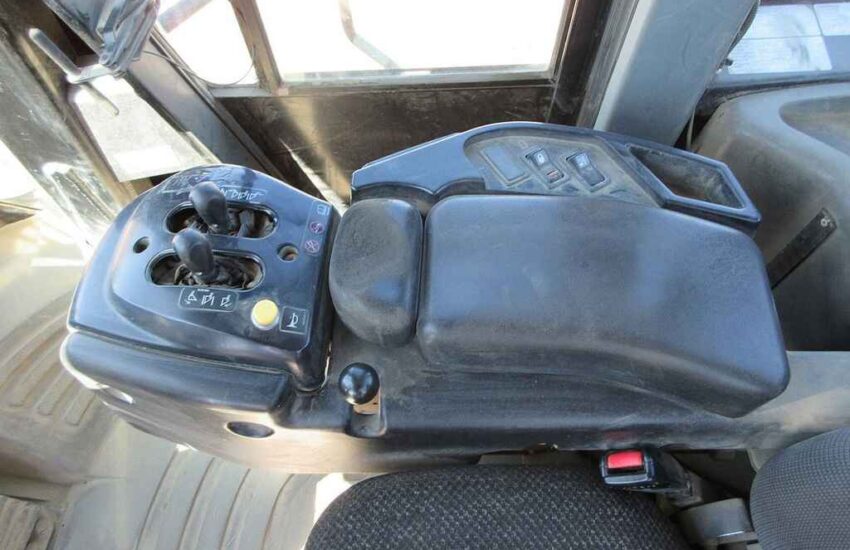

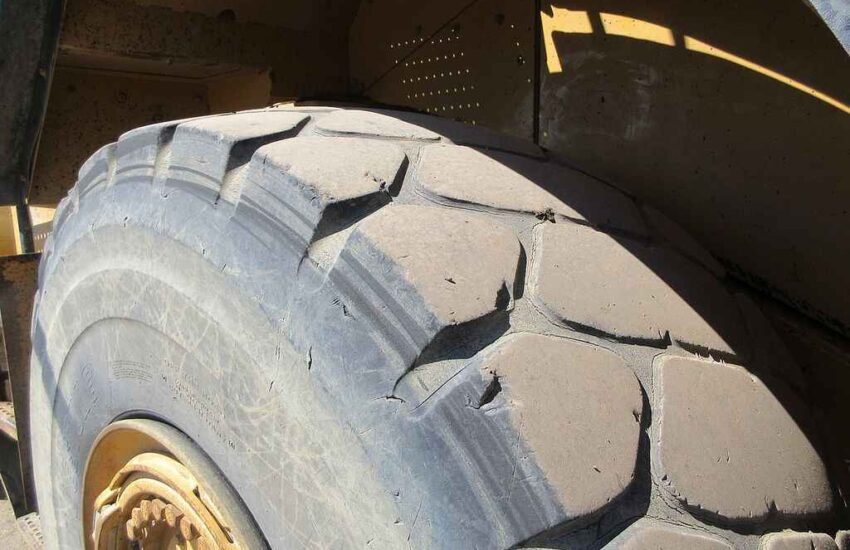

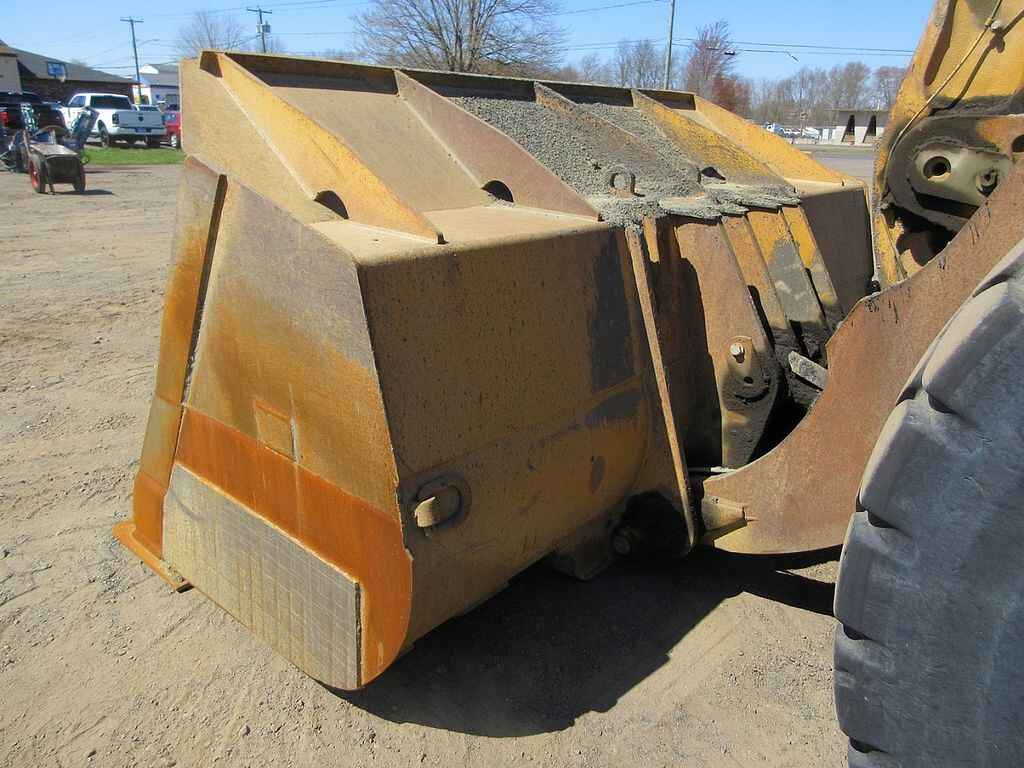

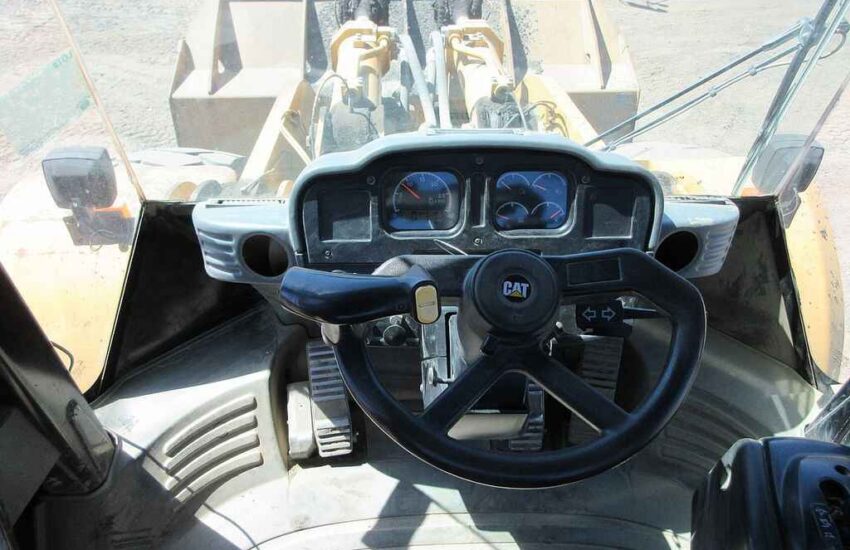

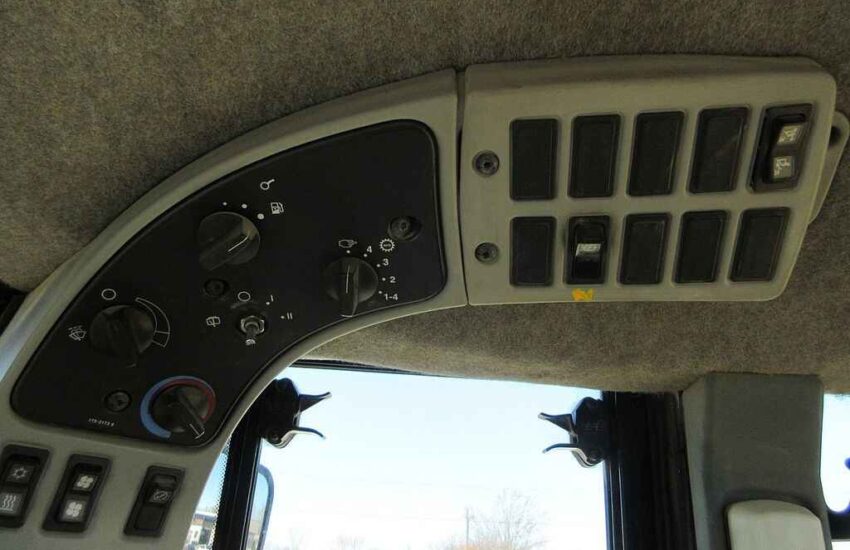

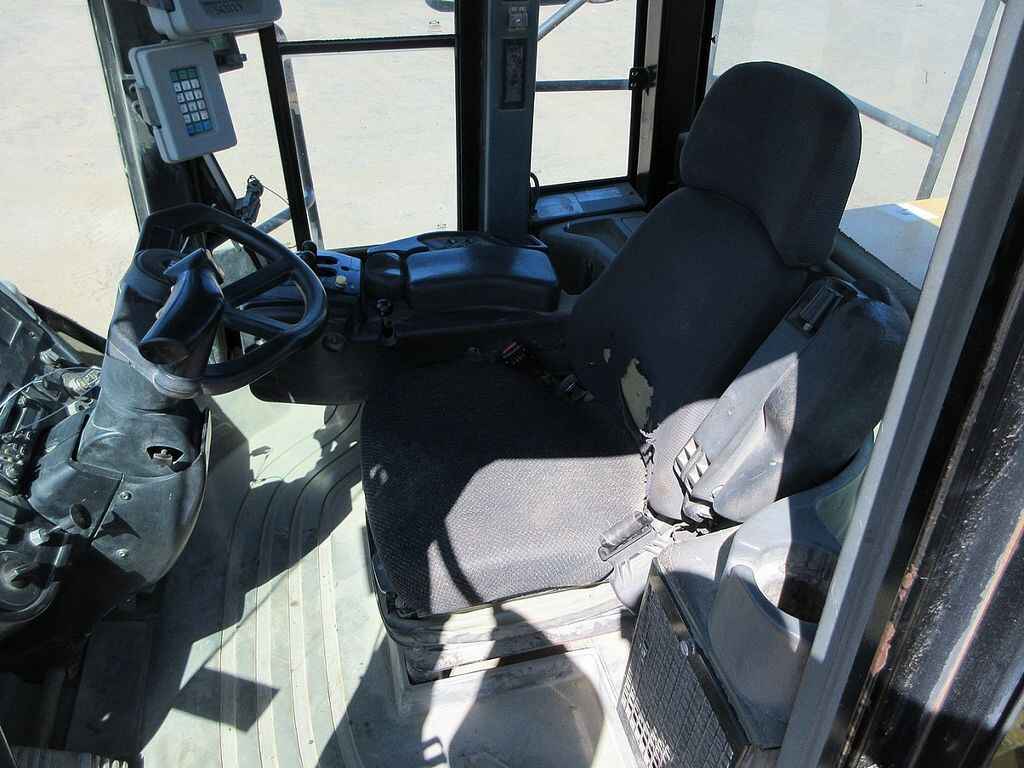

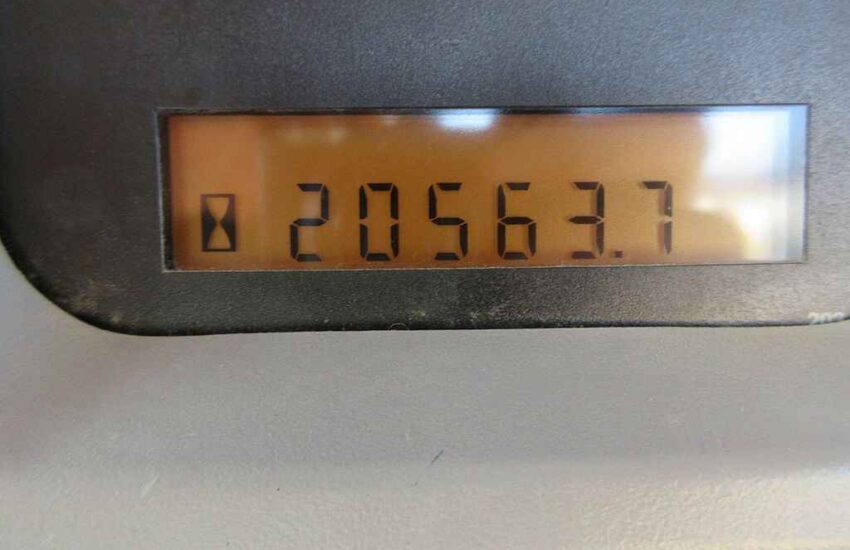

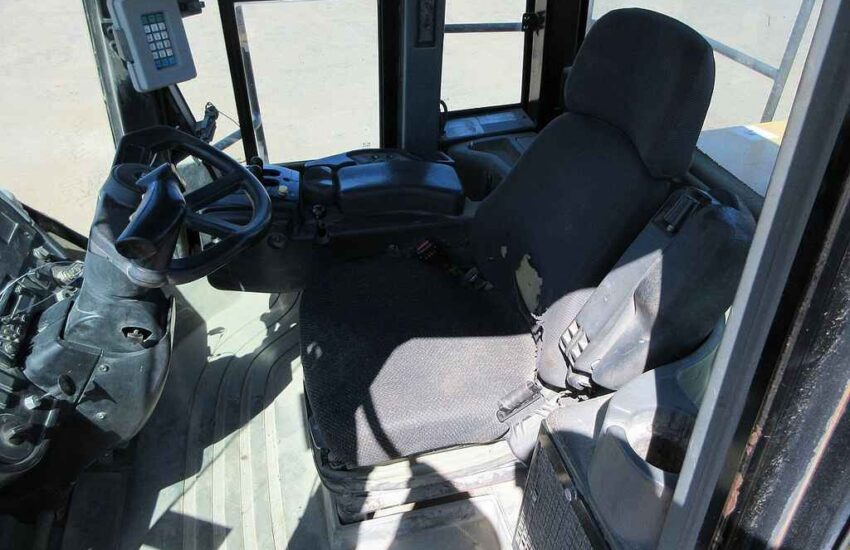

Series II, Caterpillar 3406 6 cyl turbo diesel, cab with heat, A/C, stereo, autoshift, scale, command steer, 29.5R25 radial rubber, autolube, GP bucket with BOCE, meter reads 20563 hours, S/N CAT0980GKAWH01043

SPECIFICATIONS

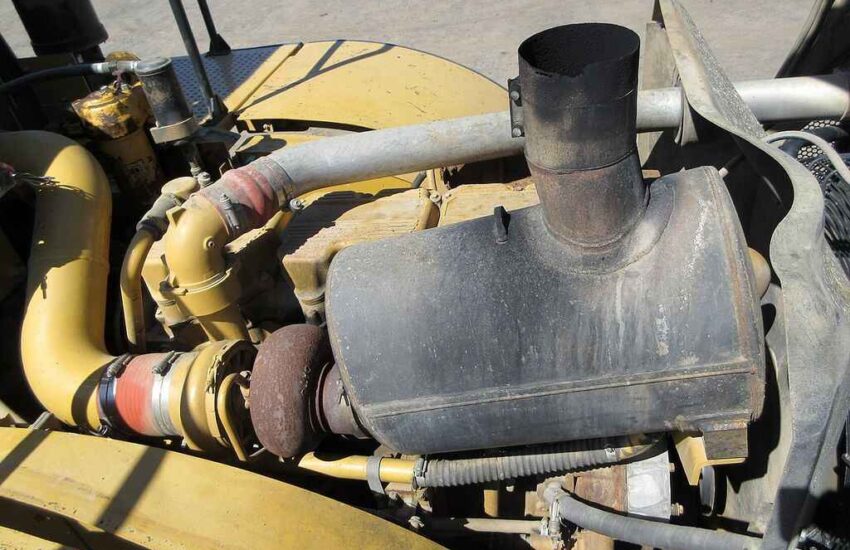

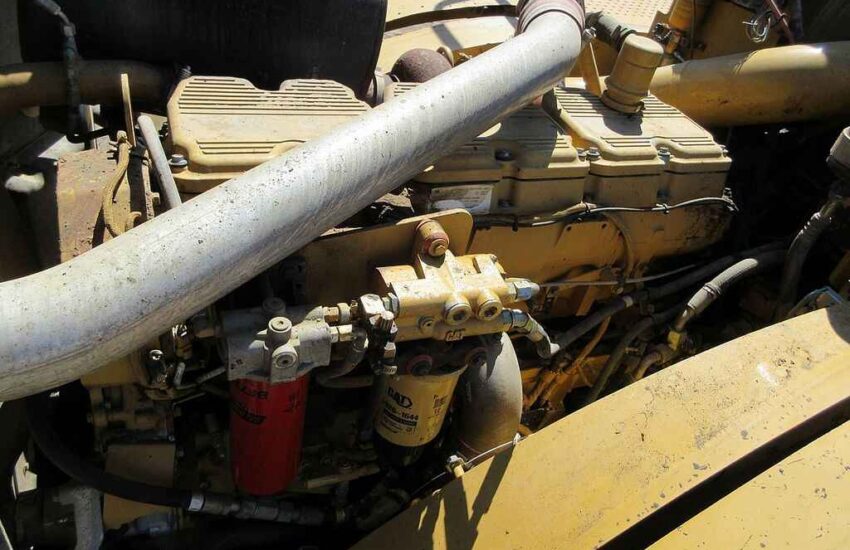

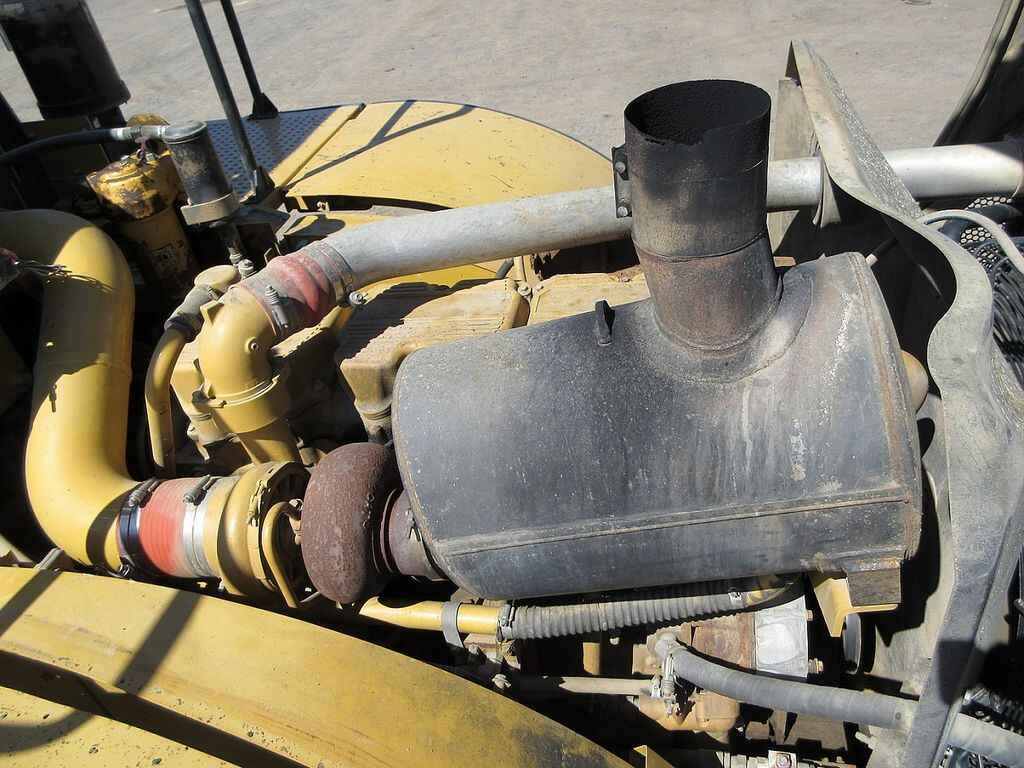

Engine

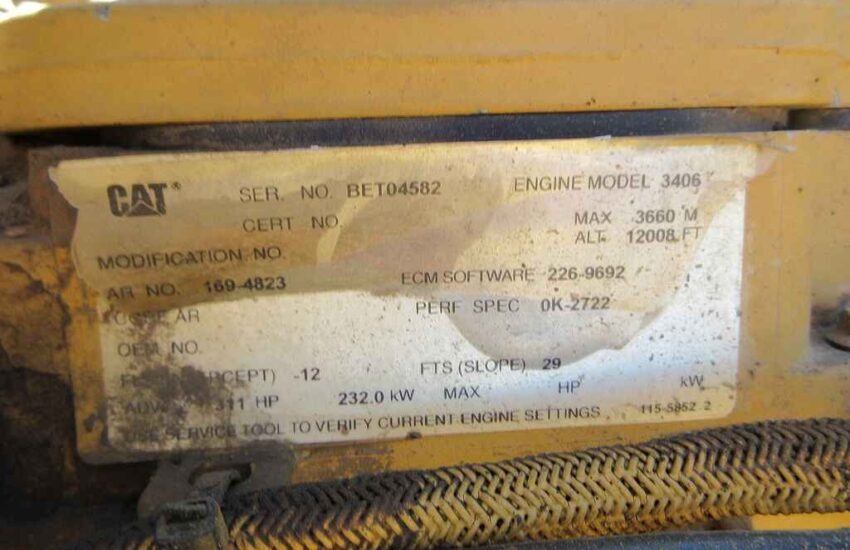

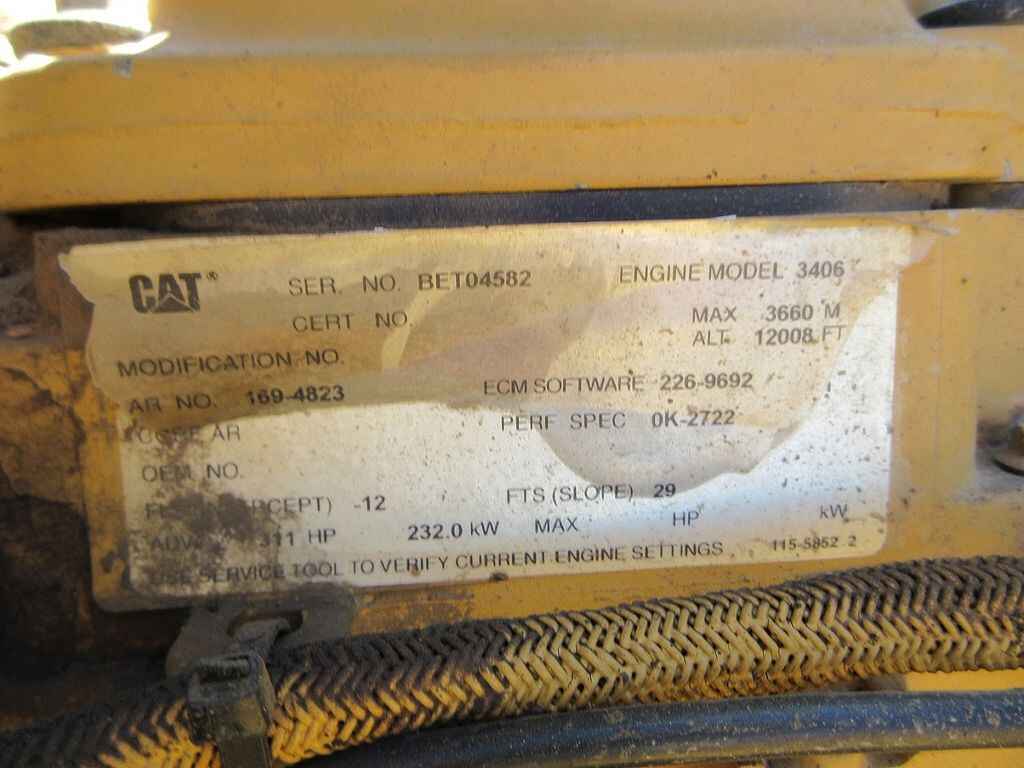

• Model: Cat 3406C DITA
• Net Power: 323 hp (241 kW)
• Gross Power: 300 hp (224 kW)
• Displacement: 14.6 L (891 in³)

Weights
• Operating Weight: 65,638 lbs (29,773 kg)
• Static Tipping Load (Full Turn): 40,005 lbs (18,146 kg)

Performance

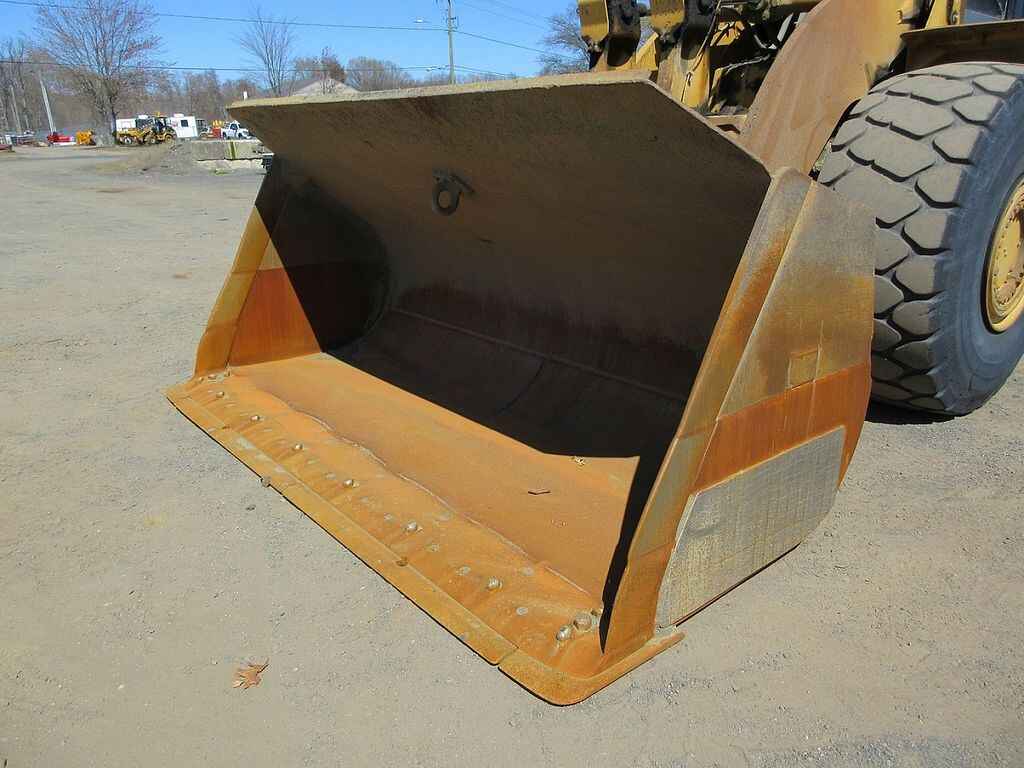

• Bucket Capacity (Heaped): 5.5 yd³ (4.2 m³)
• Breakout Force: 47,277 lbs (21,445 kg)
• Dump Clearance at Max Raise: 10.74 ft (3.27 m)
• Top Forward Speed: 23.3 mph (37.5 km/h)
• Top Reverse Speed: 26.6 mph (42.8 km/h)

Hydraulics
• Hydraulic Cycle Time (Total): 12.2 seconds
• Raise Time: 6.8 seconds
• Dump Time: 2.0 seconds
• Lowering Time (Float Down): 3.4 seconds

Dimensions
• Length with Bucket on Ground: 31.06 ft (9.46 m)
• Width Over Tires: 10.67 ft (3.25 m)
• Height to Top of Cab: 12.31 ft (3.75 m)
• Ground Clearance: 1.54 ft (0.47 m)
• Bucket Width: 11.31 ft (3.45 m)
• Reach at Max Lift and Dump: 5.07 ft (1.55 m)

Capacities
• Fuel Tank: 124 gal (469 L)
• Hydraulic System (Total): 55 gal (208 L)
• Hydraulic Tank: 33.1 gal (125 L)
• Cooling System: 20.9 gal (79 L)
• Crankcase: 10.1 gal (38 L)
• Transmission: 16.4 gal (62 L)
• Front Differential & Final Drives: 23 gal (87 L)
• Rear Differential & Final Drives: 21.4 gal (81 L)

Transmission
• Type: Powershift
• Number of Forward Gears: 4
• Number of Reverse Gears: 4
• Speeds:
 – Forward 1: 4.4 mph (7.1 km/h)
 – Forward 2: 7.7 mph (12.4 km/h)
 – Forward 3: 13.5 mph (21.7 km/h)
 – Forward 4: 23.3 mph (37.5 km/h)
 – Reverse 1: 5.0 mph (8.0 km/h)
 – Reverse 2: 8.7 mph (14.0 km/h)
 – Reverse 3: 15.3 mph (24.6 km/h)
 – Reverse 4: 26.6 mph (42.8 km/h)
